Echo CS-620SX IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-620SX-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

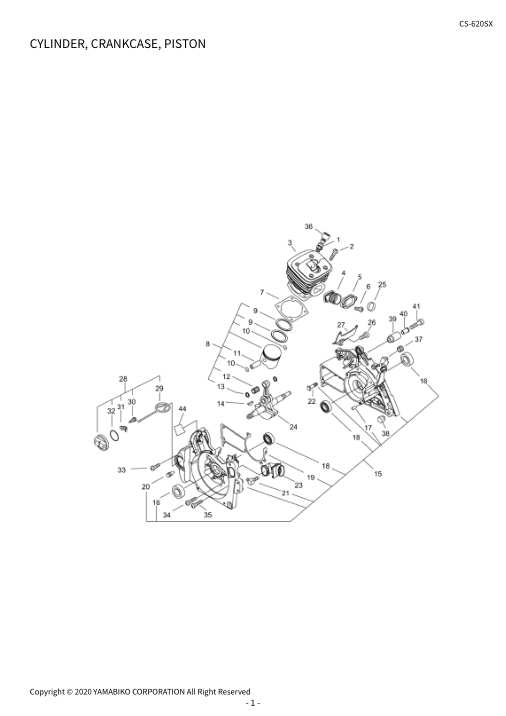

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.

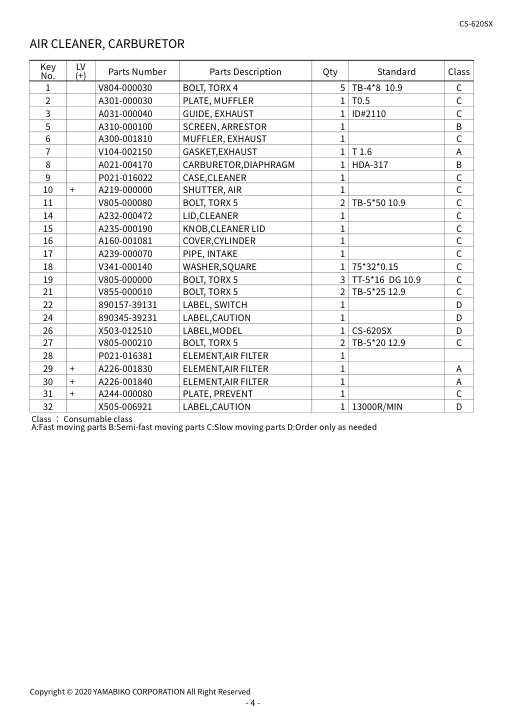

Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.

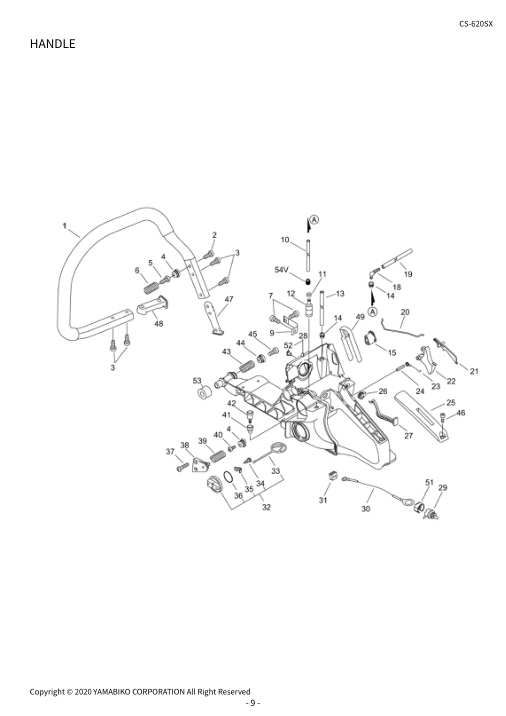

Page 12
Tap or click the page image to enlarge it.

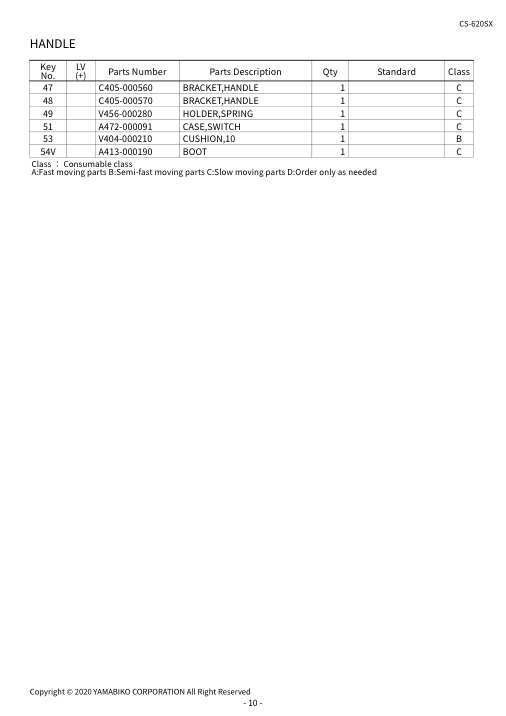

Page 13
Tap or click the page image to enlarge it.

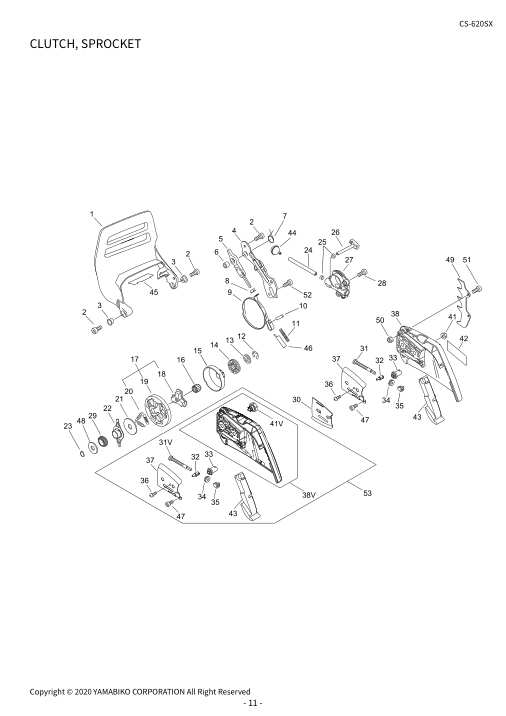

Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.

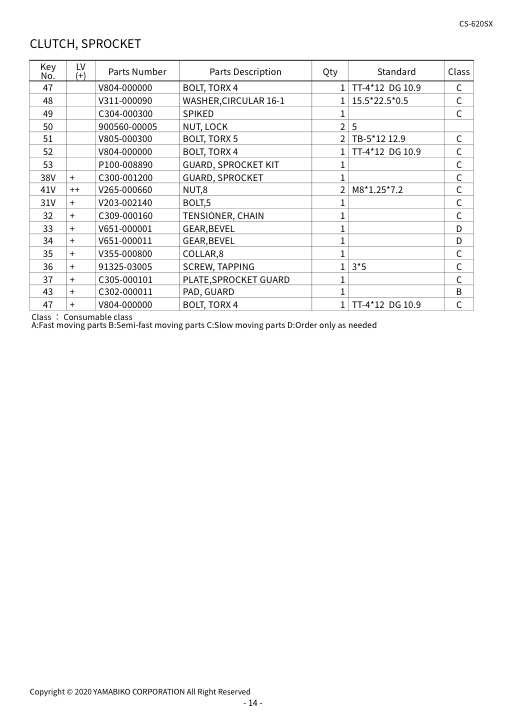

Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.

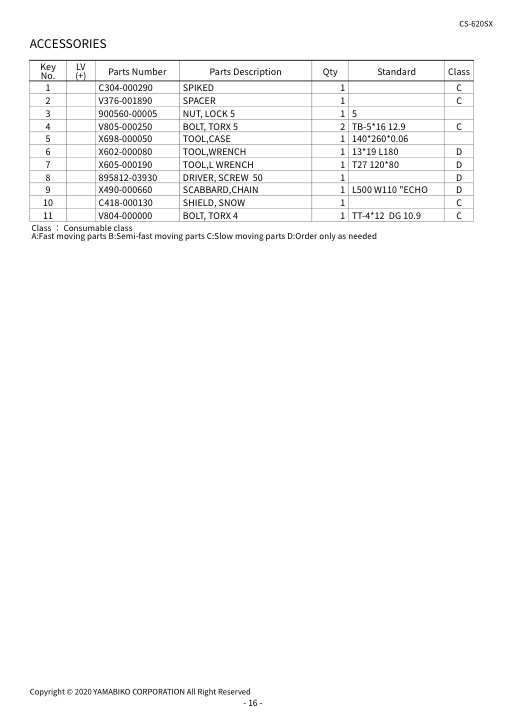

Page 19
Tap or click the page image to enlarge it.

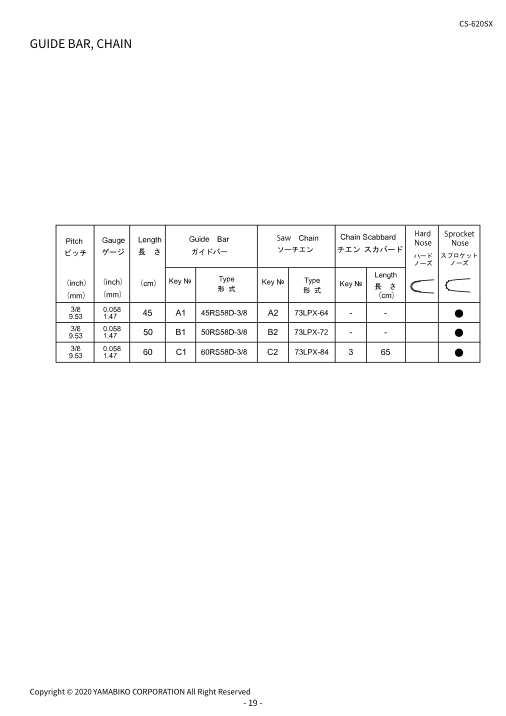

Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.

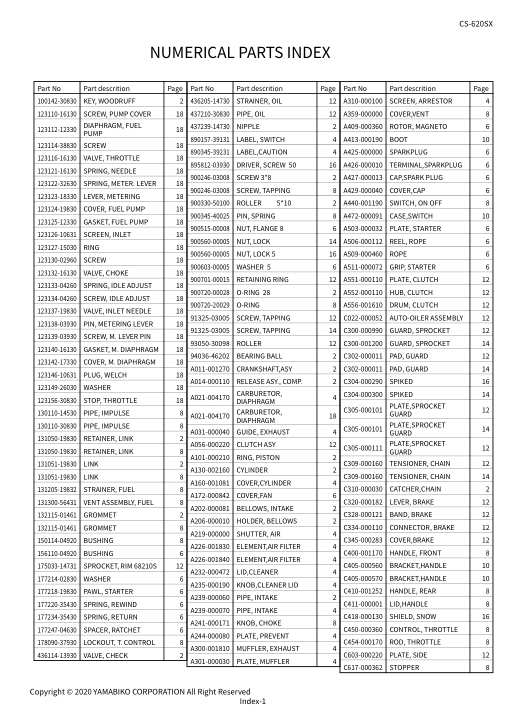

Page 24
Tap or click the page image to enlarge it.

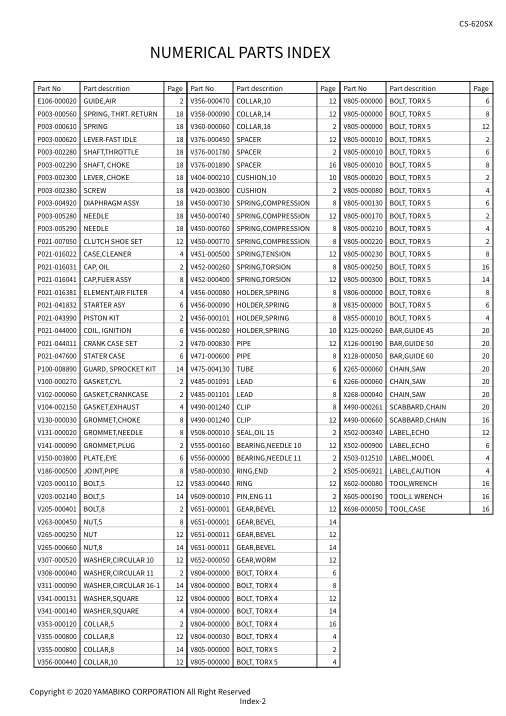

Page 25
Tap or click the page image to enlarge it.
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Release Asy., Comp. | A014-000110 | A014-000110-Online | |||
| 2 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 4 TB-5*25 12.9 | ||
| 3 | Cylinder | A130-002160 | A130-002160-Online | |||
| 4 | Bellows, Intake | A202-000081 | A202-000081-Online | |||
| 5 | Holder, Bellows | A206-000010 | A206-000010-Online | |||
| 6 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG 10.9 | ||
| 7 | Gasket,Cyl | V100-000270 | V100-000270-Online | |||
| 8 | Piston Kit | P021-043990 | P021-043990-Online | |||
| 9 | + | Ring, Piston | A101-000210 | A101-000210-Online | 2 45*1.5*1.9 | |
| 10 | + | Ring,End | V580-000030 | V580-000030-Online | 2 D 1.0 | |
| 11 | + | Pin,Eng 11 | V609-000010 | V609-000010-Online | 1 7*11*37.6 | |
| 12 | + | Bearing,Needle 11 | V556-000000 | V556-000000-Online | 1 KBK11*15*15.8X2 | |
| 13 | + | Washer,Circular 11 | V308-000040 | V308-000040-Online | 2 11.2*19.5*0.5 | |
| 14 | Key, Woodruff | 100142-30830 | 100142-30830-Online | |||
| 15 | Crank Case Set | P021-044011 | P021-044011-Online | |||
| 16 | + | Seal,Oil 15 | V508-000010 | V508-000010-Online | 2 ISCD 15*25*7 | |
| 17 | + | Roller 5*10 | 900330-50100 | 900330-50100-Online | ||
| 18 | + | Bearing Ball | 94036-46202 | 94036-46202-Online | ||
| 19 | + | Gasket,Crankcase | V102-000060 | V102-000060-Online | 1 T0.4 | |
| 20 | + | Valve, Check | 436114-13930 | 436114-13930-Online | ||
| 21 | + | Nipple | 437239-14730 | 437239-14730-Online | ||
| 22 | + | Bolt,8 | V205-000401 | V205-000401-Online | ||
| 23 | Pipe, Intake | A239-000060 | A239-000060-Online | |||
| 24 | Crankshaft,Asy | A011-001270 | A011-001270-Online | 1 CSB-620PW | ||
| 25 | Collar,18 | V360-000060 | V360-000060-Online | |||
| 26 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 1 TT-5*16 DG 10.9 | ||
| 27 | Guide,Air | E106-000020 | E106-000020-Online | |||
| 28 | Cap, Oil | P021-016031 | P021-016031-Online | |||
| 29 | + | Link | 131051-19830 | 131051-19830-Online | 1 60L | |
| 30 | + | Screw 3*8 | 900246-03008 | 900246-03008-Online | 1 3*8 | |
| 31 | + | Retainer, Link | 131050-19830 | 131050-19830-Online | ||
| 32 | + | O-Ring 28 | 900720-00028 | 900720-00028-Online | 1 P-28 | |
| 33 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 2 TT-5*20 DG 10.9 | ||
| 34 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | 4 TT-5*35 DG 10.9 | ||
| 35 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 1 TB-5*25 10.9 | ||
| 36 | Grommet,Plug | V141-000090 | V141-000090-Online | |||
| 37 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 38 | Cushion | V420-003800 | V420-003800-Online | |||
| 39 | Catcher,Chain | C310-000030 | C310-000030-Online | |||
| 40 | Collar,5 | V353-000120 | V353-000120-Online | |||
| 41 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | 1 TT-5*35 DG 10.9 | ||
| 44 | Spacer | V376-001780 | V376-001780-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

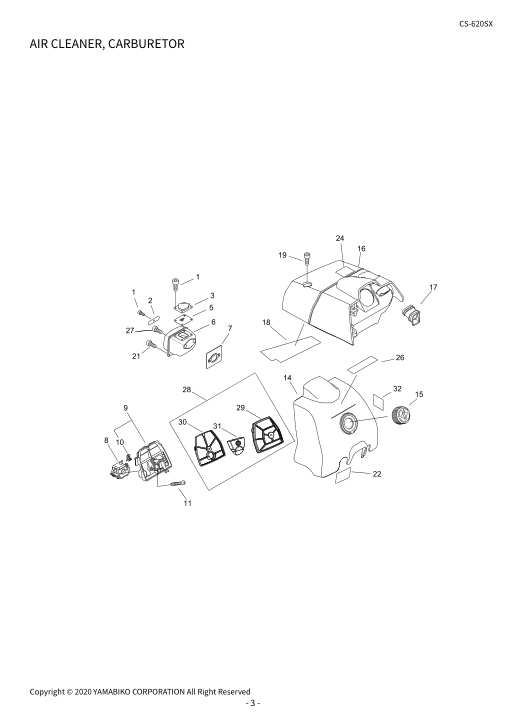

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | 5 TB-4*8 10.9 | ||
| 2 | Plate, Muffler | A301-000030 | A301-000030-Online | 1 T0.5 | ||
| 3 | Guide, Exhaust | A031-000040 | A031-000040-Online | 1 ID#2110 | ||
| 5 | Screen, Arrestor | A310-000100 | A310-000100-Online | |||
| 6 | Muffler, Exhaust | A300-001810 | A300-001810-Online | |||
| 7 | Gasket,Exhaust | V104-002150 | V104-002150-Online | 1 T 1.6 | ||
| 8 | Carburetor,Diaphragm | A021-004170 | A021-004170-Online | 1 HDA-317 | ||
| 9 | Case,Cleaner | P021-016022 | P021-016022-Online | |||
| 10 | + | Shutter, Air | A219-000000 | A219-000000-Online | ||
| 11 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | 2 TB-5*50 10.9 | ||
| 14 | Lid,Cleaner | A232-000472 | A232-000472-Online | |||
| 15 | Knob,Cleaner Lid | A235-000190 | A235-000190-Online | |||
| 16 | Cover,Cylinder | A160-001081 | A160-001081-Online | |||
| 17 | Pipe, Intake | A239-000070 | A239-000070-Online | |||
| 18 | Washer,Square | V341-000140 | V341-000140-Online | 1 75*32*0.15 | ||
| 19 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 3 TT-5*16 DG 10.9 | ||
| 21 | Bolt, Torx 5 | V855-000010 | V855-000010-Online | 2 TB-5*25 12.9 | ||
| 22 | Label, Switch | 890157-39131 | 890157-39131-Online | |||
| 24 | Label,Caution | 890345-39231 | 890345-39231-Online | |||
| 26 | Label,Model | X503-012510 | X503-012510-Online | 1 CS-620SX | ||
| 27 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 28 | Element,Air Filter | P021-016381 | P021-016381-Online | |||
| 29 | + | Element,Air Filter | A226-001830 | A226-001830-Online | ||
| 30 | + | Element,Air Filter | A226-001840 | A226-001840-Online | ||
| 31 | + | Plate, Prevent | A244-000080 | A244-000080-Online | ||
| 32 | Label,Caution | X505-006921 | X505-006921-Online | 1 13000R/MIN | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

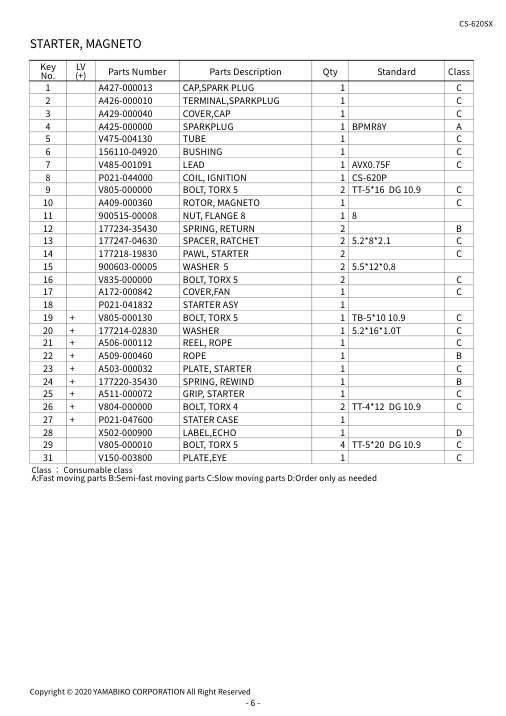

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 2 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 3 | Cover,Cap | A429-000040 | A429-000040-Online | |||
| 4 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 5 | Tube | V475-004130 | V475-004130-Online | |||
| 6 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 7 | Lead | V485-001091 | V485-001091-Online | 1 AVX0.75F | ||
| 8 | Coil, Ignition | P021-044000 | P021-044000-Online | 1 CS-620P | ||
| 9 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG 10.9 | ||
| 10 | Rotor, Magneto | A409-000360 | A409-000360-Online | |||
| 11 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 12 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 13 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 2 5.2*8*2.1 | ||
| 14 | Pawl, Starter | 177218-19830 | 177218-19830-Online | |||
| 15 | Washer 5 | 900603-00005 | 900603-00005-Online | 2 5.5*12*0.8 | ||
| 16 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 17 | Cover,Fan | A172-000842 | A172-000842-Online | |||
| 18 | Starter Asy | P021-041832 | P021-041832-Online | |||
| 19 | + | Bolt, Torx 5 | V805-000130 | V805-000130-Online | 1 TB-5*10 10.9 | |
| 20 | + | Washer | 177214-02830 | 177214-02830-Online | 1 5.2*16*1.0T | |
| 21 | + | Reel, Rope | A506-000112 | A506-000112-Online | ||
| 22 | + | Rope | A509-000460 | A509-000460-Online | ||
| 23 | + | Plate, Starter | A503-000032 | A503-000032-Online | ||
| 24 | + | Spring, Rewind | 177220-35430 | 177220-35430-Online | ||
| 25 | + | Grip, Starter | A511-000072 | A511-000072-Online | ||
| 26 | + | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 2 TT-4*12 DG 10.9 | |
| 27 | + | Stater Case | P021-047600 | P021-047600-Online | ||
| 28 | Label,Echo | X502-000900 | X502-000900-Online | |||
| 29 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 4 TT-5*20 DG 10.9 | ||
| 31 | Plate,Eye | V150-003800 | V150-003800-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

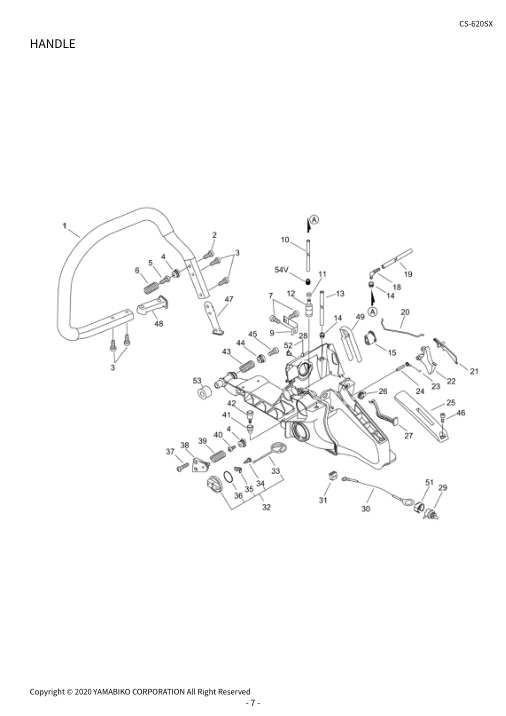

Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Handle, Front | C400-001170 | C400-001170-Online | |||
| 2 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | 1 TT-6*20 DG 10.9 | ||
| 3 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 4 TT-5*20 DG 10.9 | ||
| 4 | Holder,Spring | V456-000080 | V456-000080-Online | 2 14.4 | ||
| 5 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 1 TT-5*16 DG 10.9 | ||
| 6 | Spring,Compression | V450-000730 | V450-000730-Online | 1 17*38.4 | ||
| 7 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 2 TT-5*16 DG 10.9 | ||
| 9 | Stopper | C617-000362 | C617-000362-Online | |||
| 10 | Pipe | V471-000600 | V471-000600-Online | 1 3*5*120 | ||
| 11 | Clip | V490-001240 | V490-001240-Online | |||
| 12 | Strainer, Fuel | 131205-19832 | 131205-19832-Online | |||
| 13 | Pipe, Impulse | 130110-30830 | 130110-30830-Online | |||
| 14 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 15 | Grommet,Needle | V131-000020 | V131-000020-Online | |||
| 18 | Joint,Pipe | V186-000500 | V186-000500-Online | |||
| 19 | Pipe, Impulse | 130110-14530 | 130110-14530-Online | 1 3*6*135L | ||
| 20 | Rod, Throttle | C454-000170 | C454-000170-Online | |||
| 21 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | |||
| 22 | Control, Throttle | C450-000360 | C450-000360-Online | |||
| 23 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 24 | Pin, Spring | 900345-40025 | 900345-40025-Online | 1 4*25 | ||
| 25 | Lid,Handle | C411-000001 | C411-000001-Online | |||
| 26 | Grommet,Choke | V130-000030 | V130-000030-Online | |||
| 27 | Knob, Choke | A241-000171 | A241-000171-Online | |||
| 28 | Handle, Rear | C410-001252 | C410-001252-Online | |||
| 52 | + | Nut,5 | V263-000450 | V263-000450-Online | ||
| 29 | Switch, On Off | A440-001190 | A440-001190-Online | |||
| 30 | Lead | V485-001101 | V485-001101-Online | 1 L:170/LA105 | ||
| 31 | Bushing | 150114-04920 | 150114-04920-Online | |||
| 32 | Cap,Fuer Assy | P021-016041 | P021-016041-Online | |||
| 33 | + | Link | 131051-19830 | 131051-19830-Online | 1 60L | |
| 34 | + | Screw, Tapping | 900246-03008 | 900246-03008-Online | 1 3*8 | |
| 35 | + | Retainer, Link | 131050-19830 | 131050-19830-Online | ||
| 36 | + | O-Ring | 900720-20029 | 900720-20029-Online | 1 P-29 | |
| 37 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 2 TT-5*20 DG 10.9 | ||
| 38 | Holder,Spring | V456-000090 | V456-000090-Online | |||
| 39 | Spring,Compression | V450-000760 | V450-000760-Online | 1 17*36.7*2.6 | ||
| 40 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | 1 TT-5*25 DG 10.9 | ||
| 41 | Cover,Vent | A359-000000 | A359-000000-Online | 1 22.5*D18*D8.5 | ||
| 42 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 43 | Spring,Compression | V450-000770 | V450-000770-Online | 1 20*40*3.3 | ||
| 44 | Holder,Spring | V456-000101 | V456-000101-Online | |||
| 45 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | 1 TT-6*20 DG 10.9 | ||
| 46 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | Bracket,Handle | C405-000560 | C405-000560-Online | |||
| 48 | Bracket,Handle | C405-000570 | C405-000570-Online | |||
| 49 | Holder,Spring | V456-000280 | V456-000280-Online | |||
| 51 | Case,Switch | A472-000091 | A472-000091-Online | |||
| 53 | Cushion,10 | V404-000210 | V404-000210-Online | |||
| 54V | Boot | A413-000190 | A413-000190-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lever, Brake | C320-000182 | C320-000182-Online | |||
| 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 5 TT-5*16 DG 10.9 | ||
| 3 | Collar,10 | V356-000440 | V356-000440-Online | 2 11.2*16.2*T0.6 | ||
| 4 | Cover,Brake | C345-000283 | C345-000283-Online | |||
| 5 | Connector, Brake | C334-000110 | C334-000110-Online | |||
| 6 | Collar,10 | V356-000470 | V356-000470-Online | 1 12*10*T1.0 | ||
| 7 | Spring,Torsion | V452-000400 | V452-000400-Online | |||
| 8 | Spacer | V376-000450 | V376-000450-Online | |||
| 9 | Band, Brake | C328-000121 | C328-000121-Online | |||
| 10 | Roller | 93050-30098 | 93050-30098-Online | 1 3*9.8 | ||
| 11 | Spring,Compression | V450-000740 | V450-000740-Online | 1 12*70.5 | ||
| 12 | Ring | V583-000440 | V583-000440-Online | 1 8.1 T1.2 | ||
| 13 | Washer,Circular 10 | V307-000520 | V307-000520-Online | |||
| 14 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | |||
| 15 | Drum, Clutch | A556-001610 | A556-001610-Online | |||
| 16 | Bearing,Needle 10 | V555-000160 | V555-000160-Online | |||
| 17 | Clutch Asy | A056-000220 | A056-000220-Online | 1 VA | ||
| 18 | + | Hub, Clutch | A552-000110 | A552-000110-Online | ||
| 19 | + | Clutch Shoe Set | P021-007050 | P021-007050-Online | ||
| 20 | + | Spring,Tension | V451-000500 | V451-000500-Online | ||
| 21 | Plate, Clutch | A551-000110 | A551-000110-Online | 1 12*36*2 | ||
| 22 | Collar,14 | V358-000090 | V358-000090-Online | |||
| 23 | Retaining Ring | 900701-00015 | 900701-00015-Online | 1 CS-15 | ||
| 24 | Pipe, Oil | 437210-30830 | 437210-30830-Online | 1 NBR 3*6*210L | ||
| 25 | Clip | V490-001240 | V490-001240-Online | |||
| 26 | Pipe | V470-000830 | V470-000830-Online | |||
| 27 | Auto-Oiler Assembly | C022-000052 | C022-000052-Online | |||
| 28 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 2 TT-4*12 DG 10.9 | ||
| 29 | Gear,Worm | V652-000050 | V652-000050-Online | |||
| 30 | Plate,Sprocket Guard | C305-000111 | C305-000111-Online | |||
| 31 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 32 | Tensioner, Chain | C309-000160 | C309-000160-Online | |||
| 33 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 34 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 35 | Collar,8 | V355-000800 | V355-000800-Online | |||
| 36 | Screw, Tapping | 91325-03005 | 91325-03005-Online | 1 3*5 | ||
| 37 | Plate,Sprocket Guard | C305-000101 | C305-000101-Online | |||
| 38 | Guard, Sprocket | C300-000990 | C300-000990-Online | |||
| 42 | Label,Echo | X502-000340 | X502-000340-Online | 1 ECHO(WHITE) | ||
| 43 | Pad, Guard | C302-000011 | C302-000011-Online | |||
| 44 | Strainer, Oil | 436205-14730 | 436205-14730-Online | |||
| 45 | Washer,Square | V341-000131 | V341-000131-Online | 1 75*27*0.15 | ||
| 46 | Plate, Side | C603-000220 | C603-000220-Online | 1 T0.3 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | ||
| 48 | Washer,Circular 16-1 | V311-000090 | V311-000090-Online | 1 15.5*22.5*0.5 | ||
| 49 | Spiked | C304-000300 | C304-000300-Online | |||
| 50 | Nut, Lock | 900560-00005 | 900560-00005-Online | 2 5 | ||
| 51 | Bolt, Torx 5 | V805-000300 | V805-000300-Online | 2 TB-5*12 12.9 | ||
| 52 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | ||
| 53 | Guard, Sprocket Kit | P100-008890 | P100-008890-Online | |||
| 38V | + | Guard, Sprocket | C300-001200 | C300-001200-Online | 1 | C | 41V | ++ | |
| 41V | Nut,8 | V265-000660 | V265-000660-Online | 2 M8*1.25*7.2 | ||
| 31V | + | Bolt,5 | V203-002140 | V203-002140-Online | ||
| 32 | + | Tensioner, Chain | C309-000160 | C309-000160-Online | ||
| 33 | + | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 34 | + | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 35 | + | Collar,8 | V355-000800 | V355-000800-Online | ||
| 36 | + | Screw, Tapping | 91325-03005 | 91325-03005-Online | 1 3*5 | |
| 37 | + | Plate,Sprocket Guard | C305-000101 | C305-000101-Online | ||
| 43 | + | Pad, Guard | C302-000011 | C302-000011-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Spiked | C304-000290 | C304-000290-Online | |||
| 2 | Spacer | V376-001890 | V376-001890-Online | |||
| 3 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | 1 5 | ||
| 4 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 2 TB-5*16 12.9 | ||
| 5 | Tool,Case | X698-000050 | X698-000050-Online | 1 140*260*0.06 | ||
| 6 | Tool,Wrench | X602-000080 | X602-000080-Online | 1 13*19 L180 | ||
| 7 | Tool,L Wrench | X605-000190 | X605-000190-Online | 1 T27 120*80 | ||
| 8 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 9 | Scabbard,Chain | X490-000660 | X490-000660-Online | 1 L500 W110 "ECHO | ||
| 10 | Shield, Snow | C418-000130 | C418-000130-Online | |||
| 11 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | 1 TT-4*12 DG 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | Screen, Inlet | 123126-10631 | 123126-10631-Online | ||
| 3 | + | Diaphragm, Fuel Pump | 123112-12330 | 123112-12330-Online | ||
| 4 | + | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | ||
| 5 | + | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | ||
| 6 | + | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | ||
| 7 | + | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | ||
| 8 | + | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | ||
| 9 | + | Diaphragm Assy | P003-004920 | P003-004920-Online | 1 95-649 | |
| 10 | + | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | ||
| 11 | + | Gasket, M. Diaphragm | 123140-16130 | 123140-16130-Online | ||
| 12 | + | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | ||
| 13 | + | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | ||
| 14 | + | Lever, Metering | 123123-18330 | 123123-18330-Online | ||
| 15 | + | Plug, Welch | 123146-10631 | 123146-10631-Online | ||
| 16 | + | Spring, Needle | 123121-16130 | 123121-16130-Online | ||
| 17 | + | Needle | P003-005280 | P003-005280-Online | ||
| 18 | + | Needle | P003-005290 | P003-005290-Online | ||
| 19 | + | Stop, Throttle | 123156-30830 | 123156-30830-Online | ||
| 20 | + | Screw | 123114-38830 | 123114-38830-Online | ||
| 21 | + | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | ||
| 22 | + | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | ||
| 23 | + | Screw | P003-002380 | P003-002380-Online | ||
| 24 | + | Valve, Choke | 123132-16130 | 123132-16130-Online | ||
| 25 | + | Spring, Thrt. Return | P003-000560 | P003-000560-Online | ||
| 26 | + | Shaft,Throttle | P003-002280 | P003-002280-Online | ||
| 27 | + | Valve, Throttle | 123116-16130 | 123116-16130-Online | ||
| 28 | + | Ring | 123127-15030 | 123127-15030-Online | ||
| 29 | + | Shaft, Choke | P003-002290 | P003-002290-Online | ||
| 30 | + | Lever, Choke | P003-002300 | P003-002300-Online | ||
| 31 | + | Spring | P003-000610 | P003-000610-Online | ||
| 32 | + | Washer | 123149-26030 | 123149-26030-Online | ||
| 33 | + | Lever-Fast Idle | P003-000620 | P003-000620-Online | ||
| 34 | + | Screw | 123130-02960 | 123130-02960-Online | 4 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| A | Chain,Saw | X265-000060 | X265-000060-Online | 1 73LPX-64 | A | B1 | ||
| A | Bar,Guide 50 | X126-000190 | X126-000190-Online | 1 50RS58D-3/8EEC | A | B2 | ||
| A | Chain,Saw | X266-000060 | X266-000060-Online | 1 73LPX-72 | A | C1 | ||
| A | Bar,Guide 60 | X128-000050 | X128-000050-Online | 1 60RS58D-3/8EEC | A | C2 | ||
| A | Chain,Saw | X268-000040 | X268-000040-Online | 1 73LPX-84 | ||
| 3 | Scabbard,Chain | X490-000261 | X490-000261-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Screw, Pump Cover | 123110-16130 | 123110-16130-Online | |||
| 18 | Diaphragm, Fuel | 123112-12330 | 123112-12330-Online | PUMP | ||
| 18 | Screw | 123114-38830 | 123114-38830-Online | |||
| 18 | Valve, Throttle | 123116-16130 | 123116-16130-Online | |||
| 18 | Spring, Needle | 123121-16130 | 123121-16130-Online | |||
| 18 | Spring, Meter. Lever | 123122-32630 | 123122-32630-Online | |||
| 18 | Lever, Metering | 123123-18330 | 123123-18330-Online | |||
| 18 | Cover, Fuel Pump | 123124-19830 | 123124-19830-Online | |||
| 18 | Gasket, Fuel Pump | 123125-12330 | 123125-12330-Online | |||
| 18 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 18 | Ring | 123127-15030 | 123127-15030-Online | |||
| 18 | Screw | 123130-02960 | 123130-02960-Online | |||
| 18 | Valve, Choke | 123132-16130 | 123132-16130-Online | |||
| 18 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 18 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |||
| 18 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 18 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 18 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |||
| 18 | Gasket, M. Diaphragm | 123140-16130 | 123140-16130-Online | |||
| 18 | Cover, M. Diaphragm | 123142-17330 | 123142-17330-Online | |||
| 18 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 18 | Washer | 123149-26030 | 123149-26030-Online | |||
| 18 | Stop, Throttle | 123156-30830 | 123156-30830-Online | |||
| 18 | Pipe, Impulse | 130110-14530 | 130110-14530-Online | |||
| 8 | Pipe, Impulse | 130110-30830 | 130110-30830-Online | |||
| 8 | Retainer, Link | 131050-19830 | 131050-19830-Online | |||
| 2 | Retainer, Link | 131050-19830 | 131050-19830-Online | |||
| 8 | Link | 131051-19830 | 131051-19830-Online | |||
| 2 | Link | 131051-19830 | 131051-19830-Online | |||
| 8 | Strainer, Fuel | 131205-19832 | 131205-19832-Online | |||
| 8 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online | |||
| 8 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 2 | Grommet | 132115-01461 | 132115-01461-Online | |||
| 8 | Bushing | 150114-04920 | 150114-04920-Online | |||
| 8 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 6 | Sprocket, Rim 68210S | 175033-14731 | 175033-14731-Online | |||
| 12 | Washer | 177214-02830 | 177214-02830-Online | |||
| 6 | Pawl, Starter | 177218-19830 | 177218-19830-Online | |||
| 6 | Spring, Rewind | 177220-35430 | 177220-35430-Online | |||
| 6 | Spring, Return | 177234-35430 | 177234-35430-Online | |||
| 6 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | |||
| 6 | Lockout, T. Control | 178090-37930 | 178090-37930-Online | |||
| 8 | Valve, Check | 436114-13930 | 436114-13930-Online | 2 | Part No | Part descrition | Page | ||
| 12 | Pipe, Oil | 437210-30830 | 437210-30830-Online | |||
| 12 | Nipple | 437239-14730 | 437239-14730-Online | |||
| 2 | Label, Switch | 890157-39131 | 890157-39131-Online | |||
| 4 | Label,Caution | 890345-39231 | 890345-39231-Online | |||
| 4 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | |||
| 16 | Screw 3*8 | 900246-03008 | 900246-03008-Online | |||
| 2 | Screw, Tapping | 900246-03008 | 900246-03008-Online | |||
| 8 | Roller 5*10 | 900330-50100 | 900330-50100-Online | |||
| 2 | Pin, Spring | 900345-40025 | 900345-40025-Online | |||
| 8 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 6 | Nut, Lock | 900560-00005 | 900560-00005-Online | |||
| 14 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |||
| 16 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 6 | Retaining Ring | 900701-00015 | 900701-00015-Online | |||
| 12 | O-Ring 28 | 900720-00028 | 900720-00028-Online | |||
| 2 | O-Ring | 900720-20029 | 900720-20029-Online | |||
| 8 | Screw, Tapping | 91325-03005 | 91325-03005-Online | |||
| 12 | Screw, Tapping | 91325-03005 | 91325-03005-Online | |||
| 14 | Roller | 93050-30098 | 93050-30098-Online | |||
| 12 | Bearing Ball | 94036-46202 | 94036-46202-Online | |||
| 2 | Crankshaft,Asy | A011-001270 | A011-001270-Online | |||
| 2 | Release Asy., Comp. | A014-000110 | A014-000110-Online | |||
| 2 | Carburetor, | A021-004170 | A021-004170-Online | DIAPHRAGM | ||
| 4 | Carburetor, | A021-004170 | A021-004170-Online | DIAPHRAGM | ||
| 18 | Guide, Exhaust | A031-000040 | A031-000040-Online | |||
| 4 | Clutch Asy | A056-000220 | A056-000220-Online | |||
| 12 | Ring, Piston | A101-000210 | A101-000210-Online | |||
| 2 | Cylinder | A130-002160 | A130-002160-Online | |||
| 2 | Cover,Cylinder | A160-001081 | A160-001081-Online | |||
| 4 | Cover,Fan | A172-000842 | A172-000842-Online | |||
| 6 | Bellows, Intake | A202-000081 | A202-000081-Online | |||
| 2 | Holder, Bellows | A206-000010 | A206-000010-Online | |||
| 2 | Shutter, Air | A219-000000 | A219-000000-Online | |||
| 4 | Element,Air Filter | A226-001830 | A226-001830-Online | |||
| 4 | Element,Air Filter | A226-001840 | A226-001840-Online | |||
| 4 | Lid,Cleaner | A232-000472 | A232-000472-Online | |||
| 4 | Knob,Cleaner Lid | A235-000190 | A235-000190-Online | |||
| 4 | Pipe, Intake | A239-000060 | A239-000060-Online | |||
| 2 | Pipe, Intake | A239-000070 | A239-000070-Online | |||
| 4 | Knob, Choke | A241-000171 | A241-000171-Online | |||
| 8 | Plate, Prevent | A244-000080 | A244-000080-Online | |||
| 4 | Muffler, Exhaust | A300-001810 | A300-001810-Online | |||
| 4 | Plate, Muffler | A301-000030 | A301-000030-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Cover,Vent | A359-000000 | A359-000000-Online | |||
| 8 | Rotor, Magneto | A409-000360 | A409-000360-Online | |||
| 6 | Boot | A413-000190 | A413-000190-Online | |||
| 10 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | |||
| 6 | Cap,Spark Plug | A427-000013 | A427-000013-Online | |||
| 6 | Cover,Cap | A429-000040 | A429-000040-Online | |||
| 6 | Switch, On Off | A440-001190 | A440-001190-Online | |||
| 8 | Case,Switch | A472-000091 | A472-000091-Online | |||
| 10 | Plate, Starter | A503-000032 | A503-000032-Online | |||
| 6 | Reel, Rope | A506-000112 | A506-000112-Online | |||
| 6 | Rope | A509-000460 | A509-000460-Online | |||
| 6 | Grip, Starter | A511-000072 | A511-000072-Online | |||
| 6 | Plate, Clutch | A551-000110 | A551-000110-Online | |||
| 12 | Hub, Clutch | A552-000110 | A552-000110-Online | |||
| 12 | Drum, Clutch | A556-001610 | A556-001610-Online | |||
| 12 | Auto-Oiler Assembly | C022-000052 | C022-000052-Online | |||
| 12 | Guard, Sprocket | C300-000990 | C300-000990-Online | |||
| 12 | Guard, Sprocket | C300-001200 | C300-001200-Online | |||
| 14 | Pad, Guard | C302-000011 | C302-000011-Online | |||
| 12 | Pad, Guard | C302-000011 | C302-000011-Online | |||
| 14 | Spiked | C304-000290 | C304-000290-Online | |||
| 16 | Spiked | C304-000300 | C304-000300-Online | |||
| 14 | Plate,Sprocket | C305-000101 | C305-000101-Online | GUARD | ||
| 12 | Plate,Sprocket | C305-000101 | C305-000101-Online | GUARD | ||
| 14 | Plate,Sprocket | C305-000111 | C305-000111-Online | GUARD | ||
| 12 | Tensioner, Chain | C309-000160 | C309-000160-Online | |||
| 14 | Catcher,Chain | C310-000030 | C310-000030-Online | |||
| 2 | Lever, Brake | C320-000182 | C320-000182-Online | |||
| 12 | Band, Brake | C328-000121 | C328-000121-Online | |||
| 12 | Connector, Brake | C334-000110 | C334-000110-Online | |||
| 12 | Cover,Brake | C345-000283 | C345-000283-Online | |||
| 12 | Handle, Front | C400-001170 | C400-001170-Online | |||
| 8 | Bracket,Handle | C405-000560 | C405-000560-Online | |||
| 10 | Bracket,Handle | C405-000570 | C405-000570-Online | |||
| 10 | Handle, Rear | C410-001252 | C410-001252-Online | |||
| 8 | Lid,Handle | C411-000001 | C411-000001-Online | |||
| 8 | Shield, Snow | C418-000130 | C418-000130-Online | |||
| 16 | Control, Throttle | C450-000360 | C450-000360-Online | |||
| 8 | Rod, Throttle | C454-000170 | C454-000170-Online | |||
| 8 | Plate, Side | C603-000220 | C603-000220-Online | |||
| 12 | Stopper | C617-000362 | C617-000362-Online | 8 | CS-620SX | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spring, Thrt. Return | P003-000560 | P003-000560-Online | |||
| 18 | Spring | P003-000610 | P003-000610-Online | |||
| 18 | Lever-Fast Idle | P003-000620 | P003-000620-Online | |||
| 18 | Shaft,Throttle | P003-002280 | P003-002280-Online | |||
| 18 | Shaft, Choke | P003-002290 | P003-002290-Online | |||
| 18 | Lever, Choke | P003-002300 | P003-002300-Online | |||
| 18 | Screw | P003-002380 | P003-002380-Online | |||
| 18 | Diaphragm Assy | P003-004920 | P003-004920-Online | |||
| 18 | Needle | P003-005280 | P003-005280-Online | |||
| 18 | Needle | P003-005290 | P003-005290-Online | |||
| 18 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |||
| 12 | Case,Cleaner | P021-016022 | P021-016022-Online | |||
| 4 | Cap, Oil | P021-016031 | P021-016031-Online | |||
| 2 | Cap,Fuer Assy | P021-016041 | P021-016041-Online | |||
| 8 | Element,Air Filter | P021-016381 | P021-016381-Online | |||
| 4 | Starter Asy | P021-041832 | P021-041832-Online | |||
| 6 | Piston Kit | P021-043990 | P021-043990-Online | |||
| 2 | Coil, Ignition | P021-044000 | P021-044000-Online | |||
| 6 | Crank Case Set | P021-044011 | P021-044011-Online | |||
| 2 | Stater Case | P021-047600 | P021-047600-Online | |||
| 6 | Guard, Sprocket Kit | P100-008890 | P100-008890-Online | |||
| 14 | Gasket,Cyl | V100-000270 | V100-000270-Online | |||
| 2 | Gasket,Crankcase | V102-000060 | V102-000060-Online | |||
| 2 | Gasket,Exhaust | V104-002150 | V104-002150-Online | |||
| 4 | Grommet,Choke | V130-000030 | V130-000030-Online | |||
| 8 | Grommet,Needle | V131-000020 | V131-000020-Online | |||
| 8 | Grommet,Plug | V141-000090 | V141-000090-Online | |||
| 2 | Plate,Eye | V150-003800 | V150-003800-Online | |||
| 6 | Joint,Pipe | V186-000500 | V186-000500-Online | |||
| 8 | Bolt,5 | V203-000110 | V203-000110-Online | |||
| 12 | Bolt,5 | V203-002140 | V203-002140-Online | |||
| 14 | Bolt,8 | V205-000401 | V205-000401-Online | |||
| 2 | Nut,5 | V263-000450 | V263-000450-Online | |||
| 12 | Nut,8 | V265-000660 | V265-000660-Online | |||
| 14 | Washer,Circular 10 | V307-000520 | V307-000520-Online | |||
| 12 | Washer,Circular 11 | V308-000040 | V308-000040-Online | |||
| 2 | Washer,Circular 16-1 | V311-000090 | V311-000090-Online | |||
| 14 | Washer,Square | V341-000131 | V341-000131-Online | |||
| 12 | Washer,Square | V341-000140 | V341-000140-Online | |||
| 4 | Collar,5 | V353-000120 | V353-000120-Online | |||
| 2 | Collar,8 | V355-000800 | V355-000800-Online | |||
| 12 | Collar,8 | V355-000800 | V355-000800-Online | |||
| 14 | Collar,10 | V356-000440 | V356-000440-Online | 12 | Part No | Part descrition | Page | ||
| 12 | Collar,14 | V358-000090 | V358-000090-Online | |||
| 12 | Collar,18 | V360-000060 | V360-000060-Online | |||
| 2 | Spacer | V376-000450 | V376-000450-Online | |||
| 12 | Spacer | V376-001780 | V376-001780-Online | |||
| 2 | Spacer | V376-001890 | V376-001890-Online | |||
| 16 | Cushion,10 | V404-000210 | V404-000210-Online | |||
| 10 | Cushion | V420-003800 | V420-003800-Online | |||
| 2 | Spring,Compression | V450-000730 | V450-000730-Online | |||
| 8 | Spring,Compression | V450-000740 | V450-000740-Online | |||
| 12 | Spring,Compression | V450-000760 | V450-000760-Online | |||
| 8 | Spring,Compression | V450-000770 | V450-000770-Online | |||
| 8 | Spring,Tension | V451-000500 | V451-000500-Online | |||
| 12 | Spring,Torsion | V452-000260 | V452-000260-Online | |||
| 8 | Spring,Torsion | V452-000400 | V452-000400-Online | |||
| 12 | Holder,Spring | V456-000080 | V456-000080-Online | |||
| 8 | Holder,Spring | V456-000090 | V456-000090-Online | |||
| 8 | Holder,Spring | V456-000101 | V456-000101-Online | |||
| 8 | Holder,Spring | V456-000280 | V456-000280-Online | |||
| 10 | Pipe | V470-000830 | V470-000830-Online | |||
| 12 | Pipe | V471-000600 | V471-000600-Online | |||
| 8 | Tube | V475-004130 | V475-004130-Online | |||
| 6 | Lead | V485-001091 | V485-001091-Online | |||
| 6 | Lead | V485-001101 | V485-001101-Online | |||
| 8 | Clip | V490-001240 | V490-001240-Online | |||
| 12 | Seal,Oil 15 | V508-000010 | V508-000010-Online | |||
| 2 | Bearing,Needle 10 | V555-000160 | V555-000160-Online | |||
| 12 | Bearing,Needle 11 | V556-000000 | V556-000000-Online | |||
| 2 | Ring,End | V580-000030 | V580-000030-Online | |||
| 2 | Ring | V583-000440 | V583-000440-Online | |||
| 12 | Pin,Eng 11 | V609-000010 | V609-000010-Online | |||
| 2 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 12 | Gear,Bevel | V651-000001 | V651-000001-Online | |||
| 14 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 12 | Gear,Bevel | V651-000011 | V651-000011-Online | |||
| 14 | Gear,Worm | V652-000050 | V652-000050-Online | |||
| 12 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 6 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 8 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 14 | Bolt, Torx 4 | V804-000000 | V804-000000-Online | |||
| 16 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 4 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 2 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 4 | Part No | Part descrition | Page | ||
| 6 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 8 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 12 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 6 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 8 | Bolt, Torx 5 | V805-000020 | V805-000020-Online | |||
| 2 | Bolt, Torx 5 | V805-000080 | V805-000080-Online | |||
| 4 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | |||
| 6 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 4 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 2 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | |||
| 8 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 16 | Bolt, Torx 5 | V805-000300 | V805-000300-Online | |||
| 14 | Bolt, Torx 6 | V806-000000 | V806-000000-Online | |||
| 8 | Bolt, Torx 5 | V835-000000 | V835-000000-Online | |||
| 6 | Bolt, Torx 5 | V855-000010 | V855-000010-Online | |||
| 4 | Bar,Guide 45 | X125-000260 | X125-000260-Online | |||
| 20 | Bar,Guide 50 | X126-000190 | X126-000190-Online | |||
| 20 | Bar,Guide 60 | X128-000050 | X128-000050-Online | |||
| 20 | Chain,Saw | X265-000060 | X265-000060-Online | |||
| 20 | Chain,Saw | X266-000060 | X266-000060-Online | |||
| 20 | Chain,Saw | X268-000040 | X268-000040-Online | |||
| 20 | Scabbard,Chain | X490-000261 | X490-000261-Online | |||
| 20 | Scabbard,Chain | X490-000660 | X490-000660-Online | |||
| 16 | Label,Echo | X502-000340 | X502-000340-Online | |||
| 12 | Label,Echo | X502-000900 | X502-000900-Online | |||
| 6 | Label,Model | X503-012510 | X503-012510-Online | |||
| 4 | Label,Caution | X505-006921 | X505-006921-Online | |||
| 4 | Tool,Wrench | X602-000080 | X602-000080-Online | |||
| 16 | Tool,L Wrench | X605-000190 | X605-000190-Online | |||
| 16 | Tool,Case | X698-000050 | X698-000050-Online | 16 | CS-620SX | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20240621-970-CS-620SX_30_30000001_EN.pdf. Generated 2026-06-25 14:41.
