Echo PAS IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
Source Pages

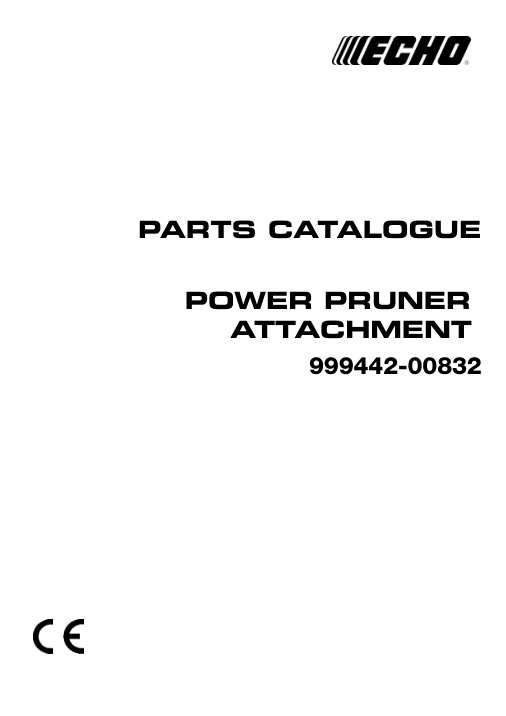

Page 1
Tap or click the page image to enlarge it.

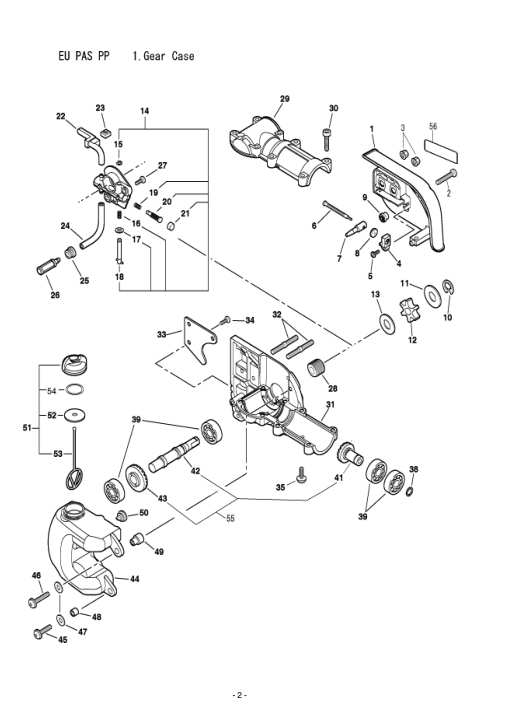

Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

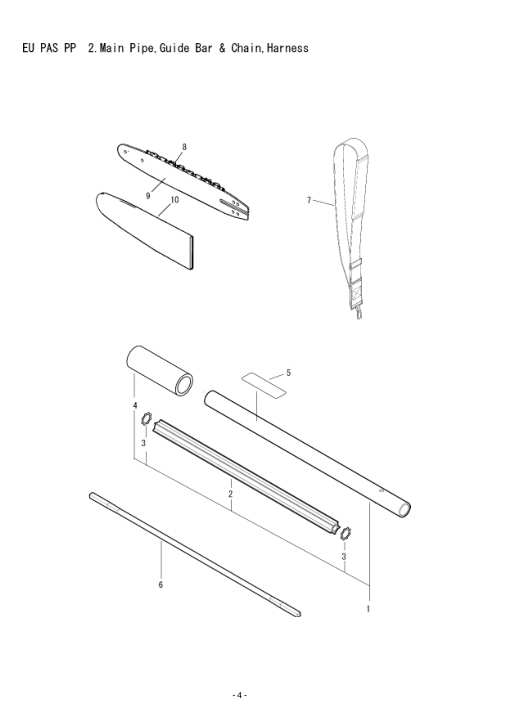

Page 4
Tap or click the page image to enlarge it.

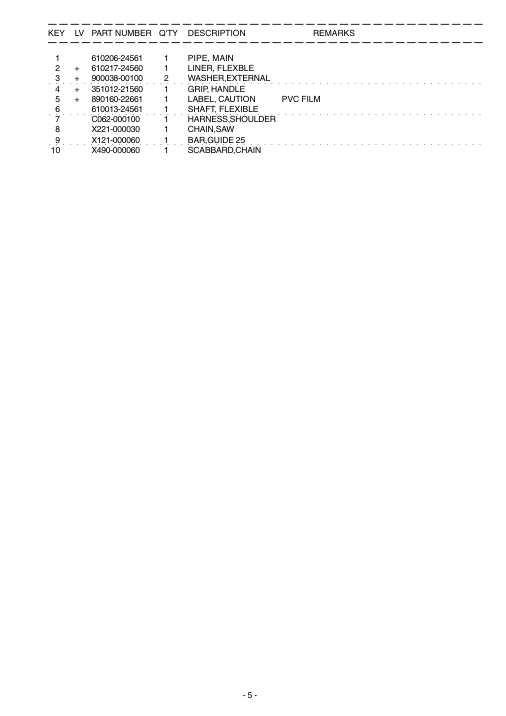

Page 5
Tap or click the page image to enlarge it.

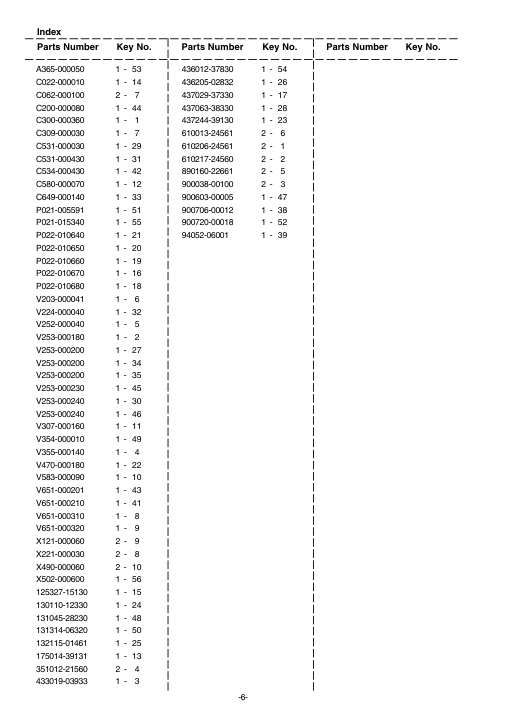

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

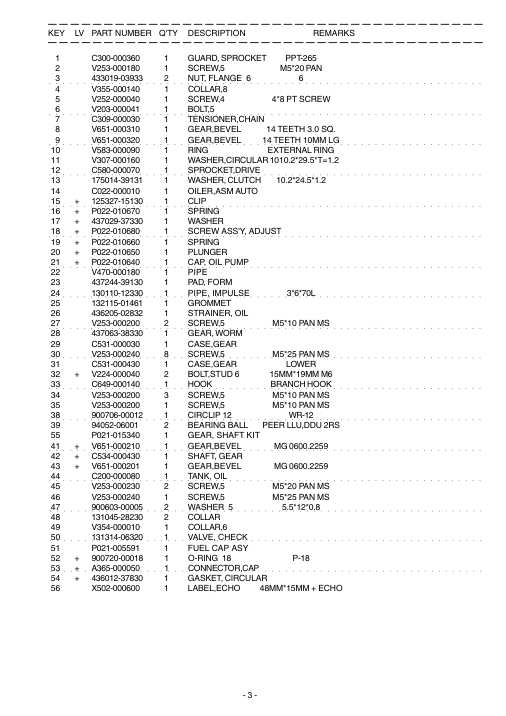

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Guard, Sprocket | C300-000360 | C300-000360-Online | PPT-265 | |
| 2 | 1 | Screw,5 | V253-000180 | V253-000180-Online | M5*20 PAN | |
| 3 | 2 | Nut, Flange 6 | 433019-03933 | 433019-03933-Online | ||
| 4 | 1 | Collar,8 | V355-000140 | V355-000140-Online | ||
| 5 | 1 | Screw,4 | V252-000040 | V252-000040-Online | 4*8 PT SCREW | |
| 6 | 1 | Bolt,5 | V203-000041 | V203-000041-Online | ||
| 7 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 8 | 1 | Gear,Bevel | V651-000310 | V651-000310-Online | 14 TEETH 3.0 SQ. | |
| 9 | 1 | Gear,Bevel | V651-000320 | V651-000320-Online | 14 TEETH 10MM LG | |
| 10 | 1 | Ring | V583-000090 | V583-000090-Online | EXTERNAL RING | |
| 11 | 1 | Washer,Circular 1010.2*29.5*T=1.2 | V307-000160 | V307-000160-Online | ||
| 12 | 1 | Sprocket,Drive | C580-000070 | C580-000070-Online | ||
| 13 | 1 | Washer, Clutch | 175014-39131 | 175014-39131-Online | 10.2*24.5*1.2 | |
| 14 | 1 | Oiler,Asm Auto | C022-000010 | C022-000010-Online | ||
| 15 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 16 | + | 1 | Spring | P022-010670 | P022-010670-Online | |
| 17 | + | 1 | Washer | 437029-37330 | 437029-37330-Online | |
| 18 | + | 1 | Screw Ass'Y, Adjust | P022-010680 | P022-010680-Online | |
| 19 | + | 1 | Spring | P022-010660 | P022-010660-Online | |
| 20 | + | 1 | Plunger | P022-010650 | P022-010650-Online | |
| 21 | + | 1 | Cap, Oil Pump | P022-010640 | P022-010640-Online | |
| 22 | 1 | Pipe | V470-000180 | V470-000180-Online | ||
| 23 | 1 | Pad, Form | 437244-39130 | 437244-39130-Online | ||
| 24 | 1 | Pipe, Impulse | 130110-12330 | 130110-12330-Online | 3*6*70L | |
| 25 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 26 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 27 | 2 | Screw,5 | V253-000200 | V253-000200-Online | M5*10 PAN MS | |
| 28 | 1 | Gear, Worm | 437063-38330 | 437063-38330-Online | ||
| 29 | 1 | Case,Gear | C531-000030 | C531-000030-Online | ||
| 30 | 8 | Screw,5 | V253-000240 | V253-000240-Online | M5*25 PAN MS | |
| 31 | 1 | Case,Gear | C531-000430 | C531-000430-Online | LOWER | |
| 32 | + | 2 | Bolt,Stud 6 | V224-000040 | V224-000040-Online | 15MM*19MM M6 |
| 33 | 1 | Hook | C649-000140 | C649-000140-Online | BRANCH HOOK | |
| 34 | 3 | Screw,5 | V253-000200 | V253-000200-Online | M5*10 PAN MS | |
| 35 | 1 | Screw,5 | V253-000200 | V253-000200-Online | M5*10 PAN MS | |
| 38 | 1 | Circlip 12 | 900706-00012 | 900706-00012-Online | WR-12 | |
| 39 | 2 | Bearing Ball | 94052-06001 | 94052-06001-Online | PEER LLU,DDU 2RS | |
| 55 | 1 | Gear, Shaft Kit | P021-015340 | P021-015340-Online | ||
| 41 | + | 1 | Gear,Bevel | V651-000210 | V651-000210-Online | MG 0600.2259 |
| 42 | + | 1 | Shaft, Gear | C534-000430 | C534-000430-Online | |
| 43 | + | 1 | Gear,Bevel | V651-000201 | V651-000201-Online | MG 0600.2259 |
| 44 | 1 | Tank, Oil | C200-000080 | C200-000080-Online | ||
| 45 | 2 | Screw,5 | V253-000230 | V253-000230-Online | M5*20 PAN MS | |
| 46 | 1 | Screw,5 | V253-000240 | V253-000240-Online | M5*25 PAN MS | |
| 47 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 48 | 2 | Collar | 131045-28230 | 131045-28230-Online | ||
| 49 | 1 | Collar,6 | V354-000010 | V354-000010-Online | ||
| 50 | 1 | Valve, Check | 131314-06320 | 131314-06320-Online | ||
| 51 | 1 | Fuel Cap Asy | P021-005591 | P021-005591-Online | ||
| 52 | + | 1 | O-Ring 18 | 900720-00018 | 900720-00018-Online | P-18 |
| 53 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 54 | + | 1 | Gasket, Circular | 436012-37830 | 436012-37830-Online | |
| 56 | 1 | Label,Echo | X502-000600 | X502-000600-Online | 48MM*15MM + ECHO |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Main | 610206-24561 | 610206-24561-Online | ||
| 2 | + | 1 | Liner, Flexble | 610217-24560 | 610217-24560-Online | |
| 3 | + | 2 | Washer,External | 900038-00100 | 900038-00100-Online | |
| 4 | + | 1 | Grip, Handle | 351012-21560 | 351012-21560-Online | |
| 5 | + | 1 | Label, Caution | 890160-22661 | 890160-22661-Online | PVC FILM |
| 6 | 1 | Shaft, Flexible | 610013-24561 | 610013-24561-Online | ||
| 7 | 1 | Harness,Shoulder | C062-000100 | C062-000100-Online | ||
| 8 | 1 | Chain,Saw | X221-000030 | X221-000030-Online | ||
| 9 | 1 | Bar,Guide 25 | X121-000060 | X121-000060-Online | ||
| 10 | 1 | Scabbard,Chain | X490-000060 | X490-000060-Online |
Source PDF: 20111013-307_EU_PAS_PP(0806)_Power_Pruner.pdf. Generated 2026-06-25 14:37.
