Echo CS-510 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-510-Online
Source Pages

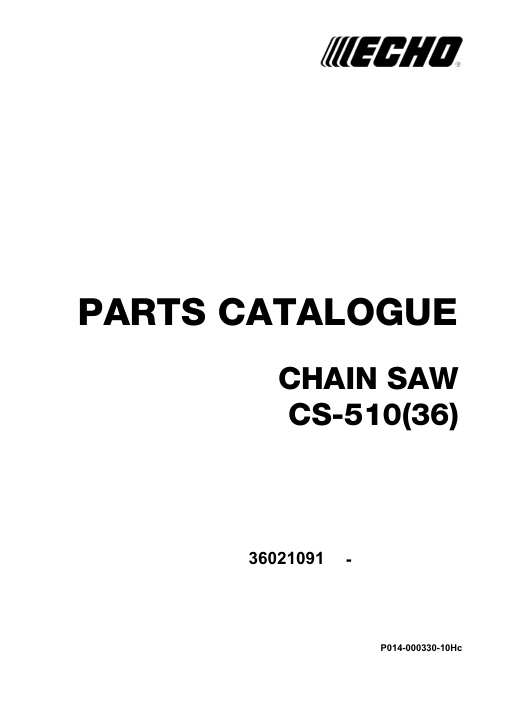

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.

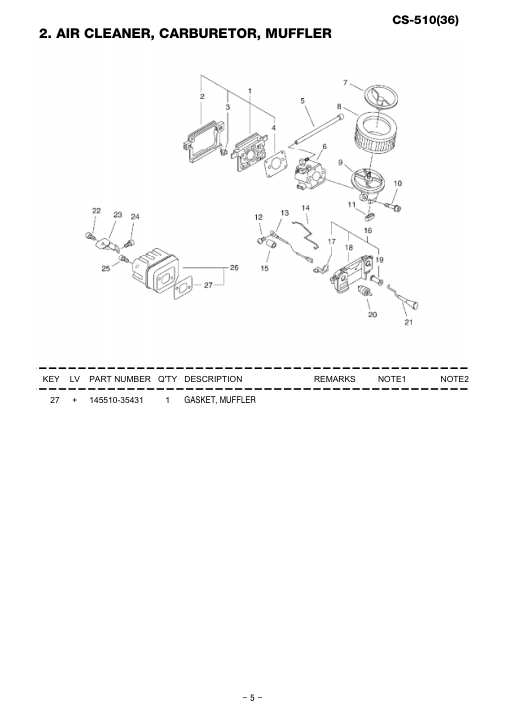

Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

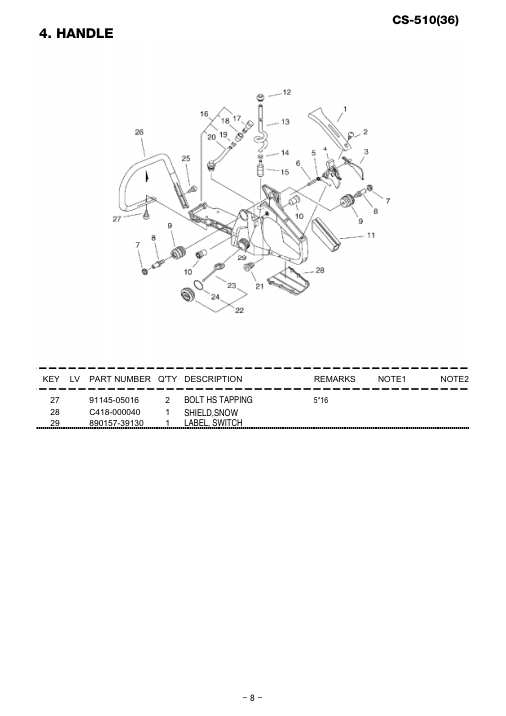

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

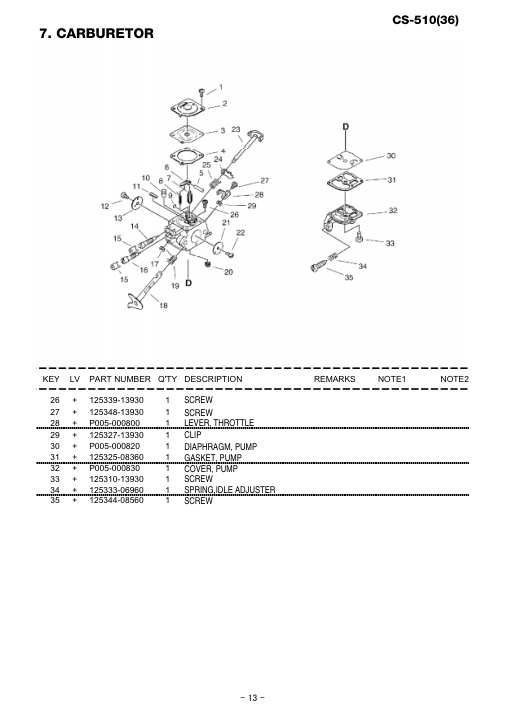

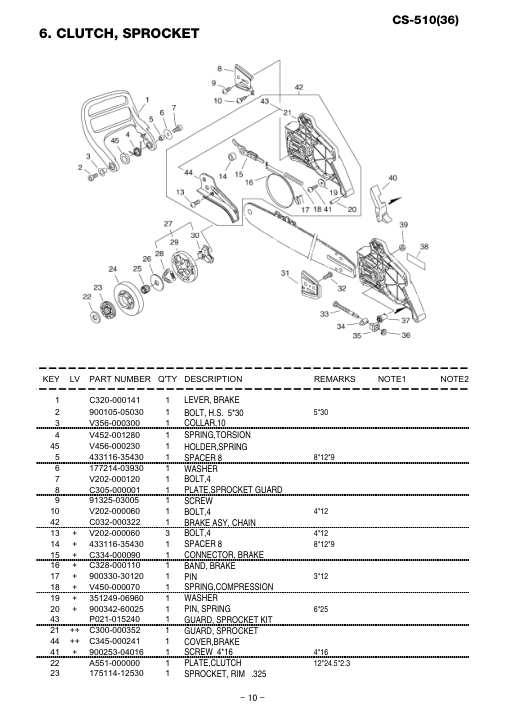

Page 13
Tap or click the page image to enlarge it.

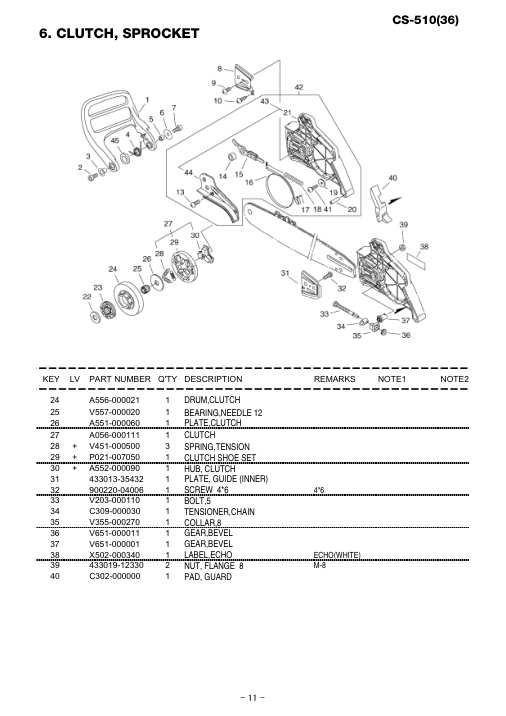

Page 14
Tap or click the page image to enlarge it.

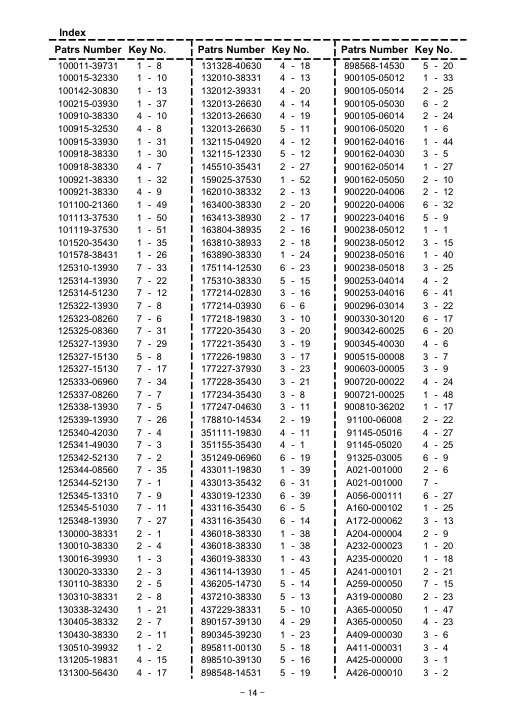

Page 15
Tap or click the page image to enlarge it.

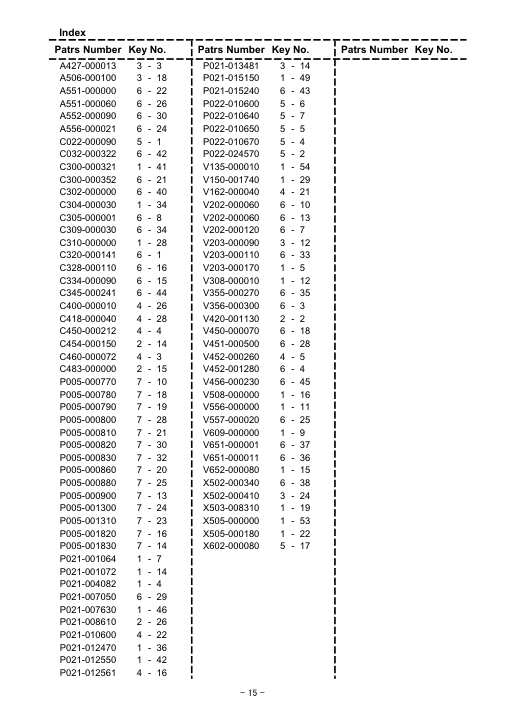

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 | |
| 2 | 1 | Adapter, Intake | 130510-39932 | 130510-39932-Online | ||
| 3 | 1 | Gasket, Intake | 130016-39930 | 130016-39930-Online | ||
| 4 | 1 | Crankcase Set | P021-004082 | P021-004082-Online | ||
| 5 | + | 4 | Bolt,5 | V203-000170 | V203-000170-Online | 5*22 |
| 6 | + | 4 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 |
| 7 | 1 | Piston Kit | P021-001064 | P021-001064-Online | ||
| 8 | + | 2 | Ring, Piston | 100011-39731 | 100011-39731-Online | |
| 9 | + | 1 | Pin,Eng 11 | V609-000000 | V609-000000-Online | |
| 10 | + | 2 | Circlip, Piston Pin | 100015-32330 | 100015-32330-Online | |
| 11 | + | 1 | Bearing,Needle 11 | V556-000000 | V556-000000-Online | KBK11*15*15.8X2 |
| 12 | + | 2 | Washer,Circular 11 | V308-000010 | V308-000010-Online | 11*19*3.1 |
| 13 | 1 | Key, Woodruff | 100142-30830 | 100142-30830-Online | ||
| 14 | 1 | Crankshaft,Assy | P021-001072 | P021-001072-Online | ||
| 15 | + | 1 | Gear,Worm | V652-000080 | V652-000080-Online | |
| 16 | + | 2 | Seal,Oil 15 | V508-000000 | V508-000000-Online | |
| 17 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 18 | 1 | Knob,Cleaner Lid | A235-000020 | A235-000020-Online | ||
| 19 | 1 | Label,Model | X503-008310 | X503-008310-Online | CS-510 EU | |
| 20 | 1 | Lid,Cleaner | A232-000023 | A232-000023-Online | ||
| 21 | 1 | Plug, Cover | 130338-32430 | 130338-32430-Online | ||
| 22 | 1 | Label,Caution | X505-000180 | X505-000180-Online | ||
| 23 | 1 | Label,Caution | 890345-39230 | 890345-39230-Online | ||
| 24 | 3 | Bolt, 5 | 163890-38330 | 163890-38330-Online | ||
| 25 | 1 | Cover,Cylinder | A160-000102 | A160-000102-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Plug | 101578-38431 | 101578-38431-Online | ||
| 27 | 1 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 28 | 1 | Catcher, Chain | C310-000000 | C310-000000-Online | ||
| 29 | 2 | Plate,Eye | V150-001740 | V150-001740-Online | ||
| 30 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 31 | 2 | Screw | 100915-33930 | 100915-33930-Online | ||
| 32 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 33 | 2 | Bolt, H.S. 5*12 | 900105-05012 | 900105-05012-Online | 5*12 | |
| 34 | 1 | Spiked | C304-000030 | C304-000030-Online | ||
| 35 | 1 | Cover | 101520-35430 | 101520-35430-Online | ||
| 36 | 1 | Cover, Engine | P021-012470 | P021-012470-Online | ||
| 37 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 38 | + | 2 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 39 | + | 2 | Stud, Guide Bar | 433011-19830 | 433011-19830-Online | |
| 40 | 3 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 41 | 1 | Guard,Sprocket | C300-000321 | C300-000321-Online | ||
| 42 | 1 | Tank, Oil | P021-012550 | P021-012550-Online | ||
| 38 | + | 1 | Pin, Dowel | 436018-38330 | 436018-38330-Online | |
| 43 | + | 1 | Gasket, Oil Tank | 436019-38330 | 436019-38330-Online | |
| 44 | + | 3 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW |
| 45 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 46 | 1 | Cap Asy,Tank | P021-007630 | P021-007630-Online | ||
| 47 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 48 | + | 1 | O-Ring 25 | 900721-00025 | 900721-00025-Online | G-25 |
| 49 | 1 | Release Assy, Comp. | 101100-21360 | 101100-21360-Online | ||
| 49 | 1 | Decomp,Asm | P021-015150 | P021-015150-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 50 | + | 1 | Spring | 101113-37530 | 101113-37530-Online | |
| 51 | + | 1 | Clip | 101119-37530 | 101119-37530-Online | |
| 52 | + | 1 | Gasket | 159025-37530 | 159025-37530-Online | |
| 53 | 1 | Label,Caution | X505-000000 | X505-000000-Online | ||
| 54 | 1 | Grommet,Ht Cord | V135-000010 | V135-000010-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Insulator Asy,Intake | 130000-38331 | 130000-38331-Online | ||
| 2 | + | 1 | Cushion | V420-001130 | V420-001130-Online | |
| 3 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 4 | + | 1 | Gasket, Intake | 130010-38330 | 130010-38330-Online | |
| 5 | 1 | Pipe, Impulse | 130110-38330 | 130110-38330-Online | 3*5*110 | |
| 6 | 1 | Carburetor,Diaphragm | A021-001000 | A021-001000-Online | C1Q-K79 | |
| 7 | 1 | Bracket, Air Cleaner | 130405-38332 | 130405-38332-Online | ||
| 8 | 1 | Filter, Air | 130310-38331 | 130310-38331-Online | ||
| 9 | 1 | Elbow,Carburetor | A204-000004 | A204-000004-Online | ||
| 10 | 2 | Bolt, H.S. 5*50 | 900162-05050 | 900162-05050-Online | 5*50 W,SW | |
| 11 | 1 | Cushion | 130430-38330 | 130430-38330-Online | ||
| 12 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 13 | 1 | Lead, Ground | 162010-38332 | 162010-38332-Online | ||
| 14 | 1 | Rod, Throttle | C454-000150 | C454-000150-Online | ||
| 15 | 1 | Boot,Connector | C483-000000 | C483-000000-Online | ||
| 16 | 1 | Bracket, Switch | 163804-38935 | 163804-38935-Online | ||
| 17 | + | 1 | Plate, Switch | 163413-38930 | 163413-38930-Online | |
| 18 | + | 1 | Bracket, Switch | 163810-38933 | 163810-38933-Online | |
| 19 | + | 1 | Grommet | 178810-14534 | 178810-14534-Online | |
| 20 | 1 | Switch, Ignition | 163400-38330 | 163400-38330-Online | ||
| 21 | 1 | Knob, Choke | A241-000101 | A241-000101-Online | ||
| 22 | 1 | Bolt | 91100-06008 | 91100-06008-Online | CB-6*8 | |
| 23 | 1 | Stay, Muffler | A319-000080 | A319-000080-Online | ||
| 24 | 1 | Bolt, H.S. 6*14 | 900105-06014 | 900105-06014-Online | 6*14 | |
| 25 | 2 | Bolt, H.S. 5*14 | 900105-05014 | 900105-05014-Online | 5*14 | |
| 26 | 1 | Muffler Asy | P021-008610 | P021-008610-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Gasket, Muffler | 145510-35431 | 145510-35431-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 2 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 3 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 4 | 1 | Coil,Ignition | A411-000031 | A411-000031-Online | ||
| 5 | 2 | Bolt, H.S. 4*30 | 900162-04030 | 900162-04030-Online | 4*30 W.SW | |
| 6 | 1 | Rotor,Magneto | A409-000030 | A409-000030-Online | ||
| 7 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 8 | 2 | Spring, Return | 177234-35430 | 177234-35430-Online | ||
| 9 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 10 | 2 | Pawl, Starter | 177218-19830 | 177218-19830-Online | ||
| 11 | 2 | Spacer, Ratchet | 177247-04630 | 177247-04630-Online | 5.2*8*2.1 | |
| 12 | 2 | Bolt,5 | V203-000090 | V203-000090-Online | M5*14 | |
| 13 | 1 | Cover,Fan | A172-000062 | A172-000062-Online | ||
| 14 | 1 | Starter Asy | P021-013481 | P021-013481-Online | ||
| 15 | + | 1 | Screw 5*12 | 900238-05012 | 900238-05012-Online | 5*12 |
| 16 | + | 1 | Washer | 177214-02830 | 177214-02830-Online | 5.2*16*1.0T |
| 17 | + | 1 | Rope, Starter | 177226-19830 | 177226-19830-Online | 3.5*850 |
| 18 | + | 1 | Reel, Rope | A506-000100 | A506-000100-Online | |
| 19 | + | 1 | Plate, Starter | 177221-35430 | 177221-35430-Online | |
| 20 | + | 1 | Spring, Rewind | 177220-35430 | 177220-35430-Online | |
| 21 | + | 1 | Grip, Starter (Bl) | 177228-35430 | 177228-35430-Online | |
| 22 | + | 1 | Screw 3*14 | 900296-03014 | 900296-03014-Online | 3*14 SUS |
| 23 | + | 1 | Guide, Rope | 177227-37930 | 177227-37930-Online | |
| 24 | 1 | Label,Echo | X502-000410 | X502-000410-Online | ||
| 25 | 3 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cover, Handle (Bl) | 351155-35430 | 351155-35430-Online | ||
| 2 | 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 4*14 | |
| 3 | 1 | Lockout, Throttle | C460-000072 | C460-000072-Online | ||
| 4 | 1 | Control, Throttle | C450-000212 | C450-000212-Online | ||
| 5 | 1 | Spring,Torsion | V452-000260 | V452-000260-Online | ||
| 6 | 1 | Pin, Spring 4*30Sus | 900345-40030 | 900345-40030-Online | 4*30SUS | |
| 7 | 2 | Cap, Cushion | 100918-38330 | 100918-38330-Online | ||
| 8 | 2 | Bolt | 100915-32530 | 100915-32530-Online | ||
| 9 | 2 | Cushion | 100921-38330 | 100921-38330-Online | ||
| 10 | 2 | Cushion | 100910-38330 | 100910-38330-Online | ||
| 11 | 1 | Grip, Handle | 351111-19830 | 351111-19830-Online | ||
| 12 | 1 | Grommet | 132115-04920 | 132115-04920-Online | ||
| 13 | 1 | Pipe | 132010-38331 | 132010-38331-Online | 3*6*165 | |
| 14 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 15 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | ||
| 16 | 1 | Handle Asy, Rear | P021-012561 | P021-012561-Online | ||
| 17 | + | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |
| 18 | + | 1 | Cover, Vent | 131328-40630 | 131328-40630-Online | |
| 19 | + | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM |
| 20 | + | 1 | Pipe | 132012-39331 | 132012-39331-Online | 3*6*105 |
| 21 | 1 | Plug | V162-000040 | V162-000040-Online | ||
| 22 | 1 | Fuel Cap Asy | P021-010600 | P021-010600-Online | ||
| 23 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 24 | + | 1 | O-Ring 22 | 900720-00022 | 900720-00022-Online | P-22 |
| 25 | 2 | Bolt Hs Tapping | 91145-05020 | 91145-05020-Online | 5*20 | |
| 26 | 1 | Handle,Front | C400-000010 | C400-000010-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 2 | Bolt Hs Tapping | 91145-05016 | 91145-05016-Online | 5*16 | |
| 28 | 1 | Shield,Snow | C418-000040 | C418-000040-Online | ||
| 29 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Auto-Oiler Assembly | C022-000090 | C022-000090-Online | ||
| 2 | + | 1 | Screw Ass'Y, Adjust | P022-024570 | P022-024570-Online | |
| 4 | + | 1 | Spring | P022-010670 | P022-010670-Online | |
| 5 | + | 1 | Plunger | P022-010650 | P022-010650-Online | |
| 6 | + | 1 | Unit, Clutch | P022-010600 | P022-010600-Online | |
| 7 | + | 1 | Cap, Oil Pump | P022-010640 | P022-010640-Online | |
| 8 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 9 | 2 | Screw | 900223-04016 | 900223-04016-Online | 4*16 | |
| 10 | 1 | Pipe | 437229-38331 | 437229-38331-Online | ||
| 11 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 12 | 1 | Grommet | 132115-12330 | 132115-12330-Online | ||
| 13 | 1 | Pipe, Oil | 437210-38330 | 437210-38330-Online | ||
| 14 | 1 | Strainer, Oil | 436205-14730 | 436205-14730-Online | ||
| 15 | 1 | Plate, Seal | 175310-38330 | 175310-38330-Online | ||
| 16 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online | ||
| 17 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 18 | 1 | Driver, Screw 125 | 895811-00130 | 895811-00130-Online | ||
| 19 | 1 | Scabbard, Chain | 898548-14531 | 898548-14531-Online | ||
| 20 | + | 1 | Rope | 898568-14530 | 898568-14530-Online | 5*900 |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lever, Brake | C320-000141 | C320-000141-Online | ||
| 2 | 1 | Bolt, H.S. 5*30 | 900105-05030 | 900105-05030-Online | 5*30 | |
| 3 | 1 | Collar,10 | V356-000300 | V356-000300-Online | ||
| 4 | 1 | Spring,Torsion | V452-001280 | V452-001280-Online | ||
| 45 | 1 | Holder,Spring | V456-000230 | V456-000230-Online | ||
| 5 | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 | |
| 6 | 1 | Washer | 177214-03930 | 177214-03930-Online | ||
| 7 | 1 | Bolt,4 | V202-000120 | V202-000120-Online | ||
| 8 | 1 | Plate,Sprocket Guard | C305-000001 | C305-000001-Online | ||
| 9 | 1 | Screw | 91325-03005 | 91325-03005-Online | ||
| 10 | 1 | Bolt,4 | V202-000060 | V202-000060-Online | 4*12 | |
| 42 | 1 | Brake Asy, Chain | C032-000322 | C032-000322-Online | ||
| 13 | + | 3 | Bolt,4 | V202-000060 | V202-000060-Online | 4*12 |
| 14 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 15 | + | 1 | Connector, Brake | C334-000090 | C334-000090-Online | |
| 16 | + | 1 | Band, Brake | C328-000110 | C328-000110-Online | |
| 17 | + | 1 | Pin | 900330-30120 | 900330-30120-Online | 3*12 |
| 18 | + | 1 | Spring,Compression | V450-000070 | V450-000070-Online | |
| 19 | + | 1 | Washer | 351249-06960 | 351249-06960-Online | |
| 20 | + | 1 | Pin, Spring | 900342-60025 | 900342-60025-Online | 6*25 |
| 43 | 1 | Guard, Sprocket Kit | P021-015240 | P021-015240-Online | 21 | ++ | |
| 21 | 1 | Guard, Sprocket | C300-000352 | C300-000352-Online | 44 | ++ | |
| 44 | 1 | Cover,Brake | C345-000241 | C345-000241-Online | ||
| 41 | + | 1 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 22 | 1 | Plate,Clutch | A551-000000 | A551-000000-Online | 12*24.5*2.3 | |
| 23 | 1 | Sprocket, Rim .325 | 175114-12530 | 175114-12530-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Drum,Clutch | A556-000021 | A556-000021-Online | ||
| 25 | 1 | Bearing,Needle 12 | V557-000020 | V557-000020-Online | ||
| 26 | 1 | Plate,Clutch | A551-000060 | A551-000060-Online | ||
| 27 | 1 | Clutch | A056-000111 | A056-000111-Online | ||
| 28 | + | 3 | Spring,Tension | V451-000500 | V451-000500-Online | |
| 29 | + | 1 | Clutch Shoe Set | P021-007050 | P021-007050-Online | |
| 30 | + | 1 | Hub, Clutch | A552-000090 | A552-000090-Online | |
| 31 | 1 | Plate, Guide (Inner) | 433013-35432 | 433013-35432-Online | ||
| 32 | 1 | Screw 4*6 | 900220-04006 | 900220-04006-Online | 4*6 | |
| 33 | 1 | Bolt,5 | V203-000110 | V203-000110-Online | ||
| 34 | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | ||
| 35 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 36 | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | ||
| 37 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 38 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) | |
| 39 | 2 | Nut, Flange 8 | 433019-12330 | 433019-12330-Online | M-8 | |
| 40 | 1 | Pad, Guard | C302-000000 | C302-000000-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 3 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-42030 | 125340-42030-Online | |
| 5 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 6 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 8 | + | 1 | Spring, Coil | 125322-13930 | 125322-13930-Online | |
| 9 | + | 1 | Plug, Welch | 125345-13310 | 125345-13310-Online | |
| 10 | + | 1 | Nozzle Check Valve | P005-000770 | P005-000770-Online | |
| 11 | + | 1 | Plug, Welch | 125345-51030 | 125345-51030-Online | |
| 12 | + | 1 | Screw | 125314-51230 | 125314-51230-Online | 3*4.5 |
| 13 | + | 1 | Valve, Choke | P005-000900 | P005-000900-Online | |
| 14 | + | 1 | Screw,Mainn Mixture | P005-001830 | P005-001830-Online | |
| 15 | + | 2 | Cap, Limiter | A259-000050 | A259-000050-Online | |
| 16 | + | 1 | Screw, Idle Mixture | P005-001820 | P005-001820-Online | |
| 17 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 18 | + | 1 | Shaft Asy,Throttle | P005-000780 | P005-000780-Online | |
| 19 | + | 1 | Spring,Thrt.Return | P005-000790 | P005-000790-Online | |
| 20 | + | 1 | Screen, Fuel Inlet | P005-000860 | P005-000860-Online | |
| 21 | + | 1 | Valve, Throttle | P005-000810 | P005-000810-Online | |
| 22 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 23 | + | 1 | Shaft, Choke | P005-001310 | P005-001310-Online | |
| 24 | + | 1 | Lever, Choke | P005-001300 | P005-001300-Online | |
| 25 | + | 1 | Spring, Choke Return | P005-000880 | P005-000880-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Screw | 125339-13930 | 125339-13930-Online | |
| 27 | + | 1 | Screw | 125348-13930 | 125348-13930-Online | |
| 28 | + | 1 | Lever, Throttle | P005-000800 | P005-000800-Online | |
| 29 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 30 | + | 1 | Diaphragm, Pump | P005-000820 | P005-000820-Online | |
| 31 | + | 1 | Gasket, Pump | 125325-08360 | 125325-08360-Online | |
| 32 | + | 1 | Cover, Pump | P005-000830 | P005-000830-Online | |
| 33 | + | 1 | Screw | 125310-13930 | 125310-13930-Online | |
| 34 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | |
| 35 | + | 1 | Screw | 125344-08560 | 125344-08560-Online |
Source PDF: 20130718-104_CS-510(36)_P014-000330-10Hc_EN.pdf. Generated 2026-06-25 14:37.
