Echo SRMF-340 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRMF-340-Online
Source Pages
Page 1

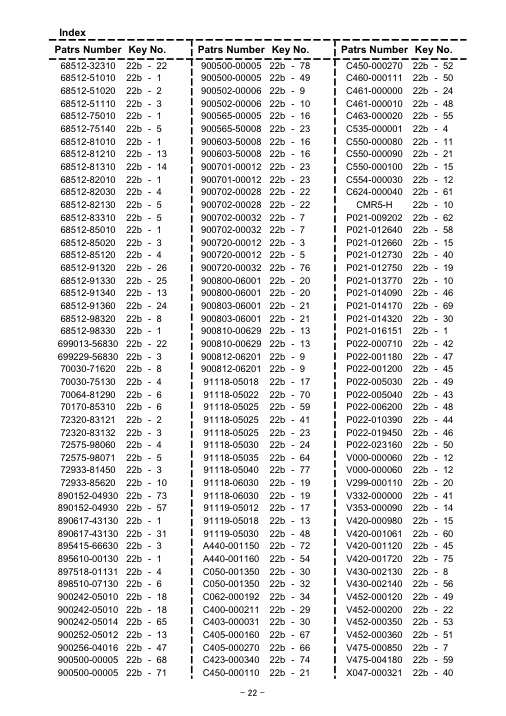

Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cylindar Block Comp | 68512-98330 | 68512-98330-Online | ||
| 9 | + | 8 | Bolt | 01020-05160 | 01020-05160-Online | |
| 10 | + | 2 | Rocker Arm Assy | 62907-44010 | 62907-44010-Online | 11 | ++ |
| 11 | 2 | Rocker Arm | 62901-44210 | 62901-44210-Online | 12 | ++ | |
| 12 | 2 | Adjust Screw | 62907-44220 | 62907-44220-Online | 13 | ++ | |
| 13 | 2 | Part | 62901-44231 | 62901-44231-Online | ||
| 14 | + | 1 | Roller | 12492-50370 | 12492-50370-Online | |
| 2 | 1 | Reed Valve | 68512-12310 | 68512-12310-Online | ||
| 3 | 1 | Gasket | 62907-12220 | 62907-12220-Online | ||
| 4 | 1 | Lead Wire | 14350-01101 | 14350-01101-Online | ||
| 5 | 1 | Bracket | 68512-83310 | 68512-83310-Online | ||
| 6 | 4 | Screw,Pm-Spw | 11206-05255 | 11206-05255-Online | ||
| 7 | 2 | Roller | 12492-40080 | 12492-40080-Online | ||
| 8 | 1 | Clamp | 159116-21231 | 159116-21231-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Insulator | 62901-21320 | 62901-21320-Online | ||
| 2 | 1 | Valve | 72320-83121 | 72320-83121-Online | ||
| 3 | 1 | Stopper | 72320-83132 | 72320-83132-Online | ||
| 4 | 3 | Screw-Sw | 01211-03100 | 01211-03100-Online | ||
| 5 | 1 | Cover | 62901-21120 | 62901-21120-Online | ||
| 6 | 1 | Gasket | 62901-21130 | 62901-21130-Online | ||
| 7 | 4 | Bolt-Spw | 11022-04140 | 11022-04140-Online | ||
| 8 | 1 | Fan Cover Assy | 68512-98320 | 68512-98320-Online | ||
| 9 | + | 1 | Fan Cover Comp | 68512-31010 | 68512-31010-Online | 10 | ++ |
| 10 | 1 | Fan Cover | 68512-31110 | 68512-31110-Online | 11 | ++ | |
| 11 | 2 | Ball Bearing | 02036-06001 | 02036-06001-Online | 12 | ++ | |
| 12 | 1 | Snap Ring | 02432-28120 | 02432-28120-Online | 13 | ++ | |
| 13 | 1 | Clutch Drum | 62907-31211 | 62907-31211-Online | 14 | ++ | |
| 14 | 1 | Snap Ring | 20000-31140 | 20000-31140-Online | ||
| 15 | + | 1 | Cushion | V420-000980 | V420-000980-Online | |
| 16 | + | 1 | Snap Ring | 02432-45170 | 02432-45170-Online | |
| 17 | + | 1 | Bolt-Spw | 11022-05282 | 11022-05282-Online | |
| 18 | + | 1 | Bolt-Spw | 11022-05122 | 11022-05122-Online | |
| 19 | 2 | Bolt | 01020-05162 | 01020-05162-Online | ||
| 20 | 2 | Bolt-Spw | 11022-05402 | 11022-05402-Online | ||
| 21 | 1 | Cylinder Cover | 68512-32110 | 68512-32110-Online | ||
| 22 | 1 | Grommet | 68512-32310 | 68512-32310-Online | ||
| 23 | 3 | Bolt-Spw | 11022-04142 | 11022-04142-Online | ||
| 24 | 1 | Label,Caution | 68512-91360 | 68512-91360-Online | ||
| 25 | 1 | Label,Trade | 68512-91330 | 68512-91330-Online | ||
| 26 | 1 | Label,Trade | 68512-91320 | 68512-91320-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Muffler Assy | 62907-15011 | 62907-15011-Online | ||
| 2 | + | 1 | Muffler | 62907-15111 | 62907-15111-Online | |
| 3 | + | 1 | Screen | 62902-15131 | 62902-15131-Online | |
| 4 | + | 1 | Tail Plate | 62907-15161 | 62907-15161-Online | |
| 5 | + | 2 | Screw,Pm-Sw | 11204-04060 | 11204-04060-Online | |
| 6 | 1 | Gasket | 62901-15210 | 62901-15210-Online | ||
| 7 | 2 | Bolt | 62901-15310 | 62901-15310-Online | ||
| 8 | 1 | Bolt | 01020-05160 | 01020-05160-Online | ||
| 9 | 3 | Washer | 01610-05080 | 01610-05080-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cam Gear Assy | 62905-43011 | 62905-43011-Online | ||
| 2 | + | 1 | Cam Gear | 62902-43310 | 62902-43310-Online | |
| 3 | + | 1 | Weight | 62907-43120 | 62907-43120-Online | |
| 4 | + | 1 | Coil Spring | 17520-08900 | 17520-08900-Online | |
| 5 | + | 1 | Plate | 62905-43131 | 62905-43131-Online | |
| 6 | + | 1 | Screw,Tapping | 01280-04062 | 01280-04062-Online | |
| 7 | 2 | Roller | 12492-50290 | 12492-50290-Online | ||
| 8 | 2 | Lifter | 62907-43210 | 62907-43210-Online | ||
| 9 | 1 | Washer | 11620-10000 | 11620-10000-Online | ||
| 10 | 2 | Push Rod | 62907-43220 | 62907-43220-Online | ||
| 11 | 1 | Cam Gear Cover | 62907-43230 | 62907-43230-Online | ||
| 12 | 1 | Gasket | 62907-43240 | 62907-43240-Online | ||
| 13 | 4 | Bolt-Spw | 11022-04140 | 11022-04140-Online | ||
| 14 | 1 | Screw | 62901-43310 | 62901-43310-Online | ||
| 15 | 1 | Collar | 15401-10028 | 15401-10028-Online | ||
| 16 | 1 | Intake Valve | 62907-44111 | 62907-44111-Online | ||
| 17 | 1 | Exhaust Valve | 62907-44121 | 62907-44121-Online | ||
| 18 | 2 | Retainer | 62908-44140 | 62908-44140-Online | ||
| 19 | 2 | Plate | 62908-44310 | 62908-44310-Online | ||
| 20 | 2 | Valve Spring | 62901-44130 | 62901-44130-Online | ||
| 21 | 2 | Rocker Arm Assy | 62907-44010 | 62907-44010-Online | ||
| 22 | 2 | Rocker Arm | 62901-44210 | 62901-44210-Online | ||
| 23 | 2 | Adjust Screw | 62907-44220 | 62907-44220-Online | ||
| 24 | 2 | Part | 62901-44231 | 62901-44231-Online | ||
| 25 | 1 | Roller | 12492-50370 | 12492-50370-Online | ||
| 26 | 1 | Rocker Arm Cover | 62907-44240 | 62907-44240-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Gasket | 62907-44250 | 62907-44250-Online | ||
| 28 | 3 | Bolt-Spw | 11022-04140 | 11022-04140-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Piston Set | 62907-41310 | 62907-41310-Online | ||
| 2 | 1 | Crankshaft Comp | 62907-42021 | 62907-42021-Online | ||
| 3 | 1 | Oil Seal | 62901-42260 | 62901-42260-Online | ||
| 4 | 1 | Oil Seal | 62907-42270 | 62907-42270-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Clutch Shoe Set | 68512-51010 | 68512-51010-Online | ||
| 2 | + | 1 | Clutch Shoe Assy | 68512-51020 | 68512-51020-Online | 3 | ++ |
| 3 | 2 | Clutch Shoe | 68512-51110 | 68512-51110-Online | 4 | ++ | |
| 4 | 1 | Spring | 72575-98060 | 72575-98060-Online | ||
| 5 | + | 2 | Bolt | 72575-98071 | 72575-98071-Online | |
| 6 | + | 2 | Spring Plate | 20087-51231 | 20087-51231-Online | |
| 7 | + | 2 | Washer | 22100-71430 | 22100-71430-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor | 62907-71110 | 62907-71110-Online | ||
| 2 | 1 | Part | 02403-03100 | 02403-03100-Online | ||
| 3 | 1 | Part | 20035-71220 | 20035-71220-Online | ||
| 4 | 1 | Coil Assy | 62907-71311 | 62907-71311-Online | ||
| 5 | + | 1 | Plug Cap | 62905-71250 | 62905-71250-Online | |
| 6 | + | 1 | Coil Spring | 62905-71320 | 62905-71320-Online | |
| 7 | 1 | Lead Wire | 14350-02200 | 14350-02200-Online | ||
| 8 | 2 | Insulator | 70030-71620 | 70030-71620-Online | ||
| 9 | 2 | Bolt-Slpw | 11024-04265 | 11024-04265-Online | 10 | CMR5-H | 1 | SPARK PLUG |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Recoil Starter Assy | 68512-75010 | 68512-75010-Online | ||
| 2 | + | 1 | Starter Case | 62918-75110 | 62918-75110-Online | |
| 3 | + | 1 | Reel | 62907-75120 | 62907-75120-Online | |
| 4 | + | 1 | Recoil Spring | 70030-75130 | 70030-75130-Online | |
| 5 | + | 1 | Rope | 68512-75140 | 68512-75140-Online | |
| 6 | + | 1 | Starter Knob | 20010-75190 | 20010-75190-Online | |
| 7 | + | 1 | Stopper | 20010-75210 | 20010-75210-Online | |
| 8 | + | 1 | Screw | 37013-75310 | 37013-75310-Online | |
| 9 | + | 1 | Collar | 37013-75320 | 37013-75320-Online | |
| 10 | + | 1 | Swing Arm | 37013-75330 | 37013-75330-Online | |
| 11 | 1 | Starter Pulley | 37013-75210 | 37013-75210-Online | ||
| 12 | 4 | Bolt-Spw | 11022-04142 | 11022-04142-Online | ||
| 13 | 1 | Label,Trade | 68512-91340 | 68512-91340-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Carburetor Assy | 68512-81010 | 68512-81010-Online | ||
| 2 | + | 1 | Valve | 62907-81321 | 62907-81321-Online | |
| 3 | + | 1 | Swivel | 72933-81450 | 72933-81450-Online | |
| 4 | + | 1 | Washer | 20089-81185 | 20089-81185-Online | |
| 5 | + | 1 | E Ring | 20036-81195 | 20036-81195-Online | |
| 6 | + | 2 | Screw | 70064-81290 | 70064-81290-Online | |
| 7 | + | 1 | Pump Body Assy | 37013-81350 | 37013-81350-Online | |
| 8 | + | 1 | Pump Base Comp | 20016-81420 | 20016-81420-Online | |
| 9 | + | 1 | Pump Cover | 20016-81510 | 20016-81510-Online | |
| 10 | + | 1 | Primer Pump | 20036-81670 | 20036-81670-Online | |
| 11 | + | 4 | Screw | 20016-81140 | 20016-81140-Online | |
| 12 | + | 1 | O Ring | 20016-81250 | 20016-81250-Online | |
| 17 | + | 1 | Gasket Set | 68242-98330 | 68242-98330-Online | |
| 18 | + | 1 | Valve Set | 60907-98341 | 60907-98341-Online | |
| 13 | 1 | Gasket | 68512-81210 | 68512-81210-Online | ||
| 14 | 1 | Pulse Pipe Assy | 68512-81310 | 68512-81310-Online | ||
| 15 | + | 1 | Clip | 20020-85540 | 20020-85540-Online | |
| 16 | + | 1 | Clip,Pulse | 22150-82140 | 22150-82140-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cleaner Body Assy | 68512-82010 | 68512-82010-Online | ||
| 2 | 1 | Filter | 62908-82120 | 62908-82120-Online | ||
| 3 | 1 | Prefilter | 62908-82310 | 62908-82310-Online | ||
| 4 | 1 | Cleaner Cover Assy | 68512-82030 | 68512-82030-Online | ||
| 5 | + | 1 | Cleaner Cover | 68512-82130 | 68512-82130-Online | |
| 6 | + | 2 | Knob | 62901-82330 | 62901-82330-Online | |
| 7 | 2 | Screw,Pm | 11203-05605 | 11203-05605-Online | ||
| 8 | 2 | Washer | 01613-05080 | 01613-05080-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Fuel Tank Assy | 68512-85010 | 68512-85010-Online | ||
| 2 | + | 1 | Fuel Tank | 62907-85110 | 62907-85110-Online | |
| 3 | + | 1 | Fuel Cap Assy | 68512-85020 | 68512-85020-Online | 4 | ++ |
| 4 | 1 | Fuel Cap | 68512-85120 | 68512-85120-Online | 5 | ++ | |
| 5 | 1 | Gasket | 20000-85221 | 20000-85221-Online | ||
| 6 | + | 1 | Fuel Pipe | 70170-85310 | 70170-85310-Online | |
| 7 | + | 1 | Fuel Filter | 20016-85400 | 20016-85400-Online | |
| 8 | + | 1 | Grommet | 20112-85351 | 20112-85351-Online | |
| 9 | + | 1 | Valve | 22197-33960 | 22197-33960-Online | |
| 10 | + | 1 | Joint | 72933-85620 | 72933-85620-Online | |
| 11 | + | 1 | Pipe | 32003-85330 | 32003-85330-Online | |
| 12 | 1 | Clip | 20020-85540 | 20020-85540-Online | ||
| 13 | + | 1 | Clip | 37013-85310 | 37013-85310-Online | |
| 14 | 4 | Tank Cushion | 62901-85220 | 62901-85220-Online | ||
| 15 | 1 | Tank Guard | 62902-85320 | 62902-85320-Online | ||
| 16 | 2 | Bolt-Spw | 11022-05202 | 11022-05202-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 3 | 1 | Wrench, Spcket | 895415-66630 | 895415-66630-Online | ||
| 4 | 1 | Locking Tool | 897518-01131 | 897518-01131-Online | ||
| 5 | 1 | Goggle | X690-000030 | X690-000030-Online | ||
| 6 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online | ||
| 10 | 1 | Shield Kit | P021-013770 | P021-013770-Online | ||
| 11 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 12 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | |
| 13 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | |
| 15 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 16 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 17 | + | 1 | Bolt | 91118-05018 | 91118-05018-Online | |
| 21 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 22 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 23 | 4 | Bolt | 91118-05025 | 91118-05025-Online |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | ||
| 14 | 2 | Clip | 224924-52930 | 224924-52930-Online | 28MM | |
| 15 | 1 | Hook Asy | P021-012660 | P021-012660-Online | ||
| 16 | + | 1 | Hook, Band | 301015-05330 | 301015-05330-Online | |
| 17 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | |
| 18 | + | 1 | Hook | 301210-04630 | 301210-04630-Online | |
| 19 | 1 | Bracket Asy, Handle | P021-012750 | P021-012750-Online | ||
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 23 | + | 1 | Part | 900565-50008 | 900565-50008-Online | |
| 24 | + | 1 | Bolt | 91118-05030 | 91118-05030-Online | |
| 29 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-001350 | C050-001350-Online | ||
| 33 | 1 | Shaft, Drive | 610011-25530 | 610011-25530-Online | ||
| 34 | 1 | Harness,Shoulder | C062-000192 | C062-000192-Online | ||
| 40 | 1 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | ||
| 41 | 4 | Bolt | 91118-05025 | 91118-05025-Online | ||
| 43 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 45 | 4 | Cushion | V420-001120 | V420-001120-Online | ||
| 46 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | ||
| 47 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |
| 48 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | |
| 49 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 50 | 1 | Lockout, Throttle | C460-000111 | C460-000111-Online | 70MM |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 51 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | ||
| 52 | 1 | Control, Throttle | C450-000270 | C450-000270-Online | ||
| 53 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | ||
| 54 | 1 | Switch, On Off | A440-001160 | A440-001160-Online | ||
| 55 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | ||
| 56 | 1 | Cable,Bowden | V430-002140 | V430-002140-Online | ||
| 57 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 58 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 59 | 1 | Tube | V475-004180 | V475-004180-Online |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | P021-016151 | P021-016151-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | |
| 6 | + | 1 | Fixture,Blade | 610313-52932 | 610313-52932-Online | 11 | ++ |
| 11 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 14 | ++ | |
| 14 | 1 | Fixture,Blade | 610313-52132 | 610313-52132-Online | ||
| 7 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | |
| 8 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 9 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | |
| 10 | + | 1 | Shaft, P.T.O. | 610310-56931 | 610310-56931-Online | |
| 12 | + | 1 | Gear Set, Bevel | V000-000060 | V000-000060-Online | |
| 13 | + | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | |
| 19 | + | 1 | Bolt | 91118-06030 | 91118-06030-Online | |
| 20 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 21 | + | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | |
| 22 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | |
| 23 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | |
| 30 | 1 | Saw,Bush Cutter | P021-014320 | P021-014320-Online | ||
| 33 | 1 | Scabbard,Blade | X495-000250 | X495-000250-Online | 9"/10" 3 CUTTER |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 7 | 1 | Tube | V475-000850 | V475-000850-Online | ||
| 8 | 1 | Cable,Bowden | V430-002130 | V430-002130-Online | ||
| 9 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | ||
| 10 | 1 | Shaft, Drive | 610011-25530 | 610011-25530-Online | ||
| 12 | 2 | Hook | 301207-07530 | 301207-07530-Online | ||
| 13 | 2 | Bolt | 91119-05018 | 91119-05018-Online | ||
| 14 | 2 | Collar,5 | V353-000090 | V353-000090-Online | ||
| 21 | 1 | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 22 | 1 | Spring,Torsion | V452-000200 | V452-000200-Online | ||
| 24 | 1 | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 25 | 1 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 26 | 1 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 30 | 1 | Pipe,Main | C050-001350 | C050-001350-Online | ||
| 34 | 1 | Harness, Shoulder | 301001-46731 | 301001-46731-Online | L1910,L1550 | |
| 48 | 1 | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 49 | 1 | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 58 | 3 | Bracket Asm., Handle | P021-012640 | P021-012640-Online | ||
| 59 | + | 6 | Bolt | 91118-05025 | 91118-05025-Online | |
| 60 | 3 | Cushion | V420-001061 | V420-001061-Online | ||
| 61 | 1 | Hanger, Harness | C624-000040 | C624-000040-Online | ||
| 62 | 1 | Handle Asy, Loop | P021-009202 | P021-009202-Online | ||
| 63 | + | 1 | Handle | 351205-07131 | 351205-07131-Online | |
| 64 | + | 4 | Bolt | 91118-05035 | 91118-05035-Online | |
| 65 | + | 2 | Screw 5*14 | 900242-05014 | 900242-05014-Online | |
| 66 | + | 1 | Bracket,Handle | C405-000270 | C405-000270-Online |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 67 | + | 1 | Bracket,Handle | C405-000160 | C405-000160-Online | |
| 68 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 69 | 1 | Bracket Set,Throttle | P021-014170 | P021-014170-Online | ||
| 70 | + | 4 | Bolt | 91118-05022 | 91118-05022-Online | |
| 71 | + | 4 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 72 | 1 | Switch, On Off | A440-001150 | A440-001150-Online | ||
| 73 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 74 | 1 | Fixture, Handle | C423-000340 | C423-000340-Online | ||
| 75 | 1 | Cushion | V420-001720 | V420-001720-Online | ||
| 76 | 1 | O-Ring 32 | 900720-00032 | 900720-00032-Online | ||
| 77 | 1 | Bolt | 91118-05040 | 91118-05040-Online | ||
| 78 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | ||
| 4 | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | ||
| 5 | + | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | |
| 6 | + | 1 | Fixture,Blade | 610313-52132 | 610313-52132-Online | |
| 7 | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | ||
| 8 | 1 | Washer | 610444-56830 | 610444-56830-Online | ||
| 9 | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | ||
| 10 | 1 | Shaft, P.T.O. | 610310-56931 | 610310-56931-Online | ||
| 12 | 1 | Gear Set, Bevel | V000-000060 | V000-000060-Online | ||
| 13 | 1 | Bearing, Ball 629 | 900810-00629 | 900810-00629-Online | ||
| 15 | 1 | Spring | 610473-52131 | 610473-52131-Online | ||
| 16 | 1 | Washer | 900603-50008 | 900603-50008-Online | ||
| 17 | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | ||
| 18 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | ||
| 19 | 1 | Bolt | 91118-06030 | 91118-06030-Online | ||
| 20 | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | ||
| 21 | 1 | Bearing, Ball 6001 | 900803-06001 | 900803-06001-Online | ||
| 22 | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | ||
| 23 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | ||
| 40 | 1 | Cutter,Asm Line | X047-000321 | X047-000321-Online | ||
| 41 | + | 1 | Washer,Circular 24 | V332-000000 | V332-000000-Online | |
| 42 | + | 2 | Eyelet | P022-000710 | P022-000710-Online | |
| 43 | + | 1 | Housing | P022-005040 | P022-005040-Online | |
| 44 | + | 1 | Part | P022-010390 | P022-010390-Online | |
| 45 | + | 1 | Spring | P022-001200 | P022-001200-Online | |
| 46 | + | 1 | Tap Knob | P022-019450 | P022-019450-Online |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 47 | + | 1 | Bobbin | P022-001180 | P022-001180-Online | |
| 48 | + | 1 | Nylon Code | P022-006200 | P022-006200-Online | |
| 49 | + | 1 | Cover | P022-005030 | P022-005030-Online | |
| 50 | + | 1 | Spacer | P022-023160 | P022-023160-Online |
Source PDF: 20130718-22_SRMF-340(37)_P014-000060-10Eb_EN.pdf. Generated 2026-06-25 14:38.
