Echo SHR-150SI IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SHR-150SI-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Screw 5*18 | 900239-05018 | 900239-05018-Online | 5*18 | |
| 2 | 1 | Washer,Circular 5 | V323-000060 | V323-000060-Online | ||
| 3 | 1 | Cover, Cylinder | 101514-61831 | 101514-61831-Online | ||
| 5 | 1 | Cylinder | A130-000611 | A130-000611-Online | ||
| 6 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 7 | 1 | Gasket,Cyl | V100-000120 | V100-000120-Online | ||
| 8 | 1 | Piston Kit | P021-014760 | P021-014760-Online | ||
| 9 | + | 1 | Ring,Piston | A101-000090 | A101-000090-Online | |
| 10 | + | 1 | Pin, Piston | 100013-61830 | 100013-61830-Online | |
| 11 | + | 2 | Ring, Snap | 100015-61830 | 100015-61830-Online | |
| 12 | + | 1 | Bearing, Needle | 100012-61830 | 100012-61830-Online | |
| 13 | 1 | Key, Woodruff | 100142-12330 | 100142-12330-Online | ||
| 14 | 1 | Crankshaft | 100100-61831 | 100100-61831-Online | ||
| 20 | 1 | Crank Case Kit | P021-004340 | P021-004340-Online | ||
| 21 | + | 2 | Oilseal | 100212-61830 | 100212-61830-Online | ISCD 10*20*5 |
| 22 | + | 2 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |
| 25 | + | 1 | Gasket, Crankcase | 100242-61830 | 100242-61830-Online | |
| 27 | + | 3 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 28 | 1 | Cover,Fan | A172-000370 | A172-000370-Online | ||
| 29 | 4 | Screw 5*16 | 900239-05016 | 900239-05016-Online | 5*16 |

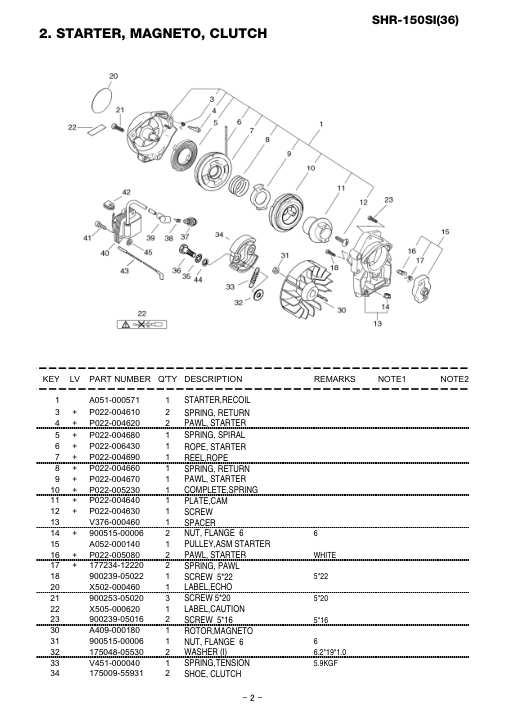

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Starter,Recoil | A051-000571 | A051-000571-Online | ||
| 3 | + | 2 | Spring, Return | P022-004610 | P022-004610-Online | |
| 4 | + | 2 | Pawl, Starter | P022-004620 | P022-004620-Online | |
| 5 | + | 1 | Spring, Spiral | P022-004680 | P022-004680-Online | |
| 6 | + | 1 | Rope, Starter | P022-006430 | P022-006430-Online | |
| 7 | + | 1 | Reel,Rope | P022-004690 | P022-004690-Online | |
| 8 | + | 1 | Spring, Return | P022-004660 | P022-004660-Online | |
| 9 | + | 1 | Pawl, Starter | P022-004670 | P022-004670-Online | |
| 10 | + | 1 | Complete,Spring | P022-005230 | P022-005230-Online | |
| 11 | + | 1 | Plate,Cam | P022-004640 | P022-004640-Online | |
| 12 | + | 1 | Screw | P022-004630 | P022-004630-Online | |
| 13 | 1 | Spacer | V376-000460 | V376-000460-Online | ||
| 14 | + | 2 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | |
| 15 | 1 | Pulley,Asm Starter | A052-000140 | A052-000140-Online | ||
| 16 | + | 2 | Pawl, Starter | P022-005080 | P022-005080-Online | WHITE |
| 17 | + | 2 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |
| 18 | 1 | Screw 5*22 | 900239-05022 | 900239-05022-Online | 5*22 | |
| 20 | 1 | Label,Echo | X502-000460 | X502-000460-Online | ||
| 21 | 3 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 22 | 1 | Label,Caution | X505-000620 | X505-000620-Online | ||
| 23 | 2 | Screw 5*16 | 900239-05016 | 900239-05016-Online | 5*16 | |
| 30 | 1 | Rotor,Magneto | A409-000180 | A409-000180-Online | ||
| 31 | 1 | Nut, Flange 6 | 900515-00006 | 900515-00006-Online | ||
| 32 | 2 | Washer (I) | 175048-05530 | 175048-05530-Online | 6.2*19*1.0 | |
| 33 | 1 | Spring,Tension | V451-000040 | V451-000040-Online | 5.9KGF | |
| 34 | 2 | Shoe, Clutch | 175009-55931 | 175009-55931-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | 2 | Washer | 175049-56030 | 175049-56030-Online | 8.5*16*0.5 | |
| 36 | 2 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | ||
| 37 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 38 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 39 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 40 | 1 | Coil, Ignition | 156626-61831 | 156626-61831-Online | ||
| 41 | 2 | Bolt Hsh | 91128-04022 | 91128-04022-Online | CM-4*22 | |
| 42 | 1 | Grommet, H.T.Cord | 156112-61831 | 156112-61831-Online | ||
| 43 | 1 | Lead | V485-000410 | V485-000410-Online | ||
| 44 | 2 | Washer,Circular 8 | V306-000020 | V306-000020-Online | 8.2*17*0.2 | |
| 45 | 2 | Spacer | 150117-09130 | 150117-09130-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cleaner,Asm Air | A027-000020 | A027-000020-Online | ||
| 2 | + | 1 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 |
| 3 | + | 1 | Cover, Air Cleaner | 130308-13410 | 130308-13410-Online | |
| 4 | + | 1 | Filter, Air | 130310-13410 | 130310-13410-Online | |
| 5 | + | 1 | Asy,Cleaner Base | P022-006540 | P022-006540-Online | |
| 6 | 1 | Carburetor,Diaphragm | A021-000661 | A021-000661-Online | RB-K69A | |
| 8 | 1 | Cable,Bowden | V430-000890 | V430-000890-Online | ||
| 11 | 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 5*20 | |
| 14 | 1 | Gasket, Muffler | 145510-61832 | 145510-61832-Online | ||
| 15 | 1 | Muffler Asy | P021-008731 | P021-008731-Online | ||
| 16 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | ||
| 17 | 2 | Bolt, H.S. 5*50 | 900105-05050 | 900105-05050-Online | 5*50 | |
| 18 | 1 | Cover, Muffler | 145621-61832 | 145621-61832-Online | ||
| 20 | 2 | Screw 5*60 | 900242-05060 | 900242-05060-Online | 5*60 | |
| 21 | 1 | Gasket,Intake | V103-000190 | V103-000190-Online | ||
| 22 | 1 | Insulator,Intake | A200-000160 | A200-000160-Online | ||
| 23 | 2 | Gasket,Intake | V103-000230 | V103-000230-Online | ||
| 24 | 1 | Insulator,Intake | A200-000210 | A200-000210-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap, Chemical Tank | 250001-14011 | 250001-14011-Online | ||
| 2 | + | 1 | Valve, Air | 250026-11310 | 250026-11310-Online | |
| 3 | + | 1 | Packing | 250027-11310 | 250027-11310-Online | |
| 4 | 1 | Gasket, Chmcl. Tank | 250011-01110 | 250011-01110-Online | ||
| 5 | 1 | Filter,Tank | E220-000010 | E220-000010-Online | ||
| 53 | 1 | Tank,Chemical,Asy | P021-014410 | P021-014410-Online | ||
| 53 | 1 | Tank,Chemical,Asy | P021-014411 | P021-014411-Online | ||
| 7 | + | 1 | Nut, Hose | 250211-11410 | 250211-11410-Online | |
| 8 | + | 1 | O-Ring P-28 (F) | 900720-30028 | 900720-30028-Online | P-28 |
| 9 | 1 | Grip,Starter | A511-000050 | A511-000050-Online | ||
| 10 | 1 | Guide,Rope | A510-000040 | A510-000040-Online | ||
| 14 | 1 | Cushion | V420-000630 | V420-000630-Online | ||
| 50 | 1 | Frame, Backpack Kit | P021-014851 | P021-014851-Online | ||
| 19 | + | 1 | Screw +-Sr 6*15 | 900220-06015 | 900220-06015-Online | 6*15 |
| 38 | + | 1 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | |
| 39 | + | 1 | Collar,6 | V354-000150 | V354-000150-Online | 7*9.2*6-14*2 |
| 51 | + | 1 | Bracket,Handle | C405-000190 | C405-000190-Online | |
| 52 | + | 1 | Guide, Rope | A510-000080 | A510-000080-Online | 10*216 |
| 12 | + | 1 | Screw Tapping | 91428-05020 | 91428-05020-Online | 5*20 SUS |
| 17 | 2 | Cushion,6 | V402-000010 | V402-000010-Online | ||
| 18 | 3 | Part | 250916-06210 | 250916-06210-Online | ||
| 20 | 2 | Bolt, Flange 6*20 | 900103-06020 | 900103-06020-Online | 6*20 | |
| 21 | 1 | Seat,Backpack | C630-000030 | C630-000030-Online | ||
| 22 | 1 | Seat,Backpack | C630-000020 | C630-000020-Online | ||
| 23 | 2 | Clip | 300333-06160 | 300333-06160-Online | ||
| 24 | 4 | Clip | V491-000090 | V491-000090-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 2 | Harness,Asm Backpack | C061-000090 | C061-000090-Online | ||
| 26 | 2 | Clip | V491-000040 | V491-000040-Online | ||
| 29 | 2 | Nut, Flange | 900518-00006 | 900518-00006-Online | ||
| 30 | 1 | Label,Echo | X502-000470 | X502-000470-Online | ||
| 32 | 1 | Label,Model | X503-008370 | X503-008370-Online | SHR-150SI | |
| 35 | 1 | Label, Caution | 890617-13210 | 890617-13210-Online | ||
| 40 | 1 | Cushion,6 | V402-000030 | V402-000030-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 2 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 4 | 1 | Tank,Fuel | A350-000250 | A350-000250-Online | ||
| 5 | 1 | Cushion, Fuel Tank | 131920-61830 | 131920-61830-Online | ||
| 6 | 2 | Cushion, Fuel Tank | 131920-55430 | 131920-55430-Online | ||
| 7 | 1 | Pipe | 132010-52030 | 132010-52030-Online | 3*6*170 NBR | |
| 8 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | ||
| 9 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 10 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 11 | 1 | Pipe | V471-000110 | V471-000110-Online | 3*6*115 | |
| 12 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 13 | 2 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 14 | 1 | Screw 4*14 | 900253-04014 | 900253-04014-Online | 4*14 | |
| 15 | 1 | Knob,Throttle | C473-000011 | C473-000011-Online | ||
| 16 | 1 | Bracket,Switch | A439-000100 | A439-000100-Online | ||
| 17 | 2 | Screw 4*10 | 900252-04010 | 900252-04010-Online | 4*10 | |
| 18 | 1 | Switch,On Off | A440-000420 | A440-000420-Online | ||
| 19 | 1 | Lever,Throttle | C453-000080 | C453-000080-Online | ||
| 20 | 1 | Fixture,Trigger | C471-000070 | C471-000070-Online | ||
| 21 | 1 | Grommet | 150614-02910 | 150614-02910-Online | ||
| 22 | 1 | Screw Tapping | 91428-05020 | 91428-05020-Online | 5*20 SUS | |
| 24 | 1 | Lead | V485-000400 | V485-000400-Online | ||
| 25 | 1 | Spring,Flat Set | P021-007120 | P021-007120-Online | ||
| 26 | + | 1 | Spring,Flat | V453-000050 | V453-000050-Online | |
| 27 | 1 | Tube | V475-002740 | V475-002740-Online | 10*160L |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | 1 | Tube | V475-002741 | V475-002741-Online | 11*14*160L | |
| 30 | 1 | Nozzle, Adjustable | 224103-10610 | 224103-10610-Online | ||
| 30 | 1 | Nozzle,Liquid | E025-000470 | E025-000470-Online | ||
| 32 | 1 | Pipe,Nozzle | E270-000030 | E270-000030-Online | AG2003-020 | |
| 33 | 1 | Cock,Liquid | E245-000070 | E245-000070-Online | ||
| 34 | 1 | Grip,Nozzle | E271-000000 | E271-000000-Online | ||
| 35 | 1 | Hose 7.5*1.2M Bl | 384002-12710 | 384002-12710-Online | 7.5*1.2M BL | |
| 36 | 1 | Wrench, W/S. Driver | 895410-03930 | 895410-03930-Online | ||
| 37 | 1 | Label, Throttle | 890015-13210 | 890015-13210-Online | ||
| 38 | 1 | Label, Switch | 890157-06560 | 890157-06560-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Nipple, Outlet Punp | 384013-11610 | 384013-11610-Online | ||
| 7 | 1 | O-Ring P-10A | 900722-00100 | 900722-00100-Online | P㺎10A(NBR) | |
| 8 | 1 | Nut | 384029-10510 | 384029-10510-Online | 1/4 | |
| 9 | 1 | Washer,Circular | 386018-10510 | 386018-10510-Online | ||
| 10 | 1 | Gasket,Bypass Nozzle | 386019-10510 | 386019-10510-Online | ||
| 11 | 1 | Nipple, Hose | 386013-14010 | 386013-14010-Online | ||
| 12 | 1 | Nut, Wing | 386015-10511 | 386015-10511-Online | ||
| 13 | 2 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 43 | 1 | Pipe | V471-002120 | V471-002120-Online | 7*11*130 | |
| 15 | 1 | Drum,Clutch | A556-000240 | A556-000240-Online | ||
| 16 | 1 | Base,Pump | E202-000030 | E202-000030-Online | ||
| 17 | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 | |
| 18 | 1 | Plate | 405114-10510 | 405114-10510-Online | ||
| 19 | 1 | O-Ring | 900724-30010 | 900724-30010-Online | S-10 4D | |
| 20 | 1 | Case,Pump | E203-000012 | E203-000012-Online | ||
| 21 | 1 | O-Ring (S-29) | 900724-00029 | 900724-00029-Online | S-29 | |
| 22 | 1 | Seal, Unit | 405100-11410 | 405100-11410-Online | ||
| 23 | 1 | Coupling,Seal Unit | P021-006750 | P021-006750-Online | ||
| 24 | + | 1 | Part | 405113-10510 | 405113-10510-Online | |
| 25 | 1 | Circlip 12 | 900704-00012 | 900704-00012-Online | CS-12 SUS | |
| 26 | 1 | Impeller | 405110-10512 | 405110-10512-Online | ||
| 27 | 1 | O-Ring | 900724-30067 | 900724-30067-Online | S-67 | |
| 28 | 1 | Lid,Pump | E205-000001 | E205-000001-Online | ||
| 29 | 4 | Bolt, H.S. 5*40 | 900162-05040 | 900162-05040-Online | 5*40 W,SW | |
| 30 | 1 | Nipple,Hose | E230-000081 | E230-000081-Online | ||
| 31 | 1 | Rod,Valve | E412-000010 | E412-000010-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | 1 | Nut,16 | V270-000000 | V270-000000-Online | ||
| 33 | 1 | Spring,Compression | V450-000310 | V450-000310-Online | ||
| 34 | 1 | E-Ring 4 Sus | 900703-00004 | 900703-00004-Online | CE-4 SUS | |
| 35 | 1 | O-Ring | 92500-00305 | 92500-00305-Online | P3 JI 92457050 | |
| 37 | 2 | Clip | 357013-14011 | 357013-14011-Online | ||
| 38 | 3 | Screw 5*16 | 900239-05016 | 900239-05016-Online | 5*16 | |
| 39 | 1 | Cushion | V420-000950 | V420-000950-Online | ||
| 41 | 1 | Washer | 400111-11410 | 400111-11410-Online | 12.2*20*0.5 | |
| 42 | 1 | Pipe | V471-001340 | V471-001340-Online | 10*15*160 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-001240 | P005-001240-Online | |
| 3 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 4 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 6 | + | 1 | Screw, Wire Adjust | P005-001330 | P005-001330-Online | |
| 7 | + | 1 | Cover Asy, Rotor | P005-001880 | P005-001880-Online | |
| 8 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 9 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online | |
| 10 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 11 | + | 1 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |
| 12 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 13 | + | 1 | Spring, Coil | 125322-12620 | 125322-12620-Online | |
| 14 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 15 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 16 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 17 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 18 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 19 | + | 1 | Diaphragm | 125341-42030 | 125341-42030-Online | |
| 20 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 21 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 22 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 23 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 25 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 26 | + | 1 | Screw | P005-000270 | P005-000270-Online | |
| 27 | + | 1 | Pump, Priming | 125381-46730 | 125381-46730-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Retainer | P005-000250 | P005-000250-Online | |
| 29 | + | 4 | Screw | P005-001900 | P005-001900-Online | |
| 30 | + | 2 | Plug, H Ajust Screw | P005-001270 | P005-001270-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online | |
| 2 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 3 | + | 1 | Spring, Coil | 125322-12620 | 125322-12620-Online | |
| 5 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Diaphragm | 125341-42030 | 125341-42030-Online | |
| 8 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 9 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 10 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 11 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online |
Source PDF: 20130718-24_SHR-150SI(36)_P014-000090-10Hb_EN.pdf. Generated 2026-06-25 14:38.
