Echo CS-260T25RC IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: CS-260T25RC-Online
Source Pages

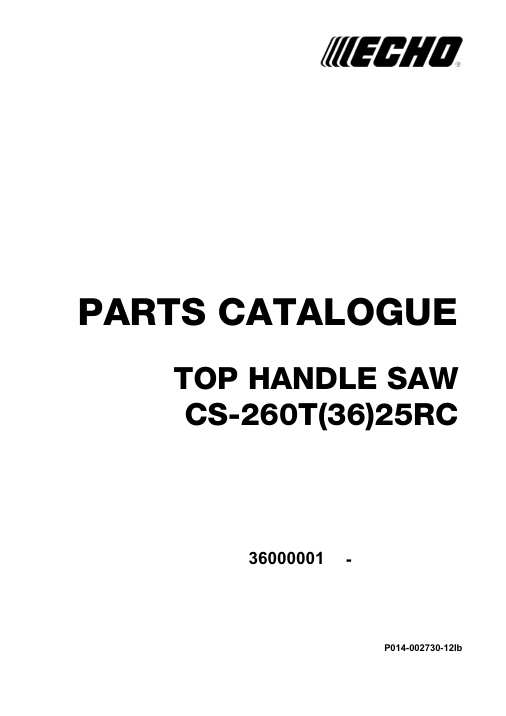

Page 1
Tap or click the page image to enlarge it.

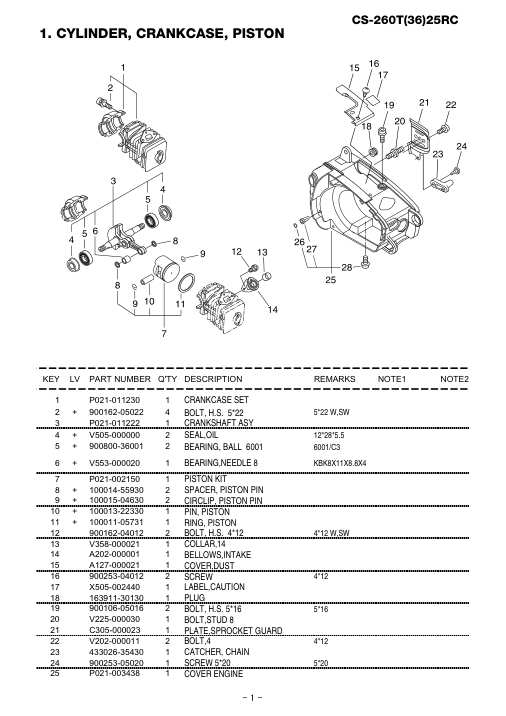

Page 2
Tap or click the page image to enlarge it.

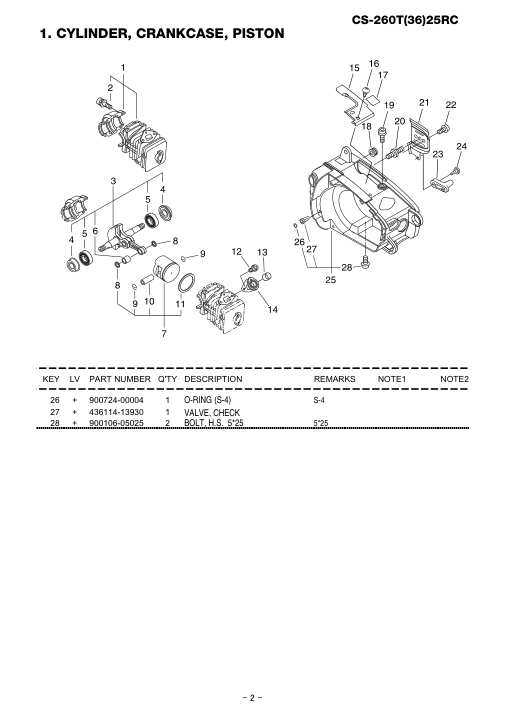

Page 3
Tap or click the page image to enlarge it.

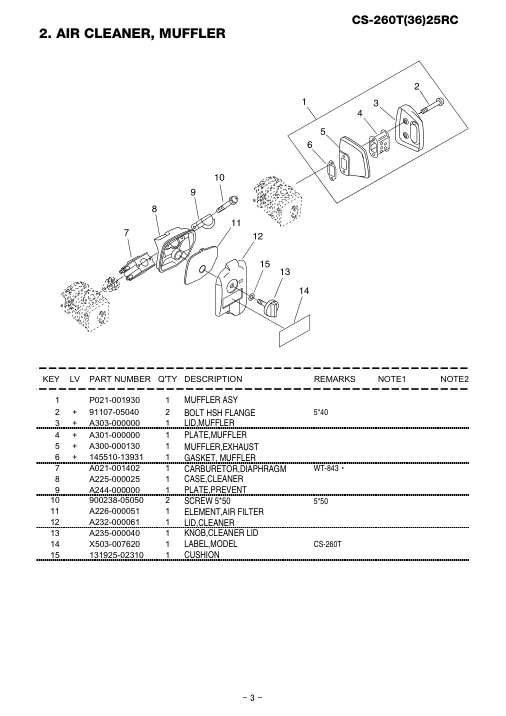

Page 4
Tap or click the page image to enlarge it.

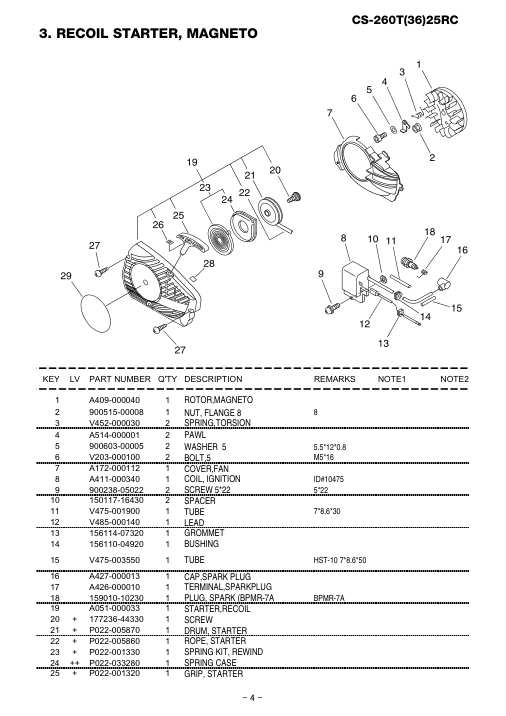

Page 5
Tap or click the page image to enlarge it.

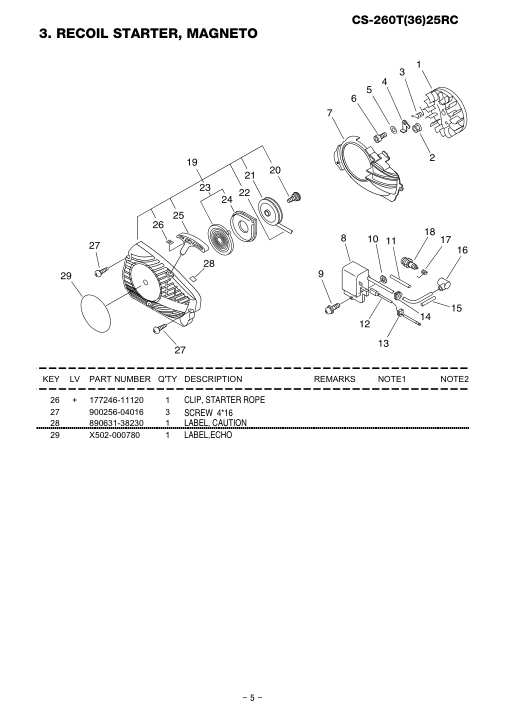

Page 6
Tap or click the page image to enlarge it.

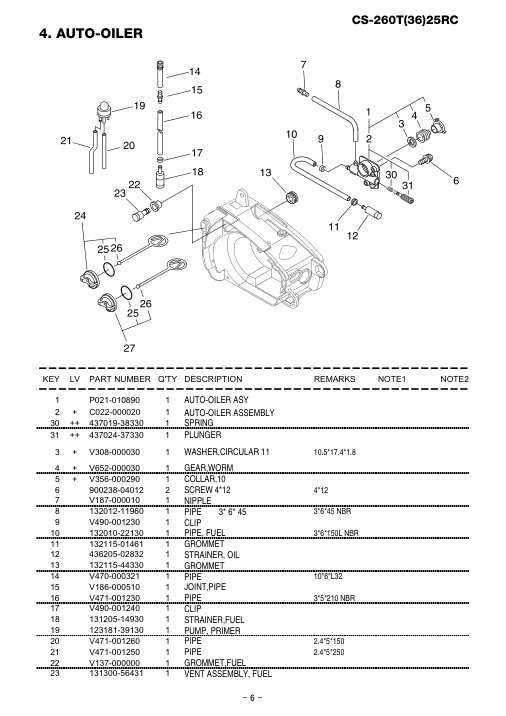

Page 7
Tap or click the page image to enlarge it.

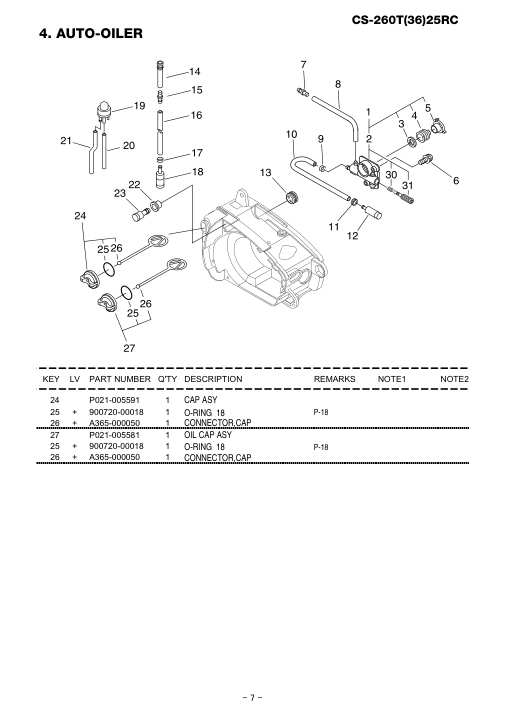

Page 8
Tap or click the page image to enlarge it.

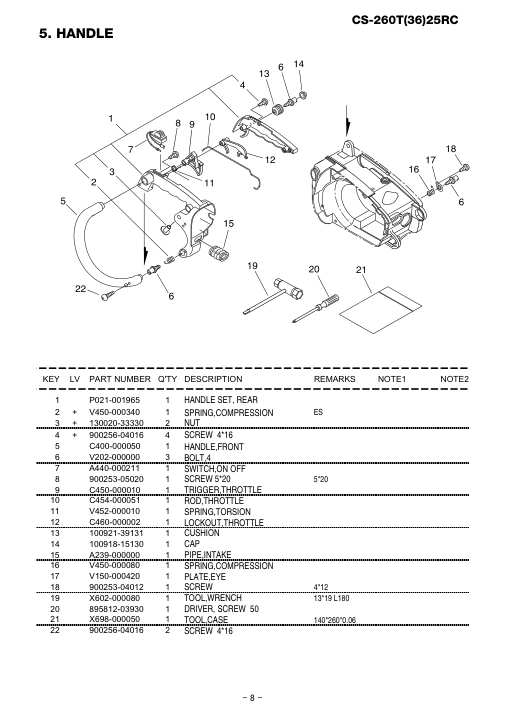

Page 9
Tap or click the page image to enlarge it.

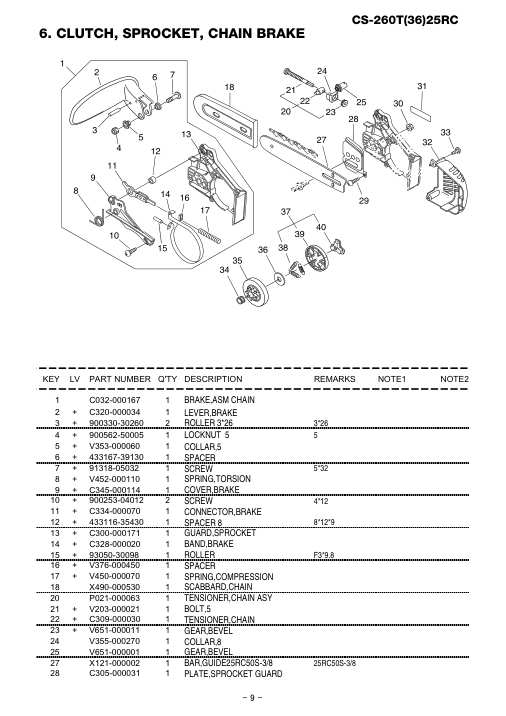

Page 10
Tap or click the page image to enlarge it.

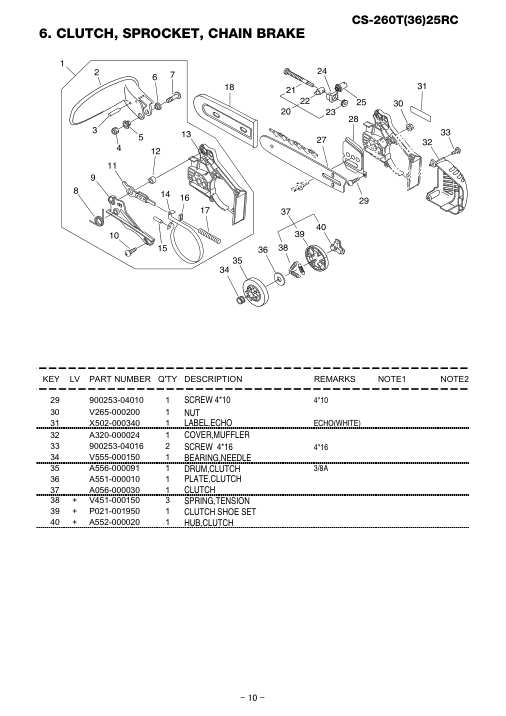

Page 11
Tap or click the page image to enlarge it.

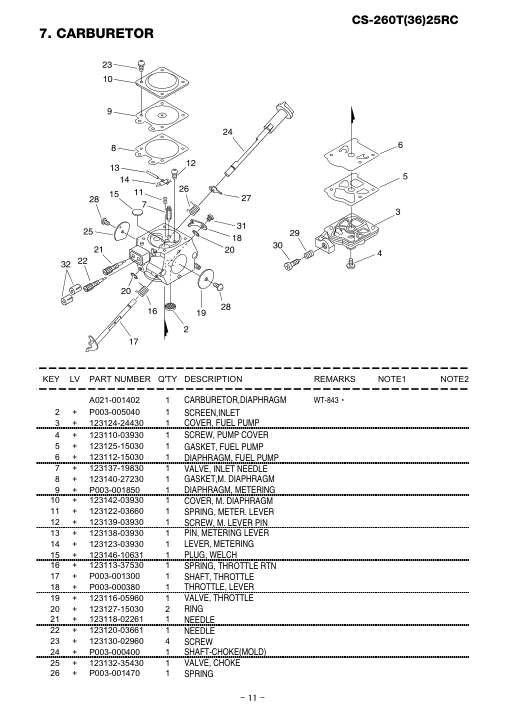

Page 12
Tap or click the page image to enlarge it.

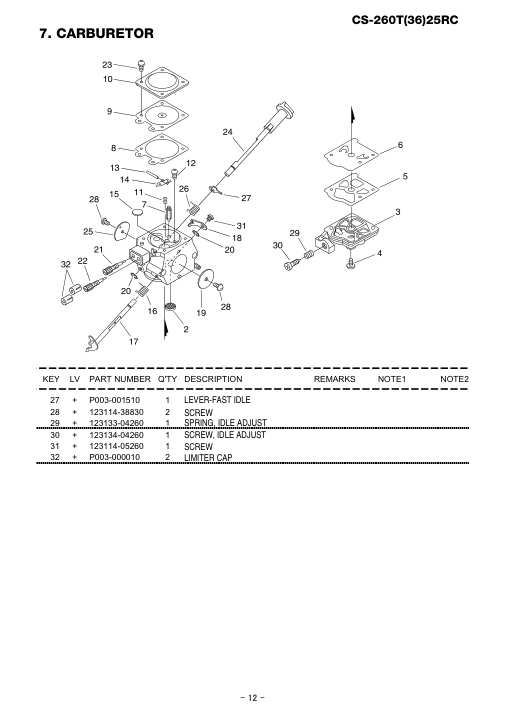

Page 13
Tap or click the page image to enlarge it.

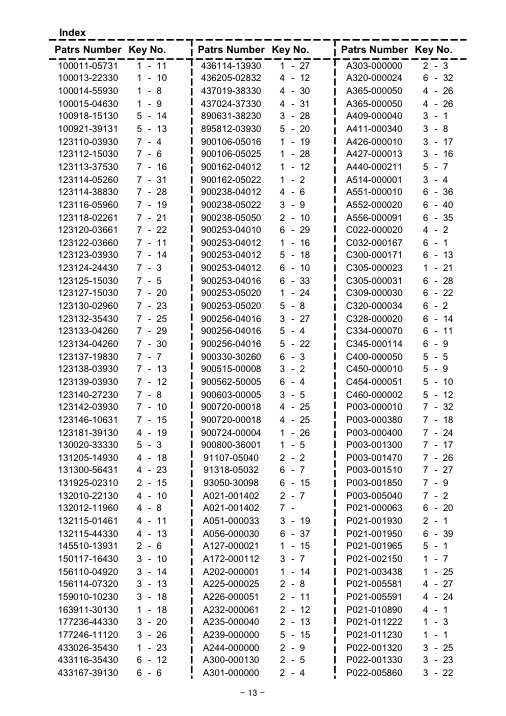

Page 14
Tap or click the page image to enlarge it.

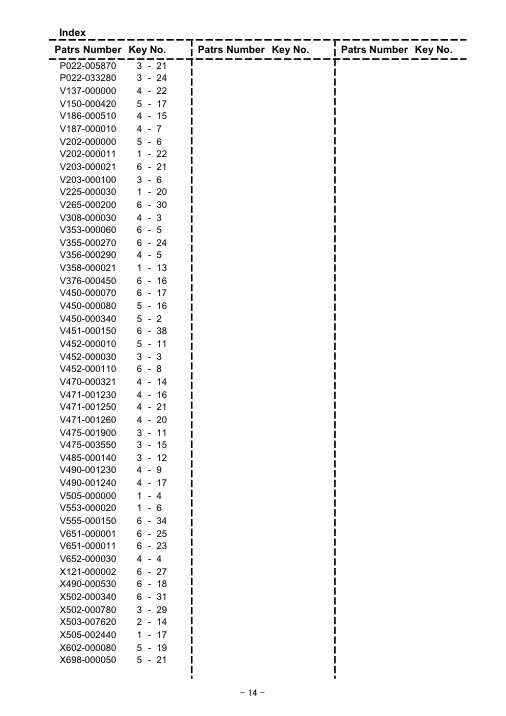

Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Crankcase Set | P021-011230 | P021-011230-Online | ||
| 2 | + | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |
| 3 | 1 | Crankshaft Asy | P021-011222 | P021-011222-Online | ||
| 4 | + | 2 | Seal,Oil | V505-000000 | V505-000000-Online | 12*28*5.5 |
| 5 | + | 2 | Bearing, Ball 6001 | 900800-36001 | 900800-36001-Online | 6001/C3 |
| 6 | + | 1 | Bearing,Needle 8 | V553-000020 | V553-000020-Online | KBK8X11X8.8X4 |
| 7 | 1 | Piston Kit | P021-002150 | P021-002150-Online | ||
| 8 | + | 2 | Spacer, Piston Pin | 100014-55930 | 100014-55930-Online | |
| 9 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 10 | + | 1 | Pin, Piston | 100013-22330 | 100013-22330-Online | |
| 11 | + | 1 | Ring, Piston | 100011-05731 | 100011-05731-Online | |
| 12 | 2 | Bolt, H.S. 4*12 | 900162-04012 | 900162-04012-Online | 4*12 W,SW | |
| 13 | 1 | Collar,14 | V358-000021 | V358-000021-Online | ||
| 14 | 1 | Bellows,Intake | A202-000001 | A202-000001-Online | ||
| 15 | 1 | Cover,Dust | A127-000021 | A127-000021-Online | ||
| 16 | 2 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 17 | 1 | Label,Caution | X505-002440 | X505-002440-Online | ||
| 18 | 1 | Plug | 163911-30130 | 163911-30130-Online | ||
| 19 | 2 | Bolt, H.S. 5*16 | 900106-05016 | 900106-05016-Online | 5*16 | |
| 20 | 1 | Bolt,Stud 8 | V225-000030 | V225-000030-Online | ||
| 21 | 1 | Plate,Sprocket Guard | C305-000023 | C305-000023-Online | ||
| 22 | 2 | Bolt,4 | V202-000011 | V202-000011-Online | 4*12 | |
| 23 | 1 | Catcher, Chain | 433026-35430 | 433026-35430-Online | ||
| 24 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 25 | 1 | Cover Engine | P021-003438 | P021-003438-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | O-Ring (S-4) | 900724-00004 | 900724-00004-Online | S-4 |
| 27 | + | 1 | Valve, Check | 436114-13930 | 436114-13930-Online | |
| 28 | + | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Muffler Asy | P021-001930 | P021-001930-Online | ||
| 2 | + | 2 | Bolt Hsh Flange | 91107-05040 | 91107-05040-Online | 5*40 |
| 3 | + | 1 | Lid,Muffler | A303-000000 | A303-000000-Online | |
| 4 | + | 1 | Plate,Muffler | A301-000000 | A301-000000-Online | |
| 5 | + | 1 | Muffler,Exhaust | A300-000130 | A300-000130-Online | |
| 6 | + | 1 | Gasket, Muffler | 145510-13931 | 145510-13931-Online | |
| 7 | 1 | Carburetor,Diaphragm | A021-001402 | A021-001402-Online | WT-843࣭ | |
| 8 | 1 | Case,Cleaner | A225-000025 | A225-000025-Online | ||
| 9 | 1 | Plate,Prevent | A244-000000 | A244-000000-Online | ||
| 10 | 2 | Screw 5*50 | 900238-05050 | 900238-05050-Online | 5*50 | |
| 11 | 1 | Element,Air Filter | A226-000051 | A226-000051-Online | ||
| 12 | 1 | Lid,Cleaner | A232-000061 | A232-000061-Online | ||
| 13 | 1 | Knob,Cleaner Lid | A235-000040 | A235-000040-Online | ||
| 14 | 1 | Label,Model | X503-007620 | X503-007620-Online | CS-260T | |
| 15 | 1 | Cushion | 131925-02310 | 131925-02310-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor,Magneto | A409-000040 | A409-000040-Online | ||
| 2 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 3 | 2 | Spring,Torsion | V452-000030 | V452-000030-Online | ||
| 4 | 2 | Pawl | A514-000001 | A514-000001-Online | ||
| 5 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 6 | 2 | Bolt,5 | V203-000100 | V203-000100-Online | M5*16 | |
| 7 | 1 | Cover,Fan | A172-000112 | A172-000112-Online | ||
| 8 | 1 | Coil, Ignition | A411-000340 | A411-000340-Online | ID#10475 | |
| 9 | 2 | Screw 5*22 | 900238-05022 | 900238-05022-Online | 5*22 | |
| 10 | 2 | Spacer | 150117-16430 | 150117-16430-Online | ||
| 11 | 1 | Tube | V475-001900 | V475-001900-Online | 7*8.6*30 | |
| 12 | 1 | Lead | V485-000140 | V485-000140-Online | ||
| 13 | 1 | Grommet | 156114-07320 | 156114-07320-Online | ||
| 14 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 15 | 1 | Tube | V475-003550 | V475-003550-Online | HST-10 7*8.6*50 | |
| 16 | 1 | Cap,Spark Plug | A427-000013 | A427-000013-Online | ||
| 17 | 1 | Terminal,Sparkplug | A426-000010 | A426-000010-Online | ||
| 18 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 19 | 1 | Starter,Recoil | A051-000033 | A051-000033-Online | ||
| 20 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 21 | + | 1 | Drum, Starter | P022-005870 | P022-005870-Online | |
| 22 | + | 1 | Rope, Starter | P022-005860 | P022-005860-Online | |
| 23 | + | 1 | Spring Kit, Rewind | P022-001330 | P022-001330-Online | 24 | ++ |
| 24 | 1 | Spring Case | P022-033280 | P022-033280-Online | ||
| 25 | + | 1 | Grip, Starter | P022-001320 | P022-001320-Online |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 27 | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | ||
| 28 | 1 | Label, Caution | 890631-38230 | 890631-38230-Online | ||
| 29 | 1 | Label,Echo | X502-000780 | X502-000780-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Auto-Oiler Asy | P021-010890 | P021-010890-Online | ||
| 2 | + | 1 | Auto-Oiler Assembly | C022-000020 | C022-000020-Online | 30 | ++ |
| 30 | 1 | Spring | 437019-38330 | 437019-38330-Online | 31 | ++ | |
| 31 | 1 | Plunger | 437024-37330 | 437024-37330-Online | ||
| 3 | + | 1 | Washer,Circular 11 | V308-000030 | V308-000030-Online | 10.5*17.4*1.8 |
| 4 | + | 1 | Gear,Worm | V652-000030 | V652-000030-Online | |
| 5 | + | 1 | Collar,10 | V356-000290 | V356-000290-Online | |
| 6 | 2 | Screw 4*12 | 900238-04012 | 900238-04012-Online | 4*12 | |
| 7 | 1 | Nipple | V187-000010 | V187-000010-Online | ||
| 8 | 1 | Pipe 3* 6* 45 | 132012-11960 | 132012-11960-Online | 3*6*45 NBR | |
| 9 | 1 | Clip | V490-001230 | V490-001230-Online | ||
| 10 | 1 | Pipe, Fuel | 132010-22130 | 132010-22130-Online | 3*6*150L NBR | |
| 11 | 1 | Grommet | 132115-01461 | 132115-01461-Online | ||
| 12 | 1 | Strainer, Oil | 436205-02832 | 436205-02832-Online | ||
| 13 | 1 | Grommet | 132115-44330 | 132115-44330-Online | ||
| 14 | 1 | Pipe | V470-000321 | V470-000321-Online | 10*6*L32 | |
| 15 | 1 | Joint,Pipe | V186-000510 | V186-000510-Online | ||
| 16 | 1 | Pipe | V471-001230 | V471-001230-Online | 3*5*210 NBR | |
| 17 | 1 | Clip | V490-001240 | V490-001240-Online | ||
| 18 | 1 | Strainer,Fuel | 131205-14930 | 131205-14930-Online | ||
| 19 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 20 | 1 | Pipe | V471-001260 | V471-001260-Online | 2.4*5*150 | |
| 21 | 1 | Pipe | V471-001250 | V471-001250-Online | 2.4*5*250 | |
| 22 | 1 | Grommet,Fuel | V137-000000 | V137-000000-Online | ||
| 23 | 1 | Vent Assembly, Fuel | 131300-56431 | 131300-56431-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | 1 | Cap Asy | P021-005591 | P021-005591-Online | ||
| 25 | + | 1 | O-Ring 18 | 900720-00018 | 900720-00018-Online | P-18 |
| 26 | + | 1 | Connector,Cap | A365-000050 | A365-000050-Online | |
| 27 | 1 | Oil Cap Asy | P021-005581 | P021-005581-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Handle Set, Rear | P021-001965 | P021-001965-Online | ||
| 2 | + | 1 | Spring,Compression | V450-000340 | V450-000340-Online | |
| 3 | + | 2 | Part | 130020-33330 | 130020-33330-Online | |
| 4 | + | 4 | Screw 4*16 | 900256-04016 | 900256-04016-Online | |
| 5 | 1 | Handle,Front | C400-000050 | C400-000050-Online | ||
| 6 | 3 | Bolt,4 | V202-000000 | V202-000000-Online | ||
| 7 | 1 | Switch,On Off | A440-000211 | A440-000211-Online | ||
| 8 | 1 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 5*20 | |
| 9 | 1 | Trigger,Throttle | C450-000010 | C450-000010-Online | ||
| 10 | 1 | Rod,Throttle | C454-000051 | C454-000051-Online | ||
| 11 | 1 | Spring,Torsion | V452-000010 | V452-000010-Online | ||
| 12 | 1 | Lockout,Throttle | C460-000002 | C460-000002-Online | ||
| 13 | 1 | Cushion | 100921-39131 | 100921-39131-Online | ||
| 14 | 1 | Part | 100918-15130 | 100918-15130-Online | ||
| 15 | 1 | Pipe,Intake | A239-000000 | A239-000000-Online | ||
| 16 | 1 | Spring,Compression | V450-000080 | V450-000080-Online | ||
| 17 | 1 | Plate,Eye | V150-000420 | V150-000420-Online | ||
| 18 | 1 | Screw | 900253-04012 | 900253-04012-Online | 4*12 | |
| 19 | 1 | Tool,Wrench | X602-000080 | X602-000080-Online | 13*19 L180 | |
| 20 | 1 | Driver, Screw 50 | 895812-03930 | 895812-03930-Online | ||
| 21 | 1 | Tool,Case | X698-000050 | X698-000050-Online | 140*260*0.06 | |
| 22 | 2 | Screw 4*16 | 900256-04016 | 900256-04016-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Brake,Asm Chain | C032-000167 | C032-000167-Online | ||
| 2 | + | 1 | Lever,Brake | C320-000034 | C320-000034-Online | |
| 3 | + | 2 | Roller 3*26 | 900330-30260 | 900330-30260-Online | 3*26 |
| 4 | + | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | |
| 5 | + | 1 | Collar,5 | V353-000060 | V353-000060-Online | |
| 6 | + | 1 | Spacer | 433167-39130 | 433167-39130-Online | |
| 7 | + | 1 | Screw | 91318-05032 | 91318-05032-Online | 5*32 |
| 8 | + | 1 | Spring,Torsion | V452-000110 | V452-000110-Online | |
| 9 | + | 1 | Cover,Brake | C345-000114 | C345-000114-Online | |
| 10 | + | 2 | Screw | 900253-04012 | 900253-04012-Online | 4*12 |
| 11 | + | 1 | Connector,Brake | C334-000070 | C334-000070-Online | |
| 12 | + | 1 | Spacer 8 | 433116-35430 | 433116-35430-Online | 8*12*9 |
| 13 | + | 1 | Guard,Sprocket | C300-000171 | C300-000171-Online | |
| 14 | + | 1 | Band,Brake | C328-000020 | C328-000020-Online | |
| 15 | + | 1 | Roller | 93050-30098 | 93050-30098-Online | F3*9.8 |
| 16 | + | 1 | Spacer | V376-000450 | V376-000450-Online | |
| 17 | + | 1 | Spring,Compression | V450-000070 | V450-000070-Online | |
| 18 | 1 | Scabbard,Chain | X490-000530 | X490-000530-Online | ||
| 20 | 1 | Tensioner,Chain Asy | P021-000063 | P021-000063-Online | ||
| 21 | + | 1 | Bolt,5 | V203-000021 | V203-000021-Online | |
| 22 | + | 1 | Tensioner,Chain | C309-000030 | C309-000030-Online | |
| 23 | + | 1 | Gear,Bevel | V651-000011 | V651-000011-Online | |
| 24 | 1 | Collar,8 | V355-000270 | V355-000270-Online | ||
| 25 | 1 | Gear,Bevel | V651-000001 | V651-000001-Online | ||
| 27 | 1 | Bar,Guide25Rc50S-3/8 | X121-000002 | X121-000002-Online | 25RC50S-3/8 | |
| 28 | 1 | Plate,Sprocket Guard | C305-000031 | C305-000031-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 1 | Screw 4*10 | 900253-04010 | 900253-04010-Online | 4*10 | |
| 30 | 1 | Part | V265-000200 | V265-000200-Online | ||
| 31 | 1 | Label,Echo | X502-000340 | X502-000340-Online | ECHO(WHITE) | |
| 32 | 1 | Cover,Muffler | A320-000024 | A320-000024-Online | ||
| 33 | 2 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 | |
| 34 | 1 | Bearing,Needle | V555-000150 | V555-000150-Online | ||
| 35 | 1 | Drum,Clutch | A556-000091 | A556-000091-Online | 3/8A | |
| 36 | 1 | Plate,Clutch | A551-000010 | A551-000010-Online | ||
| 37 | 1 | Clutch | A056-000030 | A056-000030-Online | ||
| 38 | + | 3 | Spring,Tension | V451-000150 | V451-000150-Online | |
| 39 | + | 1 | Clutch Shoe Set | P021-001950 | P021-001950-Online | |
| 40 | + | 1 | Hub,Clutch | A552-000020 | A552-000020-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screen,Inlet | P003-005040 | P003-005040-Online | |
| 3 | + | 1 | Cover, Fuel Pump | 123124-24430 | 123124-24430-Online | |
| 4 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 5 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 6 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 9 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 10 | + | 1 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |
| 11 | + | 1 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |
| 12 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 13 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 14 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 15 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 16 | + | 1 | Spring, Throttle Rtn | 123113-37530 | 123113-37530-Online | |
| 17 | + | 1 | Shaft, Throttle | P003-001300 | P003-001300-Online | |
| 18 | + | 1 | Throttle, Lever | P003-000380 | P003-000380-Online | |
| 19 | + | 1 | Valve, Throttle | 123116-05960 | 123116-05960-Online | |
| 20 | + | 2 | Ring | 123127-15030 | 123127-15030-Online | |
| 21 | + | 1 | Needle | 123118-02261 | 123118-02261-Online | |
| 22 | + | 1 | Needle | 123120-03661 | 123120-03661-Online | |
| 23 | + | 4 | Screw | 123130-02960 | 123130-02960-Online | |
| 24 | + | 1 | Shaft-Choke(Mold) | P003-000400 | P003-000400-Online | |
| 25 | + | 1 | Valve, Choke | 123132-35430 | 123132-35430-Online | |
| 26 | + | 1 | Spring | P003-001470 | P003-001470-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 1 | Lever-Fast Idle | P003-001510 | P003-001510-Online | |
| 28 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 29 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 30 | + | 1 | Screw, Idle Adjust | 123134-04260 | 123134-04260-Online | |
| 31 | + | 1 | Screw | 123114-05260 | 123114-05260-Online | |
| 32 | + | 2 | Limiter Cap | P003-000010 | P003-000010-Online |
Source PDF: 20130718-312_CS-260T(36)25RC_P014-002730-12Ib_EN.pdf. Generated 2026-06-25 14:38.
