Echo ES-250ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: ES-250ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.

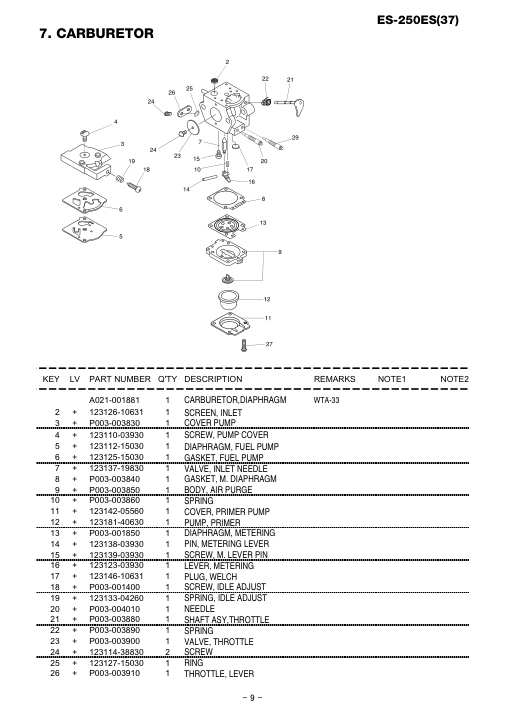

Page 10
Tap or click the page image to enlarge it.

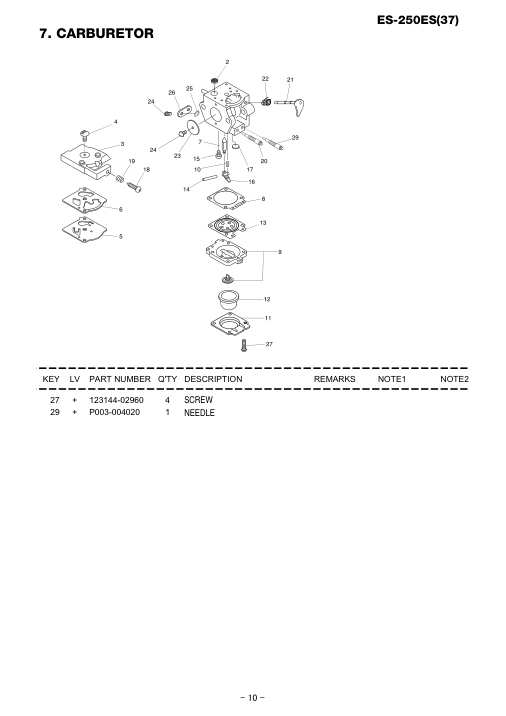

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.

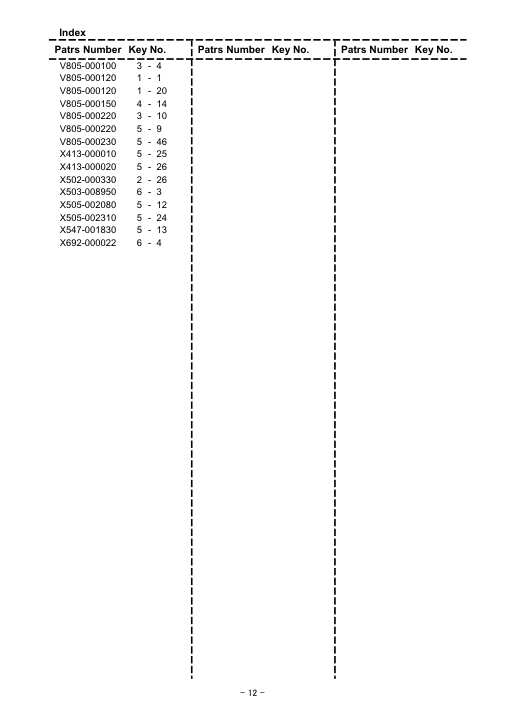

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

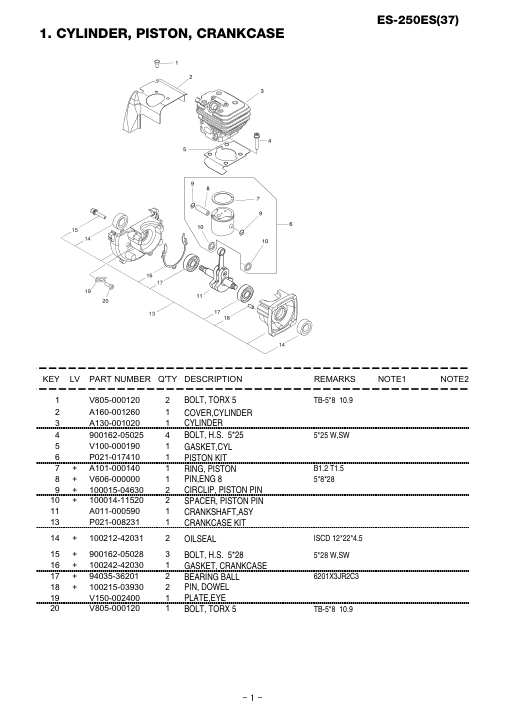

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | TB-5*8 10.9 | |
| 2 | 1 | Cover,Cylinder | A160-001260 | A160-001260-Online | ||
| 3 | 1 | Cylinder | A130-001020 | A130-001020-Online | ||
| 4 | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 5 | 1 | Gasket,Cyl | V100-000190 | V100-000190-Online | ||
| 6 | 1 | Piston Kit | P021-017410 | P021-017410-Online | ||
| 7 | + | 1 | Ring, Piston | A101-000140 | A101-000140-Online | B1.2 T1.5 |
| 8 | + | 1 | Pin,Eng 8 | V606-000000 | V606-000000-Online | 5*8*28 |
| 9 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 10 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 11 | 1 | Crankshaft,Asy | A011-000590 | A011-000590-Online | ||
| 13 | 1 | Crankcase Kit | P021-008231 | P021-008231-Online | ||
| 14 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 16 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 17 | + | 2 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 18 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 19 | 1 | Plate,Eye | V150-002400 | V150-002400-Online | ||
| 20 | 1 | Bolt, Torx 5 | V805-000120 | V805-000120-Online | TB-5*8 10.9 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lead | V485-002220 | V485-002220-Online | ||
| 2 | 1 | Bushing | 152115-05530 | 152115-05530-Online | ||
| 3 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 4 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 5 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 6 | 1 | Bushing | 156110-04920 | 156110-04920-Online | ||
| 7 | 1 | Lead | V485-002210 | V485-002210-Online | ||
| 8 | 1 | Coil, Ignition | A411-000500 | A411-000500-Online | ||
| 10 | 2 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | TB-4*20 12.9 | |
| 12 | 1 | Pulley,Asm Starter | A052-000440 | A052-000440-Online | ||
| 13 | + | 2 | Spring, Return | P022-006510 | P022-006510-Online | |
| 14 | + | 2 | Pawl, Starter | P022-020030 | P022-020030-Online | |
| 15 | 1 | Starter,Recoil | A051-000740 | A051-000740-Online | ||
| 16 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 17 | + | 1 | Plate, Cam | P022-008280 | P022-008280-Online | |
| 18 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 19 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 20 | + | 1 | Rope | P022-008260 | P022-008260-Online | 3M/M |
| 21 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 22 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 23 | + | 1 | Clip, Starter Rope | 177246-11120 | 177246-11120-Online | |
| 24 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 25 | 4 | Bolt, Torx 4 | V804-000060 | V804-000060-Online | TB-4*16 10.9 | |
| 26 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO | |
| 27 | 1 | Rotor,Magneto | A409-000210 | A409-000210-Online | ||
| 28 | 1 | Hub,Fan | E101-000071 | E101-000071-Online | M8*1.25 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | 1 | Spacer | V376-001750 | V376-001750-Online | ||
| 30 | 1 | Weight,Balance | A115-000000 | A115-000000-Online | ||
| 31 | 1 | Tube | V475-006820 | V475-006820-Online | L120 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 2 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 3 | 1 | Element,Air Filter | A226-001410 | A226-001410-Online | ||
| 4 | 2 | Bolt, Torx 5 | V805-000100 | V805-000100-Online | TB-5*65 10.9 | |
| 5 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 6 | 1 | Case, Air Cleaner | P021-004480 | P021-004480-Online | ||
| 8 | 1 | Carburetor,Diaphragm | A021-001881 | A021-001881-Online | WTA-33 | |
| 9 | 1 | Gasket,Intake | V103-000550 | V103-000550-Online | ||
| 10 | 2 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 | |
| 11 | 1 | Insulator, Intake | A200-000370 | A200-000370-Online | ||
| 12 | 1 | Gasket,Intake | V103-000540 | V103-000540-Online | ||
| 13 | 1 | Gasket,Exhaust | V104-000960 | V104-000960-Online | ||
| 14 | 1 | Muffler, Exhaust | A300-000810 | A300-000810-Online | ||
| 15 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 16 | 2 | Bolt,5 | V203-000190 | V203-000190-Online | AN A2-70 | |
| 17 | 1 | Screen, Arrestor | A310-000070 | A310-000070-Online | 22*28*3 | |
| 18 | 1 | Gasket,Exhaust | V104-000940 | V104-000940-Online | T:0.5 | |
| 19 | 1 | Guide, Exhaust | A313-001070 | A313-001070-Online | ||
| 20 | 1 | Guide, Exhaust | A313-000840 | A313-000840-Online | 20.5*3 | |
| 21 | 1 | Guide, Exhaust | A313-001091 | A313-001091-Online | ||
| 22 | 5 | Bolt, Torx 4 | V804-000080 | V804-000080-Online | TB4*8 | |
| 23 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online |

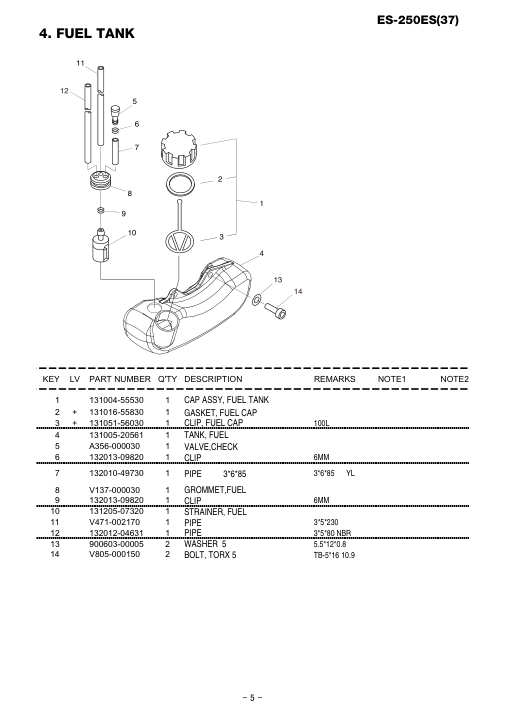

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 2 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 3 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 4 | 1 | Tank, Fuel | 131005-20561 | 131005-20561-Online | ||
| 5 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 6 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 7 | 1 | Pipe 3*6*85 | 132010-49730 | 132010-49730-Online | 3*6*85 YL | |
| 8 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 9 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 10 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 11 | 1 | Pipe | V471-002170 | V471-002170-Online | 3*5*230 | |
| 12 | 1 | Pipe | 132012-04631 | 132012-04631-Online | 3*5*80 NBR | |
| 13 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 14 | 2 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | TB-5*16 10.9 |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 7 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 2 | 1 | Cover,Engine | A190-000860 | A190-000860-Online | ||
| 3 | 1 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 4 | 1 | Washer 5 | 900602-00005 | 900602-00005-Online | 5.3*10*1 | |
| 5 | 1 | Switch, On Off | A440-001310 | A440-001310-Online | ||
| 6 | 1 | Terminal,Lead | V486-000150 | V486-000150-Online | ||
| 7 | 1 | Lever,Throttle | C453-000300 | C453-000300-Online | ||
| 8 | 1 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 9 | 1 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | TB-5*25 12.9 | |
| 10 | 6 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | TT-5*20 DG 10.9 | |
| 11 | 1 | Case,Fan | E103-000980 | E103-000980-Online | ||
| 12 | 1 | Label,Caution | X505-002080 | X505-002080-Online | ||
| 13 | 1 | Label,Echo | X547-001830 | X547-001830-Online | ||
| 14 | 1 | Grid, Blower | E104-000090 | E104-000090-Online | ||
| 15 | 1 | Bolt, H.S. 8*15 | 900105-08015 | 900105-08015-Online | 8*15 | |
| 16 | 1 | Washer | 100143-19830 | 100143-19830-Online | 8.2*31*0.8 | |
| 17 | 1 | Piece, Lever | C662-000040 | C662-000040-Online | ||
| 18 | 4 | Bolt, Torx 4 | V804-000070 | V804-000070-Online | TB-4*20 12.9 | |
| 19 | 1 | Fan,Blower | E100-000220 | E100-000220-Online | ||
| 20 | 1 | Case,Fan | E103-000690 | E103-000690-Online | ||
| 21 | 2 | Cushion | 351335-20560 | 351335-20560-Online | ||
| 22 | 1 | Control, Throttle | C450-000410 | C450-000410-Online | ||
| 23 | 1 | Rod, Throttle | C454-000190 | C454-000190-Online | ||
| 24 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 1 | Cutter,Shredder | X413-000010 | X413-000010-Online | ||
| 26 | 1 | Cutter,Shredder | X413-000020 | X413-000020-Online | ||
| 27 | 1 | Pipe,Blower | E165-000191 | E165-000191-Online | ||
| 28 | 1 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | ||
| 29 | 1 | Pipe,Blower | E165-000380 | E165-000380-Online | ||
| 30 | + | 1 | Guard,Pipe | E178-000050 | E178-000050-Online | |
| 31 | + | 1 | Pipe,Blower | E165-000390 | E165-000390-Online | |
| 32 | + | 1 | Ring | V583-000080 | V583-000080-Online | CE-5 |
| 33 | 1 | Wrench, W/S-Driver | 895410-06960 | 895410-06960-Online | ||
| 34 | 1 | Cushion | V420-001440 | V420-001440-Online | ||
| 35 | 1 | Handle, Rear | C410-001020 | C410-001020-Online | ||
| 36 | 1 | Knob,Fastener | V299-000290 | V299-000290-Online | 1 KNOB M5X0.8 | |
| 37 | 1 | O-Ring P-3 | 900720-00003 | 900720-00003-Online | P-3 | |
| 38 | 1 | Spring,Torsion | V452-000370 | V452-000370-Online | ||
| 39 | 2 | Locknut 5 | 900562-50005 | 900562-50005-Online | ||
| 40 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 41 | 1 | Lever, Actuator | A446-000000 | A446-000000-Online | ||
| 42 | 1 | Switch, On Off | A045-000590 | A045-000590-Online | ||
| 43 | 1 | Lid,Switch Case | A473-000050 | A473-000050-Online | ||
| 44 | 2 | Bolt, Torx 4 | V804-000010 | V804-000010-Online | TT-4*16 DG 10.9 | |
| 45 | 1 | Plug | V162-000580 | V162-000580-Online | ||
| 46 | 2 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | TT-5*25 DG 10.9 |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe,Main | E160-000170 | E160-000170-Online | ||
| 2 | 1 | Pipe,Suction | E180-000011 | E180-000011-Online | ||
| 3 | 2 | Label,Model | X503-008950 | X503-008950-Online | ||
| 4 | 1 | Bag,Dust | X692-000022 | X692-000022-Online | ECHO BAG - | BLACK |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | + | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |
| 3 | + | 1 | Cover Pump | P003-003830 | P003-003830-Online | |
| 4 | + | 1 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |
| 5 | + | 1 | Diaphragm, Fuel Pump | 123112-15030 | 123112-15030-Online | |
| 6 | + | 1 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |
| 7 | + | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |
| 8 | + | 1 | Gasket, M. Diaphragm | P003-003840 | P003-003840-Online | |
| 9 | + | 1 | Body, Air Purge | P003-003850 | P003-003850-Online | |
| 10 | + | 1 | Spring | P003-003860 | P003-003860-Online | |
| 11 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |
| 12 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 13 | + | 1 | Diaphragm, Metering | P003-001850 | P003-001850-Online | |
| 14 | + | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |
| 15 | + | 1 | Screw, M. Lever Pin | 123139-03930 | 123139-03930-Online | |
| 16 | + | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | |
| 17 | + | 1 | Plug, Welch | 123146-10631 | 123146-10631-Online | |
| 18 | + | 1 | Screw, Idle Adjust | P003-001400 | P003-001400-Online | |
| 19 | + | 1 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |
| 20 | + | 1 | Needle | P003-004010 | P003-004010-Online | |
| 21 | + | 1 | Shaft Asy,Throttle | P003-003880 | P003-003880-Online | |
| 22 | + | 1 | Spring | P003-003890 | P003-003890-Online | |
| 23 | + | 1 | Valve, Throttle | P003-003900 | P003-003900-Online | |
| 24 | + | 2 | Screw | 123114-38830 | 123114-38830-Online | |
| 25 | + | 1 | Ring | 123127-15030 | 123127-15030-Online | |
| 26 | + | 1 | Throttle, Lever | P003-003910 | P003-003910-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 27 | + | 4 | Screw | 123144-02960 | 123144-02960-Online | |
| 29 | + | 1 | Needle | P003-004020 | P003-004020-Online |
Source PDF: 20130718-426_ES-250ES(37)_P014-001760-11Mb_EN.pdf. Generated 2026-06-25 14:38.
