Echo BCLS-510ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: BCLS-510ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.

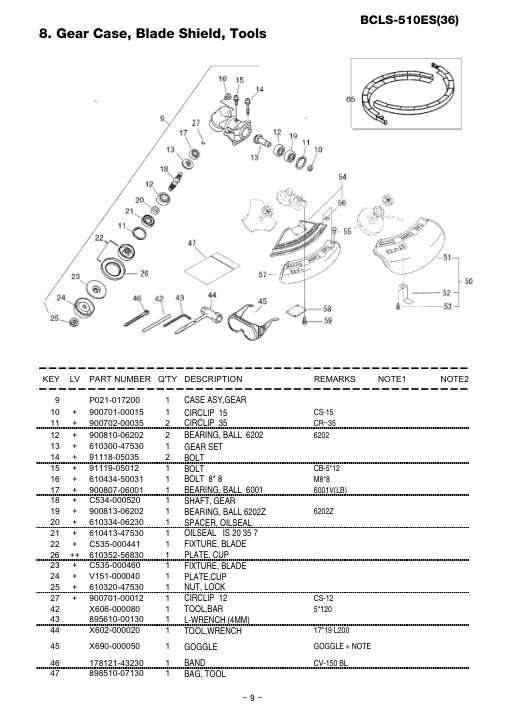

Page 10
Tap or click the page image to enlarge it.

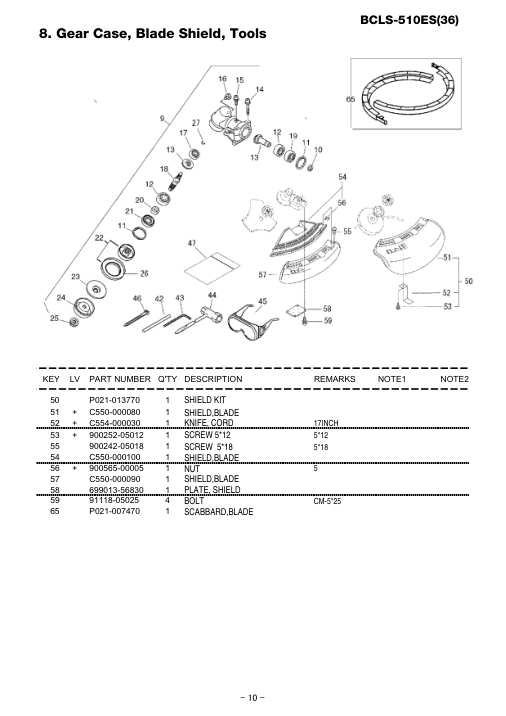

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cylinder | A130-000960 | A130-000960-Online | ||
| 3 | 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 4 | 1 | Gasket,Cyl | V100-000280 | V100-000280-Online | ||
| 9 | 1 | Piston Kit | P021-016630 | P021-016630-Online | ||
| 10 | + | 1 | Ring, Piston | A101-000220 | A101-000220-Online | 44*1.5*1.8 |
| 11 | + | 1 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |
| 12 | + | 2 | Ring,End | V580-000010 | V580-000010-Online | ij0.8 |
| 13 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 14 | + | 2 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |
| 15 | 1 | Crankshaft,Asm | A011-000120 | A011-000120-Online | ||
| 16 | 1 | Crankcase Set | P021-002471 | P021-002471-Online | ||
| 17 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 18 | + | 1 | Bearing Ball | 94035-36201 | 94035-36201-Online | 6201X3JR2C3 |
| 19 | + | 1 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 20 | + | 1 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |
| 21 | + | 4 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 22 | + | 1 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
| 23 | + | 4 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW |
| 34 | 4 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 | |
| 35 | 1 | Cover,Fan | A172-000230 | A172-000230-Online | ||
| 36 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 37 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 38 | 1 | Guard,Top | A162-000020 | A162-000020-Online | ||
| 39 | 1 | Cover,Cylinder | A160-001160 | A160-001160-Online | ||
| 40 | 1 | Label,Echo | X547-001700 | X547-001700-Online | ||
| 41 | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Cap,Spark Plug | A427-000000 | A427-000000-Online | ||
| 2 | 1 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | ||
| 3 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 4 | 1 | Grommet,Plug | V141-000020 | V141-000020-Online | ||
| 5 | 1 | Tube | V475-001610 | V475-001610-Online | 7*8.6*55 HST-10 | |
| 6 | 1 | Grommet | 156114-04920 | 156114-04920-Online | ||
| 8 | 1 | Lead, Ground | 162010-55630 | 162010-55630-Online | ||
| 9 | 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 5*20 W,SW | |
| 10 | 1 | Coil, Ignition | A411-000480 | A411-000480-Online | ||
| 11 | 1 | Clutch Asy | P021-016610 | P021-016610-Online | ||
| 12 | + | 2 | Shaft,Clutch | A557-000000 | A557-000000-Online | |
| 13 | + | 1 | Spring,Tension | V451-000480 | V451-000480-Online | |
| 14 | + | 2 | Washer | 175049-03920 | 175049-03920-Online | |
| 15 | + | 2 | Arm,Clutch | A553-000040 | A553-000040-Online | |
| 16 | + | 1 | Spring,Flat | V453-000100 | V453-000100-Online | 10.2 |
| 17 | 1 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 10*1.25 | |
| 18 | 1 | Rotor, Magneto | A409-000380 | A409-000380-Online | ||
| 19 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 19 | 1 | Pulley,Asm Starter | A052-000230 | A052-000230-Online | ||
| 20 | + | 2 | E-Ring | P022-002100 | P022-002100-Online | |
| 21 | + | 2 | Spring, Return | P022-003130 | P022-003130-Online | |
| 22 | + | 2 | Pawl, Starter | P022-023090 | P022-023090-Online | |
| 23 | 1 | Starter,Recoil Asy | A051-001350 | A051-001350-Online | ||
| 24 | + | 1 | Screw | P022-023110 | P022-023110-Online | |
| 25 | + | 1 | Plate, Cam | P022-023130 | P022-023130-Online | |
| 26 | + | 1 | Spring,Damper | P022-023120 | P022-023120-Online | |
| 28 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 29 | + | 1 | Rope, Starter | P022-023100 | P022-023100-Online | |
| 30 | + | 1 | Drum, Starter | P022-023140 | P022-023140-Online | |
| 31 | + | 1 | Spring, Spiral | P022-004680 | P022-004680-Online | |
| 33 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 35 | 1 | Label,Echo | X502-000460 | X502-000460-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Plate,Dust | A128-000060 | A128-000060-Online | ||
| 2 | 1 | Gasket,Intake | V103-000070 | V103-000070-Online | ||
| 3 | 1 | Insulator,Intake | A200-000060 | A200-000060-Online | ||
| 4 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | |
| 5 | 1 | Gasket,Intake | V103-000080 | V103-000080-Online | ||
| 9 | 1 | Carburetor,Diaphragm | A021-001860 | A021-001860-Online | WYK-341 | |
| 12 | 1 | Case, Air Cleaner | P021-009590 | P021-009590-Online | ||
| 13 | 1 | Plate,Prevent | A244-000010 | A244-000010-Online | ||
| 14 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 15 | 1 | Element, Air Filter | A226-000360 | A226-000360-Online | AFP-2010K-300 | |
| 18 | 1 | Lid,Cleaner Asy | P021-009600 | P021-009600-Online | ||
| 31 | + | 2 | Screw,5 | V253-000100 | V253-000100-Online | 5*20 |
| 32 | + | 1 | Lid,Cleaner | A232-000320 | A232-000320-Online | |
| 19 | 1 | Gasket,Exhaust | V104-000930 | V104-000930-Online | T:1.0 | |
| 20 | 1 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 5*12 W,SW | |
| 21 | 1 | Muffler Asy | P021-016880 | P021-016880-Online | ||
| 35 | + | 1 | Screen, Arrestor | A310-000110 | A310-000110-Online | |
| 36 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 37 | + | 1 | Guide,Exh | A313-000300 | A313-000300-Online | |
| 38 | + | 1 | Guide, Exhaust | A313-001060 | A313-001060-Online | |
| 39 | + | 3 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 22 | 1 | Plate,Eye | V150-000550 | V150-000550-Online | ||
| 23 | 2 | Bolt Hsh | 91100-06070 | 91100-06070-Online | CB-6*70 | |
| 24 | 1 | Cover, Muffler | P021-016850 | P021-016850-Online | ||
| 25 | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 2 | Washer, Spring 6 | 900628-00006 | 900628-00006-Online | ||
| 27 | 1 | Pipe | 132012-39331 | 132012-39331-Online | 3*6*105 | |
| 28 | 1 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 3*6*60 YL | |
| 29 | 1 | Joint,Pipe | V186-000080 | V186-000080-Online | ||
| 30 | 1 | Pump, Primer | 123181-39130 | 123181-39130-Online | ||
| 33 | 1 | Pipe | V471-001560 | V471-001560-Online | 2.4*5*80 | |
| 34 | 1 | Pipe, Intake | A239-000050 | A239-000050-Online | ||
| 40 | 1 | Plate, Exhust | A312-000000 | A312-000000-Online | ||
| 41 | 1 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | ||
| 3 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 4 | + | 1 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |
| 8 | 1 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | ||
| 9 | 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 5*12 | |
| 10 | 1 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | ||
| 11 | 1 | Tank,Fuel | A350-000131 | A350-000131-Online | ||
| 12 | 1 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | ||
| 14 | 1 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | ||
| 16 | 2 | Bolt, Flange | 91121-05020 | 91121-05020-Online | 10.9 SILVER | |
| 17 | 2 | Bolt, Flange | 91121-05025 | 91121-05025-Online | 10.9 SILVER | |
| 20 | 1 | Pipe | 132010-53630 | 132010-53630-Online | 3*6*180 NBR | |
| 22 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | ||
| 23 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 24 | 1 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 3*6*120L | |
| 25 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 26 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 27 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Shaft, Drive | 610011-51530 | 610011-51530-Online | ||
| 12 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 13 | 1 | Pipe, Main | C050-000610 | C050-000610-Online | 35*1530 | |
| 16 | 1 | Hook | P021-012710 | P021-012710-Online | ||
| 17 | + | 1 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 |
| 19 | 1 | Housing, Drv. Sfaft | 610258-51530 | 610258-51530-Online | ||
| 20 | 2 | Bolt, H.S. 5*14 | 900162-05014 | 900162-05014-Online | 5*14 W,SW | |
| 21 | 1 | Fixture,Main Pipe | A575-000030 | A575-000030-Online | ||
| 22 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 23 | 1 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | 5*35 W,SW | |
| 24 | 2 | Bolt, H.S. 5*30 | 900162-05030 | 900162-05030-Online | 5*30 W,SW | |
| 25 | 1 | Case,Clutch | A570-000040 | A570-000040-Online | ||
| 26 | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 | |
| 27 | 2 | Bearing, Ball 6202 | 900819-06202 | 900819-06202-Online | 6202VV(LLB) | |
| 28 | 1 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 | |
| 29 | 1 | Drum,Clutch | A556-000290 | A556-000290-Online | ||
| 30 | 4 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 | |
| 31 | 2 | Hook Asy | P021-012650 | P021-012650-Online | ||
| 32 | + | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW |
| 33 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 35 | 1 | Harness, Shoulder | 301000-51530 | 301000-51530-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | 1 | Knob,Latch | C463-000000 | C463-000000-Online | ||
| 3 | 1 | Spring,Torsion | V452-000060 | V452-000060-Online | ||
| 5 | 1 | Grip Asy,F-Handle | P021-013570 | P021-013570-Online | ||
| 6 | + | 3 | Screw 4*16 | 900253-04016 | 900253-04016-Online | 4*16 |
| 7 | + | 1 | Screw 5*30 | 900220-05030 | 900220-05030-Online | 5*30 |
| 8 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 9 | 1 | Lockout,Throttle | C460-000011 | C460-000011-Online | ||
| 10 | 1 | Spring,Torsion | V452-000130 | V452-000130-Online | ||
| 11 | 1 | Trigger,Throttle | C450-000022 | C450-000022-Online | ||
| 12 | 1 | Switch,On Off | A440-000240 | A440-000240-Online | ||
| 14 | 1 | Cable,Bowden | V430-000960 | V430-000960-Online | ||
| 15 | 1 | Tube | 178127-43230 | 178127-43230-Online | 7*820 | |
| 16 | 1 | Bracket Asy, Handle | P021-012730 | P021-012730-Online | ||
| 17 | + | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 |
| 18 | 1 | Handle, Rear | 351210-47530 | 351210-47530-Online | ||
| 19 | 1 | Bracket, Handle Asy | P021-012690 | P021-012690-Online | ||
| 20 | + | 6 | Bolt | 91118-05035 | 91118-05035-Online | |
| 21 | + | 4 | Bolt | 91118-05014 | 91118-05014-Online | |
| 22 | 2 | Cushion | 100905-51530 | 100905-51530-Online | ||
| 23 | 1 | Handle,Front | C400-000150 | C400-000150-Online | ||
| 24 | 1 | Grip, Handle | 351213-47531 | 351213-47531-Online | ||
| 27 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 28 | 1 | Part | V494-000080 | V494-000080-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 9 | 1 | Case Asy,Gear | P021-017200 | P021-017200-Online | ||
| 10 | + | 1 | Circlip 15 | 900701-00015 | 900701-00015-Online | CS-15 |
| 11 | + | 2 | Circlip 35 | 900702-00035 | 900702-00035-Online | CR㺎35 |
| 12 | + | 2 | Bearing, Ball 6202 | 900810-06202 | 900810-06202-Online | |
| 13 | + | 1 | Gear Set | 610300-47530 | 610300-47530-Online | |
| 14 | + | 2 | Bolt | 91118-05035 | 91118-05035-Online | |
| 15 | + | 1 | Bolt | 91119-05012 | 91119-05012-Online | CB-5*12 |
| 16 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 17 | + | 1 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 18 | + | 1 | Shaft, Gear | C534-000520 | C534-000520-Online | |
| 19 | + | 1 | Bearing, Ball 6202Z | 900813-06202 | 900813-06202-Online | |
| 20 | + | 1 | Spacer, Oilseal | 610334-06230 | 610334-06230-Online | |
| 21 | + | 1 | Oilseal Is 20 35 7 | 610413-47530 | 610413-47530-Online | |
| 22 | + | 1 | Fixture, Blade | C535-000441 | C535-000441-Online | 26 | ++ |
| 26 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | ||
| 23 | + | 1 | Fixture, Blade | C535-000460 | C535-000460-Online | |
| 24 | + | 1 | Plate,Cup | V151-000040 | V151-000040-Online | |
| 25 | + | 1 | Nut, Lock | 610320-47530 | 610320-47530-Online | |
| 27 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 42 | 1 | Tool,Bar | X606-000080 | X606-000080-Online | 5*120 | |
| 43 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 44 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 45 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 46 | 1 | Band | 178121-43230 | 178121-43230-Online | CV-150 BL | |
| 47 | 1 | Bag, Tool | 898510-07130 | 898510-07130-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 50 | 1 | Shield Kit | P021-013770 | P021-013770-Online | ||
| 51 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 52 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | 17INCH |
| 53 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 55 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | |
| 54 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 56 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 57 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 58 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 59 | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 | |
| 65 | 1 | Scabbard,Blade | P021-007470 | P021-007470-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 2 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 3 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 4 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 5 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 6 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 7 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | |
| 8 | + | 1 | Gasket, Pump | P003-000100 | P003-000100-Online | |
| 9 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 10 | + | 1 | Body Assembly, Pump | P003-001490 | P003-001490-Online | 11 | ++ |
| 11 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 12 | ++ | |
| 12 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 13 | ++ | |
| 13 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 14 | ++ | |
| 14 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 15 | ++ | |
| 15 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 16 | ++ | |
| 16 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 17 | + | 1 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |
| 18 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 19 | + | 1 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |
| 20 | + | 4 | Screw | 123144-44330 | 123144-44330-Online |
Source PDF: 20130718-52_BCLS-510ES(36)_BCLS-510ES(36)_EN.pdf. Generated 2026-06-25 14:38.
