Echo GT-2000 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: GT-2000-Online
Source Pages

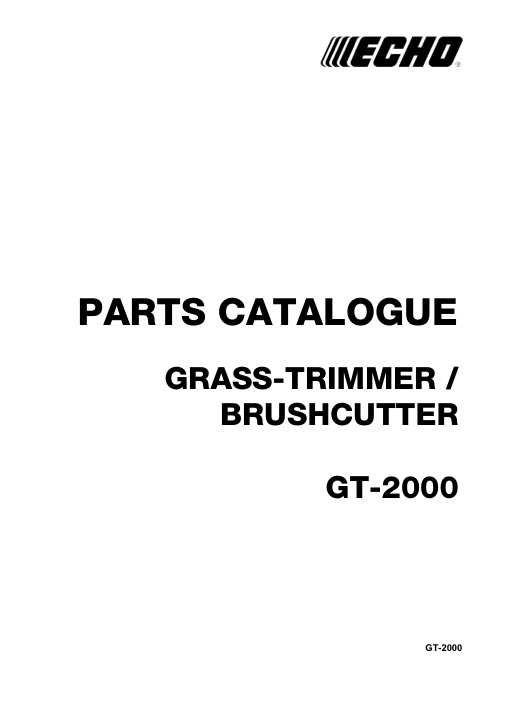

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.

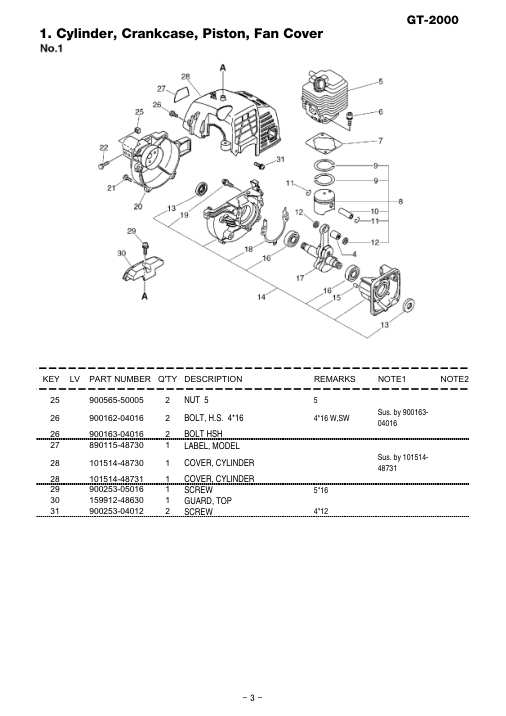

Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.

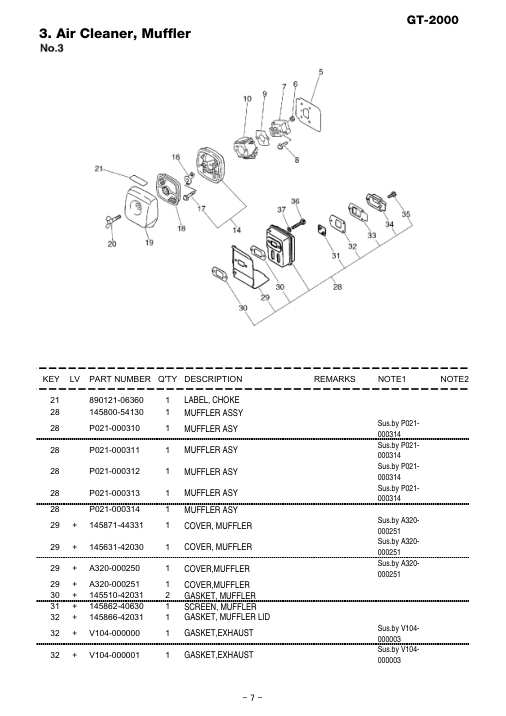

Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.

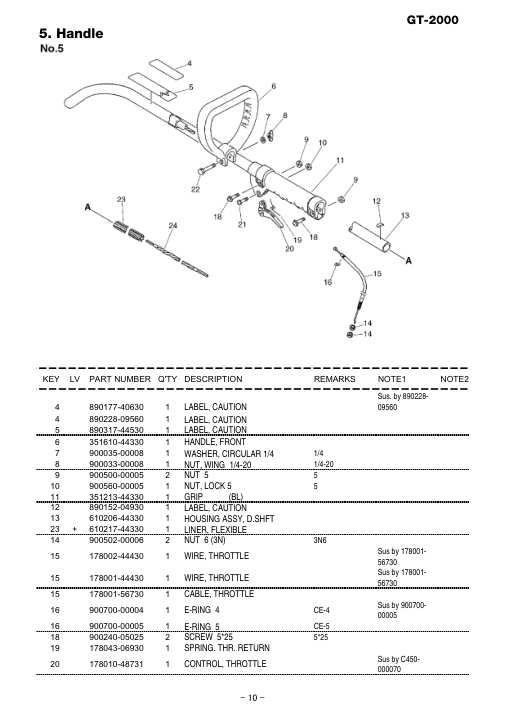

Page 11
Tap or click the page image to enlarge it.

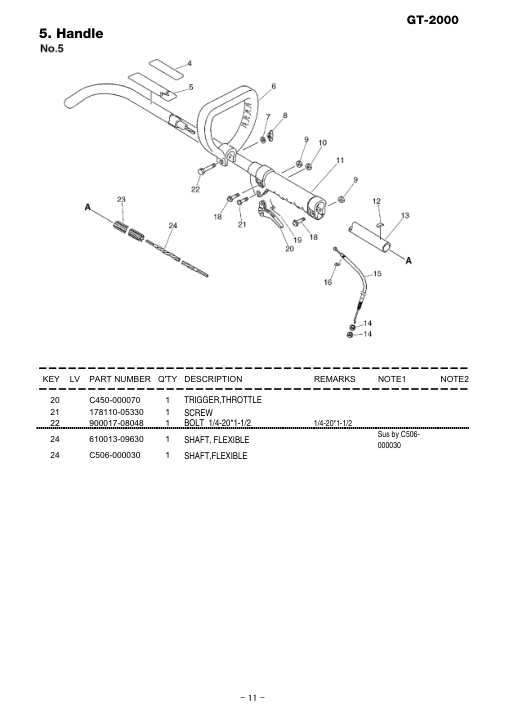

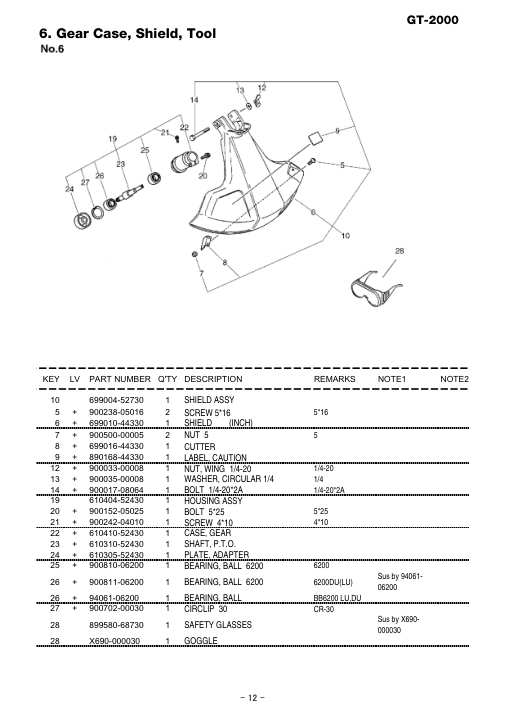

Page 12
Tap or click the page image to enlarge it.

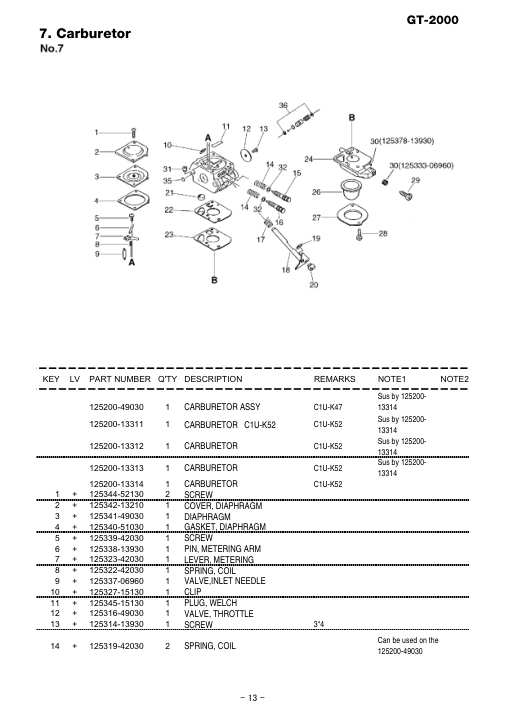

Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.

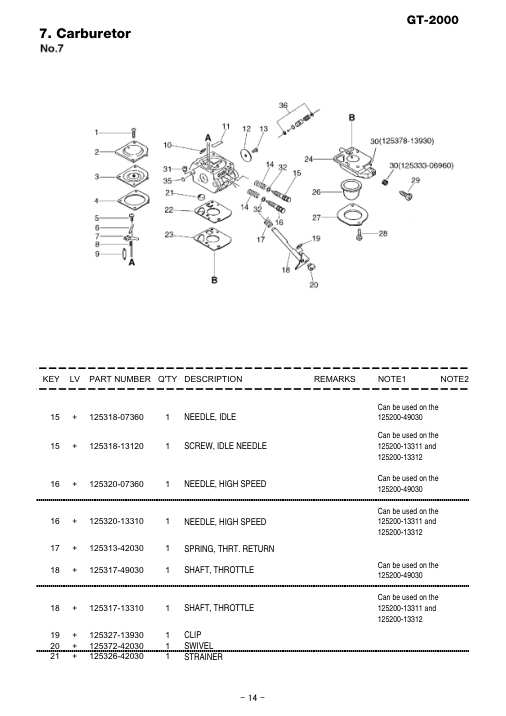

Page 15
Tap or click the page image to enlarge it.

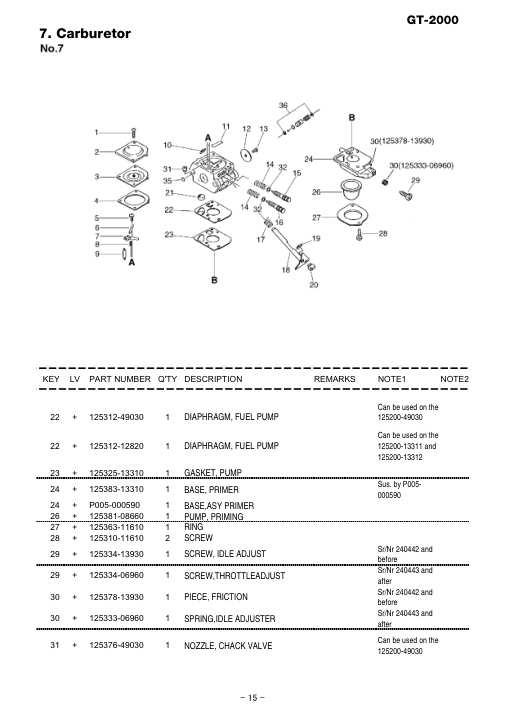

Page 16
Tap or click the page image to enlarge it.

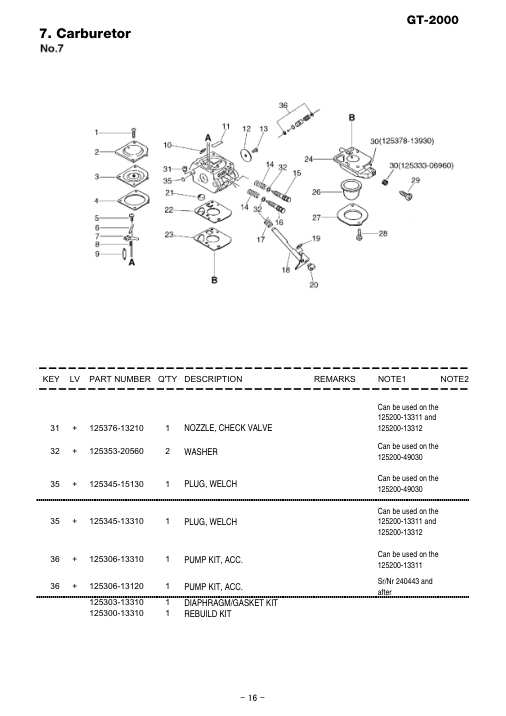

Page 17
Tap or click the page image to enlarge it.

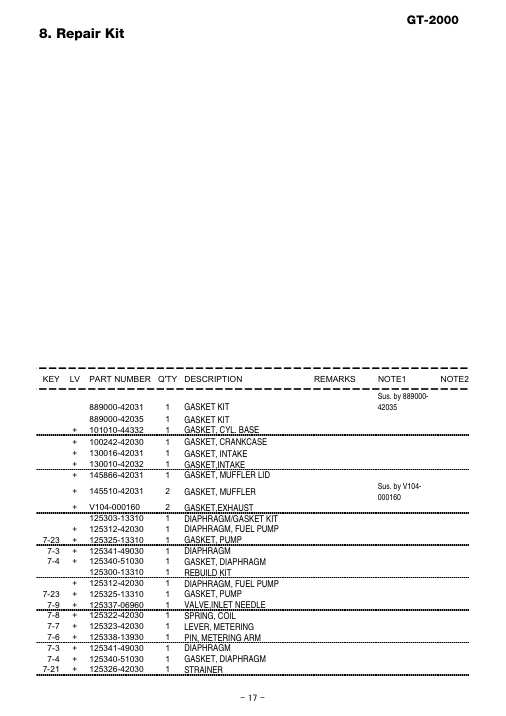

Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.

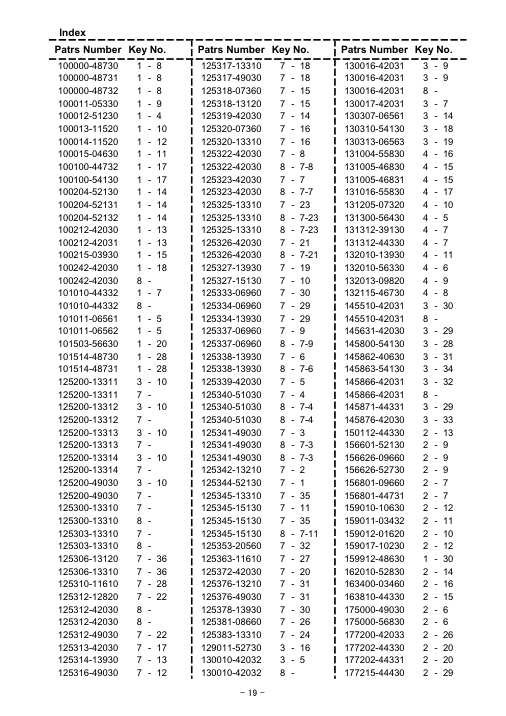

Page 20
Tap or click the page image to enlarge it.

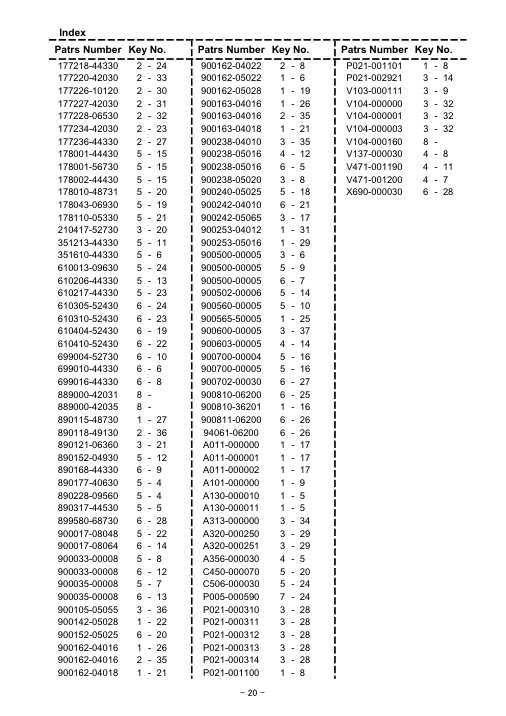

Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.

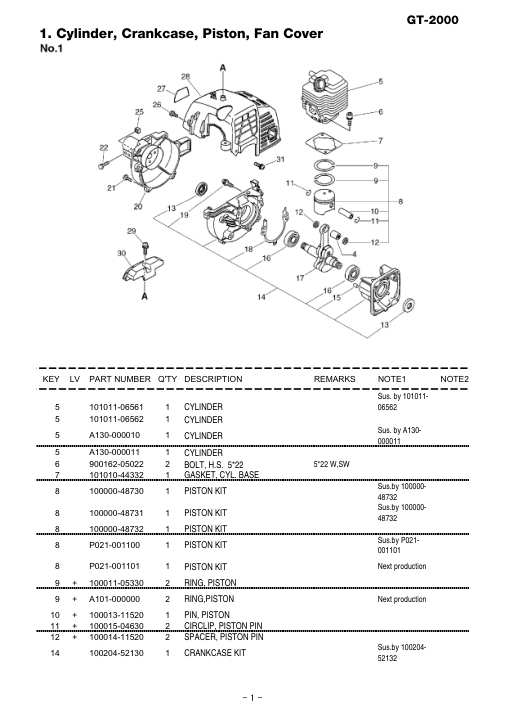

Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Cylinder | 101011-06561 | 101011-06561-Online | Sus. by 101011- | 06562 | |
| 5 | 1 | Cylinder | 101011-06562 | 101011-06562-Online | ||
| 5 | 1 | Cylinder | A130-000010 | A130-000010-Online | Sus. by A130- | 000011 | |
| 5 | 1 | Cylinder | A130-000011 | A130-000011-Online | ||
| 6 | 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 7 | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| 8 | 1 | Piston Kit | 100000-48730 | 100000-48730-Online | Sus.by 100000- | 48732 | |
| 8 | 1 | Piston Kit | 100000-48731 | 100000-48731-Online | Sus.by 100000- | 48732 | |
| 8 | 1 | Piston Kit | 100000-48732 | 100000-48732-Online | ||
| 8 | 1 | Piston Kit | P021-001100 | P021-001100-Online | Sus.by P021- | 001101 | |
| 8 | 1 | Piston Kit | P021-001101 | P021-001101-Online | Next production | |
| 9 | + | 2 | Ring, Piston | 100011-05330 | 100011-05330-Online | |
| 9 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | Next production |
| 10 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 14 | 1 | Crankcase Kit | 100204-52130 | 100204-52130-Online | Sus.by 100204- | 52132 |

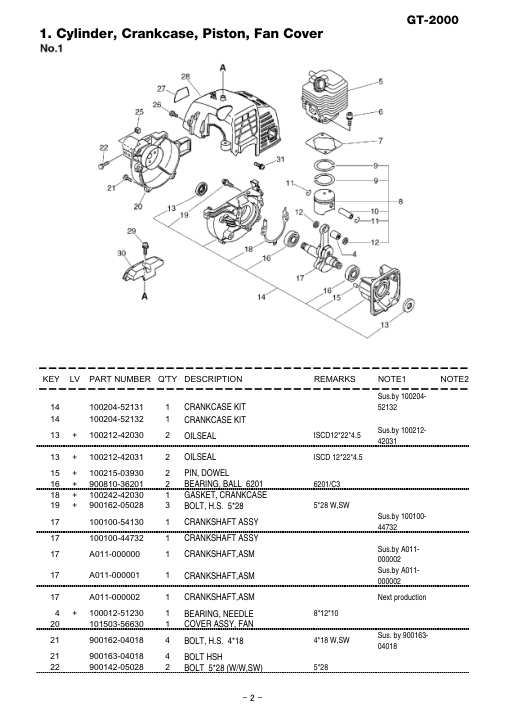

Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 14 | 1 | Crankcase Kit | 100204-52131 | 100204-52131-Online | Sus.by 100204- | 52132 | |
| 14 | 1 | Crankcase Kit | 100204-52132 | 100204-52132-Online | ||
| 13 | + | 2 | Oilseal | 100212-42030 | 100212-42030-Online | ISCD12*22*4.5 | Sus.by 100212- | 42031 |
| 13 | + | 2 | Oilseal | 100212-42031 | 100212-42031-Online | ISCD 12*22*4.5 |
| 15 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 16 | + | 2 | Bearing, Ball 6201 | 900810-36201 | 900810-36201-Online | 6201/C3 |
| 18 | + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |
| 19 | + | 3 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 5*28 W,SW |
| 17 | 1 | Crankshaft Assy | 100100-54130 | 100100-54130-Online | Sus.by 100100- | 44732 | |
| 17 | 1 | Crankshaft Assy | 100100-44732 | 100100-44732-Online | ||
| 17 | 1 | Crankshaft,Asm | A011-000000 | A011-000000-Online | Sus.by A011- | 000002 | |
| 17 | 1 | Crankshaft,Asm | A011-000001 | A011-000001-Online | Sus.by A011- | 000002 | |
| 17 | 1 | Crankshaft,Asm | A011-000002 | A011-000002-Online | Next production | |
| 4 | + | 1 | Bearing, Needle | 100012-51230 | 100012-51230-Online | 8*12*10 |
| 20 | 1 | Cover Assy, Fan | 101503-56630 | 101503-56630-Online | ||
| 21 | 4 | Bolt, H.S. 4*18 | 900162-04018 | 900162-04018-Online | 4*18 W,SW | Sus. by 900163- | 04018 | |
| 21 | 4 | Bolt Hsh | 900163-04018 | 900163-04018-Online | ||
| 22 | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | 5*28 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | 2 | Nut 5 | 900565-50005 | 900565-50005-Online | ||
| 26 | 2 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | Sus. by 900163- | 04016 | |
| 26 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 27 | 1 | Label, Model | 890115-48730 | 890115-48730-Online | ||
| 28 | 1 | Cover, Cylinder | 101514-48730 | 101514-48730-Online | Sus. by 101514- | 48731 | |
| 28 | 1 | Cover, Cylinder | 101514-48731 | 101514-48731-Online | ||
| 29 | 1 | Screw | 900253-05016 | 900253-05016-Online | 5*16 | |
| 30 | 1 | Guard, Top | 159912-48630 | 159912-48630-Online | ||
| 31 | 2 | Screw | 900253-04012 | 900253-04012-Online | 4*12 |

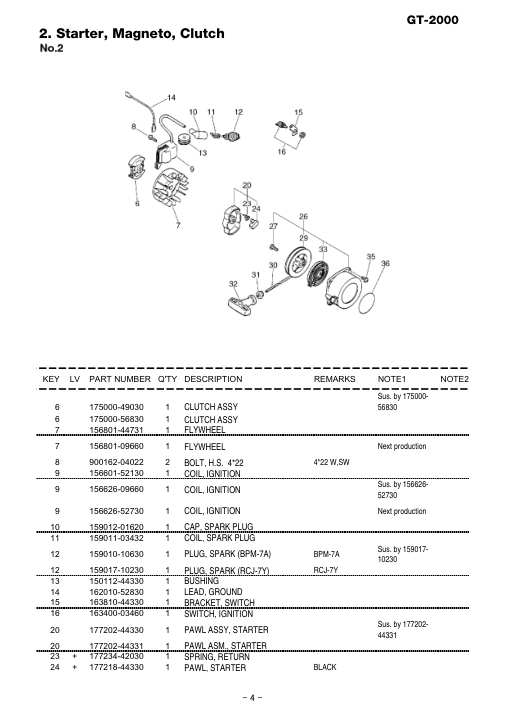

Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 6 | 1 | Clutch Assy | 175000-49030 | 175000-49030-Online | Sus. by 175000- | 56830 | |
| 6 | 1 | Clutch Assy | 175000-56830 | 175000-56830-Online | ||
| 7 | 1 | Flywheel | 156801-44731 | 156801-44731-Online | ||
| 7 | 1 | Flywheel | 156801-09660 | 156801-09660-Online | Next production | |
| 8 | 2 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 4*22 W,SW | |
| 9 | 1 | Coil, Ignition | 156601-52130 | 156601-52130-Online | ||
| 9 | 1 | Coil, Ignition | 156626-09660 | 156626-09660-Online | Sus. by 156626- | 52730 | |
| 9 | 1 | Coil, Ignition | 156626-52730 | 156626-52730-Online | Next production | |
| 10 | 1 | Cap, Spark Plug | 159012-01620 | 159012-01620-Online | ||
| 11 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 12 | 1 | Plug, Spark (Bpm-7A) | 159010-10630 | 159010-10630-Online | BPM-7A | Sus. by 159017- | 10230 | |
| 12 | 1 | Plug, Spark (Rcj-7Y) | 159017-10230 | 159017-10230-Online | RCJ-7Y | |
| 13 | 1 | Bushing | 150112-44330 | 150112-44330-Online | ||
| 14 | 1 | Lead, Ground | 162010-52830 | 162010-52830-Online | ||
| 15 | 1 | Bracket, Switch | 163810-44330 | 163810-44330-Online | ||
| 16 | 1 | Switch, Ignition | 163400-03460 | 163400-03460-Online | ||
| 20 | 1 | Pawl Assy, Starter | 177202-44330 | 177202-44330-Online | Sus. by 177202- | 44331 | |
| 20 | 1 | Pawl Asm., Starter | 177202-44331 | 177202-44331-Online | ||
| 23 | + | 1 | Spring, Return | 177234-42030 | 177234-42030-Online | |
| 24 | + | 1 | Pawl, Starter | 177218-44330 | 177218-44330-Online | BLACK |

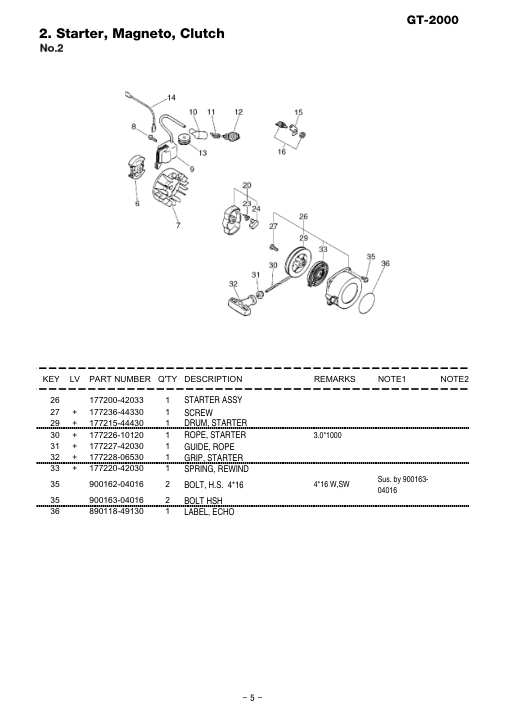

Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | 1 | Starter Assy | 177200-42033 | 177200-42033-Online | ||
| 27 | + | 1 | Screw | 177236-44330 | 177236-44330-Online | |
| 29 | + | 1 | Drum, Starter | 177215-44430 | 177215-44430-Online | |
| 30 | + | 1 | Rope, Starter | 177226-10120 | 177226-10120-Online | 3.0*1000 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-06530 | 177228-06530-Online | |
| 33 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 35 | 2 | Bolt, H.S. 4*16 | 900162-04016 | 900162-04016-Online | 4*16 W,SW | Sus. by 900163- | 04016 | |
| 35 | 2 | Bolt Hsh | 900163-04016 | 900163-04016-Online | ||
| 36 | 1 | Label, Echo | 890118-49130 | 890118-49130-Online |

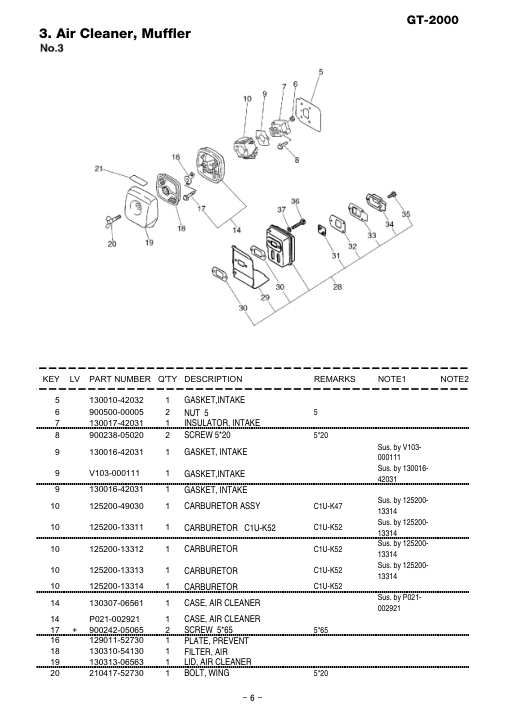

Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| 6 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 7 | 1 | Insulator, Intake | 130017-42031 | 130017-42031-Online | ||
| 8 | 2 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 5*20 | |
| 9 | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | Sus. by V103- | 000111 | |
| 9 | 1 | Gasket,Intake | V103-000111 | V103-000111-Online | Sus. by 130016- | 42031 | |
| 10 | 1 | Carburetor Assy | 125200-49030 | 125200-49030-Online | C1U-K47 | Sus. by 125200- | 13314 | |
| 10 | 1 | Carburetor C1U-K52 | 125200-13311 | 125200-13311-Online | C1U-K52 | Sus. by 125200- | 13314 | |
| 10 | 1 | Carburetor | 125200-13312 | 125200-13312-Online | C1U-K52 | Sus. by 125200- | 13314 | |
| 10 | 1 | Carburetor | 125200-13313 | 125200-13313-Online | C1U-K52 | Sus. by 125200- | 13314 | |
| 10 | 1 | Carburetor | 125200-13314 | 125200-13314-Online | C1U-K52 | |
| 14 | 1 | Case, Air Cleaner | 130307-06561 | 130307-06561-Online | Sus. by P021- | 002921 | |
| 14 | 1 | Case, Air Cleaner | P021-002921 | P021-002921-Online | ||
| 17 | + | 2 | Screw 5*65 | 900242-05065 | 900242-05065-Online | 5*65 |
| 16 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 18 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 19 | 1 | Lid, Air Cleaner | 130313-06563 | 130313-06563-Online | ||
| 20 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Label, Choke | 890121-06360 | 890121-06360-Online | ||
| 28 | 1 | Muffler Assy | 145800-54130 | 145800-54130-Online | ||
| 28 | 1 | Muffler Asy | P021-000310 | P021-000310-Online | Sus.by P021- | 000314 | |
| 28 | 1 | Muffler Asy | P021-000311 | P021-000311-Online | Sus.by P021- | 000314 | |
| 28 | 1 | Muffler Asy | P021-000312 | P021-000312-Online | Sus.by P021- | 000314 | |
| 28 | 1 | Muffler Asy | P021-000313 | P021-000313-Online | Sus.by P021- | 000314 | |
| 28 | 1 | Muffler Asy | P021-000314 | P021-000314-Online | ||
| 29 | + | 1 | Cover, Muffler | 145871-44331 | 145871-44331-Online | Sus.by A320- | 000251 |
| 29 | + | 1 | Cover, Muffler | 145631-42030 | 145631-42030-Online | Sus.by A320- | 000251 |
| 29 | + | 1 | Cover,Muffler | A320-000250 | A320-000250-Online | Sus.by A320- | 000251 |
| 29 | + | 1 | Cover,Muffler | A320-000251 | A320-000251-Online | |
| 30 | + | 2 | Gasket, Muffler | 145510-42031 | 145510-42031-Online | |
| 31 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 32 | + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |
| 32 | + | 1 | Gasket,Exhaust | V104-000000 | V104-000000-Online | Sus.by V104- | 000003 |
| 32 | + | 1 | Gasket,Exhaust | V104-000001 | V104-000001-Online | Sus.by V104- | 000003 |

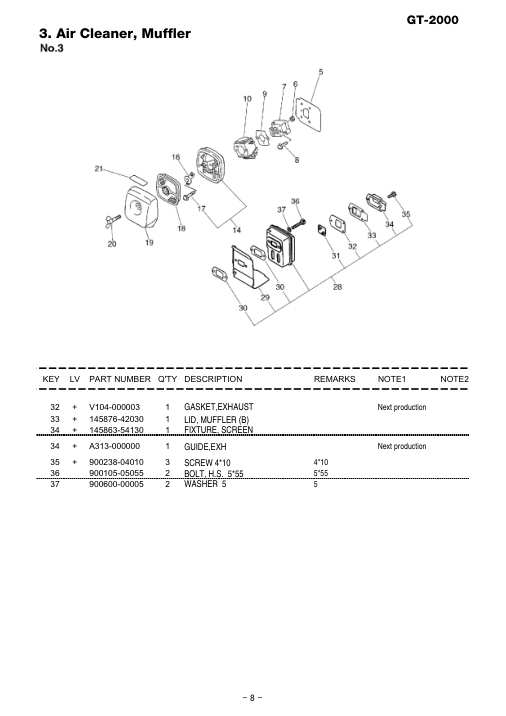

Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 32 | + | 1 | Gasket,Exhaust | V104-000003 | V104-000003-Online | Next production |
| 33 | + | 1 | Lid, Muffler (B) | 145876-42030 | 145876-42030-Online | |
| 34 | + | 1 | Fixture, Screen | 145863-54130 | 145863-54130-Online | |
| 34 | + | 1 | Guide,Exh | A313-000000 | A313-000000-Online | Next production |
| 35 | + | 3 | Screw 4*10 | 900238-04010 | 900238-04010-Online | 4*10 |
| 36 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 37 | 2 | Washer 5 | 900600-00005 | 900600-00005-Online |

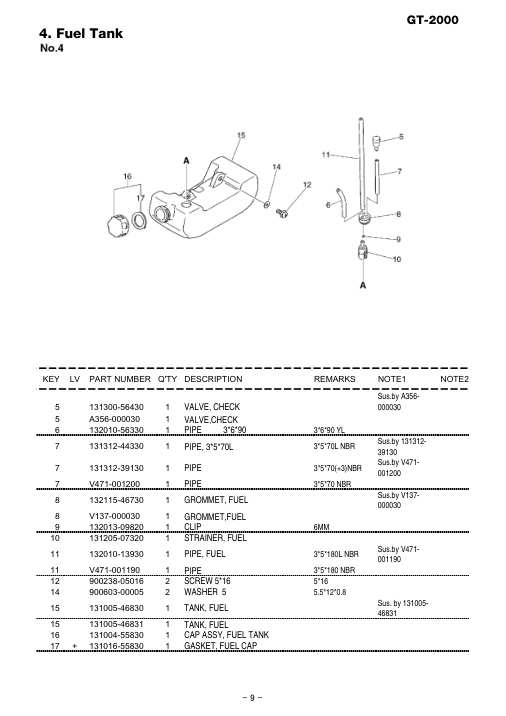

Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Valve, Check | 131300-56430 | 131300-56430-Online | Sus.by A356- | 000030 | |
| 5 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 6 | 1 | Pipe 3*6*90 | 132010-56330 | 132010-56330-Online | 3*6*90 YL | |
| 7 | 1 | Pipe, 3*5*70L | 131312-44330 | 131312-44330-Online | 3*5*70L NBR | Sus.by 131312- | 39130 | |
| 7 | 1 | Pipe | 131312-39130 | 131312-39130-Online | 3*5*70(+3)NBR | Sus.by V471- | 001200 | |
| 7 | 1 | Pipe | V471-001200 | V471-001200-Online | 3*5*70 NBR | |
| 8 | 1 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | Sus.by V137- | 000030 | |
| 8 | 1 | Grommet,Fuel | V137-000030 | V137-000030-Online | ||
| 9 | 1 | Clip | 132013-09820 | 132013-09820-Online | 6MM | |
| 10 | 1 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | ||
| 11 | 1 | Pipe, Fuel | 132010-13930 | 132010-13930-Online | 3*5*180L NBR | Sus.by V471- | 001190 | |
| 11 | 1 | Pipe | V471-001190 | V471-001190-Online | 3*5*180 NBR | |
| 12 | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 | |
| 14 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 15 | 1 | Tank, Fuel | 131005-46830 | 131005-46830-Online | Sus. by 131005- | 46831 | |
| 15 | 1 | Tank, Fuel | 131005-46831 | 131005-46831-Online | ||
| 16 | 1 | Cap Assy, Fuel Tank | 131004-55830 | 131004-55830-Online | ||
| 17 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Label, Caution | 890177-40630 | 890177-40630-Online | Sus. by 890228- | 09560 | |
| 4 | 1 | Label, Caution | 890228-09560 | 890228-09560-Online | ||
| 5 | 1 | Label, Caution | 890317-44530 | 890317-44530-Online | ||
| 6 | 1 | Handle, Front | 351610-44330 | 351610-44330-Online | ||
| 7 | 1 | Washer, Circular 1/4 | 900035-00008 | 900035-00008-Online | 1/4 | |
| 8 | 1 | Nut, Wing 1/4-20 | 900033-00008 | 900033-00008-Online | 1/4-20 | |
| 9 | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 10 | 1 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | ||
| 11 | 1 | Grip (Bl) | 351213-44330 | 351213-44330-Online | ||
| 12 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 13 | 1 | Housing Assy, D.Shft | 610206-44330 | 610206-44330-Online | ||
| 23 | + | 1 | Liner, Flexible | 610217-44330 | 610217-44330-Online | |
| 14 | 2 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 15 | 1 | Wire, Throttle | 178002-44430 | 178002-44430-Online | Sus by 178001- | 56730 | |
| 15 | 1 | Wire, Throttle | 178001-44430 | 178001-44430-Online | Sus by 178001- | 56730 | |
| 15 | 1 | Cable, Throttle | 178001-56730 | 178001-56730-Online | ||
| 16 | 1 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 | Sus by 900700- | 00005 | |
| 16 | 1 | E-Ring 5 | 900700-00005 | 900700-00005-Online | CE-5 | |
| 18 | 2 | Screw 5*25 | 900240-05025 | 900240-05025-Online | 5*25 | |
| 19 | 1 | Spring. Thr. Return | 178043-06930 | 178043-06930-Online | ||
| 20 | 1 | Control, Throttle | 178010-48731 | 178010-48731-Online | Sus by C450- | 000070 |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Trigger,Throttle | C450-000070 | C450-000070-Online | ||
| 21 | 1 | Screw | 178110-05330 | 178110-05330-Online | ||
| 22 | 1 | Bolt 1/4-20*1-1/2 | 900017-08048 | 900017-08048-Online | 1/4-20*1-1/2 | |
| 24 | 1 | Shaft, Flexible | 610013-09630 | 610013-09630-Online | Sus by C506- | 000030 | |
| 24 | 1 | Shaft,Flexible | C506-000030 | C506-000030-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | 1 | Shield Assy | 699004-52730 | 699004-52730-Online | ||
| 5 | + | 2 | Screw 5*16 | 900238-05016 | 900238-05016-Online | 5*16 |
| 6 | + | 1 | Shield (Inch) | 699010-44330 | 699010-44330-Online | |
| 7 | + | 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 8 | + | 1 | Cutter | 699016-44330 | 699016-44330-Online | |
| 9 | + | 1 | Label, Caution | 890168-44330 | 890168-44330-Online | |
| 12 | + | 1 | Nut, Wing 1/4-20 | 900033-00008 | 900033-00008-Online | 1/4-20 |
| 13 | + | 1 | Washer, Circular 1/4 | 900035-00008 | 900035-00008-Online | 1/4 |
| 14 | + | 1 | Bolt 1/4-20*2A | 900017-08064 | 900017-08064-Online | 1/4-20*2A |
| 19 | 1 | Housing Assy | 610404-52430 | 610404-52430-Online | ||
| 20 | + | 1 | Bolt 5*25 | 900152-05025 | 900152-05025-Online | 5*25 |
| 21 | + | 1 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 4*10 |
| 22 | + | 1 | Case, Gear | 610410-52430 | 610410-52430-Online | |
| 23 | + | 1 | Shaft, P.T.O. | 610310-52430 | 610310-52430-Online | |
| 24 | + | 1 | Plate, Adapter | 610305-52430 | 610305-52430-Online | |
| 25 | + | 1 | Bearing, Ball 6200 | 900810-06200 | 900810-06200-Online | |
| 26 | + | 1 | Bearing, Ball 6200 | 900811-06200 | 900811-06200-Online | 6200DU(LU) | Sus by 94061- | 06200 |
| 26 | + | 1 | Bearing, Ball | 94061-06200 | 94061-06200-Online | BB6200 LU,DU |
| 27 | + | 1 | Circlip 30 | 900702-00030 | 900702-00030-Online | CR-30 |
| 28 | 1 | Safety Glasses | 899580-68730 | 899580-68730-Online | Sus by X690- | 000030 | |
| 28 | 1 | Goggle | X690-000030 | X690-000030-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 2 | Screw | 125344-52130 | 125344-52130-Online | |
| 2 | + | 1 | Cover, Diaphragm | 125342-13210 | 125342-13210-Online | |
| 3 | + | 1 | Diaphragm | 125341-49030 | 125341-49030-Online | |
| 4 | + | 1 | Gasket, Diaphragm | 125340-51030 | 125340-51030-Online | |
| 5 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 6 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 7 | + | 1 | Lever, Metering | 125323-42030 | 125323-42030-Online | |
| 8 | + | 1 | Spring, Coil | 125322-42030 | 125322-42030-Online | |
| 9 | + | 1 | Valve,Inlet Needle | 125337-06960 | 125337-06960-Online | |
| 10 | + | 1 | Clip | 125327-15130 | 125327-15130-Online | |
| 11 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | |
| 12 | + | 1 | Valve, Throttle | 125316-49030 | 125316-49030-Online | |
| 13 | + | 1 | Screw | 125314-13930 | 125314-13930-Online | 3*4 |
| 14 | + | 2 | Spring, Coil | 125319-42030 | 125319-42030-Online | Can be used on the |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 15 | + | 1 | Needle, Idle | 125318-07360 | 125318-07360-Online | Can be used on the |
| 15 | Part | 125200-49030 | 125200-49030-Online | |||
| 15 | + | 1 | Screw, Idle Needle | 125318-13120 | 125318-13120-Online | Can be used on the | 125200-13311 and |
| 16 | + | 1 | Needle, High Speed | 125320-07360 | 125320-07360-Online | Can be used on the |
| 16 | Part | 125200-49030 | 125200-49030-Online | |||
| 16 | + | 1 | Needle, High Speed | 125320-13310 | 125320-13310-Online | Can be used on the | 125200-13311 and |
| 17 | + | 1 | Spring, Thrt. Return | 125313-42030 | 125313-42030-Online | |
| 18 | + | 1 | Shaft, Throttle | 125317-49030 | 125317-49030-Online | Can be used on the |
| 18 | Part | 125200-49030 | 125200-49030-Online | |||
| 18 | + | 1 | Shaft, Throttle | 125317-13310 | 125317-13310-Online | Can be used on the | 125200-13311 and |
| 19 | + | 1 | Clip | 125327-13930 | 125327-13930-Online | |
| 20 | + | 1 | Swivel | 125372-42030 | 125372-42030-Online | |
| 21 | + | 1 | Strainer | 125326-42030 | 125326-42030-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | + | 1 | Diaphragm, Fuel Pump | 125312-49030 | 125312-49030-Online | Can be used on the |
| 22 | Part | 125200-49030 | 125200-49030-Online | |||
| 22 | + | 1 | Diaphragm, Fuel Pump | 125312-12820 | 125312-12820-Online | Can be used on the | 125200-13311 and |
| 23 | + | 1 | Gasket, Pump | 125325-13310 | 125325-13310-Online | |
| 24 | + | 1 | Base, Primer | 125383-13310 | 125383-13310-Online | Sus. by P005- | 000590 |
| 24 | + | 1 | Base,Asy Primer | P005-000590 | P005-000590-Online | |
| 26 | + | 1 | Pump, Priming | 125381-08660 | 125381-08660-Online | |
| 27 | + | 1 | Ring | 125363-11610 | 125363-11610-Online | |
| 28 | + | 2 | Screw | 125310-11610 | 125310-11610-Online | |
| 29 | + | 1 | Screw, Idle Adjust | 125334-13930 | 125334-13930-Online | Sr/Nr 240442 and | before |
| 29 | + | 1 | Screw,Throttleadjust | 125334-06960 | 125334-06960-Online | Sr/Nr 240443 and | after |
| 30 | + | 1 | Piece, Friction | 125378-13930 | 125378-13930-Online | Sr/Nr 240442 and | before |
| 30 | + | 1 | Spring,Idle Adjuster | 125333-06960 | 125333-06960-Online | Sr/Nr 240443 and | after |
| 31 | + | 1 | Nozzle, Chack Valve | 125376-49030 | 125376-49030-Online | Can be used on the |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 31 | + | 1 | Nozzle, Check Valve | 125376-13210 | 125376-13210-Online | Can be used on the | 125200-13311 and |
| 32 | + | 2 | Washer | 125353-20560 | 125353-20560-Online | Can be used on the |
| 35 | Part | 125200-49030 | 125200-49030-Online | |||
| 35 | + | 1 | Plug, Welch | 125345-15130 | 125345-15130-Online | Can be used on the |
| 35 | + | 1 | Plug, Welch | 125345-13310 | 125345-13310-Online | Can be used on the | 125200-13311 and |
| 36 | + | 1 | Pump Kit, Acc. | 125306-13310 | 125306-13310-Online | Can be used on the |
| 36 | Part | 125200-13311 | 125200-13311-Online | |||
| 36 | + | 1 | Pump Kit, Acc. | 125306-13120 | 125306-13120-Online | Sr/Nr 240443 and | after | 1 | DIAPHRAGM/GASKET KIT |
| 1 | 1 | Rebuild Kit | 125300-13310 | 125300-13310-Online |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| + | 1 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | ||
| + | 1 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | ||
| + | 1 | Gasket, Intake | 130016-42031 | 130016-42031-Online | ||
| + | 1 | Gasket,Intake | 130010-42032 | 130010-42032-Online | ||
| + | 1 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | ||
| + | 2 | Gasket, Muffler | 145510-42031 | 145510-42031-Online | Sus. by V104- | 000160 | + | 2 | |
| 2 | 1 | Diaphragm/Gasket Kit | 125303-13310 | 125303-13310-Online | ||
| + | 1 | Diaphragm, Fuel Pump | 125312-42030 | 125312-42030-Online | 7-23 | + | 1 | GASKET, PUMP | |
| 1 | 1 | Rebuild Kit | 125300-13310 | 125300-13310-Online |
Source PDF: 20130718-617_GT-2000_GT-2000_EN.pdf. Generated 2026-06-25 14:38.
