Echo SRM-240ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-240ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.

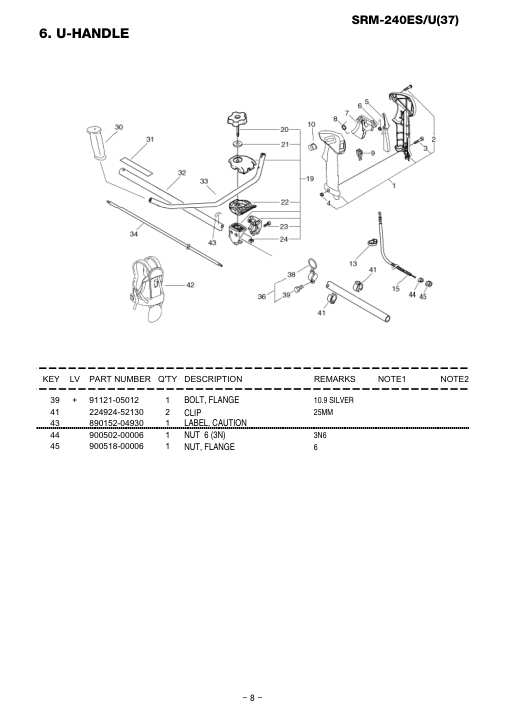

Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Bolt, Flange | 91121-05016 | 91121-05016-Online | 10.9 SILVER | |
| 2 | 1 | Collar,5 | V353-000020 | V353-000020-Online | 12*5.5*4.5L | |
| 3 | 1 | Guard,Top | A162-000000 | A162-000000-Online | ||
| 4 | 1 | Cover,Cylinder | A160-000060 | A160-000060-Online | ||
| 5 | 1 | Cylinder | A130-000341 | A130-000341-Online | ||
| 6 | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 7 | 1 | Gasket,Cyl | V100-000060 | V100-000060-Online | ||
| 8 | 1 | Piston Kit | P021-001102 | P021-001102-Online | ||
| 9 | + | 2 | Ring,Piston | A101-000000 | A101-000000-Online | |
| 10 | + | 1 | Pin, Piston | 100013-11520 | 100013-11520-Online | |
| 11 | + | 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |
| 12 | + | 2 | Spacer, Piston Pin | 100014-11520 | 100014-11520-Online | |
| 13 | 1 | Crankshaft,Asm | A011-000042 | A011-000042-Online | ||
| 14 | + | 1 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | HK0810 |
| 15 | 1 | Crankcase Kit | P021-000941 | P021-000941-Online | ||
| 16 | + | 1 | Oilseal | 100213-05530 | 100213-05530-Online | ISCD 12 22 7 |
| 17 | + | 2 | Bearing, Ball 6001 | 900800-36001 | 900800-36001-Online | 6001/C3 |
| 18 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 19 | + | 1 | Gasket, Crankcase | 100242-55930 | 100242-55930-Online | |
| 20 | + | 1 | Oilseal Iscd 12*28*7 | 100212-28230 | 100212-28230-Online | ISCD 12*28*7 |
| 21 | + | 4 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW |
| 22 | 1 | Lead, Ground | 162014-52930 | 162014-52930-Online | ||
| 23 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Rotor,Magneto | A409-000130 | A409-000130-Online | ||
| 2 | 1 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | ||
| 3 | 2 | Washer (I) | 175048-05530 | 175048-05530-Online | 6.2*19*1.0 | |
| 4 | 1 | Spring,Tension | V451-000400 | V451-000400-Online | ||
| 5 | 2 | Arm,Clutch | A553-000010 | A553-000010-Online | ||
| 6 | 2 | Washer | 175049-56030 | 175049-56030-Online | 8.5*16*0.5 | |
| 7 | 2 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | ||
| 8 | 1 | Cover Asy, Fan | P021-034570 | P021-034570-Online | ||
| 9 | + | 1 | Drum,Clutch | A556-000040 | A556-000040-Online | |
| 10 | + | 1 | Circlip 28 | 900702-00028 | 900702-00028-Online | CR-28 |
| 11 | + | 2 | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 6001V(LB) |
| 12 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 13 | + | 1 | Circlip 12 | 900701-00012 | 900701-00012-Online | CS-12 |
| 14 | 2 | Bolt | 91118-05018 | 91118-05018-Online | CM-5*18 | |
| 15 | 1 | Label,Echo | X547-001740 | X547-001740-Online | ||
| 16 | 1 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | ||
| 17 | 1 | Bolt | 91118-05028 | 91118-05028-Online | CM-5*28 | |
| 18 | 1 | Circlip 42 | 900702-00042 | 900702-00042-Online | CR-42 | |
| 19 | 1 | Lead, Ground | 162010-56430 | 162010-56430-Online | ||
| 20 | 2 | Bolt, H.S. 5*16 | 900162-05016 | 900162-05016-Online | 5*16 W,SW | |
| 22 | 1 | Grommet | 156112-40630 | 156112-40630-Online | ||
| 23 | 1 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | ||
| 24 | 1 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | ||
| 25 | 1 | Sparkplug | A425-000000 | A425-000000-Online | BPMR8Y | |
| 26 | 1 | Clip | 178111-06230 | 178111-06230-Online | ||
| 27 | 1 | Coil Ignition(W/Plug | P021-003910 | P021-003910-Online |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 28 | + | 1 | Tube | V475-002200 | V475-002200-Online | |
| 29 | + | 1 | Coil,Ignition | A411-000110 | A411-000110-Online |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | ||
| 19 | + | 2 | E-Ring | P022-002100 | P022-002100-Online | |
| 20 | + | 2 | Spring, Return | P022-006510 | P022-006510-Online | |
| 21 | + | 2 | Pawl, Starter | P022-006850 | P022-006850-Online | |
| 22 | 1 | Starter,Recoil Asy | A051-001000 | A051-001000-Online | ||
| 23 | + | 1 | Screw | 177236-61830 | 177236-61830-Online | |
| 24 | + | 1 | Plate, Cam | P022-008280 | P022-008280-Online | |
| 25 | + | 1 | Spring,Damper | P022-008270 | P022-008270-Online | |
| 26 | + | 1 | Drum | P022-006830 | P022-006830-Online | |
| 27 | + | 1 | Rope | P022-008260 | P022-008260-Online | 3M/M |
| 28 | + | 1 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |
| 29 | + | 1 | Stopper, Rope | P022-001350 | P022-001350-Online | |
| 30 | + | 1 | Grip, Starter | 177228-27030 | 177228-27030-Online | |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 33 | 4 | Bolt | 91118-04014 | 91118-04014-Online | CM-4*14 | |
| 34 | 1 | Label,Echo | X502-000330 | X502-000330-Online | ECHO |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Lid, Air Cleaner | 130313-05863 | 130313-05863-Online | ||
| 2 | 1 | Bolt, Wing | 210417-52730 | 210417-52730-Online | 5*20 | |
| 3 | 1 | Label, Choke | 890332-52730 | 890332-52730-Online | ||
| 4 | 1 | Filter, Air | 130310-54130 | 130310-54130-Online | ||
| 5 | 2 | Screw 5*60 | 900242-05060 | 900242-05060-Online | 5*60 | |
| 6 | 1 | Plate, Prevent | 129011-52730 | 129011-52730-Online | ||
| 7 | 1 | Case, Air Cleaner | P021-034600 | P021-034600-Online | ||
| 8 | 1 | Carburetor,Diaphragm | A021-003220 | A021-003220-Online | ||
| 9 | 1 | Gasket, Intake | 130010-13410 | 130010-13410-Online | ||
| 10 | 1 | Insulator | 130017-56431 | 130017-56431-Online | ||
| 11 | 2 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | 5*25 W,SW | |
| 12 | 1 | Gasket, Intake | 130010-55930 | 130010-55930-Online | ||
| 13 | 1 | Gasket,Exhaust | V104-000061 | V104-000061-Online | ||
| 14 | 1 | Muffler Asy | P021-002164 | P021-002164-Online | ||
| 16 | + | 1 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |
| 17 | + | 1 | Gasket,Exhaust | V104-000360 | V104-000360-Online | |
| 19 | + | 1 | Guide,Exh | A313-000130 | A313-000130-Online | |
| 20 | + | 5 | Screw | 91367-04010 | 91367-04010-Online | 4*10/SW(SUS) |
| 21 | 4 | Washer,Conical | V347-000000 | V347-000000-Online | ||
| 22 | 2 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 5*55 | |
| 23 | 2 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER | |
| 24 | 1 | Cover,Muffler | A320-000003 | A320-000003-Online | ||
| 28 | 1 | Label,Caution | X505-002310 | X505-002310-Online | HOT CAUTION | |
| 29 | 1 | Plate,Eye | V150-000371 | V150-000371-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Valve,Check | A356-000030 | A356-000030-Online | ||
| 2 | 2 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 3 | 1 | Pipe | V471-000110 | V471-000110-Online | 3*6*115 | |
| 4 | 1 | Pipe | 132010-52030 | 132010-52030-Online | 3*6*170 NBR | |
| 5 | 1 | Pipe | 132012-56030 | 132012-56030-Online | 3*6*80 YL | |
| 6 | 1 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | ||
| 7 | 1 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | ||
| 8 | 1 | Tank, Fuel | 131005-55932 | 131005-55932-Online | ||
| 9 | 1 | Cap,Fuel Asy | P021-012210 | P021-012210-Online | ||
| 10 | + | 1 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |
| 11 | + | 1 | Connector,Cap | A365-000060 | A365-000060-Online | L=123 |
| 13 | 1 | Bolt | 91118-05020 | 91118-05020-Online | CM-5*20 | |
| 14 | 1 | Stand | 305110-57733 | 305110-57733-Online | ||
| 15 | 2 | Bolt | 91118-05022 | 91118-05022-Online | CM-5*22 | |
| 16 | 2 | Washer 5 | 900603-00005 | 900603-00005-Online | 5.5*12*0.8 | |
| 17 | 2 | Bolt | 91118-05016 | 91118-05016-Online | CM-5*16 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Grip Asy,F-Handle | P021-014090 | P021-014090-Online | ||
| 2 | + | 3 | Screw 4*16 | 900256-04016 | 900256-04016-Online | 4*16 |
| 3 | + | 1 | Bolt | 91119-05030 | 91119-05030-Online | |
| 4 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 5 | 1 | Lockout, Throttle | C460-000111 | C460-000111-Online | 70MM | |
| 6 | 1 | Spring,Torsion | V452-000350 | V452-000350-Online | ||
| 7 | 1 | Control, Throttle | C450-000270 | C450-000270-Online | ||
| 8 | 1 | Spring,Torsion | V452-000360 | V452-000360-Online | ||
| 9 | 1 | Switch, On Off | A440-001031 | A440-001031-Online | CA-104 CB-104 | |
| 10 | 1 | Knob, Latch | C463-000020 | C463-000020-Online | ||
| 13 | 1 | Clip | 159112-09961 | 159112-09961-Online | ||
| 15 | 1 | Cable,Bowden | V430-002310 | V430-002310-Online | 870+86 | |
| 19 | 1 | Fixture,Asy Handle | P021-012821 | P021-012821-Online | SRM-2655SI | |
| 20 | + | 1 | Knob,Fastener | V299-000110 | V299-000110-Online | |
| 21 | + | 1 | Washer | 605014-54230 | 605014-54230-Online | |
| 22 | + | 1 | Fixture,Handle | C423-000042 | C423-000042-Online | |
| 23 | + | 3 | Bolt | 91118-05030 | 91118-05030-Online | |
| 24 | + | 1 | Nut | 900565-50008 | 900565-50008-Online | 8*1.25 |
| 30 | 1 | Grip,Handle | C403-000031 | C403-000031-Online | ||
| 31 | 1 | Label,Caution | 890617-43130 | 890617-43130-Online | ||
| 32 | 1 | Pipe,Main | C050-000320 | C050-000320-Online | ||
| 33 | 1 | Handle,Front | C400-000211 | C400-000211-Online | ||
| 34 | 1 | Shaft,Drive | C504-000050 | C504-000050-Online | 7*1540 | |
| 36 | 1 | Ring, Harness Kit | P021-013580 | P021-013580-Online | ||
| 38 | + | 1 | Hook | 301205-21330 | 301205-21330-Online |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 39 | + | 1 | Bolt, Flange | 91121-05012 | 91121-05012-Online | 10.9 SILVER |
| 41 | 2 | Clip | 224924-52130 | 224924-52130-Online | 25MM | |
| 43 | 1 | Label, Caution | 890152-04930 | 890152-04930-Online | ||
| 44 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 45 | 1 | Nut, Flange | 900518-00006 | 900518-00006-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | P021-012602 | P021-012602-Online | ||
| 2 | + | 1 | Nut 10 | 610320-52130 | 610320-52130-Online | |
| 3 | + | 1 | Plate, Cover | 699229-56830 | 699229-56830-Online | |
| 4 | + | 1 | Plate, Adapter (L) | 610314-52130 | 610314-52130-Online | |
| 5 | + | 1 | O-Ring 12 | 900720-00012 | 900720-00012-Online | P-12 |
| 6 | + | 1 | Fixture,Blade | C535-000001 | C535-000001-Online | 7 | ++ |
| 7 | 1 | Plate, Cup | 610352-56830 | 610352-56830-Online | 8 | ++ | |
| 8 | 1 | Fixture,Blade | C535-000011 | C535-000011-Online | ||
| 9 | + | 1 | Circlip 32 | 900702-00032 | 900702-00032-Online | CR-32 |
| 10 | + | 1 | Washer | 610444-56830 | 610444-56830-Online | |
| 11 | + | 1 | Bearing, Ball 6201 | 900812-06201 | 900812-06201-Online | 6201DDU(LLU) |
| 12 | + | 1 | Shaft, P.T.O. | 610310-56831 | 610310-56831-Online | |
| 13 | + | 1 | Gear Set, Bevel | V000-000040 | V000-000040-Online | |
| 14 | + | 1 | Bearing, Ball 626 | 900810-00626 | 900810-00626-Online | |
| 15 | + | 1 | Spring | 610473-52131 | 610473-52131-Online | |
| 16 | + | 1 | Washer | 900603-50008 | 900603-50008-Online | 8.5*18*0.8T |
| 17 | + | 1 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | M8*8 |
| 18 | + | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 |
| 19 | + | 1 | Bolt | 91118-06025 | 91118-06025-Online | |
| 20 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 21 | + | 1 | Bearing, Ball 6900Z | 900858-06900 | 900858-06900-Online | |
| 22 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | CR-22 |
| 23 | + | 1 | Circlip 10 | 900706-00010 | 900706-00010-Online | WR-10 |
| 24 | 1 | Saw,Bush Cutter | P021-014310 | P021-014310-Online | 230*T3.0 | |
| 25 | 1 | Scabbard,Blade | X495-000280 | X495-000280-Online | 9", 10" 3 CUTTER |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Shield,Blade | C550-000100 | C550-000100-Online | ||
| 2 | + | 1 | Part | 900565-00005 | 900565-00005-Online | |
| 3 | 1 | Bolt | 91118-05018 | 91118-05018-Online | CM-5*18 | |
| 4 | 1 | Shield,Blade | C550-000090 | C550-000090-Online | ||
| 5 | 1 | Plate, Shield | 699013-56830 | 699013-56830-Online | ||
| 6 | 4 | Bolt | 91118-05025 | 91118-05025-Online | CM-5*25 | |
| 7 | 1 | Shield Kit | P021-013770 | P021-013770-Online | ||
| 8 | + | 1 | Shield,Blade | C550-000080 | C550-000080-Online | |
| 9 | + | 1 | Knife, Cord | C554-000030 | C554-000030-Online | 17INCH |
| 10 | + | 1 | Screw 5*12 | 900252-05012 | 900252-05012-Online | 5*12 |
| 11 | 1 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | ||
| 12 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 13 | 1 | Tool,Bar | X606-000080 | X606-000080-Online | 5*120 | |
| 14 | 1 | Goggle | X690-000050 | X690-000050-Online | GOGGLE + NOTE | |
| 15 | 1 | Bag, Tool | 898510-39130 | 898510-39130-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | 3 | Screw | 125344-13931 | 125344-13931-Online | |
| 2 | + | 1 | Post | P005-001240 | P005-001240-Online | |
| 3 | + | 1 | E-Ring | P005-000190 | P005-000190-Online | |
| 4 | + | 1 | Screw,Throttleadjust | P005-000100 | P005-000100-Online | |
| 7 | + | 1 | Cover Asy, Rotor | P005-002050 | P005-002050-Online | |
| 8 | + | 1 | O-Ring | P005-000280 | P005-000280-Online | |
| 9 | + | 1 | Roller, Guide | P005-001000 | P005-001000-Online | |
| 10 | + | 1 | Strainer | P005-000010 | P005-000010-Online | |
| 11 | + | 1 | Screw,Mainn Mixture | P005-001260 | P005-001260-Online | |
| 12 | + | 1 | Retainer,Plug Ball | P005-001250 | P005-001250-Online | |
| 13 | + | 1 | Spring, Meter. Lever | P005-000940 | P005-000940-Online | |
| 14 | + | 1 | Arm, Valve | 125323-08260 | 125323-08260-Online | |
| 15 | + | 1 | Pin, Metering Arm | 125338-13930 | 125338-13930-Online | |
| 16 | + | 1 | Screw | 125339-42030 | 125339-42030-Online | |
| 17 | + | 3 | Screw | 125344-52130 | 125344-52130-Online | |
| 18 | + | 1 | Cover, Diaphragm | 125342-52130 | 125342-52130-Online | |
| 19 | + | 1 | Diaphragm | P005-001780 | P005-001780-Online | |
| 20 | + | 1 | Gasket, Metering | P005-000200 | P005-000200-Online | |
| 21 | + | 1 | Valve, Inlet Needle | 125337-08260 | 125337-08260-Online | |
| 22 | + | 1 | Diaphragm, Pump | P005-000510 | P005-000510-Online | |
| 23 | + | 1 | Gasket, Pump | P005-000520 | P005-000520-Online | |
| 25 | + | 1 | Base, Asy Primer | P005-001890 | P005-001890-Online | |
| 26 | + | 1 | Screw | P005-000270 | P005-000270-Online | |
| 27 | + | 1 | Pump, Priming | 125381-46730 | 125381-46730-Online | |
| 28 | + | 1 | Retainer | P005-000250 | P005-000250-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 29 | + | 4 | Screw | P005-001900 | P005-001900-Online |
Source PDF: 20130718-822_SRM-240ES_U(37)_P014-000960-10Ib_EN.pdf. Generated 2026-06-25 14:39.
