Echo DM-6110 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: DM-6110-Online
Source Pages

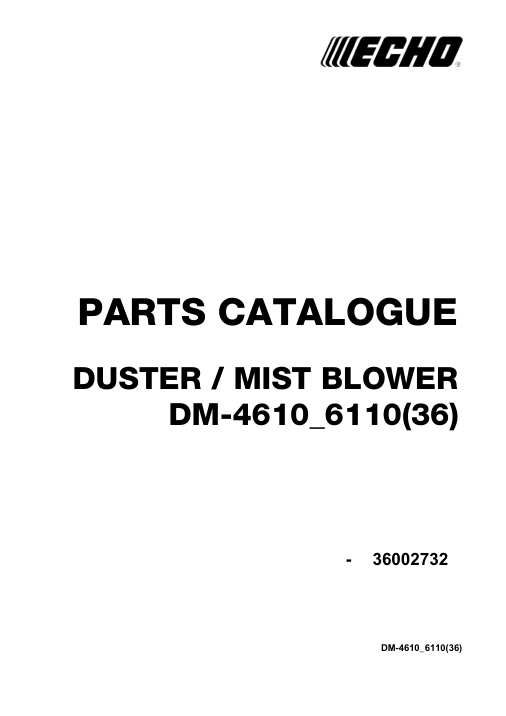

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 1 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| - | Dm-4610_6110(36) | 36002732 | 36002732-Online |
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Cover, Cylinder | 101514-06210 | 101514-06210-Online | ||
| 4 | 1 | Gasket, Muffler | 145512-06211 | 145512-06211-Online | ||
| 5 | 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 5*22 W,SW | |
| 6 | 1 | Cylinder | A130-000210 | A130-000210-Online | DM-4610 | |
| 6 | 1 | Cylinder | A130-000111 | A130-000111-Online | DM-6110 | |
| 7 | 1 | Screw 5*10 | 900242-05010 | 900242-05010-Online | 5*10 | |
| 8 | 1 | Cover,Cylinder | A160-000680 | A160-000680-Online | ||
| 9 | 1 | Gasket, Intake | 130016-06211 | 130016-06211-Online | ||
| 10 | 1 | Gasket, Cyl. Base | 101010-10722 | 101010-10722-Online | DM-4610 | |
| 10 | 1 | Gasket, Cyl. Base | 101010-06211 | 101010-06211-Online | DM-6110 | |
| 11 | 1 | Piston Kit | P021-002540 | P021-002540-Online | DM-4610 | |
| 11 | 1 | Piston Kit | P021-001820 | P021-001820-Online | DM-6110 | |
| 12 | + | 2 | Ring, Piston | 100011-10530 | 100011-10530-Online | DM-4610 |
| 12 | + | 2 | Ring, Piston | 100011-08360 | 100011-08360-Online | DM-6110 |
| 13 | + | 1 | Pin, Piston | 100013-00410 | 100013-00410-Online | 6*10*29.8 | DM-4610 |
| 13 | + | 1 | Pin, Piston | 100013-06210 | 100013-06210-Online | DM-6110 |
| 14 | + | 2 | Circlip, Piston Pin | 100015-00120 | 100015-00120-Online | |
| 15 | + | 1 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |
| 18 | 1 | Crankcase Kit | 100204-08261 | 100204-08261-Online | Sus. by P021- | 010100 | |
| 19 | + | 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |
| 20 | + | 4 | Screw 5*40 | 900242-05040 | 900242-05040-Online | 5*40 | DM-6110 SrNr | 36003821 and | before |
| 22 | + | 1 | Gasket, Crankcase | 100242-10721 | 100242-10721-Online | |
| 23 | + | 2 | Oilseal | 100213-00310 | 100213-00310-Online | ISCD 15 25 7 |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 2 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | 6202/C3 |
| 25 | 1 | Cover, Dust | 159129-08260 | 159129-08260-Online | Sus. by 159129- | 08261 | |
| 26 | 1 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | Sus. by 900238- | 05018 | |
| 26 | 1 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 27 | 1 | Bushing | 150112-00310 | 150112-00310-Online | ||
| 28 | 6 | Screw 5*25 | 900292-05025 | 900292-05025-Online | 5*25 SUS | |
| 30 | 1 | Crankshaft Assy | 100100-06210 | 100100-06210-Online | ||
| 33 | 1 | Key Woodruff | 900323-03014 | 900323-03014-Online | 3*14 | |
| 34 | 1 | Cover, Engine | 104016-06410 | 104016-06410-Online | ||
| 35 | 3 | Screw 5*20 | 900292-05020 | 900292-05020-Online | 5*20 SUS | |
| 36 | 1 | Label, Caution | 890160-06361 | 890160-06361-Online | Sus. by X505- | 002310 |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 1 | Cap Assy, Fuel Tank | 131600-21060 | 131600-21060-Online | ||
| 5 | + | 1 | Cup Set, Vent | 131003-05330 | 131003-05330-Online | |
| 6 | + | 1 | Gasket, Fuel Cap | 131016-21060 | 131016-21060-Online | |
| 8 | 1 | Tank,Fuel | A350-000340 | A350-000340-Online | Sus. by A350- | 000341 | |
| 9 | 2 | Screw +-Sr 6*14 | 900220-06014 | 900220-06014-Online | 6*14 | |
| 10 | 2 | Washer, Spring 6 | 900605-00006 | 900605-00006-Online | ||
| 11 | 2 | Washer 6.5*18*1.6 | 145642-00760 | 145642-00760-Online | 6.5*18*1.6 | |
| 13 | 2 | Screw | 91331-05060 | 91331-05060-Online | SR 5*60ZM | |
| 14 | 2 | Washer, Spring 5 | 900605-00005 | 900605-00005-Online | 5 | Nil | |
| 15 | 2 | Spacer | 178516-00830 | 178516-00830-Online | 5.2*8*0.8T | Nil | |
| 17 | 1 | Gasket,Intake | V103-000000 | V103-000000-Online | ||
| 18 | 1 | Insulator,Intake | A200-000190 | A200-000190-Online | Sus. by P021- | 010210 | |
| 18 | 1 | Insulator,Intake Kit | P021-010210 | P021-010210-Online | ||
| 19 | + | 2 | Bolt, H.S.H. 5*30 | 900106-05030 | 900106-05030-Online | 5*30 | Can be used on the | P021-010210 only |
| 19 | 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 5*25 | DM-4610:SrNr | 36001310 and | before | |
| 20 | 1 | Gasket,Intake | V103-000220 | V103-000220-Online | Sus. by V103- | 000221 |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 20 | 1 | Gasket,Intake | V103-000221 | V103-000221-Online | ASK NO.4750 | |
| 21 | 1 | Label, Choke | 890121-65830 | 890121-65830-Online | ||
| 23 | 1 | Carburetor,Diaphragm | A021-000980 | A021-000980-Online | WYK-JX-3746 | Sus. by A021- | 001040 | |
| 23 | 1 | Carburetor,Diaphragm | A021-001040 | A021-001040-Online | WYK-200 | DM-4610 | |
| 23 | 1 | Carburetor,Diaphragm | A021-000990 | A021-000990-Online | WYK-201 | DM-6110 | |
| 27 | 1 | Pipe | V471-000550 | V471-000550-Online | 3*6*145 | |
| 28 | 1 | Cleaner Case Asy | P021-008620 | P021-008620-Online | ||
| 29 | 1 | Plate,Prevent | A244-000040 | A244-000040-Online | DM-4610 | |
| 29 | 1 | Plate,Prevent | A244-000020 | A244-000020-Online | DM-6110 | |
| 30 | 1 | Grid, Air Cleaner | 130319-03710 | 130319-03710-Online | ||
| 31 | 1 | Filter, Air | 130317-03710 | 130317-03710-Online | ||
| 32 | 1 | Filter, Air | 130310-02910 | 130310-02910-Online | ||
| 33 | 1 | Grid, Air Cleaner | 130311-03710 | 130311-03710-Online | ||
| 34 | 1 | Cover, Air Cleaner | 130313-03710 | 130313-03710-Online | ||
| 35 | 1 | Label, Cleaner | 890187-03710 | 890187-03710-Online | ||
| 37 | 1 | Grommet, Fuel | 132115-56230 | 132115-56230-Online | ||
| 38 | 1 | Pipe | V471-000770 | V471-000770-Online | ||
| 39 | 1 | Clip | 132013-26630 | 132013-26630-Online | 6.5MM | |
| 40 | 1 | Strainer, Fuel | 131205-19830 | 131205-19830-Online | Sus. by 131205- | 19831 |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | 1 | Nut 10*1.25 | 900501-00010 | 900501-00010-Online | 10*P1.25 | |
| 4 | 1 | Washer, Spring 10 | 900605-00010 | 900605-00010-Online | ||
| 5 | 1 | Washer 10(10.5*21*2) | 900602-00010 | 900602-00010-Online | 10.5*21*2 | |
| 6 | 1 | Part | 200005-06210 | 200005-06210-Online | ||
| 7 | 4 | Bolt 5*35 | 900148-05035 | 900148-05035-Online | 5*35 | |
| 8 | 1 | Rotor, Magneto | 156800-06161 | 156800-06161-Online | ||
| 9 | 2 | Screw 5*18 | 900242-05018 | 900242-05018-Online | 5*18 | Sus. by 900238- | 05018 | |
| 9 | 2 | Screw 5*18 | 900238-05018 | 900238-05018-Online | 5*18 | |
| 10 | 1 | C.D. Ignition Module | 156601-06211 | 156601-06211-Online | ||
| 12 | 1 | Tube | 156611-04260 | 156611-04260-Online | 6*8*340 | |
| 13 | 1 | Cap, Spark Plug | 159012-10230 | 159012-10230-Online | ||
| 14 | 1 | Adapter, Plug Cap | 159016-05330 | 159016-05330-Online | ||
| 15 | 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | BPMR-7A | |
| 20 | 1 | Pawl Assy, Starter | 177202-06210 | 177202-06210-Online | ||
| 21 | + | 1 | E-Ring 4 | 900700-00004 | 900700-00004-Online | CE-4 |
| 23 | + | 1 | Spring, Return | 177234-40630 | 177234-40630-Online | |
| 24 | + | 1 | Pawl, Starter | 177218-40630 | 177218-40630-Online | WHITE |
| 26 | 1 | Starter Assy | 177200-06210 | 177200-06210-Online | ||
| 27 | + | 1 | Screw | 177236-40630 | 177236-40630-Online | |
| 28 | + | 1 | Washer | 177214-40630 | 177214-40630-Online | |
| 29 | + | 1 | Drum, Starter | 177215-11120 | 177215-11120-Online | |
| 30 | + | 1 | Rope, Starter | 177226-11120 | 177226-11120-Online | 3.8*1400 |
| 31 | + | 1 | Guide, Rope | 177227-42030 | 177227-42030-Online | |
| 32 | + | 1 | Grip, Starter | 177228-11120 | 177228-11120-Online | |
| 33 | + | 1 | Rewind Spring | 177220-11120 | 177220-11120-Online |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 35 | 4 | Screw 4*18 | 900292-04018 | 900292-04018-Online | 4*18 SUS | |
| 36 | 1 | Label, Echo | 890118-49330 | 890118-49330-Online | Sus. by X502- | 000410 | |
| 37 | 1 | Plate, Angle | 300029-06210 | 300029-06210-Online | ||
| 38 | 1 | Cushion | 305117-03360 | 305117-03360-Online | ||
| 41 | 1 | Gasket, Muffler | 145510-06211 | 145510-06211-Online | ||
| 42 | 1 | Muffler Asy | P021-008630 | P021-008630-Online | ||
| 43 | 2 | Bolt, H.S. 6*20 | 900105-06020 | 900105-06020-Online | 6*20 | |
| 44 | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 4 | 11 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | 5*25 SUS | |
| 5 | 1 | Case, Fan | 200107-07711 | 200107-07711-Online | ||
| 6 | 2 | Bolt | 210425-04110 | 210425-04110-Online | ||
| 7 | 2 | Washer, Spring 5 Sus | 900609-00005 | 900609-00005-Online | 5 SUS | |
| 8 | 2 | Washer 5 Sus | 900604-00005 | 900604-00005-Online | 5 SUS | |
| 9 | 1 | Tank, Lower | 270010-06211 | 270010-06211-Online | ||
| 10 | 1 | Packing | 270018-06210 | 270018-06210-Online | ||
| 11 | 1 | Plate | 370321-06210 | 370321-06210-Online | ||
| 12 | 1 | Guide, Air | 370316-06210 | 370316-06210-Online | ||
| 13 | 1 | Pipe, Dust Outlet | 370301-06211 | 370301-06211-Online | ||
| 14 | 2 | Nut 5B | 900504-00005 | 900504-00005-Online | ||
| 15 | 1 | Case, Fan | 200105-07710 | 200105-07710-Online | Sus. by 200105- | 07711 | |
| 15 | 1 | Case, Fan | 200105-07711 | 200105-07711-Online | ||
| 16 | 1 | Pin, Straight 10 | 701033-06211 | 701033-06211-Online | ||
| 17 | + | 1 | E-Ring 8 Sus | 900703-00008 | 900703-00008-Online | CE-8 SUS |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Frame, Backpack | 300010-07311 | 300010-07311-Online | ||
| 2 | 2 | Cushion | 200910-06210 | 200910-06210-Online | ||
| 3 | 2 | Cushion | 200916-03210 | 200916-03210-Online | ||
| 4 | 4 | Part | 250916-06210 | 250916-06210-Online | ||
| 5 | 1 | Cushion, Knapsack | 300111-14010 | 300111-14010-Online | ||
| 6 | 4 | Clip | 300333-06160 | 300333-06160-Online | ||
| 7 | 2 | Harness, W/Pad | 300302-07410 | 300302-07410-Online | ||
| 9 | + | 2 | Screw, 5*16 | 900216-05016 | 900216-05016-Online | 5*16 |
| 10 | + | 4 | Washer, Harness | 300328-03210 | 300328-03210-Online | |
| 11 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Label, Speed | 890348-05060 | 890348-05060-Online | ||
| 6 | 1 | Label, Switch | 890157-39130 | 890157-39130-Online | ||
| 7 | 2 | Screw 5*25 | 900292-05025 | 900292-05025-Online | 5*25 SUS | |
| 8 | 1 | Dial | 701111-06212 | 701111-06212-Online | ||
| 9 | 2 | Nut 5B | 900504-00005 | 900504-00005-Online | ||
| 10 | 1 | Bracket, Dial | 701112-06410 | 701112-06410-Online | Sus. by 701112- | 06411 | |
| 11 | 1 | Knob, Lever | 701021-02910 | 701021-02910-Online | ||
| 12 | 1 | Lever,Throttle | C453-000130 | C453-000130-Online | ||
| 13 | 4 | Screw 5*25 Sus | 900286-05025 | 900286-05025-Online | 5*25 SUS | |
| 14 | 2 | Screw 5*14 | 900292-05014 | 900292-05014-Online | 5*14 SUS | |
| 15 | 1 | Knob, Lever | 701007-06610 | 701007-06610-Online | ||
| 16 | 1 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 3N6 | |
| 17 | 1 | Lever, Control | 701010-06610 | 701010-06610-Online | ||
| 18 | 1 | Connector | 701020-05510 | 701020-05510-Online | ||
| 19 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 20 | 1 | Rod, Control Lever | 701014-06510 | 701014-06510-Online | ||
| 21 | 1 | Pin, Snap | 605612-06510 | 605612-06510-Online | ||
| 22 | 1 | Cable,Bowden | V430-001330 | V430-001330-Online | ||
| 23 | 1 | Washer 8 | 900600-00008 | 900600-00008-Online | ||
| 24 | 1 | Holder, Stopper | 701028-06210 | 701028-06210-Online | ||
| 25 | 2 | Nut (3N 6*0.75) | 900503-00006 | 900503-00006-Online | 3N 6*0.75 | |
| 26 | 2 | Washer 6 | 900600-00006 | 900600-00006-Online |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Pipe, Curved (Gy) | 210023-00210 | 210023-00210-Online | ||
| 6 | 1 | Pipe, Straight | 210014-01610 | 210014-01610-Online | ||
| 7 | 1 | Clamp, Flexible Pipe | 210407-01110 | 210407-01110-Online | ||
| 8 | 1 | Packing, Flx. Pipe | 210032-04110 | 210032-04110-Online | ||
| 9 | 1 | Pipe, Flexible | 210013-04111 | 210013-04111-Online | ||
| 10 | 1 | Gasket, Flx. Pipe | 210036-04110 | 210036-04110-Online | ||
| 11 | 1 | Clamp, Flexible Pipe | 210407-04110 | 210407-04110-Online | ||
| 12 | 1 | Elbow, Blowing | 210011-05510 | 210011-05510-Online | ||
| 13 | 1 | Screw 5*14 | 900242-05014 | 900242-05014-Online | 5*14 | |
| 14 | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | ||
| 15 | 1 | Cap, Chemical Tank | 250001-05610 | 250001-05610-Online | ||
| 16 | + | 1 | Cap, Inside | 250013-00310 | 250013-00310-Online | |
| 17 | 1 | Packing | 250011-02011 | 250011-02011-Online | ||
| 18 | 1 | Tank,Chemical | E110-000032 | E110-000032-Online | ||
| 18 | 1 | Tank, Chemical | 250017-08012 | 250017-08012-Online | 23L EU (MIST) | |
| 19 | 1 | Label, Echo | 890138-01110 | 890138-01110-Online | Sus. by X502- | 000180 | |
| 19 | 1 | Label,Echo | X502-000180 | X502-000180-Online | ECHO | 13L Sus. by X502- | 000470 | |
| 19 | 1 | Label, Echo | 890118-04261 | 890118-04261-Online | Sus. by X502- | 000220 | |
| 19 | 1 | Label,Echo | X502-000220 | X502-000220-Online | 240*70 | 23L Sus. by X502- | 000440 | |
| 20 | 1 | Label, Caution | 890160-09461 | 890160-09461-Online |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 21 | 1 | Label, Model | 890151-08010 | 890151-08010-Online | DM-4610 Sus. by | |
| 21 | Part | X503-008350 | X503-008350-Online | |||
| 21 | 1 | Label, Model | 890151-08110 | 890151-08110-Online | DM-6110 Sus. by | |
| 22 | Part | X503-008360 | X503-008360-Online | |||
| 22 | 1 | Holder Assy, C.Tank | 270000-06311 | 270000-06311-Online | ||
| 23 | + | 4 | Bolt Hs Fl Tapp | 91148-05035 | 91148-05035-Online | M5*35 |
| 24 | + | 2 | Holder, C. Tank | 250910-06310 | 250910-06310-Online | |
| 25 | + | 2 | Pin, Tank Holder | 250914-06210 | 250914-06210-Online | |
| 26 | + | 2 | Bracket Assy, C.Tank | 250902-06310 | 250902-06310-Online | 27 | ++ |
| 27 | 2 | Bolt, Tank Holder | 250915-06310 | 250915-06310-Online | 28 | ++ | |
| 28 | 2 | Connector, Bracket | 250930-06210 | 250930-06210-Online | 29 | ++ | |
| 29 | 2 | Bracket, Tank | 250932-06210 | 250932-06210-Online | 30 | ++ | |
| 30 | 2 | Pin, Straight | 900333-70380 | 900333-70380-Online |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Band | 132013-14010 | 132013-14010-Online | 10.5MM | |
| 2 | 1 | Nut, Connector | 363019-00310 | 363019-00310-Online | ||
| 3 | 1 | Washer | 363018-00310 | 363018-00310-Online | ||
| 4 | 1 | Plug | 363022-00510 | 363022-00510-Online | ||
| 5 | 1 | Connector, Pipe | 363017-00310 | 363017-00310-Online | ||
| 6 | 1 | Pipe L-170 | 363024-04010 | 363024-04010-Online | 7*11*170L | |
| 7 | 1 | Plug | 363021-01110 | 363021-01110-Online | ||
| 8 | 1 | Pipe,Air | E105-000000 | E105-000000-Online | ||
| 9 | 1 | Pipe (Inner) | 363014-00310 | 363014-00310-Online | 7*11*400BL | |
| 9 | 1 | Pipe (Inner) | 363014-03210 | 363014-03210-Online | 7*11*500BL | |
| 10 | 1 | Filter | 254210-03210 | 254210-03210-Online | ||
| 11 | 1 | Pipe (9*13) | 382011-01110 | 382011-01110-Online | 9*13*350 | |
| 12 | 5 | Band | V495-000310 | V495-000310-Online | ||
| 13 | 1 | Plate, Tank Bottom | 253010-08010 | 253010-08010-Online | ||
| 14 | 1 | Gasket, Shutter | 270119-06210 | 270119-06210-Online | ||
| 15 | 1 | Nipple, Outlet | 357010-01110 | 357010-01110-Online | ||
| 16 | 1 | O-Ring | 357014-01110 | 357014-01110-Online | 3*13 | |
| 17 | 1 | Nut, Hollow | 357015-01110 | 357015-01110-Online | ||
| 18 | 1 | Clip | 363023-01110 | 363023-01110-Online | ||
| 19 | 1 | Clip, Pipe | 357911-00110 | 357911-00110-Online | Sus. by 357911- | 00111 | |
| 20 | 1 | Pipe (L-650) | 357011-02410 | 357011-02410-Online | 9*13*650L | |
| 21 | 1 | Valve Ass'Y, Pipe | 358100-01110 | 358100-01110-Online | Sus. by 358100- | 01111 | |
| 22 | 1 | Pipe (L-720) | 357032-01110 | 357032-01110-Online | 9*13*720 | |
| 23 | 1 | Nozzle Ass'Y, Mistbl | 212500-01111 | 212500-01111-Online |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 24 | + | 1 | Collar, Nozzle | 212515-01110 | 212515-01110-Online | |
| 25 | + | 1 | Nut, Misting Nozzle | 212514-01110 | 212514-01110-Online | |
| 26 | + | 1 | Ring, Misting Nozzle | 212513-01110 | 212513-01110-Online | |
| 27 | + | 1 | Nozzle | 222000-01110 | 222000-01110-Online | |
| 28 | + | 1 | Head, Nozzle Bl | 212501-01111 | 212501-01111-Online | BL | 29 | ++ |
| 29 | 1 | Screw 5*12 | 900246-05012 | 900246-05012-Online | 5*12 | |
| 31 | + | 1 | Label, Mist | 890031-01110 | 890031-01110-Online | |
| 30 | 1 | Tool,Wrench | X602-000020 | X602-000020-Online | 17*19 L200 | |
| 32 | 1 | Screw 5*16 Sus | 900286-05016 | 900286-05016-Online | 5*16 SUS |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 3 | + | 2 | Screw | 123114-40630 | 123114-40630-Online | |
| 4 | + | 1 | Bracket Cable | P003-000180 | P003-000180-Online | |
| 5 | + | 1 | Swivel | 123172-45130 | 123172-45130-Online | |
| 6 | + | 1 | Washer | 123149-54230 | 123149-54230-Online | |
| 7 | + | 1 | Clip | 123173-07930 | 123173-07930-Online | |
| 8 | + | 1 | Ring, Packing | 123143-12110 | 123143-12110-Online | |
| 9 | + | 1 | O-Ring | 123183-40630 | 123183-40630-Online | DM-6110 |
| 10 | + | 1 | Jet | P003-000990 | P003-000990-Online | DM-6110 |
| 11 | + | 1 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |
| 12 | + | 1 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |
| 13 | + | 1 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 14 | ++ |
| 14 | 1 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 15 | ++ | |
| 15 | 1 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 16 | ++ | |
| 16 | 1 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 17 | ++ | |
| 17 | 1 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 18 | ++ | |
| 18 | 1 | Lever, Metering | 123123-03930 | 123123-03930-Online | 19 | ++ | |
| 19 | 1 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | ||
| 20 | + | 1 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |
| 21 | + | 1 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |
| 22 | + | 1 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |
| 23 | + | 1 | Pump, Primer | 123181-40630 | 123181-40630-Online | |
| 24 | + | 1 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 25 | + | 4 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |
| 26 | + | 1 | Needle, High Speed | P003-001130 | P003-001130-Online | DM-4610 |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 5 | 1 | Shutter Assy | 275100-06212 | 275100-06212-Online | OPTION | |
| 6 | + | 1 | O-Ring (P-4) | 900720-00004 | 900720-00004-Online | P-4 | OPTION |
| 7 | + | 1 | Nut, Wing 5 | 900539-00005 | 900539-00005-Online | 5 | OPTION |
| 8 | + | 1 | Stabilizer | 250110-06212 | 250110-06212-Online | OPTION |
| 9 | + | 1 | Bolt, Stud | 270015-06211 | 270015-06211-Online | 5*50 | OPTION |
| 10 | + | 2 | Screw, 4*10 | 900226-04010 | 900226-04010-Online | 4*10 SUS | OPTION |
| 11 | + | 1 | Shutter | 270145-06210 | 270145-06210-Online | OPTION |
| 12 | + | 2 | Spacer 10*19.5*0.3 | 275123-05510 | 275123-05510-Online | 10*19.5*0.3 | OPTION |
| 13 | + | 1 | Shaft, Shutter | 270153-06210 | 270153-06210-Online | OPTION |
| 14 | + | 4 | Screw 4*14 | 900295-04014 | 900295-04014-Online | 4*14 SUS | OPTION |
| 15 | + | 1 | Shutter | 270110-06210 | 270110-06210-Online | OPTION |
| 16 | + | 1 | Shutter, Metering | 270112-06211 | 270112-06211-Online | OPTION |
| 17 | + | 1 | Gasket, Shutter | 270119-06210 | 270119-06210-Online | OPTION |
| 18 | + | 1 | Packing, Dust | 210035-06310 | 210035-06310-Online | OPTION |
| 19 | + | 1 | Plate, Eye | 270122-06211 | 270122-06211-Online | OPTION |
| 20 | 1 | Tank, Lower | 270010-06211 | 270010-06211-Online | OPTION |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Straight (Gy) | 210015-01110 | 210015-01110-Online | OPTION | |
| 2 | 1 | Plug | 250016-01110 | 250016-01110-Online | OPTION | |
| 3 | 1 | Nut (Bs) | 270207-04310 | 270207-04310-Online | OPTION | |
| 4 | 1 | Arm, Shutter | 270212-06410 | 270212-06410-Online | OPTION | |
| 5 | 1 | O-Ring 7 | 900720-00007 | 900720-00007-Online | P-7 | OPTION | |
| 6 | 1 | Shaft, Shutter | 270205-06411 | 270205-06411-Online | OPTION | |
| 7 | 2 | Screw 4*14 | 900292-04014 | 900292-04014-Online | 4*14 SUS | OPTION | |
| 8 | 1 | Arm | 270216-06210 | 270216-06210-Online | OPTION |
Source PDF: 20160107-638_DM-6110___NEW_serial_no_36000001_+.pdf. Generated 2026-06-25 14:39.
