Illustrated Parts List
Shindaiwa EB630 BLOWER Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB630 BLOWER
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

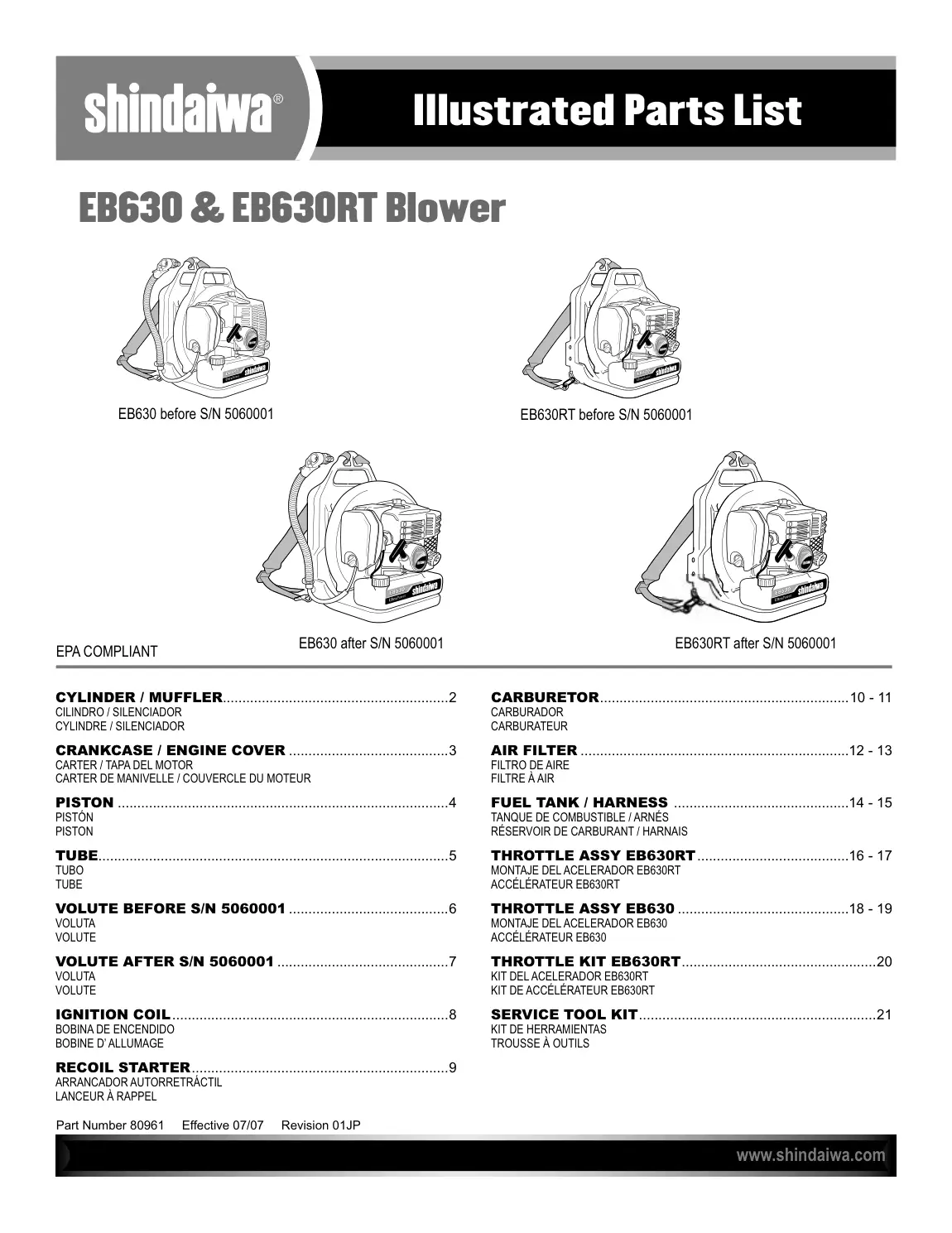

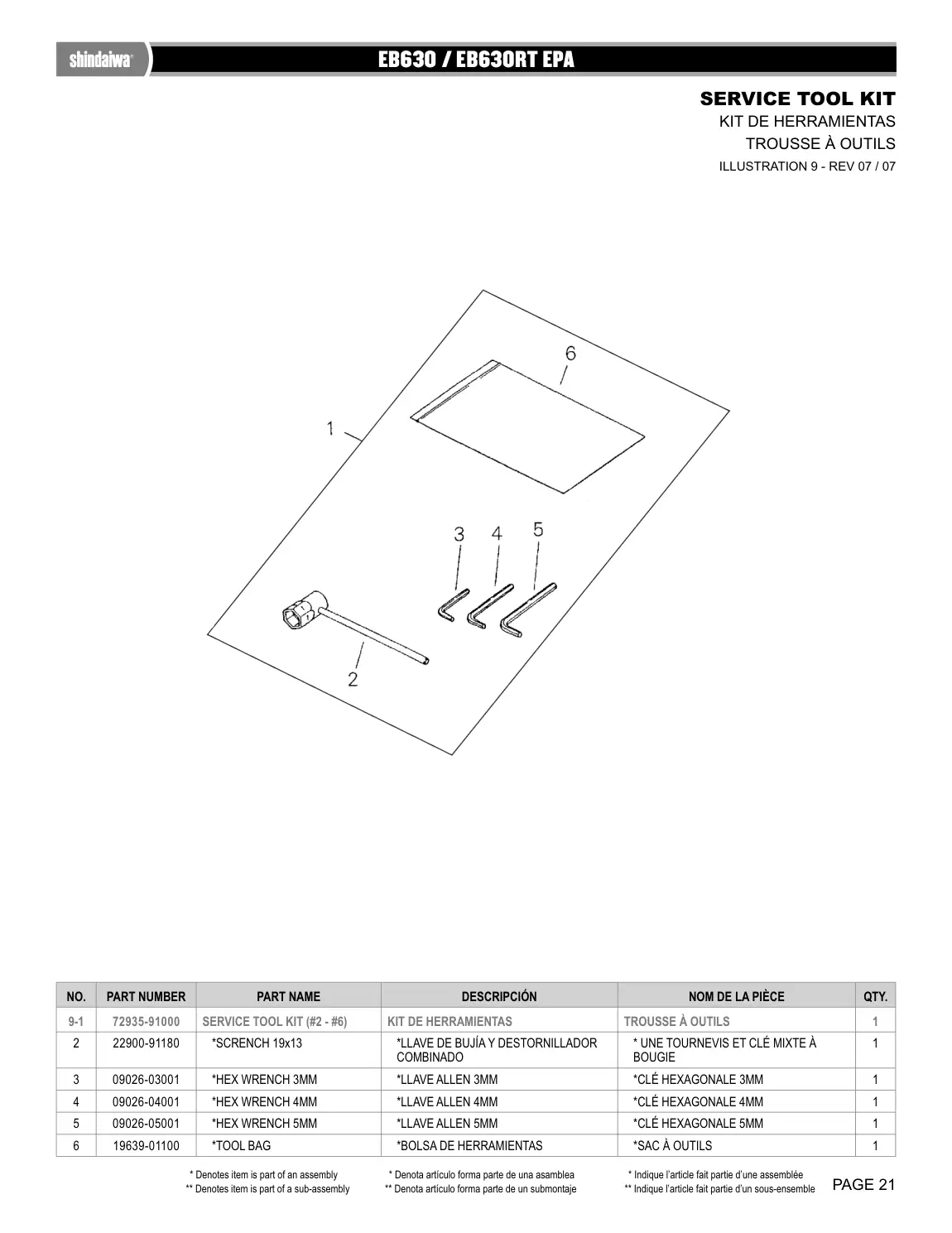

| 1 | TROUSSE À OUTILS | & EB630RT Blower | EB630 | EB630-Online | |

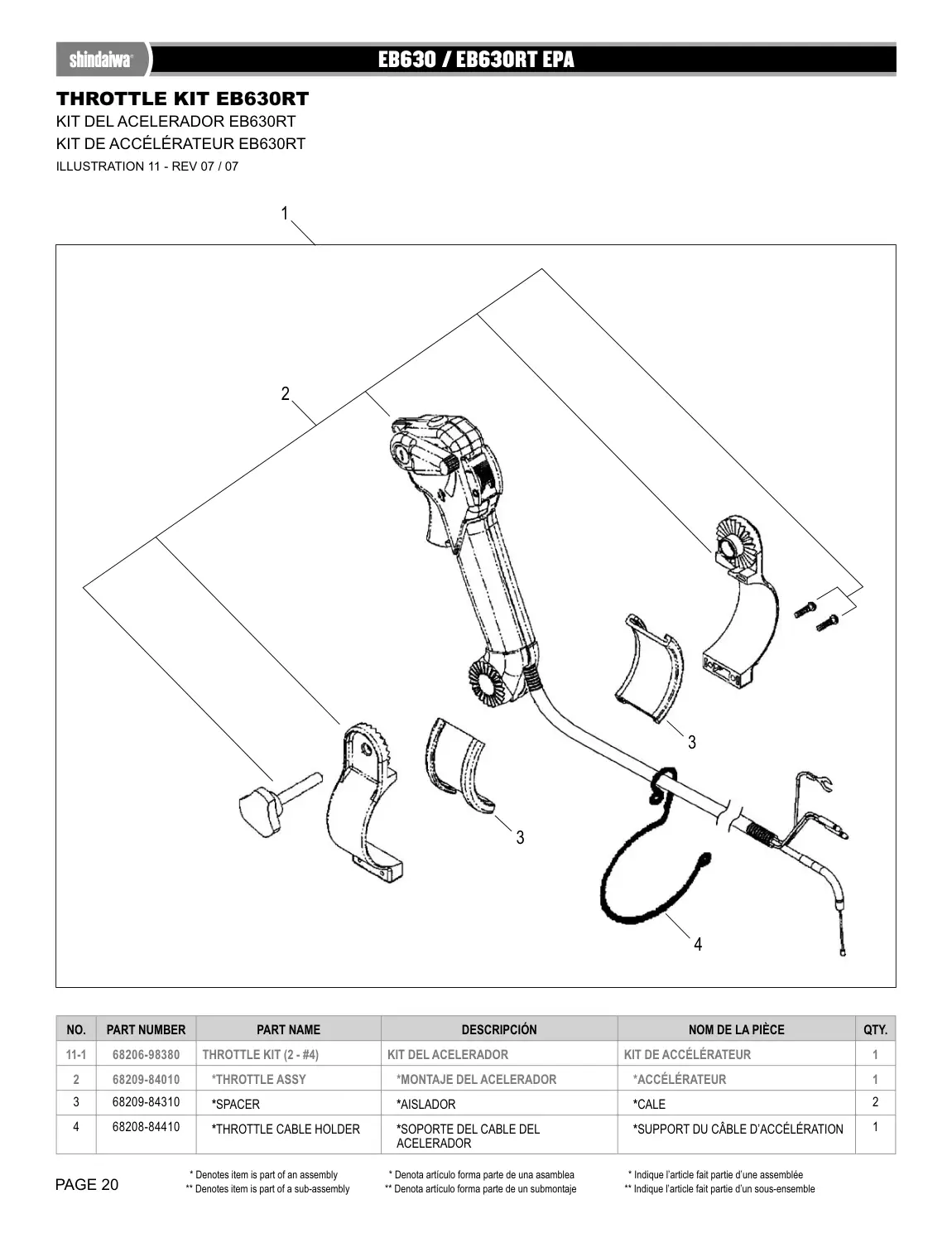

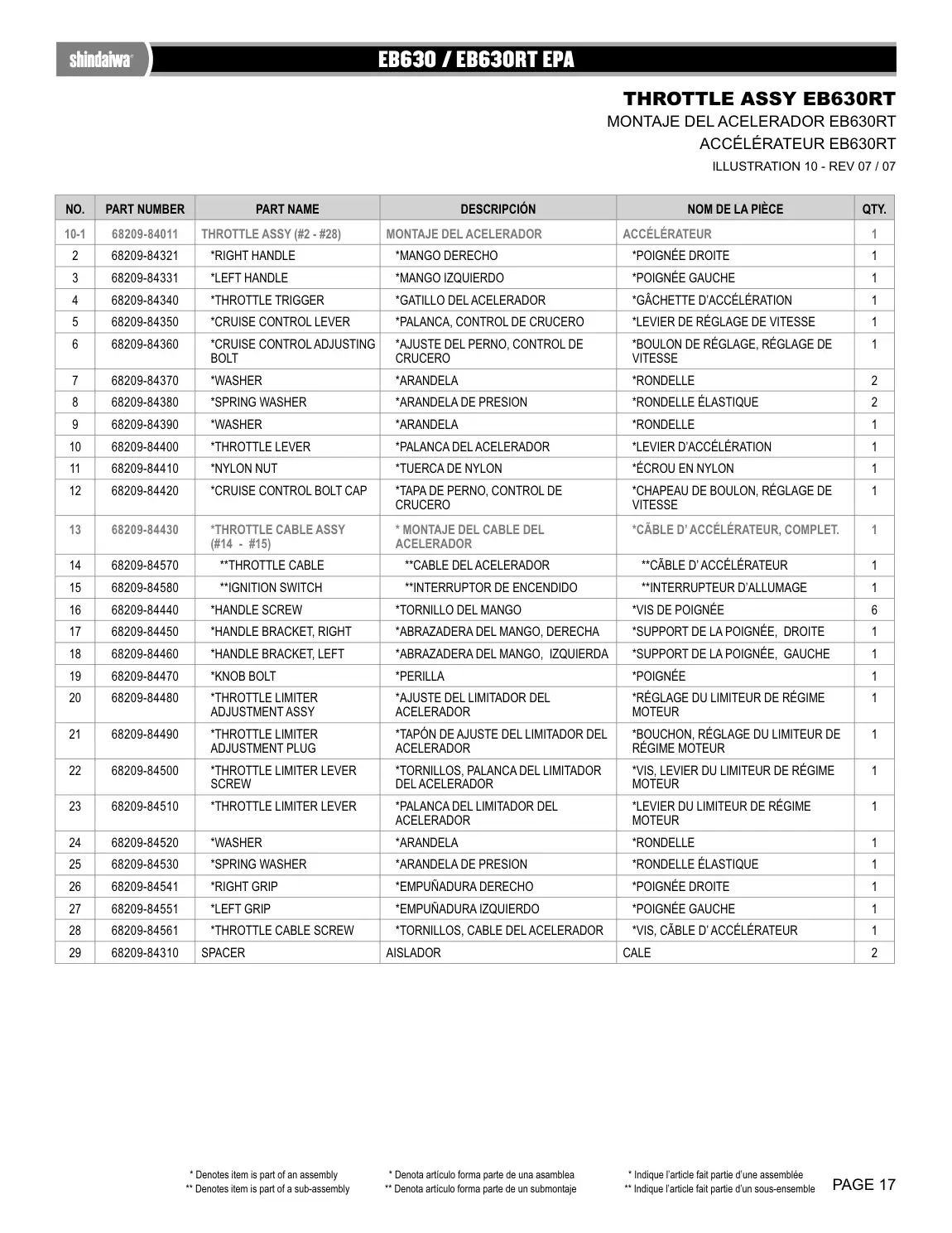

| 1 | TROUSSE À OUTILS | THROTTLE KIT EB630RT..................................................20 | EB630 | EB630-Online | |

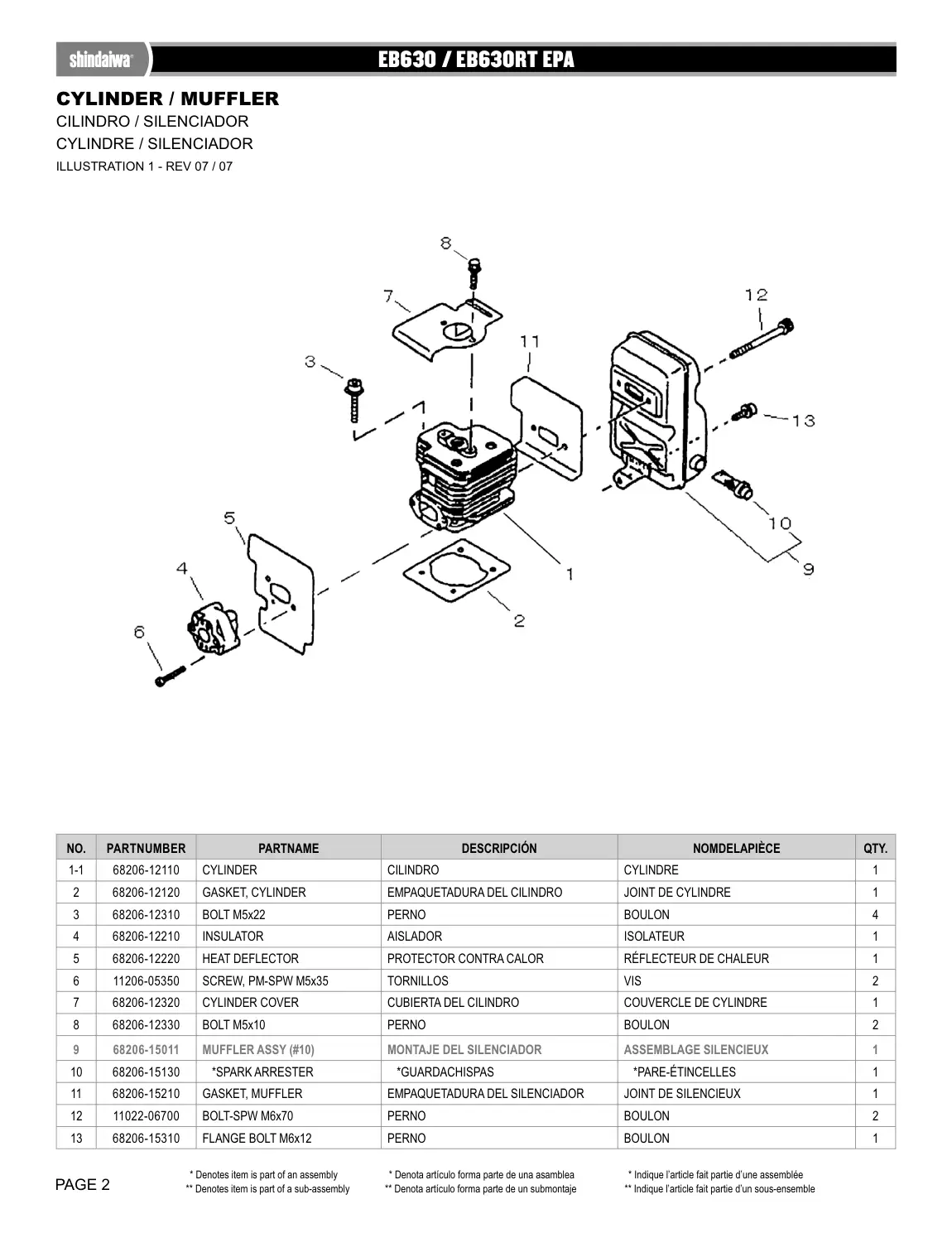

| 2 | PERNO | CYLINDER | 68206-12110 | 68206-12110-Online | |
| 2 | PERNO | / EB630RT EPA | EB630 | EB630-Online | |
| 2 | PERNO | 10 | *SPARK ARRESTER | 68206-15130 | 68206-15130-Online |
| 2 | PERNO | 11 | GASKET, MUFFLER | 68206-15210 | 68206-15210-Online |
| 2 | PERNO | 12 | BOLT-SPW M6x70 | 11022-06700 | 11022-06700-Online |
| 2 | PERNO | 13 | FLANGE BOLT M6x12 | 68206-15310 | 68206-15310-Online |
| 2 | PERNO | 2 | GASKET, CYLINDER | 68206-12120 | 68206-12120-Online |
| 2 | PERNO | 3 | BOLT M5x22 | 68206-12310 | 68206-12310-Online |
| 2 | PERNO | 4 | INSULATOR | 68206-12210 | 68206-12210-Online |
| 2 | PERNO | 5 | HEAT DEFLECTOR | 68206-12220 | 68206-12220-Online |
| 2 | PERNO | 6 | SCREW, PM-SPW M5x35 | 11206-05350 | 11206-05350-Online |
| 2 | PERNO | 7 | CYLINDER COVER | 68206-12320 | 68206-12320-Online |
| 2 | PERNO | 8 | BOLT M5x10 | 68206-12330 | 68206-12330-Online |
| 2 | PERNO | 9 | MUFFLER ASSY (#10) | 68206-15011 | 68206-15011-Online |

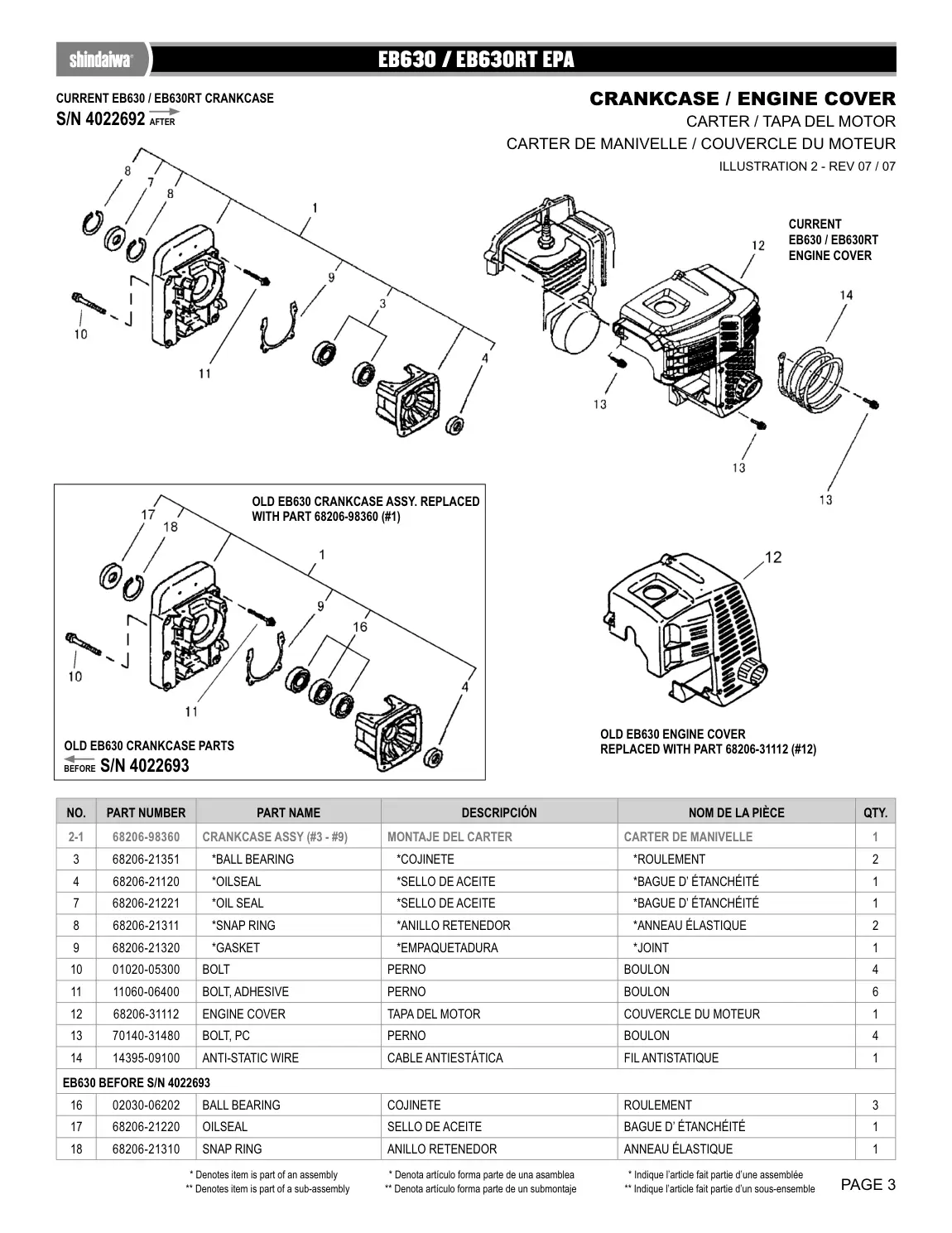

| 3 | ANNEAU ÉLASTIQUE | DESCRIPCIÓN | 68206-31112 | 68206-31112-Online | |
| 3 | ANNEAU ÉLASTIQUE | CRANKCASE ASSY (#3 - #9) | 68206-98360 | 68206-98360-Online | |
| 3 | ANNEAU ÉLASTIQUE | / EB630RT EPA | EB630 | EB630-Online | |
| 3 | ANNEAU ÉLASTIQUE | / EB630RT | EB630 | EB630-Online | |
| 3 | ANNEAU ÉLASTIQUE | / EB630RT CRANKCASE | EB630 | EB630-Online | |
| 3 | ANNEAU ÉLASTIQUE | ENGINE COVER | EB630 | EB630-Online | |
| 3 | ANNEAU ÉLASTIQUE | 10 | BOLT | 01020-05300 | 01020-05300-Online |
| 3 | ANNEAU ÉLASTIQUE | 11 | BOLT, ADHESIVE | 11060-06400 | 11060-06400-Online |
| 3 | ANNEAU ÉLASTIQUE | 12 | ENGINE COVER | 68206-31112 | 68206-31112-Online |
| 3 | ANNEAU ÉLASTIQUE | 13 | BOLT, PC | 70140-31480 | 70140-31480-Online |
| 3 | ANNEAU ÉLASTIQUE | 14 | ANTI-STATIC WIRE | 14395-09100 | 14395-09100-Online |
| 3 | ANNEAU ÉLASTIQUE | 16 | BALL BEARING | 02030-06202 | 02030-06202-Online |
| 3 | ANNEAU ÉLASTIQUE | 17 | OILSEAL | 68206-21220 | 68206-21220-Online |
| 3 | ANNEAU ÉLASTIQUE | 18 | SNAP RING | 68206-21310 | 68206-21310-Online |
| 3 | ANNEAU ÉLASTIQUE | 3 | *BALL BEARING | 68206-21351 | 68206-21351-Online |
| 3 | ANNEAU ÉLASTIQUE | 4 | *OILSEAL | 68206-21120 | 68206-21120-Online |
| 3 | ANNEAU ÉLASTIQUE | 7 | *OIL SEAL | 68206-21221 | 68206-21221-Online |
| 3 | ANNEAU ÉLASTIQUE | 8 | *SNAP RING | 68206-21311 | 68206-21311-Online |
| 3 | ANNEAU ÉLASTIQUE | 9 | *GASKET | 68206-21320 | 68206-21320-Online |

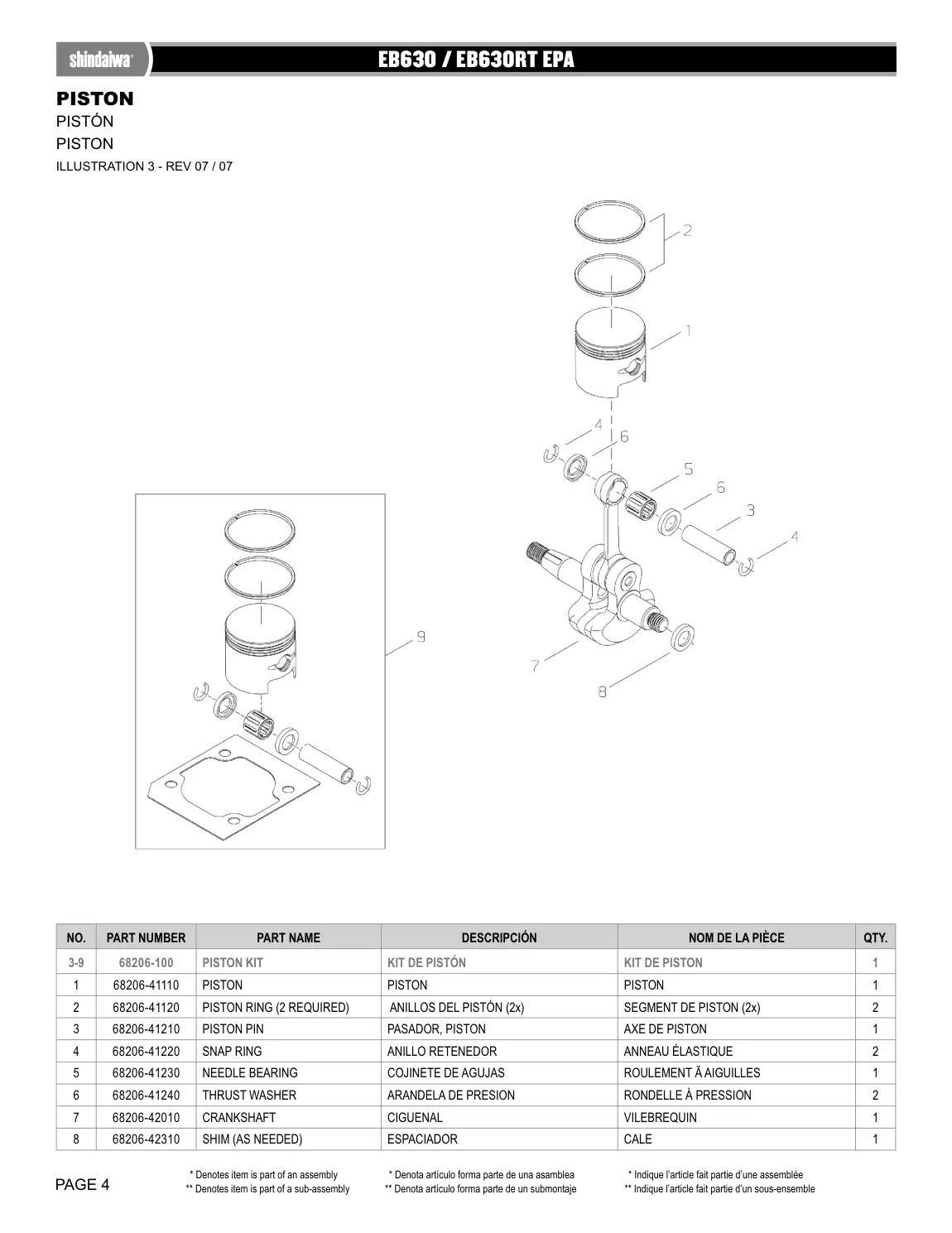

| 4 | CALE | PISTON KIT | 68206-100 | 68206-100-Online | |
| 4 | CALE | / EB630RT EPA | EB630 | EB630-Online | |
| 4 | CALE | 1 | PISTON | 68206-41110 | 68206-41110-Online |
| 4 | CALE | 2 | PISTON RING (2 REQUIRED) | 68206-41120 | 68206-41120-Online |
| 4 | CALE | 3 | PISTON PIN | 68206-41210 | 68206-41210-Online |
| 4 | CALE | 4 | SNAP RING | 68206-41220 | 68206-41220-Online |
| 4 | CALE | 5 | NEEDLE BEARING | 68206-41230 | 68206-41230-Online |
| 4 | CALE | 6 | THRUST WASHER | 68206-41240 | 68206-41240-Online |
| 4 | CALE | 7 | CRANKSHAFT | 68206-42010 | 68206-42010-Online |
| 4 | CALE | 8 | SHIM (AS NEEDED) | 68206-42310 | 68206-42310-Online |

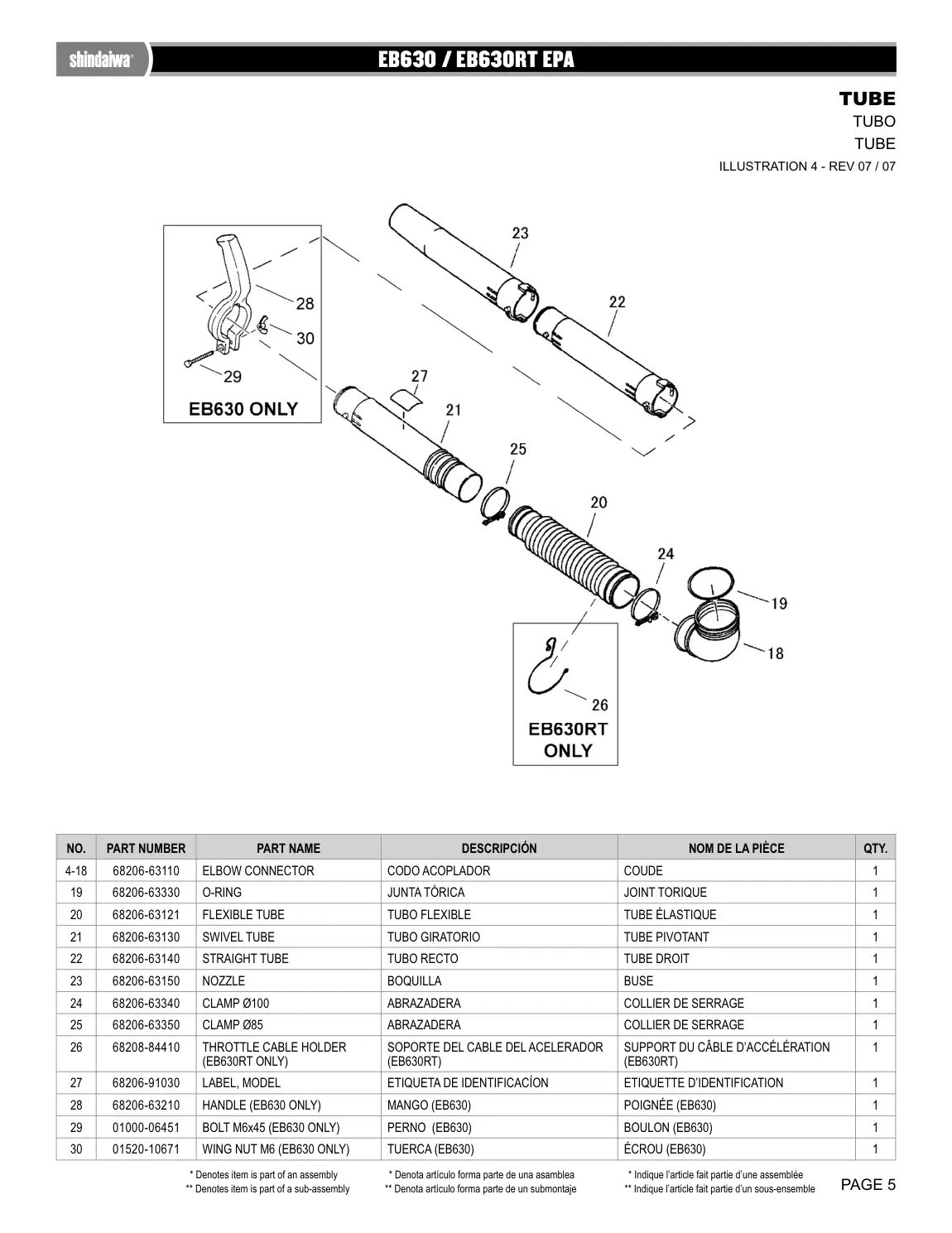

| 5 | ETIQUETTE D’IDENTIFICATION | ELBOW CONNECTOR | 68206-63110 | 68206-63110-Online | |
| 5 | ETIQUETTE D’IDENTIFICATION | / EB630RT EPA | EB630 | EB630-Online | |
| 5 | ETIQUETTE D’IDENTIFICATION | 19 | O-RING | 68206-63330 | 68206-63330-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 20 | FLEXIBLE TUBE | 68206-63121 | 68206-63121-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 21 | SWIVEL TUBE | 68206-63130 | 68206-63130-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 22 | STRAIGHT TUBE | 68206-63140 | 68206-63140-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 23 | NOZZLE | 68206-63150 | 68206-63150-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 24 | CLAMP Ø100 | 68206-63340 | 68206-63340-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 25 | CLAMP Ø85 | 68206-63350 | 68206-63350-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 26 | THROTTLE CABLE HOLDER | 68208-84410 | 68208-84410-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 27 | LABEL, MODEL | 68206-91030 | 68206-91030-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 28 | ONLY) | EB630 | EB630-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 29 | ONLY) | EB630 | EB630-Online |
| 5 | ETIQUETTE D’IDENTIFICATION | 30 | ONLY) | EB630 | EB630-Online |

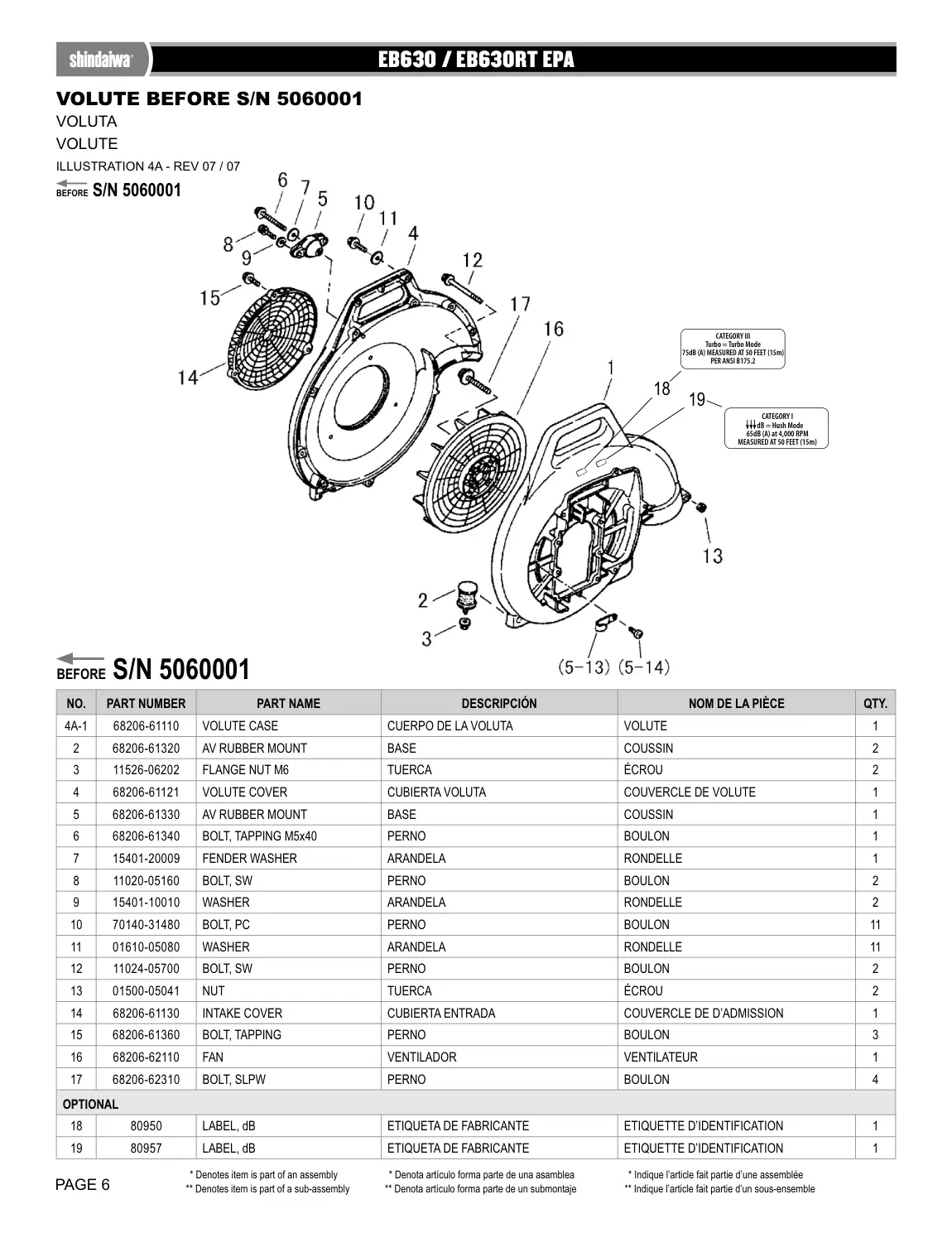

| 6 | ETIQUETTE D’IDENTIFICATION | VOLUTE CASE | 68206-61110 | 68206-61110-Online | |
| 6 | ETIQUETTE D’IDENTIFICATION | 10 | BOLT, PC | 70140-31480 | 70140-31480-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 11 | WASHER | 01610-05080 | 01610-05080-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 12 | BOLT, SW | 11024-05700 | 11024-05700-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 13 | NUT | 01500-05041 | 01500-05041-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 14 | INTAKE COVER | 68206-61130 | 68206-61130-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 15 | BOLT, TAPPING | 68206-61360 | 68206-61360-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 16 | FAN | 68206-62110 | 68206-62110-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 17 | BOLT, SLPW | 68206-62310 | 68206-62310-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 18 | LABEL, dB | 80950 | 80950-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 19 | LABEL, dB | 80957 | 80957-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 2 | AV RUBBER MOUNT | 68206-61320 | 68206-61320-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 3 | FLANGE NUT M6 | 11526-06202 | 11526-06202-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 4 | VOLUTE COVER | 68206-61121 | 68206-61121-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 5 | AV RUBBER MOUNT | 68206-61330 | 68206-61330-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 6 | BOLT, TAPPING M5x40 | 68206-61340 | 68206-61340-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 7 | FENDER WASHER | 15401-20009 | 15401-20009-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 8 | BOLT, SW | 11020-05160 | 11020-05160-Online |
| 6 | ETIQUETTE D’IDENTIFICATION | 9 | WASHER | 15401-10010 | 15401-10010-Online |

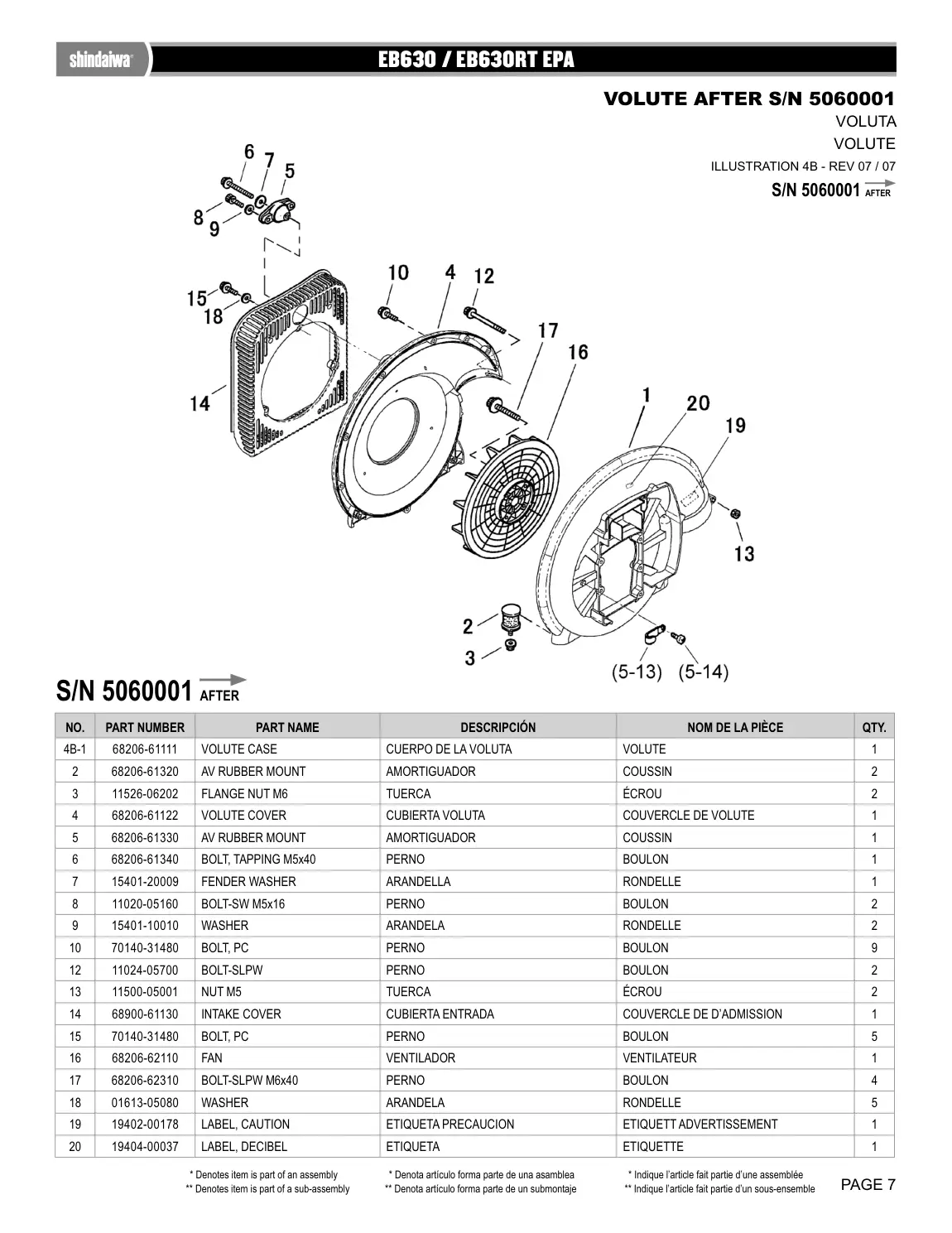

| 7 | ETIQUETTE | VOLUTE CASE | 68206-61111 | 68206-61111-Online | |
| 7 | ETIQUETTE | 10 | BOLT, PC | 70140-31480 | 70140-31480-Online |
| 7 | ETIQUETTE | 12 | BOLT-SLPW | 11024-05700 | 11024-05700-Online |
| 7 | ETIQUETTE | 13 | NUT M5 | 11500-05001 | 11500-05001-Online |
| 7 | ETIQUETTE | 14 | INTAKE COVER | 68900-61130 | 68900-61130-Online |
| 7 | ETIQUETTE | 15 | BOLT, PC | 70140-31480 | 70140-31480-Online |
| 7 | ETIQUETTE | 16 | FAN | 68206-62110 | 68206-62110-Online |
| 7 | ETIQUETTE | 17 | BOLT-SLPW M6x40 | 68206-62310 | 68206-62310-Online |
| 7 | ETIQUETTE | 18 | WASHER | 01613-05080 | 01613-05080-Online |
| 7 | ETIQUETTE | 19 | LABEL, CAUTION | 19402-00178 | 19402-00178-Online |
| 7 | ETIQUETTE | 2 | AV RUBBER MOUNT | 68206-61320 | 68206-61320-Online |
| 7 | ETIQUETTE | 20 | LABEL, DECIBEL | 19404-00037 | 19404-00037-Online |
| 7 | ETIQUETTE | 3 | FLANGE NUT M6 | 11526-06202 | 11526-06202-Online |
| 7 | ETIQUETTE | 4 | VOLUTE COVER | 68206-61122 | 68206-61122-Online |
| 7 | ETIQUETTE | 5 | AV RUBBER MOUNT | 68206-61330 | 68206-61330-Online |
| 7 | ETIQUETTE | 6 | BOLT, TAPPING M5x40 | 68206-61340 | 68206-61340-Online |
| 7 | ETIQUETTE | 7 | FENDER WASHER | 15401-20009 | 15401-20009-Online |
| 7 | ETIQUETTE | 8 | BOLT-SW M5x16 | 11020-05160 | 11020-05160-Online |
| 7 | ETIQUETTE | 9 | WASHER | 15401-10010 | 15401-10010-Online |

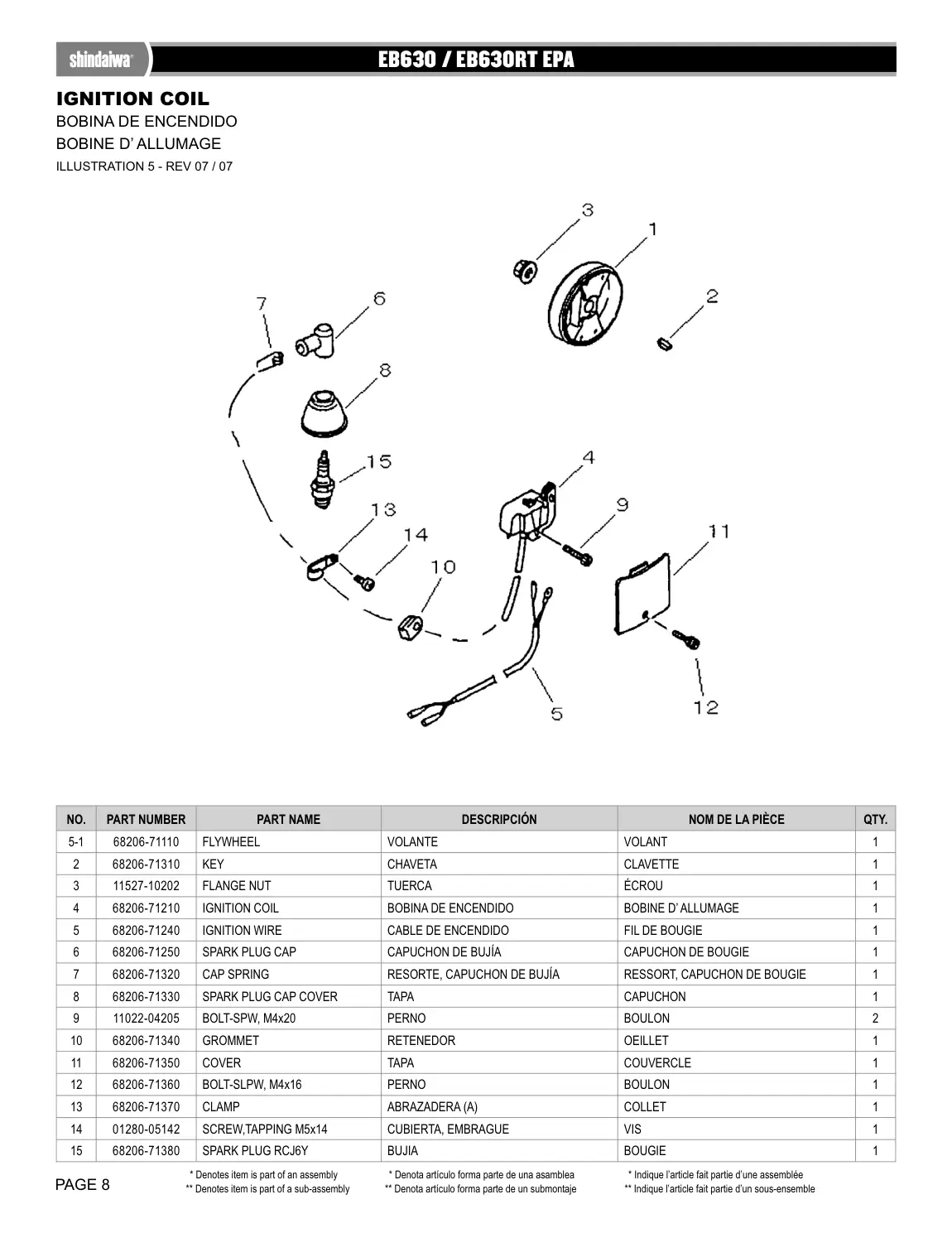

| 8 | BOUGIE | FLYWHEEL | 68206-71110 | 68206-71110-Online | |
| 8 | BOUGIE | / EB630RT EPA | EB630 | EB630-Online | |
| 8 | BOUGIE | 10 | GROMMET | 68206-71340 | 68206-71340-Online |
| 8 | BOUGIE | 11 | COVER | 68206-71350 | 68206-71350-Online |
| 8 | BOUGIE | 12 | BOLT-SLPW, M4x16 | 68206-71360 | 68206-71360-Online |
| 8 | BOUGIE | 14 | SCREW,TAPPING M5x14 | 01280-05142 | 01280-05142-Online |
| 8 | BOUGIE | 15 | SPARK PLUG RCJ6Y | 68206-71380 | 68206-71380-Online |
| 8 | BOUGIE | 2 | KEY | 68206-71310 | 68206-71310-Online |
| 8 | BOUGIE | 3 | FLANGE NUT | 11527-10202 | 11527-10202-Online |
| 8 | BOUGIE | 4 | IGNITION COIL | 68206-71210 | 68206-71210-Online |
| 8 | BOUGIE | 5 | IGNITION WIRE | 68206-71240 | 68206-71240-Online |
| 8 | BOUGIE | 6 | SPARK PLUG CAP | 68206-71250 | 68206-71250-Online |
| 8 | BOUGIE | 7 | CAP SPRING | 68206-71320 | 68206-71320-Online |
| 8 | BOUGIE | 8 | SPARK PLUG CAP COVER | 68206-71330 | 68206-71330-Online |
| 8 | BOUGIE | 9 | BOLT-SPW, M4x20 | 11022-04205 | 11022-04205-Online |

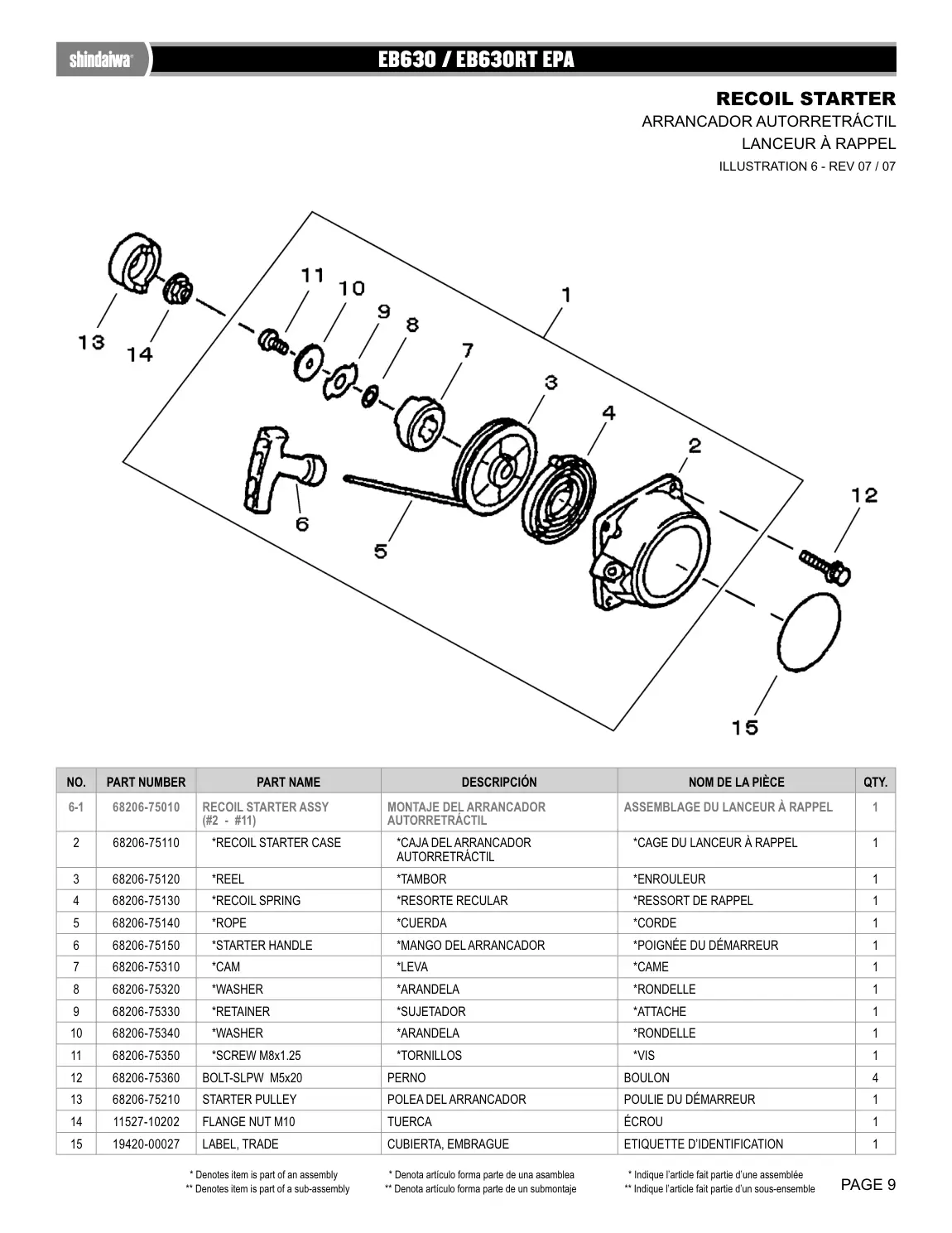

| 9 | ETIQUETTE D’IDENTIFICATION | RECOIL STARTER ASSY | 68206-75010 | 68206-75010-Online | |
| 9 | ETIQUETTE D’IDENTIFICATION | 10 | *WASHER | 68206-75340 | 68206-75340-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 11 | *SCREW M8x1.25 | 68206-75350 | 68206-75350-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 12 | BOLT-SLPW M5x20 | 68206-75360 | 68206-75360-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 13 | STARTER PULLEY | 68206-75210 | 68206-75210-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 14 | TUERCA | 11527-10202 | 11527-10202-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 15 | LABEL, TRADE | 19420-00027 | 19420-00027-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 2 | *RECOIL STARTER CASE | 68206-75110 | 68206-75110-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 3 | *REEL | 68206-75120 | 68206-75120-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 4 | *RECOIL SPRING | 68206-75130 | 68206-75130-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 5 | *ROPE | 68206-75140 | 68206-75140-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 6 | *STARTER HANDLE | 68206-75150 | 68206-75150-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 8 | *WASHER | 68206-75320 | 68206-75320-Online |
| 9 | ETIQUETTE D’IDENTIFICATION | 9 | *RETAINER | 68206-75330 | 68206-75330-Online |

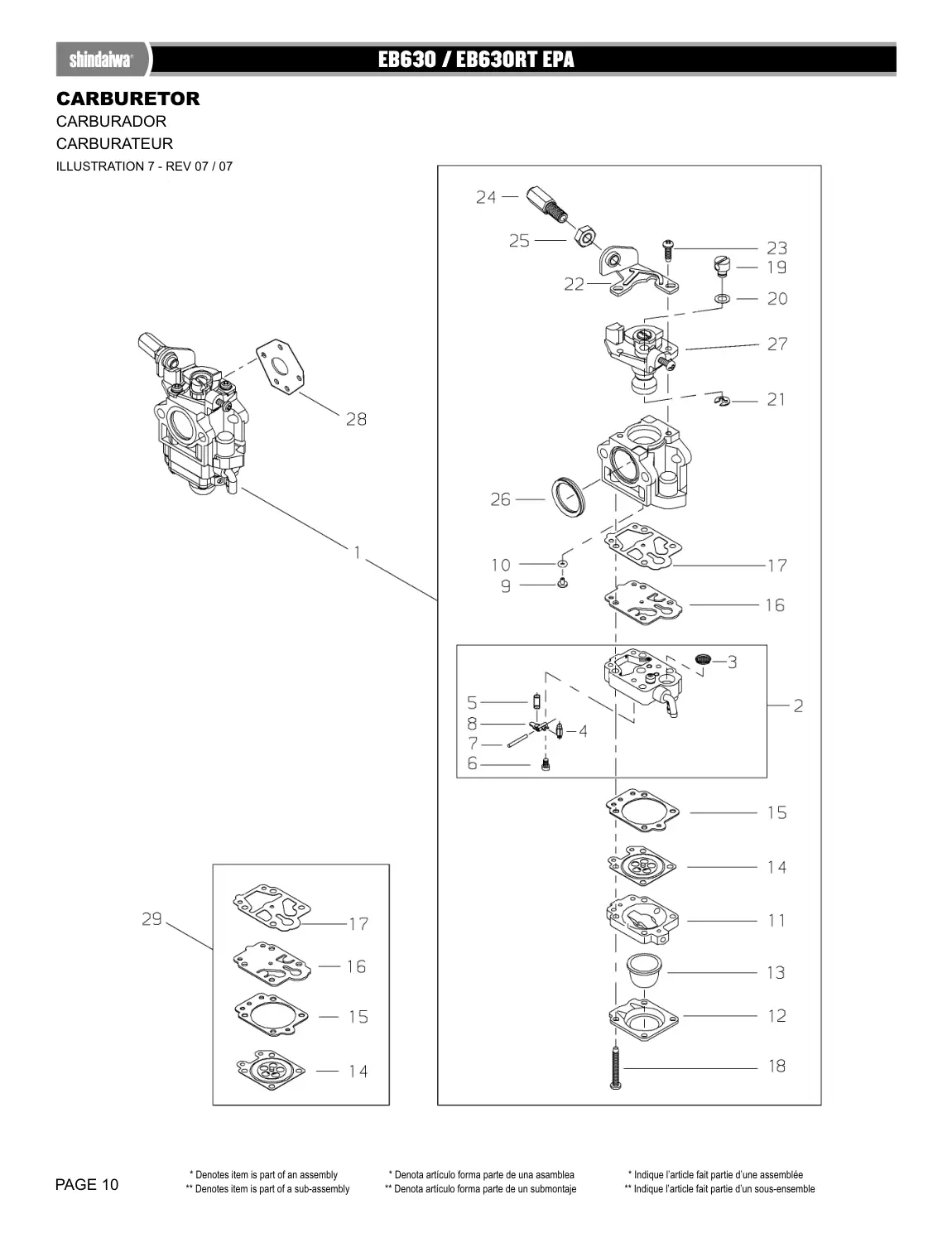

| 10 | ILLUSTRATION 7 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |

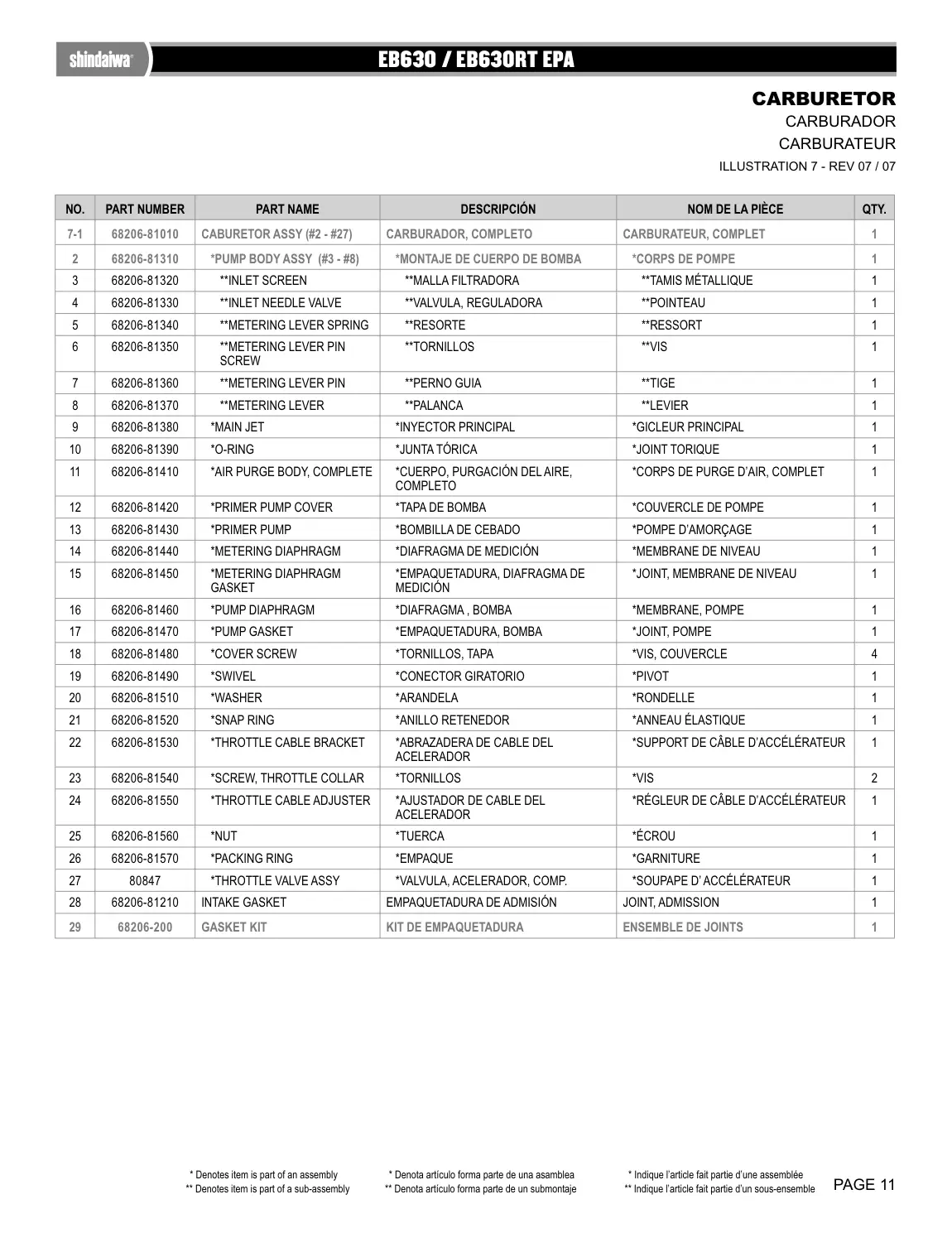

| 11 | ENSEMBLE DE JOINTS | CABURETOR ASSY (#2 - #27) | 68206-81010 | 68206-81010-Online | |
| 11 | ENSEMBLE DE JOINTS | / EB630RT EPA | EB630 | EB630-Online | |
| 11 | ENSEMBLE DE JOINTS | 10 | *O-RING | 68206-81390 | 68206-81390-Online |
| 11 | ENSEMBLE DE JOINTS | 11 | *AIR PURGE BODY, COMPLETE | 68206-81410 | 68206-81410-Online |
| 11 | ENSEMBLE DE JOINTS | 12 | *PRIMER PUMP COVER | 68206-81420 | 68206-81420-Online |
| 11 | ENSEMBLE DE JOINTS | 13 | *PRIMER PUMP | 68206-81430 | 68206-81430-Online |
| 11 | ENSEMBLE DE JOINTS | 14 | *METERING DIAPHRAGM | 68206-81440 | 68206-81440-Online |
| 11 | ENSEMBLE DE JOINTS | 15 | *METERING DIAPHRAGM | 68206-81450 | 68206-81450-Online |
| 11 | ENSEMBLE DE JOINTS | 16 | *PUMP DIAPHRAGM | 68206-81460 | 68206-81460-Online |
| 11 | ENSEMBLE DE JOINTS | 17 | *PUMP GASKET | 68206-81470 | 68206-81470-Online |
| 11 | ENSEMBLE DE JOINTS | 18 | *COVER SCREW | 68206-81480 | 68206-81480-Online |
| 11 | ENSEMBLE DE JOINTS | 19 | *SWIVEL | 68206-81490 | 68206-81490-Online |
| 11 | ENSEMBLE DE JOINTS | 2 | *PUMP BODY ASSY (#3 - #8) | 68206-81310 | 68206-81310-Online |
| 11 | ENSEMBLE DE JOINTS | 20 | *WASHER | 68206-81510 | 68206-81510-Online |
| 11 | ENSEMBLE DE JOINTS | 21 | *SNAP RING | 68206-81520 | 68206-81520-Online |
| 11 | ENSEMBLE DE JOINTS | 22 | *THROTTLE CABLE BRACKET | 68206-81530 | 68206-81530-Online |
| 11 | ENSEMBLE DE JOINTS | 23 | *SCREW, THROTTLE COLLAR | 68206-81540 | 68206-81540-Online |
| 11 | ENSEMBLE DE JOINTS | 24 | *THROTTLE CABLE ADJUSTER | 68206-81550 | 68206-81550-Online |
| 11 | ENSEMBLE DE JOINTS | 26 | *PACKING RING | 68206-81570 | 68206-81570-Online |
| 11 | ENSEMBLE DE JOINTS | 27 | *THROTTLE VALVE ASSY | 80847 | 80847-Online |
| 11 | ENSEMBLE DE JOINTS | 28 | INTAKE GASKET | 68206-81210 | 68206-81210-Online |
| 11 | ENSEMBLE DE JOINTS | 29 | GASKET KIT | 68206-200 | 68206-200-Online |
| 11 | ENSEMBLE DE JOINTS | 3 | **INLET SCREEN | 68206-81320 | 68206-81320-Online |
| 11 | ENSEMBLE DE JOINTS | 4 | **INLET NEEDLE VALVE | 68206-81330 | 68206-81330-Online |
| 11 | ENSEMBLE DE JOINTS | 5 | **METERING LEVER SPRING | 68206-81340 | 68206-81340-Online |
| 11 | ENSEMBLE DE JOINTS | 6 | **METERING LEVER PIN | 68206-81350 | 68206-81350-Online |
| 11 | ENSEMBLE DE JOINTS | 7 | **METERING LEVER PIN | 68206-81360 | 68206-81360-Online |
| 11 | ENSEMBLE DE JOINTS | 8 | **METERING LEVER | 68206-81370 | 68206-81370-Online |
| 11 | ENSEMBLE DE JOINTS | 9 | *MAIN JET | 68206-81380 | 68206-81380-Online |

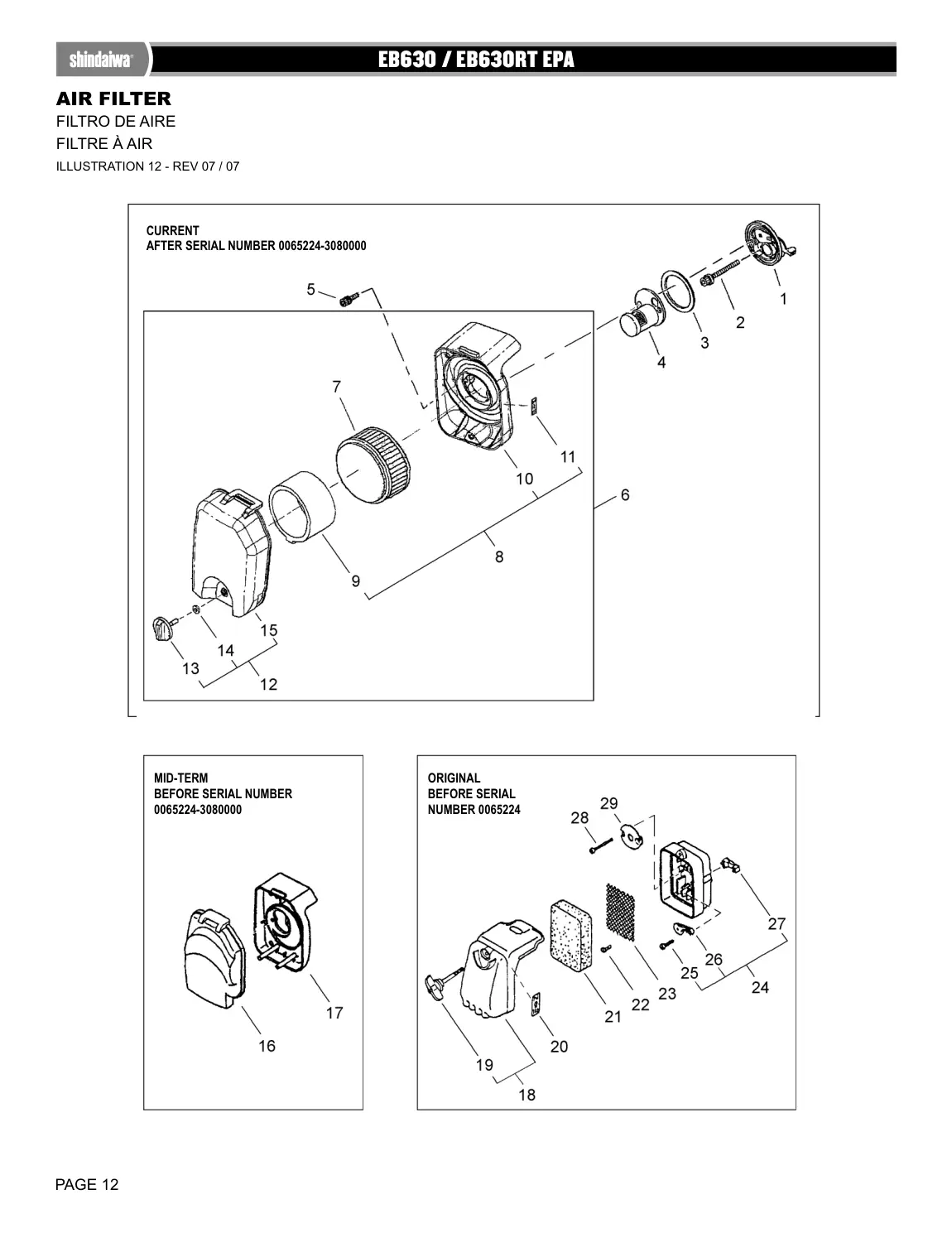

| 12 | BEFORE SERIAL | / EB630RT EPA | EB630 | EB630-Online | |

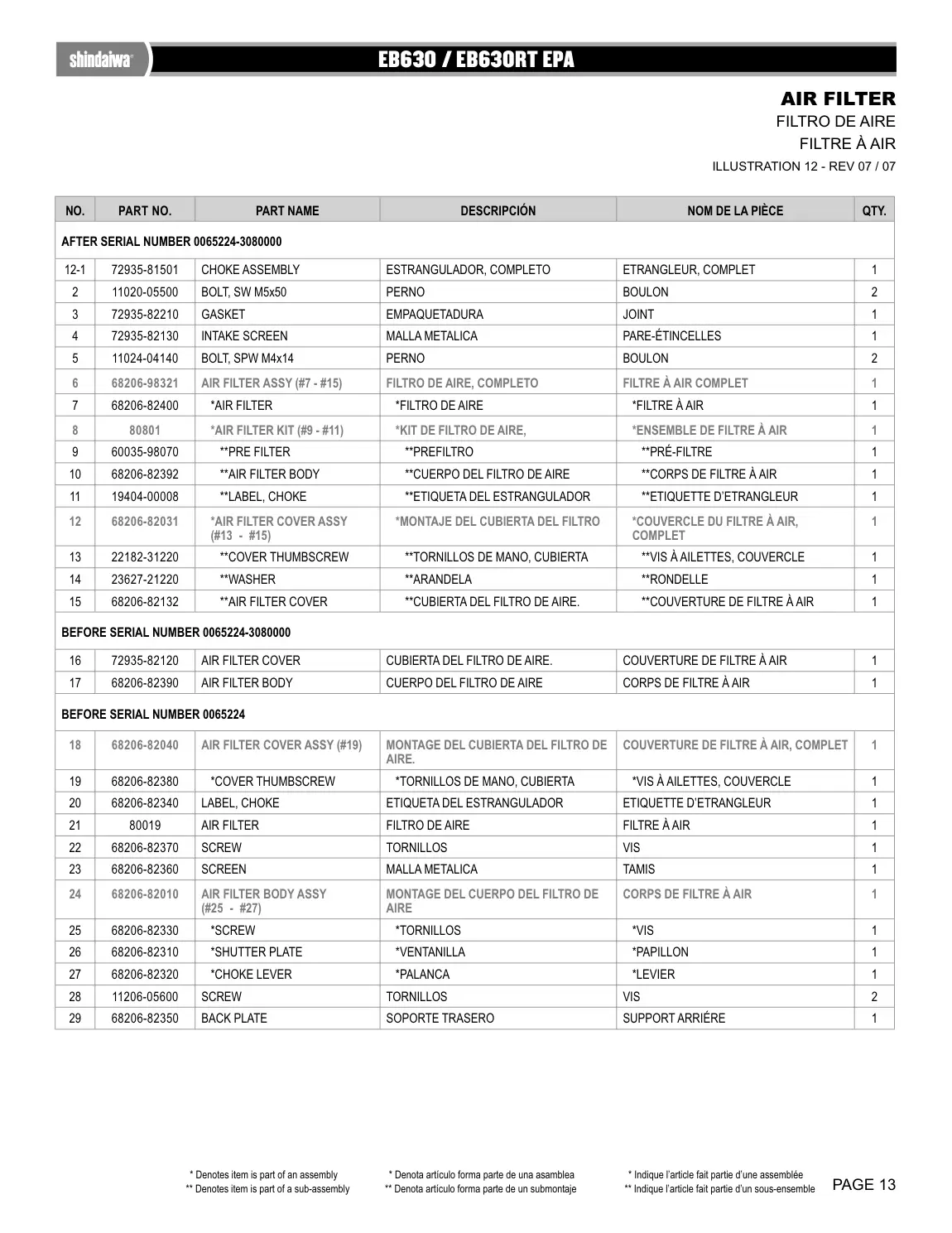

| 13 | ILLUSTRATION 12 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 10 | **AIR FILTER BODY | 68206-82392 | 68206-82392-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 11 | **LABEL, CHOKE | 19404-00008 | 19404-00008-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 12 | *AIR FILTER COVER ASSY | 68206-82031 | 68206-82031-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 13 | **COVER THUMBSCREW | 22182-31220 | 22182-31220-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 14 | **WASHER | 23627-21220 | 23627-21220-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 15 | **AIR FILTER COVER | 68206-82132 | 68206-82132-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 17 | AIR FILTER BODY | 68206-82390 | 68206-82390-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 19 | *COVER THUMBSCREW | 68206-82380 | 68206-82380-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 2 | BOLT, SW M5x50 | 11020-05500 | 11020-05500-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 20 | LABEL, CHOKE | 68206-82340 | 68206-82340-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 21 | AIR FILTER | 80019 | 80019-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 22 | SCREW | 68206-82370 | 68206-82370-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 23 | SCREEN | 68206-82360 | 68206-82360-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 24 | AIR FILTER BODY ASSY | 68206-82010 | 68206-82010-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 25 | *SCREW | 68206-82330 | 68206-82330-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 26 | *SHUTTER PLATE | 68206-82310 | 68206-82310-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 27 | *CHOKE LEVER | 68206-82320 | 68206-82320-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 28 | SCREW | 11206-05600 | 11206-05600-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 29 | BACK PLATE | 68206-82350 | 68206-82350-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 3 | GASKET | 72935-82210 | 72935-82210-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 4 | INTAKE SCREEN | 72935-82130 | 72935-82130-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 5 | BOLT, SPW M4x14 | 11024-04140 | 11024-04140-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 6 | AIR FILTER ASSY (#7 - #15) | 68206-98321 | 68206-98321-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 7 | *AIR FILTER | 68206-82400 | 68206-82400-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 8 | *AIR FILTER KIT (#9 - #11) | 80801 | 80801-Online |
| 13 | ILLUSTRATION 12 - REV 07 / 07 | 9 | **PRE FILTER | 60035-98070 | 60035-98070-Online |

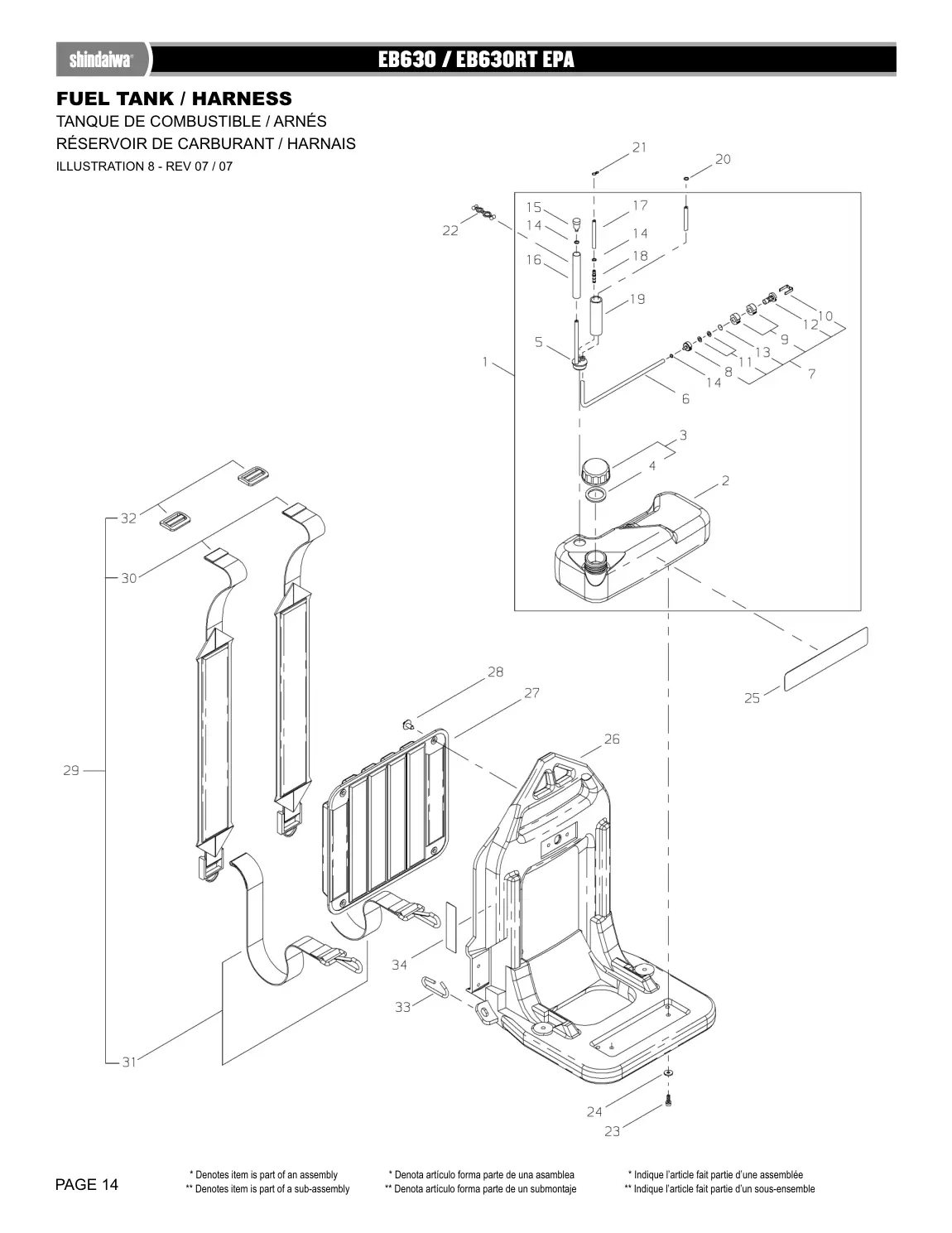

| 14 | ILLUSTRATION 8 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |

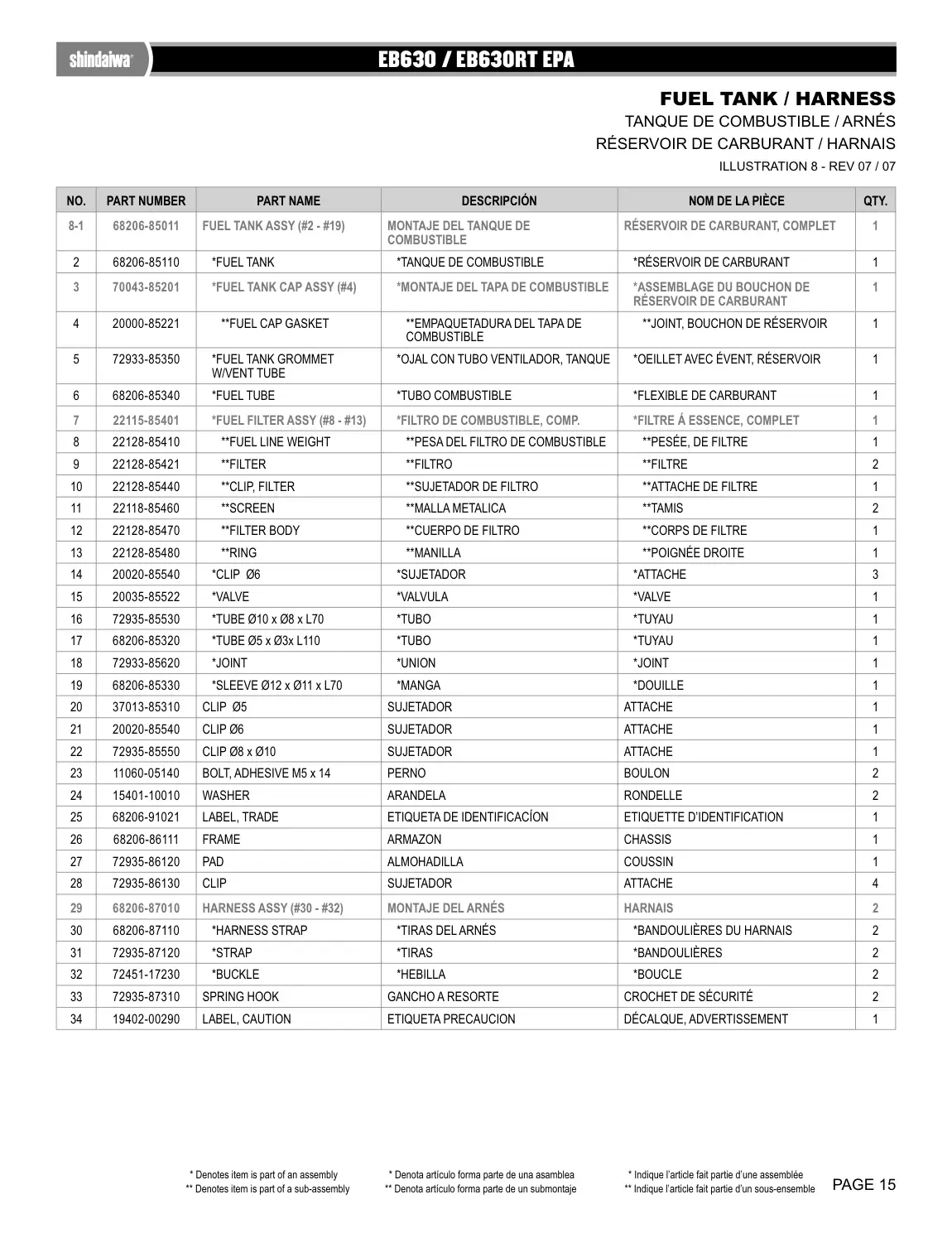

| 15 | ETIQUETA PRECAUCION | FUEL TANK ASSY (#2 - #19) | 68206-85011 | 68206-85011-Online | |
| 15 | ETIQUETA PRECAUCION | / EB630RT EPA | EB630 | EB630-Online | |
| 15 | ETIQUETA PRECAUCION | 10 | **CLIP, FILTER | 22128-85440 | 22128-85440-Online |
| 15 | ETIQUETA PRECAUCION | 11 | **SCREEN | 22118-85460 | 22118-85460-Online |
| 15 | ETIQUETA PRECAUCION | 12 | **FILTER BODY | 22128-85470 | 22128-85470-Online |
| 15 | ETIQUETA PRECAUCION | 13 | **RING | 22128-85480 | 22128-85480-Online |
| 15 | ETIQUETA PRECAUCION | 14 | *CLIP Ø6 | 20020-85540 | 20020-85540-Online |
| 15 | ETIQUETA PRECAUCION | 15 | *VALVE | 20035-85522 | 20035-85522-Online |
| 15 | ETIQUETA PRECAUCION | 16 | *TUBO | 72935-85530 | 72935-85530-Online |
| 15 | ETIQUETA PRECAUCION | 17 | *TUBO | 68206-85320 | 68206-85320-Online |
| 15 | ETIQUETA PRECAUCION | 18 | *JOINT | 72933-85620 | 72933-85620-Online |
| 15 | ETIQUETA PRECAUCION | 19 | *MANGA | 68206-85330 | 68206-85330-Online |
| 15 | ETIQUETA PRECAUCION | 2 | *FUEL TANK | 68206-85110 | 68206-85110-Online |
| 15 | ETIQUETA PRECAUCION | 20 | CLIP Ø5 | 37013-85310 | 37013-85310-Online |
| 15 | ETIQUETA PRECAUCION | 21 | CLIP Ø6 | 20020-85540 | 20020-85540-Online |
| 15 | ETIQUETA PRECAUCION | 22 | CLIP Ø8 x Ø10 | 72935-85550 | 72935-85550-Online |
| 15 | ETIQUETA PRECAUCION | 23 | BOLT, ADHESIVE M5 x | 11060-05140 | 11060-05140-Online |
| 15 | ETIQUETA PRECAUCION | 24 | WASHER | 15401-10010 | 15401-10010-Online |
| 15 | ETIQUETA PRECAUCION | 25 | LABEL, TRADE | 68206-91021 | 68206-91021-Online |
| 15 | ETIQUETA PRECAUCION | 28 | CLIP | 72935-86130 | 72935-86130-Online |
| 15 | ETIQUETA PRECAUCION | 29 | HARNESS ASSY (#30 - #32) | 68206-87010 | 68206-87010-Online |
| 15 | ETIQUETA PRECAUCION | 3 | *FUEL TANK CAP ASSY (#4) | 70043-85201 | 70043-85201-Online |
| 15 | ETIQUETA PRECAUCION | 30 | *HARNESS STRAP | 68206-87110 | 68206-87110-Online |
| 15 | ETIQUETA PRECAUCION | 31 | *STRAP | 72935-87120 | 72935-87120-Online |
| 15 | ETIQUETA PRECAUCION | 32 | *BUCKLE | 72451-17230 | 72451-17230-Online |
| 15 | ETIQUETA PRECAUCION | 33 | SPRING HOOK | 72935-87310 | 72935-87310-Online |
| 15 | ETIQUETA PRECAUCION | 34 | LABEL, CAUTION | 19402-00290 | 19402-00290-Online |
| 15 | ETIQUETA PRECAUCION | 4 | **FUEL CAP GASKET | 20000-85221 | 20000-85221-Online |
| 15 | ETIQUETA PRECAUCION | 5 | *FUEL TANK GROMMET | 72933-85350 | 72933-85350-Online |
| 15 | ETIQUETA PRECAUCION | 6 | *FUEL TUBE | 68206-85340 | 68206-85340-Online |
| 15 | ETIQUETA PRECAUCION | 7 | *FUEL FILTER ASSY (#8 - #13) | 22115-85401 | 22115-85401-Online |
| 15 | ETIQUETA PRECAUCION | 8 | **FUEL LINE WEIGHT | 22128-85410 | 22128-85410-Online |
| 15 | ETIQUETA PRECAUCION | 9 | **FILTER | 22128-85421 | 22128-85421-Online |

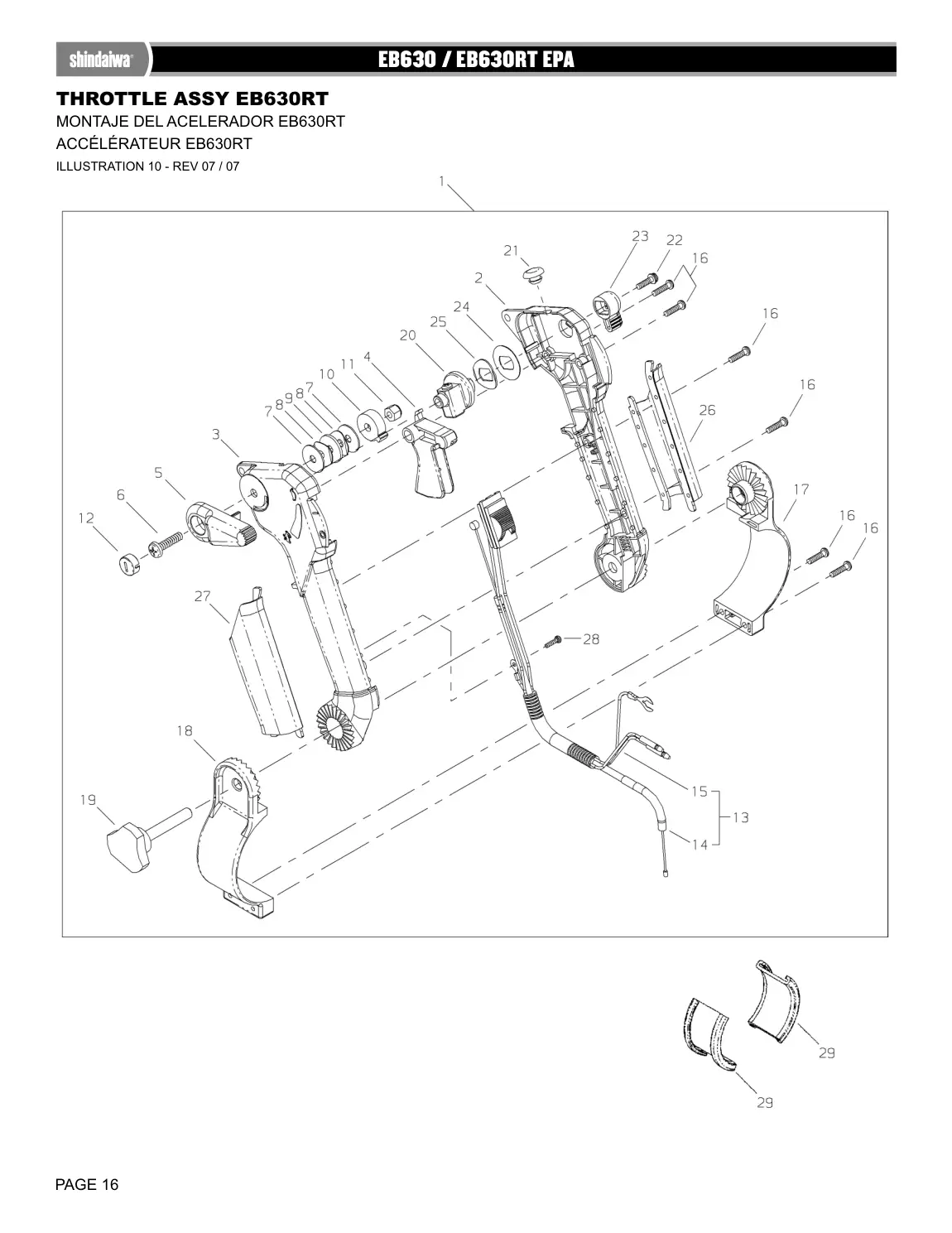

| 16 | ILLUSTRATION 10 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |
| 17 | CALE | THROTTLE ASSY (#2 - #28) | 68209-84011 | 68209-84011-Online | |
| 17 | CALE | 10 | *THROTTLE LEVER | 68209-84400 | 68209-84400-Online |
| 17 | CALE | 11 | *NYLON NUT | 68209-84410 | 68209-84410-Online |
| 17 | CALE | 12 | *CRUISE CONTROL BOLT CAP | 68209-84420 | 68209-84420-Online |
| 17 | CALE | 13 | *THROTTLE CABLE ASSY | 68209-84430 | 68209-84430-Online |
| 17 | CALE | 14 | **THROTTLE CABLE | 68209-84570 | 68209-84570-Online |
| 17 | CALE | 15 | **IGNITION SWITCH | 68209-84580 | 68209-84580-Online |
| 17 | CALE | 16 | *HANDLE SCREW | 68209-84440 | 68209-84440-Online |
| 17 | CALE | 17 | *HANDLE BRACKET, RIGHT | 68209-84450 | 68209-84450-Online |
| 17 | CALE | 18 | *HANDLE BRACKET, LEFT | 68209-84460 | 68209-84460-Online |
| 17 | CALE | 19 | *KNOB BOLT | 68209-84470 | 68209-84470-Online |
| 17 | CALE | 2 | *RIGHT HANDLE | 68209-84321 | 68209-84321-Online |
| 17 | CALE | 20 | *THROTTLE LIMITER | 68209-84480 | 68209-84480-Online |
| 17 | CALE | 21 | *THROTTLE LIMITER | 68209-84490 | 68209-84490-Online |
| 17 | CALE | 22 | *THROTTLE LIMITER LEVER | 68209-84500 | 68209-84500-Online |
| 17 | CALE | 23 | *THROTTLE LIMITER LEVER | 68209-84510 | 68209-84510-Online |
| 17 | CALE | 24 | *WASHER | 68209-84520 | 68209-84520-Online |
| 17 | CALE | 25 | *SPRING WASHER | 68209-84530 | 68209-84530-Online |
| 17 | CALE | 26 | *RIGHT GRIP | 68209-84541 | 68209-84541-Online |
| 17 | CALE | 27 | *LEFT GRIP | 68209-84551 | 68209-84551-Online |
| 17 | CALE | 28 | *THROTTLE CABLE SCREW | 68209-84561 | 68209-84561-Online |
| 17 | CALE | 29 | SPACER | 68209-84310 | 68209-84310-Online |
| 17 | CALE | 3 | *LEFT HANDLE | 68209-84331 | 68209-84331-Online |
| 17 | CALE | 4 | *THROTTLE TRIGGER | 68209-84340 | 68209-84340-Online |
| 17 | CALE | 5 | *CRUISE CONTROL LEVER | 68209-84350 | 68209-84350-Online |
| 17 | CALE | 6 | *CRUISE CONTROL ADJUSTING | 68209-84360 | 68209-84360-Online |
| 17 | CALE | 7 | *WASHER | 68209-84370 | 68209-84370-Online |
| 17 | CALE | 8 | *SPRING WASHER | 68209-84380 | 68209-84380-Online |
| 17 | CALE | 9 | *WASHER | 68209-84390 | 68209-84390-Online |

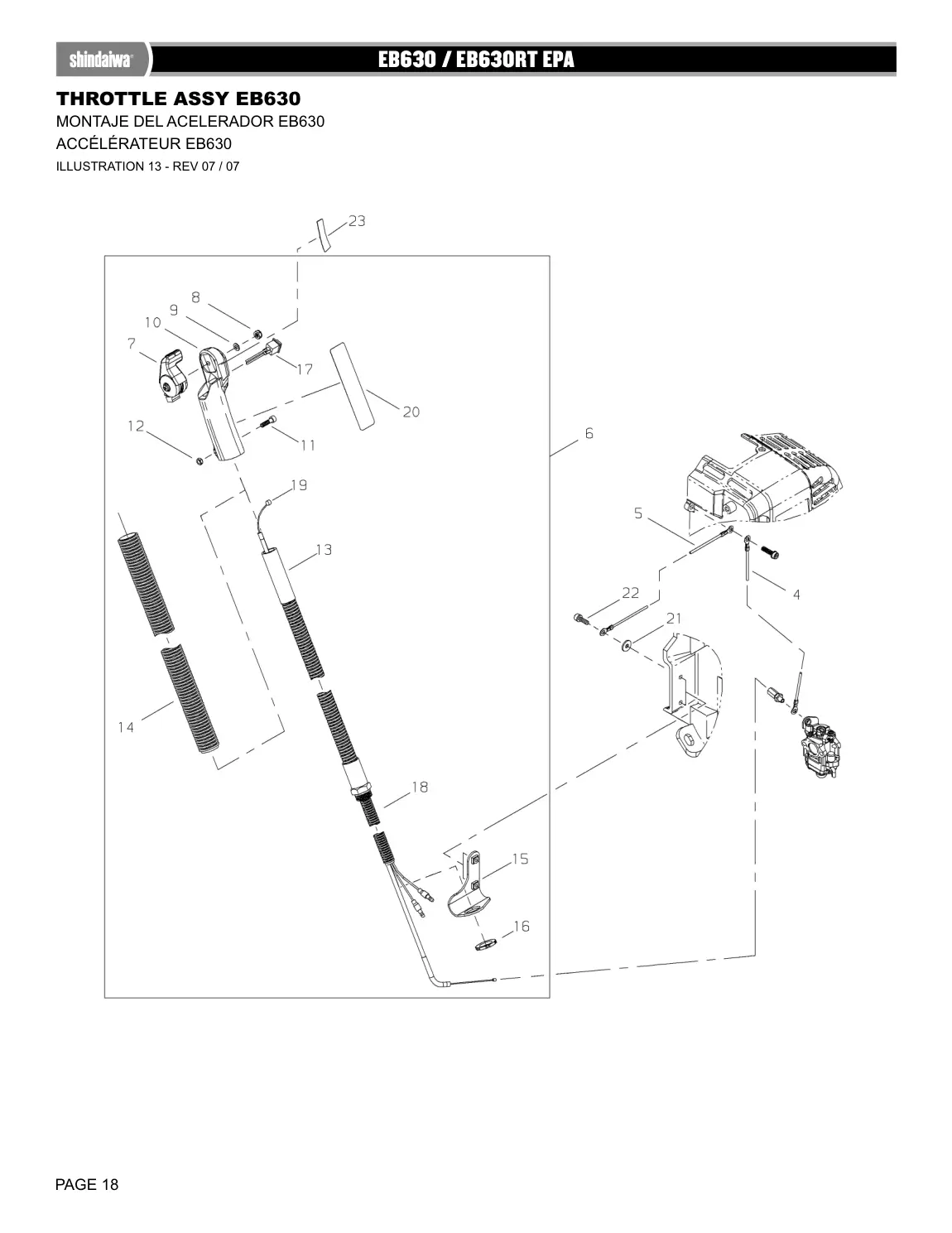

| 18 | ILLUSTRATION 13 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |
| 18 | ILLUSTRATION 13 - REV 07 / 07 | ILLUSTRATION 13 - REV 07 / | EB630 | EB630-Online | |

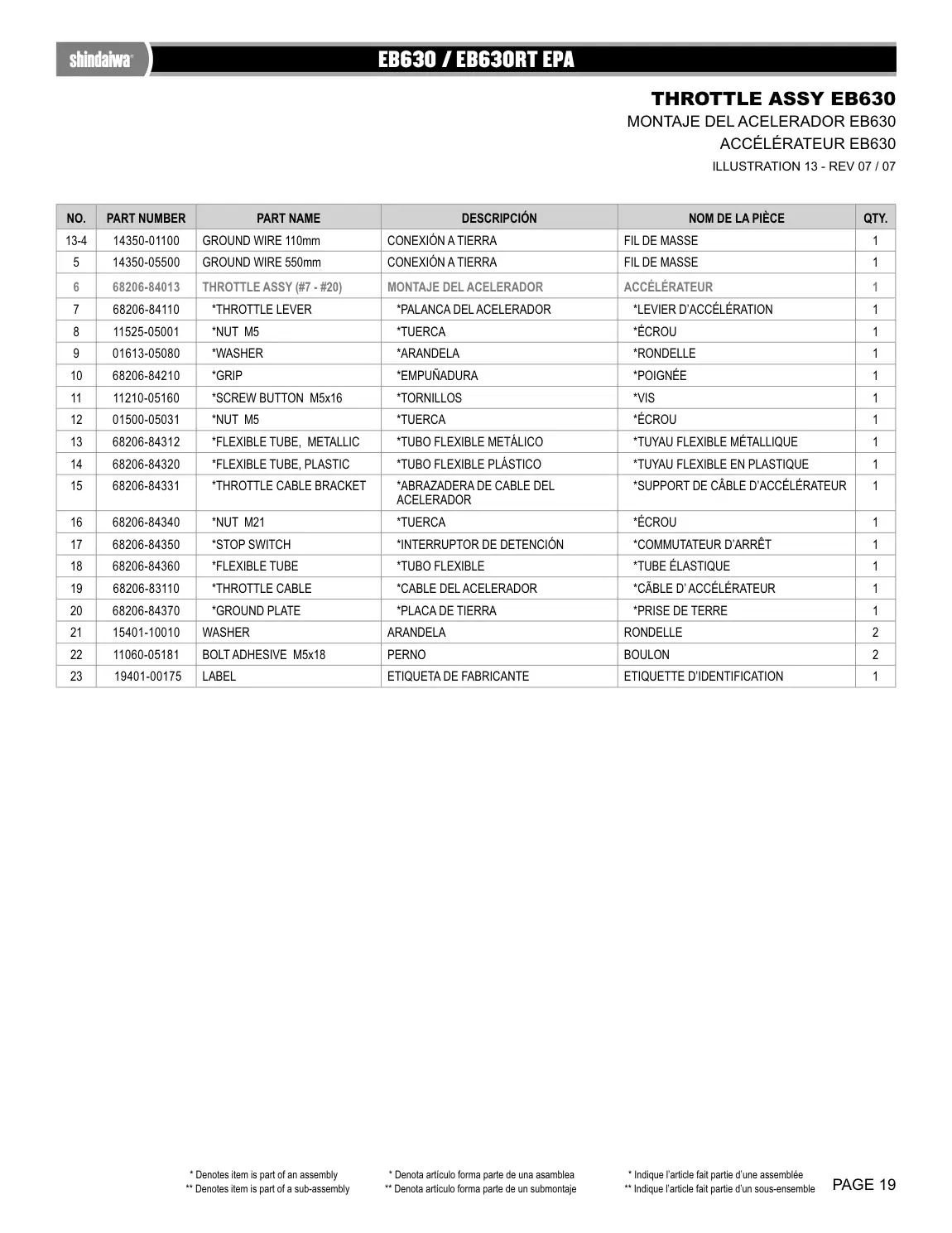

| 19 | ILLUSTRATION 13 - REV 07 / 07 | GROUND WIRE 110mm | 14350-01100 | 14350-01100-Online | |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 1 | ILLUSTRATION 13 - REV 07 / | EB630 | EB630-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 10 | *GRIP | 68206-84210 | 68206-84210-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 11 | *SCREW BUTTON M5x16 | 11210-05160 | 11210-05160-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 12 | *NUT M5 | 01500-05031 | 01500-05031-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 13 | *FLEXIBLE TUBE, METALLIC | 68206-84312 | 68206-84312-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 14 | *FLEXIBLE TUBE, PLASTIC | 68206-84320 | 68206-84320-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 15 | *THROTTLE CABLE BRACKET | 68206-84331 | 68206-84331-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 16 | *TUERCA | 68206-84340 | 68206-84340-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 17 | *STOP SWITCH | 68206-84350 | 68206-84350-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 18 | *FLEXIBLE TUBE | 68206-84360 | 68206-84360-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 19 | *THROTTLE CABLE | 68206-83110 | 68206-83110-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 20 | *GROUND PLATE | 68206-84370 | 68206-84370-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 21 | WASHER | 15401-10010 | 15401-10010-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 22 | BOLT ADHESIVE M5x18 | 11060-05181 | 11060-05181-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 23 | LABEL | 19401-00175 | 19401-00175-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 5 | GROUND WIRE 550mm | 14350-05500 | 14350-05500-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 6 | THROTTLE ASSY (#7 - #20) | 68206-84013 | 68206-84013-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 7 | *THROTTLE LEVER | 68206-84110 | 68206-84110-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 8 | *NUT M5 | 11525-05001 | 11525-05001-Online |
| 19 | ILLUSTRATION 13 - REV 07 / 07 | 9 | *WASHER | 01613-05080 | 01613-05080-Online |
| 20 | *SUPPORT DU CÂBLE D’ACCÉLÉRATION | THROTTLE KIT (2 - #4) | 68206-98380 | 68206-98380-Online | |
| 20 | *SUPPORT DU CÂBLE D’ACCÉLÉRATION | / EB630RT EPA | EB630 | EB630-Online | |
| 20 | *SUPPORT DU CÂBLE D’ACCÉLÉRATION | 2 | *THROTTLE ASSY | 68209-84010 | 68209-84010-Online |
| 20 | *SUPPORT DU CÂBLE D’ACCÉLÉRATION | 3 | *SPACER | 68209-84310 | 68209-84310-Online |
| 20 | *SUPPORT DU CÂBLE D’ACCÉLÉRATION | 4 | *THROTTLE CABLE HOLDER | 68208-84410 | 68208-84410-Online |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | SERVICE TOOL KIT (#2 - #6) | 72935-91000 | 72935-91000-Online | |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | / EB630RT EPA | EB630 | EB630-Online | |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | 2 | *SCRENCH 19x13 | 22900-91180 | 22900-91180-Online |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | 3 | *HEX WRENCH 3MM | 09026-03001 | 09026-03001-Online |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | 4 | *HEX WRENCH 4MM | 09026-04001 | 09026-04001-Online |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | 5 | *HEX WRENCH 5MM | 09026-05001 | 09026-05001-Online |
| 21 | ILLUSTRATION 9 - REV 07 / 07 | 6 | *TOOL BAG | 19639-01100 | 19639-01100-Online |
Source file: 20111007-768_EB630_BLOWER.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
