Shindaiwa LE231 Edger IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: LE231
Type: Edger
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

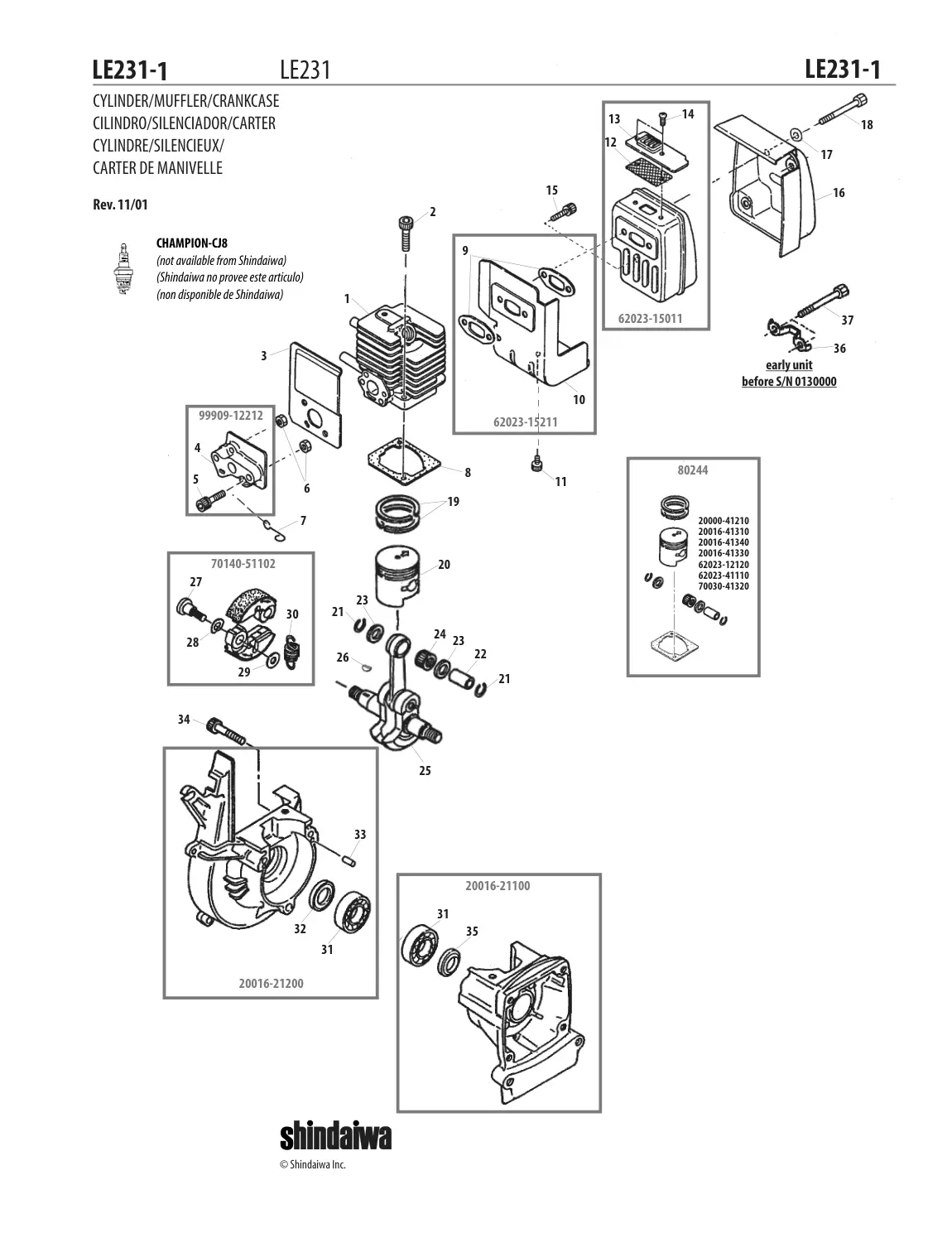

| 2 | CHAMPION-CJ8 | 7 | early unit | 62023-15211 | 62023-15211-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CRANKCASE ASSY. M | 20016-21200 | 20016-21200-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CYLINDER | 62023-12110 | 62023-12110-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | MUFFLER ASSY. | 62023-15011 | 62023-15011-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | GASKET ASSY. | 62023-15211 | 62023-15211-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | CLUTCH SHOE ASSY. | 70140-51102 | 70140-51102-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 1 | INSULATOR ASSY. | 99909-12212 | 99909-12212-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 10 | GASKET | 62023-15420 | 62023-15420-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 11 | BOLT | 01020-05080 | 01020-05080-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 12 | SPARK ARRESTER | 62023-15130 | 62023-15130-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 13 | TAIL PLATE | 62023-15160 | 62023-15160-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 14 | SCREW | 11203-04060 | 11203-04060-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 15 | BOLT | 01020-05200 | 01020-05200-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 16 | MUFFLER COVER | 62023-15380 | 62023-15380-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 17 | LOCK PLATE | 62023-15390 | 62023-15390-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 18 | BOLT | 62023-15410 | 62023-15410-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 19 | PISTON RING SET | 20000-41210 | 20000-41210-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 2 | PISTON ASSY | 80244 | 80244-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 20 | PISTON | 20075-41110 | 20075-41110-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 21 | SNAP RING | 70030-41320 | 70030-41320-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 22 | PISTON PIN | 20016-41310 | 20016-41310-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 23 | THRUST WASHER | 20016-41340 | 20016-41340-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 24 | NEEDLE BEARING | 20016-41330 | 20016-41330-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 25 | CRANKSHAFT ASSY. | 20016-42002 | 20016-42002-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 26 | KEY | 02403-03100 | 02403-03100-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 27 | CLUTCH BOLT | 20087-51210 | 20087-51210-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 28 | SPRING WASHER | 20087-51231 | 20087-51231-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 29 | WASHER | 22100-71430 | 22100-71430-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 3 | CRANKCASE ASSY. S | 20016-21100 | 20016-21100-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 3 | GASKET | 62023-12220 | 62023-12220-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 30 | CLUTCH SPRING | 20035-51221 | 20035-51221-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 31 | BEARING | 12900-60010 | 12900-60010-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 32 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 33 | DOWEL PIN | 12492-40080 | 12492-40080-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 34 | BOLT | 01020-05250 | 01020-05250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 35 | OIL SEAL | 22150-21250 | 22150-21250-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 4 | INSULATOR | 20016-12212 | 20016-12212-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 5 | BOLT | 11022-05300 | 11022-05300-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 6 | NUT | 20011-12260 | 20011-12260-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 7 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 8 | GASKET, CYLINDER | 62023-12120 | 62023-12120-Online |
| 3 | CYLINDER/MUFFLER/CRANKCASE | 9 | GASKET, MUFFLER | 62023-15430 | 62023-15430-Online |

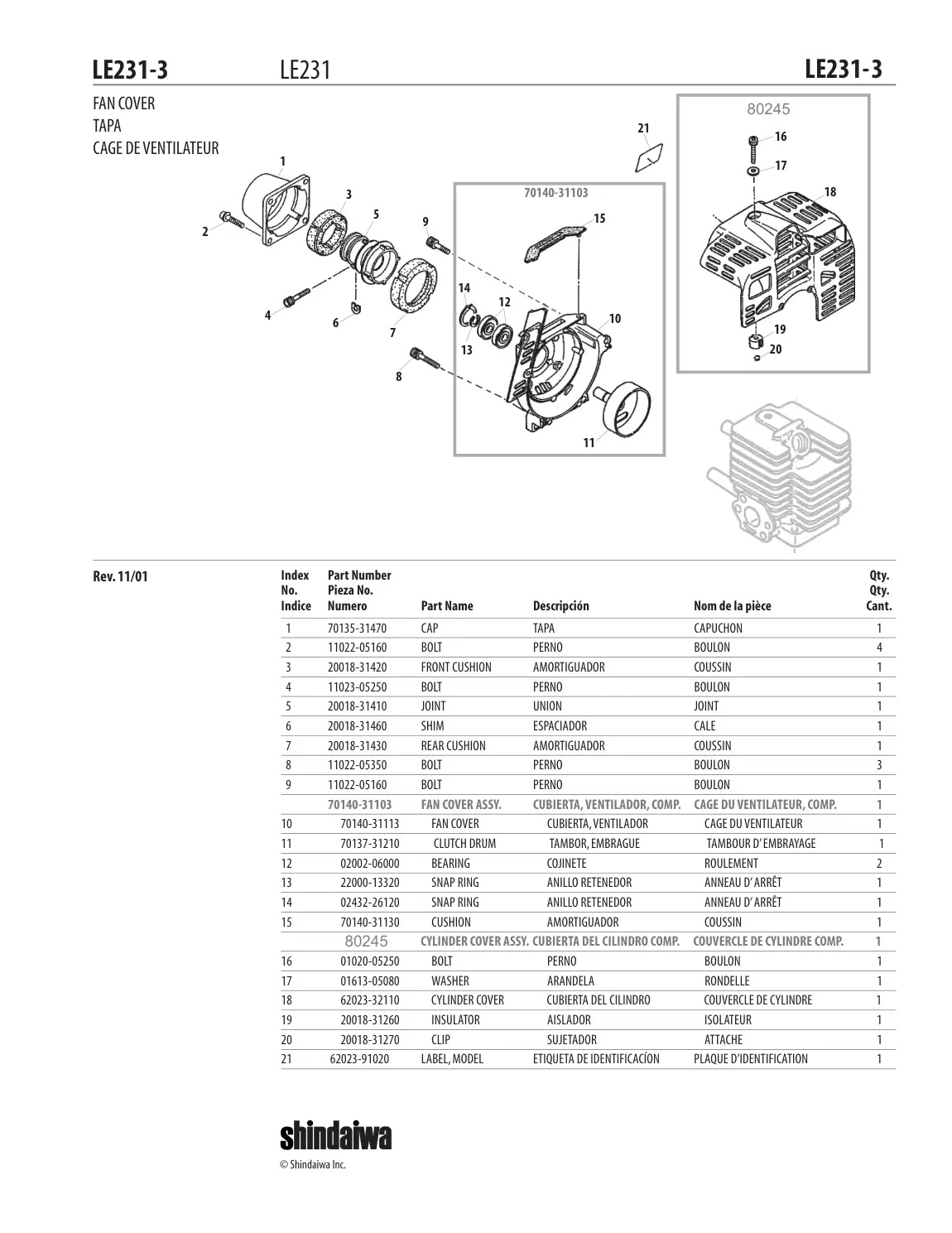

| 4 | FAN COVER | FAN COVER ASSY. | 06150-22011 | 06150-22011-Online | |
| 4 | FAN COVER | 1 | CAP | 70135-31470 | 70135-31470-Online |
| 4 | FAN COVER | 1 | (Kit) | 99909-159 | 99909-159-Online |
| 4 | FAN COVER | 10 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 4 | FAN COVER | 11 | CLUTCH DRUM | 70137-31210 | 70137-31210-Online |
| 4 | FAN COVER | 12 | BEARING | 02002-06000 | 02002-06000-Online |
| 4 | FAN COVER | 13 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 4 | FAN COVER | 14 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 4 | FAN COVER | 15 | CUSHION | 70140-31130 | 70140-31130-Online |
| 4 | FAN COVER | 16 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | FAN COVER | 17 | WASHER | 01613-05080 | 01613-05080-Online |
| 4 | FAN COVER | 18 | CYLINDER COVER | 62023-32110 | 62023-32110-Online |
| 4 | FAN COVER | 19 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 4 | FAN COVER | 20 | CLIP | 20018-31270 | 20018-31270-Online |
| 4 | FAN COVER | 21 | LABEL, MODEL | 62023-91020 | 62023-91020-Online |
| 4 | FAN COVER | 3 | (Kit) | 8024559 | 8024559-Online |
| 4 | FAN COVER | 9 | FAN COVER ASSY. | 70140-31103 | 70140-31103-Online |

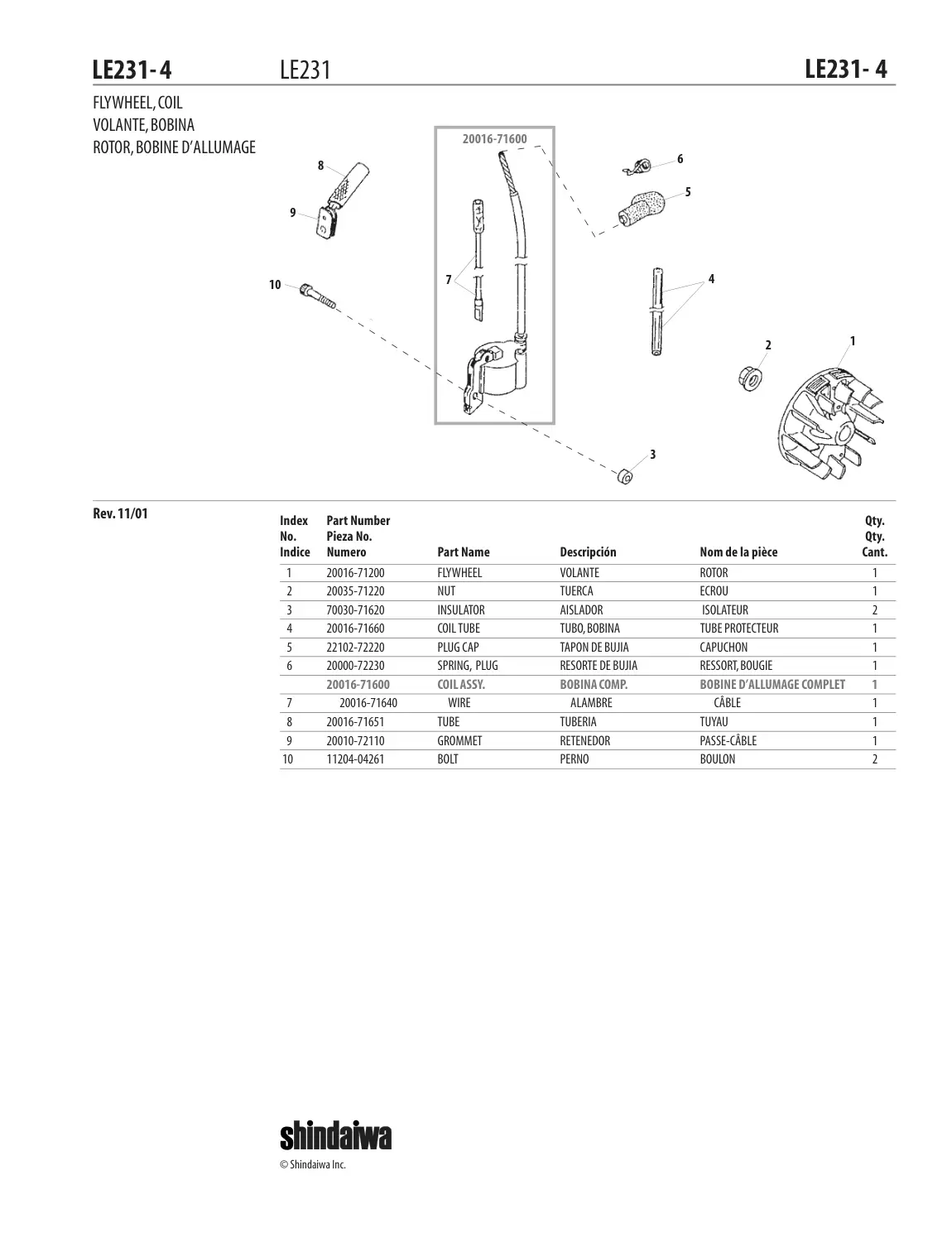

| 5 | PERNO | 1 | FLYWHEEL | 20016-71200 | 20016-71200-Online |
| 5 | PERNO | 1 | COIL ASSY. | 20016-71600 | 20016-71600-Online |
| 5 | PERNO | 10 | BOLT | 11204-04261 | 11204-04261-Online |
| 5 | PERNO | 2 | NUT | 20035-71220 | 20035-71220-Online |
| 5 | PERNO | 3 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 5 | PERNO | 4 | COIL TUBE | 20016-71660 | 20016-71660-Online |
| 5 | PERNO | 5 | PLUG CAP | 22102-72220 | 22102-72220-Online |
| 5 | PERNO | 6 | SPRING, PLUG | 20000-72230 | 20000-72230-Online |
| 5 | PERNO | 7 | WIRE | 20016-71640 | 20016-71640-Online |
| 5 | PERNO | 8 | TUBE | 20016-71651 | 20016-71651-Online |
| 5 | PERNO | 9 | GROMMET | 20010-72110 | 20010-72110-Online |

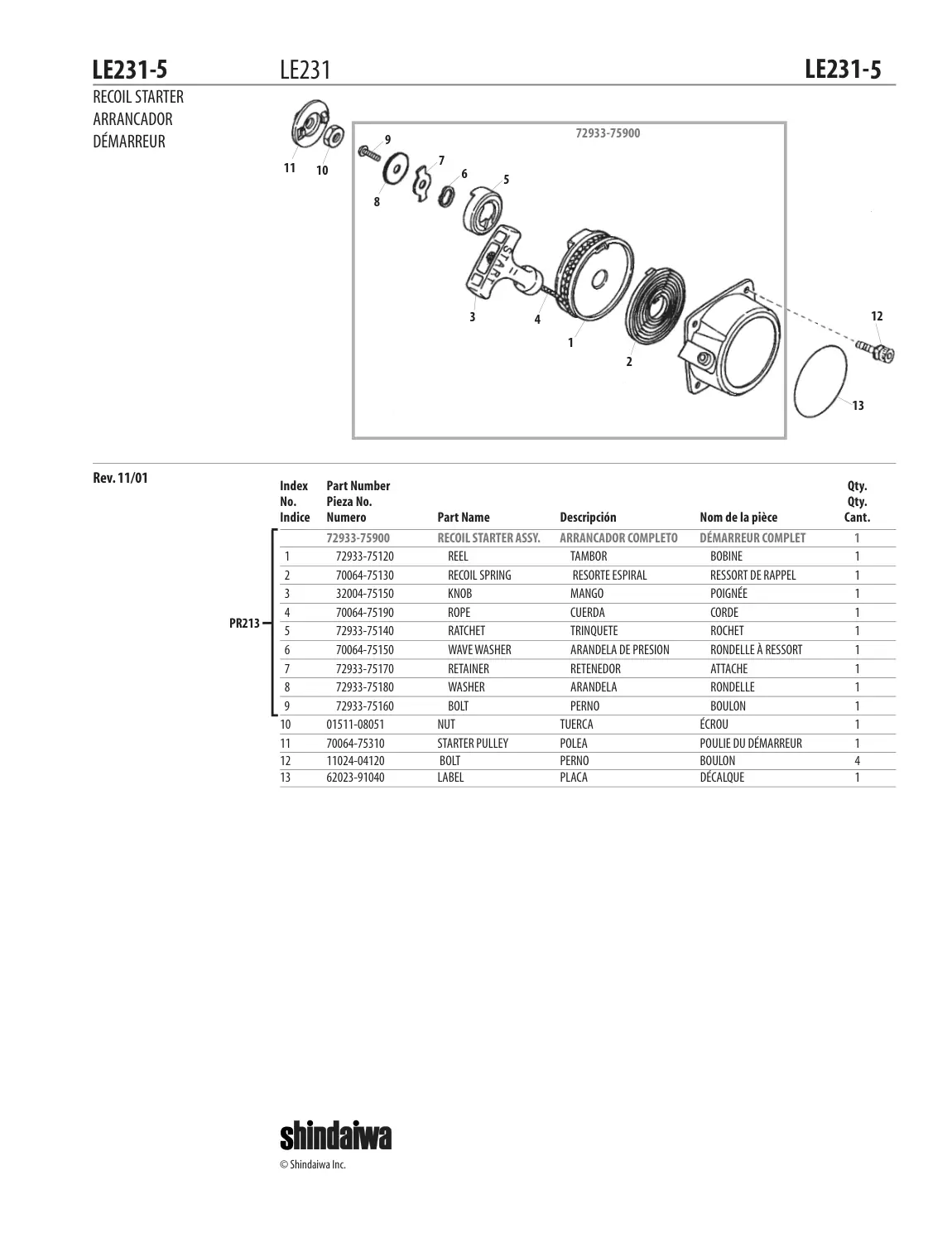

| 6 | PLACA | RECOIL STARTER ASSY. | 72933-75900 | 72933-75900-Online | |
| 6 | PLACA | 1 | REEL | 72933-75120 | 72933-75120-Online |
| 6 | PLACA | 10 | NUT | 01511-08051 | 01511-08051-Online |
| 6 | PLACA | 11 | STARTER PULLEY | 70064-75310 | 70064-75310-Online |
| 6 | PLACA | 12 | BOLT | 11024-04120 | 11024-04120-Online |
| 6 | PLACA | 13 | LABEL | 62023-91040 | 62023-91040-Online |
| 6 | PLACA | 2 | RECOIL SPRING | 70064-75130 | 70064-75130-Online |
| 6 | PLACA | 3 | KNOB | 32004-75150 | 32004-75150-Online |
| 6 | PLACA | 4 | ROPE | 70064-75190 | 70064-75190-Online |
| 6 | PLACA | 5 | RATCHET | 72933-75140 | 72933-75140-Online |
| 6 | PLACA | 6 | WAVE WASHER | 70064-75150 | 70064-75150-Online |
| 6 | PLACA | 7 | RETAINER | 72933-75170 | 72933-75170-Online |
| 6 | PLACA | 8 | WASHER | 72933-75180 | 72933-75180-Online |
| 6 | PLACA | 9 | BOLT | 72933-75160 | 72933-75160-Online |

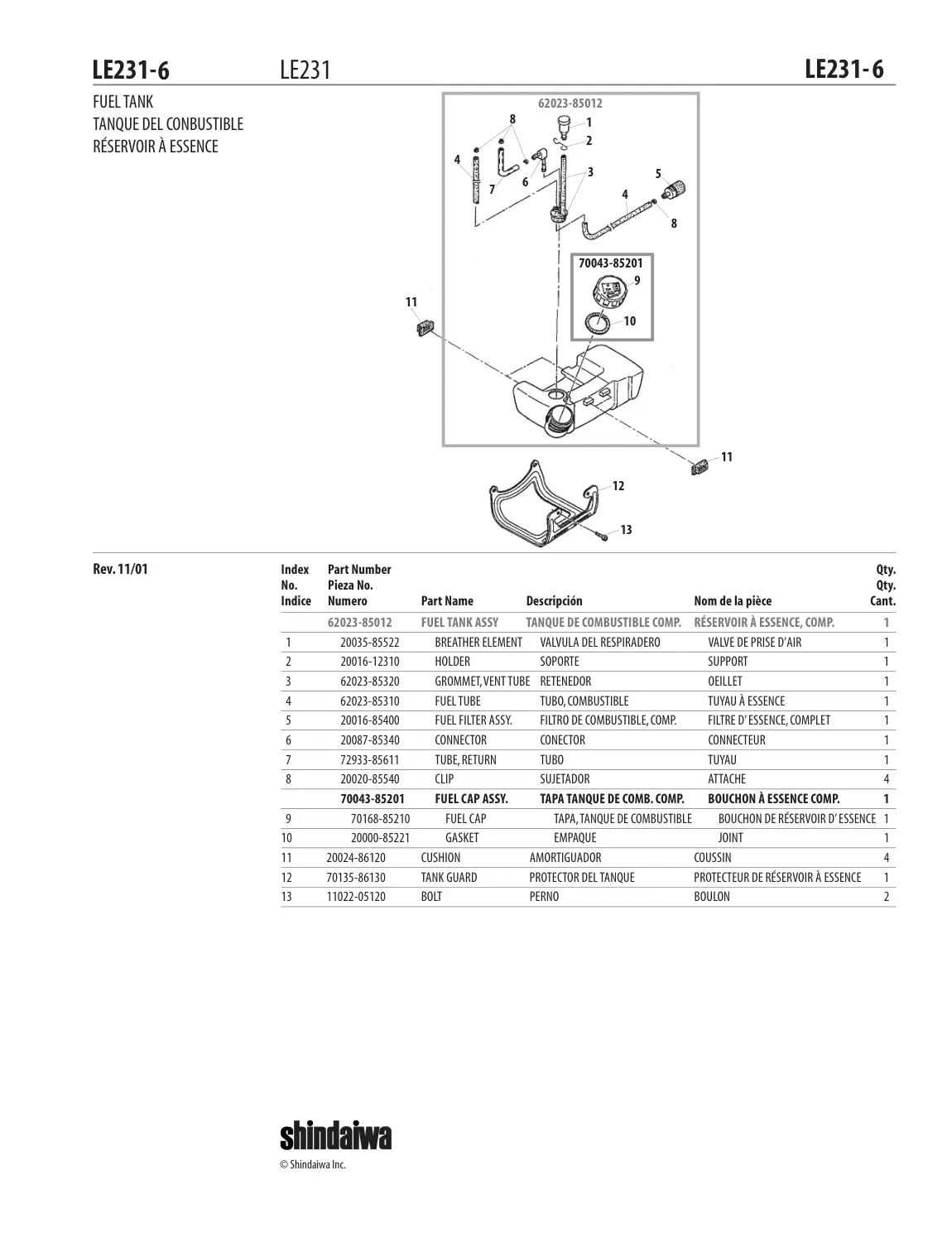

| 7 | PERNO | FUEL TANK ASSY | 62023-85012 | 62023-85012-Online | |
| 7 | PERNO | 1 | BREATHER ELEMENT | 20035-85522 | 20035-85522-Online |
| 7 | PERNO | 10 | GASKET | 20000-85221 | 20000-85221-Online |
| 7 | PERNO | 11 | CUSHION | 20024-86120 | 20024-86120-Online |
| 7 | PERNO | 12 | TANK GUARD | 70135-86130 | 70135-86130-Online |
| 7 | PERNO | 13 | BOLT | 11022-05120 | 11022-05120-Online |
| 7 | PERNO | 2 | HOLDER | 20016-12310 | 20016-12310-Online |
| 7 | PERNO | 3 | GROMMET, VENT TUBE RETENEDOR | 62023-85320 | 62023-85320-Online |
| 7 | PERNO | 4 | FUEL TUBE | 62023-85310 | 62023-85310-Online |
| 7 | PERNO | 4 | FUEL CAP ASSY. | 70043-85201 | 70043-85201-Online |
| 7 | PERNO | 5 | FUEL FILTER ASSY. | 20016-85400 | 20016-85400-Online |
| 7 | PERNO | 6 | CONNECTOR | 20087-85340 | 20087-85340-Online |
| 7 | PERNO | 7 | TUBE, RETURN | 72933-85611 | 72933-85611-Online |
| 7 | PERNO | 8 | CLIP | 20020-85540 | 20020-85540-Online |
| 7 | PERNO | 9 | FUEL CAP | 70168-85210 | 70168-85210-Online |

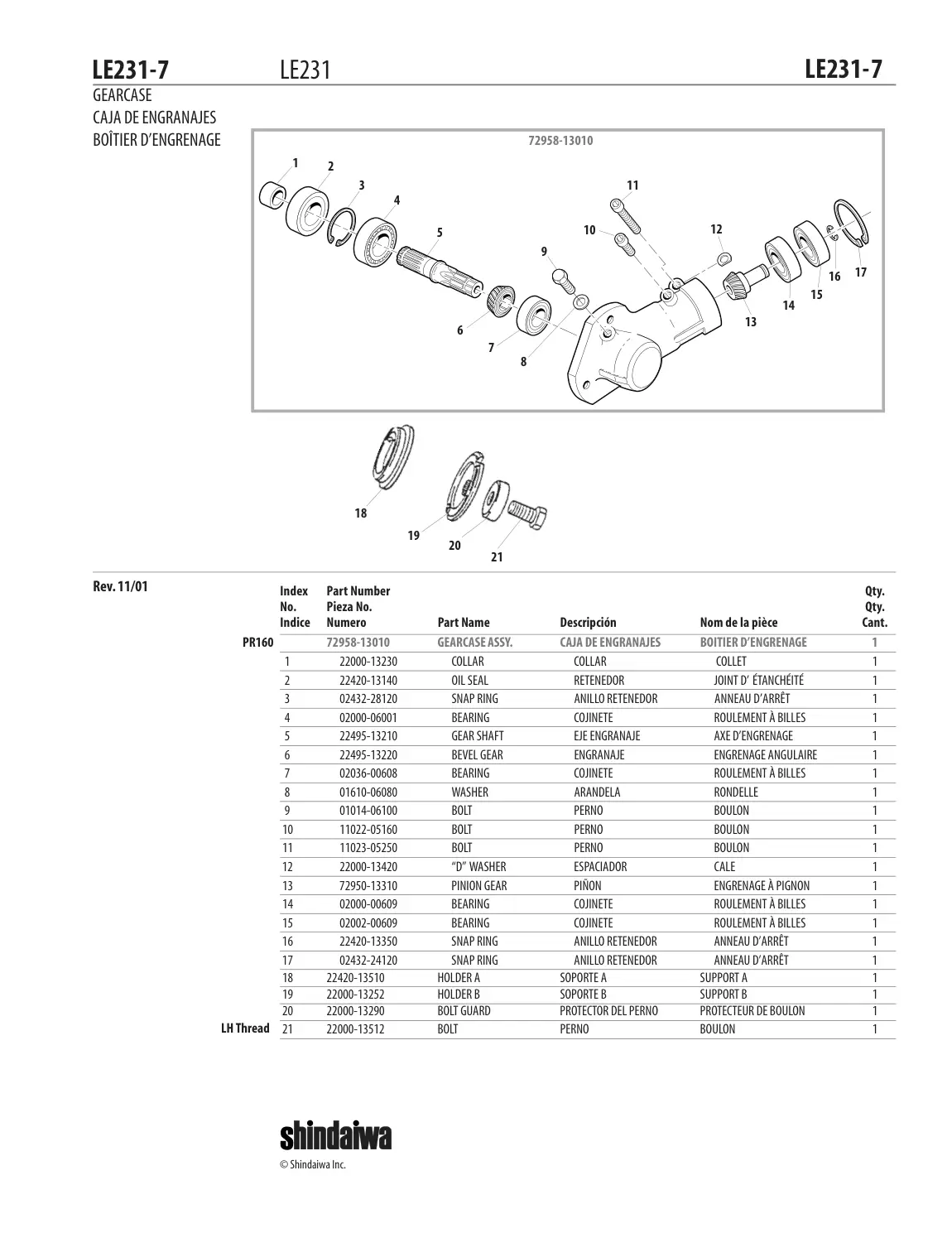

| 8 | GEARCASE | GEARCASE ASSY. | 72958-13010 | 72958-13010-Online | |
| 8 | GEARCASE | 1 | COLLAR | 22000-13230 | 22000-13230-Online |
| 8 | GEARCASE | 10 | BOLT | 11022-05160 | 11022-05160-Online |
| 8 | GEARCASE | 11 | BOLT | 11023-05250 | 11023-05250-Online |
| 8 | GEARCASE | 12 | “D” WASHER | 22000-13420 | 22000-13420-Online |
| 8 | GEARCASE | 13 | PINION GEAR | 72950-13310 | 72950-13310-Online |
| 8 | GEARCASE | 14 | BEARING | 02000-00609 | 02000-00609-Online |
| 8 | GEARCASE | 15 | BEARING | 02002-00609 | 02002-00609-Online |
| 8 | GEARCASE | 16 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 8 | GEARCASE | 17 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 8 | GEARCASE | 18 | HOLDER A | 22420-13510 | 22420-13510-Online |
| 8 | GEARCASE | 19 | HOLDER B | 22000-13252 | 22000-13252-Online |
| 8 | GEARCASE | 2 | OIL SEAL | 22420-13140 | 22420-13140-Online |
| 8 | GEARCASE | 20 | BOLT GUARD | 22000-13290 | 22000-13290-Online |
| 8 | GEARCASE | 21 | BOLT | 22000-13512 | 22000-13512-Online |
| 8 | GEARCASE | 21 | LH Thread | PR160 | PR160-Online |
| 8 | GEARCASE | 3 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 8 | GEARCASE | 4 | BEARING | 02000-06001 | 02000-06001-Online |
| 8 | GEARCASE | 5 | GEAR SHAFT | 22495-13210 | 22495-13210-Online |
| 8 | GEARCASE | 6 | BEVEL GEAR | 22495-13220 | 22495-13220-Online |
| 8 | GEARCASE | 7 | BEARING | 02036-00608 | 02036-00608-Online |
| 8 | GEARCASE | 8 | WASHER | 01610-06080 | 01610-06080-Online |
| 8 | GEARCASE | 9 | BOLT | 01014-06100 | 01014-06100-Online |

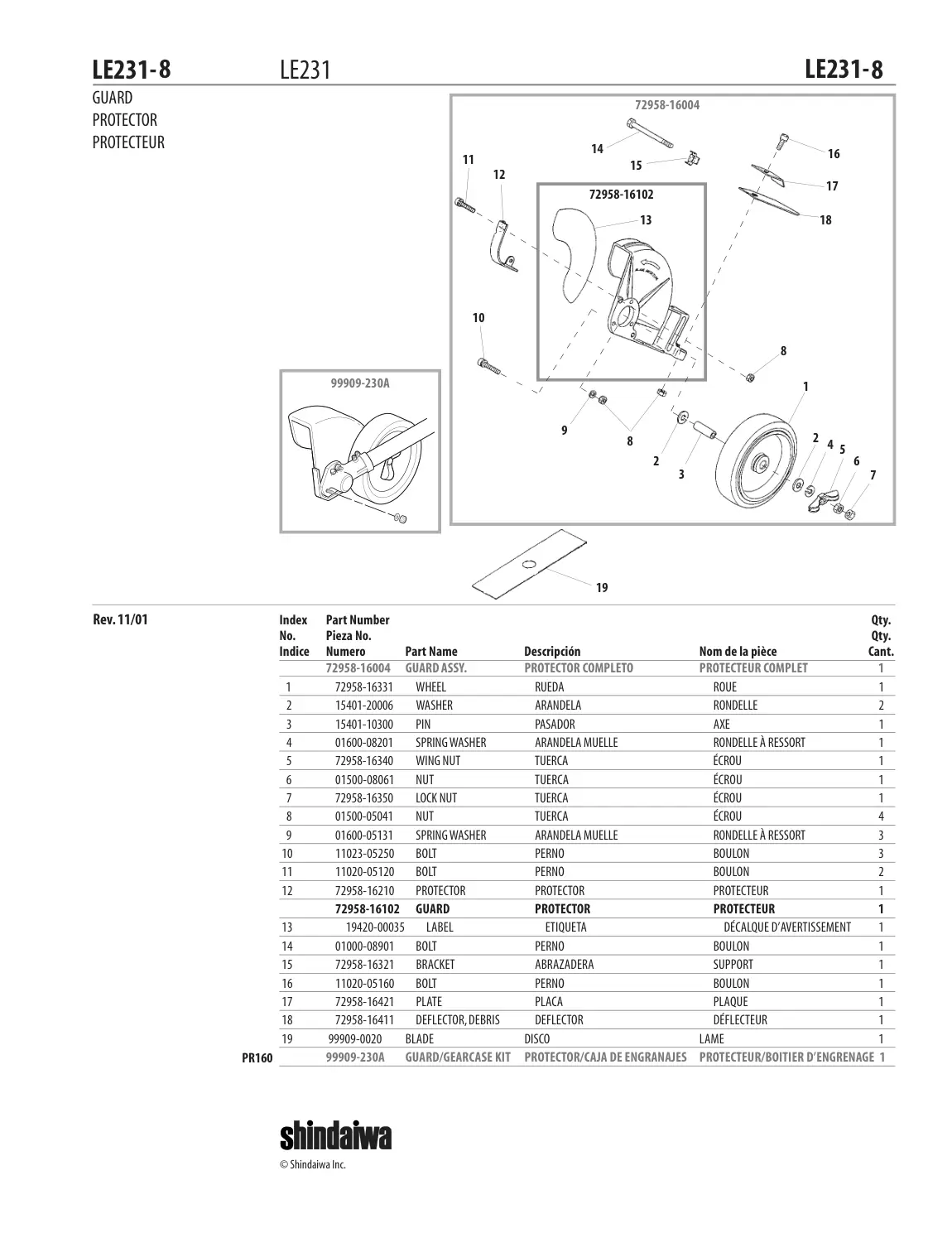

| 9 | GUARD | GUARD ASSY. | 72958-16004 | 72958-16004-Online | |
| 9 | GUARD | 1 | GUARD | 72958-16102 | 72958-16102-Online |
| 9 | GUARD | 1 | GUARD/GEARCASE KIT | 99909-230A | 99909-230A-Online |
| 9 | GUARD | 10 | BOLT | 11023-05250 | 11023-05250-Online |
| 9 | GUARD | 11 | BOLT | 11020-05120 | 11020-05120-Online |
| 9 | GUARD | 12 | PROTECTOR | 72958-16210 | 72958-16210-Online |
| 9 | GUARD | 13 | LABEL | 19420-00035 | 19420-00035-Online |
| 9 | GUARD | 14 | BOLT | 01000-08901 | 01000-08901-Online |
| 9 | GUARD | 15 | BRACKET | 72958-16321 | 72958-16321-Online |
| 9 | GUARD | 16 | BOLT | 11020-05160 | 11020-05160-Online |
| 9 | GUARD | 17 | PLATE | 72958-16421 | 72958-16421-Online |
| 9 | GUARD | 18 | DEFLECTOR, DEBRIS | 72958-16411 | 72958-16411-Online |
| 9 | GUARD | 19 | BLADE | 99909-0020 | 99909-0020-Online |
| 9 | GUARD | 2 | WASHER | 15401-20006 | 15401-20006-Online |
| 9 | GUARD | 3 | PIN | 15401-10300 | 15401-10300-Online |
| 9 | GUARD | 4 | SPRING WASHER | 01600-08201 | 01600-08201-Online |
| 9 | GUARD | 5 | WING NUT | 72958-16340 | 72958-16340-Online |
| 9 | GUARD | 6 | NUT | 01500-08061 | 01500-08061-Online |
| 9 | GUARD | 7 | LOCK NUT | 72958-16350 | 72958-16350-Online |
| 9 | GUARD | 8 | NUT | 01500-05041 | 01500-05041-Online |
| 9 | GUARD | 9 | SPRING WASHER | 01600-05131 | 01600-05131-Online |

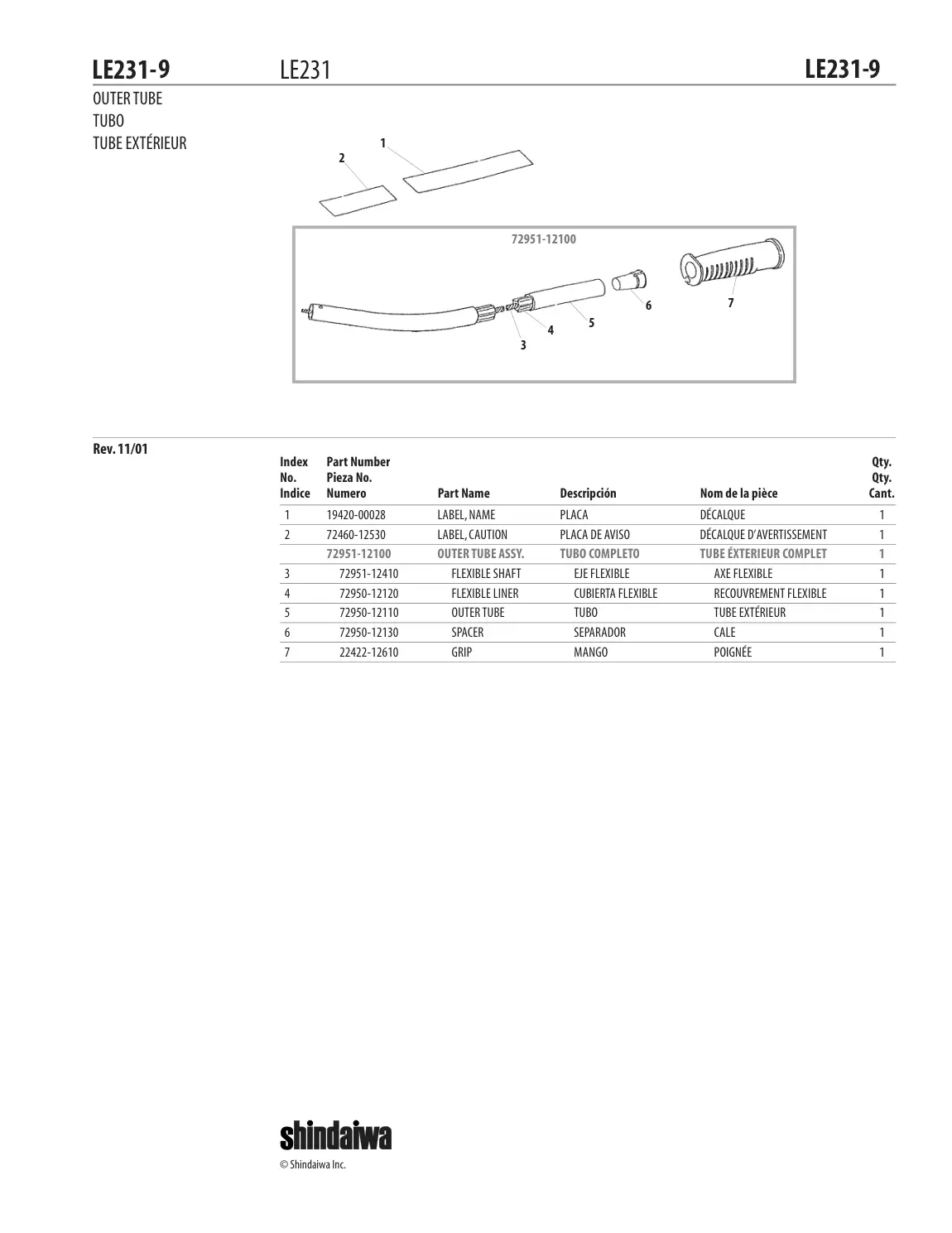

| 10 | OUTER TUBE | 1 | LABEL, NAME | 19420-00028 | 19420-00028-Online |
| 10 | OUTER TUBE | 1 | OUTER TUBE ASSY. | 72951-12100 | 72951-12100-Online |
| 10 | OUTER TUBE | 2 | LABEL, CAUTION | 72460-12530 | 72460-12530-Online |
| 10 | OUTER TUBE | 3 | FLEXIBLE SHAFT | 72951-12410 | 72951-12410-Online |
| 10 | OUTER TUBE | 4 | FLEXIBLE LINER | 72950-12120 | 72950-12120-Online |
| 10 | OUTER TUBE | 5 | OUTER TUBE | 72950-12110 | 72950-12110-Online |
| 10 | OUTER TUBE | 6 | SPACER | 72950-12130 | 72950-12130-Online |
| 10 | OUTER TUBE | 7 | GRIP | 22422-12610 | 22422-12610-Online |

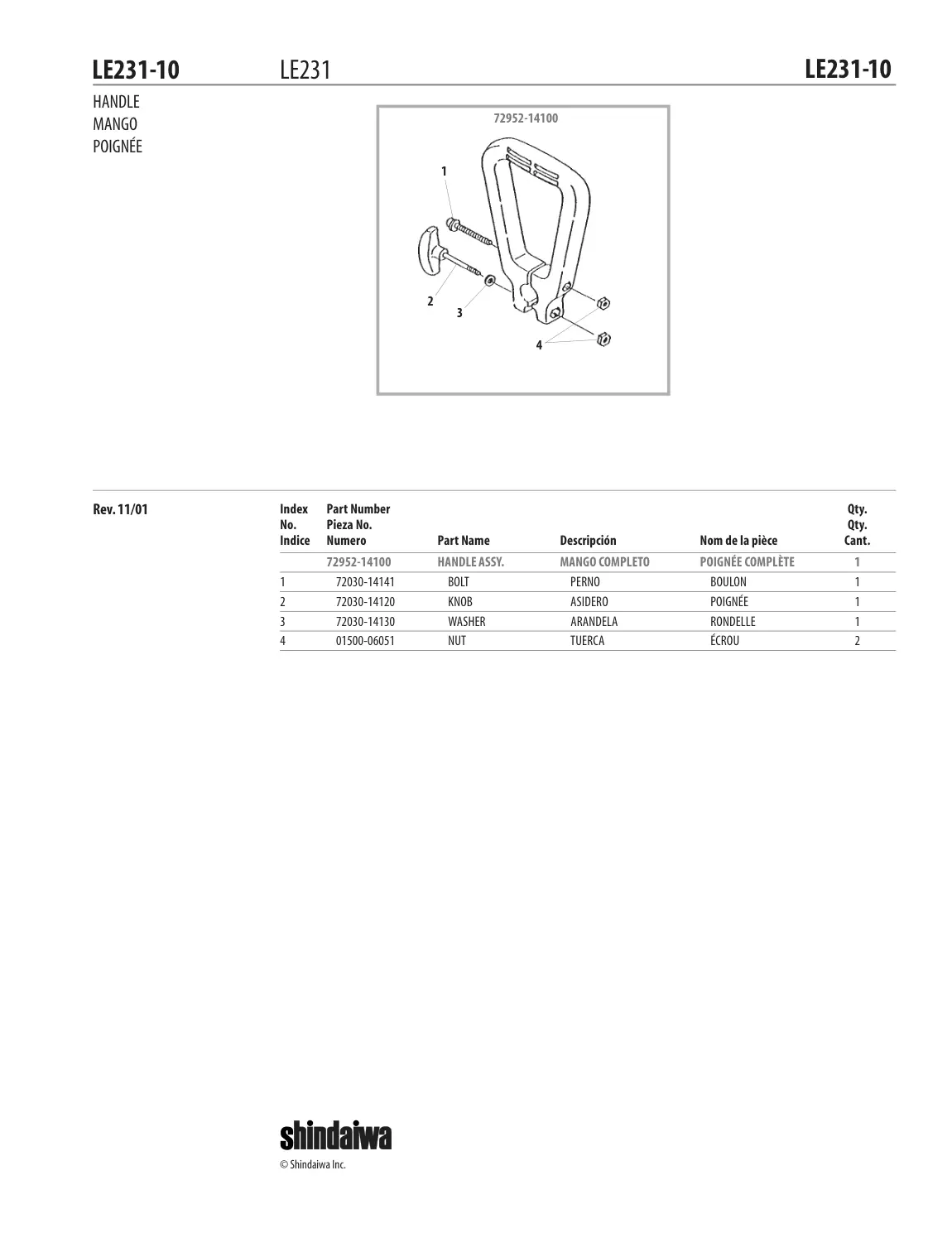

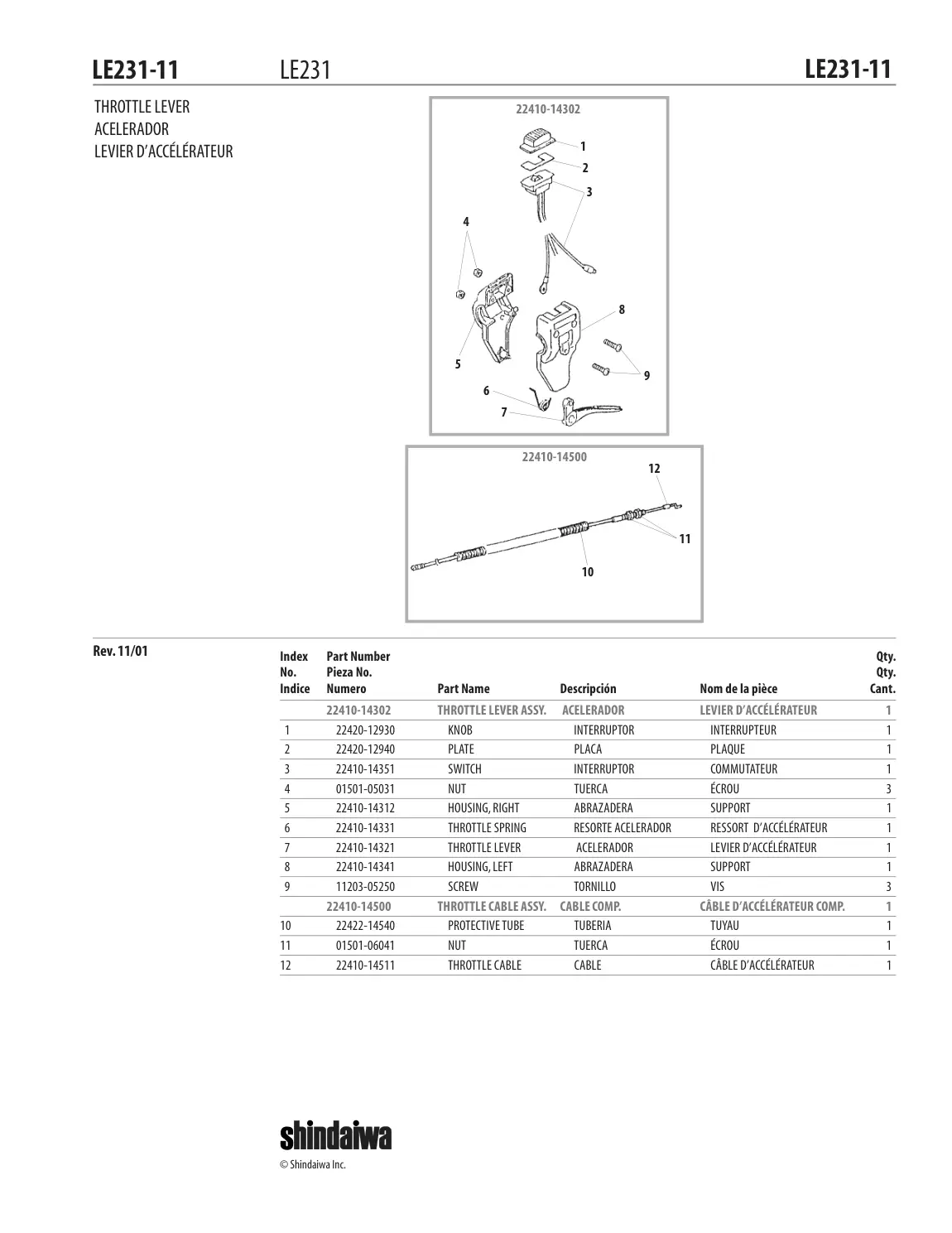

| 11 | HANDLE | HANDLE ASSY. | 72952-14100 | 72952-14100-Online | |
| 11 | HANDLE | 1 | BOLT | 72030-14141 | 72030-14141-Online |
| 11 | HANDLE | 2 | KNOB | 72030-14120 | 72030-14120-Online |
| 11 | HANDLE | 2 | HANDLE | 72952-14100 | 72952-14100-Online |
| 11 | HANDLE | 3 | WASHER | 72030-14130 | 72030-14130-Online |
| 11 | HANDLE | 4 | NUT | 01500-06051 | 01500-06051-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | THROTTLE LEVER ASSY. | 22410-14302 | 22410-14302-Online | |
| 12 | LEVIER D’ACCÉLÉRATEUR | 1 | KNOB | 22420-12930 | 22420-12930-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 10 | PROTECTIVE TUBE | 22422-14540 | 22422-14540-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 11 | NUT | 01501-06041 | 01501-06041-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 12 | THROTTLE CABLE | 22410-14511 | 22410-14511-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 2 | PLATE | 22420-12940 | 22420-12940-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 3 | SWITCH | 22410-14351 | 22410-14351-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 3 | THROTTLE CABLE ASSY. | 22410-14500 | 22410-14500-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 4 | NUT | 01501-05031 | 01501-05031-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 5 | HOUSING, RIGHT | 22410-14312 | 22410-14312-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 6 | THROTTLE SPRING | 22410-14331 | 22410-14331-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 7 | THROTTLE LEVER | 22410-14321 | 22410-14321-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 8 | HOUSING, LEFT | 22410-14341 | 22410-14341-Online |
| 12 | LEVIER D’ACCÉLÉRATEUR | 9 | SCREW | 11203-05250 | 11203-05250-Online |

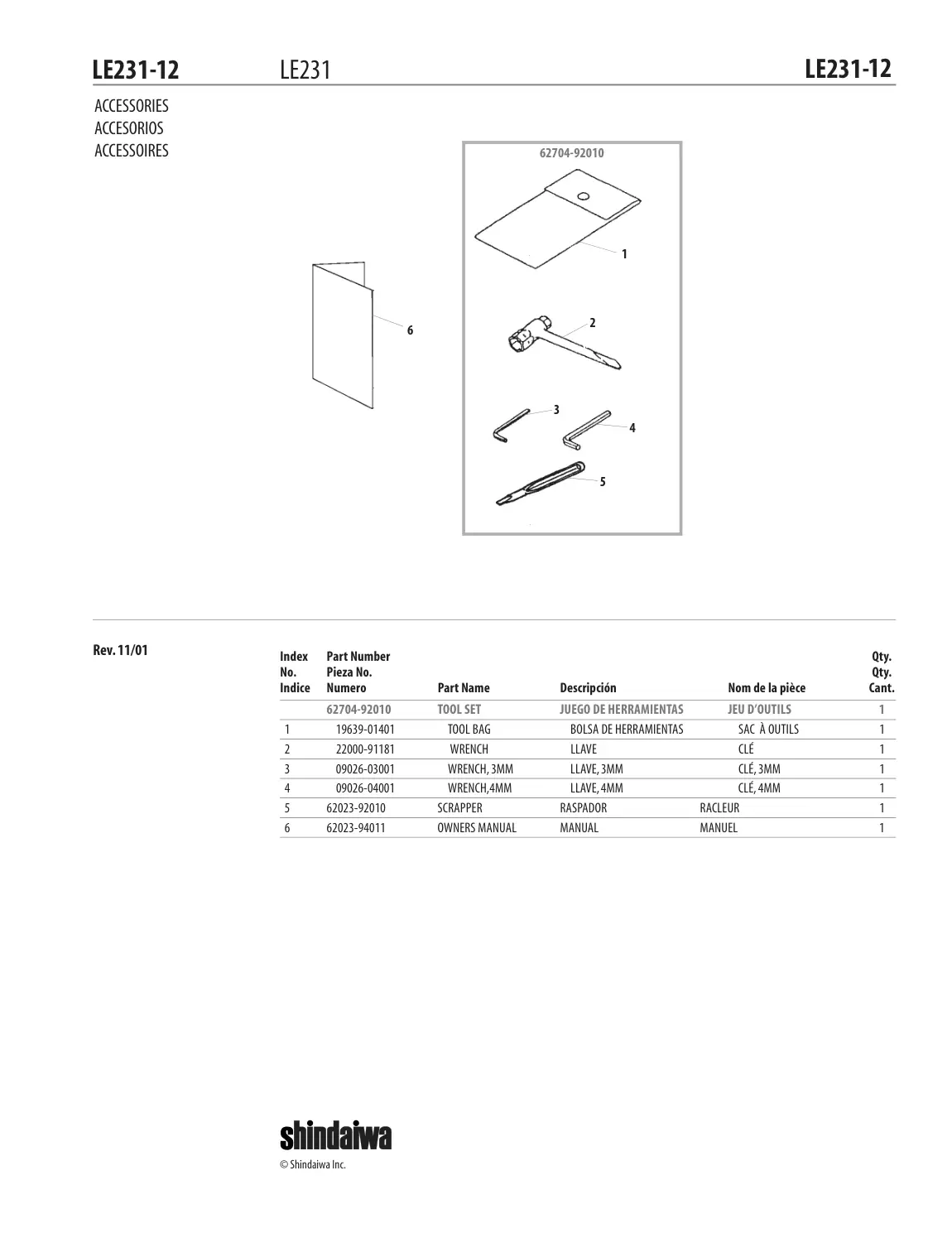

| 13 | ACCESSORIES | TOOL SET | 62704-92010 | 62704-92010-Online | |
| 13 | ACCESSORIES | 1 | TOOL BAG | 19639-01401 | 19639-01401-Online |
| 13 | ACCESSORIES | 2 | WRENCH | 22000-91181 | 22000-91181-Online |
| 13 | ACCESSORIES | 3 | WRENCH, 3MM | 09026-03001 | 09026-03001-Online |
| 13 | ACCESSORIES | 4 | WRENCH,4MM | 09026-04001 | 09026-04001-Online |
| 13 | ACCESSORIES | 5 | SCRAPPER | 62023-92010 | 62023-92010-Online |
| 13 | ACCESSORIES | 6 | OWNERS MANUAL | 62023-94011 | 62023-94011-Online |

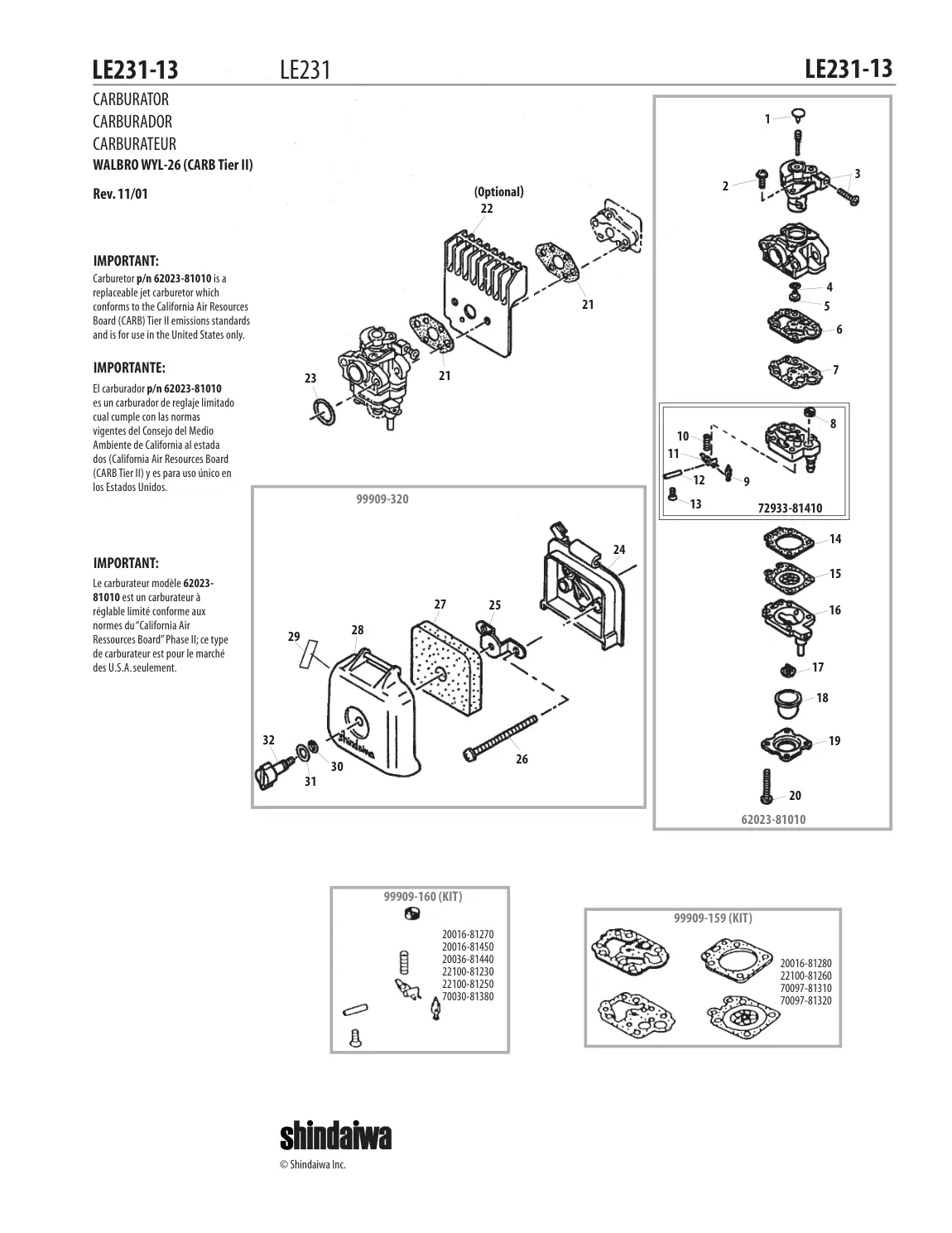

| 14 | WALBRO WYL-26 (CARB Tier II) | réglable limité conforme aux | 62023 | 62023-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | est un carburateur à | 81010 | 81010-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | (KIT) | 99909-159 | 99909-159-Online | |
| 14 | WALBRO WYL-26 (CARB Tier II) | (KIT) | 99909-160 | 99909-160-Online | |

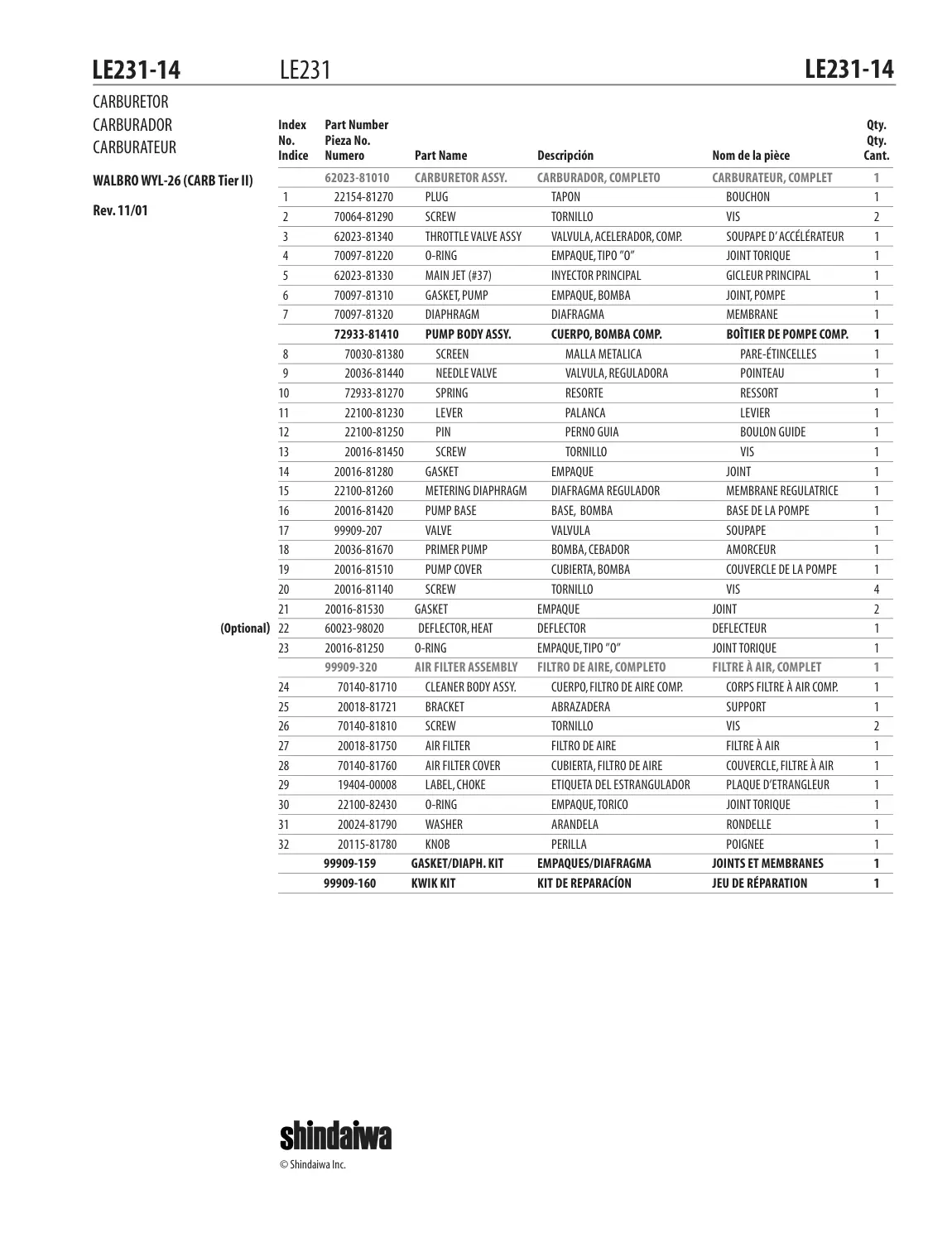

| 15 | JEU DE RÉPARATION | CARBURETOR ASSY. | 62023-81010 | 62023-81010-Online | |
| 15 | JEU DE RÉPARATION | 1 | PLUG | 22154-81270 | 22154-81270-Online |
| 15 | JEU DE RÉPARATION | 1 | PUMP BODY ASSY. | 72933-81410 | 72933-81410-Online |
| 15 | JEU DE RÉPARATION | 1 | GASKET/DIAPH. KIT | 99909-159 | 99909-159-Online |
| 15 | JEU DE RÉPARATION | 1 | KWIK KIT | 99909-160 | 99909-160-Online |
| 15 | JEU DE RÉPARATION | 1 | AIR FILTER ASSEMBLY | 99909-320 | 99909-320-Online |
| 15 | JEU DE RÉPARATION | 10 | SPRING | 72933-81270 | 72933-81270-Online |
| 15 | JEU DE RÉPARATION | 11 | LEVER | 22100-81230 | 22100-81230-Online |
| 15 | JEU DE RÉPARATION | 12 | PIN | 22100-81250 | 22100-81250-Online |
| 15 | JEU DE RÉPARATION | 13 | SCREW | 20016-81450 | 20016-81450-Online |
| 15 | JEU DE RÉPARATION | 14 | GASKET | 20016-81280 | 20016-81280-Online |
| 15 | JEU DE RÉPARATION | 15 | METERING DIAPHRAGM | 22100-81260 | 22100-81260-Online |
| 15 | JEU DE RÉPARATION | 16 | PUMP BASE | 20016-81420 | 20016-81420-Online |
| 15 | JEU DE RÉPARATION | 17 | VALVE | 99909-207 | 99909-207-Online |
| 15 | JEU DE RÉPARATION | 18 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 15 | JEU DE RÉPARATION | 19 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 15 | JEU DE RÉPARATION | 2 | SCREW | 70064-81290 | 70064-81290-Online |
| 15 | JEU DE RÉPARATION | 20 | SCREW | 20016-81140 | 20016-81140-Online |
| 15 | JEU DE RÉPARATION | 21 | GASKET | 20016-81530 | 20016-81530-Online |
| 15 | JEU DE RÉPARATION | 22 | DEFLECTOR, HEAT | 60023-98020 | 60023-98020-Online |
| 15 | JEU DE RÉPARATION | 23 | O-RING | 20016-81250 | 20016-81250-Online |
| 15 | JEU DE RÉPARATION | 24 | CLEANER BODY ASSY. | 70140-81710 | 70140-81710-Online |
| 15 | JEU DE RÉPARATION | 25 | BRACKET | 20018-81721 | 20018-81721-Online |
| 15 | JEU DE RÉPARATION | 26 | SCREW | 70140-81810 | 70140-81810-Online |
| 15 | JEU DE RÉPARATION | 27 | AIR FILTER | 20018-81750 | 20018-81750-Online |
| 15 | JEU DE RÉPARATION | 28 | AIR FILTER COVER | 70140-81760 | 70140-81760-Online |
| 15 | JEU DE RÉPARATION | 29 | LABEL, CHOKE | 19404-00008 | 19404-00008-Online |
| 15 | JEU DE RÉPARATION | 3 | THROTTLE VALVE ASSY | 62023-81340 | 62023-81340-Online |
| 15 | JEU DE RÉPARATION | 30 | O-RING | 22100-82430 | 22100-82430-Online |
| 15 | JEU DE RÉPARATION | 31 | WASHER | 20024-81790 | 20024-81790-Online |
| 15 | JEU DE RÉPARATION | 32 | KNOB | 20115-81780 | 20115-81780-Online |
| 15 | JEU DE RÉPARATION | 4 | O-RING | 70097-81220 | 70097-81220-Online |
| 15 | JEU DE RÉPARATION | 5 | MAIN JET (#37) | 62023-81330 | 62023-81330-Online |
| 15 | JEU DE RÉPARATION | 6 | GASKET, PUMP | 70097-81310 | 70097-81310-Online |
| 15 | JEU DE RÉPARATION | 7 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 15 | JEU DE RÉPARATION | 8 | SCREEN | 70030-81380 | 70030-81380-Online |
| 15 | JEU DE RÉPARATION | 9 | NEEDLE VALVE | 20036-81440 | 20036-81440-Online |
Source file: 20111008-274_LE231.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
