Illustrated Parts List
Shindaiwa SBA-P24 EU Parts Diagram IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: SBA-P24 EU
Type: Parts Diagram
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

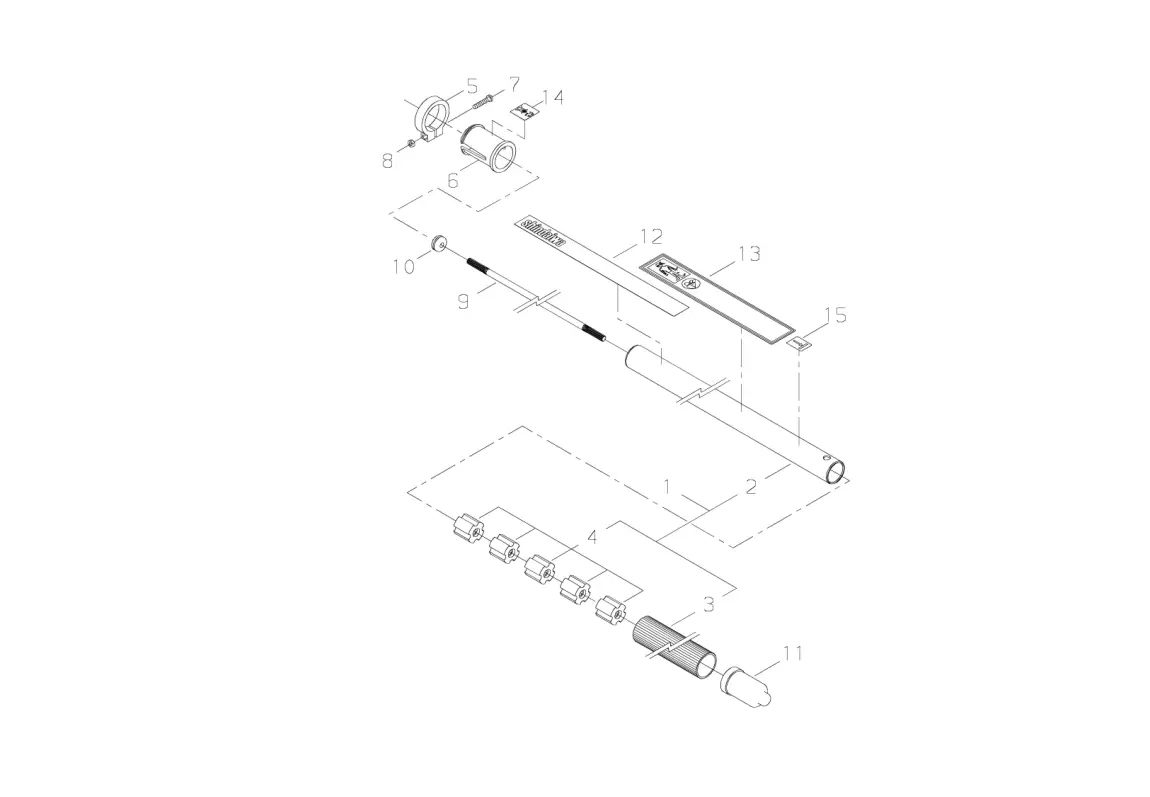

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 3 | LABEL,CAUTION | GEAR CASE,LEFT COMP | 63880-61312 | 63880-61312-Online | |
| 3 | LABEL,CAUTION | 1 | BOLT | 01020-05120 | 01020-05120-Online |
| 3 | LABEL,CAUTION | 1 | BOLT | 01020-06300 | 01020-06300-Online |
| 3 | LABEL,CAUTION | 1 | BALL BEARING | 02000-00609 | 02000-00609-Online |
| 3 | LABEL,CAUTION | 1 | *BALL BEARING | 02002-00627 | 02002-00627-Online |
| 3 | LABEL,CAUTION | 1 | *BALL BEARING | 02006-06001 | 02006-06001-Online |
| 3 | LABEL,CAUTION | 1 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 3 | LABEL,CAUTION | 1 | BOLT-DW | 11023-05250 | 11023-05250-Online |
| 3 | LABEL,CAUTION | 1 | SCREW,PM-PW | 11205-04100 | 11205-04100-Online |
| 3 | LABEL,CAUTION | 1 | SCREW,PM-SLPW | 11207-05120 | 11207-05120-Online |
| 3 | LABEL,CAUTION | 1 | SCREW,ADHESIVE | 11260-04351 | 11260-04351-Online |
| 3 | LABEL,CAUTION | 1 | FLANGE NUT | 11526-06100 | 11526-06100-Online |
| 3 | LABEL,CAUTION | 1 | SPROCKET | 12032-07102 | 12032-07102-Online |
| 3 | LABEL,CAUTION | 1 | COLLAR | 15401-21020 | 15401-21020-Online |
| 3 | LABEL,CAUTION | 1 | SLIDE PIECE | 17110-04000 | 17110-04000-Online |
| 3 | LABEL,CAUTION | 1 | *COLLAR | 17901-06030 | 17901-06030-Online |
| 3 | LABEL,CAUTION | 1 | LABEL,CAUTION | 19402-00180 | 19402-00180-Online |
| 3 | LABEL,CAUTION | 1 | SHIM | 22000-13420 | 22000-13420-Online |
| 3 | LABEL,CAUTION | 1 | OIL PUMP ASSY | 22197-55201 | 22197-55201-Online |
| 3 | LABEL,CAUTION | 1 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 3 | LABEL,CAUTION | 1 | *GEAR CASE,LEFT | 63880-61322 | 63880-61322-Online |
| 3 | LABEL,CAUTION | 1 | GEAR CASE,RIGHT COMP | 63880-61332 | 63880-61332-Online |
| 3 | LABEL,CAUTION | 1 | *GEAR CASE,RIGHT | 63880-61342 | 63880-61342-Online |
| 3 | LABEL,CAUTION | 1 | BAR HOLDER | 63880-61350 | 63880-61350-Online |
| 3 | LABEL,CAUTION | 1 | OIL PIPE ASSY | 63880-62330 | 63880-62330-Online |
| 3 | LABEL,CAUTION | 1 | *OIL PIPE | 63880-62340 | 63880-62340-Online |
| 3 | LABEL,CAUTION | 1 | *FILTER | 63880-62350 | 63880-62350-Online |
| 3 | LABEL,CAUTION | 1 | OIL TANK ASSY | 63880-62361 | 63880-62361-Online |
| 3 | LABEL,CAUTION | 1 | *OIL TANK | 63880-62381 | 63880-62381-Online |
| 3 | LABEL,CAUTION | 1 | GEAR SHAFT | 63880-63011 | 63880-63011-Online |
| 3 | LABEL,CAUTION | 1 | BEVEL PINION | 63880-63020 | 63880-63020-Online |
| 3 | LABEL,CAUTION | 1 | *GASKET | 70030-85221 | 70030-85221-Online |
| 3 | LABEL,CAUTION | 2 | *VALVE,OIL TANK | 22115-57120 | 22115-57120-Online |
| 3 | LABEL,CAUTION | 2 | GASKET, PUMP | 63880-62320 | 63880-62320-Online |
| 3 | LABEL,CAUTION | 2 | OIL CAP ASSY | 63880-62391 | 63880-62391-Online |
| 3 | LABEL,CAUTION | 5 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 3 | LABEL,CAUTION | 609 | BALL BEARING | 02002-00609 | 02002-00609-Online |
| 3 | LABEL,CAUTION | M6 | WORM GEAR | 63880-62310 | 63880-62310-Online |

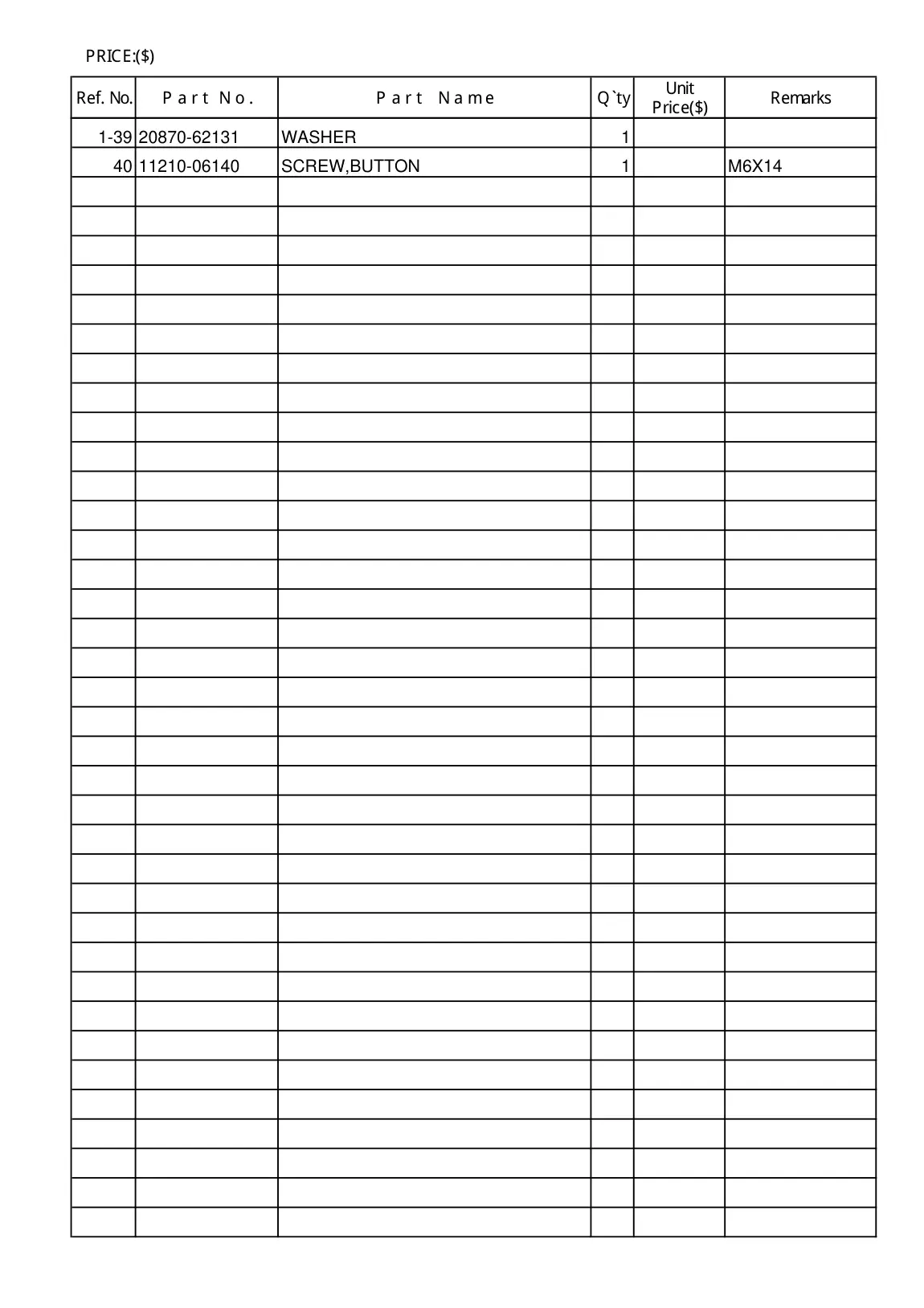

| 4 | M6X14 | WASHER | 20870-62131 | 20870-62131-Online | |
| 4 | M6X14 | 1 | SCREW,BUTTON | 11210-06140 | 11210-06140-Online |

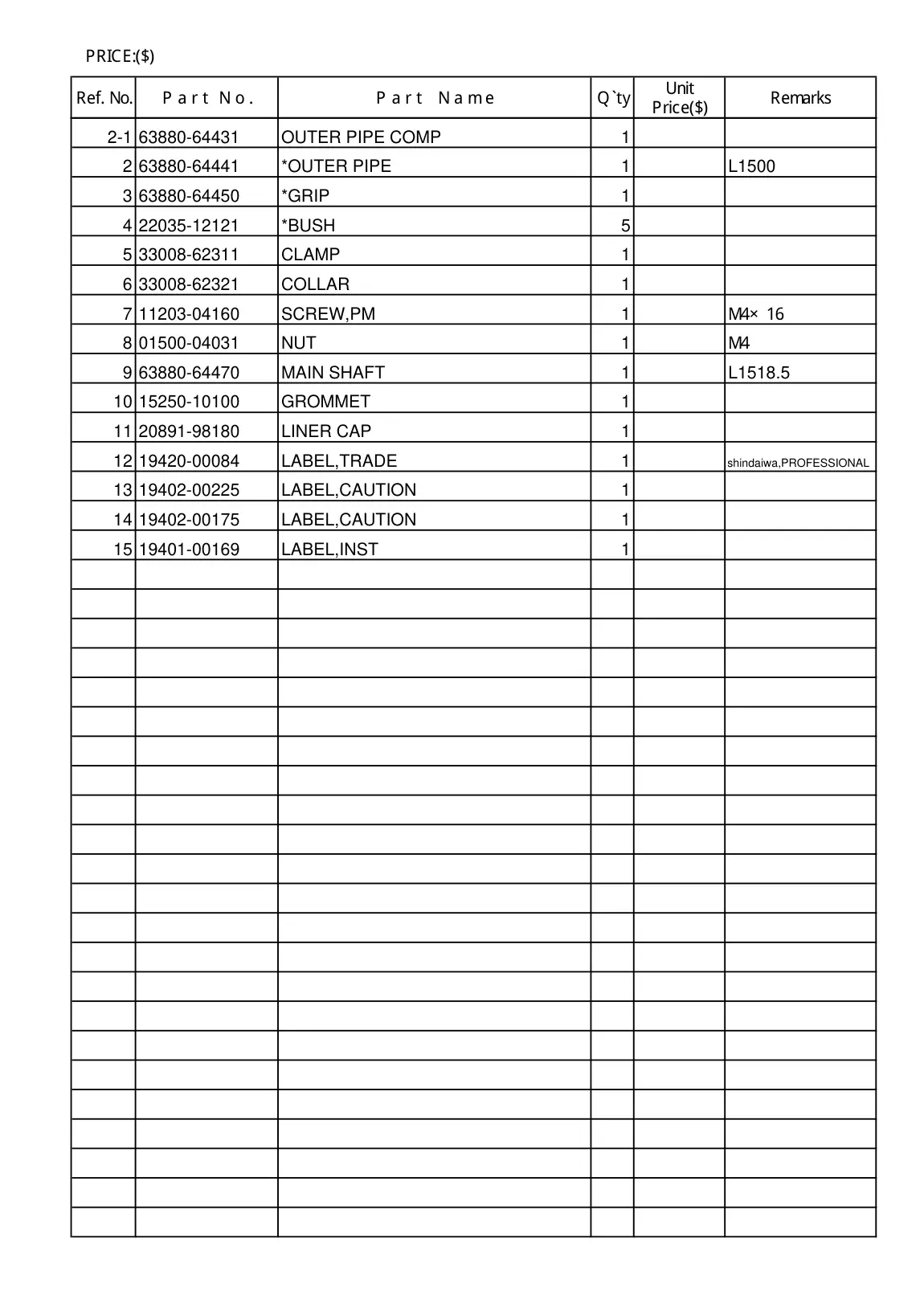

| 6 | LABEL,INST | OUTER PIPE COMP | 63880-64431 | 63880-64431-Online | |
| 6 | LABEL,INST | 1 | NUT | 01500-04031 | 01500-04031-Online |
| 6 | LABEL,INST | 1 | SCREW,PM | 11203-04160 | 11203-04160-Online |
| 6 | LABEL,INST | 1 | GROMMET | 15250-10100 | 15250-10100-Online |
| 6 | LABEL,INST | 1 | LABEL,INST | 19401-00169 | 19401-00169-Online |
| 6 | LABEL,INST | 1 | LABEL,CAUTION | 19402-00175 | 19402-00175-Online |
| 6 | LABEL,INST | 1 | LABEL,CAUTION | 19402-00225 | 19402-00225-Online |
| 6 | LABEL,INST | 1 | LABEL,TRADE | 19420-00084 | 19420-00084-Online |
| 6 | LABEL,INST | 1 | LINER CAP | 20891-98180 | 20891-98180-Online |
| 6 | LABEL,INST | 1 | *BUSH | 22035-12121 | 22035-12121-Online |
| 6 | LABEL,INST | 1 | COLLAR | 33008-62321 | 33008-62321-Online |
| 6 | LABEL,INST | 1 | *OUTER PIPE | 63880-64441 | 63880-64441-Online |
| 6 | LABEL,INST | 1 | *GRIP | L1500 | L1500-Online |
| 6 | LABEL,INST | 1 | GROMMET | L1518 | L1518-Online |
| 6 | LABEL,INST | L1500 | *GRIP | 63880-64450 | 63880-64450-Online |
| 6 | LABEL,INST | M4 | MAIN SHAFT | 63880-64470 | 63880-64470-Online |

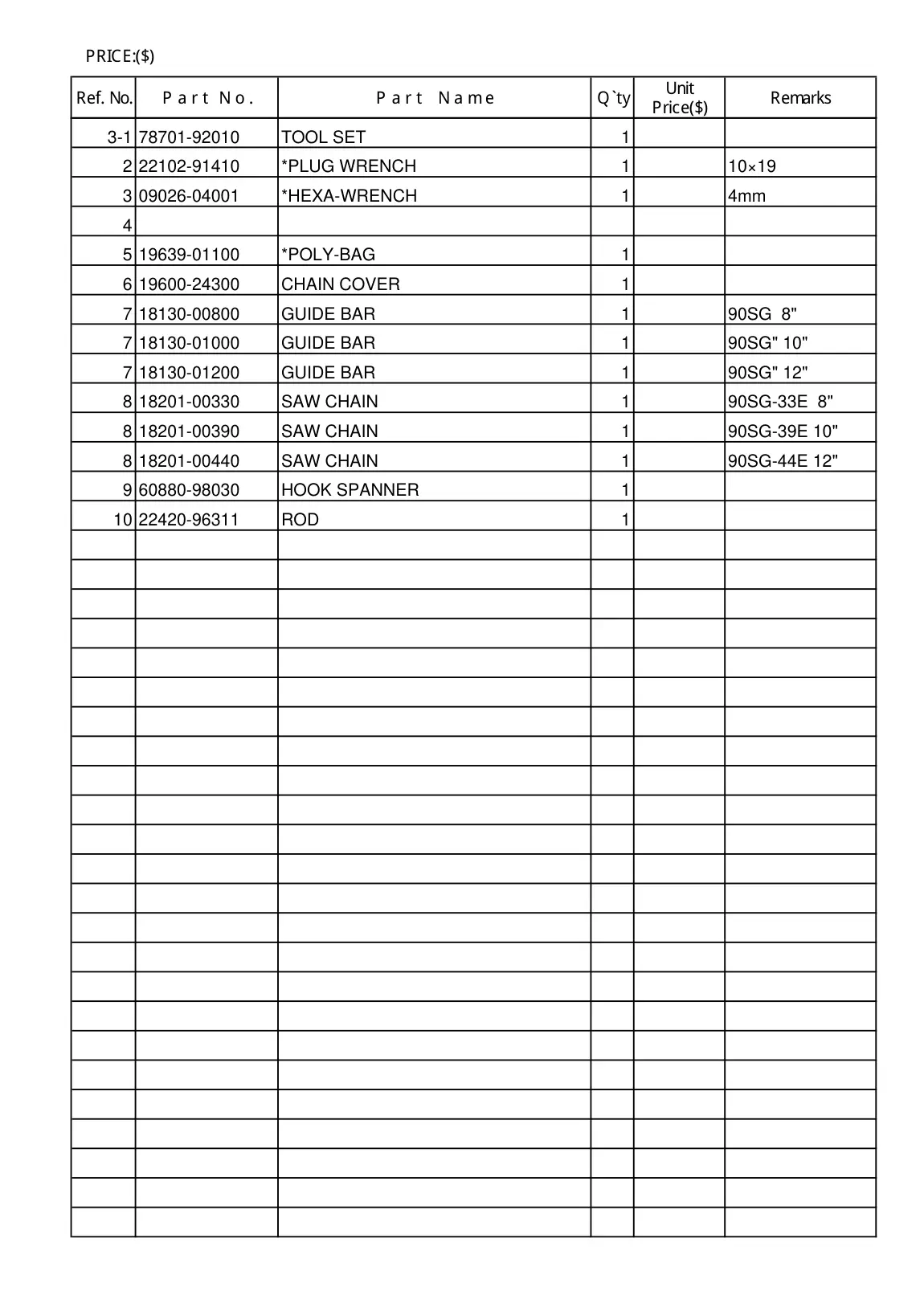

| 8 | ROD | TOOL SET | 78701-92010 | 78701-92010-Online | |
| 8 | ROD | 1 | *HEXA-WRENCH | 09026-04001 | 09026-04001-Online |
| 8 | ROD | 1 | GUIDE BAR | 18130-00800 | 18130-00800-Online |
| 8 | ROD | 1 | GUIDE BAR | 18130-01000 | 18130-01000-Online |
| 8 | ROD | 1 | GUIDE BAR | 18130-01200 | 18130-01200-Online |
| 8 | ROD | 1 | SAW CHAIN | 18201-00330 | 18201-00330-Online |
| 8 | ROD | 1 | SAW CHAIN | 18201-00390 | 18201-00390-Online |
| 8 | ROD | 1 | SAW CHAIN | 18201-00440 | 18201-00440-Online |
| 8 | ROD | 1 | CHAIN COVER | 19600-24300 | 19600-24300-Online |
| 8 | ROD | 1 | *PLUG WRENCH | 22102-91410 | 22102-91410-Online |
| 8 | ROD | 1 | ROD | 22420-96311 | 22420-96311-Online |
| 8 | ROD | 1 | HOOK SPANNER | 60880-98030 | 60880-98030-Online |
| 8 | ROD | 4 | *POLY-BAG | 19639-01100 | 19639-01100-Online |
Source file: 20111012-227_SBA-P24_EU.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
