Illustrated Parts List
Shindaiwa EB8510 EC2 EB8510 EC2 Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB8510 EC2 EB8510 EC2
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

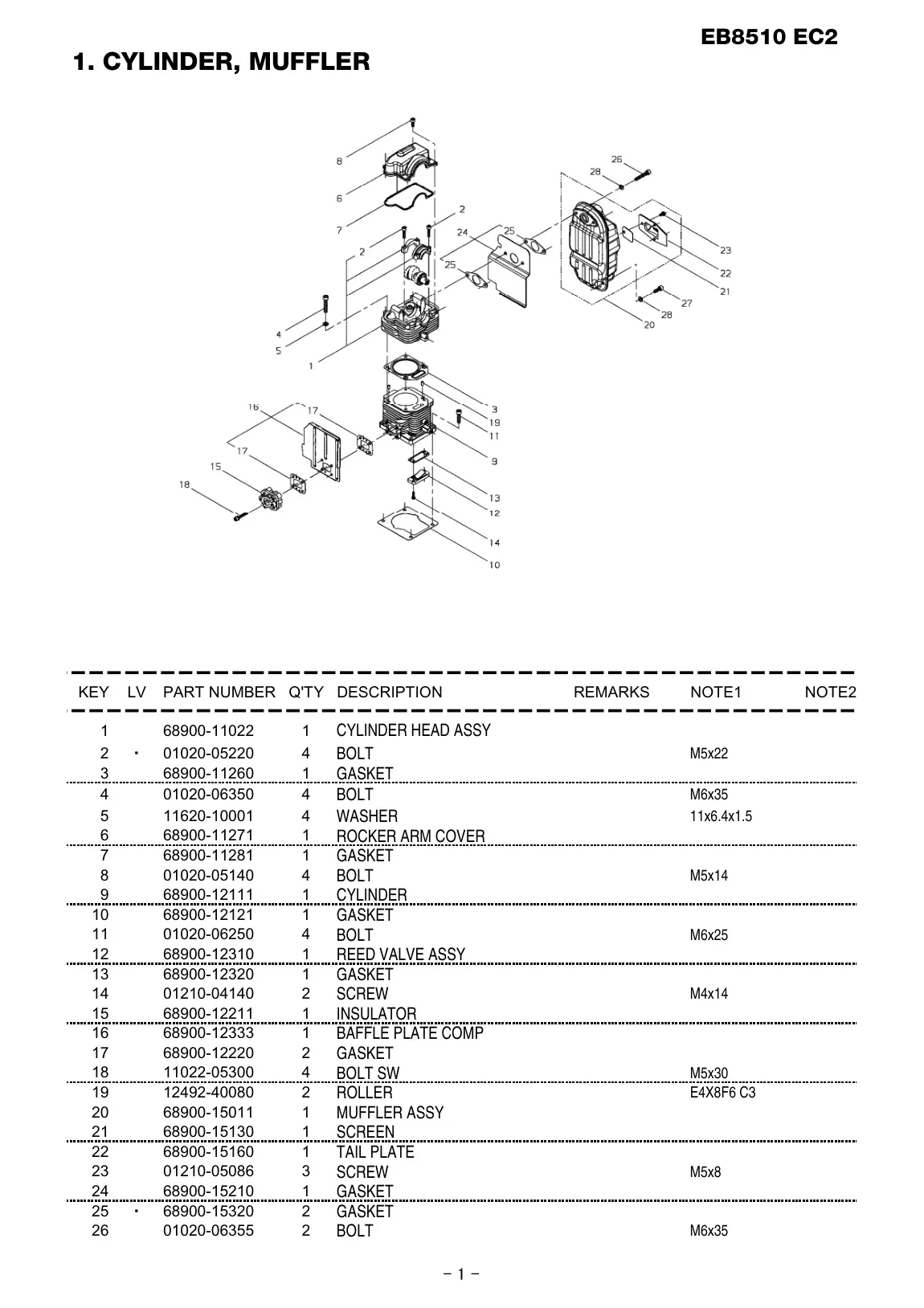

| 2 | BOLT | 1 | CYLINDER HEAD ASSY | 68900-11022 | 68900-11022-Online |
| 2 | BOLT | 10 | GASKET | 68900-12121 | 68900-12121-Online |
| 2 | BOLT | 11 | BOLT | 01020-06250 | 01020-06250-Online |
| 2 | BOLT | 12 | REED VALVE ASSY | 68900-12310 | 68900-12310-Online |
| 2 | BOLT | 13 | GASKET | 68900-12320 | 68900-12320-Online |
| 2 | BOLT | 14 | SCREW | 01210-04140 | 01210-04140-Online |
| 2 | BOLT | 15 | INSULATOR | 68900-12211 | 68900-12211-Online |
| 2 | BOLT | 16 | BAFFLE PLATE COMP | 68900-12333 | 68900-12333-Online |
| 2 | BOLT | 17 | GASKET | 68900-12220 | 68900-12220-Online |
| 2 | BOLT | 18 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 2 | BOLT | 19 | ROLLER | 12492-40080 | 12492-40080-Online |
| 2 | BOLT | 2 | BOLT | 01020-05220 | 01020-05220-Online |
| 2 | BOLT | 20 | MUFFLER ASSY | 68900-15011 | 68900-15011-Online |
| 2 | BOLT | 21 | SCREEN | 68900-15130 | 68900-15130-Online |
| 2 | BOLT | 22 | TAIL PLATE | 68900-15160 | 68900-15160-Online |
| 2 | BOLT | 23 | SCREW | 01210-05086 | 01210-05086-Online |
| 2 | BOLT | 24 | GASKET | 68900-15210 | 68900-15210-Online |
| 2 | BOLT | 25 | GASKET | 68900-15320 | 68900-15320-Online |
| 2 | BOLT | 26 | BOLT | 01020-06355 | 01020-06355-Online |
| 2 | BOLT | 3 | GASKET | 68900-11260 | 68900-11260-Online |
| 2 | BOLT | 4 | BOLT | 01020-06350 | 01020-06350-Online |
| 2 | BOLT | 5 | WASHER | 11620-10001 | 11620-10001-Online |
| 2 | BOLT | 6 | ROCKER ARM COVER | 68900-11271 | 68900-11271-Online |
| 2 | BOLT | 7 | GASKET | 68900-11281 | 68900-11281-Online |
| 2 | BOLT | 8 | BOLT | 01020-05140 | 01020-05140-Online |
| 2 | BOLT | 9 | CYLINDER | 68900-12111 | 68900-12111-Online |
| 3 | WASHER | 27 | BOLT | 01020-06160 | 01020-06160-Online |
| 3 | WASHER | 28 | WASHER | 01610-06080 | 01610-06080-Online |

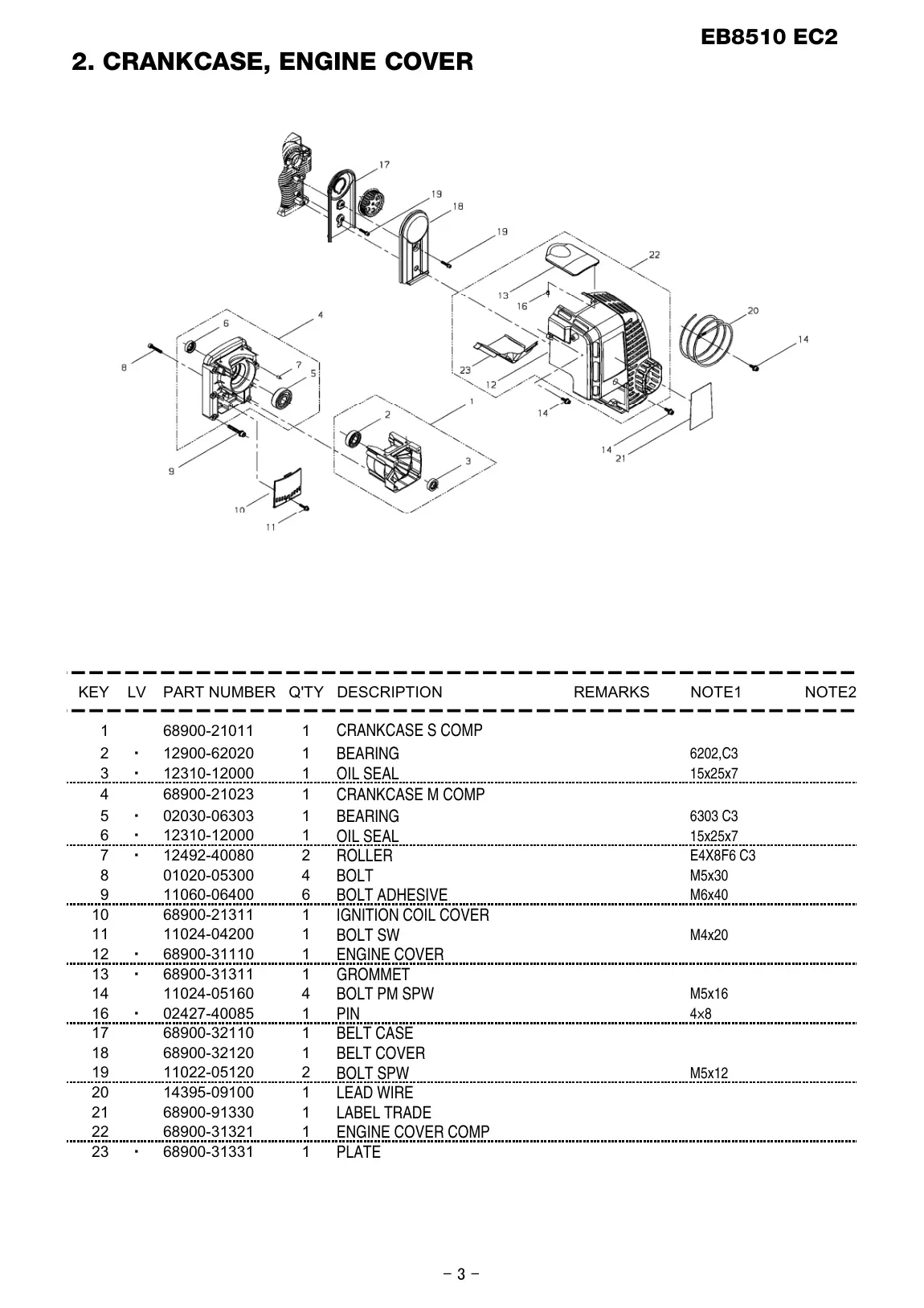

| 4 | PLATE | 1 | CRANKCASE S COMP | 68900-21011 | 68900-21011-Online |
| 4 | PLATE | 10 | IGNITION COIL COVER | 68900-21311 | 68900-21311-Online |
| 4 | PLATE | 11 | BOLT SW | 11024-04200 | 11024-04200-Online |
| 4 | PLATE | 12 | ENGINE COVER | 68900-31110 | 68900-31110-Online |
| 4 | PLATE | 13 | GROMMET | 68900-31311 | 68900-31311-Online |
| 4 | PLATE | 14 | BOLT PM SPW | 11024-05160 | 11024-05160-Online |
| 4 | PLATE | 16 | PIN | 02427-40085 | 02427-40085-Online |
| 4 | PLATE | 17 | BELT CASE | 68900-32110 | 68900-32110-Online |
| 4 | PLATE | 18 | BELT COVER | 68900-32120 | 68900-32120-Online |
| 4 | PLATE | 19 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 4 | PLATE | 2 | BEARING | 12900-62020 | 12900-62020-Online |
| 4 | PLATE | 20 | LEAD WIRE | 14395-09100 | 14395-09100-Online |
| 4 | PLATE | 21 | LABEL TRADE | 68900-91330 | 68900-91330-Online |
| 4 | PLATE | 22 | ENGINE COVER COMP | 68900-31321 | 68900-31321-Online |
| 4 | PLATE | 23 | PLATE | 68900-31331 | 68900-31331-Online |
| 4 | PLATE | 3 | OIL SEAL | 12310-12000 | 12310-12000-Online |
| 4 | PLATE | 4 | CRANKCASE M COMP | 68900-21023 | 68900-21023-Online |
| 4 | PLATE | 5 | BEARING | 02030-06303 | 02030-06303-Online |
| 4 | PLATE | 6 | OIL SEAL | 12310-12000 | 12310-12000-Online |
| 4 | PLATE | 7 | ROLLER | 12492-40080 | 12492-40080-Online |
| 4 | PLATE | 8 | BOLT | 01020-05300 | 01020-05300-Online |
| 4 | PLATE | 9 | BOLT ADHESIVE | 11060-06400 | 11060-06400-Online |

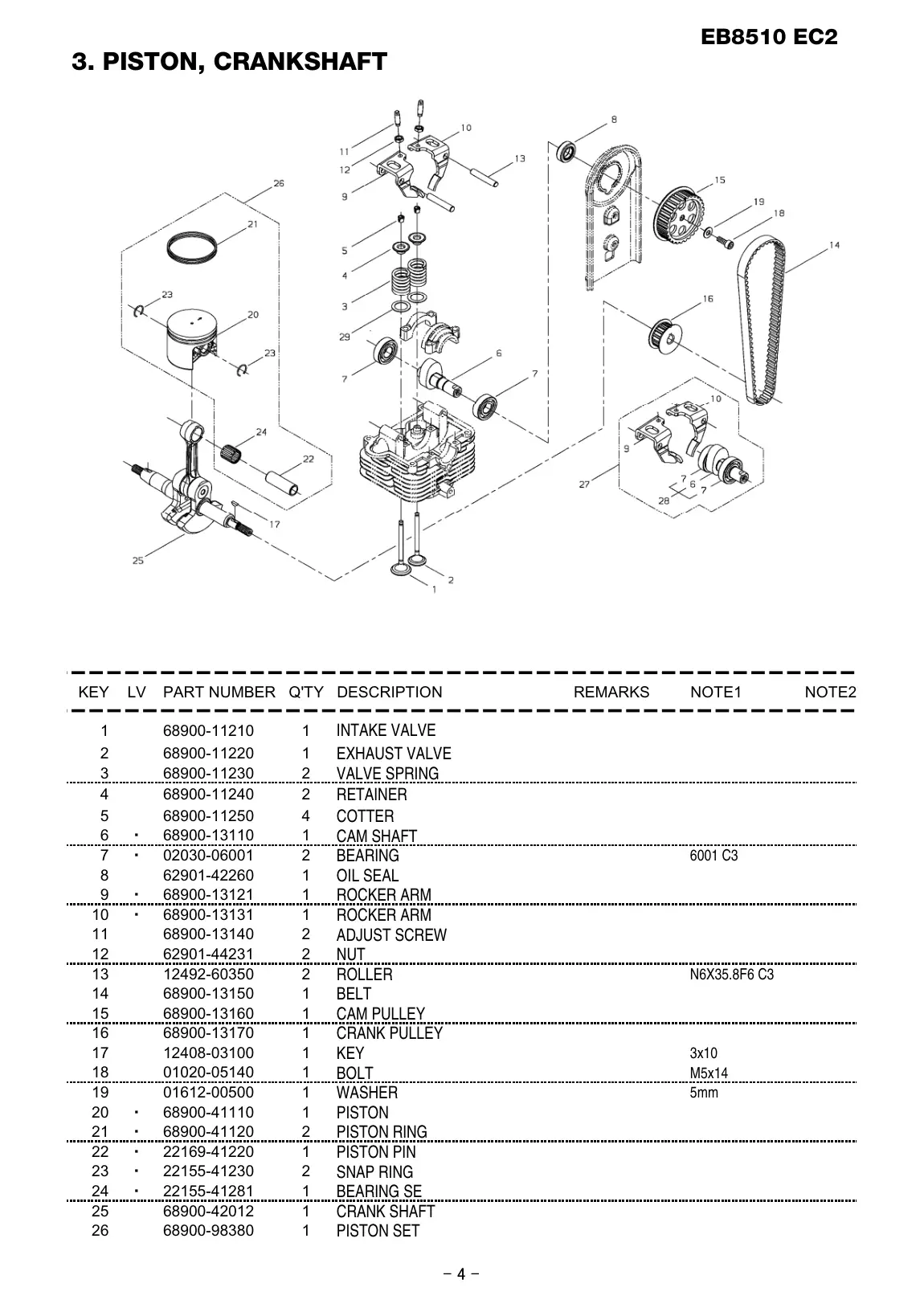

| 5 | PISTON SET | 1 | INTAKE VALVE | 68900-11210 | 68900-11210-Online |
| 5 | PISTON SET | 10 | ROCKER ARM | 68900-13131 | 68900-13131-Online |
| 5 | PISTON SET | 11 | ADJUST SCREW | 68900-13140 | 68900-13140-Online |
| 5 | PISTON SET | 12 | NUT | 62901-44231 | 62901-44231-Online |
| 5 | PISTON SET | 13 | ROLLER | 12492-60350 | 12492-60350-Online |
| 5 | PISTON SET | 15 | CAM PULLEY | 68900-13160 | 68900-13160-Online |
| 5 | PISTON SET | 16 | CRANK PULLEY | 68900-13170 | 68900-13170-Online |
| 5 | PISTON SET | 17 | KEY | 12408-03100 | 12408-03100-Online |
| 5 | PISTON SET | 18 | BOLT | 01020-05140 | 01020-05140-Online |
| 5 | PISTON SET | 19 | WASHER | 01612-00500 | 01612-00500-Online |
| 5 | PISTON SET | 2 | EXHAUST VALVE | 68900-11220 | 68900-11220-Online |
| 5 | PISTON SET | 20 | PISTON | 68900-41110 | 68900-41110-Online |
| 5 | PISTON SET | 21 | PISTON RING | 68900-41120 | 68900-41120-Online |
| 5 | PISTON SET | 22 | PISTON PIN | 22169-41220 | 22169-41220-Online |
| 5 | PISTON SET | 23 | SNAP RING | 22155-41230 | 22155-41230-Online |
| 5 | PISTON SET | 24 | BEARING SE | 22155-41281 | 22155-41281-Online |
| 5 | PISTON SET | 25 | CRANK SHAFT | 68900-42012 | 68900-42012-Online |
| 5 | PISTON SET | 26 | PISTON SET | 68900-98380 | 68900-98380-Online |
| 5 | PISTON SET | 3 | VALVE SPRING | 68900-11230 | 68900-11230-Online |
| 5 | PISTON SET | 4 | RETAINER | 68900-11240 | 68900-11240-Online |
| 5 | PISTON SET | 5 | COTTER | 68900-11250 | 68900-11250-Online |
| 5 | PISTON SET | 6 | CAM SHAFT | 68900-13110 | 68900-13110-Online |
| 5 | PISTON SET | 7 | BEARING | 02030-06001 | 02030-06001-Online |
| 5 | PISTON SET | 8 | OIL SEAL | 62901-42260 | 62901-42260-Online |
| 5 | PISTON SET | 9 | ROCKER ARM | 68900-13121 | 68900-13121-Online |

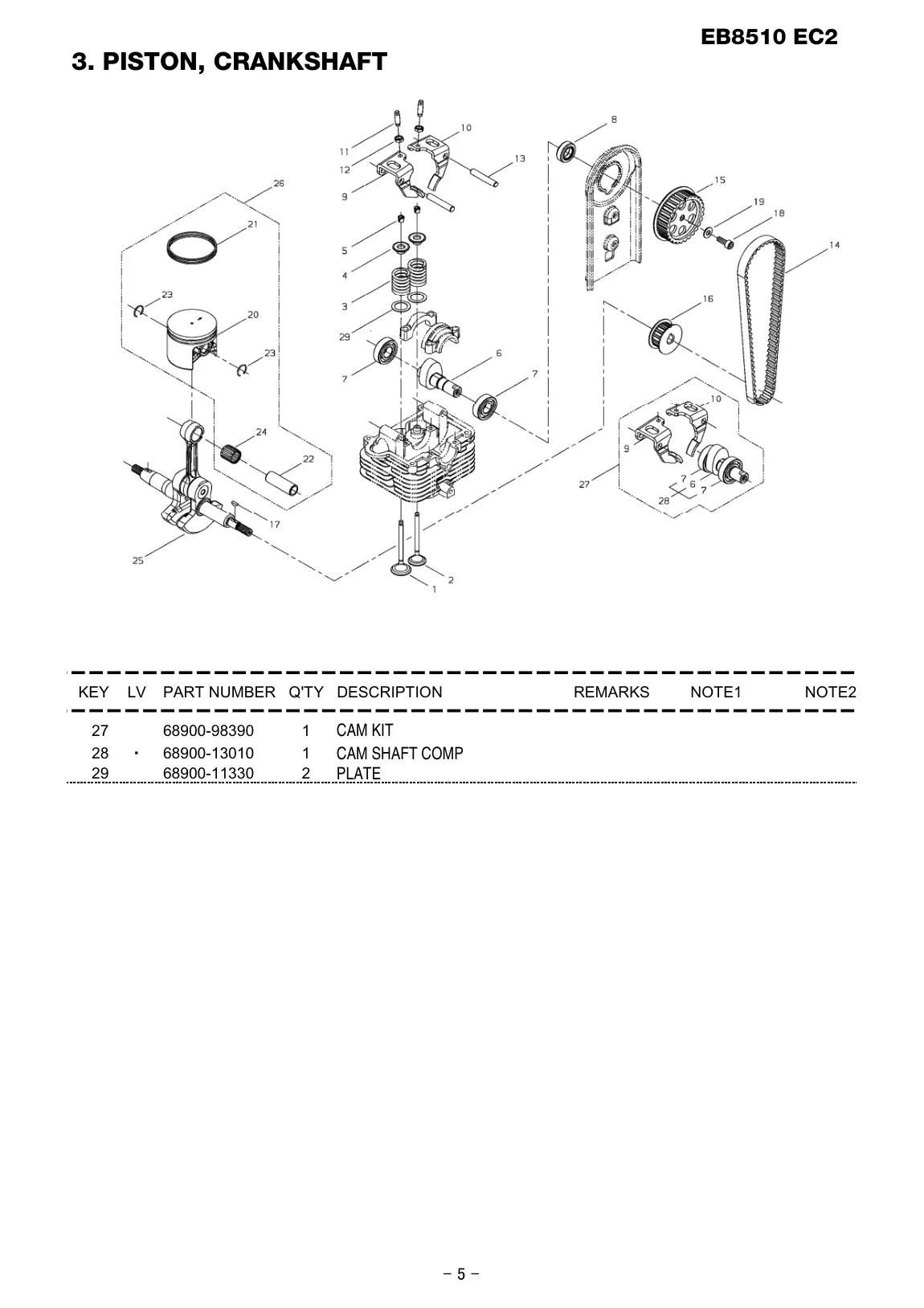

| 6 | PLATE | 27 | CAM KIT | 68900-98390 | 68900-98390-Online |
| 6 | PLATE | 28 | CAM SHAFT COMP | 68900-13010 | 68900-13010-Online |
| 6 | PLATE | 29 | PLATE | 68900-11330 | 68900-11330-Online |

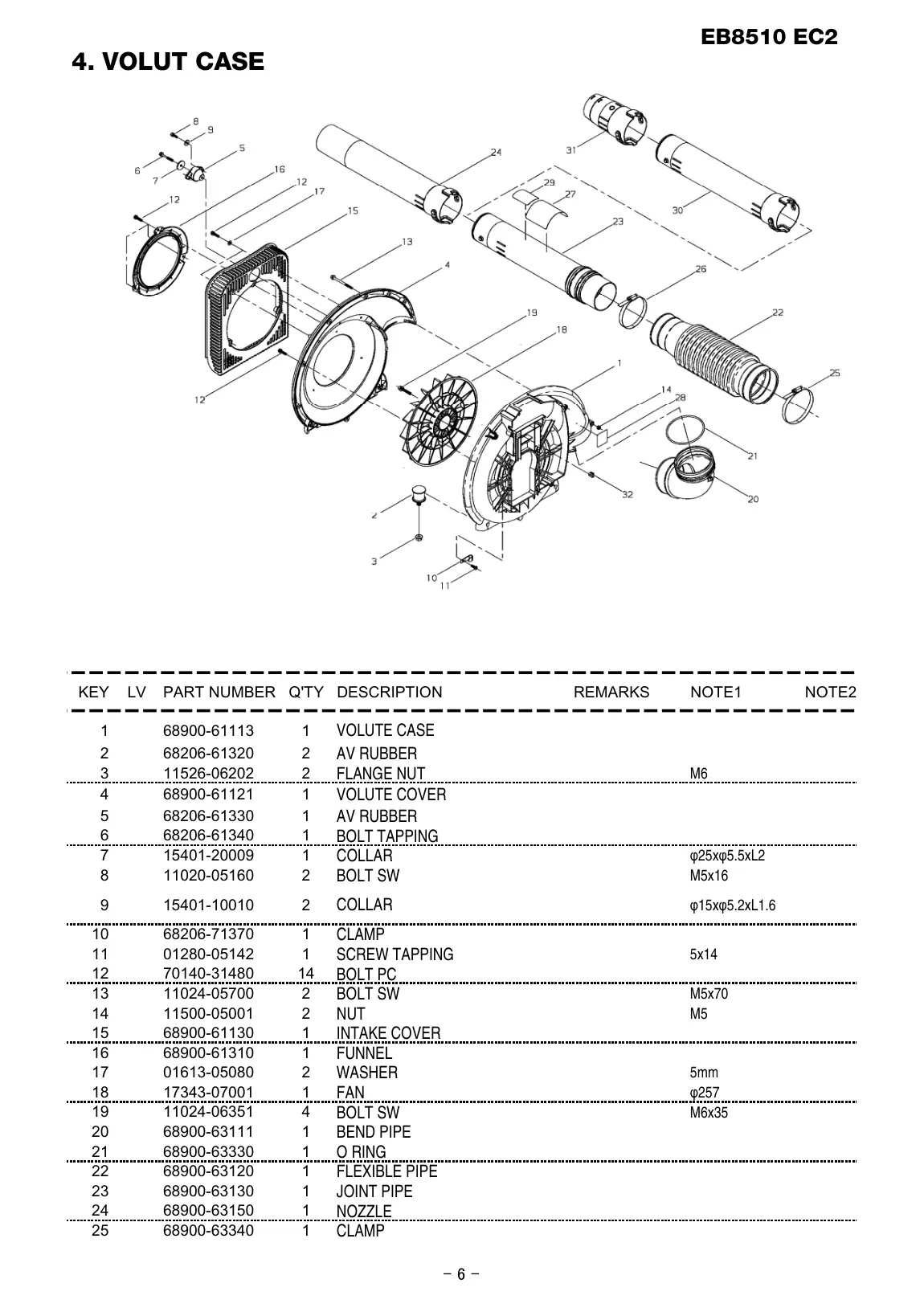

| 7 | CLAMP | 1 | VOLUTE CASE | 68900-61113 | 68900-61113-Online |
| 7 | CLAMP | 11 | SCREW TAPPING | 01280-05142 | 01280-05142-Online |
| 7 | CLAMP | 12 | BOLT PC | 70140-31480 | 70140-31480-Online |
| 7 | CLAMP | 13 | BOLT SW | 11024-05700 | 11024-05700-Online |
| 7 | CLAMP | 14 | NUT | 11500-05001 | 11500-05001-Online |
| 7 | CLAMP | 15 | INTAKE COVER | 68900-61130 | 68900-61130-Online |
| 7 | CLAMP | 16 | FUNNEL | 68900-61310 | 68900-61310-Online |
| 7 | CLAMP | 17 | WASHER | 01613-05080 | 01613-05080-Online |
| 7 | CLAMP | 18 | FAN | 17343-07001 | 17343-07001-Online |
| 7 | CLAMP | 19 | BOLT SW | 11024-06351 | 11024-06351-Online |
| 7 | CLAMP | 2 | AV RUBBER | 68206-61320 | 68206-61320-Online |
| 7 | CLAMP | 20 | BEND PIPE | 68900-63111 | 68900-63111-Online |
| 7 | CLAMP | 21 | O RING | 68900-63330 | 68900-63330-Online |
| 7 | CLAMP | 22 | FLEXIBLE PIPE | 68900-63120 | 68900-63120-Online |
| 7 | CLAMP | 23 | JOINT PIPE | 68900-63130 | 68900-63130-Online |
| 7 | CLAMP | 24 | NOZZLE | 68900-63150 | 68900-63150-Online |
| 7 | CLAMP | 3 | FLANGE NUT | 11526-06202 | 11526-06202-Online |
| 7 | CLAMP | 4 | VOLUTE COVER | 68900-61121 | 68900-61121-Online |
| 7 | CLAMP | 5 | AV RUBBER | 68206-61330 | 68206-61330-Online |
| 7 | CLAMP | 6 | BOLT TAPPING | 68206-61340 | 68206-61340-Online |
| 7 | CLAMP | 7 | COLLAR | 15401-20009 | 15401-20009-Online |
| 7 | CLAMP | 8 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 7 | CLAMP | 9 | COLLAR | 15401-10010 | 15401-10010-Online |

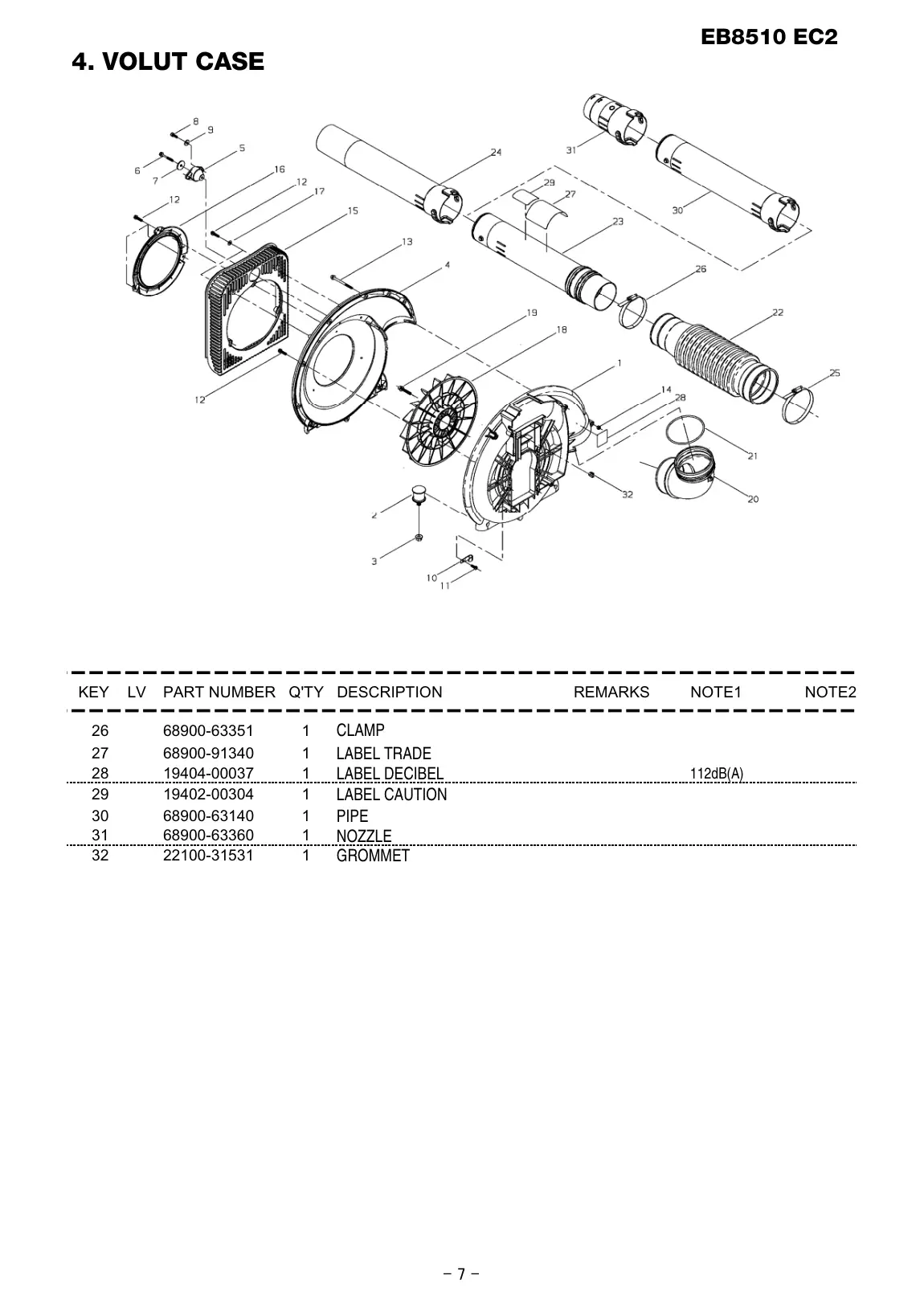

| 8 | GROMMET | 27 | LABEL TRADE | 68900-91340 | 68900-91340-Online |
| 8 | GROMMET | 28 | LABEL DECIBEL | 19404-00037 | 19404-00037-Online |
| 8 | GROMMET | 29 | LABEL CAUTION | 19402-00304 | 19402-00304-Online |
| 8 | GROMMET | 30 | PIPE | 68900-63140 | 68900-63140-Online |
| 8 | GROMMET | 31 | NOZZLE | 68900-63360 | 68900-63360-Online |
| 8 | GROMMET | 32 | GROMMET | 22100-31531 | 22100-31531-Online |

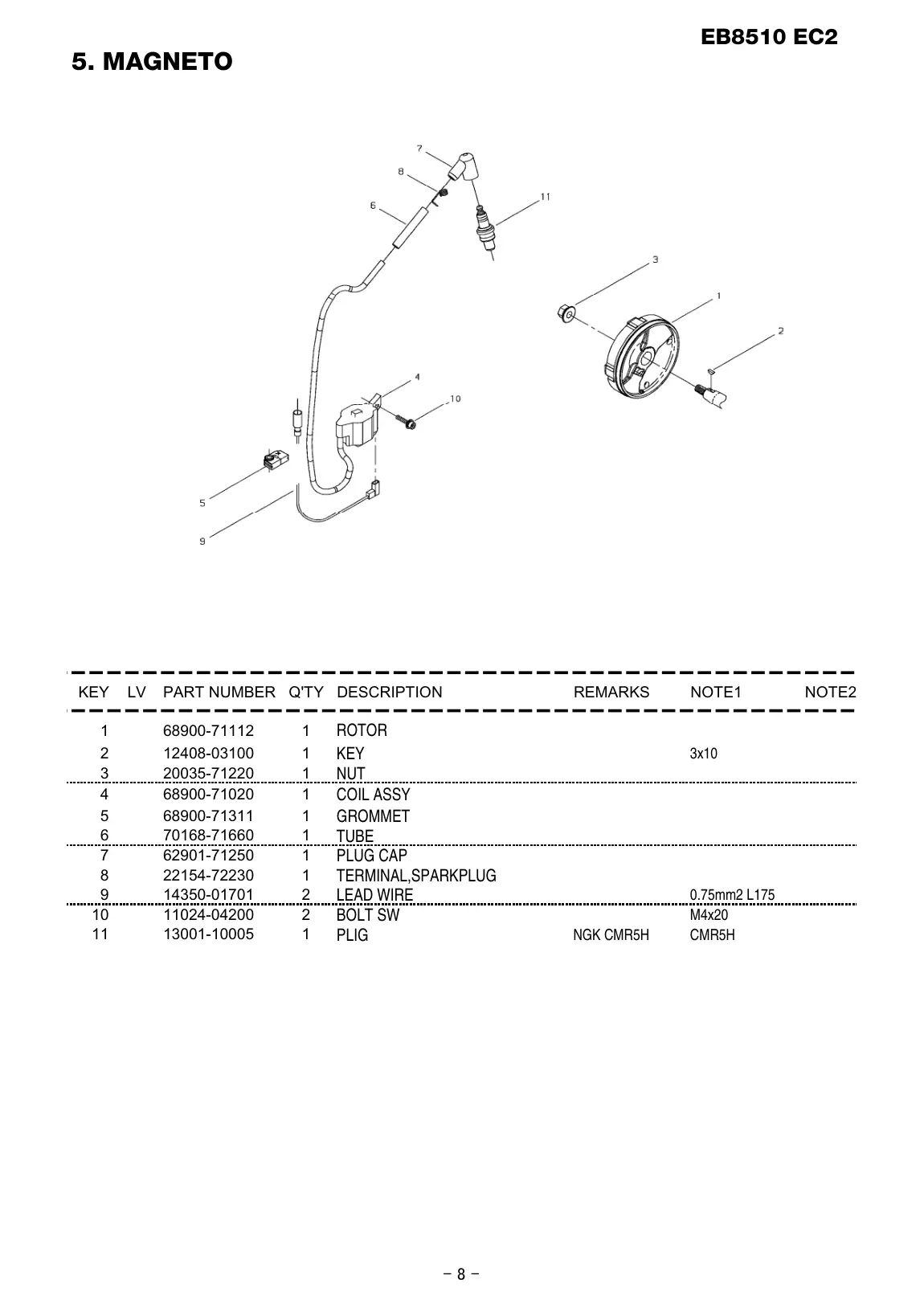

| 9 | CMR5H | 10 | BOLT SW | 11024-04200 | 11024-04200-Online |
| 9 | CMR5H | 2 | KEY | 12408-03100 | 12408-03100-Online |
| 9 | CMR5H | 3 | NUT | 20035-71220 | 20035-71220-Online |
| 9 | CMR5H | 4 | COIL ASSY | 68900-71020 | 68900-71020-Online |
| 9 | CMR5H | 5 | GROMMET | 68900-71311 | 68900-71311-Online |
| 9 | CMR5H | 6 | TUBE | 70168-71660 | 70168-71660-Online |
| 9 | CMR5H | 7 | PLUG CAP | 62901-71250 | 62901-71250-Online |
| 9 | CMR5H | 8 | TERMINAL,SPARKPLUG | 22154-72230 | 22154-72230-Online |
| 9 | CMR5H | 9 | LEAD WIRE | 14350-01701 | 14350-01701-Online |

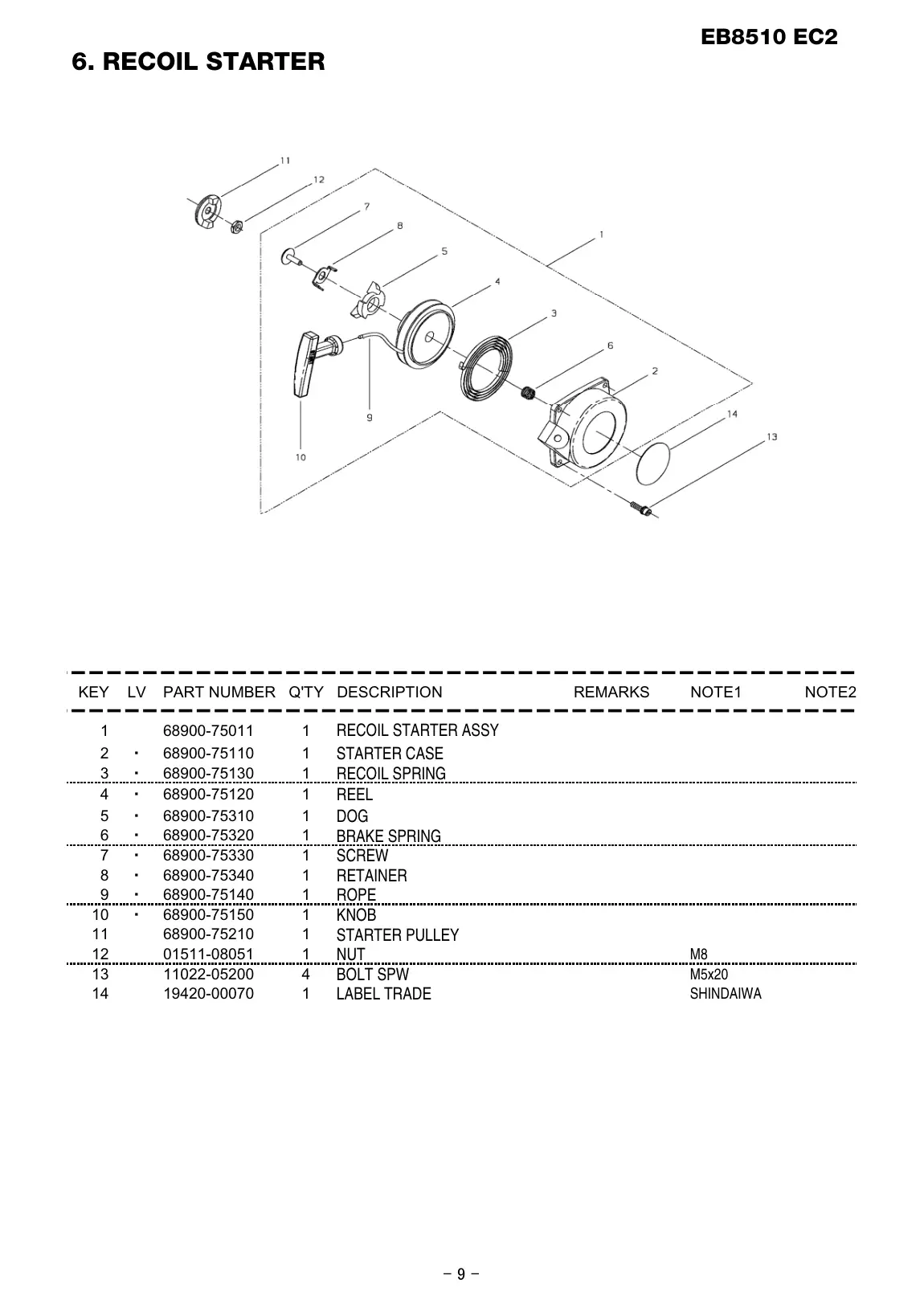

| 10 | LABEL TRADE | 1 | RECOIL STARTER ASSY | 68900-75011 | 68900-75011-Online |
| 10 | LABEL TRADE | 10 | KNOB | 68900-75150 | 68900-75150-Online |
| 10 | LABEL TRADE | 11 | STARTER PULLEY | 68900-75210 | 68900-75210-Online |
| 10 | LABEL TRADE | 12 | NUT | 01511-08051 | 01511-08051-Online |
| 10 | LABEL TRADE | 13 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 10 | LABEL TRADE | 14 | LABEL TRADE | 19420-00070 | 19420-00070-Online |
| 10 | LABEL TRADE | 2 | STARTER CASE | 68900-75110 | 68900-75110-Online |
| 10 | LABEL TRADE | 3 | RECOIL SPRING | 68900-75130 | 68900-75130-Online |
| 10 | LABEL TRADE | 4 | REEL | 68900-75120 | 68900-75120-Online |
| 10 | LABEL TRADE | 6 | BRAKE SPRING | 68900-75320 | 68900-75320-Online |
| 10 | LABEL TRADE | 7 | SCREW | 68900-75330 | 68900-75330-Online |
| 10 | LABEL TRADE | 8 | RETAINER | 68900-75340 | 68900-75340-Online |
| 10 | LABEL TRADE | 9 | ROPE | 68900-75140 | 68900-75140-Online |

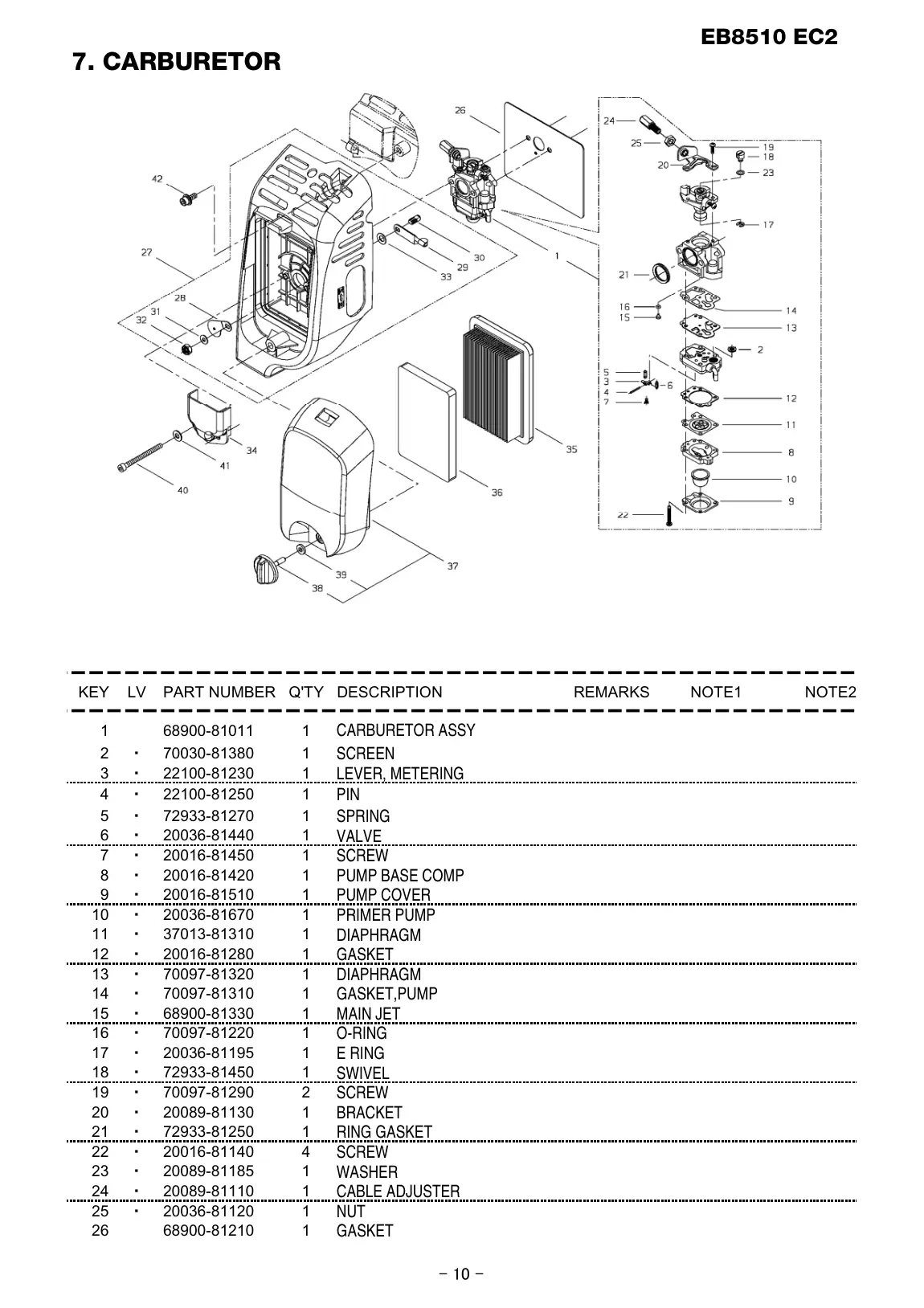

| 11 | GASKET | 1 | CARBURETOR ASSY | 68900-81011 | 68900-81011-Online |
| 11 | GASKET | 10 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 11 | GASKET | 11 | DIAPHRAGM | 37013-81310 | 37013-81310-Online |
| 11 | GASKET | 12 | GASKET | 20016-81280 | 20016-81280-Online |
| 11 | GASKET | 13 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 11 | GASKET | 14 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 11 | GASKET | 15 | MAIN JET | 68900-81330 | 68900-81330-Online |
| 11 | GASKET | 16 | O-RING | 70097-81220 | 70097-81220-Online |
| 11 | GASKET | 17 | E RING | 20036-81195 | 20036-81195-Online |
| 11 | GASKET | 18 | SWIVEL | 72933-81450 | 72933-81450-Online |
| 11 | GASKET | 19 | SCREW | 70097-81290 | 70097-81290-Online |
| 11 | GASKET | 2 | SCREEN | 70030-81380 | 70030-81380-Online |
| 11 | GASKET | 20 | BRACKET | 20089-81130 | 20089-81130-Online |
| 11 | GASKET | 21 | RING GASKET | 72933-81250 | 72933-81250-Online |
| 11 | GASKET | 22 | SCREW | 20016-81140 | 20016-81140-Online |
| 11 | GASKET | 23 | WASHER | 20089-81185 | 20089-81185-Online |
| 11 | GASKET | 24 | CABLE ADJUSTER | 20089-81110 | 20089-81110-Online |
| 11 | GASKET | 25 | NUT | 20036-81120 | 20036-81120-Online |
| 11 | GASKET | 26 | GASKET | 68900-81210 | 68900-81210-Online |
| 11 | GASKET | 3 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 11 | GASKET | 4 | PIN | 22100-81250 | 22100-81250-Online |
| 11 | GASKET | 5 | SPRING | 72933-81270 | 72933-81270-Online |
| 11 | GASKET | 6 | VALVE | 20036-81440 | 20036-81440-Online |
| 11 | GASKET | 7 | SCREW | 20016-81450 | 20016-81450-Online |
| 11 | GASKET | 8 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 11 | GASKET | 9 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 12 | BOLT PM SPW | 27 | CLEANER BODY ASSY | 68900-82011 | 68900-82011-Online |
| 12 | BOLT PM SPW | 28 | CHOKE PLATE | 20018-81711 | 20018-81711-Online |
| 12 | BOLT PM SPW | 29 | CHOKE LEVER | 20870-82120 | 20870-82120-Online |
| 12 | BOLT PM SPW | 30 | CHOKE SHAFT | 20110-82140 | 20110-82140-Online |
| 12 | BOLT PM SPW | 31 | SPRING WASHER | 01600-06151 | 01600-06151-Online |
| 12 | BOLT PM SPW | 32 | U NUT | 11524-06211 | 11524-06211-Online |
| 12 | BOLT PM SPW | 33 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 12 | BOLT PM SPW | 34 | PLATE | 68900-82311 | 68900-82311-Online |
| 12 | BOLT PM SPW | 35 | FILTER | 68900-82120 | 68900-82120-Online |
| 12 | BOLT PM SPW | 36 | PRIFILTER | 68900-82320 | 68900-82320-Online |
| 12 | BOLT PM SPW | 37 | CLEANER COVER ASSY | 68900-82030 | 68900-82030-Online |
| 12 | BOLT PM SPW | 38 | KNOB,CLEANER LID | 22182-31220 | 22182-31220-Online |
| 12 | BOLT PM SPW | 39 | COLLAR | 23627-21220 | 23627-21220-Online |
| 12 | BOLT PM SPW | 40 | BOLT | 01020-05650 | 01020-05650-Online |
| 12 | BOLT PM SPW | 41 | WASHER | 01612-00500 | 01612-00500-Online |
| 12 | BOLT PM SPW | 42 | BOLT PM SPW | 11024-05160 | 11024-05160-Online |

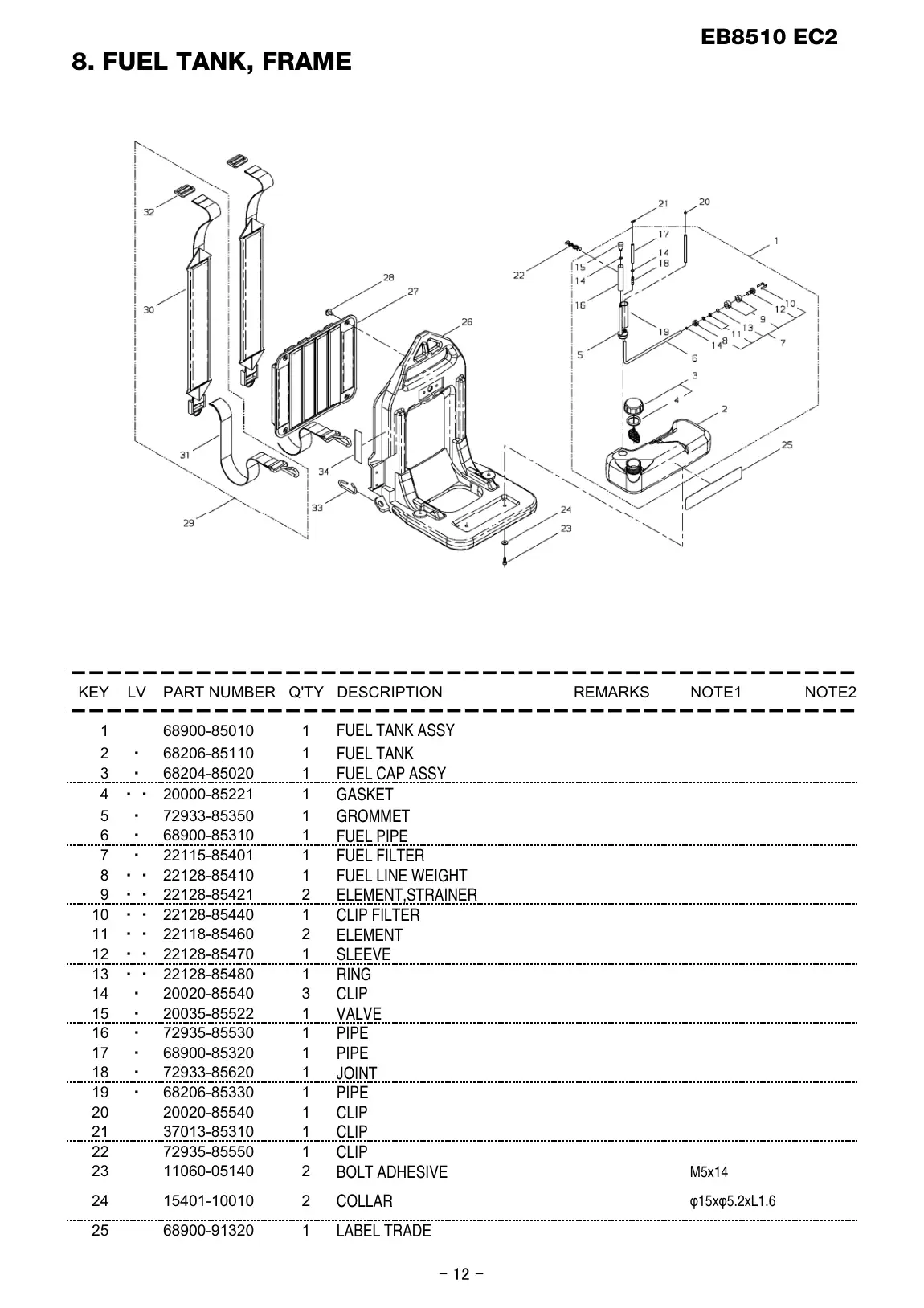

| 13 | LABEL TRADE | 1 | GASKET | 20000-85221 | 20000-85221-Online |
| 13 | LABEL TRADE | 1 | ELEMENT | 22118-85460 | 22118-85460-Online |
| 13 | LABEL TRADE | 1 | FUEL LINE WEIGHT | 22128-85410 | 22128-85410-Online |
| 13 | LABEL TRADE | 1 | ELEMENT,STRAINER | 22128-85421 | 22128-85421-Online |
| 13 | LABEL TRADE | 1 | RING | 22128-85480 | 22128-85480-Online |
| 13 | LABEL TRADE | 1 | FUEL TANK ASSY | 68900-85010 | 68900-85010-Online |
| 13 | LABEL TRADE | 14 | CLIP | 20020-85540 | 20020-85540-Online |
| 13 | LABEL TRADE | 15 | VALVE | 20035-85522 | 20035-85522-Online |
| 13 | LABEL TRADE | 16 | PIPE | 72935-85530 | 72935-85530-Online |
| 13 | LABEL TRADE | 17 | PIPE | 68900-85320 | 68900-85320-Online |
| 13 | LABEL TRADE | 18 | JOINT | 72933-85620 | 72933-85620-Online |
| 13 | LABEL TRADE | 19 | PIPE | 68206-85330 | 68206-85330-Online |
| 13 | LABEL TRADE | 2 | CLIP FILTER | 22128-85440 | 22128-85440-Online |
| 13 | LABEL TRADE | 2 | SLEEVE | 22128-85470 | 22128-85470-Online |
| 13 | LABEL TRADE | 2 | FUEL TANK | 68206-85110 | 68206-85110-Online |
| 13 | LABEL TRADE | 20 | CLIP | 20020-85540 | 20020-85540-Online |
| 13 | LABEL TRADE | 21 | CLIP | 37013-85310 | 37013-85310-Online |
| 13 | LABEL TRADE | 22 | CLIP | 72935-85550 | 72935-85550-Online |
| 13 | LABEL TRADE | 23 | BOLT ADHESIVE | 11060-05140 | 11060-05140-Online |
| 13 | LABEL TRADE | 24 | COLLAR | 15401-10010 | 15401-10010-Online |
| 13 | LABEL TRADE | 25 | LABEL TRADE | 68900-91320 | 68900-91320-Online |
| 13 | LABEL TRADE | 3 | FUEL CAP ASSY | 68204-85020 | 68204-85020-Online |
| 13 | LABEL TRADE | 5 | GROMMET | 72933-85350 | 72933-85350-Online |
| 13 | LABEL TRADE | 6 | FUEL PIPE | 68900-85310 | 68900-85310-Online |
| 13 | LABEL TRADE | 7 | FUEL FILTER | 22115-85401 | 22115-85401-Online |

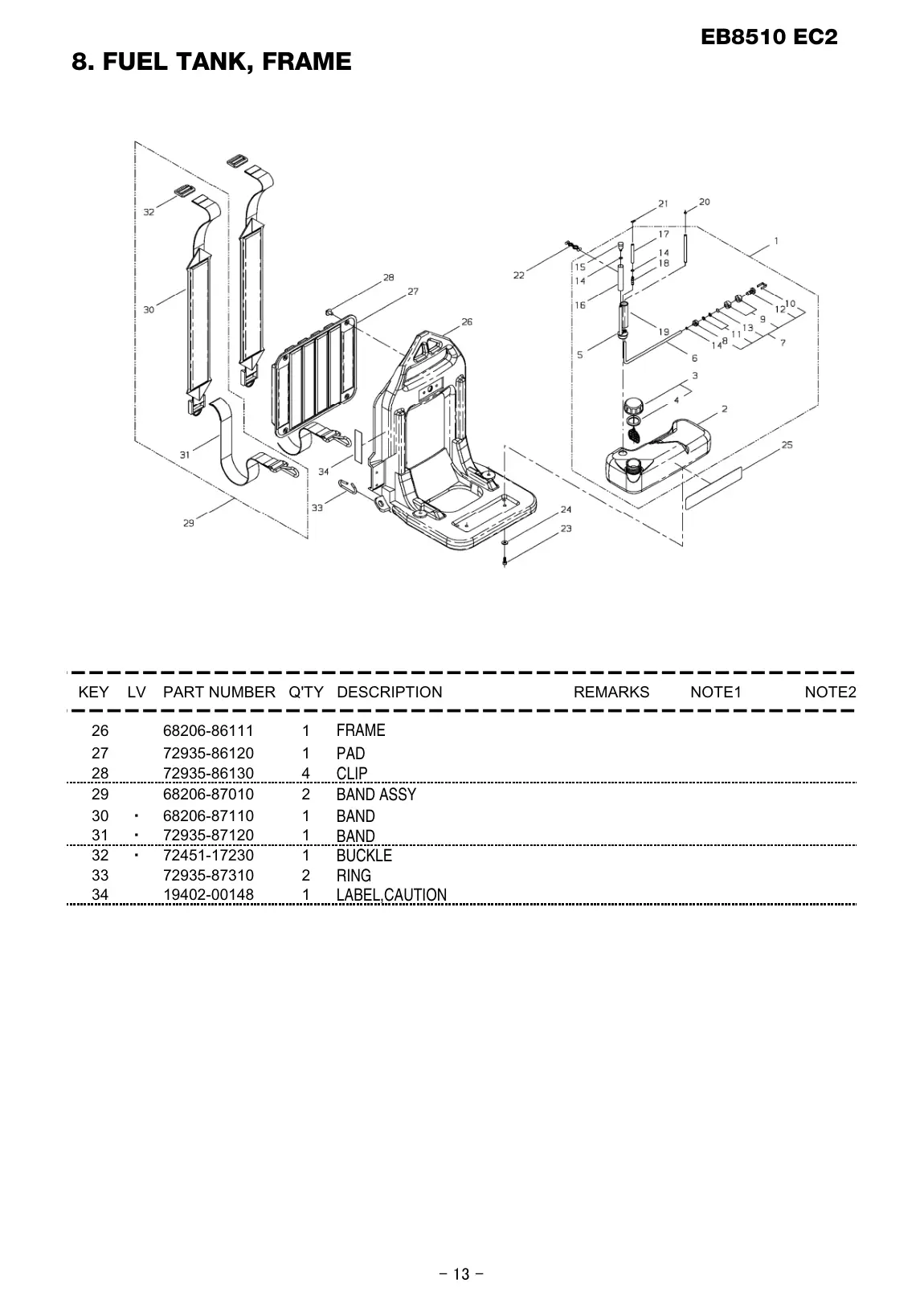

| 14 | LABEL,CAUTION | 28 | CLIP | 72935-86130 | 72935-86130-Online |
| 14 | LABEL,CAUTION | 29 | BAND ASSY | 68206-87010 | 68206-87010-Online |
| 14 | LABEL,CAUTION | 30 | BAND | 68206-87110 | 68206-87110-Online |
| 14 | LABEL,CAUTION | 31 | BAND | 72935-87120 | 72935-87120-Online |
| 14 | LABEL,CAUTION | 32 | BUCKLE | 72451-17230 | 72451-17230-Online |
| 14 | LABEL,CAUTION | 33 | RING | 72935-87310 | 72935-87310-Online |
| 14 | LABEL,CAUTION | 34 | LABEL,CAUTION | 19402-00148 | 19402-00148-Online |

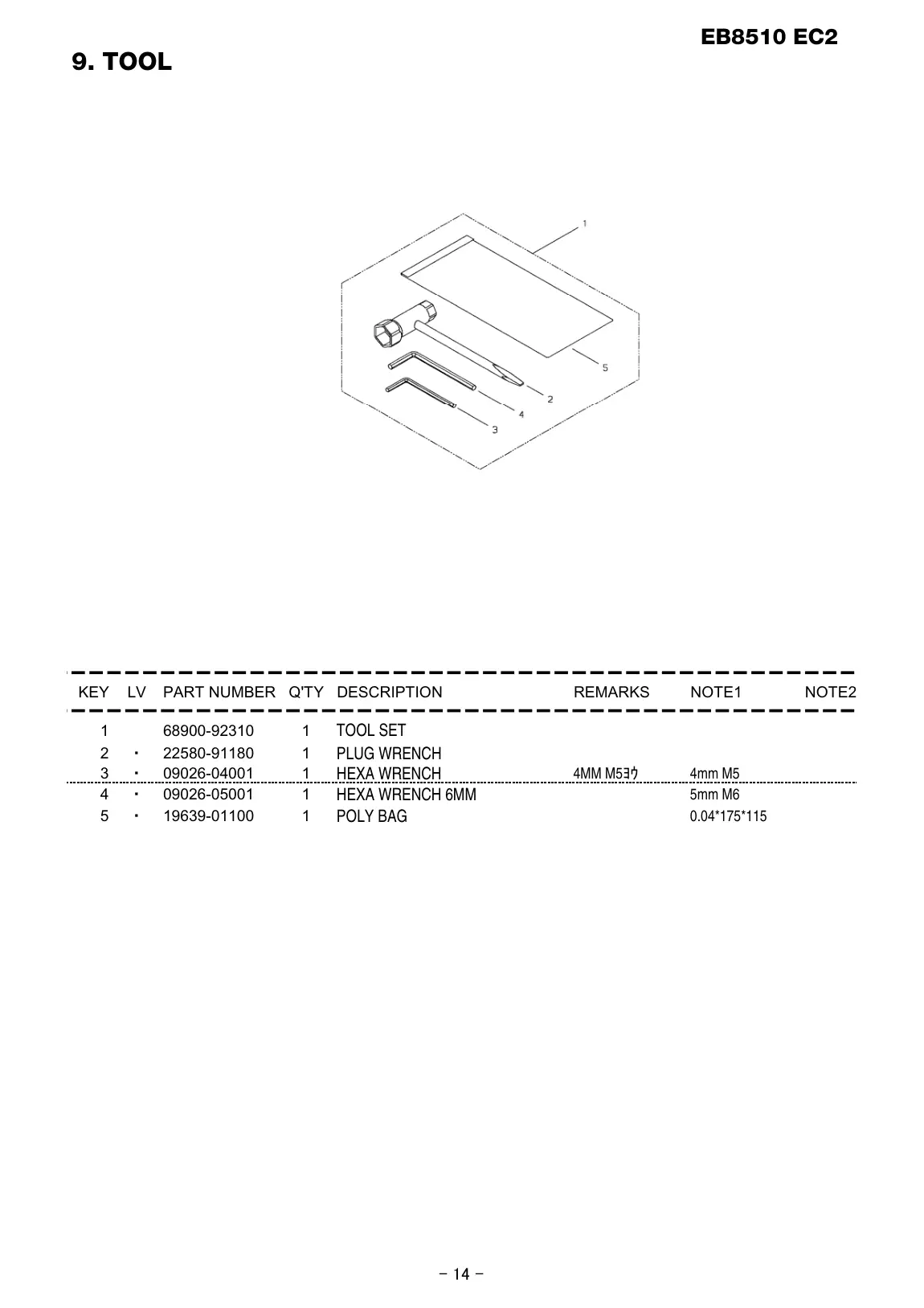

| 15 | POLY BAG | 1 | TOOL SET | 68900-92310 | 68900-92310-Online |
| 15 | POLY BAG | 2 | PLUG WRENCH | 22580-91180 | 22580-91180-Online |
| 15 | POLY BAG | 3 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 15 | POLY BAG | 4 | HEXA WRENCH 6MM | 09026-05001 | 09026-05001-Online |
| 15 | POLY BAG | 5 | POLY BAG | 19639-01100 | 19639-01100-Online |

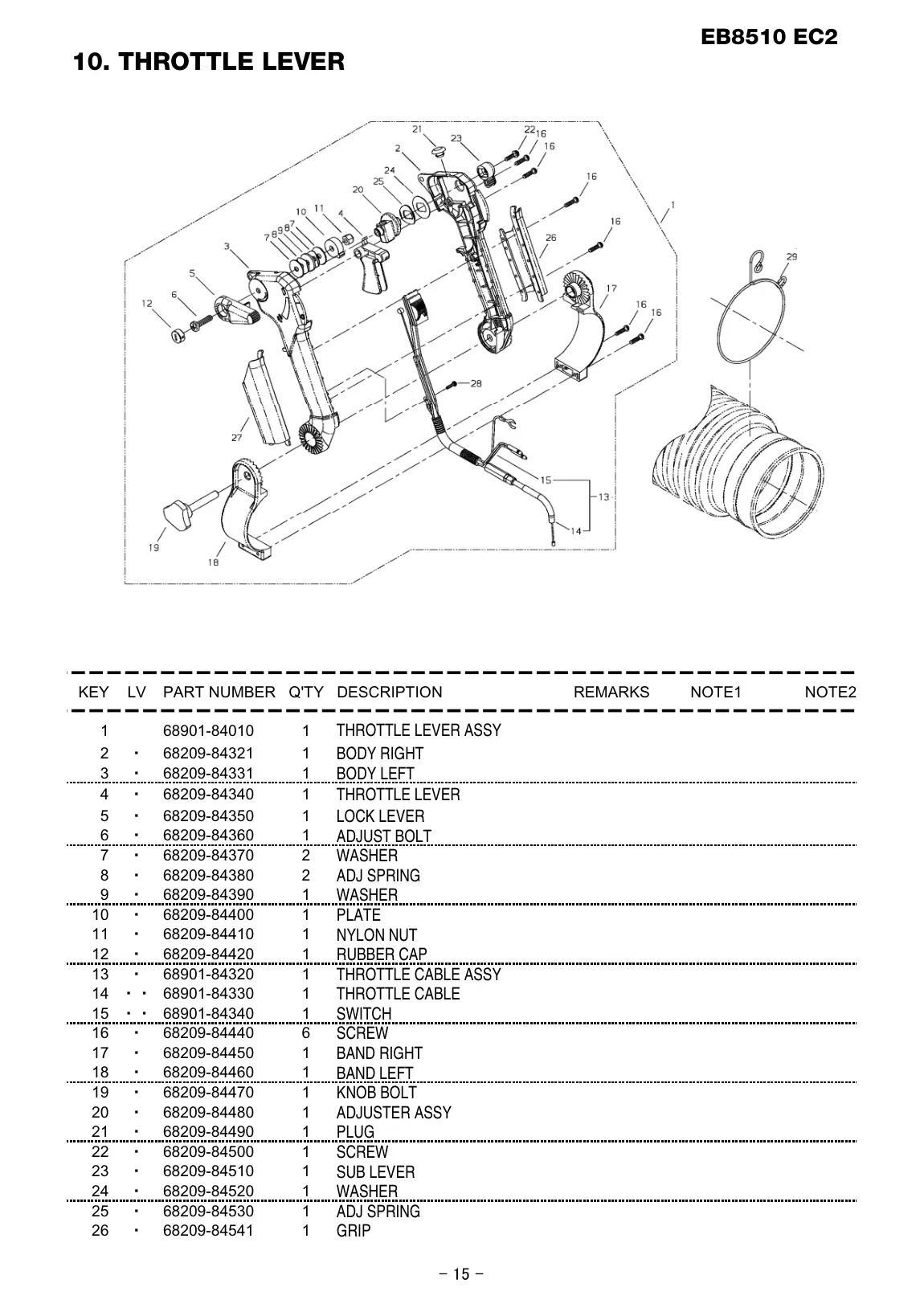

| 16 | GRIP | 1 | THROTTLE LEVER ASSY | 68901-84010 | 68901-84010-Online |
| 16 | GRIP | 1 | THROTTLE CABLE | 68901-84330 | 68901-84330-Online |
| 16 | GRIP | 1 | SWITCH | 68901-84340 | 68901-84340-Online |
| 16 | GRIP | 10 | PLATE | 68209-84400 | 68209-84400-Online |
| 16 | GRIP | 11 | NYLON NUT | 68209-84410 | 68209-84410-Online |
| 16 | GRIP | 12 | RUBBER CAP | 68209-84420 | 68209-84420-Online |
| 16 | GRIP | 13 | THROTTLE CABLE ASSY | 68901-84320 | 68901-84320-Online |
| 16 | GRIP | 16 | SCREW | 68209-84440 | 68209-84440-Online |
| 16 | GRIP | 17 | BAND RIGHT | 68209-84450 | 68209-84450-Online |
| 16 | GRIP | 18 | BAND LEFT | 68209-84460 | 68209-84460-Online |
| 16 | GRIP | 19 | KNOB BOLT | 68209-84470 | 68209-84470-Online |
| 16 | GRIP | 2 | BODY RIGHT | 68209-84321 | 68209-84321-Online |
| 16 | GRIP | 20 | ADJUSTER ASSY | 68209-84480 | 68209-84480-Online |
| 16 | GRIP | 21 | PLUG | 68209-84490 | 68209-84490-Online |
| 16 | GRIP | 22 | SCREW | 68209-84500 | 68209-84500-Online |
| 16 | GRIP | 23 | SUB LEVER | 68209-84510 | 68209-84510-Online |
| 16 | GRIP | 24 | WASHER | 68209-84520 | 68209-84520-Online |
| 16 | GRIP | 25 | ADJ SPRING | 68209-84530 | 68209-84530-Online |
| 16 | GRIP | 26 | GRIP | 68209-84541 | 68209-84541-Online |
| 16 | GRIP | 3 | BODY LEFT | 68209-84331 | 68209-84331-Online |
| 16 | GRIP | 4 | THROTTLE LEVER | 68209-84340 | 68209-84340-Online |
| 16 | GRIP | 5 | LOCK LEVER | 68209-84350 | 68209-84350-Online |
| 16 | GRIP | 6 | ADJUST BOLT | 68209-84360 | 68209-84360-Online |
| 16 | GRIP | 7 | WASHER | 68209-84370 | 68209-84370-Online |
| 16 | GRIP | 8 | ADJ SPRING | 68209-84380 | 68209-84380-Online |
| 16 | GRIP | 9 | WASHER | 68209-84390 | 68209-84390-Online |

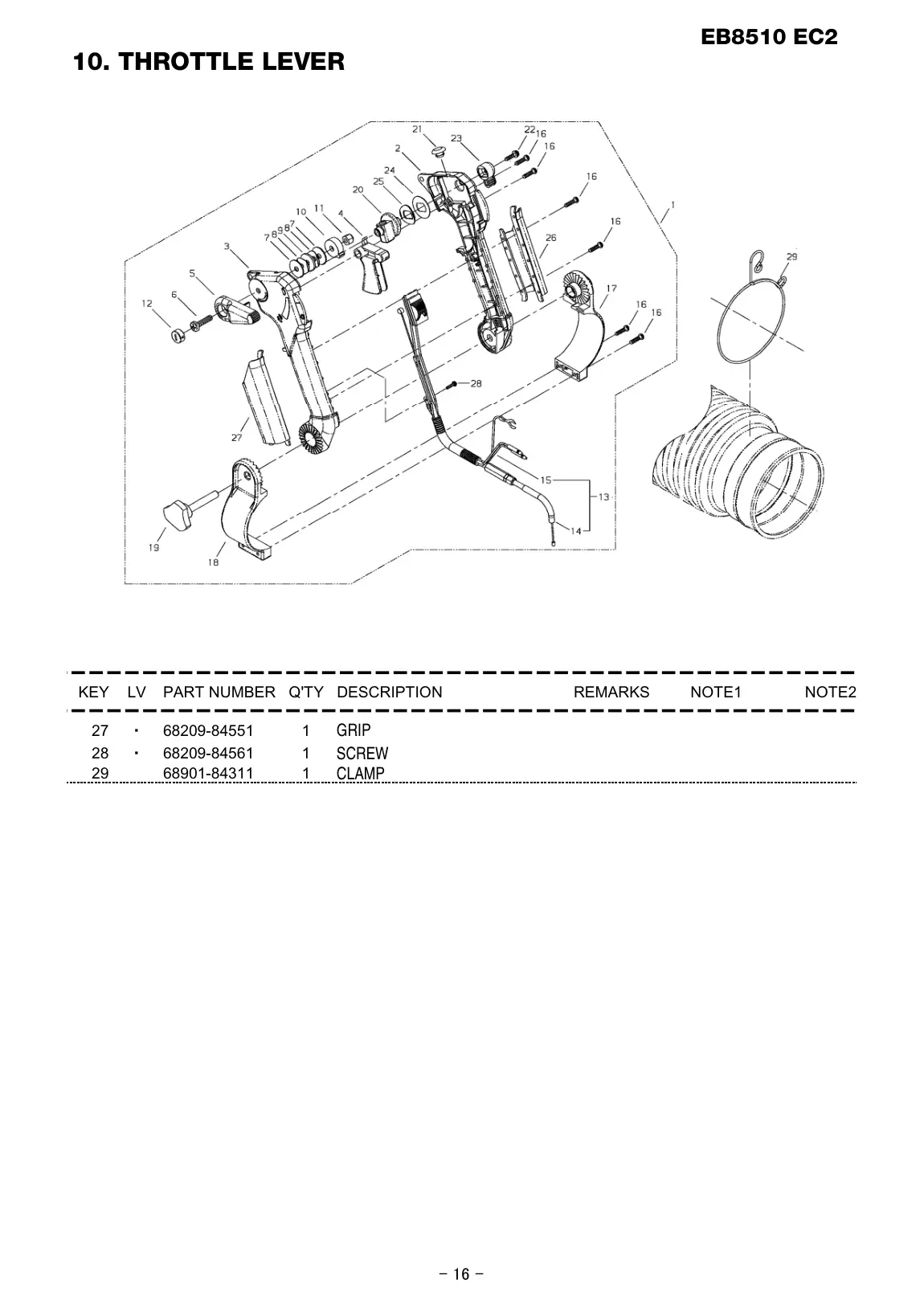

| 17 | CLAMP | 27 | GRIP | 68209-84551 | 68209-84551-Online |
| 17 | CLAMP | 28 | SCREW | 68209-84561 | 68209-84561-Online |

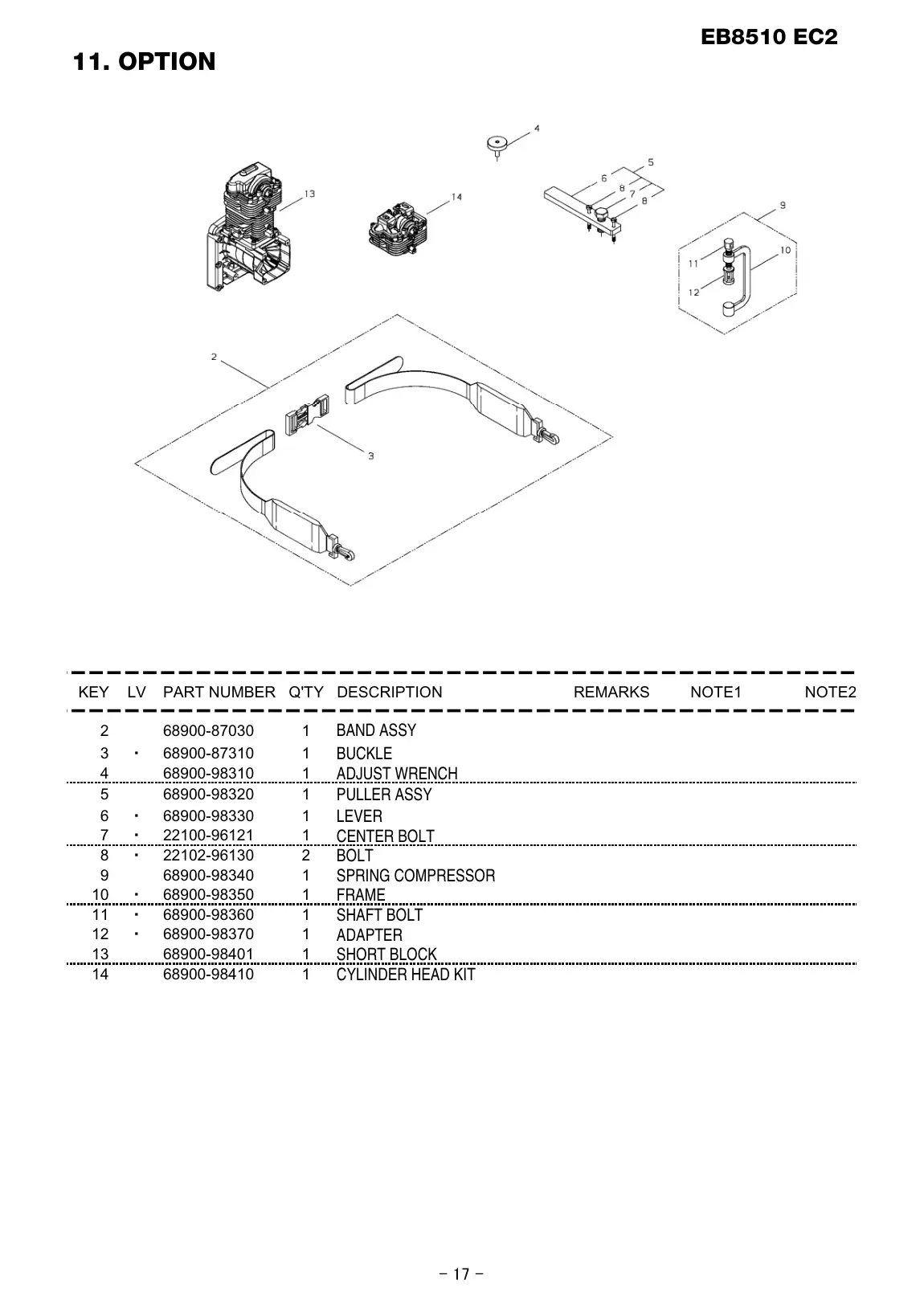

| 18 | CYLINDER HEAD KIT | 11 | SHAFT BOLT | 68900-98360 | 68900-98360-Online |
| 18 | CYLINDER HEAD KIT | 12 | ADAPTER | 68900-98370 | 68900-98370-Online |
| 18 | CYLINDER HEAD KIT | 13 | SHORT BLOCK | 68900-98401 | 68900-98401-Online |
| 18 | CYLINDER HEAD KIT | 14 | CYLINDER HEAD KIT | 68900-98410 | 68900-98410-Online |
| 18 | CYLINDER HEAD KIT | 2 | BAND ASSY | 68900-87030 | 68900-87030-Online |
| 18 | CYLINDER HEAD KIT | 3 | BUCKLE | 68900-87310 | 68900-87310-Online |
| 18 | CYLINDER HEAD KIT | 4 | ADJUST WRENCH | 68900-98310 | 68900-98310-Online |
| 18 | CYLINDER HEAD KIT | 5 | PULLER ASSY | 68900-98320 | 68900-98320-Online |
| 18 | CYLINDER HEAD KIT | 6 | LEVER | 68900-98330 | 68900-98330-Online |
| 18 | CYLINDER HEAD KIT | 7 | CENTER BOLT | 22100-96121 | 22100-96121-Online |
| 18 | CYLINDER HEAD KIT | 8 | BOLT | 22102-96130 | 22102-96130-Online |
| 18 | CYLINDER HEAD KIT | 9 | SPRING COMPRESSOR | 68900-98340 | 68900-98340-Online |
Source file: 20130718-238_EB8510_EC2_EB8510_EC2_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
