Illustrated Parts List
Shindaiwa C3410 EC2 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C3410 EC2
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | ROLLER | 1 | CYLINDER BLOCK SET | P021-027540 | P021-027540-Online |
| 2 | ROLLER | 10 | MUFFLER, EXHAUST | A300-001251 | A300-001251-Online |
| 2 | ROLLER | 11 | SCREEN, ARRESTOR | A310-000390 | A310-000390-Online |
| 2 | ROLLER | 12 | GUIDE, EXHAUST | A313-001391 | A313-001391-Online |
| 2 | ROLLER | 13 | SCREW,PM-SW | 91572-04006 | 91572-04006-Online |
| 2 | ROLLER | 14 | GASKET,EXHAUST | V104-001431 | V104-001431-Online |
| 2 | ROLLER | 15 | BOLT | V203-001000 | V203-001000-Online |
| 2 | ROLLER | 16 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | ROLLER | 17 | WASHER | 900600-00005 | 900600-00005-Online |
| 2 | ROLLER | 18 | ROLLER | V622-000040 | V622-000040-Online |
| 2 | ROLLER | 19 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 2 | ROLLER | 2 | LEAD VALVE | A024-000020 | A024-000020-Online |
| 2 | ROLLER | 3 | GASKET | V103-000980 | V103-000980-Online |
| 2 | ROLLER | 4 | LEAD WIRE | V485-001260 | V485-001260-Online |
| 2 | ROLLER | 5 | BRACKET THROTTLE | V152-002250 | V152-002250-Online |
| 2 | ROLLER | 6 | CABLE ADJUSTER | C486-000030 | C486-000030-Online |
| 2 | ROLLER | 7 | NUT | 92018-06000 | 92018-06000-Online |
| 2 | ROLLER | 8 | SCREW,PM-SPW | 91582-05025 | 91582-05025-Online |
| 2 | ROLLER | 9 | MUFFLER ASY | A030-000342 | A030-000342-Online |
| 3 | LABEL TRADE | 1 | INSULATOR | A200-000750 | A200-000750-Online |
| 3 | LABEL TRADE | 10 | COVER,FAN | A172-002030 | A172-002030-Online |
| 3 | LABEL TRADE | 11 | BEARING, BALL | 94002-36001 | 94002-36001-Online |
| 3 | LABEL TRADE | 12 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 3 | LABEL TRADE | 13 | DRUM, CLUTCH | A556-001360 | A556-001360-Online |
| 3 | LABEL TRADE | 14 | SNAP RING | V583-000170 | V583-000170-Online |
| 3 | LABEL TRADE | 15 | JOINT | A575-000370 | A575-000370-Online |
| 3 | LABEL TRADE | 16 | SNAP RING | 92424-42000 | 92424-42000-Online |
| 3 | LABEL TRADE | 17 | BOLT-SW | V203-000620 | V203-000620-Online |
| 3 | LABEL TRADE | 18 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 3 | LABEL TRADE | 19 | BOLT SW | V203-000530 | V203-000530-Online |
| 3 | LABEL TRADE | 2 | VALVE,REED | A211-000030 | A211-000030-Online |
| 3 | LABEL TRADE | 20 | COVER,CYLINDER | A160-001622 | A160-001622-Online |
| 3 | LABEL TRADE | 21 | GROMMET | A429-000140 | A429-000140-Online |
| 3 | LABEL TRADE | 22 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 3 | LABEL TRADE | 23 | LABEL TRADE | X504-002520 | X504-002520-Online |
| 3 | LABEL TRADE | 24 | LABEL TRADE | X504-002530 | X504-002530-Online |
| 3 | LABEL TRADE | 3 | STOPPER | A212-000040 | A212-000040-Online |
| 3 | LABEL TRADE | 4 | SCREW-SW | 91341-03010 | 91341-03010-Online |
| 3 | LABEL TRADE | 5 | COVER | A123-000000 | A123-000000-Online |
| 3 | LABEL TRADE | 6 | GASKET | V109-000100 | V109-000100-Online |
| 3 | LABEL TRADE | 7 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 3 | LABEL TRADE | 8 | FAN COVER ASSY | P021-027551 | P021-027551-Online |
| 3 | LABEL TRADE | 9 | FAN COVER COMP | P021-028491 | P021-028491-Online |
| 4 | INTAKE VALVE | 10 | SPRING PLATE | V346-000040 | V346-000040-Online |
| 4 | INTAKE VALVE | 11 | WASHER | V304-000150 | V304-000150-Online |
| 4 | INTAKE VALVE | 12 | CAM GEAR ASSY | A063-000000 | A063-000000-Online |
| 4 | INTAKE VALVE | 13 | CAM GEAR | A622-000000 | A622-000000-Online |
| 4 | INTAKE VALVE | 14 | WEIGHT | A146-000000 | A146-000000-Online |
| 4 | INTAKE VALVE | 15 | COIL SPRING | V452-000610 | V452-000610-Online |
| 4 | INTAKE VALVE | 16 | PLATE | C603-000240 | C603-000240-Online |
| 4 | INTAKE VALVE | 17 | SCREW,TAPPING | 91449-04006 | 91449-04006-Online |
| 4 | INTAKE VALVE | 18 | ROLLER | V623-000030 | V623-000030-Online |
| 4 | INTAKE VALVE | 19 | LIFTER | A600-000001 | A600-000001-Online |
| 4 | INTAKE VALVE | 2 | CRANKSHAFT COMP | A011-000650 | A011-000650-Online |
| 4 | INTAKE VALVE | 20 | WASHER | V303-000220 | V303-000220-Online |
| 4 | INTAKE VALVE | 21 | PUSH ROD | A607-000000 | A607-000000-Online |
| 4 | INTAKE VALVE | 22 | CAM GEAR COVER | A136-000000 | A136-000000-Online |
| 4 | INTAKE VALVE | 23 | GASKET | V109-000040 | V109-000040-Online |
| 4 | INTAKE VALVE | 24 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 4 | INTAKE VALVE | 25 | SCREW | V253-000540 | V253-000540-Online |
| 4 | INTAKE VALVE | 26 | COLLAR | V303-000120 | V303-000120-Online |
| 4 | INTAKE VALVE | 27 | INTAKE VALVE | A603-000000 | A603-000000-Online |
| 4 | INTAKE VALVE | 3 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 4 | INTAKE VALVE | 4 | OIL SEAL | V505-000060 | V505-000060-Online |
| 4 | INTAKE VALVE | 5 | CLUTCH SHOE ASSY | A056-000410 | A056-000410-Online |
| 4 | INTAKE VALVE | 6 | CLUTCH SHOE SUB ASSY | A056-000420 | A056-000420-Online |
| 4 | INTAKE VALVE | 7 | CLUTCH SHOE | A553-000120 | A553-000120-Online |
| 4 | INTAKE VALVE | 8 | SPRING | A566-000110 | A566-000110-Online |
| 4 | INTAKE VALVE | 9 | BOLT | A557-000080 | A557-000080-Online |
| 5 | THRUST WASHER | 28 | EXHAUST VALVE | A603-000010 | A603-000010-Online |
| 5 | THRUST WASHER | 29 | VALVE SPRING | A604-000010 | A604-000010-Online |
| 5 | THRUST WASHER | 30 | RETAINER | A606-000040 | A606-000040-Online |
| 5 | THRUST WASHER | 31 | ROCKER ARM ASSY | A610-000050 | A610-000050-Online |
| 5 | THRUST WASHER | 32 | ROCKER ARM | A610-000060 | A610-000060-Online |
| 5 | THRUST WASHER | 33 | ADJUST SCREW | A613-000010 | A613-000010-Online |
| 5 | THRUST WASHER | 34 | NUT | V263-000230 | V263-000230-Online |
| 5 | THRUST WASHER | 35 | ROLLER | V623-000010 | V623-000010-Online |
| 5 | THRUST WASHER | 36 | ROCKER ARM COVER | A137-000000 | A137-000000-Online |
| 5 | THRUST WASHER | 37 | GASKET | V109-000050 | V109-000050-Online |
| 5 | THRUST WASHER | 38 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 5 | THRUST WASHER | 39 | RETAINER SET | P021-027590 | P021-027590-Online |
| 5 | THRUST WASHER | 40 | PLATE | V392-000030 | V392-000030-Online |
| 5 | THRUST WASHER | 41 | PISTON SET | P021-033972 | P021-033972-Online |
| 5 | THRUST WASHER | 42 | PISTON RING | A101-000240 | A101-000240-Online |
| 5 | THRUST WASHER | 43 | PISTON PIN | V608-000060 | V608-000060-Online |
| 5 | THRUST WASHER | 44 | SNAP RING | V580-000110 | V580-000110-Online |
| 5 | THRUST WASHER | 45 | NEEDLE BEARING | V555-000080 | V555-000080-Online |
| 5 | THRUST WASHER | 46 | THRUST WASHER | V307-000200 | V307-000200-Online |
| 6 | NGK CMR5H | 10 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 6 | NGK CMR5H | 11 | TUBE | V475-005160 | V475-005160-Online |
| 6 | NGK CMR5H | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | NGK CMR5H | 3 | NUT | V265-000140 | V265-000140-Online |
| 6 | NGK CMR5H | 4 | COIL ASSY | A411-000770 | A411-000770-Online |
| 6 | NGK CMR5H | 5 | PLUG CAP | A427-000110 | A427-000110-Online |
| 6 | NGK CMR5H | 6 | COIL SPRING | A426-000070 | A426-000070-Online |
| 6 | NGK CMR5H | 7 | LEAD WIRE | V485-001630 | V485-001630-Online |
| 6 | NGK CMR5H | 8 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | NGK CMR5H | 9 | BOLT-SLPW | V202-000360 | V202-000360-Online |
| 7 | LABEL TRADE | 1 | RECOIL STARTER ASSY | A051-001510 | A051-001510-Online |
| 7 | LABEL TRADE | 10 | STARTER PULLEY | A052-000300 | A052-000300-Online |
| 7 | LABEL TRADE | 11 | BOLT-SPW | V202-000350 | V202-000350-Online |
| 7 | LABEL TRADE | 12 | LABEL TRADE | X504-003080 | X504-003080-Online |
| 7 | LABEL TRADE | 2 | STARTER CASE | A500-000640 | A500-000640-Online |
| 7 | LABEL TRADE | 3 | REEL | A506-000140 | A506-000140-Online |
| 7 | LABEL TRADE | 4 | RECOIL SPRING | A504-000100 | A504-000100-Online |
| 7 | LABEL TRADE | 5 | ROPE | A509-000070 | A509-000070-Online |
| 7 | LABEL TRADE | 6 | KNOB | A511-000100 | A511-000100-Online |
| 7 | LABEL TRADE | 7 | SCREW | V253-000310 | V253-000310-Online |
| 7 | LABEL TRADE | 8 | COLLAR | V353-000310 | V353-000310-Online |
| 7 | LABEL TRADE | 9 | SWING ARM | C810-000120 | C810-000120-Online |
| 8 | PREFILTER | 1 | CABURETOR ASSY | A021-002480 | A021-002480-Online |
| 8 | PREFILTER | 10 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 8 | PREFILTER | 11 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 8 | PREFILTER | 12 | O RING | V581-000180 | V581-000180-Online |
| 8 | PREFILTER | 13 | GASKET | V103-000570 | V103-000570-Online |
| 8 | PREFILTER | 14 | CASE,CLEANER | A023-000300 | A023-000300-Online |
| 8 | PREFILTER | 15 | FILTER | A226-000690 | A226-000690-Online |
| 8 | PREFILTER | 16 | CLEANER COVER ASSY | P021-028521 | P021-028521-Online |
| 8 | PREFILTER | 17 | LID,CLEANER | A232-000901 | A232-000901-Online |
| 8 | PREFILTER | 18 | KNOB | V299-000400 | V299-000400-Online |
| 8 | PREFILTER | 19 | SCREW,PM | 91581-05060 | 91581-05060-Online |
| 8 | PREFILTER | 2 | VALVE,THROTTLE | P003-004630 | P003-004630-Online |
| 8 | PREFILTER | 20 | WASHER | 900603-00005 | 900603-00005-Online |
| 8 | PREFILTER | 21 | KIT GASKET | P050-008580 | P050-008580-Online |
| 8 | PREFILTER | 22 | VALVE KIT | P050-008570 | P050-008570-Online |
| 8 | PREFILTER | 23 | PREFILTER | A226-000700 | A226-000700-Online |
| 8 | PREFILTER | 3 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 8 | PREFILTER | 4 | WASHER | 123149-54230 | 123149-54230-Online |
| 8 | PREFILTER | 5 | CLIP | 123173-07930 | 123173-07930-Online |
| 8 | PREFILTER | 6 | SCREW | 123114-44330 | 123114-44330-Online |
| 8 | PREFILTER | 7 | BODY ASSEMBLY, PUMP | P003-000510 | P003-000510-Online |
| 8 | PREFILTER | 8 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 8 | PREFILTER | 9 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 9 | BOLT SPW | 1 | FUEL TANK ASSY | P021-028552 | P021-028552-Online |
| 9 | BOLT SPW | 10 | FUEL PIPE | V471-002570 | V471-002570-Online |
| 9 | BOLT SPW | 11 | FUEL FILTER | A369-000070 | A369-000070-Online |
| 9 | BOLT SPW | 12 | GROMMET | V470-000880 | V470-000880-Online |
| 9 | BOLT SPW | 13 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 9 | BOLT SPW | 14 | JOINT | V186-000210 | V186-000210-Online |
| 9 | BOLT SPW | 15 | PIPE | V471-002520 | V471-002520-Online |
| 9 | BOLT SPW | 16 | CLIP | V490-000500 | V490-000500-Online |
| 9 | BOLT SPW | 17 | CLIP | V490-000510 | V490-000510-Online |
| 9 | BOLT SPW | 18 | TANK CUSHION | V420-002220 | V420-002220-Online |
| 9 | BOLT SPW | 19 | TANK GUARD | A175-000220 | A175-000220-Online |
| 9 | BOLT SPW | 2 | FUEL TANK | A350-001340 | A350-001340-Online |
| 9 | BOLT SPW | 20 | BOLT SPW | V203-000350 | V203-000350-Online |
| 9 | BOLT SPW | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 9 | BOLT SPW | 4 | FUEL CAP | A355-000180 | A355-000180-Online |
| 9 | BOLT SPW | 7 | SCREW TAPPING | 91483-02506 | 91483-02506-Online |
| 9 | BOLT SPW | 9 | GASKET | V107-000010 | V107-000010-Online |

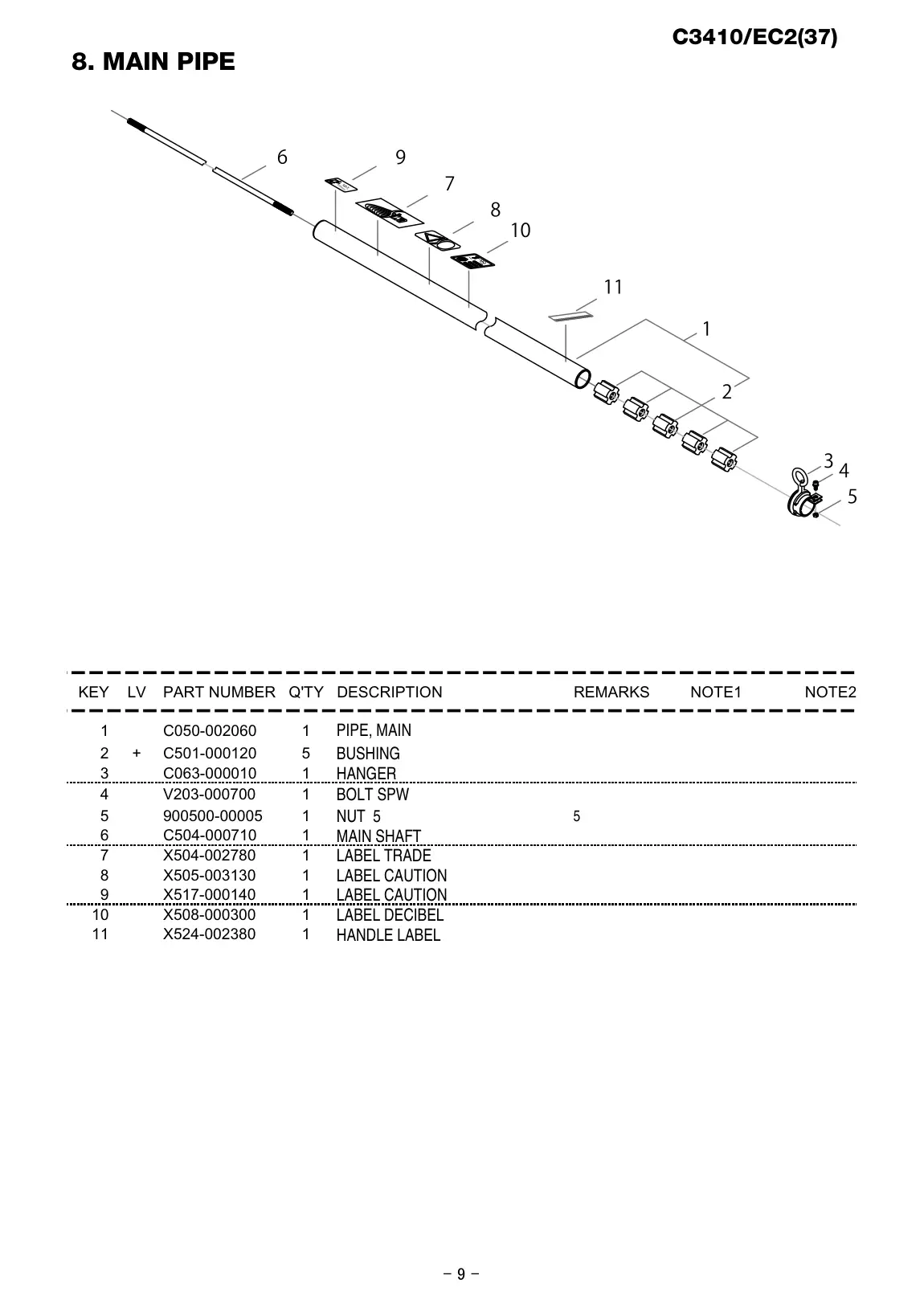

| 10 | HANDLE LABEL | 1 | PIPE, MAIN | C050-002060 | C050-002060-Online |
| 10 | HANDLE LABEL | 10 | LABEL DECIBEL | X508-000300 | X508-000300-Online |
| 10 | HANDLE LABEL | 11 | HANDLE LABEL | X524-002380 | X524-002380-Online |
| 10 | HANDLE LABEL | 2 | BUSHING | C501-000120 | C501-000120-Online |
| 10 | HANDLE LABEL | 3 | HANGER | C063-000010 | C063-000010-Online |
| 10 | HANDLE LABEL | 4 | BOLT SPW | V203-000700 | V203-000700-Online |
| 10 | HANDLE LABEL | 5 | NUT | 900500-00005 | 900500-00005-Online |
| 10 | HANDLE LABEL | 6 | MAIN SHAFT | C504-000710 | C504-000710-Online |
| 10 | HANDLE LABEL | 7 | LABEL TRADE | X504-002780 | X504-002780-Online |
| 10 | HANDLE LABEL | 8 | LABEL CAUTION | X505-003130 | X505-003130-Online |
| 10 | HANDLE LABEL | 9 | LABEL CAUTION | X517-000140 | X517-000140-Online |
| 11 | PIN,SNAP | 1 | GEAR CASE COMP | C051-000480 | C051-000480-Online |
| 11 | PIN,SNAP | 10 | PINION SET | V651-000460 | V651-000460-Online |
| 11 | PIN,SNAP | 11 | BEARING, BALL | 900855-06901 | 900855-06901-Online |
| 11 | PIN,SNAP | 12 | BEARING, BALL | 900859-06901 | 900859-06901-Online |
| 11 | PIN,SNAP | 13 | SNAP RING | V583-000170 | V583-000170-Online |
| 11 | PIN,SNAP | 14 | SNAP RING | 92424-24000 | 92424-24000-Online |
| 11 | PIN,SNAP | 15 | BOLT | V206-000250 | V206-000250-Online |
| 11 | PIN,SNAP | 16 | GASKET | V307-000230 | V307-000230-Online |
| 11 | PIN,SNAP | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 11 | PIN,SNAP | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 11 | PIN,SNAP | 19 | SHIM | V340-000280 | V340-000280-Online |
| 11 | PIN,SNAP | 20 | LOWER CLAMP | C551-000140 | C551-000140-Online |
| 11 | PIN,SNAP | 21 | WASHER | 900603-00006 | 900603-00006-Online |
| 11 | PIN,SNAP | 22 | NUT | 900500-00006 | 900500-00006-Online |
| 11 | PIN,SNAP | 23 | HOLDER A | C535-000640 | C535-000640-Online |
| 11 | PIN,SNAP | 24 | HOLDER | C535-000650 | C535-000650-Online |
| 11 | PIN,SNAP | 25 | FIXTURE, BLADE | C535-000630 | C535-000630-Online |
| 11 | PIN,SNAP | 26 | BOLT,8 | V205-000480 | V205-000480-Online |
| 11 | PIN,SNAP | 27 | PIN,SNAP | V641-000150 | V641-000150-Online |
| 11 | PIN,SNAP | 3 | BEARING | 94028-40609 | 94028-40609-Online |
| 11 | PIN,SNAP | 4 | BEARING, BALL | 900810-06201 | 900810-06201-Online |
| 11 | PIN,SNAP | 5 | OIL SEAL | V510-000000 | V510-000000-Online |
| 11 | PIN,SNAP | 6 | SNAP RING | 92424-32000 | 92424-32000-Online |
| 11 | PIN,SNAP | 7 | GEAR SHAFT | C534-000570 | C534-000570-Online |
| 11 | PIN,SNAP | 8 | BEVEL GEAR | V651-000450 | V651-000450-Online |
| 11 | PIN,SNAP | 9 | COLLAR | V356-000500 | V356-000500-Online |
| 12 | SCREW BUTTON | 1 | THROTTLE LEVER ASSY | C044-000840 | C044-000840-Online |
| 12 | SCREW BUTTON | 10 | THROTTLE CABLE ASSY | V043-000500 | V043-000500-Online |
| 12 | SCREW BUTTON | 11 | PLUG | V162-000410 | V162-000410-Online |
| 12 | SCREW BUTTON | 12 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 12 | SCREW BUTTON | 13 | SCREW PM | V253-000580 | V253-000580-Online |
| 12 | SCREW BUTTON | 14 | NUT | 92017-05000 | 92017-05000-Online |
| 12 | SCREW BUTTON | 15 | SCREW | V252-000090 | V252-000090-Online |
| 12 | SCREW BUTTON | 16 | NUT | V262-000100 | V262-000100-Online |
| 12 | SCREW BUTTON | 17 | BRACKET COMP | P021-033250 | P021-033250-Online |
| 12 | SCREW BUTTON | 18 | HANDLE BRACKET | C423-000710 | C423-000710-Online |
| 12 | SCREW BUTTON | 19 | LOWER CAP | C423-000730 | C423-000730-Online |
| 12 | SCREW BUTTON | 2 | BODY RIGHT | C412-000430 | C412-000430-Online |
| 12 | SCREW BUTTON | 20 | UPPER CAP | C423-000750 | C423-000750-Online |
| 12 | SCREW BUTTON | 21 | LOWER CLAMP | C423-000760 | C423-000760-Online |
| 12 | SCREW BUTTON | 22 | UPPER CLAMP | C423-000770 | C423-000770-Online |
| 12 | SCREW BUTTON | 23 | LOWER CUSHION | V420-002460 | V420-002460-Online |
| 12 | SCREW BUTTON | 24 | UPPER CUSHION | V420-002470 | V420-002470-Online |
| 12 | SCREW BUTTON | 25 | BOLT SPW | V203-000630 | V203-000630-Online |
| 12 | SCREW BUTTON | 26 | SCREW BUTTON | 91142-06025 | 91142-06025-Online |
| 12 | SCREW BUTTON | 3 | BODY LEFT | C412-000440 | C412-000440-Online |
| 12 | SCREW BUTTON | 4 | LEVER | C450-000580 | C450-000580-Online |
| 12 | SCREW BUTTON | 5 | LOCK LEVER | C460-000240 | C460-000240-Online |
| 12 | SCREW BUTTON | 6 | COIL SPRING | V450-001020 | V450-001020-Online |
| 12 | SCREW BUTTON | 7 | COIL SPRING | V452-000690 | V452-000690-Online |
| 12 | SCREW BUTTON | 8 | BUTTON | C461-000080 | C461-000080-Online |
| 12 | SCREW BUTTON | 9 | COIL SPRING | V450-001010 | V450-001010-Online |
| 13 | GRIP | 27 | SPACER | C511-000110 | C511-000110-Online |
| 13 | GRIP | 28 | HANDLE SUB ASSY | P021-035340 | P021-035340-Online |
| 13 | GRIP | 29 | GRIP | C403-000420 | C403-000420-Online |
| 14 | BOLT SPW | 1 | GUARD SET | P021-028900 | P021-028900-Online |
| 14 | BOLT SPW | 2 | GUARD | C550-000430 | C550-000430-Online |
| 14 | BOLT SPW | 3 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 14 | BOLT SPW | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 14 | BOLT SPW | 5 | BOLT SW | V203-000720 | V203-000720-Online |
| 14 | BOLT SPW | 6 | NUT | V263-000130 | V263-000130-Online |
| 14 | BOLT SPW | 7 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 14 | BOLT SPW | 8 | SPACER | V363-000160 | V363-000160-Online |
| 14 | BOLT SPW | 9 | BOLT SPW | V203-000610 | V203-000610-Online |
| 15 | GOGGLE + NOTE | 1 | TOOL SET | P021-028530 | P021-028530-Online |
| 15 | GOGGLE + NOTE | 2 | SPANNER | X600-000020 | X600-000020-Online |
| 15 | GOGGLE + NOTE | 3 | PLUG WRENCH | X602-000160 | X602-000160-Online |
| 15 | GOGGLE + NOTE | 4 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 15 | GOGGLE + NOTE | 5 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 15 | GOGGLE + NOTE | 6 | BAND | V495-001520 | V495-001520-Online |
| 15 | GOGGLE + NOTE | 7 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 15 | GOGGLE + NOTE | 8 | GOGGLE | X690-000050 | X690-000050-Online |
| 16 | HARNESS ASSY | 1 | SCABBARD,BLADE | X495-000300 | X495-000300-Online |
| 16 | HARNESS ASSY | 2 | HARNESS ASSY | C062-000430 | C062-000430-Online |
Source file: 20130718-302_C3410_EC2(37)_P016-000340-11Fb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
