Illustrated Parts List
Shindaiwa SBA-LE24 Edger IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: SBA-LE24
Type: Edger
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages

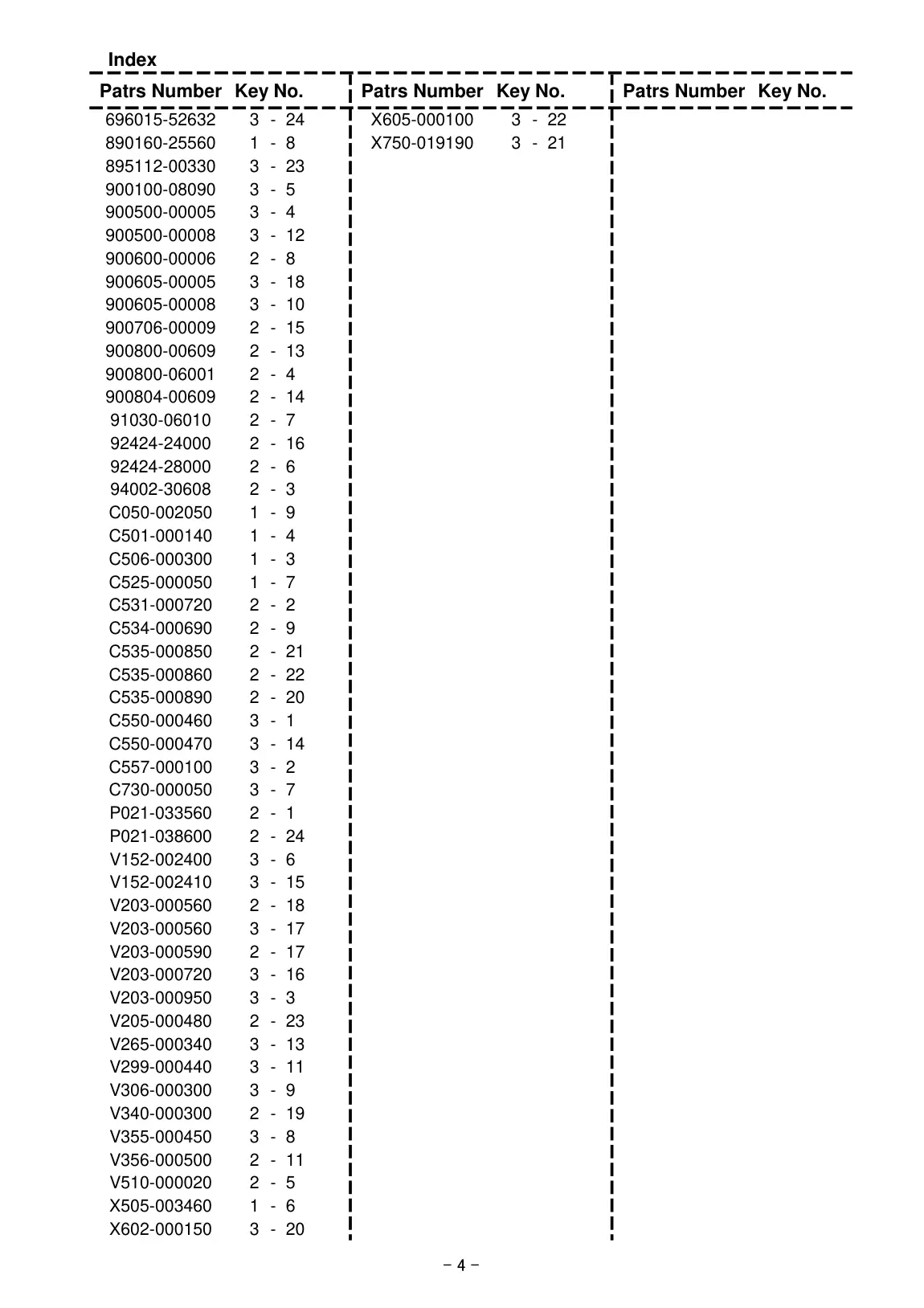

Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

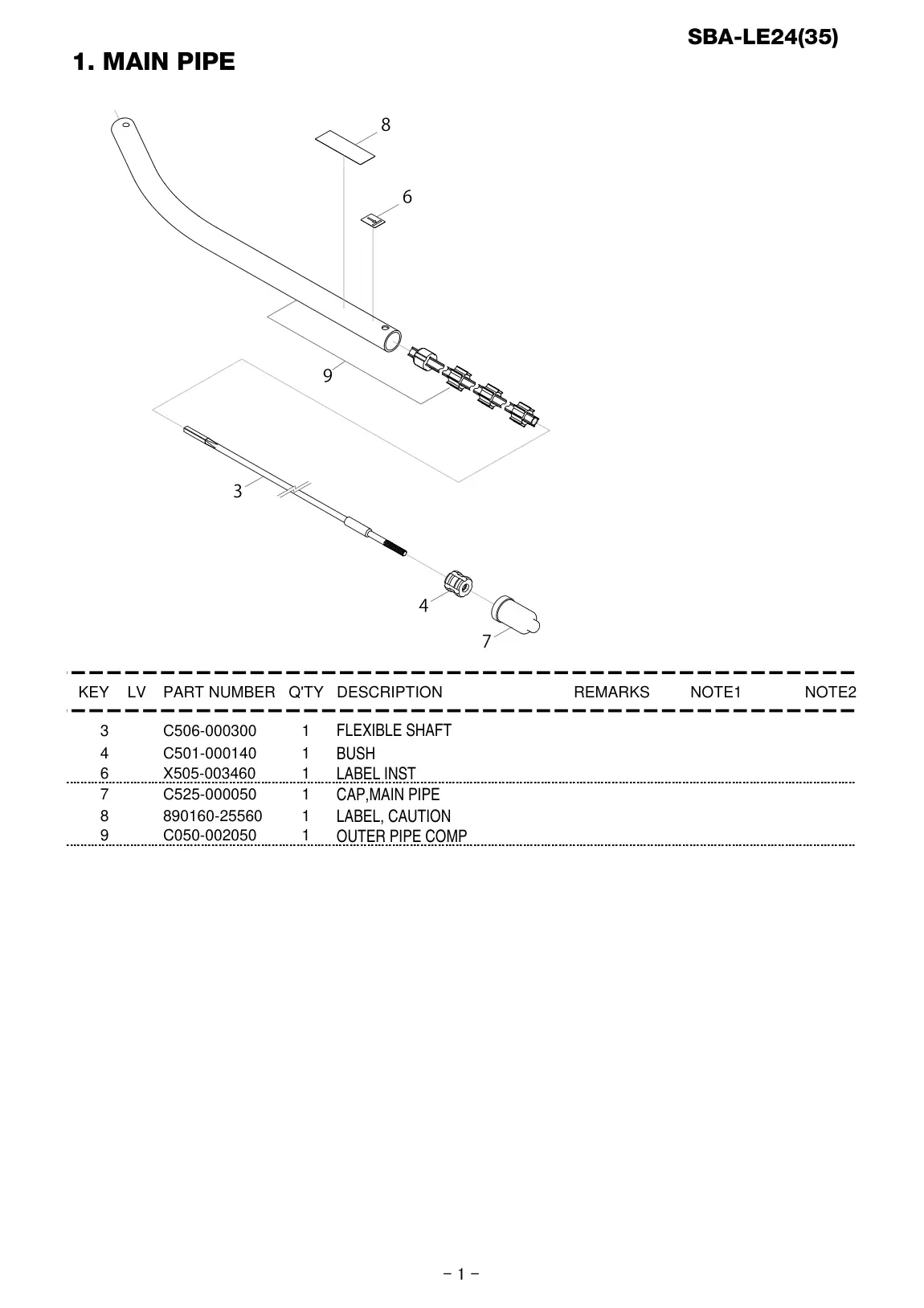

| 2 | OUTER PIPE COMP | 3 | FLEXIBLE SHAFT | C506-000300 | C506-000300-Online |
| 2 | OUTER PIPE COMP | 6 | LABEL INST | X505-003460 | X505-003460-Online |
| 2 | OUTER PIPE COMP | 7 | CAP,MAIN PIPE | C525-000050 | C525-000050-Online |
| 2 | OUTER PIPE COMP | 8 | LABEL, CAUTION | 890160-25560 | 890160-25560-Online |
| 2 | OUTER PIPE COMP | 9 | OUTER PIPE COMP | C050-002050 | C050-002050-Online |

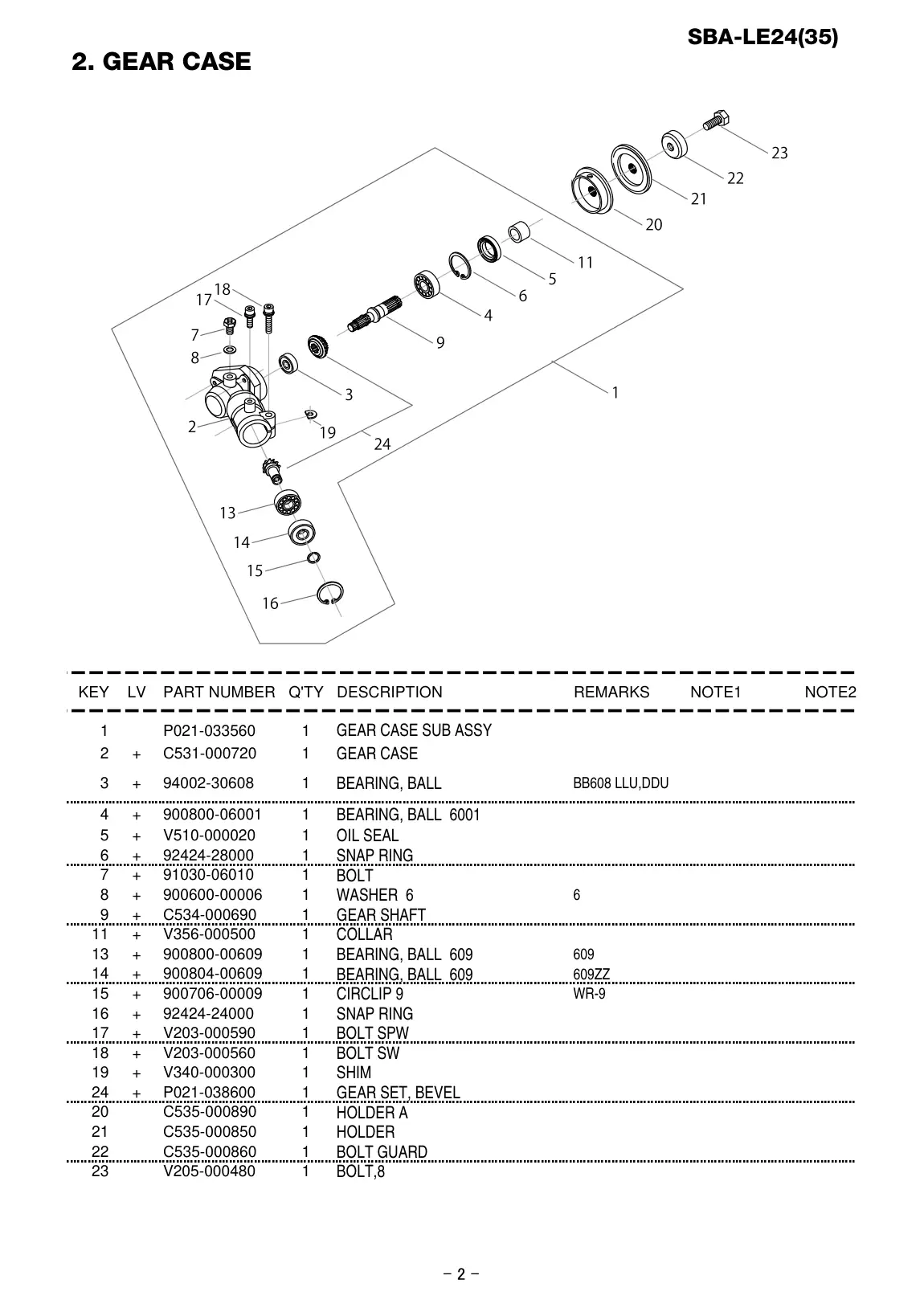

| 3 | BOLT,8 | 1 | LLU,DDU | BB608 | BB608-Online |
| 3 | BOLT,8 | 1 | GEAR CASE SUB ASSY | P021-033560 | P021-033560-Online |
| 3 | BOLT,8 | 11 | COLLAR | V356-000500 | V356-000500-Online |
| 3 | BOLT,8 | 13 | BEARING, BALL | 900800-00609 | 900800-00609-Online |
| 3 | BOLT,8 | 14 | BEARING, BALL | 900804-00609 | 900804-00609-Online |
| 3 | BOLT,8 | 15 | CIRCLIP | 900706-00009 | 900706-00009-Online |
| 3 | BOLT,8 | 16 | SNAP RING | 92424-24000 | 92424-24000-Online |
| 3 | BOLT,8 | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 3 | BOLT,8 | 18 | BOLT SW | V203-000560 | V203-000560-Online |
| 3 | BOLT,8 | 19 | SHIM | V340-000300 | V340-000300-Online |
| 3 | BOLT,8 | 2 | GEAR CASE | C531-000720 | C531-000720-Online |
| 3 | BOLT,8 | 20 | HOLDER A | C535-000890 | C535-000890-Online |
| 3 | BOLT,8 | 21 | HOLDER | C535-000850 | C535-000850-Online |
| 3 | BOLT,8 | 22 | BOLT GUARD | C535-000860 | C535-000860-Online |
| 3 | BOLT,8 | 23 | BOLT,8 | V205-000480 | V205-000480-Online |
| 3 | BOLT,8 | 24 | GEAR SET, BEVEL | P021-038600 | P021-038600-Online |
| 3 | BOLT,8 | 3 | BEARING, BALL | 94002-30608 | 94002-30608-Online |
| 3 | BOLT,8 | 4 | BEARING, BALL | 900800-06001 | 900800-06001-Online |
| 3 | BOLT,8 | 5 | OIL SEAL | V510-000020 | V510-000020-Online |
| 3 | BOLT,8 | 6 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 3 | BOLT,8 | 7 | BOLT | 91030-06010 | 91030-06010-Online |
| 3 | BOLT,8 | 8 | WASHER | 900600-00006 | 900600-00006-Online |
| 3 | BOLT,8 | 9 | GEAR SHAFT | C534-000690 | C534-000690-Online |

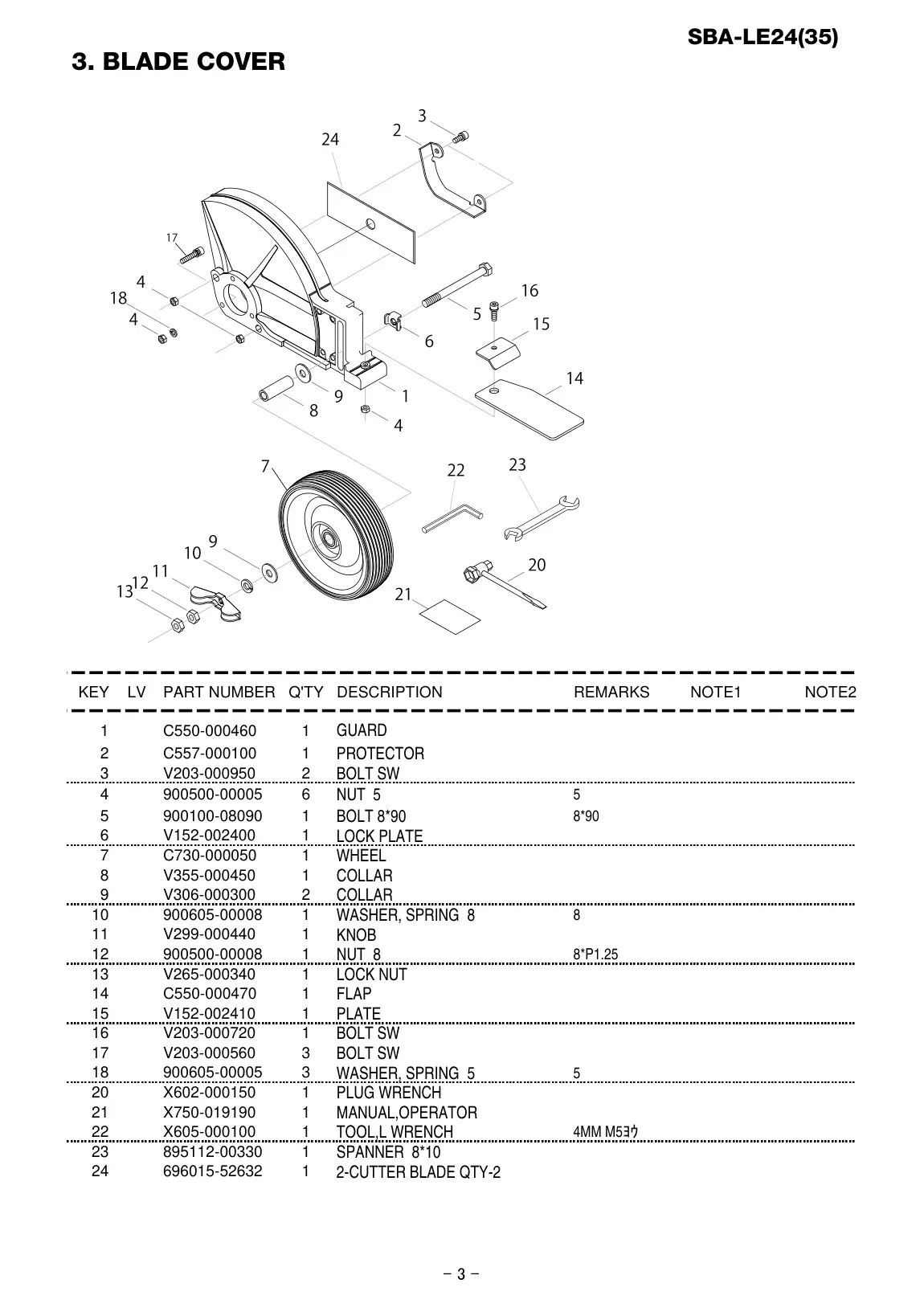

| 4 | 2-CUTTER BLADE QTY-2 | 1 | GUARD | C550-000460 | C550-000460-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 10 | WASHER, SPRING | 900605-00008 | 900605-00008-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 11 | KNOB | V299-000440 | V299-000440-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 12 | NUT | 900500-00008 | 900500-00008-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 13 | LOCK NUT | V265-000340 | V265-000340-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 15 | PLATE | V152-002410 | V152-002410-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 16 | BOLT SW | V203-000720 | V203-000720-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 17 | BOLT SW | V203-000560 | V203-000560-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 18 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 2 | PROTECTOR | C557-000100 | C557-000100-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 20 | PLUG WRENCH | X602-000150 | X602-000150-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 21 | MANUAL,OPERATOR | X750-019190 | X750-019190-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 22 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 23 | SPANNER 8*10 | 895112-00330 | 895112-00330-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 24 | 2-CUTTER BLADE QTY-2 | 696015-52632 | 696015-52632-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 3 | BOLT SW | V203-000950 | V203-000950-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 4 | NUT | 900500-00005 | 900500-00005-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 5 | BOLT 8*90 | 900100-08090 | 900100-08090-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 6 | LOCK PLATE | V152-002400 | V152-002400-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 8 | COLLAR | V355-000450 | V355-000450-Online |
| 4 | 2-CUTTER BLADE QTY-2 | 9 | COLLAR | V306-000300 | V306-000300-Online |
Source file: 20130718-337_SBA-LE24(35)_P016-000450-11Gb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
