Illustrated Parts List
Shindaiwa T350 EC1 T350 EC1 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: T350 EC1 T350 EC1
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

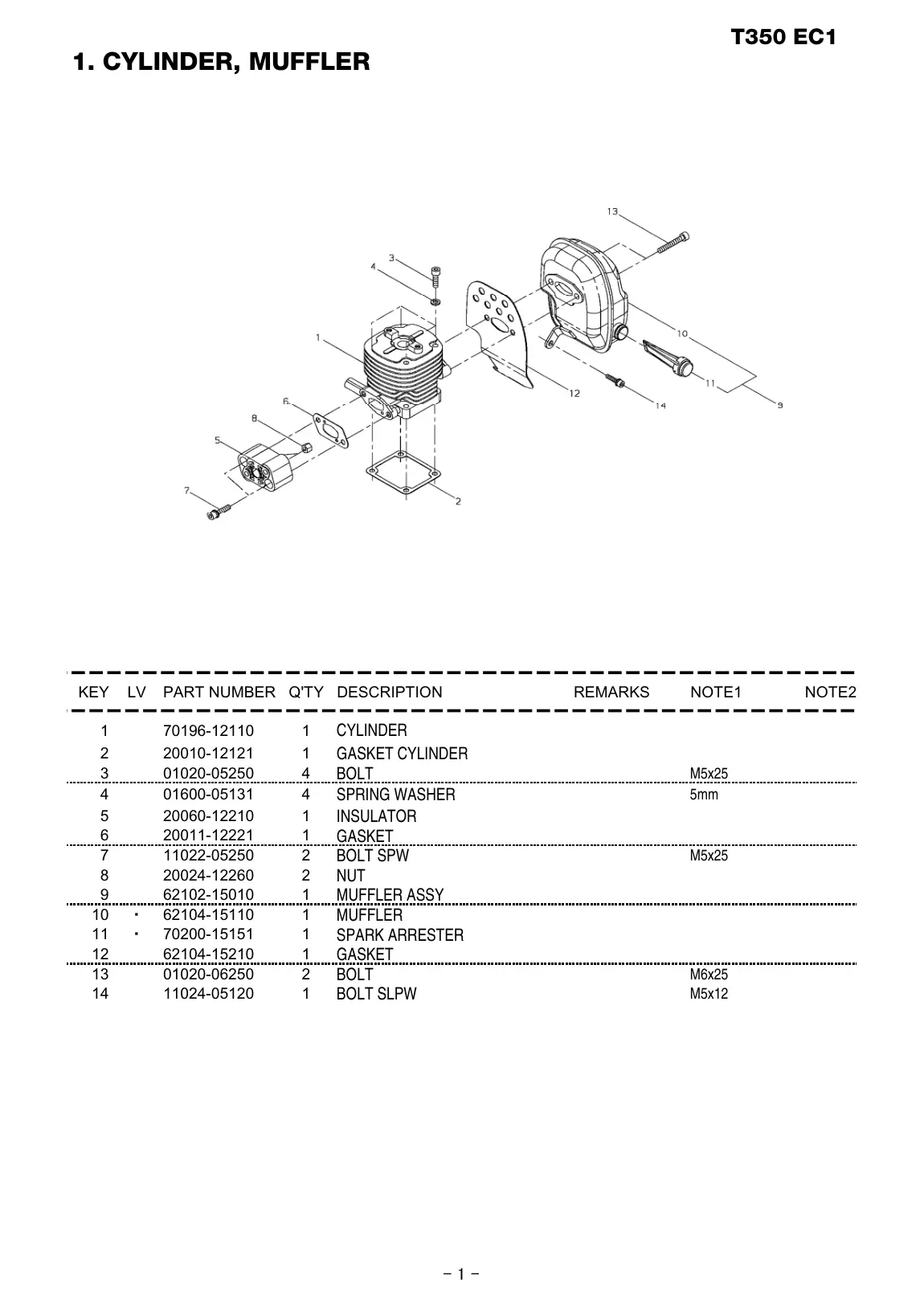

| 2 | BOLT SLPW | 1 | CYLINDER | 70196-12110 | 70196-12110-Online |
| 2 | BOLT SLPW | 10 | MUFFLER | 62104-15110 | 62104-15110-Online |
| 2 | BOLT SLPW | 11 | SPARK ARRESTER | 70200-15151 | 70200-15151-Online |
| 2 | BOLT SLPW | 12 | GASKET | 62104-15210 | 62104-15210-Online |
| 2 | BOLT SLPW | 13 | BOLT | 01020-06250 | 01020-06250-Online |
| 2 | BOLT SLPW | 14 | BOLT SLPW | 11024-05120 | 11024-05120-Online |
| 2 | BOLT SLPW | 2 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 2 | BOLT SLPW | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 2 | BOLT SLPW | 4 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 2 | BOLT SLPW | 5 | INSULATOR | 20060-12210 | 20060-12210-Online |
| 2 | BOLT SLPW | 6 | GASKET | 20011-12221 | 20011-12221-Online |
| 2 | BOLT SLPW | 7 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 2 | BOLT SLPW | 8 | NUT | 20024-12260 | 20024-12260-Online |
| 2 | BOLT SLPW | 9 | MUFFLER ASSY | 62102-15010 | 62102-15010-Online |

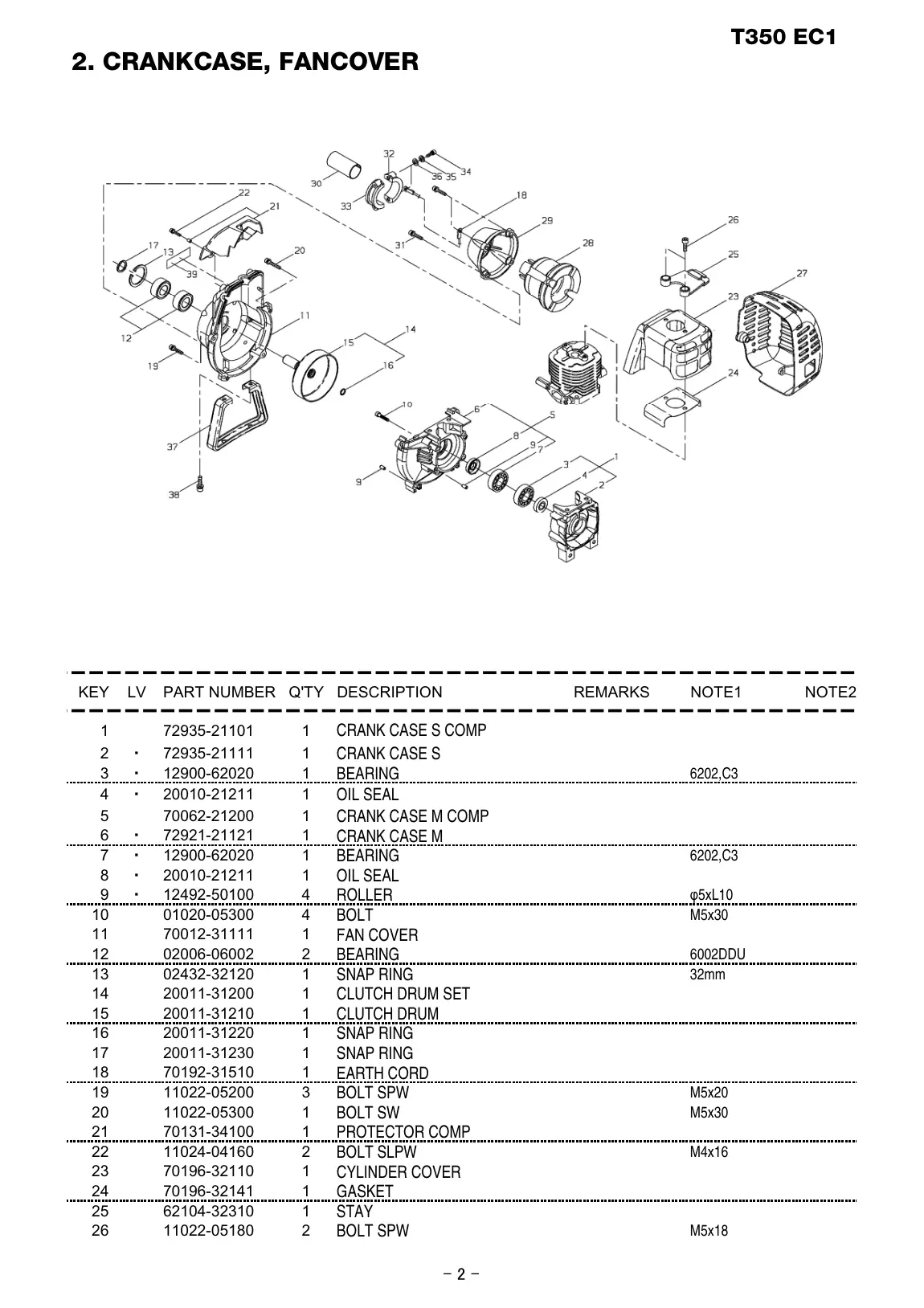

| 3 | BOLT SPW | 1 | CRANK CASE S COMP | 72935-21101 | 72935-21101-Online |
| 3 | BOLT SPW | 10 | BOLT | 01020-05300 | 01020-05300-Online |
| 3 | BOLT SPW | 11 | FAN COVER | 70012-31111 | 70012-31111-Online |
| 3 | BOLT SPW | 12 | BEARING | 02006-06002 | 02006-06002-Online |
| 3 | BOLT SPW | 13 | SNAP RING | 02432-32120 | 02432-32120-Online |
| 3 | BOLT SPW | 14 | CLUTCH DRUM SET | 20011-31200 | 20011-31200-Online |
| 3 | BOLT SPW | 15 | CLUTCH DRUM | 20011-31210 | 20011-31210-Online |
| 3 | BOLT SPW | 16 | SNAP RING | 20011-31220 | 20011-31220-Online |
| 3 | BOLT SPW | 17 | SNAP RING | 20011-31230 | 20011-31230-Online |
| 3 | BOLT SPW | 18 | EARTH CORD | 70192-31510 | 70192-31510-Online |
| 3 | BOLT SPW | 19 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 3 | BOLT SPW | 2 | CRANK CASE S | 72935-21111 | 72935-21111-Online |
| 3 | BOLT SPW | 20 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 3 | BOLT SPW | 21 | PROTECTOR COMP | 70131-34100 | 70131-34100-Online |
| 3 | BOLT SPW | 22 | BOLT SLPW | 11024-04160 | 11024-04160-Online |
| 3 | BOLT SPW | 23 | CYLINDER COVER | 70196-32110 | 70196-32110-Online |
| 3 | BOLT SPW | 24 | GASKET | 70196-32141 | 70196-32141-Online |
| 3 | BOLT SPW | 26 | BOLT SPW | 11022-05180 | 11022-05180-Online |
| 3 | BOLT SPW | 3 | BEARING | 12900-62020 | 12900-62020-Online |
| 3 | BOLT SPW | 4 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 3 | BOLT SPW | 5 | CRANK CASE M COMP | 70062-21200 | 70062-21200-Online |
| 3 | BOLT SPW | 6 | CRANK CASE M | 72921-21121 | 72921-21121-Online |
| 3 | BOLT SPW | 7 | BEARING | 12900-62020 | 12900-62020-Online |
| 3 | BOLT SPW | 8 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 3 | BOLT SPW | 9 | ROLLER | 12492-50100 | 12492-50100-Online |

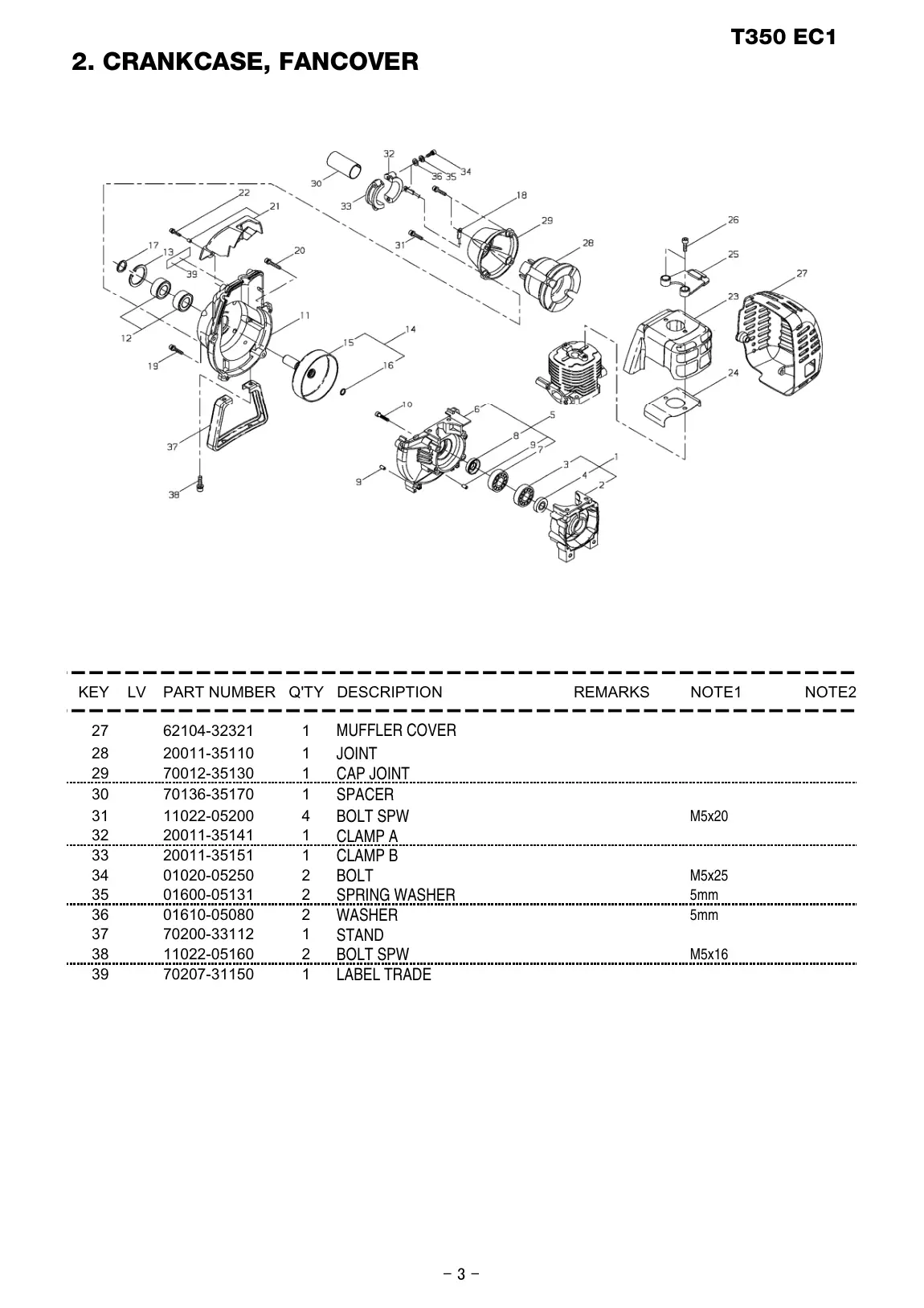

| 4 | LABEL TRADE | 27 | MUFFLER COVER | 62104-32321 | 62104-32321-Online |
| 4 | LABEL TRADE | 28 | JOINT | 20011-35110 | 20011-35110-Online |
| 4 | LABEL TRADE | 29 | CAP JOINT | 70012-35130 | 70012-35130-Online |
| 4 | LABEL TRADE | 30 | SPACER | 70136-35170 | 70136-35170-Online |
| 4 | LABEL TRADE | 31 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 4 | LABEL TRADE | 32 | CLAMP A | 20011-35141 | 20011-35141-Online |
| 4 | LABEL TRADE | 33 | CLAMP B | 20011-35151 | 20011-35151-Online |
| 4 | LABEL TRADE | 34 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | LABEL TRADE | 35 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 4 | LABEL TRADE | 36 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | LABEL TRADE | 38 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 4 | LABEL TRADE | 39 | LABEL TRADE | 70207-31150 | 70207-31150-Online |

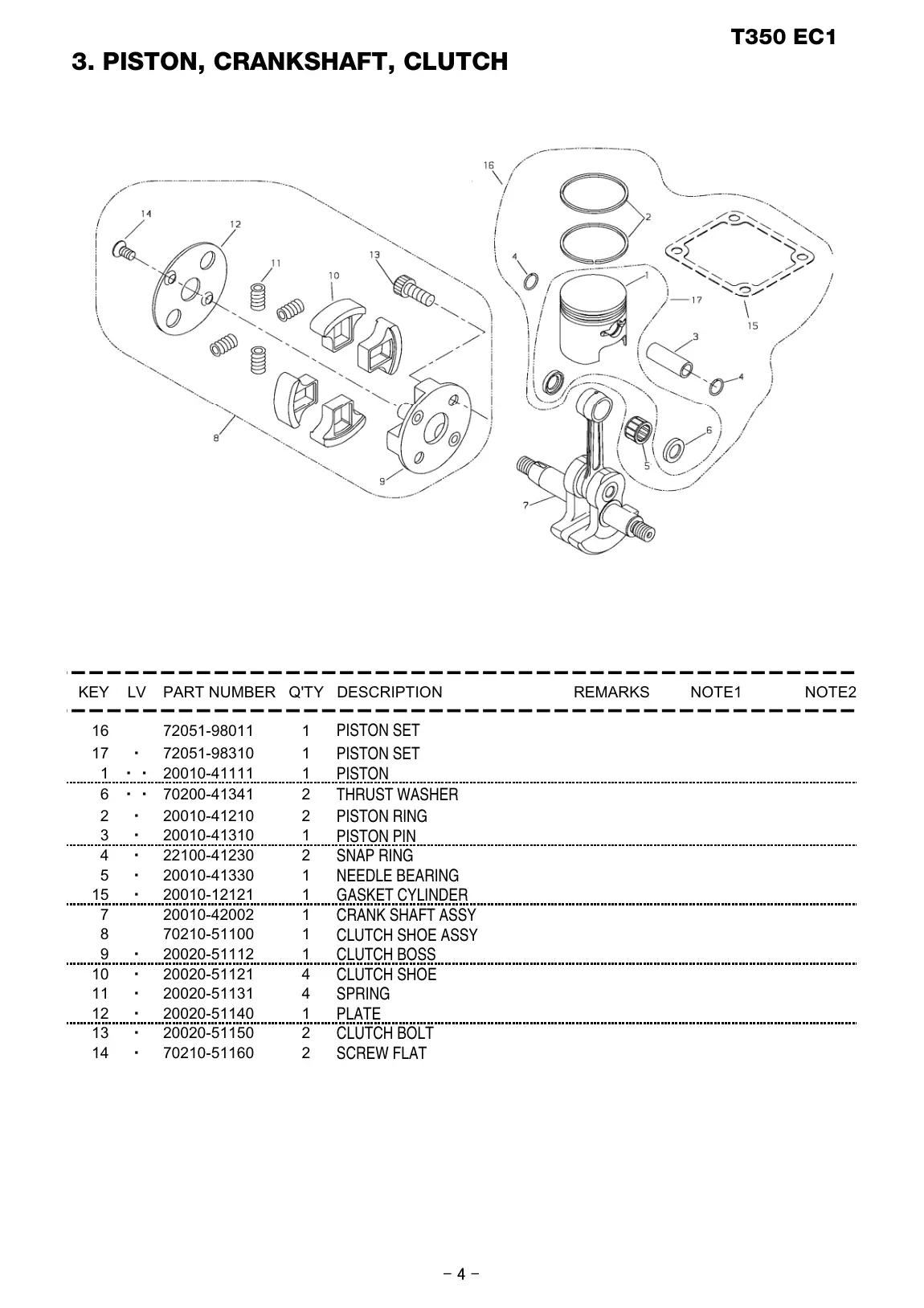

| 5 | SCREW FLAT | 1 | PISTON | 20010-41111 | 20010-41111-Online |
| 5 | SCREW FLAT | 1 | THRUST WASHER | 70200-41341 | 70200-41341-Online |
| 5 | SCREW FLAT | 10 | CLUTCH SHOE | 20020-51121 | 20020-51121-Online |
| 5 | SCREW FLAT | 11 | SPRING | 20020-51131 | 20020-51131-Online |
| 5 | SCREW FLAT | 12 | PLATE | 20020-51140 | 20020-51140-Online |
| 5 | SCREW FLAT | 13 | CLUTCH BOLT | 20020-51150 | 20020-51150-Online |
| 5 | SCREW FLAT | 14 | SCREW FLAT | 70210-51160 | 70210-51160-Online |
| 5 | SCREW FLAT | 15 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 5 | SCREW FLAT | 16 | PISTON SET | 72051-98011 | 72051-98011-Online |
| 5 | SCREW FLAT | 17 | PISTON SET | 72051-98310 | 72051-98310-Online |
| 5 | SCREW FLAT | 2 | PISTON RING | 20010-41210 | 20010-41210-Online |
| 5 | SCREW FLAT | 3 | PISTON PIN | 20010-41310 | 20010-41310-Online |
| 5 | SCREW FLAT | 4 | SNAP RING | 22100-41230 | 22100-41230-Online |
| 5 | SCREW FLAT | 5 | NEEDLE BEARING | 20010-41330 | 20010-41330-Online |
| 5 | SCREW FLAT | 7 | CRANK SHAFT ASSY | 20010-42002 | 20010-42002-Online |
| 5 | SCREW FLAT | 8 | CLUTCH SHOE ASSY | 70210-51100 | 70210-51100-Online |
| 5 | SCREW FLAT | 9 | CLUTCH BOSS | 20020-51112 | 20020-51112-Online |

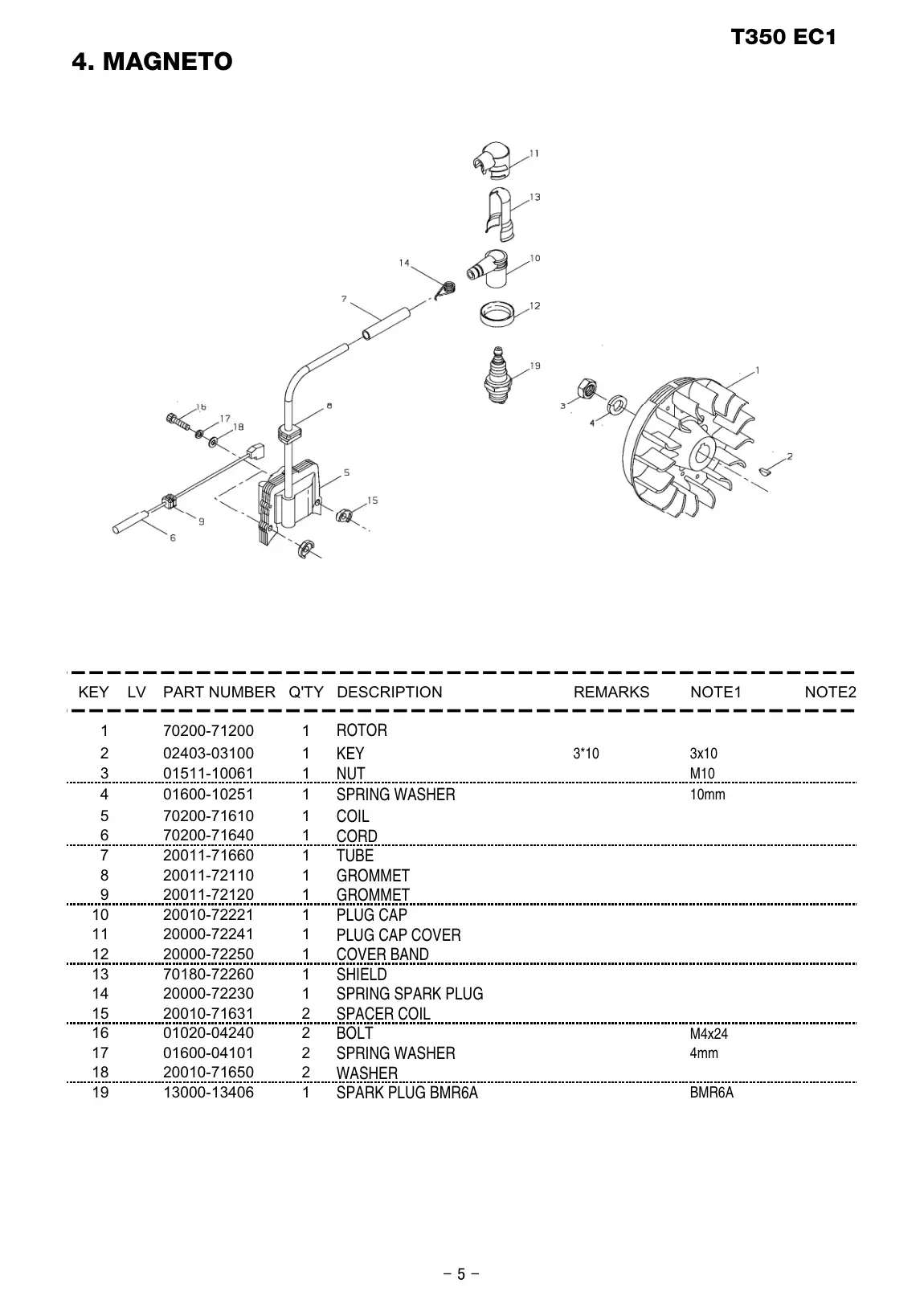

| 6 | BMR6A | 10 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 6 | BMR6A | 11 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 6 | BMR6A | 12 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 6 | BMR6A | 13 | SHIELD | 70180-72260 | 70180-72260-Online |
| 6 | BMR6A | 14 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 6 | BMR6A | 15 | SPACER COIL | 20010-71631 | 20010-71631-Online |
| 6 | BMR6A | 16 | BOLT | 01020-04240 | 01020-04240-Online |
| 6 | BMR6A | 17 | SPRING WASHER | 01600-04101 | 01600-04101-Online |
| 6 | BMR6A | 18 | WASHER | 20010-71650 | 20010-71650-Online |
| 6 | BMR6A | 19 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 6 | BMR6A | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 6 | BMR6A | 3 | NUT | 01511-10061 | 01511-10061-Online |
| 6 | BMR6A | 4 | SPRING WASHER | 01600-10251 | 01600-10251-Online |
| 6 | BMR6A | 5 | COIL | 70200-71610 | 70200-71610-Online |
| 6 | BMR6A | 7 | TUBE | 20011-71660 | 20011-71660-Online |
| 6 | BMR6A | 8 | GROMMET | 20011-72110 | 20011-72110-Online |
| 6 | BMR6A | 9 | GROMMET | 20011-72120 | 20011-72120-Online |

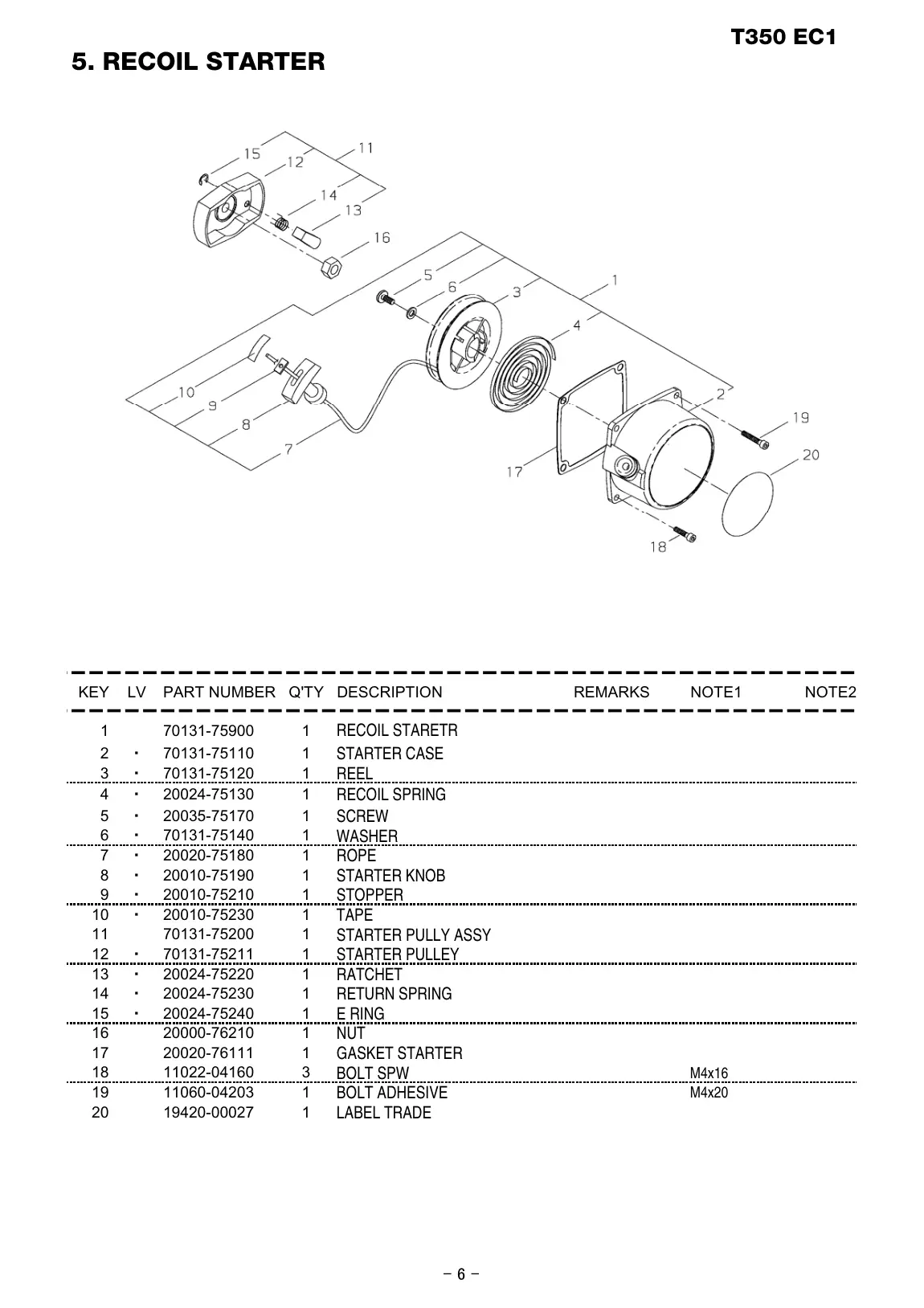

| 7 | LABEL TRADE | 1 | RECOIL STARETR | 70131-75900 | 70131-75900-Online |
| 7 | LABEL TRADE | 11 | STARTER PULLY ASSY | 70131-75200 | 70131-75200-Online |
| 7 | LABEL TRADE | 12 | STARTER PULLEY | 70131-75211 | 70131-75211-Online |
| 7 | LABEL TRADE | 13 | RATCHET | 20024-75220 | 20024-75220-Online |
| 7 | LABEL TRADE | 14 | RETURN SPRING | 20024-75230 | 20024-75230-Online |
| 7 | LABEL TRADE | 15 | E RING | 20024-75240 | 20024-75240-Online |
| 7 | LABEL TRADE | 16 | NUT | 20000-76210 | 20000-76210-Online |
| 7 | LABEL TRADE | 17 | GASKET STARTER | 20020-76111 | 20020-76111-Online |
| 7 | LABEL TRADE | 18 | BOLT SPW | 11022-04160 | 11022-04160-Online |
| 7 | LABEL TRADE | 19 | BOLT ADHESIVE | 11060-04203 | 11060-04203-Online |
| 7 | LABEL TRADE | 2 | STARTER CASE | 70131-75110 | 70131-75110-Online |
| 7 | LABEL TRADE | 20 | LABEL TRADE | 19420-00027 | 19420-00027-Online |
| 7 | LABEL TRADE | 3 | REEL | 70131-75120 | 70131-75120-Online |
| 7 | LABEL TRADE | 4 | RECOIL SPRING | 20024-75130 | 20024-75130-Online |
| 7 | LABEL TRADE | 5 | SCREW | 20035-75170 | 20035-75170-Online |
| 7 | LABEL TRADE | 6 | WASHER | 70131-75140 | 70131-75140-Online |
| 7 | LABEL TRADE | 7 | ROPE | 20020-75180 | 20020-75180-Online |
| 7 | LABEL TRADE | 8 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 7 | LABEL TRADE | 9 | STOPPER | 20010-75210 | 20010-75210-Online |

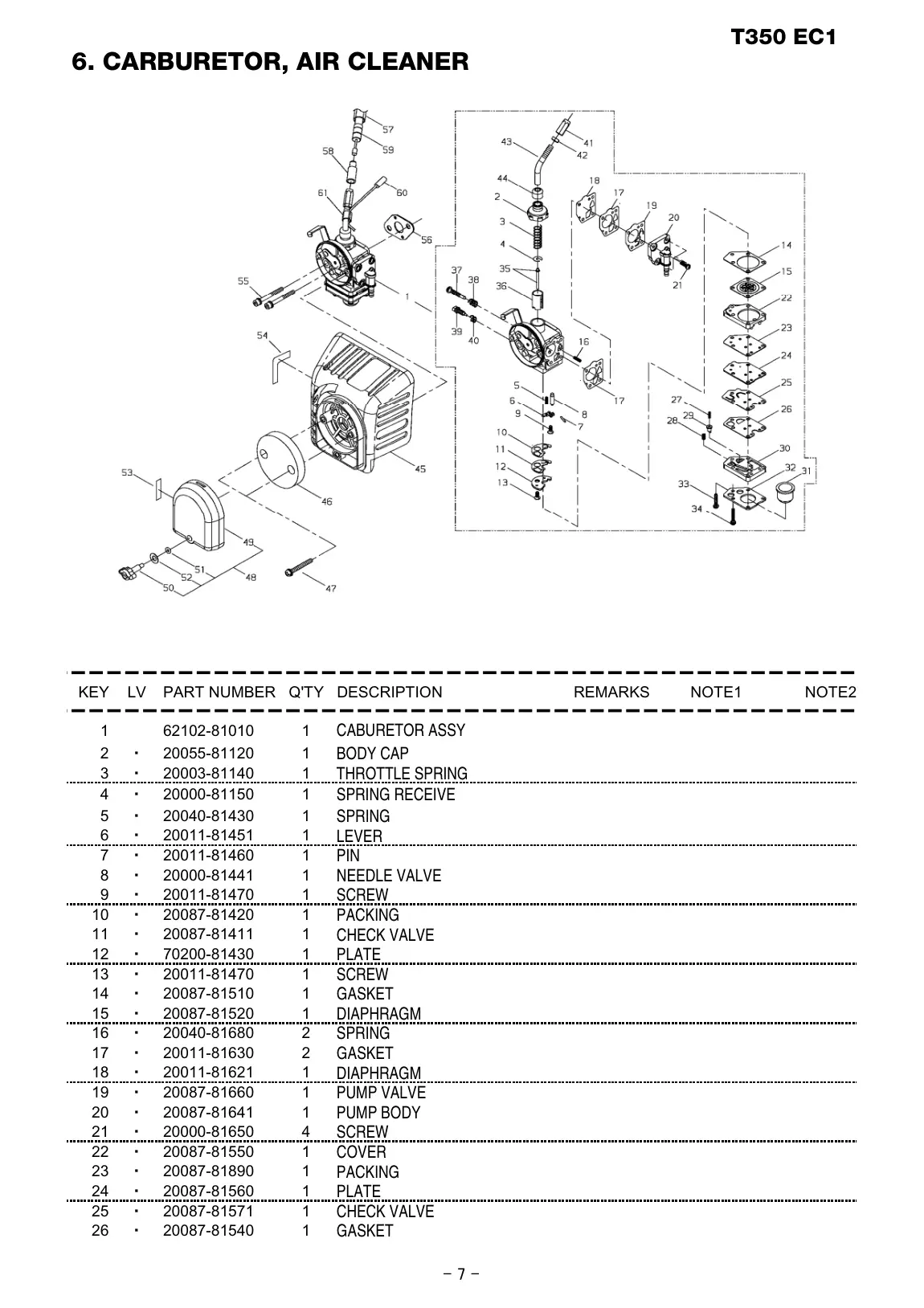

| 8 | GASKET | 1 | CABURETOR ASSY | 62102-81010 | 62102-81010-Online |
| 8 | GASKET | 10 | PACKING | 20087-81420 | 20087-81420-Online |
| 8 | GASKET | 11 | CHECK VALVE | 20087-81411 | 20087-81411-Online |
| 8 | GASKET | 12 | PLATE | 70200-81430 | 70200-81430-Online |
| 8 | GASKET | 13 | SCREW | 20011-81470 | 20011-81470-Online |
| 8 | GASKET | 14 | GASKET | 20087-81510 | 20087-81510-Online |
| 8 | GASKET | 15 | DIAPHRAGM | 20087-81520 | 20087-81520-Online |
| 8 | GASKET | 16 | SPRING | 20040-81680 | 20040-81680-Online |
| 8 | GASKET | 17 | GASKET | 20011-81630 | 20011-81630-Online |
| 8 | GASKET | 18 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 8 | GASKET | 19 | PUMP VALVE | 20087-81660 | 20087-81660-Online |
| 8 | GASKET | 2 | BODY CAP | 20055-81120 | 20055-81120-Online |
| 8 | GASKET | 20 | PUMP BODY | 20087-81641 | 20087-81641-Online |
| 8 | GASKET | 21 | SCREW | 20000-81650 | 20000-81650-Online |
| 8 | GASKET | 22 | COVER | 20087-81550 | 20087-81550-Online |
| 8 | GASKET | 23 | PACKING | 20087-81890 | 20087-81890-Online |
| 8 | GASKET | 24 | PLATE | 20087-81560 | 20087-81560-Online |
| 8 | GASKET | 25 | CHECK VALVE | 20087-81571 | 20087-81571-Online |
| 8 | GASKET | 26 | GASKET | 20087-81540 | 20087-81540-Online |
| 8 | GASKET | 3 | THROTTLE SPRING | 20003-81140 | 20003-81140-Online |
| 8 | GASKET | 4 | SPRING RECEIVE | 20000-81150 | 20000-81150-Online |
| 8 | GASKET | 5 | SPRING | 20040-81430 | 20040-81430-Online |
| 8 | GASKET | 6 | LEVER | 20011-81451 | 20011-81451-Online |
| 8 | GASKET | 7 | PIN | 20011-81460 | 20011-81460-Online |
| 8 | GASKET | 8 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 8 | GASKET | 9 | SCREW | 20011-81470 | 20011-81470-Online |

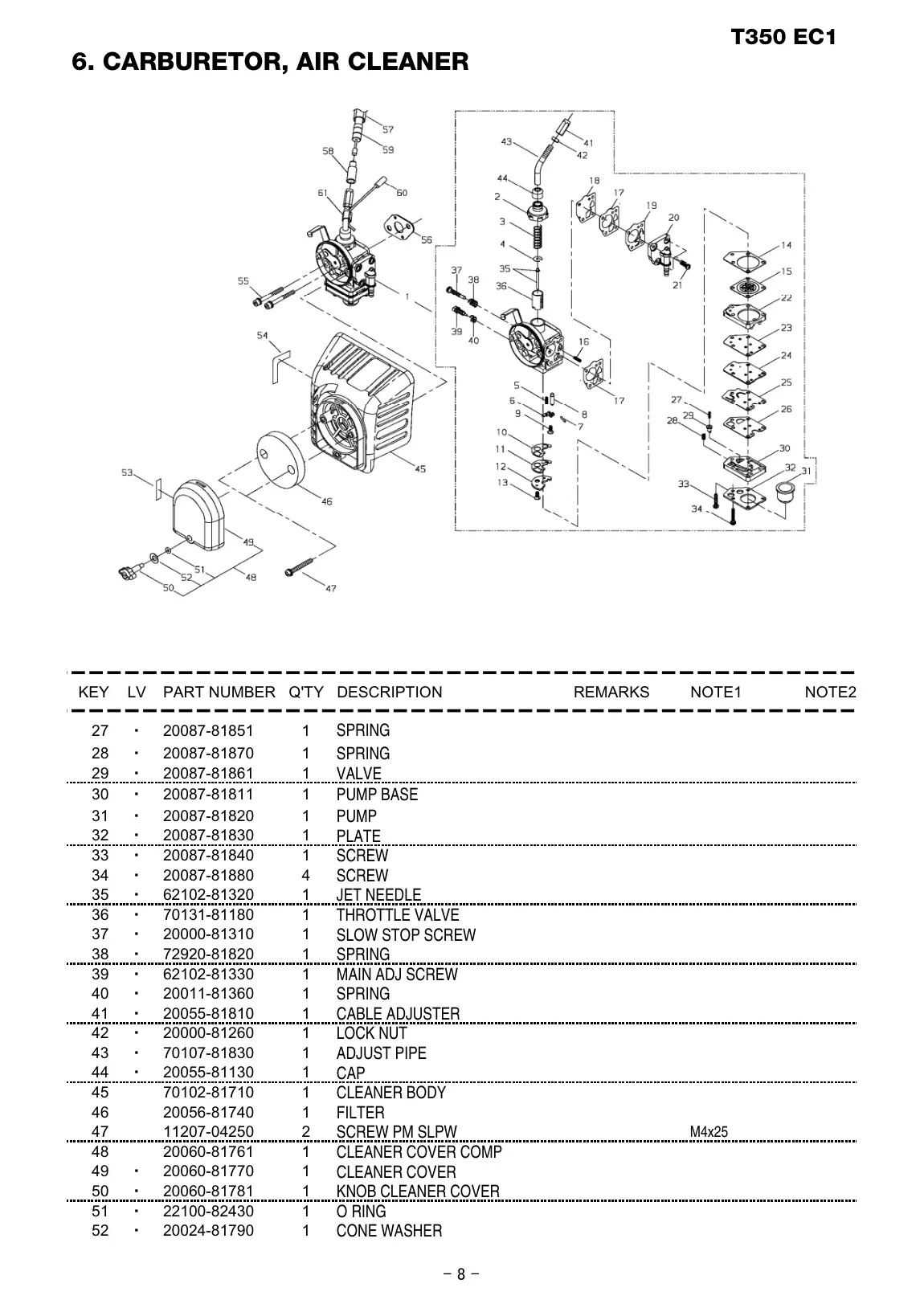

| 9 | CONE WASHER | 27 | SPRING | 20087-81851 | 20087-81851-Online |
| 9 | CONE WASHER | 28 | SPRING | 20087-81870 | 20087-81870-Online |
| 9 | CONE WASHER | 29 | VALVE | 20087-81861 | 20087-81861-Online |
| 9 | CONE WASHER | 30 | PUMP BASE | 20087-81811 | 20087-81811-Online |
| 9 | CONE WASHER | 31 | PUMP | 20087-81820 | 20087-81820-Online |
| 9 | CONE WASHER | 32 | PLATE | 20087-81830 | 20087-81830-Online |
| 9 | CONE WASHER | 33 | SCREW | 20087-81840 | 20087-81840-Online |
| 9 | CONE WASHER | 34 | SCREW | 20087-81880 | 20087-81880-Online |
| 9 | CONE WASHER | 35 | JET NEEDLE | 62102-81320 | 62102-81320-Online |
| 9 | CONE WASHER | 36 | THROTTLE VALVE | 70131-81180 | 70131-81180-Online |
| 9 | CONE WASHER | 37 | SLOW STOP SCREW | 20000-81310 | 20000-81310-Online |
| 9 | CONE WASHER | 38 | SPRING | 72920-81820 | 72920-81820-Online |
| 9 | CONE WASHER | 39 | MAIN ADJ SCREW | 62102-81330 | 62102-81330-Online |
| 9 | CONE WASHER | 40 | SPRING | 20011-81360 | 20011-81360-Online |
| 9 | CONE WASHER | 41 | CABLE ADJUSTER | 20055-81810 | 20055-81810-Online |
| 9 | CONE WASHER | 42 | LOCK NUT | 20000-81260 | 20000-81260-Online |
| 9 | CONE WASHER | 43 | ADJUST PIPE | 70107-81830 | 70107-81830-Online |
| 9 | CONE WASHER | 44 | CAP | 20055-81130 | 20055-81130-Online |
| 9 | CONE WASHER | 45 | CLEANER BODY | 70102-81710 | 70102-81710-Online |
| 9 | CONE WASHER | 46 | FILTER | 20056-81740 | 20056-81740-Online |
| 9 | CONE WASHER | 47 | SCREW PM SLPW | 11207-04250 | 11207-04250-Online |
| 9 | CONE WASHER | 48 | CLEANER COVER COMP | 20060-81761 | 20060-81761-Online |
| 9 | CONE WASHER | 49 | CLEANER COVER | 20060-81770 | 20060-81770-Online |
| 9 | CONE WASHER | 50 | KNOB CLEANER COVER | 20060-81781 | 20060-81781-Online |
| 9 | CONE WASHER | 51 | O RING | 22100-82430 | 22100-82430-Online |
| 9 | CONE WASHER | 52 | CONE WASHER | 20024-81790 | 20024-81790-Online |

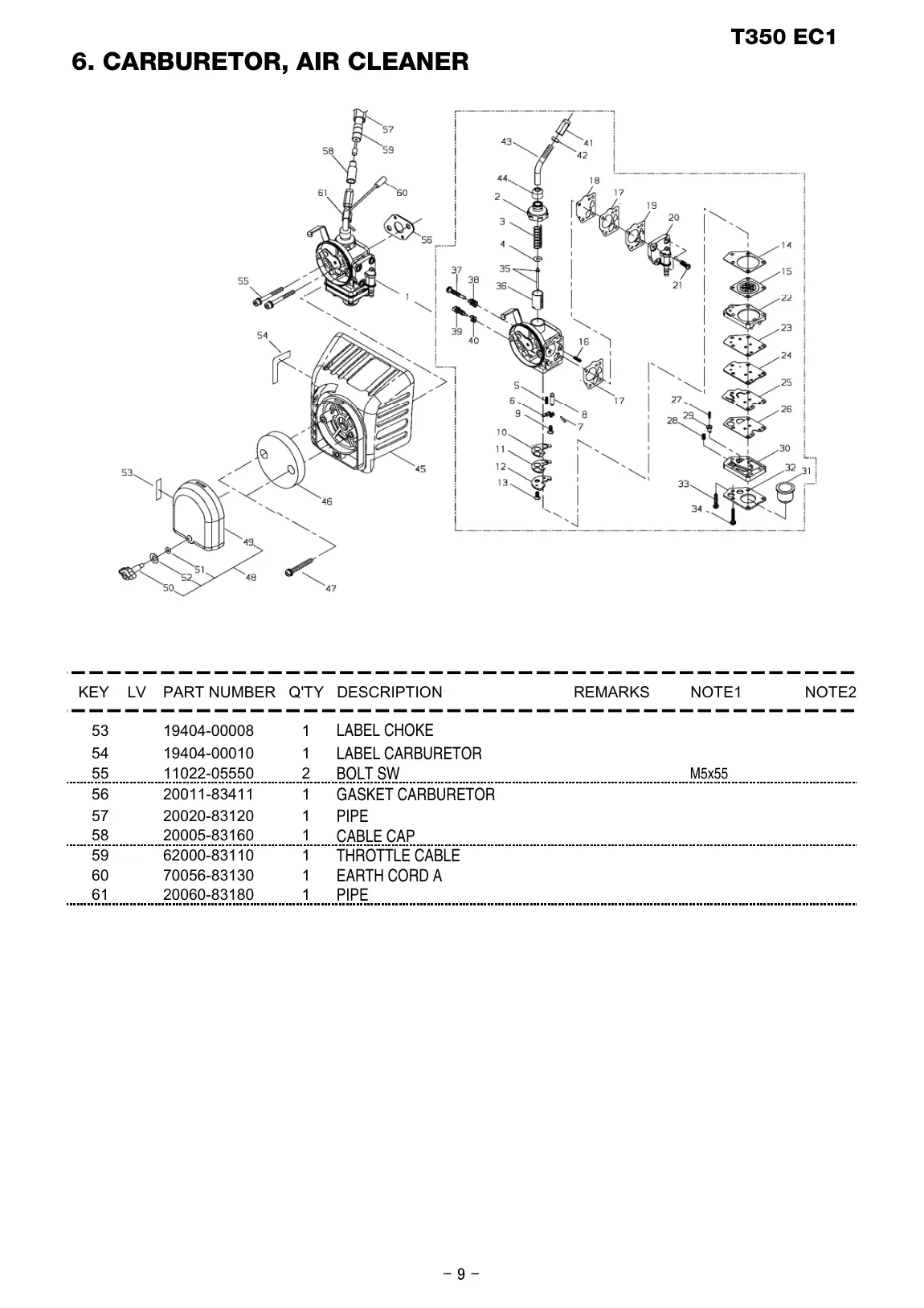

| 10 | PIPE | 53 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 10 | PIPE | 54 | LABEL CARBURETOR | 19404-00010 | 19404-00010-Online |
| 10 | PIPE | 55 | BOLT SW | 11022-05550 | 11022-05550-Online |
| 10 | PIPE | 56 | GASKET CARBURETOR | 20011-83411 | 20011-83411-Online |
| 10 | PIPE | 57 | PIPE | 20020-83120 | 20020-83120-Online |
| 10 | PIPE | 58 | CABLE CAP | 20005-83160 | 20005-83160-Online |
| 10 | PIPE | 59 | THROTTLE CABLE | 62000-83110 | 62000-83110-Online |
| 10 | PIPE | 60 | EARTH CORD A | 70056-83130 | 70056-83130-Online |
| 10 | PIPE | 61 | PIPE | 20060-83180 | 20060-83180-Online |

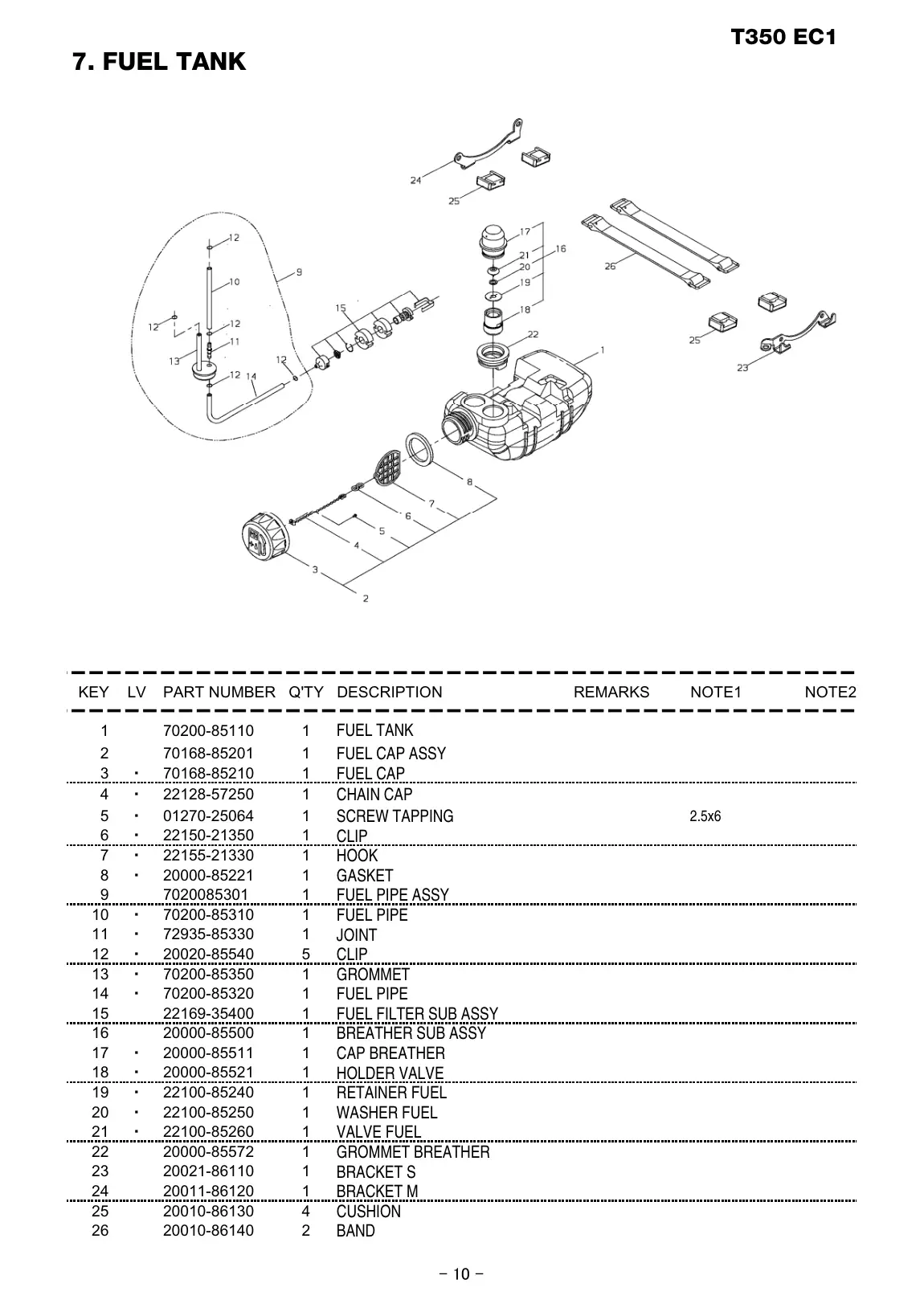

| 11 | BAND | 1 | FUEL TANK | 70200-85110 | 70200-85110-Online |
| 11 | BAND | 10 | FUEL PIPE | 70200-85310 | 70200-85310-Online |
| 11 | BAND | 11 | JOINT | 72935-85330 | 72935-85330-Online |
| 11 | BAND | 12 | CLIP | 20020-85540 | 20020-85540-Online |
| 11 | BAND | 13 | GROMMET | 70200-85350 | 70200-85350-Online |
| 11 | BAND | 14 | FUEL PIPE | 70200-85320 | 70200-85320-Online |
| 11 | BAND | 15 | FUEL FILTER SUB ASSY | 22169-35400 | 22169-35400-Online |
| 11 | BAND | 16 | BREATHER SUB ASSY | 20000-85500 | 20000-85500-Online |
| 11 | BAND | 17 | CAP BREATHER | 20000-85511 | 20000-85511-Online |
| 11 | BAND | 18 | HOLDER VALVE | 20000-85521 | 20000-85521-Online |
| 11 | BAND | 19 | RETAINER FUEL | 22100-85240 | 22100-85240-Online |
| 11 | BAND | 2 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 11 | BAND | 20 | WASHER FUEL | 22100-85250 | 22100-85250-Online |
| 11 | BAND | 21 | VALVE FUEL | 22100-85260 | 22100-85260-Online |
| 11 | BAND | 22 | GROMMET BREATHER | 20000-85572 | 20000-85572-Online |
| 11 | BAND | 23 | BRACKET S | 20021-86110 | 20021-86110-Online |
| 11 | BAND | 24 | BRACKET M | 20011-86120 | 20011-86120-Online |
| 11 | BAND | 25 | CUSHION | 20010-86130 | 20010-86130-Online |
| 11 | BAND | 26 | BAND | 20010-86140 | 20010-86140-Online |
| 11 | BAND | 3 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 11 | BAND | 4 | CHAIN CAP | 22128-57250 | 22128-57250-Online |
| 11 | BAND | 5 | SCREW TAPPING | 01270-25064 | 01270-25064-Online |
| 11 | BAND | 6 | CLIP | 22150-21350 | 22150-21350-Online |
| 11 | BAND | 8 | GASKET | 20000-85221 | 20000-85221-Online |
| 11 | BAND | 9 | FUEL PIPE ASSY | 7020085301 | 7020085301-Online |

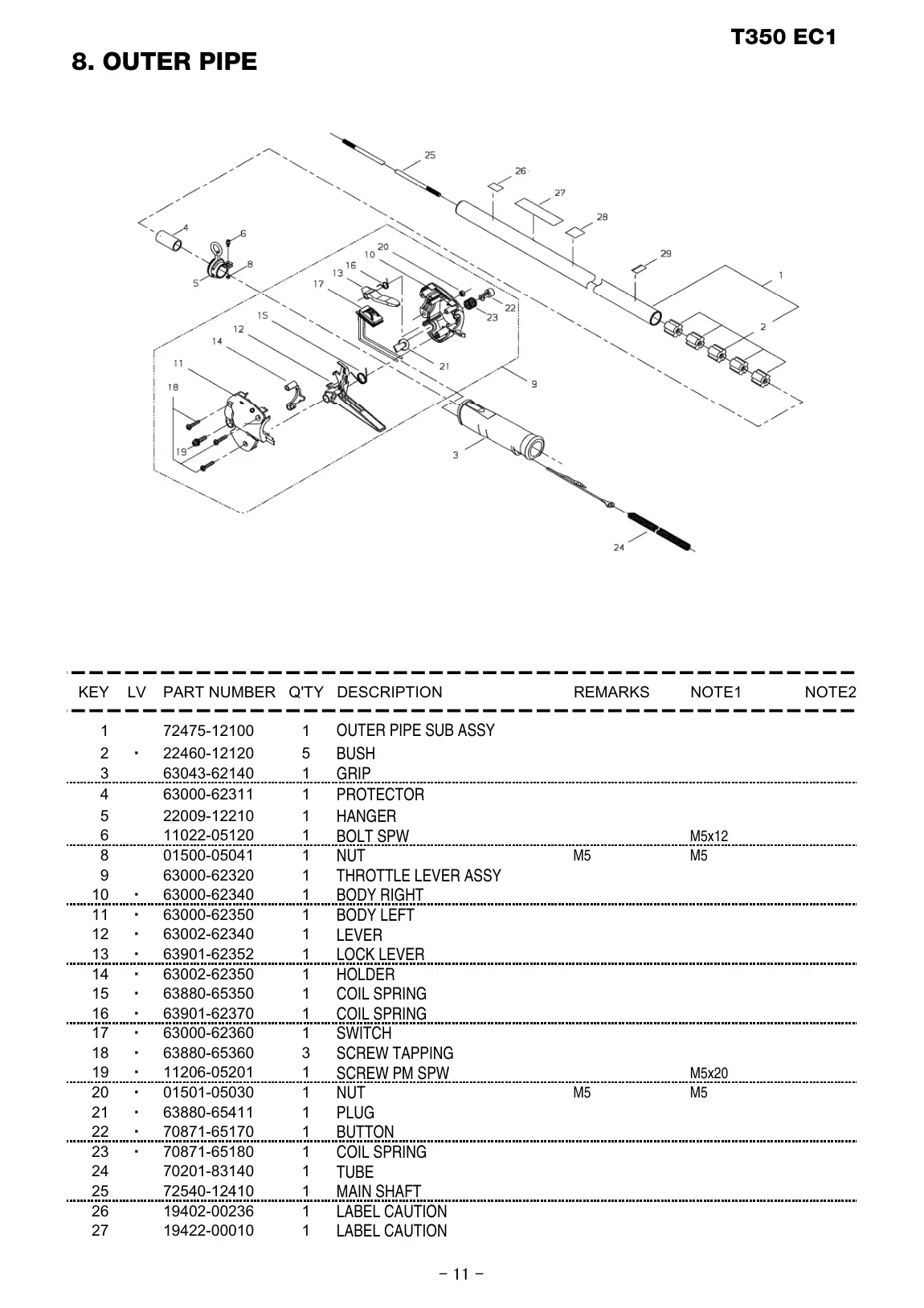

| 12 | LABEL CAUTION | 1 | OUTER PIPE SUB ASSY | 72475-12100 | 72475-12100-Online |
| 12 | LABEL CAUTION | 10 | BODY RIGHT | 63000-62340 | 63000-62340-Online |
| 12 | LABEL CAUTION | 11 | BODY LEFT | 63000-62350 | 63000-62350-Online |
| 12 | LABEL CAUTION | 12 | LEVER | 63002-62340 | 63002-62340-Online |
| 12 | LABEL CAUTION | 13 | LOCK LEVER | 63901-62352 | 63901-62352-Online |
| 12 | LABEL CAUTION | 14 | HOLDER | 63002-62350 | 63002-62350-Online |
| 12 | LABEL CAUTION | 15 | COIL SPRING | 63880-65350 | 63880-65350-Online |
| 12 | LABEL CAUTION | 16 | COIL SPRING | 63901-62370 | 63901-62370-Online |
| 12 | LABEL CAUTION | 17 | SWITCH | 63000-62360 | 63000-62360-Online |
| 12 | LABEL CAUTION | 18 | SCREW TAPPING | 63880-65360 | 63880-65360-Online |
| 12 | LABEL CAUTION | 19 | SCREW PM SPW | 11206-05201 | 11206-05201-Online |
| 12 | LABEL CAUTION | 20 | NUT | 01501-05030 | 01501-05030-Online |
| 12 | LABEL CAUTION | 21 | PLUG | 63880-65411 | 63880-65411-Online |
| 12 | LABEL CAUTION | 22 | BUTTON | 70871-65170 | 70871-65170-Online |
| 12 | LABEL CAUTION | 23 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 12 | LABEL CAUTION | 24 | TUBE | 70201-83140 | 70201-83140-Online |
| 12 | LABEL CAUTION | 25 | MAIN SHAFT | 72540-12410 | 72540-12410-Online |
| 12 | LABEL CAUTION | 26 | LABEL CAUTION | 19402-00236 | 19402-00236-Online |
| 12 | LABEL CAUTION | 27 | LABEL CAUTION | 19422-00010 | 19422-00010-Online |
| 12 | LABEL CAUTION | 3 | GRIP | 63043-62140 | 63043-62140-Online |
| 12 | LABEL CAUTION | 4 | PROTECTOR | 63000-62311 | 63000-62311-Online |
| 12 | LABEL CAUTION | 5 | HANGER | 22009-12210 | 22009-12210-Online |
| 12 | LABEL CAUTION | 6 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 12 | LABEL CAUTION | 8 | NUT | 01500-05041 | 01500-05041-Online |
| 12 | LABEL CAUTION | 9 | THROTTLE LEVER ASSY | 63000-62320 | 63000-62320-Online |

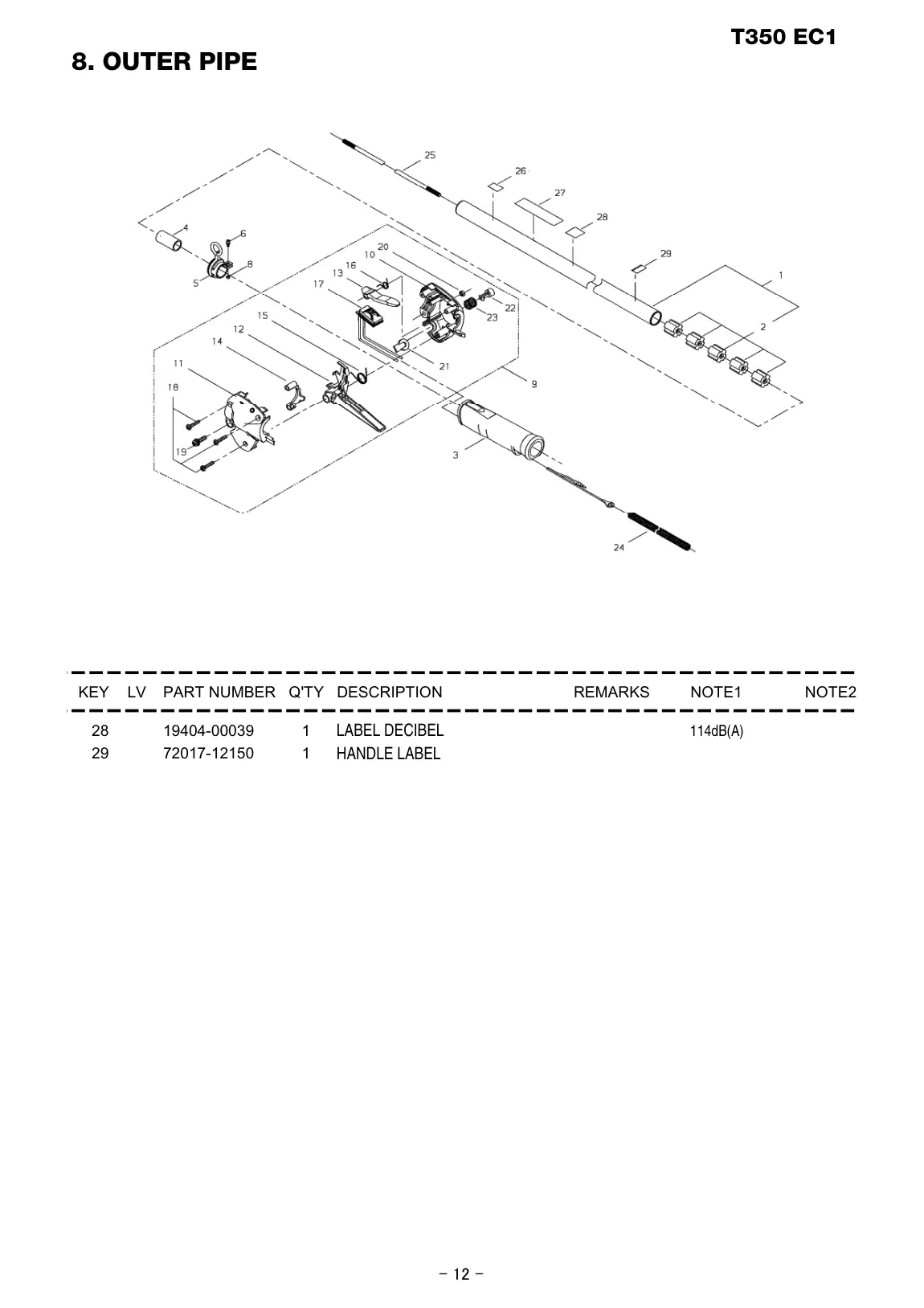

| 13 | HANDLE LABEL | 28 | LABEL DECIBEL | 19404-00039 | 19404-00039-Online |
| 13 | HANDLE LABEL | 29 | HANDLE LABEL | 72017-12150 | 72017-12150-Online |

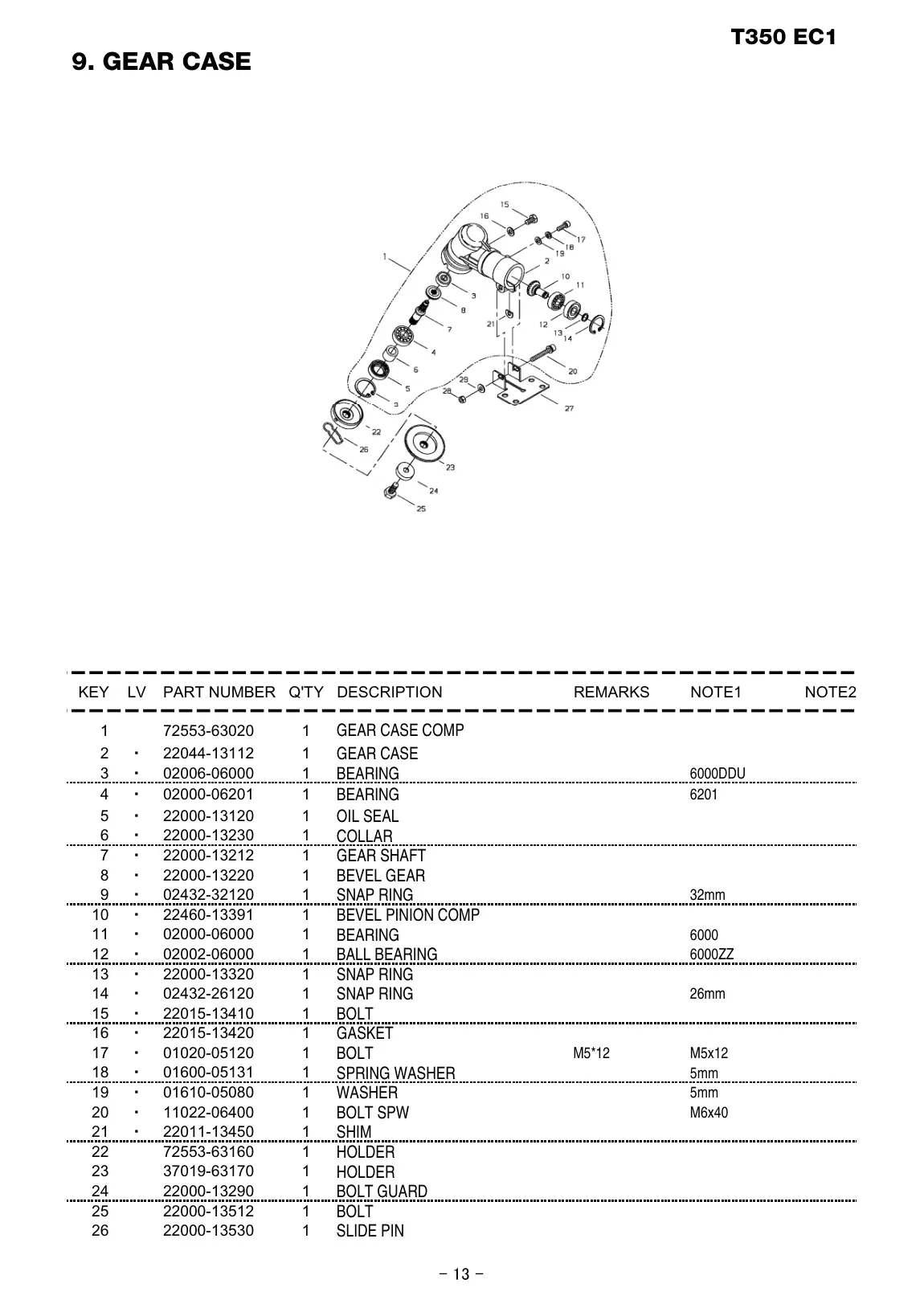

| 14 | SLIDE PIN | 1 | GEAR CASE COMP | 72553-63020 | 72553-63020-Online |
| 14 | SLIDE PIN | 10 | BEVEL PINION COMP | 22460-13391 | 22460-13391-Online |
| 14 | SLIDE PIN | 11 | BEARING | 02000-06000 | 02000-06000-Online |
| 14 | SLIDE PIN | 12 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 14 | SLIDE PIN | 13 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 14 | SLIDE PIN | 14 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 14 | SLIDE PIN | 15 | BOLT | 22015-13410 | 22015-13410-Online |
| 14 | SLIDE PIN | 16 | GASKET | 22015-13420 | 22015-13420-Online |
| 14 | SLIDE PIN | 17 | BOLT | 01020-05120 | 01020-05120-Online |
| 14 | SLIDE PIN | 18 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 14 | SLIDE PIN | 19 | WASHER | 01610-05080 | 01610-05080-Online |
| 14 | SLIDE PIN | 2 | GEAR CASE | 22044-13112 | 22044-13112-Online |
| 14 | SLIDE PIN | 20 | BOLT SPW | 11022-06400 | 11022-06400-Online |
| 14 | SLIDE PIN | 21 | SHIM | 22011-13450 | 22011-13450-Online |
| 14 | SLIDE PIN | 22 | HOLDER | 72553-63160 | 72553-63160-Online |
| 14 | SLIDE PIN | 23 | HOLDER | 37019-63170 | 37019-63170-Online |
| 14 | SLIDE PIN | 24 | BOLT GUARD | 22000-13290 | 22000-13290-Online |
| 14 | SLIDE PIN | 25 | BOLT | 22000-13512 | 22000-13512-Online |
| 14 | SLIDE PIN | 26 | SLIDE PIN | 22000-13530 | 22000-13530-Online |
| 14 | SLIDE PIN | 3 | BEARING | 02006-06000 | 02006-06000-Online |
| 14 | SLIDE PIN | 4 | BEARING | 02000-06201 | 02000-06201-Online |
| 14 | SLIDE PIN | 5 | OIL SEAL | 22000-13120 | 22000-13120-Online |
| 14 | SLIDE PIN | 6 | COLLAR | 22000-13230 | 22000-13230-Online |
| 14 | SLIDE PIN | 7 | GEAR SHAFT | 22000-13212 | 22000-13212-Online |
| 14 | SLIDE PIN | 8 | BEVEL GEAR | 22000-13220 | 22000-13220-Online |
| 14 | SLIDE PIN | 9 | SNAP RING | 02432-32120 | 02432-32120-Online |

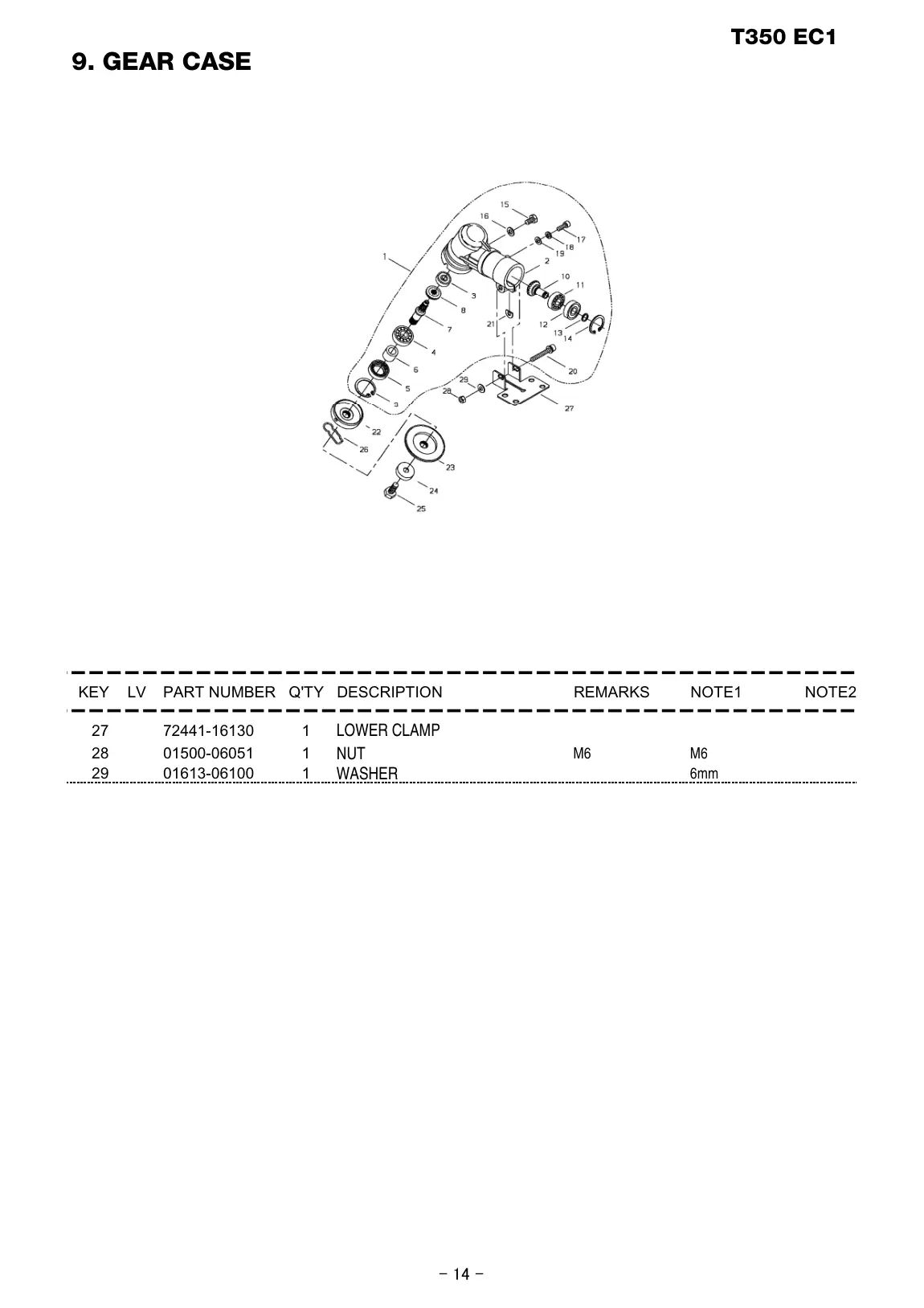

| 15 | WASHER | 27 | LOWER CLAMP | 72441-16130 | 72441-16130-Online |
| 15 | WASHER | 28 | NUT | 01500-06051 | 01500-06051-Online |
| 15 | WASHER | 29 | WASHER | 01613-06100 | 01613-06100-Online |

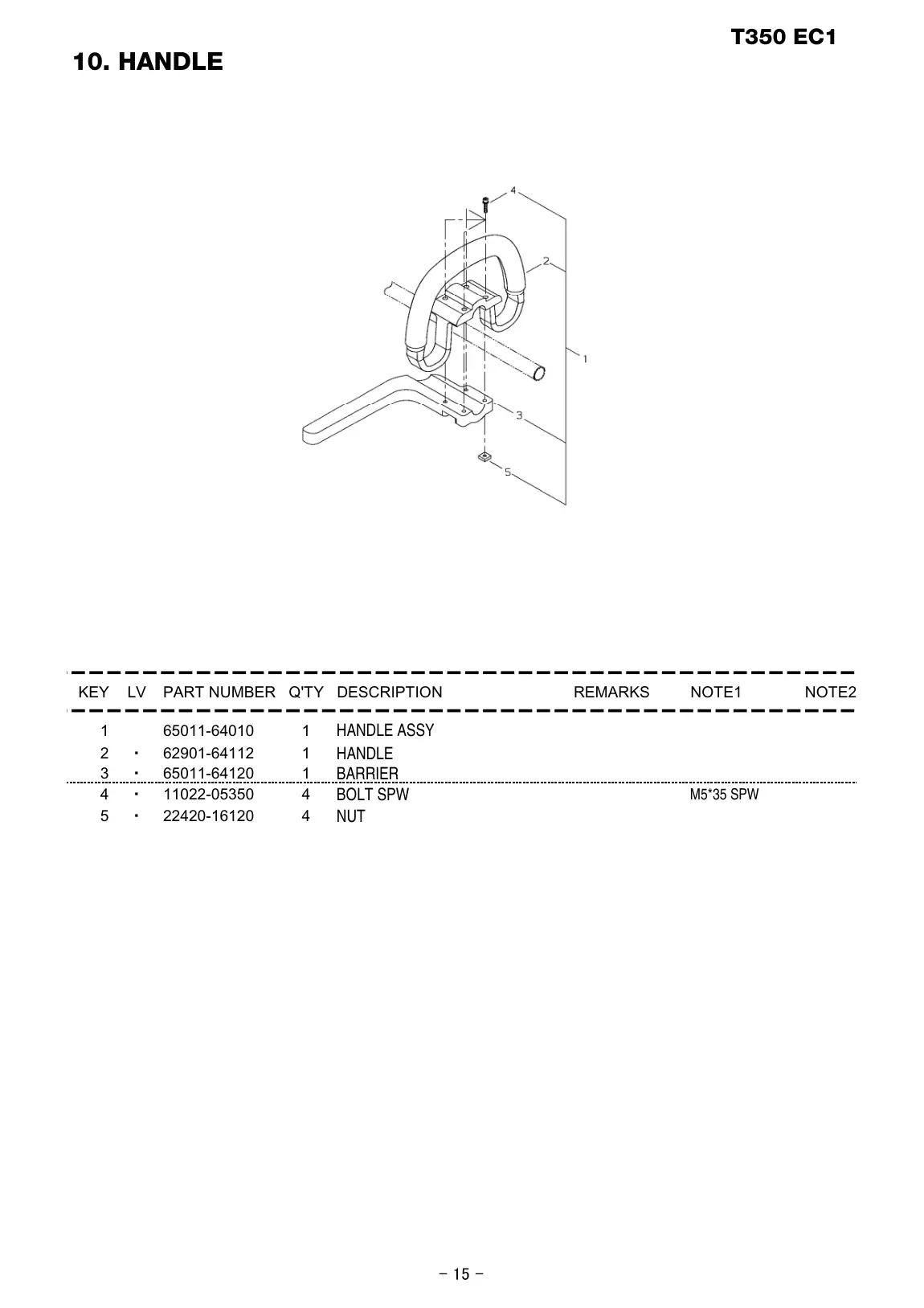

| 16 | NUT | 1 | HANDLE ASSY | 65011-64010 | 65011-64010-Online |
| 16 | NUT | 2 | HANDLE | 62901-64112 | 62901-64112-Online |
| 16 | NUT | 3 | BARRIER | 65011-64120 | 65011-64120-Online |
| 16 | NUT | 4 | BOLT SPW | 11022-05350 | 11022-05350-Online |
| 16 | NUT | 5 | NUT | 22420-16120 | 22420-16120-Online |

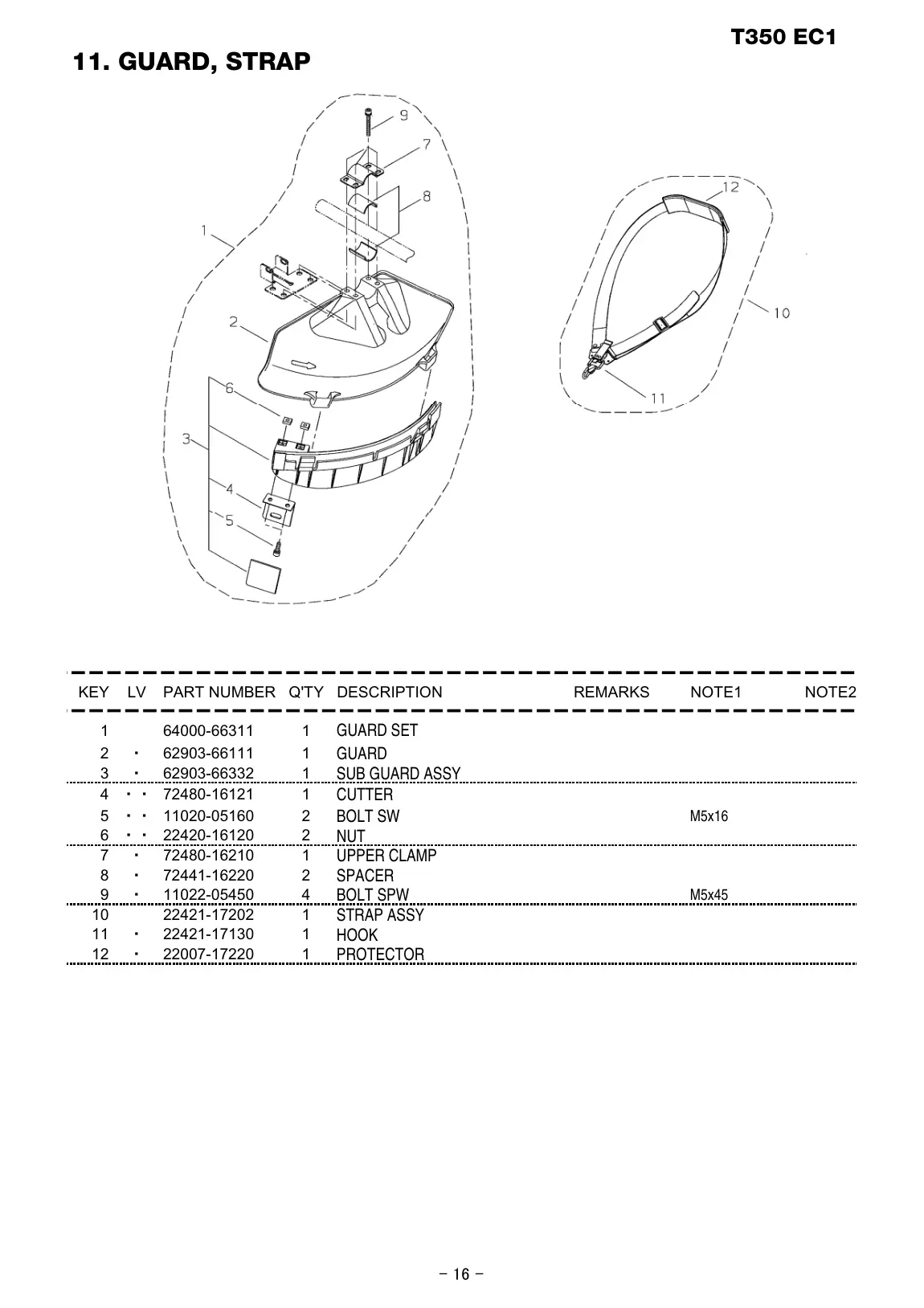

| 17 | HOOK | 1 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 17 | HOOK | 1 | GUARD SET | 64000-66311 | 64000-66311-Online |
| 17 | HOOK | 1 | CUTTER | 72480-16121 | 72480-16121-Online |
| 17 | HOOK | 10 | STRAP ASSY | 22421-17202 | 22421-17202-Online |
| 17 | HOOK | 12 | PROTECTOR | 22007-17220 | 22007-17220-Online |
| 17 | HOOK | 2 | NUT | 22420-16120 | 22420-16120-Online |
| 17 | HOOK | 2 | GUARD | 62903-66111 | 62903-66111-Online |
| 17 | HOOK | 3 | SUB GUARD ASSY | 62903-66332 | 62903-66332-Online |
| 17 | HOOK | 7 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 17 | HOOK | 8 | SPACER | 72441-16220 | 72441-16220-Online |
| 17 | HOOK | 9 | BOLT SPW | 11022-05450 | 11022-05450-Online |

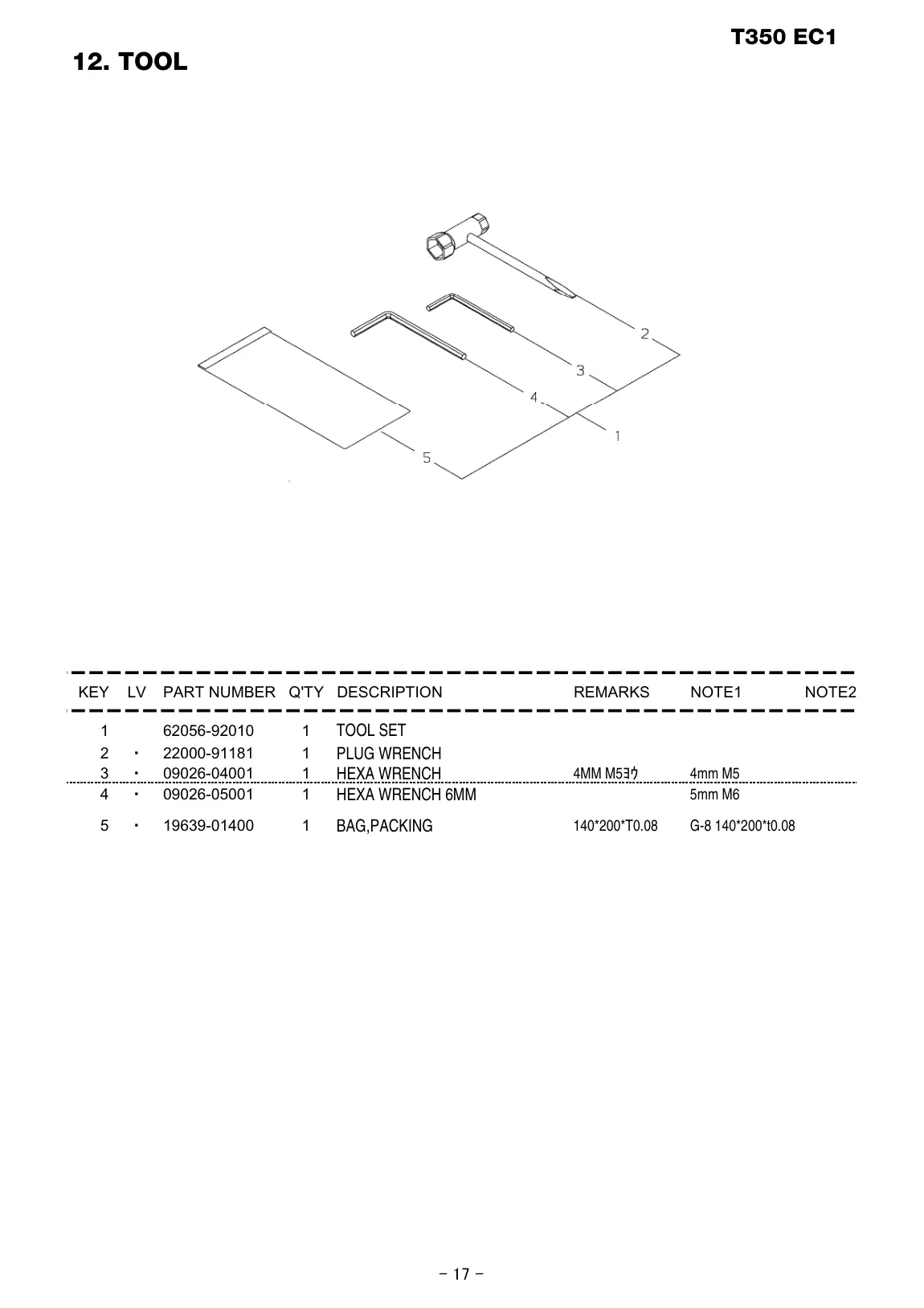

| 18 | 140*200*T0.08 | 1 | TOOL SET | 62056-92010 | 62056-92010-Online |
| 18 | 140*200*T0.08 | 2 | PLUG WRENCH | 22000-91181 | 22000-91181-Online |
| 18 | 140*200*T0.08 | 3 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 18 | 140*200*T0.08 | 4 | HEXA WRENCH 6MM | 09026-05001 | 09026-05001-Online |
| 18 | 140*200*T0.08 | 5 | BAG,PACKING | 19639-01400 | 19639-01400-Online |

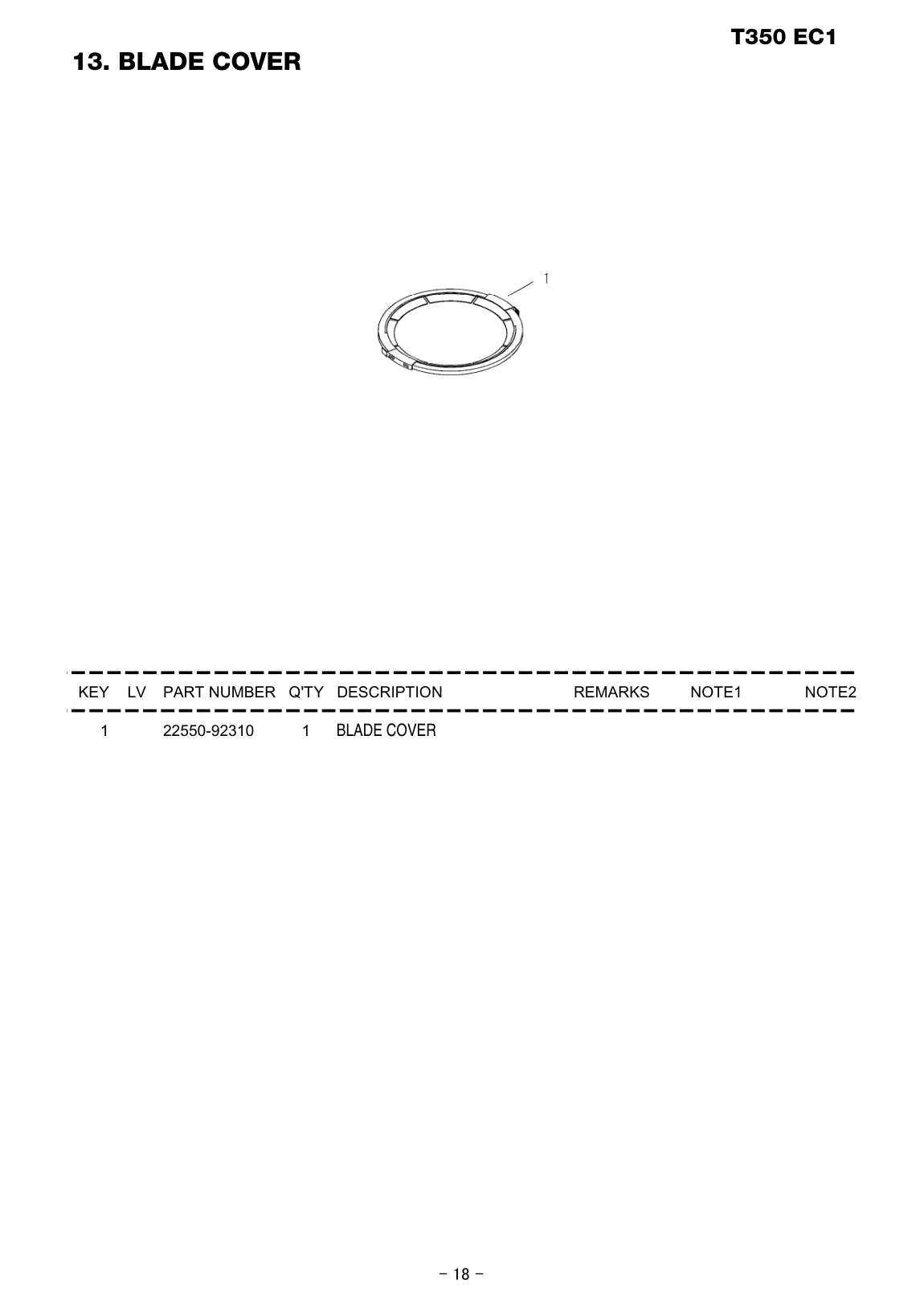

| 19 | BLADE COVER | 1 | BLADE COVER | 22550-92310 | 22550-92310-Online |
Source file: 20130718-776_T350_EC1_T350_EC1_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
