Illustrated Parts List
Shindaiwa 757 50RX Chainsaw IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: 757 50RX
Type: Chainsaw
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | BOLT | 1 | CYLINDER | A130-001670 | A130-001670-Online |
| 2 | BOLT | 10 | SPARK ARRESTOR | A310-000320 | A310-000320-Online |
| 2 | BOLT | 11 | TAIL PLATE | A313-001590 | A313-001590-Online |
| 2 | BOLT | 12 | SCREW PM | 91578-05008 | 91578-05008-Online |
| 2 | BOLT | 13 | GASKET MUFFLER | V104-001610 | V104-001610-Online |
| 2 | BOLT | 14 | BOLT | V204-000650 | V204-000650-Online |
| 2 | BOLT | 15 | SPRING WASHER | V304-000280 | V304-000280-Online |
| 2 | BOLT | 16 | BOLT | V204-000660 | V204-000660-Online |
| 2 | BOLT | 17 | MUFFLER SUB ASSY | A030-000600 | A030-000600-Online |
| 2 | BOLT | 2 | GASKET CYLINDER | V100-000570 | V100-000570-Online |
| 2 | BOLT | 3 | BOLT | V204-000690 | V204-000690-Online |
| 2 | BOLT | 4 | BAFFLE PLATE | A200-000880 | A200-000880-Online |
| 2 | BOLT | 6 | SLEEVE | V360-000120 | V360-000120-Online |
| 2 | BOLT | 7 | BRACKET | A565-000070 | A565-000070-Online |
| 2 | BOLT | 8 | SCREW | 900212-04016 | 900212-04016-Online |
| 2 | BOLT | 9 | MUFFLER | A030-000610 | A030-000610-Online |
| 3 | BOLT | 1 | CRANK CASE M | A120-000720 | A120-000720-Online |
| 3 | BOLT | 10 | ROLLER | V623-000060 | V623-000060-Online |
| 3 | BOLT | 11 | BEARING, BALL | 900810-36203 | 900810-36203-Online |
| 3 | BOLT | 12 | OIL SEAL | V510-000030 | V510-000030-Online |
| 3 | BOLT | 13 | BOLT | V203-001450 | V203-001450-Online |
| 3 | BOLT | 14 | CRANK CASE M COMP | P021-022520 | P021-022520-Online |
| 3 | BOLT | 15 | CRANK CASE C COMP | P021-022530 | P021-022530-Online |
| 3 | BOLT | 2 | PULSE JOINT | V185-000000 | V185-000000-Online |
| 3 | BOLT | 3 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 3 | BOLT | 4 | OIL SEAL | V508-000080 | V508-000080-Online |
| 3 | BOLT | 5 | VALVE,CHECK | A356-000130 | A356-000130-Online |
| 3 | BOLT | 6 | CAP ASSY | C020-000070 | C020-000070-Online |
| 3 | BOLT | 7 | GASKET | V107-000080 | V107-000080-Online |
| 3 | BOLT | 8 | CRANK CASE C | A120-000730 | A120-000730-Online |
| 3 | BOLT | 9 | BOLT BAR | V225-000180 | V225-000180-Online |
| 4 | PLATE,EYE | 1 | CYLINDER COVER | A160-002110 | A160-002110-Online |
| 4 | PLATE,EYE | 10 | SPRING LEVER | V452-000930 | V452-000930-Online |
| 4 | PLATE,EYE | 11 | THROTTLE ROD | C454-000310 | C454-000310-Online |
| 4 | PLATE,EYE | 12 | SUB CLEANER | A226-001240 | A226-001240-Online |
| 4 | PLATE,EYE | 13 | PLUG | V162-000470 | V162-000470-Online |
| 4 | PLATE,EYE | 14 | SPRING PIN | 93062-50280 | 93062-50280-Online |
| 4 | PLATE,EYE | 15 | STOPPER | C617-000450 | C617-000450-Online |
| 4 | PLATE,EYE | 16 | SPRING | V452-000940 | V452-000940-Online |
| 4 | PLATE,EYE | 17 | KNOB STOPPER | C463-000070 | C463-000070-Online |
| 4 | PLATE,EYE | 18 | SCREW TAPPING | 91449-04010 | 91449-04010-Online |
| 4 | PLATE,EYE | 19 | GROMMET CHOKE | V130-000160 | V130-000160-Online |
| 4 | PLATE,EYE | 2 | PLUG BRACKET | V162-000430 | V162-000430-Online |
| 4 | PLATE,EYE | 20 | GROMMET CARBURETOR | V144-000320 | V144-000320-Online |
| 4 | PLATE,EYE | 21 | ADJUST SCREW | A613-000070 | A613-000070-Online |
| 4 | PLATE,EYE | 22 | SPRING ADJUST | V450-001210 | V450-001210-Online |
| 4 | PLATE,EYE | 23 | SWITCH ASSY | P021-022030 | P021-022030-Online |
| 4 | PLATE,EYE | 24 | NUT | V268-000050 | V268-000050-Online |
| 4 | PLATE,EYE | 3 | BOLT SPW | V203-001620 | V203-001620-Online |
| 4 | PLATE,EYE | 4 | FRONT HANDLE | C040-000610 | C040-000610-Online |
| 4 | PLATE,EYE | 48 | REAR HANDLE SUB ASSY | P021-022540 | P021-022540-Online |
| 4 | PLATE,EYE | 5 | BOLT PC | V204-000670 | V204-000670-Online |
| 4 | PLATE,EYE | 52 | PLATE,EYE | V150-002930 | V150-002930-Online |
| 4 | PLATE,EYE | 6 | REAR HANDLE | C041-000510 | C041-000510-Online |
| 4 | PLATE,EYE | 7 | PLATE GRIP | C412-000570 | C412-000570-Online |
| 4 | PLATE,EYE | 8 | THROTTLE LEVER | C450-000660 | C450-000660-Online |
| 4 | PLATE,EYE | 9 | LOCK LEVER | C460-000330 | C460-000330-Online |
| 5 | LABEL,CAUTION | 25 | EARTH PLATE | J420-000080 | J420-000080-Online |
| 5 | LABEL,CAUTION | 26 | EARTH CORD | V485-002090 | V485-002090-Online |
| 5 | LABEL,CAUTION | 27 | PLUG | V162-000410 | V162-000410-Online |
| 5 | LABEL,CAUTION | 28 | GROMMET | V144-000330 | V144-000330-Online |
| 5 | LABEL,CAUTION | 29 | CUSHION | V401-000430 | V401-000430-Online |
| 5 | LABEL,CAUTION | 30 | PLUG | V421-000060 | V421-000060-Online |
| 5 | LABEL,CAUTION | 31 | CUSHION | V401-000390 | V401-000390-Online |
| 5 | LABEL,CAUTION | 32 | STOPPER BOLT | V203-001650 | V203-001650-Online |
| 5 | LABEL,CAUTION | 33 | SCREW PC | V253-000710 | V253-000710-Online |
| 5 | LABEL,CAUTION | 34 | CAP ASSY | A033-000230 | A033-000230-Online |
| 5 | LABEL,CAUTION | 35 | GASKET | V107-000080 | V107-000080-Online |
| 5 | LABEL,CAUTION | 36 | PIPE | V470-001580 | V470-001580-Online |
| 5 | LABEL,CAUTION | 37 | ELEMENT | E615-000000 | E615-000000-Online |
| 5 | LABEL,CAUTION | 38 | FUEL PIPE | V470-001590 | V470-001590-Online |
| 5 | LABEL,CAUTION | 39 | FUEL LINE WEIGHT | A369-000130 | A369-000130-Online |
| 5 | LABEL,CAUTION | 40 | FILTER | A369-000110 | A369-000110-Online |
| 5 | LABEL,CAUTION | 41 | CLIP FILTER | V490-000750 | V490-000750-Online |
| 5 | LABEL,CAUTION | 42 | ELEMENT | A371-000010 | A371-000010-Online |
| 5 | LABEL,CAUTION | 43 | SLEEVE | A372-000000 | A372-000000-Online |
| 5 | LABEL,CAUTION | 44 | RING | V583-000200 | V583-000200-Online |
| 5 | LABEL,CAUTION | 45 | CLIP | V490-000500 | V490-000500-Online |
| 5 | LABEL,CAUTION | 46 | BOLT PC | V204-000710 | V204-000710-Online |
| 5 | LABEL,CAUTION | 47 | CAUTION PLATE | X505-003880 | X505-003880-Online |
| 5 | LABEL,CAUTION | 49 | FUEL FILTER SUB ASSY | A369-000100 | A369-000100-Online |
| 5 | LABEL,CAUTION | 50 | LABEL,CAUTION | 890345-39230 | 890345-39230-Online |
| 6 | CRANK SHAFT ASSY | 1 | PISTON | A100-000890 | A100-000890-Online |
| 6 | CRANK SHAFT ASSY | 2 | PISTON RING | A101-000560 | A101-000560-Online |
| 6 | CRANK SHAFT ASSY | 3 | PISTON PIN | V610-000010 | V610-000010-Online |
| 6 | CRANK SHAFT ASSY | 4 | SNAP RING | V580-000060 | V580-000060-Online |
| 6 | CRANK SHAFT ASSY | 5 | BEARING SE | V557-000030 | V557-000030-Online |
| 6 | CRANK SHAFT ASSY | 6 | CRANK SHAFT ASSY | A011-001060 | A011-001060-Online |
| 6 | CRANK SHAFT ASSY | 7 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | CRANK SHAFT ASSY | 8 | GASKET | V100-000580 | V100-000580-Online |
| 6 | CRANK SHAFT ASSY | 9 | PISTON ASSY | P021-029250 | P021-029250-Online |
| 7 | BRAKE ASSY | 1 | CLUTCH DRUM | A556-001170 | A556-001170-Online |
| 7 | BRAKE ASSY | 10 | BEARING | V558-000000 | V558-000000-Online |
| 7 | BRAKE ASSY | 14 | NUT | V265-000250 | V265-000250-Online |
| 7 | BRAKE ASSY | 15 | SLIDE SCREW | V255-000030 | V255-000030-Online |
| 7 | BRAKE ASSY | 16 | TENSIONER,CHAIN | C309-000110 | C309-000110-Online |
| 7 | BRAKE ASSY | 18 | GUIDE PLATE A | C305-000370 | C305-000370-Online |
| 7 | BRAKE ASSY | 19 | SCREW PM PW | 91573-04010 | 91573-04010-Online |
| 7 | BRAKE ASSY | 20 | CHAIN CATCHER | C310-000100 | C310-000100-Online |
| 7 | BRAKE ASSY | 21 | LONG SPIKE | C304-000170 | C304-000170-Online |
| 7 | BRAKE ASSY | 22 | BOLT SPW | V203-000350 | V203-000350-Online |
| 7 | BRAKE ASSY | 23 | BOLT | V203-001600 | V203-001600-Online |
| 7 | BRAKE ASSY | 24 | CLUTCH COVER | C300-000740 | C300-000740-Online |
| 7 | BRAKE ASSY | 25 | GUIDE PLATE B | C305-000380 | C305-000380-Online |
| 7 | BRAKE ASSY | 26 | SCREW TAPPING | 91449-04010 | 91449-04010-Online |
| 7 | BRAKE ASSY | 27 | LABEL TRADE | X504-004380 | X504-004380-Online |
| 7 | BRAKE ASSY | 3 | WASHER | V309-000080 | V309-000080-Online |
| 7 | BRAKE ASSY | 4 | SNAP RING | V582-000200 | V582-000200-Online |
| 7 | BRAKE ASSY | 5 | NUT | V265-000240 | V265-000240-Online |
| 7 | BRAKE ASSY | 6 | CLUTCH BOSS A | A552-000290 | A552-000290-Online |
| 7 | BRAKE ASSY | 65 | CLUTCH DRUM ASSY | P021-022560 | P021-022560-Online |
| 7 | BRAKE ASSY | 66 | CLUTCH ASSY | A056-000650 | A056-000650-Online |
| 7 | BRAKE ASSY | 67 | BRAKE ASSY | P021-022580 | P021-022580-Online |
| 7 | BRAKE ASSY | 7 | CLUTCH SHOE | A555-000260 | A555-000260-Online |
| 7 | BRAKE ASSY | 8 | CLUTCH SPRING | A566-000210 | A566-000210-Online |
| 7 | BRAKE ASSY | 9 | CLUTCH BOSS B | A552-000300 | A552-000300-Online |
| 8 | GEAR | 28 | BRAKE HOLDER | C340-000000 | C340-000000-Online |
| 8 | GEAR | 29 | BRAKE BAND | C328-000270 | C328-000270-Online |
| 8 | GEAR | 30 | PIN, SPRING | 93042-40100 | 93042-40100-Online |
| 8 | GEAR | 31 | ADJUST PLATE | C329-000020 | C329-000020-Online |
| 8 | GEAR | 32 | SPRING HOLDER | V456-000180 | V456-000180-Online |
| 8 | GEAR | 33 | BRAKE SPRING | V450-001220 | V450-001220-Online |
| 8 | GEAR | 34 | STOPPER | V456-000190 | V456-000190-Online |
| 8 | GEAR | 35 | LEVER | C347-000020 | C347-000020-Online |
| 8 | GEAR | 36 | INNER LEVER | C334-000270 | C334-000270-Online |
| 8 | GEAR | 37 | TIE STRAP | C334-000280 | C334-000280-Online |
| 8 | GEAR | 38 | COLLER | V352-000210 | V352-000210-Online |
| 8 | GEAR | 40 | BOLT LEVER | V203-001610 | V203-001610-Online |
| 8 | GEAR | 41 | WASHER | 900603-00008 | 900603-00008-Online |
| 8 | GEAR | 42 | SPACER | V353-000510 | V353-000510-Online |
| 8 | GEAR | 43 | SPRING LEVER | V452-000950 | V452-000950-Online |
| 8 | GEAR | 44 | SNAP RING | 92423-08000 | 92423-08000-Online |
| 8 | GEAR | 45 | SPRING COVER | C345-000460 | C345-000460-Online |
| 8 | GEAR | 46 | GUARD | C320-000370 | C320-000370-Online |
| 8 | GEAR | 47 | SPACER | V356-000590 | V356-000590-Online |
| 8 | GEAR | 48 | WASHER,CIRCULAR | V303-000320 | V303-000320-Online |
| 8 | GEAR | 49 | BOLT SPW | V203-000350 | V203-000350-Online |
| 8 | GEAR | 51 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 8 | GEAR | 52 | BOLT, H.S. 4*12 | 900105-04012 | 900105-04012-Online |
| 8 | GEAR | 53 | GEAR | V652-000190 | V652-000190-Online |
| 8 | GEAR | 64 | STOPPER | C326-000020 | C326-000020-Online |
| 9 | SCREW PM PW | 54 | COLLER | V358-000140 | V358-000140-Online |
| 9 | SCREW PM PW | 55 | AUTO-OILER ASSEMBLY | C022-000121 | C022-000121-Online |
| 9 | SCREW PM PW | 56 | OIL PIPE | V470-001600 | V470-001600-Online |
| 9 | SCREW PM PW | 57 | OIL FILTER | C209-000080 | C209-000080-Online |
| 9 | SCREW PM PW | 58 | CRIP OIL FILTER | V490-000740 | V490-000740-Online |
| 9 | SCREW PM PW | 59 | ELEMENT | C211-000010 | C211-000010-Online |
| 9 | SCREW PM PW | 60 | SCREW PM | 91573-04016 | 91573-04016-Online |
| 9 | SCREW PM PW | 61 | PUMP COVER | C236-000130 | C236-000130-Online |
| 9 | SCREW PM PW | 62 | SCREW PM PW | 91573-04010 | 91573-04010-Online |
| 9 | SCREW PM PW | 63 | PROTECTOR | C302-000060 | C302-000060-Online |

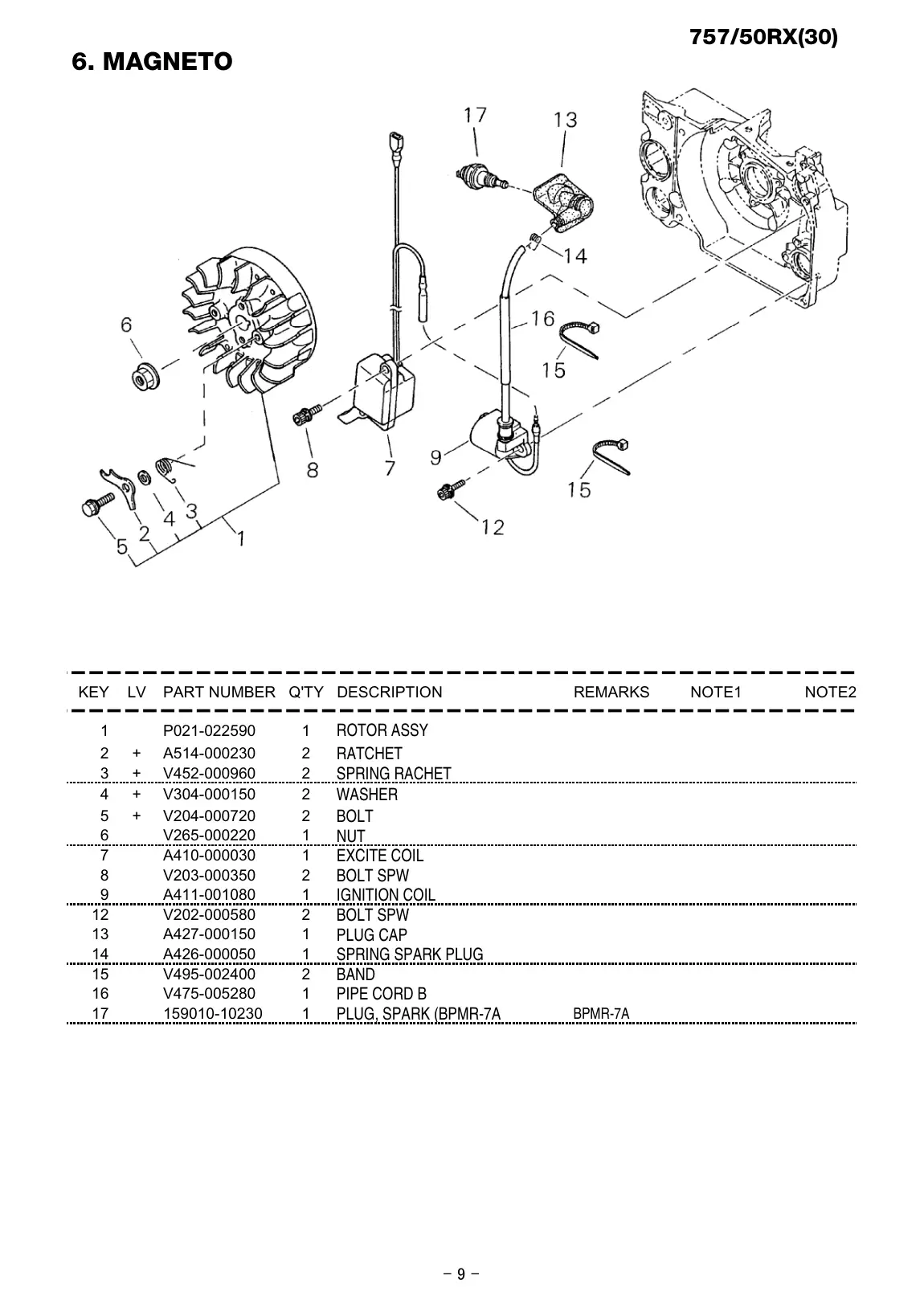

| 10 | BPMR-7A | 1 | ROTOR ASSY | P021-022590 | P021-022590-Online |
| 10 | BPMR-7A | 12 | BOLT SPW | V202-000580 | V202-000580-Online |
| 10 | BPMR-7A | 13 | PLUG CAP | A427-000150 | A427-000150-Online |
| 10 | BPMR-7A | 14 | SPRING SPARK PLUG | A426-000050 | A426-000050-Online |
| 10 | BPMR-7A | 15 | BAND | V495-002400 | V495-002400-Online |
| 10 | BPMR-7A | 16 | PIPE CORD B | V475-005280 | V475-005280-Online |
| 10 | BPMR-7A | 17 | PLUG, SPARK (BPMR-7A | 159010-10230 | 159010-10230-Online |
| 10 | BPMR-7A | 2 | RATCHET | A514-000230 | A514-000230-Online |
| 10 | BPMR-7A | 3 | SPRING RACHET | V452-000960 | V452-000960-Online |
| 10 | BPMR-7A | 4 | WASHER | V304-000150 | V304-000150-Online |
| 10 | BPMR-7A | 5 | BOLT | V204-000720 | V204-000720-Online |
| 10 | BPMR-7A | 6 | NUT | V265-000220 | V265-000220-Online |
| 10 | BPMR-7A | 7 | EXCITE COIL | A410-000030 | A410-000030-Online |
| 10 | BPMR-7A | 8 | BOLT SPW | V203-000350 | V203-000350-Online |
| 10 | BPMR-7A | 9 | IGNITION COIL | A411-001080 | A411-001080-Online |
| 11 | LABEL TRADE | 1 | RECOIL CASE | A408-000010 | A408-000010-Online |
| 11 | LABEL TRADE | 11 | AIR PLATE | A172-001480 | A172-001480-Online |
| 11 | LABEL TRADE | 12 | BOLT SPW | V203-001620 | V203-001620-Online |
| 11 | LABEL TRADE | 13 | LABEL TRADE | X504-004390 | X504-004390-Online |
| 11 | LABEL TRADE | 14 | RECOIL STARETR | A051-002100 | A051-002100-Online |
| 11 | LABEL TRADE | 2 | ROPE GUIDE | A510-000140 | A510-000140-Online |
| 11 | LABEL TRADE | 3 | REEL | A506-000410 | A506-000410-Online |
| 11 | LABEL TRADE | 4 | RECOIL SPRING ASSY | A504-000190 | A504-000190-Online |
| 11 | LABEL TRADE | 5 | WASHER | V309-000090 | V309-000090-Online |
| 11 | LABEL TRADE | 6 | BOLT, H.S. 5*12 | 900105-05012 | 900105-05012-Online |
| 11 | LABEL TRADE | 7 | ROPE | A509-000400 | A509-000400-Online |
| 11 | LABEL TRADE | 8 | KNOB RECOIL | A511-000250 | A511-000250-Online |
| 11 | LABEL TRADE | 9 | STOPPER KNOB | V352-000220 | V352-000220-Online |
| 12 | BOLT | 1 | CARBURETOR ASSY | A021-003120 | A021-003120-Online |
| 12 | BOLT | 10 | SCREW, M. LEVER PIN | 123139-03930 | 123139-03930-Online |
| 12 | BOLT | 11 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 12 | BOLT | 12 | DIAPHRAGM, METERING | 123141-16130 | 123141-16130-Online |
| 12 | BOLT | 13 | SPRING, METER. LEVER | 123122-16131 | 123122-16131-Online |
| 12 | BOLT | 14 | COVER, M. DIAPHRAGM | 123142-17330 | 123142-17330-Online |
| 12 | BOLT | 15 | GASKET, M. DIAPHRAGM | 123140-16130 | 123140-16130-Online |
| 12 | BOLT | 18 | SCREW | 123130-02960 | 123130-02960-Online |
| 12 | BOLT | 2 | PUMP COVER ASSY | P003-002850 | P003-002850-Online |
| 12 | BOLT | 23 | SCREEN | K331-000030 | K331-000030-Online |
| 12 | BOLT | 26 | SPRING, THRT. RETURN | P003-000560 | P003-000560-Online |
| 12 | BOLT | 27 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 12 | BOLT | 3 | SCREW, PUMP COVER | 123110-16130 | 123110-16130-Online |
| 12 | BOLT | 32 | PULSE PIPE | V470-001640 | V470-001640-Online |
| 12 | BOLT | 33 | CLIP,PULSE | V490-000760 | V490-000760-Online |
| 12 | BOLT | 34 | CHOKE ROD | A240-000160 | A240-000160-Online |
| 12 | BOLT | 36 | BOLT | V203-001590 | V203-001590-Online |
| 12 | BOLT | 37 | BOLT SPW | V203-000350 | V203-000350-Online |
| 12 | BOLT | 38 | CLEANER BASE | A225-000530 | A225-000530-Online |
| 12 | BOLT | 39 | PLUG | V162-000410 | V162-000410-Online |
| 12 | BOLT | 4 | GASKET, FUEL PUMP | 123125-12330 | 123125-12330-Online |
| 12 | BOLT | 40 | BOLT | V203-001630 | V203-001630-Online |
| 12 | BOLT | 5 | DIAPHRAGM PUMP | P003-003130 | P003-003130-Online |
| 12 | BOLT | 6 | DIAPHRAGM PUMP | P003-003150 | P003-003150-Online |
| 12 | BOLT | 9 | LEVER, METERING | 123123-18330 | 123123-18330-Online |
| 13 | KIT,DIAPHRAGM | 41 | FILTER | A226-001250 | A226-001250-Online |
| 13 | KIT,DIAPHRAGM | 42 | CLEANER COVER | A232-001270 | A232-001270-Online |
| 13 | KIT,DIAPHRAGM | 43 | KNOB CLEANER COVER | A235-000310 | A235-000310-Online |
| 13 | KIT,DIAPHRAGM | 44 | PRE FILTER | A226-001260 | A226-001260-Online |
| 13 | KIT,DIAPHRAGM | 45 | KIT,GASKET | P050-008620 | P050-008620-Online |
| 13 | KIT,DIAPHRAGM | 46 | KIT,DIAPHRAGM | P050-008630 | P050-008630-Online |
| 14 | CHAIN COVER | 1 | POLY BAG | X705-000130 | X705-000130-Online |
| 14 | CHAIN COVER | 10 | CHAIN COVER | X490-000350 | X490-000350-Online |
| 14 | CHAIN COVER | 2 | DRIVER | X603-000030 | X603-000030-Online |
| 14 | CHAIN COVER | 3 | PLUG WRENCH | X602-000180 | X602-000180-Online |
| 14 | CHAIN COVER | 4 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 14 | CHAIN COVER | 5 | HEXA WRENCH 4MM | X605-000090 | X605-000090-Online |
| 14 | CHAIN COVER | 6 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 14 | CHAIN COVER | 7 | TOOL SET | P021-032380 | P021-032380-Online |

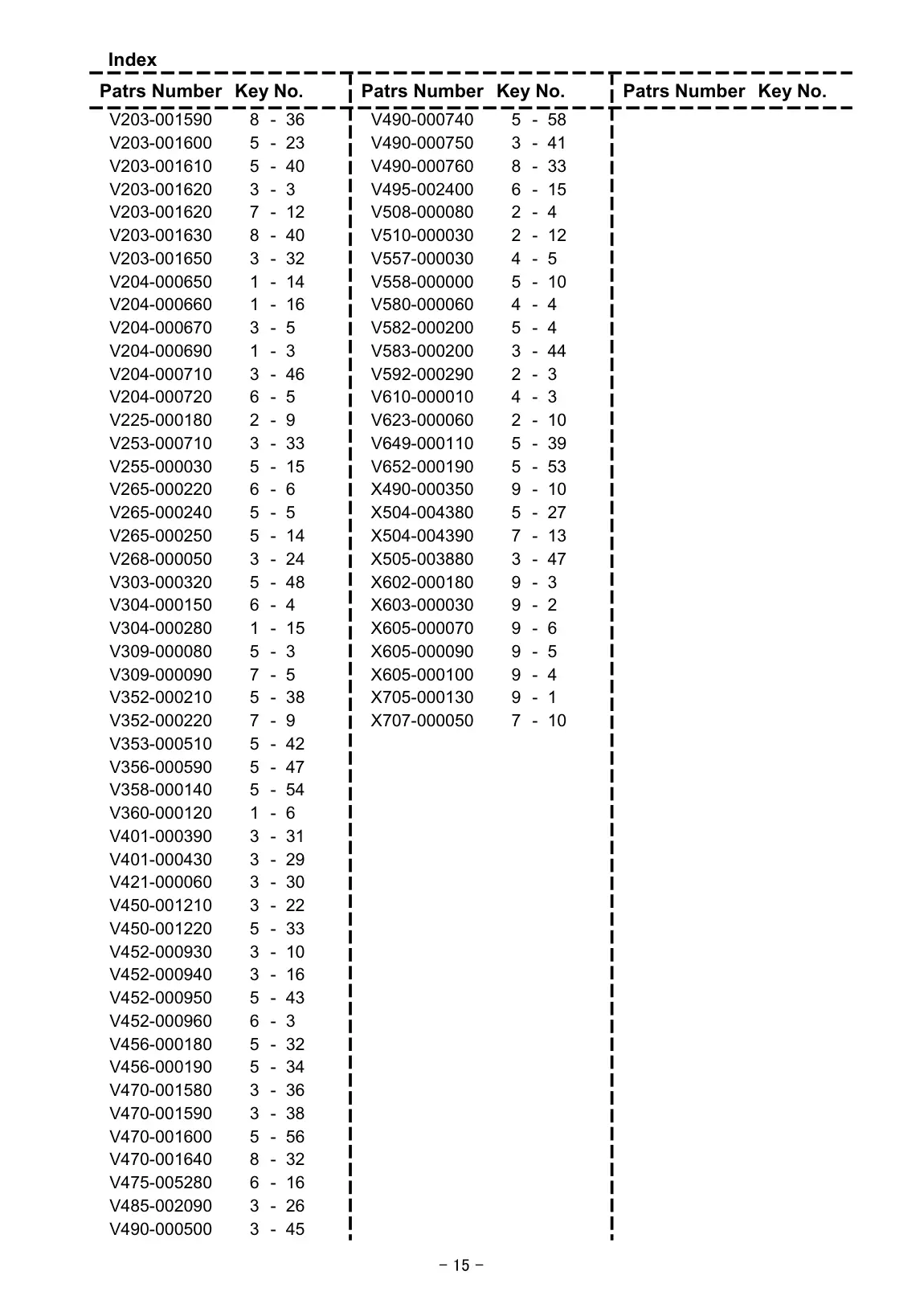

Source file: 20130718-798_757_50RX(30)_P016-000810-11Mb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
