Illustrated Parts List
Shindaiwa EB220S Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB220S
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.

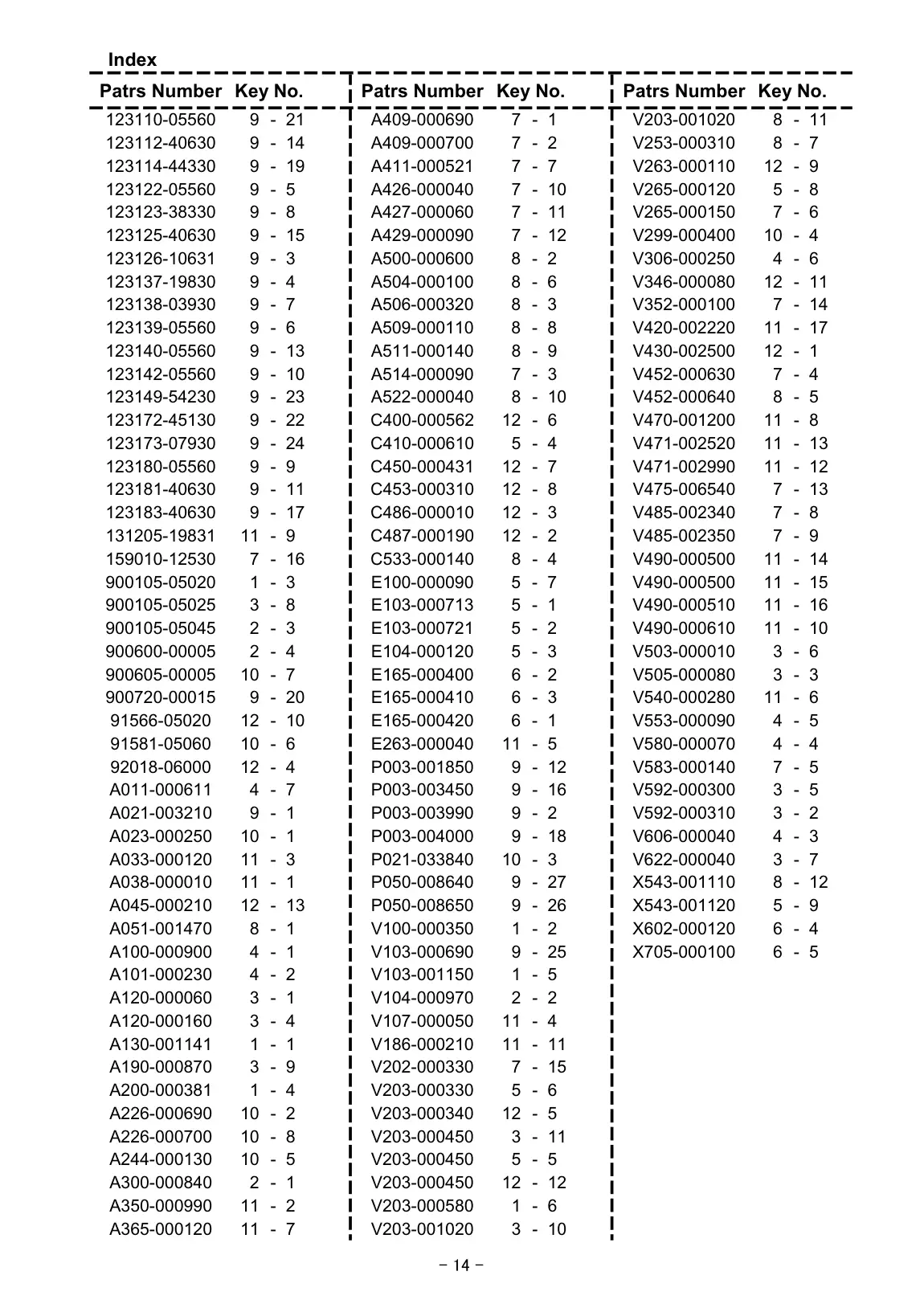

| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | BOLT,5 | 1 | CYLINDER | A130-001141 | A130-001141-Online |
| 2 | BOLT,5 | 2 | GASKET | V100-000350 | V100-000350-Online |
| 2 | BOLT,5 | 3 | BOLT, H.S. 5*20 | 900105-05020 | 900105-05020-Online |
| 2 | BOLT,5 | 4 | INSULATOR, INTAKE | A200-000381 | A200-000381-Online |
| 2 | BOLT,5 | 5 | GASKET | V103-001150 | V103-001150-Online |
| 2 | BOLT,5 | 6 | BOLT,5 | V203-000580 | V203-000580-Online |
| 3 | WASHER 5 | 1 | MUFFLER | A300-000840 | A300-000840-Online |
| 3 | WASHER 5 | 2 | GASKET | V104-000970 | V104-000970-Online |
| 3 | WASHER 5 | 3 | BOLT,H.S. 5*45 | 900105-05045 | 900105-05045-Online |
| 3 | WASHER 5 | 4 | WASHER | 900600-00005 | 900600-00005-Online |

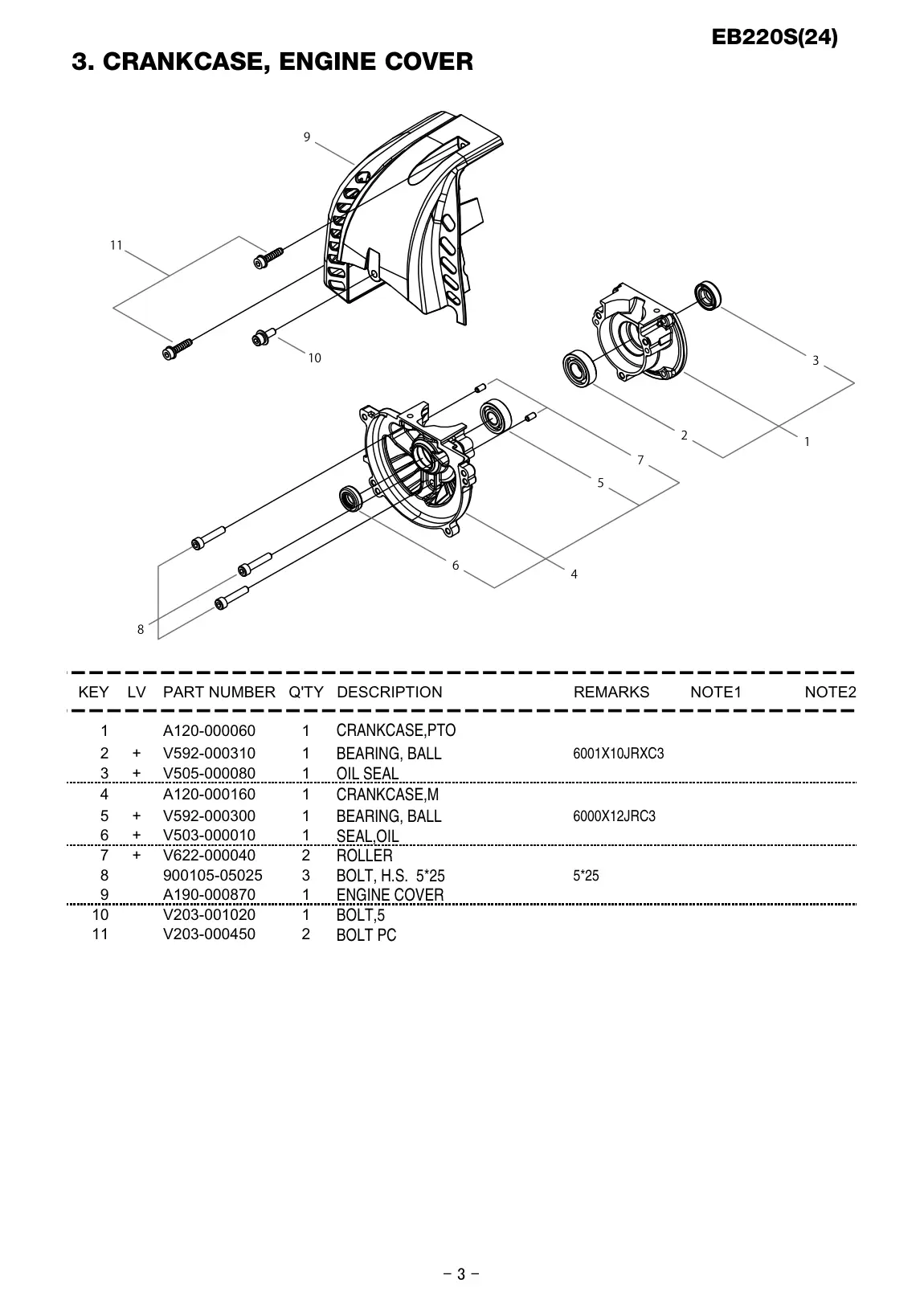

| 4 | BOLT PC | 1 | CRANKCASE,PTO | A120-000060 | A120-000060-Online |
| 4 | BOLT PC | 10 | BOLT,5 | V203-001020 | V203-001020-Online |
| 4 | BOLT PC | 11 | BOLT PC | V203-000450 | V203-000450-Online |
| 4 | BOLT PC | 2 | BEARING, BALL | V592-000310 | V592-000310-Online |
| 4 | BOLT PC | 3 | OIL SEAL | V505-000080 | V505-000080-Online |
| 4 | BOLT PC | 4 | CRANKCASE,M | A120-000160 | A120-000160-Online |
| 4 | BOLT PC | 5 | BEARING, BALL | V592-000300 | V592-000300-Online |
| 4 | BOLT PC | 6 | SEAL,OIL | V503-000010 | V503-000010-Online |
| 4 | BOLT PC | 7 | ROLLER | V622-000040 | V622-000040-Online |
| 4 | BOLT PC | 8 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 4 | BOLT PC | 9 | ENGINE COVER | A190-000870 | A190-000870-Online |

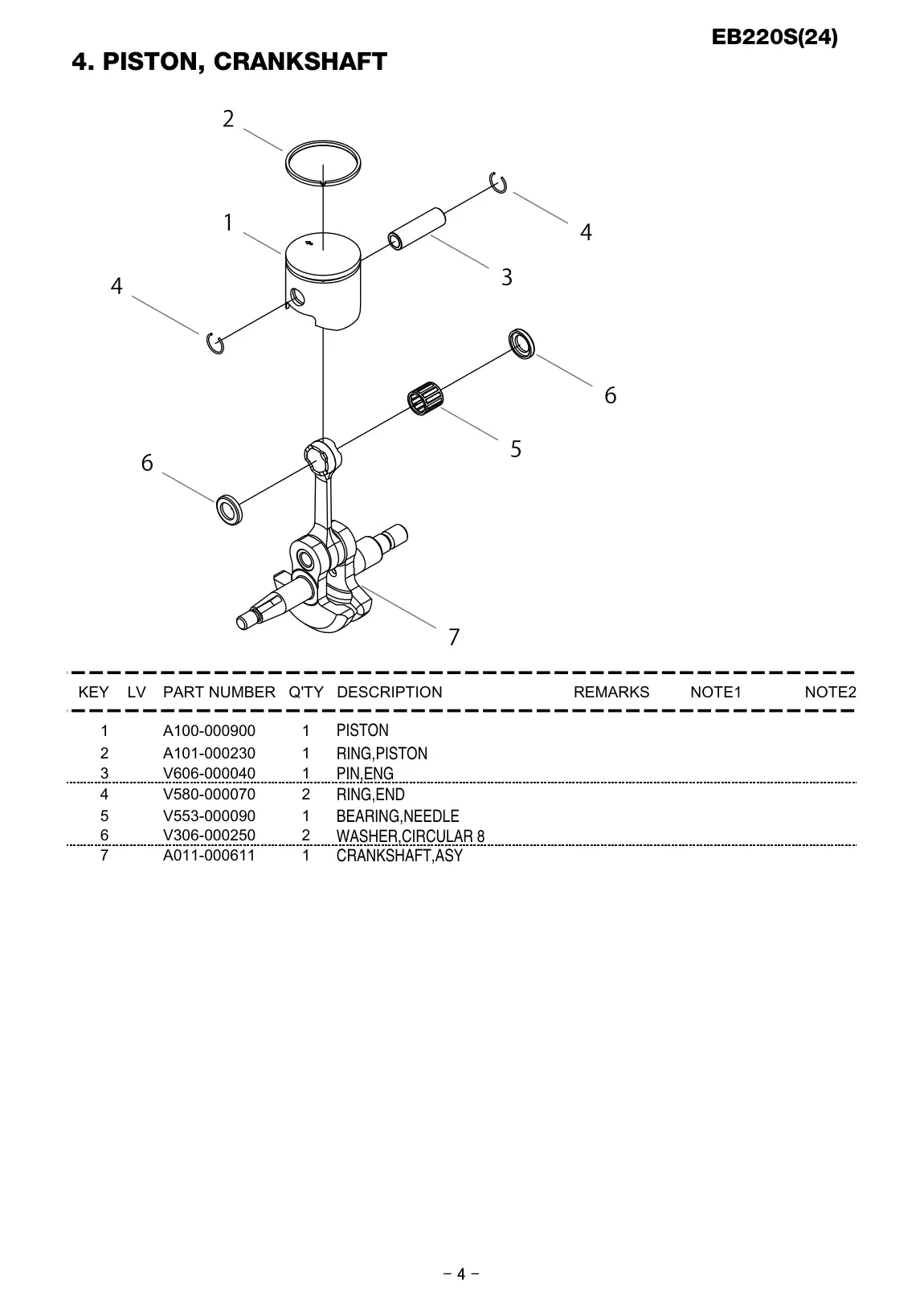

| 5 | CRANKSHAFT,ASY | 1 | PISTON | A100-000900 | A100-000900-Online |
| 5 | CRANKSHAFT,ASY | 2 | RING,PISTON | A101-000230 | A101-000230-Online |
| 5 | CRANKSHAFT,ASY | 3 | PIN,ENG | V606-000040 | V606-000040-Online |
| 5 | CRANKSHAFT,ASY | 4 | RING,END | V580-000070 | V580-000070-Online |
| 5 | CRANKSHAFT,ASY | 5 | BEARING,NEEDLE | V553-000090 | V553-000090-Online |
| 5 | CRANKSHAFT,ASY | 6 | WASHER,CIRCULAR | V306-000250 | V306-000250-Online |
| 5 | CRANKSHAFT,ASY | 7 | CRANKSHAFT,ASY | A011-000611 | A011-000611-Online |

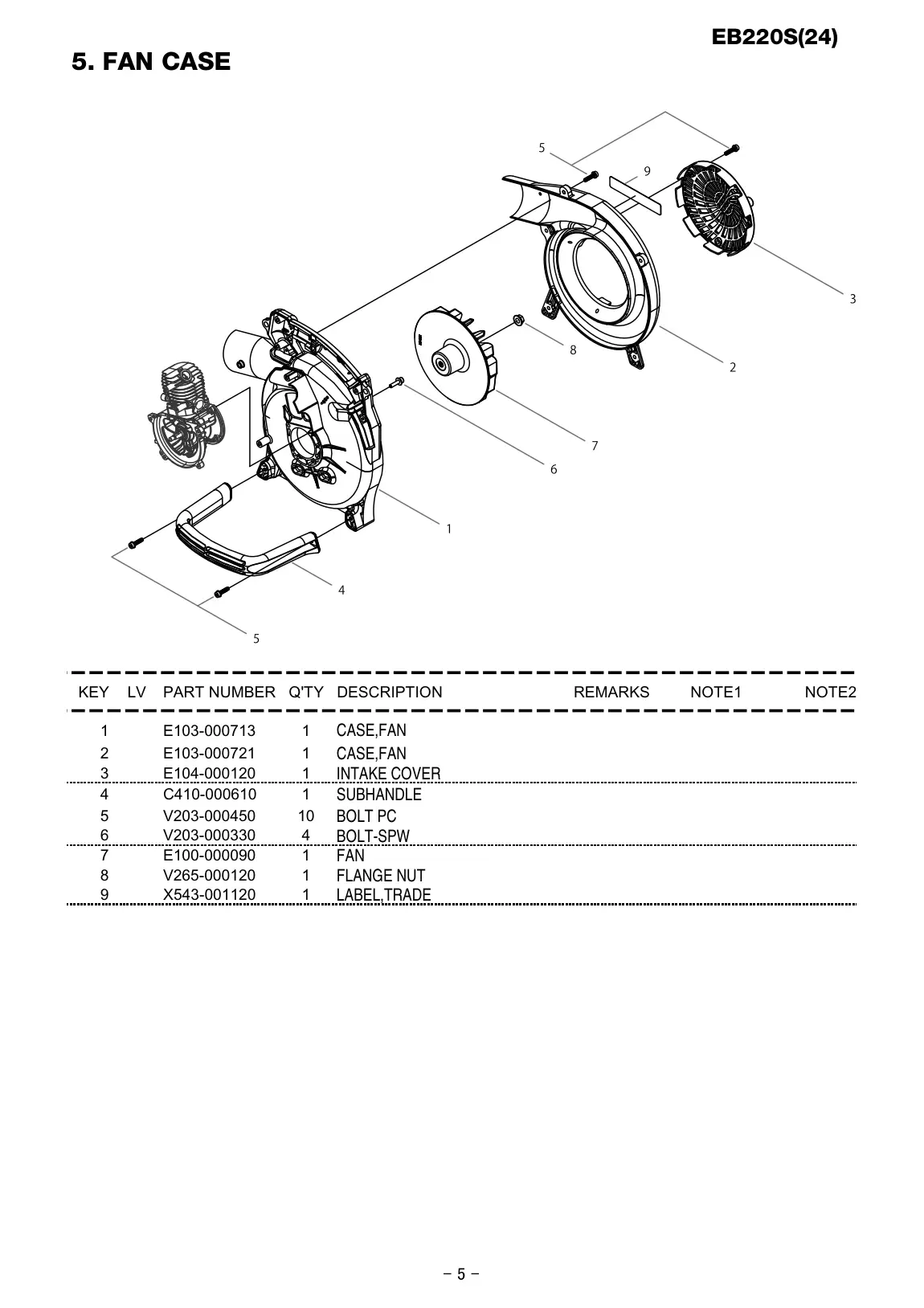

| 6 | LABEL,TRADE | 1 | CASE,FAN | E103-000713 | E103-000713-Online |
| 6 | LABEL,TRADE | 2 | CASE,FAN | E103-000721 | E103-000721-Online |
| 6 | LABEL,TRADE | 3 | INTAKE COVER | E104-000120 | E104-000120-Online |
| 6 | LABEL,TRADE | 4 | SUBHANDLE | C410-000610 | C410-000610-Online |
| 6 | LABEL,TRADE | 5 | BOLT PC | V203-000450 | V203-000450-Online |
| 6 | LABEL,TRADE | 6 | BOLT-SPW | V203-000330 | V203-000330-Online |
| 6 | LABEL,TRADE | 7 | FAN | E100-000090 | E100-000090-Online |
| 6 | LABEL,TRADE | 8 | FLANGE NUT | V265-000120 | V265-000120-Online |
| 6 | LABEL,TRADE | 9 | LABEL,TRADE | X543-001120 | X543-001120-Online |

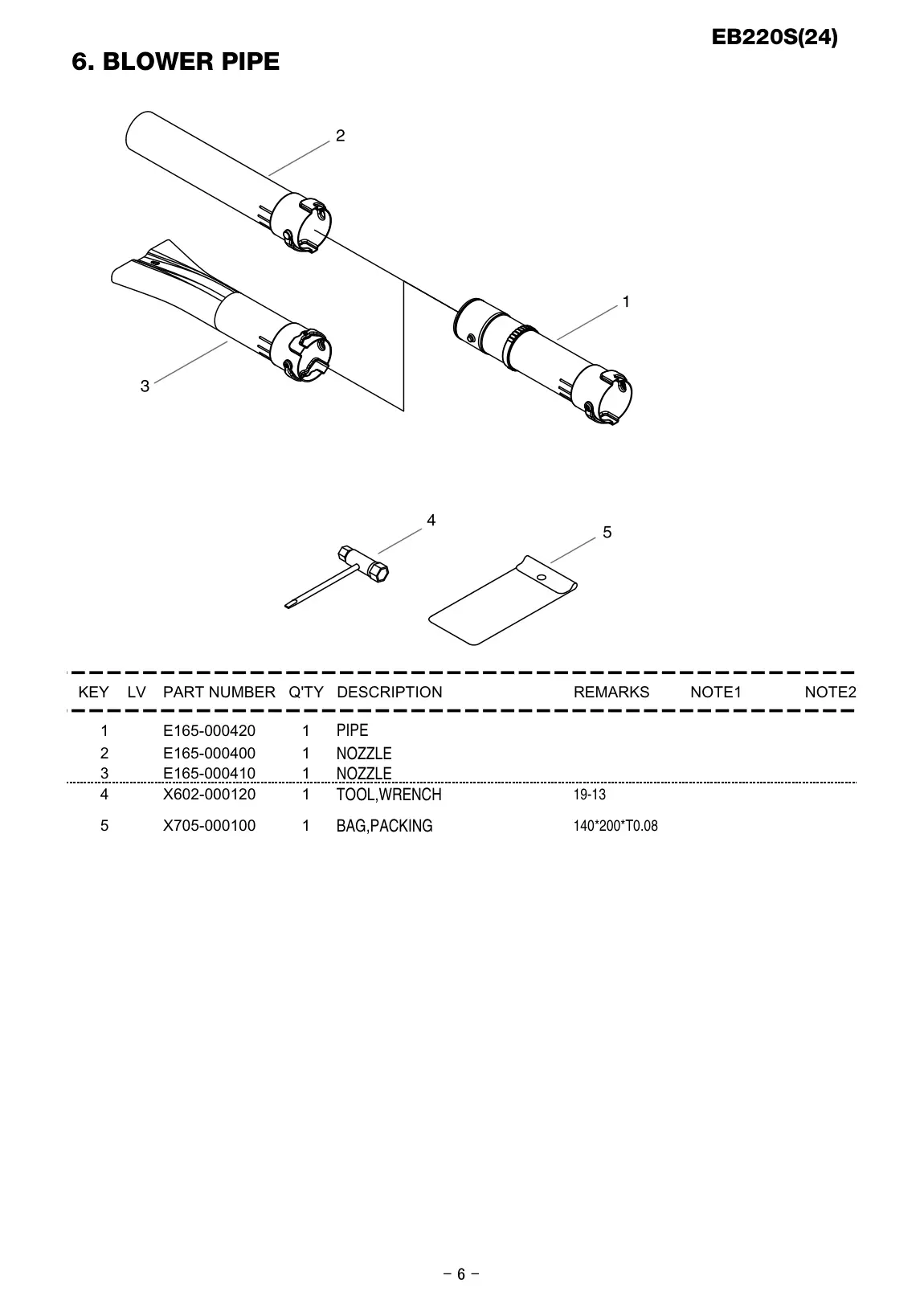

| 7 | 140*200*T0.08 | 1 | PIPE | E165-000420 | E165-000420-Online |
| 7 | 140*200*T0.08 | 2 | NOZZLE | E165-000400 | E165-000400-Online |
| 7 | 140*200*T0.08 | 3 | NOZZLE | E165-000410 | E165-000410-Online |
| 7 | 140*200*T0.08 | 4 | TOOL,WRENCH | X602-000120 | X602-000120-Online |
| 7 | 140*200*T0.08 | 5 | BAG,PACKING | X705-000100 | X705-000100-Online |
| 8 | BPMR-6A | 1 | ROTOR, MAGNETO | A409-000690 | A409-000690-Online |
| 8 | BPMR-6A | 10 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 8 | BPMR-6A | 11 | CAP,SPARK PLUG | A427-000060 | A427-000060-Online |
| 8 | BPMR-6A | 12 | COVER,CAP | A429-000090 | A429-000090-Online |
| 8 | BPMR-6A | 13 | TUBE | V475-006540 | V475-006540-Online |
| 8 | BPMR-6A | 14 | COLLAR,4 | V352-000100 | V352-000100-Online |
| 8 | BPMR-6A | 15 | BOLT | V202-000330 | V202-000330-Online |
| 8 | BPMR-6A | 16 | PLUG, SPARK (BPMR-6A | 159010-12530 | 159010-12530-Online |
| 8 | BPMR-6A | 3 | PAWL, STARTER | A514-000090 | A514-000090-Online |
| 8 | BPMR-6A | 4 | SPRING,TORSION | V452-000630 | V452-000630-Online |
| 8 | BPMR-6A | 5 | RING | V583-000140 | V583-000140-Online |
| 8 | BPMR-6A | 6 | NUT,8 | V265-000150 | V265-000150-Online |
| 8 | BPMR-6A | 7 | COIL, IGNITION | A411-000521 | A411-000521-Online |
| 8 | BPMR-6A | 8 | LEAD | V485-002340 | V485-002340-Online |
| 8 | BPMR-6A | 9 | LEAD | V485-002350 | V485-002350-Online |
| 9 | LABEL,TRADE | 1 | RECOIL STARTER ASSY | A051-001470 | A051-001470-Online |
| 9 | LABEL,TRADE | 10 | STOPPER | A522-000040 | A522-000040-Online |
| 9 | LABEL,TRADE | 11 | BOLT,5 | V203-001020 | V203-001020-Online |
| 9 | LABEL,TRADE | 12 | LABEL,TRADE | X543-001110 | X543-001110-Online |
| 9 | LABEL,TRADE | 2 | STARTER CASE | A500-000600 | A500-000600-Online |
| 9 | LABEL,TRADE | 3 | REEL | A506-000320 | A506-000320-Online |
| 9 | LABEL,TRADE | 5 | SPRING,TORSION | V452-000640 | V452-000640-Online |
| 9 | LABEL,TRADE | 6 | RECOIL SPRING | A504-000100 | A504-000100-Online |
| 9 | LABEL,TRADE | 7 | SCREW | V253-000310 | V253-000310-Online |
| 9 | LABEL,TRADE | 8 | ROPE | A509-000110 | A509-000110-Online |
| 10 | CLIP | 1 | CARBURETOR,DIAPHRAGM | A021-003210 | A021-003210-Online |
| 10 | CLIP | 10 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 10 | CLIP | 11 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 10 | CLIP | 12 | DIAPHRAGM, METERING | P003-001850 | P003-001850-Online |
| 10 | CLIP | 13 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 10 | CLIP | 14 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 10 | CLIP | 15 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 10 | CLIP | 16 | MAIN JET | P003-003450 | P003-003450-Online |
| 10 | CLIP | 17 | O-RING | 123183-40630 | 123183-40630-Online |
| 10 | CLIP | 18 | VALVE, THROTTLE | P003-004000 | P003-004000-Online |
| 10 | CLIP | 19 | SCREW | 123114-44330 | 123114-44330-Online |
| 10 | CLIP | 2 | BODY ASSEMBLY, PUMP | P003-003990 | P003-003990-Online |
| 10 | CLIP | 20 | O-RING | 900720-00015 | 900720-00015-Online |
| 10 | CLIP | 21 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 10 | CLIP | 22 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 10 | CLIP | 23 | WASHER | 123149-54230 | 123149-54230-Online |
| 10 | CLIP | 24 | CLIP | 123173-07930 | 123173-07930-Online |
| 10 | CLIP | 26 | KIT,GASKET | P050-008650 | P050-008650-Online |
| 10 | CLIP | 27 | KIT,DIAPHRAGM | P050-008640 | P050-008640-Online |
| 10 | CLIP | 3 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 10 | CLIP | 4 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 10 | CLIP | 5 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 10 | CLIP | 6 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 10 | CLIP | 7 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 10 | CLIP | 8 | LEVER, METERING | 123123-38330 | 123123-38330-Online |
| 10 | CLIP | 9 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 11 | GASKET,CARBURETOR | 25 | GASKET,CARBURETOR | V103-000690 | V103-000690-Online |
| 12 | PREFILTER | 1 | CASE,CLEANER | A023-000250 | A023-000250-Online |
| 12 | PREFILTER | 2 | FILTER | A226-000690 | A226-000690-Online |
| 12 | PREFILTER | 3 | CLEANER COVER ASSY | P021-033840 | P021-033840-Online |
| 12 | PREFILTER | 4 | KNOB | V299-000400 | V299-000400-Online |
| 12 | PREFILTER | 5 | BACK PLATE | A244-000130 | A244-000130-Online |
| 12 | PREFILTER | 6 | SCREW,PM | 91581-05060 | 91581-05060-Online |
| 12 | PREFILTER | 7 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 12 | PREFILTER | 8 | PREFILTER | A226-000700 | A226-000700-Online |

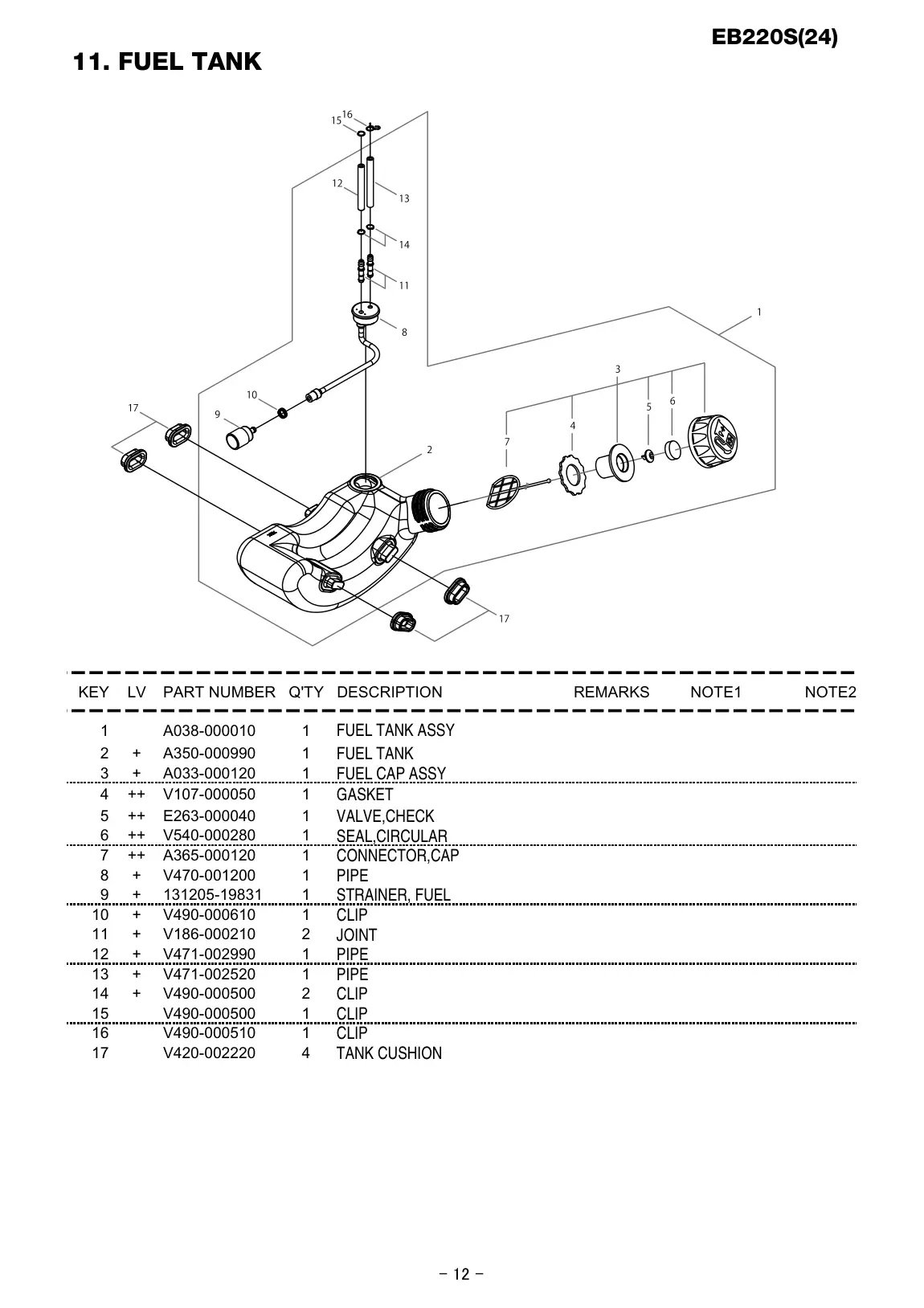

| 13 | TANK CUSHION | 1 | FUEL TANK ASSY | A038-000010 | A038-000010-Online |
| 13 | TANK CUSHION | 10 | CLIP | V490-000610 | V490-000610-Online |
| 13 | TANK CUSHION | 11 | JOINT | V186-000210 | V186-000210-Online |
| 13 | TANK CUSHION | 12 | PIPE | V471-002990 | V471-002990-Online |
| 13 | TANK CUSHION | 13 | PIPE | V471-002520 | V471-002520-Online |
| 13 | TANK CUSHION | 14 | CLIP | V490-000500 | V490-000500-Online |
| 13 | TANK CUSHION | 15 | CLIP | V490-000500 | V490-000500-Online |
| 13 | TANK CUSHION | 16 | CLIP | V490-000510 | V490-000510-Online |
| 13 | TANK CUSHION | 17 | TANK CUSHION | V420-002220 | V420-002220-Online |
| 13 | TANK CUSHION | 2 | FUEL TANK | A350-000990 | A350-000990-Online |
| 13 | TANK CUSHION | 3 | FUEL CAP ASSY | A033-000120 | A033-000120-Online |
| 13 | TANK CUSHION | 4 | GASKET | V107-000050 | V107-000050-Online |
| 13 | TANK CUSHION | 5 | VALVE,CHECK | E263-000040 | E263-000040-Online |
| 13 | TANK CUSHION | 6 | SEAL,CIRCULAR | V540-000280 | V540-000280-Online |
| 13 | TANK CUSHION | 7 | CONNECTOR,CAP | A365-000120 | A365-000120-Online |
| 13 | TANK CUSHION | 8 | PIPE | V470-001200 | V470-001200-Online |
| 13 | TANK CUSHION | 9 | STRAINER, FUEL | 131205-19831 | 131205-19831-Online |

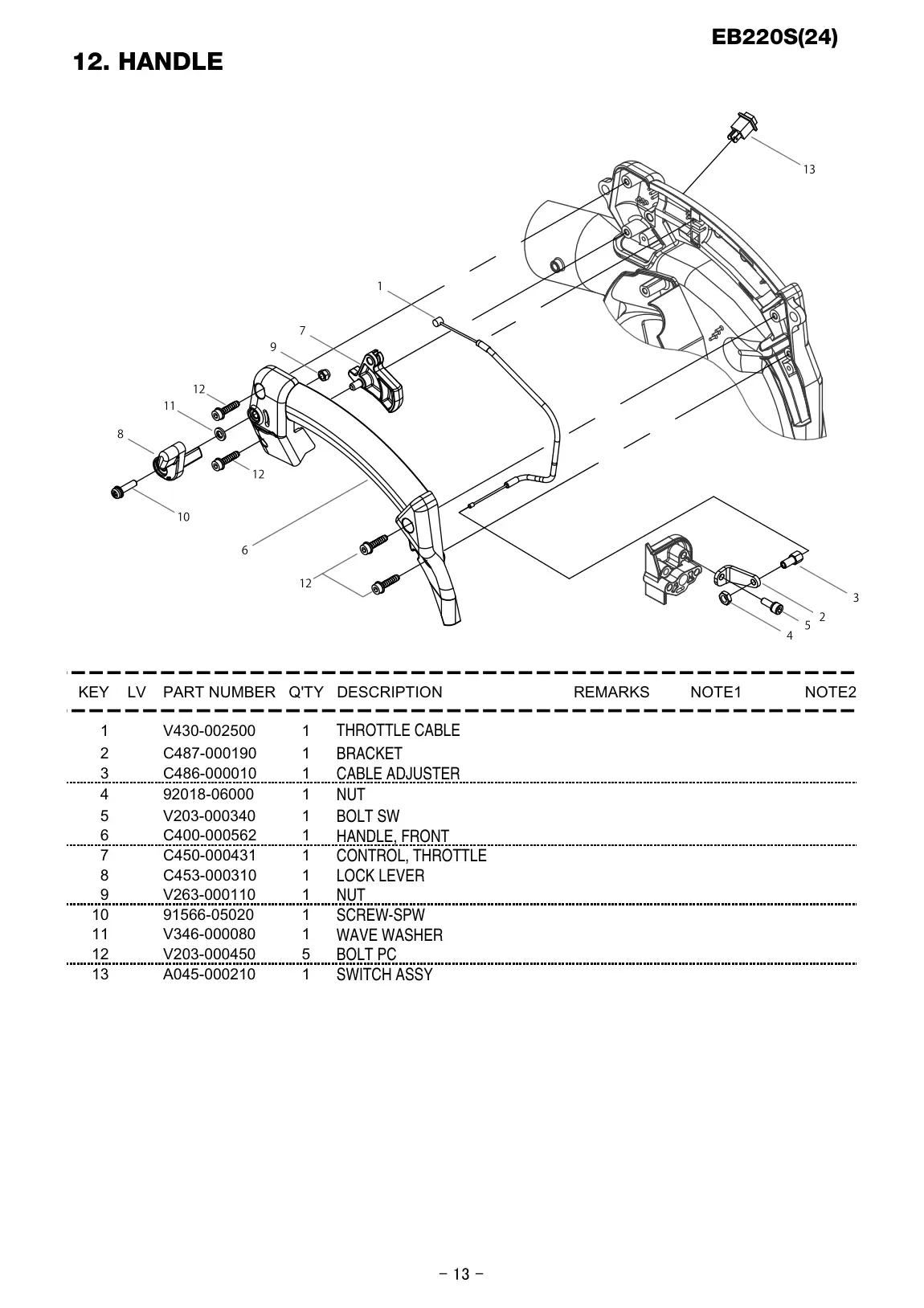

| 14 | SWITCH ASSY | 1 | THROTTLE CABLE | V430-002500 | V430-002500-Online |
| 14 | SWITCH ASSY | 10 | SCREW-SPW | 91566-05020 | 91566-05020-Online |
| 14 | SWITCH ASSY | 11 | WAVE WASHER | V346-000080 | V346-000080-Online |
| 14 | SWITCH ASSY | 12 | BOLT PC | V203-000450 | V203-000450-Online |
| 14 | SWITCH ASSY | 13 | SWITCH ASSY | A045-000210 | A045-000210-Online |
| 14 | SWITCH ASSY | 2 | BRACKET | C487-000190 | C487-000190-Online |
| 14 | SWITCH ASSY | 3 | CABLE ADJUSTER | C486-000010 | C486-000010-Online |
| 14 | SWITCH ASSY | 4 | NUT | 92018-06000 | 92018-06000-Online |
| 14 | SWITCH ASSY | 5 | BOLT SW | V203-000340 | V203-000340-Online |
| 14 | SWITCH ASSY | 6 | HANDLE, FRONT | C400-000562 | C400-000562-Online |
| 14 | SWITCH ASSY | 7 | CONTROL, THROTTLE | C450-000431 | C450-000431-Online |
| 14 | SWITCH ASSY | 8 | LOCK LEVER | C453-000310 | C453-000310-Online |
| 14 | SWITCH ASSY | 9 | NUT | V263-000110 | V263-000110-Online |
Source file: 20130718-853_EB220S(24)_P016-000400-11Fb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
