Illustrated Parts List

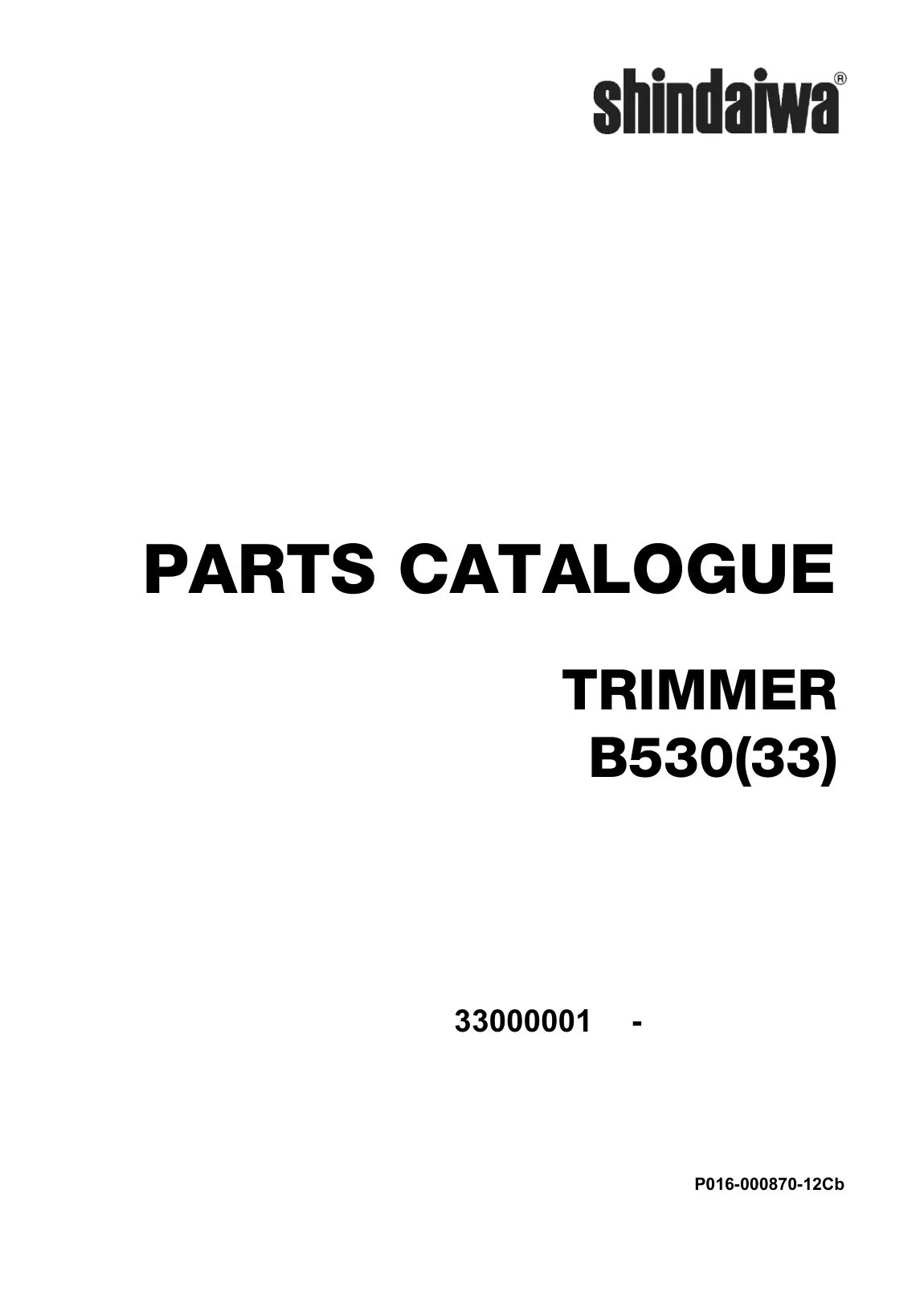

Shindaiwa B530 Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: B530
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 2 | BOLT SPW | 1 | CYLINDER | A130-001780 | A130-001780-Online |
| 2 | BOLT SPW | 10 | MUFFLER | A300-001140 | A300-001140-Online |
| 2 | BOLT SPW | 11 | TAIL PIPE | A313-001300 | A313-001300-Online |
| 2 | BOLT SPW | 12 | GASKET | V104-001350 | V104-001350-Online |
| 2 | BOLT SPW | 13 | SCREW PM SPW | V252-000180 | V252-000180-Online |
| 2 | BOLT SPW | 14 | GASKET MUFFLER | V104-001360 | V104-001360-Online |
| 2 | BOLT SPW | 15 | BOLT, H.S. 6*25 | 900105-06025 | 900105-06025-Online |
| 2 | BOLT SPW | 16 | BOLT SPW | V203-000610 | V203-000610-Online |
| 2 | BOLT SPW | 17 | BOLT SPW | V203-000590 | V203-000590-Online |
| 2 | BOLT SPW | 2 | GASKET CYLINDER | V100-000450 | V100-000450-Online |
| 2 | BOLT SPW | 3 | BOLT, H.S. 5*25 | 900105-05025 | 900105-05025-Online |
| 2 | BOLT SPW | 4 | BOLT, H.S. 5*35 | 900105-05035 | 900105-05035-Online |
| 2 | BOLT SPW | 5 | INSULATOR | A200-000680 | A200-000680-Online |
| 2 | BOLT SPW | 6 | GASKET | V103-001020 | V103-001020-Online |
| 2 | BOLT SPW | 7 | BOLT,5 | V203-000580 | V203-000580-Online |
| 2 | BOLT SPW | 8 | NUT | V263-000180 | V263-000180-Online |
| 2 | BOLT SPW | 9 | MUFFLER ASSY | A030-000270 | A030-000270-Online |
| 3 | BOLT SPW | 1 | CRANK CASE S COMP | P021-027760 | P021-027760-Online |
| 3 | BOLT SPW | 10 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 3 | BOLT SPW | 11 | FAN COVER COMP | P021-027782 | P021-027782-Online |
| 3 | BOLT SPW | 12 | FAN COVER | A172-001270 | A172-001270-Online |
| 3 | BOLT SPW | 13 | CLUTCH CASE | A570-000200 | A570-000200-Online |
| 3 | BOLT SPW | 14 | BEARING, BALL | 900812-06202 | 900812-06202-Online |
| 3 | BOLT SPW | 15 | DRUM, CLUTCH | A055-000140 | A055-000140-Online |
| 3 | BOLT SPW | 16 | RING | V583-000181 | V583-000181-Online |
| 3 | BOLT SPW | 17 | SNAP RING | 92424-35000 | 92424-35000-Online |
| 3 | BOLT SPW | 18 | SCREW ADHEISIVE | V253-000440 | V253-000440-Online |
| 3 | BOLT SPW | 19 | BOLT,5 | V203-000580 | V203-000580-Online |
| 3 | BOLT SPW | 2 | CRANK CASE S | A120-000370 | A120-000370-Online |
| 3 | BOLT SPW | 20 | LABEL TRADE | X504-002660 | X504-002660-Online |
| 3 | BOLT SPW | 21 | CYLINDER COVER COMP | P021-027790 | P021-027790-Online |
| 3 | BOLT SPW | 22 | CYLINDER COVER | A160-001650 | A160-001650-Online |
| 3 | BOLT SPW | 23 | PLUG COVER | A429-000120 | A429-000120-Online |
| 3 | BOLT SPW | 24 | KNOB | V299-000390 | V299-000390-Online |
| 3 | BOLT SPW | 26 | MUFFLER COVER | A320-000780 | A320-000780-Online |
| 3 | BOLT SPW | 27 | BOLT SPW | V203-000590 | V203-000590-Online |
| 3 | BOLT SPW | 3 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 3 | BOLT SPW | 4 | OIL SEAL | V508-000050 | V508-000050-Online |
| 3 | BOLT SPW | 5 | CRANK CASE M COMP | P021-027770 | P021-027770-Online |
| 3 | BOLT SPW | 6 | CRANK CASE M | A120-000380 | A120-000380-Online |
| 3 | BOLT SPW | 7 | BEARING, BALL | 900810-36202 | 900810-36202-Online |
| 3 | BOLT SPW | 8 | OIL SEAL | V508-000050 | V508-000050-Online |
| 3 | BOLT SPW | 9 | ROLLER | V623-000060 | V623-000060-Online |
| 4 | SHIM | 28 | JOINT ASSY | A058-000010 | A058-000010-Online |
| 4 | SHIM | 29 | JOINT | A575-000440 | A575-000440-Online |
| 4 | SHIM | 30 | FRONT CUSION | V420-002490 | V420-002490-Online |
| 4 | SHIM | 31 | REAR CUSION | V420-002500 | V420-002500-Online |
| 4 | SHIM | 32 | BOLT SPW | V204-000410 | V204-000410-Online |
| 4 | SHIM | 33 | SHIM | V375-000350 | V375-000350-Online |
| 5 | SCREW FLAT | 1 | PISTON | A100-000680 | A100-000680-Online |
| 5 | SCREW FLAT | 10 | SPRING | A566-000150 | A566-000150-Online |
| 5 | SCREW FLAT | 11 | PLATE | A551-000120 | A551-000120-Online |
| 5 | SCREW FLAT | 12 | CLUTCH BOLT | A557-000120 | A557-000120-Online |
| 5 | SCREW FLAT | 13 | SCREW FLAT | V203-000880 | V203-000880-Online |
| 5 | SCREW FLAT | 2 | PISTON RING | A101-000370 | A101-000370-Online |
| 5 | SCREW FLAT | 3 | PISTON PIN | V609-000050 | V609-000050-Online |
| 5 | SCREW FLAT | 4 | SNAP RING | V580-000100 | V580-000100-Online |
| 5 | SCREW FLAT | 5 | NEEDLE BEARING | V556-000030 | V556-000030-Online |
| 5 | SCREW FLAT | 6 | CRANK SHAFT | A011-000840 | A011-000840-Online |
| 5 | SCREW FLAT | 7 | CLUTCH ASY | A056-000451 | A056-000451-Online |
| 5 | SCREW FLAT | 8 | HUB, CLUTCH | A552-000121 | A552-000121-Online |
| 5 | SCREW FLAT | 9 | CLUTCH SHOE | A555-000130 | A555-000130-Online |
| 6 | GROMMET | 10 | WASHER | V302-000010 | V302-000010-Online |
| 6 | GROMMET | 11 | CAP,SPARK PLUG | A427-000060 | A427-000060-Online |
| 6 | GROMMET | 12 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 6 | GROMMET | 13 | PLUG, SPARK (BMR-6A) | 159010-10130 | 159010-10130-Online |
| 6 | GROMMET | 14 | GROMMET | V136-000040 | V136-000040-Online |
| 6 | GROMMET | 2 | KEY | 93115-03010 | 93115-03010-Online |
| 6 | GROMMET | 3 | NUT 10 (3N *1.25) | 900503-00010 | 900503-00010-Online |
| 6 | GROMMET | 4 | WASHER, SPRING | 900605-00010 | 900605-00010-Online |
| 6 | GROMMET | 5 | COIL ASSY | A411-000790 | A411-000790-Online |
| 6 | GROMMET | 6 | PIPE CORD B | V475-005280 | V475-005280-Online |
| 6 | GROMMET | 7 | INSULATOR | V322-000040 | V322-000040-Online |
| 6 | GROMMET | 8 | BOLT | 91100-04024 | 91100-04024-Online |
| 6 | GROMMET | 9 | WASHER, SPRING | 900605-00004 | 900605-00004-Online |
| 7 | NUT | 1 | RECOIL STARTER ASSY | A050-000200 | A050-000200-Online |
| 7 | NUT | 10 | LABEL TRADE | X504-002770 | X504-002770-Online |
| 7 | NUT | 11 | STARTER PULLY ASSY | A052-000380 | A052-000380-Online |
| 7 | NUT | 12 | STARTER PULLY | A520-000160 | A520-000160-Online |
| 7 | NUT | 13 | RACHET | A514-000120 | A514-000120-Online |
| 7 | NUT | 14 | RETURN SPRING | V452-000520 | V452-000520-Online |
| 7 | NUT | 15 | RING | V583-000140 | V583-000140-Online |
| 7 | NUT | 16 | GASKET | V105-000020 | V105-000020-Online |
| 7 | NUT | 17 | BOLT SPW | V203-000630 | V203-000630-Online |
| 7 | NUT | 18 | NUT | V266-000070 | V266-000070-Online |
| 7 | NUT | 2 | RECOIL CASE | A500-000860 | A500-000860-Online |
| 7 | NUT | 3 | REEL | A506-000260 | A506-000260-Online |
| 7 | NUT | 4 | RECOIL SPRING | A504-000130 | A504-000130-Online |
| 7 | NUT | 5 | ROPE | A509-000180 | A509-000180-Online |
| 7 | NUT | 6 | KNOB RECOIL | A511-000210 | A511-000210-Online |
| 7 | NUT | 7 | STOPPER | A522-000040 | A522-000040-Online |
| 7 | NUT | 8 | SCREW | V253-000560 | V253-000560-Online |
| 7 | NUT | 9 | WASHER | V303-000150 | V303-000150-Online |
| 8 | LEVER | 1 | CARBURETOR ASSY | A021-002580 | A021-002580-Online |
| 8 | LEVER | 10 | PUMP COVER ASSY | P004-002690 | P004-002690-Online |
| 8 | LEVER | 11 | PUMP COVER | P004-003250 | P004-003250-Online |
| 8 | LEVER | 12 | VALVE, CHECK | 124374-55430 | 124374-55430-Online |
| 8 | LEVER | 13 | SPRING, COIL | 124367-55430 | 124367-55430-Online |
| 8 | LEVER | 14 | DIAPHRAGM | P004-002720 | P004-002720-Online |
| 8 | LEVER | 15 | SPRING, IDLE ADJUST | 124160-11120 | 124160-11120-Online |
| 8 | LEVER | 16 | SCREW, IDLE ADJUST | 124159-05530 | 124159-05530-Online |
| 8 | LEVER | 17 | SPRING, ADJUSTMENT | 124355-21330 | 124355-21330-Online |
| 8 | LEVER | 18 | SCREW, MAIN ADJUST | P004-003280 | P004-003280-Online |
| 8 | LEVER | 19 | GASKET, FUEL PUMP | 124363-12710 | 124363-12710-Online |
| 8 | LEVER | 2 | COVER, TOP | 124113-05910 | 124113-05910-Online |
| 8 | LEVER | 20 | PLATE,PUMP | 124362-12710 | 124362-12710-Online |
| 8 | LEVER | 21 | DIAPHRAGM, FUEL PUMP | 124364-12710 | 124364-12710-Online |
| 8 | LEVER | 22 | GASKET | 124361-12710 | 124361-12710-Online |
| 8 | LEVER | 23 | GASKET, DIAPHRAGM | 124358-61830 | 124358-61830-Online |
| 8 | LEVER | 24 | SCREW | P004-002700 | P004-002700-Online |
| 8 | LEVER | 25 | COVER DIAPHRAGM | P004-001720 | P004-001720-Online |
| 8 | LEVER | 26 | LEVER | P004-001340 | P004-001340-Online |
| 8 | LEVER | 3 | CAP | 124174-11120 | 124174-11120-Online |
| 8 | LEVER | 4 | ADJUSTER, CABLE | 124158-13411 | 124158-13411-Online |
| 8 | LEVER | 5 | NUT | 124111-05810 | 124111-05810-Online |
| 8 | LEVER | 6 | SPRING, THROTTLE | 124114-11120 | 124114-11120-Online |
| 8 | LEVER | 7 | JET NEEDLE | P004-003330 | P004-003330-Online |
| 8 | LEVER | 8 | SEAT, SPRING | 124115-11120 | 124115-11120-Online |
| 8 | LEVER | 9 | THROTTLE VALVE | P004-002680 | P004-002680-Online |
| 9 | CLEANER COVER | 27 | SCREW | P004-001350 | P004-001350-Online |
| 9 | CLEANER COVER | 28 | PIN, LEVER | 124332-21330 | 124332-21330-Online |
| 9 | CLEANER COVER | 29 | NEEDLE VALVE | P004-001660 | P004-001660-Online |
| 9 | CLEANER COVER | 30 | SPRING, TENSION | 124331-49930 | 124331-49930-Online |
| 9 | CLEANER COVER | 31 | PACKING | P004-003000 | P004-003000-Online |
| 9 | CLEANER COVER | 32 | PLATE | P004-003010 | P004-003010-Online |
| 9 | CLEANER COVER | 33 | PUMP, PRIMING | 124380-12710 | 124380-12710-Online |
| 9 | CLEANER COVER | 34 | SCREW | P004-001000 | P004-001000-Online |
| 9 | CLEANER COVER | 35 | NEEDLE JET | P004-002730 | P004-002730-Online |
| 9 | CLEANER COVER | 36 | HOLDER | P004-002980 | P004-002980-Online |
| 9 | CLEANER COVER | 37 | SCREEN | P004-001640 | P004-001640-Online |
| 9 | CLEANER COVER | 38 | PUMP PLATE | P004-002710 | P004-002710-Online |
| 9 | CLEANER COVER | 39 | THROTTLE CABLE | V430-002930 | V430-002930-Online |
| 9 | CLEANER COVER | 40 | TUBE | V475-004500 | V475-004500-Online |
| 9 | CLEANER COVER | 41 | LEAD WIRE | V485-001700 | V485-001700-Online |
| 9 | CLEANER COVER | 42 | LEAD WIRE | V485-001710 | V485-001710-Online |
| 9 | CLEANER COVER | 43 | CLEANER BODY COMP | A023-000160 | A023-000160-Online |
| 9 | CLEANER COVER | 44 | INSULATOR | V323-000090 | V323-000090-Online |
| 9 | CLEANER COVER | 45 | BOLT SW | V203-000530 | V203-000530-Online |
| 9 | CLEANER COVER | 46 | FILTER | A226-000680 | A226-000680-Online |
| 9 | CLEANER COVER | 47 | GASKET | V103-001040 | V103-001040-Online |
| 9 | CLEANER COVER | 48 | BACK PLATE | A244-000180 | A244-000180-Online |
| 9 | CLEANER COVER | 49 | BOLT, H.S.H | 900105-05075 | 900105-05075-Online |
| 9 | CLEANER COVER | 50 | WASHER, SPRING | 900605-00005 | 900605-00005-Online |
| 9 | CLEANER COVER | 51 | CLEANER COVER COMP | P021-028000 | P021-028000-Online |
| 9 | CLEANER COVER | 52 | CLEANER COVER | A232-000880 | A232-000880-Online |
| 10 | BAND | 53 | KNOB | V299-000410 | V299-000410-Online |
| 10 | BAND | 54 | WASHER | V303-000200 | V303-000200-Online |
| 10 | BAND | 55 | GASKET | V103-001030 | V103-001030-Online |
| 10 | BAND | 56 | CONNECTOR | C482-000070 | C482-000070-Online |
| 10 | BAND | 57 | SLEEVE | V475-004810 | V475-004810-Online |
| 10 | BAND | 58 | BAND | V495-001530 | V495-001530-Online |
| 11 | BOLT SPW | 10 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 11 | BOLT SPW | 11 | CLIP | V490-000500 | V490-000500-Online |
| 11 | BOLT SPW | 12 | PIPE | V471-002490 | V471-002490-Online |
| 11 | BOLT SPW | 13 | CLIP | V490-000500 | V490-000500-Online |
| 11 | BOLT SPW | 14 | JOINT | V186-000210 | V186-000210-Online |
| 11 | BOLT SPW | 15 | TANK CUSHION | V420-002510 | V420-002510-Online |
| 11 | BOLT SPW | 16 | TANK CUSHION | V420-002520 | V420-002520-Online |
| 11 | BOLT SPW | 17 | TANK GUARD | A175-000210 | A175-000210-Online |
| 11 | BOLT SPW | 18 | BOLT SPW | V203-000590 | V203-000590-Online |
| 11 | BOLT SPW | 2 | FUEL TANK | A350-001370 | A350-001370-Online |
| 11 | BOLT SPW | 3 | CAP,FUEL | A033-000330 | A033-000330-Online |
| 11 | BOLT SPW | 4 | GASKET | V107-000010 | V107-000010-Online |
| 11 | BOLT SPW | 5 | FUEL PIPE ASSY | P021-034560 | P021-034560-Online |
| 11 | BOLT SPW | 6 | FUEL PIPE | V471-002480 | V471-002480-Online |
| 11 | BOLT SPW | 7 | GROMMET | V137-000090 | V137-000090-Online |
| 11 | BOLT SPW | 8 | CLIP | V490-000500 | V490-000500-Online |
| 11 | BOLT SPW | 9 | FUEL FILTER SUB ASSY | A369-000100 | A369-000100-Online |
| 12 | HANDLE LABEL | 1 | OUTER PIPE SUB ASSY | P021-028610 | P021-028610-Online |
| 12 | HANDLE LABEL | 10 | MAIN SHAFT SUB ASSY | C504-000740 | C504-000740-Online |
| 12 | HANDLE LABEL | 11 | STOPPER | V585-000040 | V585-000040-Online |
| 12 | HANDLE LABEL | 12 | LABEL CAUTION | X517-000140 | X517-000140-Online |
| 12 | HANDLE LABEL | 13 | LABEL CAUTION | X505-002910 | X505-002910-Online |
| 12 | HANDLE LABEL | 14 | LABEL DECIBEL | X508-000290 | X508-000290-Online |
| 12 | HANDLE LABEL | 15 | HANDLE LABEL | X524-002380 | X524-002380-Online |
| 12 | HANDLE LABEL | 2 | BUSHING | C501-000090 | C501-000090-Online |
| 12 | HANDLE LABEL | 3 | PROTECTOR | C412-000450 | C412-000450-Online |
| 12 | HANDLE LABEL | 4 | HANGER | C063-000030 | C063-000030-Online |
| 12 | HANDLE LABEL | 5 | BOLT SPW | V203-000700 | V203-000700-Online |
| 12 | HANDLE LABEL | 7 | NUT | 900500-00005 | 900500-00005-Online |
| 12 | HANDLE LABEL | 8 | BAND | C487-000280 | C487-000280-Online |
| 12 | HANDLE LABEL | 9 | PROTECTOR | V364-000050 | V364-000050-Online |
| 13 | WASHER 6 | 1 | CASE,GEAR | C051-000612 | C051-000612-Online |
| 13 | WASHER 6 | 10 | PINION SET | V651-000550 | V651-000550-Online |
| 13 | WASHER 6 | 11 | BEARING, BALL | 900800-06001 | 900800-06001-Online |
| 13 | WASHER 6 | 12 | BEARING, BALL 6001ZZ | 900804-06001 | 900804-06001-Online |
| 13 | WASHER 6 | 13 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 13 | WASHER 6 | 14 | SNAP RING | 92424-28000 | 92424-28000-Online |
| 13 | WASHER 6 | 15 | BOLT | V206-000250 | V206-000250-Online |
| 13 | WASHER 6 | 16 | GASKET | V307-000230 | V307-000230-Online |
| 13 | WASHER 6 | 17 | BOLT SPW | V204-000740 | V204-000740-Online |
| 13 | WASHER 6 | 18 | BOLT SPW | V204-000450 | V204-000450-Online |
| 13 | WASHER 6 | 2 | CASE,GEAR | C531-000601 | C531-000601-Online |
| 13 | WASHER 6 | 20 | HOLDER A | C535-000770 | C535-000770-Online |
| 13 | WASHER 6 | 21 | PIN,SNAP | V641-000140 | V641-000140-Online |
| 13 | WASHER 6 | 22 | HOLDER | C535-000800 | C535-000800-Online |
| 13 | WASHER 6 | 23 | FIXTURE, BLADE | C535-000790 | C535-000790-Online |
| 13 | WASHER 6 | 24 | BOLT,10 | V206-000530 | V206-000530-Online |
| 13 | WASHER 6 | 25 | LOWER CLAMP | C551-000110 | C551-000110-Online |
| 13 | WASHER 6 | 26 | NUT | 900500-00006 | 900500-00006-Online |
| 13 | WASHER 6 | 27 | WASHER | 900603-00006 | 900603-00006-Online |
| 13 | WASHER 6 | 3 | BEARING, BALL | 900802-06000 | 900802-06000-Online |
| 13 | WASHER 6 | 4 | BEARING, BALL | 900810-06202 | 900810-06202-Online |
| 13 | WASHER 6 | 5 | OIL SEAL | V513-000000 | V513-000000-Online |
| 13 | WASHER 6 | 6 | COLLAR | V358-000130 | V358-000130-Online |
| 13 | WASHER 6 | 7 | SHAFT, GEAR | C534-000910 | C534-000910-Online |
| 13 | WASHER 6 | 8 | BEVEL GEAR | V651-000540 | V651-000540-Online |
| 13 | WASHER 6 | 9 | SNAP RING | 92424-35000 | 92424-35000-Online |
| 14 | SCREW BUTTON | 1 | CONTROL, THROTTLE | C044-000881 | C044-000881-Online |
| 14 | SCREW BUTTON | 10 | THROTTLE CABLE | V043-000540 | V043-000540-Online |
| 14 | SCREW BUTTON | 11 | PLUG | V162-000410 | V162-000410-Online |
| 14 | SCREW BUTTON | 12 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 14 | SCREW BUTTON | 13 | SCREW PM | V253-000580 | V253-000580-Online |
| 14 | SCREW BUTTON | 14 | NUT | 92017-05000 | 92017-05000-Online |
| 14 | SCREW BUTTON | 15 | SCREW | V252-000090 | V252-000090-Online |
| 14 | SCREW BUTTON | 16 | NUT | V262-000100 | V262-000100-Online |
| 14 | SCREW BUTTON | 17 | BRACKET COMP | P021-033250 | P021-033250-Online |
| 14 | SCREW BUTTON | 18 | HANDLE BRACKET | C423-000710 | C423-000710-Online |
| 14 | SCREW BUTTON | 19 | LOWER CAP | C423-000730 | C423-000730-Online |
| 14 | SCREW BUTTON | 2 | BODY RIGHT | C412-000430 | C412-000430-Online |
| 14 | SCREW BUTTON | 20 | UPPER CAP | C423-000750 | C423-000750-Online |
| 14 | SCREW BUTTON | 21 | LOWER CLAMP | C423-000760 | C423-000760-Online |
| 14 | SCREW BUTTON | 22 | UPPER CLAMP | C423-000770 | C423-000770-Online |
| 14 | SCREW BUTTON | 23 | LOWER CUSHION | V420-002460 | V420-002460-Online |
| 14 | SCREW BUTTON | 24 | UPPER CUSHION | V420-002470 | V420-002470-Online |
| 14 | SCREW BUTTON | 25 | BOLT SPW | V203-000630 | V203-000630-Online |
| 14 | SCREW BUTTON | 26 | SCREW BUTTON | 91142-06025 | 91142-06025-Online |
| 14 | SCREW BUTTON | 3 | BODY LEFT | C412-000440 | C412-000440-Online |
| 14 | SCREW BUTTON | 4 | CONTROL, THROTTLE | C450-000581 | C450-000581-Online |
| 14 | SCREW BUTTON | 5 | LOCKOUT, THROTTLE | C460-000241 | C460-000241-Online |
| 14 | SCREW BUTTON | 6 | COIL SPRING | V450-001020 | V450-001020-Online |
| 14 | SCREW BUTTON | 7 | COIL SPRING | V452-000690 | V452-000690-Online |
| 14 | SCREW BUTTON | 8 | BUTTON | C461-000080 | C461-000080-Online |
| 14 | SCREW BUTTON | 9 | COIL SPRING | V450-001010 | V450-001010-Online |
| 15 | EARTH CORD | 27 | HANDLE SUB ASSY | P021-035440 | P021-035440-Online |
| 15 | EARTH CORD | 29 | GRIP | C403-000420 | C403-000420-Online |
| 15 | EARTH CORD | 30 | EARTH CORD | A430-000000 | A430-000000-Online |
| 16 | HARNESS ASSY | 1 | GUARD SET | P021-028440 | P021-028440-Online |
| 16 | HARNESS ASSY | 10 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 16 | HARNESS ASSY | 2 | GUARD | C550-000430 | C550-000430-Online |
| 16 | HARNESS ASSY | 3 | SUB GUARD ASSY | P021-028450 | P021-028450-Online |
| 16 | HARNESS ASSY | 4 | CUTTER | C554-000040 | C554-000040-Online |
| 16 | HARNESS ASSY | 6 | BOLT SW | V203-000720 | V203-000720-Online |
| 16 | HARNESS ASSY | 7 | NUT | V263-000130 | V263-000130-Online |
| 16 | HARNESS ASSY | 8 | UPPER CLAMP | C551-000060 | C551-000060-Online |
| 16 | HARNESS ASSY | 9 | BOLT SPW | V203-000610 | V203-000610-Online |
| 17 | BLADE COVER | 2 | WRENCH 17X19 | X602-000140 | X602-000140-Online |
| 17 | BLADE COVER | 4 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 17 | BLADE COVER | 5 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 17 | BLADE COVER | 6 | SPANNER | X600-000020 | X600-000020-Online |
| 17 | BLADE COVER | 7 | TOOL BAG | X705-000180 | X705-000180-Online |
| 17 | BLADE COVER | 8 | GOGGLES | P021-002861 | P021-002861-Online |
| 17 | BLADE COVER | 9 | BLADE COVER | P021-034750 | P021-034750-Online |
Source file: 20130718-914_B530(33)_P016-000870-12Cb_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
