Illustrated Parts List
Shindaiwa C262TS Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C262TS
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|
| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001460 | A011-001460-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | SPACER, PISTON PIN | 100014-53630 | 100014-53630-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003290 | A160-003290-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,SHINDAIWA | X562-000670 | X562-000670-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-002330 | A130-002330-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000840 | V100-000840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-050840 | P021-050840-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000010 | A101-000010-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-35430 | 100013-35430-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | CIRCLIP, PISTON PIN | 100015-03931 | 100015-03931-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | BEARING,NEEDLE | V554-000020 | V554-000020-Online |
| 6 | CRANKCASE | 1 | CRANKCASE KIT | P021-050850 | P021-050850-Online |
| 6 | CRANKCASE | 2 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 6 | CRANKCASE | 3 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 4 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 6 | CRANKCASE | 5 | SEAL,OIL | V503-000040 | V503-000040-Online |
| 6 | CRANKCASE | 6 | GASKET,CRANKCASE | V102-000300 | V102-000300-Online |
| 6 | CRANKCASE | 7 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 8 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001320 | A409-001320-Online |
| 8 | MAGNETO | 10 | SPARKPLUG | A425-000060 | A425-000060-Online |
| 8 | MAGNETO | 11 | CAP,SPARK PLUG | A427-000220 | A427-000220-Online |
| 8 | MAGNETO | 12 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 8 | MAGNETO | 13 | LEAD | V485-002880 | V485-002880-Online |
| 8 | MAGNETO | 2 | COIL, IGNITION | A411-001710 | A411-001710-Online |
| 8 | MAGNETO | 3 | TUBE | V475-007540 | V475-007540-Online |
| 8 | MAGNETO | 4 | NUT, FLANGE | 900515-00008 | 900515-00008-Online |
| 8 | MAGNETO | 5 | CONNECTOR | C152-001030 | C152-001030-Online |
| 8 | MAGNETO | 6 | WASHER,CIRCULAR | V323-000070 | V323-000070-Online |
| 8 | MAGNETO | 7 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 8 | MAGNETO | 8 | BUSHING | 156110-04920 | 156110-04920-Online |
| 8 | MAGNETO | 9 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |

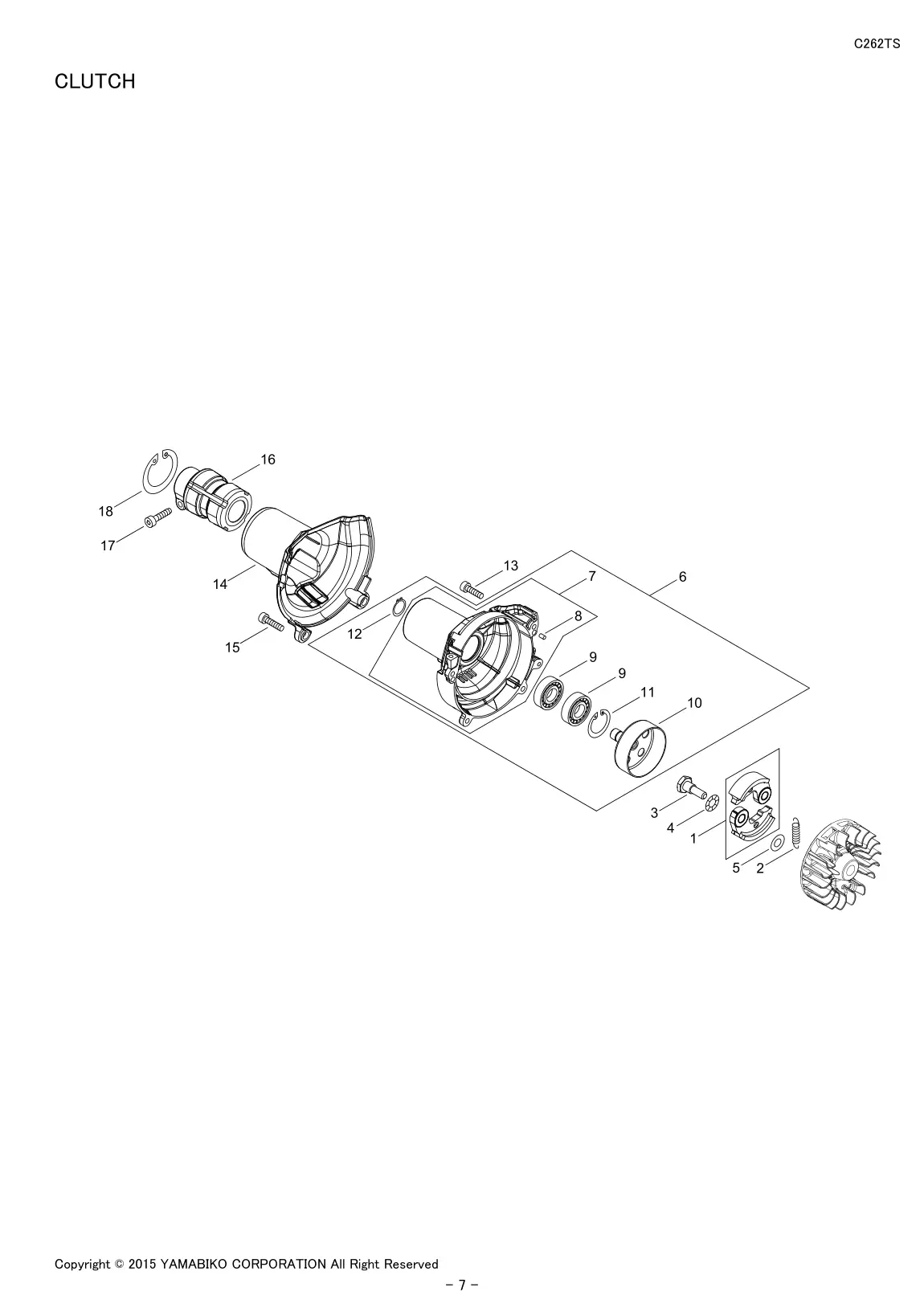

| 10 | CLUTCH | 1 | ARM,CLUTCH SET | P100-002270 | P100-002270-Online |
| 10 | CLUTCH | 10 | DRUM, CLUTCH | A556-001750 | A556-001750-Online |
| 10 | CLUTCH | 11 | CIRCLIP | 900702-00028 | 900702-00028-Online |
| 10 | CLUTCH | 12 | CIRCLIP | 900701-00012 | 900701-00012-Online |
| 10 | CLUTCH | 13 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 10 | CLUTCH | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 10 | CLUTCH | 16 | FIXTURE, MAIN PIPE | A575-000690 | A575-000690-Online |
| 10 | CLUTCH | 17 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 10 | CLUTCH | 18 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 10 | CLUTCH | 2 | SPRING,TENSION | V451-001390 | V451-001390-Online |
| 10 | CLUTCH | 3 | SHAFT, CLUTCH | 175046-56030 | 175046-56030-Online |
| 10 | CLUTCH | 4 | WASHER | 175049-56030 | 175049-56030-Online |
| 10 | CLUTCH | 5 | WASHER (I) | 175048-05530 | 175048-05530-Online |
| 10 | CLUTCH | 6 | FAN COVER ASY | P021-051001 | P021-051001-Online |
| 10 | CLUTCH | 7 | COVER,FAN | A172-003141 | A172-003141-Online |
| 10 | CLUTCH | 8 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 10 | CLUTCH | 9 | BEARING, BALL | 900807-06001 | 900807-06001-Online |
| 12 | AIR CLEANER, CARBURETOR | 1 | BELLOWS, INTAKE | A202-000300 | A202-000300-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | GASKET,INTAKE | V103-001900 | V103-001900-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | CLEANER CASE ASY | P021-051160 | P021-051160-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | PLATE,PREVENT | A244-000370 | A244-000370-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | BOLT, TORX | V805-000340 | V805-000340-Online |
| 12 | AIR CLEANER, CARBURETOR | 14 | LID,CLEANER ASY | P100-003600 | P100-003600-Online |
| 12 | AIR CLEANER, CARBURETOR | 15 | KNOB,FASTENER | V299-000640 | V299-000640-Online |
| 12 | AIR CLEANER, CARBURETOR | 16 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 17 | PLATE, ELEMENT | A227-000050 | A227-000050-Online |
| 12 | AIR CLEANER, CARBURETOR | 18 | ELEMENT, AIR FILTER | A226-002030 | A226-002030-Online |
| 12 | AIR CLEANER, CARBURETOR | 19 | ELEMENT, AIR FILTER | A226-002040 | A226-002040-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | HOLDER, BELLOWS | A206-000040 | A206-000040-Online |
| 12 | AIR CLEANER, CARBURETOR | 20 | LABEL | X524-001901 | X524-001901-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | PLATE, INSULATOR | A209-001010 | A209-001010-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | BOLT, TORX | V855-000000 | V855-000000-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | PLATE, INSULATOR | A209-001000 | A209-001000-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | GASKET,INTAKE | V103-001890 | V103-001890-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 1 | CARBURETOR, | A021-004600 | A021-004600-Online |
| 14 | CARBURETOR | 10 | GASKET,M. DIAPHRAGM | 123140-27230 | 123140-27230-Online |
| 14 | CARBURETOR | 11 | DIAPHRAGM, FUEL PUMP | P003-004540 | P003-004540-Online |
| 14 | CARBURETOR | 12 | DIAPHRAGM, METERING | P003-001670 | P003-001670-Online |
| 14 | CARBURETOR | 13 | SCREW | P003-005860 | P003-005860-Online |
| 14 | CARBURETOR | 14 | SCREW | P003-004560 | P003-004560-Online |
| 14 | CARBURETOR | 15 | SCREW | P003-004570 | P003-004570-Online |
| 14 | CARBURETOR | 16 | SPRING | P003-005870 | P003-005870-Online |
| 14 | CARBURETOR | 17 | WASHER | P003-001710 | P003-001710-Online |
| 14 | CARBURETOR | 18 | NEEDLE | P003-005880 | P003-005880-Online |
| 14 | CARBURETOR | 19 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 14 | CARBURETOR | 2 | BODY ASSEMBLY, PUMP | P003-006260 | P003-006260-Online |
| 14 | CARBURETOR | 20 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 14 | CARBURETOR | 21 | LEVER, METERING | P003-001630 | P003-001630-Online |
| 14 | CARBURETOR | 22 | PUMP, PRIMER | 123181-09560 | 123181-09560-Online |
| 14 | CARBURETOR | 23 | CLIP | P003-005890 | P003-005890-Online |
| 14 | CARBURETOR | 24 | SCREW | 123114-40630 | 123114-40630-Online |
| 14 | CARBURETOR | 25 | PLATE | P003-005900 | P003-005900-Online |
| 14 | CARBURETOR | 3 | CLIP | 123173-07930 | 123173-07930-Online |
| 14 | CARBURETOR | 4 | COVER, M. DIAPHRAGM | 123142-03930 | 123142-03930-Online |
| 14 | CARBURETOR | 5 | COVER, FUEL PUMP | P003-004510 | P003-004510-Online |
| 14 | CARBURETOR | 6 | VALVE, THROTTLE | P003-006140 | P003-006140-Online |
| 14 | CARBURETOR | 7 | SWIVEL | P003-005850 | P003-005850-Online |
| 14 | CARBURETOR | 8 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 14 | CARBURETOR | 9 | GASKET, FUEL PUMP | P003-004530 | P003-004530-Online |

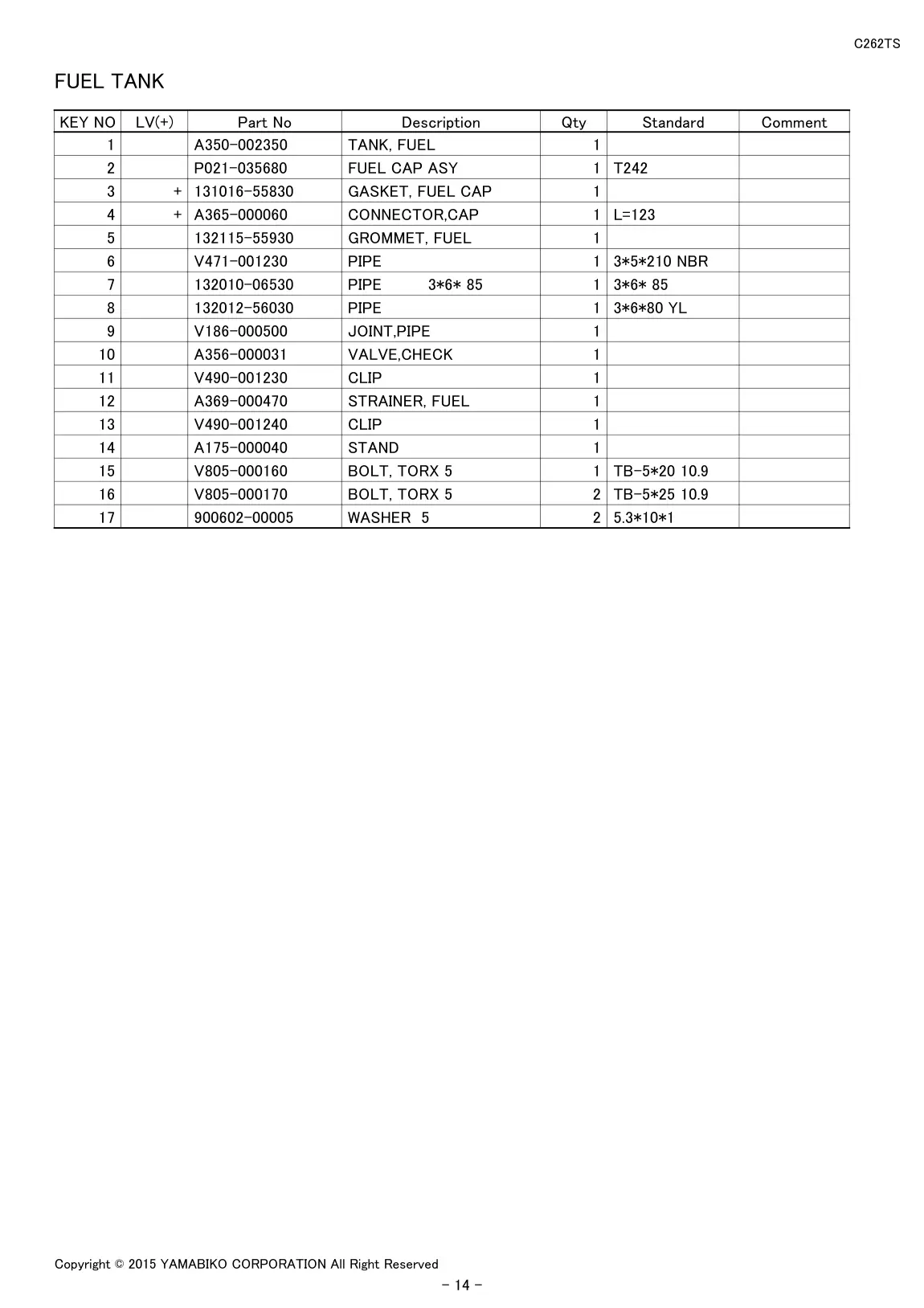

| 16 | FUEL TANK | 1 | TANK, FUEL | A350-002350 | A350-002350-Online |
| 16 | FUEL TANK | 10 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 11 | CLIP | V490-001230 | V490-001230-Online |
| 16 | FUEL TANK | 12 | STRAINER, FUEL | A369-000470 | A369-000470-Online |
| 16 | FUEL TANK | 13 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 15 | BOLT, TORX | V805-000160 | V805-000160-Online |
| 16 | FUEL TANK | 16 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 16 | FUEL TANK | 17 | WASHER | 900602-00005 | 900602-00005-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASY | P021-035680 | P021-035680-Online |
| 16 | FUEL TANK | 3 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 16 | FUEL TANK | 4 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 5 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 16 | FUEL TANK | 6 | PIPE | V471-001230 | V471-001230-Online |
| 16 | FUEL TANK | 7 | PIPE 3*6* | 132010-06530 | 132010-06530-Online |
| 16 | FUEL TANK | 8 | PIPE | 132012-56030 | 132012-56030-Online |
| 16 | FUEL TANK | 9 | JOINT,PIPE | V186-000500 | V186-000500-Online |
| 18 | MUFFLER | 1 | MUFFLER ASY | P021-050900 | P021-050900-Online |
| 18 | MUFFLER | 2 | BOLT, TORX | V805-000250 | V805-000250-Online |
| 18 | MUFFLER | 3 | GUIDE, EXHAUST | A313-002060 | A313-002060-Online |
| 18 | MUFFLER | 4 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 5 | GASKET,EXHAUST | V104-002300 | V104-002300-Online |
| 18 | MUFFLER | 6 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 18 | MUFFLER | 7 | GASKET,EXHAUST | V104-002310 | V104-002310-Online |
| 18 | MUFFLER | 8 | COVER,MUFFLER | A320-001200 | A320-001200-Online |
| 18 | MUFFLER | 9 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-003220 | A051-003220-Online |
| 20 | RECOIL STARTER, PULLY | 10 | ROPE, STARTER | P022-022110 | P022-022110-Online |
| 20 | RECOIL STARTER, PULLY | 11 | GRIP, STARTER | 177228-27030 | 177228-27030-Online |
| 20 | RECOIL STARTER, PULLY | 12 | STOPPER, ROPE | P022-037670 | P022-037670-Online |
| 20 | RECOIL STARTER, PULLY | 13 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 20 | RECOIL STARTER, PULLY | 14 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 20 | RECOIL STARTER, PULLY | 15 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 20 | RECOIL STARTER, PULLY | 16 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 17 | COVER,DUST | A127-000470 | A127-000470-Online |
| 20 | RECOIL STARTER, PULLY | 18 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 20 | RECOIL STARTER, PULLY | 19 | LABEL,SHINDAIWA | X562-000660 | X562-000660-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STATER CASE | P022-043670 | P022-043670-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 20 | RECOIL STARTER, PULLY | 4 | NUT | 900565-00005 | 900565-00005-Online |
| 20 | RECOIL STARTER, PULLY | 5 | DRUM, STARTER | P022-033320 | P022-033320-Online |
| 20 | RECOIL STARTER, PULLY | 6 | PLATE, CAM | P022-033310 | P022-033310-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SPRING, REWIND | 177220-40630 | 177220-40630-Online |
| 20 | RECOIL STARTER, PULLY | 9 | SCREW | 177236-61830 | 177236-61830-Online |
| 22 | GEAR CASE, SHIELD | 1 | GEAR CASE ASY | P021-051190 | P021-051190-Online |
| 22 | GEAR CASE, SHIELD | 10 | CIRCLIP | 900702-00022 | 900702-00022-Online |
| 22 | GEAR CASE, SHIELD | 11 | CIRCLIP | 900706-00012 | 900706-00012-Online |
| 22 | GEAR CASE, SHIELD | 12 | CIRCLIP | 900706-00010 | 900706-00010-Online |
| 22 | GEAR CASE, SHIELD | 13 | CIRCLIP | 900701-00009 | 900701-00009-Online |
| 22 | GEAR CASE, SHIELD | 14 | FIXTURE, BLADE | C535-000920 | C535-000920-Online |
| 22 | GEAR CASE, SHIELD | 15 | FIXTURE, BLADE | C535-000930 | C535-000930-Online |
| 22 | GEAR CASE, SHIELD | 16 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 17 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 18 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 19 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 2 | GEAR SET, BEVEL | V000-000110 | V000-000110-Online |
| 22 | GEAR CASE, SHIELD | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 21 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 22 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 23 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 24 | BOLT, TORX | V806-000020 | V806-000020-Online |
| 22 | GEAR CASE, SHIELD | 25 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 22 | GEAR CASE, SHIELD | 26 | SHIELD BLADE ASY | P021-050820 | P021-050820-Online |
| 22 | GEAR CASE, SHIELD | 27 | NUT | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 28 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 22 | GEAR CASE, SHIELD | 29 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 3 | SHAFT, GEAR | C534-000940 | C534-000940-Online |
| 22 | GEAR CASE, SHIELD | 30 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 31 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 32 | BOLT, TORX | V805-000260 | V805-000260-Online |
| 22 | GEAR CASE, SHIELD | 33 | SHIELD ASY, BLADE | P021-042900 | P021-042900-Online |
| 22 | GEAR CASE, SHIELD | 34 | NUT,5 | V263-000020 | V263-000020-Online |
| 22 | GEAR CASE, SHIELD | 35 | KNIFE, CORD | C554-000030 | C554-000030-Online |
| 22 | GEAR CASE, SHIELD | 36 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 22 | GEAR CASE, SHIELD | 37 | LABEL,EYE CATCHER | X530-000550 | X530-000550-Online |
| 22 | GEAR CASE, SHIELD | 38 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | BEARING, BALL | 900810-00629 | 900810-00629-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900812-06302 | 900812-06302-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 900855-06900 | 900855-06900-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING, BALL 6900Z | 900858-06900 | 900858-06900-Online |
| 22 | GEAR CASE, SHIELD | 8 | WASHER,CIRCULAR | V313-000090 | V313-000090-Online |
| 22 | GEAR CASE, SHIELD | 9 | CIRCLIP | 900702-00042 | 900702-00042-Online |
| 24 | MAIN PIPE, HANDLE | 1 | MAIN PIPE ASY | P021-049000 | P021-049000-Online |
| 24 | MAIN PIPE, HANDLE | 10 | GRIP,HANDLE | C403-000031 | C403-000031-Online |
| 24 | MAIN PIPE, HANDLE | 11 | FIXTURE,ASY HANDLE | P021-016232 | P021-016232-Online |
| 24 | MAIN PIPE, HANDLE | 12 | BRACKET, HANDLE (U) | 351312-52131 | 351312-52131-Online |
| 24 | MAIN PIPE, HANDLE | 13 | BRACKET, HANDLE (C) | 351313-52130 | 351313-52130-Online |
| 24 | MAIN PIPE, HANDLE | 14 | NUT | 900565-50008 | 900565-50008-Online |
| 24 | MAIN PIPE, HANDLE | 15 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 24 | MAIN PIPE, HANDLE | 16 | FIXTURE,HANDLE | C423-000043 | C423-000043-Online |
| 24 | MAIN PIPE, HANDLE | 17 | FIXTURE,HANDLE | C423-000030 | C423-000030-Online |
| 24 | MAIN PIPE, HANDLE | 18 | KNOB,FASTENER | V299-000110 | V299-000110-Online |
| 24 | MAIN PIPE, HANDLE | 19 | WASHER | 605014-54230 | 605014-54230-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 20 | CLIP | 224924-52130 | 224924-52130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 4 | SHAFT,DRIVE | C504-000050 | C504-000050-Online |
| 24 | MAIN PIPE, HANDLE | 5 | HOOK ASS'Y | P021-016221 | P021-016221-Online |
| 24 | MAIN PIPE, HANDLE | 7 | HOOK, BAND | 301015-05330 | 301015-05330-Online |
| 24 | MAIN PIPE, HANDLE | 8 | BOLT, TORX | V805-000140 | V805-000140-Online |
| 24 | MAIN PIPE, HANDLE | 9 | GRIP ASY,F-HANDLE | P021-016210 | P021-016210-Online |
| 26 | THROTTLE | 1 | THROTTLE ASY | P100-003870 | P100-003870-Online |
| 26 | THROTTLE | 10 | ON OFF SWITCH | P021-051170 | P021-051170-Online |
| 26 | THROTTLE | 11 | CABLE,BOWDEN | V430-004950 | V430-004950-Online |
| 26 | THROTTLE | 12 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 13 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 14 | CLIP | 159112-09961 | 159112-09961-Online |
| 26 | THROTTLE | 2 | KNOB,LATCH | C463-000090 | C463-000090-Online |
| 26 | THROTTLE | 3 | SPRING,TORSION | V452-000360 | V452-000360-Online |
| 26 | THROTTLE | 4 | TRIGGER,THROTTLE | C450-000790 | C450-000790-Online |
| 26 | THROTTLE | 5 | LOCKOUT,THROTTLE | C460-000430 | C460-000430-Online |
| 26 | THROTTLE | 6 | SPRING,TORSION | V452-000350 | V452-000350-Online |
| 26 | THROTTLE | 7 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 26 | THROTTLE | 8 | BOLT, TORX | V805-000050 | V805-000050-Online |
| 26 | THROTTLE | 9 | NUT | 900500-00005 | 900500-00005-Online |

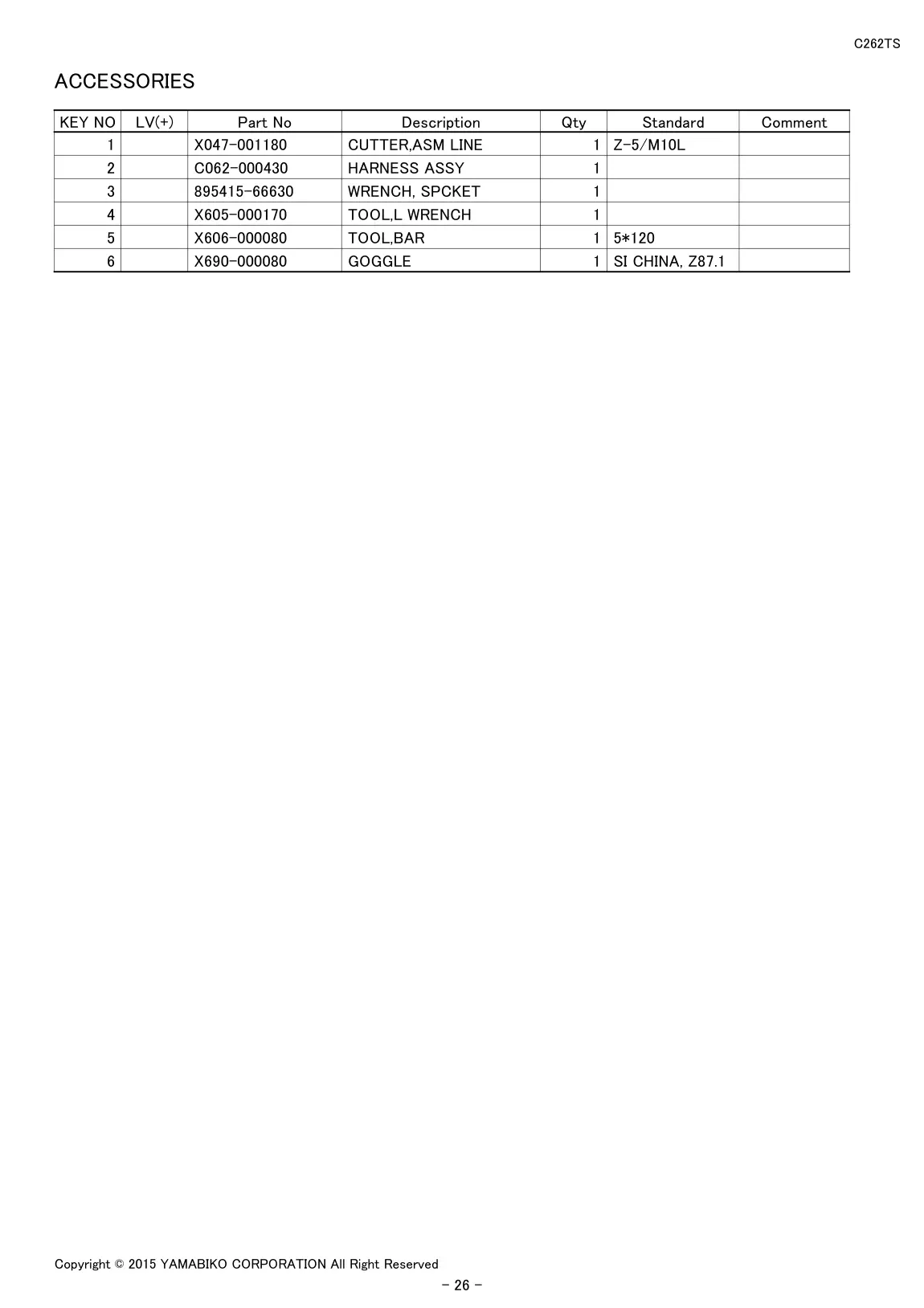

| 28 | ACCESSORIES | 1 | CUTTER,ASM LINE | X047-001180 | X047-001180-Online |
| 28 | ACCESSORIES | 2 | HARNESS ASSY | C062-000430 | C062-000430-Online |
| 28 | ACCESSORIES | 3 | WRENCH, SPCKET | 895415-66630 | 895415-66630-Online |
| 28 | ACCESSORIES | 4 | TOOL,L WRENCH | X605-000170 | X605-000170-Online |
| 28 | ACCESSORIES | 5 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 6 | GOGGLE | X690-000080 | X690-000080-Online |
| 30 | NYLON LINE CUTTER | 1 | CUTTER,ASM LINE | X047-001180 | X047-001180-Online |
| 30 | NYLON LINE CUTTER | 2 | HOUSING | P022-035000 | P022-035000-Online |
| 30 | NYLON LINE CUTTER | 3 | COVER | P022-010410 | P022-010410-Online |
| 30 | NYLON LINE CUTTER | 4 | BOBBIN | P022-010400 | P022-010400-Online |
| 30 | NYLON LINE CUTTER | 5 | NUT | P022-023180 | P022-023180-Online |
| 30 | NYLON LINE CUTTER | 6 | NYLON CODE | P022-010380 | P022-010380-Online |
| 30 | NYLON LINE CUTTER | 7 | EYELET | P022-000710 | P022-000710-Online |
| 30 | NYLON LINE CUTTER | 8 | SPRING | P022-010370 | P022-010370-Online |
| 31 | DIAPHRAGM | PIN, PISTON | 100013 | 100013-Online | |
| 31 | DIAPHRAGM | 10 | LABEL,CAUTION | 890617 | 890617-Online |
| 31 | DIAPHRAGM | 10 | CARBURETOR, | A021-00 | A021-00-Online |
| 31 | DIAPHRAGM | 12 | SCREEN, INLET | 123126 | 123126-Online |
| 31 | DIAPHRAGM | 12 | VALVE, INLET | 123137 | 123137-Online |
| 31 | DIAPHRAGM | 12 | PIN, METERING | 123138 | 123138-Online |
| 31 | DIAPHRAGM | 12 | GASKET,M. | 123140 | 123140-Online |
| 31 | DIAPHRAGM | 12 | COVER, M. | 123142 | 123142-Online |
| 31 | DIAPHRAGM | 12 | CLIP | 123173 | 123173-Online |
| 31 | DIAPHRAGM | 12 | PUMP, PRIMER | 123181 | 123181-Online |
| 31 | DIAPHRAGM | 12 | GASKET, FUEL CAP | 131016 | 131016-Online |
| 31 | DIAPHRAGM | 14 | PIPE 3*6* | 132010 | 132010-Online |
| 31 | DIAPHRAGM | 14 | PIPE | 132012 | 132012-Online |
| 31 | DIAPHRAGM | 14 | GROMMET, FUEL | 132115 | 132115-Online |
| 31 | DIAPHRAGM | 14 | SCREEN, MUFFLER | 145862 | 145862-Online |
| 31 | DIAPHRAGM | 14 | WASHER | 900603 | 900603-Online |
| 31 | DIAPHRAGM | 16 | BUSHING | 156110 | 156110-Online |
| 31 | DIAPHRAGM | 18 | GRIP, STARTER | 177228 | 177228-Online |
| 31 | DIAPHRAGM | 18 | SCREW | 177236 | 177236-Online |
| 31 | DIAPHRAGM | 18 | CLIP | 224924 | 224924-Online |
| 31 | DIAPHRAGM | 18 | NUT | 900565 | 900565-Online |
| 31 | DIAPHRAGM | 2 | SPACER, PISTON | 100014 | 100014-Online |
| 31 | DIAPHRAGM | 2 | CIRCLIP, PISTON | 100015 | 100015-Online |
| 31 | DIAPHRAGM | 2 | KEY, WOODRUFF | 100142 | 100142-Online |
| 31 | DIAPHRAGM | 2 | CARBURETOR, | A021-00 | A021-00-Online |
| 31 | DIAPHRAGM | 20 | NUT | 610320 | 610320-Online |
| 31 | DIAPHRAGM | 20 | PLATE, CUP | 610352 | 610352-Online |
| 31 | DIAPHRAGM | 20 | BOLT 8* | 610434 | 610434-Online |
| 31 | DIAPHRAGM | 20 | PLATE, COVER | 699229 | 699229-Online |
| 31 | DIAPHRAGM | 20 | LABEL, CAUTION | 890152 | 890152-Online |
| 31 | DIAPHRAGM | 20 | NUT | 900565 | 900565-Online |
| 31 | DIAPHRAGM | 20 | CIRCLIP | 900701 | 900701-Online |
| 31 | DIAPHRAGM | 20 | CIRCLIP | 900702 | 900702-Online |
| 31 | DIAPHRAGM | 20 | CIRCLIP | 900706 | 900706-Online |
| 31 | DIAPHRAGM | 20 | O-RING | 900720 | 900720-Online |
| 31 | DIAPHRAGM | 20 | BEARING, BALL | 900800 | 900800-Online |
| 31 | DIAPHRAGM | 20 | BEARING, BALL | 900810 | 900810-Online |
| 31 | DIAPHRAGM | 20 | BEARING, BALL | 900855 | 900855-Online |
| 31 | DIAPHRAGM | 20 | BEARING, BALL | 900858 | 900858-Online |
| 31 | DIAPHRAGM | 20 | SCREW | 91316-04 | 91316-04-Online |
| 31 | DIAPHRAGM | 20 | CRANKSHAFT,ASY | A011-00 | A011-00-Online |
| 31 | DIAPHRAGM | 22 | HOOK, BAND | 301015 | 301015-Online |
| 31 | DIAPHRAGM | 22 | BRACKET, HANDLE | 351312 | 351312-Online |
| 31 | DIAPHRAGM | 22 | BRACKET, HANDLE | 351313 | 351313-Online |
| 31 | DIAPHRAGM | 22 | WASHER | 605014 | 605014-Online |
| 31 | DIAPHRAGM | 22 | PLATE, ADAPTER | 610314 | 610314-Online |
| 31 | DIAPHRAGM | 22 | LABEL, CHOKE | 890332 | 890332-Online |
| 31 | DIAPHRAGM | 22 | WRENCH, SPCKET | 895415 | 895415-Online |
| 31 | DIAPHRAGM | 22 | WASHER | 900602 | 900602-Online |
| 31 | DIAPHRAGM | 24 | SHAFT, CLUTCH | 175046 | 175046-Online |
| 31 | DIAPHRAGM | 24 | NUT 6 (3N) | 900502 | 900502-Online |
| 31 | DIAPHRAGM | 24 | NUT, FLANGE | 900515 | 900515-Online |
| 31 | DIAPHRAGM | 24 | NUT, LOCK | 900562 | 900562-Online |
| 31 | DIAPHRAGM | 26 | PIN F 4*8 | 900330 | 900330-Online |
| 31 | DIAPHRAGM | 4 | SCREW | 123114 | 123114-Online |
| 31 | DIAPHRAGM | 4 | BEARING, BALL | 900807 | 900807-Online |
| 31 | DIAPHRAGM | 4 | BEARING, BALL | 900812 | 900812-Online |
| 31 | DIAPHRAGM | 6 | OILSEAL | 100212 | 100212-Online |
| 31 | DIAPHRAGM | 6 | CLIP | 159112 | 159112-Online |
| 31 | DIAPHRAGM | 6 | NUT, FLANGE | 900518 | 900518-Online |
| 31 | DIAPHRAGM | 8 | WASHER (I) | 175048 | 175048-Online |
| 31 | DIAPHRAGM | 8 | WASHER | 175049 | 175049-Online |
| 31 | DIAPHRAGM | 8 | SPRING, REWIND | 177220 | 177220-Online |
| 31 | DIAPHRAGM | 8 | NUT | 900500 | 900500-Online |
| 31 | DIAPHRAGM | 8 | CIRCLIP | 900702 | 900702-Online |
| 31 | DIAPHRAGM | 8 | BEARING, BALL | 900810 | 900810-Online |

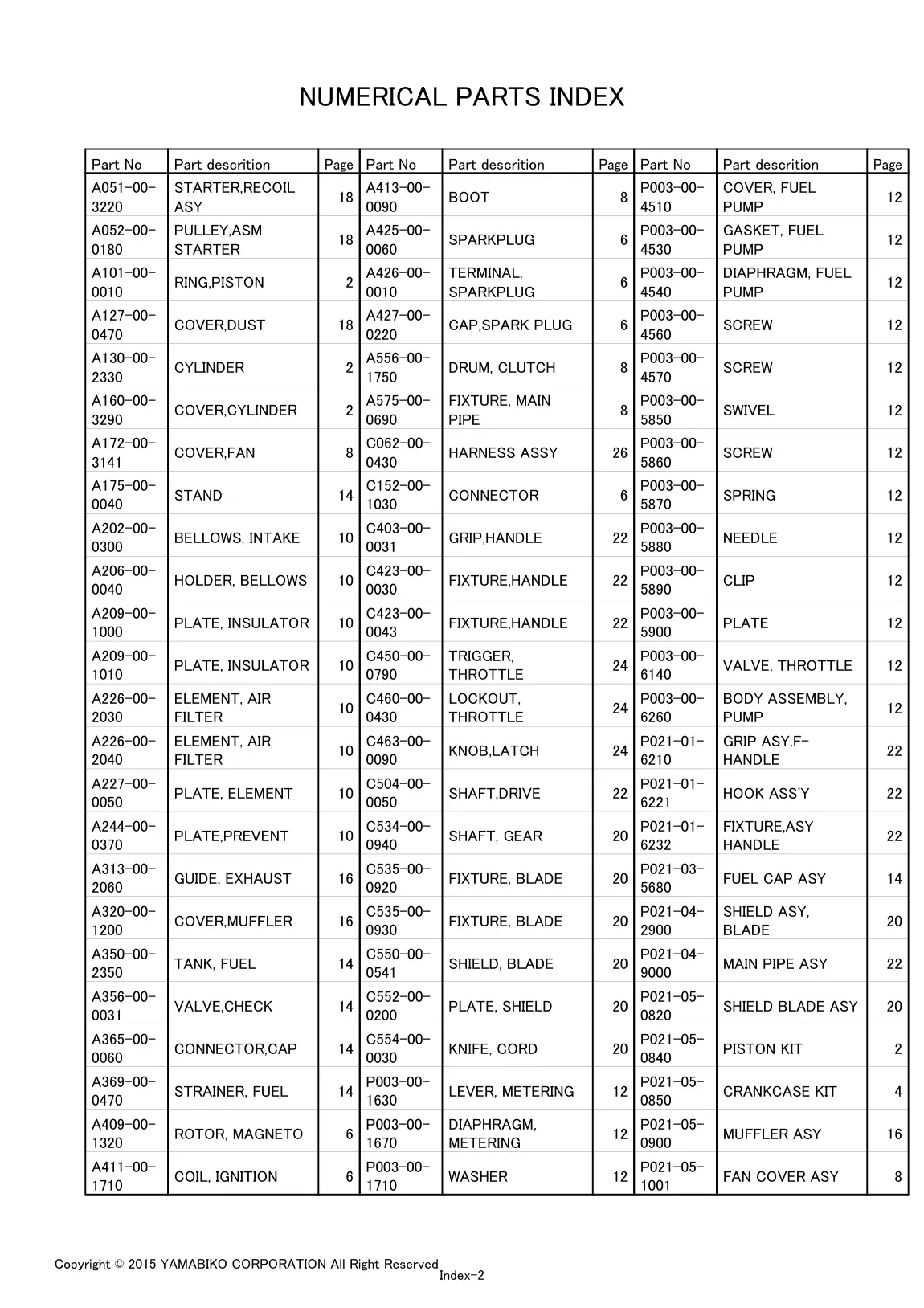

| 32 | FAN COVER ASY | STARTER,RECOIL | A051-00 | A051-00-Online | |
| 32 | FAN COVER ASY | 10 | HOLDER, BELLOWS | A206-00 | A206-00-Online |
| 32 | FAN COVER ASY | 10 | PLATE, INSULATOR | A209-00 | A209-00-Online |
| 32 | FAN COVER ASY | 10 | ELEMENT, AIR | A226-00 | A226-00-Online |
| 32 | FAN COVER ASY | 10 | PLATE, ELEMENT | A227-00 | A227-00-Online |
| 32 | FAN COVER ASY | 10 | PLATE,PREVENT | A244-00 | A244-00-Online |
| 32 | FAN COVER ASY | 10 | GUIDE, EXHAUST | A313-00 | A313-00-Online |
| 32 | FAN COVER ASY | 12 | DIAPHRAGM, | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | WASHER | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | COVER, FUEL | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | GASKET, FUEL | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | DIAPHRAGM, FUEL | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | SCREW | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | SWIVEL | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | SPRING | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | NEEDLE | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | CLIP | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | PLATE | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | VALVE, THROTTLE | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | BODY ASSEMBLY, | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 12 | GRIP ASY,F | P021-01 | P021-01-Online |
| 32 | FAN COVER ASY | 14 | BELLOWS, INTAKE | A202-00 | A202-00-Online |
| 32 | FAN COVER ASY | 14 | VALVE,CHECK | A356-00 | A356-00-Online |
| 32 | FAN COVER ASY | 14 | CONNECTOR,CAP | A365-00 | A365-00-Online |
| 32 | FAN COVER ASY | 14 | STRAINER, FUEL | A369-00 | A369-00-Online |
| 32 | FAN COVER ASY | 14 | ROTOR, MAGNETO | A409-00 | A409-00-Online |
| 32 | FAN COVER ASY | 14 | SHIELD ASY, | P021-04 | P021-04-Online |
| 32 | FAN COVER ASY | 16 | COVER,MUFFLER | A320-00 | A320-00-Online |
| 32 | FAN COVER ASY | 16 | TANK, FUEL | A350-00 | A350-00-Online |
| 32 | FAN COVER ASY | 16 | FAN COVER ASY | P021-05 | P021-05-Online |
| 32 | FAN COVER ASY | 18 | PULLEY,ASM | A052-00 | A052-00-Online |
| 32 | FAN COVER ASY | 18 | RING,PISTON | A101-00 | A101-00-Online |
| 32 | FAN COVER ASY | 18 | CYLINDER | A130-00 | A130-00-Online |
| 32 | FAN COVER ASY | 2 | COVER,DUST | A127-00 | A127-00-Online |
| 32 | FAN COVER ASY | 2 | COVER,CYLINDER | A160-00 | A160-00-Online |
| 32 | FAN COVER ASY | 2 | COVER,FAN | A172-00 | A172-00-Online |
| 32 | FAN COVER ASY | 2 | CRANKCASE KIT | P021-05 | P021-05-Online |
| 32 | FAN COVER ASY | 20 | FIXTURE, BLADE | C535-00 | C535-00-Online |
| 32 | FAN COVER ASY | 20 | SHIELD, BLADE | C550-00 | C550-00-Online |
| 32 | FAN COVER ASY | 20 | PLATE, SHIELD | C552-00 | C552-00-Online |
| 32 | FAN COVER ASY | 20 | KNIFE, CORD | C554-00 | C554-00-Online |
| 32 | FAN COVER ASY | 20 | LEVER, METERING | P003-00 | P003-00-Online |
| 32 | FAN COVER ASY | 20 | MAIN PIPE ASY | P021-04 | P021-04-Online |
| 32 | FAN COVER ASY | 20 | PISTON KIT | P021-05 | P021-05-Online |
| 32 | FAN COVER ASY | 22 | FIXTURE,HANDLE | C423-00 | C423-00-Online |
| 32 | FAN COVER ASY | 22 | TRIGGER, | C450-00 | C450-00-Online |
| 32 | FAN COVER ASY | 22 | SHAFT, GEAR | C534-00 | C534-00-Online |
| 32 | FAN COVER ASY | 22 | HOOK ASS'Y | P021-01 | P021-01-Online |
| 32 | FAN COVER ASY | 22 | FIXTURE,ASY | P021-01 | P021-01-Online |
| 32 | FAN COVER ASY | 22 | FUEL CAP ASY | P021-03 | P021-03-Online |
| 32 | FAN COVER ASY | 22 | SHIELD BLADE ASY | P021-05 | P021-05-Online |
| 32 | FAN COVER ASY | 24 | LOCKOUT, | C460-00 | C460-00-Online |
| 32 | FAN COVER ASY | 24 | KNOB,LATCH | C463-00 | C463-00-Online |
| 32 | FAN COVER ASY | 24 | SHAFT,DRIVE | C504-00 | C504-00-Online |
| 32 | FAN COVER ASY | 26 | CONNECTOR | C152-00 | C152-00-Online |
| 32 | FAN COVER ASY | 4 | MUFFLER ASY | P021-05 | P021-05-Online |
| 32 | FAN COVER ASY | 6 | COIL, IGNITION | A411-00 | A411-00-Online |
| 32 | FAN COVER ASY | 6 | TERMINAL, | A426-00 | A426-00-Online |
| 32 | FAN COVER ASY | 6 | CAP,SPARK PLUG | A427-00 | A427-00-Online |
| 32 | FAN COVER ASY | 6 | DRUM, CLUTCH | A556-00 | A556-00-Online |
| 32 | FAN COVER ASY | 6 | GRIP,HANDLE | C403-00 | C403-00-Online |
| 32 | FAN COVER ASY | 8 | SPARKPLUG | A425-00 | A425-00-Online |
| 32 | FAN COVER ASY | 8 | FIXTURE, MAIN | A575-00 | A575-00-Online |
| 32 | FAN COVER ASY | 8 | HARNESS ASSY | C062-00 | C062-00-Online |
| 33 | BOLT, TORX 6 | CLEANER CASE | P021-05 | P021-05-Online | |
| 33 | BOLT, TORX 6 | 10 | ON OFF SWITCH | P021-05 | P021-05-Online |
| 33 | BOLT, TORX 6 | 10 | THROTTLE ASY | P100-00 | P100-00-Online |
| 33 | BOLT, TORX 6 | 10 | GASKET,INTAKE | V103-00 | V103-00-Online |
| 33 | BOLT, TORX 6 | 10 | GASKET,EXHAUST | V104-00 | V104-00-Online |
| 33 | BOLT, TORX 6 | 10 | WASHER,CIRCULAR | V313-00 | V313-00-Online |
| 33 | BOLT, TORX 6 | 10 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 10 | BOLT, TORX | V806-00 | V806-00-Online |
| 33 | BOLT, TORX 6 | 14 | NUT,5 | V263-00 | V263-00-Online |
| 33 | BOLT, TORX 6 | 14 | TUBE | V475-00 | V475-00-Online |
| 33 | BOLT, TORX 6 | 14 | CLIP | V490-00 | V490-00-Online |
| 33 | BOLT, TORX 6 | 14 | SEAL,OIL | V503-00 | V503-00-Online |
| 33 | BOLT, TORX 6 | 14 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 16 | GASKET,EXHAUST | V104-00 | V104-00-Online |
| 33 | BOLT, TORX 6 | 16 | JOINT,PIPE | V186-00 | V186-00-Online |
| 33 | BOLT, TORX 6 | 16 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 18 | SPRING, RETURN | P022-00 | P022-00-Online |
| 33 | BOLT, TORX 6 | 18 | PAWL, STARTER | P022-00 | P022-00-Online |
| 33 | BOLT, TORX 6 | 18 | SPRING,DAMPER | P022-00 | P022-00-Online |
| 33 | BOLT, TORX 6 | 18 | SPRING | P022-01 | P022-01-Online |
| 33 | BOLT, TORX 6 | 18 | NUT | P022-02 | P022-02-Online |
| 33 | BOLT, TORX 6 | 18 | DRUM, STARTER | P022-03 | P022-03-Online |
| 33 | BOLT, TORX 6 | 18 | HOUSING | P022-03 | P022-03-Online |
| 33 | BOLT, TORX 6 | 18 | STATER CASE | P022-04 | P022-04-Online |
| 33 | BOLT, TORX 6 | 18 | GUIDE, ROPE | P022-04 | P022-04-Online |
| 33 | BOLT, TORX 6 | 18 | ARM,CLUTCH SET | P100-00 | P100-00-Online |
| 33 | BOLT, TORX 6 | 18 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 2 | GASKET, | V102-00 | V102-00-Online |
| 33 | BOLT, TORX 6 | 2 | BOLT, TORX | V804-00 | V804-00-Online |
| 33 | BOLT, TORX 6 | 2 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 20 | EYELET | P022-00 | P022-00-Online |
| 33 | BOLT, TORX 6 | 20 | GASKET,CYL | V100-00 | V100-00-Online |
| 33 | BOLT, TORX 6 | 20 | KNOB,FASTENER | V299-00 | V299-00-Online |
| 33 | BOLT, TORX 6 | 20 | WASHER,CIRCULAR | V323-00 | V323-00-Online |
| 33 | BOLT, TORX 6 | 20 | PIPE | V471-00 | V471-00-Online |
| 33 | BOLT, TORX 6 | 20 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 22 | KNOB,FASTENER | V299-00 | V299-00-Online |
| 33 | BOLT, TORX 6 | 22 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 24 | GEAR CASE ASY | P021-05 | P021-05-Online |
| 33 | BOLT, TORX 6 | 24 | GEAR SET, BEVEL | V000-00 | V000-00-Online |
| 33 | BOLT, TORX 6 | 24 | SPRING,TENSION | V451-00 | V451-00-Online |
| 33 | BOLT, TORX 6 | 24 | SPRING,TORSION | V452-00 | V452-00-Online |
| 33 | BOLT, TORX 6 | 24 | BOLT, TORX | V804-00 | V804-00-Online |
| 33 | BOLT, TORX 6 | 24 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 28 | E-RING | P022-00 | P022-00-Online |
| 33 | BOLT, TORX 6 | 28 | NYLON CODE | P022-01 | P022-01-Online |
| 33 | BOLT, TORX 6 | 28 | BOBBIN | P022-01 | P022-01-Online |
| 33 | BOLT, TORX 6 | 28 | COVER | P022-01 | P022-01-Online |
| 33 | BOLT, TORX 6 | 28 | ROPE, STARTER | P022-02 | P022-02-Online |
| 33 | BOLT, TORX 6 | 28 | PLATE, CAM | P022-03 | P022-03-Online |
| 33 | BOLT, TORX 6 | 28 | STOPPER, ROPE | P022-03 | P022-03-Online |
| 33 | BOLT, TORX 6 | 4 | GASKET,INTAKE | V103-00 | V103-00-Online |
| 33 | BOLT, TORX 6 | 4 | BEARING,NEEDLE | V554-00 | V554-00-Online |
| 33 | BOLT, TORX 6 | 4 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 6 | CABLE,BOWDEN | V430-00 | V430-00-Online |
| 33 | BOLT, TORX 6 | 6 | LEAD | V485-00 | V485-00-Online |
| 33 | BOLT, TORX 6 | 6 | CLIP | V490-00 | V490-00-Online |
| 33 | BOLT, TORX 6 | 6 | BOLT, TORX | V805-00 | V805-00-Online |
| 33 | BOLT, TORX 6 | 8 | LID,CLEANER ASY | P100-00 | P100-00-Online |
| 33 | BOLT, TORX 6 | 8 | SPRING,TORSION | V452-00 | V452-00-Online |
| 33 | BOLT, TORX 6 | 8 | BOLT, TORX | V805-00 | V805-00-Online |
| 34 | GOGGLE | BOLT, TORX | V855-00 | V855-00-Online | |
| 34 | GOGGLE | 10 | CUTTER,ASM LINE | X047-00 | X047-00-Online |
| 34 | GOGGLE | 10 | LABEL,EYE | X530-00 | X530-00-Online |
| 34 | GOGGLE | 18 | LABEL,SHINDAIWA | X562-00 | X562-00-Online |
| 34 | GOGGLE | 2 | TOOL,L WRENCH | X605-00 | X605-00-Online |
| 34 | GOGGLE | 20 | LABEL,SHINDAIWA | X562-00 | X562-00-Online |
| 34 | GOGGLE | 26 | CUTTER,ASM LINE | X047-00 | X047-00-Online |
| 34 | GOGGLE | 26 | TOOL,BAR | X606-00 | X606-00-Online |
| 34 | GOGGLE | 26 | GOGGLE | X690-00 | X690-00-Online |
| 34 | GOGGLE | 28 | LABEL | X524-00 | X524-00-Online |
Source file: 20191122-266_C262TS_37_37001001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
