Illustrated Parts List
Shindaiwa C226S Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C226S
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

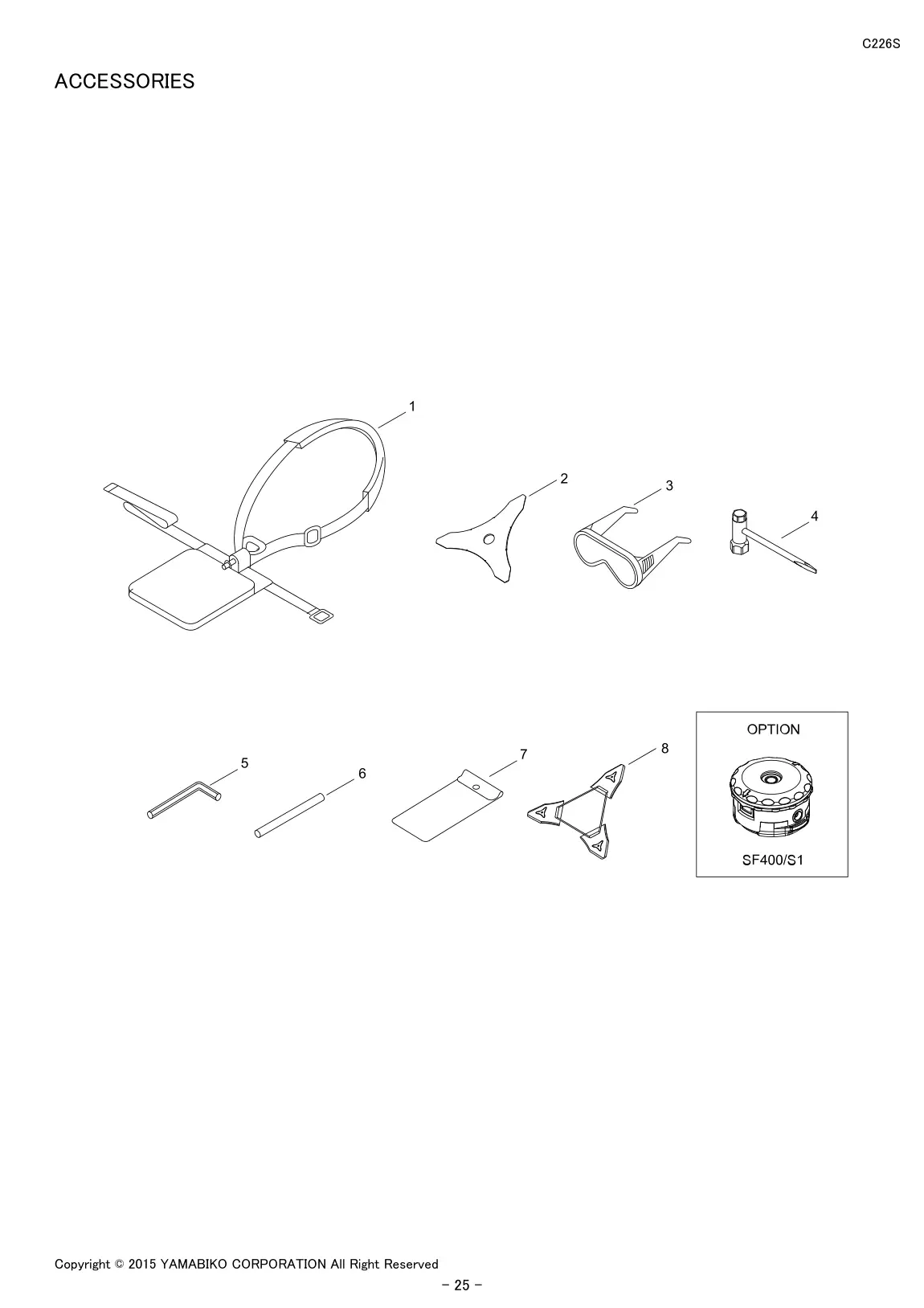

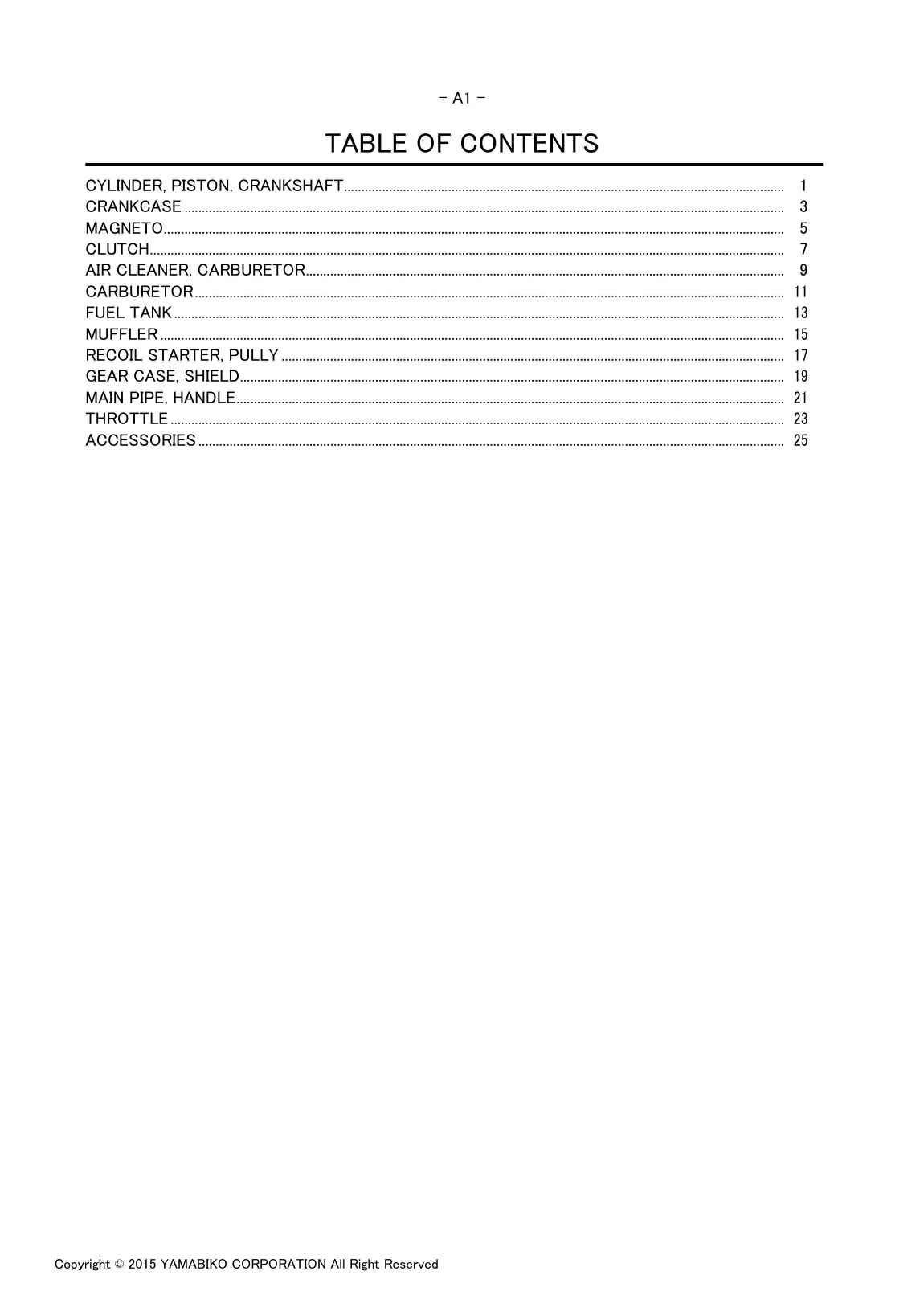

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

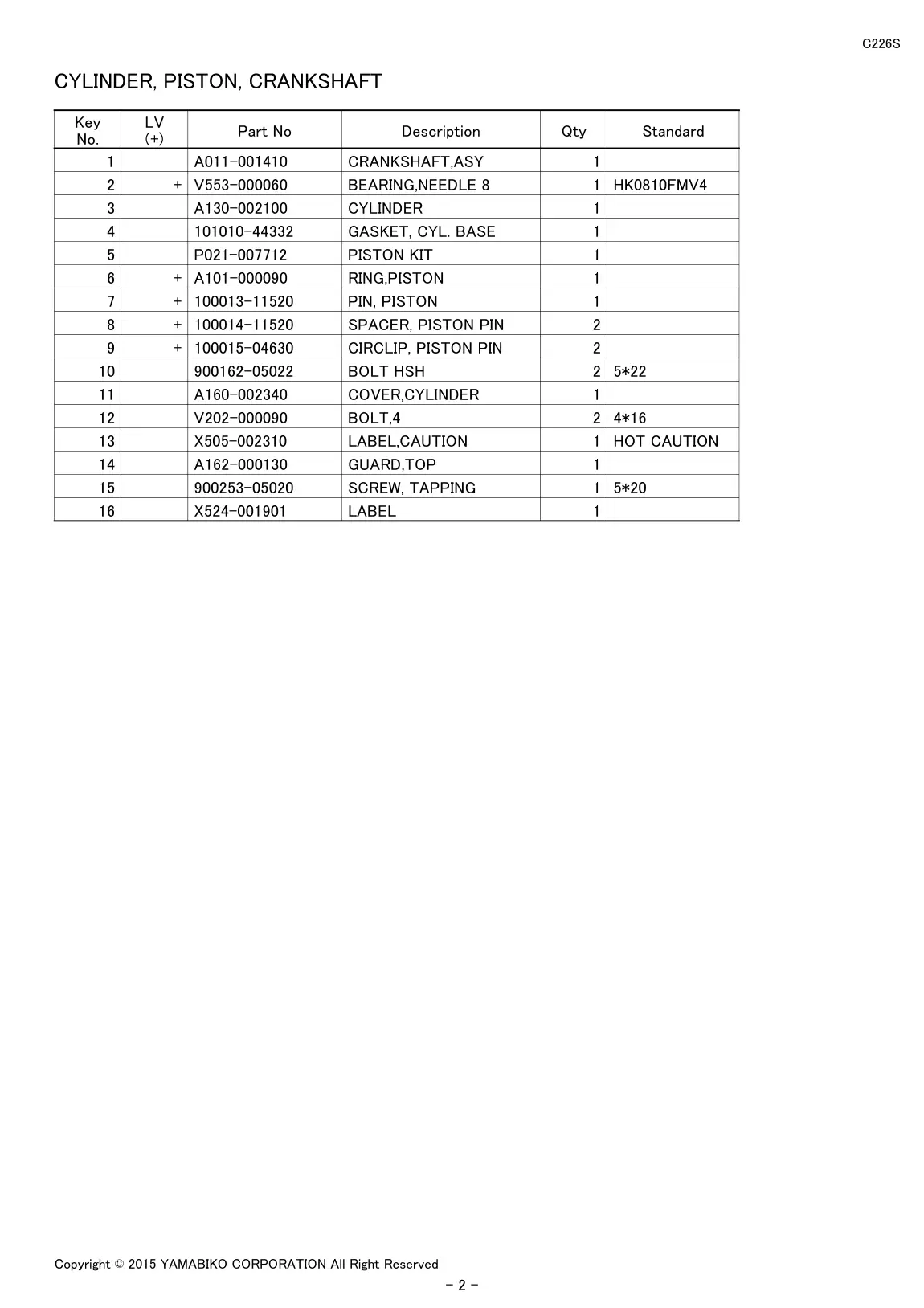

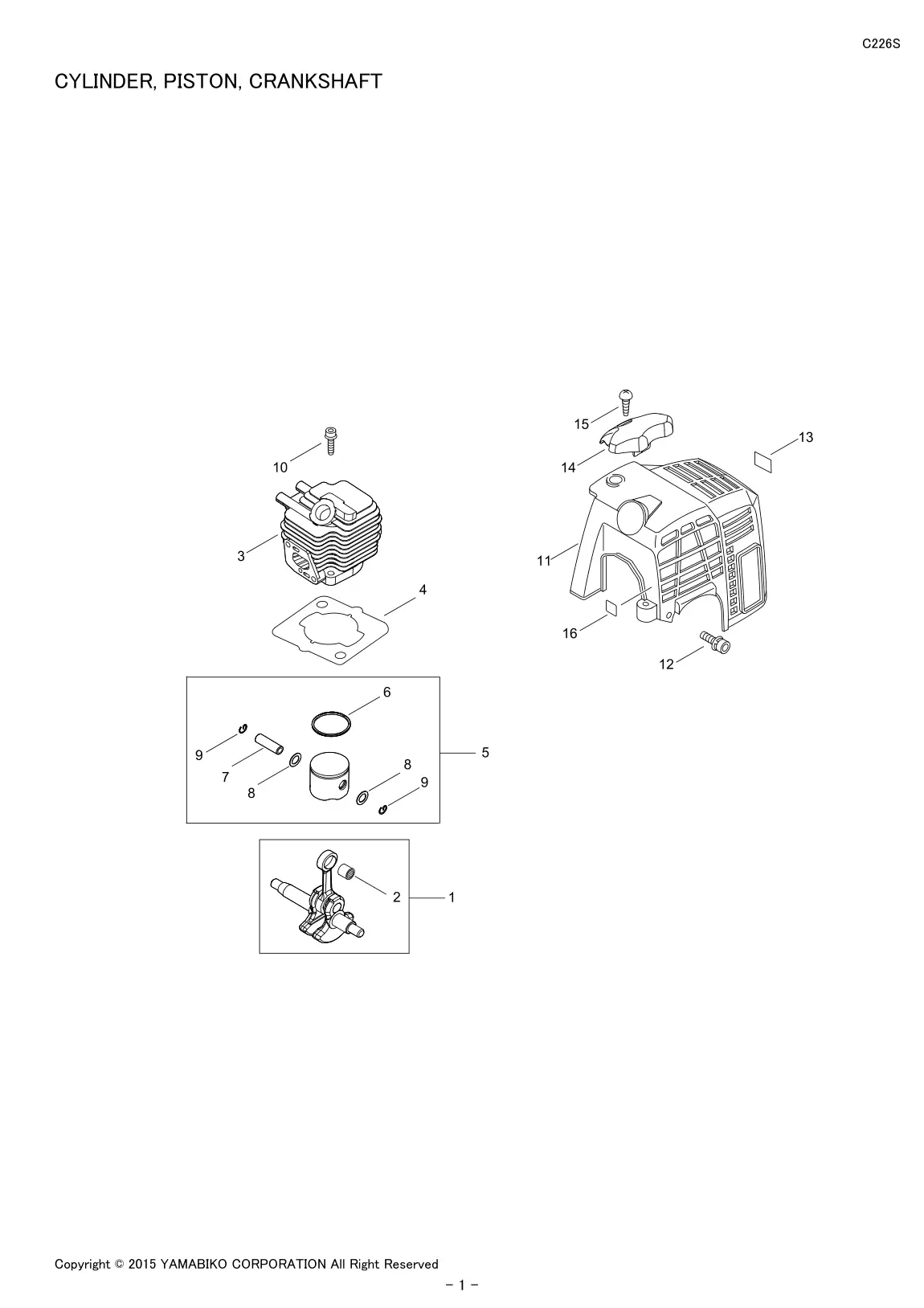

| 4 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001410 | A011-001410-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 10 | BOLT HSH | 900162-05022 | 900162-05022-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-002340 | A160-002340-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT,4 | V202-000090 | V202-000090-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 13 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 14 | GUARD,TOP | A162-000130 | A162-000130-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 15 | SCREW, TAPPING | 900253-05020 | 900253-05020-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 16 | LABEL | X524-001901 | X524-001901-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 2 | BEARING,NEEDLE | V553-000060 | V553-000060-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 3 | CYLINDER | A130-002100 | A130-002100-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 4 | GASKET, CYL. BASE | 101010-44332 | 101010-44332-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 5 | PISTON KIT | P021-007712 | P021-007712-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 6 | RING,PISTON | A101-000090 | A101-000090-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 7 | PIN, PISTON | 100013-11520 | 100013-11520-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 8 | SPACER, PISTON PIN | 100014-11520 | 100014-11520-Online |
| 4 | CYLINDER, PISTON, CRANKSHAFT | 9 | CIRCLIP, PISTON PIN | 100015-04630 | 100015-04630-Online |

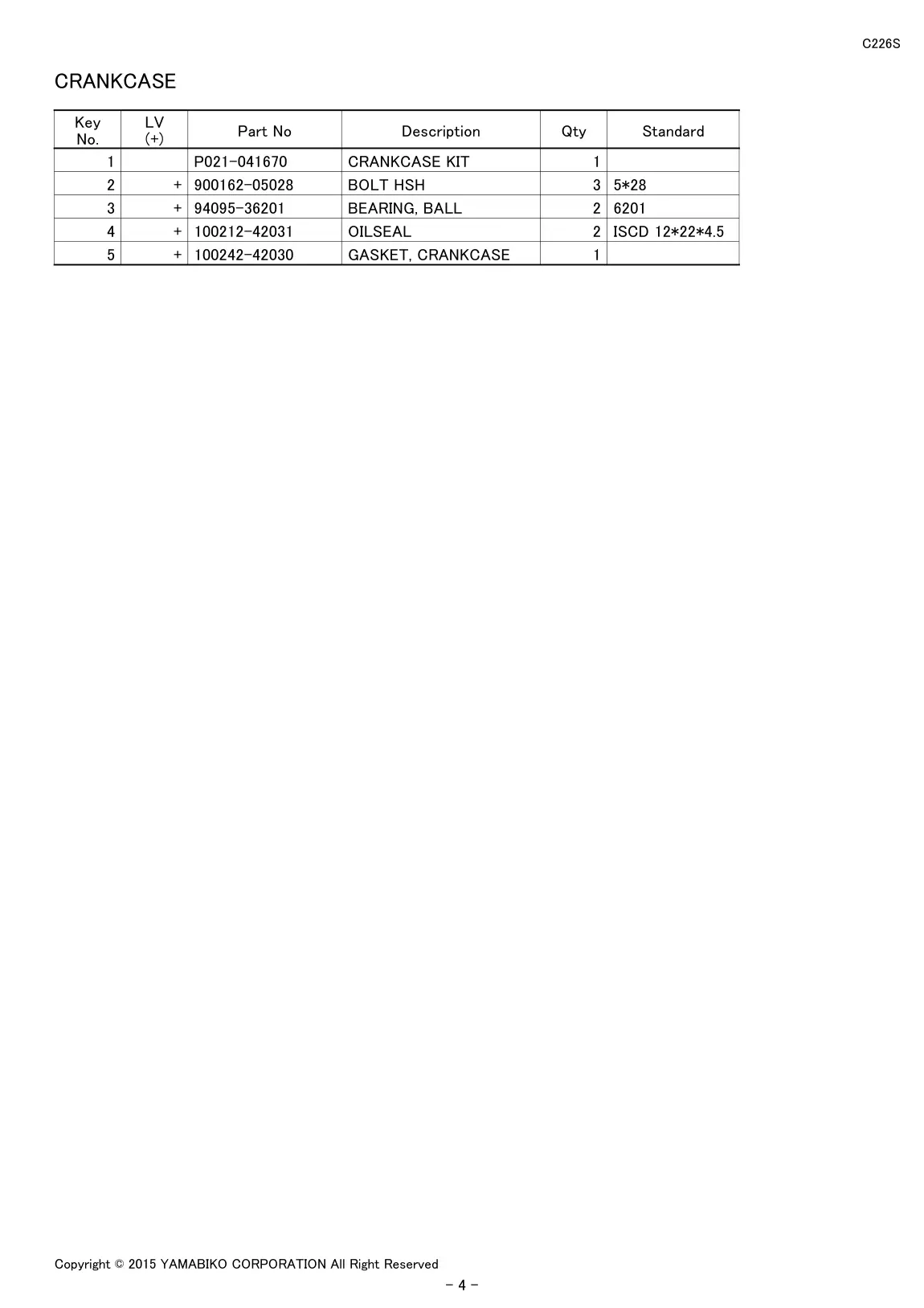

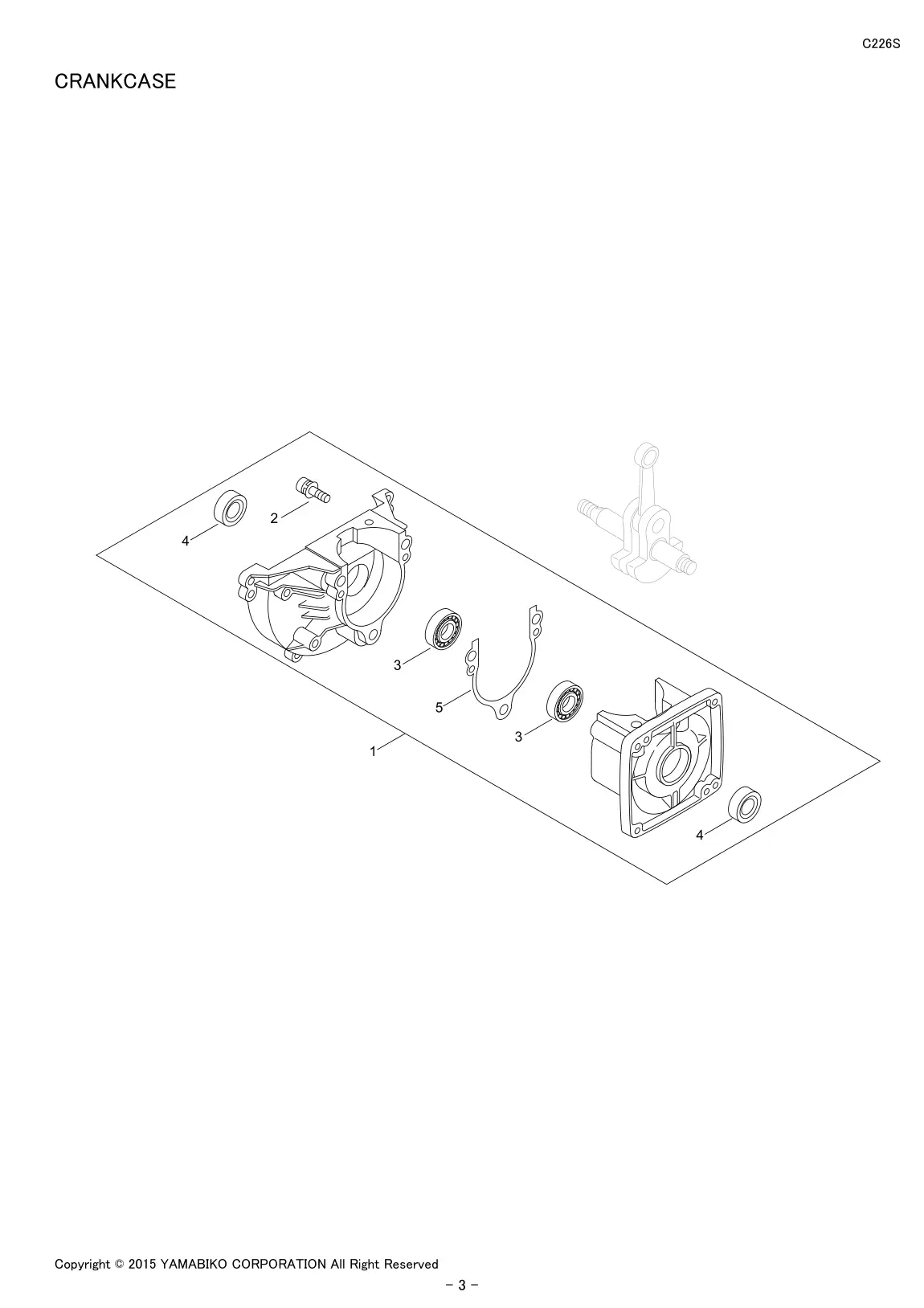

| 6 | CRANKCASE | 1 | CRANKCASE KIT | P021-041670 | P021-041670-Online |
| 6 | CRANKCASE | 2 | BOLT HSH | 900162-05028 | 900162-05028-Online |
| 6 | CRANKCASE | 3 | BEARING, BALL | 94095-36201 | 94095-36201-Online |
| 6 | CRANKCASE | 4 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 6 | CRANKCASE | 5 | GASKET, CRANKCASE | 100242-42030 | 100242-42030-Online |

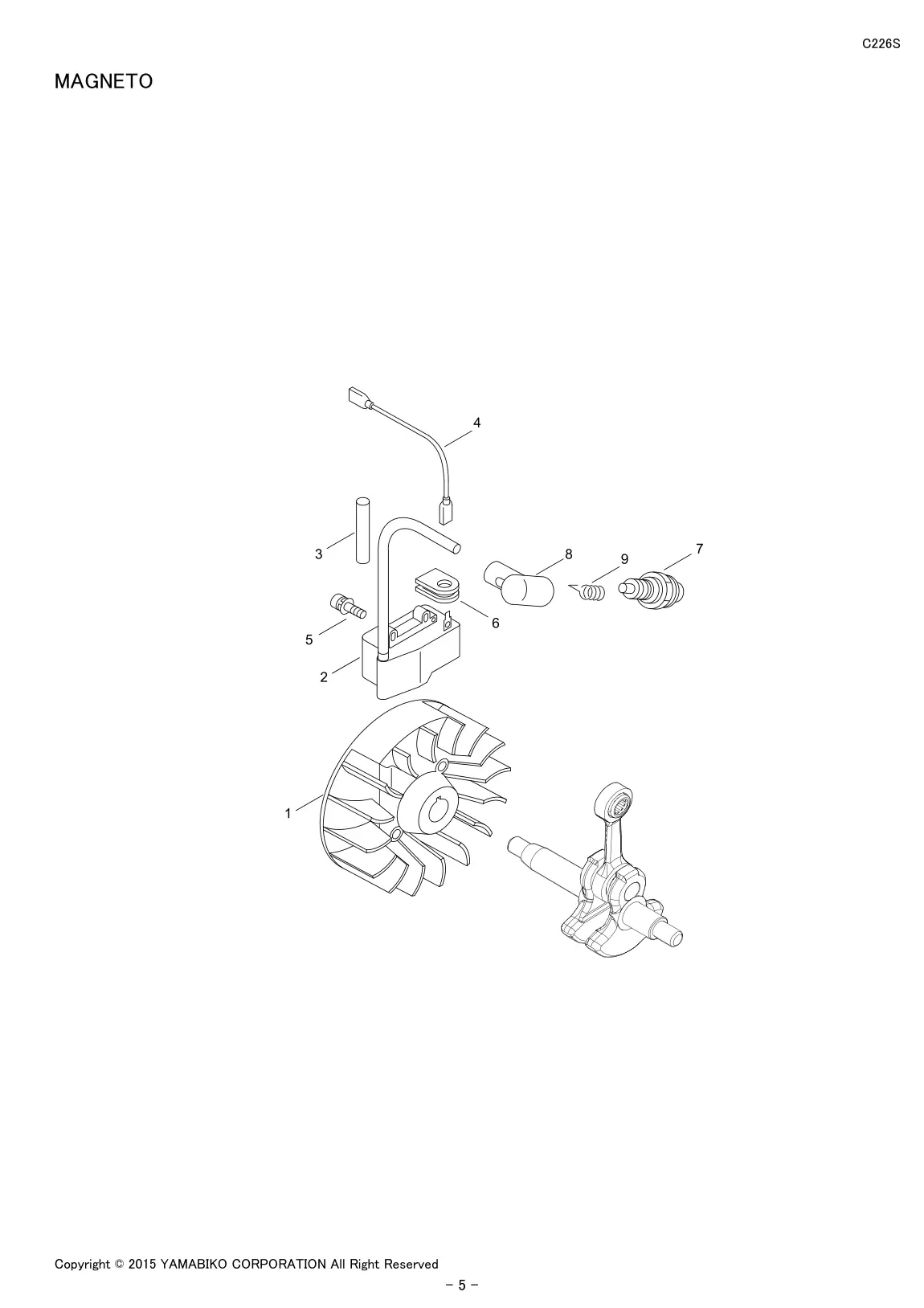

| 8 | MAGNETO | 1 | ROTOR,MAGNETO | A409-000160 | A409-000160-Online |
| 8 | MAGNETO | 2 | COIL,IGNITION | A411-000141 | A411-000141-Online |
| 8 | MAGNETO | 3 | TUBE | V475-007300 | V475-007300-Online |
| 8 | MAGNETO | 4 | LEAD, GROUND | 162010-52830 | 162010-52830-Online |
| 8 | MAGNETO | 5 | BOLT HSH | 900162-04020 | 900162-04020-Online |
| 8 | MAGNETO | 6 | GROMMET | 156112-40630 | 156112-40630-Online |
| 8 | MAGNETO | 7 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 8 | MAGNETO | 8 | CAP, SPARK PLUG | 159012-03433 | 159012-03433-Online |
| 8 | MAGNETO | 9 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |

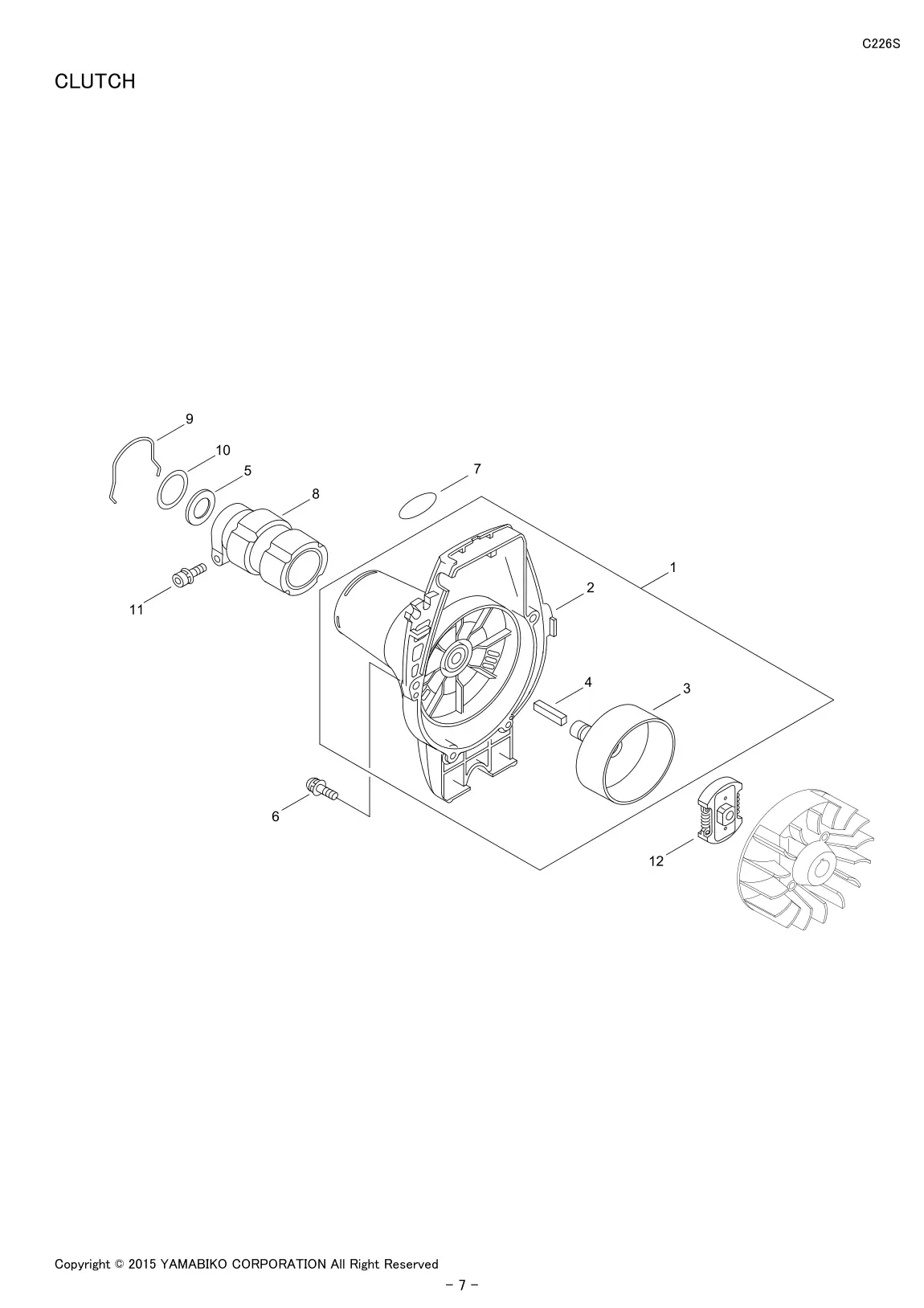

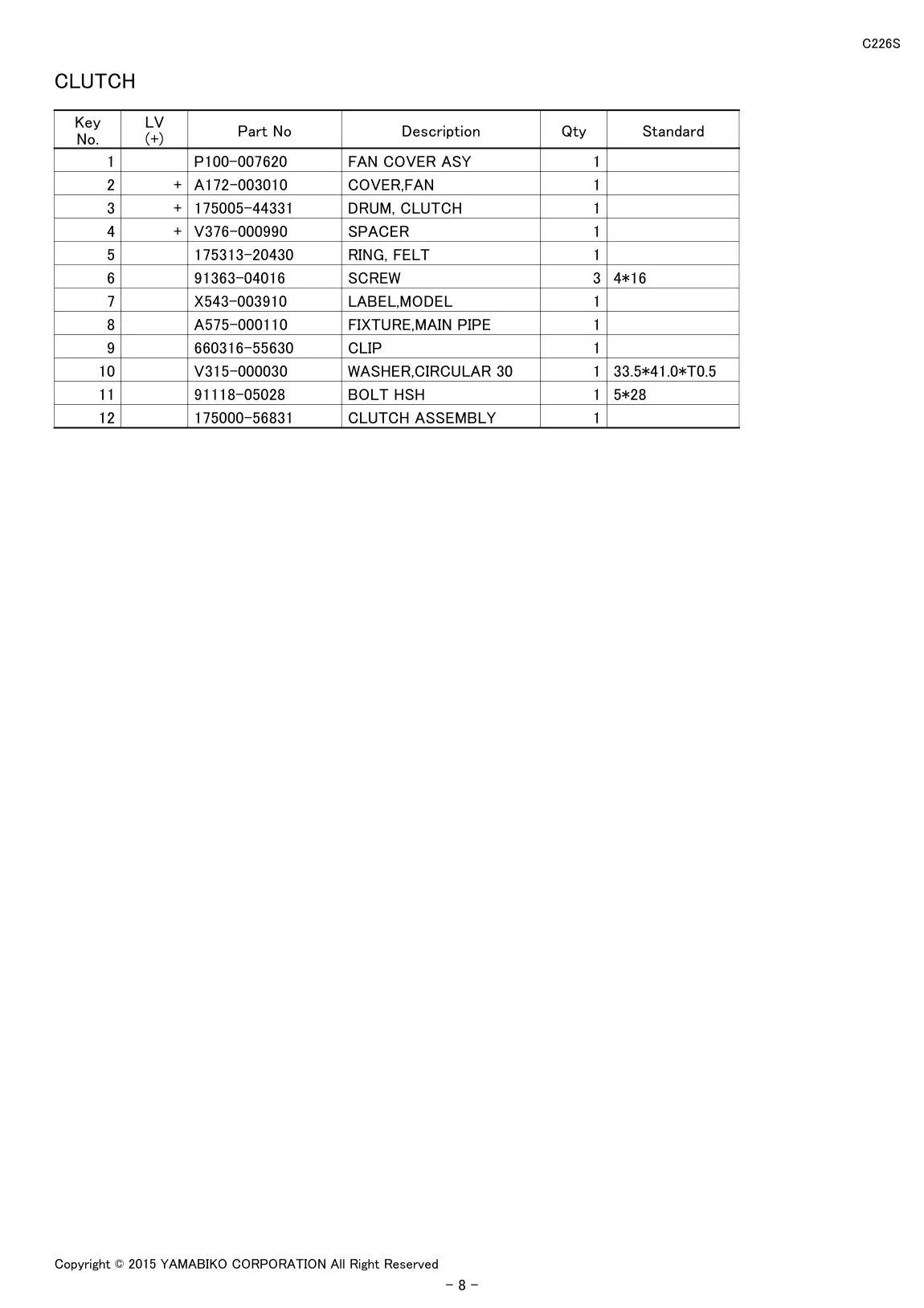

| 10 | CLUTCH | 1 | FAN COVER ASY | P100-007620 | P100-007620-Online |
| 10 | CLUTCH | 10 | WASHER,CIRCULAR | V315-000030 | V315-000030-Online |
| 10 | CLUTCH | 11 | BOLT HSH | 91118-05028 | 91118-05028-Online |
| 10 | CLUTCH | 12 | CLUTCH ASSEMBLY | 175000-56831 | 175000-56831-Online |
| 10 | CLUTCH | 2 | COVER,FAN | A172-003010 | A172-003010-Online |
| 10 | CLUTCH | 3 | DRUM, CLUTCH | 175005-44331 | 175005-44331-Online |
| 10 | CLUTCH | 4 | SPACER | V376-000990 | V376-000990-Online |
| 10 | CLUTCH | 5 | RING, FELT | 175313-20430 | 175313-20430-Online |
| 10 | CLUTCH | 6 | SCREW | 91363-04016 | 91363-04016-Online |
| 10 | CLUTCH | 7 | LABEL,MODEL | X543-003910 | X543-003910-Online |
| 10 | CLUTCH | 8 | FIXTURE,MAIN PIPE | A575-000110 | A575-000110-Online |
| 10 | CLUTCH | 9 | CLIP | 660316-55630 | 660316-55630-Online |

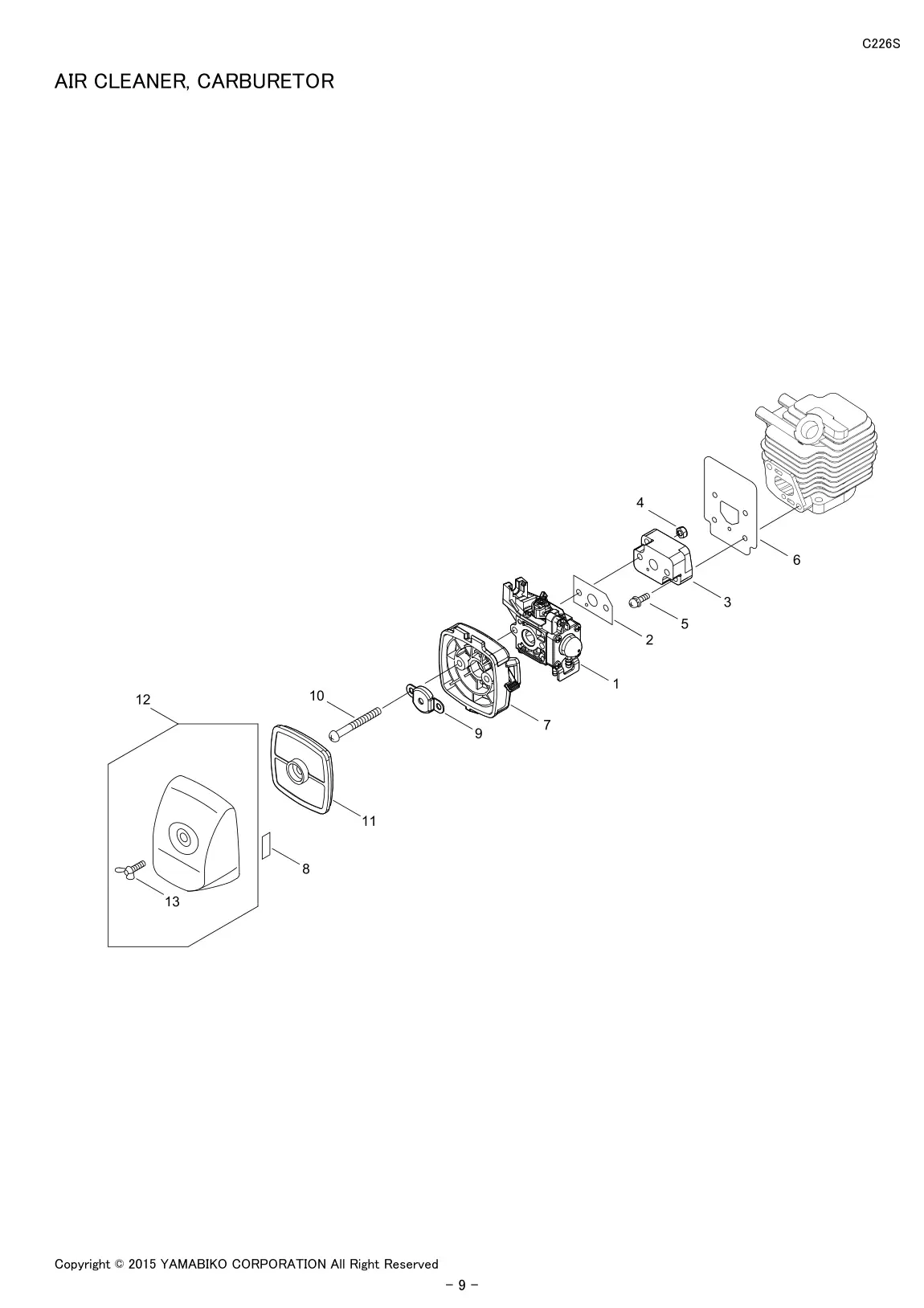

| 12 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR, | A021-003881 | A021-003881-Online |
| 12 | AIR CLEANER, CARBURETOR | 10 | SCREW | 900220-05065 | 900220-05065-Online |
| 12 | AIR CLEANER, CARBURETOR | 11 | ELEMENT,AIR FILTER | A226-001410 | A226-001410-Online |
| 12 | AIR CLEANER, CARBURETOR | 12 | CLEANER LID ASY | P100-000110 | P100-000110-Online |
| 12 | AIR CLEANER, CARBURETOR | 13 | BOLT, WING | 210417-52730 | 210417-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 2 | GASKET,INTAKE | V103-001390 | V103-001390-Online |
| 12 | AIR CLEANER, CARBURETOR | 3 | INSULATOR | 130017-44331 | 130017-44331-Online |
| 12 | AIR CLEANER, CARBURETOR | 4 | NUT | 900500-00005 | 900500-00005-Online |
| 12 | AIR CLEANER, CARBURETOR | 5 | SCREW | 900238-05022 | 900238-05022-Online |
| 12 | AIR CLEANER, CARBURETOR | 6 | GASKET,INTAKE | V103-001640 | V103-001640-Online |
| 12 | AIR CLEANER, CARBURETOR | 7 | CASE,CLEANER ASY | P021-038590 | P021-038590-Online |
| 12 | AIR CLEANER, CARBURETOR | 8 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 12 | AIR CLEANER, CARBURETOR | 9 | PLATE, PREVENT | 129011-52730 | 129011-52730-Online |

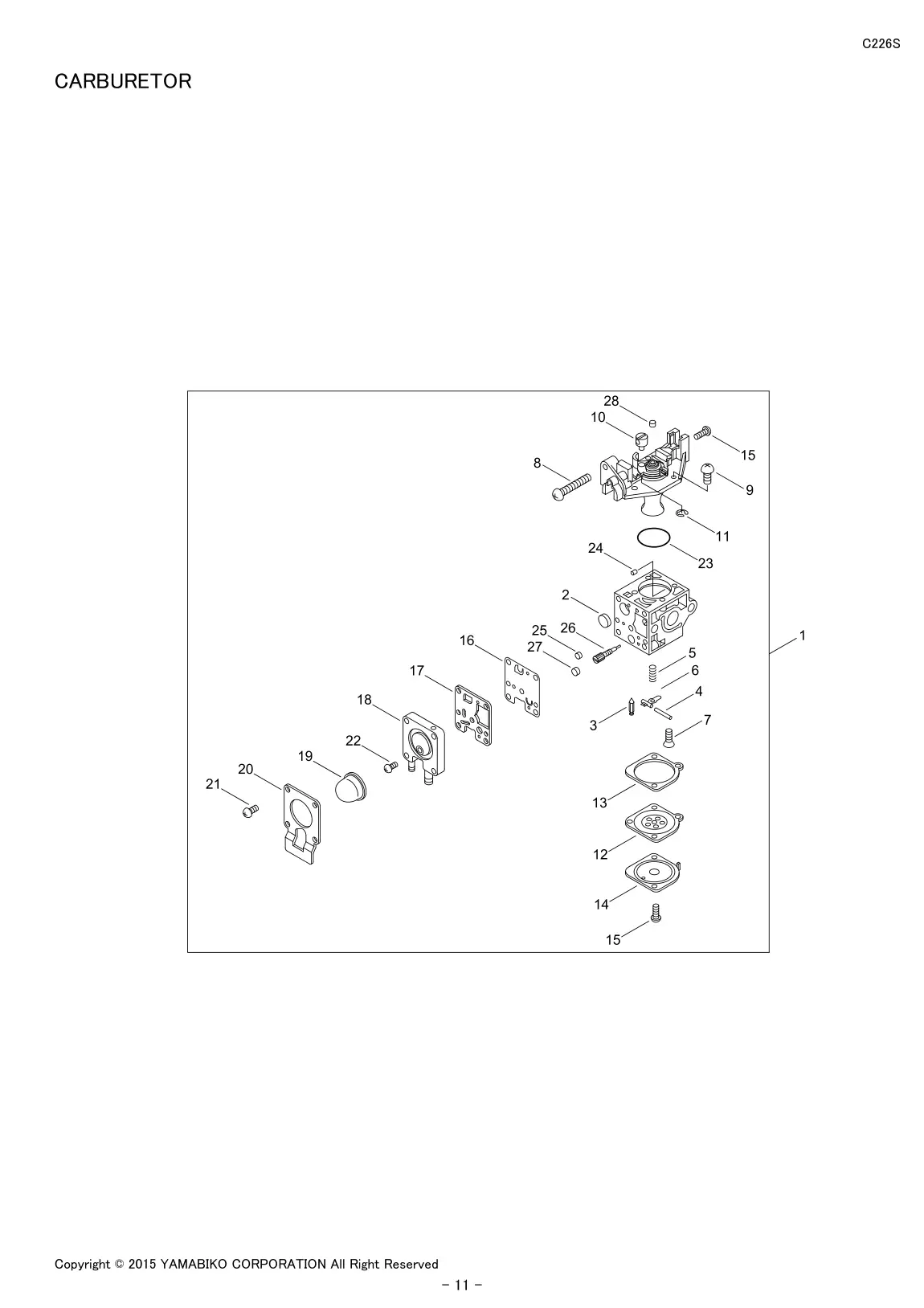

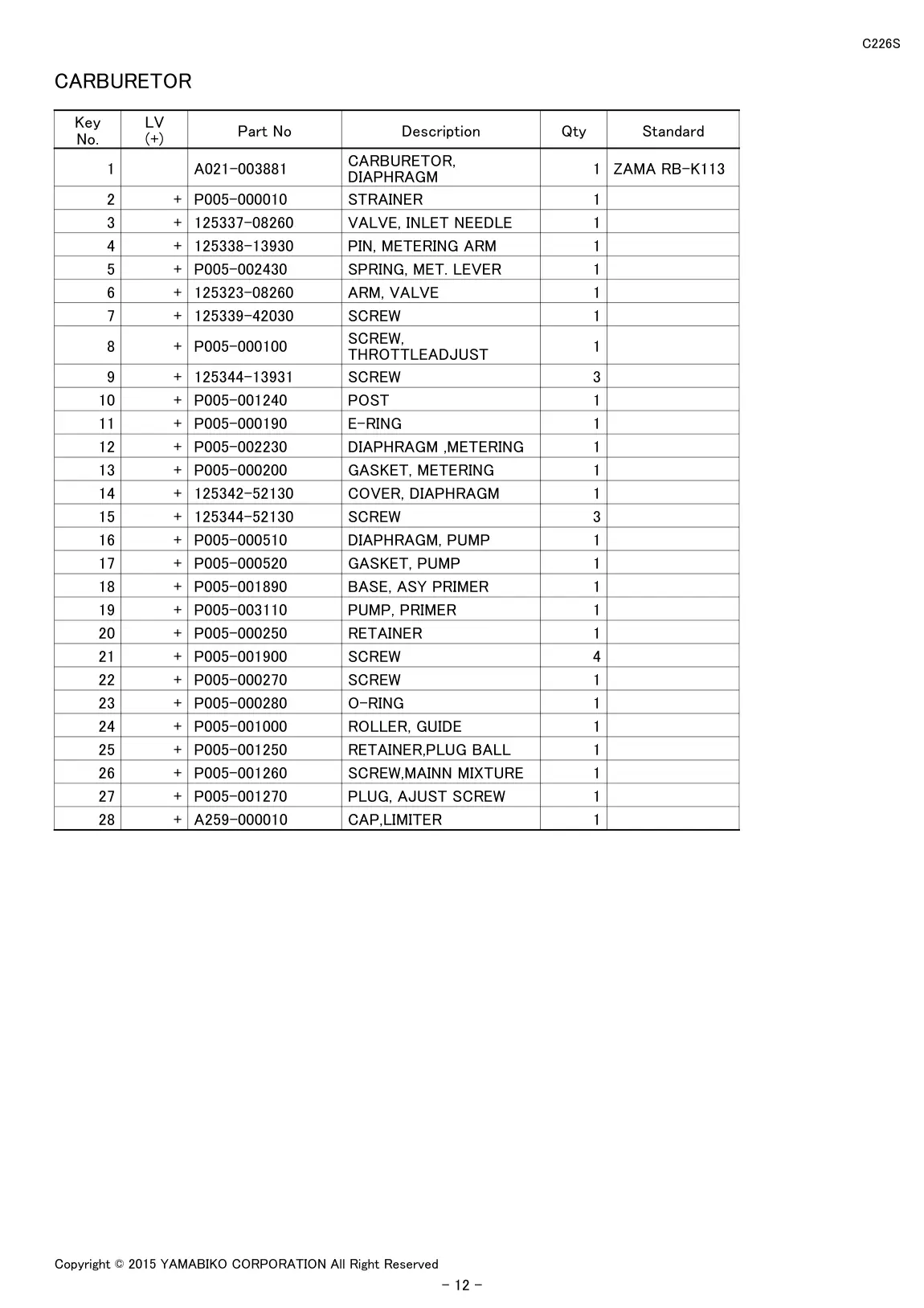

| 14 | CARBURETOR | 1 | CARBURETOR, | A021-003881 | A021-003881-Online |
| 14 | CARBURETOR | 11 | E-RING | P005-000190 | P005-000190-Online |
| 14 | CARBURETOR | 12 | DIAPHRAGM ,METERING | P005-002230 | P005-002230-Online |
| 14 | CARBURETOR | 13 | GASKET, METERING | P005-000200 | P005-000200-Online |
| 14 | CARBURETOR | 14 | COVER, DIAPHRAGM | 125342-52130 | 125342-52130-Online |
| 14 | CARBURETOR | 15 | SCREW | 125344-52130 | 125344-52130-Online |
| 14 | CARBURETOR | 16 | DIAPHRAGM, PUMP | P005-000510 | P005-000510-Online |
| 14 | CARBURETOR | 17 | GASKET, PUMP | P005-000520 | P005-000520-Online |
| 14 | CARBURETOR | 18 | BASE, ASY PRIMER | P005-001890 | P005-001890-Online |
| 14 | CARBURETOR | 19 | PUMP, PRIMER | P005-003110 | P005-003110-Online |
| 14 | CARBURETOR | 2 | STRAINER | P005-000010 | P005-000010-Online |
| 14 | CARBURETOR | 20 | RETAINER | P005-000250 | P005-000250-Online |
| 14 | CARBURETOR | 21 | SCREW | P005-001900 | P005-001900-Online |
| 14 | CARBURETOR | 22 | SCREW | P005-000270 | P005-000270-Online |
| 14 | CARBURETOR | 23 | O-RING | P005-000280 | P005-000280-Online |
| 14 | CARBURETOR | 24 | ROLLER, GUIDE | P005-001000 | P005-001000-Online |
| 14 | CARBURETOR | 25 | RETAINER,PLUG BALL | P005-001250 | P005-001250-Online |
| 14 | CARBURETOR | 26 | SCREW,MAINN MIXTURE | P005-001260 | P005-001260-Online |
| 14 | CARBURETOR | 27 | PLUG, AJUST SCREW | P005-001270 | P005-001270-Online |
| 14 | CARBURETOR | 28 | CAP,LIMITER | A259-000010 | A259-000010-Online |
| 14 | CARBURETOR | 3 | VALVE, INLET NEEDLE | 125337-08260 | 125337-08260-Online |
| 14 | CARBURETOR | 4 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 14 | CARBURETOR | 5 | SPRING, MET. LEVER | P005-002430 | P005-002430-Online |
| 14 | CARBURETOR | 6 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 14 | CARBURETOR | 7 | SCREW | 125339-42030 | 125339-42030-Online |
| 14 | CARBURETOR | 8 | SCREW, | P005-000100 | P005-000100-Online |
| 14 | CARBURETOR | 9 | SCREW | 125344-13931 | 125344-13931-Online |

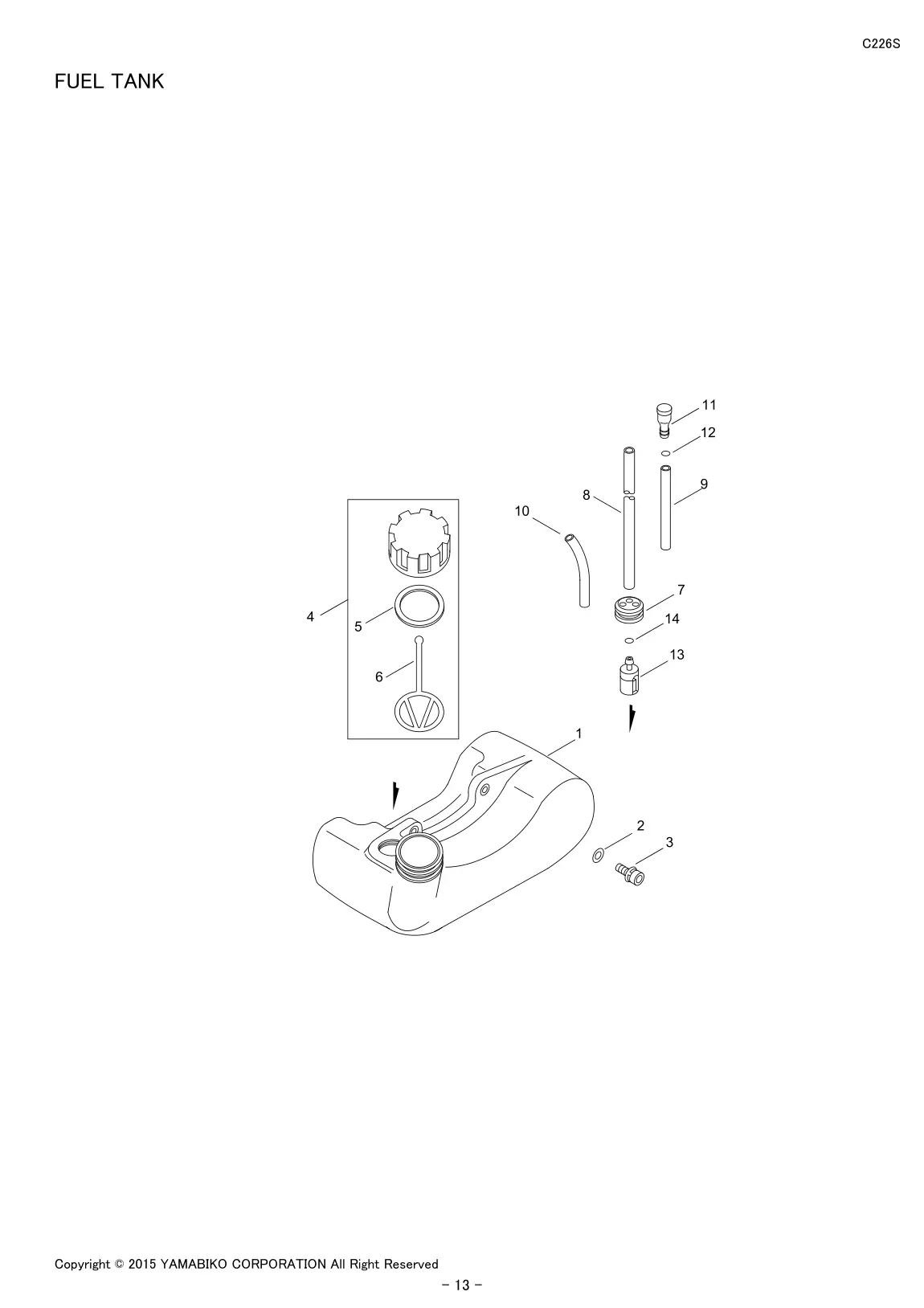

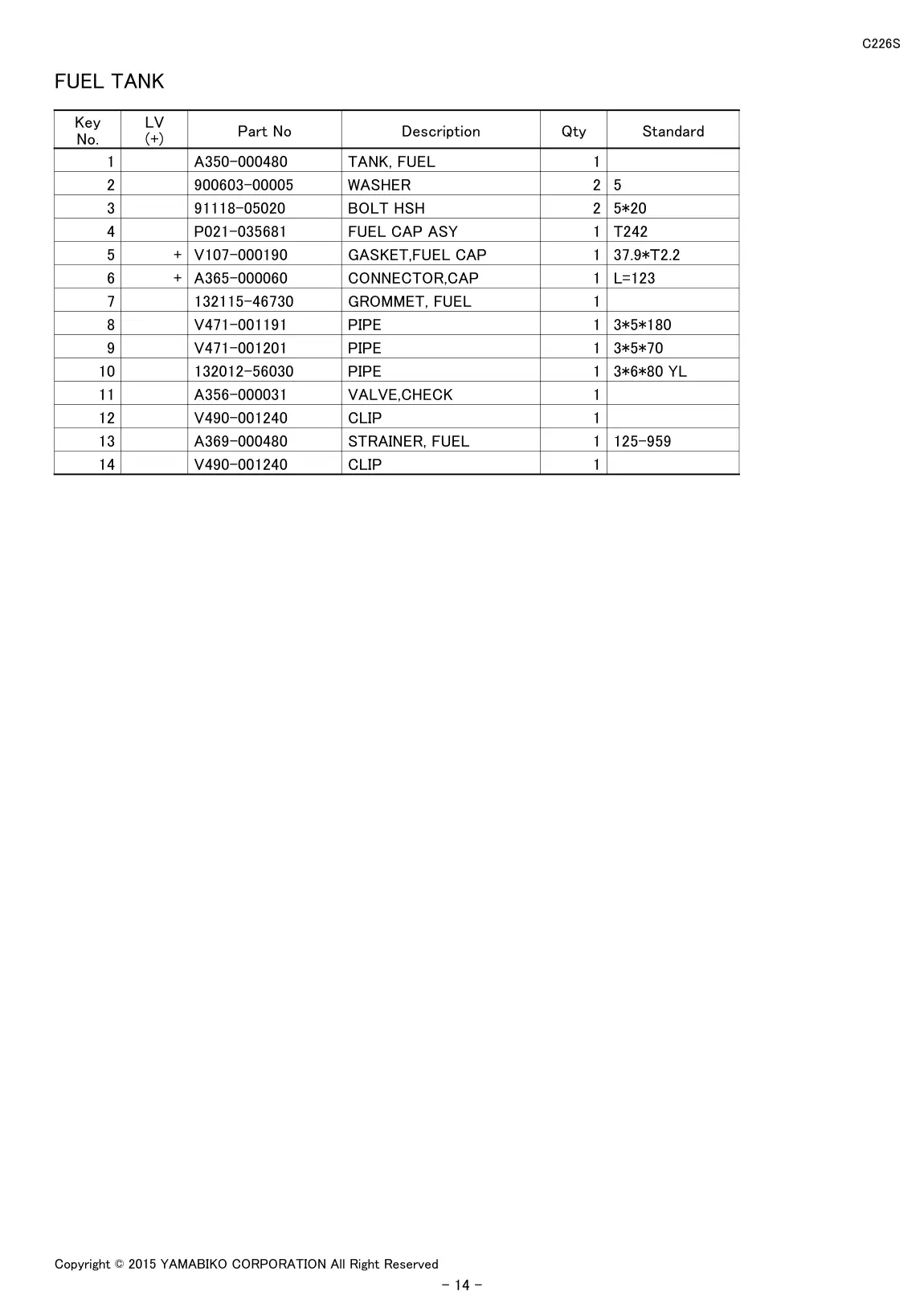

| 16 | FUEL TANK | 1 | TANK, FUEL | A350-000480 | A350-000480-Online |
| 16 | FUEL TANK | 10 | PIPE | 132012-56030 | 132012-56030-Online |
| 16 | FUEL TANK | 11 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 16 | FUEL TANK | 12 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 13 | STRAINER, FUEL | A369-000480 | A369-000480-Online |
| 16 | FUEL TANK | 14 | CLIP | V490-001240 | V490-001240-Online |
| 16 | FUEL TANK | 2 | WASHER | 900603-00005 | 900603-00005-Online |
| 16 | FUEL TANK | 3 | BOLT HSH | 91118-05020 | 91118-05020-Online |
| 16 | FUEL TANK | 4 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 16 | FUEL TANK | 5 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 16 | FUEL TANK | 6 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 16 | FUEL TANK | 7 | GROMMET, FUEL | 132115-46730 | 132115-46730-Online |
| 16 | FUEL TANK | 8 | PIPE | V471-001191 | V471-001191-Online |
| 16 | FUEL TANK | 9 | PIPE | V471-001201 | V471-001201-Online |

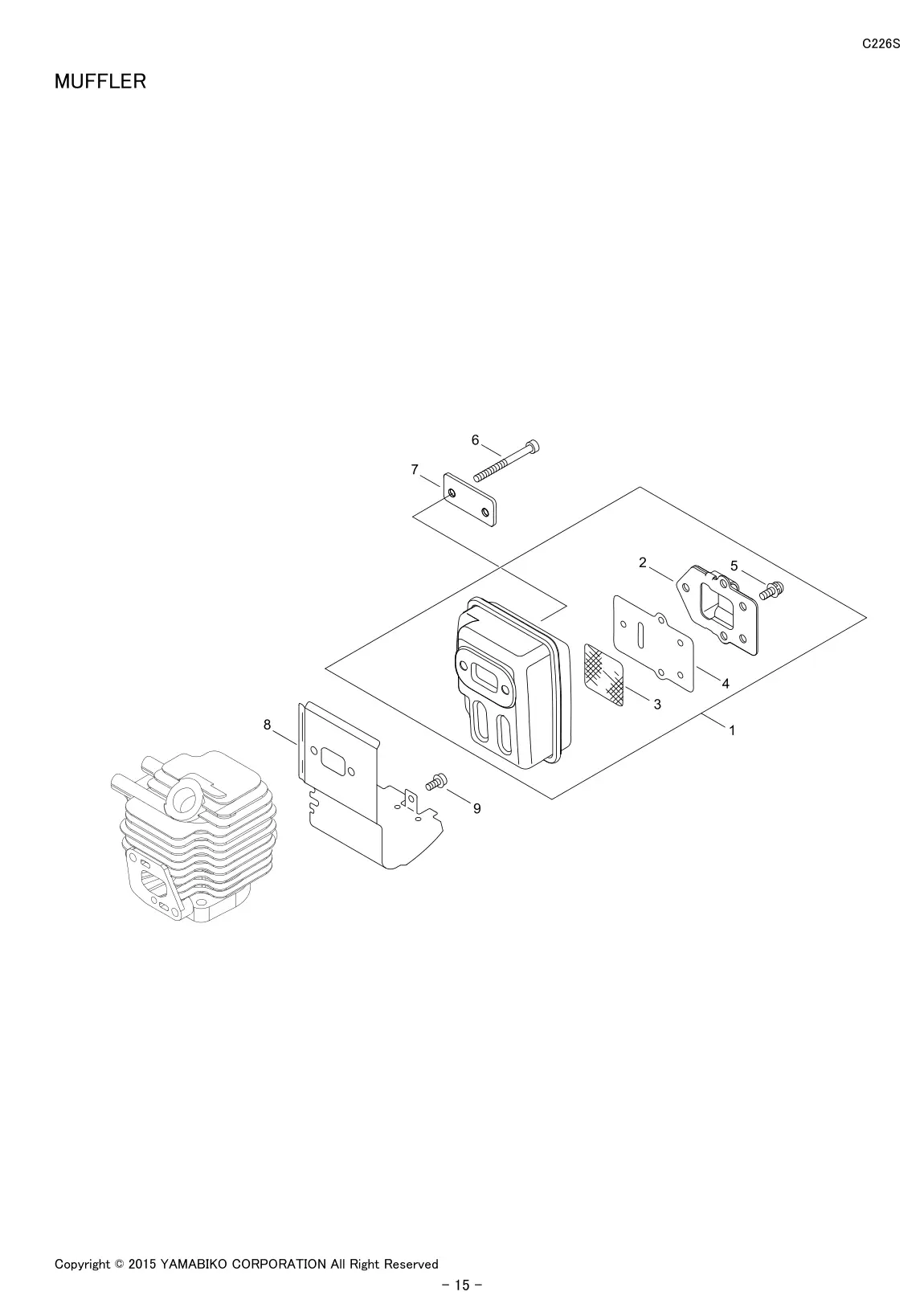

| 18 | MUFFLER | 1 | MUFFLER ASY | P021-016643 | P021-016643-Online |
| 18 | MUFFLER | 2 | GUIDE,EXH | A313-000600 | A313-000600-Online |
| 18 | MUFFLER | 3 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 18 | MUFFLER | 4 | GASKET,EXHAUST | V104-001761 | V104-001761-Online |
| 18 | MUFFLER | 5 | SCREW | 91367-04010 | 91367-04010-Online |
| 18 | MUFFLER | 6 | BOLT HSH | 900105-05055 | 900105-05055-Online |
| 18 | MUFFLER | 7 | PLATE,EYE | V150-000371 | V150-000371-Online |
| 18 | MUFFLER | 8 | GASKET,EXHAUST | V104-000500 | V104-000500-Online |
| 18 | MUFFLER | 9 | BOLT HSH, FLANGE | 91121-04008 | 91121-04008-Online |

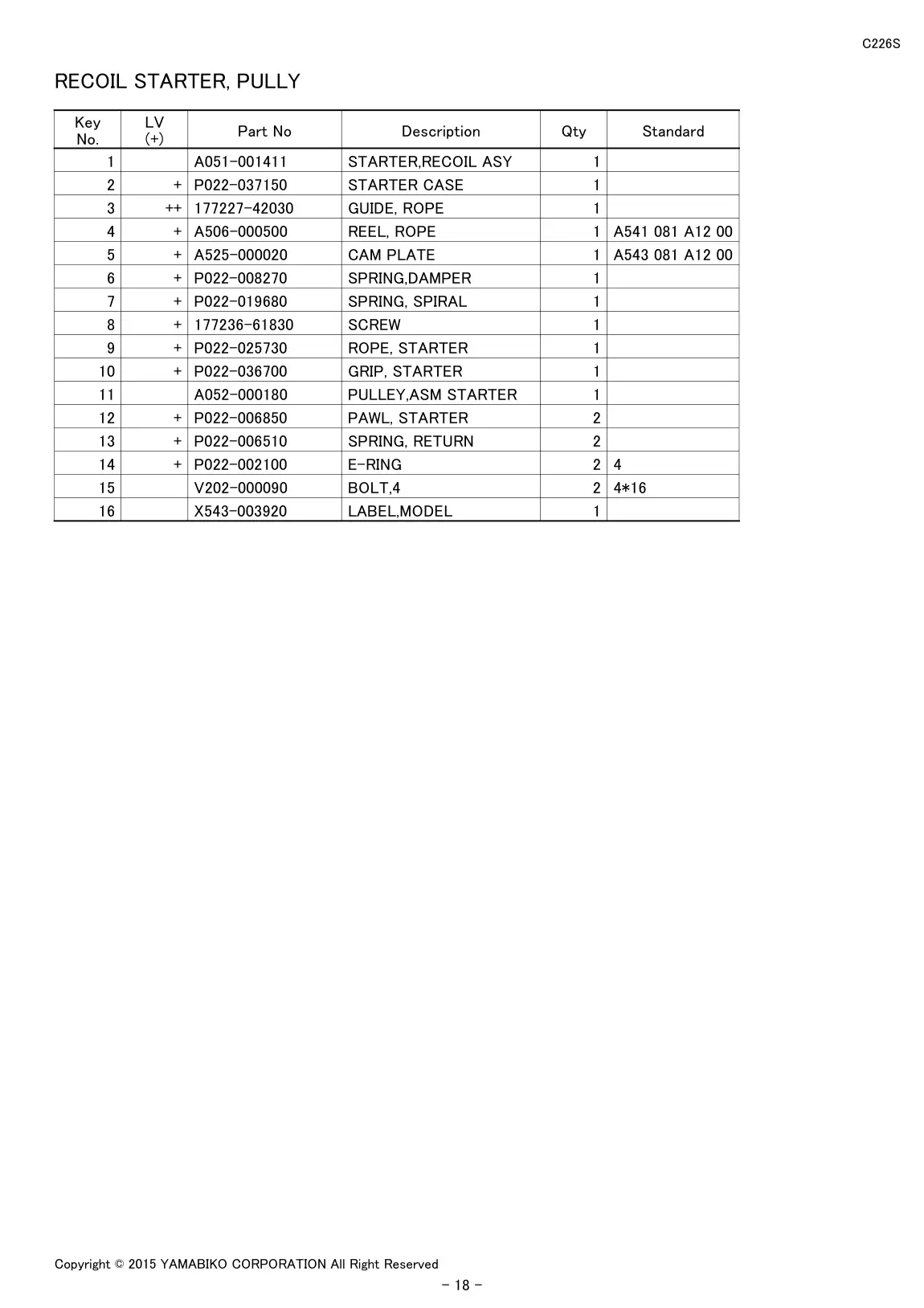

| 20 | RECOIL STARTER, PULLY | 1 | STARTER,RECOIL ASY | A051-001411 | A051-001411-Online |
| 20 | RECOIL STARTER, PULLY | 10 | GRIP, STARTER | P022-036700 | P022-036700-Online |
| 20 | RECOIL STARTER, PULLY | 11 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 20 | RECOIL STARTER, PULLY | 12 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 20 | RECOIL STARTER, PULLY | 13 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 20 | RECOIL STARTER, PULLY | 14 | E-RING | P022-002100 | P022-002100-Online |
| 20 | RECOIL STARTER, PULLY | 15 | BOLT,4 | V202-000090 | V202-000090-Online |
| 20 | RECOIL STARTER, PULLY | 16 | LABEL,MODEL | X543-003920 | X543-003920-Online |
| 20 | RECOIL STARTER, PULLY | 2 | STARTER CASE | P022-037150 | P022-037150-Online |
| 20 | RECOIL STARTER, PULLY | 3 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 20 | RECOIL STARTER, PULLY | 4 | REEL, ROPE | A506-000500 | A506-000500-Online |
| 20 | RECOIL STARTER, PULLY | 5 | CAM PLATE | A525-000020 | A525-000020-Online |
| 20 | RECOIL STARTER, PULLY | 6 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 20 | RECOIL STARTER, PULLY | 7 | SPRING, SPIRAL | P022-019680 | P022-019680-Online |
| 20 | RECOIL STARTER, PULLY | 8 | SCREW | 177236-61830 | 177236-61830-Online |
| 20 | RECOIL STARTER, PULLY | 9 | ROPE, STARTER | P022-025730 | P022-025730-Online |

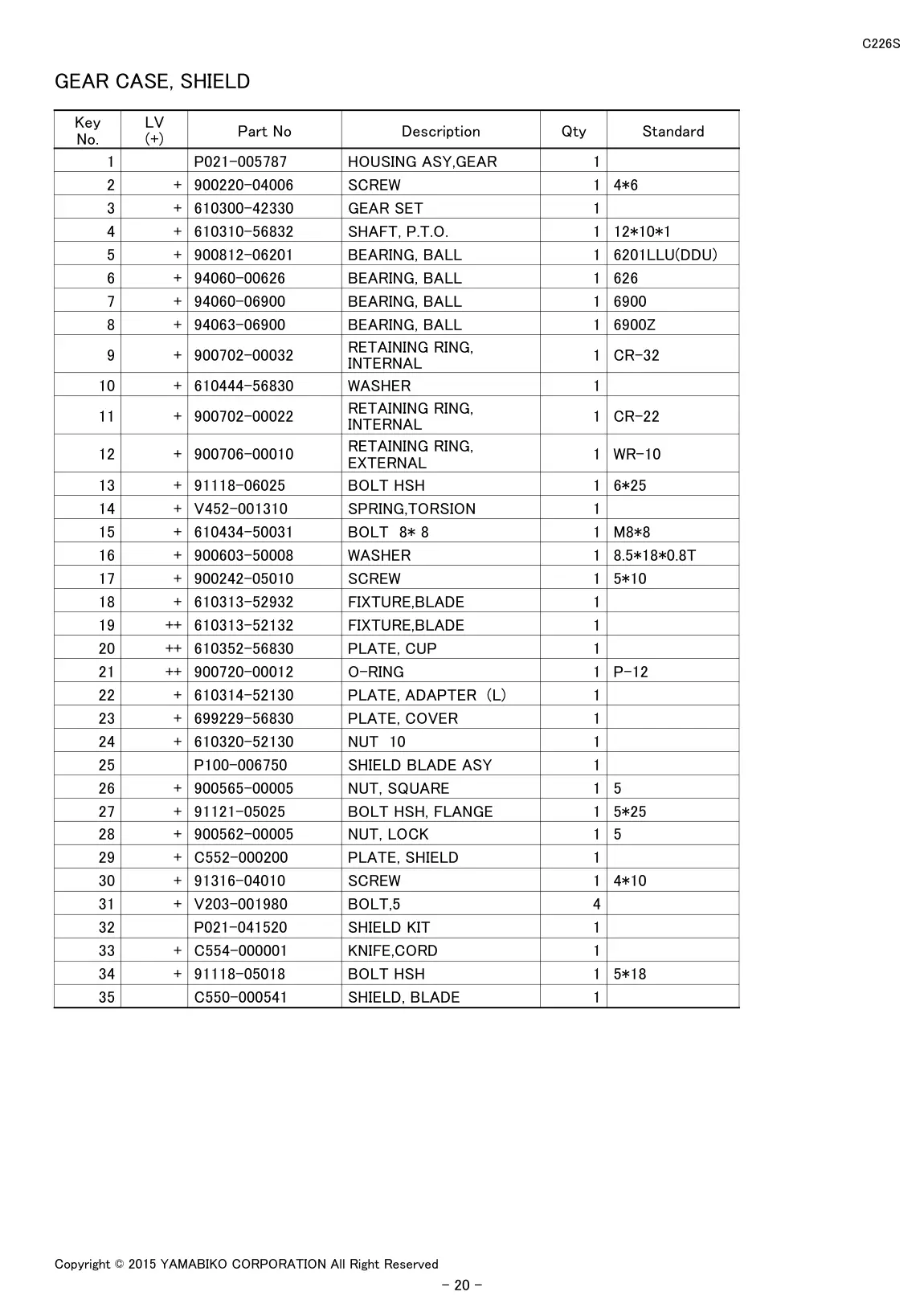

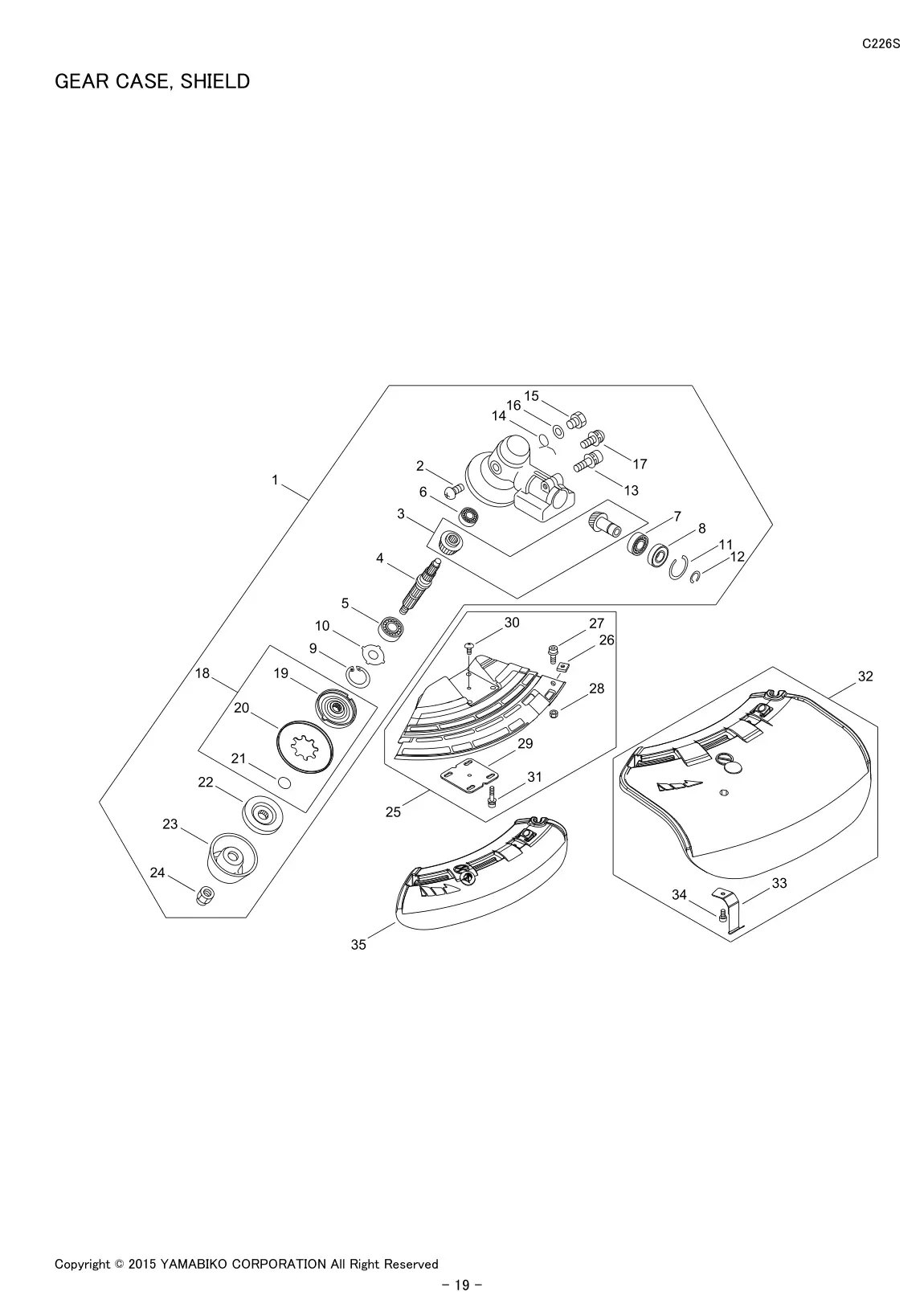

| 22 | GEAR CASE, SHIELD | 1 | HOUSING ASY,GEAR | P021-005787 | P021-005787-Online |
| 22 | GEAR CASE, SHIELD | 10 | WASHER | 610444-56830 | 610444-56830-Online |
| 22 | GEAR CASE, SHIELD | 11 | RETAINING RING, | 900702-00022 | 900702-00022-Online |
| 22 | GEAR CASE, SHIELD | 12 | RETAINING RING, | 900706-00010 | 900706-00010-Online |
| 22 | GEAR CASE, SHIELD | 13 | BOLT HSH | 91118-06025 | 91118-06025-Online |
| 22 | GEAR CASE, SHIELD | 14 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 22 | GEAR CASE, SHIELD | 15 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 22 | GEAR CASE, SHIELD | 16 | WASHER | 900603-50008 | 900603-50008-Online |
| 22 | GEAR CASE, SHIELD | 17 | SCREW | 900242-05010 | 900242-05010-Online |
| 22 | GEAR CASE, SHIELD | 18 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 22 | GEAR CASE, SHIELD | 19 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 22 | GEAR CASE, SHIELD | 2 | SCREW | 900220-04006 | 900220-04006-Online |
| 22 | GEAR CASE, SHIELD | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 22 | GEAR CASE, SHIELD | 21 | O-RING | 900720-00012 | 900720-00012-Online |
| 22 | GEAR CASE, SHIELD | 22 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 22 | GEAR CASE, SHIELD | 23 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 22 | GEAR CASE, SHIELD | 24 | NUT | 610320-52130 | 610320-52130-Online |
| 22 | GEAR CASE, SHIELD | 25 | SHIELD BLADE ASY | P100-006750 | P100-006750-Online |
| 22 | GEAR CASE, SHIELD | 26 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 22 | GEAR CASE, SHIELD | 27 | BOLT HSH, FLANGE | 91121-05025 | 91121-05025-Online |
| 22 | GEAR CASE, SHIELD | 28 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 22 | GEAR CASE, SHIELD | 29 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 22 | GEAR CASE, SHIELD | 3 | GEAR SET | 610300-42330 | 610300-42330-Online |
| 22 | GEAR CASE, SHIELD | 30 | SCREW | 91316-04010 | 91316-04010-Online |
| 22 | GEAR CASE, SHIELD | 31 | BOLT,5 | V203-001980 | V203-001980-Online |
| 22 | GEAR CASE, SHIELD | 32 | SHIELD KIT | P021-041520 | P021-041520-Online |
| 22 | GEAR CASE, SHIELD | 33 | KNIFE,CORD | C554-000001 | C554-000001-Online |
| 22 | GEAR CASE, SHIELD | 34 | BOLT HSH | 91118-05018 | 91118-05018-Online |
| 22 | GEAR CASE, SHIELD | 35 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 22 | GEAR CASE, SHIELD | 4 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 22 | GEAR CASE, SHIELD | 5 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 22 | GEAR CASE, SHIELD | 6 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 22 | GEAR CASE, SHIELD | 7 | BEARING, BALL | 94060-06900 | 94060-06900-Online |
| 22 | GEAR CASE, SHIELD | 8 | BEARING, BALL | 94063-06900 | 94063-06900-Online |
| 22 | GEAR CASE, SHIELD | 9 | RETAINING RING, | 900702-00032 | 900702-00032-Online |

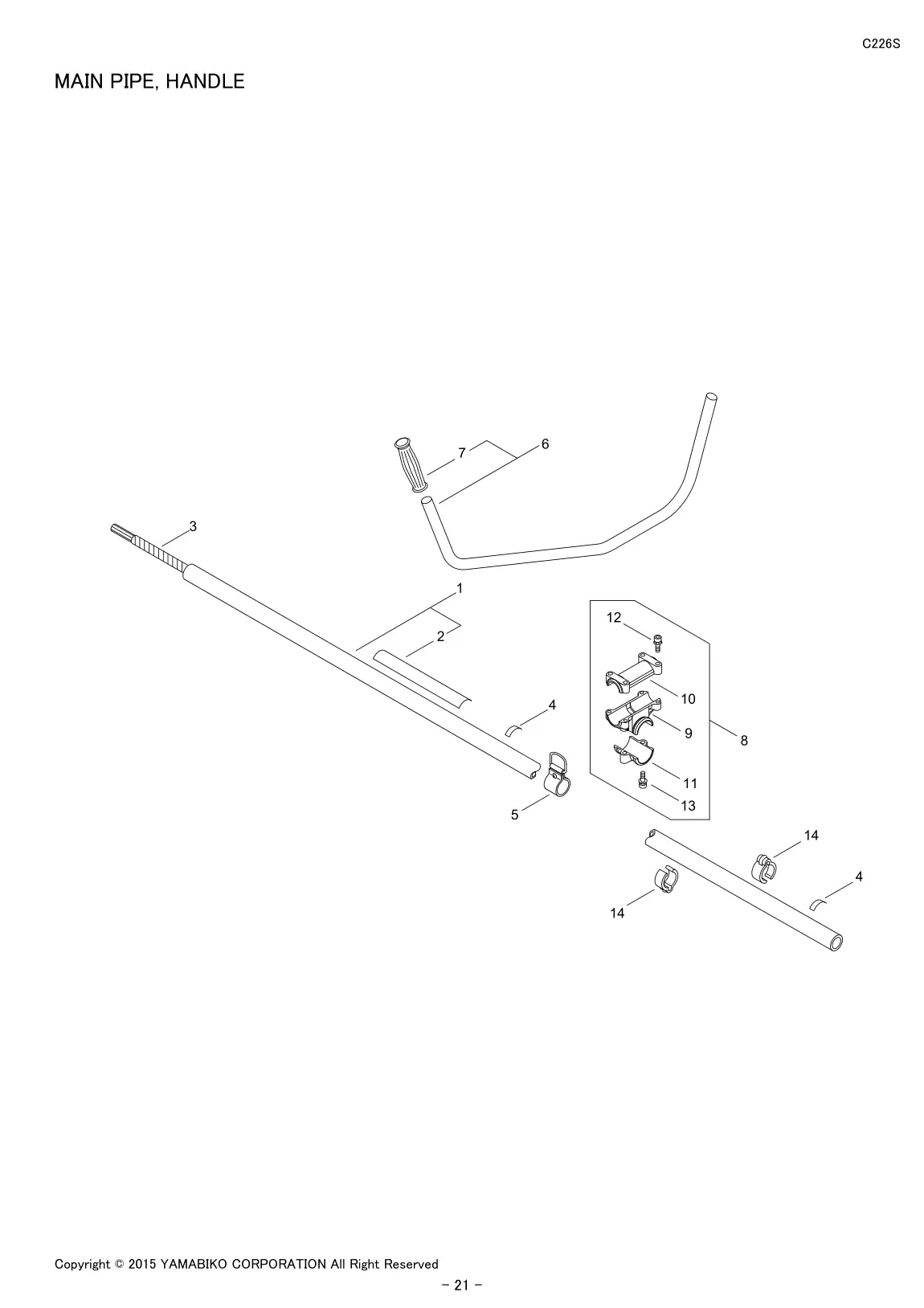

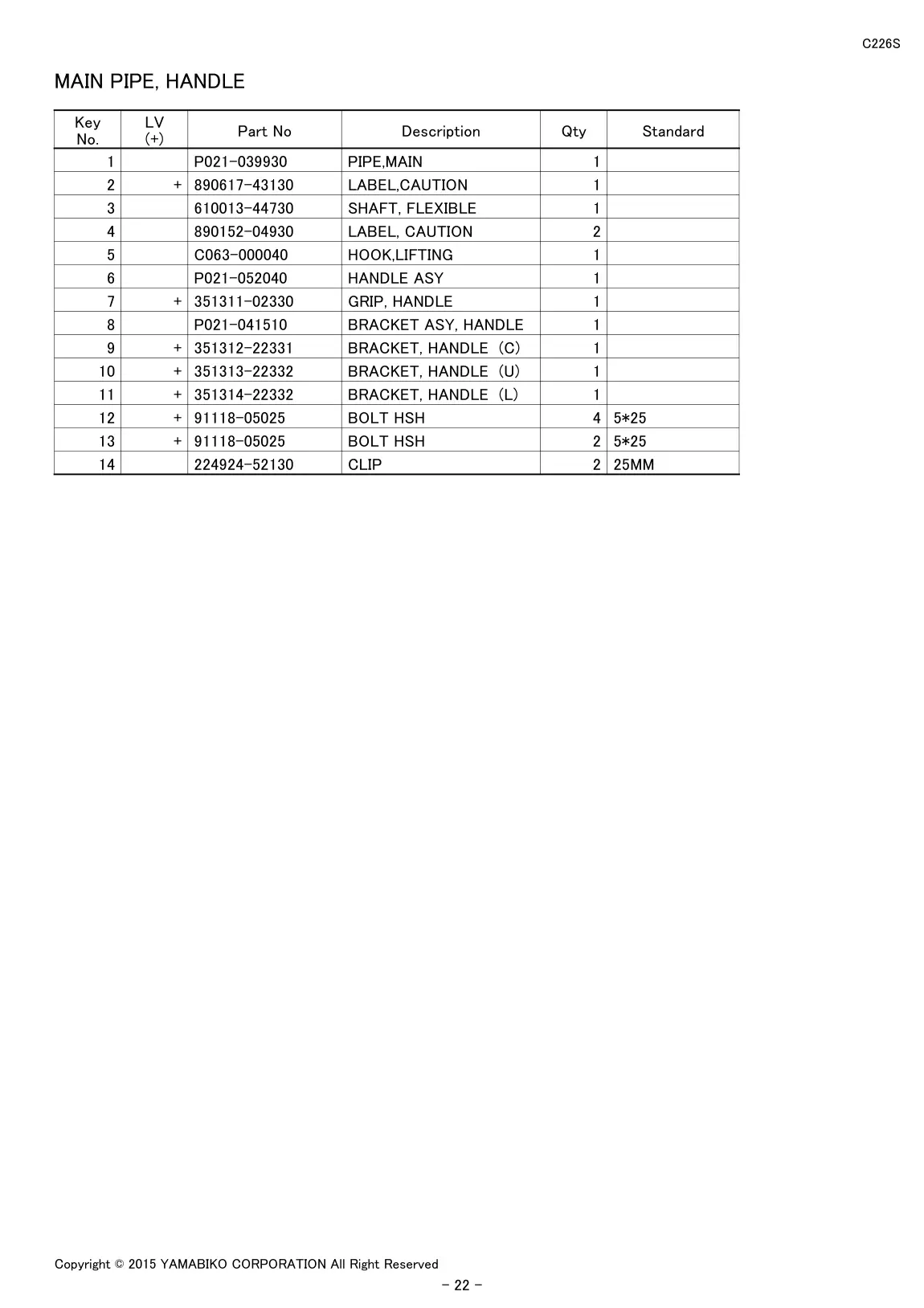

| 24 | MAIN PIPE, HANDLE | 1 | PIPE,MAIN | P021-039930 | P021-039930-Online |
| 24 | MAIN PIPE, HANDLE | 10 | BRACKET, HANDLE (U) | 351313-22332 | 351313-22332-Online |
| 24 | MAIN PIPE, HANDLE | 11 | BRACKET, HANDLE (L) | 351314-22332 | 351314-22332-Online |
| 24 | MAIN PIPE, HANDLE | 12 | BOLT HSH | 91118-05025 | 91118-05025-Online |
| 24 | MAIN PIPE, HANDLE | 13 | BOLT HSH | 91118-05025 | 91118-05025-Online |
| 24 | MAIN PIPE, HANDLE | 14 | CLIP | 224924-52130 | 224924-52130-Online |
| 24 | MAIN PIPE, HANDLE | 2 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 24 | MAIN PIPE, HANDLE | 3 | SHAFT, FLEXIBLE | 610013-44730 | 610013-44730-Online |
| 24 | MAIN PIPE, HANDLE | 4 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 24 | MAIN PIPE, HANDLE | 5 | HOOK,LIFTING | C063-000040 | C063-000040-Online |
| 24 | MAIN PIPE, HANDLE | 6 | HANDLE ASY | P021-052040 | P021-052040-Online |
| 24 | MAIN PIPE, HANDLE | 7 | GRIP, HANDLE | 351311-02330 | 351311-02330-Online |
| 24 | MAIN PIPE, HANDLE | 8 | BRACKET ASY, HANDLE | P021-041510 | P021-041510-Online |
| 24 | MAIN PIPE, HANDLE | 9 | BRACKET, HANDLE (C) | 351312-22331 | 351312-22331-Online |

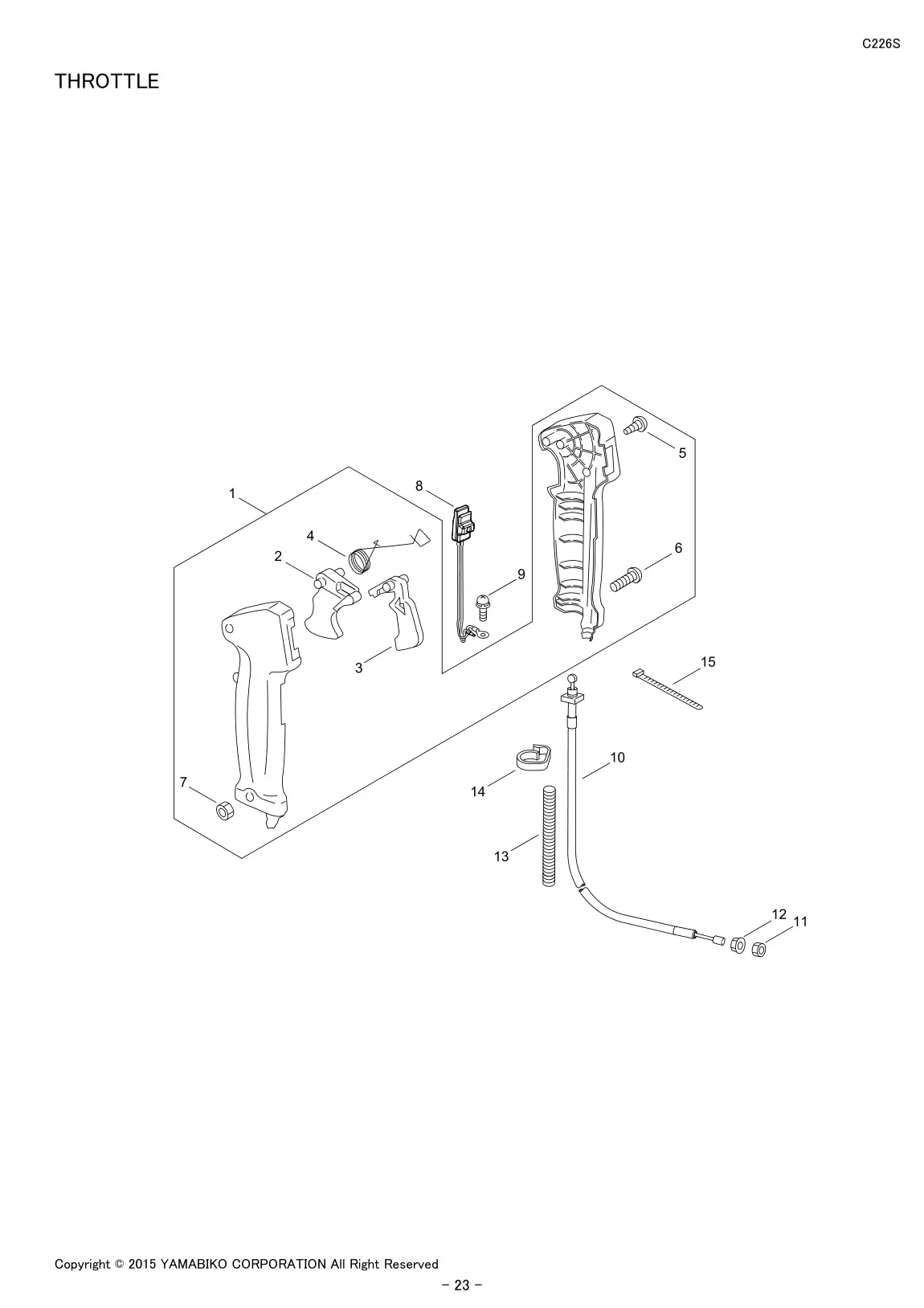

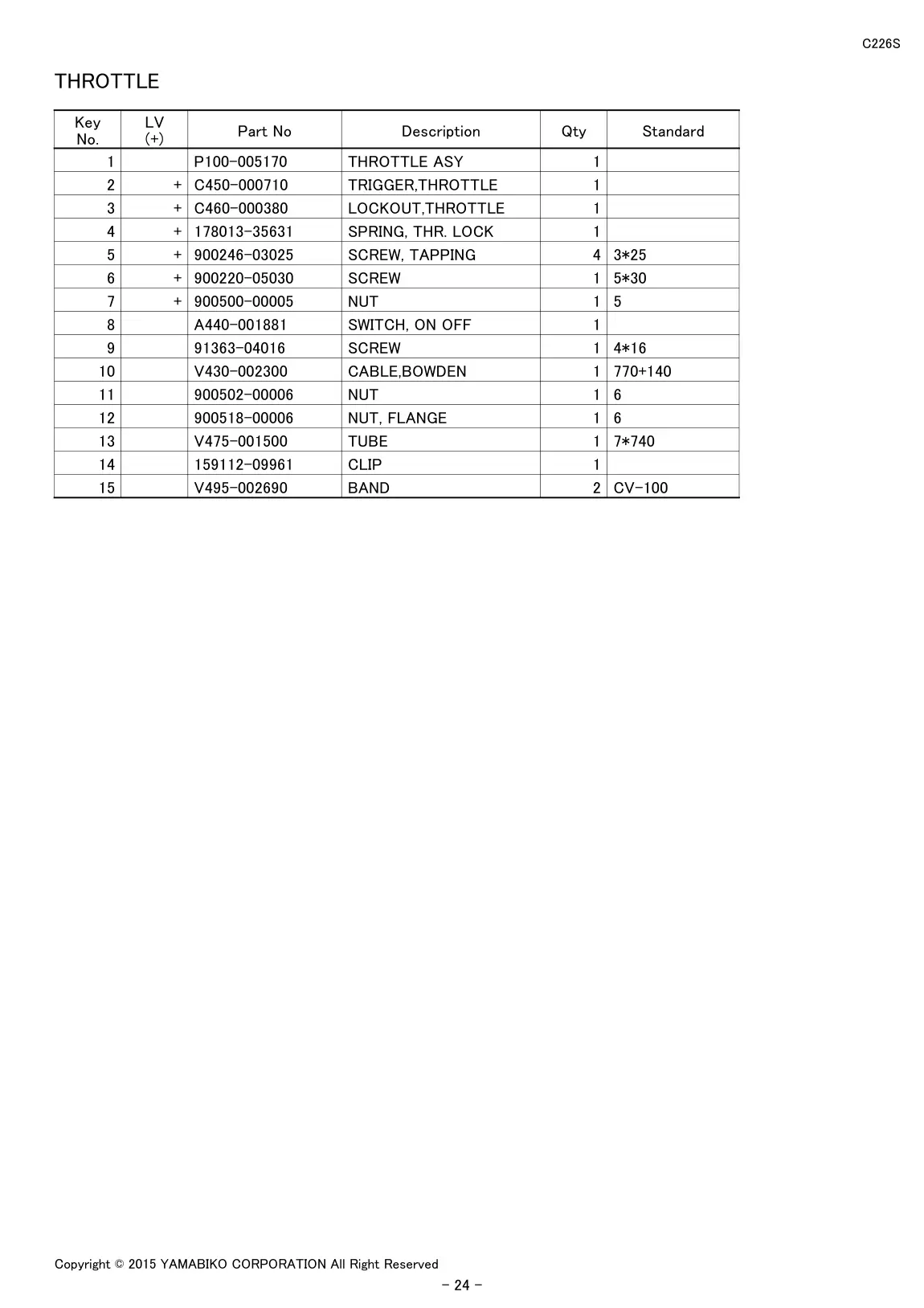

| 26 | THROTTLE | 1 | THROTTLE ASY | P100-005170 | P100-005170-Online |
| 26 | THROTTLE | 10 | CABLE,BOWDEN | V430-002300 | V430-002300-Online |
| 26 | THROTTLE | 11 | NUT | 900502-00006 | 900502-00006-Online |
| 26 | THROTTLE | 12 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 26 | THROTTLE | 13 | TUBE | V475-001500 | V475-001500-Online |
| 26 | THROTTLE | 14 | CLIP | 159112-09961 | 159112-09961-Online |
| 26 | THROTTLE | 15 | BAND | V495-002690 | V495-002690-Online |
| 26 | THROTTLE | 2 | TRIGGER,THROTTLE | C450-000710 | C450-000710-Online |
| 26 | THROTTLE | 3 | LOCKOUT,THROTTLE | C460-000380 | C460-000380-Online |
| 26 | THROTTLE | 4 | SPRING, THR. LOCK | 178013-35631 | 178013-35631-Online |
| 26 | THROTTLE | 5 | SCREW, TAPPING | 900246-03025 | 900246-03025-Online |
| 26 | THROTTLE | 6 | SCREW | 900220-05030 | 900220-05030-Online |
| 26 | THROTTLE | 7 | NUT | 900500-00005 | 900500-00005-Online |
| 26 | THROTTLE | 8 | SWITCH, ON OFF | A440-001881 | A440-001881-Online |
| 26 | THROTTLE | 9 | SCREW | 91363-04016 | 91363-04016-Online |

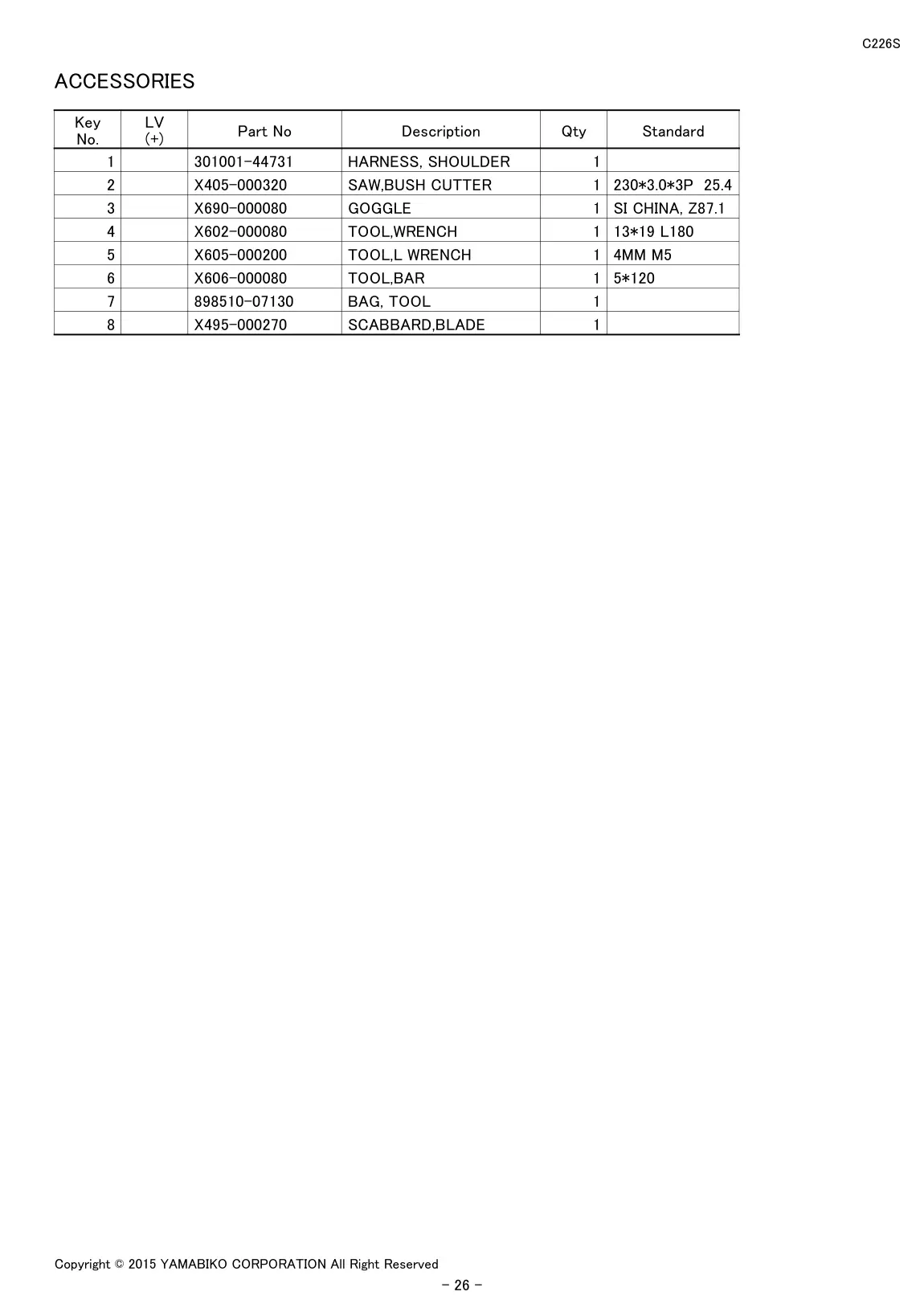

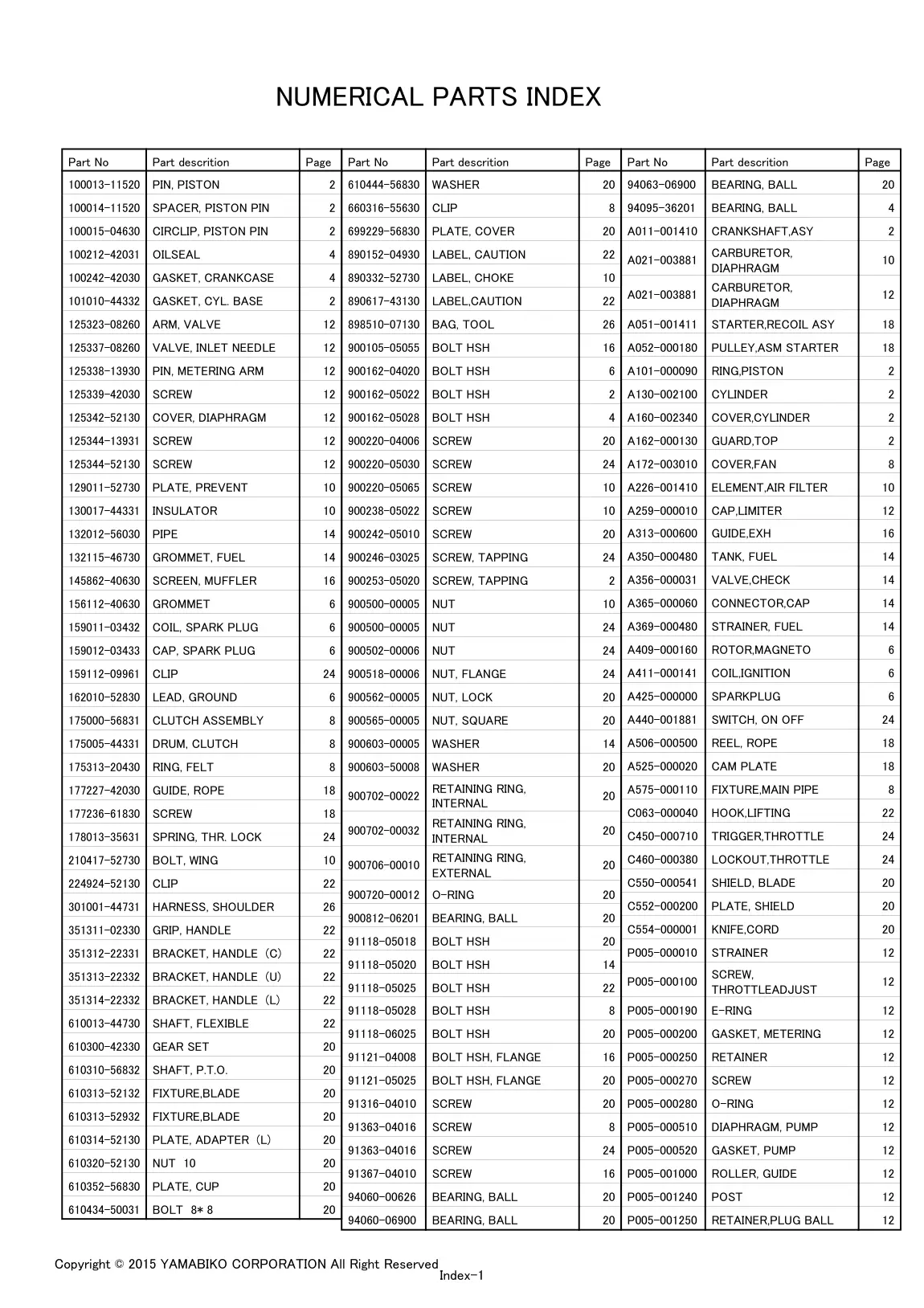

| 28 | ACCESSORIES | 1 | HARNESS, SHOULDER | 301001-44731 | 301001-44731-Online |
| 28 | ACCESSORIES | 2 | SAW,BUSH CUTTER | X405-000320 | X405-000320-Online |
| 28 | ACCESSORIES | 3 | GOGGLE | X690-000080 | X690-000080-Online |
| 28 | ACCESSORIES | 4 | TOOL,WRENCH | X602-000080 | X602-000080-Online |
| 28 | ACCESSORIES | 5 | TOOL,L WRENCH | X605-000200 | X605-000200-Online |
| 28 | ACCESSORIES | 6 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 28 | ACCESSORIES | 7 | BAG, TOOL | 898510-07130 | 898510-07130-Online |
| 28 | ACCESSORIES | 8 | SCABBARD,BLADE | X495-000270 | X495-000270-Online |
| 29 | RETAINER,PLUG BALL | PIN, PISTON | 100013-11520 | 100013-11520-Online | |
| 29 | RETAINER,PLUG BALL | 10 | INSULATOR | 130017-44331 | 130017-44331-Online |
| 29 | RETAINER,PLUG BALL | 10 | PIPE | 132012-56030 | 132012-56030-Online |
| 29 | RETAINER,PLUG BALL | 10 | CLIP | 224924-52130 | 224924-52130-Online |
| 29 | RETAINER,PLUG BALL | 10 | LABEL,CAUTION | 890617-43130 | 890617-43130-Online |
| 29 | RETAINER,PLUG BALL | 10 | SCREW | 900238-05022 | 900238-05022-Online |
| 29 | RETAINER,PLUG BALL | 10 | SCREW | 900242-05010 | 900242-05010-Online |
| 29 | RETAINER,PLUG BALL | 10 | NUT | 900500-00005 | 900500-00005-Online |
| 29 | RETAINER,PLUG BALL | 10 | CARBURETOR, | A021-003881 | A021-003881-Online |
| 29 | RETAINER,PLUG BALL | 10 | CAP,LIMITER | A259-000010 | A259-000010-Online |
| 29 | RETAINER,PLUG BALL | 12 | VALVE, INLET NEEDLE | 125337-08260 | 125337-08260-Online |
| 29 | RETAINER,PLUG BALL | 12 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 29 | RETAINER,PLUG BALL | 12 | SCREW | 125339-42030 | 125339-42030-Online |
| 29 | RETAINER,PLUG BALL | 12 | COVER, DIAPHRAGM | 125342-52130 | 125342-52130-Online |
| 29 | RETAINER,PLUG BALL | 12 | SCREW | 125344-13931 | 125344-13931-Online |
| 29 | RETAINER,PLUG BALL | 12 | SCREW | 125344-52130 | 125344-52130-Online |
| 29 | RETAINER,PLUG BALL | 12 | PLATE, PREVENT | 129011-52730 | 129011-52730-Online |
| 29 | RETAINER,PLUG BALL | 12 | STARTER,RECOIL ASY | A051-001411 | A051-001411-Online |
| 29 | RETAINER,PLUG BALL | 12 | GUIDE,EXH | A313-000600 | A313-000600-Online |
| 29 | RETAINER,PLUG BALL | 12 | SCREW, | P005-000100 | P005-000100-Online |
| 29 | RETAINER,PLUG BALL | 12 | E-RING | P005-000190 | P005-000190-Online |
| 29 | RETAINER,PLUG BALL | 12 | GASKET, METERING | P005-000200 | P005-000200-Online |
| 29 | RETAINER,PLUG BALL | 12 | RETAINER | P005-000250 | P005-000250-Online |
| 29 | RETAINER,PLUG BALL | 12 | SCREW | P005-000270 | P005-000270-Online |
| 29 | RETAINER,PLUG BALL | 12 | O-RING | P005-000280 | P005-000280-Online |
| 29 | RETAINER,PLUG BALL | 12 | DIAPHRAGM, PUMP | P005-000510 | P005-000510-Online |
| 29 | RETAINER,PLUG BALL | 12 | GASKET, PUMP | P005-000520 | P005-000520-Online |
| 29 | RETAINER,PLUG BALL | 12 | ROLLER, GUIDE | P005-001000 | P005-001000-Online |
| 29 | RETAINER,PLUG BALL | 14 | GROMMET, FUEL | 132115-46730 | 132115-46730-Online |
| 29 | RETAINER,PLUG BALL | 14 | SCREEN, MUFFLER | 145862-40630 | 145862-40630-Online |
| 29 | RETAINER,PLUG BALL | 14 | WASHER | 900603-50008 | 900603-50008-Online |
| 29 | RETAINER,PLUG BALL | 14 | BOLT HSH | 91118-05025 | 91118-05025-Online |
| 29 | RETAINER,PLUG BALL | 14 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 29 | RETAINER,PLUG BALL | 14 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 29 | RETAINER,PLUG BALL | 14 | STRAINER, FUEL | A369-000480 | A369-000480-Online |
| 29 | RETAINER,PLUG BALL | 14 | ROTOR,MAGNETO | A409-000160 | A409-000160-Online |
| 29 | RETAINER,PLUG BALL | 16 | GROMMET | 156112-40630 | 156112-40630-Online |
| 29 | RETAINER,PLUG BALL | 16 | BOLT HSH | 900162-04020 | 900162-04020-Online |
| 29 | RETAINER,PLUG BALL | 16 | BOLT HSH, FLANGE | 91121-05025 | 91121-05025-Online |
| 29 | RETAINER,PLUG BALL | 16 | BEARING, BALL | 94060-00626 | 94060-00626-Online |
| 29 | RETAINER,PLUG BALL | 16 | TANK, FUEL | A350-000480 | A350-000480-Online |
| 29 | RETAINER,PLUG BALL | 18 | SCREW | 177236-61830 | 177236-61830-Online |
| 29 | RETAINER,PLUG BALL | 18 | SPRING, THR. LOCK | 178013-35631 | 178013-35631-Online |
| 29 | RETAINER,PLUG BALL | 18 | PULLEY,ASM STARTER | A052-000180 | A052-000180-Online |
| 29 | RETAINER,PLUG BALL | 18 | RING,PISTON | A101-000090 | A101-000090-Online |
| 29 | RETAINER,PLUG BALL | 18 | CAM PLATE | A525-000020 | A525-000020-Online |
| 29 | RETAINER,PLUG BALL | 18 | FIXTURE,MAIN PIPE | A575-000110 | A575-000110-Online |
| 29 | RETAINER,PLUG BALL | 2 | SPACER, PISTON PIN | 100014-11520 | 100014-11520-Online |
| 29 | RETAINER,PLUG BALL | 2 | CIRCLIP, PISTON PIN | 100015-04630 | 100015-04630-Online |
| 29 | RETAINER,PLUG BALL | 2 | OILSEAL | 100212-42031 | 100212-42031-Online |
| 29 | RETAINER,PLUG BALL | 2 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 29 | RETAINER,PLUG BALL | 2 | BOLT HSH | 900162-05028 | 900162-05028-Online |
| 29 | RETAINER,PLUG BALL | 2 | NUT | 900500-00005 | 900500-00005-Online |
| 29 | RETAINER,PLUG BALL | 2 | CARBURETOR, | A021-003881 | A021-003881-Online |
| 29 | RETAINER,PLUG BALL | 2 | CYLINDER | A130-002100 | A130-002100-Online |
| 29 | RETAINER,PLUG BALL | 2 | COVER,CYLINDER | A160-002340 | A160-002340-Online |
| 29 | RETAINER,PLUG BALL | 2 | GUARD,TOP | A162-000130 | A162-000130-Online |
| 29 | RETAINER,PLUG BALL | 2 | COVER,FAN | A172-003010 | A172-003010-Online |
| 29 | RETAINER,PLUG BALL | 20 | SHAFT, P.T.O. | 610310-56832 | 610310-56832-Online |
| 29 | RETAINER,PLUG BALL | 20 | FIXTURE,BLADE | 610313-52132 | 610313-52132-Online |
| 29 | RETAINER,PLUG BALL | 20 | FIXTURE,BLADE | 610313-52932 | 610313-52932-Online |
| 29 | RETAINER,PLUG BALL | 20 | PLATE, ADAPTER (L) | 610314-52130 | 610314-52130-Online |
| 29 | RETAINER,PLUG BALL | 20 | NUT | 610320-52130 | 610320-52130-Online |
| 29 | RETAINER,PLUG BALL | 20 | PLATE, CUP | 610352-56830 | 610352-56830-Online |
| 29 | RETAINER,PLUG BALL | 20 | BOLT 8* | 610434-50031 | 610434-50031-Online |
| 29 | RETAINER,PLUG BALL | 20 | WASHER | 610444-56830 | 610444-56830-Online |
| 29 | RETAINER,PLUG BALL | 20 | CLIP | 660316-55630 | 660316-55630-Online |
| 29 | RETAINER,PLUG BALL | 20 | LABEL, CAUTION | 890152-04930 | 890152-04930-Online |
| 29 | RETAINER,PLUG BALL | 20 | SCREW | 900220-05030 | 900220-05030-Online |
| 29 | RETAINER,PLUG BALL | 20 | SCREW, TAPPING | 900246-03025 | 900246-03025-Online |
| 29 | RETAINER,PLUG BALL | 20 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 29 | RETAINER,PLUG BALL | 20 | WASHER | 900603-00005 | 900603-00005-Online |
| 29 | RETAINER,PLUG BALL | 20 | RETAINING RING, | 900702-00022 | 900702-00022-Online |
| 29 | RETAINER,PLUG BALL | 20 | RETAINING RING, | 900702-00032 | 900702-00032-Online |
| 29 | RETAINER,PLUG BALL | 20 | RETAINING RING, | 900706-00010 | 900706-00010-Online |
| 29 | RETAINER,PLUG BALL | 20 | O-RING | 900720-00012 | 900720-00012-Online |
| 29 | RETAINER,PLUG BALL | 20 | BEARING, BALL | 900812-06201 | 900812-06201-Online |
| 29 | RETAINER,PLUG BALL | 20 | BOLT HSH | 91118-05018 | 91118-05018-Online |
| 29 | RETAINER,PLUG BALL | 20 | BOLT HSH | 91118-05020 | 91118-05020-Online |
| 29 | RETAINER,PLUG BALL | 20 | BOLT HSH, FLANGE | 91121-04008 | 91121-04008-Online |
| 29 | RETAINER,PLUG BALL | 20 | SCREW | 91316-04010 | 91316-04010-Online |
| 29 | RETAINER,PLUG BALL | 20 | SCREW | 91363-04016 | 91363-04016-Online |
| 29 | RETAINER,PLUG BALL | 20 | BEARING, BALL | 94060-06900 | 94060-06900-Online |
| 29 | RETAINER,PLUG BALL | 20 | BEARING, BALL | 94063-06900 | 94063-06900-Online |
| 29 | RETAINER,PLUG BALL | 20 | BEARING, BALL | 94095-36201 | 94095-36201-Online |
| 29 | RETAINER,PLUG BALL | 20 | PLATE, SHIELD | C552-000200 | C552-000200-Online |
| 29 | RETAINER,PLUG BALL | 20 | KNIFE,CORD | C554-000001 | C554-000001-Online |
| 29 | RETAINER,PLUG BALL | 20 | STRAINER | P005-000010 | P005-000010-Online |
| 29 | RETAINER,PLUG BALL | 22 | HARNESS, SHOULDER | 301001-44731 | 301001-44731-Online |
| 29 | RETAINER,PLUG BALL | 22 | BRACKET, HANDLE (C) | 351312-22331 | 351312-22331-Online |
| 29 | RETAINER,PLUG BALL | 22 | BRACKET, HANDLE (U) | 351313-22332 | 351313-22332-Online |
| 29 | RETAINER,PLUG BALL | 22 | BRACKET, HANDLE (L) | 351314-22332 | 351314-22332-Online |
| 29 | RETAINER,PLUG BALL | 22 | SHAFT, FLEXIBLE | 610013-44730 | 610013-44730-Online |
| 29 | RETAINER,PLUG BALL | 22 | GEAR SET | 610300-42330 | 610300-42330-Online |
| 29 | RETAINER,PLUG BALL | 22 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 29 | RETAINER,PLUG BALL | 22 | BAG, TOOL | 898510-07130 | 898510-07130-Online |
| 29 | RETAINER,PLUG BALL | 22 | BOLT HSH | 91118-05028 | 91118-05028-Online |
| 29 | RETAINER,PLUG BALL | 22 | TRIGGER,THROTTLE | C450-000710 | C450-000710-Online |
| 29 | RETAINER,PLUG BALL | 24 | LEAD, GROUND | 162010-52830 | 162010-52830-Online |
| 29 | RETAINER,PLUG BALL | 24 | BOLT, WING | 210417-52730 | 210417-52730-Online |
| 29 | RETAINER,PLUG BALL | 24 | SCREW | 900220-05065 | 900220-05065-Online |
| 29 | RETAINER,PLUG BALL | 24 | SCREW, TAPPING | 900253-05020 | 900253-05020-Online |
| 29 | RETAINER,PLUG BALL | 24 | NUT | 900502-00006 | 900502-00006-Online |
| 29 | RETAINER,PLUG BALL | 24 | NUT, FLANGE | 900518-00006 | 900518-00006-Online |
| 29 | RETAINER,PLUG BALL | 24 | NUT, LOCK | 900562-00005 | 900562-00005-Online |
| 29 | RETAINER,PLUG BALL | 24 | SCREW | 91367-04010 | 91367-04010-Online |
| 29 | RETAINER,PLUG BALL | 24 | REEL, ROPE | A506-000500 | A506-000500-Online |
| 29 | RETAINER,PLUG BALL | 24 | LOCKOUT,THROTTLE | C460-000380 | C460-000380-Online |
| 29 | RETAINER,PLUG BALL | 24 | SHIELD, BLADE | C550-000541 | C550-000541-Online |
| 29 | RETAINER,PLUG BALL | 26 | GRIP, HANDLE | 351311-02330 | 351311-02330-Online |
| 29 | RETAINER,PLUG BALL | 26 | BOLT HSH | 900105-05055 | 900105-05055-Online |
| 29 | RETAINER,PLUG BALL | 4 | GASKET, CRANKCASE | 100242-42030 | 100242-42030-Online |
| 29 | RETAINER,PLUG BALL | 4 | GASKET, CYL. BASE | 101010-44332 | 101010-44332-Online |
| 29 | RETAINER,PLUG BALL | 4 | SCREW | 900220-04006 | 900220-04006-Online |
| 29 | RETAINER,PLUG BALL | 4 | CRANKSHAFT,ASY | A011-001410 | A011-001410-Online |
| 29 | RETAINER,PLUG BALL | 6 | COIL, SPARK PLUG | 159011-03432 | 159011-03432-Online |
| 29 | RETAINER,PLUG BALL | 6 | CAP, SPARK PLUG | 159012-03433 | 159012-03433-Online |
| 29 | RETAINER,PLUG BALL | 6 | CLIP | 159112-09961 | 159112-09961-Online |
| 29 | RETAINER,PLUG BALL | 6 | CLUTCH ASSEMBLY | 175000-56831 | 175000-56831-Online |
| 29 | RETAINER,PLUG BALL | 6 | BOLT HSH | 900162-05022 | 900162-05022-Online |
| 29 | RETAINER,PLUG BALL | 6 | COIL,IGNITION | A411-000141 | A411-000141-Online |
| 29 | RETAINER,PLUG BALL | 6 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 29 | RETAINER,PLUG BALL | 6 | SWITCH, ON OFF | A440-001881 | A440-001881-Online |
| 29 | RETAINER,PLUG BALL | 8 | DRUM, CLUTCH | 175005-44331 | 175005-44331-Online |
| 29 | RETAINER,PLUG BALL | 8 | RING, FELT | 175313-20430 | 175313-20430-Online |
| 29 | RETAINER,PLUG BALL | 8 | GUIDE, ROPE | 177227-42030 | 177227-42030-Online |
| 29 | RETAINER,PLUG BALL | 8 | PLATE, COVER | 699229-56830 | 699229-56830-Online |
| 29 | RETAINER,PLUG BALL | 8 | BOLT HSH | 91118-06025 | 91118-06025-Online |
| 29 | RETAINER,PLUG BALL | 8 | SCREW | 91363-04016 | 91363-04016-Online |
| 29 | RETAINER,PLUG BALL | 8 | ELEMENT,AIR FILTER | A226-001410 | A226-001410-Online |
| 29 | RETAINER,PLUG BALL | 8 | HOOK,LIFTING | C063-000040 | C063-000040-Online |

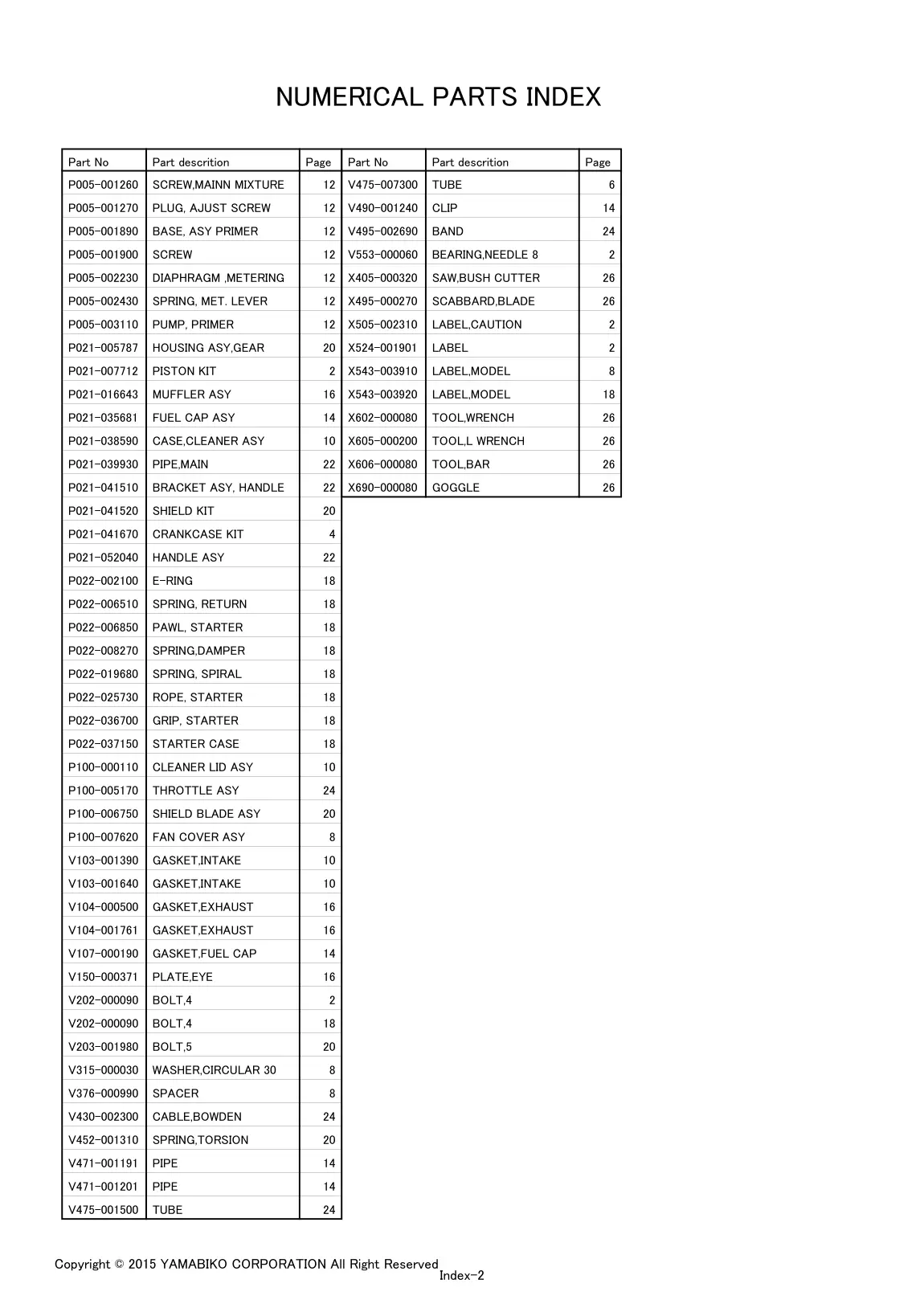

| 30 | GOGGLE | SCREW,MAINN MIXTURE | P005-001260 | P005-001260-Online | |
| 30 | GOGGLE | 10 | PIPE,MAIN | P021-039930 | P021-039930-Online |
| 30 | GOGGLE | 10 | THROTTLE ASY | P100-005170 | P100-005170-Online |
| 30 | GOGGLE | 10 | GASKET,INTAKE | V103-001640 | V103-001640-Online |
| 30 | GOGGLE | 10 | GASKET,EXHAUST | V104-000500 | V104-000500-Online |
| 30 | GOGGLE | 12 | PLUG, AJUST SCREW | P005-001270 | P005-001270-Online |
| 30 | GOGGLE | 12 | BASE, ASY PRIMER | P005-001890 | P005-001890-Online |
| 30 | GOGGLE | 12 | SCREW | P005-001900 | P005-001900-Online |
| 30 | GOGGLE | 12 | DIAPHRAGM ,METERING | P005-002230 | P005-002230-Online |
| 30 | GOGGLE | 12 | SPRING, MET. LEVER | P005-002430 | P005-002430-Online |
| 30 | GOGGLE | 12 | PUMP, PRIMER | P005-003110 | P005-003110-Online |
| 30 | GOGGLE | 12 | HOUSING ASY,GEAR | P021-005787 | P021-005787-Online |
| 30 | GOGGLE | 14 | CASE,CLEANER ASY | P021-038590 | P021-038590-Online |
| 30 | GOGGLE | 14 | PLATE,EYE | V150-000371 | V150-000371-Online |
| 30 | GOGGLE | 14 | PIPE | V471-001201 | V471-001201-Online |
| 30 | GOGGLE | 14 | TUBE | V475-001500 | V475-001500-Online |
| 30 | GOGGLE | 14 | BAND | V495-002690 | V495-002690-Online |
| 30 | GOGGLE | 16 | FUEL CAP ASY | P021-035681 | P021-035681-Online |
| 30 | GOGGLE | 16 | GASKET,EXHAUST | V104-001761 | V104-001761-Online |
| 30 | GOGGLE | 16 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 30 | GOGGLE | 16 | BOLT,4 | V202-000090 | V202-000090-Online |
| 30 | GOGGLE | 18 | SPRING, RETURN | P022-006510 | P022-006510-Online |
| 30 | GOGGLE | 18 | PAWL, STARTER | P022-006850 | P022-006850-Online |
| 30 | GOGGLE | 18 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 30 | GOGGLE | 18 | SPRING, SPIRAL | P022-019680 | P022-019680-Online |
| 30 | GOGGLE | 18 | ROPE, STARTER | P022-025730 | P022-025730-Online |
| 30 | GOGGLE | 18 | GRIP, STARTER | P022-036700 | P022-036700-Online |
| 30 | GOGGLE | 18 | STARTER CASE | P022-037150 | P022-037150-Online |
| 30 | GOGGLE | 18 | CLEANER LID ASY | P100-000110 | P100-000110-Online |
| 30 | GOGGLE | 18 | BOLT,5 | V203-001980 | V203-001980-Online |
| 30 | GOGGLE | 18 | TOOL,WRENCH | X602-000080 | X602-000080-Online |
| 30 | GOGGLE | 2 | MUFFLER ASY | P021-016643 | P021-016643-Online |
| 30 | GOGGLE | 2 | BOLT,4 | V202-000090 | V202-000090-Online |
| 30 | GOGGLE | 2 | SAW,BUSH CUTTER | X405-000320 | X405-000320-Online |
| 30 | GOGGLE | 2 | LABEL | X524-001901 | X524-001901-Online |
| 30 | GOGGLE | 2 | LABEL,MODEL | X543-003910 | X543-003910-Online |
| 30 | GOGGLE | 20 | PISTON KIT | P021-007712 | P021-007712-Online |
| 30 | GOGGLE | 20 | CRANKCASE KIT | P021-041670 | P021-041670-Online |
| 30 | GOGGLE | 20 | FAN COVER ASY | P100-007620 | P100-007620-Online |
| 30 | GOGGLE | 20 | WASHER,CIRCULAR | V315-000030 | V315-000030-Online |
| 30 | GOGGLE | 20 | PIPE | V471-001191 | V471-001191-Online |
| 30 | GOGGLE | 22 | BRACKET ASY, HANDLE | P021-041510 | P021-041510-Online |
| 30 | GOGGLE | 22 | SHIELD KIT | P021-041520 | P021-041520-Online |
| 30 | GOGGLE | 22 | E-RING | P022-002100 | P022-002100-Online |
| 30 | GOGGLE | 24 | SHIELD BLADE ASY | P100-006750 | P100-006750-Online |
| 30 | GOGGLE | 24 | SPRING,TORSION | V452-001310 | V452-001310-Online |
| 30 | GOGGLE | 24 | TUBE | V475-007300 | V475-007300-Online |
| 30 | GOGGLE | 24 | BEARING,NEEDLE | V553-000060 | V553-000060-Online |
| 30 | GOGGLE | 26 | SCABBARD,BLADE | X495-000270 | X495-000270-Online |
| 30 | GOGGLE | 26 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 30 | GOGGLE | 26 | TOOL,L WRENCH | X605-000200 | X605-000200-Online |
| 30 | GOGGLE | 26 | TOOL,BAR | X606-000080 | X606-000080-Online |
| 30 | GOGGLE | 4 | HANDLE ASY | P021-052040 | P021-052040-Online |
| 30 | GOGGLE | 6 | CLIP | V490-001240 | V490-001240-Online |
| 30 | GOGGLE | 8 | GASKET,INTAKE | V103-001390 | V103-001390-Online |
| 30 | GOGGLE | 8 | SPACER | V376-000990 | V376-000990-Online |
| 30 | GOGGLE | 8 | CABLE,BOWDEN | V430-002300 | V430-002300-Online |
| 30 | GOGGLE | 8 | LABEL,MODEL | X543-003920 | X543-003920-Online |
Source file: 20200226-207_C226S_38_38000001_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
