Illustrated Parts List
Shindaiwa C350 USA Brush Cutter / Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: C350 USA
Type: Brush Cutter / Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

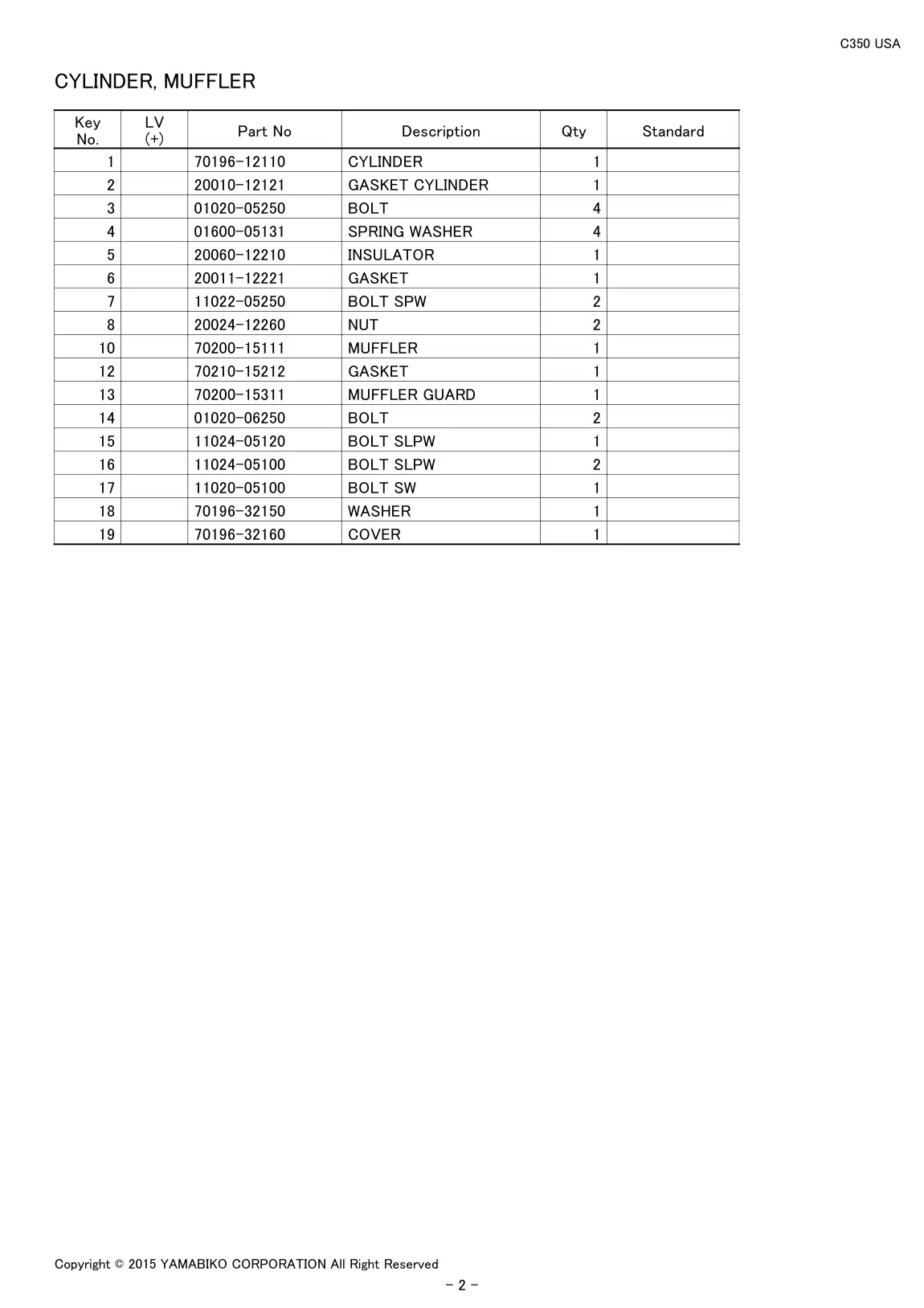

| 4 | CYLINDER, MUFFLER | 1 | CYLINDER | 70196-12110 | 70196-12110-Online |
| 4 | CYLINDER, MUFFLER | 10 | MUFFLER | 70200-15111 | 70200-15111-Online |
| 4 | CYLINDER, MUFFLER | 12 | GASKET | 70210-15212 | 70210-15212-Online |
| 4 | CYLINDER, MUFFLER | 13 | MUFFLER GUARD | 70200-15311 | 70200-15311-Online |
| 4 | CYLINDER, MUFFLER | 14 | BOLT | 01020-06250 | 01020-06250-Online |
| 4 | CYLINDER, MUFFLER | 15 | BOLT SLPW | 11024-05120 | 11024-05120-Online |
| 4 | CYLINDER, MUFFLER | 16 | BOLT SLPW | 11024-05100 | 11024-05100-Online |
| 4 | CYLINDER, MUFFLER | 17 | BOLT SW | 11020-05100 | 11020-05100-Online |
| 4 | CYLINDER, MUFFLER | 18 | WASHER | 70196-32150 | 70196-32150-Online |
| 4 | CYLINDER, MUFFLER | 19 | COVER | 70196-32160 | 70196-32160-Online |
| 4 | CYLINDER, MUFFLER | 2 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 4 | CYLINDER, MUFFLER | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | CYLINDER, MUFFLER | 4 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 4 | CYLINDER, MUFFLER | 5 | INSULATOR | 20060-12210 | 20060-12210-Online |
| 4 | CYLINDER, MUFFLER | 6 | GASKET | 20011-12221 | 20011-12221-Online |
| 4 | CYLINDER, MUFFLER | 7 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 4 | CYLINDER, MUFFLER | 8 | NUT | 20024-12260 | 20024-12260-Online |

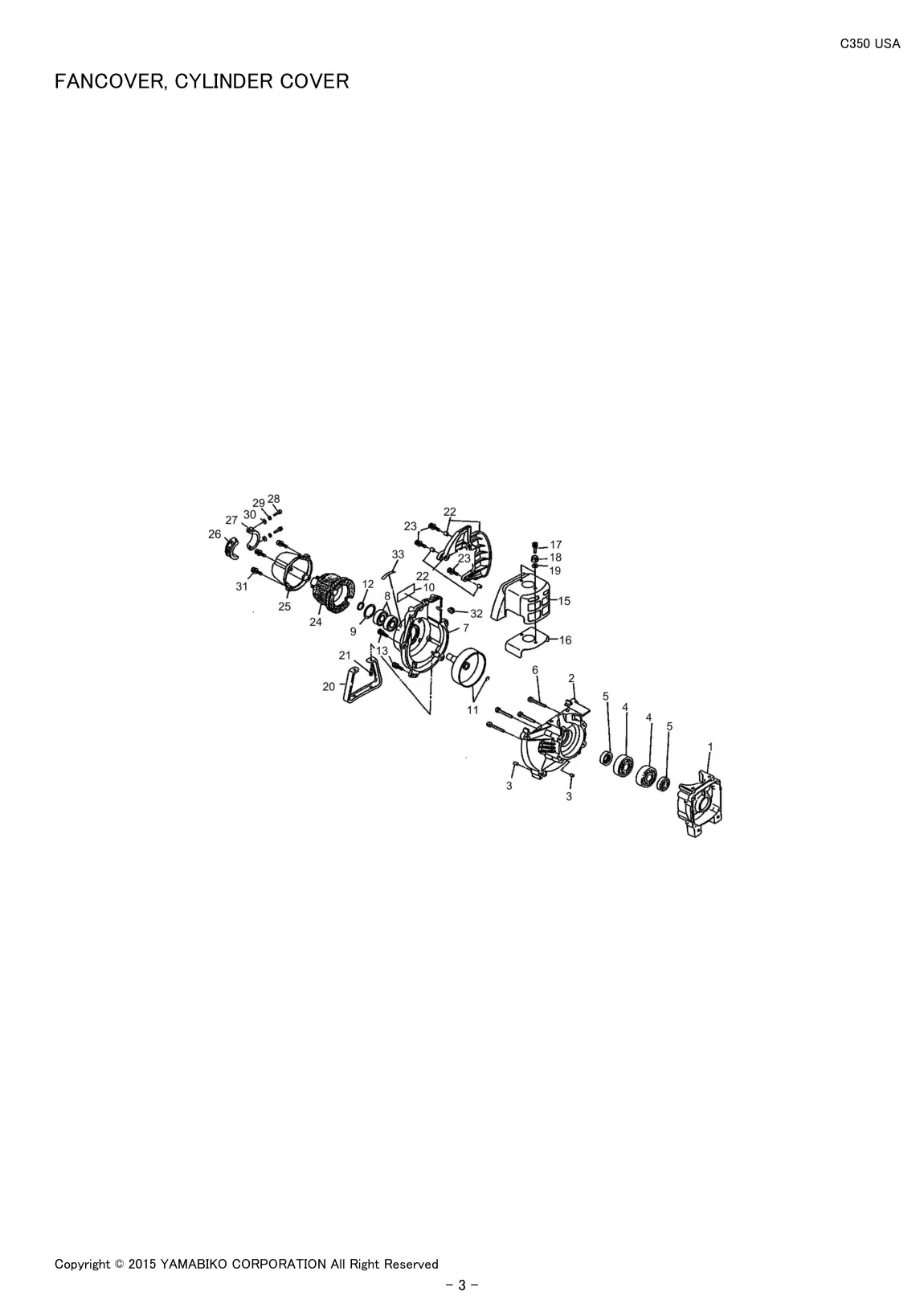

| 6 | FANCOVER, CYLINDER COVER | 1 | CRANK CASE S | 72935-21111 | 72935-21111-Online |
| 6 | FANCOVER, CYLINDER COVER | 10 | LABEL TRADE | 70200-31151 | 70200-31151-Online |
| 6 | FANCOVER, CYLINDER COVER | 11 | CLUTCH DRUM SET | 20011-31200 | 20011-31200-Online |
| 6 | FANCOVER, CYLINDER COVER | 12 | SNAP RING | 20011-31230 | 20011-31230-Online |
| 6 | FANCOVER, CYLINDER COVER | 13 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 6 | FANCOVER, CYLINDER COVER | 15 | CYLINDER COVER | 70196-32110 | 70196-32110-Online |
| 6 | FANCOVER, CYLINDER COVER | 16 | GASKET | 70196-32141 | 70196-32141-Online |
| 6 | FANCOVER, CYLINDER COVER | 17 | BOLT SW | 11020-05140 | 11020-05140-Online |
| 6 | FANCOVER, CYLINDER COVER | 18 | COVER | 70196-32160 | 70196-32160-Online |
| 6 | FANCOVER, CYLINDER COVER | 19 | WASHER | 70196-32150 | 70196-32150-Online |
| 6 | FANCOVER, CYLINDER COVER | 2 | CRANK CASE M | 72921-21121 | 72921-21121-Online |
| 6 | FANCOVER, CYLINDER COVER | 21 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 6 | FANCOVER, CYLINDER COVER | 22 | PROTECTOR ASSY | 20011-34100 | 20011-34100-Online |
| 6 | FANCOVER, CYLINDER COVER | 23 | BOLT SLPW | 11024-04160 | 11024-04160-Online |
| 6 | FANCOVER, CYLINDER COVER | 24 | JOINT | 20011-35110 | 20011-35110-Online |
| 6 | FANCOVER, CYLINDER COVER | 25 | CAP JOINT | 70012-35130 | 70012-35130-Online |
| 6 | FANCOVER, CYLINDER COVER | 26 | CLAMP A | 20011-35141 | 20011-35141-Online |
| 6 | FANCOVER, CYLINDER COVER | 27 | CLAMP B | 20011-35151 | 20011-35151-Online |
| 6 | FANCOVER, CYLINDER COVER | 28 | BOLT | 01020-05250 | 01020-05250-Online |
| 6 | FANCOVER, CYLINDER COVER | 29 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 6 | FANCOVER, CYLINDER COVER | 3 | ROLLER | 12492-50100 | 12492-50100-Online |
| 6 | FANCOVER, CYLINDER COVER | 30 | WASHER | 01610-05080 | 01610-05080-Online |
| 6 | FANCOVER, CYLINDER COVER | 31 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 6 | FANCOVER, CYLINDER COVER | 4 | BEARING | 12900-62020 | 12900-62020-Online |
| 6 | FANCOVER, CYLINDER COVER | 5 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 6 | FANCOVER, CYLINDER COVER | 6 | BOLT | 01020-05300 | 01020-05300-Online |
| 6 | FANCOVER, CYLINDER COVER | 7 | FAN COVER | 70012-31111 | 70012-31111-Online |
| 6 | FANCOVER, CYLINDER COVER | 8 | BEARING | 02006-06002 | 02006-06002-Online |
| 6 | FANCOVER, CYLINDER COVER | 9 | SNAP RING | 02432-32120 | 02432-32120-Online |

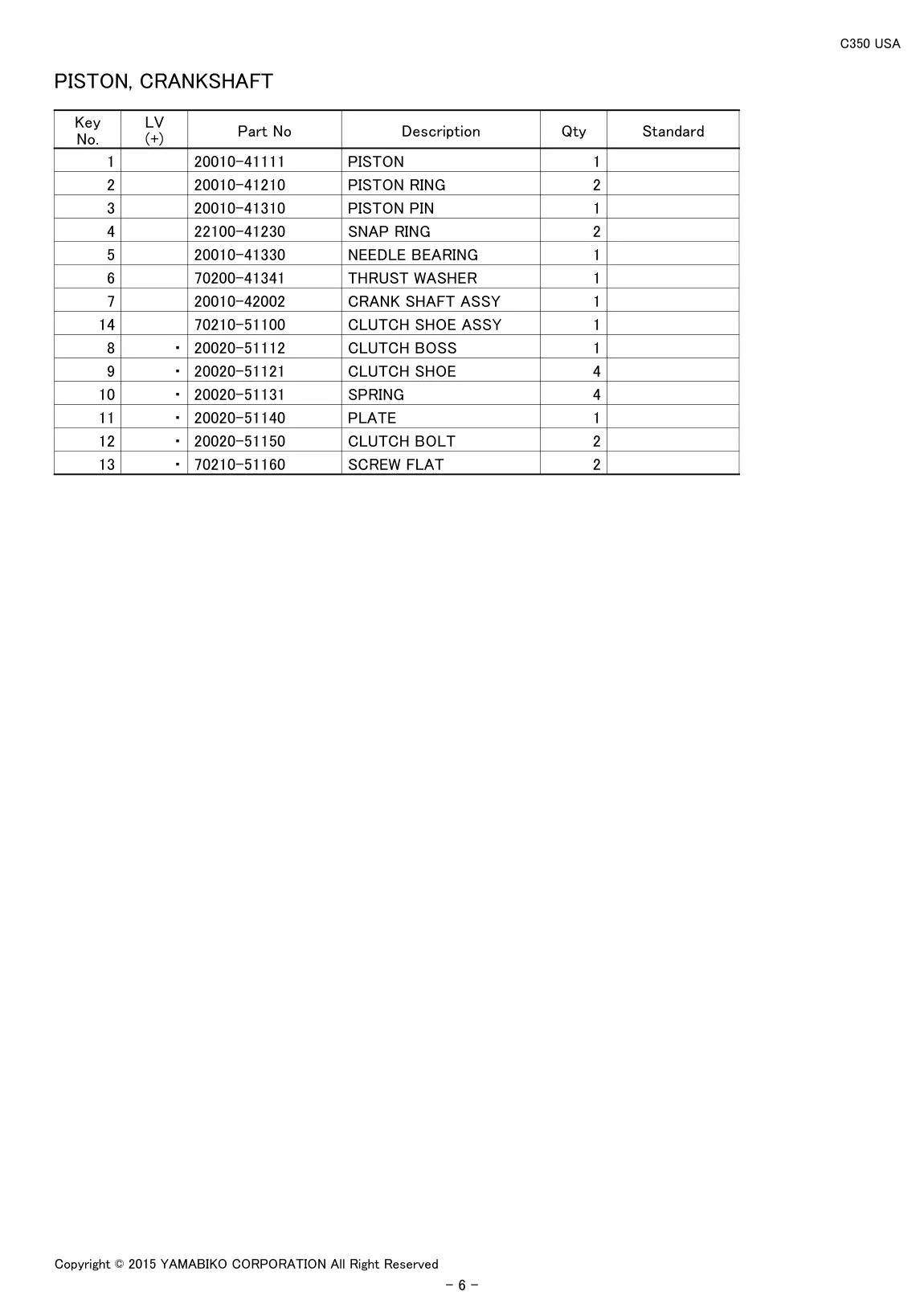

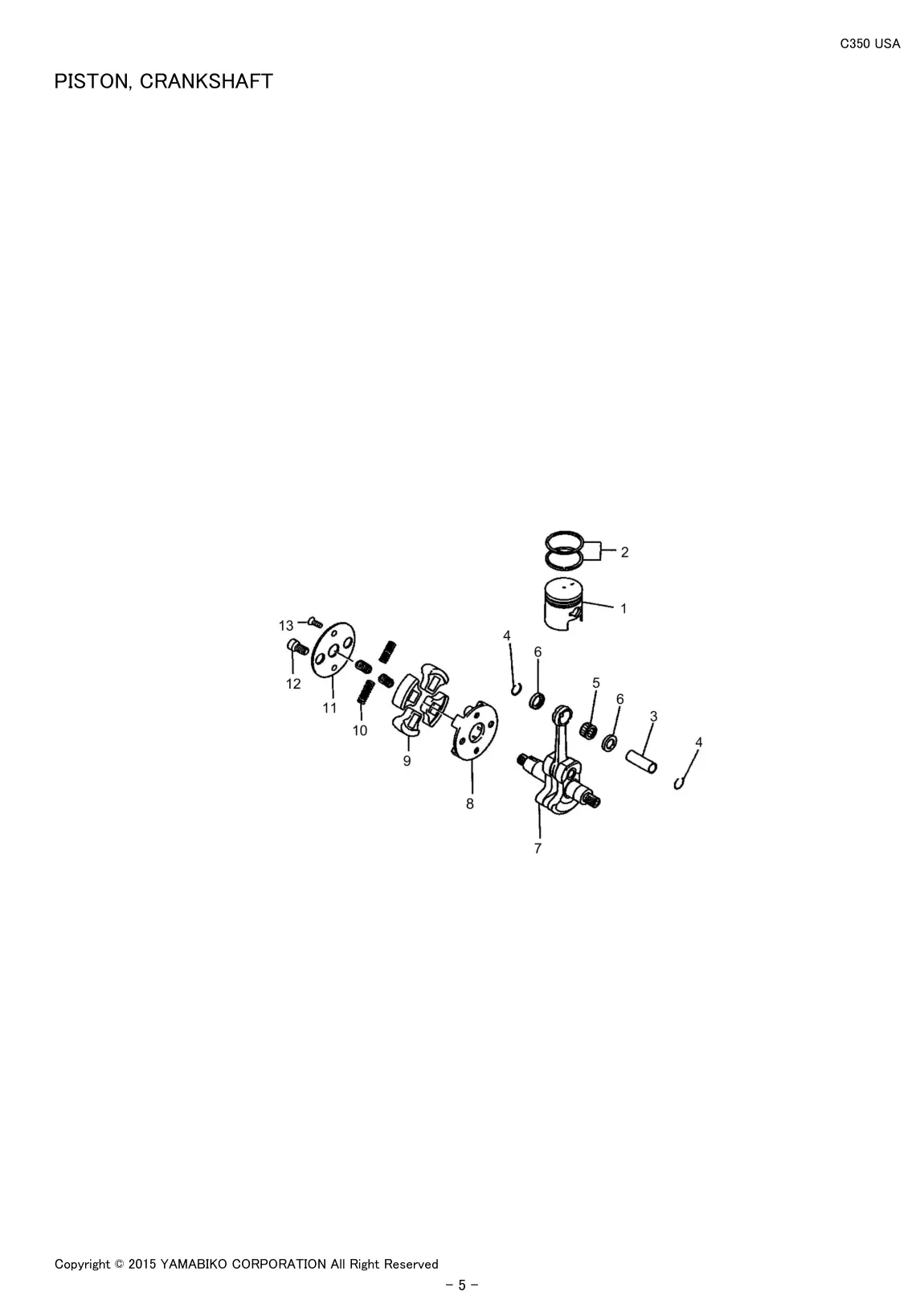

| 8 | PISTON, CRANKSHAFT | 1 | PISTON | 20010-41111 | 20010-41111-Online |
| 8 | PISTON, CRANKSHAFT | 10 | SPRING | 20020-51131 | 20020-51131-Online |
| 8 | PISTON, CRANKSHAFT | 11 | PLATE | 20020-51140 | 20020-51140-Online |
| 8 | PISTON, CRANKSHAFT | 12 | CLUTCH BOLT | 20020-51150 | 20020-51150-Online |
| 8 | PISTON, CRANKSHAFT | 13 | SCREW FLAT | 70210-51160 | 70210-51160-Online |
| 8 | PISTON, CRANKSHAFT | 14 | CLUTCH SHOE ASSY | 70210-51100 | 70210-51100-Online |
| 8 | PISTON, CRANKSHAFT | 2 | PISTON RING | 20010-41210 | 20010-41210-Online |
| 8 | PISTON, CRANKSHAFT | 3 | PISTON PIN | 20010-41310 | 20010-41310-Online |
| 8 | PISTON, CRANKSHAFT | 4 | SNAP RING | 22100-41230 | 22100-41230-Online |
| 8 | PISTON, CRANKSHAFT | 5 | NEEDLE BEARING | 20010-41330 | 20010-41330-Online |
| 8 | PISTON, CRANKSHAFT | 6 | THRUST WASHER | 70200-41341 | 70200-41341-Online |
| 8 | PISTON, CRANKSHAFT | 7 | CRANK SHAFT ASSY | 20010-42002 | 20010-42002-Online |
| 8 | PISTON, CRANKSHAFT | 8 | CLUTCH BOSS | 20020-51112 | 20020-51112-Online |
| 8 | PISTON, CRANKSHAFT | 9 | CLUTCH SHOE | 20020-51121 | 20020-51121-Online |

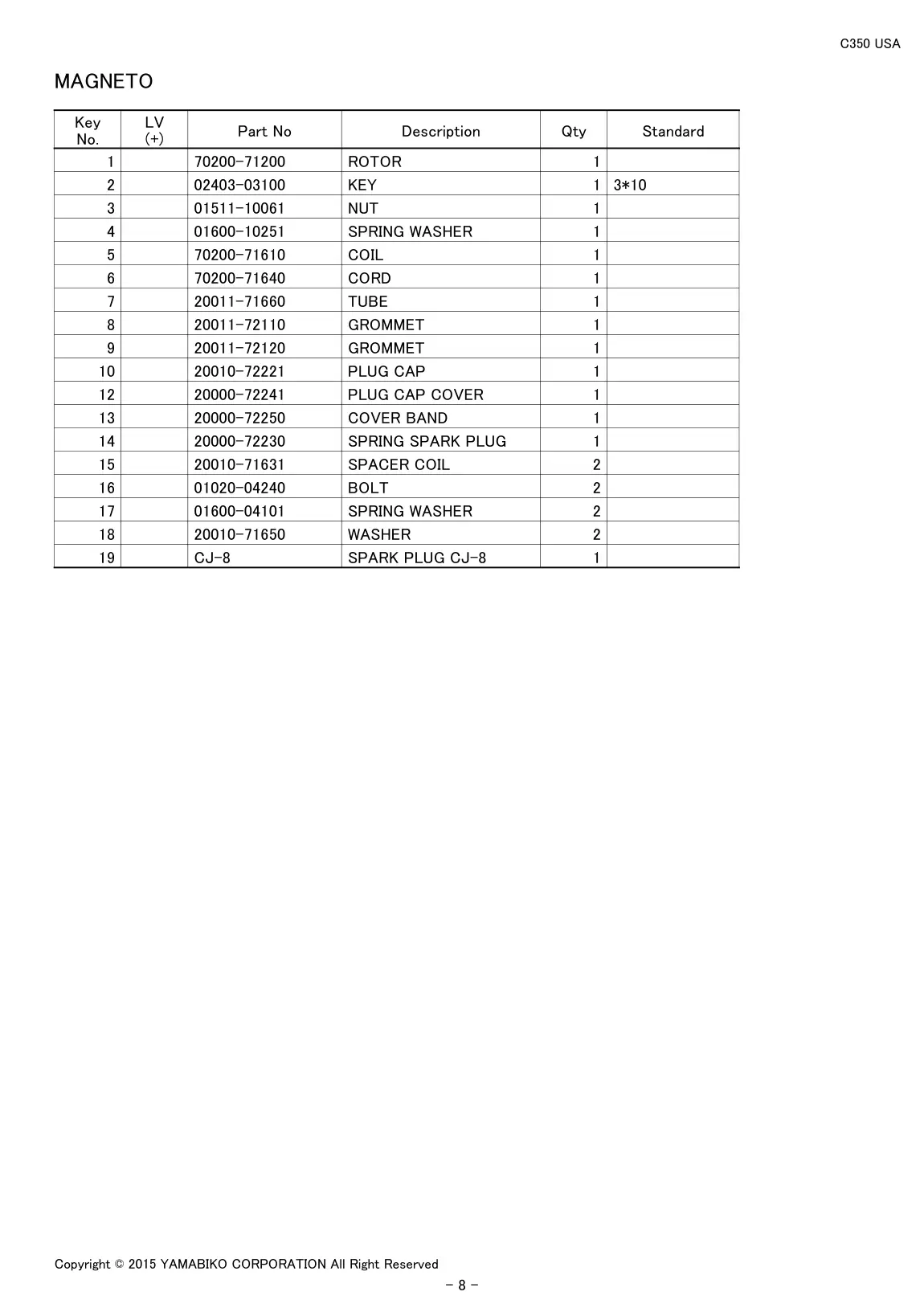

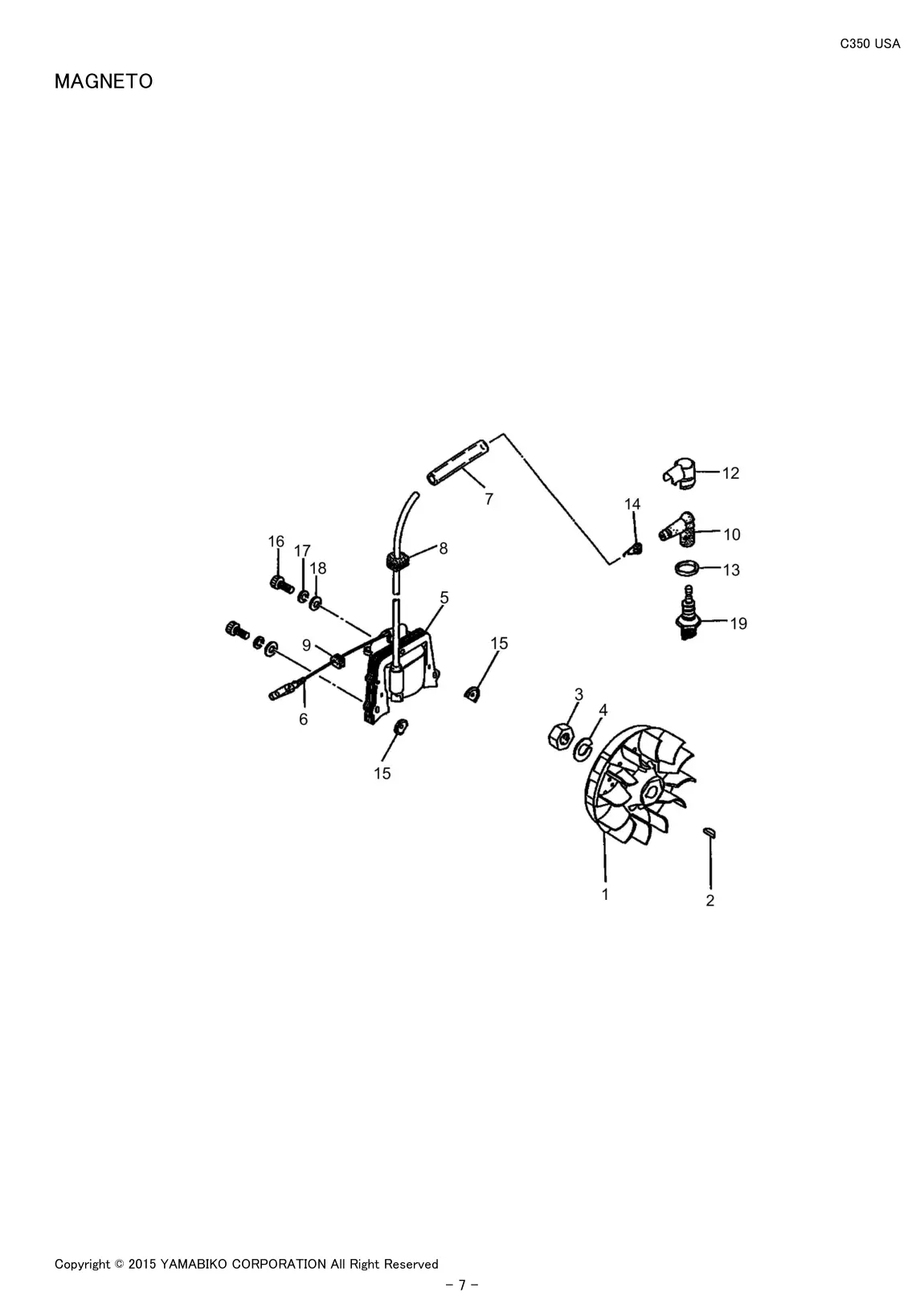

| 10 | MAGNETO | 10 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 10 | MAGNETO | 12 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 10 | MAGNETO | 13 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 10 | MAGNETO | 14 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 10 | MAGNETO | 15 | SPACER COIL | 20010-71631 | 20010-71631-Online |
| 10 | MAGNETO | 16 | BOLT | 01020-04240 | 01020-04240-Online |
| 10 | MAGNETO | 17 | SPRING WASHER | 01600-04101 | 01600-04101-Online |
| 10 | MAGNETO | 18 | WASHER | 20010-71650 | 20010-71650-Online |
| 10 | MAGNETO | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 10 | MAGNETO | 3 | NUT | 01511-10061 | 01511-10061-Online |
| 10 | MAGNETO | 4 | SPRING WASHER | 01600-10251 | 01600-10251-Online |
| 10 | MAGNETO | 5 | COIL | 70200-71610 | 70200-71610-Online |
| 10 | MAGNETO | 7 | TUBE | 20011-71660 | 20011-71660-Online |
| 10 | MAGNETO | 8 | GROMMET | 20011-72110 | 20011-72110-Online |
| 10 | MAGNETO | 9 | GROMMET | 20011-72120 | 20011-72120-Online |

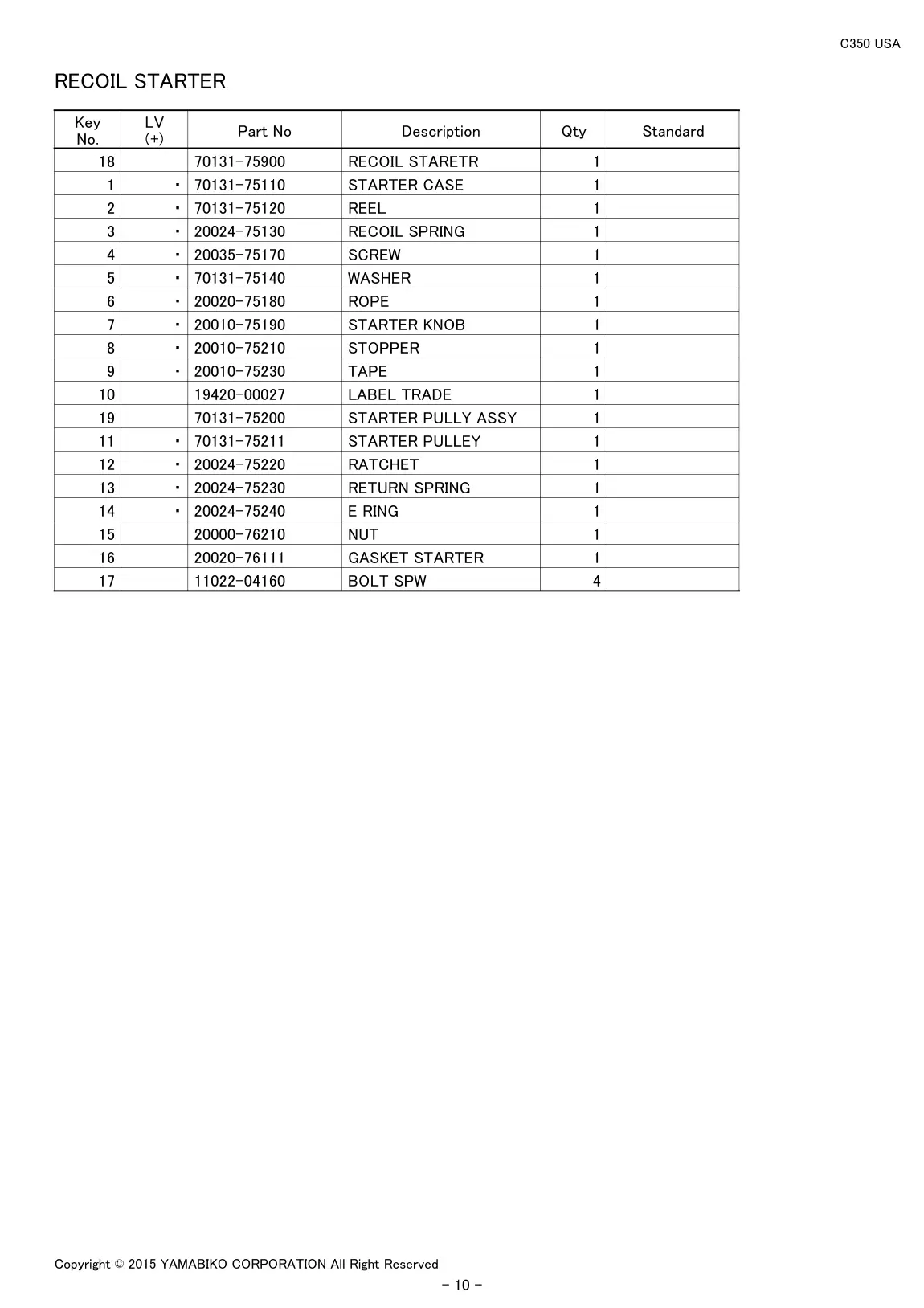

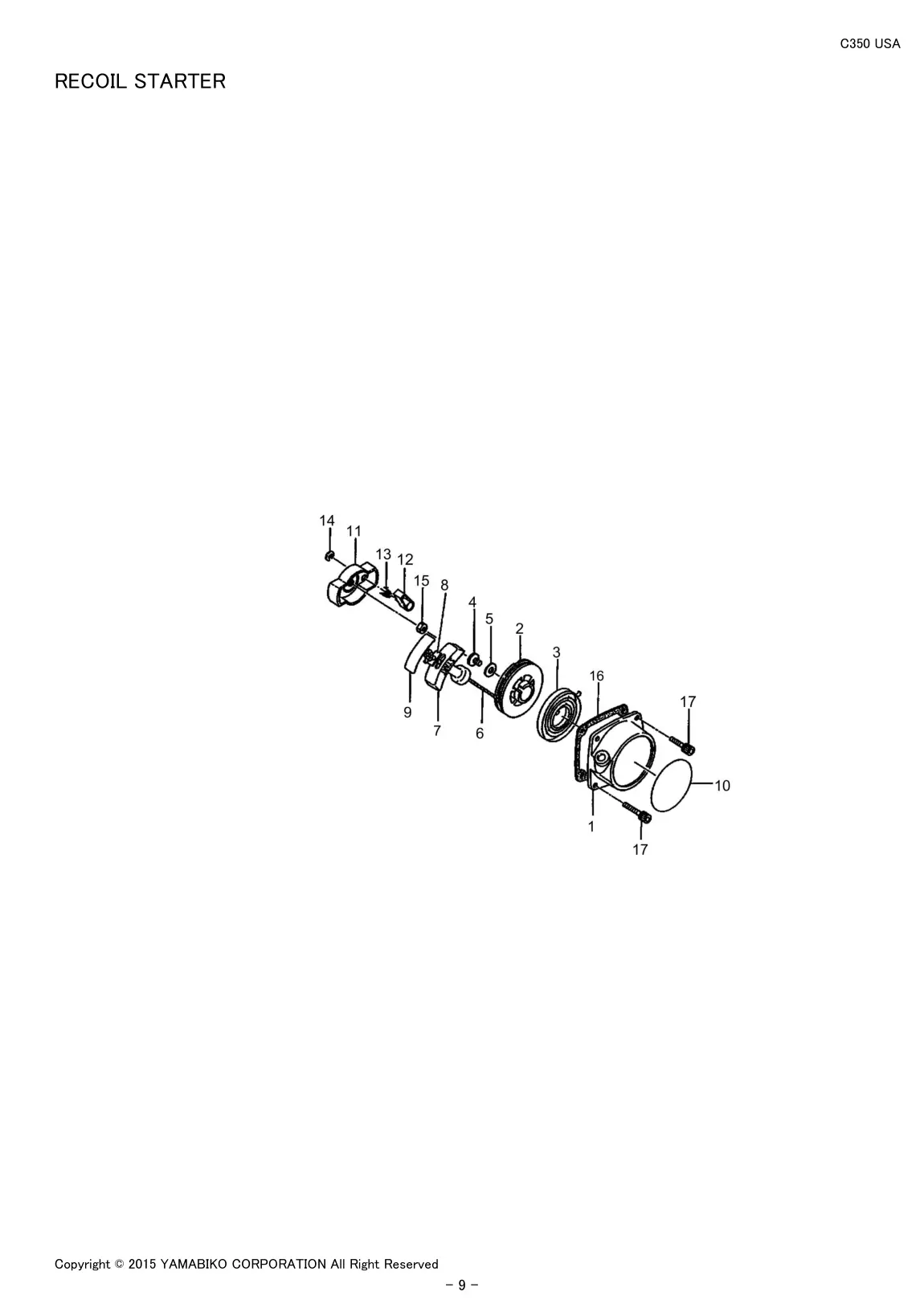

| 12 | RECOIL STARTER | 1 | STARTER CASE | 70131-75110 | 70131-75110-Online |
| 12 | RECOIL STARTER | 10 | LABEL TRADE | 19420-00027 | 19420-00027-Online |
| 12 | RECOIL STARTER | 11 | STARTER PULLEY | 70131-75211 | 70131-75211-Online |
| 12 | RECOIL STARTER | 12 | RATCHET | 20024-75220 | 20024-75220-Online |
| 12 | RECOIL STARTER | 13 | RETURN SPRING | 20024-75230 | 20024-75230-Online |
| 12 | RECOIL STARTER | 14 | E RING | 20024-75240 | 20024-75240-Online |
| 12 | RECOIL STARTER | 15 | NUT | 20000-76210 | 20000-76210-Online |
| 12 | RECOIL STARTER | 16 | GASKET STARTER | 20020-76111 | 20020-76111-Online |
| 12 | RECOIL STARTER | 17 | BOLT SPW | 11022-04160 | 11022-04160-Online |
| 12 | RECOIL STARTER | 18 | RECOIL STARETR | 70131-75900 | 70131-75900-Online |
| 12 | RECOIL STARTER | 19 | STARTER PULLY ASSY | 70131-75200 | 70131-75200-Online |
| 12 | RECOIL STARTER | 2 | REEL | 70131-75120 | 70131-75120-Online |
| 12 | RECOIL STARTER | 3 | RECOIL SPRING | 20024-75130 | 20024-75130-Online |
| 12 | RECOIL STARTER | 4 | SCREW | 20035-75170 | 20035-75170-Online |
| 12 | RECOIL STARTER | 5 | WASHER | 70131-75140 | 70131-75140-Online |
| 12 | RECOIL STARTER | 6 | ROPE | 20020-75180 | 20020-75180-Online |
| 12 | RECOIL STARTER | 7 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 12 | RECOIL STARTER | 8 | STOPPER | 20010-75210 | 20010-75210-Online |

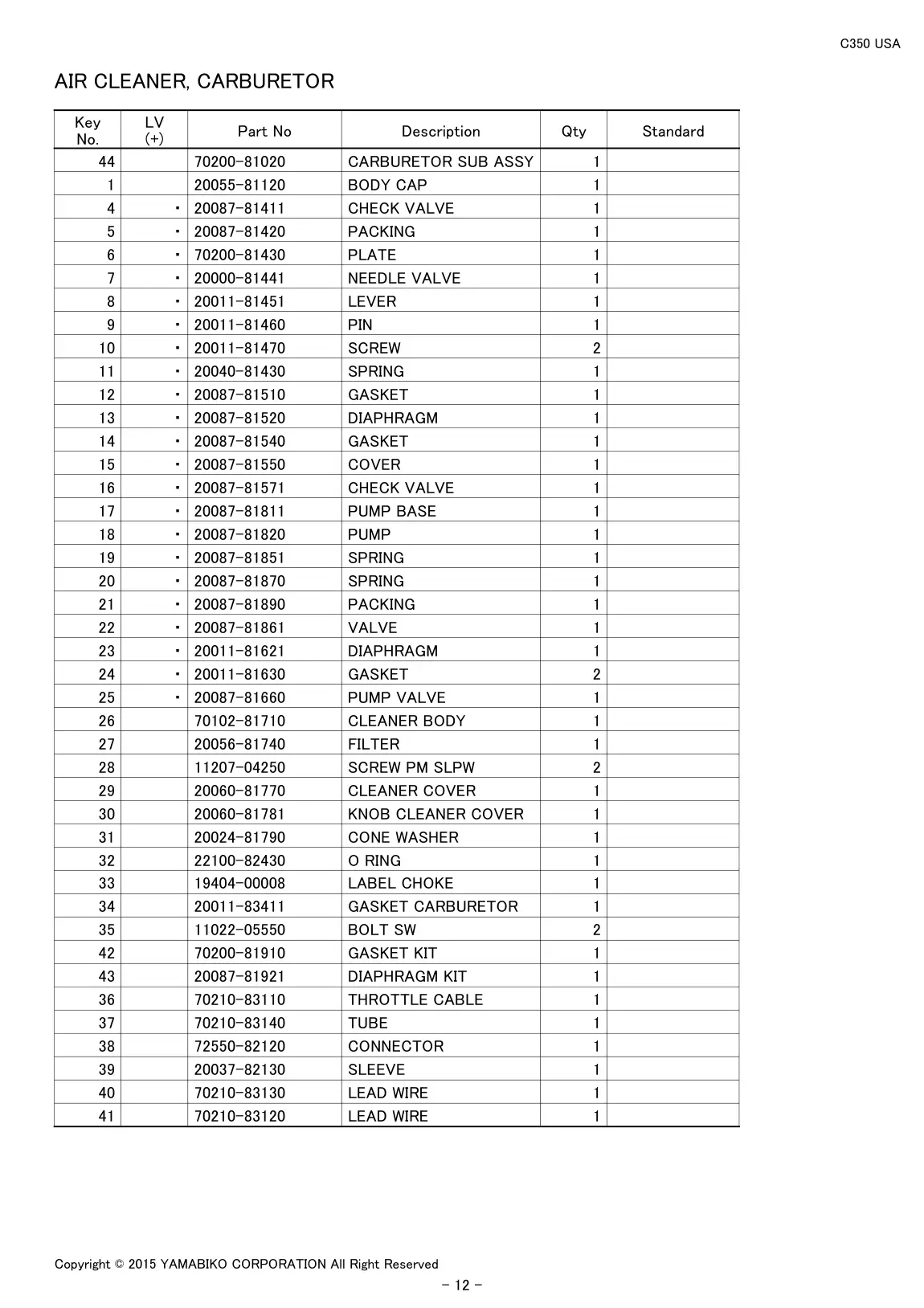

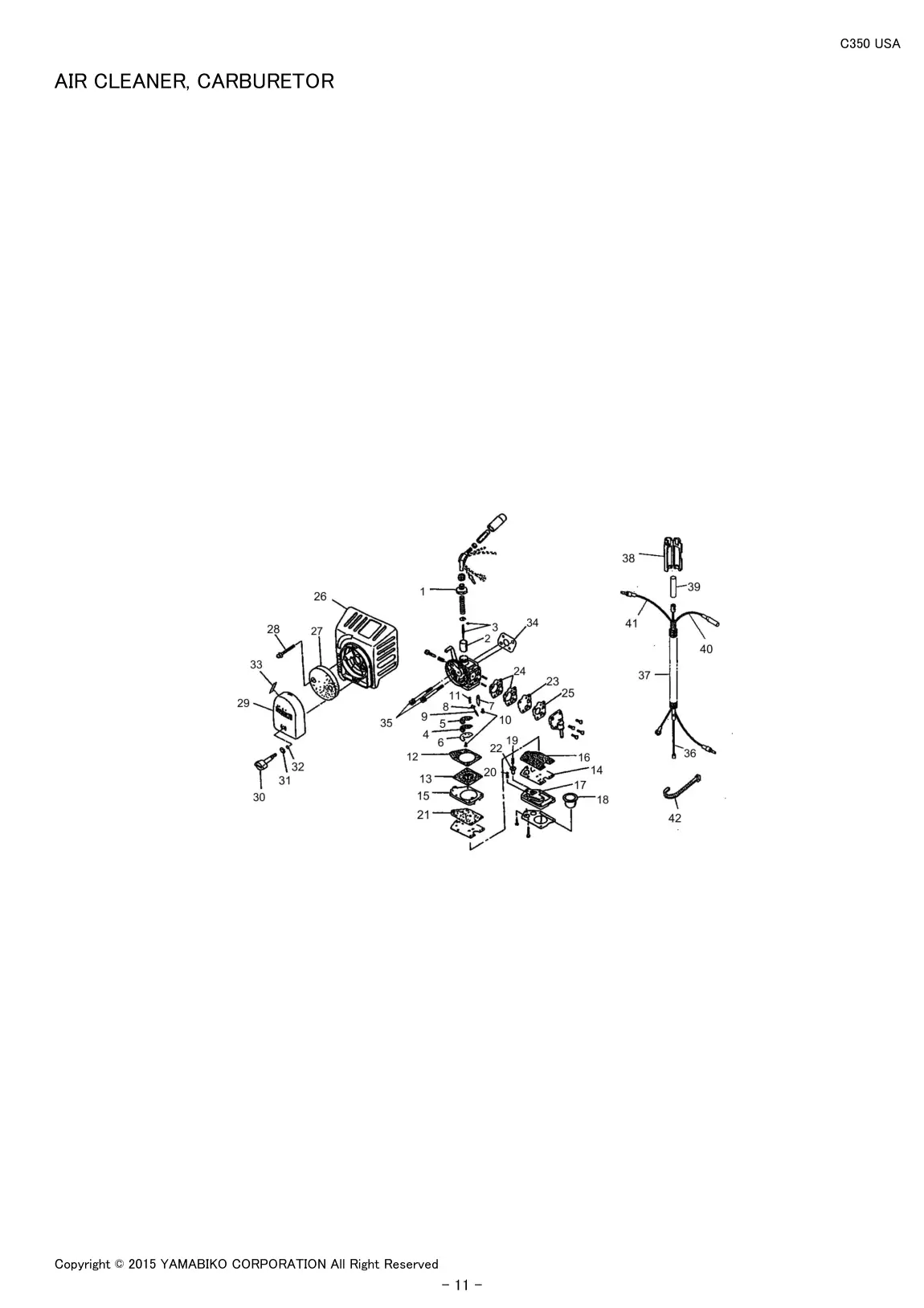

| 14 | AIR CLEANER, CARBURETOR | 1 | BODY CAP | 20055-81120 | 20055-81120-Online |
| 14 | AIR CLEANER, CARBURETOR | 10 | SCREW | 20011-81470 | 20011-81470-Online |
| 14 | AIR CLEANER, CARBURETOR | 11 | SPRING | 20040-81430 | 20040-81430-Online |
| 14 | AIR CLEANER, CARBURETOR | 12 | GASKET | 20087-81510 | 20087-81510-Online |
| 14 | AIR CLEANER, CARBURETOR | 13 | DIAPHRAGM | 20087-81520 | 20087-81520-Online |
| 14 | AIR CLEANER, CARBURETOR | 14 | GASKET | 20087-81540 | 20087-81540-Online |
| 14 | AIR CLEANER, CARBURETOR | 15 | COVER | 20087-81550 | 20087-81550-Online |
| 14 | AIR CLEANER, CARBURETOR | 16 | CHECK VALVE | 20087-81571 | 20087-81571-Online |
| 14 | AIR CLEANER, CARBURETOR | 17 | PUMP BASE | 20087-81811 | 20087-81811-Online |
| 14 | AIR CLEANER, CARBURETOR | 18 | PUMP | 20087-81820 | 20087-81820-Online |
| 14 | AIR CLEANER, CARBURETOR | 19 | SPRING | 20087-81851 | 20087-81851-Online |
| 14 | AIR CLEANER, CARBURETOR | 20 | SPRING | 20087-81870 | 20087-81870-Online |
| 14 | AIR CLEANER, CARBURETOR | 21 | PACKING | 20087-81890 | 20087-81890-Online |
| 14 | AIR CLEANER, CARBURETOR | 22 | VALVE | 20087-81861 | 20087-81861-Online |
| 14 | AIR CLEANER, CARBURETOR | 23 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 14 | AIR CLEANER, CARBURETOR | 24 | GASKET | 20011-81630 | 20011-81630-Online |
| 14 | AIR CLEANER, CARBURETOR | 25 | PUMP VALVE | 20087-81660 | 20087-81660-Online |
| 14 | AIR CLEANER, CARBURETOR | 26 | CLEANER BODY | 70102-81710 | 70102-81710-Online |
| 14 | AIR CLEANER, CARBURETOR | 27 | FILTER | 20056-81740 | 20056-81740-Online |
| 14 | AIR CLEANER, CARBURETOR | 28 | SCREW PM SLPW | 11207-04250 | 11207-04250-Online |
| 14 | AIR CLEANER, CARBURETOR | 29 | CLEANER COVER | 20060-81770 | 20060-81770-Online |
| 14 | AIR CLEANER, CARBURETOR | 30 | KNOB CLEANER COVER | 20060-81781 | 20060-81781-Online |
| 14 | AIR CLEANER, CARBURETOR | 31 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 14 | AIR CLEANER, CARBURETOR | 32 | O RING | 22100-82430 | 22100-82430-Online |
| 14 | AIR CLEANER, CARBURETOR | 33 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 14 | AIR CLEANER, CARBURETOR | 34 | GASKET CARBURETOR | 20011-83411 | 20011-83411-Online |
| 14 | AIR CLEANER, CARBURETOR | 35 | BOLT SW | 11022-05550 | 11022-05550-Online |
| 14 | AIR CLEANER, CARBURETOR | 36 | THROTTLE CABLE | 70210-83110 | 70210-83110-Online |
| 14 | AIR CLEANER, CARBURETOR | 37 | TUBE | 70210-83140 | 70210-83140-Online |
| 14 | AIR CLEANER, CARBURETOR | 38 | CONNECTOR | 72550-82120 | 72550-82120-Online |
| 14 | AIR CLEANER, CARBURETOR | 39 | SLEEVE | 20037-82130 | 20037-82130-Online |
| 14 | AIR CLEANER, CARBURETOR | 4 | CHECK VALVE | 20087-81411 | 20087-81411-Online |
| 14 | AIR CLEANER, CARBURETOR | 40 | LEAD WIRE | 70210-83130 | 70210-83130-Online |
| 14 | AIR CLEANER, CARBURETOR | 41 | LEAD WIRE | 70210-83120 | 70210-83120-Online |
| 14 | AIR CLEANER, CARBURETOR | 42 | GASKET KIT | 70200-81910 | 70200-81910-Online |
| 14 | AIR CLEANER, CARBURETOR | 43 | DIAPHRAGM KIT | 20087-81921 | 20087-81921-Online |
| 14 | AIR CLEANER, CARBURETOR | 44 | CARBURETOR SUB ASSY | 70200-81020 | 70200-81020-Online |
| 14 | AIR CLEANER, CARBURETOR | 5 | PACKING | 20087-81420 | 20087-81420-Online |
| 14 | AIR CLEANER, CARBURETOR | 6 | PLATE | 70200-81430 | 70200-81430-Online |
| 14 | AIR CLEANER, CARBURETOR | 7 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 14 | AIR CLEANER, CARBURETOR | 8 | LEVER | 20011-81451 | 20011-81451-Online |
| 14 | AIR CLEANER, CARBURETOR | 9 | PIN | 20011-81460 | 20011-81460-Online |

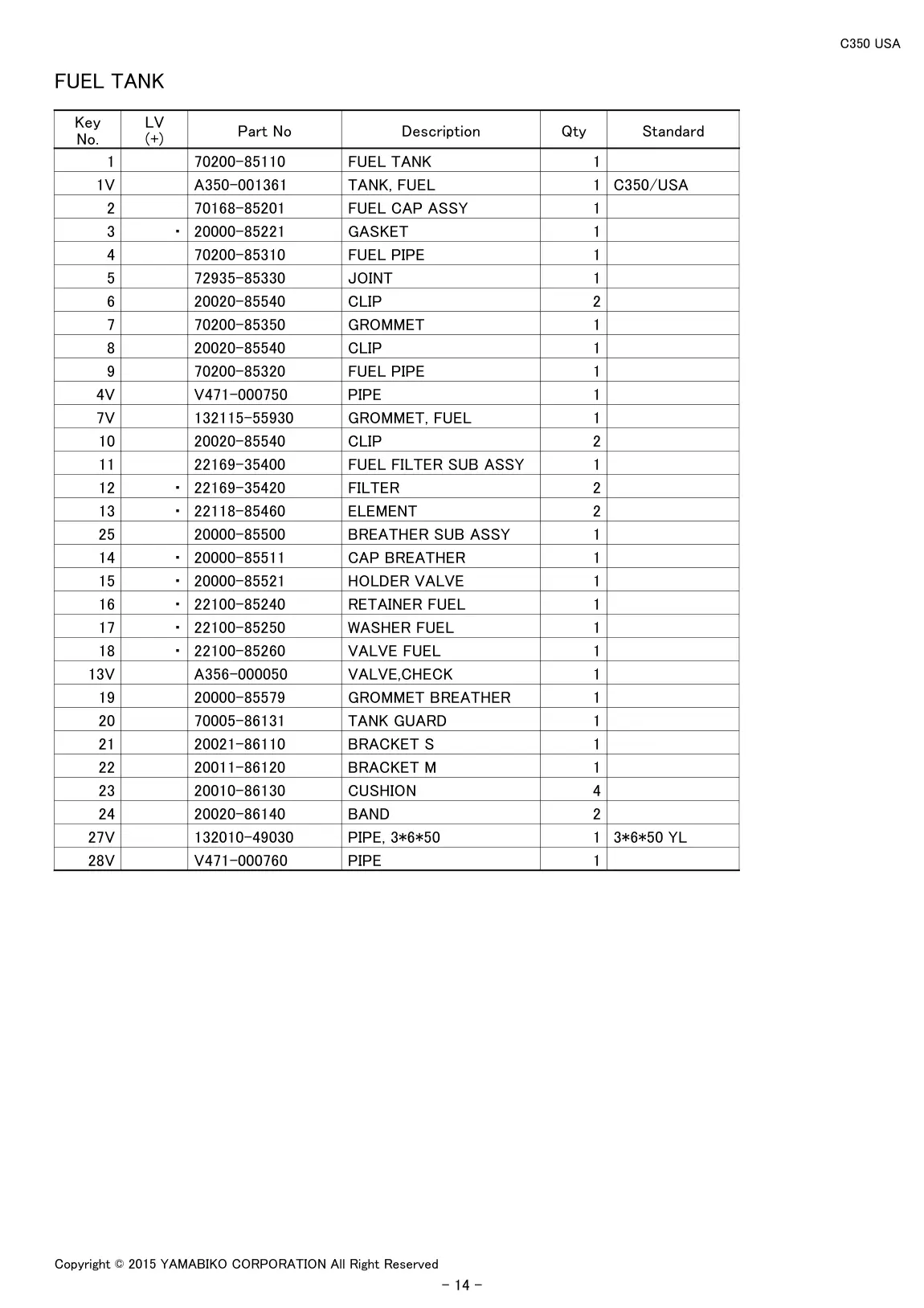

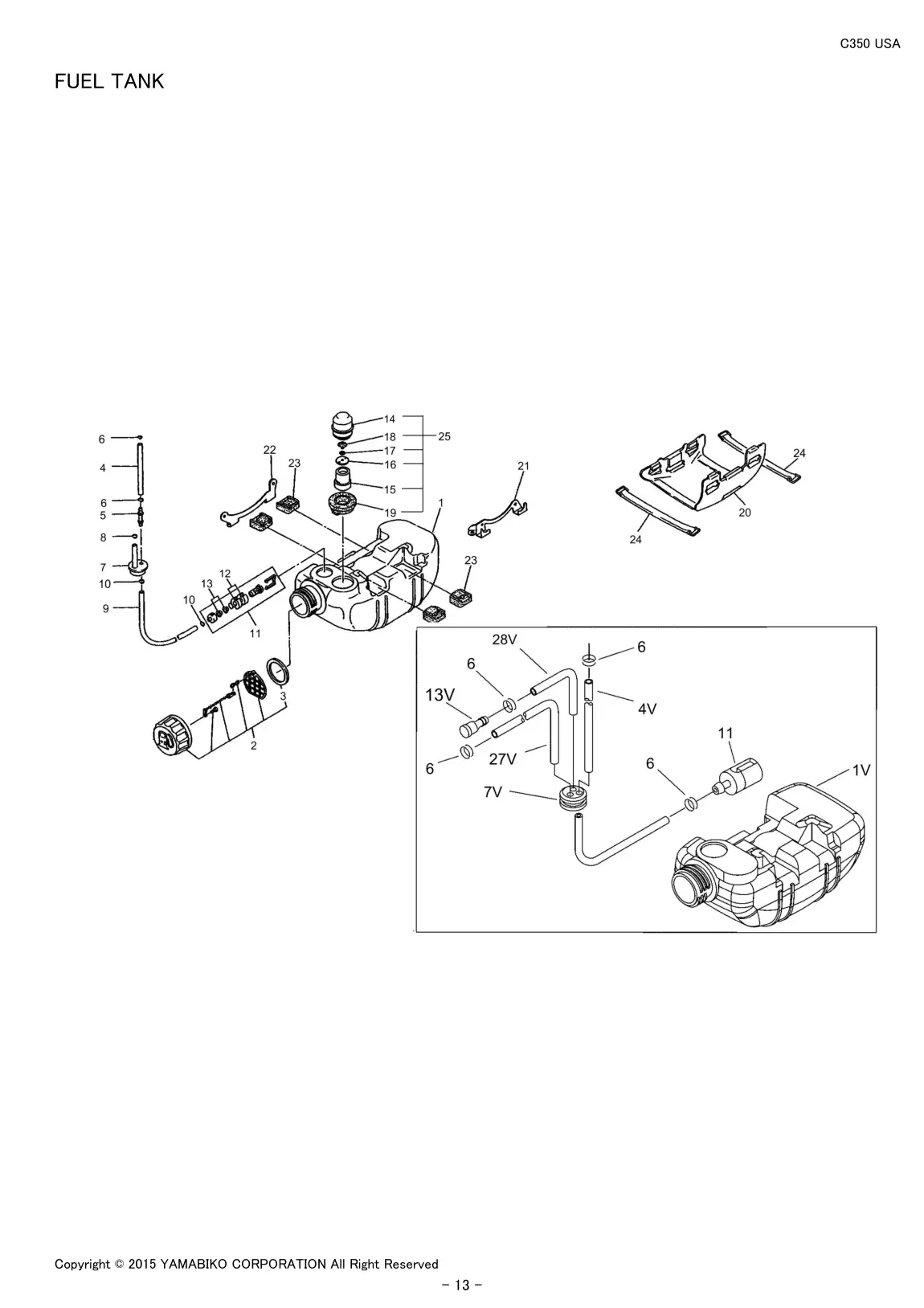

| 16 | FUEL TANK | 1 | FUEL TANK | 70200-85110 | 70200-85110-Online |
| 16 | FUEL TANK | 10 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 11 | FUEL FILTER SUB ASSY | 22169-35400 | 22169-35400-Online |
| 16 | FUEL TANK | 12 | FILTER | 22169-35420 | 22169-35420-Online |
| 16 | FUEL TANK | 13 | ELEMENT | 22118-85460 | 22118-85460-Online |
| 16 | FUEL TANK | 13V | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 16 | FUEL TANK | 14 | CAP BREATHER | 20000-85511 | 20000-85511-Online |
| 16 | FUEL TANK | 15 | HOLDER VALVE | 20000-85521 | 20000-85521-Online |
| 16 | FUEL TANK | 16 | RETAINER FUEL | 22100-85240 | 22100-85240-Online |
| 16 | FUEL TANK | 17 | WASHER FUEL | 22100-85250 | 22100-85250-Online |
| 16 | FUEL TANK | 18 | VALVE FUEL | 22100-85260 | 22100-85260-Online |
| 16 | FUEL TANK | 19 | GROMMET BREATHER | 20000-85579 | 20000-85579-Online |
| 16 | FUEL TANK | 1V | TANK, FUEL | A350-001361 | A350-001361-Online |
| 16 | FUEL TANK | 2 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 16 | FUEL TANK | 20 | TANK GUARD | 70005-86131 | 70005-86131-Online |
| 16 | FUEL TANK | 21 | BRACKET S | 20021-86110 | 20021-86110-Online |
| 16 | FUEL TANK | 22 | BRACKET M | 20011-86120 | 20011-86120-Online |
| 16 | FUEL TANK | 23 | CUSHION | 20010-86130 | 20010-86130-Online |
| 16 | FUEL TANK | 24 | BAND | 20020-86140 | 20020-86140-Online |
| 16 | FUEL TANK | 25 | BREATHER SUB ASSY | 20000-85500 | 20000-85500-Online |
| 16 | FUEL TANK | 27V | PIPE, 3*6*50 | 132010-49030 | 132010-49030-Online |
| 16 | FUEL TANK | 28V | PIPE | V471-000760 | V471-000760-Online |
| 16 | FUEL TANK | 3 | GASKET | 20000-85221 | 20000-85221-Online |
| 16 | FUEL TANK | 4 | FUEL PIPE | 70200-85310 | 70200-85310-Online |
| 16 | FUEL TANK | 4V | PIPE | V471-000750 | V471-000750-Online |
| 16 | FUEL TANK | 5 | JOINT | 72935-85330 | 72935-85330-Online |
| 16 | FUEL TANK | 6 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 7 | GROMMET | 70200-85350 | 70200-85350-Online |
| 16 | FUEL TANK | 7V | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 16 | FUEL TANK | 8 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 9 | FUEL PIPE | 70200-85320 | 70200-85320-Online |

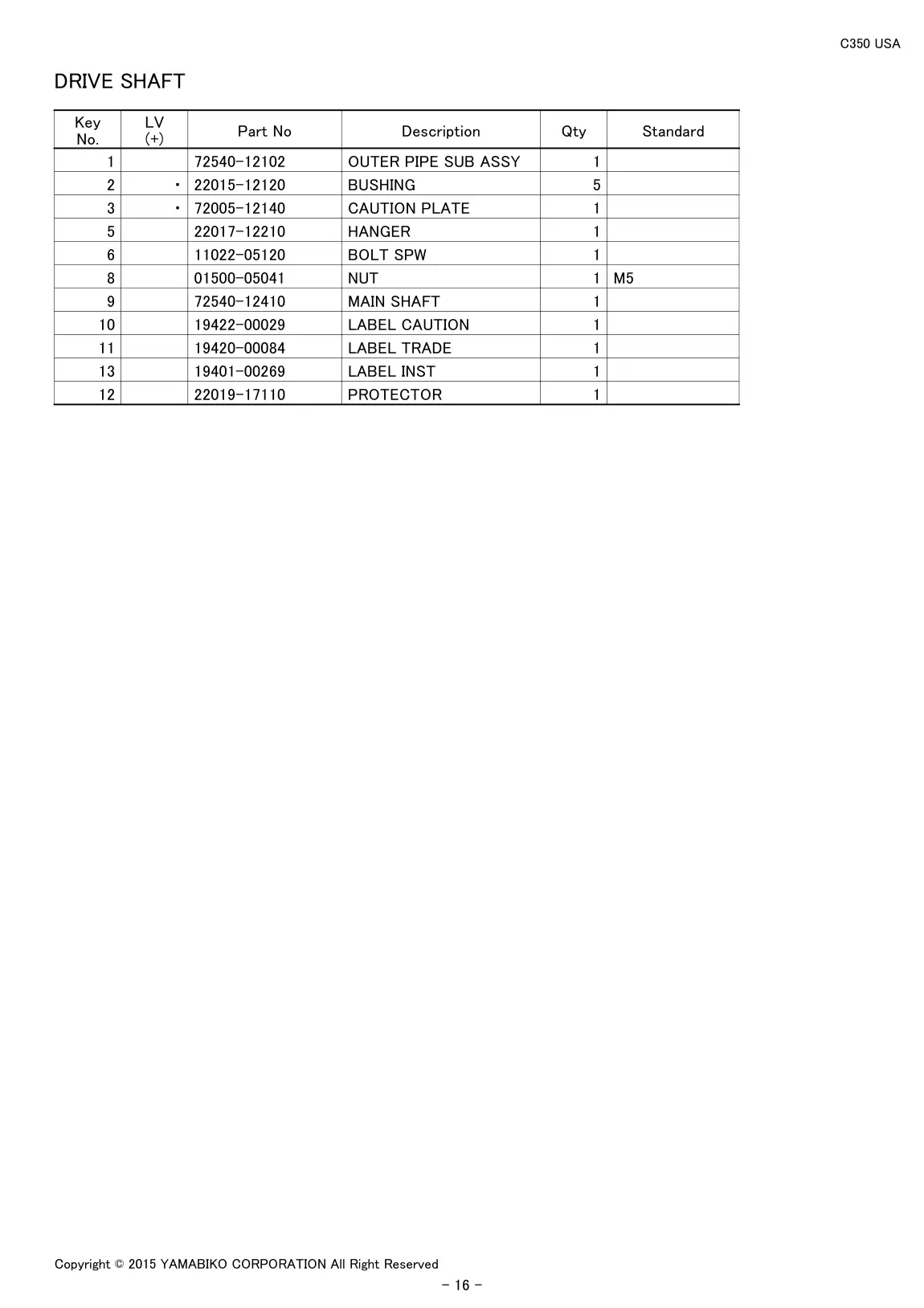

| 18 | DRIVE SHAFT | 1 | OUTER PIPE SUB ASSY | 72540-12102 | 72540-12102-Online |
| 18 | DRIVE SHAFT | 10 | LABEL CAUTION | 19422-00029 | 19422-00029-Online |
| 18 | DRIVE SHAFT | 11 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 18 | DRIVE SHAFT | 12 | PROTECTOR | 22019-17110 | 22019-17110-Online |
| 18 | DRIVE SHAFT | 13 | LABEL INST | 19401-00269 | 19401-00269-Online |
| 18 | DRIVE SHAFT | 2 | BUSHING | 22015-12120 | 22015-12120-Online |
| 18 | DRIVE SHAFT | 3 | CAUTION PLATE | 72005-12140 | 72005-12140-Online |
| 18 | DRIVE SHAFT | 5 | HANGER | 22017-12210 | 22017-12210-Online |
| 18 | DRIVE SHAFT | 6 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 18 | DRIVE SHAFT | 8 | NUT | 01500-05041 | 01500-05041-Online |
| 18 | DRIVE SHAFT | 9 | MAIN SHAFT | 72540-12410 | 72540-12410-Online |

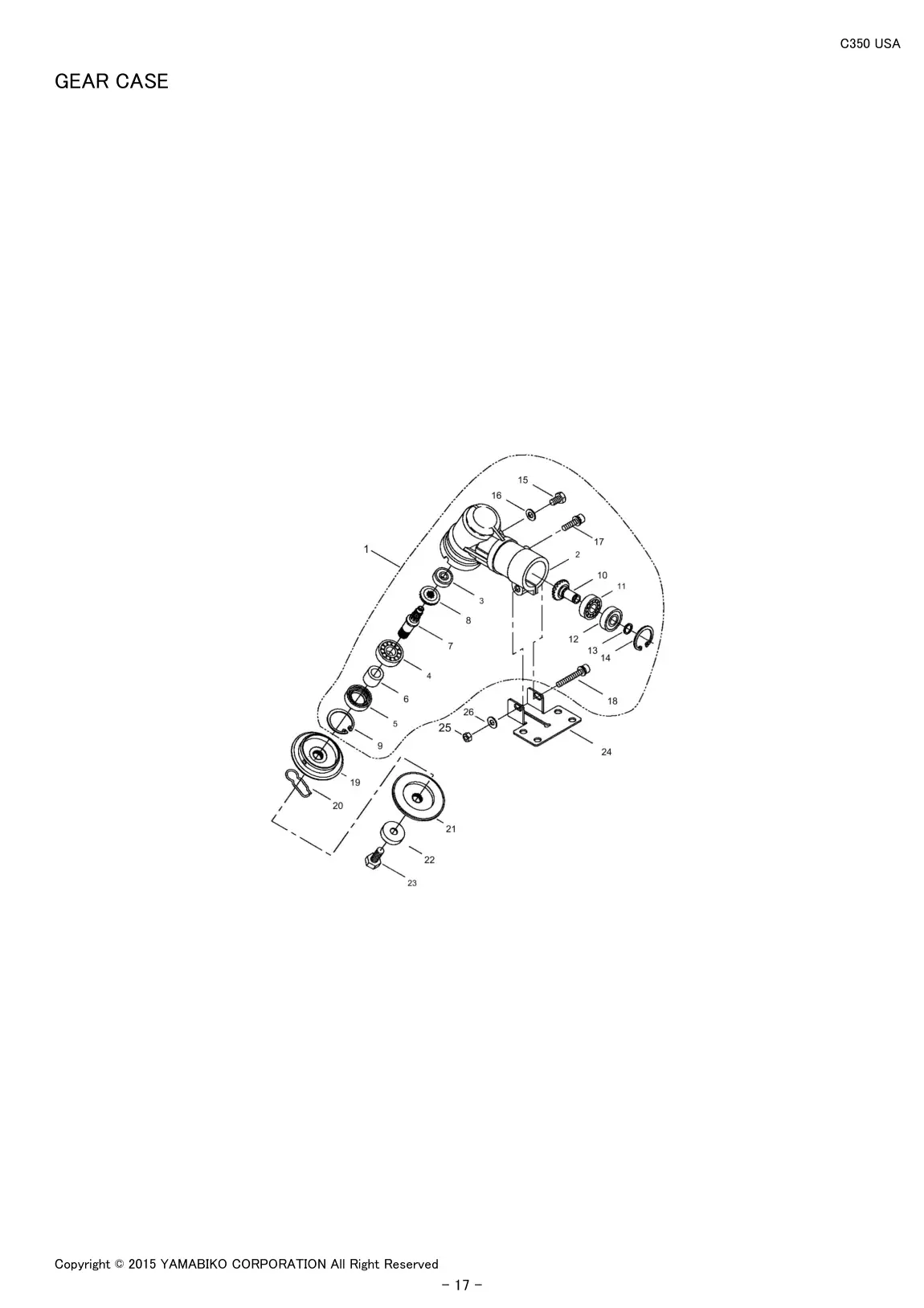

| 20 | GEAR CASE | 1 | GEAR CASE COMP | 72540-63020 | 72540-63020-Online |
| 20 | GEAR CASE | 10 | PINION SET | 22015-13390 | 22015-13390-Online |
| 20 | GEAR CASE | 11 | BEARING | 02000-06001 | 02000-06001-Online |
| 20 | GEAR CASE | 12 | BEARING | 02002-06001 | 02002-06001-Online |
| 20 | GEAR CASE | 13 | SNAP RING | 20000-31140 | 20000-31140-Online |
| 20 | GEAR CASE | 14 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 20 | GEAR CASE | 15 | BOLT | 22015-13410 | 22015-13410-Online |
| 20 | GEAR CASE | 16 | GASKET | 22015-13420 | 22015-13420-Online |
| 20 | GEAR CASE | 17 | BOLT SPW | 11022-06140 | 11022-06140-Online |
| 20 | GEAR CASE | 18 | BOLT SPW | 11022-06400 | 11022-06400-Online |
| 20 | GEAR CASE | 19 | HOLDER A | 72447-13240 | 72447-13240-Online |
| 20 | GEAR CASE | 2 | GEAR CASE | 63020-63111 | 63020-63111-Online |
| 20 | GEAR CASE | 20 | SLIDE PIN | 22015-13290 | 22015-13290-Online |
| 20 | GEAR CASE | 21 | HOLDER | 72017-63170 | 72017-63170-Online |
| 20 | GEAR CASE | 22 | BOLT GUARD | 22015-13270 | 22015-13270-Online |
| 20 | GEAR CASE | 23 | BOLT | 22015-13261 | 22015-13261-Online |
| 20 | GEAR CASE | 24 | LOWER CLAMP | 72017-16130 | 72017-16130-Online |
| 20 | GEAR CASE | 25 | NUT | 01500-06051 | 01500-06051-Online |
| 20 | GEAR CASE | 26 | WASHER | 01613-06100 | 01613-06100-Online |
| 20 | GEAR CASE | 3 | BEARING | 02006-06000 | 02006-06000-Online |
| 20 | GEAR CASE | 4 | BEARING | 02000-06202 | 02000-06202-Online |
| 20 | GEAR CASE | 5 | OIL SEAL | 72447-13121 | 72447-13121-Online |
| 20 | GEAR CASE | 6 | COLLAR | 22015-13230 | 22015-13230-Online |
| 20 | GEAR CASE | 7 | GEAR SHAFT | 22015-13210 | 22015-13210-Online |
| 20 | GEAR CASE | 8 | BEVEL GEAR | 22015-13220 | 22015-13220-Online |
| 20 | GEAR CASE | 9 | SNAP RING | 02432-35150 | 02432-35150-Online |

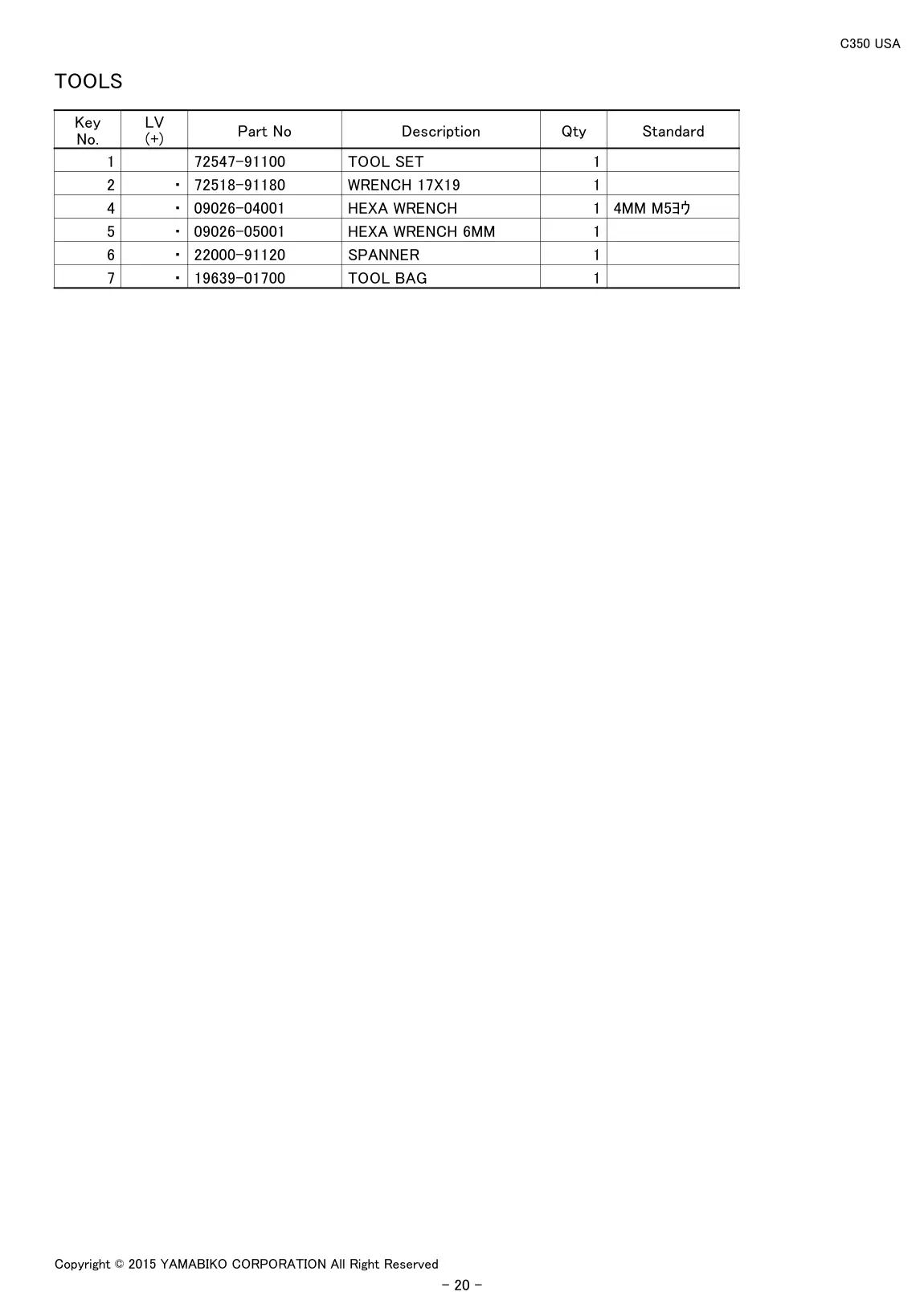

| 22 | TOOLS | 1 | TOOL SET | 72547-91100 | 72547-91100-Online |
| 22 | TOOLS | 2 | WRENCH 17X19 | 72518-91180 | 72518-91180-Online |
| 22 | TOOLS | 4 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 22 | TOOLS | 5 | HEXA WRENCH 6MM | 09026-05001 | 09026-05001-Online |
| 22 | TOOLS | 6 | SPANNER | 22000-91120 | 22000-91120-Online |
| 22 | TOOLS | 7 | TOOL BAG | 19639-01700 | 19639-01700-Online |

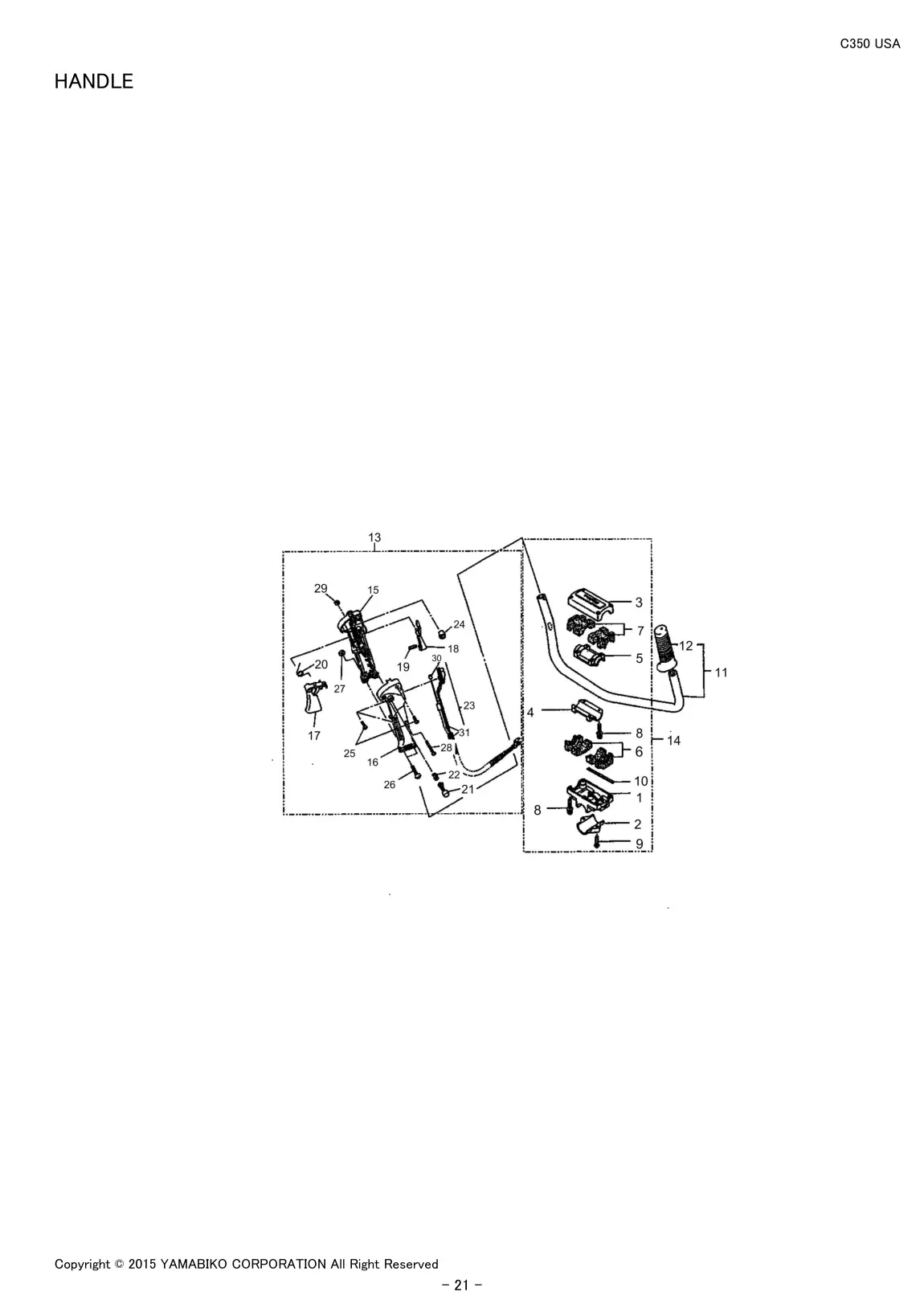

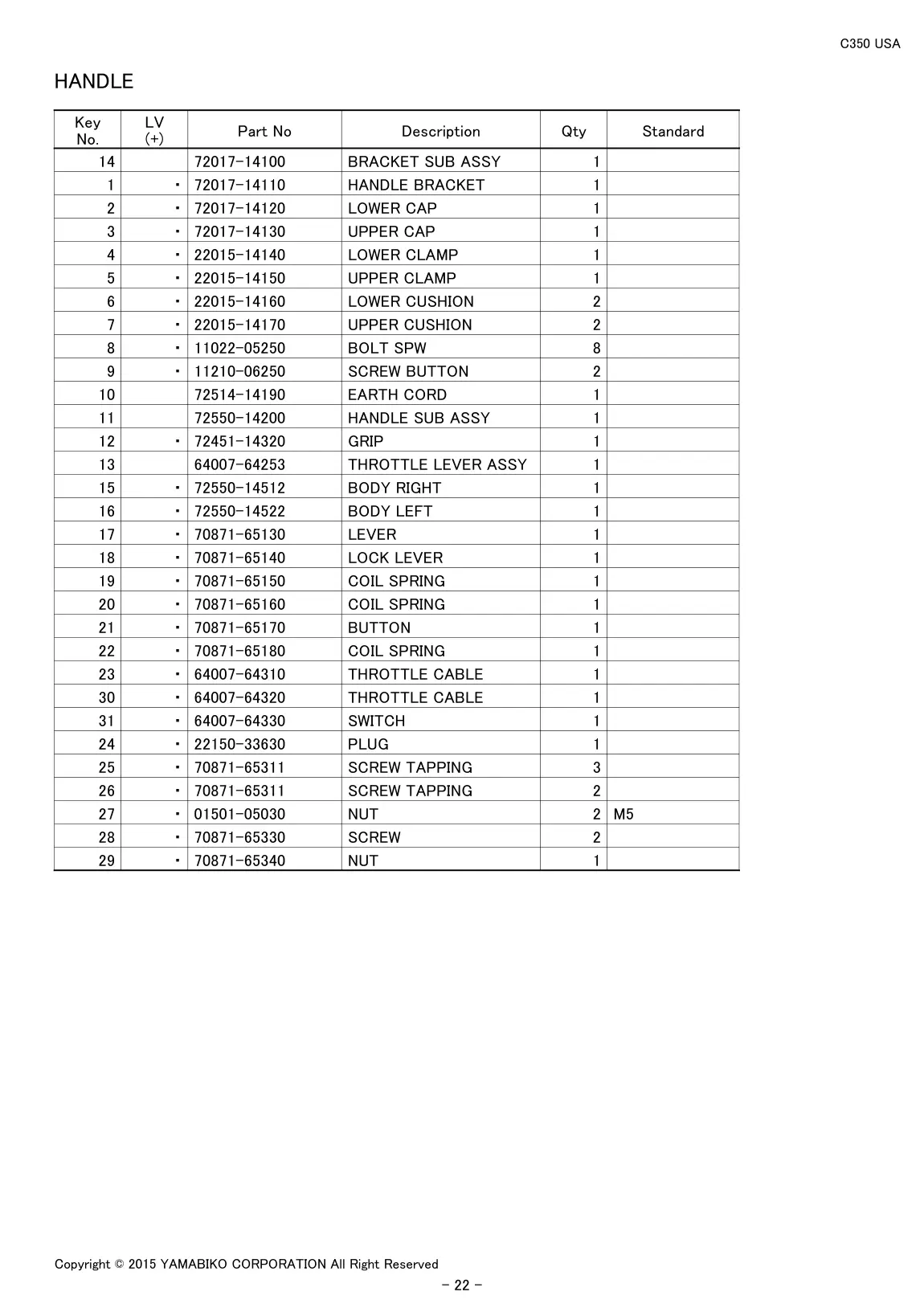

| 24 | HANDLE | 1 | HANDLE BRACKET | 72017-14110 | 72017-14110-Online |
| 24 | HANDLE | 10 | EARTH CORD | 72514-14190 | 72514-14190-Online |
| 24 | HANDLE | 11 | HANDLE SUB ASSY | 72550-14200 | 72550-14200-Online |
| 24 | HANDLE | 12 | GRIP | 72451-14320 | 72451-14320-Online |
| 24 | HANDLE | 13 | THROTTLE LEVER ASSY | 64007-64253 | 64007-64253-Online |
| 24 | HANDLE | 14 | BRACKET SUB ASSY | 72017-14100 | 72017-14100-Online |
| 24 | HANDLE | 15 | BODY RIGHT | 72550-14512 | 72550-14512-Online |
| 24 | HANDLE | 16 | BODY LEFT | 72550-14522 | 72550-14522-Online |
| 24 | HANDLE | 17 | LEVER | 70871-65130 | 70871-65130-Online |
| 24 | HANDLE | 18 | LOCK LEVER | 70871-65140 | 70871-65140-Online |
| 24 | HANDLE | 19 | COIL SPRING | 70871-65150 | 70871-65150-Online |
| 24 | HANDLE | 2 | LOWER CAP | 72017-14120 | 72017-14120-Online |
| 24 | HANDLE | 20 | COIL SPRING | 70871-65160 | 70871-65160-Online |
| 24 | HANDLE | 21 | BUTTON | 70871-65170 | 70871-65170-Online |
| 24 | HANDLE | 22 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 24 | HANDLE | 23 | THROTTLE CABLE | 64007-64310 | 64007-64310-Online |
| 24 | HANDLE | 24 | PLUG | 22150-33630 | 22150-33630-Online |
| 24 | HANDLE | 25 | SCREW TAPPING | 70871-65311 | 70871-65311-Online |
| 24 | HANDLE | 26 | SCREW TAPPING | 70871-65311 | 70871-65311-Online |
| 24 | HANDLE | 27 | NUT | 01501-05030 | 01501-05030-Online |
| 24 | HANDLE | 28 | SCREW | 70871-65330 | 70871-65330-Online |
| 24 | HANDLE | 29 | NUT | 70871-65340 | 70871-65340-Online |
| 24 | HANDLE | 3 | UPPER CAP | 72017-14130 | 72017-14130-Online |
| 24 | HANDLE | 30 | THROTTLE CABLE | 64007-64320 | 64007-64320-Online |
| 24 | HANDLE | 31 | SWITCH | 64007-64330 | 64007-64330-Online |
| 24 | HANDLE | 4 | LOWER CLAMP | 22015-14140 | 22015-14140-Online |
| 24 | HANDLE | 5 | UPPER CLAMP | 22015-14150 | 22015-14150-Online |
| 24 | HANDLE | 6 | LOWER CUSHION | 22015-14160 | 22015-14160-Online |
| 24 | HANDLE | 7 | UPPER CUSHION | 22015-14170 | 22015-14170-Online |
| 24 | HANDLE | 8 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 24 | HANDLE | 9 | SCREW BUTTON | 11210-06250 | 11210-06250-Online |

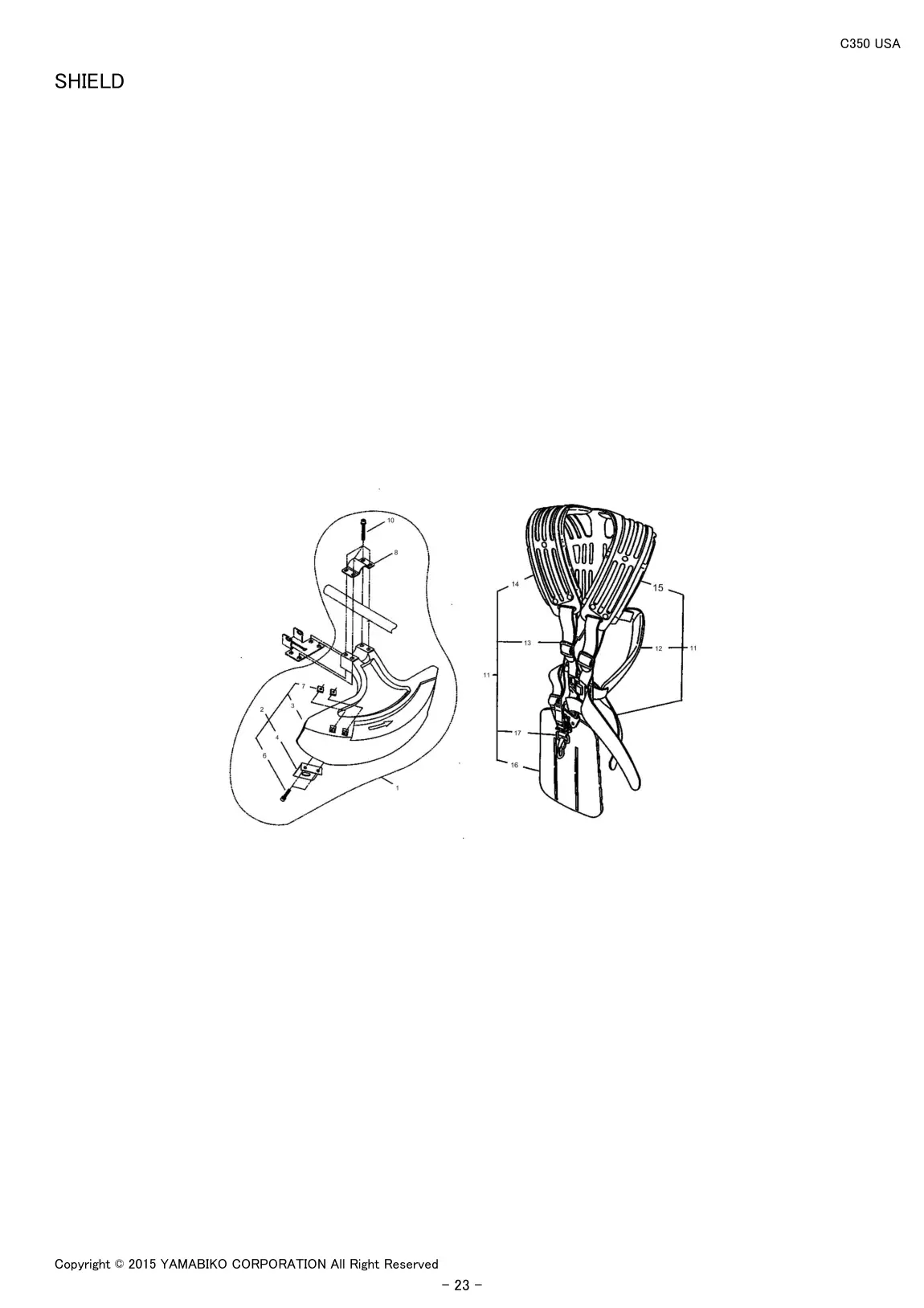

| 26 | SHIELD | 1 | GUARD SET | 64008-66311 | 64008-66311-Online |
| 26 | SHIELD | 13 | HARNESS ASSY | 64007-67011 | 64007-67011-Online |
| 26 | SHIELD | 2 | GUARD | 62903-66111 | 62903-66111-Online |
| 26 | SHIELD | 3 | SUB GUARD ASSY | 62903-66332 | 62903-66332-Online |
| 26 | SHIELD | 4 | CUTTER | 72480-16121 | 72480-16121-Online |
| 26 | SHIELD | 5 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 26 | SHIELD | 6 | NUT | 22420-16120 | 22420-16120-Online |
| 26 | SHIELD | 7 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 26 | SHIELD | 8 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 27 | DIAPHRAGM KIT | BOLT | 01020-04240 | 01020-04240-Online | |
| 27 | DIAPHRAGM KIT | 10 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 27 | DIAPHRAGM KIT | 10 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 27 | DIAPHRAGM KIT | 10 | NEEDLE VALVE | 20000-81441 | 20000-81441-Online |
| 27 | DIAPHRAGM KIT | 10 | STOPPER | 20010-75210 | 20010-75210-Online |
| 27 | DIAPHRAGM KIT | 10 | CUSHION | 20010-86130 | 20010-86130-Online |
| 27 | DIAPHRAGM KIT | 10 | GASKET STARTER | 20020-76111 | 20020-76111-Online |
| 27 | DIAPHRAGM KIT | 10 | CLIP | 20020-85540 | 20020-85540-Online |
| 27 | DIAPHRAGM KIT | 10 | RATCHET | 20024-75220 | 20024-75220-Online |
| 27 | DIAPHRAGM KIT | 10 | RETURN SPRING | 20024-75230 | 20024-75230-Online |
| 27 | DIAPHRAGM KIT | 10 | E RING | 20024-75240 | 20024-75240-Online |
| 27 | DIAPHRAGM KIT | 10 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 27 | DIAPHRAGM KIT | 10 | SLEEVE | 20037-82130 | 20037-82130-Online |
| 27 | DIAPHRAGM KIT | 12 | BOLT SPW | 11022-06140 | 11022-06140-Online |
| 27 | DIAPHRAGM KIT | 12 | SCREW BUTTON | 11210-06250 | 11210-06250-Online |
| 27 | DIAPHRAGM KIT | 12 | LABEL TRADE | 19420-00027 | 19420-00027-Online |
| 27 | DIAPHRAGM KIT | 12 | GASKET | 20000-85221 | 20000-85221-Online |
| 27 | DIAPHRAGM KIT | 12 | PIN | 20011-81460 | 20011-81460-Online |
| 27 | DIAPHRAGM KIT | 12 | SCREW | 20011-81470 | 20011-81470-Online |
| 27 | DIAPHRAGM KIT | 12 | DIAPHRAGM | 20011-81621 | 20011-81621-Online |
| 27 | DIAPHRAGM KIT | 12 | GASKET | 20011-81630 | 20011-81630-Online |
| 27 | DIAPHRAGM KIT | 12 | GASKET CARBURETOR | 20011-83411 | 20011-83411-Online |
| 27 | DIAPHRAGM KIT | 12 | BRACKET M | 20011-86120 | 20011-86120-Online |
| 27 | DIAPHRAGM KIT | 12 | SCREW | 20035-75170 | 20035-75170-Online |
| 27 | DIAPHRAGM KIT | 12 | SPRING | 20040-81430 | 20040-81430-Online |
| 27 | DIAPHRAGM KIT | 12 | BODY CAP | 20055-81120 | 20055-81120-Online |
| 27 | DIAPHRAGM KIT | 12 | FILTER | 20056-81740 | 20056-81740-Online |
| 27 | DIAPHRAGM KIT | 12 | INSULATOR | 20060-12210 | 20060-12210-Online |
| 27 | DIAPHRAGM KIT | 12 | KNOB CLEANER COVER | 20060-81781 | 20060-81781-Online |
| 27 | DIAPHRAGM KIT | 12 | CHECK VALVE | 20087-81411 | 20087-81411-Online |
| 27 | DIAPHRAGM KIT | 12 | PACKING | 20087-81420 | 20087-81420-Online |
| 27 | DIAPHRAGM KIT | 12 | GASKET | 20087-81510 | 20087-81510-Online |
| 27 | DIAPHRAGM KIT | 12 | DIAPHRAGM | 20087-81520 | 20087-81520-Online |
| 27 | DIAPHRAGM KIT | 12 | GASKET | 20087-81540 | 20087-81540-Online |
| 27 | DIAPHRAGM KIT | 12 | COVER | 20087-81550 | 20087-81550-Online |
| 27 | DIAPHRAGM KIT | 12 | CHECK VALVE | 20087-81571 | 20087-81571-Online |
| 27 | DIAPHRAGM KIT | 12 | PUMP VALVE | 20087-81660 | 20087-81660-Online |
| 27 | DIAPHRAGM KIT | 12 | PUMP BASE | 20087-81811 | 20087-81811-Online |
| 27 | DIAPHRAGM KIT | 12 | PUMP | 20087-81820 | 20087-81820-Online |
| 27 | DIAPHRAGM KIT | 12 | SPRING | 20087-81851 | 20087-81851-Online |
| 27 | DIAPHRAGM KIT | 12 | VALVE | 20087-81861 | 20087-81861-Online |
| 27 | DIAPHRAGM KIT | 12 | SPRING | 20087-81870 | 20087-81870-Online |
| 27 | DIAPHRAGM KIT | 12 | PACKING | 20087-81890 | 20087-81890-Online |
| 27 | DIAPHRAGM KIT | 14 | GROMMET, FUEL | 132115-55930 | 132115-55930-Online |
| 27 | DIAPHRAGM KIT | 14 | LABEL INST | 19401-00269 | 19401-00269-Online |
| 27 | DIAPHRAGM KIT | 14 | BREATHER SUB ASSY | 20000-85500 | 20000-85500-Online |
| 27 | DIAPHRAGM KIT | 14 | CAP BREATHER | 20000-85511 | 20000-85511-Online |
| 27 | DIAPHRAGM KIT | 14 | HOLDER VALVE | 20000-85521 | 20000-85521-Online |
| 27 | DIAPHRAGM KIT | 14 | GROMMET BREATHER | 20000-85579 | 20000-85579-Online |
| 27 | DIAPHRAGM KIT | 14 | GASKET CYLINDER | 20010-12121 | 20010-12121-Online |
| 27 | DIAPHRAGM KIT | 14 | GASKET | 20011-12221 | 20011-12221-Online |
| 27 | DIAPHRAGM KIT | 14 | CLUTCH BOSS | 20020-51112 | 20020-51112-Online |
| 27 | DIAPHRAGM KIT | 14 | BAND | 20020-86140 | 20020-86140-Online |
| 27 | DIAPHRAGM KIT | 14 | BRACKET S | 20021-86110 | 20021-86110-Online |
| 27 | DIAPHRAGM KIT | 14 | NUT | 20024-12260 | 20024-12260-Online |
| 27 | DIAPHRAGM KIT | 16 | NUT | 01500-06051 | 01500-06051-Online |
| 27 | DIAPHRAGM KIT | 16 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 27 | DIAPHRAGM KIT | 16 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 27 | DIAPHRAGM KIT | 16 | LABEL CAUTION | 19422-00029 | 19422-00029-Online |
| 27 | DIAPHRAGM KIT | 16 | TOOL BAG | 19639-01700 | 19639-01700-Online |
| 27 | DIAPHRAGM KIT | 18 | NUT | 01501-05030 | 01501-05030-Online |
| 27 | DIAPHRAGM KIT | 18 | BEARING | 02000-06001 | 02000-06001-Online |
| 27 | DIAPHRAGM KIT | 18 | BEARING | 02000-06202 | 02000-06202-Online |
| 27 | DIAPHRAGM KIT | 18 | BEARING | 02002-06001 | 02002-06001-Online |
| 27 | DIAPHRAGM KIT | 18 | BEARING | 02006-06000 | 02006-06000-Online |
| 27 | DIAPHRAGM KIT | 18 | BEARING | 02006-06002 | 02006-06002-Online |
| 27 | DIAPHRAGM KIT | 18 | SNAP RING | 02432-32120 | 02432-32120-Online |
| 27 | DIAPHRAGM KIT | 18 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 27 | DIAPHRAGM KIT | 18 | BOLT SPW | 11022-06400 | 11022-06400-Online |
| 27 | DIAPHRAGM KIT | 18 | BOLT SLPW | 11024-04160 | 11024-04160-Online |
| 27 | DIAPHRAGM KIT | 18 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 27 | DIAPHRAGM KIT | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 27 | DIAPHRAGM KIT | 2 | NUT | 01500-05041 | 01500-05041-Online |
| 27 | DIAPHRAGM KIT | 2 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 27 | DIAPHRAGM KIT | 2 | BOLT SW | 11020-05140 | 11020-05140-Online |
| 27 | DIAPHRAGM KIT | 2 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 27 | DIAPHRAGM KIT | 2 | BOLT SLPW | 11024-05120 | 11024-05120-Online |
| 27 | DIAPHRAGM KIT | 2 | SCREW PM SLPW | 11207-04250 | 11207-04250-Online |
| 27 | DIAPHRAGM KIT | 2 | OIL SEAL | 20010-21211 | 20010-21211-Online |
| 27 | DIAPHRAGM KIT | 2 | CLUTCH DRUM SET | 20011-31200 | 20011-31200-Online |
| 27 | DIAPHRAGM KIT | 2 | RECOIL SPRING | 20024-75130 | 20024-75130-Online |
| 27 | DIAPHRAGM KIT | 2 | CLEANER COVER | 20060-81770 | 20060-81770-Online |
| 27 | DIAPHRAGM KIT | 20 | HEXA WRENCH 6MM | 09026-05001 | 09026-05001-Online |
| 27 | DIAPHRAGM KIT | 20 | BOLT SW | 11020-05100 | 11020-05100-Online |
| 27 | DIAPHRAGM KIT | 20 | SNAP RING | 20000-31140 | 20000-31140-Online |
| 27 | DIAPHRAGM KIT | 22 | NUT | 01511-10061 | 01511-10061-Online |
| 27 | DIAPHRAGM KIT | 22 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 27 | DIAPHRAGM KIT | 22 | ROLLER | 12492-50100 | 12492-50100-Online |
| 27 | DIAPHRAGM KIT | 24 | BOLT SPW | 11022-04160 | 11022-04160-Online |
| 27 | DIAPHRAGM KIT | 24 | BOLT SW | 11022-05550 | 11022-05550-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT | 01020-05300 | 01020-05300-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT | 01020-06250 | 01020-06250-Online |
| 27 | DIAPHRAGM KIT | 4 | SPRING WASHER | 01600-10251 | 01600-10251-Online |
| 27 | DIAPHRAGM KIT | 4 | WASHER | 01613-06100 | 01613-06100-Online |
| 27 | DIAPHRAGM KIT | 4 | KEY | 02403-03100 | 02403-03100-Online |
| 27 | DIAPHRAGM KIT | 4 | SNAP RING | 02432-35150 | 02432-35150-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT SW | 11020-05160 | 11020-05160-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT SPW | 11022-05200 | 11022-05200-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT SPW | 11022-05250 | 11022-05250-Online |
| 27 | DIAPHRAGM KIT | 4 | BOLT SLPW | 11024-05100 | 11024-05100-Online |
| 27 | DIAPHRAGM KIT | 4 | BEARING | 12900-62020 | 12900-62020-Online |
| 27 | DIAPHRAGM KIT | 4 | PIPE, 3*6*50 | 132010-49030 | 132010-49030-Online |
| 27 | DIAPHRAGM KIT | 4 | PISTON | 20010-41111 | 20010-41111-Online |
| 27 | DIAPHRAGM KIT | 4 | SNAP RING | 20011-31230 | 20011-31230-Online |
| 27 | DIAPHRAGM KIT | 4 | PROTECTOR ASSY | 20011-34100 | 20011-34100-Online |
| 27 | DIAPHRAGM KIT | 4 | JOINT | 20011-35110 | 20011-35110-Online |
| 27 | DIAPHRAGM KIT | 4 | CLAMP A | 20011-35141 | 20011-35141-Online |
| 27 | DIAPHRAGM KIT | 4 | CLAMP B | 20011-35151 | 20011-35151-Online |
| 27 | DIAPHRAGM KIT | 4 | TUBE | 20011-71660 | 20011-71660-Online |
| 27 | DIAPHRAGM KIT | 6 | PISTON RING | 20010-41210 | 20010-41210-Online |
| 27 | DIAPHRAGM KIT | 6 | PISTON PIN | 20010-41310 | 20010-41310-Online |
| 27 | DIAPHRAGM KIT | 6 | NEEDLE BEARING | 20010-41330 | 20010-41330-Online |
| 27 | DIAPHRAGM KIT | 6 | CRANK SHAFT ASSY | 20010-42002 | 20010-42002-Online |
| 27 | DIAPHRAGM KIT | 6 | SPACER COIL | 20010-71631 | 20010-71631-Online |
| 27 | DIAPHRAGM KIT | 6 | CLUTCH SHOE | 20020-51121 | 20020-51121-Online |
| 27 | DIAPHRAGM KIT | 6 | SPRING | 20020-51131 | 20020-51131-Online |
| 27 | DIAPHRAGM KIT | 6 | PLATE | 20020-51140 | 20020-51140-Online |
| 27 | DIAPHRAGM KIT | 6 | CLUTCH BOLT | 20020-51150 | 20020-51150-Online |
| 27 | DIAPHRAGM KIT | 6 | ROPE | 20020-75180 | 20020-75180-Online |
| 27 | DIAPHRAGM KIT | 8 | BOLT | 01020-05250 | 01020-05250-Online |
| 27 | DIAPHRAGM KIT | 8 | SPRING WASHER | 01600-04101 | 01600-04101-Online |
| 27 | DIAPHRAGM KIT | 8 | SPRING WASHER | 01600-05131 | 01600-05131-Online |
| 27 | DIAPHRAGM KIT | 8 | WASHER | 01610-05080 | 01610-05080-Online |
| 27 | DIAPHRAGM KIT | 8 | SNAP RING | 02432-28120 | 02432-28120-Online |
| 27 | DIAPHRAGM KIT | 8 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 27 | DIAPHRAGM KIT | 8 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 27 | DIAPHRAGM KIT | 8 | NUT | 20000-76210 | 20000-76210-Online |
| 27 | DIAPHRAGM KIT | 8 | WASHER | 20010-71650 | 20010-71650-Online |
| 27 | DIAPHRAGM KIT | 8 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 27 | DIAPHRAGM KIT | 8 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 27 | DIAPHRAGM KIT | 8 | GROMMET | 20011-72110 | 20011-72110-Online |
| 27 | DIAPHRAGM KIT | 8 | GROMMET | 20011-72120 | 20011-72120-Online |
| 27 | DIAPHRAGM KIT | 8 | LEVER | 20011-81451 | 20011-81451-Online |
| 28 | PIPE | SPANNER | 22000-91120 | 22000-91120-Online | |
| 28 | PIPE | 10 | REEL | 70131-75120 | 70131-75120-Online |
| 28 | PIPE | 10 | WASHER | 70131-75140 | 70131-75140-Online |
| 28 | PIPE | 10 | STARTER PULLY ASSY | 70131-75200 | 70131-75200-Online |
| 28 | PIPE | 10 | STARTER PULLEY | 70131-75211 | 70131-75211-Online |
| 28 | PIPE | 10 | RECOIL STARETR | 70131-75900 | 70131-75900-Online |
| 28 | PIPE | 10 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 28 | PIPE | 12 | RETAINER FUEL | 22100-85240 | 22100-85240-Online |
| 28 | PIPE | 12 | STARTER CASE | 70131-75110 | 70131-75110-Online |
| 28 | PIPE | 12 | PLATE | 70200-81430 | 70200-81430-Online |
| 28 | PIPE | 12 | GASKET KIT | 70200-81910 | 70200-81910-Online |
| 28 | PIPE | 12 | FUEL TANK | 70200-85110 | 70200-85110-Online |
| 28 | PIPE | 12 | LEAD WIRE | 70210-83120 | 70210-83120-Online |
| 28 | PIPE | 12 | LEAD WIRE | 70210-83130 | 70210-83130-Online |
| 28 | PIPE | 12 | TUBE | 70210-83140 | 70210-83140-Online |
| 28 | PIPE | 12 | LEVER | 70871-65130 | 70871-65130-Online |
| 28 | PIPE | 12 | CRANK CASE M | 72921-21121 | 72921-21121-Online |
| 28 | PIPE | 14 | WASHER FUEL | 22100-85250 | 22100-85250-Online |
| 28 | PIPE | 14 | VALVE FUEL | 22100-85260 | 22100-85260-Online |
| 28 | PIPE | 14 | ELEMENT | 22118-85460 | 22118-85460-Online |
| 28 | PIPE | 14 | PLUG | 22150-33630 | 22150-33630-Online |
| 28 | PIPE | 14 | FILTER | 22169-35420 | 22169-35420-Online |
| 28 | PIPE | 14 | NUT | 22420-16120 | 22420-16120-Online |
| 28 | PIPE | 14 | FAN COVER | 70012-31111 | 70012-31111-Online |
| 28 | PIPE | 14 | CYLINDER | 70196-12110 | 70196-12110-Online |
| 28 | PIPE | 14 | FUEL PIPE | 70200-85310 | 70200-85310-Online |
| 28 | PIPE | 14 | FUEL PIPE | 70200-85320 | 70200-85320-Online |
| 28 | PIPE | 14 | GROMMET | 70200-85350 | 70200-85350-Online |
| 28 | PIPE | 14 | GASKET | 70210-15212 | 70210-15212-Online |
| 28 | PIPE | 14 | TANK, FUEL | A350-001361 | A350-001361-Online |
| 28 | PIPE | 14 | VALVE,CHECK | A356-000050 | A356-000050-Online |
| 28 | PIPE | 16 | GEAR SHAFT | 22015-13210 | 22015-13210-Online |
| 28 | PIPE | 16 | PROTECTOR | 22019-17110 | 22019-17110-Online |
| 28 | PIPE | 16 | SNAP RING | 22100-41230 | 22100-41230-Online |
| 28 | PIPE | 16 | BRACKET SUB ASSY | 72017-14100 | 72017-14100-Online |
| 28 | PIPE | 16 | MAIN SHAFT | 72540-12410 | 72540-12410-Online |
| 28 | PIPE | 16 | GEAR CASE COMP | 72540-63020 | 72540-63020-Online |
| 28 | PIPE | 18 | BEVEL GEAR | 22015-13220 | 22015-13220-Online |
| 28 | PIPE | 18 | COLLAR | 22015-13230 | 22015-13230-Online |
| 28 | PIPE | 18 | BOLT | 22015-13261 | 22015-13261-Online |
| 28 | PIPE | 18 | BOLT GUARD | 22015-13270 | 22015-13270-Online |
| 28 | PIPE | 18 | SLIDE PIN | 22015-13290 | 22015-13290-Online |
| 28 | PIPE | 18 | PINION SET | 22015-13390 | 22015-13390-Online |
| 28 | PIPE | 18 | BOLT | 22015-13410 | 22015-13410-Online |
| 28 | PIPE | 18 | GASKET | 22015-13420 | 22015-13420-Online |
| 28 | PIPE | 18 | LOWER CLAMP | 22015-14140 | 22015-14140-Online |
| 28 | PIPE | 18 | THROTTLE LEVER ASSY | 64007-64253 | 64007-64253-Online |
| 28 | PIPE | 18 | HOLDER | 72017-63170 | 72017-63170-Online |
| 28 | PIPE | 18 | OIL SEAL | 72447-13121 | 72447-13121-Online |
| 28 | PIPE | 18 | HOLDER A | 72447-13240 | 72447-13240-Online |
| 28 | PIPE | 18 | GRIP | 72451-14320 | 72451-14320-Online |
| 28 | PIPE | 18 | TOOL SET | 72547-91100 | 72547-91100-Online |
| 28 | PIPE | 2 | CYLINDER COVER | 70196-32110 | 70196-32110-Online |
| 28 | PIPE | 2 | WASHER | 70196-32150 | 70196-32150-Online |
| 28 | PIPE | 2 | COVER | 70196-32160 | 70196-32160-Online |
| 28 | PIPE | 2 | MUFFLER GUARD | 70200-15311 | 70200-15311-Online |
| 28 | PIPE | 2 | LABEL TRADE | 70200-31151 | 70200-31151-Online |
| 28 | PIPE | 2 | CLUTCH SHOE ASSY | 70210-51100 | 70210-51100-Online |
| 28 | PIPE | 20 | BUSHING | 22015-12120 | 22015-12120-Online |
| 28 | PIPE | 20 | OUTER PIPE SUB ASSY | 72540-12102 | 72540-12102-Online |
| 28 | PIPE | 20 | HANDLE SUB ASSY | 72550-14200 | 72550-14200-Online |
| 28 | PIPE | 22 | UPPER CLAMP | 22015-14150 | 22015-14150-Online |
| 28 | PIPE | 22 | LOWER CUSHION | 22015-14160 | 22015-14160-Online |
| 28 | PIPE | 22 | UPPER CUSHION | 22015-14170 | 22015-14170-Online |
| 28 | PIPE | 22 | HANGER | 22017-12210 | 22017-12210-Online |
| 28 | PIPE | 22 | FUEL FILTER SUB ASSY | 22169-35400 | 22169-35400-Online |
| 28 | PIPE | 22 | THROTTLE CABLE | 64007-64310 | 64007-64310-Online |
| 28 | PIPE | 22 | THROTTLE CABLE | 64007-64320 | 64007-64320-Online |
| 28 | PIPE | 22 | SWITCH | 64007-64330 | 64007-64330-Online |
| 28 | PIPE | 22 | HARNESS ASSY | 64007-67011 | 64007-67011-Online |
| 28 | PIPE | 22 | LOCK LEVER | 70871-65140 | 70871-65140-Online |
| 28 | PIPE | 22 | COIL SPRING | 70871-65150 | 70871-65150-Online |
| 28 | PIPE | 22 | COIL SPRING | 70871-65160 | 70871-65160-Online |
| 28 | PIPE | 22 | BUTTON | 70871-65170 | 70871-65170-Online |
| 28 | PIPE | 22 | COIL SPRING | 70871-65180 | 70871-65180-Online |
| 28 | PIPE | 22 | SCREW TAPPING | 70871-65311 | 70871-65311-Online |
| 28 | PIPE | 22 | SCREW | 70871-65330 | 70871-65330-Online |
| 28 | PIPE | 22 | NUT | 70871-65340 | 70871-65340-Online |
| 28 | PIPE | 22 | CAUTION PLATE | 72005-12140 | 72005-12140-Online |
| 28 | PIPE | 22 | HANDLE BRACKET | 72017-14110 | 72017-14110-Online |
| 28 | PIPE | 22 | LOWER CAP | 72017-14120 | 72017-14120-Online |
| 28 | PIPE | 22 | UPPER CAP | 72017-14130 | 72017-14130-Online |
| 28 | PIPE | 22 | LOWER CLAMP | 72017-16130 | 72017-16130-Online |
| 28 | PIPE | 22 | CUTTER | 72480-16121 | 72480-16121-Online |
| 28 | PIPE | 22 | WRENCH 17X19 | 72518-91180 | 72518-91180-Online |
| 28 | PIPE | 22 | BODY RIGHT | 72550-14512 | 72550-14512-Online |
| 28 | PIPE | 22 | BODY LEFT | 72550-14522 | 72550-14522-Online |
| 28 | PIPE | 22 | CONNECTOR | 72550-82120 | 72550-82120-Online |
| 28 | PIPE | 24 | GUARD | 62903-66111 | 62903-66111-Online |
| 28 | PIPE | 24 | SUB GUARD ASSY | 62903-66332 | 62903-66332-Online |
| 28 | PIPE | 24 | GEAR CASE | 63020-63111 | 63020-63111-Online |
| 28 | PIPE | 24 | GUARD SET | 64008-66311 | 64008-66311-Online |
| 28 | PIPE | 24 | TANK GUARD | 70005-86131 | 70005-86131-Online |
| 28 | PIPE | 24 | UPPER CLAMP | 72480-16210 | 72480-16210-Online |
| 28 | PIPE | 24 | EARTH CORD | 72514-14190 | 72514-14190-Online |
| 28 | PIPE | 4 | CAP JOINT | 70012-35130 | 70012-35130-Online |
| 28 | PIPE | 4 | CLEANER BODY | 70102-81710 | 70102-81710-Online |
| 28 | PIPE | 4 | GASKET | 70196-32141 | 70196-32141-Online |
| 28 | PIPE | 4 | WASHER | 70196-32150 | 70196-32150-Online |
| 28 | PIPE | 4 | COVER | 70196-32160 | 70196-32160-Online |
| 28 | PIPE | 4 | MUFFLER | 70200-15111 | 70200-15111-Online |
| 28 | PIPE | 4 | THRUST WASHER | 70200-41341 | 70200-41341-Online |
| 28 | PIPE | 4 | CRANK CASE S | 72935-21111 | 72935-21111-Online |
| 28 | PIPE | 4 | JOINT | 72935-85330 | 72935-85330-Online |
| 28 | PIPE | 6 | O RING | 22100-82430 | 22100-82430-Online |
| 28 | PIPE | 6 | SCREW FLAT | 70210-51160 | 70210-51160-Online |
| 28 | PIPE | 6 | THROTTLE CABLE | 70210-83110 | 70210-83110-Online |
| 28 | PIPE | 8 | COIL | 70200-71610 | 70200-71610-Online |
| 28 | PIPE | 8 | CARBURETOR SUB ASSY | 70200-81020 | 70200-81020-Online |
| 28 | PIPE | 8 | PIPE | V471-000750 | V471-000750-Online |

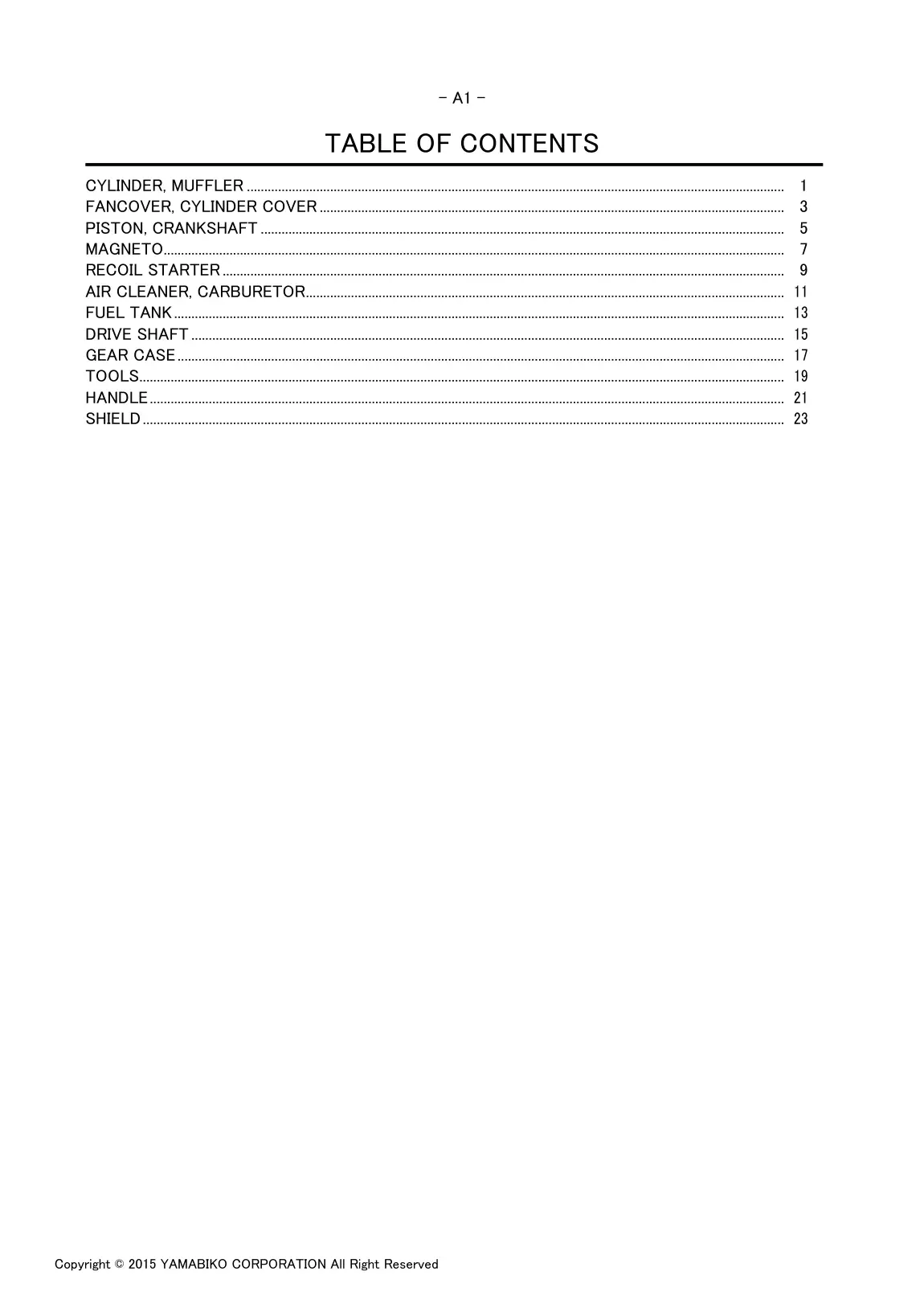

Source file: 20200226-718_C350_USA_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
