Illustrated Parts List
Shindaiwa EB8520RT Blower IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: EB8520RT
Type: Blower
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.
IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

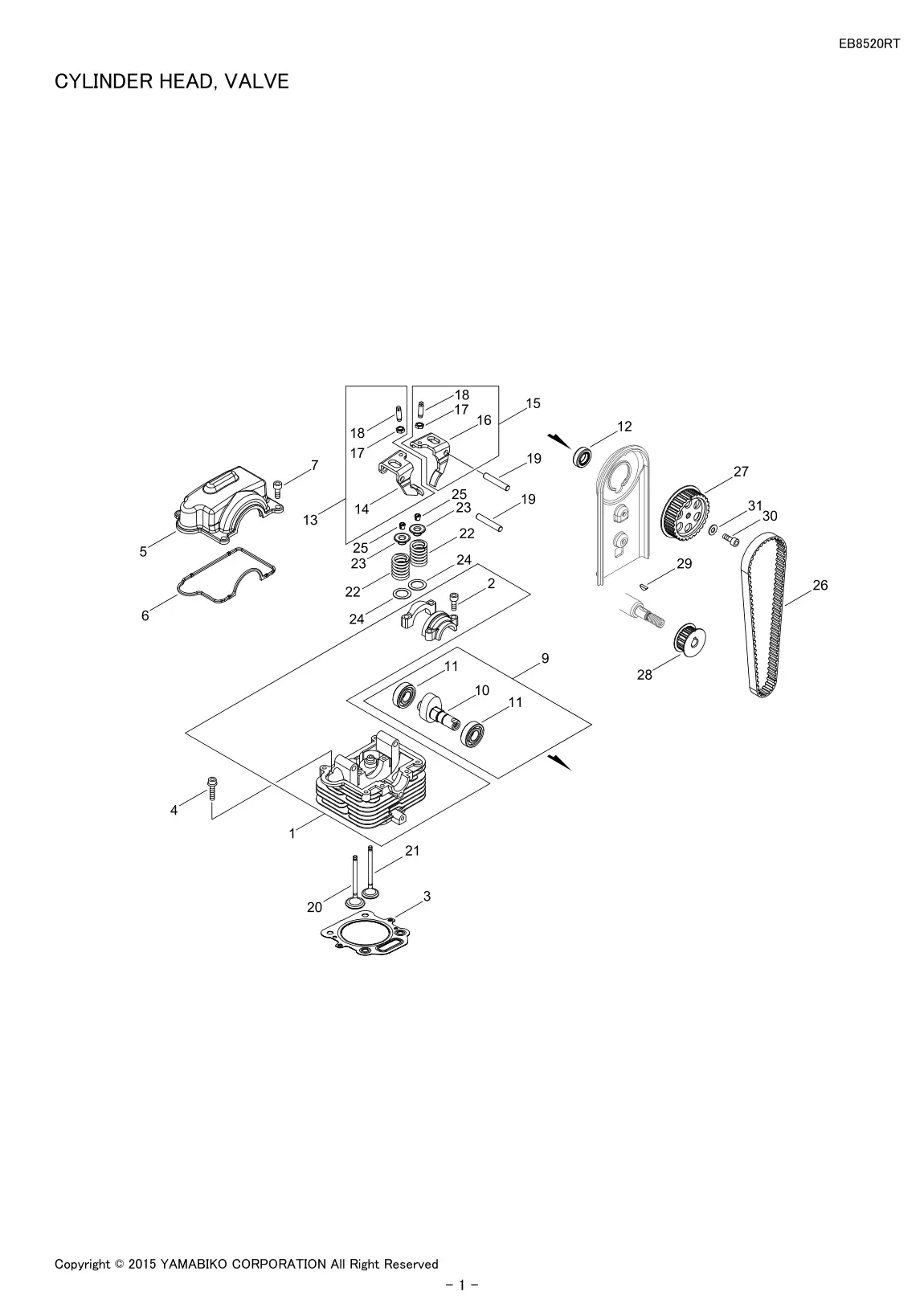

| 4 | CYLINDER HEAD, VALVE | 1 | CYLINDER HEAD ASSY | P021-029630 | P021-029630-Online |
| 4 | CYLINDER HEAD, VALVE | 10 | CAM SHAFT | A621-000010 | A621-000010-Online |
| 4 | CYLINDER HEAD, VALVE | 11 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 4 | CYLINDER HEAD, VALVE | 12 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 4 | CYLINDER HEAD, VALVE | 13 | LOCKER ARM-A | A610-000010 | A610-000010-Online |
| 4 | CYLINDER HEAD, VALVE | 14 | ROCKER ARM | A610-000020 | A610-000020-Online |
| 4 | CYLINDER HEAD, VALVE | 15 | LOCKER ARM-A | A610-000030 | A610-000030-Online |
| 4 | CYLINDER HEAD, VALVE | 16 | ROCKER ARM | A610-000040 | A610-000040-Online |
| 4 | CYLINDER HEAD, VALVE | 17 | NUT | V263-000230 | V263-000230-Online |
| 4 | CYLINDER HEAD, VALVE | 18 | ADJUST SCREW | A613-000000 | A613-000000-Online |
| 4 | CYLINDER HEAD, VALVE | 19 | ROLLER | V624-000060 | V624-000060-Online |
| 4 | CYLINDER HEAD, VALVE | 2 | BOLT, H.S. 5*22 | 900105-05022 | 900105-05022-Online |
| 4 | CYLINDER HEAD, VALVE | 20 | INTAKE VALVE | A603-000020 | A603-000020-Online |
| 4 | CYLINDER HEAD, VALVE | 21 | EXHAUST VALVE | A603-000030 | A603-000030-Online |
| 4 | CYLINDER HEAD, VALVE | 22 | VALVE SPRING | A604-000000 | A604-000000-Online |
| 4 | CYLINDER HEAD, VALVE | 23 | RETAINER | A606-000030 | A606-000030-Online |
| 4 | CYLINDER HEAD, VALVE | 24 | PLATE | V393-000000 | V393-000000-Online |
| 4 | CYLINDER HEAD, VALVE | 25 | COTTER | A605-000010 | A605-000010-Online |
| 4 | CYLINDER HEAD, VALVE | 27 | CAM PULLEY | V176-000070 | V176-000070-Online |
| 4 | CYLINDER HEAD, VALVE | 28 | CRANK PULLEY | V176-000080 | V176-000080-Online |
| 4 | CYLINDER HEAD, VALVE | 29 | KEY | V381-000030 | V381-000030-Online |
| 4 | CYLINDER HEAD, VALVE | 3 | GASKET | V101-000000 | V101-000000-Online |
| 4 | CYLINDER HEAD, VALVE | 30 | BOLT, H.S. 5*14 | 900105-05014 | 900105-05014-Online |
| 4 | CYLINDER HEAD, VALVE | 31 | WASHER | 900602-00005 | 900602-00005-Online |
| 4 | CYLINDER HEAD, VALVE | 4 | FLANGE BOLT | V204-000400 | V204-000400-Online |
| 4 | CYLINDER HEAD, VALVE | 5 | ROCKER ARM COVER | A137-000010 | A137-000010-Online |
| 4 | CYLINDER HEAD, VALVE | 6 | GASKET | V109-000070 | V109-000070-Online |
| 4 | CYLINDER HEAD, VALVE | 7 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 4 | CYLINDER HEAD, VALVE | 9 | CAM SHAFT COMP | A621-000000 | A621-000000-Online |

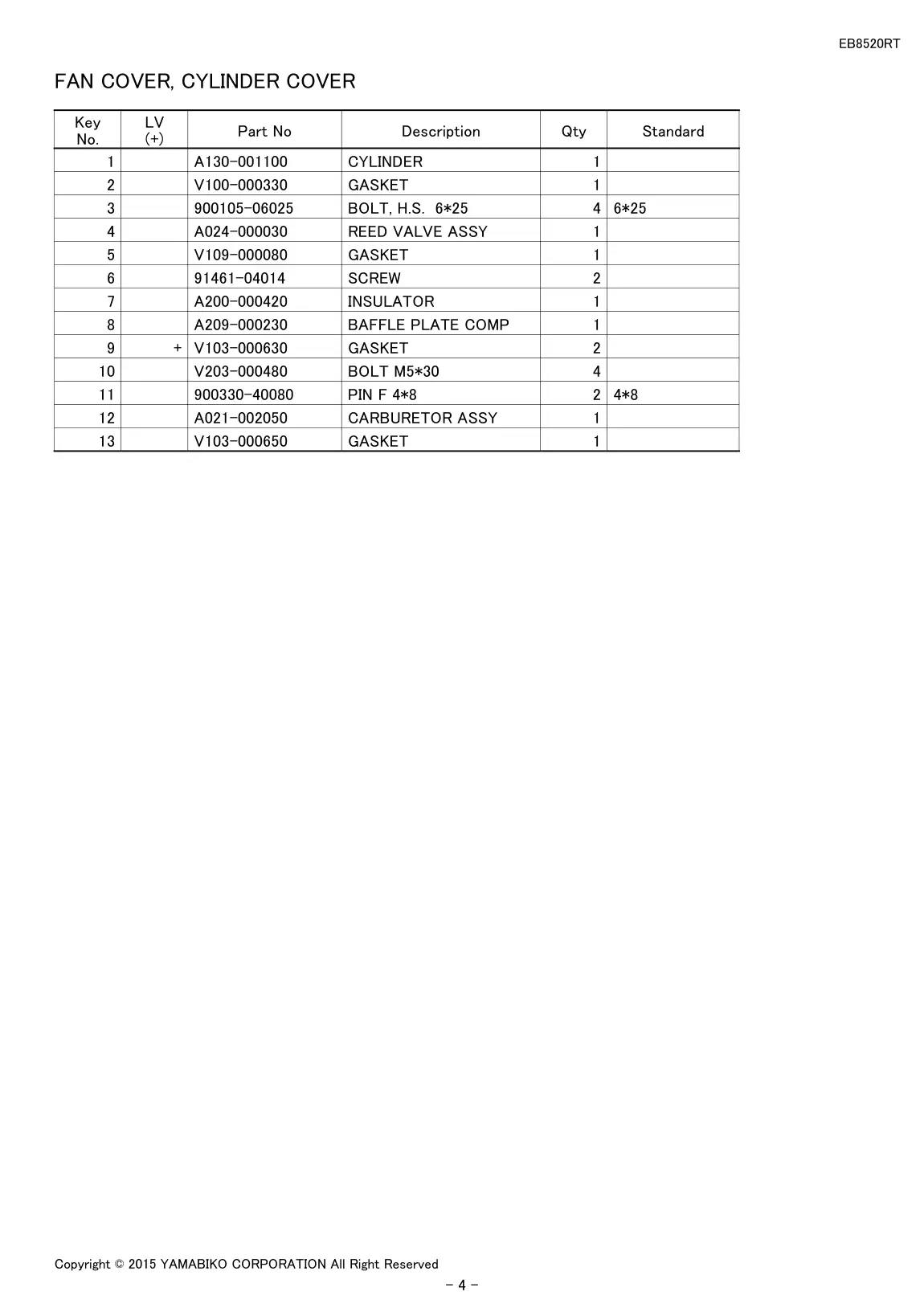

| 6 | FAN COVER, CYLINDER COVER | 1 | CYLINDER | A130-001100 | A130-001100-Online |
| 6 | FAN COVER, CYLINDER COVER | 10 | BOLT M5*30 | V203-000480 | V203-000480-Online |
| 6 | FAN COVER, CYLINDER COVER | 11 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 6 | FAN COVER, CYLINDER COVER | 12 | CARBURETOR ASSY | A021-002050 | A021-002050-Online |
| 6 | FAN COVER, CYLINDER COVER | 13 | GASKET | V103-000650 | V103-000650-Online |
| 6 | FAN COVER, CYLINDER COVER | 2 | GASKET | V100-000330 | V100-000330-Online |
| 6 | FAN COVER, CYLINDER COVER | 3 | BOLT, H.S. 6*25 | 900105-06025 | 900105-06025-Online |
| 6 | FAN COVER, CYLINDER COVER | 4 | REED VALVE ASSY | A024-000030 | A024-000030-Online |
| 6 | FAN COVER, CYLINDER COVER | 5 | GASKET | V109-000080 | V109-000080-Online |
| 6 | FAN COVER, CYLINDER COVER | 6 | SCREW | 91461-04014 | 91461-04014-Online |
| 6 | FAN COVER, CYLINDER COVER | 7 | INSULATOR | A200-000420 | A200-000420-Online |
| 6 | FAN COVER, CYLINDER COVER | 8 | BAFFLE PLATE COMP | A209-000230 | A209-000230-Online |
| 6 | FAN COVER, CYLINDER COVER | 9 | GASKET | V103-000630 | V103-000630-Online |

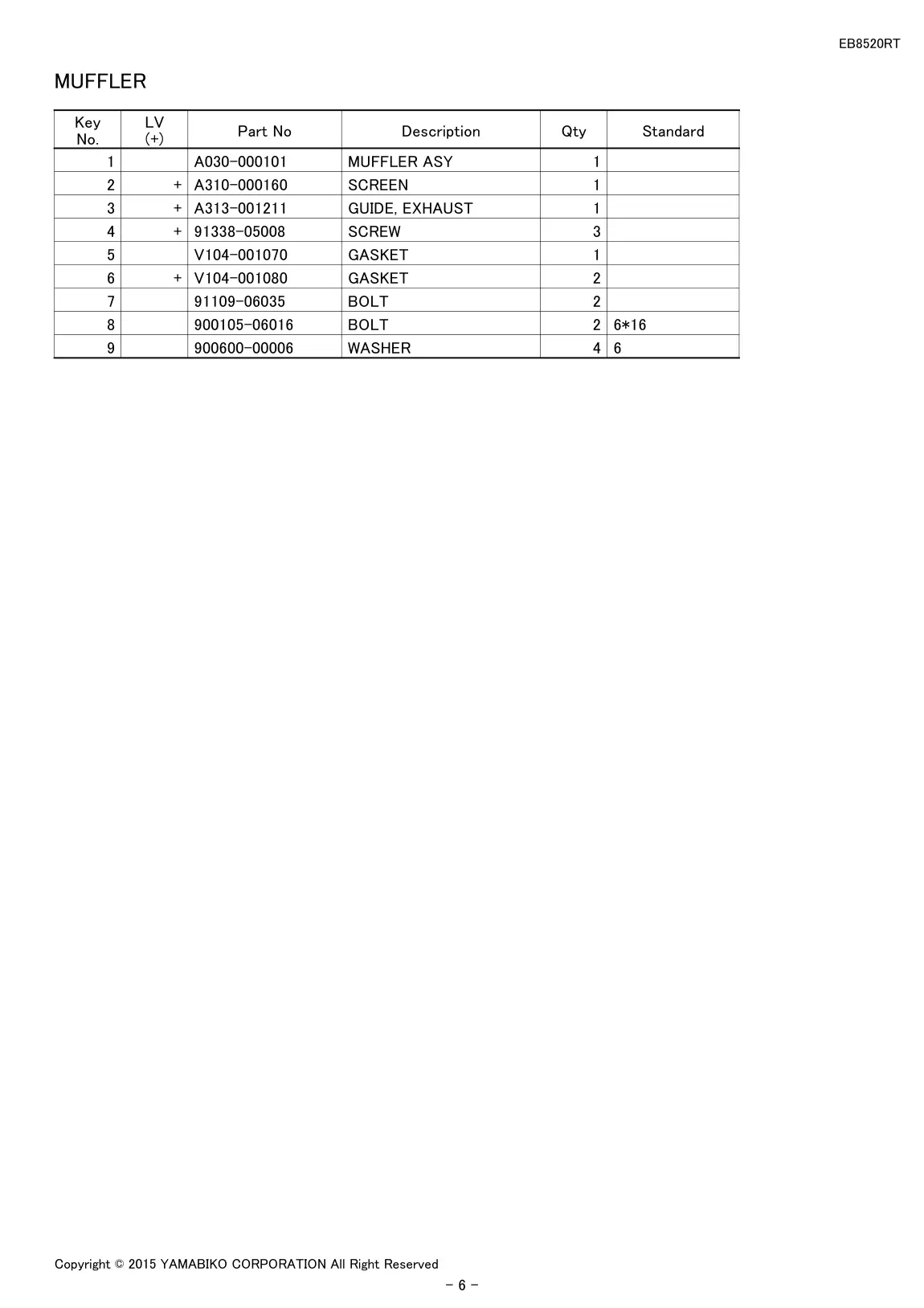

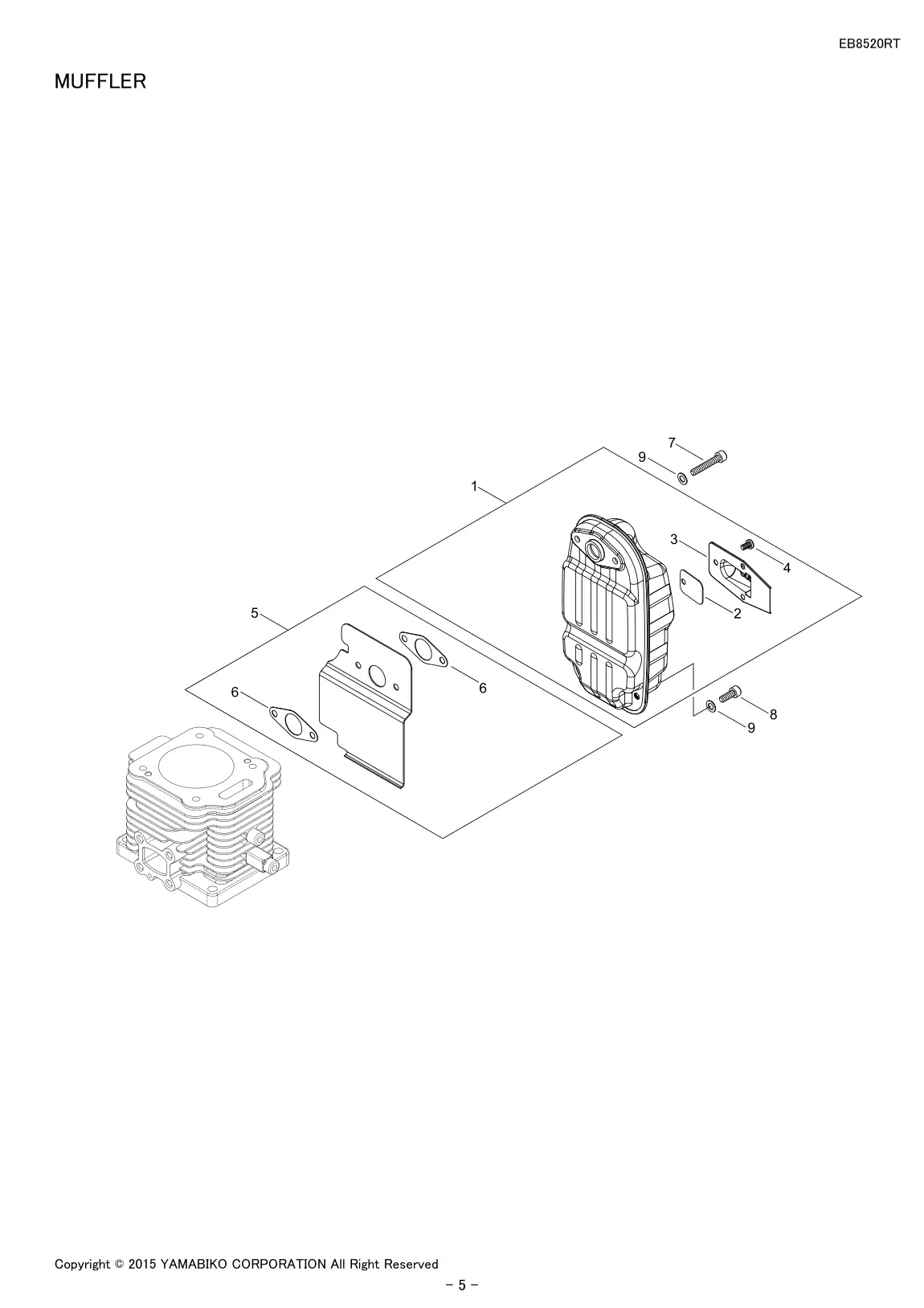

| 8 | MUFFLER | 1 | MUFFLER ASY | A030-000101 | A030-000101-Online |
| 8 | MUFFLER | 2 | SCREEN | A310-000160 | A310-000160-Online |
| 8 | MUFFLER | 3 | GUIDE, EXHAUST | A313-001211 | A313-001211-Online |
| 8 | MUFFLER | 4 | SCREW | 91338-05008 | 91338-05008-Online |
| 8 | MUFFLER | 5 | GASKET | V104-001070 | V104-001070-Online |
| 8 | MUFFLER | 6 | GASKET | V104-001080 | V104-001080-Online |
| 8 | MUFFLER | 7 | BOLT | 91109-06035 | 91109-06035-Online |
| 8 | MUFFLER | 8 | BOLT | 900105-06016 | 900105-06016-Online |
| 8 | MUFFLER | 9 | WASHER | 900600-00006 | 900600-00006-Online |

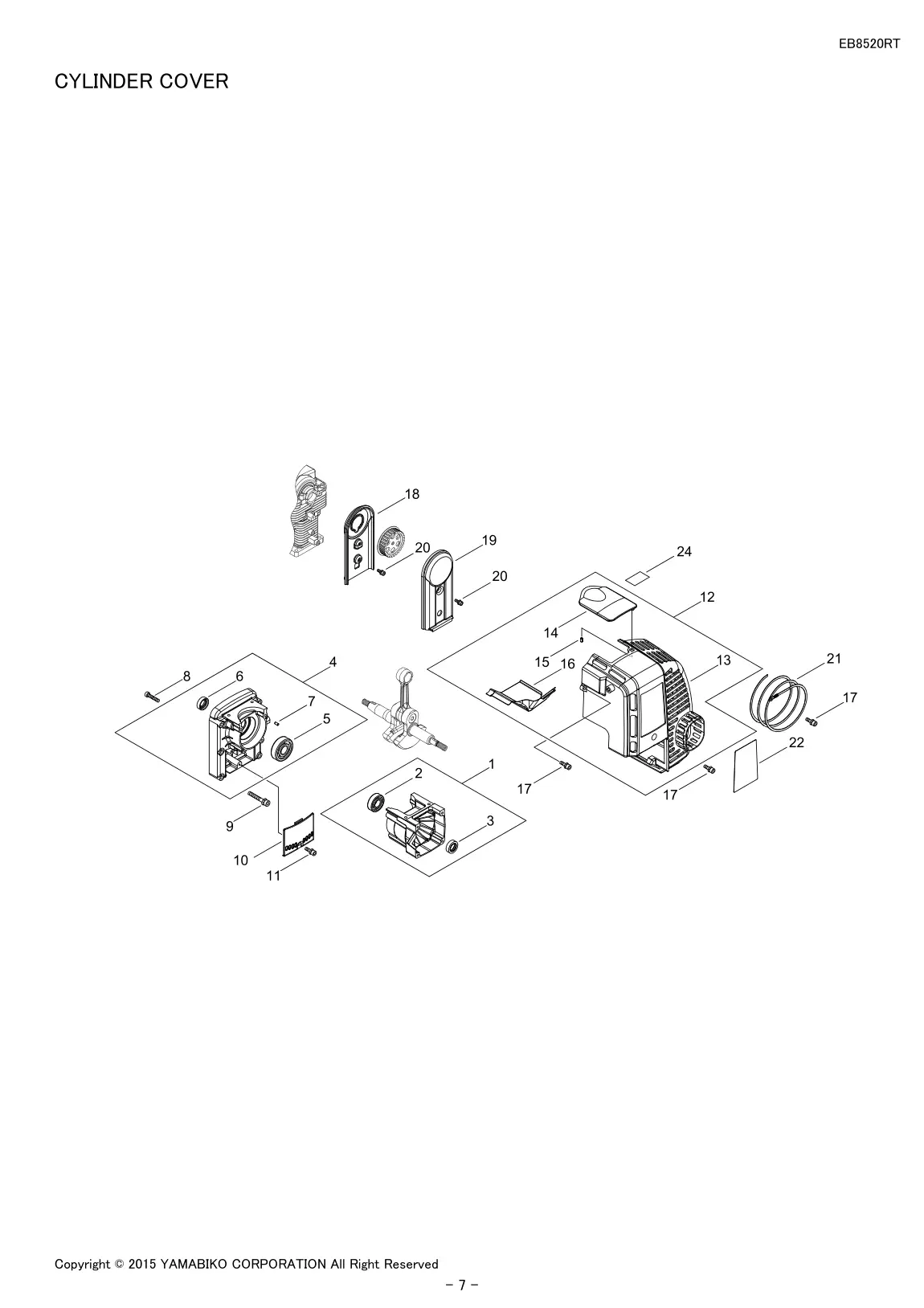

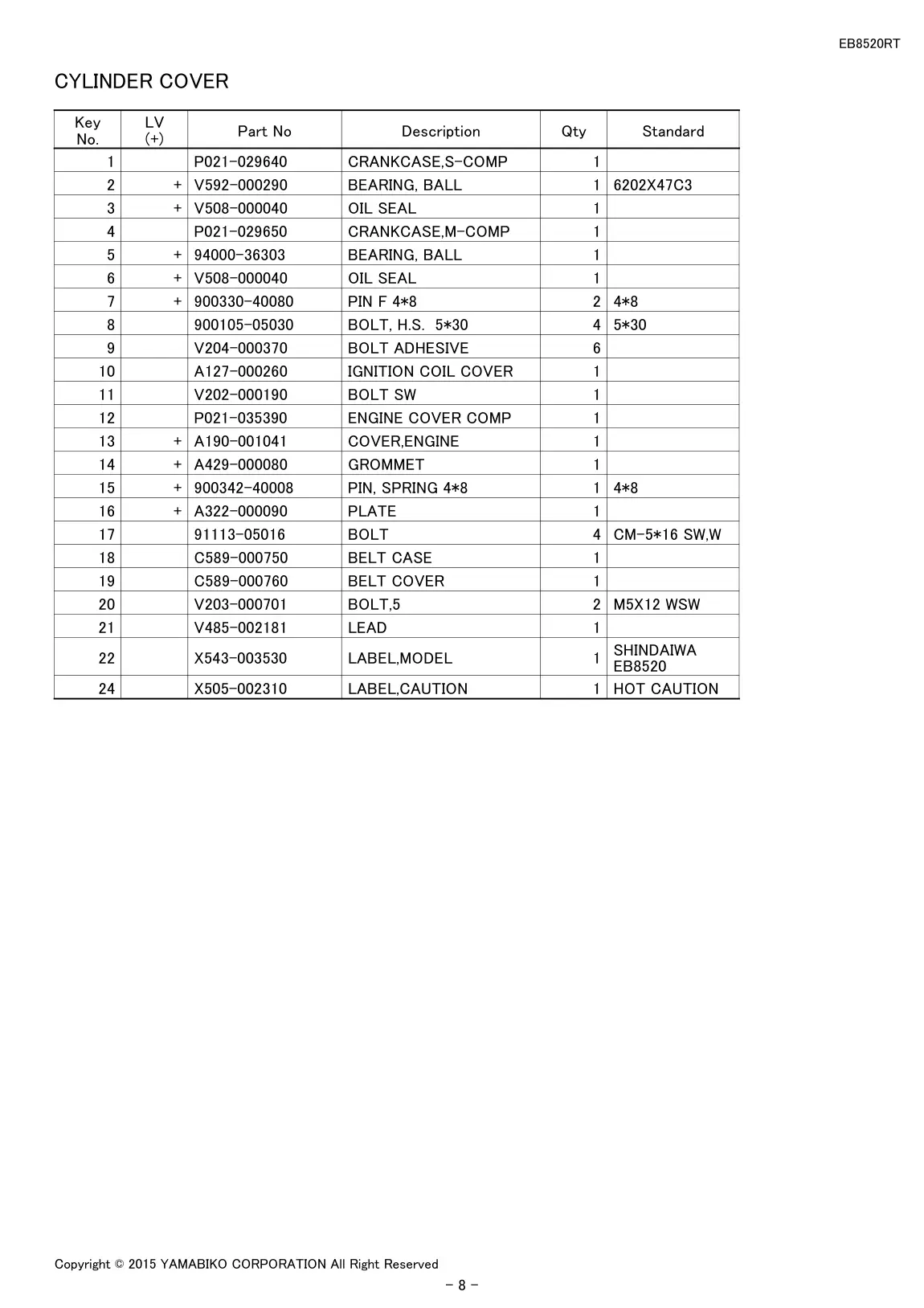

| 10 | CYLINDER COVER | 1 | CRANKCASE,S-COMP | P021-029640 | P021-029640-Online |
| 10 | CYLINDER COVER | 10 | IGNITION COIL COVER | A127-000260 | A127-000260-Online |
| 10 | CYLINDER COVER | 11 | BOLT SW | V202-000190 | V202-000190-Online |
| 10 | CYLINDER COVER | 12 | ENGINE COVER COMP | P021-035390 | P021-035390-Online |
| 10 | CYLINDER COVER | 13 | COVER,ENGINE | A190-001041 | A190-001041-Online |
| 10 | CYLINDER COVER | 14 | GROMMET | A429-000080 | A429-000080-Online |
| 10 | CYLINDER COVER | 15 | PIN, SPRING 4*8 | 900342-40008 | 900342-40008-Online |
| 10 | CYLINDER COVER | 16 | PLATE | A322-000090 | A322-000090-Online |
| 10 | CYLINDER COVER | 17 | BOLT | 91113-05016 | 91113-05016-Online |
| 10 | CYLINDER COVER | 18 | BELT CASE | C589-000750 | C589-000750-Online |
| 10 | CYLINDER COVER | 19 | BELT COVER | C589-000760 | C589-000760-Online |
| 10 | CYLINDER COVER | 2 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 10 | CYLINDER COVER | 20 | BOLT,5 | V203-000701 | V203-000701-Online |
| 10 | CYLINDER COVER | 21 | LEAD | V485-002181 | V485-002181-Online |
| 10 | CYLINDER COVER | 22 | LABEL,CAUTION | EB8520 | EB8520-Online |
| 10 | CYLINDER COVER | 22 | LABEL,MODEL | X543-003530 | X543-003530-Online |
| 10 | CYLINDER COVER | 24 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 10 | CYLINDER COVER | 3 | OIL SEAL | V508-000040 | V508-000040-Online |
| 10 | CYLINDER COVER | 4 | CRANKCASE,M-COMP | P021-029650 | P021-029650-Online |
| 10 | CYLINDER COVER | 5 | BEARING, BALL | 94000-36303 | 94000-36303-Online |
| 10 | CYLINDER COVER | 6 | OIL SEAL | V508-000040 | V508-000040-Online |
| 10 | CYLINDER COVER | 7 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 10 | CYLINDER COVER | 8 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 10 | CYLINDER COVER | 9 | BOLT ADHESIVE | V204-000370 | V204-000370-Online |

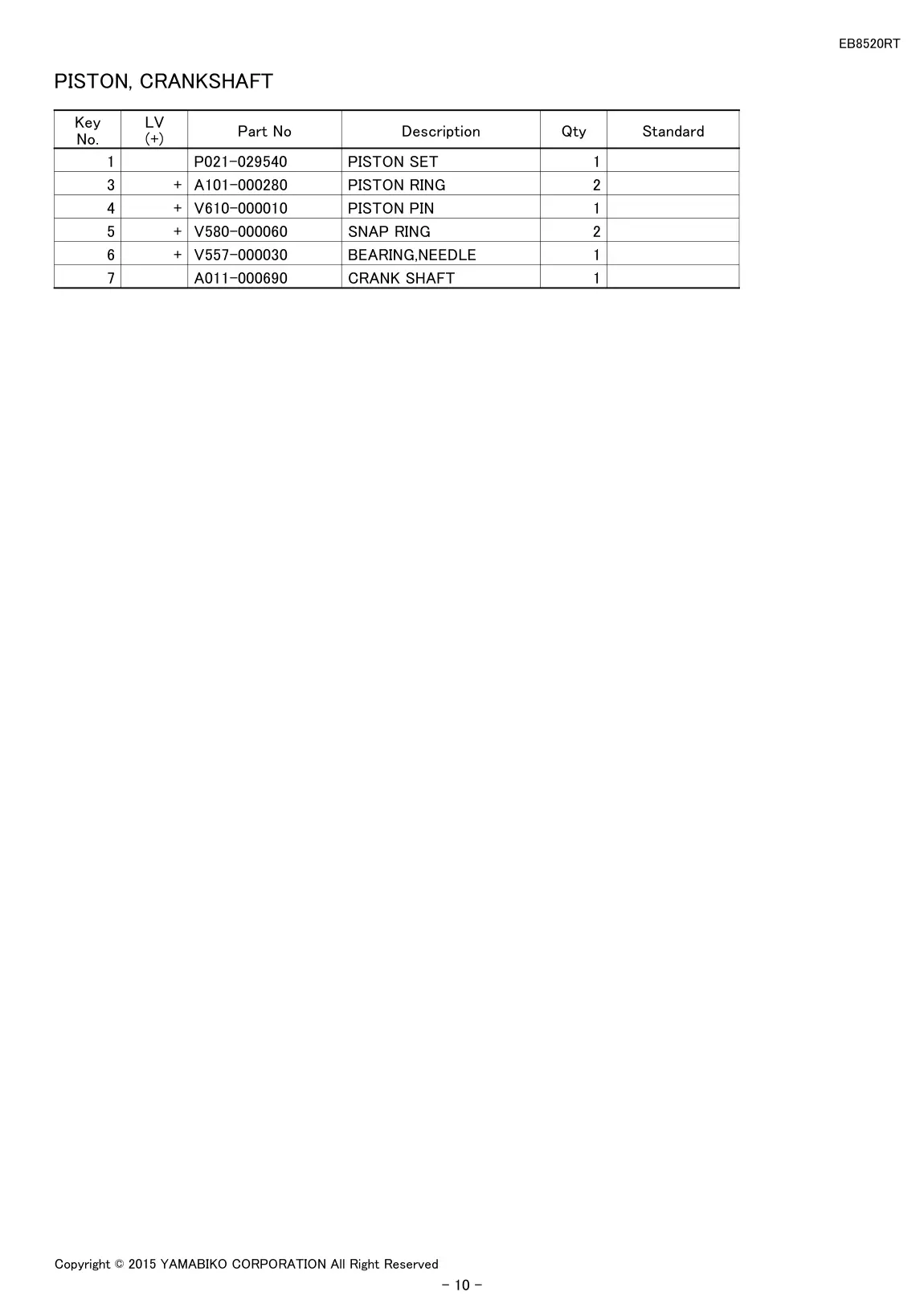

| 12 | PISTON, CRANKSHAFT | 1 | PISTON SET | P021-029540 | P021-029540-Online |
| 12 | PISTON, CRANKSHAFT | 3 | PISTON RING | A101-000280 | A101-000280-Online |
| 12 | PISTON, CRANKSHAFT | 4 | PISTON PIN | V610-000010 | V610-000010-Online |
| 12 | PISTON, CRANKSHAFT | 5 | SNAP RING | V580-000060 | V580-000060-Online |
| 12 | PISTON, CRANKSHAFT | 6 | BEARING,NEEDLE | V557-000030 | V557-000030-Online |
| 12 | PISTON, CRANKSHAFT | 7 | CRANK SHAFT | A011-000690 | A011-000690-Online |

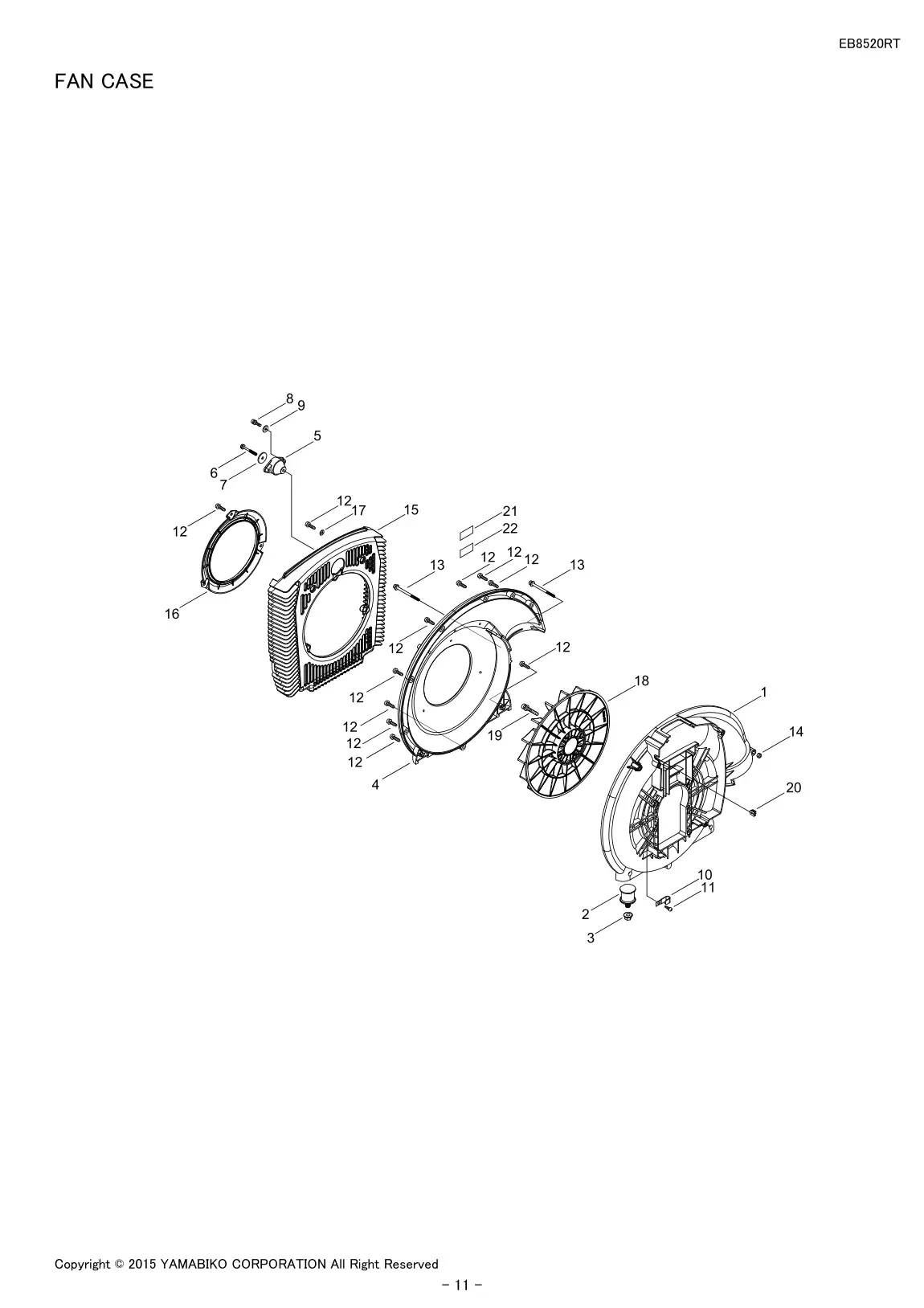

| 14 | FAN CASE | 1 | CASE,FAN | E103-000883 | E103-000883-Online |
| 14 | FAN CASE | 11 | SCREW, TAPPING | 91449-05014 | 91449-05014-Online |
| 14 | FAN CASE | 12 | BOLT PC | V203-000450 | V203-000450-Online |
| 14 | FAN CASE | 13 | BOLT SW | V203-000490 | V203-000490-Online |
| 14 | FAN CASE | 14 | NUT | V263-000110 | V263-000110-Online |
| 14 | FAN CASE | 15 | GRID, BLOWER | E104-000171 | E104-000171-Online |
| 14 | FAN CASE | 16 | FUNNEL | A161-000100 | A161-000100-Online |
| 14 | FAN CASE | 17 | WASHER | 900603-00005 | 900603-00005-Online |
| 14 | FAN CASE | 18 | FAN | E100-000170 | E100-000170-Online |
| 14 | FAN CASE | 19 | BOLT HSH | 91113-06035 | 91113-06035-Online |
| 14 | FAN CASE | 2 | AV RUBBER | V402-000070 | V402-000070-Online |
| 14 | FAN CASE | 20 | GROMMET | V144-000250 | V144-000250-Online |
| 14 | FAN CASE | 21 | LABEL,CAUTION | X505-002080 | X505-002080-Online |
| 14 | FAN CASE | 22 | LABEL,CAUTION | X505-007910 | X505-007910-Online |
| 14 | FAN CASE | 3 | FLANGE NUT | V264-000090 | V264-000090-Online |
| 14 | FAN CASE | 4 | CASE,FAN | E103-000872 | E103-000872-Online |
| 14 | FAN CASE | 5 | AV RUBBER | V401-000190 | V401-000190-Online |
| 14 | FAN CASE | 6 | BOLT TAPPING | V203-000440 | V203-000440-Online |
| 14 | FAN CASE | 7 | COLLAR | V303-000130 | V303-000130-Online |
| 14 | FAN CASE | 8 | BOLT HSH | 91122-05016 | 91122-05016-Online |
| 14 | FAN CASE | 9 | WASHER,CIRCULAR | V303-000370 | V303-000370-Online |

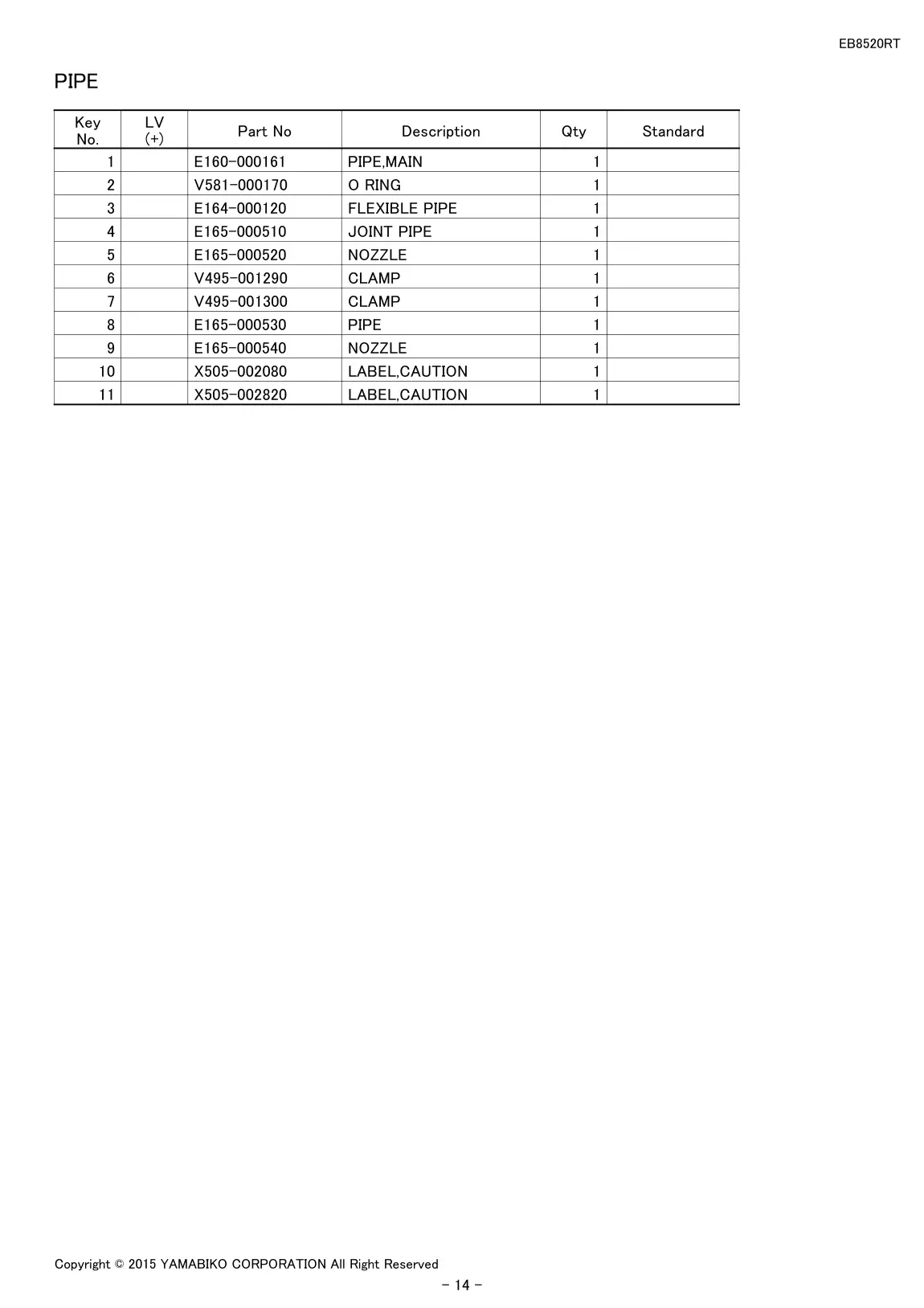

| 16 | PIPE | 1 | PIPE,MAIN | E160-000161 | E160-000161-Online |
| 16 | PIPE | 10 | LABEL,CAUTION | X505-002080 | X505-002080-Online |
| 16 | PIPE | 11 | LABEL,CAUTION | X505-002820 | X505-002820-Online |
| 16 | PIPE | 2 | O RING | V581-000170 | V581-000170-Online |
| 16 | PIPE | 3 | FLEXIBLE PIPE | E164-000120 | E164-000120-Online |
| 16 | PIPE | 4 | JOINT PIPE | E165-000510 | E165-000510-Online |
| 16 | PIPE | 5 | NOZZLE | E165-000520 | E165-000520-Online |
| 16 | PIPE | 8 | PIPE | E165-000530 | E165-000530-Online |
| 16 | PIPE | 9 | NOZZLE | E165-000540 | E165-000540-Online |

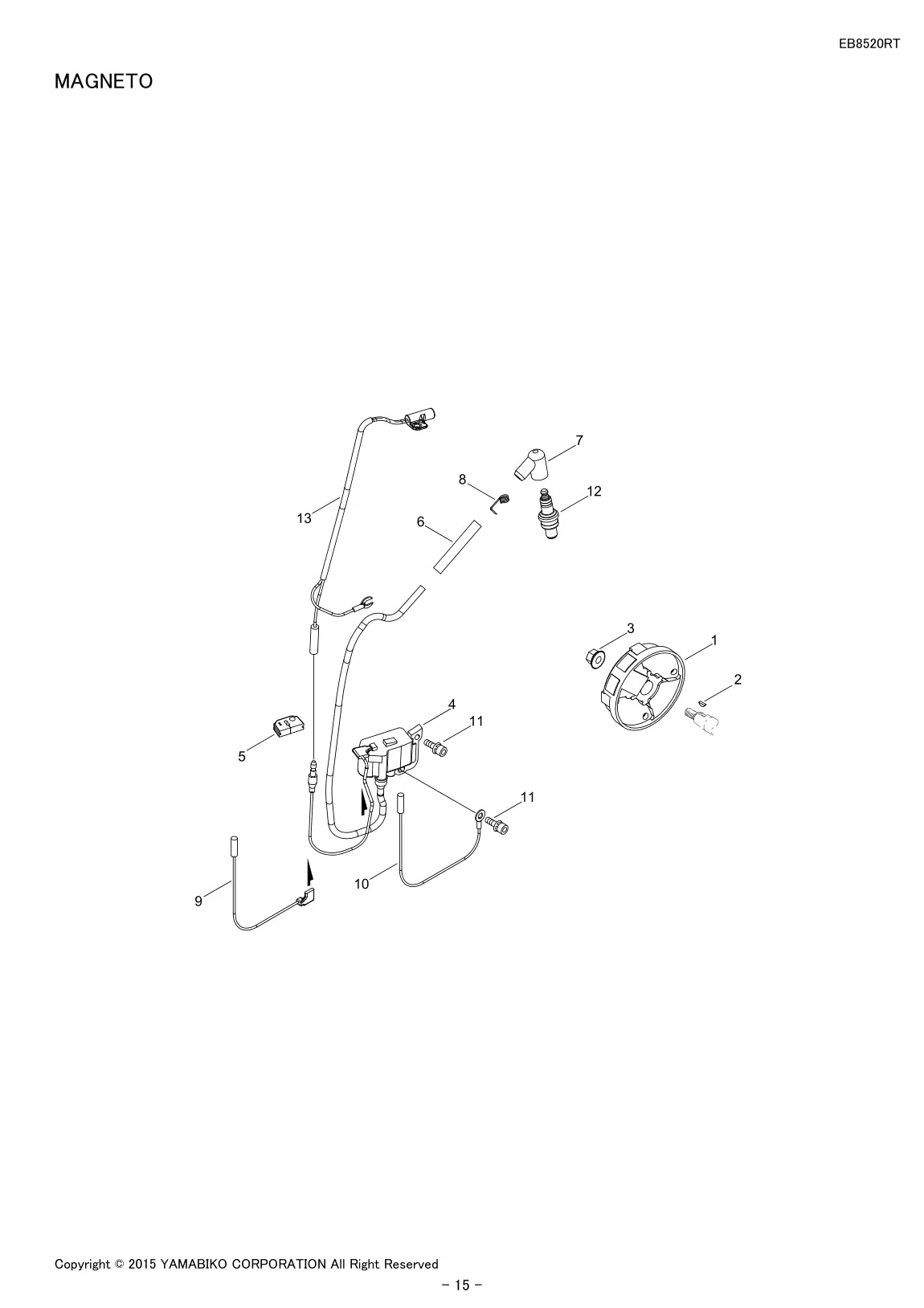

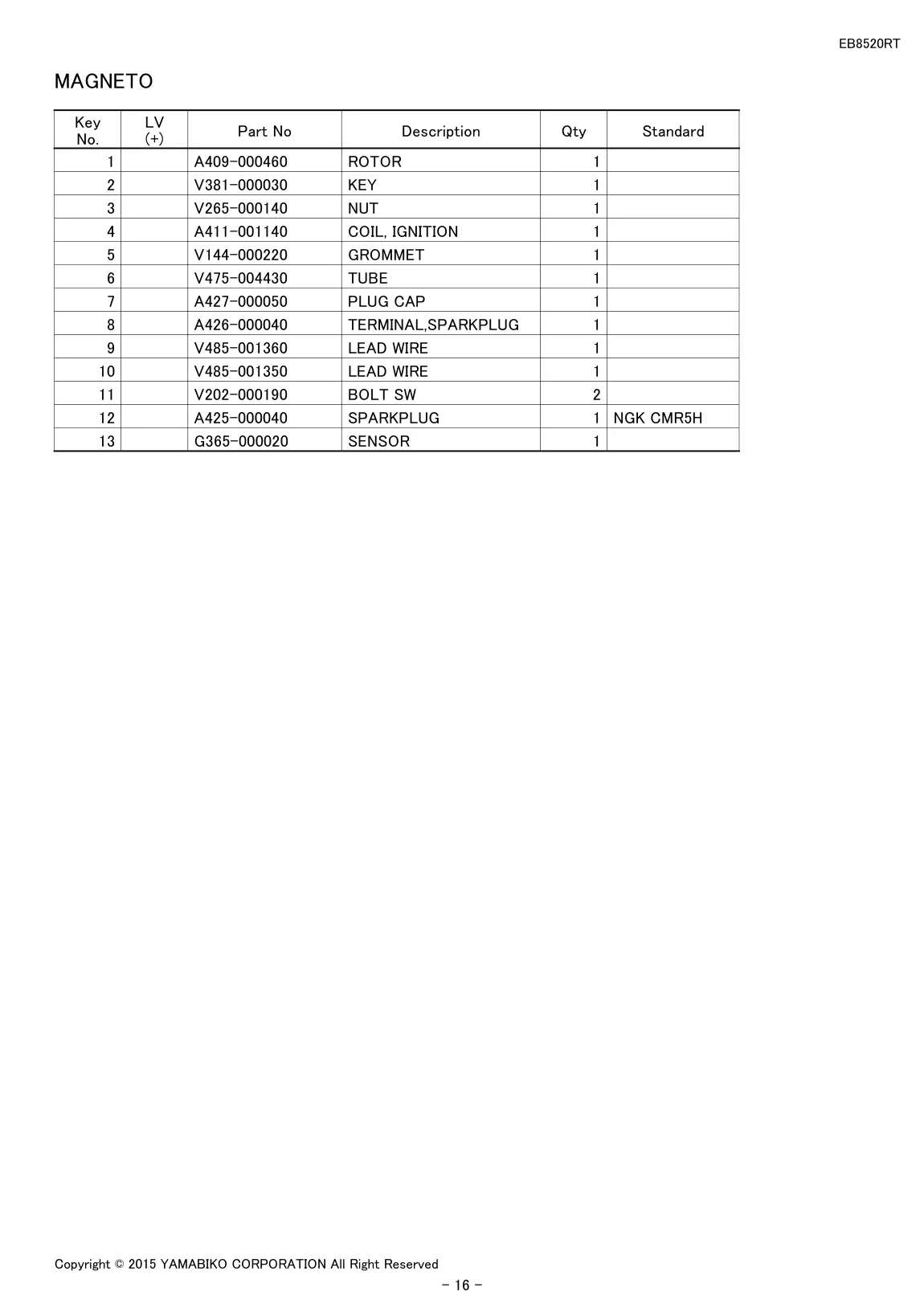

| 18 | MAGNETO | 10 | LEAD WIRE | V485-001350 | V485-001350-Online |
| 18 | MAGNETO | 11 | BOLT SW | V202-000190 | V202-000190-Online |
| 18 | MAGNETO | 12 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 18 | MAGNETO | 13 | SENSOR | G365-000020 | G365-000020-Online |
| 18 | MAGNETO | 2 | KEY | V381-000030 | V381-000030-Online |
| 18 | MAGNETO | 3 | NUT | V265-000140 | V265-000140-Online |
| 18 | MAGNETO | 4 | COIL, IGNITION | A411-001140 | A411-001140-Online |
| 18 | MAGNETO | 5 | GROMMET | V144-000220 | V144-000220-Online |
| 18 | MAGNETO | 6 | TUBE | V475-004430 | V475-004430-Online |
| 18 | MAGNETO | 7 | PLUG CAP | A427-000050 | A427-000050-Online |
| 18 | MAGNETO | 8 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 18 | MAGNETO | 9 | LEAD WIRE | V485-001360 | V485-001360-Online |

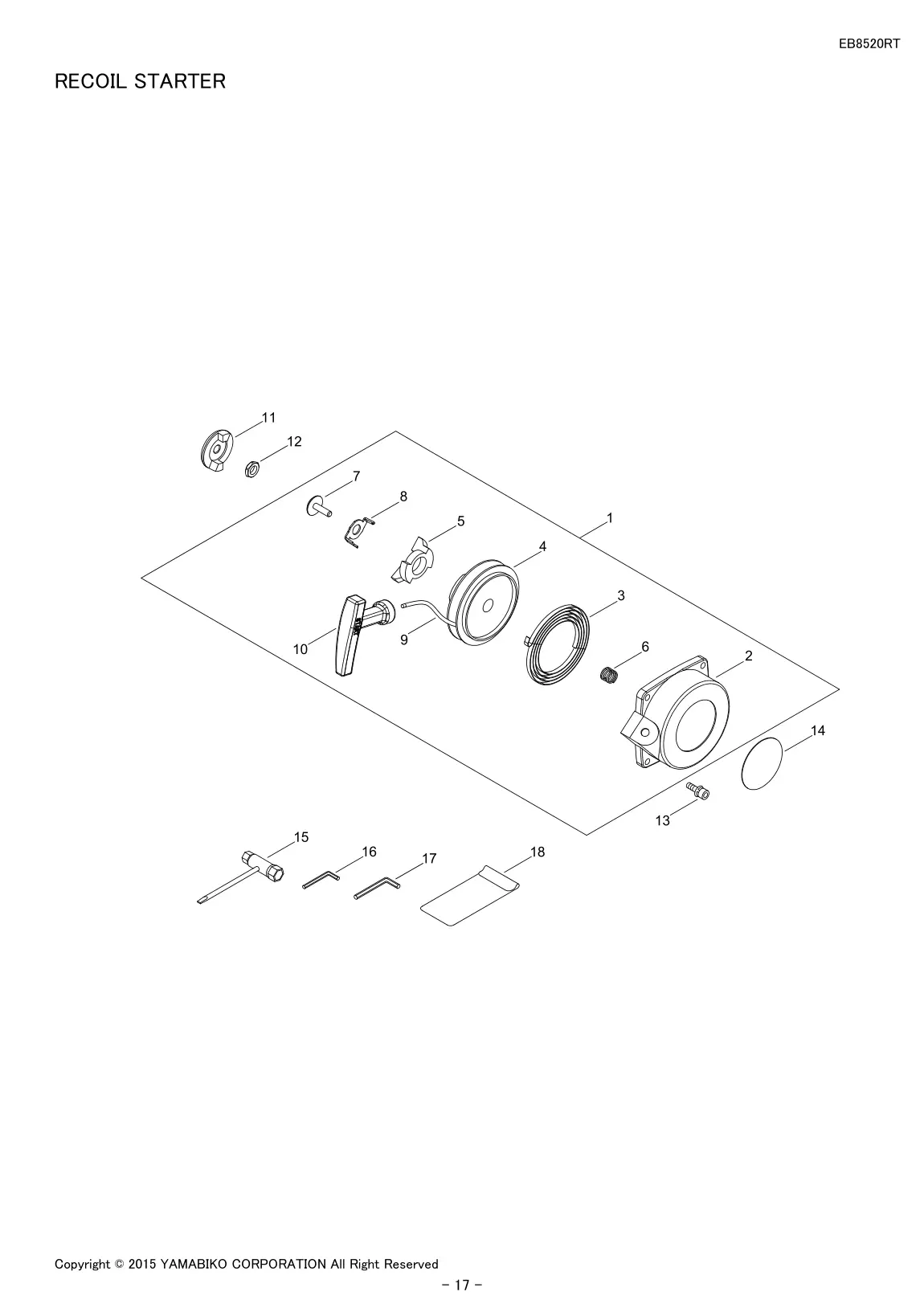

| 20 | RECOIL STARTER | 1 | STARTER,RECOIL ASY | A051-001531 | A051-001531-Online |
| 20 | RECOIL STARTER | 10 | HANDLE | P022-039420 | P022-039420-Online |
| 20 | RECOIL STARTER | 11 | STARTER PULLEY | A520-000110 | A520-000110-Online |
| 20 | RECOIL STARTER | 12 | NUT | 900503-00008 | 900503-00008-Online |
| 20 | RECOIL STARTER | 13 | BOLT,5 | V203-000351 | V203-000351-Online |
| 20 | RECOIL STARTER | 14 | LABEL,BRAND | X504-006750 | X504-006750-Online |
| 20 | RECOIL STARTER | 15 | PLUG WRENCH | X602-000160 | X602-000160-Online |
| 20 | RECOIL STARTER | 16 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 20 | RECOIL STARTER | 17 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 20 | RECOIL STARTER | 18 | POLY BAG | X705-000130 | X705-000130-Online |
| 20 | RECOIL STARTER | 2 | CASE,STARTER | P022-039340 | P022-039340-Online |
| 20 | RECOIL STARTER | 3 | SPRING, SPIRAL | P022-039350 | P022-039350-Online |
| 20 | RECOIL STARTER | 4 | DRUM, STARTER | P022-039360 | P022-039360-Online |
| 20 | RECOIL STARTER | 6 | SPRING, BRAKE | P022-039380 | P022-039380-Online |
| 20 | RECOIL STARTER | 7 | SCREW | P022-039390 | P022-039390-Online |
| 20 | RECOIL STARTER | 8 | RETAINER | P022-039400 | P022-039400-Online |
| 20 | RECOIL STARTER | 9 | ROPE | P022-039410 | P022-039410-Online |

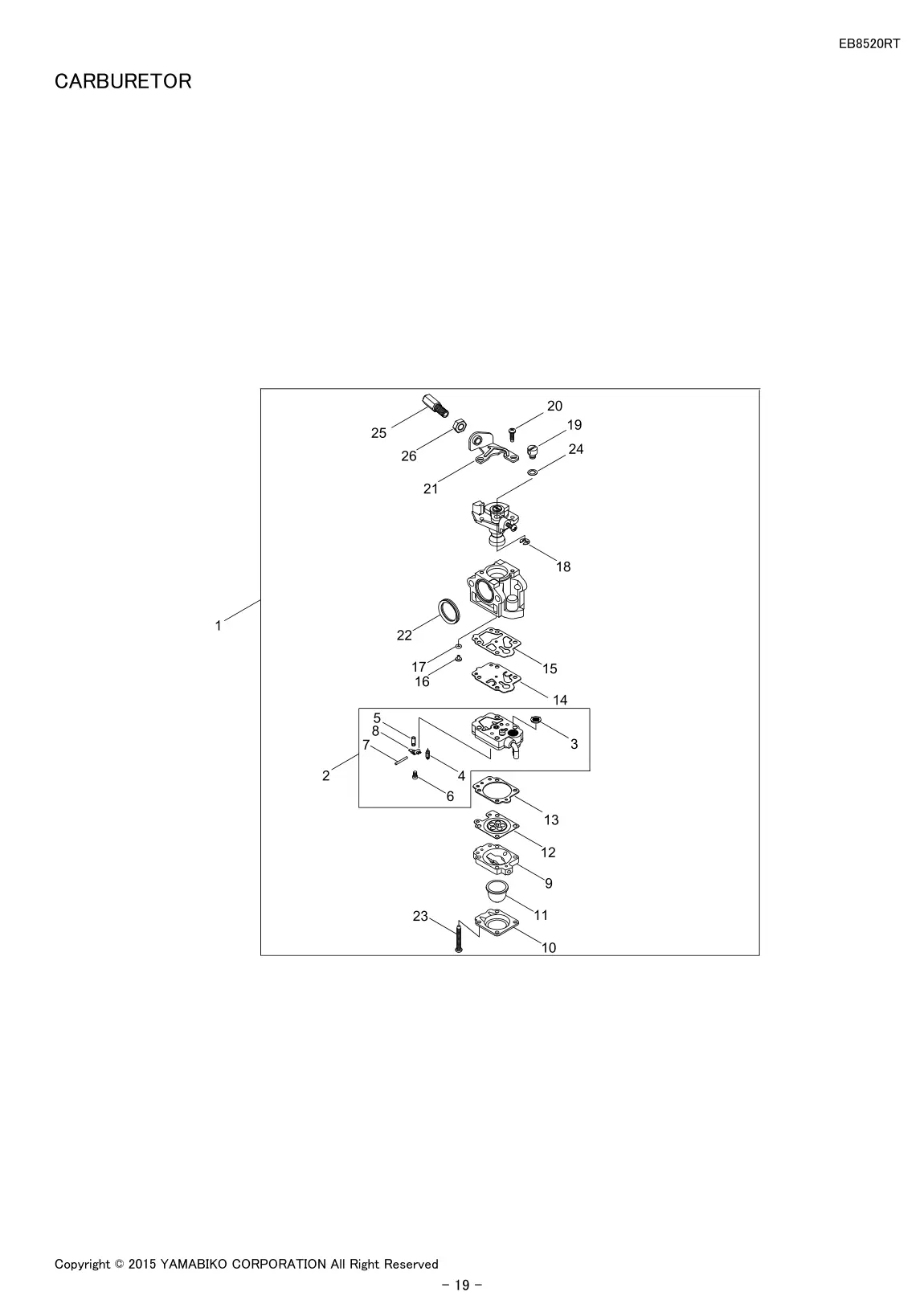

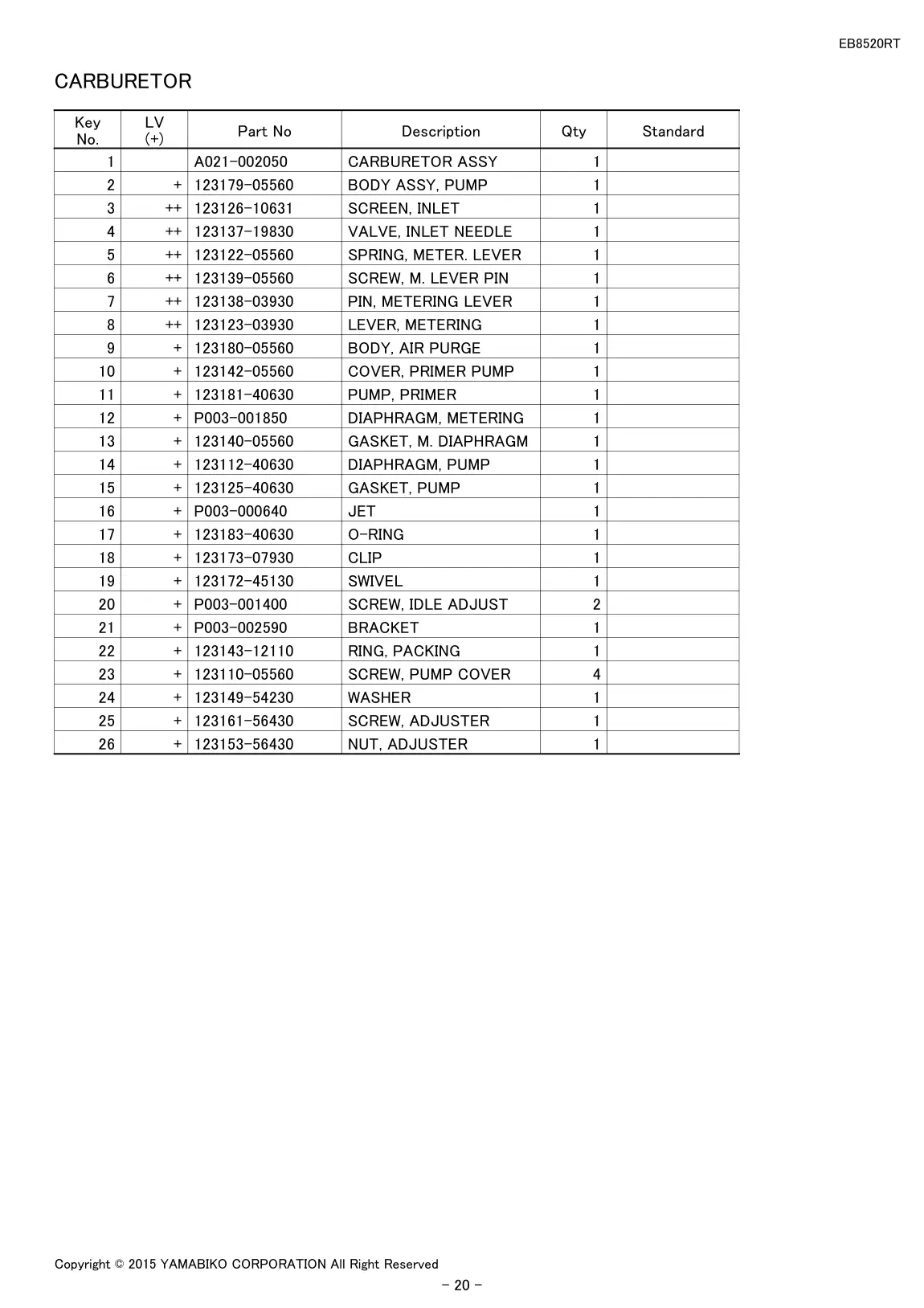

| 22 | CARBURETOR | 1 | CARBURETOR ASSY | A021-002050 | A021-002050-Online |
| 22 | CARBURETOR | 10 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 22 | CARBURETOR | 11 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 22 | CARBURETOR | 12 | DIAPHRAGM, METERING | P003-001850 | P003-001850-Online |
| 22 | CARBURETOR | 13 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 22 | CARBURETOR | 14 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 22 | CARBURETOR | 15 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 22 | CARBURETOR | 16 | JET | P003-000640 | P003-000640-Online |
| 22 | CARBURETOR | 17 | O-RING | 123183-40630 | 123183-40630-Online |
| 22 | CARBURETOR | 18 | CLIP | 123173-07930 | 123173-07930-Online |
| 22 | CARBURETOR | 19 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 22 | CARBURETOR | 2 | BODY ASSY, PUMP | 123179-05560 | 123179-05560-Online |
| 22 | CARBURETOR | 20 | SCREW, IDLE ADJUST | P003-001400 | P003-001400-Online |
| 22 | CARBURETOR | 21 | BRACKET | P003-002590 | P003-002590-Online |
| 22 | CARBURETOR | 22 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 22 | CARBURETOR | 23 | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online |
| 22 | CARBURETOR | 24 | WASHER | 123149-54230 | 123149-54230-Online |
| 22 | CARBURETOR | 25 | SCREW, ADJUSTER | 123161-56430 | 123161-56430-Online |
| 22 | CARBURETOR | 26 | NUT, ADJUSTER | 123153-56430 | 123153-56430-Online |
| 22 | CARBURETOR | 3 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 22 | CARBURETOR | 4 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 22 | CARBURETOR | 5 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 22 | CARBURETOR | 6 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 22 | CARBURETOR | 7 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 22 | CARBURETOR | 8 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 22 | CARBURETOR | 9 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |

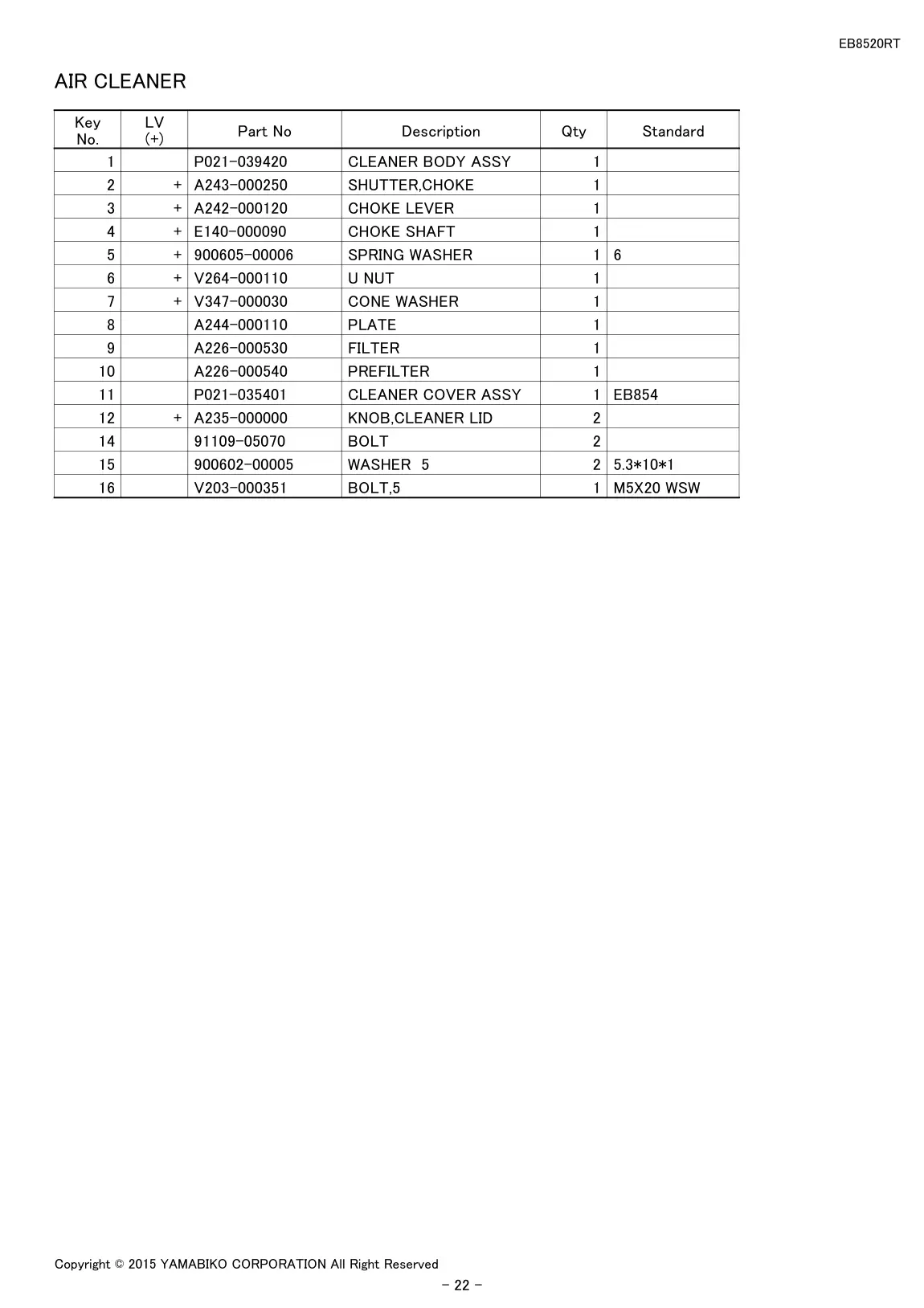

| 24 | AIR CLEANER | 1 | CLEANER BODY ASSY | P021-039420 | P021-039420-Online |
| 24 | AIR CLEANER | 10 | PREFILTER | A226-000540 | A226-000540-Online |
| 24 | AIR CLEANER | 11 | KNOB,CLEANER LID | EB854 | EB854-Online |
| 24 | AIR CLEANER | 11 | CLEANER COVER ASSY | P021-035401 | P021-035401-Online |
| 24 | AIR CLEANER | 12 | KNOB,CLEANER LID | A235-000000 | A235-000000-Online |
| 24 | AIR CLEANER | 14 | BOLT | 91109-05070 | 91109-05070-Online |
| 24 | AIR CLEANER | 15 | WASHER | 900602-00005 | 900602-00005-Online |
| 24 | AIR CLEANER | 16 | BOLT,5 | V203-000351 | V203-000351-Online |
| 24 | AIR CLEANER | 2 | SHUTTER,CHOKE | A243-000250 | A243-000250-Online |
| 24 | AIR CLEANER | 3 | CHOKE LEVER | A242-000120 | A242-000120-Online |
| 24 | AIR CLEANER | 4 | CHOKE SHAFT | E140-000090 | E140-000090-Online |
| 24 | AIR CLEANER | 5 | SPRING WASHER | 900605-00006 | 900605-00006-Online |
| 24 | AIR CLEANER | 6 | U NUT | V264-000110 | V264-000110-Online |
| 24 | AIR CLEANER | 7 | CONE WASHER | V347-000030 | V347-000030-Online |
| 24 | AIR CLEANER | 8 | PLATE | A244-000110 | A244-000110-Online |
| 24 | AIR CLEANER | 9 | FILTER | A226-000530 | A226-000530-Online |

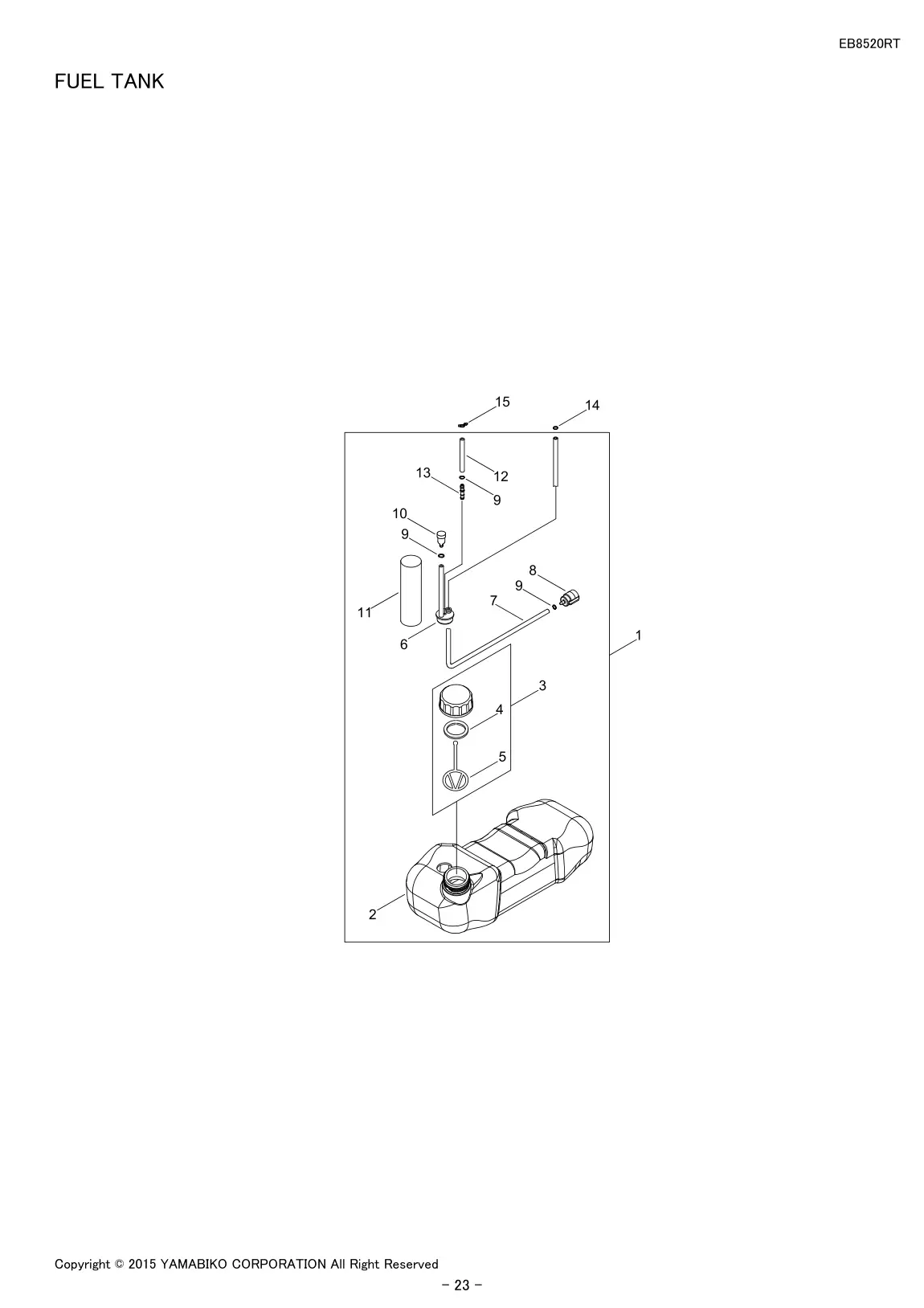

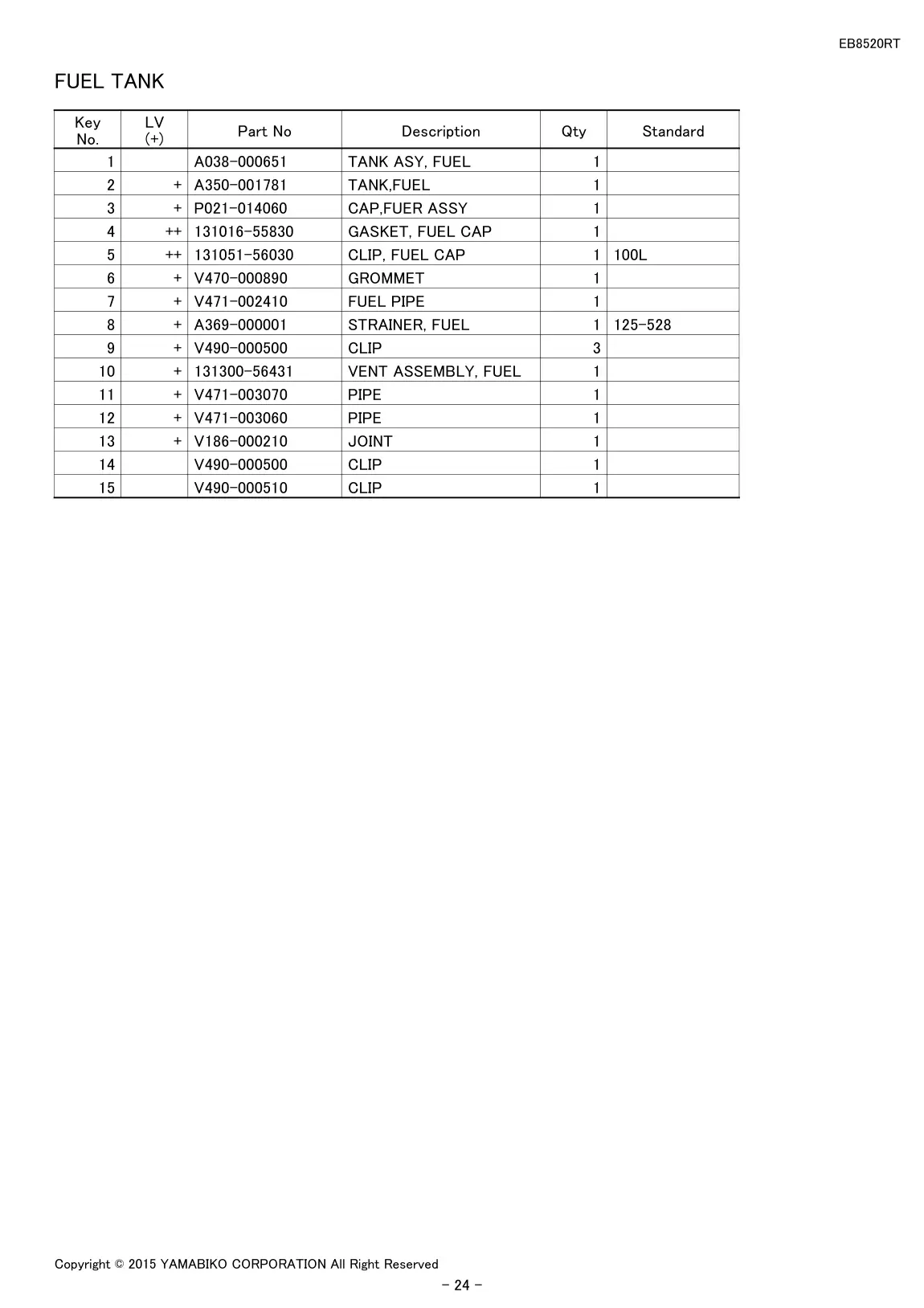

| 26 | FUEL TANK | 1 | TANK ASY, FUEL | A038-000651 | A038-000651-Online |
| 26 | FUEL TANK | 10 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 26 | FUEL TANK | 11 | PIPE | V471-003070 | V471-003070-Online |
| 26 | FUEL TANK | 12 | PIPE | V471-003060 | V471-003060-Online |
| 26 | FUEL TANK | 13 | JOINT | V186-000210 | V186-000210-Online |
| 26 | FUEL TANK | 14 | CLIP | V490-000500 | V490-000500-Online |
| 26 | FUEL TANK | 15 | CLIP | V490-000510 | V490-000510-Online |
| 26 | FUEL TANK | 2 | TANK,FUEL | A350-001781 | A350-001781-Online |
| 26 | FUEL TANK | 3 | CAP,FUER ASSY | P021-014060 | P021-014060-Online |
| 26 | FUEL TANK | 4 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 26 | FUEL TANK | 5 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 26 | FUEL TANK | 6 | GROMMET | V470-000890 | V470-000890-Online |
| 26 | FUEL TANK | 7 | FUEL PIPE | V471-002410 | V471-002410-Online |
| 26 | FUEL TANK | 8 | STRAINER, FUEL | A369-000001 | A369-000001-Online |
| 26 | FUEL TANK | 9 | CLIP | V490-000500 | V490-000500-Online |

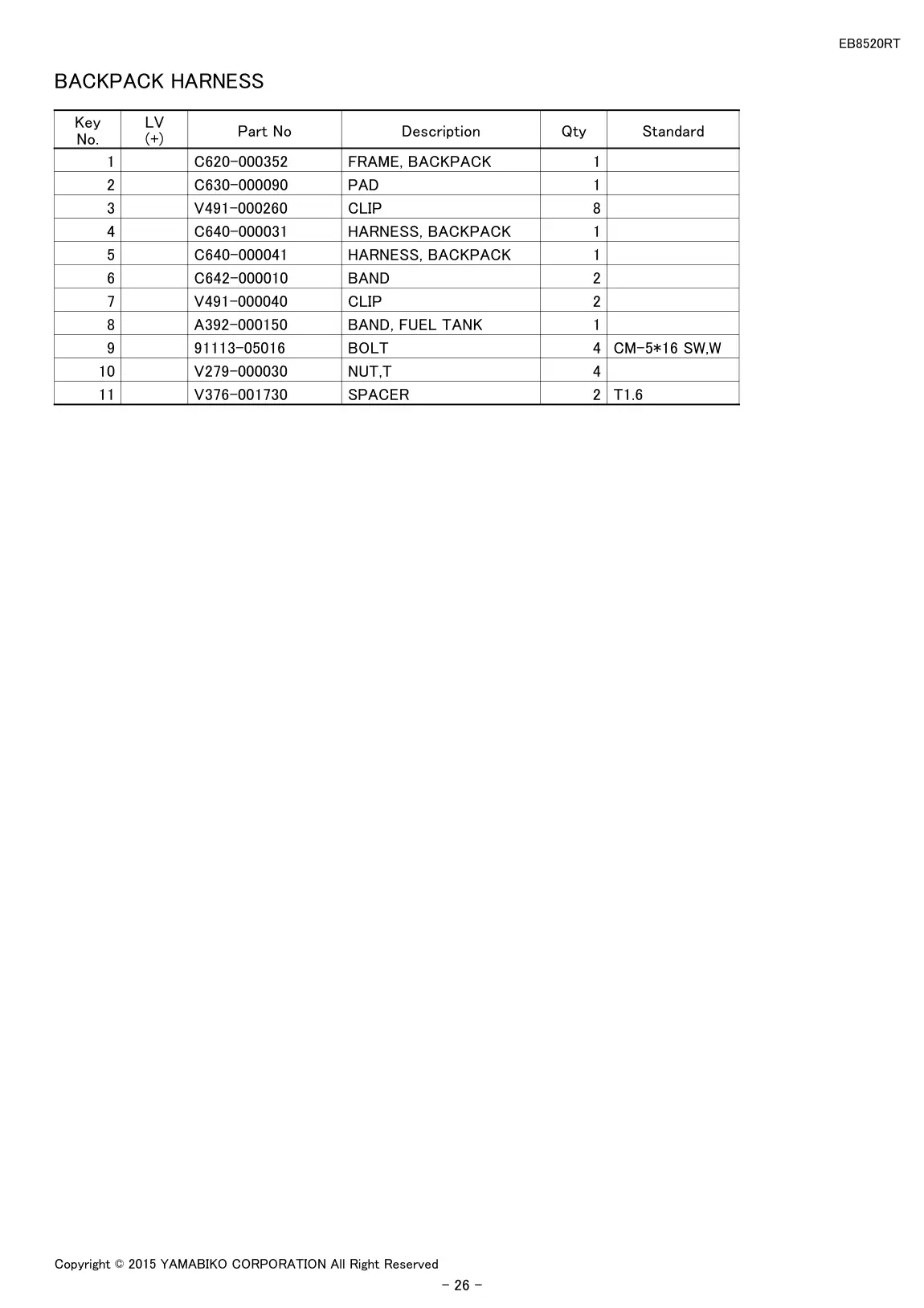

| 28 | BACKPACK HARNESS | 1 | FRAME, BACKPACK | C620-000352 | C620-000352-Online |
| 28 | BACKPACK HARNESS | 10 | NUT,T | V279-000030 | V279-000030-Online |
| 28 | BACKPACK HARNESS | 11 | SPACER | V376-001730 | V376-001730-Online |
| 28 | BACKPACK HARNESS | 3 | CLIP | V491-000260 | V491-000260-Online |
| 28 | BACKPACK HARNESS | 4 | HARNESS, BACKPACK | C640-000031 | C640-000031-Online |
| 28 | BACKPACK HARNESS | 5 | HARNESS, BACKPACK | C640-000041 | C640-000041-Online |
| 28 | BACKPACK HARNESS | 6 | BAND | C642-000010 | C642-000010-Online |
| 28 | BACKPACK HARNESS | 7 | CLIP | V491-000040 | V491-000040-Online |
| 28 | BACKPACK HARNESS | 8 | BAND, FUEL TANK | A392-000150 | A392-000150-Online |
| 28 | BACKPACK HARNESS | 9 | BOLT | 91113-05016 | 91113-05016-Online |

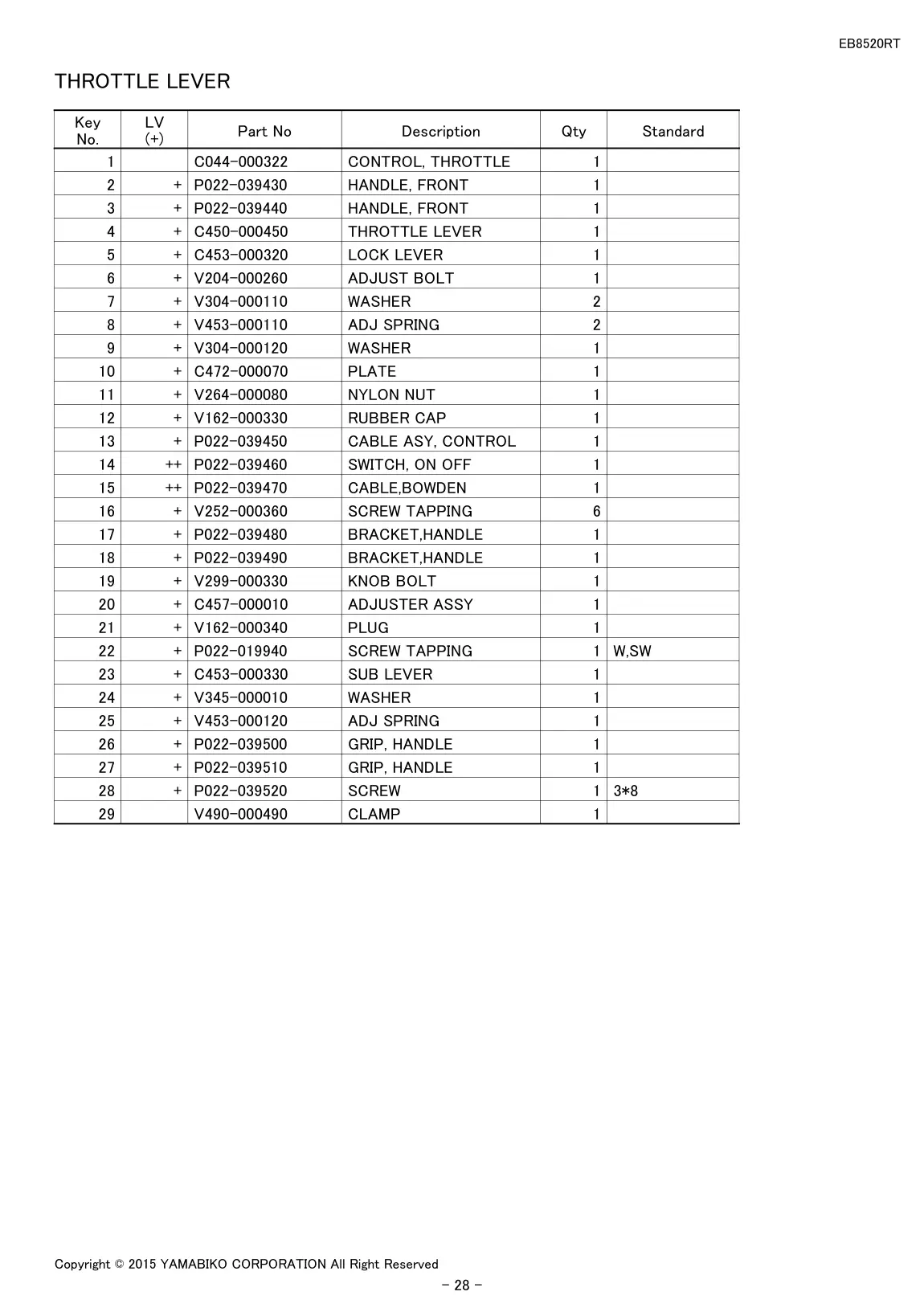

| 30 | THROTTLE LEVER | 1 | CONTROL, THROTTLE | C044-000322 | C044-000322-Online |
| 30 | THROTTLE LEVER | 10 | PLATE | C472-000070 | C472-000070-Online |
| 30 | THROTTLE LEVER | 11 | NYLON NUT | V264-000080 | V264-000080-Online |
| 30 | THROTTLE LEVER | 12 | RUBBER CAP | V162-000330 | V162-000330-Online |
| 30 | THROTTLE LEVER | 13 | CABLE ASY, CONTROL | P022-039450 | P022-039450-Online |
| 30 | THROTTLE LEVER | 14 | SWITCH, ON OFF | P022-039460 | P022-039460-Online |
| 30 | THROTTLE LEVER | 15 | CABLE,BOWDEN | P022-039470 | P022-039470-Online |
| 30 | THROTTLE LEVER | 16 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 30 | THROTTLE LEVER | 17 | BRACKET,HANDLE | P022-039480 | P022-039480-Online |
| 30 | THROTTLE LEVER | 18 | BRACKET,HANDLE | P022-039490 | P022-039490-Online |
| 30 | THROTTLE LEVER | 19 | KNOB BOLT | V299-000330 | V299-000330-Online |
| 30 | THROTTLE LEVER | 2 | HANDLE, FRONT | P022-039430 | P022-039430-Online |
| 30 | THROTTLE LEVER | 20 | ADJUSTER ASSY | C457-000010 | C457-000010-Online |
| 30 | THROTTLE LEVER | 21 | PLUG | V162-000340 | V162-000340-Online |
| 30 | THROTTLE LEVER | 22 | SCREW TAPPING | P022-019940 | P022-019940-Online |
| 30 | THROTTLE LEVER | 23 | SUB LEVER | C453-000330 | C453-000330-Online |
| 30 | THROTTLE LEVER | 24 | WASHER | V345-000010 | V345-000010-Online |
| 30 | THROTTLE LEVER | 25 | ADJ SPRING | V453-000120 | V453-000120-Online |
| 30 | THROTTLE LEVER | 26 | GRIP, HANDLE | P022-039500 | P022-039500-Online |
| 30 | THROTTLE LEVER | 27 | GRIP, HANDLE | P022-039510 | P022-039510-Online |
| 30 | THROTTLE LEVER | 28 | SCREW | P022-039520 | P022-039520-Online |
| 30 | THROTTLE LEVER | 3 | HANDLE, FRONT | P022-039440 | P022-039440-Online |
| 30 | THROTTLE LEVER | 4 | THROTTLE LEVER | C450-000450 | C450-000450-Online |
| 30 | THROTTLE LEVER | 5 | LOCK LEVER | C453-000320 | C453-000320-Online |
| 30 | THROTTLE LEVER | 6 | ADJUST BOLT | V204-000260 | V204-000260-Online |
| 30 | THROTTLE LEVER | 7 | WASHER | V304-000110 | V304-000110-Online |
| 30 | THROTTLE LEVER | 8 | ADJ SPRING | V453-000110 | V453-000110-Online |
| 30 | THROTTLE LEVER | 9 | WASHER | V304-000120 | V304-000120-Online |

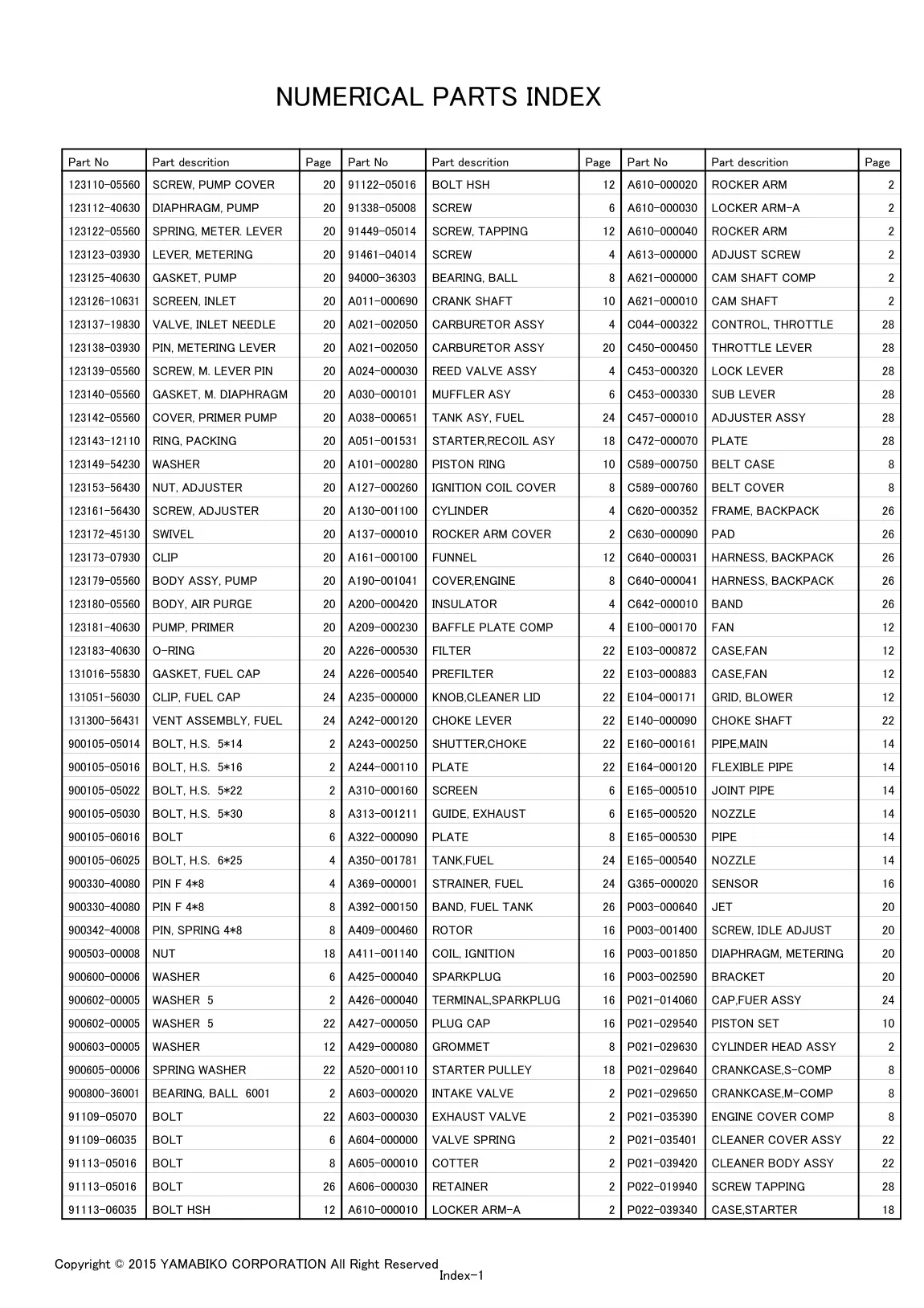

| 31 | CASE,STARTER | SCREW, PUMP COVER | 123110-05560 | 123110-05560-Online | |
| 31 | CASE,STARTER | 10 | CARBURETOR ASSY | A021-002050 | A021-002050-Online |
| 31 | CASE,STARTER | 10 | IGNITION COIL COVER | A127-000260 | A127-000260-Online |
| 31 | CASE,STARTER | 10 | CYLINDER HEAD ASSY | P021-029630 | P021-029630-Online |
| 31 | CASE,STARTER | 12 | SPRING WASHER | 900605-00006 | 900605-00006-Online |
| 31 | CASE,STARTER | 12 | BOLT HSH | 91122-05016 | 91122-05016-Online |
| 31 | CASE,STARTER | 12 | SCREW | 91338-05008 | 91338-05008-Online |
| 31 | CASE,STARTER | 12 | SCREW | 91461-04014 | 91461-04014-Online |
| 31 | CASE,STARTER | 12 | COVER,ENGINE | A190-001041 | A190-001041-Online |
| 31 | CASE,STARTER | 12 | CASE,FAN | E103-000872 | E103-000872-Online |
| 31 | CASE,STARTER | 12 | CASE,FAN | E103-000883 | E103-000883-Online |
| 31 | CASE,STARTER | 12 | GRID, BLOWER | E104-000171 | E104-000171-Online |
| 31 | CASE,STARTER | 12 | CHOKE SHAFT | E140-000090 | E140-000090-Online |
| 31 | CASE,STARTER | 14 | FLEXIBLE PIPE | E164-000120 | E164-000120-Online |
| 31 | CASE,STARTER | 14 | JOINT PIPE | E165-000510 | E165-000510-Online |
| 31 | CASE,STARTER | 14 | NOZZLE | E165-000520 | E165-000520-Online |
| 31 | CASE,STARTER | 14 | PIPE | E165-000530 | E165-000530-Online |
| 31 | CASE,STARTER | 14 | NOZZLE | E165-000540 | E165-000540-Online |
| 31 | CASE,STARTER | 14 | SENSOR | G365-000020 | G365-000020-Online |
| 31 | CASE,STARTER | 16 | COIL, IGNITION | A411-001140 | A411-001140-Online |
| 31 | CASE,STARTER | 16 | SPARKPLUG | A425-000040 | A425-000040-Online |
| 31 | CASE,STARTER | 16 | TERMINAL,SPARKPLUG | A426-000040 | A426-000040-Online |
| 31 | CASE,STARTER | 16 | PLUG CAP | A427-000050 | A427-000050-Online |
| 31 | CASE,STARTER | 16 | GROMMET | A429-000080 | A429-000080-Online |
| 31 | CASE,STARTER | 16 | JET | P003-000640 | P003-000640-Online |
| 31 | CASE,STARTER | 18 | WASHER | 900600-00006 | 900600-00006-Online |
| 31 | CASE,STARTER | 18 | PISTON RING | A101-000280 | A101-000280-Online |
| 31 | CASE,STARTER | 18 | INTAKE VALVE | A603-000020 | A603-000020-Online |
| 31 | CASE,STARTER | 2 | BOLT, H.S. 5*16 | 900105-05016 | 900105-05016-Online |
| 31 | CASE,STARTER | 2 | BOLT, H.S. 5*22 | 900105-05022 | 900105-05022-Online |
| 31 | CASE,STARTER | 2 | BOLT, H.S. 5*30 | 900105-05030 | 900105-05030-Online |
| 31 | CASE,STARTER | 2 | WASHER | 900602-00005 | 900602-00005-Online |
| 31 | CASE,STARTER | 2 | BOLT | 91109-05070 | 91109-05070-Online |
| 31 | CASE,STARTER | 2 | FUNNEL | A161-000100 | A161-000100-Online |
| 31 | CASE,STARTER | 2 | EXHAUST VALVE | A603-000030 | A603-000030-Online |
| 31 | CASE,STARTER | 2 | VALVE SPRING | A604-000000 | A604-000000-Online |
| 31 | CASE,STARTER | 2 | COTTER | A605-000010 | A605-000010-Online |
| 31 | CASE,STARTER | 2 | RETAINER | A606-000030 | A606-000030-Online |
| 31 | CASE,STARTER | 2 | LOCKER ARM-A | A610-000010 | A610-000010-Online |
| 31 | CASE,STARTER | 2 | ROCKER ARM | A610-000020 | A610-000020-Online |
| 31 | CASE,STARTER | 2 | LOCKER ARM-A | A610-000030 | A610-000030-Online |
| 31 | CASE,STARTER | 2 | ROCKER ARM | A610-000040 | A610-000040-Online |
| 31 | CASE,STARTER | 2 | ADJUST SCREW | A613-000000 | A613-000000-Online |
| 31 | CASE,STARTER | 2 | CAM SHAFT COMP | A621-000000 | A621-000000-Online |
| 31 | CASE,STARTER | 2 | CAM SHAFT | A621-000010 | A621-000010-Online |
| 31 | CASE,STARTER | 2 | CONTROL, THROTTLE | C044-000322 | C044-000322-Online |
| 31 | CASE,STARTER | 2 | CRANKCASE,S-COMP | P021-029640 | P021-029640-Online |
| 31 | CASE,STARTER | 20 | DIAPHRAGM, PUMP | 123112-40630 | 123112-40630-Online |
| 31 | CASE,STARTER | 20 | SPRING, METER. LEVER | 123122-05560 | 123122-05560-Online |
| 31 | CASE,STARTER | 20 | LEVER, METERING | 123123-03930 | 123123-03930-Online |
| 31 | CASE,STARTER | 20 | GASKET, PUMP | 123125-40630 | 123125-40630-Online |
| 31 | CASE,STARTER | 20 | SCREEN, INLET | 123126-10631 | 123126-10631-Online |
| 31 | CASE,STARTER | 20 | VALVE, INLET NEEDLE | 123137-19830 | 123137-19830-Online |
| 31 | CASE,STARTER | 20 | PIN, METERING LEVER | 123138-03930 | 123138-03930-Online |
| 31 | CASE,STARTER | 20 | SCREW, M. LEVER PIN | 123139-05560 | 123139-05560-Online |
| 31 | CASE,STARTER | 20 | GASKET, M. DIAPHRAGM | 123140-05560 | 123140-05560-Online |
| 31 | CASE,STARTER | 20 | COVER, PRIMER PUMP | 123142-05560 | 123142-05560-Online |
| 31 | CASE,STARTER | 20 | RING, PACKING | 123143-12110 | 123143-12110-Online |
| 31 | CASE,STARTER | 20 | WASHER | 123149-54230 | 123149-54230-Online |
| 31 | CASE,STARTER | 20 | NUT, ADJUSTER | 123153-56430 | 123153-56430-Online |
| 31 | CASE,STARTER | 20 | SCREW, ADJUSTER | 123161-56430 | 123161-56430-Online |
| 31 | CASE,STARTER | 20 | SWIVEL | 123172-45130 | 123172-45130-Online |
| 31 | CASE,STARTER | 20 | CLIP | 123173-07930 | 123173-07930-Online |
| 31 | CASE,STARTER | 20 | BODY ASSY, PUMP | 123179-05560 | 123179-05560-Online |
| 31 | CASE,STARTER | 20 | BODY, AIR PURGE | 123180-05560 | 123180-05560-Online |
| 31 | CASE,STARTER | 20 | PUMP, PRIMER | 123181-40630 | 123181-40630-Online |
| 31 | CASE,STARTER | 20 | O-RING | 123183-40630 | 123183-40630-Online |
| 31 | CASE,STARTER | 20 | GASKET, FUEL CAP | 131016-55830 | 131016-55830-Online |
| 31 | CASE,STARTER | 20 | REED VALVE ASSY | A024-000030 | A024-000030-Online |
| 31 | CASE,STARTER | 20 | SCREW, IDLE ADJUST | P003-001400 | P003-001400-Online |
| 31 | CASE,STARTER | 20 | DIAPHRAGM, METERING | P003-001850 | P003-001850-Online |
| 31 | CASE,STARTER | 20 | BRACKET | P003-002590 | P003-002590-Online |
| 31 | CASE,STARTER | 20 | CAP,FUER ASSY | P021-014060 | P021-014060-Online |
| 31 | CASE,STARTER | 22 | WASHER | 900603-00005 | 900603-00005-Online |
| 31 | CASE,STARTER | 22 | BEARING, BALL | 900800-36001 | 900800-36001-Online |
| 31 | CASE,STARTER | 22 | BOLT | 91109-06035 | 91109-06035-Online |
| 31 | CASE,STARTER | 22 | PREFILTER | A226-000540 | A226-000540-Online |
| 31 | CASE,STARTER | 22 | KNOB,CLEANER LID | A235-000000 | A235-000000-Online |
| 31 | CASE,STARTER | 22 | CHOKE LEVER | A242-000120 | A242-000120-Online |
| 31 | CASE,STARTER | 22 | SHUTTER,CHOKE | A243-000250 | A243-000250-Online |
| 31 | CASE,STARTER | 22 | PLATE | A244-000110 | A244-000110-Online |
| 31 | CASE,STARTER | 22 | SCREEN | A310-000160 | A310-000160-Online |
| 31 | CASE,STARTER | 22 | PIPE,MAIN | E160-000161 | E160-000161-Online |
| 31 | CASE,STARTER | 22 | CLEANER BODY ASSY | P021-039420 | P021-039420-Online |
| 31 | CASE,STARTER | 22 | SCREW TAPPING | P022-019940 | P022-019940-Online |
| 31 | CASE,STARTER | 24 | CLIP, FUEL CAP | 131051-56030 | 131051-56030-Online |
| 31 | CASE,STARTER | 24 | VENT ASSEMBLY, FUEL | 131300-56431 | 131300-56431-Online |
| 31 | CASE,STARTER | 24 | BOLT, H.S. 5*14 | 900105-05014 | 900105-05014-Online |
| 31 | CASE,STARTER | 24 | STARTER,RECOIL ASY | A051-001531 | A051-001531-Online |
| 31 | CASE,STARTER | 24 | STRAINER, FUEL | A369-000001 | A369-000001-Online |
| 31 | CASE,STARTER | 24 | BAND, FUEL TANK | A392-000150 | A392-000150-Online |
| 31 | CASE,STARTER | 24 | PISTON SET | P021-029540 | P021-029540-Online |
| 31 | CASE,STARTER | 26 | BOLT HSH | 91113-06035 | 91113-06035-Online |
| 31 | CASE,STARTER | 26 | HARNESS, BACKPACK | C640-000031 | C640-000031-Online |
| 31 | CASE,STARTER | 26 | HARNESS, BACKPACK | C640-000041 | C640-000041-Online |
| 31 | CASE,STARTER | 26 | BAND | C642-000010 | C642-000010-Online |
| 31 | CASE,STARTER | 26 | FAN | E100-000170 | E100-000170-Online |
| 31 | CASE,STARTER | 28 | THROTTLE LEVER | C450-000450 | C450-000450-Online |
| 31 | CASE,STARTER | 28 | LOCK LEVER | C453-000320 | C453-000320-Online |
| 31 | CASE,STARTER | 28 | SUB LEVER | C453-000330 | C453-000330-Online |
| 31 | CASE,STARTER | 28 | ADJUSTER ASSY | C457-000010 | C457-000010-Online |
| 31 | CASE,STARTER | 28 | PLATE | C472-000070 | C472-000070-Online |
| 31 | CASE,STARTER | 28 | BELT CASE | C589-000750 | C589-000750-Online |
| 31 | CASE,STARTER | 4 | PIN F 4*8 | 900330-40080 | 900330-40080-Online |
| 31 | CASE,STARTER | 4 | BEARING, BALL | 94000-36303 | 94000-36303-Online |
| 31 | CASE,STARTER | 4 | CARBURETOR ASSY | A021-002050 | A021-002050-Online |
| 31 | CASE,STARTER | 4 | MUFFLER ASY | A030-000101 | A030-000101-Online |
| 31 | CASE,STARTER | 4 | ROCKER ARM COVER | A137-000010 | A137-000010-Online |
| 31 | CASE,STARTER | 4 | BAFFLE PLATE COMP | A209-000230 | A209-000230-Online |
| 31 | CASE,STARTER | 4 | FILTER | A226-000530 | A226-000530-Online |
| 31 | CASE,STARTER | 6 | BOLT, H.S. 6*25 | 900105-06025 | 900105-06025-Online |
| 31 | CASE,STARTER | 6 | WASHER | 900602-00005 | 900602-00005-Online |
| 31 | CASE,STARTER | 6 | BOLT | 91113-05016 | 91113-05016-Online |
| 31 | CASE,STARTER | 6 | SCREW, TAPPING | 91449-05014 | 91449-05014-Online |
| 31 | CASE,STARTER | 6 | TANK ASY, FUEL | A038-000651 | A038-000651-Online |
| 31 | CASE,STARTER | 6 | GUIDE, EXHAUST | A313-001211 | A313-001211-Online |
| 31 | CASE,STARTER | 6 | PLATE | A322-000090 | A322-000090-Online |
| 31 | CASE,STARTER | 8 | BOLT | 900105-06016 | 900105-06016-Online |
| 31 | CASE,STARTER | 8 | PIN, SPRING 4*8 | 900342-40008 | 900342-40008-Online |
| 31 | CASE,STARTER | 8 | NUT | 900503-00008 | 900503-00008-Online |
| 31 | CASE,STARTER | 8 | BOLT | 91113-05016 | 91113-05016-Online |
| 31 | CASE,STARTER | 8 | CRANK SHAFT | A011-000690 | A011-000690-Online |
| 31 | CASE,STARTER | 8 | CYLINDER | A130-001100 | A130-001100-Online |
| 31 | CASE,STARTER | 8 | INSULATOR | A200-000420 | A200-000420-Online |
| 31 | CASE,STARTER | 8 | TANK,FUEL | A350-001781 | A350-001781-Online |
| 31 | CASE,STARTER | 8 | STARTER PULLEY | A520-000110 | A520-000110-Online |
| 31 | CASE,STARTER | 8 | BELT COVER | C589-000760 | C589-000760-Online |
| 31 | CASE,STARTER | 8 | FRAME, BACKPACK | C620-000352 | C620-000352-Online |
| 31 | CASE,STARTER | 8 | CRANKCASE,M-COMP | P021-029650 | P021-029650-Online |
| 31 | CASE,STARTER | 8 | ENGINE COVER COMP | P021-035390 | P021-035390-Online |
| 31 | CASE,STARTER | 8 | CLEANER COVER ASSY | P021-035401 | P021-035401-Online |

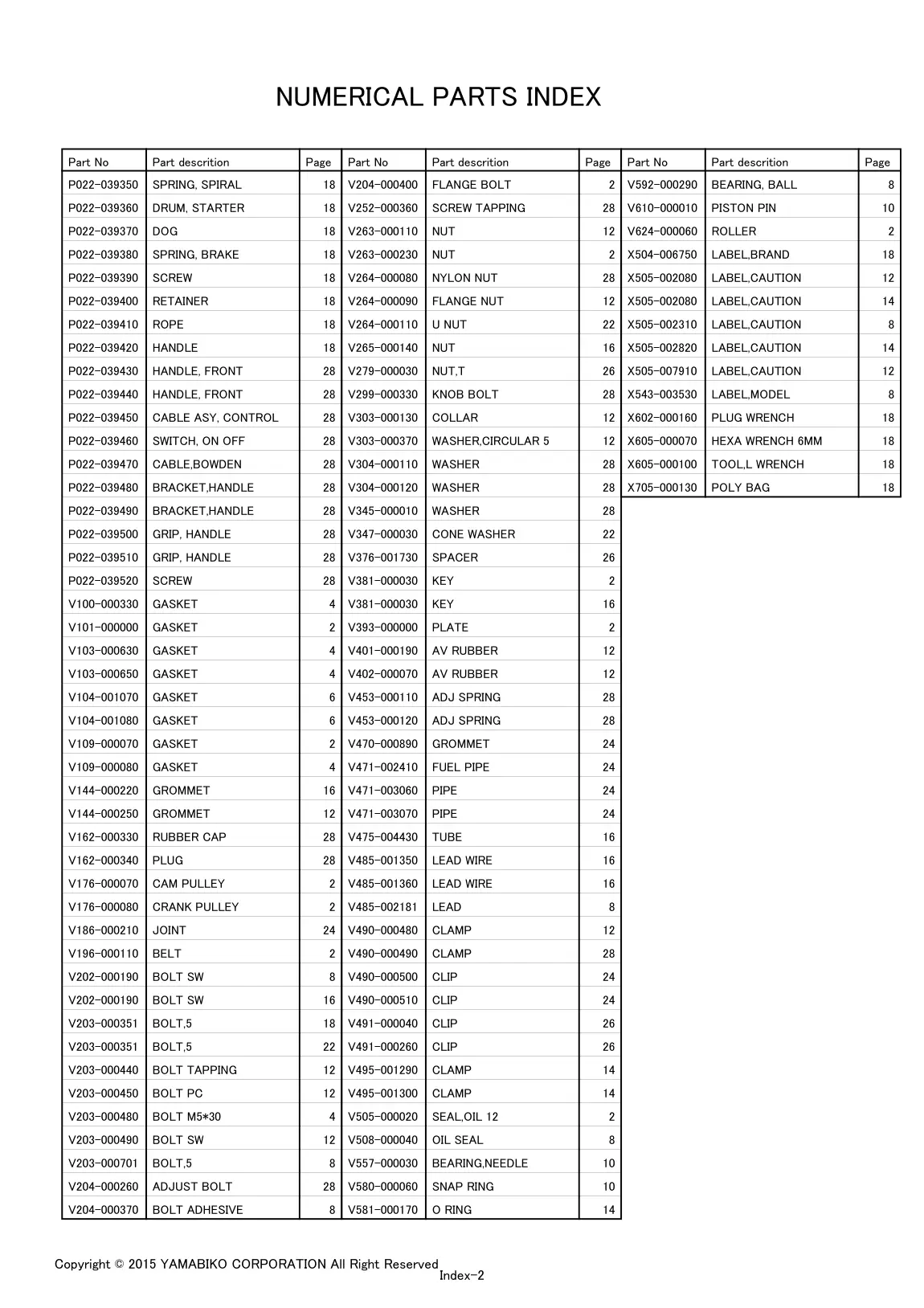

| 32 | POLY BAG | SPRING, SPIRAL | P022-039350 | P022-039350-Online | |
| 32 | POLY BAG | 10 | SNAP RING | V580-000060 | V580-000060-Online |
| 32 | POLY BAG | 10 | O RING | V581-000170 | V581-000170-Online |
| 32 | POLY BAG | 10 | ROLLER | V624-000060 | V624-000060-Online |
| 32 | POLY BAG | 12 | RUBBER CAP | V162-000330 | V162-000330-Online |
| 32 | POLY BAG | 12 | BOLT PC | V203-000450 | V203-000450-Online |
| 32 | POLY BAG | 12 | BOLT M5*30 | V203-000480 | V203-000480-Online |
| 32 | POLY BAG | 12 | BOLT,5 | V203-000701 | V203-000701-Online |
| 32 | POLY BAG | 12 | NUT | V263-000230 | V263-000230-Online |
| 32 | POLY BAG | 12 | U NUT | V264-000110 | V264-000110-Online |
| 32 | POLY BAG | 12 | WASHER,CIRCULAR | V303-000370 | V303-000370-Online |
| 32 | POLY BAG | 12 | WASHER | V304-000110 | V304-000110-Online |
| 32 | POLY BAG | 12 | AV RUBBER | V402-000070 | V402-000070-Online |
| 32 | POLY BAG | 12 | ADJ SPRING | V453-000110 | V453-000110-Online |
| 32 | POLY BAG | 12 | LABEL,CAUTION | X505-002080 | X505-002080-Online |
| 32 | POLY BAG | 12 | LABEL,MODEL | X543-003530 | X543-003530-Online |
| 32 | POLY BAG | 14 | SEAL,OIL | V505-000020 | V505-000020-Online |
| 32 | POLY BAG | 14 | BEARING, BALL | V592-000290 | V592-000290-Online |
| 32 | POLY BAG | 14 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 32 | POLY BAG | 14 | LABEL,CAUTION | X505-007910 | X505-007910-Online |
| 32 | POLY BAG | 16 | GROMMET | V144-000250 | V144-000250-Online |
| 32 | POLY BAG | 16 | BOLT,5 | V203-000351 | V203-000351-Online |
| 32 | POLY BAG | 16 | NUT,T | V279-000030 | V279-000030-Online |
| 32 | POLY BAG | 16 | PLATE | V393-000000 | V393-000000-Online |
| 32 | POLY BAG | 16 | LEAD WIRE | V485-001350 | V485-001350-Online |
| 32 | POLY BAG | 16 | LEAD WIRE | V485-001360 | V485-001360-Online |
| 32 | POLY BAG | 16 | LEAD | V485-002181 | V485-002181-Online |
| 32 | POLY BAG | 18 | DRUM, STARTER | P022-039360 | P022-039360-Online |
| 32 | POLY BAG | 18 | SPRING, BRAKE | P022-039380 | P022-039380-Online |
| 32 | POLY BAG | 18 | SCREW | P022-039390 | P022-039390-Online |
| 32 | POLY BAG | 18 | RETAINER | P022-039400 | P022-039400-Online |
| 32 | POLY BAG | 18 | ROPE | P022-039410 | P022-039410-Online |
| 32 | POLY BAG | 18 | HANDLE | P022-039420 | P022-039420-Online |
| 32 | POLY BAG | 18 | HANDLE, FRONT | P022-039430 | P022-039430-Online |
| 32 | POLY BAG | 18 | BOLT,5 | V203-000351 | V203-000351-Online |
| 32 | POLY BAG | 18 | LABEL,CAUTION | X505-002080 | X505-002080-Online |
| 32 | POLY BAG | 18 | HEXA WRENCH 6MM | X605-000070 | X605-000070-Online |
| 32 | POLY BAG | 18 | TOOL,L WRENCH | X605-000100 | X605-000100-Online |
| 32 | POLY BAG | 2 | GASKET | V103-000630 | V103-000630-Online |
| 32 | POLY BAG | 2 | GASKET | V109-000080 | V109-000080-Online |
| 32 | POLY BAG | 2 | CRANK PULLEY | V176-000080 | V176-000080-Online |
| 32 | POLY BAG | 2 | JOINT | V186-000210 | V186-000210-Online |
| 32 | POLY BAG | 2 | BOLT SW | V202-000190 | V202-000190-Online |
| 32 | POLY BAG | 2 | SCREW TAPPING | V252-000360 | V252-000360-Online |
| 32 | POLY BAG | 2 | NYLON NUT | V264-000080 | V264-000080-Online |
| 32 | POLY BAG | 2 | KEY | V381-000030 | V381-000030-Online |
| 32 | POLY BAG | 2 | AV RUBBER | V401-000190 | V401-000190-Online |
| 32 | POLY BAG | 2 | OIL SEAL | V508-000040 | V508-000040-Online |
| 32 | POLY BAG | 2 | LABEL,BRAND | X504-006750 | X504-006750-Online |
| 32 | POLY BAG | 22 | BOLT TAPPING | V203-000440 | V203-000440-Online |
| 32 | POLY BAG | 22 | NUT | V265-000140 | V265-000140-Online |
| 32 | POLY BAG | 22 | SPACER | V376-001730 | V376-001730-Online |
| 32 | POLY BAG | 24 | FUEL PIPE | V471-002410 | V471-002410-Online |
| 32 | POLY BAG | 24 | PIPE | V471-003060 | V471-003060-Online |
| 32 | POLY BAG | 24 | PIPE | V471-003070 | V471-003070-Online |
| 32 | POLY BAG | 24 | TUBE | V475-004430 | V475-004430-Online |
| 32 | POLY BAG | 24 | CLIP | V490-000510 | V490-000510-Online |
| 32 | POLY BAG | 24 | CLIP | V491-000040 | V491-000040-Online |
| 32 | POLY BAG | 26 | KNOB BOLT | V299-000330 | V299-000330-Online |
| 32 | POLY BAG | 26 | KEY | V381-000030 | V381-000030-Online |
| 32 | POLY BAG | 26 | CLIP | V491-000260 | V491-000260-Online |
| 32 | POLY BAG | 28 | HANDLE, FRONT | P022-039440 | P022-039440-Online |
| 32 | POLY BAG | 28 | CABLE ASY, CONTROL | P022-039450 | P022-039450-Online |
| 32 | POLY BAG | 28 | SWITCH, ON OFF | P022-039460 | P022-039460-Online |
| 32 | POLY BAG | 28 | CABLE,BOWDEN | P022-039470 | P022-039470-Online |
| 32 | POLY BAG | 28 | BRACKET,HANDLE | P022-039480 | P022-039480-Online |
| 32 | POLY BAG | 28 | BRACKET,HANDLE | P022-039490 | P022-039490-Online |
| 32 | POLY BAG | 28 | GRIP, HANDLE | P022-039500 | P022-039500-Online |
| 32 | POLY BAG | 28 | GRIP, HANDLE | P022-039510 | P022-039510-Online |
| 32 | POLY BAG | 28 | SCREW | P022-039520 | P022-039520-Online |
| 32 | POLY BAG | 28 | GASKET | V100-000330 | V100-000330-Online |
| 32 | POLY BAG | 28 | PLUG | V162-000340 | V162-000340-Online |
| 32 | POLY BAG | 28 | CAM PULLEY | V176-000070 | V176-000070-Online |
| 32 | POLY BAG | 28 | BOLT ADHESIVE | V204-000370 | V204-000370-Online |
| 32 | POLY BAG | 28 | NUT | V263-000110 | V263-000110-Online |
| 32 | POLY BAG | 28 | FLANGE NUT | V264-000090 | V264-000090-Online |
| 32 | POLY BAG | 28 | COLLAR | V303-000130 | V303-000130-Online |
| 32 | POLY BAG | 28 | WASHER | V304-000120 | V304-000120-Online |
| 32 | POLY BAG | 28 | WASHER | V345-000010 | V345-000010-Online |
| 32 | POLY BAG | 28 | CONE WASHER | V347-000030 | V347-000030-Online |
| 32 | POLY BAG | 28 | ADJ SPRING | V453-000120 | V453-000120-Online |
| 32 | POLY BAG | 28 | GROMMET | V470-000890 | V470-000890-Online |
| 32 | POLY BAG | 28 | CLIP | V490-000500 | V490-000500-Online |
| 32 | POLY BAG | 4 | GASKET | V101-000000 | V101-000000-Online |
| 32 | POLY BAG | 4 | GASKET | V103-000650 | V103-000650-Online |
| 32 | POLY BAG | 4 | GASKET | V104-001070 | V104-001070-Online |
| 32 | POLY BAG | 4 | GROMMET | V144-000220 | V144-000220-Online |
| 32 | POLY BAG | 4 | BOLT SW | V203-000490 | V203-000490-Online |
| 32 | POLY BAG | 6 | GASKET | V104-001080 | V104-001080-Online |
| 32 | POLY BAG | 6 | GASKET | V109-000070 | V109-000070-Online |
| 32 | POLY BAG | 8 | BOLT SW | V202-000190 | V202-000190-Online |
| 32 | POLY BAG | 8 | ADJUST BOLT | V204-000260 | V204-000260-Online |
| 32 | POLY BAG | 8 | FLANGE BOLT | V204-000400 | V204-000400-Online |
| 32 | POLY BAG | 8 | BEARING,NEEDLE | V557-000030 | V557-000030-Online |
| 32 | POLY BAG | 8 | PISTON PIN | V610-000010 | V610-000010-Online |
| 32 | POLY BAG | 8 | LABEL,CAUTION | X505-002820 | X505-002820-Online |
| 32 | POLY BAG | 8 | PLUG WRENCH | X602-000160 | X602-000160-Online |
Source file: 20200226-817_EB8520RT_37_37032601_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
