Illustrated Parts List
Shindaiwa P230S EC1 Pole Pruner IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: P230S EC1
Type: Pole Pruner
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

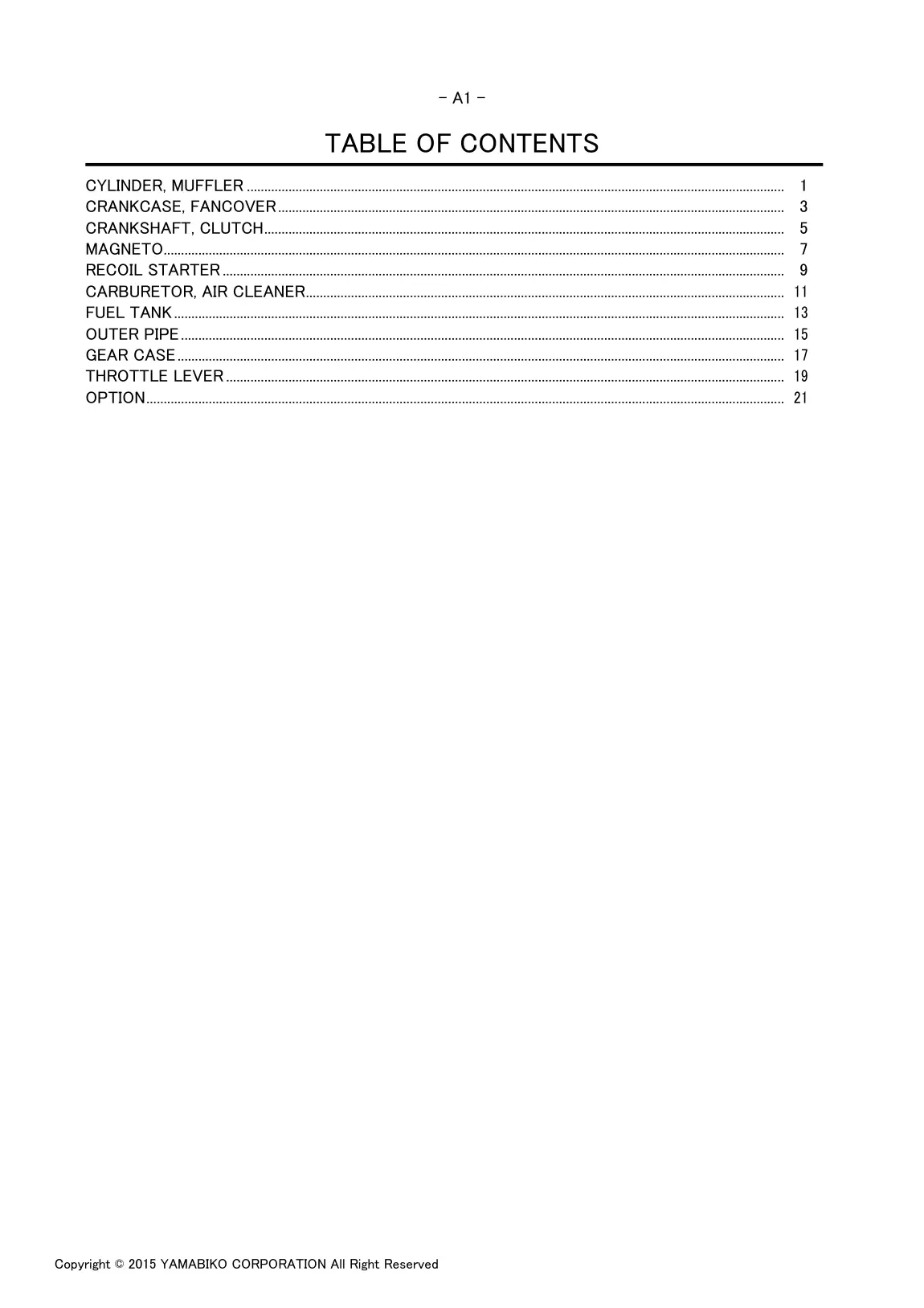

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

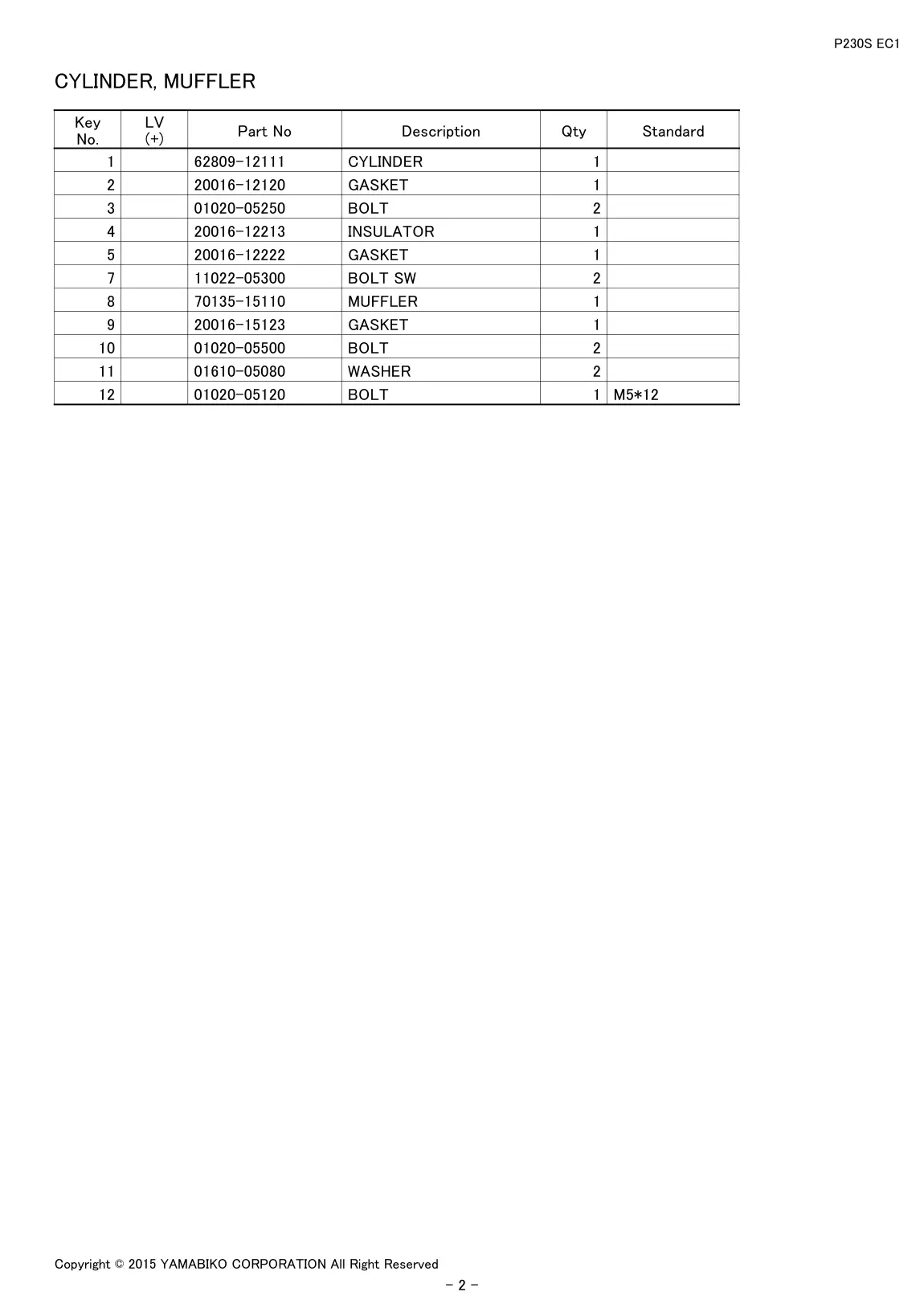

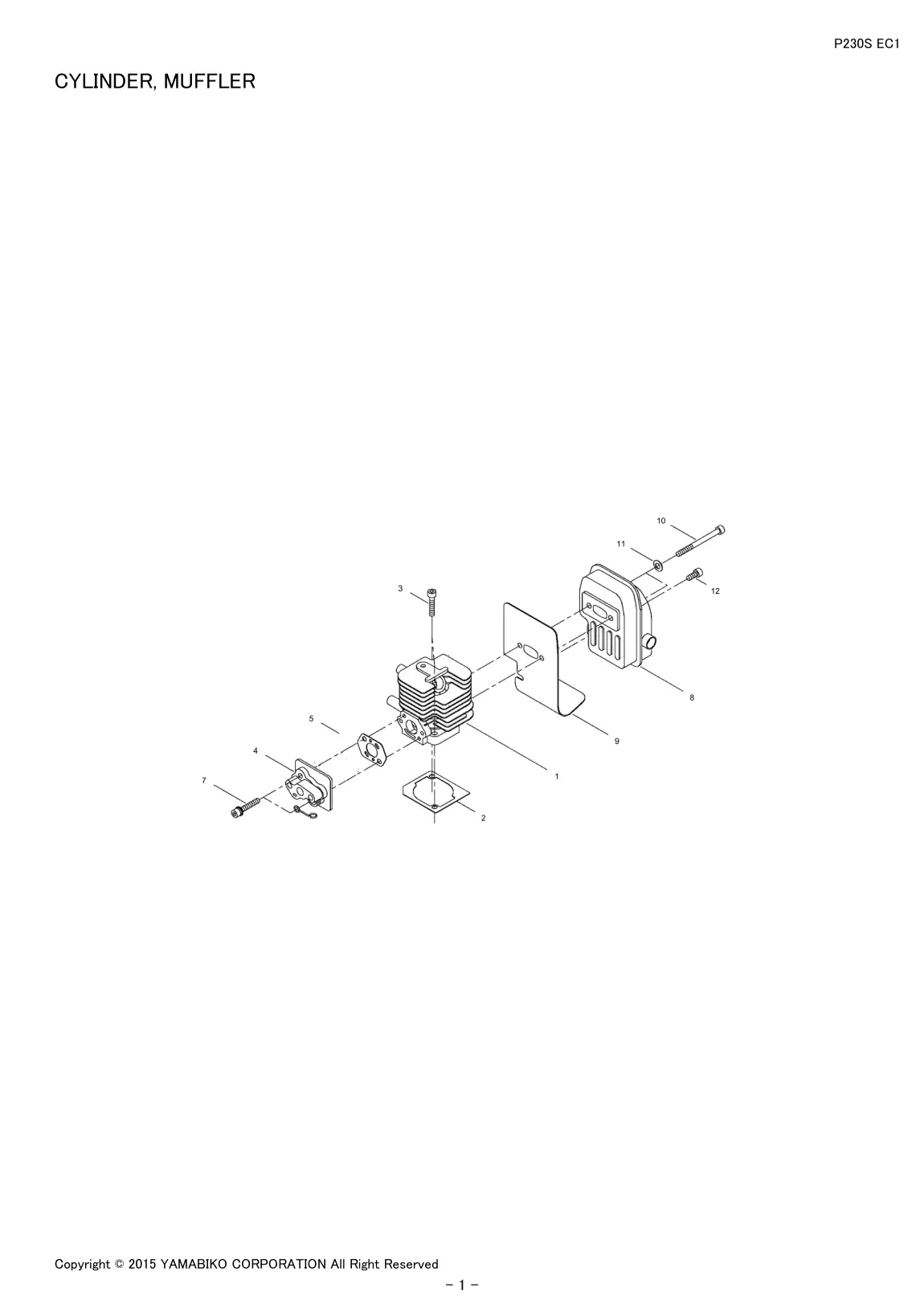

| 4 | CYLINDER, MUFFLER | 1 | CYLINDER | 62809-12111 | 62809-12111-Online |
| 4 | CYLINDER, MUFFLER | 10 | BOLT | 01020-05500 | 01020-05500-Online |
| 4 | CYLINDER, MUFFLER | 11 | WASHER | 01610-05080 | 01610-05080-Online |
| 4 | CYLINDER, MUFFLER | 12 | BOLT | 01020-05120 | 01020-05120-Online |
| 4 | CYLINDER, MUFFLER | 2 | GASKET | 20016-12120 | 20016-12120-Online |
| 4 | CYLINDER, MUFFLER | 3 | BOLT | 01020-05250 | 01020-05250-Online |
| 4 | CYLINDER, MUFFLER | 4 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 4 | CYLINDER, MUFFLER | 5 | GASKET | 20016-12222 | 20016-12222-Online |
| 4 | CYLINDER, MUFFLER | 7 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 4 | CYLINDER, MUFFLER | 8 | MUFFLER | 70135-15110 | 70135-15110-Online |
| 4 | CYLINDER, MUFFLER | 9 | GASKET | 20016-15123 | 20016-15123-Online |

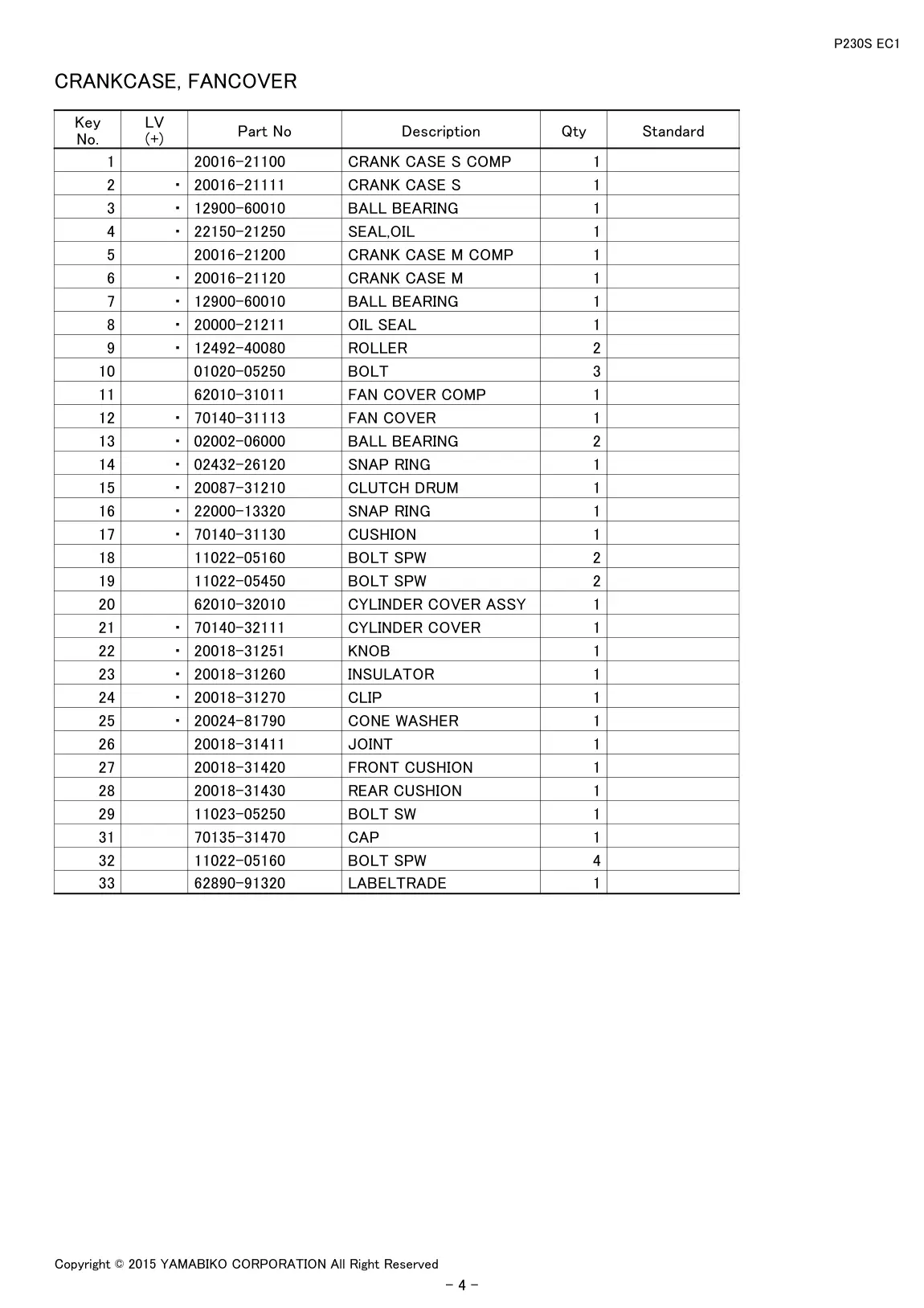

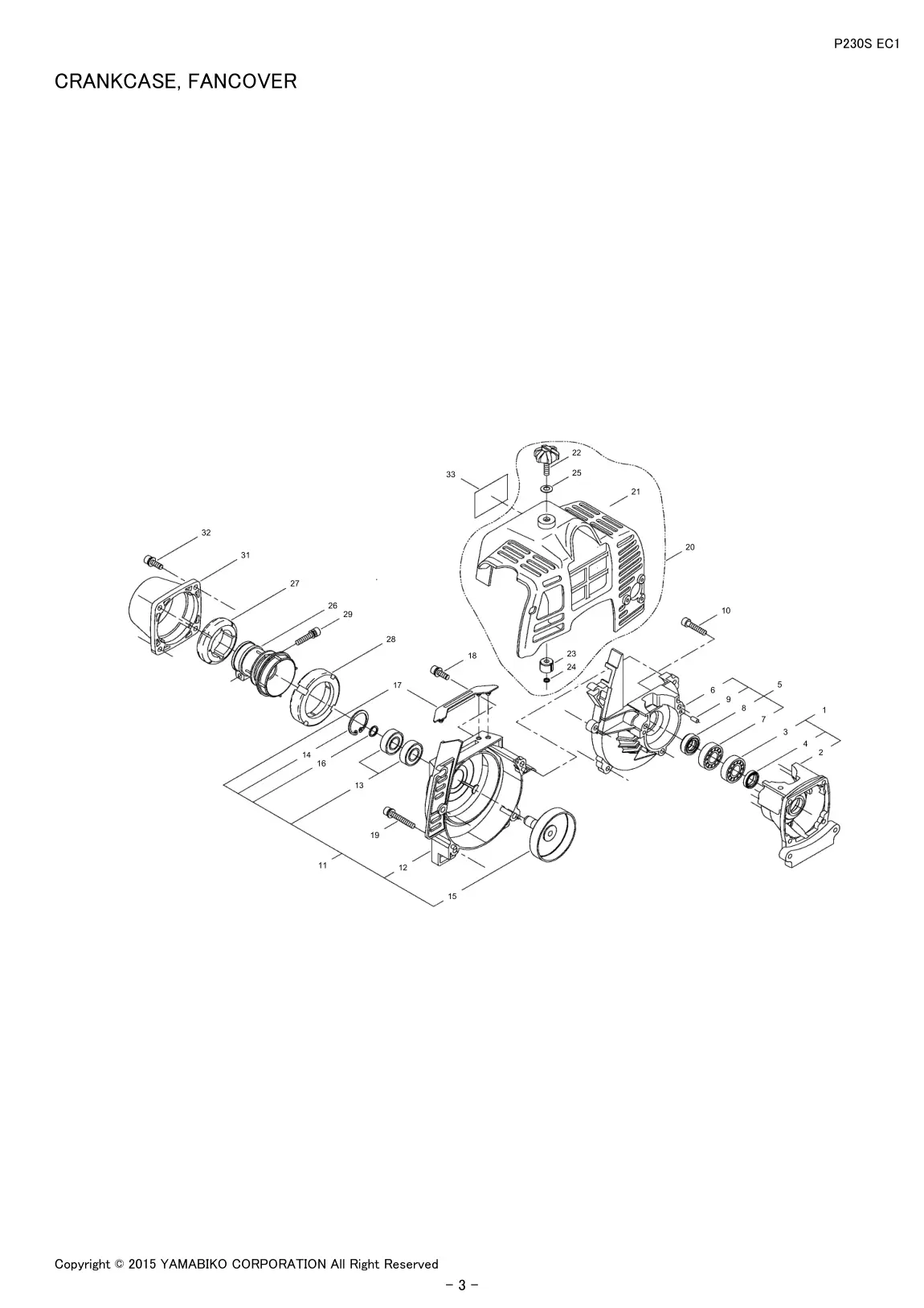

| 6 | CRANKCASE, FANCOVER | 1 | CRANK CASE S COMP | 20016-21100 | 20016-21100-Online |
| 6 | CRANKCASE, FANCOVER | 10 | BOLT | 01020-05250 | 01020-05250-Online |
| 6 | CRANKCASE, FANCOVER | 11 | FAN COVER COMP | 62010-31011 | 62010-31011-Online |
| 6 | CRANKCASE, FANCOVER | 12 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 6 | CRANKCASE, FANCOVER | 13 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 6 | CRANKCASE, FANCOVER | 14 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 6 | CRANKCASE, FANCOVER | 15 | CLUTCH DRUM | 20087-31210 | 20087-31210-Online |
| 6 | CRANKCASE, FANCOVER | 16 | SNAP RING | 22000-13320 | 22000-13320-Online |
| 6 | CRANKCASE, FANCOVER | 17 | CUSHION | 70140-31130 | 70140-31130-Online |
| 6 | CRANKCASE, FANCOVER | 18 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 6 | CRANKCASE, FANCOVER | 19 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 6 | CRANKCASE, FANCOVER | 2 | CRANK CASE S | 20016-21111 | 20016-21111-Online |
| 6 | CRANKCASE, FANCOVER | 20 | CYLINDER COVER ASSY | 62010-32010 | 62010-32010-Online |
| 6 | CRANKCASE, FANCOVER | 21 | CYLINDER COVER | 70140-32111 | 70140-32111-Online |
| 6 | CRANKCASE, FANCOVER | 22 | KNOB | 20018-31251 | 20018-31251-Online |
| 6 | CRANKCASE, FANCOVER | 23 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 6 | CRANKCASE, FANCOVER | 24 | CLIP | 20018-31270 | 20018-31270-Online |
| 6 | CRANKCASE, FANCOVER | 25 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 6 | CRANKCASE, FANCOVER | 26 | JOINT | 20018-31411 | 20018-31411-Online |
| 6 | CRANKCASE, FANCOVER | 27 | FRONT CUSHION | 20018-31420 | 20018-31420-Online |
| 6 | CRANKCASE, FANCOVER | 28 | REAR CUSHION | 20018-31430 | 20018-31430-Online |
| 6 | CRANKCASE, FANCOVER | 29 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 6 | CRANKCASE, FANCOVER | 3 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 6 | CRANKCASE, FANCOVER | 31 | CAP | 70135-31470 | 70135-31470-Online |
| 6 | CRANKCASE, FANCOVER | 32 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 6 | CRANKCASE, FANCOVER | 33 | LABELTRADE | 62890-91320 | 62890-91320-Online |
| 6 | CRANKCASE, FANCOVER | 4 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 6 | CRANKCASE, FANCOVER | 5 | CRANK CASE M COMP | 20016-21200 | 20016-21200-Online |
| 6 | CRANKCASE, FANCOVER | 6 | CRANK CASE M | 20016-21120 | 20016-21120-Online |
| 6 | CRANKCASE, FANCOVER | 7 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 6 | CRANKCASE, FANCOVER | 8 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 6 | CRANKCASE, FANCOVER | 9 | ROLLER | 12492-40080 | 12492-40080-Online |

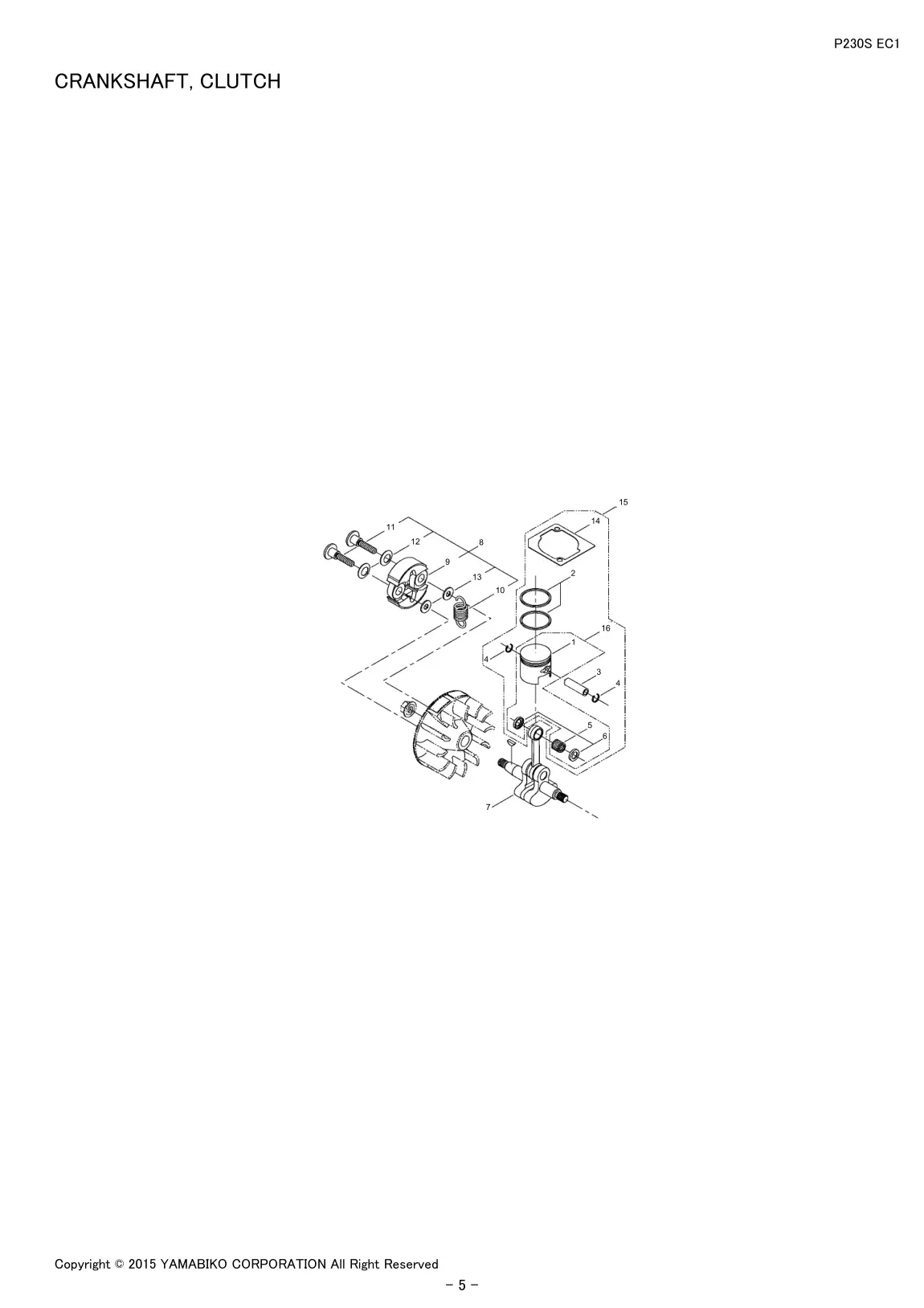

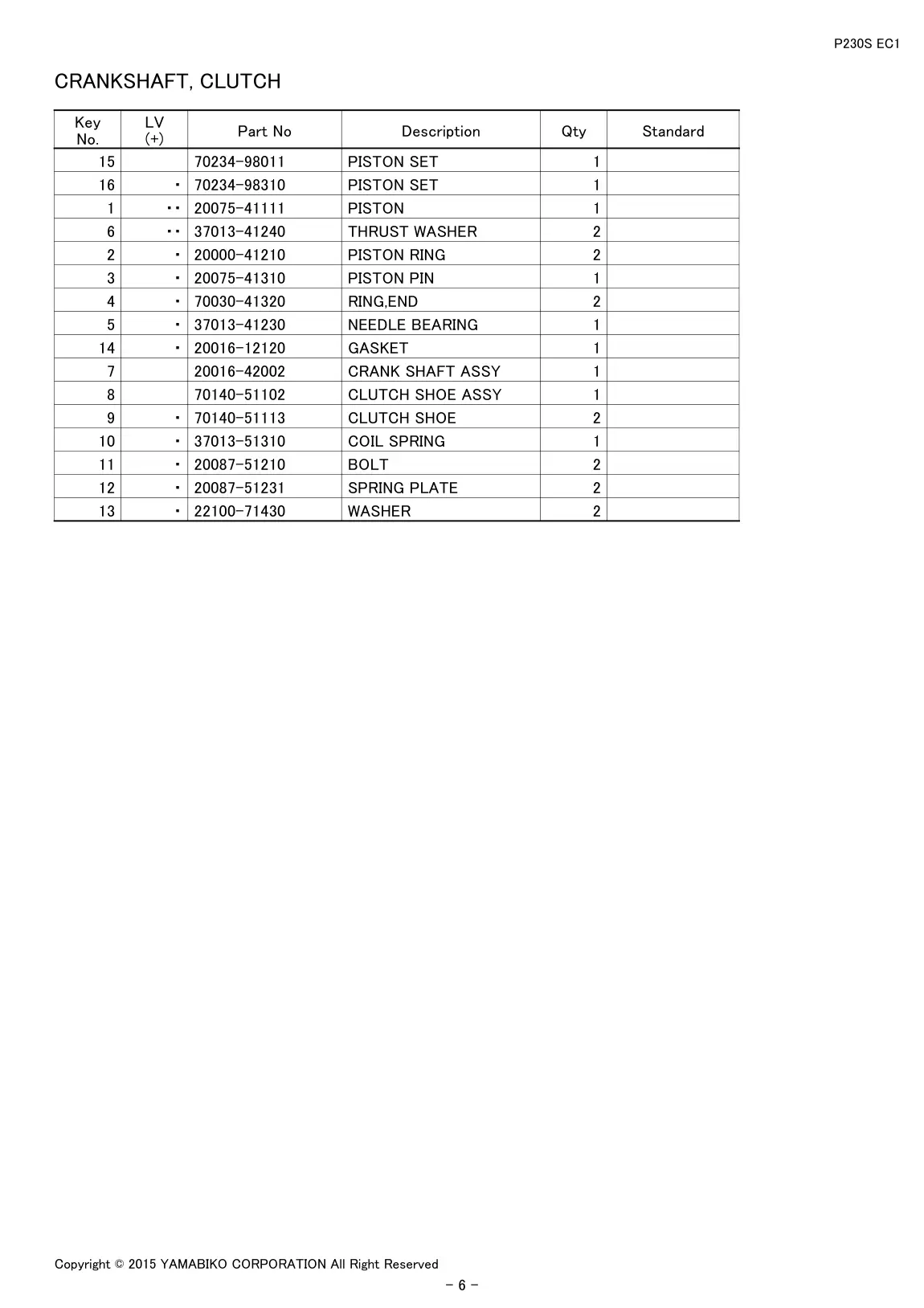

| 8 | CRANKSHAFT, CLUTCH | 1 | PISTON | 20075-41111 | 20075-41111-Online |
| 8 | CRANKSHAFT, CLUTCH | 10 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 8 | CRANKSHAFT, CLUTCH | 11 | BOLT | 20087-51210 | 20087-51210-Online |
| 8 | CRANKSHAFT, CLUTCH | 12 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 8 | CRANKSHAFT, CLUTCH | 13 | WASHER | 22100-71430 | 22100-71430-Online |
| 8 | CRANKSHAFT, CLUTCH | 14 | GASKET | 20016-12120 | 20016-12120-Online |
| 8 | CRANKSHAFT, CLUTCH | 15 | PISTON SET | 70234-98011 | 70234-98011-Online |
| 8 | CRANKSHAFT, CLUTCH | 16 | PISTON SET | 70234-98310 | 70234-98310-Online |
| 8 | CRANKSHAFT, CLUTCH | 2 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 8 | CRANKSHAFT, CLUTCH | 3 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 8 | CRANKSHAFT, CLUTCH | 4 | RING,END | 70030-41320 | 70030-41320-Online |
| 8 | CRANKSHAFT, CLUTCH | 5 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 8 | CRANKSHAFT, CLUTCH | 6 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 8 | CRANKSHAFT, CLUTCH | 7 | CRANK SHAFT ASSY | 20016-42002 | 20016-42002-Online |
| 8 | CRANKSHAFT, CLUTCH | 8 | CLUTCH SHOE ASSY | 70140-51102 | 70140-51102-Online |
| 8 | CRANKSHAFT, CLUTCH | 9 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |

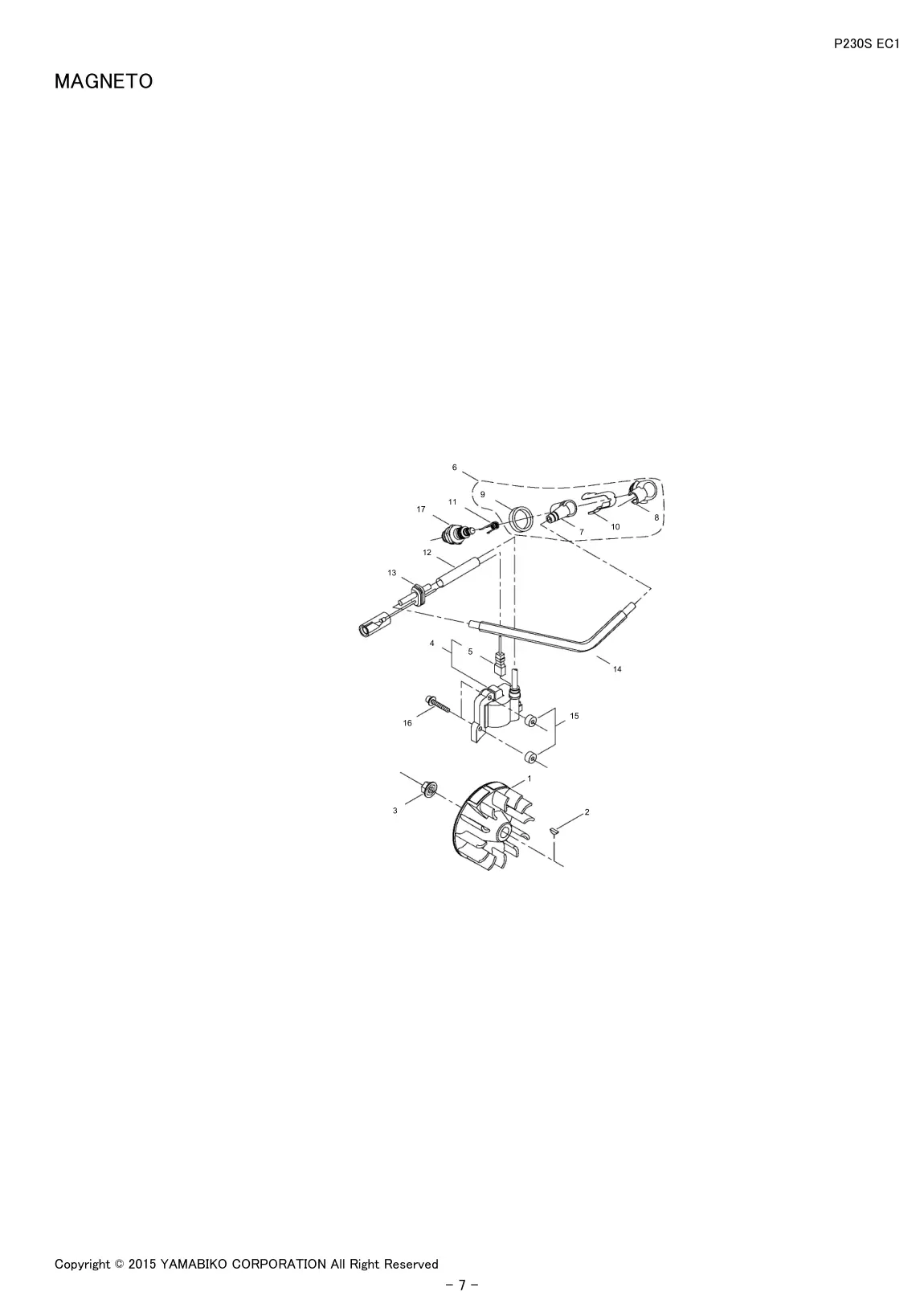

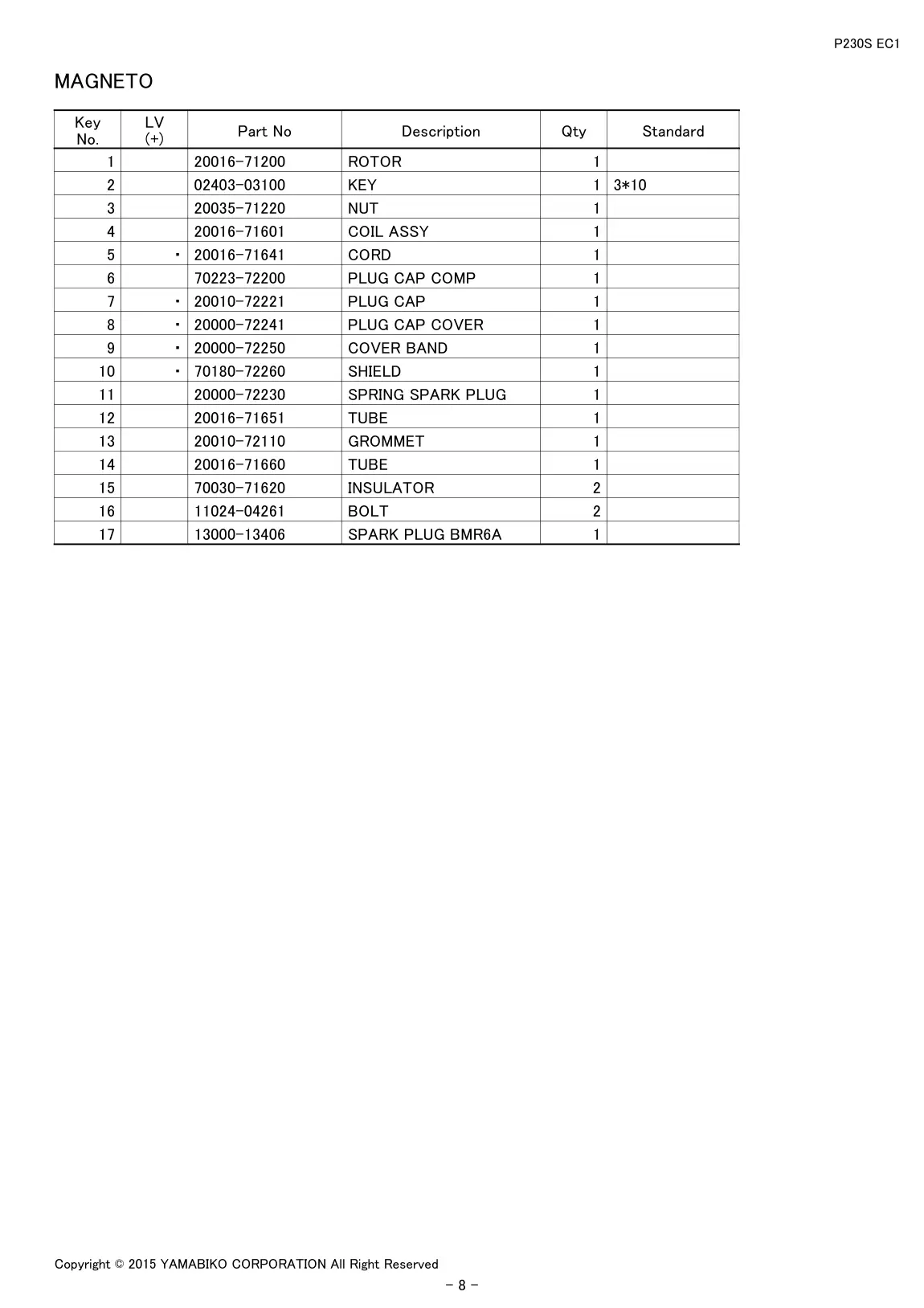

| 10 | MAGNETO | 10 | SHIELD | 70180-72260 | 70180-72260-Online |
| 10 | MAGNETO | 11 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 10 | MAGNETO | 12 | TUBE | 20016-71651 | 20016-71651-Online |
| 10 | MAGNETO | 13 | GROMMET | 20010-72110 | 20010-72110-Online |
| 10 | MAGNETO | 14 | TUBE | 20016-71660 | 20016-71660-Online |
| 10 | MAGNETO | 15 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 10 | MAGNETO | 16 | BOLT | 11024-04261 | 11024-04261-Online |
| 10 | MAGNETO | 17 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 10 | MAGNETO | 2 | KEY | 02403-03100 | 02403-03100-Online |
| 10 | MAGNETO | 3 | NUT | 20035-71220 | 20035-71220-Online |
| 10 | MAGNETO | 4 | COIL ASSY | 20016-71601 | 20016-71601-Online |
| 10 | MAGNETO | 6 | PLUG CAP COMP | 70223-72200 | 70223-72200-Online |
| 10 | MAGNETO | 7 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 10 | MAGNETO | 8 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 10 | MAGNETO | 9 | COVER BAND | 20000-72250 | 20000-72250-Online |

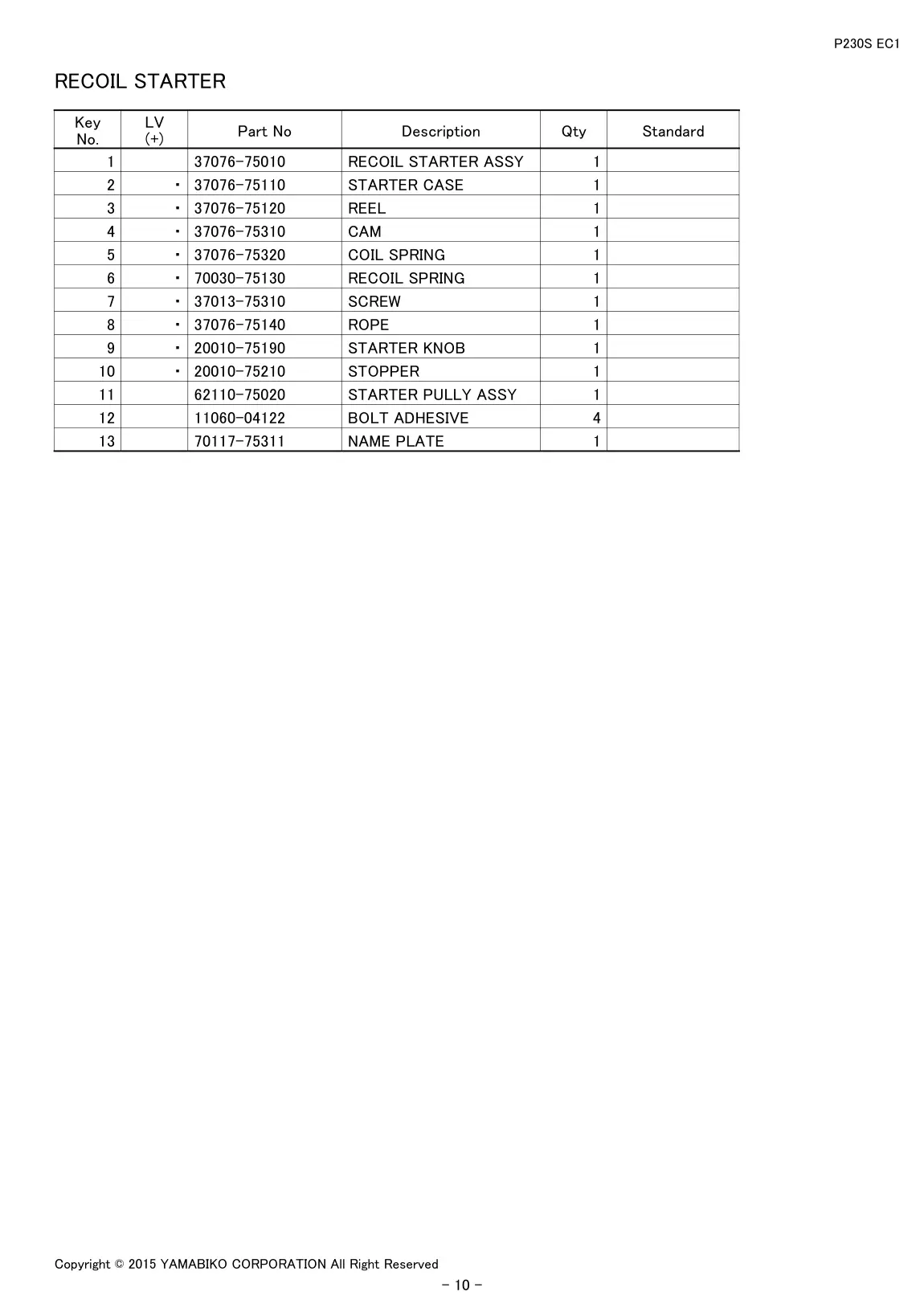

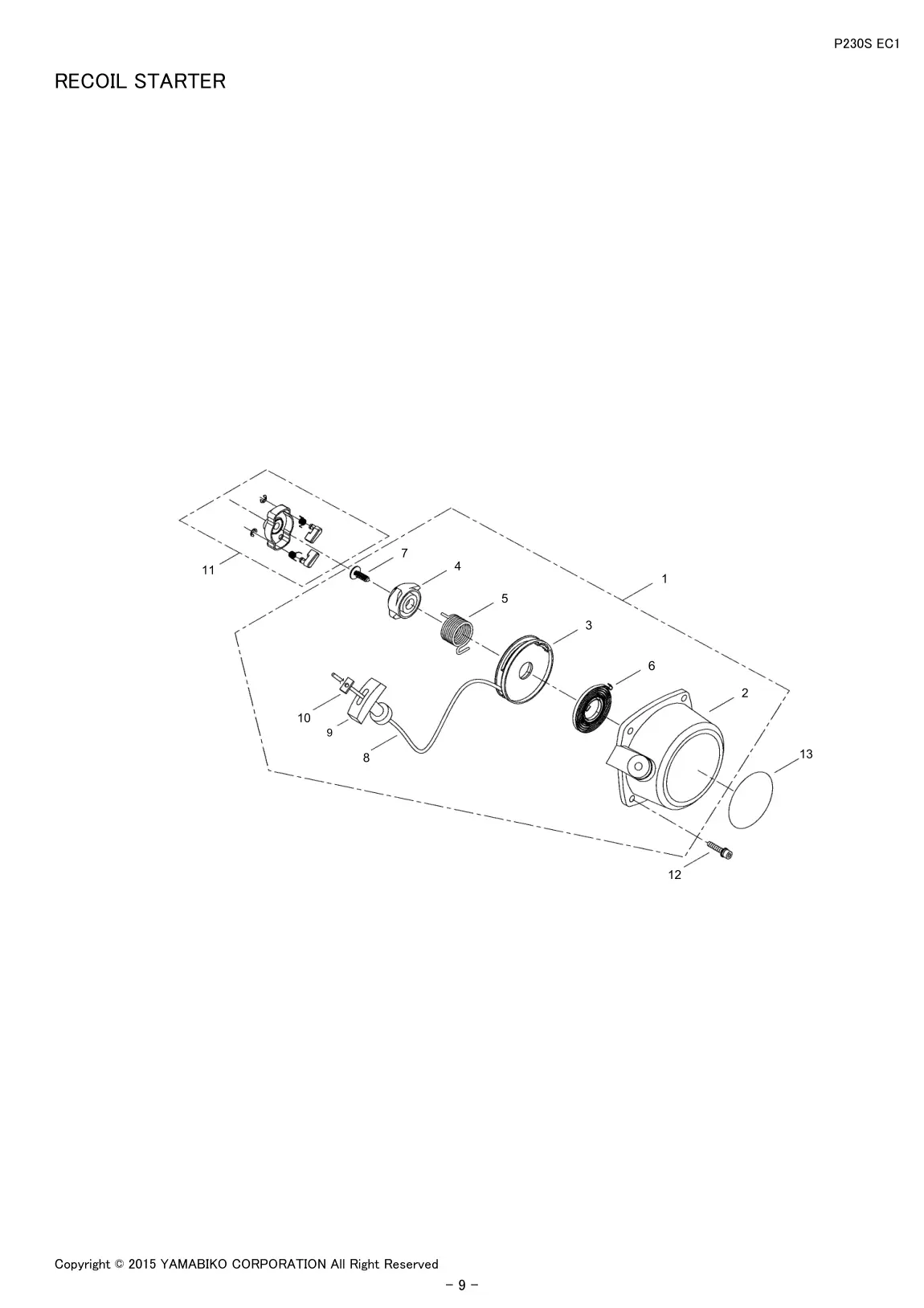

| 12 | RECOIL STARTER | 1 | RECOIL STARTER ASSY | 37076-75010 | 37076-75010-Online |
| 12 | RECOIL STARTER | 10 | STOPPER | 20010-75210 | 20010-75210-Online |
| 12 | RECOIL STARTER | 11 | STARTER PULLY ASSY | 62110-75020 | 62110-75020-Online |
| 12 | RECOIL STARTER | 12 | BOLT ADHESIVE | 11060-04122 | 11060-04122-Online |
| 12 | RECOIL STARTER | 13 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 12 | RECOIL STARTER | 2 | STARTER CASE | 37076-75110 | 37076-75110-Online |
| 12 | RECOIL STARTER | 3 | REEL | 37076-75120 | 37076-75120-Online |
| 12 | RECOIL STARTER | 5 | COIL SPRING | 37076-75320 | 37076-75320-Online |
| 12 | RECOIL STARTER | 6 | RECOIL SPRING | 70030-75130 | 70030-75130-Online |
| 12 | RECOIL STARTER | 7 | SCREW | 37013-75310 | 37013-75310-Online |
| 12 | RECOIL STARTER | 8 | ROPE | 37076-75140 | 37076-75140-Online |
| 12 | RECOIL STARTER | 9 | STARTER KNOB | 20010-75190 | 20010-75190-Online |

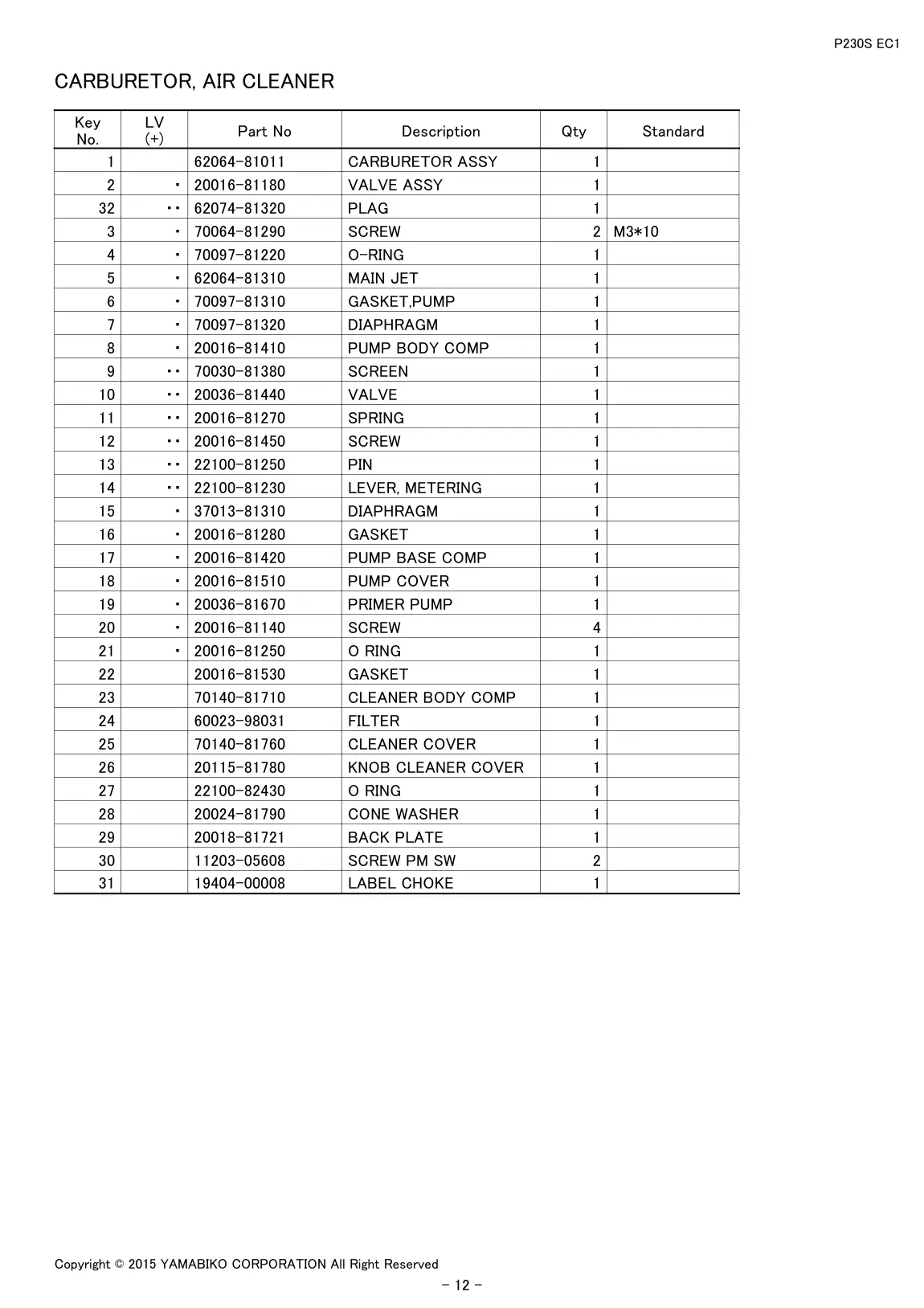

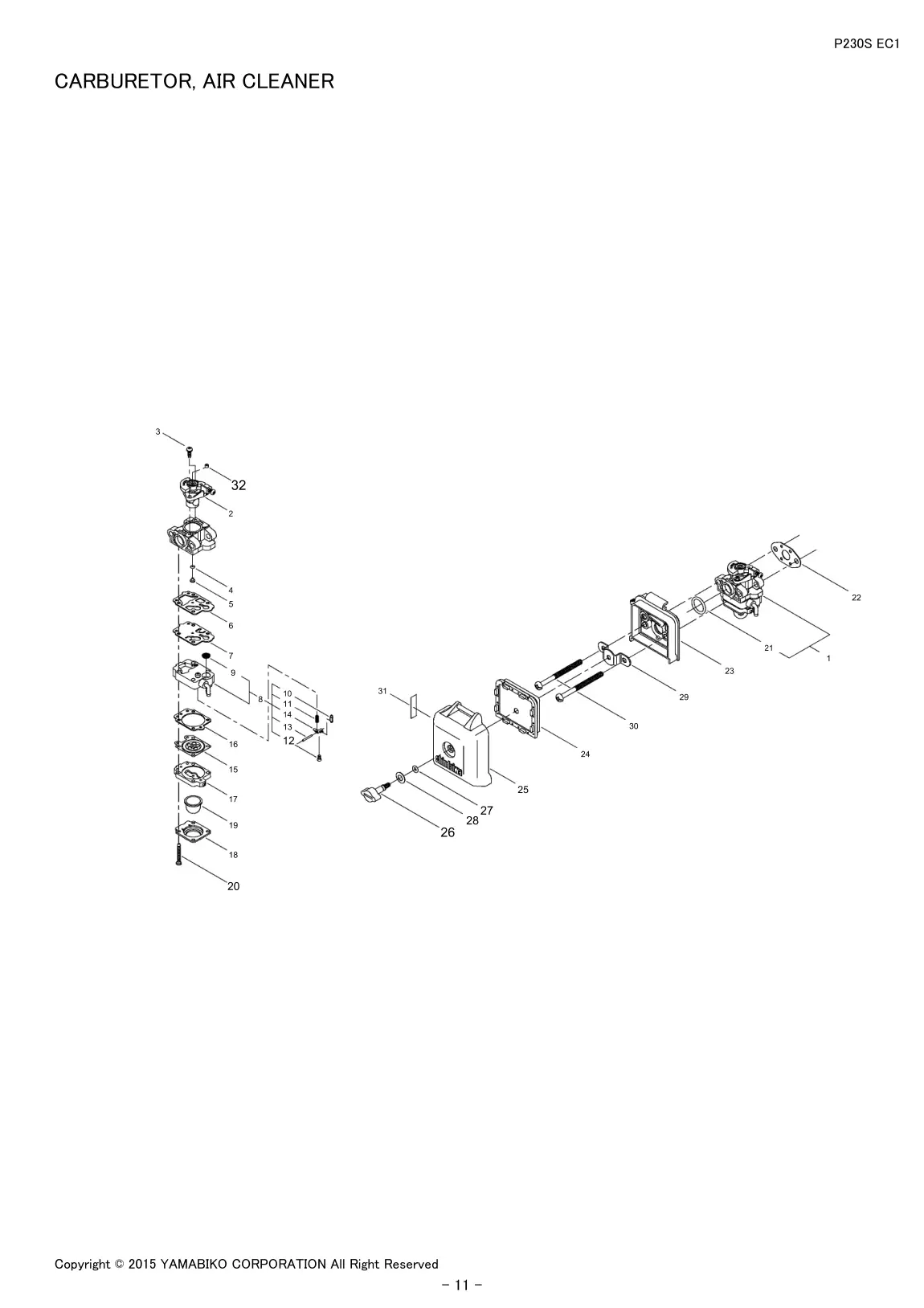

| 14 | CARBURETOR, AIR CLEANER | 1 | CARBURETOR ASSY | 62064-81011 | 62064-81011-Online |
| 14 | CARBURETOR, AIR CLEANER | 10 | VALVE | 20036-81440 | 20036-81440-Online |
| 14 | CARBURETOR, AIR CLEANER | 11 | SPRING | 20016-81270 | 20016-81270-Online |
| 14 | CARBURETOR, AIR CLEANER | 12 | SCREW | 20016-81450 | 20016-81450-Online |
| 14 | CARBURETOR, AIR CLEANER | 13 | PIN | 22100-81250 | 22100-81250-Online |
| 14 | CARBURETOR, AIR CLEANER | 14 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 14 | CARBURETOR, AIR CLEANER | 15 | DIAPHRAGM | 37013-81310 | 37013-81310-Online |
| 14 | CARBURETOR, AIR CLEANER | 16 | GASKET | 20016-81280 | 20016-81280-Online |
| 14 | CARBURETOR, AIR CLEANER | 17 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 14 | CARBURETOR, AIR CLEANER | 18 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 14 | CARBURETOR, AIR CLEANER | 19 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 14 | CARBURETOR, AIR CLEANER | 2 | VALVE ASSY | 20016-81180 | 20016-81180-Online |
| 14 | CARBURETOR, AIR CLEANER | 20 | SCREW | 20016-81140 | 20016-81140-Online |
| 14 | CARBURETOR, AIR CLEANER | 21 | O RING | 20016-81250 | 20016-81250-Online |
| 14 | CARBURETOR, AIR CLEANER | 22 | GASKET | 20016-81530 | 20016-81530-Online |
| 14 | CARBURETOR, AIR CLEANER | 23 | CLEANER BODY COMP | 70140-81710 | 70140-81710-Online |
| 14 | CARBURETOR, AIR CLEANER | 24 | FILTER | 60023-98031 | 60023-98031-Online |
| 14 | CARBURETOR, AIR CLEANER | 25 | CLEANER COVER | 70140-81760 | 70140-81760-Online |
| 14 | CARBURETOR, AIR CLEANER | 26 | KNOB CLEANER COVER | 20115-81780 | 20115-81780-Online |
| 14 | CARBURETOR, AIR CLEANER | 27 | O RING | 22100-82430 | 22100-82430-Online |
| 14 | CARBURETOR, AIR CLEANER | 28 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 14 | CARBURETOR, AIR CLEANER | 29 | BACK PLATE | 20018-81721 | 20018-81721-Online |
| 14 | CARBURETOR, AIR CLEANER | 3 | SCREW | 70064-81290 | 70064-81290-Online |
| 14 | CARBURETOR, AIR CLEANER | 30 | SCREW PM SW | 11203-05608 | 11203-05608-Online |
| 14 | CARBURETOR, AIR CLEANER | 31 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 14 | CARBURETOR, AIR CLEANER | 4 | O-RING | 70097-81220 | 70097-81220-Online |
| 14 | CARBURETOR, AIR CLEANER | 5 | MAIN JET | 62064-81310 | 62064-81310-Online |
| 14 | CARBURETOR, AIR CLEANER | 6 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 14 | CARBURETOR, AIR CLEANER | 7 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 14 | CARBURETOR, AIR CLEANER | 8 | PUMP BODY COMP | 20016-81410 | 20016-81410-Online |
| 14 | CARBURETOR, AIR CLEANER | 9 | SCREEN | 70030-81380 | 70030-81380-Online |

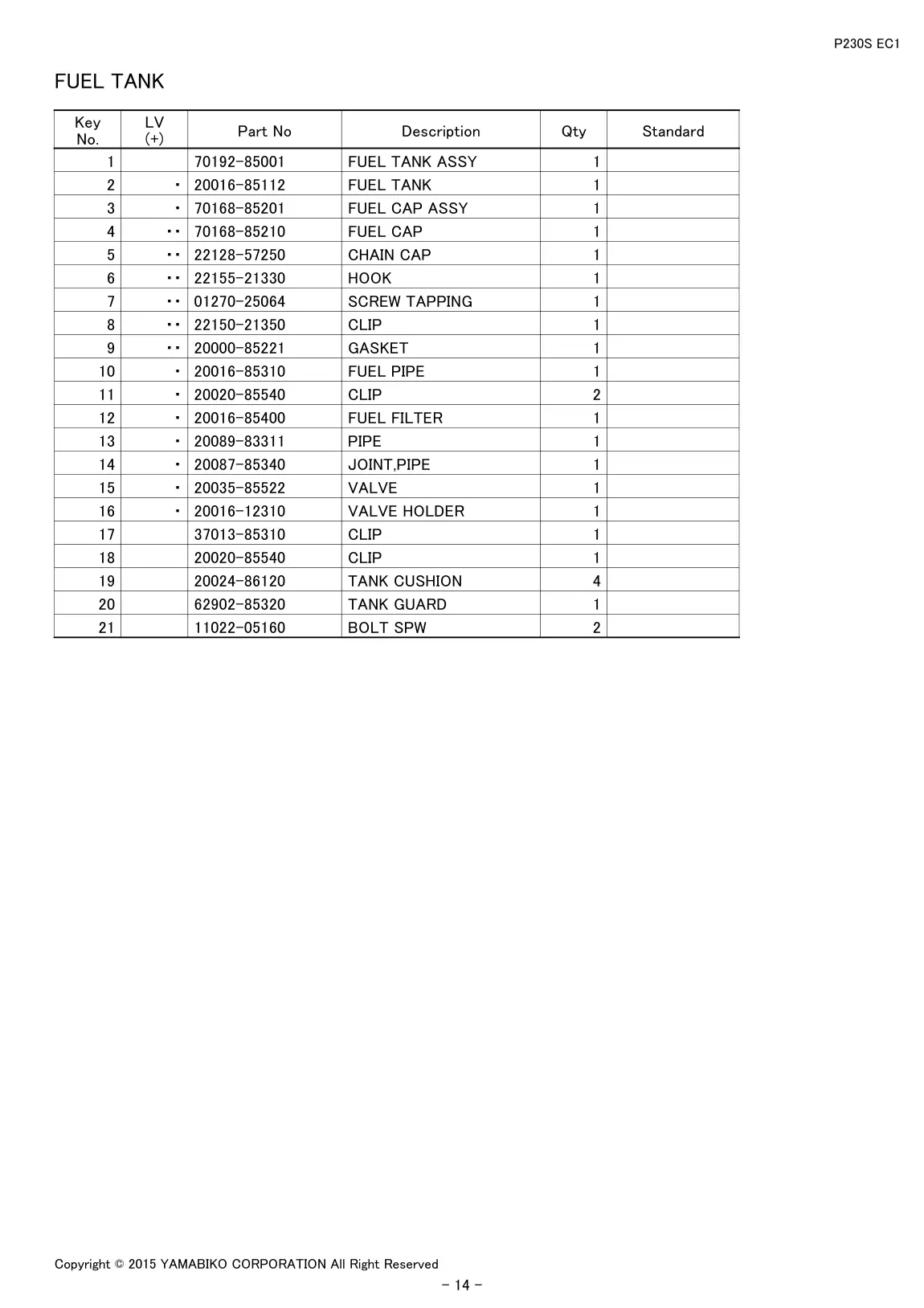

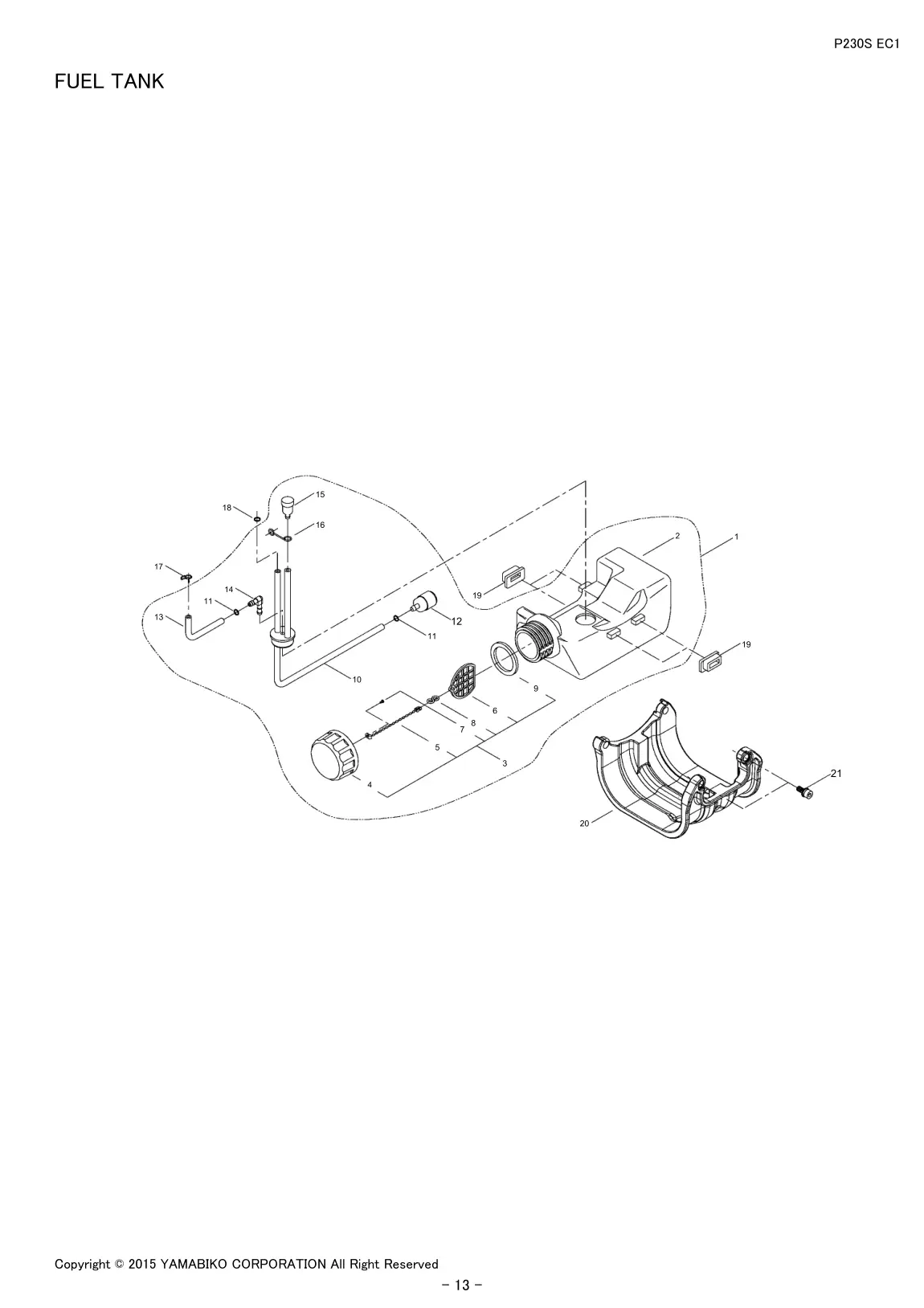

| 16 | FUEL TANK | 1 | FUEL TANK ASSY | 70192-85001 | 70192-85001-Online |
| 16 | FUEL TANK | 10 | FUEL PIPE | 20016-85310 | 20016-85310-Online |
| 16 | FUEL TANK | 11 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 12 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 16 | FUEL TANK | 13 | PIPE | 20089-83311 | 20089-83311-Online |
| 16 | FUEL TANK | 14 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 16 | FUEL TANK | 15 | VALVE | 20035-85522 | 20035-85522-Online |
| 16 | FUEL TANK | 16 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 16 | FUEL TANK | 17 | CLIP | 37013-85310 | 37013-85310-Online |
| 16 | FUEL TANK | 18 | CLIP | 20020-85540 | 20020-85540-Online |
| 16 | FUEL TANK | 19 | TANK CUSHION | 20024-86120 | 20024-86120-Online |
| 16 | FUEL TANK | 2 | FUEL TANK | 20016-85112 | 20016-85112-Online |
| 16 | FUEL TANK | 20 | TANK GUARD | 62902-85320 | 62902-85320-Online |
| 16 | FUEL TANK | 21 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 16 | FUEL TANK | 3 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 16 | FUEL TANK | 4 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 16 | FUEL TANK | 5 | CHAIN CAP | 22128-57250 | 22128-57250-Online |
| 16 | FUEL TANK | 7 | SCREW TAPPING | 01270-25064 | 01270-25064-Online |
| 16 | FUEL TANK | 8 | CLIP | 22150-21350 | 22150-21350-Online |
| 16 | FUEL TANK | 9 | GASKET | 20000-85221 | 20000-85221-Online |

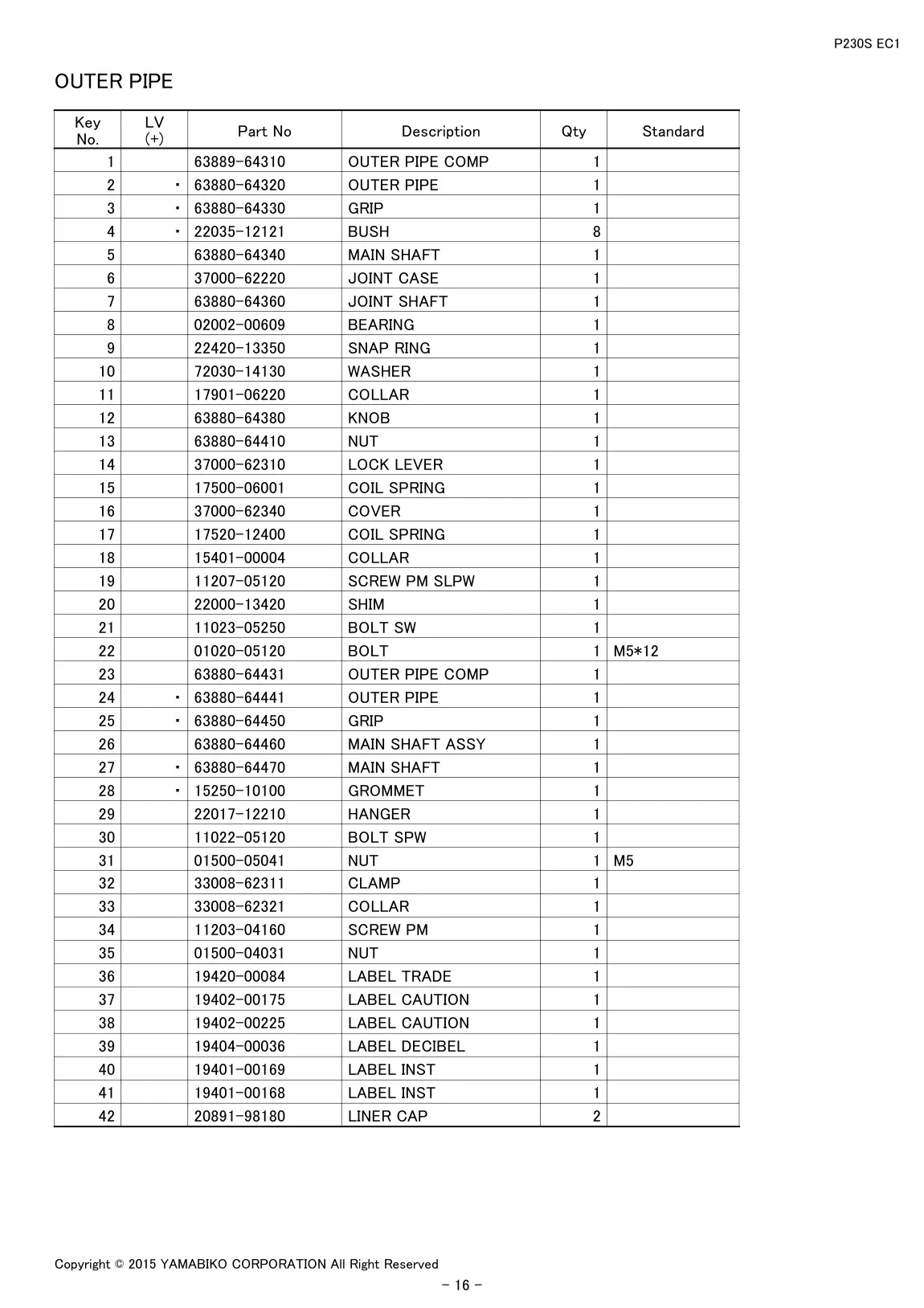

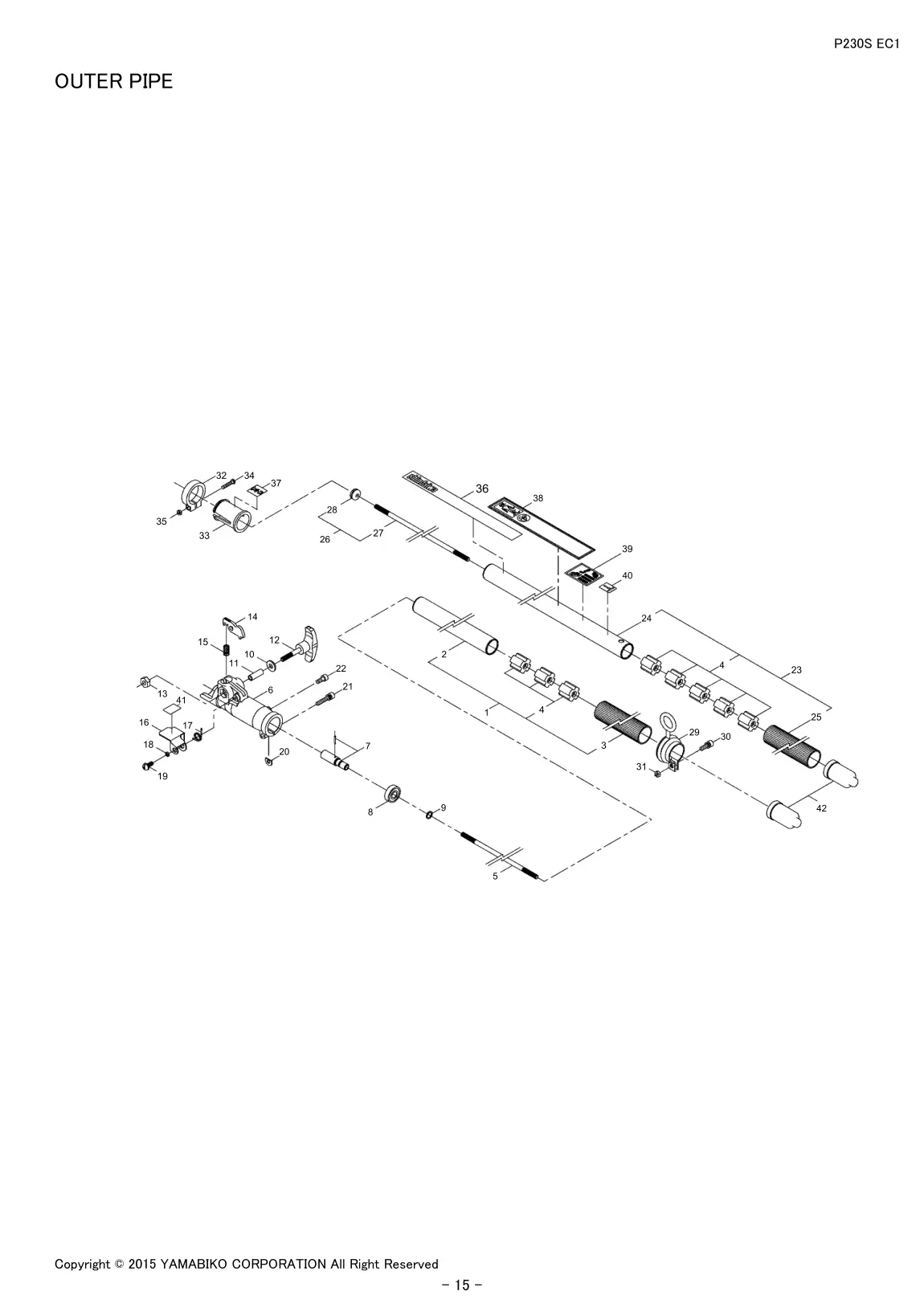

| 18 | OUTER PIPE | 1 | OUTER PIPE COMP | 63889-64310 | 63889-64310-Online |
| 18 | OUTER PIPE | 10 | WASHER | 72030-14130 | 72030-14130-Online |
| 18 | OUTER PIPE | 11 | COLLAR | 17901-06220 | 17901-06220-Online |
| 18 | OUTER PIPE | 12 | KNOB | 63880-64380 | 63880-64380-Online |
| 18 | OUTER PIPE | 13 | NUT | 63880-64410 | 63880-64410-Online |
| 18 | OUTER PIPE | 14 | LOCK LEVER | 37000-62310 | 37000-62310-Online |
| 18 | OUTER PIPE | 15 | COIL SPRING | 17500-06001 | 17500-06001-Online |
| 18 | OUTER PIPE | 16 | COVER | 37000-62340 | 37000-62340-Online |
| 18 | OUTER PIPE | 17 | COIL SPRING | 17520-12400 | 17520-12400-Online |
| 18 | OUTER PIPE | 18 | COLLAR | 15401-00004 | 15401-00004-Online |
| 18 | OUTER PIPE | 19 | SCREW PM SLPW | 11207-05120 | 11207-05120-Online |
| 18 | OUTER PIPE | 2 | OUTER PIPE | 63880-64320 | 63880-64320-Online |
| 18 | OUTER PIPE | 20 | SHIM | 22000-13420 | 22000-13420-Online |
| 18 | OUTER PIPE | 21 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 18 | OUTER PIPE | 22 | BOLT | 01020-05120 | 01020-05120-Online |
| 18 | OUTER PIPE | 23 | OUTER PIPE COMP | 63880-64431 | 63880-64431-Online |
| 18 | OUTER PIPE | 24 | OUTER PIPE | 63880-64441 | 63880-64441-Online |
| 18 | OUTER PIPE | 25 | GRIP | 63880-64450 | 63880-64450-Online |
| 18 | OUTER PIPE | 26 | MAIN SHAFT ASSY | 63880-64460 | 63880-64460-Online |
| 18 | OUTER PIPE | 27 | MAIN SHAFT | 63880-64470 | 63880-64470-Online |
| 18 | OUTER PIPE | 28 | GROMMET | 15250-10100 | 15250-10100-Online |
| 18 | OUTER PIPE | 29 | HANGER | 22017-12210 | 22017-12210-Online |
| 18 | OUTER PIPE | 3 | GRIP | 63880-64330 | 63880-64330-Online |
| 18 | OUTER PIPE | 30 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 18 | OUTER PIPE | 31 | NUT | 01500-05041 | 01500-05041-Online |
| 18 | OUTER PIPE | 33 | COLLAR | 33008-62321 | 33008-62321-Online |
| 18 | OUTER PIPE | 34 | SCREW PM | 11203-04160 | 11203-04160-Online |
| 18 | OUTER PIPE | 35 | NUT | 01500-04031 | 01500-04031-Online |
| 18 | OUTER PIPE | 36 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 18 | OUTER PIPE | 37 | LABEL CAUTION | 19402-00175 | 19402-00175-Online |
| 18 | OUTER PIPE | 38 | LABEL CAUTION | 19402-00225 | 19402-00225-Online |
| 18 | OUTER PIPE | 39 | LABEL DECIBEL | 19404-00036 | 19404-00036-Online |
| 18 | OUTER PIPE | 40 | LABEL INST | 19401-00169 | 19401-00169-Online |
| 18 | OUTER PIPE | 41 | LABEL INST | 19401-00168 | 19401-00168-Online |
| 18 | OUTER PIPE | 42 | LINER CAP | 20891-98180 | 20891-98180-Online |
| 18 | OUTER PIPE | 5 | MAIN SHAFT | 63880-64340 | 63880-64340-Online |
| 18 | OUTER PIPE | 6 | JOINT CASE | 37000-62220 | 37000-62220-Online |
| 18 | OUTER PIPE | 7 | JOINT SHAFT | 63880-64360 | 63880-64360-Online |
| 18 | OUTER PIPE | 8 | BEARING | 02002-00609 | 02002-00609-Online |
| 18 | OUTER PIPE | 9 | SNAP RING | 22420-13350 | 22420-13350-Online |

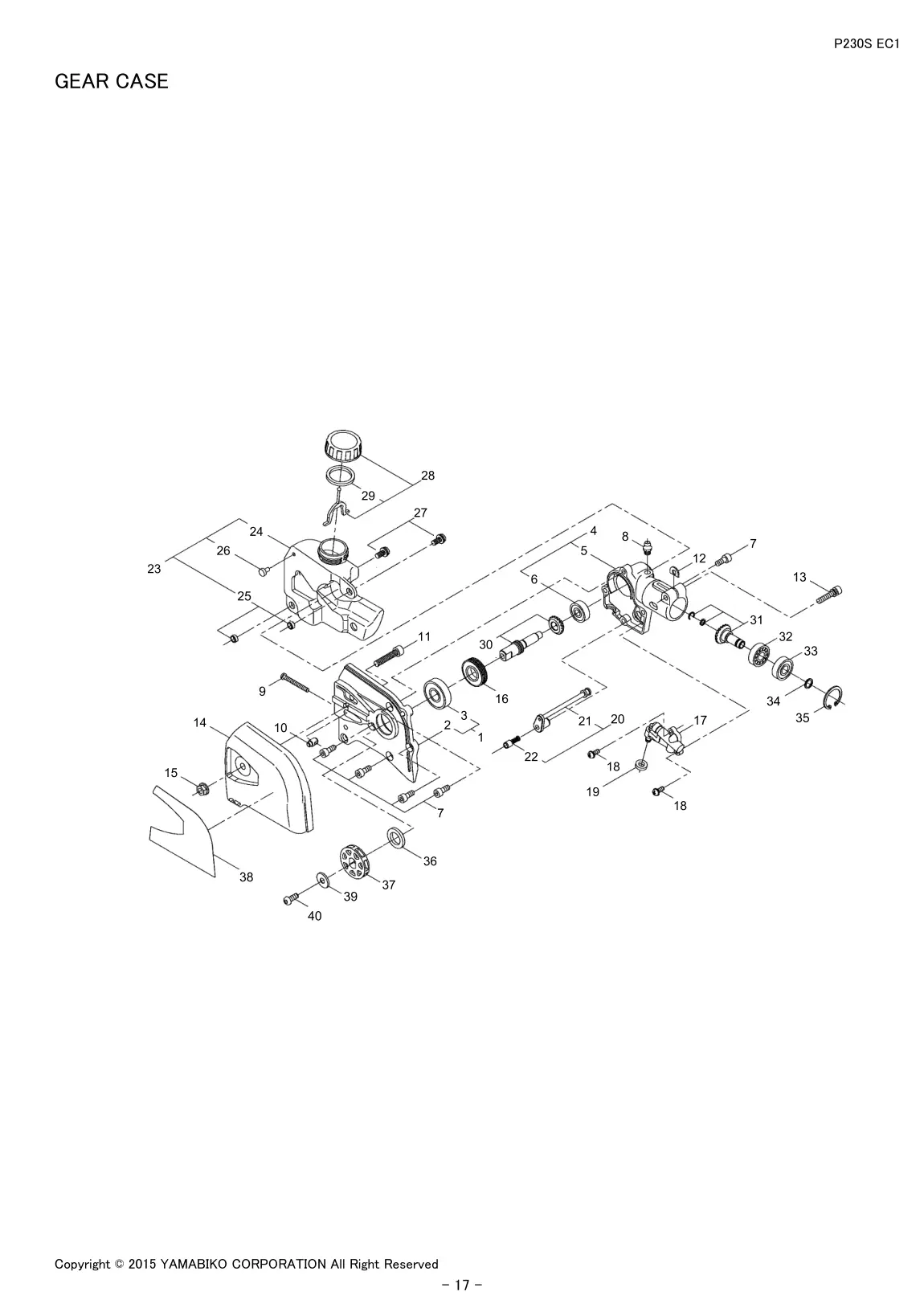

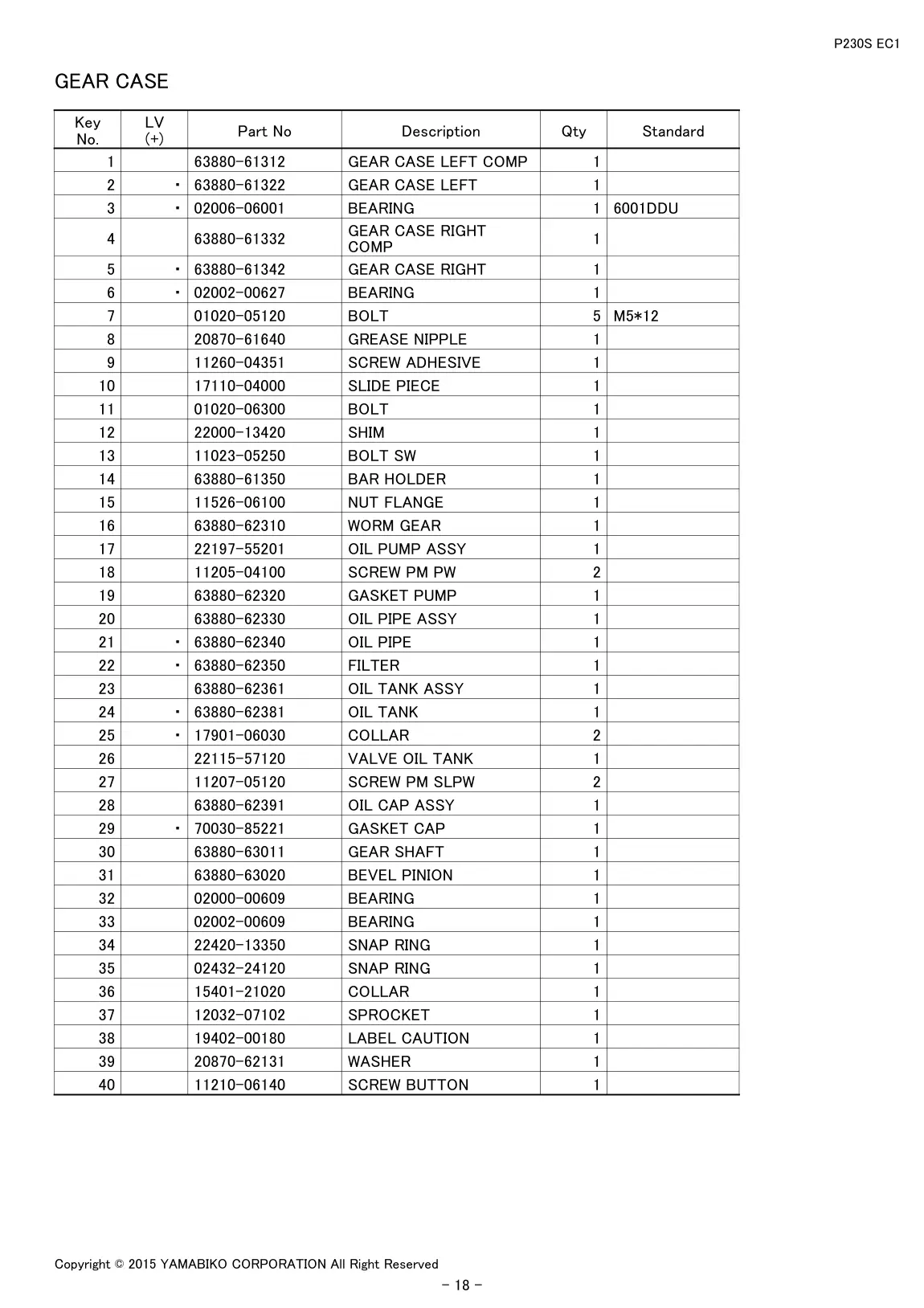

| 20 | GEAR CASE | 1 | GEAR CASE LEFT COMP | 63880-61312 | 63880-61312-Online |
| 20 | GEAR CASE | 10 | SLIDE PIECE | 17110-04000 | 17110-04000-Online |
| 20 | GEAR CASE | 11 | BOLT | 01020-06300 | 01020-06300-Online |
| 20 | GEAR CASE | 12 | SHIM | 22000-13420 | 22000-13420-Online |
| 20 | GEAR CASE | 13 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 20 | GEAR CASE | 14 | BAR HOLDER | 63880-61350 | 63880-61350-Online |
| 20 | GEAR CASE | 15 | NUT FLANGE | 11526-06100 | 11526-06100-Online |
| 20 | GEAR CASE | 16 | WORM GEAR | 63880-62310 | 63880-62310-Online |
| 20 | GEAR CASE | 17 | OIL PUMP ASSY | 22197-55201 | 22197-55201-Online |
| 20 | GEAR CASE | 18 | SCREW PM PW | 11205-04100 | 11205-04100-Online |
| 20 | GEAR CASE | 19 | GASKET PUMP | 63880-62320 | 63880-62320-Online |
| 20 | GEAR CASE | 2 | GEAR CASE LEFT | 63880-61322 | 63880-61322-Online |
| 20 | GEAR CASE | 20 | OIL PIPE ASSY | 63880-62330 | 63880-62330-Online |
| 20 | GEAR CASE | 21 | OIL PIPE | 63880-62340 | 63880-62340-Online |
| 20 | GEAR CASE | 22 | FILTER | 63880-62350 | 63880-62350-Online |
| 20 | GEAR CASE | 23 | OIL TANK ASSY | 63880-62361 | 63880-62361-Online |
| 20 | GEAR CASE | 24 | OIL TANK | 63880-62381 | 63880-62381-Online |
| 20 | GEAR CASE | 25 | COLLAR | 17901-06030 | 17901-06030-Online |
| 20 | GEAR CASE | 26 | VALVE OIL TANK | 22115-57120 | 22115-57120-Online |
| 20 | GEAR CASE | 27 | SCREW PM SLPW | 11207-05120 | 11207-05120-Online |
| 20 | GEAR CASE | 28 | OIL CAP ASSY | 63880-62391 | 63880-62391-Online |
| 20 | GEAR CASE | 29 | GASKET CAP | 70030-85221 | 70030-85221-Online |
| 20 | GEAR CASE | 3 | BEARING | 02006-06001 | 02006-06001-Online |
| 20 | GEAR CASE | 30 | GEAR SHAFT | 63880-63011 | 63880-63011-Online |
| 20 | GEAR CASE | 31 | BEVEL PINION | 63880-63020 | 63880-63020-Online |
| 20 | GEAR CASE | 32 | BEARING | 02000-00609 | 02000-00609-Online |
| 20 | GEAR CASE | 33 | BEARING | 02002-00609 | 02002-00609-Online |
| 20 | GEAR CASE | 34 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 20 | GEAR CASE | 35 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 20 | GEAR CASE | 36 | COLLAR | 15401-21020 | 15401-21020-Online |
| 20 | GEAR CASE | 37 | SPROCKET | 12032-07102 | 12032-07102-Online |
| 20 | GEAR CASE | 38 | LABEL CAUTION | 19402-00180 | 19402-00180-Online |
| 20 | GEAR CASE | 39 | WASHER | 20870-62131 | 20870-62131-Online |
| 20 | GEAR CASE | 4 | GEAR CASE RIGHT | 63880-61332 | 63880-61332-Online |
| 20 | GEAR CASE | 40 | SCREW BUTTON | 11210-06140 | 11210-06140-Online |
| 20 | GEAR CASE | 5 | GEAR CASE RIGHT | 63880-61342 | 63880-61342-Online |
| 20 | GEAR CASE | 6 | BEARING | 02002-00627 | 02002-00627-Online |
| 20 | GEAR CASE | 7 | BOLT | 01020-05120 | 01020-05120-Online |
| 20 | GEAR CASE | 8 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 20 | GEAR CASE | 9 | SCREW ADHESIVE | 11260-04351 | 11260-04351-Online |

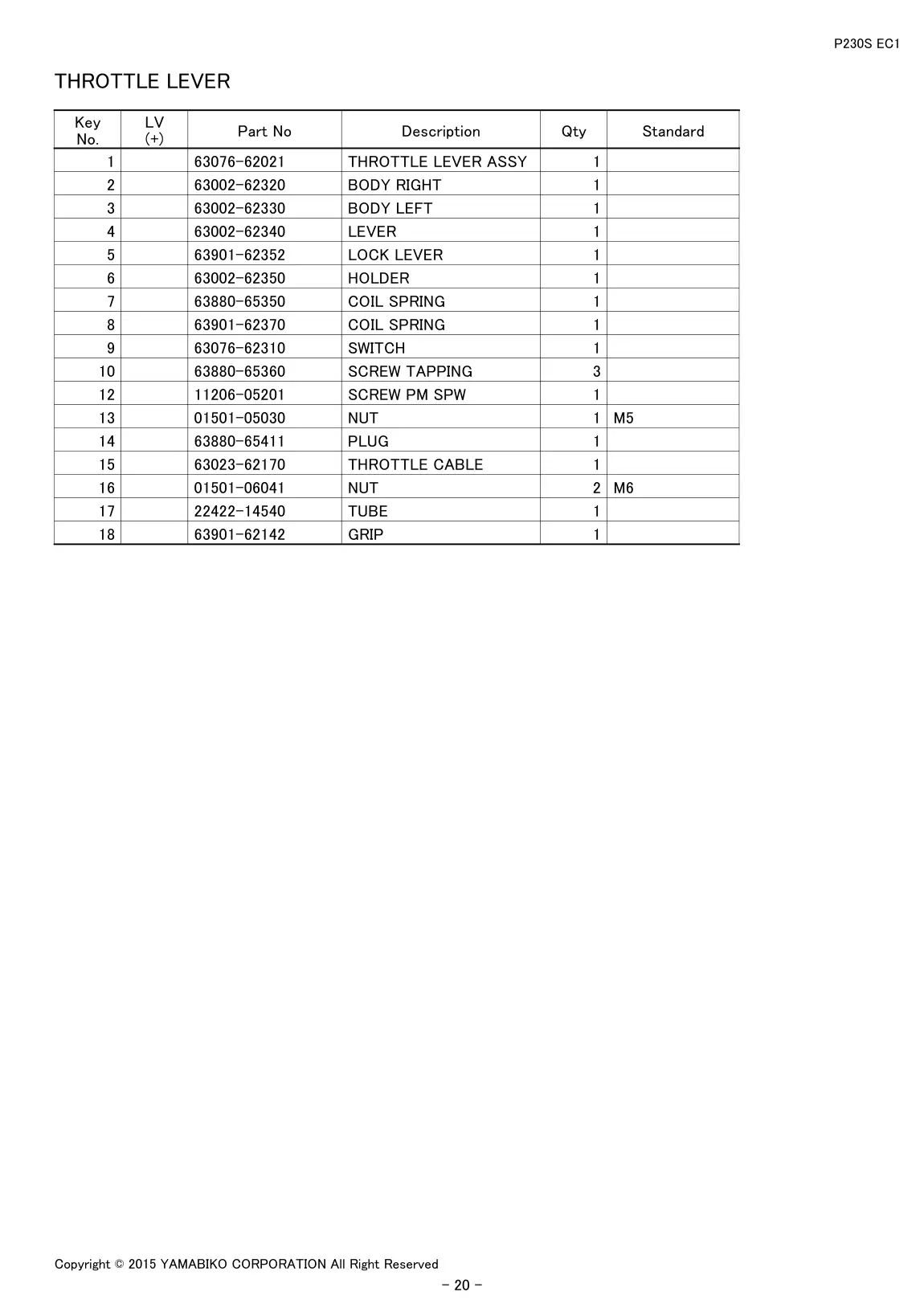

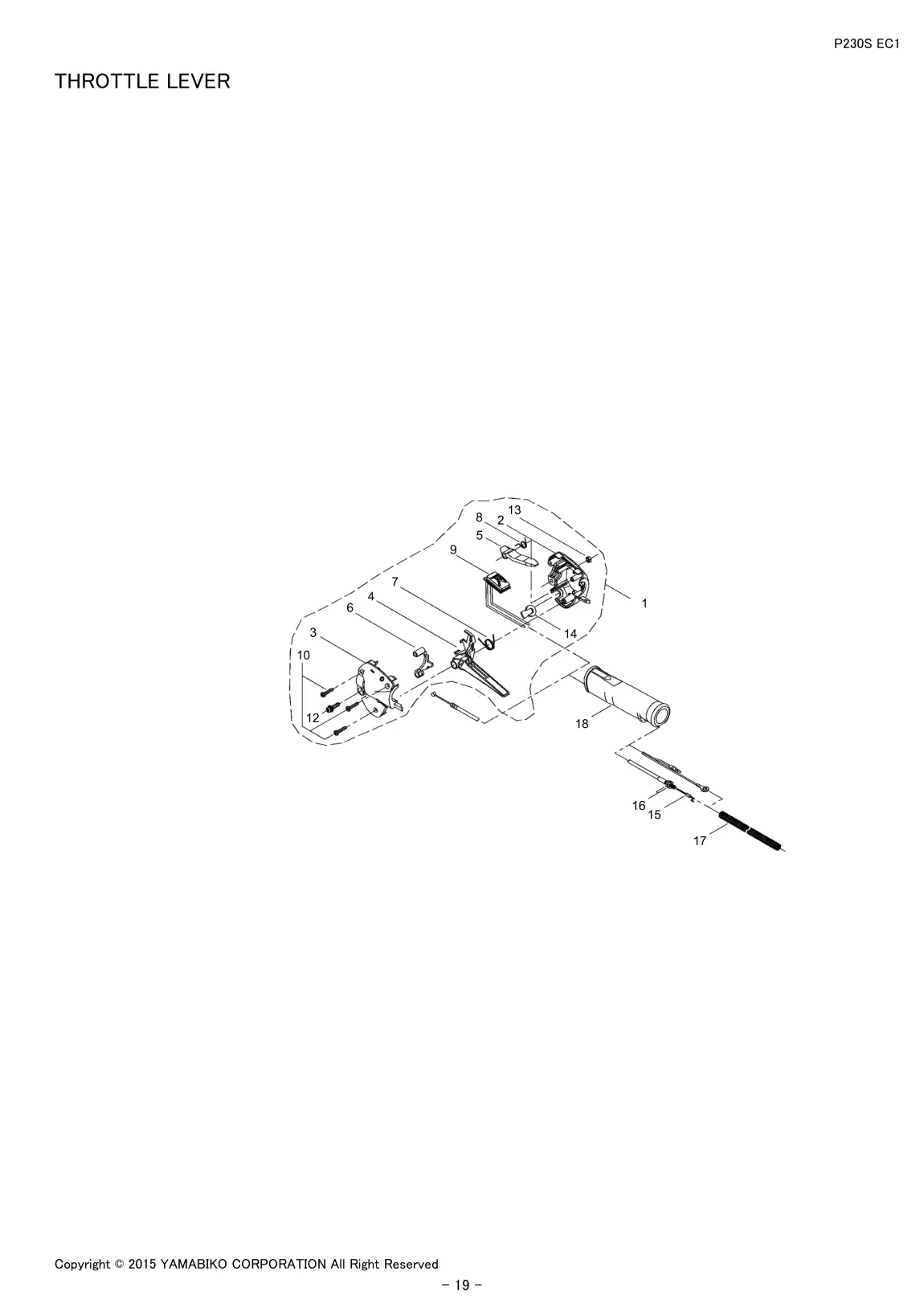

| 22 | THROTTLE LEVER | 1 | THROTTLE LEVER ASSY | 63076-62021 | 63076-62021-Online |
| 22 | THROTTLE LEVER | 10 | SCREW TAPPING | 63880-65360 | 63880-65360-Online |
| 22 | THROTTLE LEVER | 12 | SCREW PM SPW | 11206-05201 | 11206-05201-Online |
| 22 | THROTTLE LEVER | 13 | NUT | 01501-05030 | 01501-05030-Online |
| 22 | THROTTLE LEVER | 14 | PLUG | 63880-65411 | 63880-65411-Online |
| 22 | THROTTLE LEVER | 15 | THROTTLE CABLE | 63023-62170 | 63023-62170-Online |
| 22 | THROTTLE LEVER | 16 | NUT | 01501-06041 | 01501-06041-Online |
| 22 | THROTTLE LEVER | 17 | TUBE | 22422-14540 | 22422-14540-Online |
| 22 | THROTTLE LEVER | 18 | GRIP | 63901-62142 | 63901-62142-Online |
| 22 | THROTTLE LEVER | 2 | BODY RIGHT | 63002-62320 | 63002-62320-Online |
| 22 | THROTTLE LEVER | 3 | BODY LEFT | 63002-62330 | 63002-62330-Online |
| 22 | THROTTLE LEVER | 4 | LEVER | 63002-62340 | 63002-62340-Online |
| 22 | THROTTLE LEVER | 5 | LOCK LEVER | 63901-62352 | 63901-62352-Online |
| 22 | THROTTLE LEVER | 6 | HOLDER | 63002-62350 | 63002-62350-Online |
| 22 | THROTTLE LEVER | 7 | COIL SPRING | 63880-65350 | 63880-65350-Online |
| 22 | THROTTLE LEVER | 8 | COIL SPRING | 63901-62370 | 63901-62370-Online |
| 22 | THROTTLE LEVER | 9 | SWITCH | 63076-62310 | 63076-62310-Online |

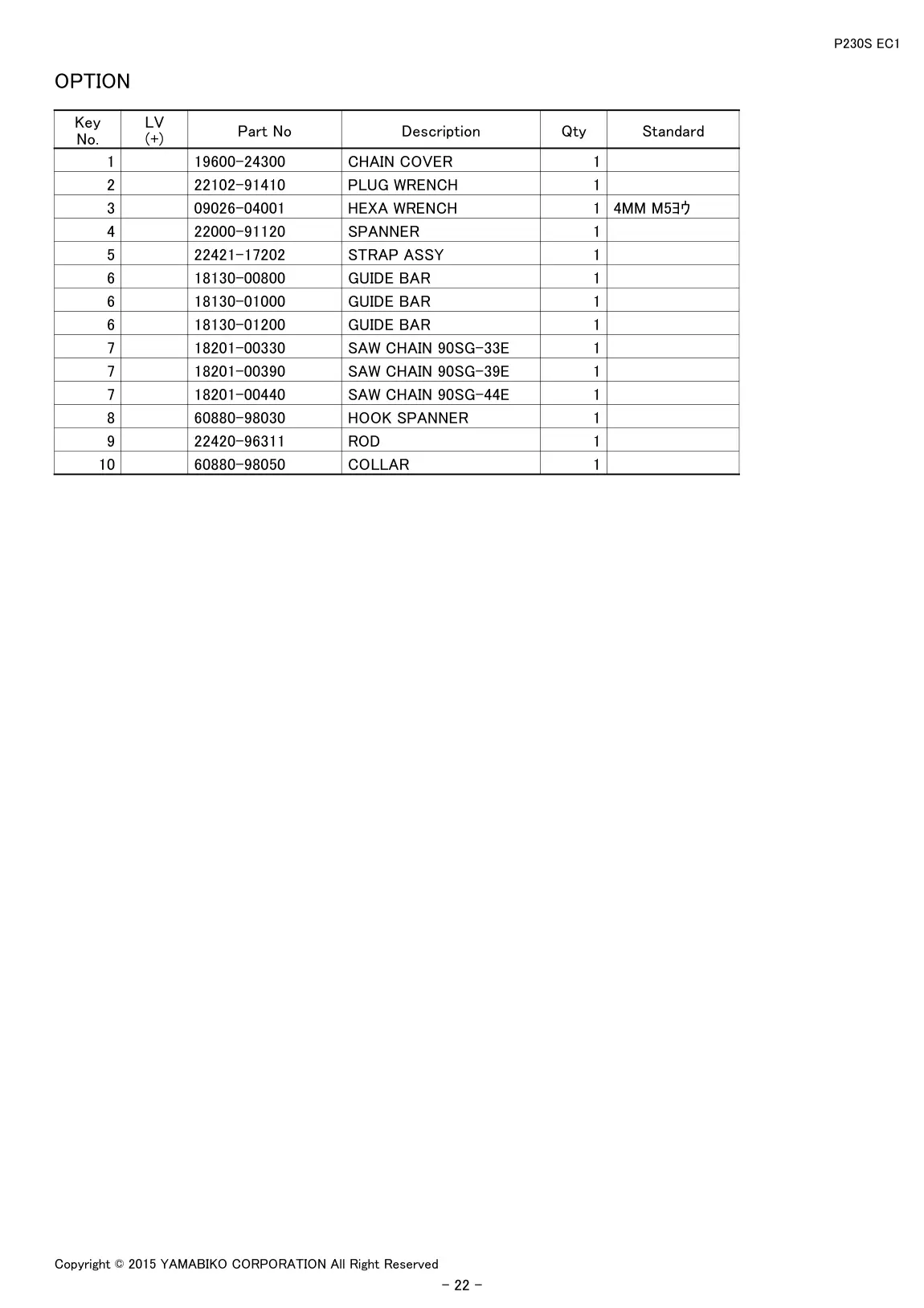

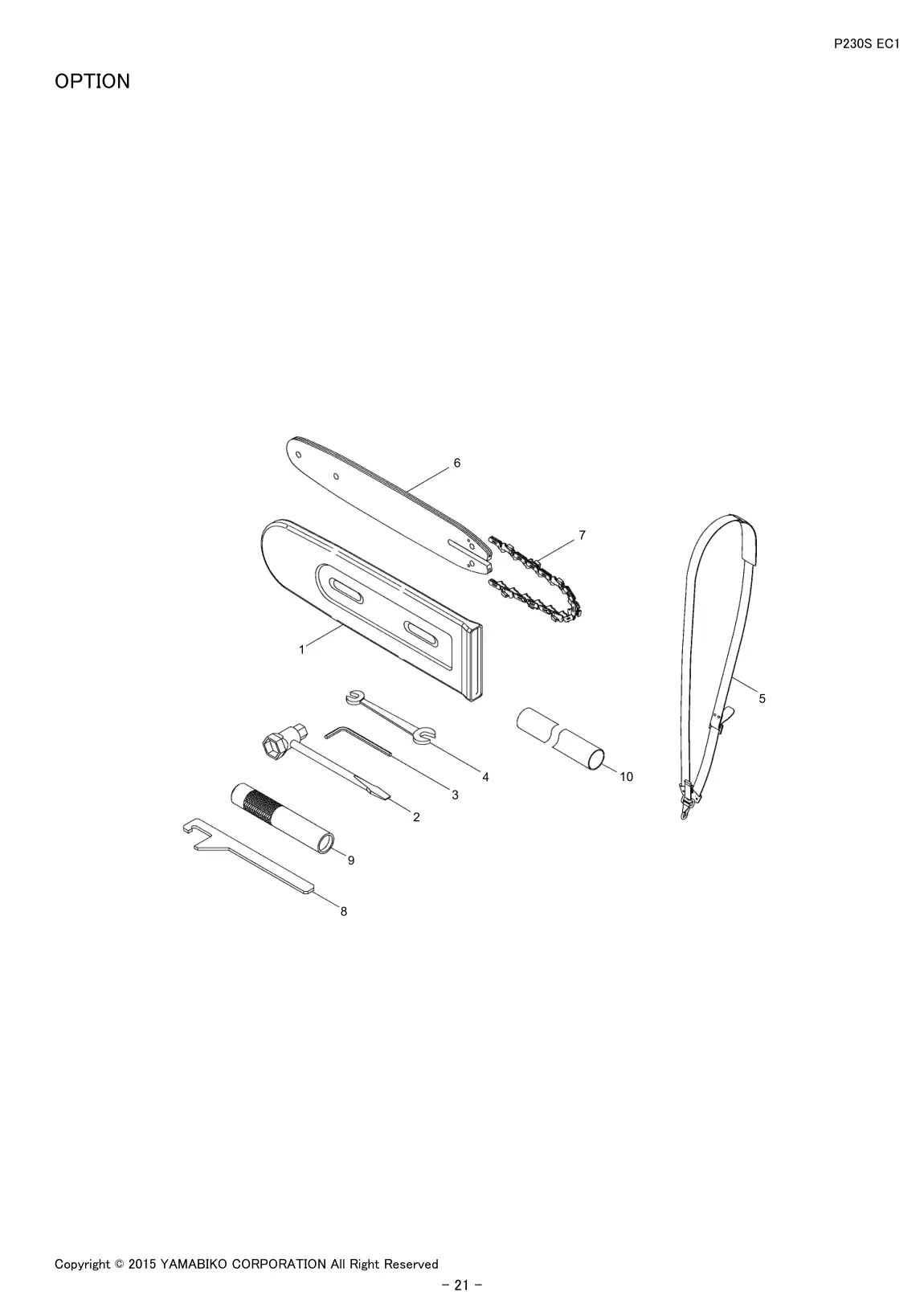

| 24 | OPTION | 1 | CHAIN COVER | 19600-24300 | 19600-24300-Online |
| 24 | OPTION | 10 | COLLAR | 60880-98050 | 60880-98050-Online |
| 24 | OPTION | 2 | PLUG WRENCH | 22102-91410 | 22102-91410-Online |
| 24 | OPTION | 3 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 24 | OPTION | 4 | SPANNER | 22000-91120 | 22000-91120-Online |
| 24 | OPTION | 5 | STRAP ASSY | 22421-17202 | 22421-17202-Online |
| 24 | OPTION | 6 | GUIDE BAR | 18130-00800 | 18130-00800-Online |
| 24 | OPTION | 6 | GUIDE BAR | 18130-01000 | 18130-01000-Online |
| 24 | OPTION | 6 | GUIDE BAR | 18130-01200 | 18130-01200-Online |
| 24 | OPTION | 7 | SAW CHAIN 90SG-33E | 18201-00330 | 18201-00330-Online |
| 24 | OPTION | 7 | SAW CHAIN 90SG-39E | 18201-00390 | 18201-00390-Online |
| 24 | OPTION | 7 | SAW CHAIN 90SG-44E | 18201-00440 | 18201-00440-Online |
| 24 | OPTION | 8 | HOOK SPANNER | 60880-98030 | 60880-98030-Online |
| 24 | OPTION | 9 | ROD | 22420-96311 | 22420-96311-Online |

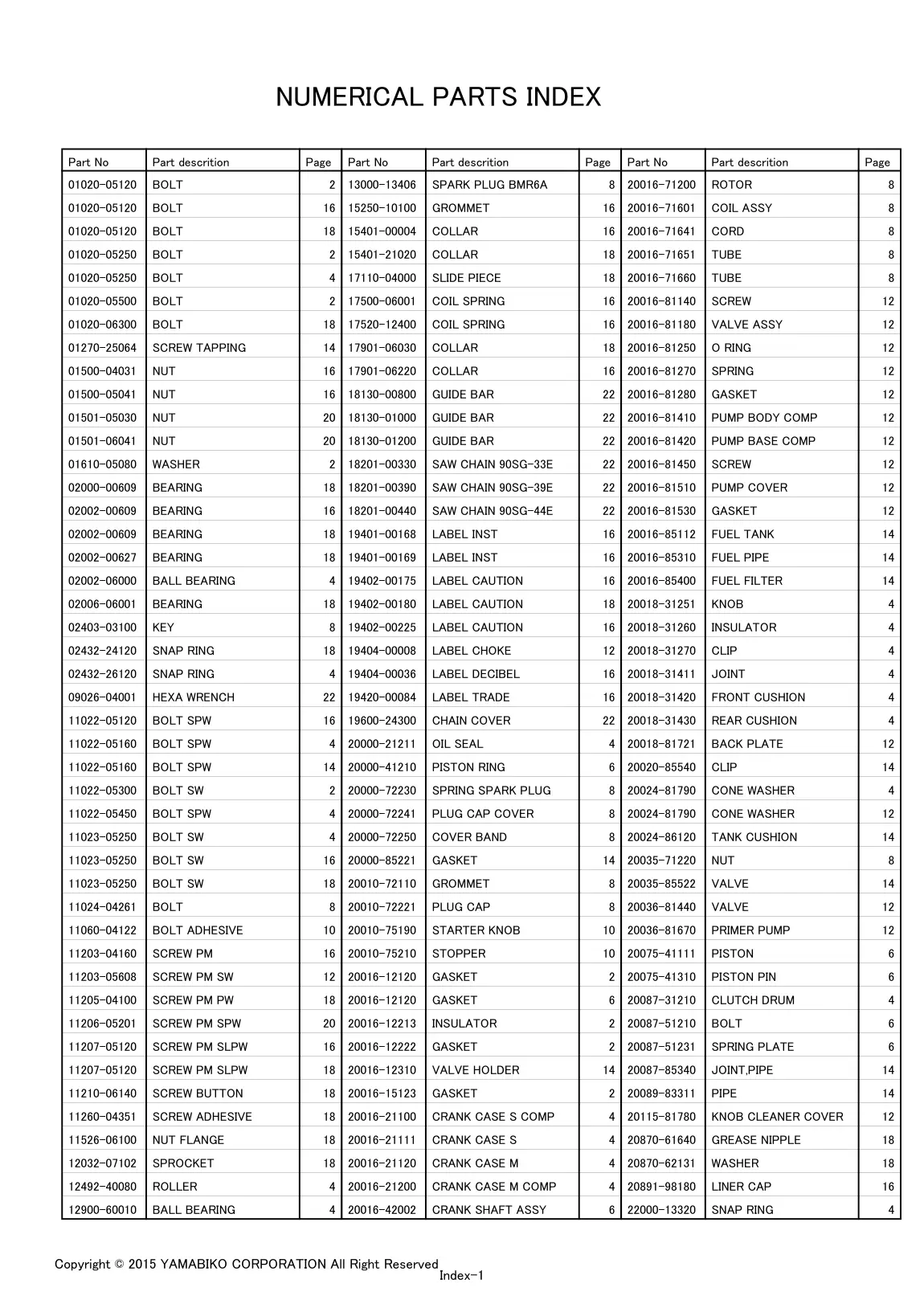

| 25 | SNAP RING | BOLT | 01020-05120 | 01020-05120-Online | |
| 25 | SNAP RING | 10 | SCREW PM | 11203-04160 | 11203-04160-Online |
| 25 | SNAP RING | 10 | STOPPER | 20010-75210 | 20010-75210-Online |
| 25 | SNAP RING | 10 | GASKET | 20016-12120 | 20016-12120-Online |
| 25 | SNAP RING | 12 | SCREW PM PW | 11205-04100 | 11205-04100-Online |
| 25 | SNAP RING | 12 | LABEL DECIBEL | 19404-00036 | 19404-00036-Online |
| 25 | SNAP RING | 12 | VALVE ASSY | 20016-81180 | 20016-81180-Online |
| 25 | SNAP RING | 12 | O RING | 20016-81250 | 20016-81250-Online |
| 25 | SNAP RING | 12 | SPRING | 20016-81270 | 20016-81270-Online |
| 25 | SNAP RING | 12 | GASKET | 20016-81280 | 20016-81280-Online |
| 25 | SNAP RING | 12 | PUMP BODY COMP | 20016-81410 | 20016-81410-Online |
| 25 | SNAP RING | 12 | PUMP BASE COMP | 20016-81420 | 20016-81420-Online |
| 25 | SNAP RING | 12 | SCREW | 20016-81450 | 20016-81450-Online |
| 25 | SNAP RING | 12 | PUMP COVER | 20016-81510 | 20016-81510-Online |
| 25 | SNAP RING | 12 | GASKET | 20016-81530 | 20016-81530-Online |
| 25 | SNAP RING | 12 | FUEL TANK | 20016-85112 | 20016-85112-Online |
| 25 | SNAP RING | 12 | CLIP | 20020-85540 | 20020-85540-Online |
| 25 | SNAP RING | 12 | TANK CUSHION | 20024-86120 | 20024-86120-Online |
| 25 | SNAP RING | 12 | PRIMER PUMP | 20036-81670 | 20036-81670-Online |
| 25 | SNAP RING | 12 | PISTON | 20075-41111 | 20075-41111-Online |
| 25 | SNAP RING | 12 | GREASE NIPPLE | 20870-61640 | 20870-61640-Online |
| 25 | SNAP RING | 14 | NUT | 01500-04031 | 01500-04031-Online |
| 25 | SNAP RING | 14 | BOLT SW | 11022-05300 | 11022-05300-Online |
| 25 | SNAP RING | 14 | GROMMET | 20010-72110 | 20010-72110-Online |
| 25 | SNAP RING | 14 | GASKET | 20016-15123 | 20016-15123-Online |
| 25 | SNAP RING | 14 | FUEL PIPE | 20016-85310 | 20016-85310-Online |
| 25 | SNAP RING | 14 | FUEL FILTER | 20016-85400 | 20016-85400-Online |
| 25 | SNAP RING | 14 | KNOB | 20018-31251 | 20018-31251-Online |
| 25 | SNAP RING | 14 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 25 | SNAP RING | 14 | NUT | 20035-71220 | 20035-71220-Online |
| 25 | SNAP RING | 14 | VALVE | 20036-81440 | 20036-81440-Online |
| 25 | SNAP RING | 14 | PIPE | 20089-83311 | 20089-83311-Online |
| 25 | SNAP RING | 14 | KNOB CLEANER COVER | 20115-81780 | 20115-81780-Online |
| 25 | SNAP RING | 16 | BOLT | 01020-05120 | 01020-05120-Online |
| 25 | SNAP RING | 16 | NUT | 01500-05041 | 01500-05041-Online |
| 25 | SNAP RING | 16 | NUT | 01501-05030 | 01501-05030-Online |
| 25 | SNAP RING | 16 | BEARING | 02002-00609 | 02002-00609-Online |
| 25 | SNAP RING | 16 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 25 | SNAP RING | 16 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 25 | SNAP RING | 16 | SCREW PM SW | 11203-05608 | 11203-05608-Online |
| 25 | SNAP RING | 16 | SCREW PM SLPW | 11207-05120 | 11207-05120-Online |
| 25 | SNAP RING | 16 | COLLAR | 15401-00004 | 15401-00004-Online |
| 25 | SNAP RING | 16 | COLLAR | 15401-21020 | 15401-21020-Online |
| 25 | SNAP RING | 16 | COIL SPRING | 17520-12400 | 17520-12400-Online |
| 25 | SNAP RING | 16 | COLLAR | 17901-06030 | 17901-06030-Online |
| 25 | SNAP RING | 16 | GUIDE BAR | 18130-00800 | 18130-00800-Online |
| 25 | SNAP RING | 16 | LABEL INST | 19401-00169 | 19401-00169-Online |
| 25 | SNAP RING | 16 | LABEL CAUTION | 19402-00175 | 19402-00175-Online |
| 25 | SNAP RING | 16 | LABEL CAUTION | 19402-00180 | 19402-00180-Online |
| 25 | SNAP RING | 16 | LABEL CHOKE | 19404-00008 | 19404-00008-Online |
| 25 | SNAP RING | 16 | LABEL TRADE | 19420-00084 | 19420-00084-Online |
| 25 | SNAP RING | 16 | CHAIN COVER | 19600-24300 | 19600-24300-Online |
| 25 | SNAP RING | 18 | BOLT | 01020-05250 | 01020-05250-Online |
| 25 | SNAP RING | 18 | SCREW TAPPING | 01270-25064 | 01270-25064-Online |
| 25 | SNAP RING | 18 | BEARING | 02002-00609 | 02002-00609-Online |
| 25 | SNAP RING | 18 | BEARING | 02002-00627 | 02002-00627-Online |
| 25 | SNAP RING | 18 | BALL BEARING | 02002-06000 | 02002-06000-Online |
| 25 | SNAP RING | 18 | KEY | 02403-03100 | 02403-03100-Online |
| 25 | SNAP RING | 18 | SNAP RING | 02432-26120 | 02432-26120-Online |
| 25 | SNAP RING | 18 | BOLT | 11024-04261 | 11024-04261-Online |
| 25 | SNAP RING | 18 | SCREW PM SPW | 11206-05201 | 11206-05201-Online |
| 25 | SNAP RING | 18 | SCREW BUTTON | 11210-06140 | 11210-06140-Online |
| 25 | SNAP RING | 18 | SCREW ADHESIVE | 11260-04351 | 11260-04351-Online |
| 25 | SNAP RING | 18 | NUT FLANGE | 11526-06100 | 11526-06100-Online |
| 25 | SNAP RING | 18 | SPROCKET | 12032-07102 | 12032-07102-Online |
| 25 | SNAP RING | 18 | ROLLER | 12492-40080 | 12492-40080-Online |
| 25 | SNAP RING | 18 | SLIDE PIECE | 17110-04000 | 17110-04000-Online |
| 25 | SNAP RING | 18 | COIL SPRING | 17500-06001 | 17500-06001-Online |
| 25 | SNAP RING | 18 | COLLAR | 17901-06220 | 17901-06220-Online |
| 25 | SNAP RING | 18 | LABEL CAUTION | 19402-00225 | 19402-00225-Online |
| 25 | SNAP RING | 18 | WASHER | 20870-62131 | 20870-62131-Online |
| 25 | SNAP RING | 18 | LINER CAP | 20891-98180 | 20891-98180-Online |
| 25 | SNAP RING | 2 | BOLT | 01020-05120 | 01020-05120-Online |
| 25 | SNAP RING | 2 | BOLT | 01020-05250 | 01020-05250-Online |
| 25 | SNAP RING | 2 | BOLT | 01020-06300 | 01020-06300-Online |
| 25 | SNAP RING | 2 | BEARING | 02000-00609 | 02000-00609-Online |
| 25 | SNAP RING | 2 | BOLT SPW | 11022-05450 | 11022-05450-Online |
| 25 | SNAP RING | 2 | GASKET | 20016-12120 | 20016-12120-Online |
| 25 | SNAP RING | 2 | GASKET | 20016-12222 | 20016-12222-Online |
| 25 | SNAP RING | 2 | VALVE HOLDER | 20016-12310 | 20016-12310-Online |
| 25 | SNAP RING | 2 | CRANK CASE S COMP | 20016-21100 | 20016-21100-Online |
| 25 | SNAP RING | 20 | NUT | 01501-06041 | 01501-06041-Online |
| 25 | SNAP RING | 20 | WASHER | 01610-05080 | 01610-05080-Online |
| 25 | SNAP RING | 20 | SCREW PM SLPW | 11207-05120 | 11207-05120-Online |
| 25 | SNAP RING | 22 | BOLT SPW | 11022-05120 | 11022-05120-Online |
| 25 | SNAP RING | 22 | GUIDE BAR | 18130-01000 | 18130-01000-Online |
| 25 | SNAP RING | 22 | GUIDE BAR | 18130-01200 | 18130-01200-Online |
| 25 | SNAP RING | 22 | SAW CHAIN 90SG-33E | 18201-00330 | 18201-00330-Online |
| 25 | SNAP RING | 22 | SAW CHAIN 90SG-39E | 18201-00390 | 18201-00390-Online |
| 25 | SNAP RING | 22 | SAW CHAIN 90SG-44E | 18201-00440 | 18201-00440-Online |
| 25 | SNAP RING | 22 | LABEL INST | 19401-00168 | 19401-00168-Online |
| 25 | SNAP RING | 22 | OIL SEAL | 20000-21211 | 20000-21211-Online |
| 25 | SNAP RING | 4 | BOLT | 01020-05500 | 01020-05500-Online |
| 25 | SNAP RING | 4 | BEARING | 02006-06001 | 02006-06001-Online |
| 25 | SNAP RING | 4 | HEXA WRENCH | 09026-04001 | 09026-04001-Online |
| 25 | SNAP RING | 4 | BOLT SPW | 11022-05160 | 11022-05160-Online |
| 25 | SNAP RING | 4 | BOLT SW | 11023-05250 | 11023-05250-Online |
| 25 | SNAP RING | 4 | BALL BEARING | 12900-60010 | 12900-60010-Online |
| 25 | SNAP RING | 4 | SPARK PLUG BMR6A | 13000-13406 | 13000-13406-Online |
| 25 | SNAP RING | 4 | PISTON RING | 20000-41210 | 20000-41210-Online |
| 25 | SNAP RING | 4 | CRANK CASE S | 20016-21111 | 20016-21111-Online |
| 25 | SNAP RING | 4 | CRANK CASE M | 20016-21120 | 20016-21120-Online |
| 25 | SNAP RING | 4 | CRANK CASE M COMP | 20016-21200 | 20016-21200-Online |
| 25 | SNAP RING | 4 | CRANK SHAFT ASSY | 20016-42002 | 20016-42002-Online |
| 25 | SNAP RING | 4 | INSULATOR | 20018-31260 | 20018-31260-Online |
| 25 | SNAP RING | 4 | CLIP | 20018-31270 | 20018-31270-Online |
| 25 | SNAP RING | 4 | JOINT | 20018-31411 | 20018-31411-Online |
| 25 | SNAP RING | 4 | FRONT CUSHION | 20018-31420 | 20018-31420-Online |
| 25 | SNAP RING | 4 | REAR CUSHION | 20018-31430 | 20018-31430-Online |
| 25 | SNAP RING | 4 | BACK PLATE | 20018-81721 | 20018-81721-Online |
| 25 | SNAP RING | 4 | CONE WASHER | 20024-81790 | 20024-81790-Online |
| 25 | SNAP RING | 4 | BOLT | 20087-51210 | 20087-51210-Online |
| 25 | SNAP RING | 6 | SPRING SPARK PLUG | 20000-72230 | 20000-72230-Online |
| 25 | SNAP RING | 6 | INSULATOR | 20016-12213 | 20016-12213-Online |
| 25 | SNAP RING | 6 | PISTON PIN | 20075-41310 | 20075-41310-Online |
| 25 | SNAP RING | 6 | CLUTCH DRUM | 20087-31210 | 20087-31210-Online |
| 25 | SNAP RING | 6 | SPRING PLATE | 20087-51231 | 20087-51231-Online |
| 25 | SNAP RING | 6 | JOINT,PIPE | 20087-85340 | 20087-85340-Online |
| 25 | SNAP RING | 8 | SNAP RING | 02432-24120 | 02432-24120-Online |
| 25 | SNAP RING | 8 | BOLT ADHESIVE | 11060-04122 | 11060-04122-Online |
| 25 | SNAP RING | 8 | GROMMET | 15250-10100 | 15250-10100-Online |
| 25 | SNAP RING | 8 | PLUG CAP COVER | 20000-72241 | 20000-72241-Online |
| 25 | SNAP RING | 8 | COVER BAND | 20000-72250 | 20000-72250-Online |
| 25 | SNAP RING | 8 | GASKET | 20000-85221 | 20000-85221-Online |
| 25 | SNAP RING | 8 | PLUG CAP | 20010-72221 | 20010-72221-Online |
| 25 | SNAP RING | 8 | STARTER KNOB | 20010-75190 | 20010-75190-Online |
| 25 | SNAP RING | 8 | COIL ASSY | 20016-71601 | 20016-71601-Online |
| 25 | SNAP RING | 8 | TUBE | 20016-71651 | 20016-71651-Online |
| 25 | SNAP RING | 8 | TUBE | 20016-71660 | 20016-71660-Online |
| 25 | SNAP RING | 8 | SCREW | 20016-81140 | 20016-81140-Online |
| 25 | SNAP RING | 8 | VALVE | 20035-85522 | 20035-85522-Online |

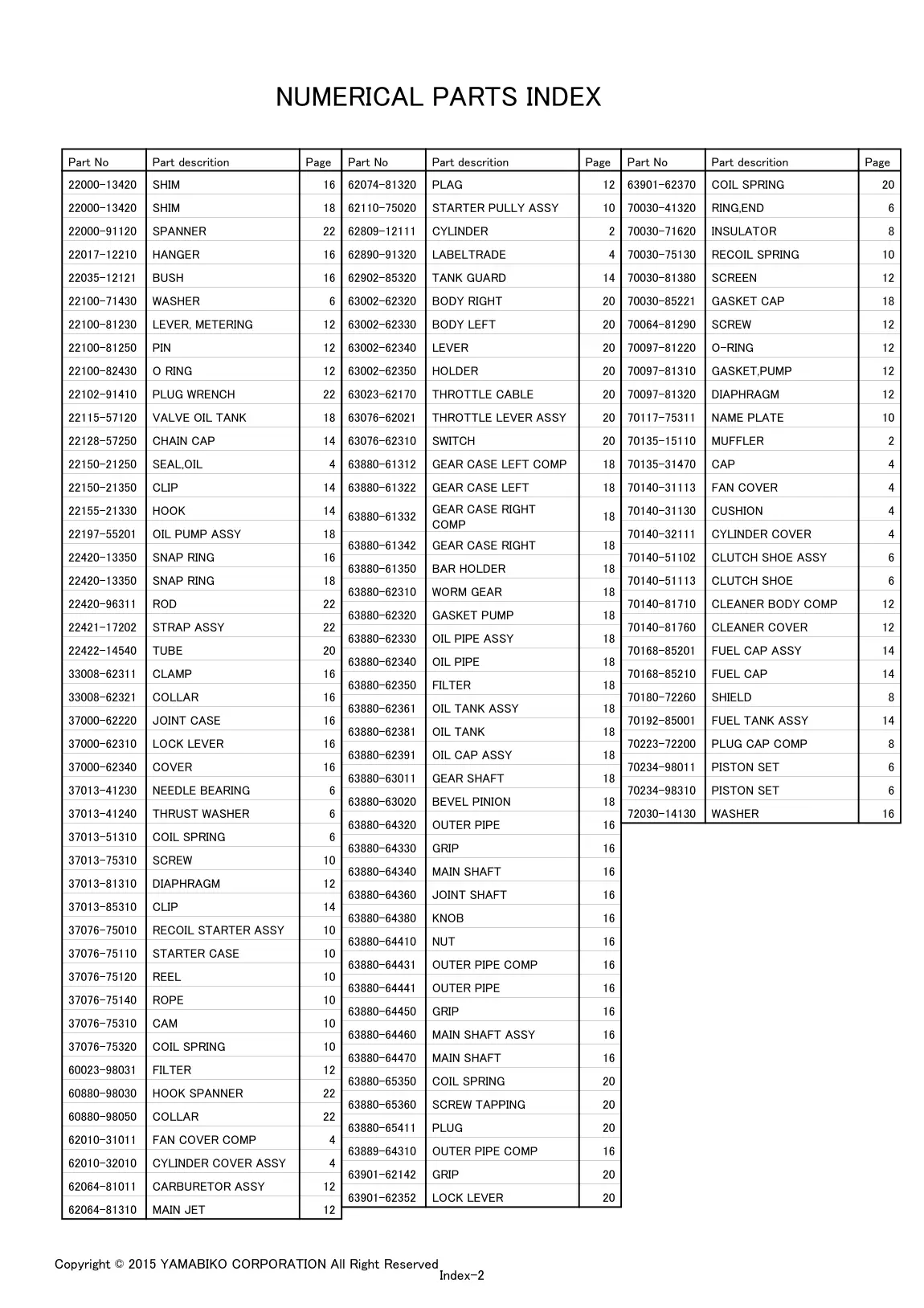

| 26 | WASHER | SHIM | 22000-13420 | 22000-13420-Online | |
| 26 | WASHER | 10 | DIAPHRAGM | 37013-81310 | 37013-81310-Online |
| 26 | WASHER | 10 | STARTER CASE | 37076-75110 | 37076-75110-Online |
| 26 | WASHER | 10 | REEL | 37076-75120 | 37076-75120-Online |
| 26 | WASHER | 10 | ROPE | 37076-75140 | 37076-75140-Online |
| 26 | WASHER | 10 | COIL SPRING | 37076-75320 | 37076-75320-Online |
| 26 | WASHER | 10 | FILTER | 60023-98031 | 60023-98031-Online |
| 26 | WASHER | 10 | CYLINDER | 62809-12111 | 62809-12111-Online |
| 26 | WASHER | 10 | SCREEN | 70030-81380 | 70030-81380-Online |
| 26 | WASHER | 10 | MUFFLER | 70135-15110 | 70135-15110-Online |
| 26 | WASHER | 12 | PIN | 22100-81250 | 22100-81250-Online |
| 26 | WASHER | 12 | O RING | 22100-82430 | 22100-82430-Online |
| 26 | WASHER | 12 | PLUG WRENCH | 22102-91410 | 22102-91410-Online |
| 26 | WASHER | 12 | CLIP | 37013-85310 | 37013-85310-Online |
| 26 | WASHER | 12 | HOOK SPANNER | 60880-98030 | 60880-98030-Online |
| 26 | WASHER | 12 | MAIN JET | 62064-81310 | 62064-81310-Online |
| 26 | WASHER | 12 | STARTER PULLY ASSY | 62110-75020 | 62110-75020-Online |
| 26 | WASHER | 12 | GASKET CAP | 70030-85221 | 70030-85221-Online |
| 26 | WASHER | 12 | O-RING | 70097-81220 | 70097-81220-Online |
| 26 | WASHER | 12 | GASKET,PUMP | 70097-81310 | 70097-81310-Online |
| 26 | WASHER | 12 | DIAPHRAGM | 70097-81320 | 70097-81320-Online |
| 26 | WASHER | 12 | NAME PLATE | 70117-75311 | 70117-75311-Online |
| 26 | WASHER | 12 | CLEANER COVER | 70140-81760 | 70140-81760-Online |
| 26 | WASHER | 12 | FUEL CAP ASSY | 70168-85201 | 70168-85201-Online |
| 26 | WASHER | 14 | SEAL,OIL | 22150-21250 | 22150-21250-Online |
| 26 | WASHER | 14 | OIL PUMP ASSY | 22197-55201 | 22197-55201-Online |
| 26 | WASHER | 14 | RECOIL STARTER ASSY | 37076-75010 | 37076-75010-Online |
| 26 | WASHER | 14 | BODY RIGHT | 63002-62320 | 63002-62320-Online |
| 26 | WASHER | 14 | FUEL CAP | 70168-85210 | 70168-85210-Online |
| 26 | WASHER | 14 | SHIELD | 70180-72260 | 70180-72260-Online |
| 26 | WASHER | 14 | PLUG CAP COMP | 70223-72200 | 70223-72200-Online |
| 26 | WASHER | 16 | SHIM | 22000-13420 | 22000-13420-Online |
| 26 | WASHER | 16 | WASHER | 22100-71430 | 22100-71430-Online |
| 26 | WASHER | 16 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 26 | WASHER | 16 | COLLAR | 33008-62321 | 33008-62321-Online |
| 26 | WASHER | 16 | JOINT CASE | 37000-62220 | 37000-62220-Online |
| 26 | WASHER | 16 | LOCK LEVER | 37000-62310 | 37000-62310-Online |
| 26 | WASHER | 16 | COVER | 37000-62340 | 37000-62340-Online |
| 26 | WASHER | 16 | NEEDLE BEARING | 37013-41230 | 37013-41230-Online |
| 26 | WASHER | 16 | GRIP | 63880-64330 | 63880-64330-Online |
| 26 | WASHER | 16 | MAIN SHAFT | 63880-64340 | 63880-64340-Online |
| 26 | WASHER | 16 | JOINT SHAFT | 63880-64360 | 63880-64360-Online |
| 26 | WASHER | 16 | KNOB | 63880-64380 | 63880-64380-Online |
| 26 | WASHER | 16 | NUT | 63880-64410 | 63880-64410-Online |
| 26 | WASHER | 16 | OUTER PIPE COMP | 63880-64431 | 63880-64431-Online |
| 26 | WASHER | 16 | OUTER PIPE | 63880-64441 | 63880-64441-Online |
| 26 | WASHER | 16 | GRIP | 63880-64450 | 63880-64450-Online |
| 26 | WASHER | 16 | MAIN SHAFT ASSY | 63880-64460 | 63880-64460-Online |
| 26 | WASHER | 16 | MAIN SHAFT | 63880-64470 | 63880-64470-Online |
| 26 | WASHER | 16 | COIL SPRING | 63880-65350 | 63880-65350-Online |
| 26 | WASHER | 16 | GRIP | 63901-62142 | 63901-62142-Online |
| 26 | WASHER | 18 | SPANNER | 22000-91120 | 22000-91120-Online |
| 26 | WASHER | 18 | CHAIN CAP | 22128-57250 | 22128-57250-Online |
| 26 | WASHER | 18 | SNAP RING | 22420-13350 | 22420-13350-Online |
| 26 | WASHER | 18 | ROD | 22420-96311 | 22420-96311-Online |
| 26 | WASHER | 18 | GEAR CASE LEFT | 63880-61322 | 63880-61322-Online |
| 26 | WASHER | 18 | GEAR CASE RIGHT | 63880-61332 | 63880-61332-Online |
| 26 | WASHER | 18 | GEAR CASE RIGHT | 63880-61342 | 63880-61342-Online |
| 26 | WASHER | 18 | BAR HOLDER | 63880-61350 | 63880-61350-Online |
| 26 | WASHER | 18 | WORM GEAR | 63880-62310 | 63880-62310-Online |
| 26 | WASHER | 18 | GASKET PUMP | 63880-62320 | 63880-62320-Online |
| 26 | WASHER | 18 | OIL PIPE ASSY | 63880-62330 | 63880-62330-Online |
| 26 | WASHER | 18 | OIL PIPE | 63880-62340 | 63880-62340-Online |
| 26 | WASHER | 18 | FILTER | 63880-62350 | 63880-62350-Online |
| 26 | WASHER | 18 | OIL TANK ASSY | 63880-62361 | 63880-62361-Online |
| 26 | WASHER | 18 | OIL TANK | 63880-62381 | 63880-62381-Online |
| 26 | WASHER | 18 | OIL CAP ASSY | 63880-62391 | 63880-62391-Online |
| 26 | WASHER | 18 | GEAR SHAFT | 63880-63011 | 63880-63011-Online |
| 26 | WASHER | 18 | BEVEL PINION | 63880-63020 | 63880-63020-Online |
| 26 | WASHER | 18 | OUTER PIPE | 63880-64320 | 63880-64320-Online |
| 26 | WASHER | 18 | SCREW | 70064-81290 | 70064-81290-Online |
| 26 | WASHER | 2 | LABELTRADE | 62890-91320 | 62890-91320-Online |
| 26 | WASHER | 2 | CAP | 70135-31470 | 70135-31470-Online |
| 26 | WASHER | 20 | BODY LEFT | 63002-62330 | 63002-62330-Online |
| 26 | WASHER | 20 | LEVER | 63002-62340 | 63002-62340-Online |
| 26 | WASHER | 20 | HOLDER | 63002-62350 | 63002-62350-Online |
| 26 | WASHER | 20 | THROTTLE CABLE | 63023-62170 | 63023-62170-Online |
| 26 | WASHER | 20 | THROTTLE LEVER ASSY | 63076-62021 | 63076-62021-Online |
| 26 | WASHER | 20 | SWITCH | 63076-62310 | 63076-62310-Online |
| 26 | WASHER | 20 | GEAR CASE LEFT COMP | 63880-61312 | 63880-61312-Online |
| 26 | WASHER | 20 | SCREW TAPPING | 63880-65360 | 63880-65360-Online |
| 26 | WASHER | 20 | PLUG | 63880-65411 | 63880-65411-Online |
| 26 | WASHER | 20 | OUTER PIPE COMP | 63889-64310 | 63889-64310-Online |
| 26 | WASHER | 20 | LOCK LEVER | 63901-62352 | 63901-62352-Online |
| 26 | WASHER | 20 | COIL SPRING | 63901-62370 | 63901-62370-Online |
| 26 | WASHER | 20 | RING,END | 70030-41320 | 70030-41320-Online |
| 26 | WASHER | 22 | HANGER | 22017-12210 | 22017-12210-Online |
| 26 | WASHER | 22 | VALVE OIL TANK | 22115-57120 | 22115-57120-Online |
| 26 | WASHER | 22 | STRAP ASSY | 22421-17202 | 22421-17202-Online |
| 26 | WASHER | 22 | TUBE | 22422-14540 | 22422-14540-Online |
| 26 | WASHER | 22 | COLLAR | 60880-98050 | 60880-98050-Online |
| 26 | WASHER | 22 | FAN COVER COMP | 62010-31011 | 62010-31011-Online |
| 26 | WASHER | 4 | CLIP | 22150-21350 | 22150-21350-Online |
| 26 | WASHER | 4 | CYLINDER COVER ASSY | 62010-32010 | 62010-32010-Online |
| 26 | WASHER | 4 | CARBURETOR ASSY | 62064-81011 | 62064-81011-Online |
| 26 | WASHER | 4 | TANK GUARD | 62902-85320 | 62902-85320-Online |
| 26 | WASHER | 4 | FAN COVER | 70140-31113 | 70140-31113-Online |
| 26 | WASHER | 4 | CUSHION | 70140-31130 | 70140-31130-Online |
| 26 | WASHER | 4 | CYLINDER COVER | 70140-32111 | 70140-32111-Online |
| 26 | WASHER | 4 | CLUTCH SHOE ASSY | 70140-51102 | 70140-51102-Online |
| 26 | WASHER | 6 | LEVER, METERING | 22100-81230 | 22100-81230-Online |
| 26 | WASHER | 6 | THRUST WASHER | 37013-41240 | 37013-41240-Online |
| 26 | WASHER | 6 | COIL SPRING | 37013-51310 | 37013-51310-Online |
| 26 | WASHER | 6 | SCREW | 37013-75310 | 37013-75310-Online |
| 26 | WASHER | 6 | INSULATOR | 70030-71620 | 70030-71620-Online |
| 26 | WASHER | 6 | CLUTCH SHOE | 70140-51113 | 70140-51113-Online |
| 26 | WASHER | 6 | CLEANER BODY COMP | 70140-81710 | 70140-81710-Online |
| 26 | WASHER | 6 | PISTON SET | 70234-98310 | 70234-98310-Online |
| 26 | WASHER | 8 | RECOIL SPRING | 70030-75130 | 70030-75130-Online |
| 26 | WASHER | 8 | FUEL TANK ASSY | 70192-85001 | 70192-85001-Online |
| 26 | WASHER | 8 | PISTON SET | 70234-98011 | 70234-98011-Online |
Source file: 20200226-956_P230S_EC1_AA_00000000_24FEB2020.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
