Illustrated Parts List
Shindaiwa DH185ST Hedge Trimmer IPL
This Shindaiwa IPL has been converted into a mobile-friendly Joomla article with clickable Cutsmart SKU links.
Machine: DH185ST
Type: Hedge Trimmer
SKU format: xxxx-Online
How to use: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the resolver page. Diagram images can be clicked or tapped to enlarge.

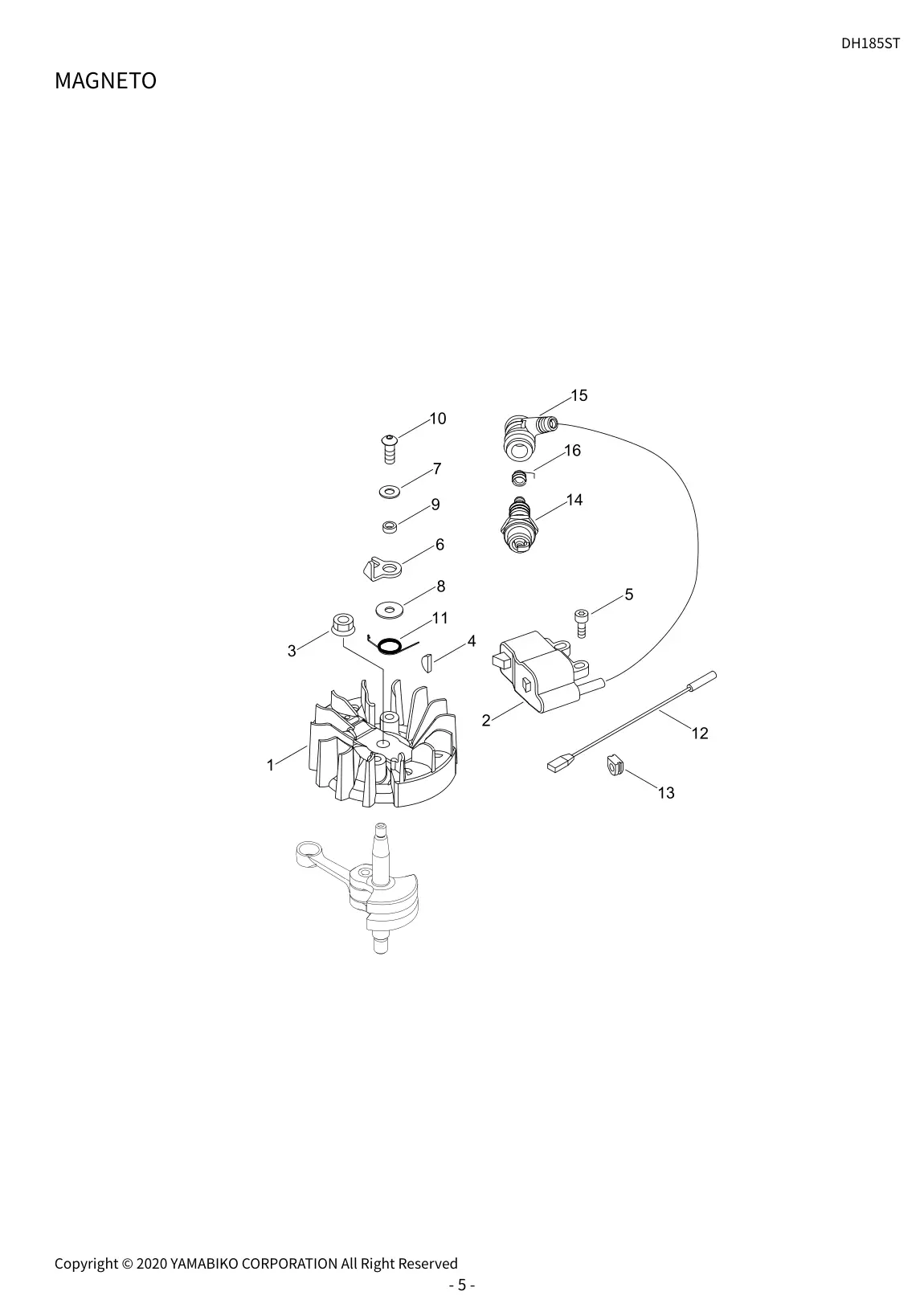

IPL Diagram Pages
Detected Parts List
The table below was generated from the source PDF text. Use Ctrl+F to search by part number, description or SKU.
| Page | Section | Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|---|---|

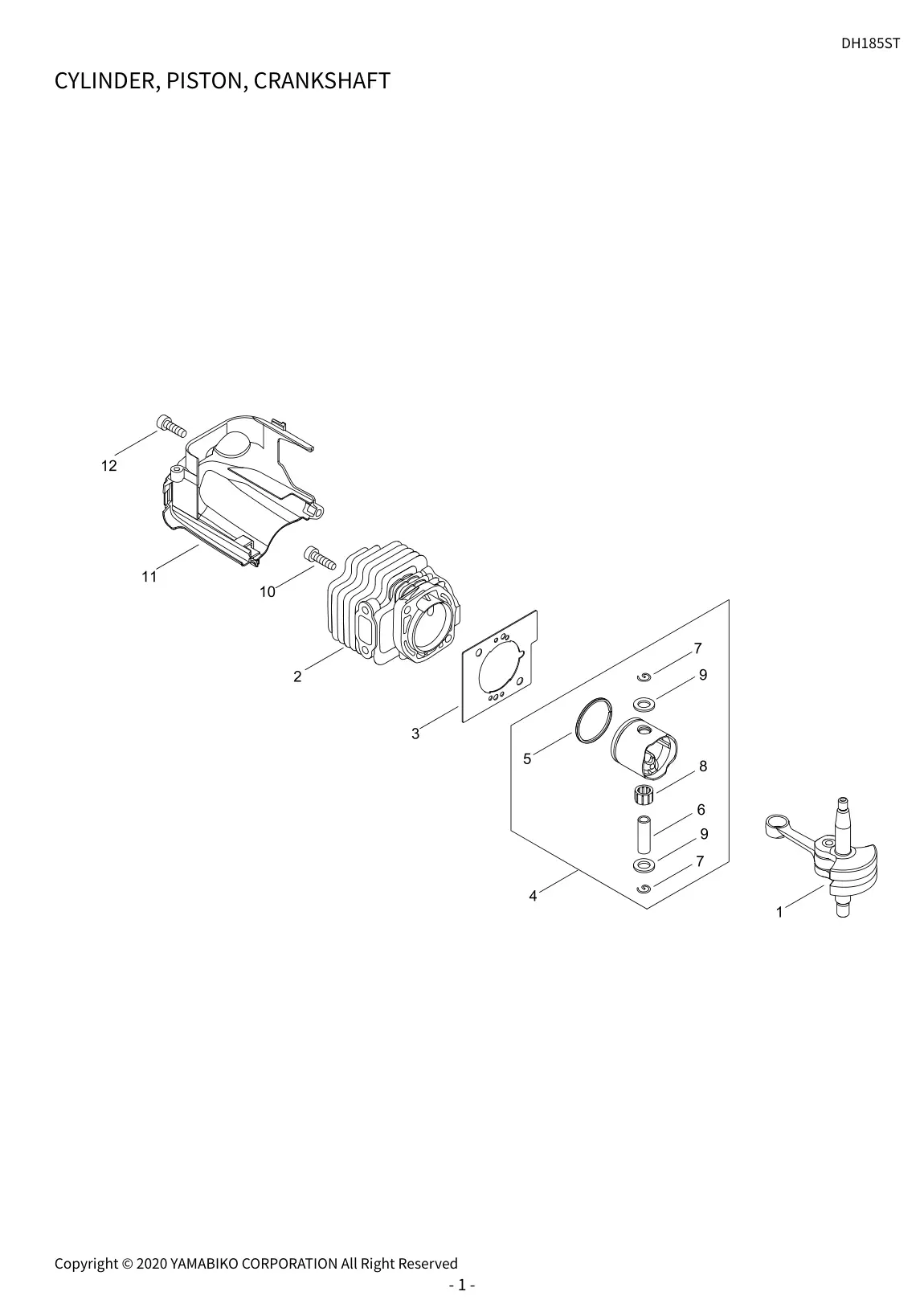

| 5 | CYLINDER, PISTON, CRANKSHAFT | 1 | CRANKSHAFT,ASY | A011-001360 | A011-001360-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 10 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 11 | COVER,CYLINDER | A160-003200 | A160-003200-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 12 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 2 | CYLINDER | A130-001960 | A130-001960-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 3 | GASKET,CYL | V100-000720 | V100-000720-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 4 | PISTON KIT | P021-037930 | P021-037930-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 5 | RING, PISTON | A101-000880 | A101-000880-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 6 | PIN,ENG | V606-000020 | V606-000020-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 7 | CIRCLIP, PISTON | 100015-04630 | 100015-04630-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 8 | BEARING, NEEDLE | 100113-05930 | 100113-05930-Online |
| 5 | CYLINDER, PISTON, CRANKSHAFT | 9 | SPACER, PISTON | 100014-08960 | 100014-08960-Online |

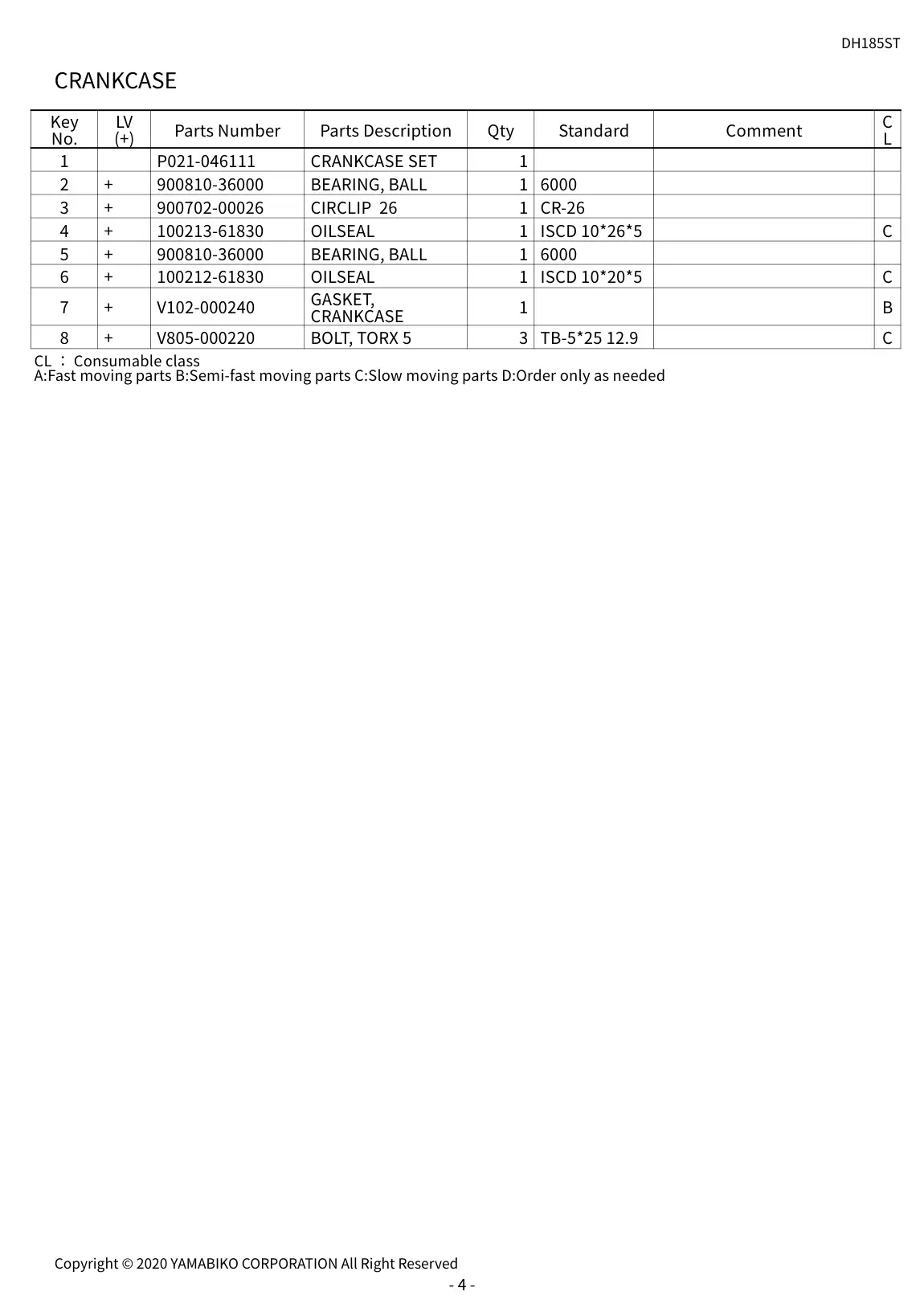

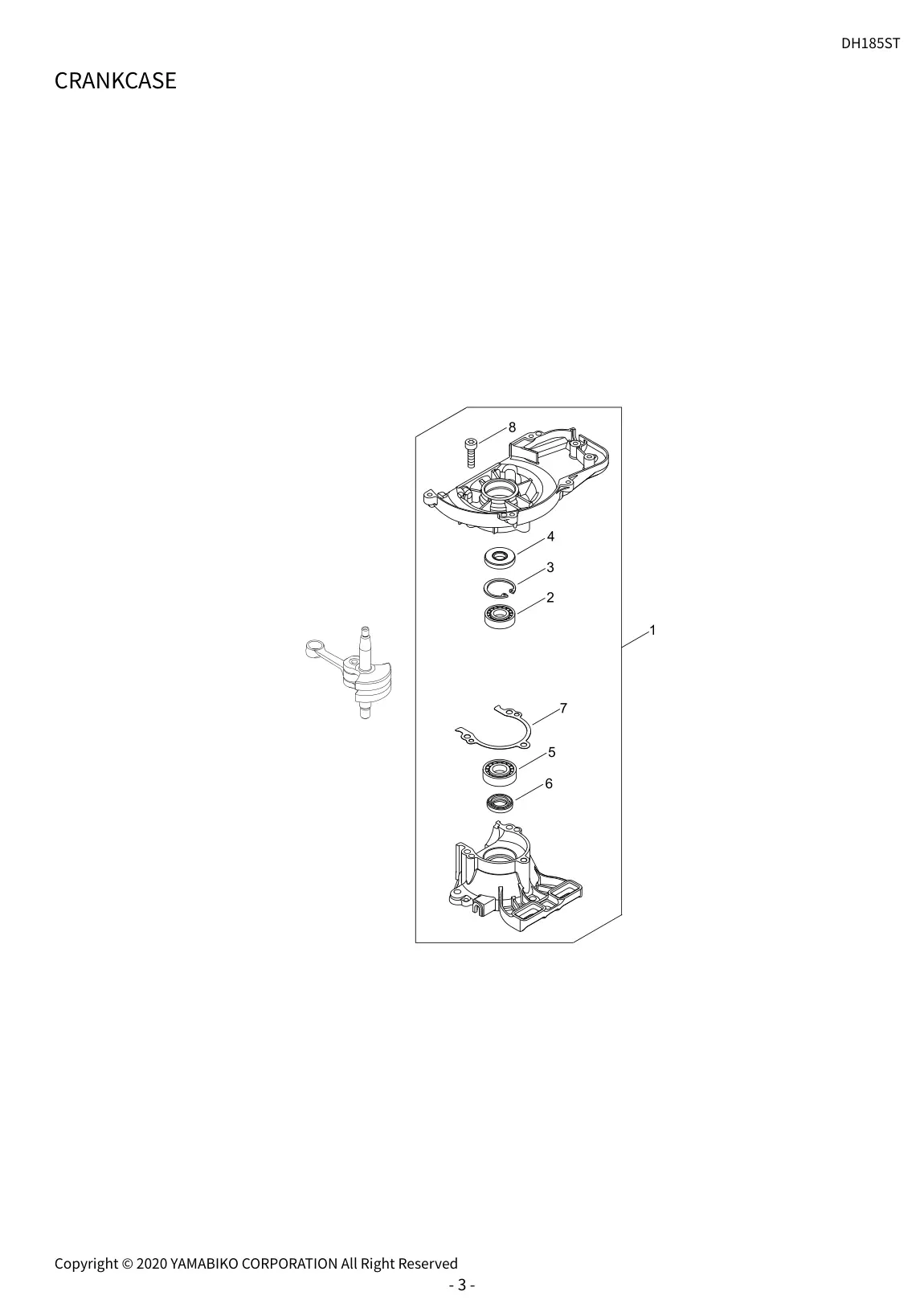

| 7 | CRANKCASE | 1 | CRANKCASE SET | P021-046111 | P021-046111-Online |
| 7 | CRANKCASE | 2 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 7 | CRANKCASE | 3 | CIRCLIP | 900702-00026 | 900702-00026-Online |
| 7 | CRANKCASE | 4 | OILSEAL | 100213-61830 | 100213-61830-Online |
| 7 | CRANKCASE | 5 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 7 | CRANKCASE | 6 | OILSEAL | 100212-61830 | 100212-61830-Online |
| 7 | CRANKCASE | 7 | GASKET, | V102-000240 | V102-000240-Online |
| 7 | CRANKCASE | 8 | BOLT, TORX | V805-000220 | V805-000220-Online |

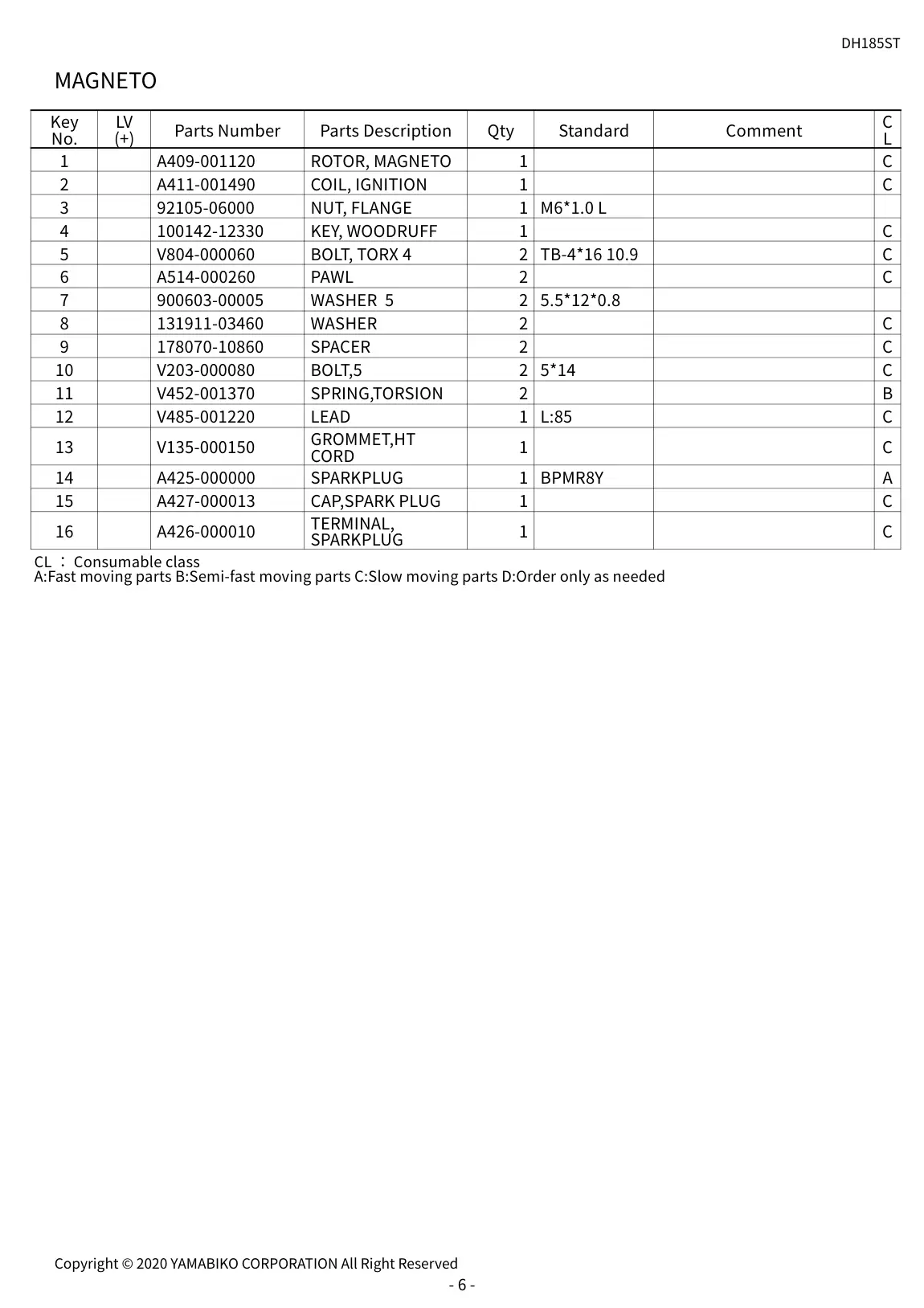

| 9 | MAGNETO | 1 | ROTOR, MAGNETO | A409-001120 | A409-001120-Online |
| 9 | MAGNETO | 10 | BOLT,5 | V203-000080 | V203-000080-Online |
| 9 | MAGNETO | 11 | SPRING,TORSION | V452-001370 | V452-001370-Online |
| 9 | MAGNETO | 12 | LEAD | V485-001220 | V485-001220-Online |
| 9 | MAGNETO | 13 | GROMMET,HT | V135-000150 | V135-000150-Online |
| 9 | MAGNETO | 14 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 9 | MAGNETO | 15 | CAP,SPARK PLUG | A427-000013 | A427-000013-Online |
| 9 | MAGNETO | 16 | TERMINAL, | A426-000010 | A426-000010-Online |
| 9 | MAGNETO | 2 | COIL, IGNITION | A411-001490 | A411-001490-Online |
| 9 | MAGNETO | 3 | NUT, FLANGE | 92105-06000 | 92105-06000-Online |
| 9 | MAGNETO | 4 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 9 | MAGNETO | 5 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 9 | MAGNETO | 6 | PAWL | A514-000260 | A514-000260-Online |
| 9 | MAGNETO | 7 | WASHER | 900603-00005 | 900603-00005-Online |
| 9 | MAGNETO | 8 | WASHER | 131911-03460 | 131911-03460-Online |
| 9 | MAGNETO | 9 | SPACER | 178070-10860 | 178070-10860-Online |

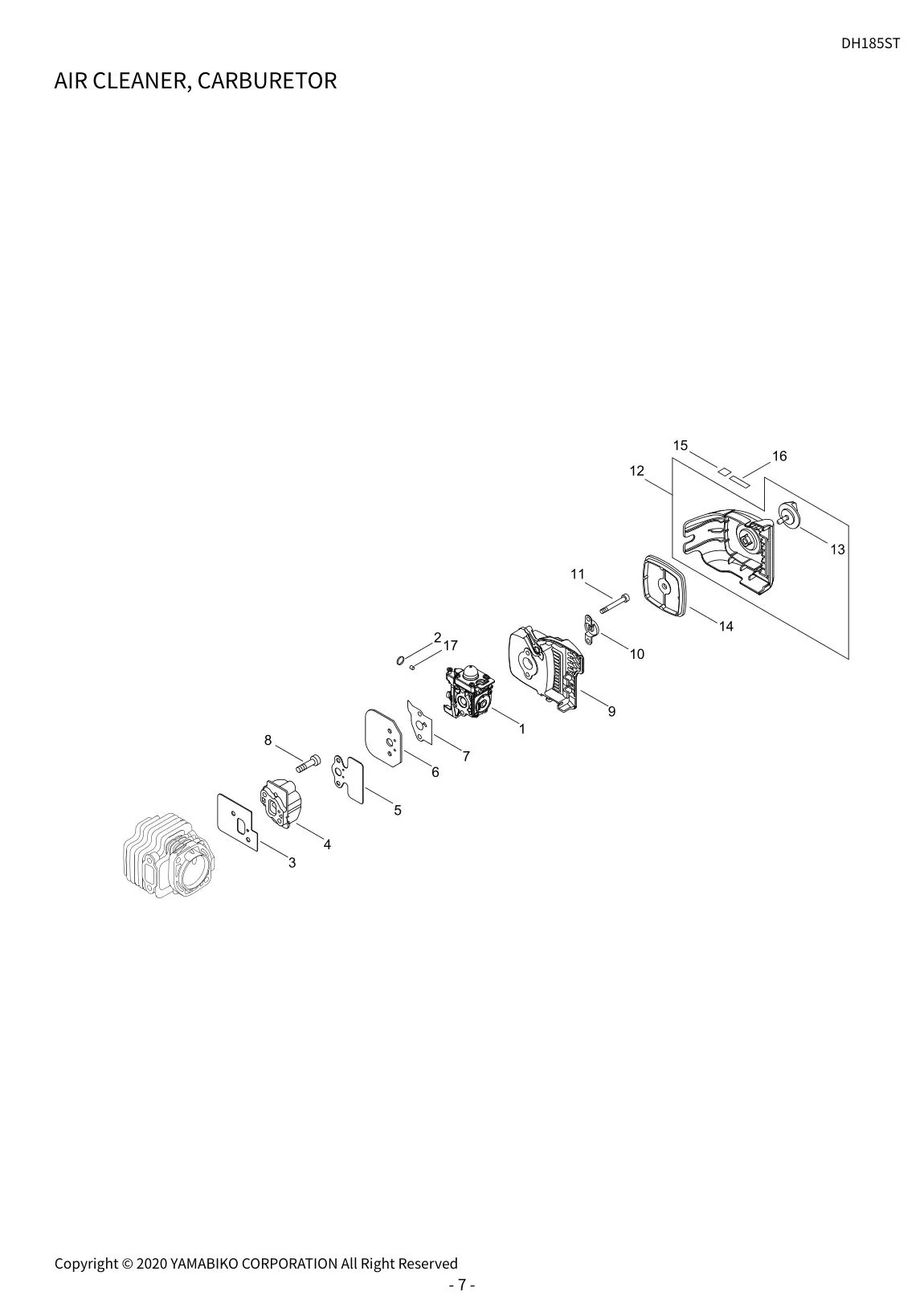

| 11 | AIR CLEANER, CARBURETOR | 1 | CARBURETOR, | A021-004900 | A021-004900-Online |
| 11 | AIR CLEANER, CARBURETOR | 1 | CLIP | YZ0008 | YZ0008-Online |
| 11 | AIR CLEANER, CARBURETOR | 10 | PLATE,PREVENT | A244-000070 | A244-000070-Online |
| 11 | AIR CLEANER, CARBURETOR | 11 | BOLT, TORX | V805-000100 | V805-000100-Online |
| 11 | AIR CLEANER, CARBURETOR | 12 | CLEANER LID ASY | P021-050320 | P021-050320-Online |
| 11 | AIR CLEANER, CARBURETOR | 13 | KNOB | V299-000410 | V299-000410-Online |
| 11 | AIR CLEANER, CARBURETOR | 14 | ELEMENT,AIR | A226-001410 | A226-001410-Online |
| 11 | AIR CLEANER, CARBURETOR | 15 | LABEL | X524-001901 | X524-001901-Online |
| 11 | AIR CLEANER, CARBURETOR | 16 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 11 | AIR CLEANER, CARBURETOR | 17 | CAP,LIMITER | A259-000010 | A259-000010-Online |
| 11 | AIR CLEANER, CARBURETOR | 2 | CLIP | V490-001100 | V490-001100-Online |
| 11 | AIR CLEANER, CARBURETOR | 3 | GASKET,INTAKE | V103-001401 | V103-001401-Online |
| 11 | AIR CLEANER, CARBURETOR | 4 | INSULATOR, | A200-000941 | A200-000941-Online |
| 11 | AIR CLEANER, CARBURETOR | 5 | GASKET,INTAKE | V103-001730 | V103-001730-Online |
| 11 | AIR CLEANER, CARBURETOR | 6 | PLATE, INSULATOR | A209-000610 | A209-000610-Online |
| 11 | AIR CLEANER, CARBURETOR | 7 | GASKET,INTAKE | V103-001740 | V103-001740-Online |
| 11 | AIR CLEANER, CARBURETOR | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 11 | AIR CLEANER, CARBURETOR | 9 | AIR CLEANER ASY | P021-041571 | P021-041571-Online |

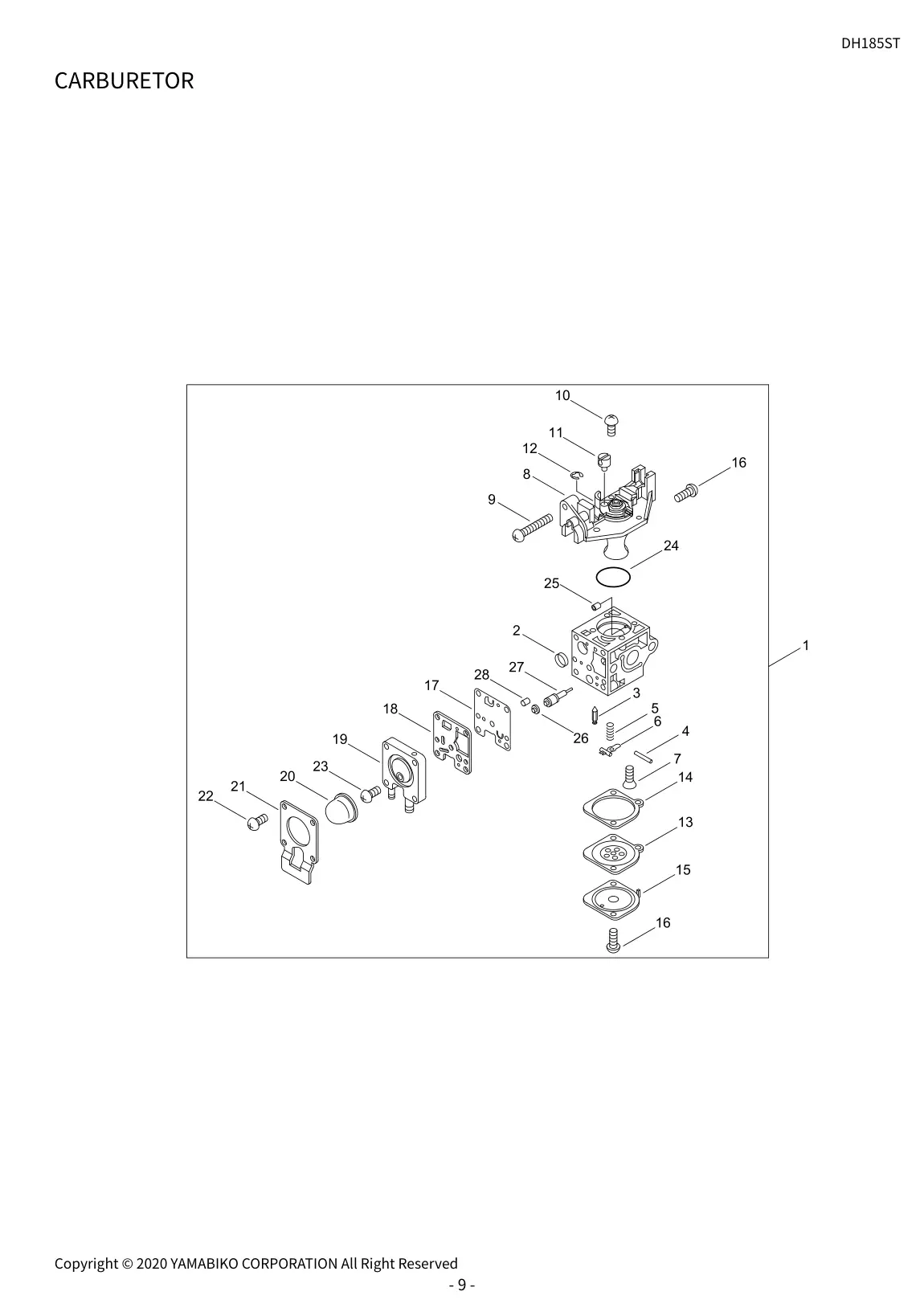

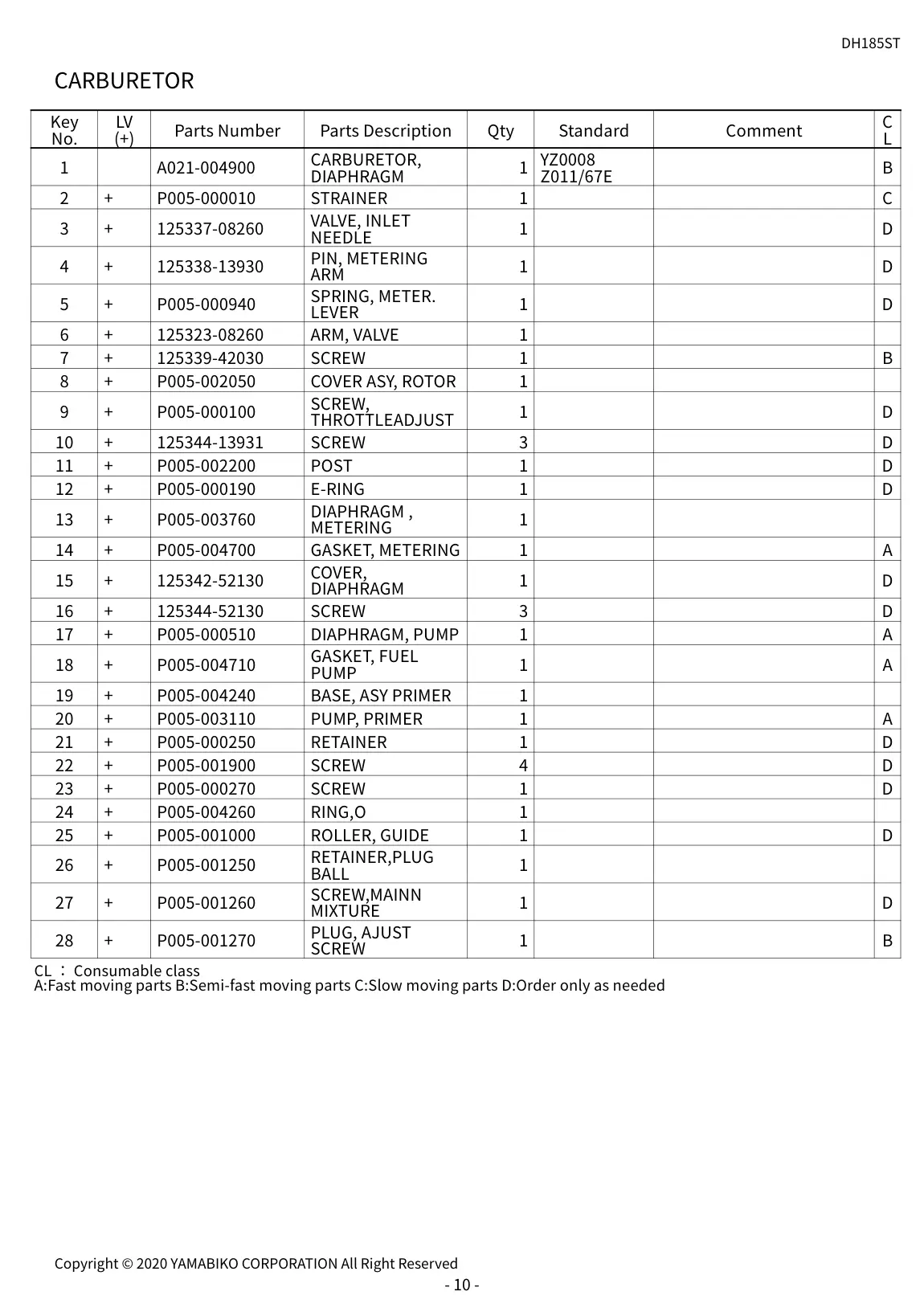

| 13 | CARBURETOR | 1 | CARBURETOR, | A021-004900 | A021-004900-Online |
| 13 | CARBURETOR | 10 | SCREW | 125344-13931 | 125344-13931-Online |
| 13 | CARBURETOR | 12 | E-RING | P005-000190 | P005-000190-Online |
| 13 | CARBURETOR | 13 | DIAPHRAGM , | P005-003760 | P005-003760-Online |
| 13 | CARBURETOR | 14 | GASKET, METERING | P005-004700 | P005-004700-Online |
| 13 | CARBURETOR | 15 | COVER, | 125342-52130 | 125342-52130-Online |
| 13 | CARBURETOR | 16 | SCREW | 125344-52130 | 125344-52130-Online |
| 13 | CARBURETOR | 17 | DIAPHRAGM, PUMP | P005-000510 | P005-000510-Online |
| 13 | CARBURETOR | 18 | GASKET, FUEL | P005-004710 | P005-004710-Online |
| 13 | CARBURETOR | 19 | BASE, ASY PRIMER | P005-004240 | P005-004240-Online |
| 13 | CARBURETOR | 2 | STRAINER | P005-000010 | P005-000010-Online |
| 13 | CARBURETOR | 20 | PUMP, PRIMER | P005-003110 | P005-003110-Online |
| 13 | CARBURETOR | 21 | RETAINER | P005-000250 | P005-000250-Online |
| 13 | CARBURETOR | 22 | SCREW | P005-001900 | P005-001900-Online |
| 13 | CARBURETOR | 23 | SCREW | P005-000270 | P005-000270-Online |
| 13 | CARBURETOR | 24 | RING,O | P005-004260 | P005-004260-Online |
| 13 | CARBURETOR | 25 | ROLLER, GUIDE | P005-001000 | P005-001000-Online |
| 13 | CARBURETOR | 26 | RETAINER,PLUG | P005-001250 | P005-001250-Online |
| 13 | CARBURETOR | 27 | SCREW,MAINN | P005-001260 | P005-001260-Online |
| 13 | CARBURETOR | 28 | PLUG, AJUST | P005-001270 | P005-001270-Online |
| 13 | CARBURETOR | 3 | VALVE, INLET | 125337-08260 | 125337-08260-Online |
| 13 | CARBURETOR | 4 | PIN, METERING | 125338-13930 | 125338-13930-Online |
| 13 | CARBURETOR | 5 | SPRING, METER. | P005-000940 | P005-000940-Online |
| 13 | CARBURETOR | 6 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 13 | CARBURETOR | 7 | SCREW | 125339-42030 | 125339-42030-Online |
| 13 | CARBURETOR | 8 | COVER ASY, ROTOR | P005-002050 | P005-002050-Online |
| 13 | CARBURETOR | 9 | SCREW, | P005-000100 | P005-000100-Online |

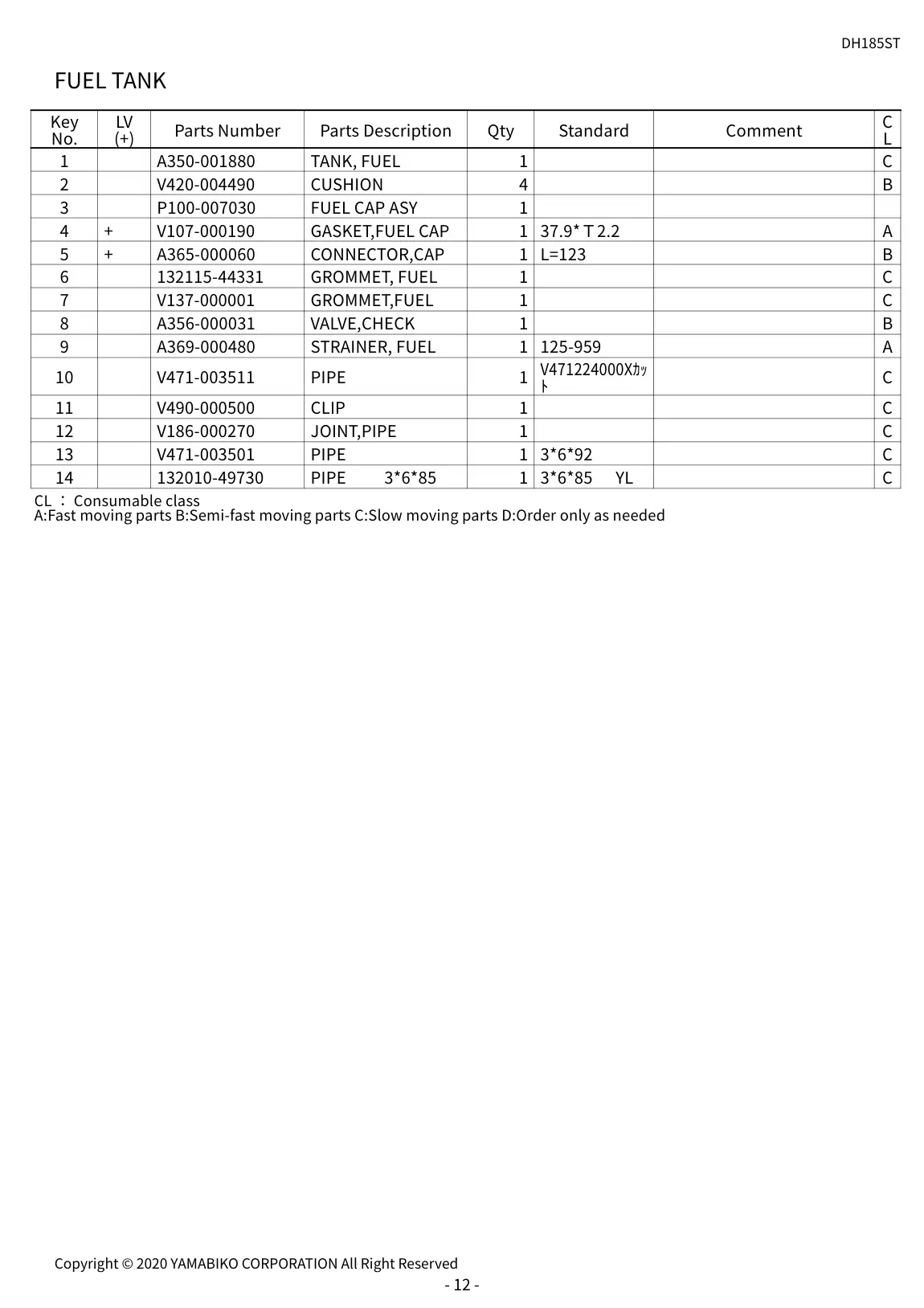

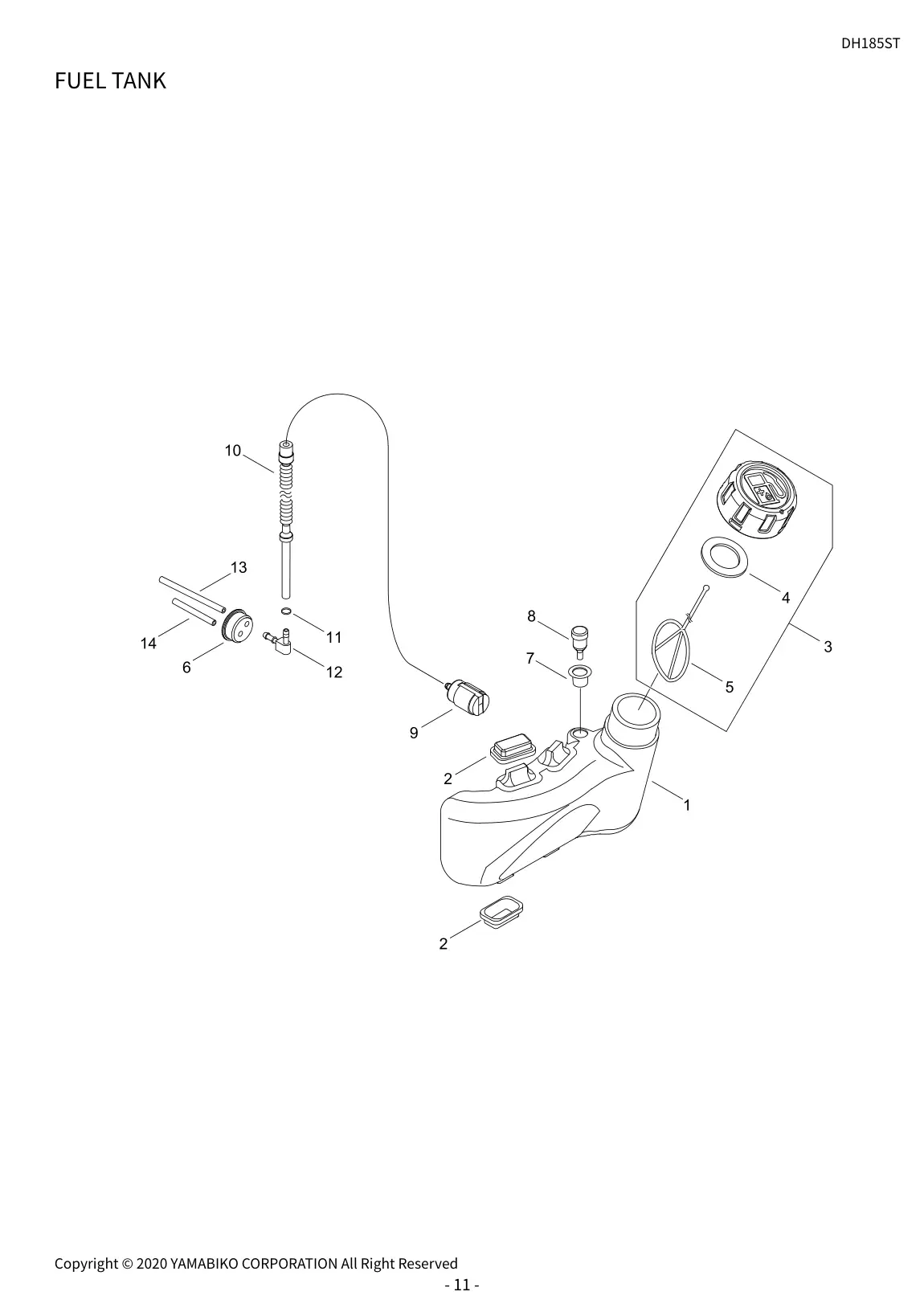

| 15 | FUEL TANK | 1 | TANK, FUEL | A350-001880 | A350-001880-Online |
| 15 | FUEL TANK | 10 | PIPE | V471-003511 | V471-003511-Online |
| 15 | FUEL TANK | 11 | CLIP | V490-000500 | V490-000500-Online |
| 15 | FUEL TANK | 12 | JOINT,PIPE | V186-000270 | V186-000270-Online |
| 15 | FUEL TANK | 13 | PIPE | V471-003501 | V471-003501-Online |
| 15 | FUEL TANK | 14 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |
| 15 | FUEL TANK | 2 | CUSHION | V420-004490 | V420-004490-Online |
| 15 | FUEL TANK | 3 | FUEL CAP ASY | P100-007030 | P100-007030-Online |
| 15 | FUEL TANK | 4 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 15 | FUEL TANK | 5 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 15 | FUEL TANK | 6 | GROMMET, FUEL | 132115-44331 | 132115-44331-Online |
| 15 | FUEL TANK | 7 | GROMMET,FUEL | V137-000001 | V137-000001-Online |
| 15 | FUEL TANK | 8 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 15 | FUEL TANK | 9 | STRAINER, FUEL | A369-000480 | A369-000480-Online |

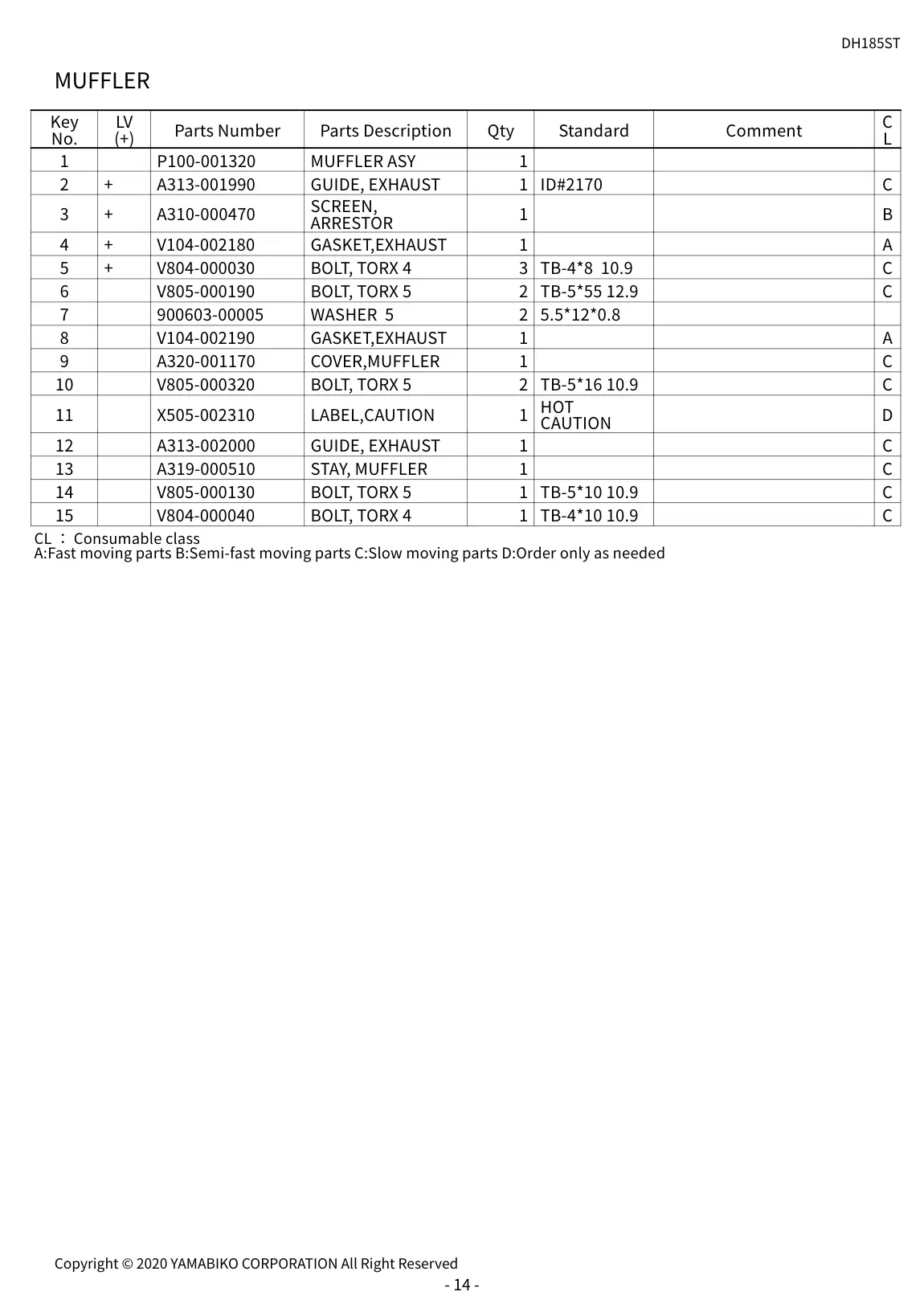

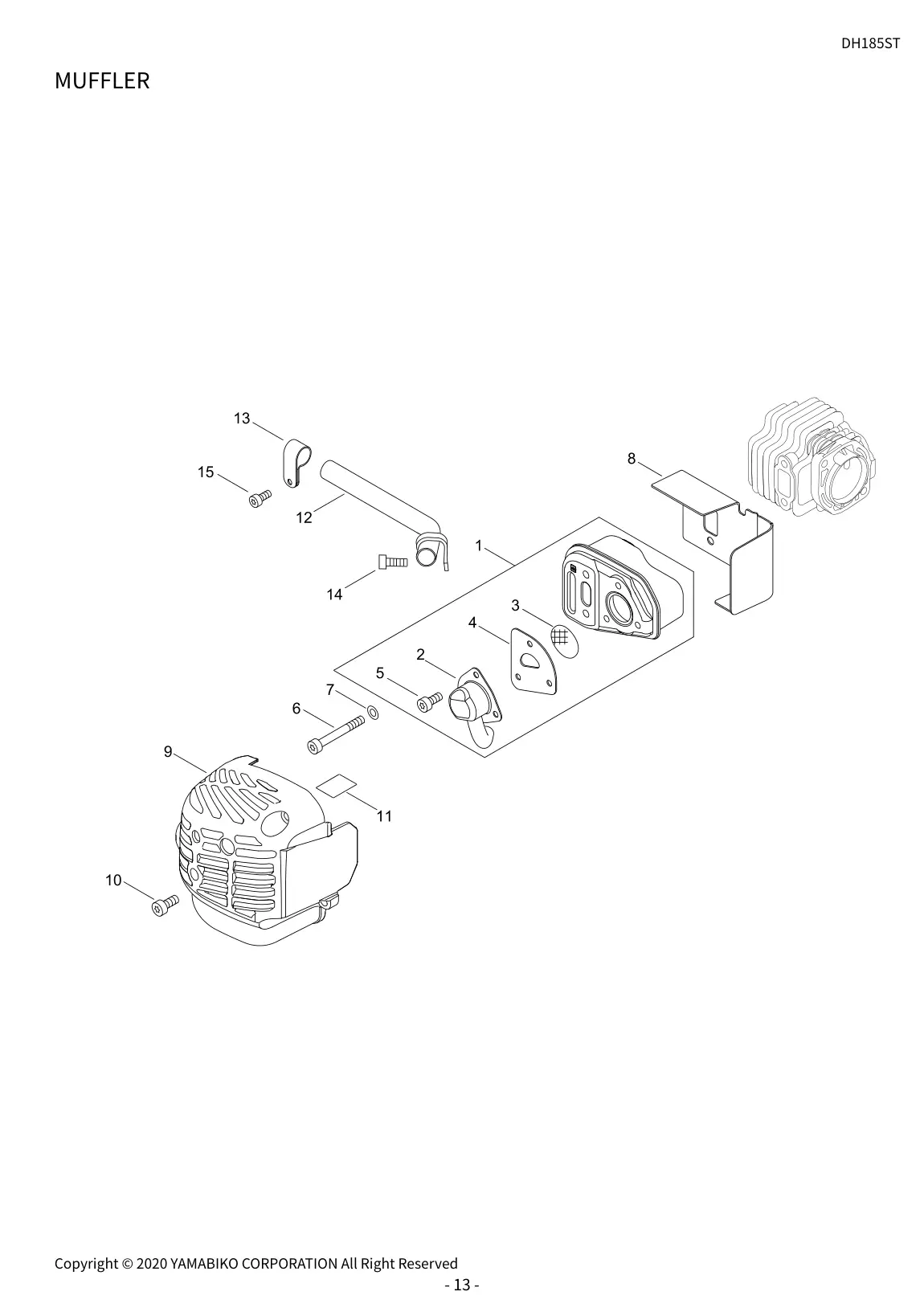

| 17 | MUFFLER | 1 | MUFFLER ASY | P100-001320 | P100-001320-Online |
| 17 | MUFFLER | 10 | BOLT, TORX | V805-000320 | V805-000320-Online |
| 17 | MUFFLER | 11 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 17 | MUFFLER | 12 | GUIDE, EXHAUST | A313-002000 | A313-002000-Online |
| 17 | MUFFLER | 13 | STAY, MUFFLER | A319-000510 | A319-000510-Online |
| 17 | MUFFLER | 14 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 17 | MUFFLER | 15 | BOLT, TORX | V804-000040 | V804-000040-Online |
| 17 | MUFFLER | 2 | GUIDE, EXHAUST | A313-001990 | A313-001990-Online |
| 17 | MUFFLER | 3 | SCREEN, | A310-000470 | A310-000470-Online |
| 17 | MUFFLER | 4 | GASKET,EXHAUST | V104-002180 | V104-002180-Online |
| 17 | MUFFLER | 5 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 17 | MUFFLER | 6 | BOLT, TORX | V805-000190 | V805-000190-Online |
| 17 | MUFFLER | 7 | WASHER | 900603-00005 | 900603-00005-Online |
| 17 | MUFFLER | 8 | GASKET,EXHAUST | V104-002190 | V104-002190-Online |
| 17 | MUFFLER | 9 | COVER,MUFFLER | A320-001170 | A320-001170-Online |

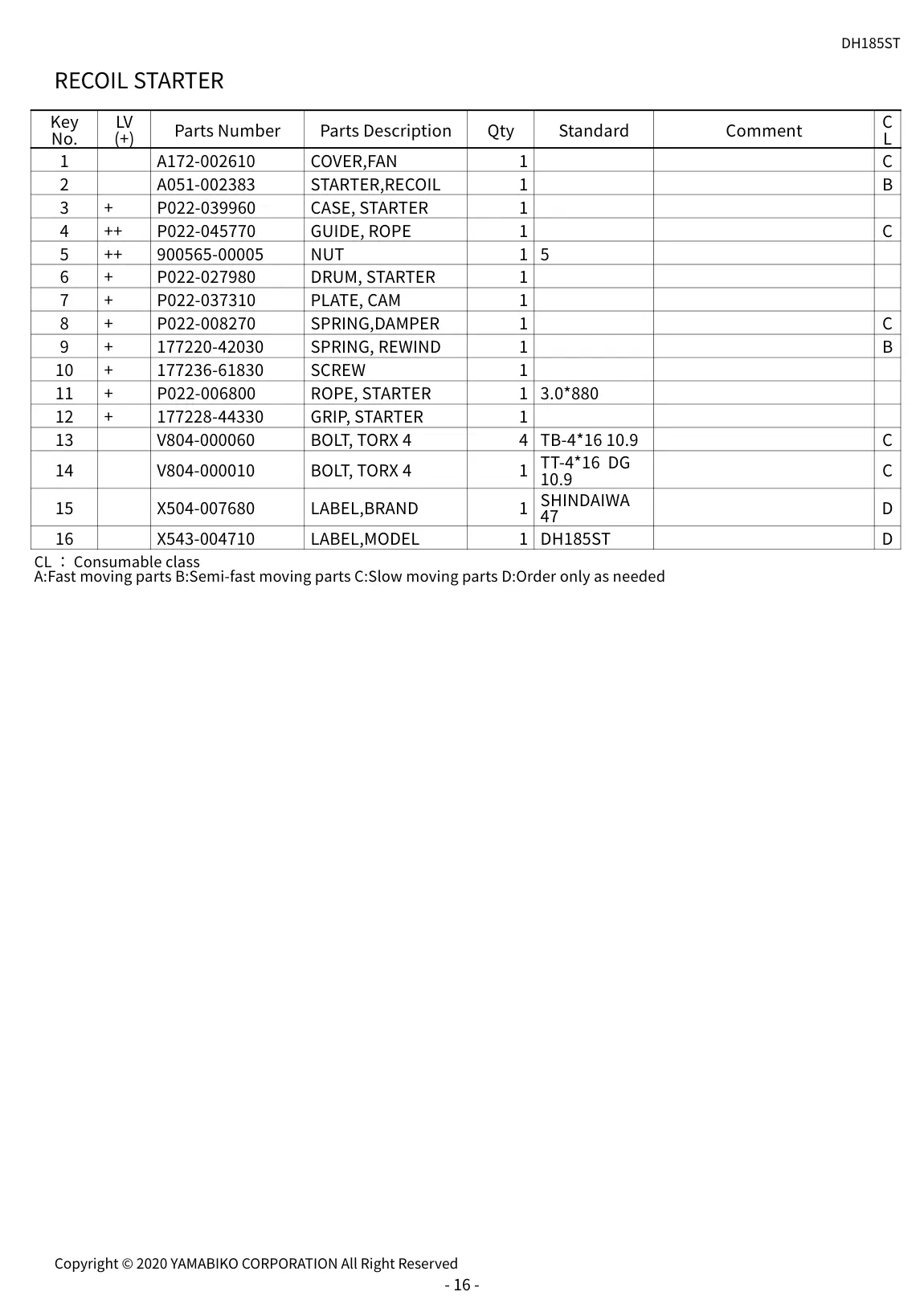

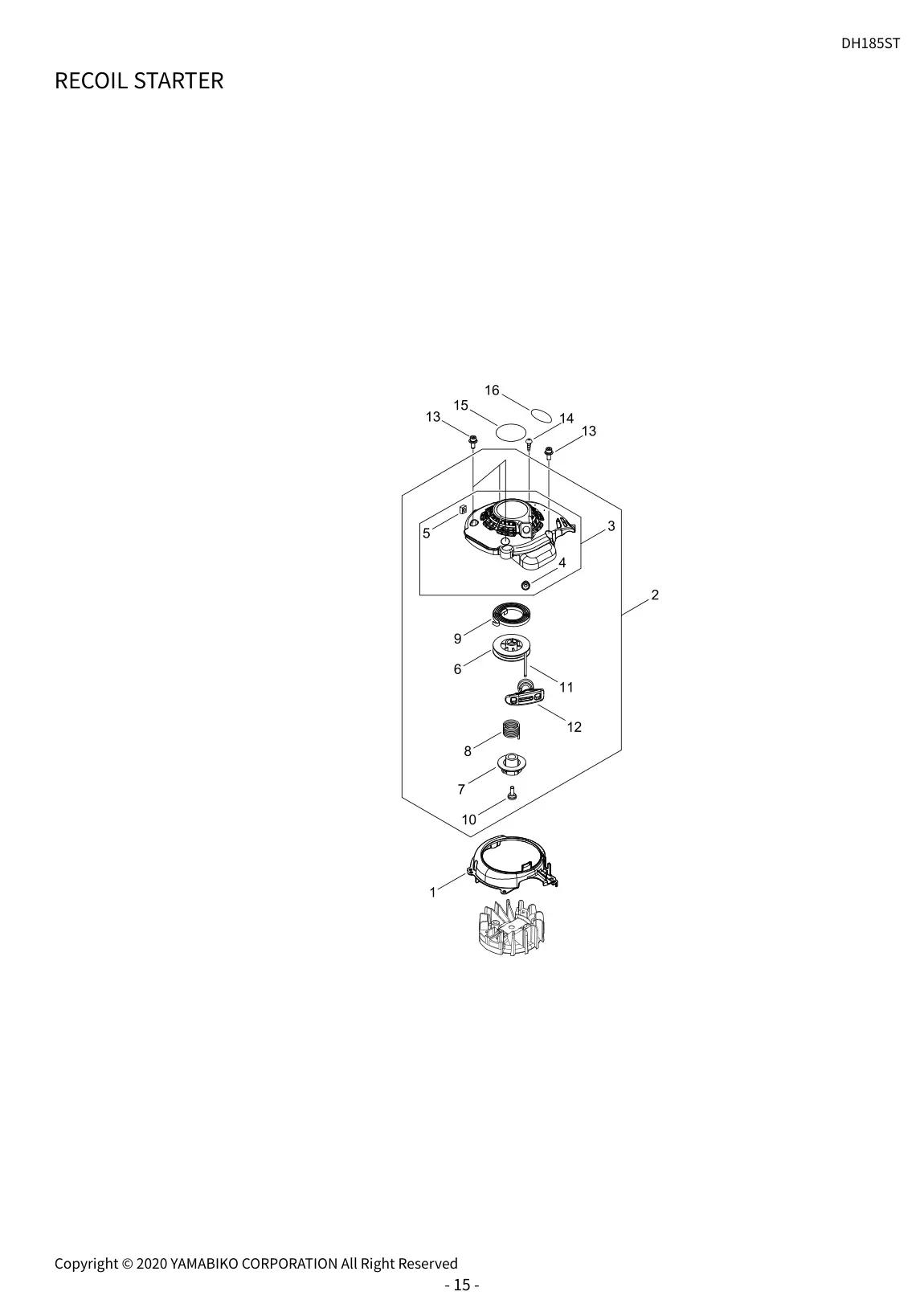

| 19 | RECOIL STARTER | 1 | COVER,FAN | A172-002610 | A172-002610-Online |
| 19 | RECOIL STARTER | 10 | SCREW | 177236-61830 | 177236-61830-Online |
| 19 | RECOIL STARTER | 11 | ROPE, STARTER | P022-006800 | P022-006800-Online |
| 19 | RECOIL STARTER | 12 | GRIP, STARTER | 177228-44330 | 177228-44330-Online |
| 19 | RECOIL STARTER | 13 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 19 | RECOIL STARTER | 14 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 19 | RECOIL STARTER | 15 | LABEL,BRAND | X504-007680 | X504-007680-Online |
| 19 | RECOIL STARTER | 16 | LABEL,MODEL | X543-004710 | X543-004710-Online |
| 19 | RECOIL STARTER | 2 | STARTER,RECOIL | A051-002383 | A051-002383-Online |
| 19 | RECOIL STARTER | 3 | CASE, STARTER | P022-039960 | P022-039960-Online |
| 19 | RECOIL STARTER | 4 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 19 | RECOIL STARTER | 5 | NUT | 900565-00005 | 900565-00005-Online |
| 19 | RECOIL STARTER | 6 | DRUM, STARTER | P022-027980 | P022-027980-Online |
| 19 | RECOIL STARTER | 7 | PLATE, CAM | P022-037310 | P022-037310-Online |
| 19 | RECOIL STARTER | 8 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 19 | RECOIL STARTER | 9 | SPRING, REWIND | 177220-42030 | 177220-42030-Online |

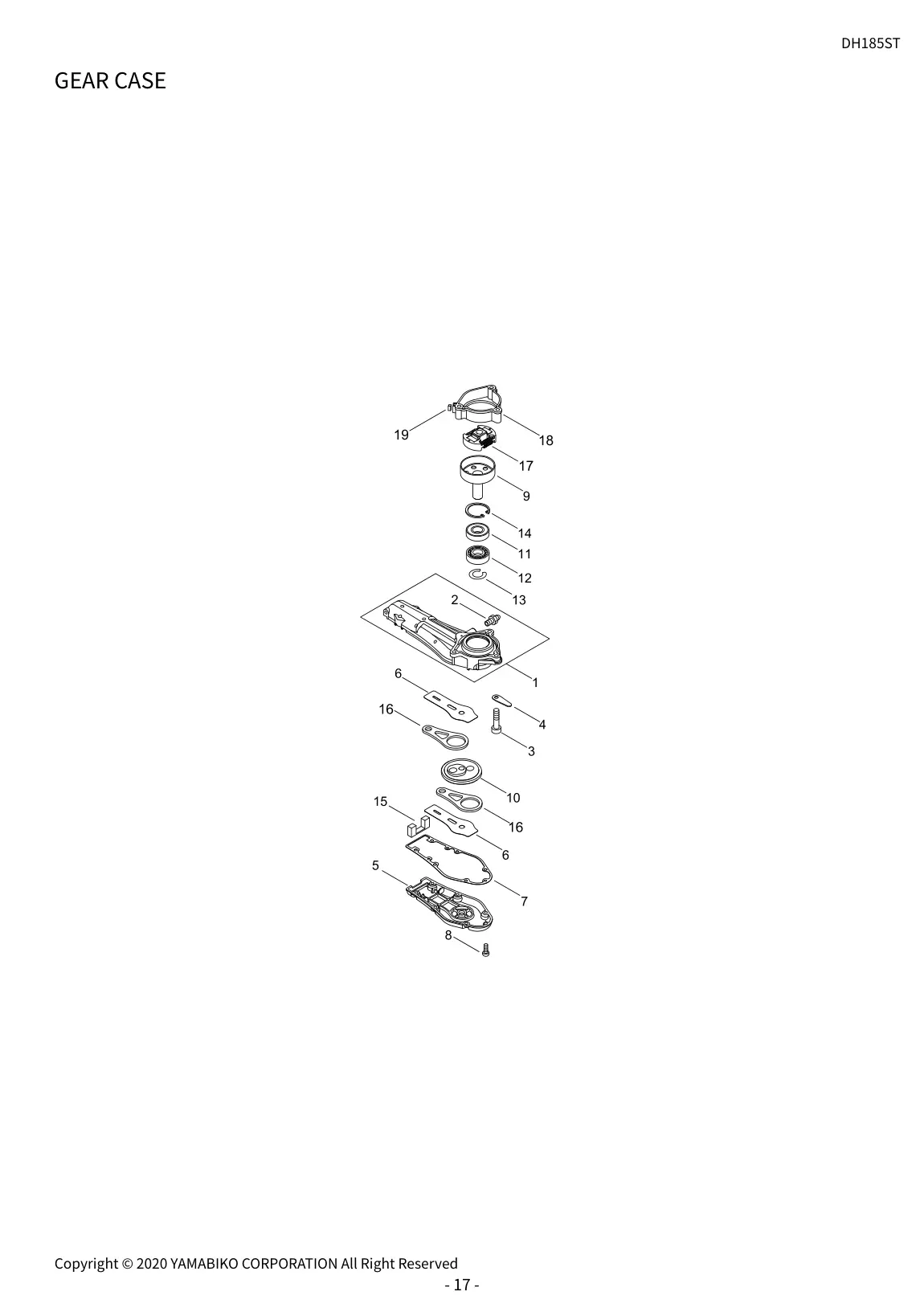

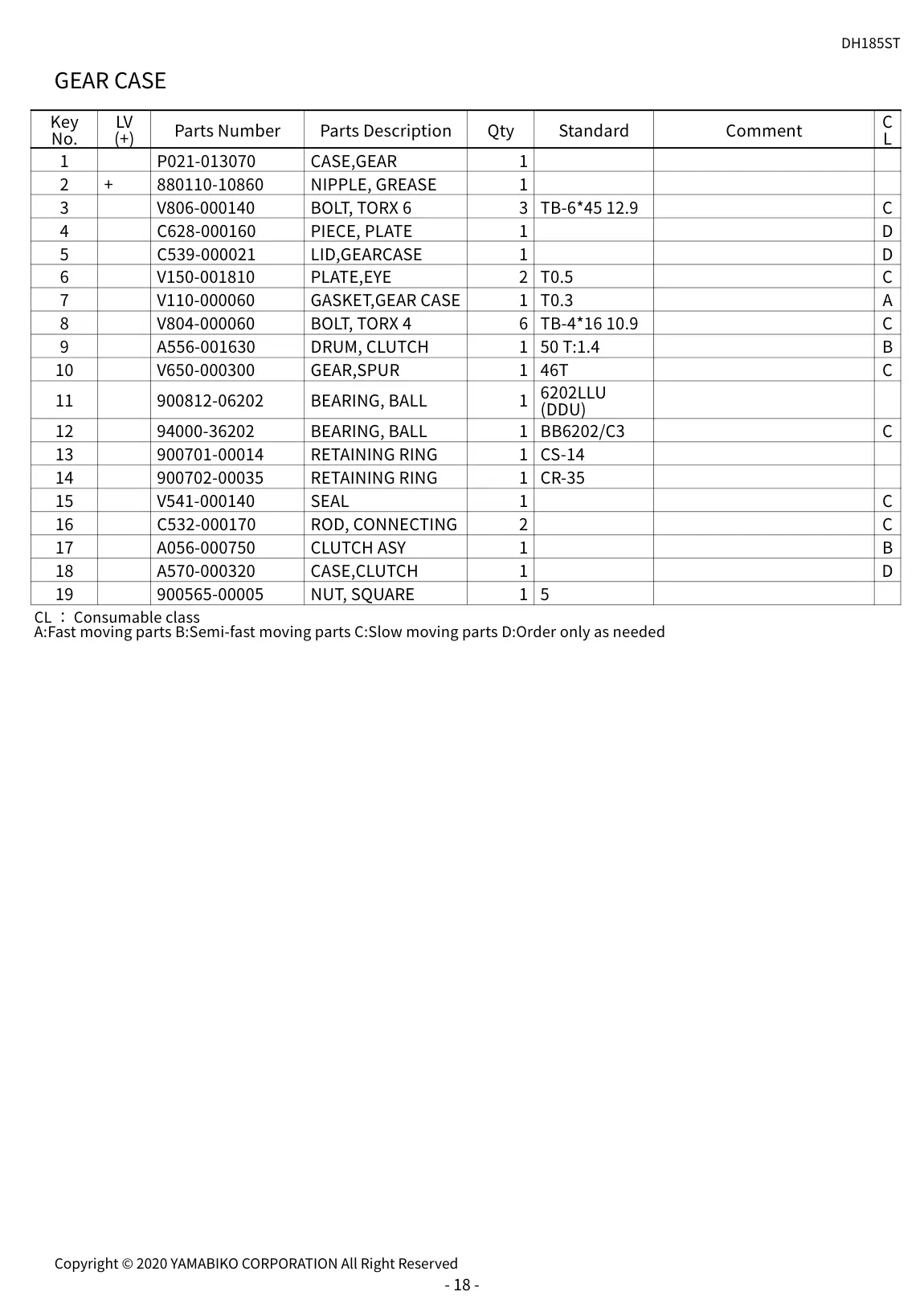

| 21 | GEAR CASE | 1 | CASE,GEAR | P021-013070 | P021-013070-Online |
| 21 | GEAR CASE | 10 | GEAR,SPUR | V650-000300 | V650-000300-Online |
| 21 | GEAR CASE | 11 | BEARING, BALL | 900812-06202 | 900812-06202-Online |
| 21 | GEAR CASE | 12 | BEARING, BALL | 94000-36202 | 94000-36202-Online |
| 21 | GEAR CASE | 12 | RETAINING RING | BB6202 | BB6202-Online |
| 21 | GEAR CASE | 13 | RETAINING RING | 900701-00014 | 900701-00014-Online |
| 21 | GEAR CASE | 14 | RETAINING RING | 900702-00035 | 900702-00035-Online |
| 21 | GEAR CASE | 15 | SEAL | V541-000140 | V541-000140-Online |
| 21 | GEAR CASE | 16 | ROD, CONNECTING | C532-000170 | C532-000170-Online |
| 21 | GEAR CASE | 17 | CLUTCH ASY | A056-000750 | A056-000750-Online |
| 21 | GEAR CASE | 18 | CASE,CLUTCH | A570-000320 | A570-000320-Online |
| 21 | GEAR CASE | 19 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 21 | GEAR CASE | 2 | NIPPLE, GREASE | 880110-10860 | 880110-10860-Online |
| 21 | GEAR CASE | 3 | BOLT, TORX | V806-000140 | V806-000140-Online |
| 21 | GEAR CASE | 4 | PIECE, PLATE | C628-000160 | C628-000160-Online |
| 21 | GEAR CASE | 5 | LID,GEARCASE | C539-000021 | C539-000021-Online |
| 21 | GEAR CASE | 6 | PLATE,EYE | V150-001810 | V150-001810-Online |
| 21 | GEAR CASE | 7 | GASKET,GEAR CASE | V110-000060 | V110-000060-Online |
| 21 | GEAR CASE | 8 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 21 | GEAR CASE | 9 | DRUM, CLUTCH | A556-001630 | A556-001630-Online |

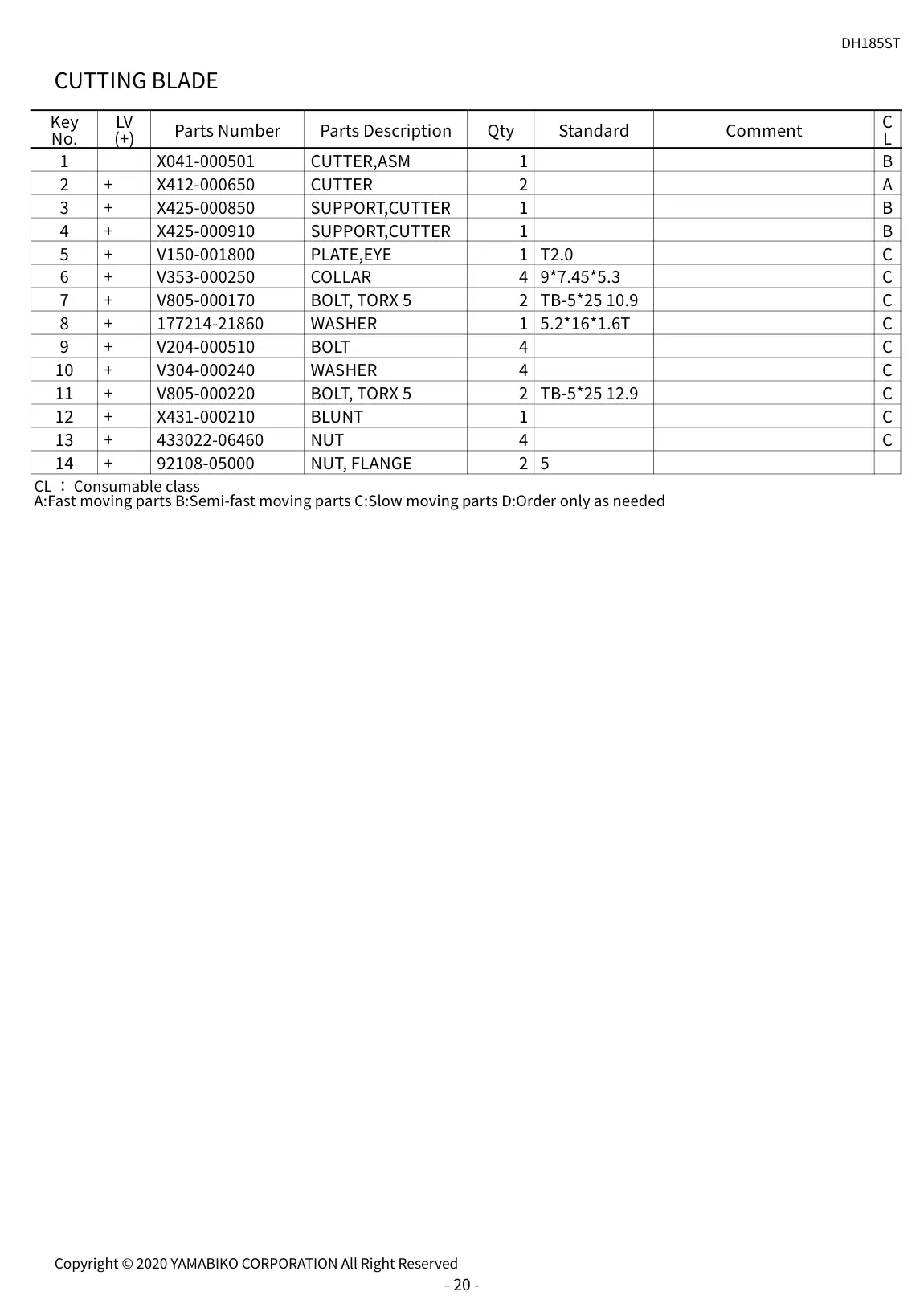

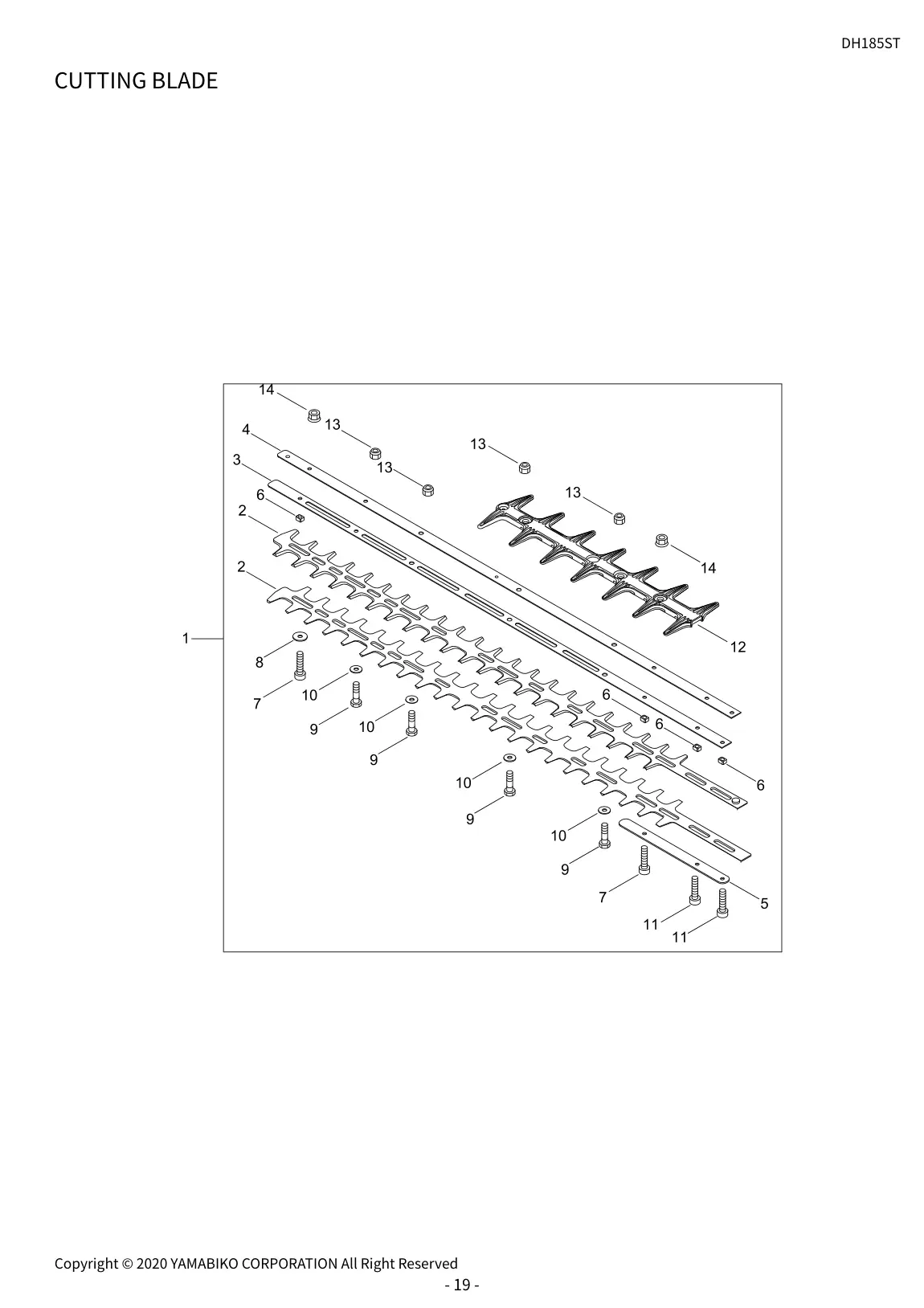

| 23 | CUTTING BLADE | 1 | CUTTER,ASM | X041-000501 | X041-000501-Online |
| 23 | CUTTING BLADE | 10 | WASHER | V304-000240 | V304-000240-Online |
| 23 | CUTTING BLADE | 11 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 23 | CUTTING BLADE | 13 | NUT | 433022-06460 | 433022-06460-Online |
| 23 | CUTTING BLADE | 14 | NUT, FLANGE | 92108-05000 | 92108-05000-Online |
| 23 | CUTTING BLADE | 2 | CUTTER | X412-000650 | X412-000650-Online |
| 23 | CUTTING BLADE | 3 | SUPPORT,CUTTER | X425-000850 | X425-000850-Online |
| 23 | CUTTING BLADE | 4 | SUPPORT,CUTTER | X425-000910 | X425-000910-Online |
| 23 | CUTTING BLADE | 5 | PLATE,EYE | V150-001800 | V150-001800-Online |
| 23 | CUTTING BLADE | 6 | COLLAR | V353-000250 | V353-000250-Online |
| 23 | CUTTING BLADE | 7 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 23 | CUTTING BLADE | 8 | WASHER | 177214-21860 | 177214-21860-Online |
| 23 | CUTTING BLADE | 9 | BOLT | V204-000510 | V204-000510-Online |

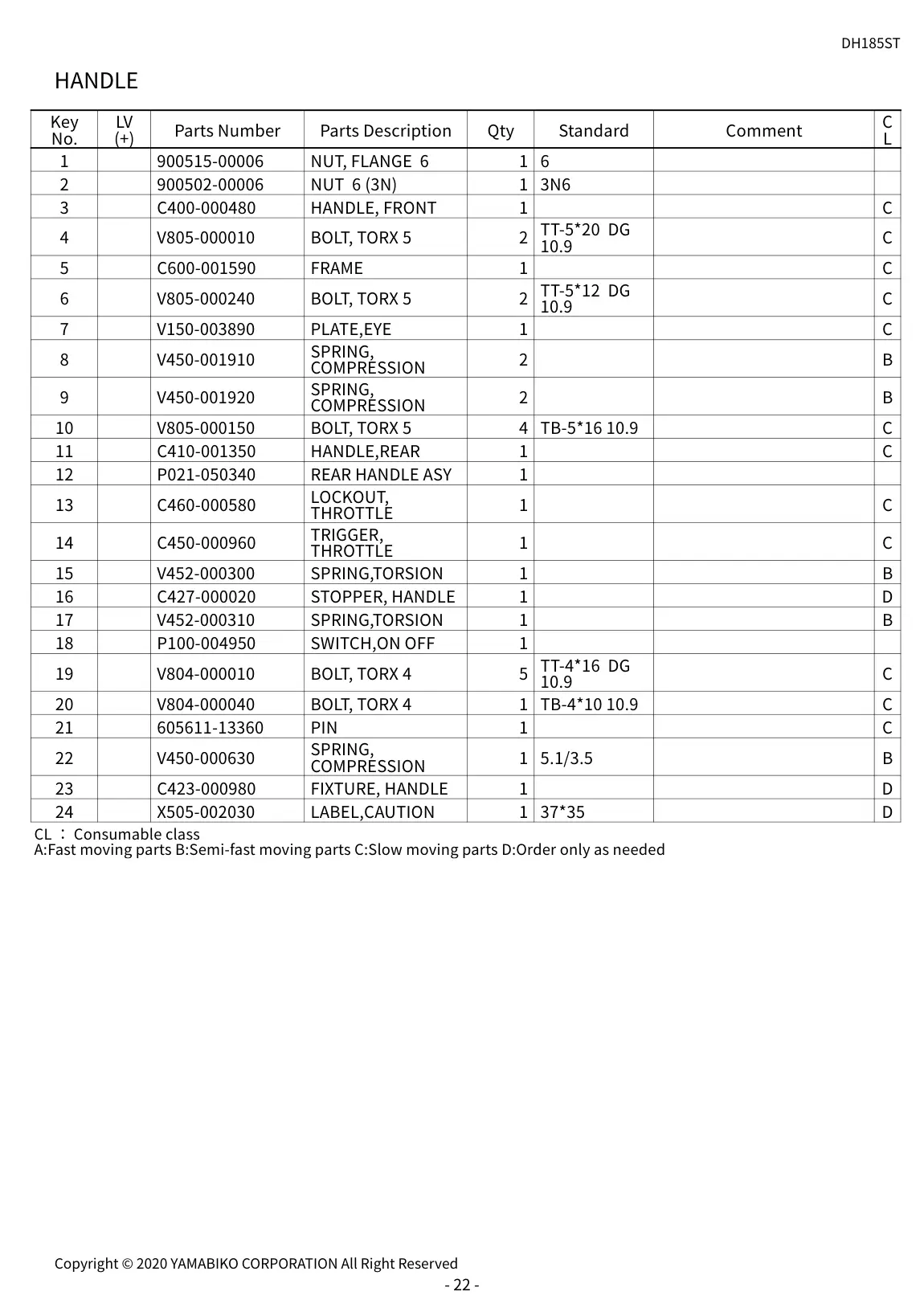

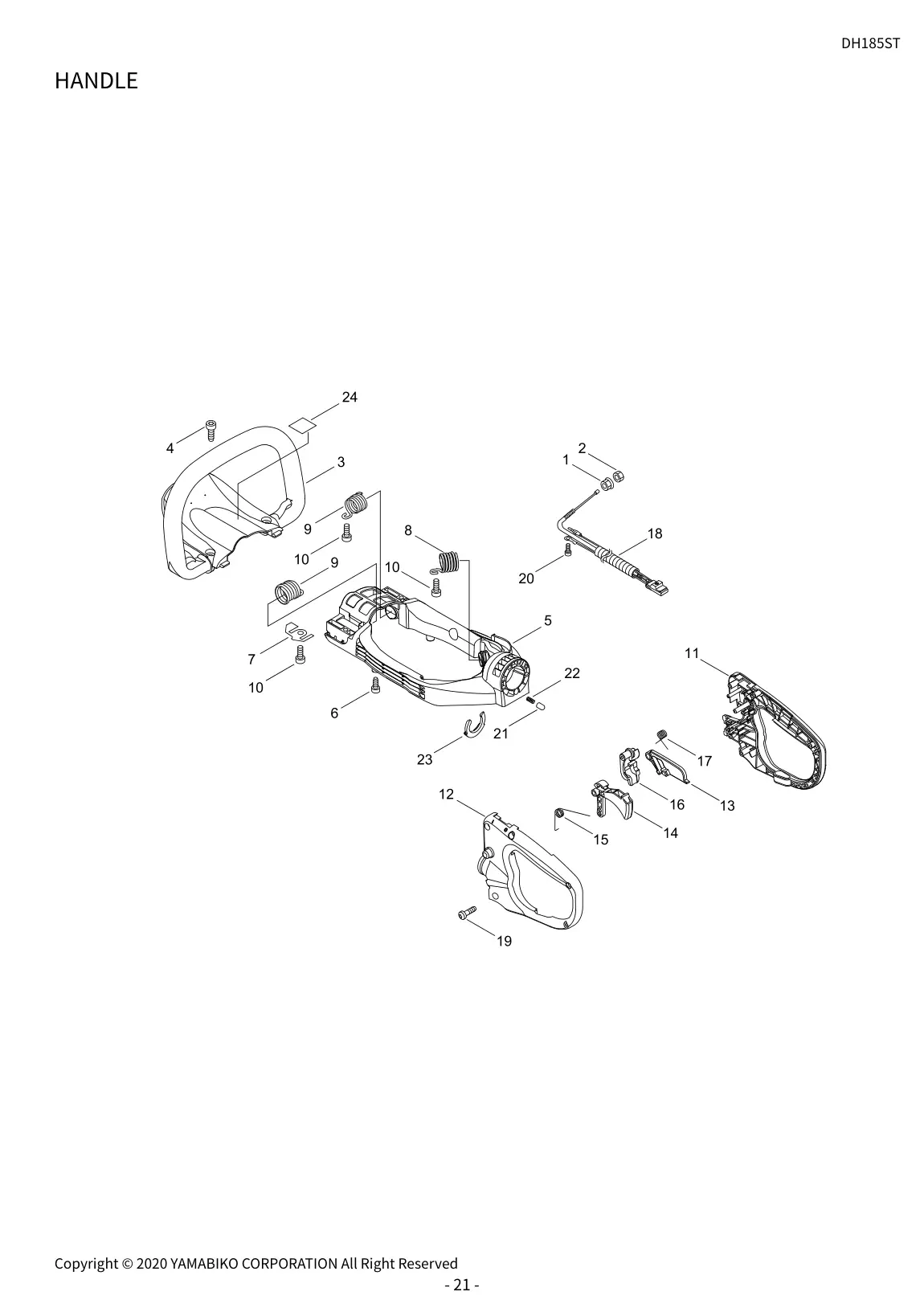

| 25 | HANDLE | 1 | NUT, FLANGE | 900515-00006 | 900515-00006-Online |
| 25 | HANDLE | 10 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 25 | HANDLE | 11 | HANDLE,REAR | C410-001350 | C410-001350-Online |
| 25 | HANDLE | 12 | REAR HANDLE ASY | P021-050340 | P021-050340-Online |
| 25 | HANDLE | 13 | LOCKOUT, | C460-000580 | C460-000580-Online |
| 25 | HANDLE | 14 | TRIGGER, | C450-000960 | C450-000960-Online |
| 25 | HANDLE | 15 | SPRING,TORSION | V452-000300 | V452-000300-Online |
| 25 | HANDLE | 16 | STOPPER, HANDLE | C427-000020 | C427-000020-Online |
| 25 | HANDLE | 17 | SPRING,TORSION | V452-000310 | V452-000310-Online |
| 25 | HANDLE | 18 | SWITCH,ON OFF | P100-004950 | P100-004950-Online |
| 25 | HANDLE | 19 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 25 | HANDLE | 2 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 25 | HANDLE | 20 | BOLT, TORX | V804-000040 | V804-000040-Online |
| 25 | HANDLE | 21 | PIN | 605611-13360 | 605611-13360-Online |
| 25 | HANDLE | 22 | SPRING, | V450-000630 | V450-000630-Online |
| 25 | HANDLE | 23 | FIXTURE, HANDLE | C423-000980 | C423-000980-Online |
| 25 | HANDLE | 24 | LABEL,CAUTION | X505-002030 | X505-002030-Online |
| 25 | HANDLE | 3 | HANDLE, FRONT | C400-000480 | C400-000480-Online |
| 25 | HANDLE | 4 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 25 | HANDLE | 6 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 25 | HANDLE | 7 | PLATE,EYE | V150-003890 | V150-003890-Online |
| 25 | HANDLE | 8 | SPRING, | V450-001910 | V450-001910-Online |
| 25 | HANDLE | 9 | SPRING, | V450-001920 | V450-001920-Online |

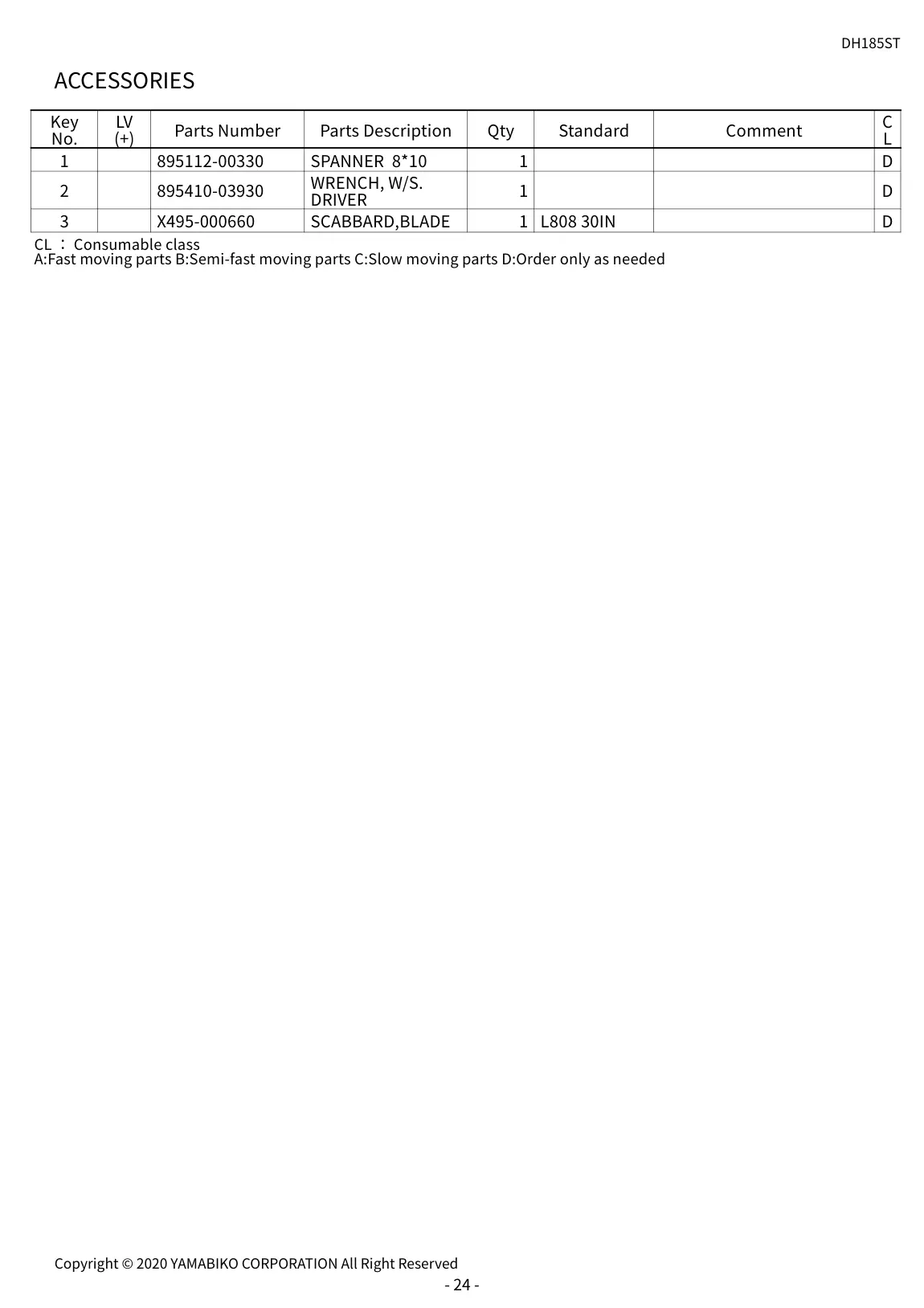

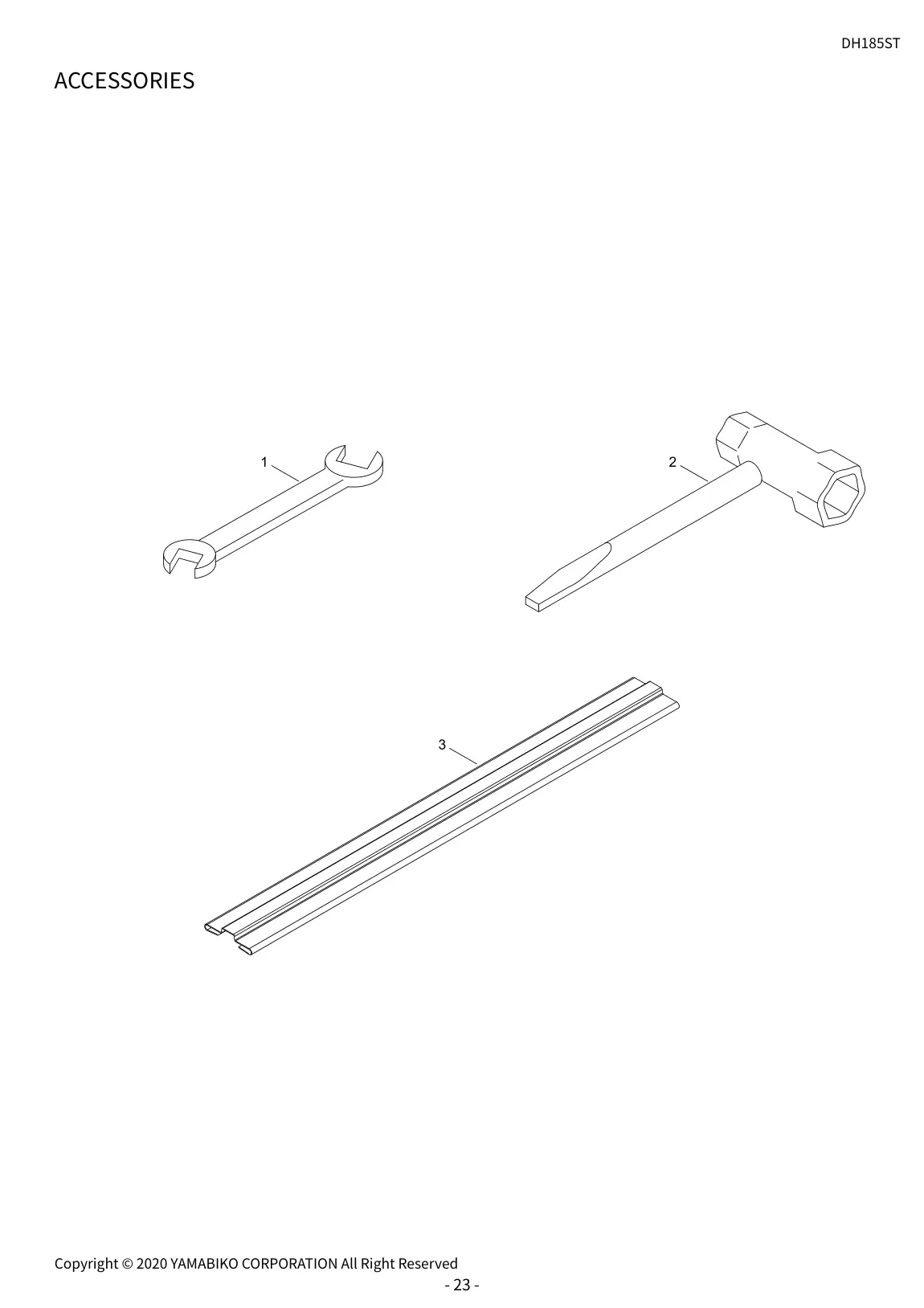

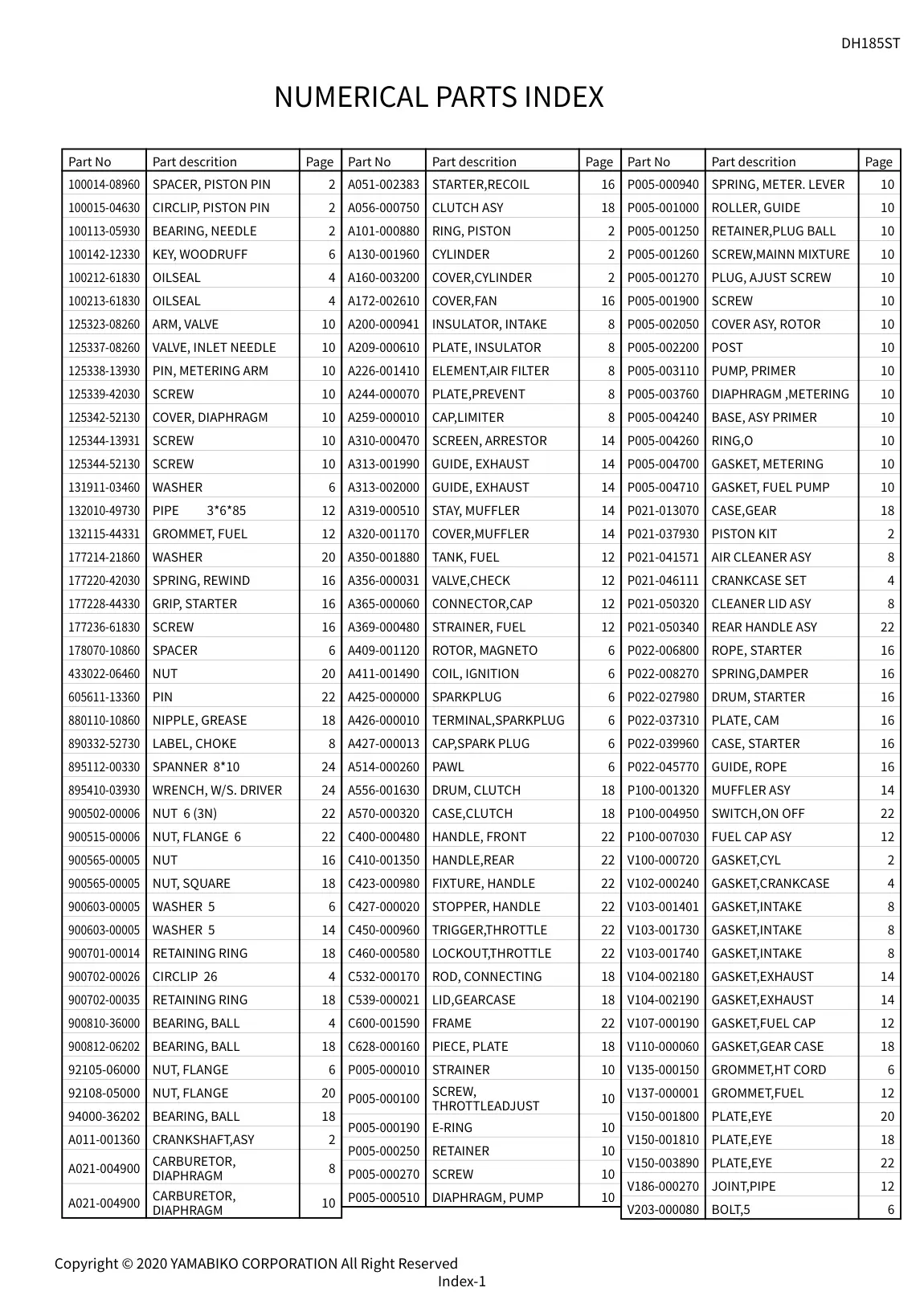

| 27 | ACCESSORIES | 1 | SPANNER 8*10 | 895112-00330 | 895112-00330-Online |
| 27 | ACCESSORIES | 2 | WRENCH, W/S. | 895410-03930 | 895410-03930-Online |
| 27 | ACCESSORIES | 3 | SCABBARD,BLADE | X495-000660 | X495-000660-Online |
| 28 | BOLT,5 | SPACER, PISTON PIN | 100014-08960 | 100014-08960-Online | |
| 28 | BOLT,5 | 10 | VALVE, INLET NEEDLE | 125337-08260 | 125337-08260-Online |
| 28 | BOLT,5 | 10 | PIN, METERING ARM | 125338-13930 | 125338-13930-Online |
| 28 | BOLT,5 | 10 | SCREW | 125339-42030 | 125339-42030-Online |
| 28 | BOLT,5 | 10 | COVER, DIAPHRAGM | 125342-52130 | 125342-52130-Online |
| 28 | BOLT,5 | 10 | SCREW | 125344-13931 | 125344-13931-Online |
| 28 | BOLT,5 | 10 | SCREW | 125344-52130 | 125344-52130-Online |
| 28 | BOLT,5 | 10 | WASHER | 131911-03460 | 131911-03460-Online |
| 28 | BOLT,5 | 10 | STARTER,RECOIL | A051-002383 | A051-002383-Online |
| 28 | BOLT,5 | 10 | SCREW, | P005-000100 | P005-000100-Online |
| 28 | BOLT,5 | 10 | E-RING | P005-000190 | P005-000190-Online |
| 28 | BOLT,5 | 10 | RETAINER | P005-000250 | P005-000250-Online |
| 28 | BOLT,5 | 10 | SCREW | P005-000270 | P005-000270-Online |
| 28 | BOLT,5 | 10 | DIAPHRAGM, PUMP | P005-000510 | P005-000510-Online |
| 28 | BOLT,5 | 10 | SPRING, METER. LEVER | P005-000940 | P005-000940-Online |
| 28 | BOLT,5 | 10 | ROLLER, GUIDE | P005-001000 | P005-001000-Online |
| 28 | BOLT,5 | 10 | RETAINER,PLUG BALL | P005-001250 | P005-001250-Online |
| 28 | BOLT,5 | 10 | SCREW,MAINN MIXTURE | P005-001260 | P005-001260-Online |
| 28 | BOLT,5 | 10 | PLUG, AJUST SCREW | P005-001270 | P005-001270-Online |
| 28 | BOLT,5 | 10 | SCREW | P005-001900 | P005-001900-Online |
| 28 | BOLT,5 | 10 | COVER ASY, ROTOR | P005-002050 | P005-002050-Online |
| 28 | BOLT,5 | 10 | PUMP, PRIMER | P005-003110 | P005-003110-Online |
| 28 | BOLT,5 | 10 | DIAPHRAGM ,METERING | P005-003760 | P005-003760-Online |
| 28 | BOLT,5 | 10 | BASE, ASY PRIMER | P005-004240 | P005-004240-Online |
| 28 | BOLT,5 | 10 | RING,O | P005-004260 | P005-004260-Online |
| 28 | BOLT,5 | 10 | GASKET, METERING | P005-004700 | P005-004700-Online |
| 28 | BOLT,5 | 10 | GASKET, FUEL PUMP | P005-004710 | P005-004710-Online |
| 28 | BOLT,5 | 10 | CASE,GEAR | P021-013070 | P021-013070-Online |
| 28 | BOLT,5 | 12 | GROMMET, FUEL | 132115-44331 | 132115-44331-Online |
| 28 | BOLT,5 | 12 | WASHER | 177214-21860 | 177214-21860-Online |
| 28 | BOLT,5 | 12 | VALVE,CHECK | A356-000031 | A356-000031-Online |
| 28 | BOLT,5 | 12 | CONNECTOR,CAP | A365-000060 | A365-000060-Online |
| 28 | BOLT,5 | 12 | STRAINER, FUEL | A369-000480 | A369-000480-Online |
| 28 | BOLT,5 | 12 | ROTOR, MAGNETO | A409-001120 | A409-001120-Online |
| 28 | BOLT,5 | 12 | GASKET,CYL | V100-000720 | V100-000720-Online |
| 28 | BOLT,5 | 12 | GASKET,GEAR CASE | V110-000060 | V110-000060-Online |
| 28 | BOLT,5 | 12 | PLATE,EYE | V150-001800 | V150-001800-Online |
| 28 | BOLT,5 | 12 | BOLT,5 | V203-000080 | V203-000080-Online |
| 28 | BOLT,5 | 14 | RETAINING RING | 900701-00014 | 900701-00014-Online |
| 28 | BOLT,5 | 14 | GUIDE, EXHAUST | A313-001990 | A313-001990-Online |
| 28 | BOLT,5 | 14 | GUIDE, EXHAUST | A313-002000 | A313-002000-Online |
| 28 | BOLT,5 | 14 | STAY, MUFFLER | A319-000510 | A319-000510-Online |
| 28 | BOLT,5 | 14 | COVER,MUFFLER | A320-001170 | A320-001170-Online |
| 28 | BOLT,5 | 14 | TANK, FUEL | A350-001880 | A350-001880-Online |
| 28 | BOLT,5 | 14 | SWITCH,ON OFF | P100-004950 | P100-004950-Online |
| 28 | BOLT,5 | 14 | GASKET,EXHAUST | V104-002190 | V104-002190-Online |
| 28 | BOLT,5 | 14 | GASKET,FUEL CAP | V107-000190 | V107-000190-Online |
| 28 | BOLT,5 | 16 | GRIP, STARTER | 177228-44330 | 177228-44330-Online |
| 28 | BOLT,5 | 16 | SCREW | 177236-61830 | 177236-61830-Online |
| 28 | BOLT,5 | 16 | SPACER | 178070-10860 | 178070-10860-Online |
| 28 | BOLT,5 | 16 | NUT, SQUARE | 900565-00005 | 900565-00005-Online |
| 28 | BOLT,5 | 16 | CLUTCH ASY | A056-000750 | A056-000750-Online |
| 28 | BOLT,5 | 16 | INSULATOR, INTAKE | A200-000941 | A200-000941-Online |
| 28 | BOLT,5 | 16 | SPRING,DAMPER | P022-008270 | P022-008270-Online |
| 28 | BOLT,5 | 16 | DRUM, STARTER | P022-027980 | P022-027980-Online |
| 28 | BOLT,5 | 16 | PLATE, CAM | P022-037310 | P022-037310-Online |
| 28 | BOLT,5 | 16 | CASE, STARTER | P022-039960 | P022-039960-Online |
| 28 | BOLT,5 | 16 | GUIDE, ROPE | P022-045770 | P022-045770-Online |
| 28 | BOLT,5 | 16 | MUFFLER ASY | P100-001320 | P100-001320-Online |
| 28 | BOLT,5 | 18 | LABEL, CHOKE | 890332-52730 | 890332-52730-Online |
| 28 | BOLT,5 | 18 | WASHER | 900603-00005 | 900603-00005-Online |
| 28 | BOLT,5 | 18 | CIRCLIP | 900702-00026 | 900702-00026-Online |
| 28 | BOLT,5 | 18 | BEARING, BALL | 900810-36000 | 900810-36000-Online |
| 28 | BOLT,5 | 18 | NUT, FLANGE | 92105-06000 | 92105-06000-Online |
| 28 | BOLT,5 | 18 | CRANKSHAFT,ASY | A011-001360 | A011-001360-Online |
| 28 | BOLT,5 | 18 | RING, PISTON | A101-000880 | A101-000880-Online |
| 28 | BOLT,5 | 18 | CASE,CLUTCH | A570-000320 | A570-000320-Online |
| 28 | BOLT,5 | 18 | HANDLE, FRONT | C400-000480 | C400-000480-Online |
| 28 | BOLT,5 | 18 | LID,GEARCASE | C539-000021 | C539-000021-Online |
| 28 | BOLT,5 | 18 | STRAINER | P005-000010 | P005-000010-Online |
| 28 | BOLT,5 | 18 | PISTON KIT | P021-037930 | P021-037930-Online |
| 28 | BOLT,5 | 18 | GROMMET,HT CORD | V135-000150 | V135-000150-Online |
| 28 | BOLT,5 | 18 | PLATE,EYE | V150-003890 | V150-003890-Online |
| 28 | BOLT,5 | 2 | CIRCLIP, PISTON PIN | 100015-04630 | 100015-04630-Online |
| 28 | BOLT,5 | 2 | BEARING, NEEDLE | 100113-05930 | 100113-05930-Online |
| 28 | BOLT,5 | 2 | KEY, WOODRUFF | 100142-12330 | 100142-12330-Online |
| 28 | BOLT,5 | 2 | CARBURETOR, | A021-004900 | A021-004900-Online |
| 28 | BOLT,5 | 2 | CYLINDER | A130-001960 | A130-001960-Online |
| 28 | BOLT,5 | 2 | COVER,CYLINDER | A160-003200 | A160-003200-Online |
| 28 | BOLT,5 | 2 | COVER,FAN | A172-002610 | A172-002610-Online |
| 28 | BOLT,5 | 2 | AIR CLEANER ASY | P021-041571 | P021-041571-Online |
| 28 | BOLT,5 | 2 | GASKET,CRANKCASE | V102-000240 | V102-000240-Online |
| 28 | BOLT,5 | 20 | SPRING, REWIND | 177220-42030 | 177220-42030-Online |
| 28 | BOLT,5 | 20 | PIN | 605611-13360 | 605611-13360-Online |
| 28 | BOLT,5 | 20 | BEARING, BALL | 94000-36202 | 94000-36202-Online |
| 28 | BOLT,5 | 20 | PLATE,EYE | V150-001810 | V150-001810-Online |
| 28 | BOLT,5 | 22 | NIPPLE, GREASE | 880110-10860 | 880110-10860-Online |
| 28 | BOLT,5 | 22 | NUT, FLANGE | 900515-00006 | 900515-00006-Online |
| 28 | BOLT,5 | 22 | NUT | 900565-00005 | 900565-00005-Online |
| 28 | BOLT,5 | 22 | HANDLE,REAR | C410-001350 | C410-001350-Online |
| 28 | BOLT,5 | 22 | FIXTURE, HANDLE | C423-000980 | C423-000980-Online |
| 28 | BOLT,5 | 22 | STOPPER, HANDLE | C427-000020 | C427-000020-Online |
| 28 | BOLT,5 | 22 | TRIGGER,THROTTLE | C450-000960 | C450-000960-Online |
| 28 | BOLT,5 | 22 | LOCKOUT,THROTTLE | C460-000580 | C460-000580-Online |
| 28 | BOLT,5 | 22 | ROD, CONNECTING | C532-000170 | C532-000170-Online |
| 28 | BOLT,5 | 22 | PIECE, PLATE | C628-000160 | C628-000160-Online |
| 28 | BOLT,5 | 22 | ROPE, STARTER | P022-006800 | P022-006800-Online |
| 28 | BOLT,5 | 22 | FUEL CAP ASY | P100-007030 | P100-007030-Online |
| 28 | BOLT,5 | 22 | JOINT,PIPE | V186-000270 | V186-000270-Online |
| 28 | BOLT,5 | 24 | WRENCH, W/S. DRIVER | 895410-03930 | 895410-03930-Online |
| 28 | BOLT,5 | 24 | NUT 6 (3N) | 900502-00006 | 900502-00006-Online |
| 28 | BOLT,5 | 4 | OILSEAL | 100213-61830 | 100213-61830-Online |
| 28 | BOLT,5 | 4 | ARM, VALVE | 125323-08260 | 125323-08260-Online |
| 28 | BOLT,5 | 4 | RETAINING RING | 900702-00035 | 900702-00035-Online |
| 28 | BOLT,5 | 4 | BEARING, BALL | 900812-06202 | 900812-06202-Online |
| 28 | BOLT,5 | 4 | CLEANER LID ASY | P021-050320 | P021-050320-Online |
| 28 | BOLT,5 | 4 | GASKET,INTAKE | V103-001401 | V103-001401-Online |
| 28 | BOLT,5 | 6 | OILSEAL | 100212-61830 | 100212-61830-Online |
| 28 | BOLT,5 | 6 | PIPE 3*6*85 | 132010-49730 | 132010-49730-Online |
| 28 | BOLT,5 | 6 | NUT | 433022-06460 | 433022-06460-Online |
| 28 | BOLT,5 | 6 | WASHER | 900603-00005 | 900603-00005-Online |
| 28 | BOLT,5 | 6 | NUT, FLANGE | 92108-05000 | 92108-05000-Online |
| 28 | BOLT,5 | 6 | COIL, IGNITION | A411-001490 | A411-001490-Online |
| 28 | BOLT,5 | 6 | SPARKPLUG | A425-000000 | A425-000000-Online |
| 28 | BOLT,5 | 6 | TERMINAL,SPARKPLUG | A426-000010 | A426-000010-Online |
| 28 | BOLT,5 | 6 | CAP,SPARK PLUG | A427-000013 | A427-000013-Online |
| 28 | BOLT,5 | 6 | PAWL | A514-000260 | A514-000260-Online |
| 28 | BOLT,5 | 6 | DRUM, CLUTCH | A556-001630 | A556-001630-Online |
| 28 | BOLT,5 | 6 | GROMMET,FUEL | V137-000001 | V137-000001-Online |
| 28 | BOLT,5 | 8 | SPANNER 8*10 | 895112-00330 | 895112-00330-Online |
| 28 | BOLT,5 | 8 | CARBURETOR, | A021-004900 | A021-004900-Online |
| 28 | BOLT,5 | 8 | PLATE, INSULATOR | A209-000610 | A209-000610-Online |
| 28 | BOLT,5 | 8 | ELEMENT,AIR FILTER | A226-001410 | A226-001410-Online |
| 28 | BOLT,5 | 8 | PLATE,PREVENT | A244-000070 | A244-000070-Online |
| 28 | BOLT,5 | 8 | CAP,LIMITER | A259-000010 | A259-000010-Online |
| 28 | BOLT,5 | 8 | SCREEN, ARRESTOR | A310-000470 | A310-000470-Online |
| 28 | BOLT,5 | 8 | CRANKCASE SET | P021-046111 | P021-046111-Online |
| 28 | BOLT,5 | 8 | REAR HANDLE ASY | P021-050340 | P021-050340-Online |
| 28 | BOLT,5 | 8 | GASKET,INTAKE | V103-001730 | V103-001730-Online |
| 28 | BOLT,5 | 8 | GASKET,INTAKE | V103-001740 | V103-001740-Online |
| 28 | BOLT,5 | 8 | GASKET,EXHAUST | V104-002180 | V104-002180-Online |

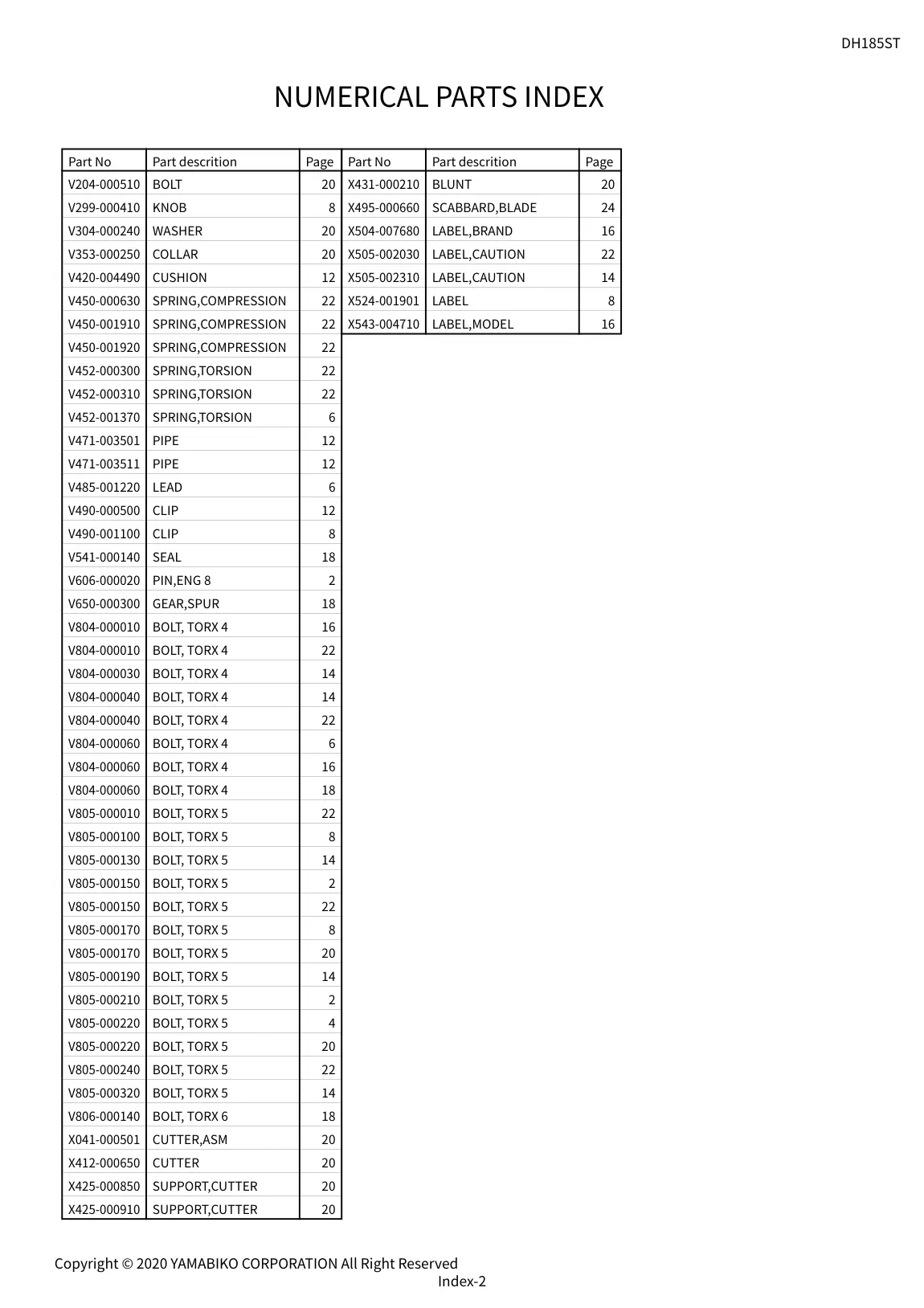

| 29 | LABEL,MODEL | BOLT | V204-000510 | V204-000510-Online | |
| 29 | LABEL,MODEL | 12 | SPRING,COMPRESSION | V450-000630 | V450-000630-Online |
| 29 | LABEL,MODEL | 12 | PIPE | V471-003511 | V471-003511-Online |
| 29 | LABEL,MODEL | 12 | LEAD | V485-001220 | V485-001220-Online |
| 29 | LABEL,MODEL | 12 | CLIP | V490-001100 | V490-001100-Online |
| 29 | LABEL,MODEL | 14 | BOLT, TORX | V804-000040 | V804-000040-Online |
| 29 | LABEL,MODEL | 14 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 29 | LABEL,MODEL | 14 | BOLT, TORX | V805-000210 | V805-000210-Online |
| 29 | LABEL,MODEL | 14 | BOLT, TORX | V806-000140 | V806-000140-Online |
| 29 | LABEL,MODEL | 14 | LABEL | X524-001901 | X524-001901-Online |
| 29 | LABEL,MODEL | 16 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 29 | LABEL,MODEL | 16 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 29 | LABEL,MODEL | 16 | LABEL,CAUTION | X505-002030 | X505-002030-Online |
| 29 | LABEL,MODEL | 18 | PIN,ENG | V606-000020 | V606-000020-Online |
| 29 | LABEL,MODEL | 18 | BOLT, TORX | V804-000010 | V804-000010-Online |
| 29 | LABEL,MODEL | 18 | BOLT, TORX | V805-000010 | V805-000010-Online |
| 29 | LABEL,MODEL | 18 | CUTTER,ASM | X041-000501 | X041-000501-Online |
| 29 | LABEL,MODEL | 2 | GEAR,SPUR | V650-000300 | V650-000300-Online |
| 29 | LABEL,MODEL | 2 | BOLT, TORX | V805-000150 | V805-000150-Online |
| 29 | LABEL,MODEL | 2 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 29 | LABEL,MODEL | 20 | KNOB | V299-000410 | V299-000410-Online |
| 29 | LABEL,MODEL | 20 | COLLAR | V353-000250 | V353-000250-Online |
| 29 | LABEL,MODEL | 20 | CUSHION | V420-004490 | V420-004490-Online |
| 29 | LABEL,MODEL | 20 | BOLT, TORX | V805-000190 | V805-000190-Online |
| 29 | LABEL,MODEL | 20 | BOLT, TORX | V805-000240 | V805-000240-Online |
| 29 | LABEL,MODEL | 20 | CUTTER | X412-000650 | X412-000650-Online |
| 29 | LABEL,MODEL | 20 | SUPPORT,CUTTER | X425-000850 | X425-000850-Online |
| 29 | LABEL,MODEL | 20 | SUPPORT,CUTTER | X425-000910 | X425-000910-Online |
| 29 | LABEL,MODEL | 20 | SCABBARD,BLADE | X495-000660 | X495-000660-Online |
| 29 | LABEL,MODEL | 22 | SPRING,COMPRESSION | V450-001910 | V450-001910-Online |
| 29 | LABEL,MODEL | 22 | SPRING,COMPRESSION | V450-001920 | V450-001920-Online |
| 29 | LABEL,MODEL | 22 | SPRING,TORSION | V452-000300 | V452-000300-Online |
| 29 | LABEL,MODEL | 22 | SPRING,TORSION | V452-000310 | V452-000310-Online |
| 29 | LABEL,MODEL | 22 | SPRING,TORSION | V452-001370 | V452-001370-Online |
| 29 | LABEL,MODEL | 22 | BOLT, TORX | V804-000030 | V804-000030-Online |
| 29 | LABEL,MODEL | 22 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 29 | LABEL,MODEL | 22 | BOLT, TORX | V805-000100 | V805-000100-Online |
| 29 | LABEL,MODEL | 22 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 29 | LABEL,MODEL | 22 | BOLT, TORX | V805-000320 | V805-000320-Online |
| 29 | LABEL,MODEL | 22 | LABEL,CAUTION | X505-002310 | X505-002310-Online |
| 29 | LABEL,MODEL | 24 | LABEL,BRAND | X504-007680 | X504-007680-Online |
| 29 | LABEL,MODEL | 4 | BOLT, TORX | V805-000220 | V805-000220-Online |
| 29 | LABEL,MODEL | 6 | PIPE | V471-003501 | V471-003501-Online |
| 29 | LABEL,MODEL | 6 | CLIP | V490-000500 | V490-000500-Online |
| 29 | LABEL,MODEL | 6 | BOLT, TORX | V804-000060 | V804-000060-Online |
| 29 | LABEL,MODEL | 8 | WASHER | V304-000240 | V304-000240-Online |
| 29 | LABEL,MODEL | 8 | SEAL | V541-000140 | V541-000140-Online |
| 29 | LABEL,MODEL | 8 | BOLT, TORX | V805-000130 | V805-000130-Online |
| 29 | LABEL,MODEL | 8 | BOLT, TORX | V805-000170 | V805-000170-Online |
| 29 | LABEL,MODEL | 8 | LABEL,MODEL | X543-004710 | X543-004710-Online |
Source file: 20241017-923-DH185ST_38_38000001_EN.pdf. Images are stored under /images/ipl/Shindaiwa. Links use /qr?sku=.
