Husqvarna Z460 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
PARTNO

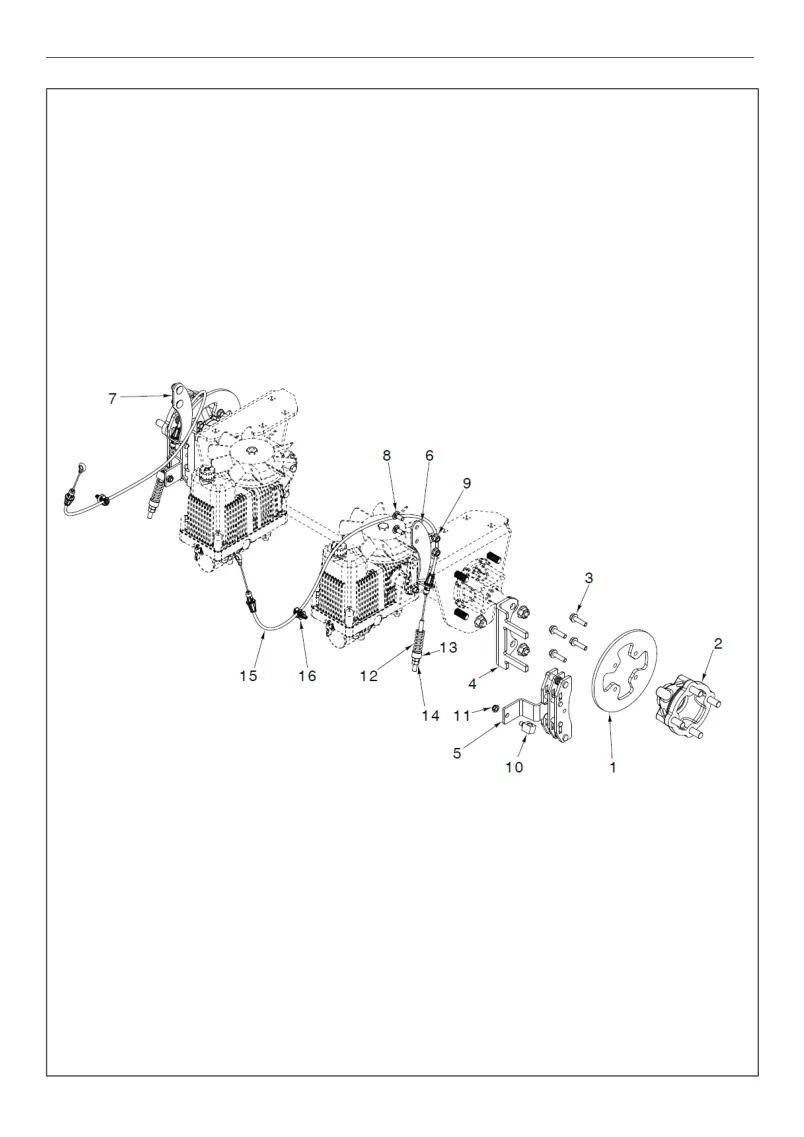

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ROTOR ROTOR BRAKE | 597537201 | 597537201-Online | 2 |
| 2 | HUB HUB CASTING W/ STUDS | 595967702 | 595967702-Online | 1 |
| 3 | BOLT BOLT Grade 5/16-18UNC 5 X 1,25 | 525544002 | 525544002-Online | 1 |
| 4 | BRACKET BRACKET HTE10 MTG, CALIPER | 597537001 | 597537001-Online | 2 |
| 5 | CALIPER CALIPER BRAKE, PARK | 597536901 | 597536901-Online | 2 |
| 6 | BRACKET BRACKET, CABLE, BRAKE LH | 597537101 | 597537101-Online | 1 |
| 7 | BRACKET BRACKET, CABLE, BRAKE RH | 597537102 | 597537102-Online | 1 |
| 8 | BOLT BOLT Grade 5/16-18UNC 5 X 0,75 | 595901601 | 595901601-Online | 1 |
| 9 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 1 |
| 10 | SWIVEL SWIVEL BRAKE CLEAR ZINC | 525851402 | 525851402-Online | 2 |
| 11 | NUT NUT 5/16-18 5/16-18 X 1/4 INSERT | 596433601 | 596433601-Online | 1 |
| 12 | SPRING SPRING 150LB_IN 2.00L X .50ID: | 597826901 | 597826901-Online | 1 |
| 13 | SPACER | 539923515 | 539923515-Online | 1 |
| 14 | HEXAGON NUT HEX NUT 5/16-24 IN GRF | 596040901 | 596040901-Online | 1 |
| 15 | CABLE CABLE BRAKE, PARKING DISC | 597773501 | 597773501-Online | 2 |
| 16 | CLIP CLIP TREE CABLE, 1/4 BLACK FIR | 592857401 | 592857401-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TRANSMISSION 10CC PUMP | 594090301 | 594090301-Online | 1 |
| 2 | TRANSMISSION 10CC PUMP | 594090302 | 594090302-Online | 1 |
| 3 | BRACKET BRACKET BLK MTG, XMSN LH, | 596691903 | 596691903-Online | 1 |
| 4 | BRACKET BRACKET BLK MTG, XMSN RH, | 596691904 | 596691904-Online | 1 |
| 5 | SPACER | 596692501 | 596692501-Online | 1 |
| 6 | CROSSBAR SPACER TRANSMISSION | 594091101 | 594091101-Online | 1 |
| 7 | BOLT | 582539502 | 582539502-Online | 1 |
| 8 | SCREW | 597002001 | 597002001-Online | 8 |
| 9 | NUT BOLT 2.75 GRD FLANGE 5 , 1/2-13 X | 521991102 | 521991102-Online | 8 |
| 10 | SPACER SCREW HHFS 1/2-13, 2 IN | 594090801 | 594090801-Online | 4 |
| 11 | WASHER | 596917301 | 596917301-Online | 1 |
| 12 | BOLT RHSNB 3/8-16 x 4 | 525848601 | 525848601-Online | 4 |
| 13 | BOLT BOLT Grade 3/8-16UNC 5 ZPB X 1,5 | 596136101 | 596136101-Online | 4 |
| 14 | NUT NUT 3/8-16 HEX LOCK FLANGE | 521996502 | 521996502-Online | 4 |
| 15 | RETAINER | 599371501 | 599371501-Online | 2 |
| 16 | RETAINER | 599371401 | 599371401-Online | 2 |
| 17 | FAN | 599371301 | 599371301-Online | 2 |
| 18 | DIPSTICK | 596487901 | 596487901-Online | 2 |
| 19 | FILTER | 599370101 | 599370101-Online | 2 |
| 20 | CAP ASSY | 599370201 | 599370201-Online | 2 |
| 21 | KEY | 599371201 | 599371201-Online | 2 |
| 22 | AXLE Nut | 599370301 | 599370301-Online | 2 |
| 23 | PULLEY | 529358401 | 529358401-Online | 2 |
| 24 | SEAL KIT Not CHARGE Shown: PUMP TOP SEALS HOUSING | 536768801 | 536768801-Online | 1 |
| 25 | PLUG Not PLUG Shown: POPPET VALVE | 536769201 | 536769201-Online | 1 |
| 26 | SEAL KIT Not Shown: SEAL KIT | 536769301 | 536769301-Online | 1 |
| 27 | SERVICE KIT Not 2 FILTERS Shown: 1 GALLON OIL & | 536768901 | 536768901-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DRIVE BELT BELT 60.75 GROUND DRIVE, HA | 594098801 | 594098801-Online | 1 |
| 2 | BOLT BOLT GD 5 3/8-16 X 3.5 HHFS | 525822101 | 525822101-Online | 1 |
| 3 | PULLEY PULLEY FLAT.3. PULLEY.IDLER. | 596481401 | 596481401-Online | 1 |
| 4 | SPACER SPACER HG .781 | 594099902 | 594099902-Online | 1 |
| 5 | ARM ARM IDLER Z400_300 | 594099101 | 594099101-Online | 1 |
| 6 | SPACER SPACER PRKR .557 | 594099901 | 594099901-Online | 1 |
| 7 | WASHER WASHER 0.453 ST X 1.030 3/8 FLAT X 0.104 STD ZD IN | 596433701 | 596433701-Online | 1 |
| 8 | NUT NUT 3/8-16 HEX St LOCK FLANGE | 521996502 | 521996502-Online | 4 |
| 9 | BEARING BEARING 1/2L FLANGED 3/4ID X | 501603701 | 501603701-Online | 2 |
| 10 | SPACER SPACER ARM PIVOT, TENSION | 594100201 | 594100201-Online | 1 |
| 11 | BOLT HHFS 3/8-16 X 2.25 GD 8 | 577098301 | 577098301-Online | 1 |
| 12 | BRACKET BRACKET TENSIONER ANCHOR, | 594100301 | 594100301-Online | 1 |
| 13 | BOLT BOLT 1.02 IN CUP HEAD 5/16-18 x | 595901501 | 595901501-Online | 1 |
| 14 | NUT NUT St ZPB HEX FLANGE 5/16-18 | 594944401 | 594944401-Online | 1 |
| 15 | LINKAGE LINKAGE TENSIONER | 594100401 | 594100401-Online | 1 |
| 16 | SPRING | 532151332 | 532151332-Online | 1 |
| 17 | WASHER WASHER WITH 0.765 FLANGE IN HEX ST LOCK 3/8-16 NUT X | 596583501 | 596583501-Online | 1 |
| 18 | NUT NUT 16 X 3/8-16 .562 IN HEX JAM 3/8- | 596433501 | 596433501-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MODULE KIT LH FAN SHIELD | 598468402 | 598468402-Online | 1 |
| 2 | MODULE KIT RH FAN SHIELD | 598468401 | 598468401-Online | 1 |
| 3 | BRACKET CROSS MEMBER | 596972702 | 596972702-Online | 1 |
| 4 | BOLT BOLT HEX 5/16-18X3 | 874490548 | 874490548-Online | 4 |
| 5 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 4 |
| 6 | ABSORBER ABSORBER GROMMET VIBRATION | 539102587 | 539102587-Online | 2 |
| 7 | SCREW BOLT HHFS 5/16-18 X 1 | 596433801 | 596433801-Online | 4 |
| 8 | CLIP U-CLIP RETAINER 5/16-18 NUT | 539104763 | 539104763-Online | 4 |
| 9 | WASHER WASHER 5/16 | 532423063 | 532423063-Online | 4 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CAP CAP DUST YELLOW ZINC | 590700001 | 590700001-Online | 2 |
| 2 | SCREW SCREW 1 Torx 7/16-14UNC X | 591457301 | 591457301-Online | 2 |
| 3 | CAP CAP CASTER SPRING. RAW MZ/MZT | 591425101 | 591425101-Online | 2 |
| 4 | SPRING SPRING NESTED WAVE | 590681601 | 590681601-Online | 2 |
| 5 | BEARING BEARING CONE TAPER ROLLER | 539102543 | 539102543-Online | 4 |
| 6 | NIPPLE NIPPLE ZERK | 539101474 | 539101474-Online | 2 |
| 7 | SEALING | 539102851 | 539102851-Online | 2 |
| 8 | FORK | 590674602 | 590674602-Online | 2 |
| 9 | BOLT | 539105517 | 539105517-Online | 2 |
| 10 | WASHER | 819182212 | 819182212-Online | 2 |
| 11 | NUT | 521991101 | 521991101-Online | 2 |
| 12 | SPACER | 575334901 | 575334901-Online | 2 |
| 13 | NIPPLE | 539103300 | 539103300-Online | 2 |
| 14 | WHEEL ASSY FRONT | 581199501 | 581199501-Online | 2 |
| 15 | BEARING | 539102484 | 539102484-Online | 4 |
| 15 | ROLLER BEARING | 539105307 | 539105307-Online | 4 |
| 16 | VALVE | 539912234 | 539912234-Online | 4 |
| 17 | TIRE FRONT | 539105522 | 539105522-Online | 2 |
| 18 | TIRE REAR | 580747001 | 580747001-Online | 2 |
| 19 | NUT | 587653902 | 587653902-Online | 8 |
| 21 | TIRE REAR | 582746301 | 582746301-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAT ASSY | 579866106 | 579866106-Online | 1 |
| 1 | SEAT For 96798480200 96798480100, | 534212401 | 534212401-Online | 1 |
| 2 | SUPPORT SUPPORT SEAT, Z300/Z400 | 595080602 | 595080602-Online | 1 |
| 3 | BOLT BOLT FLANGE 5/16-18 X .75 HEX | 592858702 | 592858702-Online | 4 |
| 4 | BOLT SCREW GD5 5/16-18 HEX HD | 539130896 | 539130896-Online | 2 |
| 5 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 3 |
| 6 | BOLT BOLT Grade 5/16-18UNC 5 X 0,75 | 595901601 | 595901601-Online | 1 |
| 7 | WASHER WASHER 5/16 | 532423063 | 532423063-Online | 1 |
| 8 | SWITCH NOT SHOWN | 532192749 | 532192749-Online | 1 |
| 9 | SEAT ASSY | 579866108 | 579866108-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW SCREW X 1 IN HEX HEAD 5/16-18 | 596433801 | 596433801-Online | 1 |
| 2 | CLIP U-CLIP RETAINER 5/16-18 NUT | 539104763 | 539104763-Online | 6 |
| 3 | BRACKET BRACKET SEAT BELT RH | 595529502 | 595529502-Online | 1 |
| 4 | BRACKET BRACKET REAR SEAT | 595529302 | 595529302-Online | 1 |
| 5 | BOLT BOLT 3/8-16UNC X 1 | 595316801 | 595316801-Online | 1 |
| 6 | BRACKET BRACKET SEAT BELT LH | 595529402 | 595529402-Online | 1 |
| 7 | SEAT SEAT BELT Z400 | 596322702 | 596322702-Online | 1 |
| 8 | NUT LOCKING NUT HEX 7/16F | 539990394 | 539990394-Online | 1 |
| 9 | SPRING SPRING COMPRESSION | 587613302 | 587613302-Online | 1 |
| 10 | NUT NUT HEX LOCK 3/8-16 St | 521996502 | 521996502-Online | 4 |
| 11 | CABLE CABLE LANYARD BLACK | 595313301 | 595313301-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT | 598852901 | 598852901-Online | 1 |
| 2 | MANDREL MANDREL ASSY | 596794503 | 596794503-Online | 3 |
| 3 | BLADE BLADE.21.MID.LIFT | 539113312 | 539113312-Online | 3 |
| 4 | SCREW | 525834202 | 525834202-Online | 2 |
| 5 | NUT NUT.HEX.FLANGED | 594944401 | 594944401-Online | 8 |
| 6 | BOLT | 584953901 | 584953901-Online | 22 |
| 7 | PULLEY | 590805102 | 590805102-Online | 3 |
| 8 | NUT NUT.FLANGE | 598490501 | 598490501-Online | 3 |
| 9 | KEY KEY.25.SQUARE | 587682801 | 587682801-Online | 3 |
| 10 | BRACKET BRACKET.PULLEY.COVER.LH | 597450803 | 597450803-Online | 1 |
| 11 | BRACKET BRACKET.PULLEY.COVER.RH | 597450804 | 597450804-Online | 1 |
| 12 | SCREW SCREW. | 582476402 | 582476402-Online | 4 |
| 13 | COVER COVER.PULLEY.LH | 597452503 | 597452503-Online | 1 |
| 14 | COVER COVER.PULLEY.RH | 597452504 | 597452504-Online | 1 |
| 15 | KNOB KNOB.3 WING | 597783101 | 597783101-Online | 2 |
| 16 | CLIP CLIP.U | 539104763 | 539104763-Online | 2 |
| 17 | PULLEY PULLRY.IDLER | 510015102 | 510015102-Online | 2 |
| 18 | BEARING | 510263701 | 510263701-Online | 2 |
| 19 | SHIELD SHIELD.DUST | 510254502 | 510254502-Online | 2 |
| 20 | SCREW | 596436901 | 596436901-Online | 2 |
| 21 | WASHER WASHER.PLAIN | 596770301 | 596770301-Online | 3 |
| 22 | NUT | 521996502 | 521996502-Online | 9 |
| 23 | BRACKET | 595026402 | 595026402-Online | 1 |
| 24 | BOLT | 595901501 | 595901501-Online | 2 |
| 25 | SCREW | 539119007 | 539119007-Online | 3 |
| 26 | CHUTE CHUTE.DISCHARGE | 582468801 | 582468801-Online | 1 |
| 27 | BRACKET CHUTE | 582467302 | 582467302-Online | 1 |
| 28 | PLATE | 590523702 | 590523702-Online | 1 |
| 29 | BOLT | 595901101 | 595901101-Online | 3 |
| 30 | BAFFLE | 510437502 | 510437502-Online | 1 |
| 31 | BOLT | 596238401 | 596238401-Online | 4 |
| 32 | NUT NUT.HEX | 595086601 | 595086601-Online | 4 |
| 33 | BRACKET | 531242702 | 531242702-Online | 1 |
| 34 | DRIVE BELT | 588264807 | 588264807-Online | 1 |
| 35 | LINK ASSY | 529921901 | 529921901-Online | 4 |
| 36 | ROLLER TP;;RT/HISHR | 574169601 | 574169601-Online | 4 |
| 37 | BOLT BOLT. | 594944501 | 594944501-Online | 1 |
| 38 | TUBE | 574196502 | 574196502-Online | 1 |
| 39 | NUT | 521991102 | 521991102-Online | 3 |
| 40 | SCREW | 510022302 | 510022302-Online | 2 |
| 41 | TUBE | 574196402 | 574196402-Online | 2 |
| 42 | MAT PAD | 539977778 | 539977778-Online | 1 |
| 43 | BOLT | 592858702 | 592858702-Online | 1 |
| 44 | CAP DUST.CAP | 599934501 | 599934501-Online | 3 |
| 45 | NUT | 534105901 | 534105901-Online | 4 |
| 46 | BOLT | 596438501 | 596438501-Online | 4 |
| 47 | NUT | 873900700 | 873900700-Online | 4 |
| 48 | NUT | 596577901 | 596577901-Online | 4 |
| 49 | ARM ARM.TENSIONER | 582462702 | 582462702-Online | 1 |
| 50 | BEARING | 539131518 | 539131518-Online | 2 |
| 51 | SHAFT SHAFT.IDLER ARM | 582468102 | 582468102-Online | 1 |
| 52 | PLATE | 582466402 | 582466402-Online | 1 |
| 53 | SCREW | 521996602 | 521996602-Online | 1 |
| 54 | SPRING | 582468002 | 582468002-Online | 1 |
| 55 | BOLT | 574202002 | 574202002-Online | 1 |
| 56 | BOLT | 539913847 | 539913847-Online | 1 |
| 57 | SCREW | 596584303 | 596584303-Online | 1 |
| 58 | SPACER | 589455202 | 589455202-Online | 1 |
| 59 | KEEPER KEEPER.BELT | 582470202 | 582470202-Online | 1 |
| 60 | SPACER | 599502401 | 599502401-Online | 1 |
| 61 | BELT GUIDE | 594913302 | 594913302-Online | 1 |
| 62 | NUT | 873900600 | 873900600-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BOLT | 581332807 | 581332807-Online | 1 |
| 2 | WASHER | 596238901 | 596238901-Online | 1 |
| 3 | KEY | 539912757 | 539912757-Online | 1 |
| 4 | BRACKET | 594082301 | 594082301-Online | 1 |
| 5 | NUT | 594944401 | 594944401-Online | 2 |
| 6 | BOLT | 595901501 | 595901501-Online | 2 |
| 7 | PULLEY | 574811001 | 574811001-Online | 1 |
| 8 | CLUTCH | 574607001 | 574607001-Online | 1 |
| 9 | SPACER | 525313902 | 525313902-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL | 589357901 | 589357901-Online | 1 |
| 2 | MAT | 539977778 | 539977778-Online | 1 |
| 3 | DECAL | 591163901 | 591163901-Online | 1 |
| 4 | DECAL | 586978801 | 586978801-Online | 1 |
| 5 | DECAL | 574455001 | 574455001-Online | 1 |
| 6 | DECAL | 590846801 | 590846801-Online | 1 |
| 7 | DECAL | 539105745 | 539105745-Online | 1 |
| 8 | DECAL | 539105744 | 539105744-Online | 1 |
| 9 | DECAL | 597878401 | 597878401-Online | 1 |
| 10 | DECAL | 590209401 | 590209401-Online | 1 |
| 11 | DECAL | 590209501 | 590209501-Online | 1 |
| 13 | DECAL | 591357401 | 591357401-Online | 1 |
| 14 | DECAL | 590209202 | 590209202-Online | 1 |
| 15 | DECAL EU 105 dB | 588049801 | 588049801-Online | 1 |
| 15 | DECAL | 597743601 | 597743601-Online | 1 |
| 16 | DECAL | 532428677 | 532428677-Online | 1 |
| 16 | DECAL for 967984802-00 | 599749501 | 599749501-Online | 1 |
| 17 | DECAL for 967984802-00 | 597712001 | 597712001-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT | 598852901 | 598852901-Online | 1 |
| 2 | PLATE | 593643402 | 593643402-Online | 3 |
| 3 | MANDREL | 596794501 | 596794501-Online | 3 |
| 4 | BLADE | 539113312 | 539113312-Online | 3 |
| 5 | SCREW | 525834202 | 525834202-Online | 2 |
| 6 | NUT | 594944401 | 594944401-Online | 26 |
| 7 | BOLT | 584953901 | 584953901-Online | 12 |
| 8 | PULLEY | 590805102 | 590805102-Online | 3 |
| 9 | NUT | 539130653 | 539130653-Online | 3 |
| 10 | KEY | 539105308 | 539105308-Online | 3 |
| 11 | BRACKET | 597450803 | 597450803-Online | 1 |
| 12 | BRACKET | 597450804 | 597450804-Online | 1 |
| 13 | SCREW | 582476402 | 582476402-Online | 6 |
| 14 | COVER | 597452503 | 597452503-Online | 1 |
| 15 | COVER | 597452504 | 597452504-Online | 1 |
| 16 | KNOB | 539104411 | 539104411-Online | 2 |
| 17 | CLIP | 539104763 | 539104763-Online | 2 |
| 18 | PULLEY | 510015102 | 510015102-Online | 3 |
| 19 | BEARING | 510263701 | 510263701-Online | 2 |
| 20 | SHIELD | 510254502 | 510254502-Online | 3 |
| 21 | SCREW | 596436901 | 596436901-Online | 2 |
| 22 | WASHER | 596770301 | 596770301-Online | 4 |
| 23 | NUT | 521996502 | 521996502-Online | 10 |
| 25 | BRACKET | 595026402 | 595026402-Online | 1 |
| 26 | BOLT | 595901501 | 595901501-Online | 2 |
| 27 | SCREW | 539119007 | 539119007-Online | 3 |
| 28 | CHUTE | 582468801 | 582468801-Online | 1 |
| 29 | BRACKET | 582467302 | 582467302-Online | 1 |
| 30 | PLATE | 590523702 | 590523702-Online | 1 |
| 31 | BOLT | 595901101 | 595901101-Online | 3 |
| 32 | BAFFLE | 510437502 | 510437502-Online | 1 |
| 33 | BOLT | 596238401 | 596238401-Online | 4 |
| 34 | NUT | 595086601 | 595086601-Online | 4 |
| 35 | BRACKET | 596506302 | 596506302-Online | 1 |
| 36 | DRIVE BELT | 588264808 | 588264808-Online | 1 |
| 37 | LINK ASSY | 595315901 | 595315901-Online | 4 |
| 38 | NUT | 873900600 | 873900600-Online | 8 |
| 39 | ROLLER | 574169601 | 574169601-Online | 4 |
| 40 | BOLT | 594944501 | 594944501-Online | 1 |
| 41 | TUBE | 574196502 | 574196502-Online | 1 |
| 42 | NUT | 521991102 | 521991102-Online | 3 |
| 43 | SCREW | 510022302 | 510022302-Online | 2 |
| 44 | TUBE | 574196402 | 574196402-Online | 2 |
| 45 | MAT | 539977778 | 539977778-Online | 1 |
| 46 | DECAL | 574437301 | 574437301-Online | 1 |
| 47 | BOLT | 592858702 | 592858702-Online | 18 |
| 48 | CAP | 598440001 | 598440001-Online | 3 |
| 49 | SHAFT | 582468102 | 582468102-Online | 1 |
| 50 | PLATE | 582466402 | 582466402-Online | 1 |
| 51 | SCREW | 521996602 | 521996602-Online | 1 |
| 52 | SPRING | 582468002 | 582468002-Online | 1 |
| 53 | BOLT | 574202002 | 574202002-Online | 1 |
| 54 | SPACER | 589455202 | 589455202-Online | 1 |
| 55 | KEEPER | 582470202 | 582470202-Online | 1 |
| 56 | SPACER | 582468302 | 582468302-Online | 1 |
| 57 | BELT GUIDE | 594913302 | 594913302-Online | 1 |
| 58 | NUT | 596230801 | 596230801-Online | 1 |
| 59 | SCREW | 596584303 | 596584303-Online | 1 |
| 60 | BOLT | 539913847 | 539913847-Online | 1 |
| 61 | ARM | 582462702 | 582462702-Online | 1 |
| 62 | BEARING | 539131518 | 539131518-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME KIT FRAME WITH DECALS | 501656006 | 501656006-Online | 1 |
| 2 | CAP CAP PLUG BP-1 BLACK | 587990501 | 587990501-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SUPPORT For 96798480200 96798480100, | 595306605 | 595306605-Online | 1 |
| 1 | SUPPORT SEAT ORANGE DECK, Z300/Z400 | 595306602 | 595306602-Online | 1 |
| 2 | BRACKET SEAT BLACK MOUNT Z300/Z400 | 595306702 | 595306702-Online | 1 |
| 3 | PLATE PLATE ORANGE WEDGE, Z300/Z400 | 595311003 | 595311003-Online | 1 |
| 4 | PLATE PLATE ORANGE WEDGE, Z300/Z400 | 595311004 | 595311004-Online | 1 |
| 5 | BOLT BOLT Grade 3/8-16UNC 5 ZPB X 1 | 595316801 | 595316801-Online | 2 |
| 6 | WASHER WASHER ST 13/32 x 1 1/2 IN | 596133301 | 596133301-Online | 2 |
| 7 | NUT NUT 3/8-16 HEX St LOCK FLANGE | 521996502 | 521996502-Online | 9 |
| 8 | SCREW SCREW X 2-3/4 W/ COLLAR 3/8-16 | 596436901 | 596436901-Online | 5 |
| 9 | BOLT BOLT 3/8-16 x 3 | 577117702 | 577117702-Online | 2 |
| 10 | CLIP U-CLIP RETAINER 5/16-18 NUT | 539104763 | 539104763-Online | 9 |
| 11 | BOLT BOLT FLANGE 5/16-18 X .75 HEX | 592858702 | 592858702-Online | 8 |
| 12 | BUMPER BUMPER 1/4-20 STUD 1/4 | 575811501 | 575811501-Online | 2 |
| 13 | LOCK NUT LOCK 0.218 NUT IN NYLOC 0.188 x | 596031501 | 596031501-Online | 2 |
| 14 | ZIP TIRE ZIP BLACK TIRE PANEL EDGE CLIP | 595306201 | 595306201-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GUARD GUARD X498 REAR, MZ GRAY | 582693702 | 582693702-Online | 1 |
| 2 | BOLT BOLT FLANGE 5/16-18 X .75 HEX | 592858702 | 592858702-Online | 2 |
| 3 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 4 |
| 4 | BOLT BOLT X 4 HEX HD 5/16-18UNC | 596435501 | 596435501-Online | 2 |
| 5 | WASHER WASHER 14 11/32 X 11/16 X | 596204101 | 596204101-Online | 2 |
| 6 | GUARD | 593795505 | 593795505-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KNOB KNOB W/STUD | 539104411 | 539104411-Online | 1 |
| 2 | PLATE PLATE FLOOR PAN ORANGE | 589304602 | 589304602-Online | 1 |
| 3 | COVER COVER VALANCE PZ GREY | 589745202 | 589745202-Online | 1 |
| 4 | ABSORBER ABSORBER GROMMET VIBRATION | 539102587 | 539102587-Online | 2 |
| 5 | BRACKET BRACKET BUMPER FLOOR PAN | 589808802 | 589808802-Online | 2 |
| 6 | SCREW SCREW 16 X 1 BUTTON HEAD 3/8- | 589797201 | 589797201-Online | 2 |
| 7 | NUT NUT NYLOC 1/4-20 ZY HEX THIN | 539108120 | 539108120-Online | 4 |
| 8 | BOLT | 872140404 | 872140404-Online | 4 |
| 9 | ISOLATOR ISOLATOR PZ FOOTREST | 589744001 | 589744001-Online | 2 |
| 10 | NUT NUT NYLOC 3/8-16 ZY HEX FLANGE | 521996501 | 521996501-Online | 2 |
| 11 | BRACKET BRACKET SUPPORT ISOLATOR | 589807202 | 589807202-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SPACER | 597070601 | 597070601-Online | 4 |
| 2 | WASHER WASHER .688X1.75X.138 PLAIN | 594946401 | 594946401-Online | 4 |
| 3 | BOLT BOLT 3,5 HEX HD 5/8-11UNC X | 580754602 | 580754602-Online | 4 |
| 4 | NUT NUT 5/8-11 FLANGE NYLOC | 525829102 | 525829102-Online | 6 |
| 5 | PIN PIN W/ HANDLE CLEAR ZINC | 591101602 | 591101602-Online | 2 |
| 6 | PIN WIRE LOOPED LANYARD DOUBLE | 591101702 | 591101702-Online | 2 |
| 7 | PIN PIN 2-15/16 COTTER IN 0.148 ST X | 596918001 | 596918001-Online | 2 |
| 8 | BOLT BOLT IN HEX 5/8-11 x 4-1/4 | 591176602 | 591176602-Online | 1 |
| 9 | KNOB KNOB 5/16-18 X 1 | 591344501 | 591344501-Online | 1 |
| 10 | DECAL | 597758701 | 597758701-Online | 1 |
| 10 | DECAL For 96798480200 | 529502601 | 529502601-Online | 1 |
| 10 | DECAL French | 529502602 | 529502602-Online | 1 |
| 11 | DECAL DECAL WARNING | 574569002 | 574569002-Online | 1 |
| 12 | ROPS COMPLETE BELT KIT W/ SEAT | 598429101 | 598429101-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MODULE Engine decal Plate Kit, w/ clips & | 598496301 | 598496301-Online | 1 |
| 2 | HOSE ASSY | 584825501 | 584825501-Online | 1 |
| 3 | ADAPTER | 522599002 | 522599002-Online | 1 |
| 4 | CLAMP | 539101363 | 539101363-Online | 1 |
| 5 | SCREW | 596437001 | 596437001-Online | 1 |
| 6 | LOCK NUT | 596031501 | 596031501-Online | 1 |
| 7 | BOLT | 596564401 | 596564401-Online | 4 |
| 8 | WASHER | 596238701 | 596238701-Online | 4 |
| 9 | BOLT | 596136101 | 596136101-Online | 2 |
| 10 | NUT | 521996502 | 521996502-Online | 4 |
| 11 | CLIP | 539104763 | 539104763-Online | 2 |
| 12 | DUMMY PART Kawasaki & Spec. - See Engine Model | 900000002 | 900000002-Online | 1 |
| 12 | BOLT | 595316801 | 595316801-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER | 525750201 | 525750201-Online | 1 |
| 2 | SHIELD SHIELD MUFFLER | 579150901 | 579150901-Online | 1 |
| 3 | SERVICE KIT U-BOLT, CLAMP, & HEX NUTS | 529359601 | 529359601-Online | 1 |
| 4 | GASKET NOT SHOWN | 532178151 | 532178151-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT CONTROLS SYSTEM RH | 598486402 | 598486402-Online | 1 |
| 2 | SERVICE KIT CONTROLS SYSTEM LH | 598486401 | 598486401-Online | 1 |
| 3 | LEVER CONTROL LEVER RH | 596985304 | 596985304-Online | 1 |
| 4 | LEVER CONTROL LEVER LH | 596985303 | 596985303-Online | 1 |
| 5 | BOLT BOLT HEX HD 5/16 x 7/8 | 597001301 | 597001301-Online | 8 |
| 6 | NUT NUT 5/16-18 | 594944401 | 594944401-Online | 1 |
| 7 | BOLT BOLT HEX HD 5/16-18 x 5 | 596240701 | 596240701-Online | 1 |
| 8 | BOLT BOLT HEX HD 5/16 x 1 | 597001101 | 597001101-Online | 4 |
| 9 | NUT NUT 5/16-18 x 1 | 596583702 | 596583702-Online | 1 |
| 10 | STUD | 594056301 | 594056301-Online | 1 |
| 11 | LOCK NUT LOCK NUT 5/16-18 | 596135701 | 596135701-Online | 1 |
| 12 | WASHER | 596204101 | 596204101-Online | 1 |
| 13 | CLIP | 812000035 | 812000035-Online | 1 |
| 14 | BEARING BEARING FLANGED | 501603709 | 501603709-Online | 4 |
| 15 | WASHER | 597001201 | 597001201-Online | 1 |
| 16 | RING RING 7/16 | 522705201 | 522705201-Online | 1 |
| 17 | BEARING BEARING FLANGED | 539131518 | 539131518-Online | 2 |
| 18 | ROD CONTROL RH ROD ASSEMBLY | 596862302 | 596862302-Online | 1 |
| 19 | ROD CONTROL ROD ASSEMBLY LH | 596862301 | 596862301-Online | 1 |
| 20 | DAMPER | 588775401 | 588775401-Online | 1 |
| 21 | CLIP RETAINING CLIP | 582551901 | 582551901-Online | 1 |
| 22 | SPRING | 597906801 | 597906801-Online | 1 |
| 23 | BOLT BOLT HEX HD 3/8-16 x 1 | 596564401 | 596564401-Online | 1 |
| 24 | BUSHING | 596291101 | 596291101-Online | 1 |
| 25 | BEARING BEARING FLANGED | 501603710 | 501603710-Online | 1 |
| 26 | NUT | 596230801 | 596230801-Online | 1 |
| 27 | BRACKET | 593061302 | 593061302-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BRACKET PIVOT BRACKET LH | 596885401 | 596885401-Online | 1 |
| 2 | BRACKET PIVOT BRACKET RH | 596885402 | 596885402-Online | 1 |
| 3 | GUIDE CONTROL GUIDE | 596290901 | 596290901-Online | 1 |
| 4 | SCREW SCREW PAN HD 10-24 | 597856201 | 597856201-Online | 8 |
| 5 | SWITCH SWITCH INTERLOCK | 587601501 | 587601501-Online | 1 |
| 6 | BOLT BOLT 5/16 x 3/4 | 595901601 | 595901601-Online | 1 |
| 7 | SCREW SCREW 3/4 HEX HD 5/16-18 x | 596917101 | 596917101-Online | 1 |
| 8 | BOLT BOLT 5/16-18 x 1-1/4 | 585986101 | 585986101-Online | 1 |
| 9 | NUT NUT 5/16-18 | 594944401 | 594944401-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BELLOWS BELLOWS RH DRIVE LEVER | 596246801 | 596246801-Online | 1 |
| 2 | BELLOWS BELLOWS LH DRIVE LEVER | 596246701 | 596246701-Online | 1 |
| 3 | RIVET RIVET HOLE PUSH PIN 0.25IN | 582482901 | 582482901-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | SERVICE KIT CONTROLS SYSTEM LH | 598486401 | 598486401-Online | 1 |
| 3 | SERVICE KIT CONTROLS SYSTEM RH | 598486402 | 598486402-Online | 1 |
| 4 | ARM ARM RTN: CONTROLS: MZ LH | 596291201 | 596291201-Online | 1 |
| 5 | ARM ARM RTN: CONTROLS: MZ RH | 596291202 | 596291202-Online | 1 |
| 6 | BRACKET BRACKET CONTROLS LH | 593061603 | 593061603-Online | 1 |
| 7 | BRACKET BRACKET CONTROLS RH | 593061604 | 593061604-Online | 1 |
| 8 | BOLT BOLT Grade E 2 3/8-16UNC X 4,5 | 874760672 | 874760672-Online | 2 |
| 9 | BUSHING BUSHING MZ RTN: CONTROLS: | 596291101 | 596291101-Online | 1 |
| 10 | WASHER | 532444749 | 532444749-Online | 2 |
| 11 | WASHER | 585072001 | 585072001-Online | 1 |
| 12 | NUT NUT 16 HEXAGON LOCK 3/8- | 521996502 | 521996502-Online | 4 |
| 13 | SCREW SCREW 5/16-18UNC X 31 | 595305701 | 595305701-Online | 1 |
| 14 | LOCK NUT LOCK NUT 5/16-18 IN | 596039201 | 596039201-Online | 1 |
| 15 | SPRING SPRING CONTROLS | 593106701 | 593106701-Online | 1 |
| 16 | NUT NUT 5/16-18 HEXAGON St FLANGE | 594944401 | 594944401-Online | 1 |
| 17 | SPACER SPACER CONTROLS | 593061501 | 593061501-Online | 1 |
| 18 | BRACKET BRACKET DAMPER | 598475902 | 598475902-Online | 2 |
| 19 | BOLT BOLT 5/16-18UNC X 0,75 | 595901601 | 595901601-Online | 1 |
| 20 | STUD STUD 10MM BALL | 594056301 | 594056301-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK ASSY FUEL Z400 TANK RH ASSY Z300/ | 593807902 | 593807902-Online | 1 |
| 2 | CONSOLE CONSOLE Z300/Z400 LH | 593808301 | 593808301-Online | 1 |
| 3 | BRACKET BRACKET FUEL TANK REAR | 593981402 | 593981402-Online | 2 |
| 4 | BRACKET BRACKET FUEL TANK FRONT | 596910702 | 596910702-Online | 2 |
| 5 | BUSHING BUSHING SNAP | 596773901 | 596773901-Online | 1 |
| 6 | COVER COVER RH FUEL TANK | 582482401 | 582482401-Online | 1 |
| 7 | COVER COVER LH FUEL TANK | 582483401 | 582483401-Online | 1 |
| 8 | SCREW SCREW 5/16-18 X 1.5IN | 582484201 | 582484201-Online | 1 |
| 9 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 1 |
| 10 | BOLT BOLT 5/16-18 X 2.75 | 872110522 | 872110522-Online | 12 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK ASSY FUEL TANK RH | 593807902 | 593807902-Online | 1 |
| 2 | CAP FUEL CAP | 575018103 | 575018103-Online | 1 |
| 3 | BUSHING GROMMET | 532003645 | 532003645-Online | 1 |
| 4 | TUBE ASSY FUEL TANK PICK-UP TUBE | 525865403 | 525865403-Online | 1 |
| 5 | GROMMET | 584648201 | 584648201-Online | 1 |
| 6 | TANK VENT ROLL OVER VALVE | 576618101 | 576618101-Online | 1 |
| 7 | GROMMET | 590209101 | 590209101-Online | 1 |
| 8 | SENSOR FLOAT FUEL LEVEL SENSOR | 593644401 | 593644401-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HOSE HOSE 3/16 VAPOR LINE 69 | 587044569 | 587044569-Online | 1 |
| 2 | PLATE PLATE HOSE RETENTION) | 593938202 | 593938202-Online | 1 |
| 3 | SCREW SCREW HEX FLANGE 5/16-18 W/ LOCTITE X 0.625 | 596584601 | 596584601-Online | 1 |
| 3 | BOLT For 96798480200 96798480100, | 598559201 | 598559201-Online | 1 |
| 4 | CLAMP CLAMP HOSE | 575436501 | 575436501-Online | 1 |
| 5 | CABLE CABLE, 6 INCH 1/4 INCH HOLE, BLK | 591367101 | 591367101-Online | 1 |
| 6 | TIE WRAP | 539976856 | 539976856-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HOSE HOSE 1/4 FUEL LINE 18 | 587044818 | 587044818-Online | 1 |
| 2 | HOSE HOSE LENGTH 1/4 FUEL LINE 23 | 587044823 | 587044823-Online | 1 |
| 3 | VALVE FUEL VALVE | 539916325 | 539916325-Online | 1 |
| 4 | CLAMP HOSE CLAMP | 539912222 | 539912222-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BATTERY BATTERY 10AH,180CCA STARTER | 589819502 | 589819502-Online | 1 |
| 2 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 1 |
| 3 | CABLE CABLE BATTERY ASSY, 6GA | 590632102 | 590632102-Online | 1 |
| 4 | BRACKET BRACKET BATTERY BLACK | 595313602 | 595313602-Online | 1 |
| 5 | BRACKET BRACKET BATTERY MOUNT | 595313504 | 595313504-Online | 1 |
| 6 | SCREW SCREW X 1 IN HEX HEAD 5/16-18 | 596433801 | 596433801-Online | 2 |
| 7 | SCREW SCREW M6 x 8MM HEX CAP | 582460802 | 582460802-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHAFT | 592809002 | 592809002-Online | 1 |
| 2 | HEIGHT ADJUSTER ARM BELL CRANK, REAR LH | 594038303 | 594038303-Online | 1 |
| 3 | PEDAL PEDAL DECK HEIGHT | 510408302 | 510408302-Online | 1 |
| 4 | SPACER | 586701702 | 586701702-Online | 2 |
| 5 | BOLT | 596435801 | 596435801-Online | 2 |
| 6 | NUT | 521996502 | 521996502-Online | 3 |
| 7 | SUPPORT SUPPLORT PILLOW BLOCK | 539104808 | 539104808-Online | 4 |
| 8 | PLATE PLATE REINFORCEMENT | 584392702 | 584392702-Online | 2 |
| 9 | BOLT | 596218601 | 596218601-Online | 4 |
| 10 | NUT | 594944401 | 594944401-Online | 4 |
| 11 | WASHER | 596933401 | 596933401-Online | 4 |
| 12 | PIN PIN HAIRPIN | 596273101 | 596273101-Online | 4 |
| 13 | ROD | 591066901 | 591066901-Online | 2 |
| 14 | BOLT | 595316801 | 595316801-Online | 3 |
| 15 | BRACKET | 582519402 | 582519402-Online | 1 |
| 16 | SPRING | 596848001 | 596848001-Online | 1 |
| 17 | BOLT | 596240801 | 596240801-Online | 1 |
| 18 | BOLT | 593903401 | 593903401-Online | 1 |
| 19 | LOCK NUT LOCKNUT | 596039201 | 596039201-Online | 2 |
| 20 | NUT | 873900600 | 873900600-Online | 4 |
| 21 | DRAWBAR | 591067402 | 591067402-Online | 1 |
| 22 | BOLT | 532196539 | 532196539-Online | 1 |
| 23 | HEIGHT ADJUSTER | 590934302 | 590934302-Online | 1 |
| 24 | LEVER | 589454201 | 589454201-Online | 1 |
| 25 | PIVOT | 594037301 | 594037301-Online | 1 |
| 26 | SPACER | 510408402 | 510408402-Online | 1 |
| 27 | SPRING | 590937501 | 590937501-Online | 1 |
| 28 | PIN | 592914203 | 592914203-Online | 1 |
| 29 | GRIP. TRANSPORT-RELEASE GRIP, TRANSPORT-RELEASE | 539132851 | 539132851-Online | 1 |
| 30 | SCREW | 521996602 | 521996602-Online | 1 |
| 31 | ARM | 593077703 | 593077703-Online | 1 |
| 32 | LINK ROD | 590934701 | 590934701-Online | 1 |
| 33 | PIVOT | 594037201 | 594037201-Online | 1 |
| 34 | SPACER | 596515201 | 596515201-Online | 1 |
| 35 | NUT | 521991102 | 521991102-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 0 | TRANSMISSION Transmission Complete LH | 594090301 | 594090301-Online | 1 |
| 0 | TRANSMISSION Transmission Complete RH | 594090302 | 594090302-Online | 1 |
| 1 | FAN Fan ONLY | 599371301 | 599371301-Online | 1 |
| 1 | FAN SYSTEM Fan / Pulley Kit | 536769501 | 536769501-Online | 1 |
| 2 | FILTER Filter ONLY | 599370101 | 599370101-Online | 1 |
| 2 | SERVICE KIT 1 FILTERS(SERVICES GALLON OIL & 2 LH & RH) | 536768901 | 536768901-Online | 1 |
| 2 | SERVICE KIT Filter Kit | 547960501 | 547960501-Online | 1 |
| 3 | SERVICE KIT Woodruff Key & Nut | 547960601 | 547960601-Online | 1 |
| 4 | SEAL KIT Seal Kit | 536768801 | 536768801-Online | 1 |
| 5 | SEAL Shaft Seal | 546970601 | 546970601-Online | 1 |
| 6 | DIPSTICK Breather / Dipstick | 596487901 | 596487901-Online | 1 |
| 7 | SERVICE KIT Bypass Vavle | 547960701 | 547960701-Online | 1 |
| 8 | SERVICE KIT Retaining valve) Ring (Bypass | 547960801 | 547960801-Online | 1 |
| 9 | SERVICE KIT Spring | 547961001 | 547961001-Online | 1 |
| 10 | SERVICE KIT Plug & O-Ring | 547960901 | 547960901-Online | 1 |
| 11 | SERVICE KIT Plug, Magnetic Hex | 547961101 | 547961101-Online | 2 |
| 12 | SERVICE KIT Shaft Assy | 548018901 | 548018901-Online | 1 |
| 13 | SERVICE KIT Retaining Ring | 548018801 | 548018801-Online | 1 |
| 14 | SERVICE KIT Control Block | 548019001 | 548019001-Online | 1 |
| 15 | SERVICE KIT Trunion Arm | 548019101 | 548019101-Online | 1 |
| 16 | SERVICE KIT Poppet Valve | 548019201 | 548019201-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL Decal only for Control Panel | 590210301 | 590210301-Online | 1 |
| 1 | CONTROL PANEL | 593982402 | 593982402-Online | 1 |
| 2 | CABLE CABLE CHOKE T | 574206907 | 574206907-Online | 1 |
| 3 | NUT CAP NUT CAP COVER | 539103178 | 539103178-Online | 1 |
| 4 | SWITCH SWITCH PTO, 10 AMP, | 589887201 | 589887201-Online | 1 |
| 5 | SCREW SCREW PAN HEAD 1/4-20 X 1/2 IN | 532199855 | 532199855-Online | 2 |
| 6 | FUEL GAUGE FUEL LOW GAUGE LED, SMALL | 592872703 | 592872703-Online | 1 |
| 7 | SCREW SCREW SOCKET #10-24 HEAD X 3/8 | 539114341 | 539114341-Online | 5 |
| 8 | SWITCH SWITCH IGNITION | 574455401 | 574455401-Online | 1 |
| 9 | THROTTLE THROTTLE MZ/PZ | 597523906 | 597523906-Online | 1 |
| 10 | KNOB SHIFT KNOB | 539132624 | 539132624-Online | 1 |
| 11 | TIE WRAP | 539976856 | 539976856-Online | 1 |
| 12 | CONTROL PANEL CONTROL PANEL LH | 593981602 | 593981602-Online | 1 |
| 13 | HOUR METER | 594919101 | 594919101-Online | 1 |
| 14 | HARNESS NOT SHOWN | 595840603 | 595840603-Online | 1 |
| 15 | HARNESS Harness.Console.LH | 595840801 | 595840801-Online | 1 |
| 16 | SOLENOID NOT SHOWN (SOLENOID) | 582042802 | 582042802-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHAFT SHAFT WELDMENT DECK LIFT, | 592809002 | 592809002-Online | 1 |
| 2 | ARM ARM BELL CRANK, REAR LH | 593077704 | 593077704-Online | 1 |
| 3 | PEDAL PEDAL DECK HEIGHT | 510408302 | 510408302-Online | 1 |
| 4 | SPACER SPACER POWDER IDLER METAL | 586701702 | 586701702-Online | 2 |
| 5 | BOLT BOLT E 1/2-13UNC X 1,75 | 596435801 | 596435801-Online | 2 |
| 6 | NUT NUT 16 HEXAGON LOCK 3/8- | 521996502 | 521996502-Online | 3 |
| 7 | SUPPORT SUPPORT PILLOW BLOCK | 539104808 | 539104808-Online | 4 |
| 8 | PLATE PLATE REINFORCEMENT | 584392702 | 584392702-Online | 2 |
| 9 | BOLT BOLT Grade 5/16-18UNC 5 X 2,75 | 596218601 | 596218601-Online | 4 |
| 10 | NUT NUT 5/16-18 HEXAGON FLANGE | 594944401 | 594944401-Online | 4 |
| 11 | WASHER WASHER 16GA IN PLAIN 21/32 X 1 X | 596933401 | 596933401-Online | 1 |
| 12 | PIN PIN HAIRPIN COTTER #4 | 596273101 | 596273101-Online | 4 |
| 13 | ROD ROD CONNECTOR BELL CRANK | 591066901 | 591066901-Online | 2 |
| 14 | BOLT BOLT Grade 3/8-16UNC 5 X 1 | 595316801 | 595316801-Online | 3 |
| 15 | BRACKET BRACKET MOUNT DECK DRAWBAR | 582519402 | 582519402-Online | 1 |
| 16 | SPRING SPRING EXTENSION | 596848001 | 596848001-Online | 1 |
| 17 | BOLT BOLT X 3-1/2 EYELET BOLT 5/16-18 | 596240801 | 596240801-Online | 1 |
| 18 | BOLT BOLT 1/2-13UNC X 1,25 | 593903401 | 593903401-Online | 1 |
| 19 | LOCK NUT LOCK NUT HEX 5/16-18 IN | 596039201 | 596039201-Online | 2 |
| 20 | NUT NUT LOCK FLG 3/8-16 | 873900600 | 873900600-Online | 4 |
| 21 | DRAWBAR | 591067402 | 591067402-Online | 1 |
| 22 | BOLT | 532196539 | 532196539-Online | 1 |
| 23 | HEIGHT ADJUSTER | 590934302 | 590934302-Online | 1 |
| 24 | LEVER | 589454201 | 589454201-Online | 1 |
| 25 | PIVOT | 594037301 | 594037301-Online | 1 |
| 26 | SPACER | 510408402 | 510408402-Online | 1 |
| 27 | SPRING | 590937501 | 590937501-Online | 1 |
| 28 | PIN | 592914203 | 592914203-Online | 1 |
| 29 | GRIP. TRANSPORT-RELEASE | 539132851 | 539132851-Online | 1 |
| 30 | SCREW | 521996602 | 521996602-Online | 1 |
| 31 | ARM | 593077703 | 593077703-Online | 1 |
| 32 | LINK ROD | 590934701 | 590934701-Online | 1 |
| 33 | PIVOT | 594037201 | 594037201-Online | 1 |
| 34 | SPACER | 596515201 | 596515201-Online | 1 |
| 35 | BOLT | 596438301 | 596438301-Online | 1 |
| 36 | NUT | 521991102 | 521991102-Online | 1 |
