Husqvarna 125BVX IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

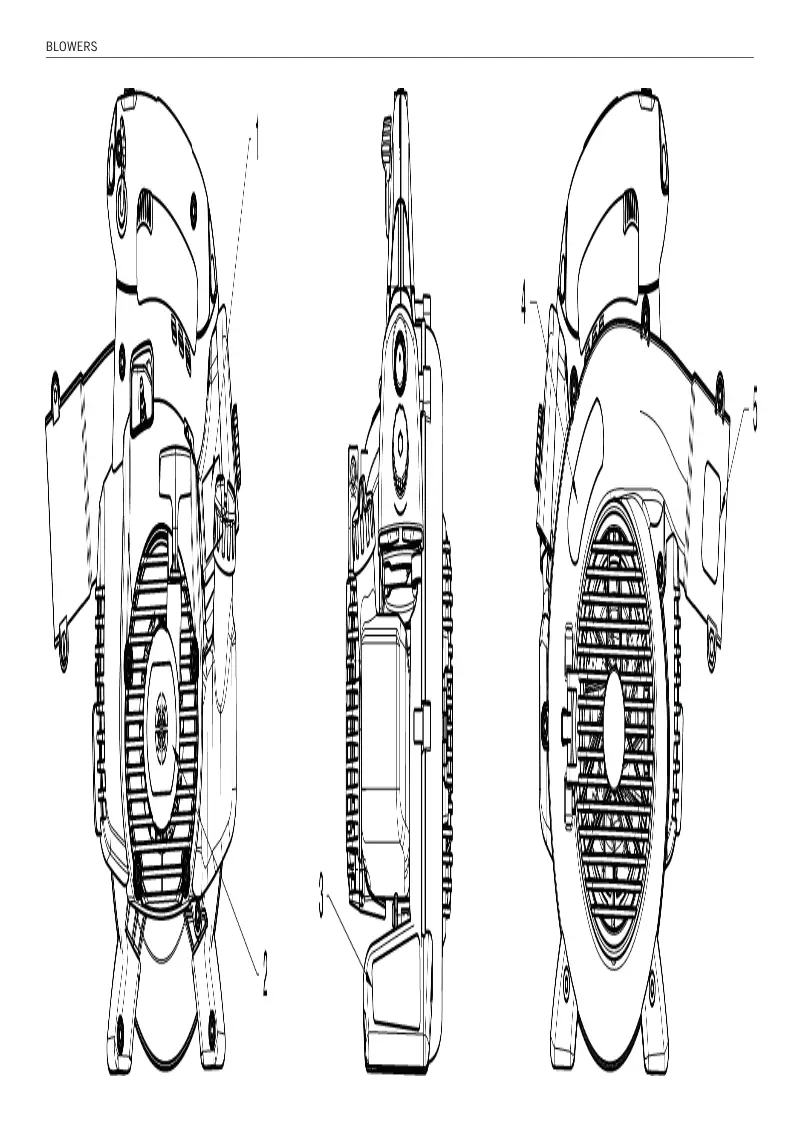

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | DECAL Starter Housing | 545134803 | 545134803-Online | 1 |
| 4 | NOT USED Not Used | N.U. | NU-Online | 1 |
| KIT DECAL Starting (North America) & Warning Decals | 545081860 | 545081860-Online | 1 | |
| LABEL Starting (Outside & North Warning America) Decals | 545081861 | 545081861-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER Assy - Muffler | 580502701 | 580502701-Online | 1 |
| 3 | KIT Kit - Spark Screen (Incl. 5) | 545081810 | 545081810-Online | 1 |
| 4 | BOLT Bolt - Muffler | 530058982 | 530058982-Online | 1 |
| 5 | SCREW Screw | 530015241 | 530015241-Online | 1 |
| 6 | SWITCH Switch | 545049311 | 545049311-Online | 1 |
| 7 | PROTECTOR, SWITCH Protector - Switch | 545128201 | 545128201-Online | 1 |
| 8 | PLUG SPARK (RCJ6-Y) Accy - Spark Plug (RCJ6-Y) | 530030179 | 530030179-Online | 1 |
| 9 | CYLINDER Chrome | 587597301 | 587597301-Online | 1 |
| 10 | BOOT, CARB Boot - Carb. | 545132501 | 545132501-Online | 1 |
| 11 | SCREW Screw | 530016187 | 530016187-Online | 1 |
| 12 | PLATE Plate - Carb. | 545133301 | 545133301-Online | 1 |
| 14 | CARBURETTOR KIT Ruixing 586 95 88-01 | 590460102 | 590460102-Online | 1 |
| 15 | PURGE Bulb #30 - on Purge page (Included 1) with | 530047721 | 530047721-Online | 1 |
| 17 | BASE, AIRBOX Base - Airbox | 545109801 | 545109801-Online | 1 |
| 18 | NUT Nut - Carb screw | 530016101 | 530016101-Online | 1 |
| 19 | AIR FILTER Filter - Air | 597797901 | 597797901-Online | 1 |
| 20 | COVER Cover - Airbox | 545109601 | 545109601-Online | 1 |
| 21 | KNOB ASSY AIRBOX COVER Assy - Airbox Knob | 530059796 | 530059796-Online | 1 |
| 22 | ASSY, LEADWIRE Assy - Leadwire | 545108202 | 545108202-Online | 1 |
| 23 | MODULE Module - Ignition | 585836101 | 585836101-Online | 1 |
| 24 | SCREW Screw | 530016456 | 530016456-Online | 1 |
| 25 | PISTON Kit - Piston | 545081814 | 545081814-Online | 1 |
| 26 | RING Ring - Piston | 575227901 | 575227901-Online | 1 |
| 27 | CIRCLIP Retainer - Piston pin | 530015162 | 530015162-Online | 1 |
| 28 | SEE SERVICE REFERENCE Kit - Crankshaft | ***** | 1 | |
| 29 | BEARING Bearing | 545013401 | 545013401-Online | 1 |
| 30 | KIT Kit - Crankshaft seal | 545081815 | 545081815-Online | 1 |
| 32 | BEARING CAP Cap - Bearing | 545068301 | 545068301-Online | 1 |
| 33 | SCREW Screw | 530015940 | 530015940-Online | 1 |
| 34 | SCREW Screw | 530015897 | 530015897-Online | 1 |
| 35 | GASKET Kit - Gasket | 545081813 | 545081813-Online | 1 |
| 36 | KIT DECAL Decal - US/Canada | 545081860 | 545081860-Online | 1 |
| 36 | LABEL Decal - Europe | 545081861 | 545081861-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT Kit - Rope | 545081817 | 545081817-Online | 1 |
| 2 | STARTER HANDLE Handle - Starter | 545043204 | 545043204-Online | 1 |
| 3 | SCREW Screw | 530015814 | 530015814-Online | 1 |
| 4 | KIT Kit - Cruise control | 545081822 | 545081822-Online | 1 |
| 5 | WASHER Washer - Wave | 530015147 | 530015147-Online | 1 |
| 6 | RATCHET CRUISE CONTROL Ratchet - Cruise control | 545111501 | 545111501-Online | 1 |
| 7 | SCREW Screw | 530015814 | 530015814-Online | 1 |
| 8 | HANDLE - ASSIST Handle - Assist | 545119002 | 545119002-Online | 1 |
| 9 | ASSY, MUFFLER GUARD Assy. - Muffler guard | 545157901 | 545157901-Online | 1 |
| 10 | SCREW Bolt - Tube clamp | 545003502 | 545003502-Online | 1 |
| 11 | WIRE Wire - Linkage | 545111301 | 545111301-Online | 1 |
| 12 | TRIGGER, THROTTLE Trigger - Throttle | 545111601 | 545111601-Online | 1 |
| 13 | WIRE Wire - Handle ground | 545131701 | 545131701-Online | 1 |
| 14 | SEE SERVICE REFERENCE Assy - Fuel cap with retainer | ***** | 1 | |
| 15 | NUT Nut - Blower tube | 530015197 | 530015197-Online | 1 |
| 16 | SPRING Spring - Vac door | 545111101 | 545111101-Online | 1 |
| 17 | COVER Cover - Vac door | 545111201 | 545111201-Online | 1 |
| 18 | SCREW Screw | 530015814 | 530015814-Online | 1 |
| 19 | ASSEMBLY Assy - Outer scroll | 575533201 | 575533201-Online | 1 |
| 20 | NUT Nut - Impeller | 545147101 | 545147101-Online | 1 |
| 21 | SEE SERVICE REFERENCE Assy - Fuel cap with retainer | ***** | 1 | |
| 22 | SEE SERVICE REFERENCE Assy - Fuel cap with retainer | ***** | 1 | |
| 23 | WASHER Washer - Impeller | 545164501 | 545164501-Online | 1 |
| 24 | SCREW FUEL TANK RETAINER Screw | 530016445 | 530016445-Online | 1 |
| 25 | SCROLL Scroll - Inner | 545110001 | 545110001-Online | 1 |
| 26 | PURGE Bulb - Purge | 530047721 | 530047721-Online | 1 |
| 27 | FUEL HOSE Fuel line | 581798001 | 581798001-Online | 1 |
| 28 | SEE SERVICE REFERENCE Assy - Fuel cap with retainer | ***** | 1 | |
| 29 | FILTER | 530095646 | 530095646-Online | 1 |
| 29 | FUEL FILTER 30 530095646 pcs, plastic bag of | 530095601 | 530095601-Online | 1 |
| 30 | SEE SERVICE REFERENCE Assy - Fuel cap with retainer | ***** | 1 | |
| 31 | SCREW Screw | 530015814 | 530015814-Online | 1 |
| 32 | SCROLL Scroll - Flywheel | 578318701 | 578318701-Online | 1 |
| 33 | SCREW Screw | 530015814 | 530015814-Online | 1 |
| 34 | SCREW FUEL TANK RETAINER Screw | 530016445 | 530016445-Online | 1 |
| 35 | FLYWHEEL Assy - Flywheel | 576423301 | 576423301-Online | 1 |
| 36 | WASHER Washer | 530015828 | 530015828-Online | 1 |
| 37 | NUT Nut - Flywheel | 530016134 | 530016134-Online | 1 |
| 38 | COVER Cover - Motor housing | 545108801 | 545108801-Online | 1 |
| 39 | SCREW Screw | 545112801 | 545112801-Online | 1 |
| 40 | HUB Hub | 545089001 | 545089001-Online | 1 |
| 41 | SPRING Spring - EPS2 | 545115901 | 545115901-Online | 1 |
| 42 | KIT Kit - Starter | 545006084 | 545006084-Online | 1 |
| 43 | SPRING Spring - Starter | 530042095 | 530042095-Online | 1 |
| 44 | STARTER ASSY Housing - Starter Cover | 545111801 | 545111801-Online | 1 |
| 45 | SCREW Screw | 530016386 | 530016386-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 545008036 | MULCHING BLADE Serial 201923XXXXX Number - and lower | 545008036 | 545008036-Online | 1 |
| 597536701 | BLADE KIT Serial 201924XXXXX Number - and higher | 597536701 | 597536701-Online | 1 |
| 545119601 | TUBE Serial 201923XXXXX Number - and lower | 545119601 | 545119601-Online | 1 |
| 594954401 | TUBE Serial 201924XXXXX Number - and higher | 594954401 | 594954401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 530150350 | TANK Serial 201212XXXXX Number - and lower | 530150350 | 530150350-Online | 1 |
| 545108901 | FUEL TANK ASSY Serial 201212XXXXX Number - and lower | 545108901 | 545108901-Online | 1 |
| 578931503 | FUEL CAP ASSY Serial 201213XXXXX Number - and higher | 578931503 | 578931503-Online | 1 |
| 581337209 | TANK Serial 201213XXXXX Number - and higher | 581337209 | 581337209-Online | 1 |
| 545173201 | IMPELLER Serial 201414XXXXX Number - and lower | 545173201 | 545173201-Online | 1 |
| 545164501 | WASHER Serial 201414XXXXX Number - and lower | 545164501 | 545164501-Online | 1 |
| 545081816 | KIT Serial 201414XXXXX Number - and lower | 545081816 | 545081816-Online | 1 |
| 581449402 | IMPELLER Serial 201415XXXXX Number - and higher | 581449402 | 581449402-Online | 1 |
| 588199401 | CRANKSHAFT KIT Serial 201415XXXXX Number - and higher | 588199401 | 588199401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 545081816 | KIT Serial 201414XXXXX Number - and lower | 545081816 | 545081816-Online | 1 |
| 588199401 | CRANKSHAFT KIT Serial 201415XXXXX Number - and higher | 588199401 | 588199401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ASSY, UPPER VAC TUBE Assy adapter - Upper vac tube with | 545131201 | 545131201-Online | 1 |
| 2 | SCREW Screw | 545144101 | 545144101-Online | 1 |
| 3 | SEE SERVICE REFERENCE Tube - Lower vac | ***** | 1 | |
| 4 | TUBE Elbow - Vac | 575478801 | 575478801-Online | 1 |
| 5 | STRAP SHOULDER Strap - Carrying | 545132903 | 545132903-Online | 1 |
| 6 | BAG Assy - Vac bag | 595839701 | 595839701-Online | 1 |
| 7 | TUBE Assy w/barrier - Tube - upper blower | 590569201 | 590569201-Online | 1 |
| 8 | TUBE Tube - Lower blower (round) | 545118001 | 545118001-Online | 1 |
| 9 | NOZZLE Tube - Lower blower (flare) | 545119501 | 545119501-Online | 1 |
