Husqvarna 215iL IPL Parts Diagram
Official Husqvarna illustrated parts information. Match the key number on the diagram to the genuine part number below.

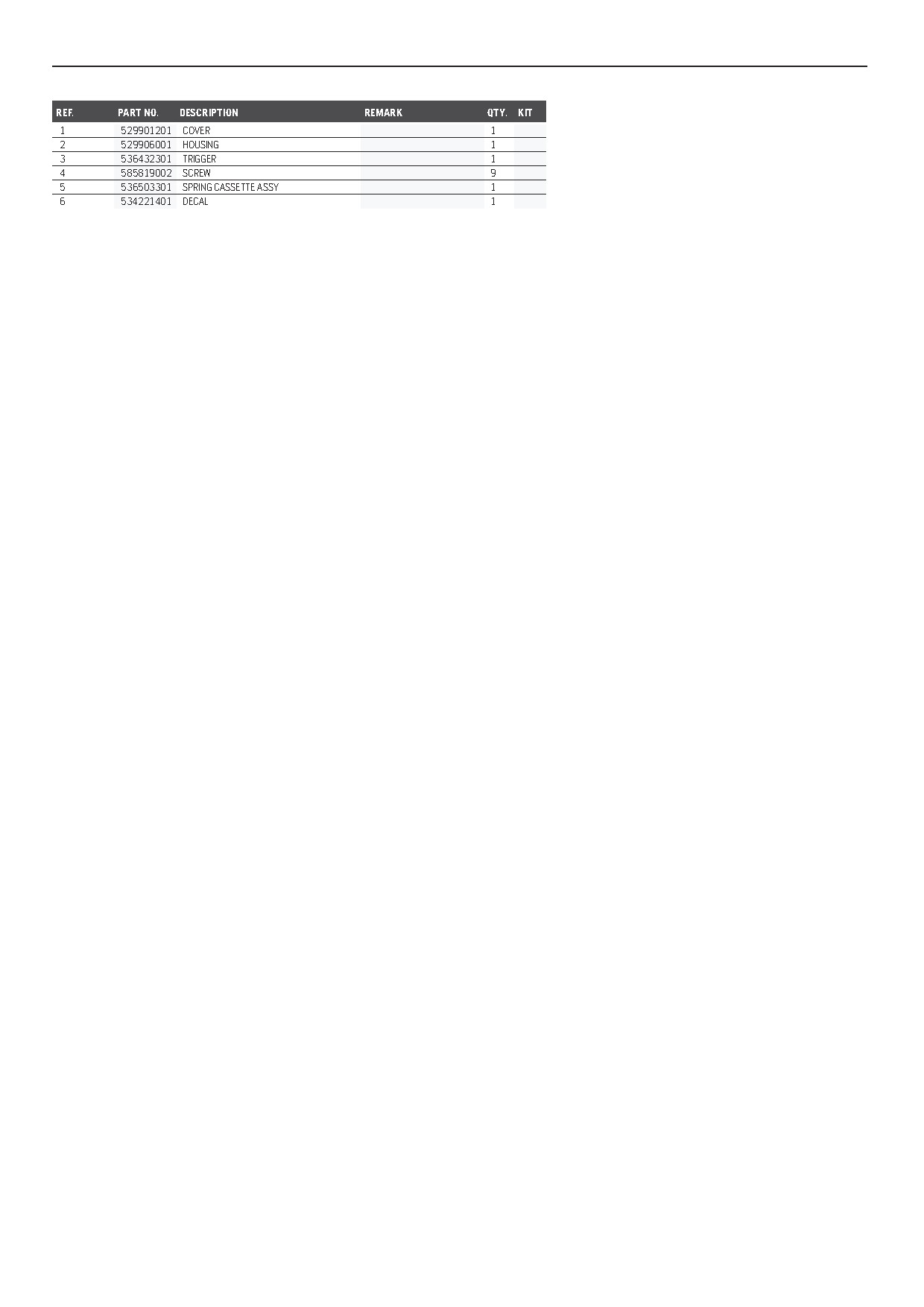

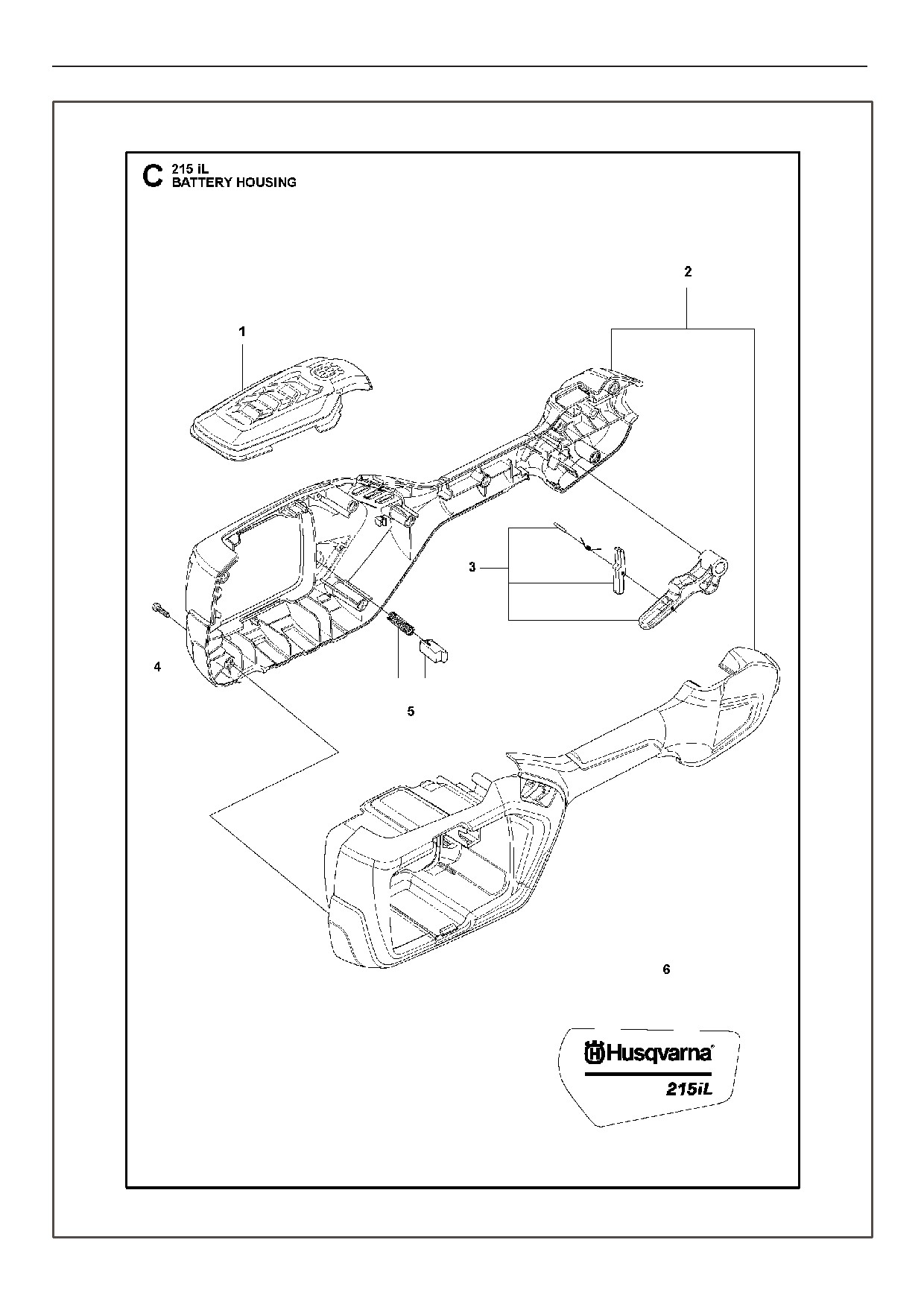

C Battery Housing
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 529901201 | COVER | |
| 2 | 529906001 | HOUSING | |
| 3 | 536432301 | TRIGGER | |
| 4 | 585819002 | SCREW | |
| 5 | 536503301 | SPRING CASSETTE ASSY | |
| 6 | 534221401 | DECAL |
A Cutting
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 536045801 | SCREW | |
| 2 | 536026201 | SCREW | |
| 3 | 534987101 | HOUSING ASSY | |
| 4 | 529967001 | GUARD | |
| 5 | 529970301 | RING | |
| 6 | 529970201 | BLADE | |
| 7 | 531112401 | MOTOR ASSY | |
| 8 | 536026301 | SCREW | |
| 9 | 529970401 | SPACER | |
| 10 | 531373901 | TRIMMER HEAD |
D Electrical
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 535587001 | ELECTRICAL SYSTEM | |
| 2 | 535395201 | SCREW KIT | |
| 3 | 529902001 | CABLE |
B Tube
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 585327602 | HANDLE | |
| 2 | 586471301 | SCREW | |
| 3 | 585327801 | COUPLING | |
| 4 | 529901901 | TUBE | |
| 5 | 586452201 | COUPLING | |
| 6 | 599313001 | TUBE ASSY | |
| 7 | 536584601 | DECAL |
C 215 iL BATTERY HOUSING
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 529901201 | COVER | |
| 2 | 529906001 | HOUSING | |
| 3 | 536432301 | TRIGGER | |
| 4 | 585819002 | SCREW | |
| 5 | 536503301 | SPRING CASSETTE ASSY | |
| 6 | 534221401 | DECAL |
A 215 iL CUTTING
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 536045801 | SCREW | |
| 2 | 536026201 | SCREW | |
| 3 | 534987101 | HOUSING ASSY | |
| 4 | 529967001 | GUARD | |
| 5 | 529970301 | RING | |
| 6 | 529970201 | BLADE | |
| 7 | 531112401 | MOTOR ASSY | |
| 8 | 536026301 | SCREW | |
| 9 | 529970401 | SPACER | |
| 10 | 531373901 | TRIMMER HEAD |
D 215 iL ELECTRICAL
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 535587001 | ELECTRICAL SYSTEM | |
| 2 | 535395201 | SCREW KIT | |
| 3 | 529902001 | CABLE |
B 215 iL TUBE
| Key | Part number | Description | Notes |
|---|---|---|---|
| 1 | 585327602 | HANDLE | |
| 2 | 586471301 | SCREW | |
| 3 | 585327801 | COUPLING | |
| 4 | 529901901 | TUBE | |
| 5 | 586452201 | COUPLING | |
| 6 | 599313001 | TUBE ASSY | |
| 7 | 536584601 | DECAL |
Source: official Husqvarna support. CutSmart links are created only where the exact genuine part SKU exists in VirtueMart.
