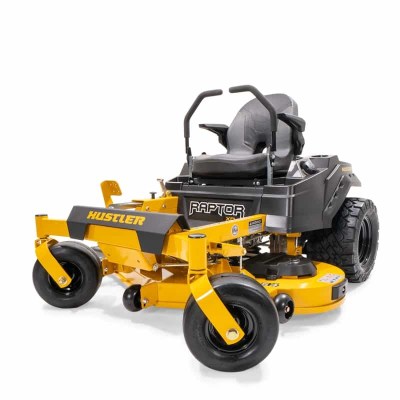

Hustler Raptor XD 23hp 48inch deck Zero Turn

Engineered from the ground up, the Raptor X packs more performance, reliability and legendary Hustler features into its simple design. Featuring a tough welded-steel deck, heavy-duty fabricated frame and Hustler’s exclusive SmoothTrak™ steering, the Raptor X delivers an incredibly smooth and fluid zero-turn experience.

This Machine can mow up to 9000m2 per hour

PREMIUM RESIDENTIAL FRAME: Continuous one-piece 1½ inch by 3 inch welded tubular frame not seen on any other residential mower. #1 in Class
FOOT-OPERATED DECK LIFT: Easily adjust the deck height between 1.5” – 4.5” with less effort than handoperated levers found on other brands.
EASY TO SERVICE: Flip-up seat pan, removable floor pan, vented pulley covers.
EXCLUSIVE BIGBITE™ REAR TIRES: We worked directly with the tire manufacturer on this design. You will not find them anywhere else.
PREMIUM POWER: The V-Twin Kawasaki® engine is the highest rated residential engine available.
PREMIUM SEAT: Provides a comfortable ride with armrests and added airflow to the back.
SMOOTHTRAK™ STEERING: Precision control to help trim and maneuver easily around obstacles. You will fully understand SmoothTrak steering when you drive ours and then drive theirs.
WIDER STANCE: Additional operator platform width provides more room and comfort for the operator.
WELDED STEEL DECK: 11 ga. welded fabricated steel deck adds durability & extends mower’s life. (compare to other brand’s cheap stamped decks)
GENERAL INFORMATION
Manufacturer
Hustler Turf Equipment
Model Year
2021
Model
Raptor X Kawasaki FR600 42 in. 18 hp
Model Code
939694
Color
Yellow
BODY
Frame
1.5 x 3 in. steel tubing
Seat
Premium bolstered mid-back with armrests and built-in lumbar support
DRIVETRAIN
Drive Type
Dual hydrostatic
Transmission
Hydro-Gear ZT2200
Travel Speed
Up to 7 mph
Wheels/Tires
Trim Side – 0.4 in.

Front Caster Wheels – Sealed ball bearings

Front Caster Forks – Fabricated 1 / 4 in. steel

Drive Tires
18 x 8.50 – 8 BigBite™
Tire Size
Front Tire – 11 x 5 in.

Tire Width – 43 in.

Axles
Front – Fabricated with sealed ball bearings
Parking Brake
Patented automatic
ENGINE
Engine Make
Kawasaki
Engine Model
FR600
Cooling
Air
Horsepower
18 hp (Per SAE J1995)
Displacement
603 cc
Fuel Capacity
3 gal.
MEASUREMENTS
Length
68.8 in.
Width
With Chute Up – 45.5 in.
Height
40.8 in.
Weight
537 lb.
Cutting Width
Side discharge – 42 in.
Cutting Height
1.5 – 4.5 in.
OPERATIONAL
Deck Construction
Depth – 4.5 in.

Fabricated 11 ga. steel

Impact / Trim Areas – 1 / 4 x 1 in. steel bar

Deck Lift
Foot operated
Deck Engagement
Ogura GT1.5
Spindles
Aluminum with 1 in. shafts and double lip sealed ball bearings

Mounts – Reinforced 7 ga. steel

Blades 2
Length – 2 – 20.50 in.

Blade Tip Speed
18,000
Working Area Capacity
Productivity (acres per hour) – 2.38 in.
OTHER
Includes
Cupholder
