Hyundai HBL26H / HBL26P Blower Parts Diagram & IPL

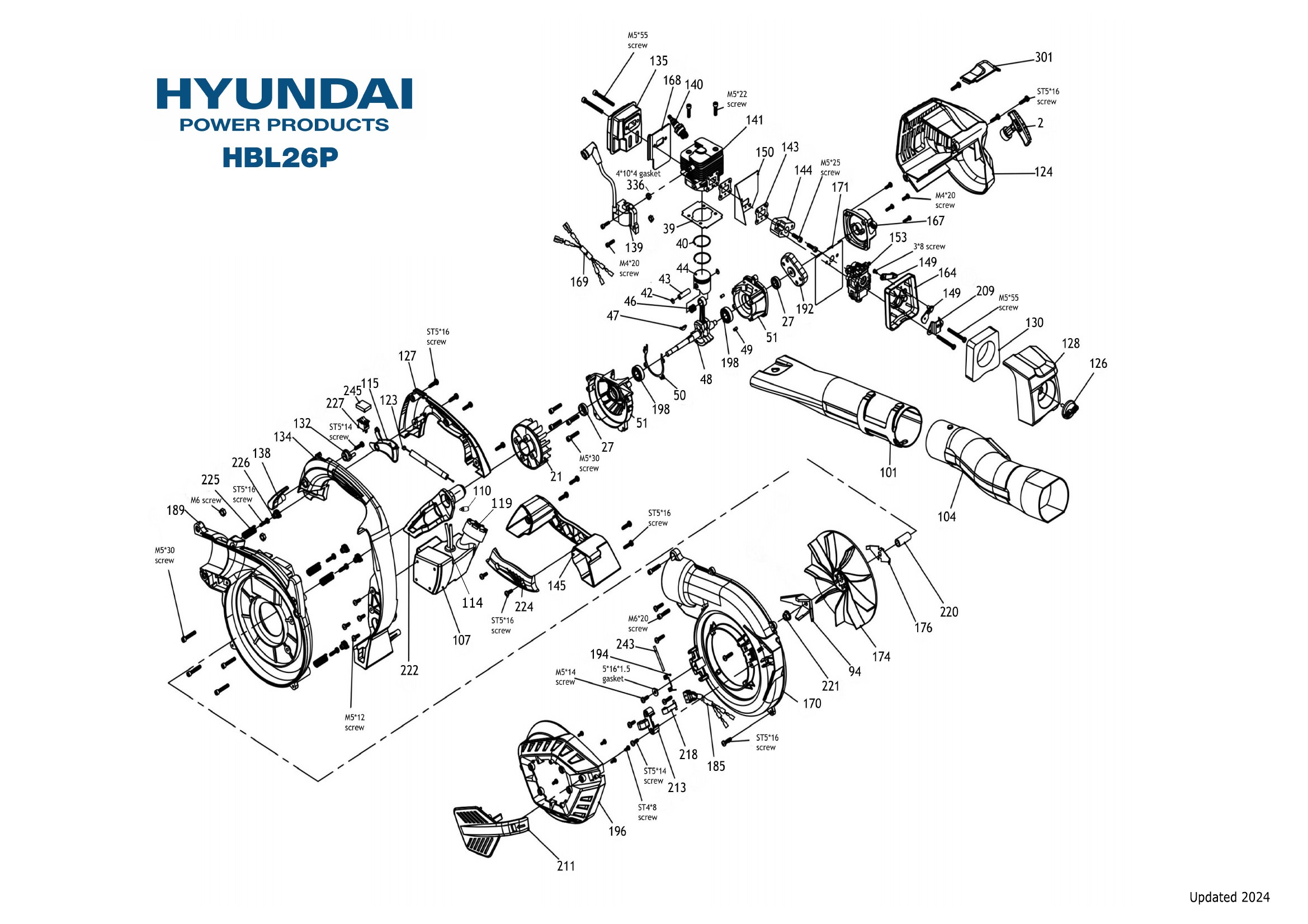

Use this illustrated parts list to identify replacement parts for the Hyundai HBL26H / HBL26P blower. Match the reference number on the diagram to the parts table below, then click the Cutsmart SKU to open the matching product page.
Important: The uploaded IPL table is marked HBL26H, while the diagram image is marked HBL26P. The same diagram may apply to both the homeowner and professional machine versions, but please confirm your model before ordering.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 2 | Starter puller | HY00201 | Hyu-HY00201@online |
| 21 | Fly wheel | HY02101 | Hyu-HY02101@online |
| 27 | Oil seal 12*22*7 | HY02701 | Hyu-HY02701@online |
| 39 | Cylinder gasket | HY03901 | Hyu-HY03901@online |
| 40 | Piston ring set | HY04001 | Hyu-HY04001@online |
| 42 | Piston circlip 8 set | HY04201 | Hyu-HY04201@online |
| 43 | Piston pin 8*28.2 | HY04301 | Hyu-HY04301@online |
| 44 | Piston | HY04401 | Hyu-HY04401@online |
| 46 | Needle 8*11*11 | HY04601 | Hyu-HY04601@online |
| 47 | Woodruff key 3*10 | HY04701 | Hyu-HY04701@online |
| 48 | Blower crankshaft | HY04801 | Hyu-HY04801@online |
| 49 | 5*10 pin | HY04901 | Hyu-HY04901@online |
| 50 | Crank case gasket | HY05001 | Hyu-HY05001@online |
| 51 | Crank case | HY05101 | Hyu-HY05101@online |
| 94 | 260 blower blade | HY09401 | Hyu-HY09401@online |
| 101 | 260D flat pipe | HY10101 | Hyu-HY10101@online |
| 104 | 260D main pipe | HY10401 | Hyu-HY10401@online |
| 107 | 260D oil tank | HY10701 | Hyu-HY10701@online |
| 110 | Fuel filter | HY11001 | Hyu-HY11001@online |
| 114 | Fuel pipe grommet | HY11406 | Hyu-HY11406@online |
| 115 | 260D throttle trigger | HY11501 | Hyu-HY11501@online |
| 119 | Fuel cap | HY11901 | Hyu-HY11901@online |
| 123 | 260D throttle line | HY12301 | Hyu-HY12301@online |
| 124 | 260D cylinder cover | HY12401 | Hyu-HY12401@online |
| 126 | Knob | HY12602 | Hyu-HY12602@online |
| 127 | 260D right handle | HY12701 | Hyu-HY12701@online |
| 128 | 260D air filter cover | HY12801 | Hyu-HY12801@online |
| 130 | 520S air filter sponge | HY13001 | Hyu-HY13001@online |
| 132 | 260D self-locking switch bushing | HY13201 | Hyu-HY13201@online |
| 134 | 260D left handle | HY13401 | Hyu-HY13401@online |
| 135 | Muffler | HY13501 | Hyu-HY13501@online |
| 138 | 260D self-locking switch | HY13801 | Hyu-HY13801@online |
| 139 | Ignition | HY13901 | Hyu-HY13901@online |
| 140 | Spark plug | BM6A | Hyu-BM6A@online |
| 141 | Cylinder | HY14101 | Hyu-HY14101@online |
| 143 | Inlet pipe gasket | HY14301 | Hyu-HY14301@online |
| 144 | Inlet pipe 30mm | HY14401 | Hyu-HY14401@online |
| 145 | 260D base handle | HY14501 | Hyu-HY14501@online |
| 149 | 40-5 choke components | HY14901 | Hyu-HY14901@online |
| 150 | 260D gasket | HY15001 | Hyu-HY15001@online |
| 153 | Carburetor | HY15301 | Hyu-HY15301@online |
| 164 | 40-5 air filter holder | HY16401 | Hyu-HY16401@online |
| 167 | Starter | HY16701 | Hyu-HY16701@online |
| 168 | Blower muffler gasket | HY16801 | Hyu-HY16801@online |
| 169 | Extinguishing line | HY16901 | Hyu-HY16901@online |
| 170 | 260D right hood | HY17001 | Hyu-HY17001@online |
| 171 | Carburetor gasket | HY17101 | Hyu-HY17101@online |
| 174 | Blower wind wheel | HY17401 | Hyu-HY17401@online |
| 176 | Limit plate of base of wind wheel | HY17601 | Hyu-HY17601@online |
| 185 | Micro switch | HY18501 | Hyu-HY18501@online |
| 189 | 260D left hood | HY18901 | Hyu-HY18901@online |
| 192 | Aluminium dial single start | HY19201 | Hyu-HY19201@online |
| 194 | 260 torsion spring | HY19401 | Hyu-HY19401@online |
| 196 | 260D protective cover | HY19601 | Hyu-HY19601@online |
| 198 | Open bearing 6001 | HY19801 | Hyu-HY19801@online |
| 209 | Choke iron block | HY20901 | Hyu-HY20901@online |
| 211 | 260D protective cover trim | HY21101 | Hyu-HY21101@online |
| 213 | 260 protective switch cover | HY21301 | Hyu-HY21301@online |
| 218 | 260 protective switch | HY21801 | Hyu-HY21801@online |
| 220 | 9*14*32 steel bushing | HY22001 | Hyu-HY22001@online |
| 221 | Screw M8*1 | HY22101 | Hyu-HY22101@online |
| 222 | 260D small base | HY22201 | Hyu-HY22201@online |
| 224 | 260D base handle cover | HY22401 | Hyu-HY22401@online |
| 225 | 260D shock absorber spring | HY22501 | Hyu-HY22501@online |
| 226 | 260D spring seat | HY22601 | Hyu-HY22601@online |
| 227 | Extinguishing switch hull | HY22701 | Hyu-HY22701@online |
| 243 | Pin 3.5*48 | HY24301 | Hyu-HY24301@online |
| 245 | Extinguishing switch dust cover | HY24501 | Hyu-HY24501@online |
| 301 | 260D spark plug cover | HY30101 | Hyu-HY30101@online |
| 336 | Gasket 4*10*4 | HY33601 | Hyu-HY33601@online |
This page is provided to help identify parts. Availability, pricing and product URLs should be confirmed on Cutsmart before ordering.
