Hyundai HBL26P Blower Parts Diagram & IPL
Use this illustrated parts list to identify replacement parts for the Hyundai HBL26P blower. Match the reference number on the diagrams to the parts table below, then click the Cutsmart SKU to open the matching product page.

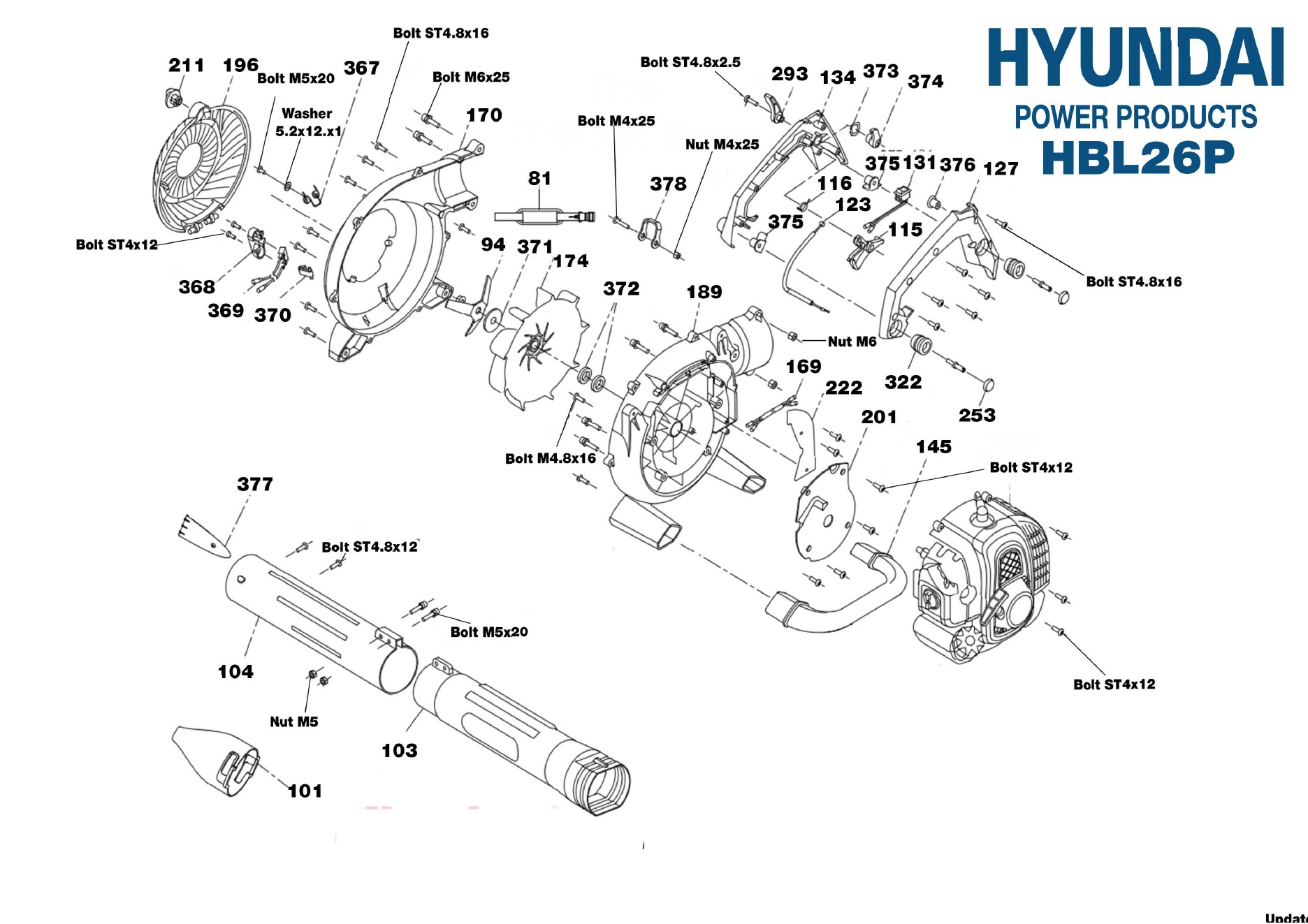

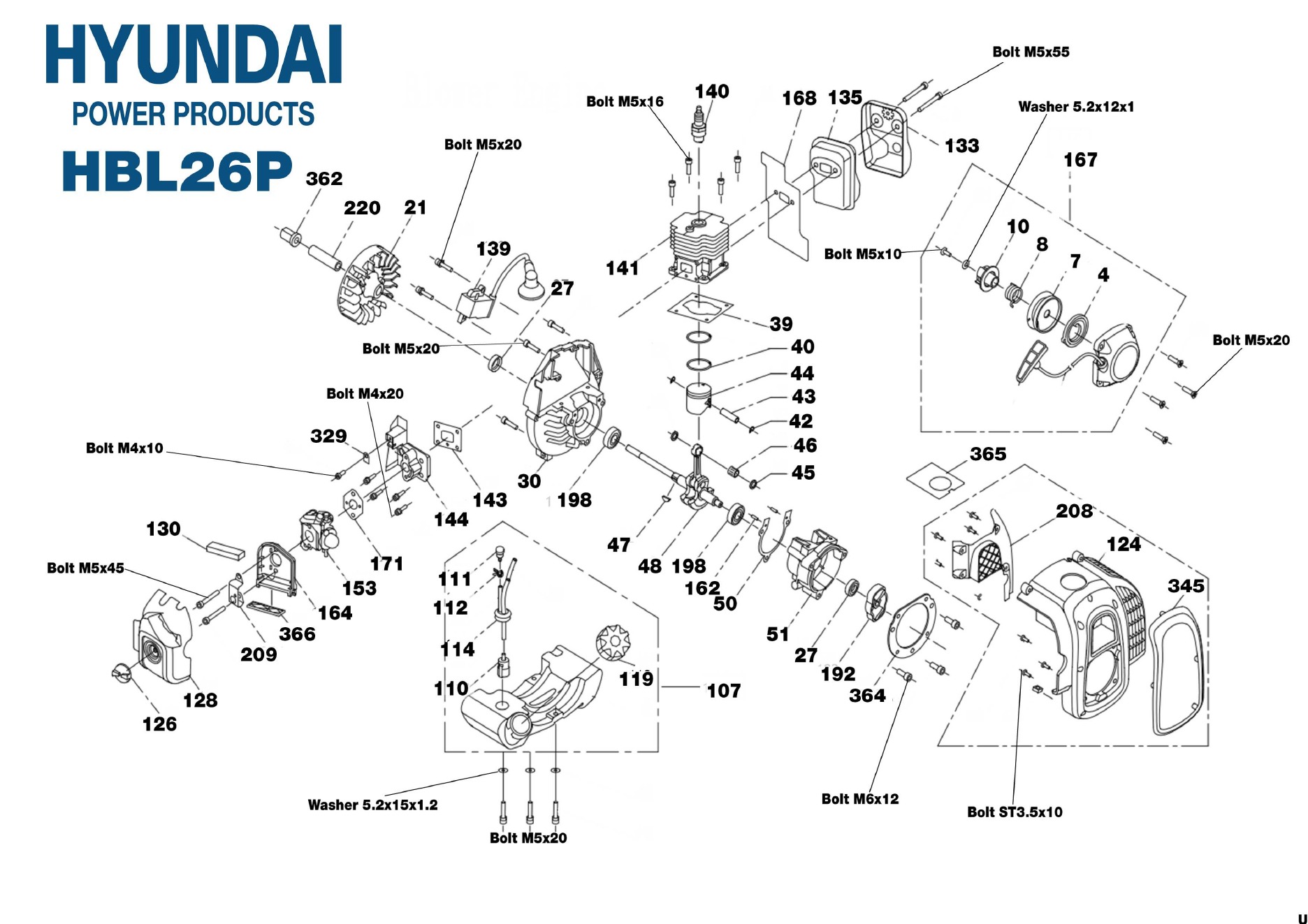

Tip: This IPL has two diagram pages. Click or tap either diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 4 | Spring | HY00404 | Hyu-HY00404@online |
| 7 | Reel | HY00706 | Hyu-HY00706@online |
| 8 | Torsion Spring | HY00804 | Hyu-HY00804@online |
| 10 | Ratchet | HY01004 | Hyu-HY01004@online |
| 21 | Flywheel | HY02111 | Hyu-HY02111@online |
| 27 | Oil seal 12x22x7 | HY02701 | Hyu-HY02701@online |
| 30 | Left Crankcase | HY03008 | Hyu-HY03008@online |
| 39 | Gasket, Cylinder | HY03907 | Hyu-HY03907@online |
| 40 | Piston Ring | HY04013 | Hyu-HY04013@online |
| 42 | Snap Ring, Piston Pin | HY04205 | Hyu-HY04205@online |
| 43 | Piston Pin | HY04306 | Hyu-HY04306@online |
| 44 | Piston | HY04413 | Hyu-HY04413@online |
| 45 | Washer | HY04502 | Hyu-HY04502@online |
| 46 | Needle bearing | HY04612 | Hyu-HY04612@online |
| 47 | Key 3x10 | HY04705 | Hyu-HY04705@online |
| 48 | Crankshaft | HY04812 | Hyu-HY04812@online |
| 50 | Gasket, Crankcase | HY05008 | Hyu-HY05008@online |
| 51 | Right Crankcase | HY05110 | Hyu-HY05110@online |
| 81 | Single shoulder strap | HY08104 | Hyu-HY08104@online |
| 94 | Shredded blade | HY09402 | Hyu-HY09402@online |
| 101 | Blower pipe joint | HY10104 | Hyu-HY10104@online |
| 103 | Upper blower pipe | HY10304 | Hyu-HY10304@online |
| 104 | Down blower pipe | HY10405 | Hyu-HY10405@online |
| 107 | Fuel tank | HY10711 | Hyu-HY10711@online |
| 110 | Fuel Filter | HY11003 | Hyu-HY11003@online |
| 111 | Balancer | HY11102 | Hyu-HY11102@online |
| 112 | Balancer seat | HY11203 | Hyu-HY11203@online |
| 114 | Pipe Seat | HY11404 | Hyu-HY11404@online |
| 115 | Throttle trigger | HY11505 | Hyu-HY11505@online |
| 116 | Torsion spring trigger | HY11604 | Hyu-HY11604@online |
| 119 | Cap fuel filter | HY11908 | Hyu-HY11908@online |
| 123 | Throttle line | HY12302 | Hyu-HY12302@online |
| 124 | Cover, Cylinder | HY12409 | Hyu-HY12409@online |
| 126 | Knob | HY12608 | Hyu-HY12608@online |
| 127 | Right handle | HY12702 | Hyu-HY12702@online |
| 128 | Cover Filter | HY12811 | Hyu-HY12811@online |
| 130 | Element | HY13010 | Hyu-HY13010@online |
| 131 | On/off switch | HY13104 | Hyu-HY13104@online |
| 133 | Heat insulation muffler | HY13305 | Hyu-HY13305@online |
| 134 | Left handle | HY13403 | Hyu-HY13403@online |
| 135 | Muffler | HY13511 | Hyu-HY13511@online |
| 139 | Coil | HY13911 | Hyu-HY13911@online |
| 140 | Spark plug L8RTF | L8RTF | Hyu-L8RTF@online |
| 141 | Cylinder | HY14113 | Hyu-HY14113@online |
| 143 | Gasket inlet pipe | HY14307 | Hyu-HY14307@online |
| 144 | Inlet pipe | HY14408 | Hyu-HY14408@online |
| 145 | Handgrip | HY14502 | Hyu-HY14502@online |
| 153 | Carb | HY15311 | Hyu-HY15311@online |
| 162 | Pin 5x10 | HY16205 | Hyu-HY16205@online |
| 164 | Air Filter Supporter | HY16408 | Hyu-HY16408@online |
| 167 | Starter assy | HY16710 | Hyu-HY16710@online |
| 168 | Gasket muffler | HY16807 | Hyu-HY16807@online |
| 169 | Connection lines | HY16905 | Hyu-HY16905@online |
| 170 | Fan Volute Cover | HY17005 | Hyu-HY17005@online |
| 171 | Gasket carburetor | HY17108 | Hyu-HY17108@online |
| 174 | Impeller | HY17407 | Hyu-HY17407@online |
| 189 | Fan Volute Cover | HY18905 | Hyu-HY18905@online |
| 192 | Pulley | HY19204 | Hyu-HY19204@online |
| 196 | Fan cover | HY19605 | Hyu-HY19605@online |
| 198 | Bearing 6001 | HY19804 | Hyu-HY19804@online |
| 201 | Back plate fan volute | HY20104 | Hyu-HY20104@online |
| 208 | Guide plate | HY20803 | Hyu-HY20803@online |
| 209 | Air filter plate | HY20903 | Hyu-HY20903@online |
| 211 | Lock nut | HY21102 | Hyu-HY21102@online |
| 220 | Sleeve 8.5x14x52 | HY22002 | Hyu-HY22002@online |
| 222 | Heat insulation fan volute | HY22202 | Hyu-HY22202@online |
| 253 | Dustproof cover | HY25302 | Hyu-HY25302@online |
| 293 | Self locking handle | HY29302 | Hyu-HY29302@online |
| 322 | Damper | HY32203 | Hyu-HY32203@online |
| 329 | Bearing plate | HY32902 | Hyu-HY32902@online |
| 345 | Decorated frame | HY34502 | Hyu-HY34502@online |
| 362 | Impeller shaft | HY36201 | Hyu-HY36201@online |
| 364 | Connection plate starter | HY36401 | Hyu-HY36401@online |
| 365 | Cylinder cover plate | HY36501 | Hyu-HY36501@online |
| 366 | Air filter net | HY36601 | Hyu-HY36601@online |
| 367 | Torsion spring safety | HY36701 | Hyu-HY36701@online |
| 368 | Flameout switch cover | HY36801 | Hyu-HY36801@online |
| 369 | Flameout switch | HY36901 | Hyu-HY36901@online |
| 370 | Rotary valve | HY37001 | Hyu-HY37001@online |
| 371 | Washer | HY37101 | Hyu-HY37101@online |
| 372 | Bearing 61802 | HY37201 | Hyu-HY37201@online |
| 373 | Wave washer | HY37301 | Hyu-HY37301@online |
| 374 | Self locking device | HY37401 | Hyu-HY37401@online |
| 375 | Handle anti vibration rubber | HY37501 | Hyu-HY37501@online |
| 376 | Position rubber | HY37601 | Hyu-HY37601@online |
| 377 | Blower pipe partition | HY37701 | Hyu-HY37701@online |
| 378 | Hook | HY37801 | Hyu-HY37801@online |
This page is provided to help identify parts. Availability, pricing and product URLs should be confirmed on Cutsmart before ordering.
