Hyundai HBL43P Blower Parts Diagram & IPL

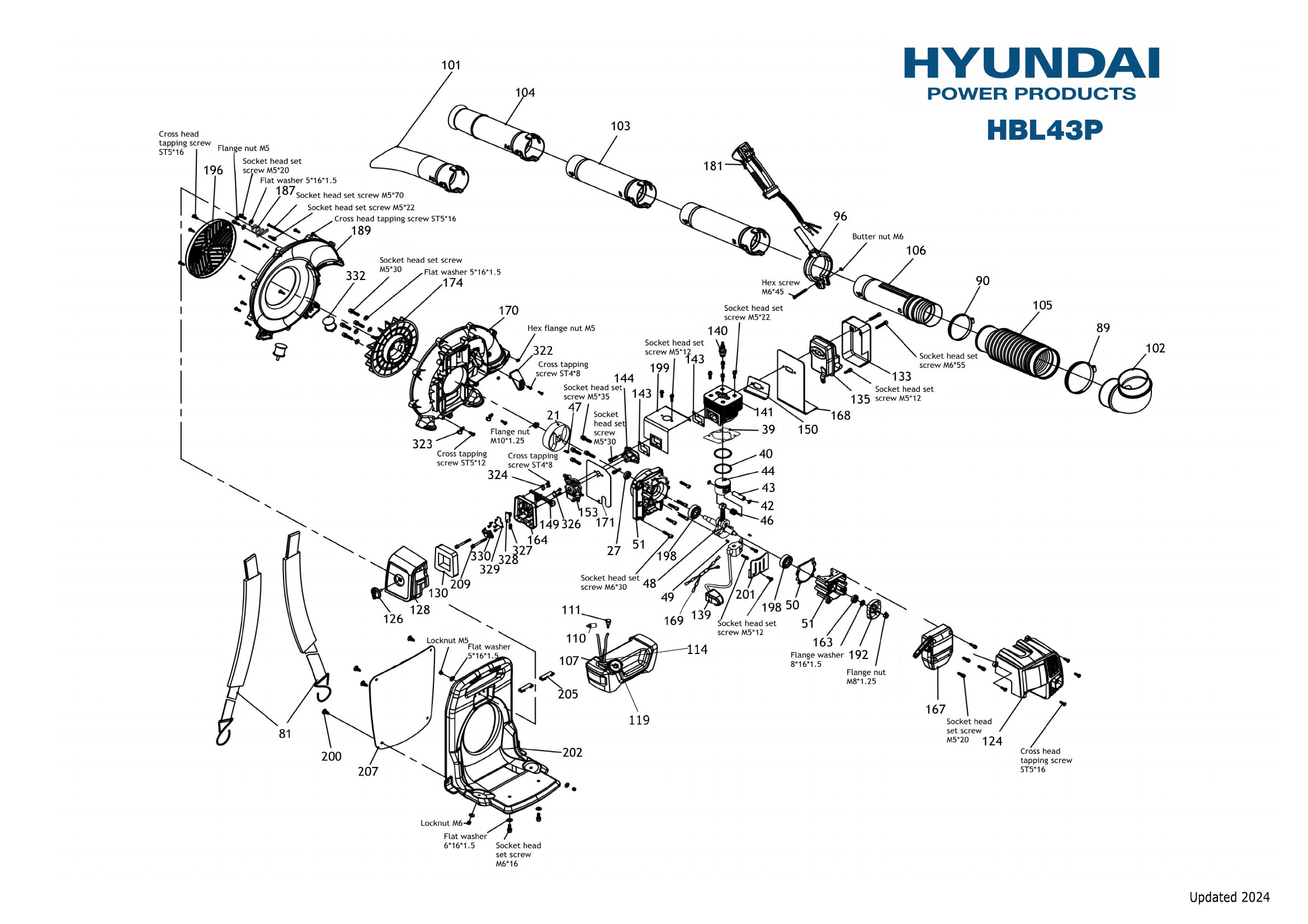

Use this illustrated parts list to identify replacement parts for the Hyundai HBL43P blower. Match the reference number on the diagram to the parts table below, then click the Cutsmart SKU to open the matching product page.
Tip: Click or tap the diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 21 | Flywheel | HY02102 | Hyu-HY02102@online |
| 27 | Oil Seal 15*30*7 | HY02702 | Hyu-HY02702@online |
| 39 | Cylinder Gasket | HY03902 | Hyu-HY03902@online |
| 40 | Piston Ring set | HY04002 | Hyu-HY04002@online |
| 42 | Piston Pin Circlip 10 set | HY04202 | Hyu-HY04202@online |
| 43 | Piston Pin | HY04302 | Hyu-HY04302@online |
| 44 | Piston | HY04402 | Hyu-HY04402@online |
| 46 | Needle bearing | HY04602 | Hyu-HY04602@online |
| 47 | Woodruff Key | HY04702 | Hyu-HY04702@online |
| 48 | Crankshaft | HY04802 | Hyu-HY04802@online |
| 49 | Round Pin | HY04902 | Hyu-HY04902@online |
| 50 | Case Paper Gasket | HY05002 | Hyu-HY05002@online |
| 51 | Crankcase | HY05102 | Hyu-HY05102@online |
| 81 | Shoulder Belt | HY08102 | Hyu-HY08102@online |
| 89 | Clamp Big 80-100 | HY08901 | Hyu-HY08901@online |
| 90 | Clamp Small 60-80 | HY09001 | Hyu-HY09001@online |
| 96 | Switch Seat | HY09601 | Hyu-HY09601@online |
| 101 | Flat mouth pipe | HY10102 | Hyu-HY10102@online |
| 102 | Corner Joint | HY10201 | Hyu-HY10201@online |
| 103 | Extension Blower Pipe | HY10301 | Hyu-HY10301@online |
| 104 | Round mouth pipe | HY10402 | Hyu-HY10402@online |
| 105 | Bellow | HY10501 | Hyu-HY10501@online |
| 106 | Main Blower Pipe | HY10601 | Hyu-HY10601@online |
| 107 | Fuel Tank | HY10702 | Hyu-HY10702@online |
| 110 | Fuel filter | HY11003 | Hyu-HY11003@online |
| 111 | Blancer | HY11102 | Hyu-HY11102@online |
| 114 | Fuel pipe seat | HY11407 | Hyu-HY11407@online |
| 119 | Fuel cap | HY11907 | Hyu-HY11907@online |
| 124 | Housing | HY12402 | Hyu-HY12402@online |
| 126 | Rotary knob | HY12602 | Hyu-HY12602@online |
| 128 | Air Filter Cover | HY12802 | Hyu-HY12802@online |
| 130 | Sponge of Air filter | HY13002 | Hyu-HY13002@online |
| 133 | Muffler Cover | HY13302 | Hyu-HY13302@online |
| 135 | Muffle | HY13502 | Hyu-HY13502@online |
| 139 | Ignition Coil | HY13902 | Hyu-HY13902@online |
| 140 | Spark Plug | L7RTC | Hyu-L7RTC@online |
| 141 | Cylinder | HY14102 | Hyu-HY14102@online |
| 143 | Intake Tube Paper Gasket | HY14302 | Hyu-HY14302@online |
| 144 | Intake Tube | HY14402 | Hyu-HY14402@online |
| 149 | Air Filter pull rod | HY14902 | Hyu-HY14902@online |
| 150 | Muffler Gasket Small | HY15002 | Hyu-HY15002@online |
| 153 | Carburetor | HY15302 | Hyu-HY15302@online |
| 163 | Oil Seal 12x22x7 | HY02701 | Hyu-HY02701@online |
| 164 | Air Filter holder | HY16402 | Hyu-HY16402@online |
| 167 | Starter | HY16702 | Hyu-HY16702@online |
| 168 | Muffler Gasket Big | HY16802 | Hyu-HY16802@online |
| 169 | Off line | HY16903 | Hyu-HY16903@online |
| 170 | Back Wind Cover | HY17002 | Hyu-HY17002@online |
| 171 | Carburetor Gasket | HY17102 | Hyu-HY17102@online |
| 174 | Wind wheel | HY17402 | Hyu-HY17402@online |
| 181 | Switch | HY18101 | Hyu-HY18101@online |
| 187 | Spring Anti-Vibration | HY18702 | Hyu-HY18702@online |
| 189 | Front Wind Cover | HY18902 | Hyu-HY18902@online |
| 192 | Aluminum Plate | HY19202 | Hyu-HY19202@online |
| 196 | Protect cover | HY19602 | Hyu-HY19602@online |
| 198 | Bearing 6202 open | HY19802 | Hyu-HY19802@online |
| 199 | Air Deflector | HY19902 | Hyu-HY19902@online |
| 200 | Buckle | HY20002 | Hyu-HY20002@online |
| 201 | Ignition Cover | HY20102 | Hyu-HY20102@online |
| 202 | Shoulder Brace | HY20202 | Hyu-HY20202@online |
| 205 | Shoulder Belt Buckle | HY20502 | Hyu-HY20502@online |
| 207 | Cushion | HY20702 | Hyu-HY20702@online |
| 209 | Socket head set screw | HY20902 | Hyu-HY20902@online |
| 322 | Air deflector | HY32202 | Hyu-HY32202@online |
| 323 | Cable iron clip | HY32301 | Hyu-HY32301@online |
| 324 | Air Filter press plate small | HY32401 | Hyu-HY32401@online |
| 326 | Air Filter press plate medium | HY32601 | Hyu-HY32601@online |
| 327 | conical spring | HY32702 | Hyu-HY32702@online |
| 328 | Ventilation Switch | HY32802 | Hyu-HY32802@online |
| 329 | Air Filter press plate big | HY32901 | Hyu-HY32901@online |
| 330 | Air Filter iron plate | HY33001 | Hyu-HY33001@online |
| 332 | Rubber damper | HY33202 | Hyu-HY33202@online |
