Hyundai HBL63P Blower Parts Diagram & IPL

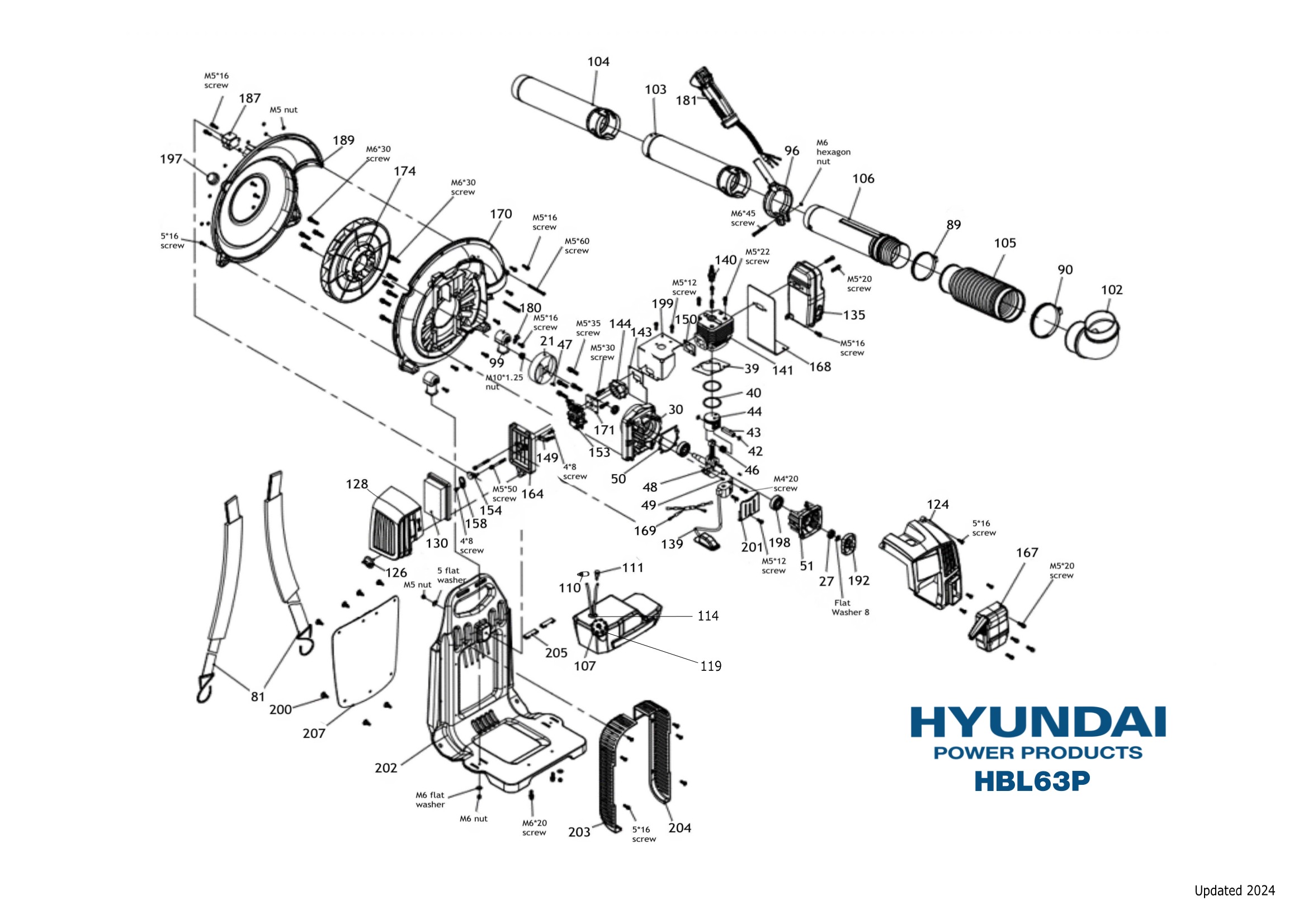

Use this illustrated parts list to identify replacement parts for the Hyundai HBL63P blower. Match the reference number on the diagram to the parts table below, then click the Cutsmart SKU to open the matching product page.
Tip: Click or tap the diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 21 | Fly wheel | HY02103 | Hyu-HY02103@online |
| 27 | Oil seal 15*25*7 | HY02703 | Hyu-HY02703@online |
| 30 | Left case | HY03003 | Hyu-HY03003@online |
| 39 | Cylinder paper pad | HY03903 | Hyu-HY03903@online |
| 40 | Piston ring set | HY04003 | Hyu-HY04003@online |
| 42 | Piston pin spring set | HY04203 | Hyu-HY04203@online |
| 43 | Piston pin | HY04303 | Hyu-HY04303@online |
| 44 | Piston | HY04403 | Hyu-HY04403@online |
| 46 | Needle bearing | HY04603 | Hyu-HY04603@online |
| 47 | Half round key 3*13 | HY04703 | Hyu-HY04703@online |
| 48 | Crankshaft | HY04803 | Hyu-HY04803@online |
| 49 | Round pin 5*10 | HY04903 | Hyu-HY04903@online |
| 50 | Crankcase paper pad | HY05003 | Hyu-HY05003@online |
| 51 | Right case | HY05103 | Hyu-HY05103@online |
| 81 | Straps | HY08101 | Hyu-HY08101@online |
| 89 | Clamp | HY08903 | Hyu-HY08903@online |
| 90 | Clamp | HY09002 | Hyu-HY09002@online |
| 96 | Switch seat | HY09602 | Hyu-HY09602@online |
| 99 | Base damping | HY09901 | Hyu-HY09901@online |
| 102 | Elbow | HY10202 | Hyu-HY10202@online |
| 103 | Long duct | HY10302 | Hyu-HY10302@online |
| 104 | Round nozzle | HY10403 | Hyu-HY10403@online |
| 105 | Flexible pipe | HY10502 | Hyu-HY10502@online |
| 106 | Main duct | HY10602 | Hyu-HY10602@online |
| 107 | Oil bottle | HY10703 | Hyu-HY10703@online |
| 110 | Fuel Filter | HY11003 | Hyu-HY11003@online |
| 111 | Balancer | HY11102 | Hyu-HY11102@online |
| 114 | Fuel pipe | HY11407 | Hyu-HY11407@online |
| 119 | Fuel cap | HY11901 | Hyu-HY11901@online |
| 124 | Housing | HY12403 | Hyu-HY12403@online |
| 126 | Knob | HY12602 | Hyu-HY12602@online |
| 128 | Air filter cover | HY12803 | Hyu-HY12803@online |
| 130 | Air filter | HY13003 | Hyu-HY13003@online |
| 135 | Muffler | HY13503 | Hyu-HY13503@online |
| 139 | Ignition coil | HY13903 | Hyu-HY13903@online |
| 140 | Spark plug | L7T | Hyu-L7T@online |
| 141 | Cylinder | HY14103 | Hyu-HY14103@online |
| 143 | Big paper pad (of inlet pipe) | HY14303 | Hyu-HY14303@online |
| 144 | Inlet pipe | HY14403 | Hyu-HY14403@online |
| 149 | Choke lever | HY14903 | Hyu-HY14903@online |
| 150 | Paper pad (of inlet pipe) | HY15003 | Hyu-HY15003@online |
| 153 | Carburetor | HY15303 | Hyu-HY15303@online |
| 154 | Choke cover | HY15403 | Hyu-HY15403@online |
| 158 | Choke valve | HY15803 | Hyu-HY15803@online |
| 164 | Air filter holder | HY16403 | Hyu-HY16403@online |
| 167 | Starter | HY16703 | Hyu-HY16703@online |
| 168 | Muffler paper pad | HY16803 | Hyu-HY16803@online |
| 169 | Off line | HY16903 | Hyu-HY16903@online |
| 170 | Back wind cover | HY17003 | Hyu-HY17003@online |
| 171 | Carburetor paper pad | HY17103 | Hyu-HY17103@online |
| 174 | Wind wheel | HY17403 | Hyu-HY17403@online |
| 180 | Wire clip | HY18001 | Hyu-HY18001@online |
| 181 | Switch | HY18102 | Hyu-HY18102@online |
| 187 | Spring Anti-Vibration | HY18702 | Hyu-HY18702@online |
| 189 | Front wind cover | HY18903 | Hyu-HY18903@online |
| 192 | Driving plate | HY19202 | Hyu-HY19202@online |
| 197 | End cap | HY19701 | Hyu-HY19701@online |
| 198 | Bearing 6302 | HY19803 | Hyu-HY19803@online |
| 199 | Air deflector | HY19903 | Hyu-HY19903@online |
| 200 | Plastic clip | HY20001 | Hyu-HY20001@online |
| 201 | Ignition coil cover | HY20103 | Hyu-HY20103@online |
| 202 | Knapsack | HY20203 | Hyu-HY20203@online |
| 203 | Left protect net | HY20301 | Hyu-HY20301@online |
| 204 | Right protect net | HY20401 | Hyu-HY20401@online |
| 205 | Straps buckle | HY20502 | Hyu-HY20502@online |
| 207 | Knapsack cushion | HY20701 | Hyu-HY20701@online |
This page is provided to help identify parts. Availability, pricing and product URLs should be confirmed on Cutsmart before ordering.
