Hyundai HBC43H / HBC43L / HBC52P Brushcutter Parts Diagram & IPL

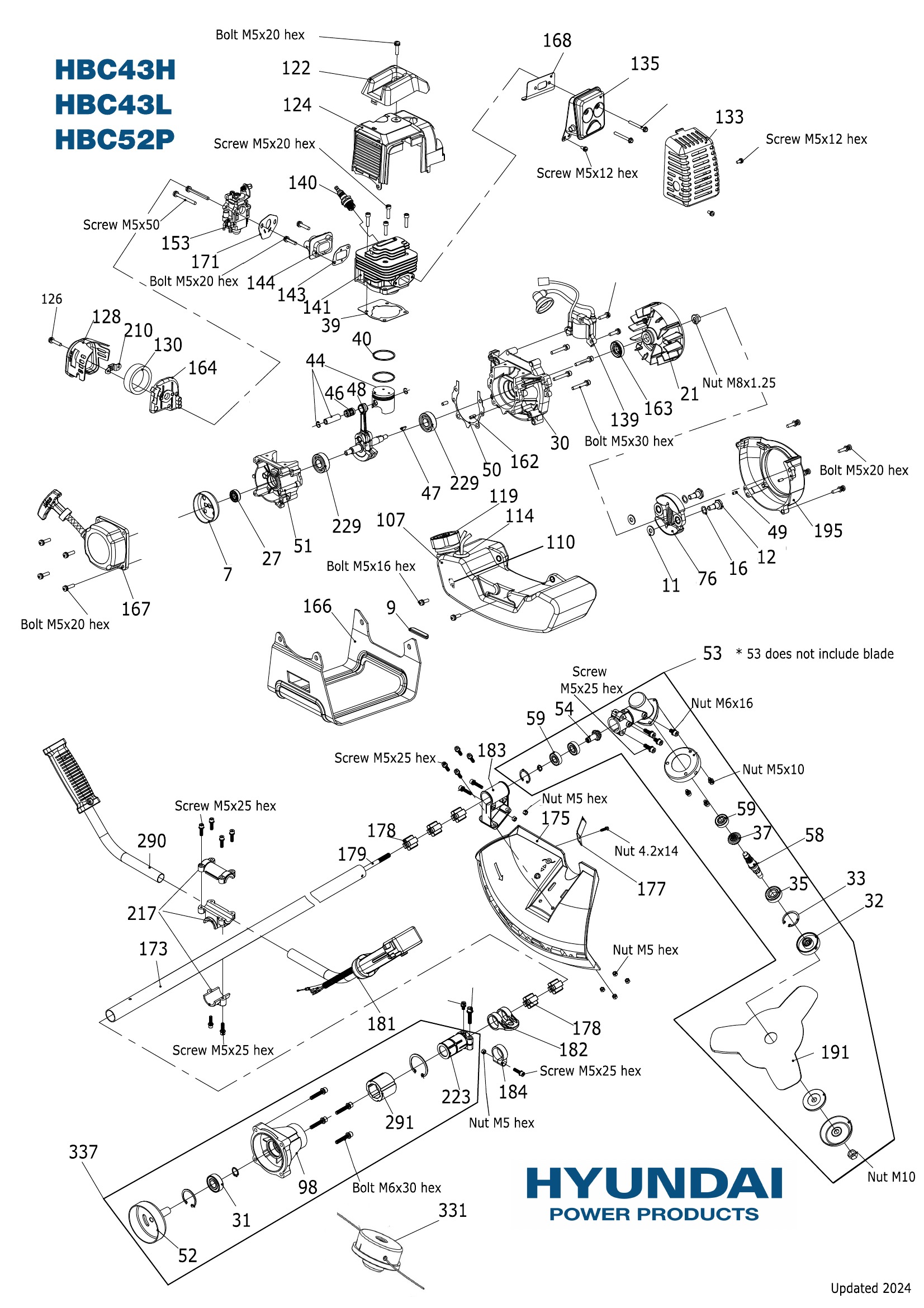

Use this illustrated parts list to identify replacement parts for the Hyundai HBC43H, HBC43L and HBC52P brushcutters. Match the reference number on the diagram to the parts table below, then click the Cutsmart SKU to open the matching product page.
Tip: Some references have different part numbers depending on the model. Check the Fits column before ordering. Click or tap the diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, model, or Cutsmart SKU.
| Ref | Description | Fits | Part Number | Cutsmart SKU |
|---|---|---|---|---|
| 7 | Center plate | HBC43H, HBC43L, HBC52P | HY00703 | HY00703-Online |
| 9 | Tank plate | HBC43H | HY00902 | HY00902-Online |
| 9 | Tank plate | HBC43L, HBC52P | HY00901 | HY00901-Online |
| 11 | Gasket 8x16x1.5 | HBC43H, HBC43L, HBC52P | HY01103 | HY01103-Online |
| 12 | Stepped screw M8x24 | HBC43H, HBC43L, HBC52P | HY01202 | HY01202-Online |
| 16 | Wave washer | HBC43H, HBC43L, HBC52P | HY01603 | HY01603-Online |
| 21 | Fly wheel | HBC43H | HY02105 | HY02105-Online |
| 21 | Fly wheel | HBC43L, HBC52P | HY02106 | HY02106-Online |
| 27 | Oil seal 15x22x7 | HBC43H, HBC43L, HBC52P | HY02703 | HY02703-Online |
| 30 | Left crank case | HBC43H | HY03001 | HY03001-Online |
| 30 | Left crank case | HBC43L, HBC52P | HY03002 | HY03002-Online |
| 31 | Bearing closed 6202 | HBC43H, HBC43L, HBC52P | HY03102 | HY03102-Online |
| 32 | Plate | HBC43H, HBC43L, HBC52P | HY03201 | HY03201-Online |
| 33 | Catch spring | HBC43H, HBC43L, HBC52P | HY03301 | HY03301-Online |
| 35 | Bearing 6002 | HBC43H, HBC43L, HBC52P | HY03501 | HY03501-Online |
| 37 | Sube bevel pinion | HBC43H, HBC43L, HBC52P | HY03701 | HY03701-Online |
| 39 | Cylinder gasket | HBC43H, HBC43L, HBC52P | HY03902 | HY03902-Online |
| 40 | Piston ring | HBC43H | HY04004 | HY04004-Online |
| 40 | Piston ring | HBC43L | HY04008 | HY04008-Online |
| 40 | Piston ring | HBC52P | HY04007 | HY04007-Online |
| 44 | Piston, pin and clip | HBC43H | HY04405 | HY04405-Online |
| 44 | Piston, pin and clip | HBC43L | HY04408 | HY04408-Online |
| 44 | Piston, pin and clip | HBC52P | HY04410 | HY04410-Online |
| 46 | Needle bearing | HBC43H | HY04606 | HY04606-Online |
| 46 | Needle bearing | HBC43L | HY04605 | HY04605-Online |
| 46 | Needle bearing | HBC52P | HY04604 | HY04604-Online |
| 47 | Semi key | HBC43H, HBC43L, HBC52P | HY04704 | HY04704-Online |
| 48 | Crank shaft | HBC43H | HY04808 | HY04808-Online |
| 48 | Crank shaft | HBC43L | HY04807 | HY04807-Online |
| 48 | Crank shaft | HBC52P | HY04805 | HY04805-Online |
| 49 | Locating pin 5x10 | HBC43H, HBC43L, HBC52P | HY04904 | HY04904-Online |
| 50 | Crank case gasket | HBC43H, HBC43L, HBC52P | HY05002 | HY05002-Online |
| 51 | Crank case | HBC43H | HY05106 | HY05106-Online |
| 51 | Crank case | HBC43L, HBC52P | HY05107 | HY05107-Online |
| 52 | Drum | HBC43H, HBC43L, HBC52P | HY05201 | HY05201-Online |
| 53 | Gear box no blade | HBC43H, HBC43L, HBC52P | HY05301 | HY05301-Online |
| 54 | Bevel pinion | HBC43H, HBC43L, HBC52P | HY05401 | HY05401-Online |
| 58 | Spline shaft | HBC43H, HBC43L, HBC52P | HY05801 | HY05801-Online |
| 59 | Bearing 6000 closed | HBC43H, HBC43L, HBC52P | HY05901 | HY05901-Online |
| 76 | Shoe block | HBC43H, HBC43L, HBC52P | HY07604 | HY07604-Online |
| 98 | Connecting base | HBC43H, HBC43L, HBC52P | HY09801 | HY09801-Online |
| 107 | Fuel tank | HBC43H | HY10706 | HY10706-Online |
| 107 | Fuel tank | HBC43L, HBC52P | HY10704 | HY10704-Online |
| 110 | Fuel filter | HBC43H, HBC43L, HBC52P | HY11006 | HY11006-Online |
| 114 | Fuel pipe | HBC43H, HBC43L, HBC52P | HY11403 | HY11403-Online |
| 119 | Fuel cap | HBC43H, HBC43L, HBC52P | HY11901 | HY11901-Online |
| 122 | Cover | HBC43L, HBC52P | HY12203 | HY12203-Online |
| 124 | Plastic cover, cylinder | HBC43H | HY12405 | HY12405-Online |
| 124 | Plastic cover, cylinder | HBC43L, HBC52P | HY12406 | HY12406-Online |
| 126 | Air filter knob | HBC43H, HBC43L, HBC52P | HY12602 | HY12602-Online |
| 128 | Air filter cover | HBC43H | HY12807 | HY12807-Online |
| 128 | Air filter cover | HBC43L, HBC52P | HY12808 | HY12808-Online |
| 130 | Sponge | HBC43H, HBC43L, HBC52P | HY13001 | HY13001-Online |
| 133 | Muffler cover | HBC43H | HY13301 | HY13301-Online |
| 133 | Muffler cover | HBC43L, HBC52P | HY13302 | HY13302-Online |
| 135 | Muffler | HBC43H | HY13504 | HY13504-Online |
| 135 | Muffler cover | HBC43L, HBC52P | HY13505 | HY13505-Online |
| 139 | Ignition coil | HBC43H | HY13905 | HY13905-Online |
| 139 | Ignition coil | HBC43L, HBC52P | HY13906 | HY13906-Online |
| 140 | Spark plug | HBC43H | BM6A | O-BM6A-Online |
| 140 | Spark plug | HBC43L, HBC52P | BPMR7A | O-BPMR7A-Online |
| 141 | Cylinder | HBC43H | HY14108 | HY14108-Online |
| 141 | Cylinder | HBC43L | HY14109 | HY14109-Online |
| 141 | Cylinder | HBC52P | HY14106 | HY14106-Online |
| 143 | Intake muffler gasket | HBC43H, HBC43L, HBC52P | HY14302 | HY14302-Online |
| 144 | Intake muffler | HBC43H, HBC43L, HBC52P | HY14402 | HY14402-Online |
| 153 | Carburetor | HBC43H | HY15308 | HY15308-Online |
| 153 | Carburetor | HBC43L, HBC52P | HY15307 | HY15307-Online |
| 162 | Dowel hole 4x10 | HBC43H, HBC43L, HBC52P | HY16203 | HY16203-Online |
| 163 | Oil seal 15x30x7 | HBC43H, HBC43L, HBC52P | HY16301 | HY16301-Online |
| 164 | Air filter seat | HBC43H, HBC43L, HBC52P | HY16405 | HY16405-Online |
| 166 | Tank protector | HBC43H | HY16602 | HY16602-Online |
| 166 | Tank protector | HBC43L, HBC52P | HY16601 | HY16601-Online |
| 167 | Pull start | HBC43H | HY16705 | HY16705-Online |
| 167 | Pull start | HBC43L, HBC52P | HY16706 | HY16706-Online |
| 168 | Muffler gasket | HBC43H, HBC43L, HBC52P | HY16804 | HY16804-Online |
| 171 | Carburetor gasket | HBC43H, HBC43L, HBC52P | HY17104 | HY17104-Online |
| 173 | Tube | HBC43H, HBC43L, HBC52P | HY17301 | HY17301-Online |
| 175 | Grass plate | HBC43H, HBC43L, HBC52P | HY17501 | HY17501-Online |
| 177 | Blade | HBC43H, HBC43L, HBC52P | HY17701 | HY17701-Online |
| 178 | Oil bearing | HBC43H, HBC43L, HBC52P | HY17801 | HY17801-Online |
| 179 | Tube shaft | HBC43H, HBC43L, HBC52P | HY17901 | HY17901-Online |
| 181 | Switch | HBC43H, HBC43L, HBC52P | HY18104 | HY18104-Online |
| 182 | Bing ring | HBC43H, HBC43L, HBC52P | HY18201 | HY18201-Online |
| 183 | Grass plate seat | HBC43H, HBC43L, HBC52P | HY18301 | HY18301-Online |
| 184 | Small ring | HBC43H, HBC43L, HBC52P | HY18401 | HY18401-Online |
| 191 | Blade 1 | HBC43H, HBC43L, HBC52P | HY19101 | HY19101-Online |
| 195 | Fly wheel cover | HBC43H | HY19501 | HY19501-Online |
| 195 | Fly wheel cover | HBC43L, HBC52P | HY19502 | HY19502-Online |
| 210 | Air filter plate | HBC43H, HBC43L, HBC52P | HY21001 | HY21001-Online |
| 217 | Switch seat | HBC43H, HBC43L, HBC52P | HY21701 | HY21701-Online |
| 223 | Connecting rod | HBC43H, HBC43L, HBC52P | HY22301 | HY22301-Online |
| 229 | Bearing 6201 | HBC43H, HBC43L, HBC52P | HY22901 | HY22901-Online |
| 290 | Left switch | HBC43H, HBC43L, HBC52P | HY29001 | HY29001-Online |
| 291 | Connection with rubber | HBC43H, HBC43L, HBC52P | HY29101 | HY29101-Online |
| 331 | Bump head | HBC43H, HBC43L, HBC52P | HY33101 | HY33101-Online |
| 337 | Connecting assy | HBC43H, HBC43L, HBC52P | HY33701 | HY33701-Online |
