Hyundai HBC50L Brushcutter IPL / Parts List

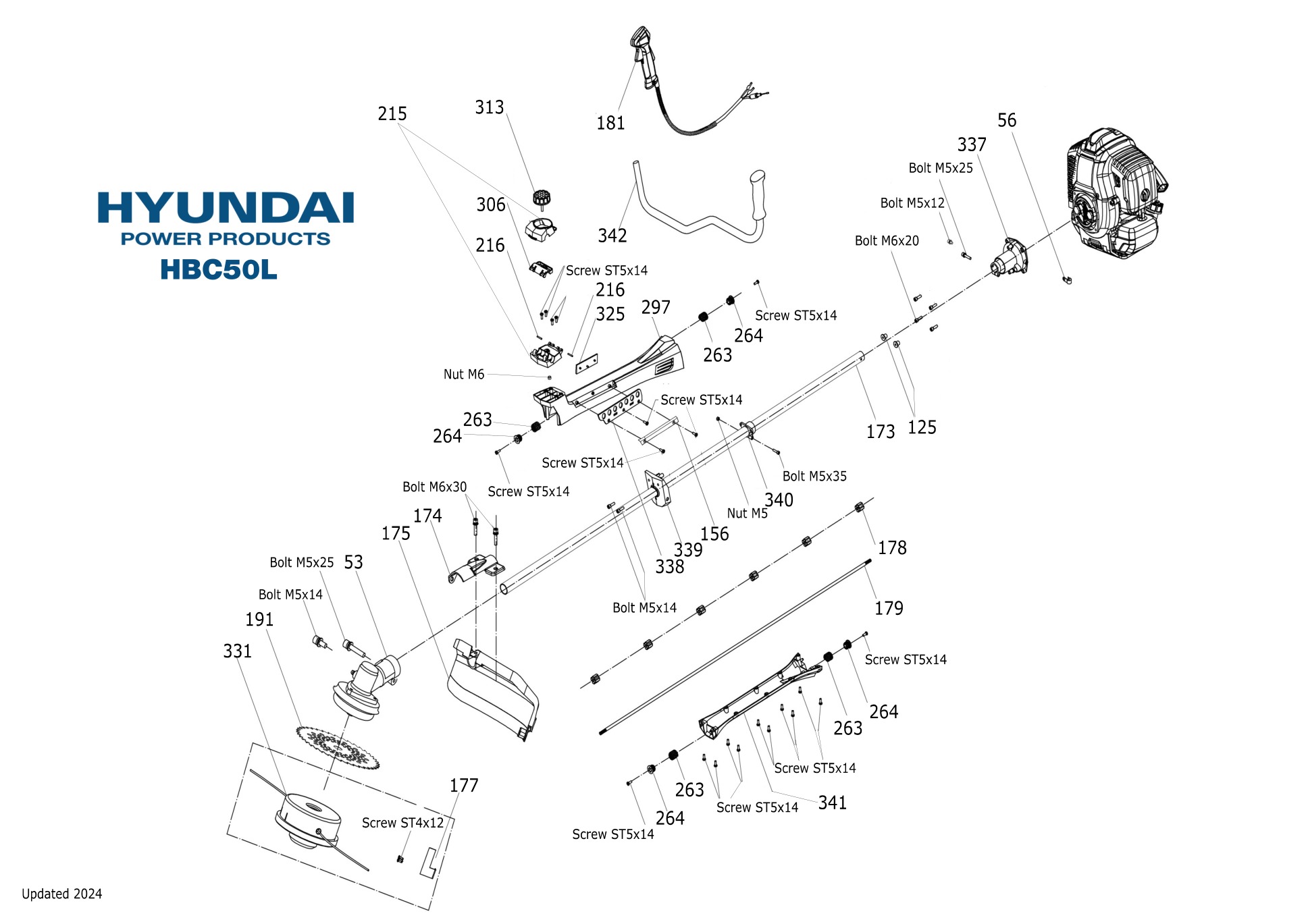

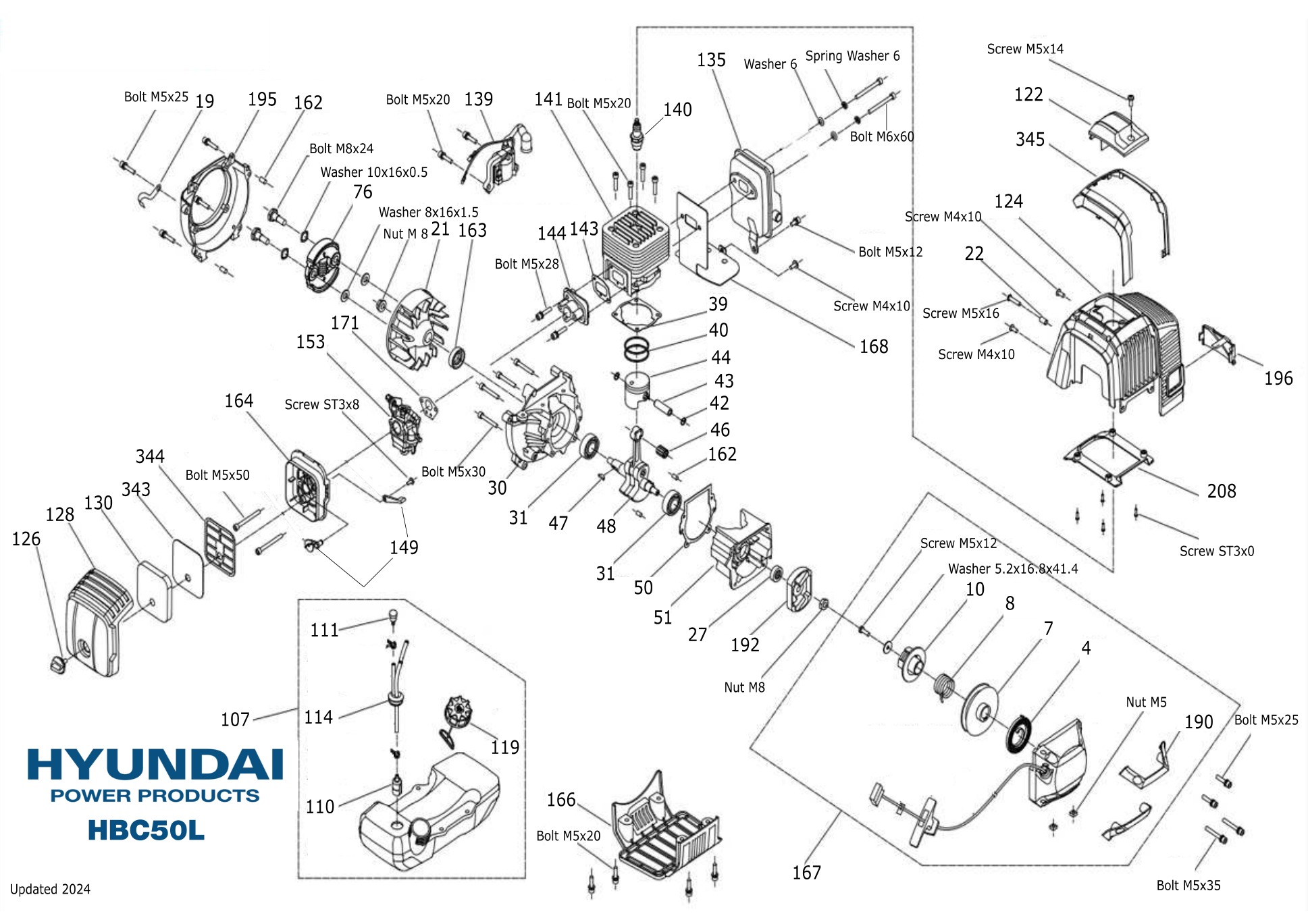

Illustrated parts list for the Hyundai HBC50L brushcutter. Use the exploded diagrams with the reference numbers in the table below.
Click any Cutsmart SKU to open the matching Cutsmart product through the SKU resolver.
Hyundai
HBC50L
Brushcutter parts
IPL available
Tip: On mobile, tap a diagram to enlarge it. Use the back button or the × button to close the enlarged image.
Hyundai HBC50L Parts Table
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 4 | Spring | HY00403 | Hyu-HY00403@online |
| 7 | Rope Wheel | HY00705 | Hyu-HY00705@online |
| 8 | Torsion Spring | HY00803 | Hyu-HY00803@online |
| 10 | Rachet | HY01003 | Hyu-HY01003@online |
| 19 | Clip | HY01901 | Hyu-HY01901@online |
| 21 | Flywheel | HY02109 | Hyu-HY02109@online |
| 22 | Bush | HY02201 | Hyu-HY02201@online |
| 27 | Oil Seal 12x22x7 | HY02704 | Hyu-HY02704@online |
| 30 | Left Crankcase | HY03006 | Hyu-HY03006@online |
| 31 | Bearing 6202 | HY19802 | Hyu-HY19802@online |
| 39 | Gasket，Cylinder | HY03906 | Hyu-HY03906@online |
| 40 | Piston Ring | HY04011 | Hyu-HY04011@online |
| 42 | Snap Ring, Piston Pin | HY04204 | Hyu-HY04204@online |
| 43 | Piston Pin | HY04304 | Hyu-HY04304@online |
| 44 | Piston | HY04411 | Hyu-HY04411@online |
| 46 | Bearing K101416 | HY04610 | Hyu-HY04610@online |
| 47 | Key 3x5x13 | HY04705 | Hyu-HY04705@online |
| 48 | Crankshaft | HY04811 | Hyu-HY04811@online |
| 50 | Gasket, crankcase | HY05007 | Hyu-HY05007@online |
| 51 | Right Crankcase | HY05108 | Hyu-HY05108@online |
| 53 | Gearcase Assy | HY05302 | Hyu-HY05302@online |
| 56 | Clip | HY05601 | Hyu-HY05601@online |
| 76 | Clutch | HY07605 | Hyu-HY07605@online |
| 107 | Fuel Tank Assy | HY10709 | Hyu-HY10709@online |
| 110 | Fuel Filter | HY11003 | Hyu-HY11003@online |
| 111 | Balancer | HY11102 | Hyu-HY11102@online |
| 114 | Fuel Pipe Seat | HY11404 | Hyu-HY11404@online |
| 119 | Fuel tank cap | HY11905 | Hyu-HY11905@online |
| 122 | Top Cover | HY12204 | Hyu-HY12204@online |
| 124 | Cylinder cover | HY12407 | Hyu-HY12407@online |
| 125 | Rubber | HY12501 | Hyu-HY12501@online |
| 126 | Locknut, air-filter | HY12607 | Hyu-HY12607@online |
| 128 | Cover, air-filter | HY12809 | Hyu-HY12809@online |
| 130 | Sponge, air-filter | HY13008 | Hyu-HY13008@online |
| 135 | Muffler | HY13509 | Hyu-HY13509@online |
| 139 | Ignition Coil | HY13909 | Hyu-HY13909@online |
| 140 | Spark Plug | L8RTF | Hyu-L8RTF@online |
| 141 | Cylinder | HY14111 | Hyu-HY14111@online |
| 143 | Gasket, Inlet Pipe | HY14306 | Hyu-HY14306@online |
| 144 | Inlet Pipe | HY14407 | Hyu-HY14407@online |
| 149 | Choke Plate & lever | HY14906 | Hyu-HY14906@online |
| 153 | Carburetor | HY15309 | Hyu-HY15309@online |
| 156 | Plate | HY15601 | Hyu-HY15601@online |
| 162 | Pin φ5x10 | HY16204 | Hyu-HY16204@online |
| 163 | Oil Seal 15x30x7 | HY16303 | Hyu-HY16303@online |
| 164 | Supporter, air-filter | HY16406 | Hyu-HY16406@online |
| 166 | Bracket of Tank | HY16603 | Hyu-HY16603@online |
| 167 | Starter Assy | HY16707 | Hyu-HY16707@online |
| 168 | Gasket， Muffler | HY16805 | Hyu-HY16805@online |
| 171 | Gasket, Carburetor | HY17106 | Hyu-HY17106@online |
| 173 | Pole 1500×28×2.0 | HY17303 | Hyu-HY17303@online |
| 174 | Plate, Grass Guard | HY17405 | Hyu-HY17405@online |
| 175 | Grass Guard | HY17502 | Hyu-HY17502@online |
| 177 | Small Blade | HY17702 | Hyu-HY17702@online |
| 178 | Oil Sleeve | HY17802 | Hyu-HY17802@online |
| 179 | Shaft 1553×8×9T | HY17902 | Hyu-HY17902@online |
| 181 | Throttle Handle | HY18105 | Hyu-HY18105@online |
| 190 | Starter cover decoration | HY19001 | Hyu-HY19001@online |
| 191 | 40T Alloy Blade | HY19102 | Hyu-HY19102@online |
| 192 | Pulley | HY19203 | Hyu-HY19203@online |
| 195 | Side Cover | HY19503 | Hyu-HY19503@online |
| 196 | Logo Plate | HY19604 | Hyu-HY19604@online |
| 208 | Guiding Plate | HY20801 | Hyu-HY20801@online |
| 215 | Bracket Cover | HY21501 | Hyu-HY21501@online |
| 216 | Pin 3×20 | HY21602 | Hyu-HY21602@online |
| 263 | Anti-vibration Spring | HY26301 | Hyu-HY26301@online |
| 264 | Rubber Seat | HY26401 | Hyu-HY26401@online |
| 297 | Upper Plate | HY29701 | Hyu-HY29701@online |
| 306 | Bracket-up | HY30601 | Hyu-HY30601@online |
| 313 | Locknut | HY31301 | Hyu-HY31301@online |
| 325 | Logo Plate | HY32501 | Hyu-HY32501@online |
| 331 | Trimmer Head | HY33102 | Hyu-HY33102@online |
| 337 | Housing Assy | HY33702 | Hyu-HY33702@online |
| 338 | Hanger Plate | HY33801 | Hyu-HY33801@online |
| 339 | Locker | HY33901 | Hyu-HY33901@online |
| 340 | Holder ∅28 | HY34001 | Hyu-HY34001@online |
| 341 | Down Cover | HY34101 | Hyu-HY34101@online |
| 342 | Left Handle | HY34201 | Hyu-HY34201@online |
| 343 | Wool Felt | HY34301 | Hyu-HY34301@online |
| 344 | Blowout plate | HY34401 | Hyu-HY34401@online |
| 345 | Cylinder cover decoration | HY34501 | Hyu-HY34501@online |
