Hyundai HHT26P Hedge Trimmer Parts Diagram & IPL

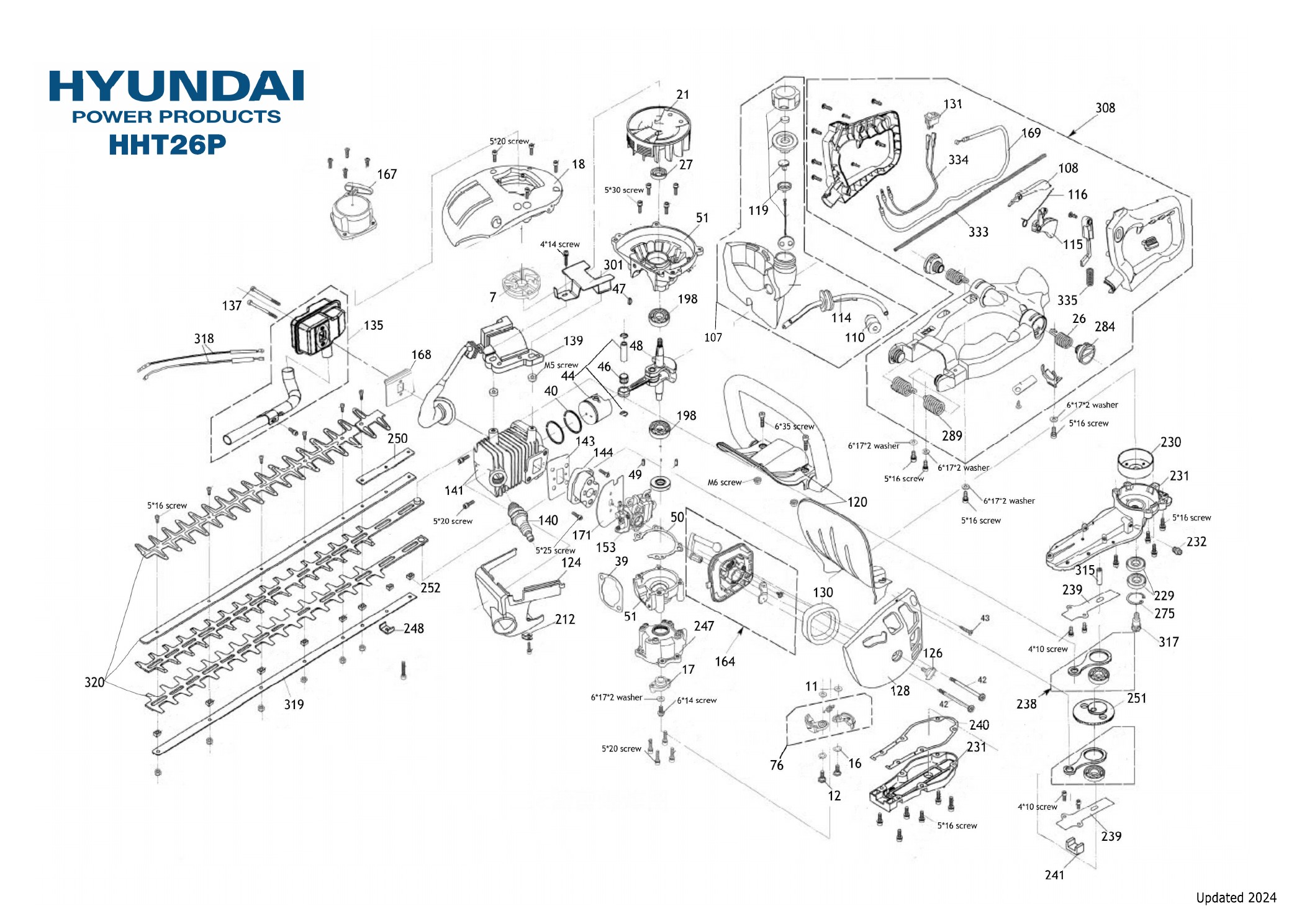

Use this illustrated parts list to identify replacement parts for the Hyundai HHT26P hedge trimmer. Match the reference number on the diagram to the parts table below, then click the Cutsmart SKU to open the matching product page.
Tip: Click or tap the diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 7 | start plate | HY00704 | HY00704-Online |
| 11 | clutch gasket | HY01102 | HY01102-Online |
| 12 | cltuch screw | HY01201 | HY01201-Online |
| 16 | gasket | HY01601 | HY01601-Online |
| 17 | spacer | HY01701 | HY01701-Online |
| 18 | side cover | HY01801 | HY01801-Online |
| 21 | flywheel | HY02108 | HY02108-Online |
| 26 | spring | HY02602 | HY02602-Online |
| 27 | 12*22*7 oil seal | HY02701 | HY02701-Online |
| 39 | cylinder gasket | HY03901 | HY03901-Online |
| 40 | piston ring | HY04010 | HY04010-Online |
| 44 | piston | HY04407 | HY04407-Online |
| 46 | needle bearing | HY04608 | HY04608-Online |
| 47 | woodruff key | HY04701 | HY04701-Online |
| 48 | crankshaft | HY04806 | HY04806-Online |
| 49 | pin | HY04906 | HY04906-Online |
| 50 | crankcase gasket | HY05004 | HY05004-Online |
| 51 | crankcase | HY05104 | HY05104-Online |
| 76 | clutch | HY07603 | HY07603-Online |
| 107 | tank | HY10705 | HY10705-Online |
| 108 | trigger control arm | HY10802 | HY10802-Online |
| 110 | fuel filter | HY11001 | HY11001-Online |
| 114 | oil pipe | HY11403 | HY11403-Online |
| 115 | throttle trigger | HY11503 | HY11503-Online |
| 116 | spring | HY11603 | HY11603-Online |
| 119 | tank cap | HY11904 | HY11904-Online |
| 120 | handle bar cover | HY12003 | HY12003-Online |
| 124 | plastic cover | HY12404 | HY12404-Online |
| 126 | knob | HY12605 | HY12605-Online |
| 128 | air filter cover | HY12806 | HY12806-Online |
| 130 | air filter sponge | HY13006 | HY13006-Online |
| 131 | switch | HY13103 | HY13103-Online |
| 135 | muffler | HY13506 | HY13506-Online |
| 137 | screw | HY13703 | HY13703-Online |
| 139 | ignition | HY13908 | HY13908-Online |
| 140 | spark plug | L8RTF | L8RTF-Online |
| 141 | cylinder | HY14104 | HY14104-Online |
| 143 | intake gasket | HY14301 | HY14301-Online |
| 144 | intake tuve | HY14404 | HY14404-Online |
| 153 | carb | HY15305 | HY15305-Online |
| 164 | air fitler seat | HY16404 | HY16404-Online |
| 167 | starter | HY16704 | HY16704-Online |
| 168 | muffler gasket | HY16804 | HY16804-Online |
| 169 | cable | HY16902 | HY16902-Online |
| 171 | carb gasket | HY17105 | HY17105-Online |
| 198 | 6001 bearing open | HY19801 | HY19801-Online |
| 212 | Cushion | HY21201 | HY21201-Online |
| 229 | bearing 6001 Closed | HY22901 | HY22901-Online |
| 230 | driver | HY23001 | HY23001-Online |
| 231 | gearbox casing | HY23101 | HY23101-Online |
| 232 | oil glibe | HY23201 | HY23201-Online |
| 238 | wheel shaft | HY23801 | HY23801-Online |
| 239 | anit attrition gasket | HY23901 | HY23901-Online |
| 240 | gearbox gasket | HY24001 | HY24001-Online |
| 241 | wool gasket | HY24101 | HY24101-Online |
| 247 | casing | HY24701 | HY24701-Online |
| 248 | bracket | HY24801 | HY24801-Online |
| 250 | layer aluminium | HY25001 | HY25001-Online |
| 251 | big gear | HY25101 | HY25101-Online |
| 252 | wear rail | HY25201 | HY25201-Online |
| 275 | calliper | HY27501 | HY27501-Online |
| 284 | damper | HY28402 | HY28402-Online |
| 289 | spring | HY28901 | HY28901-Online |
| 301 | bracket | HY30104 | HY30104-Online |
| 308 | handle | HY30801 | HY30801-Online |
| 315 | pin | HY31501 | HY31501-Online |
| 317 | gear | HY31701 | HY31701-Online |
| 318 | cable | HY31801 | HY31801-Online |
| 319 | down layer | HY31901 | HY31901-Online |
| 320 | blade plate | HY32001 | HY32001-Online |
| 333 | Convulated tubing | HY33301 | HY33301-Online |
| 334 | cable | HY33401 | HY33401-Online |
| 335 | spring | HY33501 | HY33501-Online |
