Hyundai HPW200 Pressure Washer IPL / Parts List
Illustrated parts list for the Hyundai HPW200 pressure washer. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

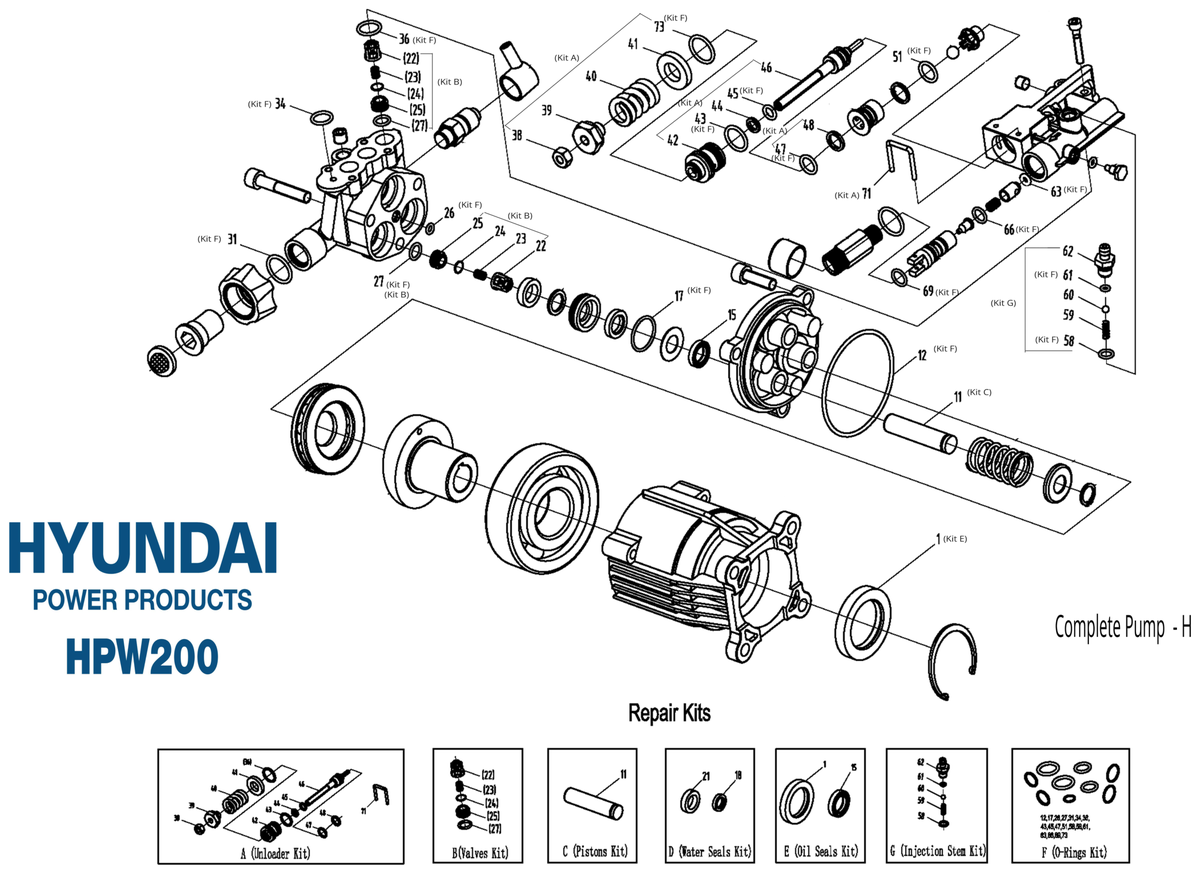

Repair Kits and Pump
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| A | Unloader Kit | HPRepair Kit A | Hyu-HP-REPAIRKIT-A@online |
| B | Valve Kit | HPRepair Kit B | Hyu-HP-REPAIRKIT-B@online |
| C | Piston Kit | HPRepair Kit C | Hyu-HP-REPAIRKIT-C@online |
| D | Water Seal Kit | HPRepair Kit D | Hyu-HP-REPAIRKIT-D@online |
| E | Oil Seal Kit | HPRepair Kit E | Hyu-HP-REPAIRKIT-E@online |
| G | Injector Stem Kit | HPRepair Kit F | Hyu-HP-REPAIRKIT-F@online |
| F | O-Ring Kit | HPRepair Kit G | Hyu-HP-REPAIRKIT-G@online |
| H | Pump | HP85.170.012-M22M | Hyu-HP85.170.012@online |
Gun, Lance, Hose and Nozzles
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Gun | HPAC7003 | Hyu-HPAC7003@online |
| 2 | Lance | HP20.202.039 | Hyu-HP20.202.039@online |
| 3 | Hose | HP85.225.229 | Hyu-HP85.225.229@online |
| 4 | Nozzle Q/C 0 DEG - 030 | HP85.201.030 | Hyu-HP85.201.030@online |
| 5 | Nozzle Q/C 15 DEG - 030 | HP85.216.030 | Hyu-HP85.216.030@online |
| 6 | Nozzle Q/C 40 DEG - 030 | HP85.241.030 | Hyu-HP85.241.030@online |
| 7 | Black Plastic Soap Nozzle | HP85.266.401 | Hyu-HP85.266.401@online |
| 8 | Screw Type 1/4" Female Fitting | HP85.300.126J | Hyu-HP85.300.126J@online |
| 9 | Coupling 1/4" QD Female | HP85.300.102J | Hyu-HP85.300.102J@online |

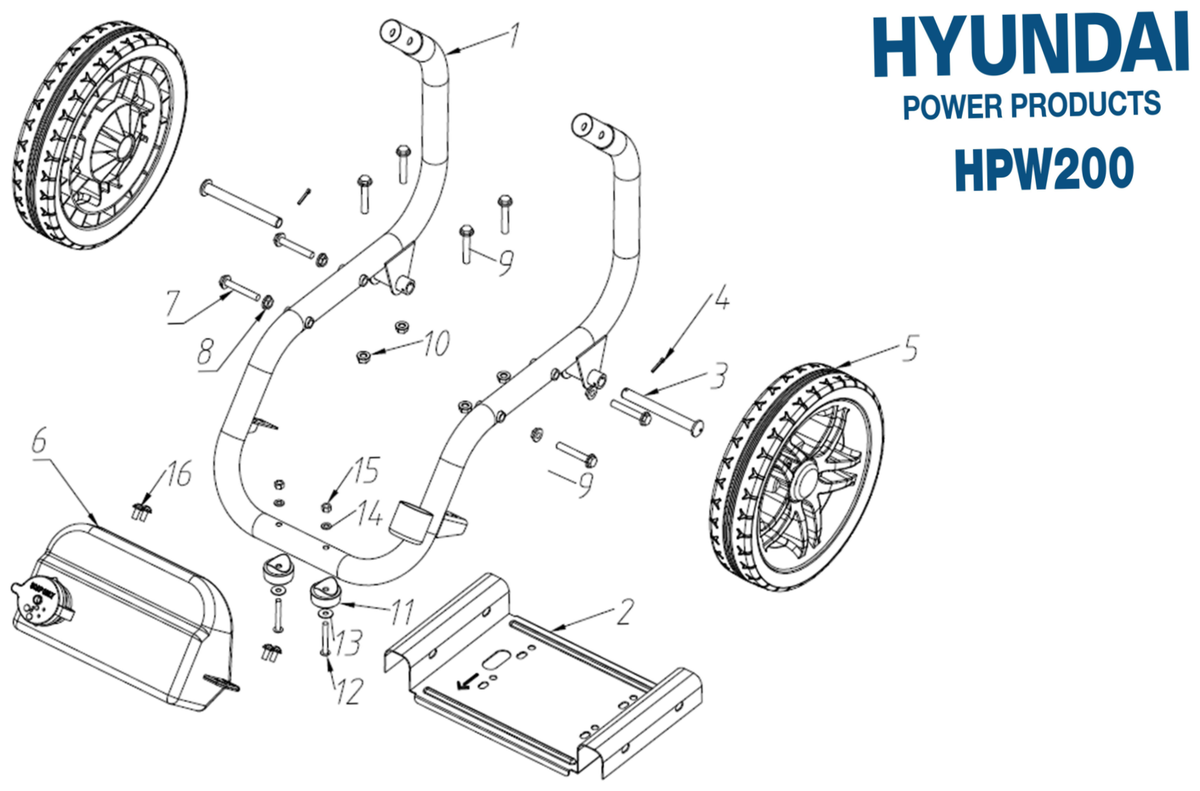

Frame Base Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Welded Frame Base | HP85.600.122HEA-01 | Hyu-HP85.600.122HEA-01@online |
| 2 | Frame Base Plate | HP85.600.122HEA-.01.2 | Hyu-HP85.600.122HEA-01.2@online |
| 3 | Frame Axle | HP85.600.122HE-09 | Hyu-HP85.600.122HE-09@online |
| 4 | Frame Pin | HP85.600.122HE-10 | Hyu-HP85.600.122HE-10@online |
| 5 | Frame Tyre | HP85.600.055 | Hyu-HP85.600.055@online |
| 6 | Hexagonal Flange M8x50 | HP85.600.122HE-11 | Hyu-HP85.600.122HE-11@online |
| 7 | Hexagonal Flange Nut | HP85.600.122HE-12 | Hyu-HP85.600.122HE-12@online |
| 9 | Hexagonal Flange M8x40 | HP85.600.134-11 | Hyu-HP85.600.134-11@online |
| 10 | Hexagonal Flange Nut | HP85.600.134-12 | Hyu-HP85.600.134-12@online |
| 11 | Foot Pad | HP85.600.122HE-15 | Hyu-HP85.600.122HE-15@online |
| 12 | Cross Pan Head Screw M6x45 | HP85.600.147-03.02 | Hyu-HP85.600.147-03.02@online |
| 13 | Extension Gasket, M6 | HP85.600.134-08 | Hyu-HP85.600.134-08@online |
| 14 | Gasket, M6 | HP85.600.147-03.3 | Hyu-HP85.600.147-03.3@online |
| 15 | M6 Self-locking Nut | HP09.006-002 | Hyu-HP09.006-002@online |
| 16 | Cross Pan Head Screw M6x16 | HP85.600-147-03.3 | Hyu-HP85.600-147-03.3@online |

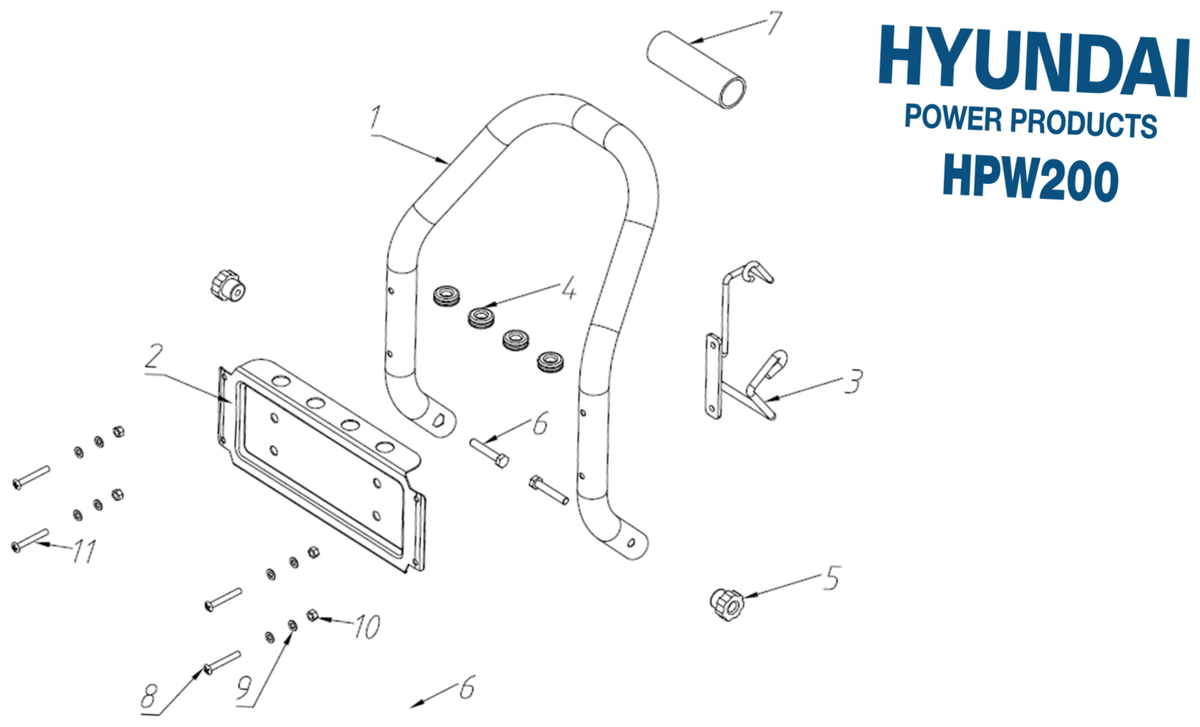

Handle Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Handle Tubing | HP85.600.122HEA-02 | Hyu-HP85.600.122HEA-02@online |
| 2 | Decal Plate | HP85.600.122HEA-02.2 | Hyu-HP85.600.122HEA-02.2@online |
| 3 | Gun Hook Assembly | HP85.600.122HEW-03 | Hyu-HP85.600.122HEW-03@online |
| 4 | Handle rubber grip 32mm | HPDP9134 | Hyu-HPDP9134@online |
| 5 | Plastic Knuckle Nut 60mm | HP85.600.134-10 | Hyu-HP85.600.134-10@online |
| 6 | Outer Hexagon Nut M8x45 | HP85.600.134-09 | Hyu-HP85.600.134-09@online |
| 7 | Handle rubber grip 32mm tubing | HP85.600.134-02.2 | Hyu-HP85.600.134-02.2@online |
| 8 | Cross Pan Head Screw M6x45 | HP85.600.147-03-2 | Hyu-HP85.600.147-03-2@online |
| 9 | Gasket, M6 | HP85.600.147-03.7 | Hyu-HP85.600.147-03.7@online |
| 10 | M6 Self-locking Nut | HP85.600.147-03.7 | Hyu-HP85.600.147-03.7@online |
| 11 | Cross Pan Head Screw M6x40 | HPBZ0210 | Hyu-HPBZ0210@online |
Crankcase Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E01-1 | Crankcase Subassembly | 11310-Z531220-00A9 | Hyu-11310-Z531220-00A9@online |
| E01-3 | Gear Assy, Governor | 16400-Z010110-0000 | Hyu-16400-Z010110-0000@online |
| E01-4 | Arm, Governor | 16061-Z010110-0000 | Hyu-16061-Z010110-0000@online |
| E01-5 | Bolt, Drain Plug | 11007-Z010110-0000 | Hyu-11007-Z010110-0000@online |
| E01-6 | Washer, Flat | 90408-Z010110-0000 | Hyu-90408-Z010110-0000@online |
| E01-7 | Bearing, Deep Groove Ball | 90548-0205-CL | Hyu-90548-0205-CL@online |
| E01-8 | Seal, Oil | 90682-Z300110-0000 | Hyu-90682-Z300110-0000@online |
| E01-10 | Washer, Flat | 90408-Z010210-0000 | Hyu-90408-Z010210-0000@online |
| E01-11 | Pin | 90501-Z010110-0000 | Hyu-90501-Z010110-0000@online |
| E01-16 | Sensor, Engine Oil | 37060-Z010120-0000 | Hyu-37060-Z010120-0000@online |
| E01-17 | Bolt | 90001-0614-01 | Hyu-90001-0614-01@online |
| E01-18 | Nut | 90305-Z010210-01 | Hyu-90305-Z010210-01@online |
Crankcase
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E02-1 | Cover, Crankcase | 11411-Z441010-00A0 | Hyu-11411-Z441010-00A0@online |
| E02-2 | Bearing, Deep Groove Ball | 90548-0205-CL | Hyu-90548-0205-CL@online |
| E02-3 | Seal, Oil | 90682-Z300110-0000 | Hyu-90682-Z300110-0000@online |
| E02-4 | Gasket, Crankcase | 11001-Z440110-0000 | Hyu-11001-Z440110-0000@online |
| E02-5 | Pin | 90502-0912-00 | Hyu-90502-0912-00@online |
| E02-6 | Dipstick Subassembly, Oil | 15010-Z010130-Q500 | Hyu-15010-Z010130-Q500@online |
| E02-7 | Plug Subassembly, Engine Oil | 15030-Z010130-Q500 | Hyu-15030-Z010130-Q500@online |
| E02-8 | Bolt | 90001-0832-01 | Hyu-90001-0832-01@online |

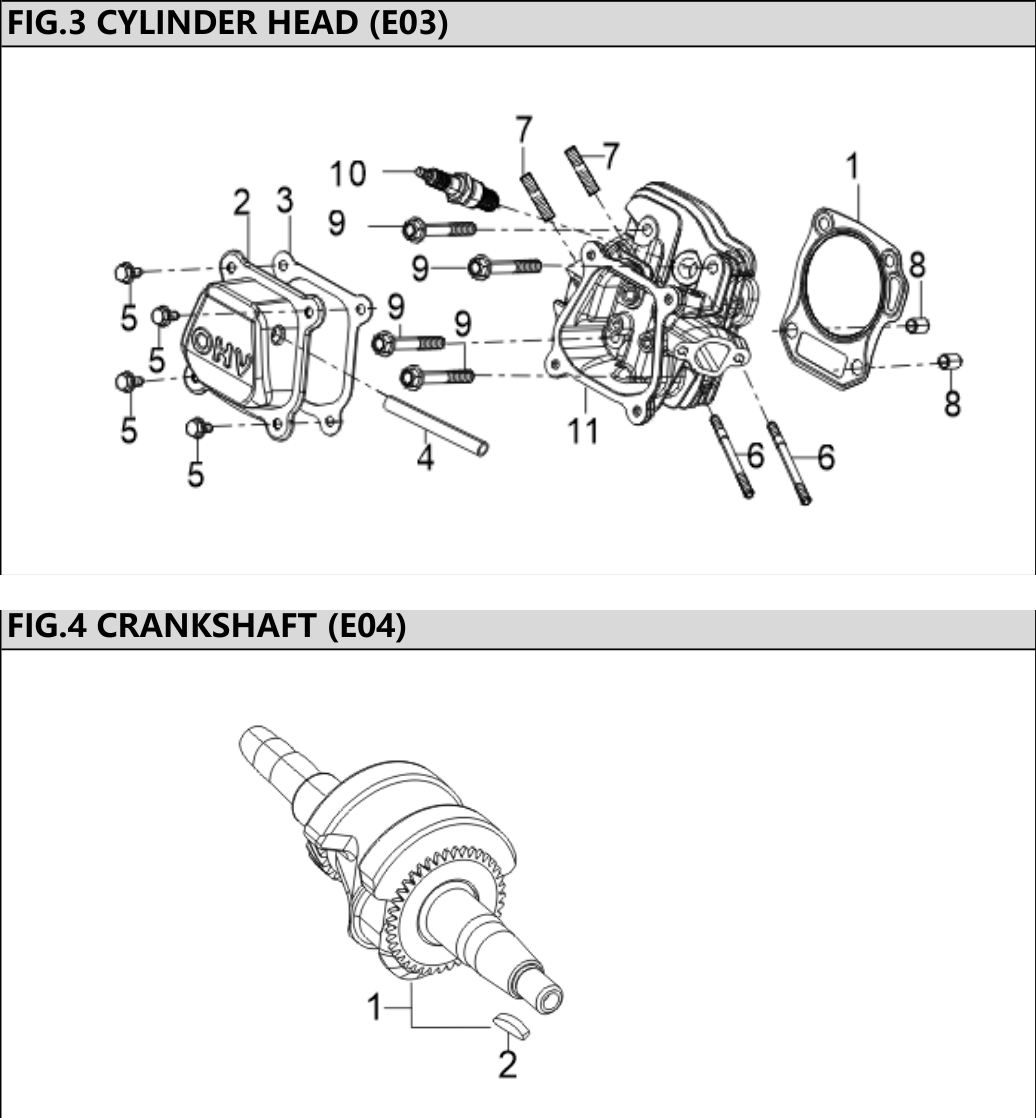

Cylinder Head
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E03-1 | Gasket, Cylinder Head | 12131-Z530320-0000 | Hyu-12131-Z530320-0000@online |
| E03-2 | Cylinder Head Cover Subassembly | 12410-Z300120-0000 | Hyu-12410-Z300120-0000@online |
| E03-3 | Cylinder Head Cover Gasket | 12004-Z010110-0000 | Hyu-12004-Z010110-0000@online |
| E03-4 | Breather Tube | 17004-Z010310-0000 | Hyu-17004-Z010310-0000@online |
| E03-5 | Bolt | 90001-0612-01 | Hyu-90001-0612-01@online |
| E03-6 | Bolt | 90204-Z010310-0000 | Hyu-90204-Z010310-0000@online |
| E03-7 | Bolt | 90203-Z010110-0000 | Hyu-90203-Z010110-0000@online |
| E03-8 | Pin | 90502-1114-00 | Hyu-90502-1114-00@online |
| E03-9 | Bolt, Cylinder Head | 12003-Z010110-0000 | Hyu-12003-Z010110-0000@online |
| E03-10 | Spark Plug | 30010-Z010210-0000 | Hyu-30010-Z010210-0000@online |
| E03-11 | Cylinder Head Subassembly | 12140-Z810210-00A0 | Hyu-12140-Z810210-00A0@online |
Crankshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E04-1 | Crankshaft Assembly | 13300-Z530210-0000 | Hyu-13300-Z530210-0000@online |

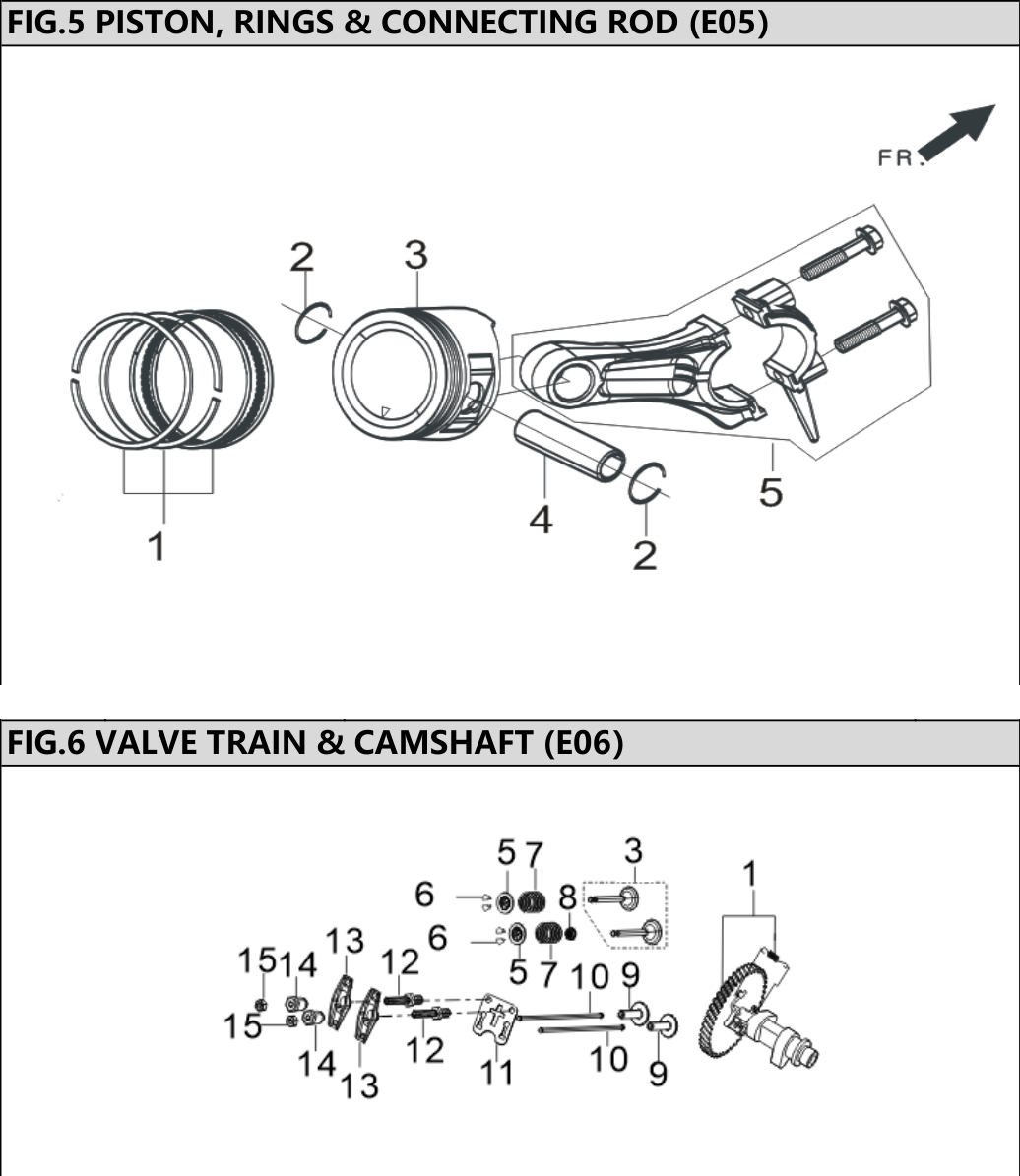

Piston, Rings and Connecting Rod
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E05-1 | Piston Ring Assembly | 13200-Z140210-00A9 | Hyu-13200-Z140210-00A9@online |
| E05-2 | Clip, Piston Pin | 13122-Z010110-0000 | Hyu-13122-Z010110-0000@online |
| E05-3 | Piston | 13111-Z140220-00A9 | Hyu-13111-Z140220-00A9@online |
| E05-4 | Pin, Piston | 13121-Z010110-0000 | Hyu-13121-Z010110-0000@online |
| E05-5 | Connecting Rod | 13010-Z440210-00A9 | Hyu-13010-Z440210-00A9@online |
Valve Train and Camshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E06-1 | Camshaft Assembly | 14200-Z530210-0099 | Hyu-14200-Z530210-0099@online |
| E06-3 | Valve Set | 12110-Z810120-0099 | Hyu-12110-Z810120-0099@online |
| E06-5 | Seat, Valve Spring | 12112-Z810210-0000 | Hyu-12112-Z810210-0000@online |
| E06-6 | Clamp, Valve Lock | 12109-Z810110-0000 | Hyu-12109-Z810110-0000@online |
| E06-7 | Valve Spring | 12103-Z010110-0000 | Hyu-12103-Z010110-0000@online |
| E06-8 | Guide, Seal | 12101-Z810210-0000 | Hyu-12101-Z810210-0000@online |
| E06-9 | Valve Tappet | 14081-Z040110-0000 | Hyu-14081-Z040110-0000@online |
| E06-10 | Valve Lifter | 14071-Z440110-0000 | Hyu-14071-Z440110-0000@online |
| E06-11 | Lifter Stopper Plate Subassembly | 14090-Z010110-0000 | Hyu-14090-Z010110-0000@online |
| E06-12 | Rocker Shaft Bolt | 14313-Z010110-0000 | Hyu-14313-Z010110-0000@online |
| E06-13 | Valve Rocker | 14311-Z010110-0000 | Hyu-14311-Z010110-0000@online |
| E06-14 | Nut, Valve Adjusting | 14314-Z010110-0000 | Hyu-14314-Z010110-0000@online |
| E06-15 | Valve Lock Nut | 14312-Z010110-0000 | Hyu-14312-Z010110-0000@online |

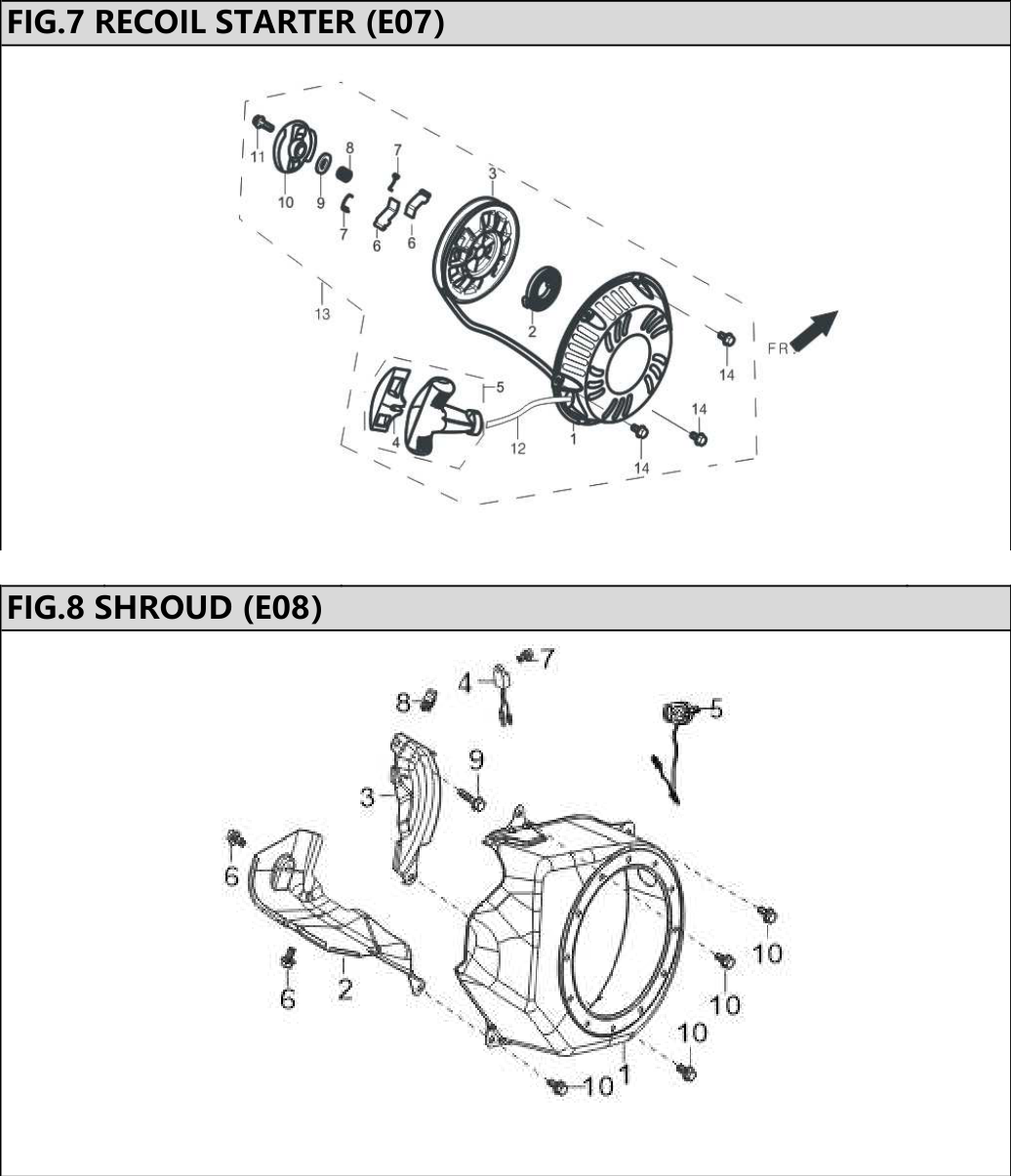

Recoil Starter
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E07-13 | Recoil Starter Assembly | 28200-Z440110-H600 | Hyu-28200-Z440110-H600@online |
| E07-14 | Bolt | 90001-0612-03 | Hyu-90001-0612-03@online |
Shroud
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E08-1 | Shroud | 28110-Z300320-H600 | Hyu-28110-Z300320-H600@online |
| E08-2 | Shroud, Cylinder Body | 19304-Z010610-0000 | Hyu-19304-Z010610-0000@online |
| E08-3 | Lower Shield | 19340-Z010510-0000 | Hyu-19340-Z010510-0000@online |
| E08-4 | Protector, Oil | 37050-Z010210-0000 | Hyu-37050-Z010210-0000@online |
| E08-5 | Stop Engine Switch Subassembly | 35540-Z060140-Q200 | Hyu-35540-Z060140-Q200@online |
| E08-6 | Bolt | 90001-0610-01 | Hyu-90001-0610-01@online |
| E08-7 | Bolt | 90001-0612-01 | Hyu-90001-0612-01@online |
| E08-8 | Collar | 90740-Z010110-0000 | Hyu-90740-Z010110-0000@online |
| E08-9 | Bolt | 90001-0616-01 | Hyu-90001-0616-01@online |
| E08-10 | Bolt | 90001-0612-01 | Hyu-90001-0612-01@online |

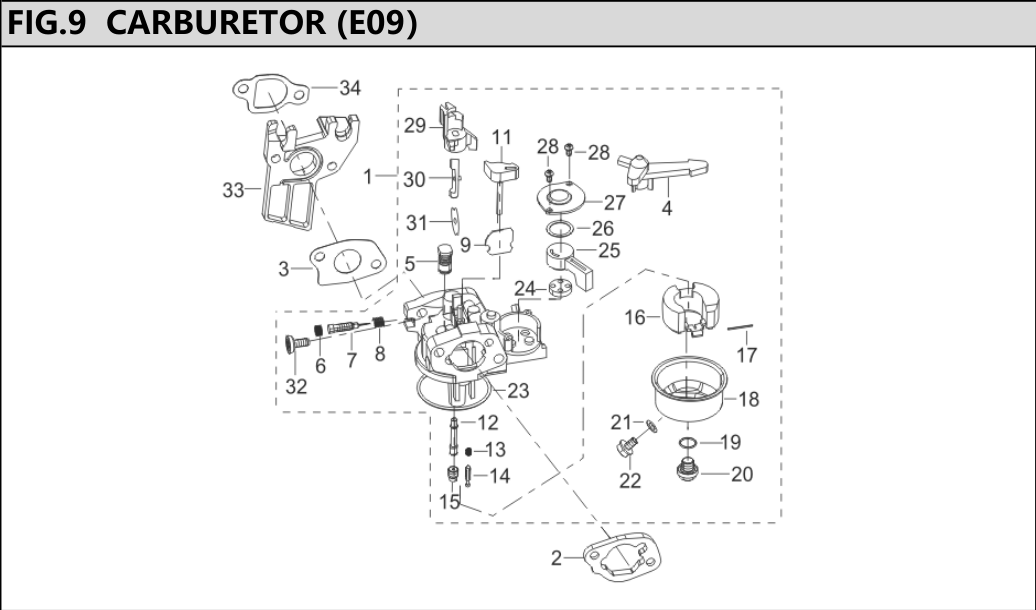

Carburetor
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E09-1 | Carburetor Assembly | 16100-Z530610-KM09 | Hyu-16100-Z530610-KM09@online |
| E09-2 | Gasket, Air Cleaner | 17001-Z010210-0000 | Hyu-17001-Z010210-0000@online |
| E09-3 | Gasket, Carburetor | 16001-Z010110-0000 | Hyu-16001-Z010110-0000@online |
| E09-4 | Carburetor Choke Handle | 16120-Z530210-0000 | Hyu-16120-Z530210-0000@online |
| E09-5 | Jet, Idle Speed | 16165-Z530610-0000 | Hyu-16165-Z530610-0000@online |
| E09-6 | Plug, End | 16163-Z010110-0000 | Hyu-16163-Z010110-0000@online |
| E09-7 | Idle Speed Mixed Ratio Adjusting Screw | 16162-Z010110-0000 | Hyu-16162-Z010110-0000@online |
| E09-8 | Idle Speed Mixed Ratio Adjusting Screw Spring | 16167-Z010110-0000 | Hyu-16167-Z010110-0000@online |
| E09-9 | Choke | 16231-Z530410-0000 | Hyu-16231-Z530410-0000@online |
| E09-11 | Arm, Choke Control | 16528-Z010110-0000 | Hyu-16528-Z010110-0000@online |
| E09-12 | Main Nozzle | 16105-Z530610-0000 | Hyu-16105-Z530610-0000@online |
| E09-13 | Spring, Float | 16223-Z010110-0000 | Hyu-16223-Z010110-0000@online |
| E09-14 | Oil Needle Filling Valve | 16142-Z010110-0000 | Hyu-16142-Z010110-0000@online |
| E09-15 | Jet, Main | 16161-Z151410-0000 | Hyu-16161-Z151410-0000@online |
| E09-16 | Float | 16221-Z010110-0000 | Hyu-16221-Z010110-0000@online |
| E09-17 | Pin, Float | 16222-Z010110-0000 | Hyu-16222-Z010110-0000@online |
| E09-18 | Deposition Cup | 16771-Z010110-0000 | Hyu-16771-Z010110-0000@online |
| E09-19 | Ring, Seal | 90681-Z010510-0000 | Hyu-90681-Z010510-0000@online |
| E09-20 | Oil Cup Bolt | 16192-Z010110-0000 | Hyu-16192-Z010110-0000@online |
| E09-21 | Ring, Seal | 90681-Z030210-0000 | Hyu-90681-Z030210-0000@online |
| E09-22 | Oil Cup Drain Plug | 16193-Z010110-0000 | Hyu-16193-Z010110-0000@online |
| E09-23 | Float Chamber Gasket | 16112-Z010110-0000 | Hyu-16112-Z010110-0000@online |
| E09-24 | Ring, Seal | 90681-Z530210-0000 | Hyu-90681-Z530210-0000@online |
| E09-25 | Fuel Cock Handle | 16754-Z530210-0000 | Hyu-16754-Z530210-0000@online |
| E09-26 | Part not named in IPL | 90405-Z530210-0000 | Hyu-90405-Z530210-0000@online |
| E09-27 | Fuel Cock Cover | 16753-Z530210-0000 | Hyu-16753-Z530210-0000@online |
| E09-28 | Part not named in IPL | 90256-0308-02 | Hyu-90256-0308-02@online |
| E09-29 | Throttle Valve Control Arm | 16184-Z010110-0000 | Hyu-16184-Z010110-0000@online |
| E09-30 | Throttle Valve Shaft | 16182-Z010110-0000 | Hyu-16182-Z010110-0000@online |
| E09-31 | Throttle Valve | 16181-Z530410-0000 | Hyu-16181-Z530410-0000@online |
| E09-32 | Idle Speed Adjusting Screw | 16164-Z010110-0000 | Hyu-16164-Z010110-0000@online |
| E09-33 | Carburetor Insulator Plate | 16003-Z010110-0000 | Hyu-16003-Z010110-0000@online |
| E09-34 | Carburetor Insulator Gasket | 16002-Z050110-0000 | Hyu-16002-Z050110-0000@online |

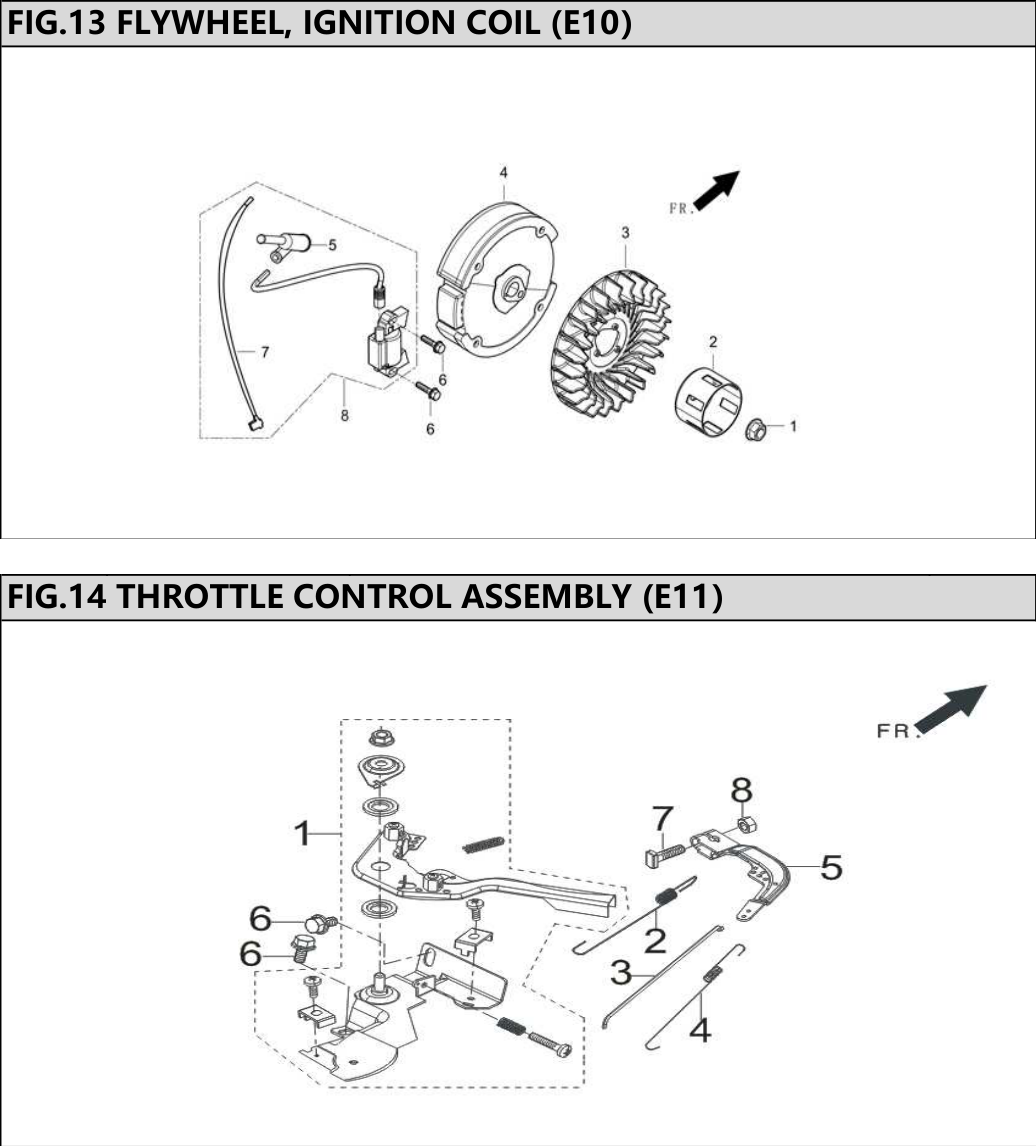

Flywheel and Ignition Coil
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E10-1 | Flywheel Nut | 13501-Z010110-0000 | Hyu-13501-Z010110-0000@online |
| E10-2 | Starter Pulley | 28002-Z010310-0000 | Hyu-28002-Z010310-0000@online |
| E10-3 | Impeller | 19352-Z440210-0000 | Hyu-19352-Z440210-0000@online |
| E10-4 | Flywheel Subassembly | 13510-Z440410-0000 | Hyu-13510-Z440410-0000@online |
| E10-6 | Bolt | 90001-0625-01 | Hyu-90001-0625-01@online |
| E10-8 | Ignition Coil | 30400-Z540110-0000 | Hyu-30400-Z540110-0000@online |
Throttle Control Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E11-1 | Throttle Control Assembly | 16520-Z440120-0000 | Hyu-16520-Z440120-0000@online |
| E11-2 | Spring, Governor | 16063-Z050510-0000 | Hyu-16063-Z050510-0000@online |
| E11-3 | Governor Rod | 16062-Z010110-0000 | Hyu-16062-Z010110-0000@online |
| E11-4 | Throttle Valve Return Spring | 16012-Z010110-0000 | Hyu-16012-Z010110-0000@online |
| E11-5 | Governor Support Subassembly | 16070-Z010110-0000 | Hyu-16070-Z010110-0000@online |
| E11-6 | Bolt | 90001-0610-01 | Hyu-90001-0610-01@online |
| E11-7 | Governor Support Bolt | 16072-Z010110-0000 | Hyu-16072-Z010110-0000@online |
| E11-8 | Nut | 90305-0600-31 | Hyu-90305-0600-31@online |
Air Cleaner
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F01-1 | Air Cleaner | 17100-Z010210-0000 | Hyu-17100-Z010210-0000@online |
| F01-2 | Nut | 90305-0600-31 | Hyu-90305-0600-31@online |
| F01-3 | Ring, Seal | 90681-Z010410-0000 | Hyu-90681-Z010410-0000@online |
| F01-4 | Part not named in IPL | 90312-0600-33 | Hyu-90312-0600-33@online |
| F01-5 | Air Cleaner Element Subassembly | 17150-Z010110-0000 | Hyu-17150-Z010110-0000@online |
| F01-6 | Air Cleaner Case Cover | 17104-Z010210-0000 | Hyu-17104-Z010210-0000@online |
| F01-7 | Air Cleaner Elbow Subassembly | 17140-Z010210-0000 | Hyu-17140-Z010210-0000@online |
| F01-9 | Bolt | 90001-0614-01 | Hyu-90001-0614-01@online |
| F01-10 | Element Support Gasket | 17116-Z010210-0000 | Hyu-17116-Z010210-0000@online |
Muffler
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F02-1 | Exhaust Outlet Gasket | 18001-Z440110-00A0 | Hyu-18001-Z440110-00A0@online |
| F02-2 | Nut | 90303-0800-31 | Hyu-90303-0800-31@online |
| F02-3 | Muffler Assembly | 18100-Z012410-H300 | Hyu-18100-Z012410-H300@online |

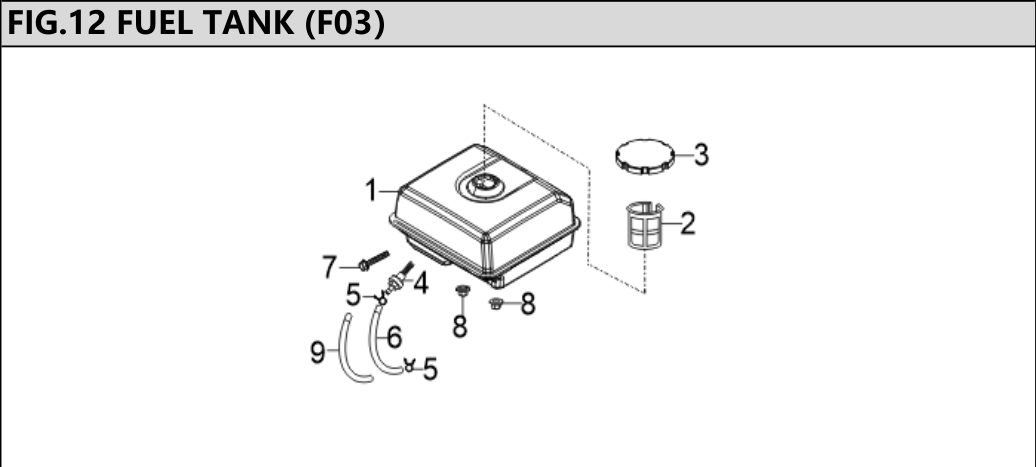

Fuel Tank
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F03-1 | Fuel Tank | 16620-Z440410-H60P | Hyu-16620-Z440410-H60P@online |
| F03-2 | Fuel Strainer | 16652-Z010710-0000 | Hyu-16652-Z010710-0000@online |
| F03-3 | Cover, Fuel Tank | 16730-Z440810-LK00 | Hyu-16730-Z440810-LK00@online |
| F03-4 | Fuel Tank Oil Outlet Subassembly | 16680-Z010110-0000 | Hyu-16680-Z010110-0000@online |
| F03-5 | Collar | 90740-Z010210-0000 | Hyu-90740-Z010210-0000@online |
| F03-6 | Tube, Fuel | 90686-Z010710-0000 | Hyu-90686-Z010710-0000@online |
| F03-7 | Bolt | 90001-0630-01 | Hyu-90001-0630-01@online |
| F03-8 | Nut | 90305-0600-31 | Hyu-90305-0600-31@online |
| F03-9 | Rubber Jacket | 30431-Z010110-0000 | Hyu-30431-Z010110-0000@online |
