Hyundai HMT43L Multi-Tool IPL
Illustrated parts list for the Hyundai HMT43L multi-tool. Use the reference number on the diagram, then click the Cutsmart SKU to open the matching product by SKU.
Model: HMT43L
Brand: Hyundai
IPL / Parts Manual
SKU links use /qr?sku=
Parts diagram
Click or tap a diagram to enlarge it. On mobile, open the image and pinch-zoom if needed.

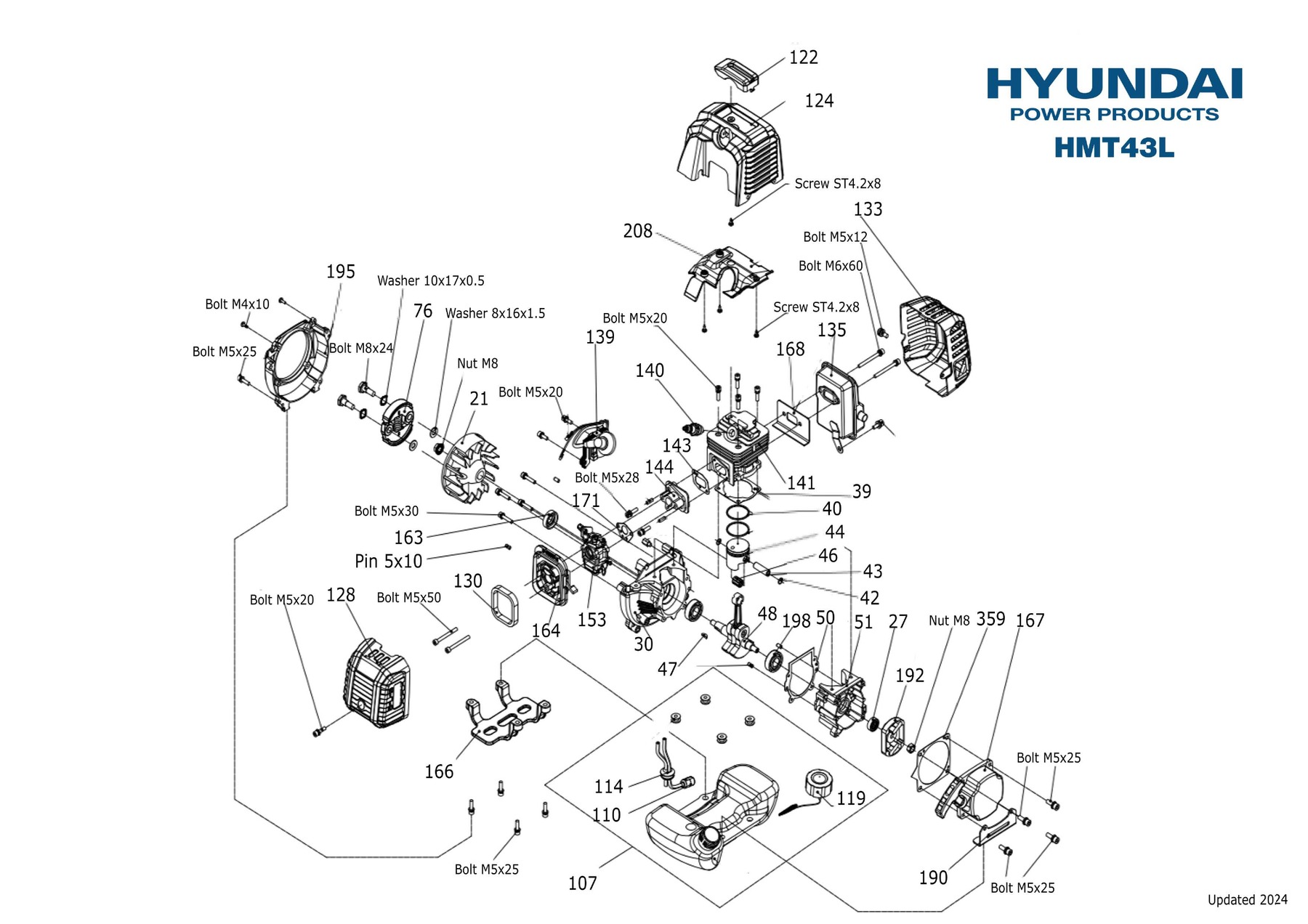

Diagram page 1 — tap to enlarge

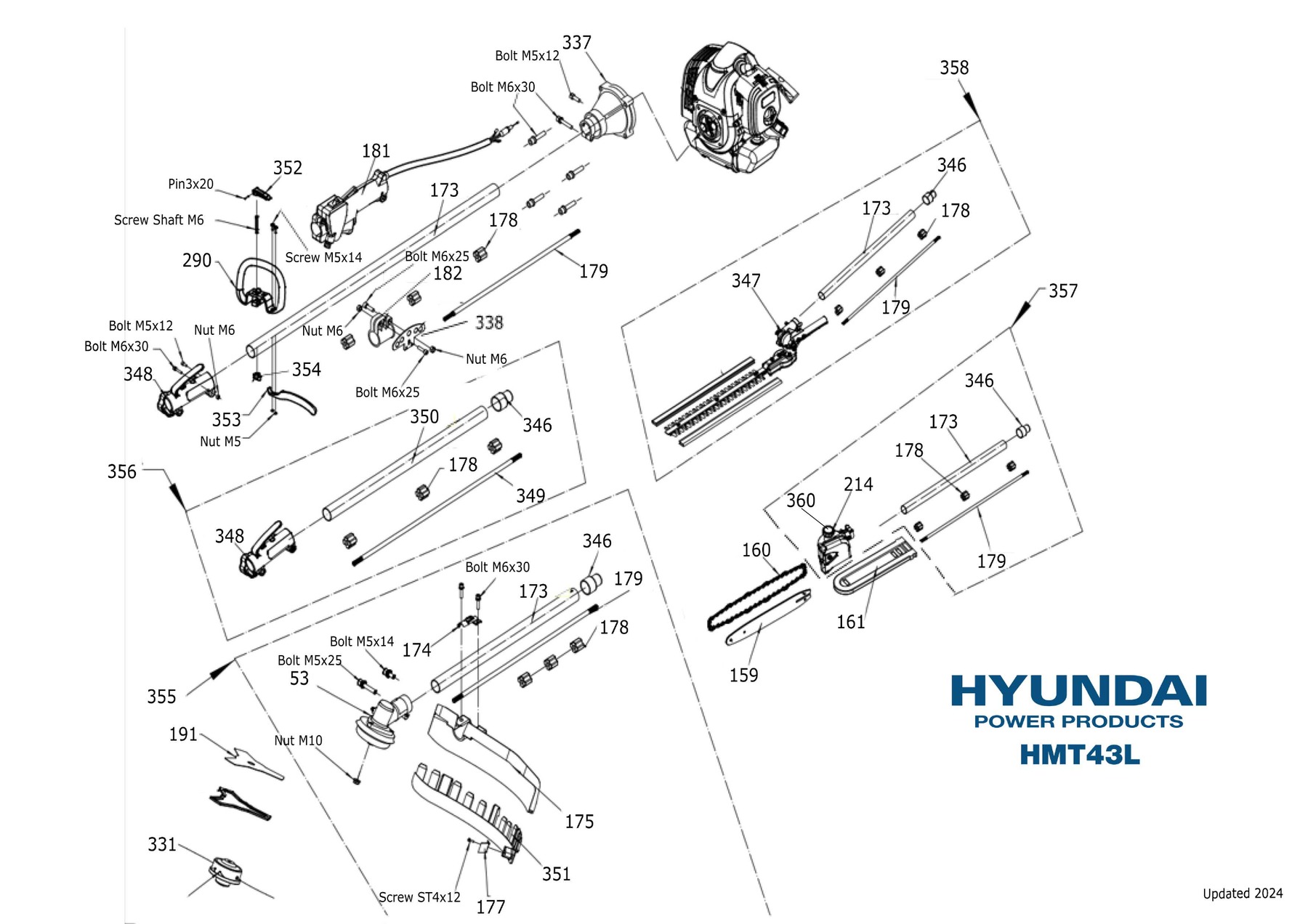

Diagram page 2 — tap to enlarge
Parts list
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 21 | Flywheel | HY02110 | Hyu-HY02110@online |
| 167 | Starter Assy | HY16708 | Hyu-HY16708@online |
| 27 | Oil seal 12x22x7 | HY02701 | Hyu-HY02701@online |
| 168 | Gasket, Muffler | HY16806 | Hyu-HY16806@online |
| 30 | Left Crankcase | HY03007 | Hyu-HY03007@online |
| 171 | Gasket, Carburetor | HY17107 | Hyu-HY17107@online |
| 39 | Gasket, Cylinder | HY03902 | Hyu-HY03902@online |
| 173 | Alumium Pipe（740x26x1.5) | HY17302 | Hyu-HY17302@online |
| 40 | Piston Ring | HY04012 | Hyu-HY04012@online |
| 174 | Plate, Guard | HY17406 | Hyu-HY17406@online |
| 42 | Piston Snap Ring φ10 | HY04202 | Hyu-HY04202@online |
| 175 | Guard | HY17503 | Hyu-HY17503@online |
| 43 | Piston Pin | HY04305 | Hyu-HY04305@online |
| 177 | Small Blade | HY17703 | Hyu-HY17703@online |
| 44 | Piston | HY04412 | Hyu-HY04412@online |
| 178 | Oil Sleeve | HY17803 | Hyu-HY17803@online |
| 46 | Needle BeeringK10x13x16 | HY04611 | Hyu-HY04611@online |
| 179 | Driving Shaft | HY17903 | Hyu-HY17903@online |
| 47 | Key 3x13 | HY04706 | Hyu-HY04706@online |
| 181 | Throttle Handle | HY18106 | Hyu-HY18106@online |
| 48 | CrankShaft | HY04812 | Hyu-HY04812@online |
| 182 | Bow Plate Holder | HY18202 | Hyu-HY18202@online |
| 50 | Gasket, Crankcase | HY05002 | Hyu-HY05002@online |
| 190 | Plate | HY19002 | Hyu-HY19002@online |
| 51 | Right & left Crankcase | HY05109 | Hyu-HY05109@online |
| 191 | 3T Blade | HY19103 | Hyu-HY19103@online |
| 53 | Gearcase Assy | HY05303 | Hyu-HY05303@online |
| 192 | Pulley | HY19202 | Hyu-HY19202@online |
| 76 | Clutch | HY07606 | Hyu-HY07606@online |
| 195 | Side Cover | HY19504 | Hyu-HY19504@online |
| 107 | Fuel Tank Assy | HY10710 | Hyu-HY10710@online |
| 198 | Bearing 6202 open | HY19802 | Hyu-HY19802@online |
| 110 | Fuel filter | HY11003 | Hyu-HY11003@online |
| 208 | Guiding Plate | HY20802 | Hyu-HY20802@online |
| 114 | Fuel Hose Assy | HY11405 | Hyu-HY11405@online |
| 214 | Pruner Coverplate | HY21401 | Hyu-HY21401@online |
| 119 | Fuel tank cap | HY11906 | Hyu-HY11906@online |
| 290 | Handle | HY29002 | Hyu-HY29002@online |
| 122 | Top Cover | HY12205 | Hyu-HY12205@online |
| 331 | Nylon Head | HY33102 | Hyu-HY33102@online |
| 124 | Cylinder Cover | HY12408 | Hyu-HY12408@online |
| 337 | Housing Assy | HY33703 | Hyu-HY33703@online |
| 128 | Air-filter Cover | HY12810 | Hyu-HY12810@online |
| 338 | Bow Plate | HY33802 | Hyu-HY33802@online |
| 130 | Air-filter sponge | HY13009 | Hyu-HY13009@online |
| 346 | Stopper | HY34601 | Hyu-HY34601@online |
| 133 | Muffler Cover | HY13304 | Hyu-HY13304@online |
| 347 | Hedge Trimmer Head | HY34701 | Hyu-HY34701@online |
| 135 | Muffler | HY13510 | Hyu-HY13510@online |
| 348 | Connector | HY34801 | Hyu-HY34801@online |
| 139 | Ignition coil | HY13910 | Hyu-HY13910@online |
| 349 | Driving Shaft | HY34901 | Hyu-HY34901@online |
| 140 | Spark Plug | BM6A | Mos-O-BM6A@online |
| 350 | Aluminum Pipe（950x26x1.5) | HY35001 | Hyu-HY35001@online |
| 141 | Cylinder | HY14112 | Hyu-HY14112@online |
| 351 | Shield Rim | HY35101 | Hyu-HY35101@online |
| 143 | Gasket, Inlet Pipe | HY14302 | Hyu-HY14302@online |
| 352 | Lock Handle | HY35201 | Hyu-HY35201@online |
| 144 | Inlet Pipe | HY14402 | Hyu-HY14402@online |
| 353 | Lever | HY35301 | Hyu-HY35301@online |
| 153 | Carburetor | HY15310 | Hyu-HY15310@online |
| 354 | Lock Knob | HY35401 | Hyu-HY35401@online |
| 159 | 12" Bar | HY15904 | Hyu-HY15904@online |
| 355 | Brush Cutter Assy | HY35501 | Hyu-HY35501@online |
| 160 | 12" Chain | HY16004 | Hyu-HY16004@online |
| 356 | Extension Pole Assy | HY35601 | Hyu-HY35601@online |
| 161 | Cover, Bar | HY16102 | Hyu-HY16102@online |
| 357 | Pruner Assy | HY35701 | Hyu-HY35701@online |
| 163 | Oil Seal 15x30x7 | HY16304 | Hyu-HY16304@online |
| 358 | Hedge Trimmer Assy | HY35801 | Hyu-HY35801@online |
| 164 | Air-filter bracket | HY16407 | Hyu-HY16407@online |
| 359 | Gasket, Starter | HY35901 | Hyu-HY35901@online |
| 166 | Fuel Tank Seat | HY16604 | Hyu-HY16604@online |
| 360 | Cap | HY36001 | Hyu-HY36001@online |
