Hyundai HMB63P Mist Blower Parts Diagram & IPL
Use this illustrated parts list to identify replacement parts for the Hyundai HMB63P mist blower. Match the reference number on the diagrams to the parts table below, then click the Cutsmart SKU to open the matching product page.

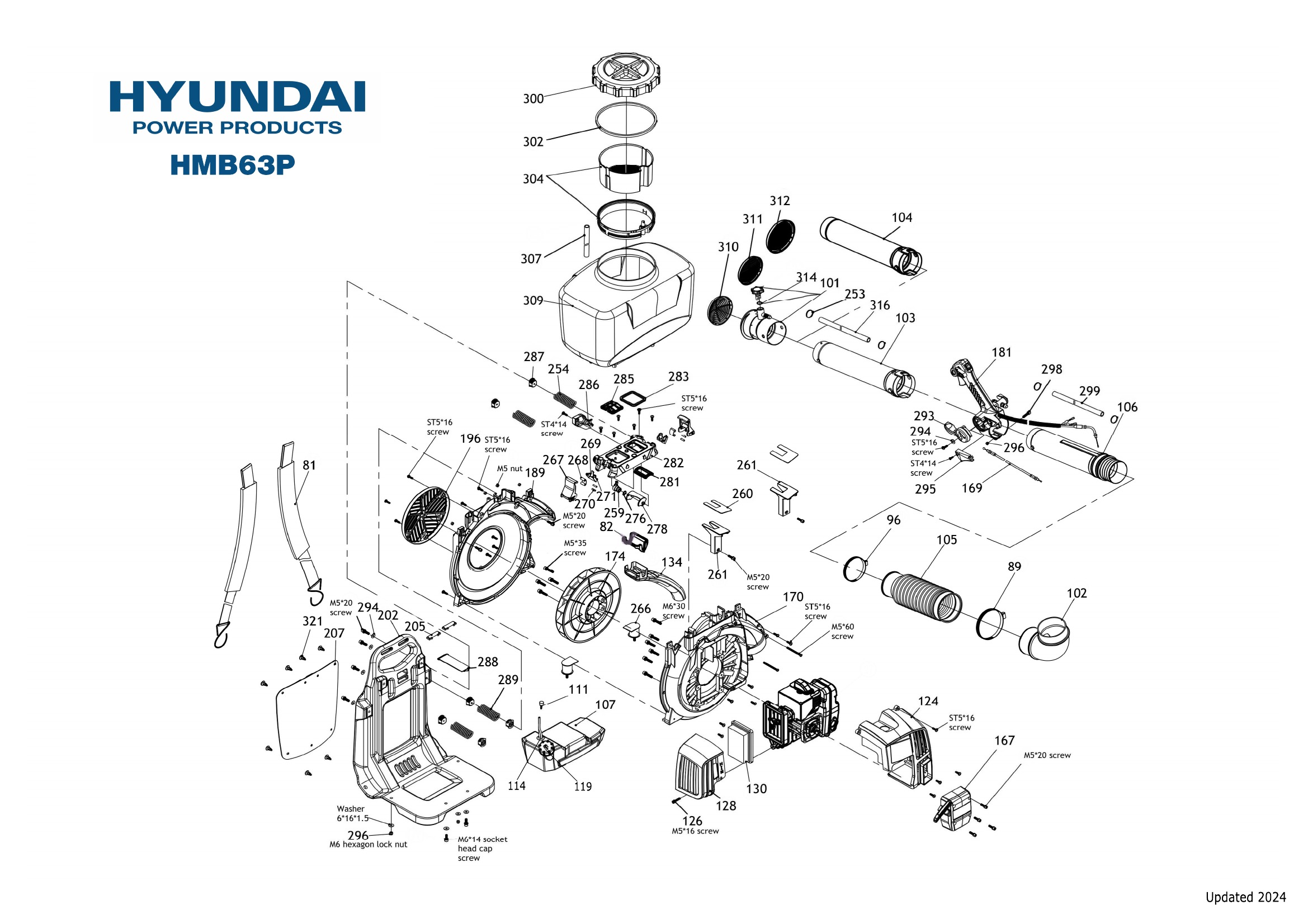

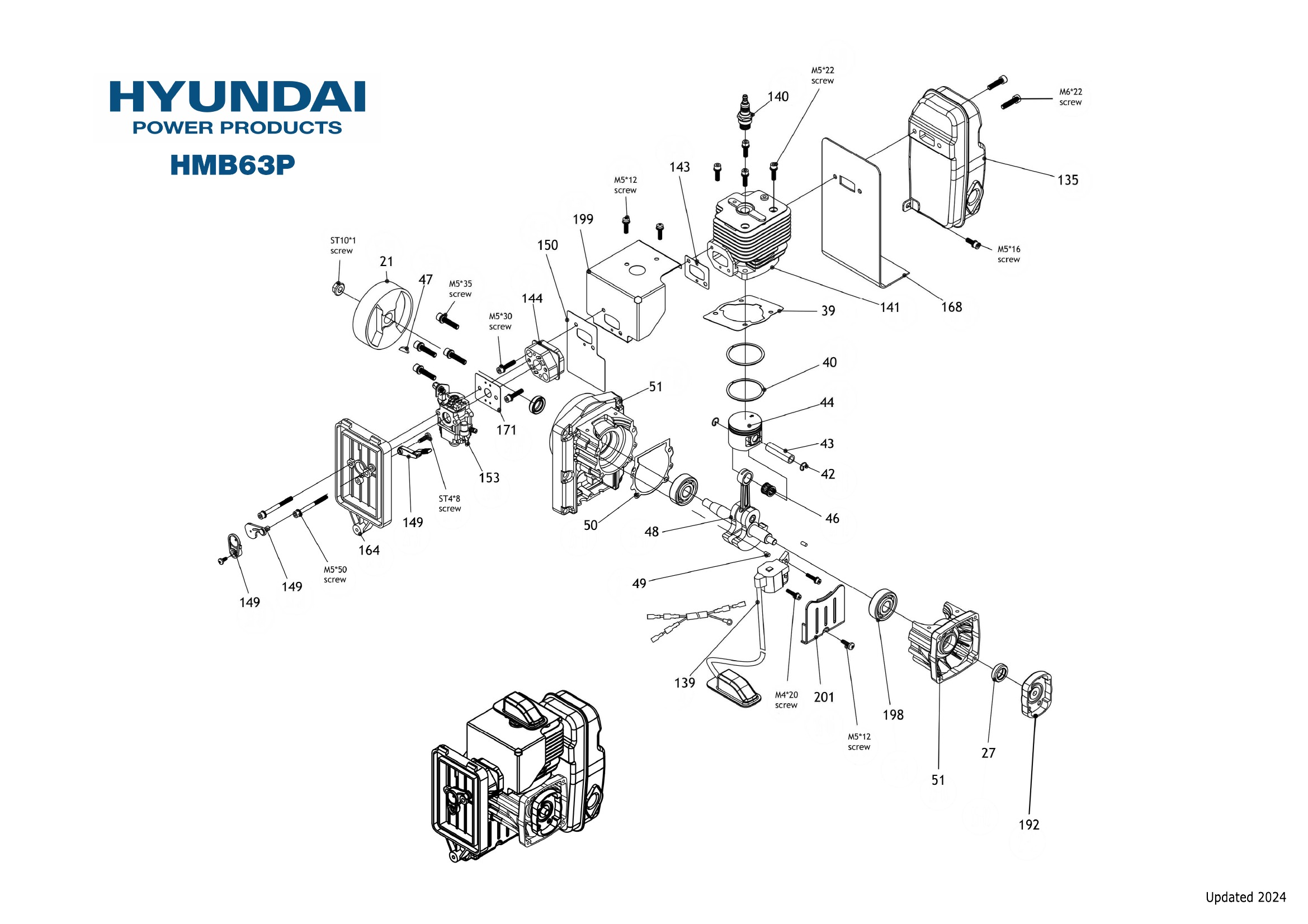

Tip: This IPL has two diagram pages. Click or tap either diagram to enlarge it, especially when viewing on a mobile phone.
Parts List
Tip: use Ctrl+F on your keyboard to search this page by reference number, description, part number, or Cutsmart SKU.
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 21 | 866 flywheel | HY02103 | Hyu-HY02103@online |
| 27 | Oil seal 15*25*7 | HY02702 | Hyu-HY02702@online |
| 39 | Gasket of cylinder | HY03903 | Hyu-HY03903@online |
| 40 | Piston ring | HY04003 | Hyu-HY04003@online |
| 42 | Piston clip | HY04203 | Hyu-HY04203@online |
| 43 | Piston pin | HY04303 | Hyu-HY04303@online |
| 44 | Piston | HY04403 | Hyu-HY04403@online |
| 46 | Piston bearing 10*14*15.1 | HY04603 | Hyu-HY04603@online |
| 47 | Semicircular key 3*13 | HY04703 | Hyu-HY04703@online |
| 48 | Crankshaft | HY04803 | Hyu-HY04803@online |
| 49 | 5*10 pin | HY04903 | Hyu-HY04903@online |
| 50 | Gasket of crankcase | HY05003 | Hyu-HY05003@online |
| 51 | Crankcase | HY05103 | Hyu-HY05103@online |
| 81 | Belt | HY08101 | Hyu-HY08101@online |
| 82 | Barrel connection seat gasket | HY08201 | Hyu-HY08201@online |
| 89 | Clamp 80-100 | HY08901 | Hyu-HY08901@online |
| 96 | Clamp 70-90 | HY09603 | Hyu-HY09603@online |
| 101 | Spray head | HY10103 | Hyu-HY10103@online |
| 102 | Elbow joint | HY10202 | Hyu-HY10202@online |
| 103 | Extension pipe | HY10303 | Hyu-HY10303@online |
| 104 | Round pipe | HY10404 | Hyu-HY10404@online |
| 105 | Large hose | HY10502 | Hyu-HY10502@online |
| 106 | Main air duct | HY10603 | Hyu-HY10603@online |
| 107 | Fuel tank | HY10703 | Hyu-HY10703@online |
| 111 | Balancer | HY11102 | Hyu-HY11102@online |
| 114 | Fuel pipe | HY11407 | Hyu-HY11407@online |
| 119 | Fuel Cap | HY11901 | Hyu-HY11901@online |
| 124 | Engine cover | HY12403 | Hyu-HY12403@online |
| 126 | M5*16 screw | HY12602 | Hyu-HY12602@online |
| 128 | Air filter cover | HY12803 | Hyu-HY12803@online |
| 130 | Air filter | HY13003 | Hyu-HY13003@online |
| 134 | Blanking pipe | HY13402 | Hyu-HY13402@online |
| 135 | Muffler | HY13503 | Hyu-HY13503@online |
| 139 | Ignition coil | HY13903 | Hyu-HY13903@online |
| 140 | Spark plug L7T | L7T | Hyu-L7T@online |
| 141 | Cylinder | HY14103 | Hyu-HY14103@online |
| 143 | Intake pipe paper pad 1 | HY14303 | Hyu-HY14303@online |
| 144 | 866 inlet pipe | HY14403 | Hyu-HY14403@online |
| 149 | 866 choke assy | HY14903 | Hyu-HY14903@online |
| 150 | Intake pipe paper pad 2 | HY15003 | Hyu-HY15003@online |
| 153 | 866 carburetor | HY15303 | Hyu-HY15303@online |
| 164 | 866 support air filter | HY16403 | Hyu-HY16403@online |
| 167 | Starter | HY16703 | Hyu-HY16703@online |
| 168 | 866 gasket muffler | HY16803 | Hyu-HY16803@online |
| 169 | Control cable | HY16904 | Hyu-HY16904@online |
| 170 | Rear wind cover | HY17004 | Hyu-HY17004@online |
| 171 | 866 gasket carburetor | HY17103 | Hyu-HY17103@online |
| 174 | Wind wheel | HY17404 | Hyu-HY17404@online |
| 181 | Switch | HY18103 | Hyu-HY18103@online |
| 189 | Front wind cover | HY18904 | Hyu-HY18904@online |
| 192 | Driving plate | HY19202 | Hyu-HY19202@online |
| 196 | 5001 protection cover | HY19603 | Hyu-HY19603@online |
| 198 | 6302 bearing | HY19803 | Hyu-HY19803@online |
| 199 | Cylinder air deflector | HY19903 | Hyu-HY19903@online |
| 201 | Ignition coil cover board | HY20103 | Hyu-HY20103@online |
| 202 | Back pad | HY20203 | Hyu-HY20203@online |
| 205 | Clip for back pad | HY20502 | Hyu-HY20502@online |
| 207 | 766 back cushion | HY20701 | Hyu-HY20701@online |
| 253 | Clamp 16 | HY25301 | Hyu-HY25301@online |
| 254 | Short damping spring | HY25401 | Hyu-HY25401@online |
| 259 | Blanking shaft | HY25901 | Hyu-HY25901@online |
| 260 | Rubble of Barrel support | HY26001 | Hyu-HY26001@online |
| 261 | Barrel support (right- Left) | HY26101 | Hyu-HY26101@online |
| 266 | Base shock absorber | HY26601 | Hyu-HY26601@online |
| 267 | Bucket fixing buckle | HY26701 | Hyu-HY26701@online |
| 268 | Buckle connecting iron sheet | HY26801 | Hyu-HY26801@online |
| 269 | Snap connection seat | HY26901 | Hyu-HY26901@online |
| 270 | 5*25 PIN | HY27001 | Hyu-HY27001@online |
| 271 | 5*30 PIN | HY27101 | Hyu-HY27101@online |
| 276 | Sealing ring | HY27601 | Hyu-HY27601@online |
| 278 | Blanking baffle | HY27801 | Hyu-HY27801@online |
| 281 | Sealing gasket | HY28101 | Hyu-HY28101@online |
| 282 | Basket connection seat | HY28201 | Hyu-HY28201@online |
| 283 | Basket base gasket | HY28301 | Hyu-HY28301@online |
| 285 | Filter screen | HY28501 | Hyu-HY28501@online |
| 286 | Control line gland | HY28601 | Hyu-HY28601@online |
| 287 | Shock absorbing spring seat | HY28701 | Hyu-HY28701@online |
| 288 | Band off | HY28801 | Hyu-HY28801@online |
| 289 | Long damping spring | HY28902 | Hyu-HY28902@online |
| 293 | Adjusting handle | HY29301 | Hyu-HY29301@online |
| 294 | Cushion 5*16*1.5 | HY29401 | Hyu-HY29401@online |
| 295 | Switch crimping cover | HY29501 | Hyu-HY29501@online |
| 296 | M6 Hexagon Lock Nut | HY29601 | Hyu-HY29601@online |
| 298 | M5*16 screw | HY29801 | Hyu-HY29801@online |
| 299 | PVC Transparent hose 11*14*800 | HY29901 | Hyu-HY29901@online |
| 300 | Tank cover | HY30001 | Hyu-HY30001@online |
| 302 | Seal of tank cover | HY30201 | Hyu-HY30201@online |
| 304 | Mesh | HY30401 | Hyu-HY30401@online |
| 307 | PVC Transparent hose 11*14*300 | HY30701 | Hyu-HY30701@online |
| 309 | Charging basket | HY30901 | Hyu-HY30901@online |
| 310 | Spray hood 1 | HY31001 | Hyu-HY31001@online |
| 311 | Spray hood 2 | HY31101 | Hyu-HY31101@online |
| 312 | Spray hood 3 | HY31201 | Hyu-HY31201@online |
| 314 | Sealing ring | HY31401 | Hyu-HY31401@online |
| 316 | PVC Transparent hose 11*14*600 | HY31601 | Hyu-HY31601@online |
| 321 | 9500 plastic clip | HY32101 | Hyu-HY32101@online |
This page is provided to help identify parts. Availability, pricing and product URLs should be confirmed on Cutsmart before ordering.
