Hyundai Lawnmower HML48L IPL

Illustrated Parts List

Hyundai HML48L Lawnmower IPL

This article converts the Hyundai HML48L lawnmower IPL into a mobile-friendly Joomla content page, with clickable Cutsmart SKU links for the mower and Y196V engine parts.

Machine: HML48L Engine: Y196V SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product page. Images can be clicked or tapped to enlarge, which helps on mobile phones.

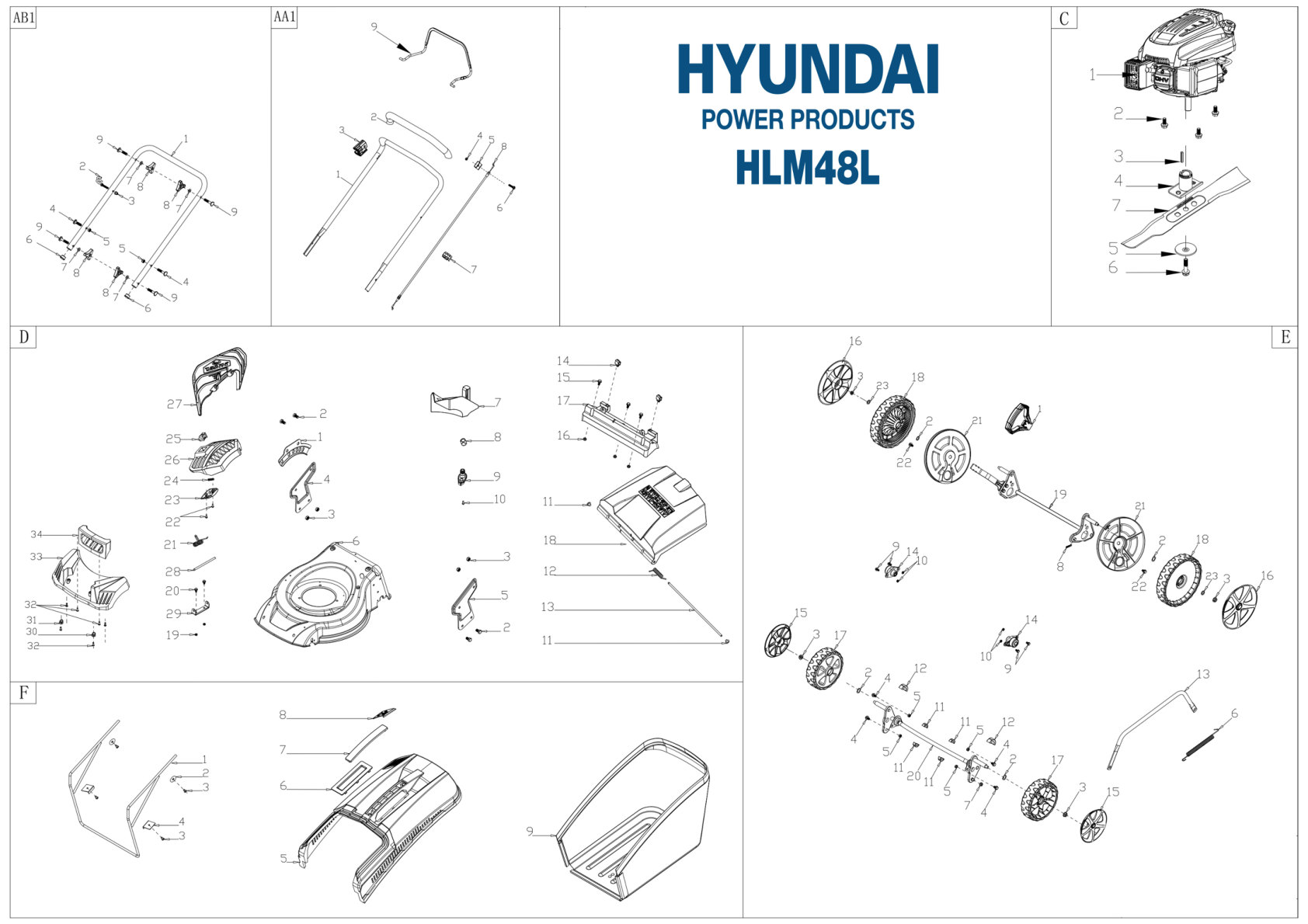

HML48L mower diagram

Hyundai HML48L lawnmower IPL diagram
Tap/click the diagram to enlarge it.

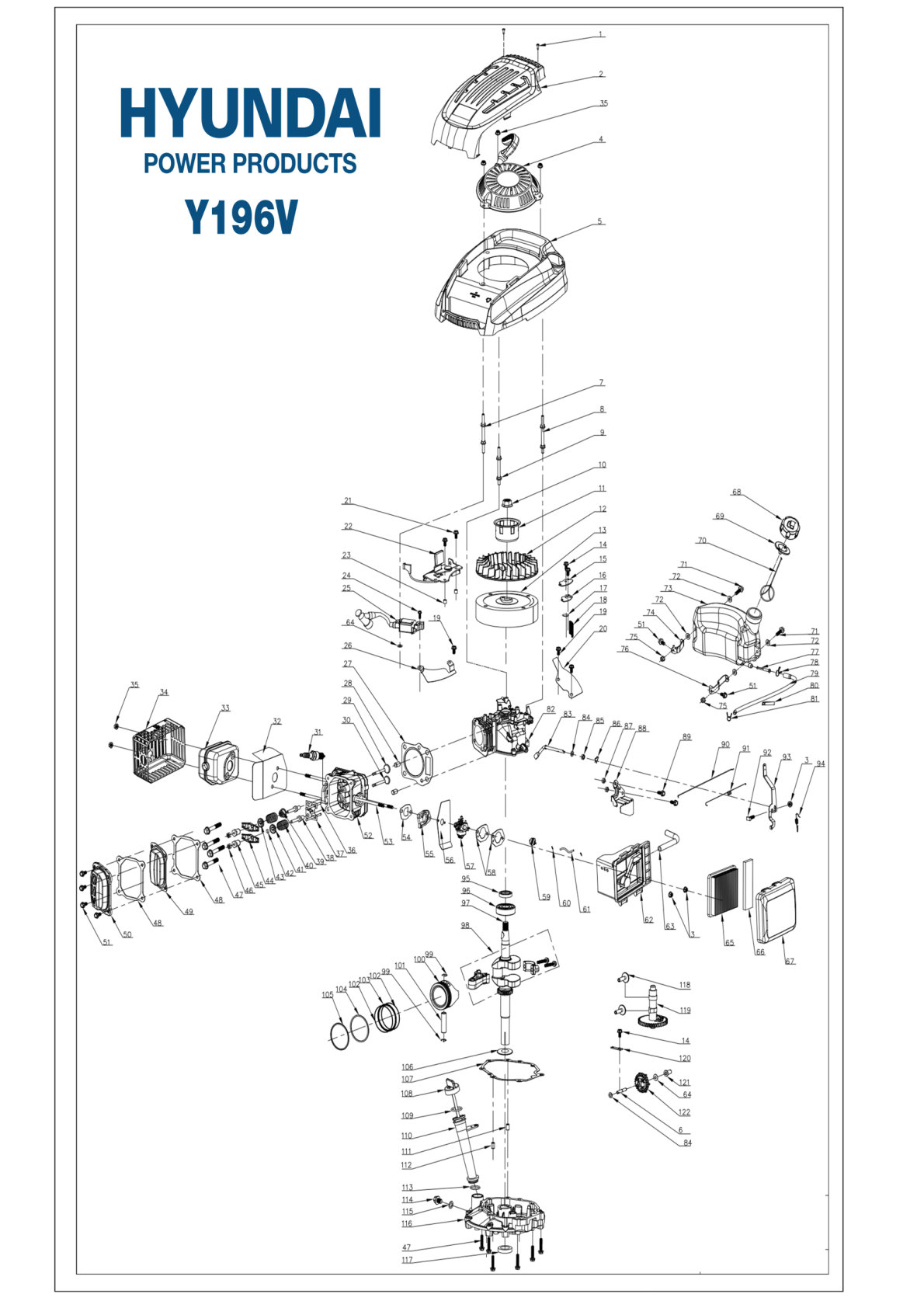

Y196V engine diagram

Hyundai Y196V engine IPL diagram
Tap/click the diagram to enlarge it.

HML48L mower parts

Main mower chassis, handle, wheels, blade and control parts.

RefDescriptionPart numberCutsmart SKU
AA1-1Upper HandleHLG333F000075Hyu-HLG333F000075@online
AA1-2Foam PipeHLG3320000000Hyu-HLG3320000000@online
AA1-3Limiting StopperHLG3XW0000000Hyu-HLG3XW0000000@online
AA1-4NutHLB2011B00000Hyu-HLB2011B00000@online
AA1-5Cable Fixing ClampHLG339X300000Hyu-HLG339X300000@online
AA1-6BoltHLB1066B06032Hyu-HLB1066B06032@online
AA1-7Cable SupportHLG33H2000000Hyu-HLG33H2000000@online
AA1-8Brake CableHLG339XXA0000Hyu-HLG339XXA0000@online
AA1-9Brake LeverHLG3353N00075Hyu-HLG3353N00075@online
AB1-1Lower HandleHLG33B4000075Hyu-HLG33B4000075@online
AB1-2Rope GuideHLG33K0000000Hyu-HLG33K0000000@online
AB1-3NutHLB2011B00000Hyu-HLB2011B00000@online
AB1-4BoltHLB1087W08032Hyu-HLB1087W08032@online
AB1-5NutHLB2009W00000Hyu-HLB2009W00000@online
AB1-6Handle PlugHLG33J0000000Hyu-HLG33J0000000@online
AB1-7Flat WasherHLB5019W00000Hyu-HLB5019W00000@online
AB1-8KnobHLG33C1100010Hyu-HLG33C1100010@online
AB1-9BoltHLB1088W08050Hyu-HLB1088W08050@online
C-1EngineHLY52D0000079Hyu-HLY52D0000079@online
C-2BoltHLB1077W08025Hyu-HLB1077W08025@online
C-3Flat KeyHLBE001W00000Hyu-HLBE001W00000@online
C-4Blade AdapterHLG353XX00000Hyu-HLG353XX00000@online
C-5Blade WasherHLG3520000000Hyu-HLG3520000000@online
C-6Blade BoltHLB1001B00032Hyu-HLB1001B00032@online
C-719" BladeHLG4510000000Hyu-HLG4510000000@online
C-8Engine coverHLY2A14000010Hyu-HLY2A14000010@online
C-9ScrewHLB3034B00000Hyu-HLB3034B00000@online
C-10Filtering Net Duct of FuelHLY28E0000000Hyu-HLY28E0000000@online
C-11Oil Pipe Circlip IHLY28K0000000Hyu-HLY28K0000000@online
D-1Height Adjustment PlateHLG34BD000000Hyu-HLG34BD000000@online
D-2BoltHLB1036W08015Hyu-HLB1036W08015@online
D-3NutHLB2028W00000Hyu-HLB2028W00000@online
D-4Right BracketHLG42B0000000Hyu-HLG42B0000000@online
D-5Left BracketHLG42C0000000Hyu-HLG42C0000000@online
D-6DeckHLG4213000079Hyu-HLG4213000079@online
D-7Mulching PlugHLG46MN000000Hyu-HLG46MN000000@online
D-8Cable SleeveHLG52E0000000Hyu-HLG52E0000000@online
D-9Washing LinkerHLG62D1000000Hyu-HLG62D1000000@online
D-10ScrewHLB3044W00000Hyu-HLB3044W00000@online
D-11plugHLG32K0000000Hyu-HLG32K0000000@online
D-12Rear Cover SpringHLG36J0000000Hyu-HLG36J0000000@online
D-13Rear Cover ShaftHLG36E0000000Hyu-HLG36E0000000@online
D-14Rear Cover SupportHLG32J0000000Hyu-HLG32J0000000@online
D-15BoltHLB1059W06014Hyu-HLB1059W06014@online
D-16NutHLB2008W00000Hyu-HLB2008W00000@online
D-17Rear Cover PedestalHLG42A0000010Hyu-HLG42A0000010@online
D-18Rear CoverHLG46B0000079Hyu-HLG46B0000079@online
D-19NutHLB2007W00000Hyu-HLB2007W00000@online
D-20BoltHLB1053W05012Hyu-HLB1053W05012@online
D-21Side Discharge Cover SpringHLG3271000000Hyu-HLG3271000000@online
D-22ScrewHLB3036W00000Hyu-HLB3036W00000@online
D-23Cover PlateHLG328CX00000Hyu-HLG328CX00000@online
D-24SpringHLG328D000000Hyu-HLG328D000000@online
D-25LockHLG328B000000Hyu-HLG328B000000@online
D-26Side Discharge coverHLG428AX00000Hyu-HLG428AX00000@online
D-27Side-Discharge Guiding BoardHLG4290000000Hyu-HLG4290000000@online
D-28Side Discharge Cover ShaftHLG3260000000Hyu-HLG3260000000@online
D-29Side Discharge BracketHLG4250000000Hyu-HLG4250000000@online
D-30Washer LHLG52F0000000Hyu-HLG52F0000000@online
D-31Washer RHLG52G0000000Hyu-HLG52G0000000@online
D-32ScrewHLB3044W00000Hyu-HLB3044W00000@online
D-33Front Plastic FaceHLG4241000010Hyu-HLG4241000010@online
D-34Front Plastic Face HandleHLG4241100073Hyu-HLG4241100073@online
E-1Height Adjustment HandleHLG3420000010Hyu-HLG3420000010@online
E-2Spring WasherHLB6009B00000Hyu-HLB6009B00000@online
E-3NutHLB2017W00000Hyu-HLB2017W00000@online
E-4BoltHLB1058W06012Hyu-HLB1058W06012@online
E-5NutHLB2008W00000Hyu-HLB2008W00000@online
E-6Height adjustment SpringHLG34AX100000Hyu-HLG34AX100000@online
E-7NutHLB2016W00000Hyu-HLB2016W00000@online
E-8Split PinHLBB004W00000Hyu-HLBB004W00000@online
E-9BoltHLB1053W05012Hyu-HLB1053W05012@online
E-10NutHLB2007W00000Hyu-HLB2007W00000@online
E-11Shaft SleeveHLG349X000000Hyu-HLG349X000000@online
E-12BushHLG4CT0000000Hyu-HLG4CT0000000@online
E-13Height adjustment connecting RodHLG4410000100Hyu-HLG4410000100@online
E-14Shaft SleeveHLG34DP000000Hyu-HLG34DP000000@online
E-157" Wheel CoverHLG24R2000073Hyu-HLG24R2000073@online
E-1610" Outer Wheel CoverHLG34V0000073Hyu-HLG34V0000073@online
E-177" WheelHLG24F0000000Hyu-HLG24F0000000@online
E-1810" WheelHLG34L00N0000Hyu-HLG34L00N0000@online
E-19Rear Wheel ShaftHLG3490000300Hyu-HLG3490000300@online
E-20Front Wheel ShaftHLG645A000000Hyu-HLG645A000000@online
E-21Inner Wheel CoverHLG34ACN00000Hyu-HLG34ACN00000@online
E-22BoltHLB1058W06012Hyu-HLB1058W06012@online
E-23Flat WasherHLB5031W00000Hyu-HLB5031W00000@online
F-1Metal BracketHLG4661200000Hyu-HLG4661200000@online
F-2Flat WasherHLB5032W00000Hyu-HLB5032W00000@online
F-3ScrewHLB3022W00000Hyu-HLB3022W00000@online
F-4fixed plateHLG4661300000Hyu-HLG4661300000@online
F-5Plastic CoverHLG4661110079Hyu-HLG4661110079@online
F-6Cover PlateHLG3661120079Hyu-HLG3661120079@online
F-7Handle coverHLG4661130079Hyu-HLG4661130079@online
F-8Indicated BoardHLG4661120079Hyu-HLG4661120079@online
F-9Fabric bagHLG1805G46000Hyu-HLG1805G46000@online

Y196V engine parts

Engine parts linked to Cutsmart SKU resolver URLs.

RefDescriptionPart numberCutsmart SKU
1ScrewHLB3034B00000Hyu-HLB3034B00000@online
2Engine coverHLY2A14000010Hyu-HLY2A14000010@online
3NutHLB2012W00000Hyu-HLB2012W00000@online
4Recoil StartHLY2A2X000000Hyu-HLY2A2X000000@online
5Blower HousingHLY2A33000079Hyu-HLY2A33000079@online
6Circlip of Gear shaftHLY3620000000Hyu-HLY3620000000@online
7Bolt IHLY3A70000000Hyu-HLY3A70000000@online
8Bolt IIHLY3A80000000Hyu-HLY3A80000000@online
9Bolt IIIHLY3A90000000Hyu-HLY3A90000000@online
10NutHLB2015W00000Hyu-HLB2015W00000@online
11Start-up HubHLY3A50000000Hyu-HLY3A50000000@online
12FanHLY3A60000000Hyu-HLY3A60000000@online
13FlywheelHLY3B10000000Hyu-HLY3B10000000@online
14BoltHLB1058W06012Hyu-HLB1058W06012@online
15Cover PlateHLY3260000000Hyu-HLY3260000000@online
16Gasket of Respirator CoverHLY3240000200Hyu-HLY3240000200@online
17Valve ElementHLY3230000000Hyu-HLY3230000000@online
18Lubricate Filtering NetHLY2220000000Hyu-HLY2220000000@online
19BoltHLB1057W06010Hyu-HLB1057W06010@online
20Back plateHLY3AAX000000Hyu-HLY3AAX000000@online
21BoltHLB1067W06035Hyu-HLB1067W06035@online
22Brake AssyHLY3710000100Hyu-HLY3710000100@online
23bushHLY37X0000000Hyu-HLY37X0000000@online
24BoltHLB1064W06025Hyu-HLB1064W06025@online
25IgnitionHLY2B20000000Hyu-HLY2B20000000@online
26Left plateHLY3AA0000100Hyu-HLY3AA0000100@online
27Gasket of Cylinder Head CoverHLY3120000000Hyu-HLY3120000000@online
28Locating PinHLY2260000000Hyu-HLY2260000000@online
29Inlet valveHLY3520000000Hyu-HLY3520000000@online
30Outlet valveHLY3530000000Hyu-HLY3530000000@online
31Spark PlugHLY2B30000000Hyu-HLY2B30000000@online
32Gasket of MufflerHLY2930000000Hyu-HLY2930000000@online
33Muffler AssyHLY3910000000Hyu-HLY3910000000@online
34Muffler Cover AssyHLY3920000000Hyu-HLY3920000000@online
35NutHLB2016W00000Hyu-HLB2016W00000@online
36HandspikeHLY55C0000000Hyu-HLY55C0000000@online
37Handspike AssyHLY35E0000000Hyu-HLY35E0000000@online
38Rocker Support Bolt of ValveHLY2580000000Hyu-HLY2580000000@online
39Oil SealHLBC011H00000Hyu-HLBC011H00000@online
40Spring of ValveHLY3540000000Hyu-HLY3540000000@online
41Spring Coil of outlet ValveHLY2560000000Hyu-HLY2560000000@online
42upper cap of outlet ValveHLY25D0000000Hyu-HLY25D0000000@online
43Spring Coil of outlet ValveHLY2550000000Hyu-HLY2550000000@online
44Rocker of ValveHLY2570000000Hyu-HLY2570000000@online
45Adjust Nut of ValveHLY2590000000Hyu-HLY2590000000@online
46Combined NutHLY25A0000000Hyu-HLY25A0000000@online
47BoltHLB1080W08050Hyu-HLB1080W08050@online
48Gasket of Cylinder Head CoverHLY2130000000Hyu-HLY2130000000@online
49Cylinder Head Inner CoverHLY3140000000Hyu-HLY3140000000@online
50Cylinder Head Outer CoverHLY3150000000Hyu-HLY3150000000@online
51BoltHLB1059W06014Hyu-HLB1059W06014@online
52Cylinder Head AssyHLY3110000000Hyu-HLY3110000000@online
53BoltHLB4002W06092Hyu-HLB4002W06092@online
54Paper Gasket of Inlet PipeHLY3810000000Hyu-HLY3810000000@online
55Air Inlet PipeHLY3820000000Hyu-HLY3820000000@online
56Paper Gasket of CarburetorHLY3830000000Hyu-HLY3830000000@online
57CarburetorHLY585A000000Hyu-HLY585A000000@online
58Paper Gasket of Air FilterHLY2840000000Hyu-HLY2840000000@online
59PrimerHLY28P0000050Hyu-HLY28P0000050@online
60CirclipHLY28R0000000Hyu-HLY28R0000000@online
61PrimerHLY28Q0000000Hyu-HLY28Q0000000@online
62Air Filter PedestalHLY2870000000Hyu-HLY2870000000@online
63Exhuast Pipe φ8*φ12*165HLY38A0000000Hyu-HLY38A0000000@online
64WasherHLB5027B00000Hyu-HLB5027B00000@online
65Paper Filter ElementHLY3880000000Hyu-HLY3880000000@online
66Filter ElementHLY28C0000000Hyu-HLY28C0000000@online
67Air Filter Upper CoverHLY2860000000Hyu-HLY2860000000@online
68Fuel Tank CapHLY28H0000000Hyu-HLY28H0000000@online
69Seal Gasket of Fuel Tank CapHLY28F0000000Hyu-HLY28F0000000@online
70Connecting RopeHLY28T0000000Hyu-HLY28T0000000@online
71BoltHLB1063W06022Hyu-HLB1063W06022@online
72GasketHLY28S0000000Hyu-HLY28S0000000@online
73Fuel TankHLY38D0000000Hyu-HLY38D0000000@online
74Right Bracket of Fuel TankHLY38NX000000Hyu-HLY38NX000000@online
75NutHLB2008W00000Hyu-HLB2008W00000@online
76Left Bracket of Fuel TankHLY38MX000000Hyu-HLY38MX000000@online
77Filtering Net Duct of FuelHLY28E0000000Hyu-HLY28E0000000@online
78Oil Pipe Circlip IHLY28K0000000Hyu-HLY28K0000000@online
79Oil PipeHLY38J0000000Hyu-HLY38J0000000@online
80Oil Pipe Fixing ClipHLY28U0000000Hyu-HLY28U0000000@online
81Oil Pipe Circlip IIHLY28L0000000Hyu-HLY28L0000000@online
82CrankcaseHLY5210000000Hyu-HLY5210000000@online
83Speed Regulator Rocker SpindleHLY3660000000Hyu-HLY3660000000@online
84Flat WasherHLB5026W00000Hyu-HLB5026W00000@online
85Oil SealHLBC006B00000Hyu-HLBC006B00000@online
86Springness Split PinHLY2670000000Hyu-HLY2670000000@online
87bushHLY27X0000000Hyu-HLY27X0000000@online
88Description not shown in IPLHLY269X000100Hyu-HLY269X000100@online
89BoltHLB1060W06016Hyu-HLB1060W06016@online
90Handspike of ValveHLY56B0000000Hyu-HLY56B0000000@online
91Spring of ValveHLY36C0000000Hyu-HLY36C0000000@online
92BoltHLB1085W06023Hyu-HLB1085W06023@online
93Speed Regulator RockerHLY3680000000Hyu-HLY3680000000@online
94Speed Regulator SpringHLY36A0000300Hyu-HLY36A0000300@online
95Oil SealHLBC004B00000Hyu-HLBC004B00000@online
96Ball BearingHLB0008W00000Hyu-HLB0008W00000@online
97CrankcaseHLY541A000000Hyu-HLY541A000000@online
98Connecting Rod AssyHLY5470000000Hyu-HLY5470000000@online
99Circlip of Piston PinHLY5490000000Hyu-HLY5490000000@online
100Piston AssyHLY5420000000Hyu-HLY5420000000@online
101Piston PinHLY5480000000Hyu-HLY5480000000@online
102Scraper RingHLY5450000000Hyu-HLY5450000000@online
103Bushing RingHLY5460000000Hyu-HLY5460000000@online
104Piston Ring IIHLY5440000000Hyu-HLY5440000000@online
105Piston Ring IHLY5430000000Hyu-HLY5430000000@online
106Gasket of GearHLY34A0000000Hyu-HLY34A0000000@online
107Gasket of CrankcaseHLY3350000000Hyu-HLY3350000000@online
108Lubricating GaugeHLY3331200000Hyu-HLY3331200000@online
109"o" Ring φ20*φ2.3HLBD006B00000Hyu-HLBD006B00000@online
110Lubricating PipeHLY3320000000Hyu-HLY3320000000@online
111Locating Pin of CrankcaseHLY2360000000Hyu-HLY2360000000@online
112Locating Pin of CrankcaseHLY3360000000Hyu-HLY3360000000@online
113"O" Ring φ21*φ2.3HLBD004H00000Hyu-HLBD004H00000@online
114Draining Oil BoltHLB1016W10012Hyu-HLB1016W10012@online
115Draining Oil Bolt GasketHLB5021W00000Hyu-HLB5021W00000@online
116Crankcase CoverHLY3310000000Hyu-HLY3310000000@online
117Oil SealHLBC008H00000Hyu-HLBC008H00000@online
118TappetHLY25B0000000Hyu-HLY25B0000000@online
119CamshaftHLY5510000000Hyu-HLY5510000000@online
120Gear Shaft Hold-down PlateHLY2650000000Hyu-HLY2650000000@online
121Sliding SleeveHLY2640000000Hyu-HLY2640000000@online
122Gear Shaft AssyHLY2610000000Hyu-HLY2610000000@online
Stock and pricing are shown on the linked Cutsmart product pages where available. If a SKU has not yet been imported, add it from the missing SKU CSV first so the link resolves correctly.
