Hyundai HLM48LS Lawnmower IPL / Parts List
Illustrated parts list for the Hyundai HLM48LS 48cm self-propelled lawnmower and Y196V engine. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Click or tap any Cutsmart SKU to open the matching product page by SKU. Newly imported parts will start opening once they are published in VirtueMart.

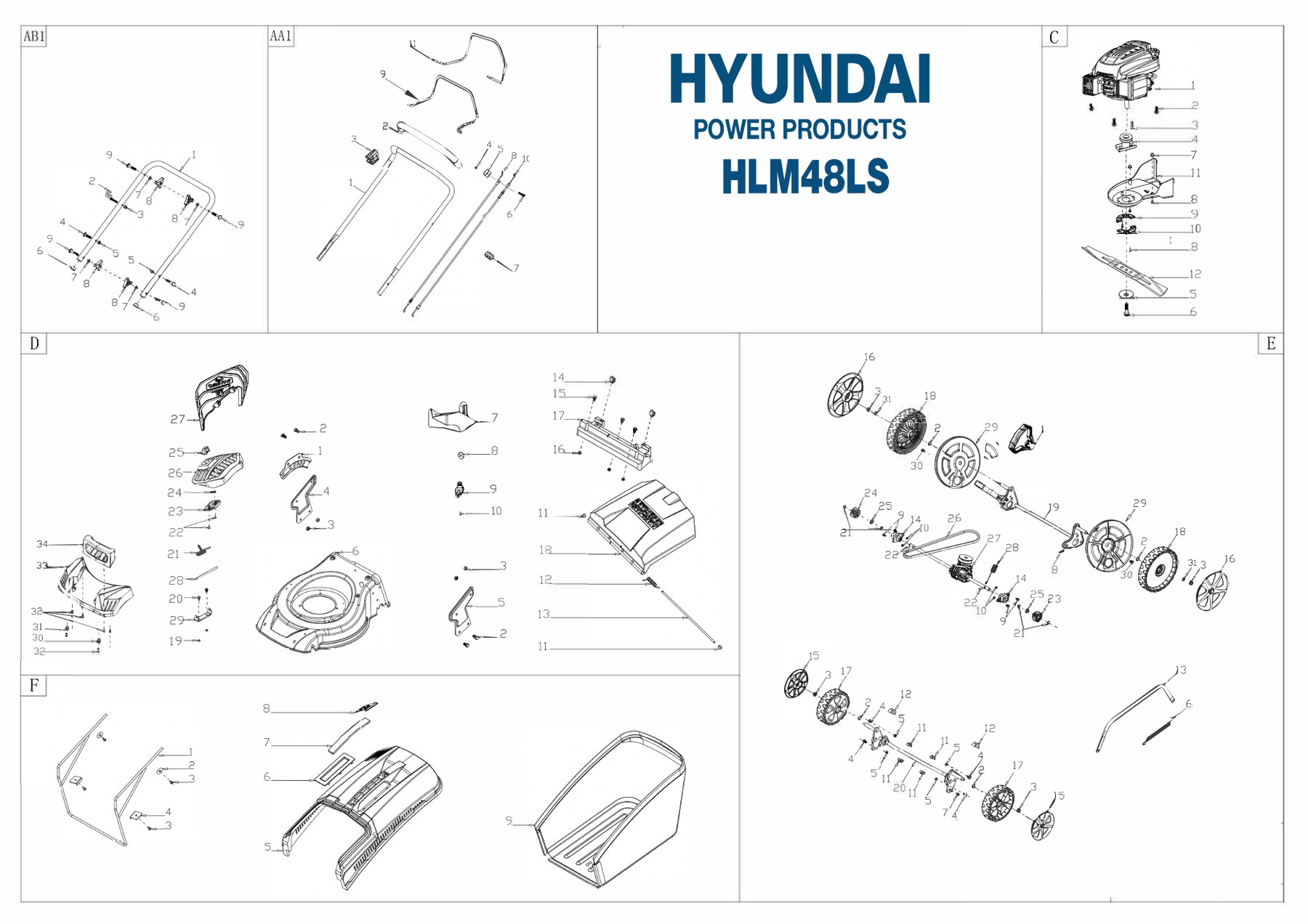

HLM48LS Lawnmower Diagram
Tap or click the image to enlarge it.

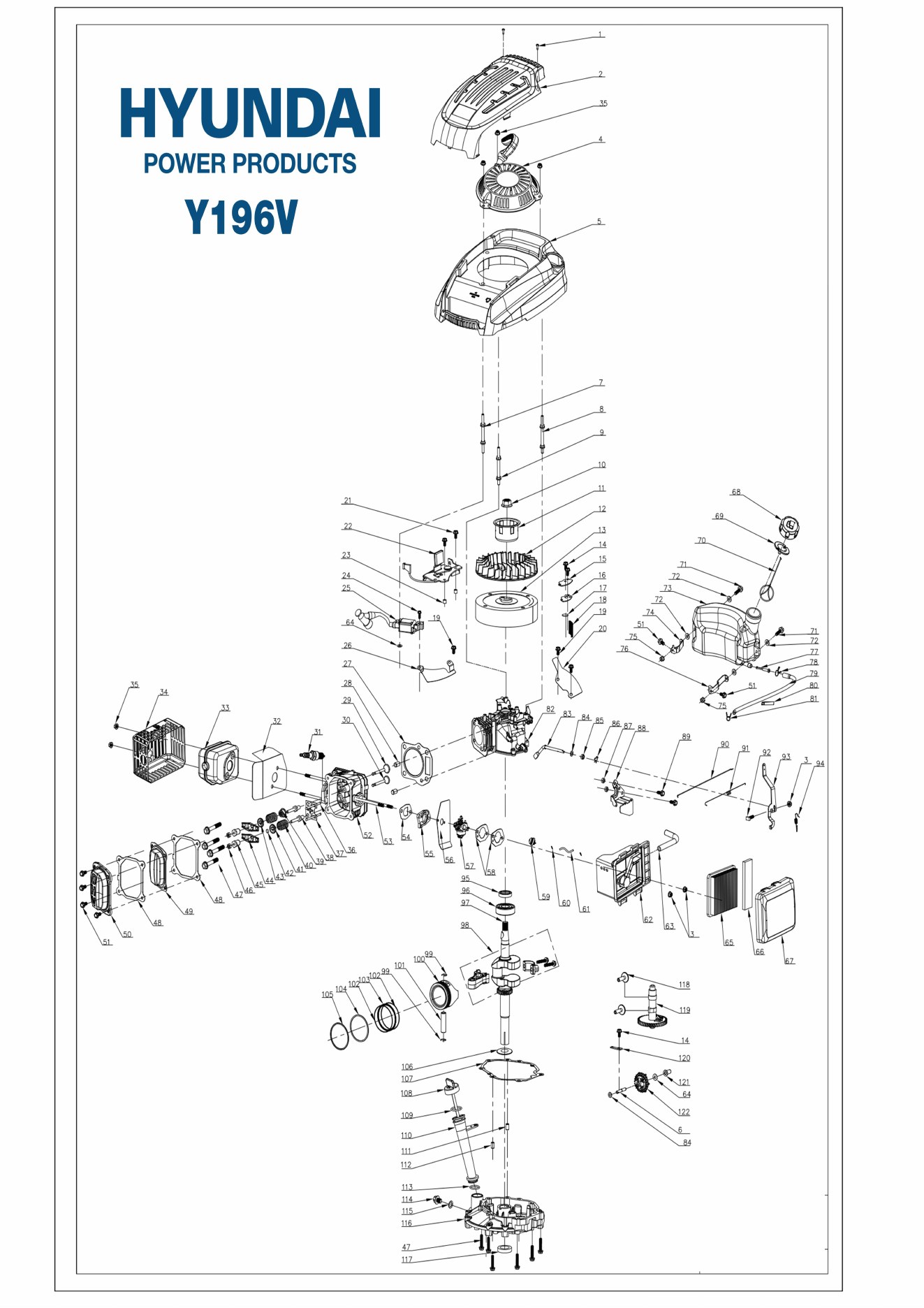

Y196V Engine Diagram
Tap or click the image to enlarge it.
HLM48LS Lawnmower Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| AA1-1 | Upper Handle | HLG333F000075 | Hyu-HLG333F000075@online |
| AA1-2 | Foam Pipe | HLG3320000000 | Hyu-HLG3320000000@online |
| AA1-3 | Limiting Stopper | HLG3XW0000000 | Hyu-HLG3XW0000000@online |
| AA1-4 | Nut | HLB2011B00000 | Hyu-HLB2011B00000@online |
| AA1-5 | Cable Fixing Clamp | HLG339X300000 | Hyu-HLG339X300000@online |
| AA1-6 | Bolt | HLB1066B06032 | Hyu-HLB1066B06032@online |
| AA1-7 | Cable Support | HLG33H2000000 | Hyu-HLG33H2000000@online |
| AA1-8 | Brake Cable | HLG339XXA0000 | Hyu-HLG339XXA0000@online |
| AA1-9 | Brake Lever | HLG3353N00075 | Hyu-HLG3353N00075@online |
| AA1-10 | Clutch cable | HLG339XY90000 | Hyu-HLG339XY90000@online |
| AA1-11 | Clutch Lever | HLG3376000075 | Hyu-HLG3376000075@online |
| AB1-1 | Lower Handle | HLG33B4000075 | Hyu-HLG33B4000075@online |
| AB1-2 | Rope Guide | HLG33K0000000 | Hyu-HLG33K0000000@online |
| AB1-3 | Nut | HLB2011B00000 | Hyu-HLB2011B00000@online |
| AB1-4 | Bolt | HLB1087W08032 | Hyu-HLB1087W08032@online |
| AB1-5 | Nut | HLB2009W00000 | Hyu-HLB2009W00000@online |
| AB1-6 | Handle Plug | HLG33J0000000 | Hyu-HLG33J0000000@online |
| AB1-7 | Flat Washer | HLB5019W00000 | Hyu-HLB5019W00000@online |
| AB1-8 | Knob | HLG33C1100010 | Hyu-HLG33C1100010@online |
| AB1-9 | Bolt | HLB1088W08050 | Hyu-HLB1088W08050@online |
| C-1 | Engine | HLY52D0000079 | Hyu-HLY52D0000079@online |
| C-2 | Bolt | HLB1077W08025 | Hyu-HLB1077W08025@online |
| C-3 | Flat Key | HLBE001W00000 | Hyu-HLBE001W00000@online |
| C-4 | Blade adapter | HLG34AWY00000 | Hyu-HLG34AWY00000@online |
| C-5 | Blade Washer | HLG3520000000 | Hyu-HLG3520000000@online |
| C-6 | Blade Bolt | HLB1001B00032 | Hyu-HLB1001B00032@online |
| C-7 | Screw Cap | HLG22K0000000 | Hyu-HLG22K0000000@online |
| C-8 | Screw | HLB3022W00000 | Hyu-HLB3022W00000@online |
| C-9 | Belt Cover Plate | HLG323G000000 | Hyu-HLG323G000000@online |
| C-10 | Belt Cover Plate | HLG323H000000 | Hyu-HLG323H000000@online |
| C-11 | Belt Cover | HLG423N000000 | Hyu-HLG423N000000@online |
| C-12 | 19 inch Blade | HLG4510000000 | Hyu-HLG4510000000@online |
| C-13 | Engine cover | HLY2A14000010 | Hyu-HLY2A14000010@online |
| C-14 | Screw | HLB3034B00000 | Hyu-HLB3034B00000@online |
| C-15 | Filtering Net Duct of Fuel | HLY28E0000000 | Hyu-HLY28E0000000@online |
| C-16 | Oil Pipe Circlip I | HLY28K0000000 | Hyu-HLY28K0000000@online |
| D-1 | Height Adjustment Plate | HLG34BD000000 | Hyu-HLG34BD000000@online |
| D-2 | Bolt | HLB1036W08015 | Hyu-HLB1036W08015@online |
| D-3 | Nut | HLB2028W00000 | Hyu-HLB2028W00000@online |
| D-4 | Right Bracket | HLG42B0000000 | Hyu-HLG42B0000000@online |
| D-5 | Left Bracket | HLG42C0000000 | Hyu-HLG42C0000000@online |
| D-6 | Deck | HLG4217000079 | Hyu-HLG4217000079@online |
| D-7 | Mulching Plug | HLG46MN000000 | Hyu-HLG46MN000000@online |
| D-8 | Cable Sleeve | HLG52E0000000 | Hyu-HLG52E0000000@online |
| D-9 | Washing Linker | HLG62D1000000 | Hyu-HLG62D1000000@online |
| D-10 | Screw | HLB3044W00000 | Hyu-HLB3044W00000@online |
| D-11 | Plug | HLG32K0000000 | Hyu-HLG32K0000000@online |
| D-12 | Rear Cover Spring | HLG36J0000000 | Hyu-HLG36J0000000@online |
| D-13 | Rear Cover Shaft | HLG36E0000000 | Hyu-HLG36E0000000@online |
| D-14 | Rear Cover Support | HLG32J0000000 | Hyu-HLG32J0000000@online |
| D-15 | Bolt | HLB1059W06014 | Hyu-HLB1059W06014@online |
| D-16 | Nut | HLB2008W00000 | Hyu-HLB2008W00000@online |
| D-17 | Rear Cover Pedestal | HLG42A0000010 | Hyu-HLG42A0000010@online |
| D-18 | Rear Cover | HLG36B0000079 | Hyu-HLG36B0000079@online |
| D-19 | Nut | HLB2007W00000 | Hyu-HLB2007W00000@online |
| D-20 | Bolt | HLB1053W05012 | Hyu-HLB1053W05012@online |
| D-21 | Side Discharge Cover Spring | HLG3271000000 | Hyu-HLG3271000000@online |
| D-22 | Screw | HLB3036W00000 | Hyu-HLB3036W00000@online |
| D-23 | Cover Plate | HLG328CX00000 | Hyu-HLG328CX00000@online |
| D-24 | Spring | HLG328D000000 | Hyu-HLG328D000000@online |
| D-25 | Lock | HLG328B000000 | Hyu-HLG328B000000@online |
| D-26 | Side Discharge cover | HLG428AX00000 | Hyu-HLG428AX00000@online |
| D-27 | Side-Discharge Guiding Board | HLG4290000000 | Hyu-HLG4290000000@online |
| D-28 | Side Discharge Cover Shaft | HLG3260000000 | Hyu-HLG3260000000@online |
| D-29 | Side Discharge Bracket | HLG4250000000 | Hyu-HLG4250000000@online |
| D-30 | Washer L | HLG52F0000000 | Hyu-HLG52F0000000@online |
| D-31 | Washer R | HLG52G0000000 | Hyu-HLG52G0000000@online |
| D-32 | Screw | HLB3044W00000 | Hyu-HLB3044W00000@online |
| D-33 | Front Plastic Face | HLG4241000010 | Hyu-HLG4241000010@online |
| D-34 | Front Plastic Face Handle | HLG4241100073 | Hyu-HLG4241100073@online |
| E-1 | Height Adjustment Handle | HLG3420000010 | Hyu-HLG3420000010@online |
| E-2 | Spring Washer | HLB6009B00000 | Hyu-HLB6009B00000@online |
| E-3 | Nut | HLB2017W00000 | Hyu-HLB2017W00000@online |
| E-4 | Bolt | HLB1058W06012 | Hyu-HLB1058W06012@online |
| E-5 | Nut | HLB2008W00000 | Hyu-HLB2008W00000@online |
| E-6 | Height adjustment Spring | HLG34AX100000 | Hyu-HLG34AX100000@online |
| E-7 | Nut | HLB2016W00000 | Hyu-HLB2016W00000@online |
| E-8 | Split Pin | HLBB004W00000 | Hyu-HLBB004W00000@online |
| E-9 | Bolt | HLB1053W05012 | Hyu-HLB1053W05012@online |
| E-10 | Nut | HLB2007W00000 | Hyu-HLB2007W00000@online |
| E-11 | Shaft Sleeve | HLG349X000000 | Hyu-HLG349X000000@online |
| E-12 | Bush | HLG4CT0000000 | Hyu-HLG4CT0000000@online |
| E-13 | Height adjustment connecting Rod | HLG4410000100 | Hyu-HLG4410000100@online |
| E-14 | Shaft Sleeve | HLG34DV000000 | Hyu-HLG34DV000000@online |
| E-15 | 7 inch Wheel Cover | HLG24R2000073 | Hyu-HLG24R2000073@online |
| E-16 | 10 inch Outer Wheel Cover | HLG34V0000073 | Hyu-HLG34V0000073@online |
| E-17 | 7 inch Wheel | HLG24F0000000 | Hyu-HLG24F0000000@online |
| E-18 | 10 inch Wheel | HLG34L00N0000 | Hyu-HLG34L00N0000@online |
| E-19 | Rear Wheel Shaft | HLG3490000300 | Hyu-HLG3490000300@online |
| E-20 | Front Wheel Shaft | HLG645A000000 | Hyu-HLG645A000000@online |
| E-21 | Lock Ring | HLB9006B00000 | Hyu-HLB9006B00000@online |
| E-22 | Pin | HLG34AN000000 | Hyu-HLG34AN000000@online |
| E-23 | Left Gear | HLG54AL000000 | Hyu-HLG54AL000000@online |
| E-24 | Right Gear | HLG54AM000000 | Hyu-HLG54AM000000@online |
| E-25 | Flat Washer | HLB5033W00000 | Hyu-HLB5033W00000@online |
| E-26 | Belt | HLBA00GB00000 | Hyu-HLBA00GB00000@online |
| E-27 | Gearbox | HLG34AP201800 | Hyu-HLG34AP201800@online |
| E-28 | Spring | HLG34AJ000200 | Hyu-HLG34AJ000200@online |
| E-29 | Inner Wheel Cover | HLG34ACN00000 | Hyu-HLG34ACN00000@online |
| E-30 | Bolt | HLB1058W06012 | Hyu-HLB1058W06012@online |
| E-31 | Flat Washer | HLB5031W00000 | Hyu-HLB5031W00000@online |
| F-1 | Metal Bracket | HLG4661200000 | Hyu-HLG4661200000@online |
| F-2 | Flat Washer | HLB5032W00000 | Hyu-HLB5032W00000@online |
| F-3 | Screw | HLB3022W00000 | Hyu-HLB3022W00000@online |
| F-4 | Fixed plate | HLG4661300000 | Hyu-HLG4661300000@online |
| F-5 | Plastic Cover | HLG4661110079 | Hyu-HLG4661110079@online |
| F-6 | Cover Plate | HLG3661120079 | Hyu-HLG3661120079@online |
| F-7 | Handle cover | HLG4661130079 | Hyu-HLG4661130079@online |
| F-8 | Indicated Board | HLG4661120079 | Hyu-HLG4661120079@online |
| F-9 | Fabric bag | HLG1805G46000 | Hyu-HLG1805G46000@online |
Y196V Engine Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | Screw | HLB3034B00000 | Hyu-HLB3034B00000@online |
| 2 | Engine cover | HLY2A14000010 | Hyu-HLY2A14000010@online |
| 3 | Nut | HLB2012W00000 | Hyu-HLB2012W00000@online |
| 4 | Recoil Start | HLY2A2X000000 | Hyu-HLY2A2X000000@online |
| 5 | Blower Housing | HLY2A33000079 | Hyu-HLY2A33000079@online |
| 6 | Circlip of Gear shaft | HLY3620000000 | Hyu-HLY3620000000@online |
| 7 | Bolt I | HLY3A70000000 | Hyu-HLY3A70000000@online |
| 8 | Bolt II | HLY3A80000000 | Hyu-HLY3A80000000@online |
| 9 | Bolt III | HLY3A90000000 | Hyu-HLY3A90000000@online |
| 10 | Nut | HLB2015W00000 | Hyu-HLB2015W00000@online |
| 11 | Start-up Hub | HLY3A50000000 | Hyu-HLY3A50000000@online |
| 12 | Fan | HLY3A60000000 | Hyu-HLY3A60000000@online |
| 13 | Flywheel | HLY3B10000000 | Hyu-HLY3B10000000@online |
| 14 | Bolt | HLB1058W06012 | Hyu-HLB1058W06012@online |
| 15 | Cover Plate | HLY3260000000 | Hyu-HLY3260000000@online |
| 16 | Gasket of Respirator Cover | HLY3240000200 | Hyu-HLY3240000200@online |
| 17 | Valve Element | HLY3230000000 | Hyu-HLY3230000000@online |
| 18 | Lubricate Filtering Net | HLY2220000000 | Hyu-HLY2220000000@online |
| 19 | Bolt | HLB1057W06010 | Hyu-HLB1057W06010@online |
| 20 | Back plate | HLY3AAX000000 | Hyu-HLY3AAX000000@online |
| 21 | Bolt | HLB1067W06035 | Hyu-HLB1067W06035@online |
| 22 | Brake Assy | HLY3710000100 | Hyu-HLY3710000100@online |
| 23 | Bush | HLY37X0000000 | Hyu-HLY37X0000000@online |
| 24 | Bolt | HLB1064W06025 | Hyu-HLB1064W06025@online |
| 25 | Ignition | HLY2B20000000 | Hyu-HLY2B20000000@online |
| 26 | Left plate | HLY3AA0000100 | Hyu-HLY3AA0000100@online |
| 27 | Gasket of Cylinder Head Cover | HLY3120000000 | Hyu-HLY3120000000@online |
| 28 | Locating Pin | HLY2260000000 | Hyu-HLY2260000000@online |
| 29 | Inlet valve | HLY3520000000 | Hyu-HLY3520000000@online |
| 30 | Outlet valve | HLY3530000000 | Hyu-HLY3530000000@online |
| 31 | Spark Plug | HLY2B30000000 | Hyu-HLY2B30000000@online |
| 32 | Gasket of Muffler | HLY2930000000 | Hyu-HLY2930000000@online |
| 33 | Muffler Assy | HLY3910000000 | Hyu-HLY3910000000@online |
| 34 | Muffler Cover Assy | HLY3920000000 | Hyu-HLY3920000000@online |
| 35 | Nut | HLB2016W00000 | Hyu-HLB2016W00000@online |
| 36 | Handspike | HLY55C0000000 | Hyu-HLY55C0000000@online |
| 37 | Handspike Assy | HLY35E0000000 | Hyu-HLY35E0000000@online |
| 38 | Rocker Support Bolt of Valve | HLY2580000000 | Hyu-HLY2580000000@online |
| 39 | Oil Seal | HLBC011H00000 | Hyu-HLBC011H00000@online |
| 40 | Spring of Valve | HLY3540000000 | Hyu-HLY3540000000@online |
| 41 | Spring Coil of outlet Valve | HLY2560000000 | Hyu-HLY2560000000@online |
| 42 | Upper cap of outlet Valve | HLY25D0000000 | Hyu-HLY25D0000000@online |
| 43 | Spring Coil of outlet Valve | HLY2550000000 | Hyu-HLY2550000000@online |
| 44 | Rocker of Valve | HLY2570000000 | Hyu-HLY2570000000@online |
| 45 | Adjust Nut of Valve | HLY2590000000 | Hyu-HLY2590000000@online |
| 46 | Combined Nut | HLY25A0000000 | Hyu-HLY25A0000000@online |
| 47 | Bolt | HLB1080W08050 | Hyu-HLB1080W08050@online |
| 48 | Gasket of Cylinder Head Cover | HLY2130000000 | Hyu-HLY2130000000@online |
| 49 | Cylinder Head Inner Cover | HLY3140000000 | Hyu-HLY3140000000@online |
| 50 | Cylinder Head Outer Cover | HLY3150000000 | Hyu-HLY3150000000@online |
| 51 | Bolt | HLB1059W06014 | Hyu-HLB1059W06014@online |
| 52 | Cylinder Head Assy | HLY3110000000 | Hyu-HLY3110000000@online |
| 53 | Bolt | HLB4002W06092 | Hyu-HLB4002W06092@online |
| 54 | Paper Gasket of Inlet Pipe | HLY3810000000 | Hyu-HLY3810000000@online |
| 55 | Air Inlet Pipe | HLY3820000000 | Hyu-HLY3820000000@online |
| 56 | Paper Gasket of Carburetor | HLY3830000000 | Hyu-HLY3830000000@online |
| 57 | Carburetor | HLY585A000000 | Hyu-HLY585A000000@online |
| 58 | Paper Gasket of Air Filter | HLY2840000000 | Hyu-HLY2840000000@online |
| 59 | Primer | HLY28P0000050 | Hyu-HLY28P0000050@online |
| 60 | Circlip | HLY28R0000000 | Hyu-HLY28R0000000@online |
| 61 | Primer | HLY28Q0000000 | Hyu-HLY28Q0000000@online |
| 62 | Air Filter Pedestal | HLY2870000000 | Hyu-HLY2870000000@online |
| 63 | Exhaust Pipe 8 x 12 x 165 | HLY38A0000000 | Hyu-HLY38A0000000@online |
| 64 | Washer | HLB5027B00000 | Hyu-HLB5027B00000@online |
| 65 | Paper Filter Element | HLY3880000000 | Hyu-HLY3880000000@online |
| 66 | Filter Element | HLY28C0000000 | Hyu-HLY28C0000000@online |
| 67 | Air Filter Upper Cover | HLY2860000000 | Hyu-HLY2860000000@online |
| 68 | Fuel Tank Cap | HLY28H0000000 | Hyu-HLY28H0000000@online |
| 69 | Seal Gasket of Fuel Tank Cap | HLY28F0000000 | Hyu-HLY28F0000000@online |
| 70 | Connecting Rope | HLY28T0000000 | Hyu-HLY28T0000000@online |
| 71 | Bolt | HLB1063W06022 | Hyu-HLB1063W06022@online |
| 72 | Gasket | HLY28S0000000 | Hyu-HLY28S0000000@online |
| 73 | Fuel Tank | HLY38D0000000 | Hyu-HLY38D0000000@online |
| 74 | Right Bracket of Fuel Tank | HLY38NX000000 | Hyu-HLY38NX000000@online |
| 75 | Nut | HLB2008W00000 | Hyu-HLB2008W00000@online |
| 76 | Left Bracket of Fuel Tank | HLY38MX000000 | Hyu-HLY38MX000000@online |
| 77 | Filtering Net Duct of Fuel | HLY28E0000000 | Hyu-HLY28E0000000@online |
| 78 | Oil Pipe Circlip I | HLY28K0000000 | Hyu-HLY28K0000000@online |
| 79 | Oil Pipe | HLY38J0000000 | Hyu-HLY38J0000000@online |
| 80 | Oil Pipe Fixing Clip | HLY28U0000000 | Hyu-HLY28U0000000@online |
| 81 | Oil Pipe Circlip II | HLY28L0000000 | Hyu-HLY28L0000000@online |
| 82 | Crankcase | HLY5210000000 | Hyu-HLY5210000000@online |
| 83 | Speed Regulator Rocker Spindle | HLY3660000000 | Hyu-HLY3660000000@online |
| 84 | Flat Washer | HLB5026W00000 | Hyu-HLB5026W00000@online |
| 85 | Oil Seal | HLBC006B00000 | Hyu-HLBC006B00000@online |
| 86 | Springness Split Pin | HLY2670000000 | Hyu-HLY2670000000@online |
| 87 | Bush | HLY27X0000000 | Hyu-HLY27X0000000@online |
| 88 | Bolt | HLY269X000100 | Hyu-HLY269X000100@online |
| 89 | Bolt | HLB1060W06016 | Hyu-HLB1060W06016@online |
| 90 | Handspike of Valve | HLY56B0000000 | Hyu-HLY56B0000000@online |
| 91 | Spring of Valve | HLY36C0000000 | Hyu-HLY36C0000000@online |
| 92 | Bolt | HLB1085W06023 | Hyu-HLB1085W06023@online |
| 93 | Speed Regulator Rocker | HLY3680000000 | Hyu-HLY3680000000@online |
| 94 | Speed Regulator Spring | HLY36A0000300 | Hyu-HLY36A0000300@online |
| 95 | Oil Seal | HLBC004B00000 | Hyu-HLBC004B00000@online |
| 96 | Ball Bearing | HLB0008W00000 | Hyu-HLB0008W00000@online |
| 97 | Crankcase | HLY541A000000 | Hyu-HLY541A000000@online |
| 98 | Connecting Rod Assy | HLY5470000000 | Hyu-HLY5470000000@online |
| 99 | Circlip of Piston Pin | HLY5490000000 | Hyu-HLY5490000000@online |
| 100 | Piston Assy | HLY5420000000 | Hyu-HLY5420000000@online |
| 101 | Piston Pin | HLY5480000000 | Hyu-HLY5480000000@online |
| 102 | Scraper Ring | HLY5450000000 | Hyu-HLY5450000000@online |
| 103 | Bushing Ring | HLY5460000000 | Hyu-HLY5460000000@online |
| 104 | Piston Ring II | HLY5440000000 | Hyu-HLY5440000000@online |
| 105 | Piston Ring I | HLY5430000000 | Hyu-HLY5430000000@online |
| 106 | Gasket of Gear | HLY34A0000000 | Hyu-HLY34A0000000@online |
| 107 | Gasket of Crankcase | HLY3350000000 | Hyu-HLY3350000000@online |
| 108 | Lubricating Gauge | HLY3331200000 | Hyu-HLY3331200000@online |
| 109 | O-Ring 20 x 2.3 | HLBD006B00000 | Hyu-HLBD006B00000@online |
| 110 | Lubricating Pipe | HLY3320000000 | Hyu-HLY3320000000@online |
| 111 | Locating Pin of Crankcase | HLY2360000000 | Hyu-HLY2360000000@online |
| 112 | Locating Pin of Crankcase | HLY3360000000 | Hyu-HLY3360000000@online |
| 113 | O-Ring 21 x 2.3 | HLBD004H00000 | Hyu-HLBD004H00000@online |
| 114 | Draining Oil Bolt | HLB1016W10012 | Hyu-HLB1016W10012@online |
| 115 | Draining Oil Bolt Gasket | HLB5021W00000 | Hyu-HLB5021W00000@online |
| 116 | Crankcase Cover | HLY3310000000 | Hyu-HLY3310000000@online |
| 117 | Oil Seal | HLBC008H00000 | Hyu-HLBC008H00000@online |
| 118 | Tappet | HLY25B0000000 | Hyu-HLY25B0000000@online |
| 119 | Camshaft | HLY5510000000 | Hyu-HLY5510000000@online |
| 120 | Gear Shaft Hold-down Plate | HLY2650000000 | Hyu-HLY2650000000@online |
| 121 | Sliding Sleeve | HLY2640000000 | Hyu-HLY2640000000@online |
| 122 | Gear Shaft Assy | HLY2610000000 | Hyu-HLY2610000000@online |
SKU convention used in this article: Hyundai part number with Hyu- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
