Hyundai H4000iSE Generator IPL / Parts List
Illustrated parts list for the Hyundai H4000iSE inverter generator. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

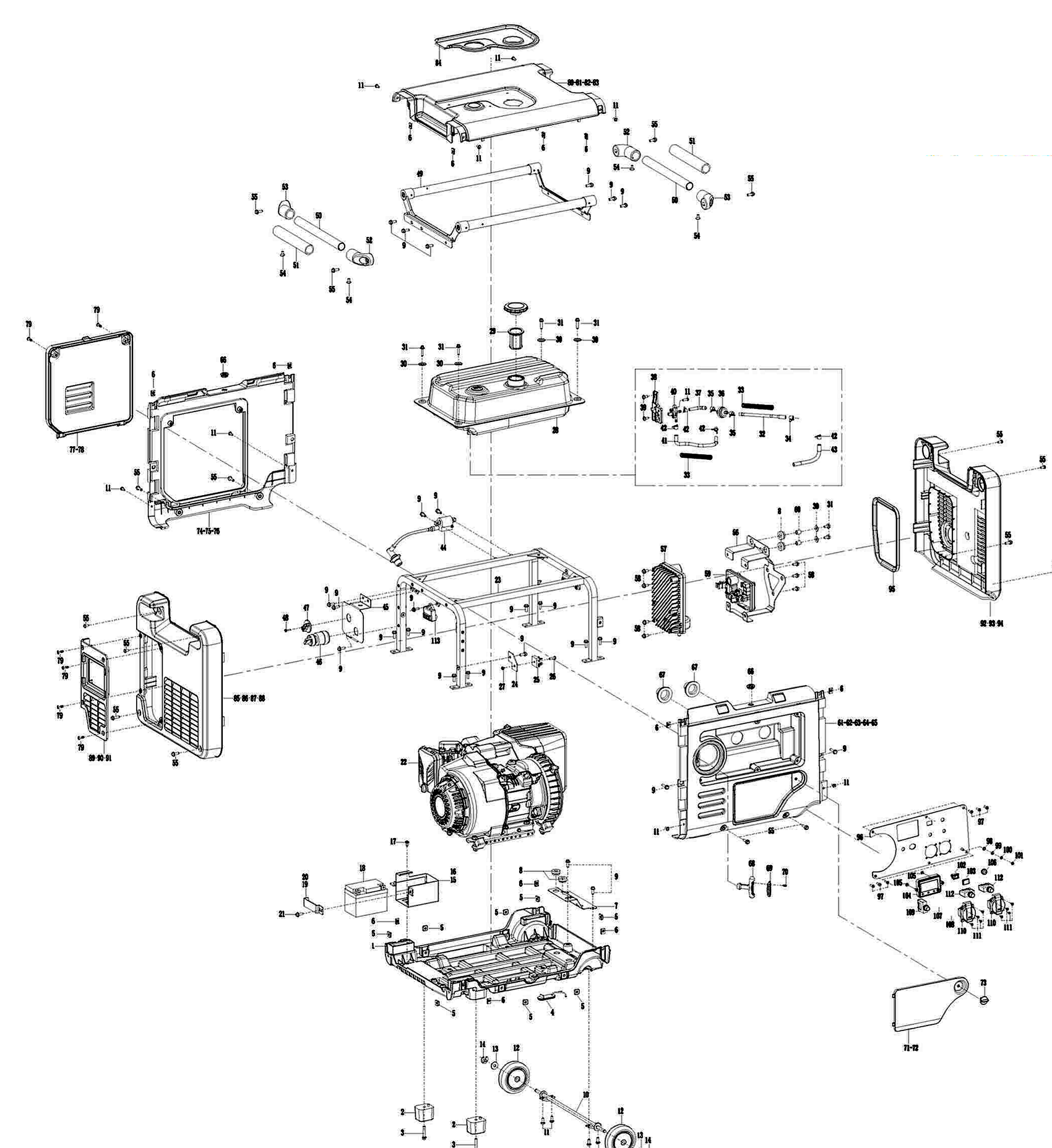

Body, Frame, Fuel Tank and Control Panel
Body, Frame, Fuel Tank and Control Panel
Click image to enlarge
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | base board | 6360.3.000200 | Hyu-6360.3.000200@online |
| 2 | base rubber | 6301.4.000200 | Hyu-6301.4.000200@online |
| 3 | Hexagon flange bolt | 7.01.00000300 | Hyu-7.01.00000300@online |
| 4 | oil drainage plug | 6301.4.000100 | Hyu-6301.4.000100@online |
| 5 | square nut | 7.02.00000501 | Hyu-7.02.00000501@online |
| 6 | spring nut | 7.02.00000101 | Hyu-7.02.00000101@online |
| 7 | lower bracket - inverter | 636N.5.000100 | Hyu-636N.5.000100@online |
| 8 | tank rubber | 6701.4.000700 | Hyu-6701.4.000700@online |
| 9 | Hexagon flange bolt | 7.01.00002000 | Hyu-7.01.00002000@online |
| 10 | wheel axle | 6360.5.000100 | Hyu-6360.5.000100@online |
| 11 | cross recess pan head screw | 7.03.00002300 | Hyu-7.03.00002300@online |
| 12 | wheel | 6360.3.000300 | Hyu-6360.3.000300@online |
| 13 | washer | 7.06.00001900 | Hyu-7.06.00001900@online |
| 14 | retainer ring | 7.06.00004600 | Hyu-7.06.00004600@online |
| 15 | battery bracket | 6361.5.000200 | Hyu-6361.5.000200@online |
| 16 | sponge | 6360.7.004700 | Hyu-6360.7.004700@online |
| 17 | cross recess pan head screw | 7.03.00003900 | Hyu-7.03.00003900@online |
| 18 | battery | 64F10055.6.000300 | Hyu-64F10055.6.000300@online |
| 19 | press plate | 6361.5.000500 | Hyu-6361.5.000500@online |
| 20 | sponge | 6360.7.004800 | Hyu-6360.7.004800@online |
| 21 | Hexagon flange bolt | 7.01.00000100 | Hyu-7.01.00000100@online |
| 22 | engine assembly | 6367.0.000100 | Hyu-6367.0.000100@online |
| 23 | frame | 6360.5.000300 | Hyu-6360.5.000300@online |
| 24 | rectifier mounting | 6305.5.000600 | Hyu-6305.5.000600@online |
| 25 | rectifier | 6101.6.001700 | Hyu-6101.6.001700@online |
| 26 | cross recess pan head screw | 7.03.00002000 | Hyu-7.03.00002000@online |
| 27 | Hexagon nut | 7.02.00000200 | Hyu-7.02.00000200@online |
| 28 | fuel tank | 6361.5.000400 | Hyu-6361.5.000400@online |
| 29 | fuel tank filter | 6353.3.000100 | Hyu-6353.3.000100@online |
| 30 | spring washer | 7.06.00003100 | Hyu-7.06.00003100@online |
| 31 | Hexagon flange bolt | 7.01.00004300 | Hyu-7.01.00004300@online |
| 32 | fuel tube | 6361.4.000200 | Hyu-6361.4.000200@online |
| 33 | fuel tube protective spring | 6326.5.000500 | Hyu-6326.5.000500@online |
| 34 | clamp | 6326.5.001700 | Hyu-6326.5.001700@online |
| 35 | clamp | 6201.5.001000 | Hyu-6201.5.001000@online |
| 36 | fuel filter | 6301.3.002800 | Hyu-6301.3.002800@online |
| 37 | fuel tube | 6361.4.000300 | Hyu-6361.4.000300@online |
| 38 | fuel tap mounting plate | 6329.3.000100 | Hyu-6329.3.000100@online |
| 39 | cross recess pan head screw | 7.03.00009600 | Hyu-7.03.00009600@online |
| 40 | fuel tap | 6326.5.001500 | Hyu-6326.5.001500@online |
| 41 | fuel tube | 6361.4.000100 | Hyu-6361.4.000100@online |
| 42 | clamp | 6326.5.000300 | Hyu-6326.5.000300@online |
| 43 | fuel tube | 6101.4.001100 | Hyu-6101.4.001100@online |
| 44 | Ignition Coil | 9.303.6.000700 | Hyu-9.303.6.000700@online |
| 45 | starting control panel | 6361.5.000900 | Hyu-6361.5.000900@online |
| 46 | rocker switch | 6337.6.000500 | Hyu-6337.6.000500@online |
| 47 | fuel tap knob | 6101.3.002200 | Hyu-6101.3.002200@online |
| 48 | cross recess pan head screw | 7.03.00002100 | Hyu-7.03.00002100@online |
| 49 | pulling rod assembly | 6360.5.000400 | Hyu-6360.5.000400@online |
| 50 | cross bar | 6360.5.001300 | Hyu-6360.5.001300@online |
| 51 | sponge sleeve | 6360.4.000300 | Hyu-6360.4.000300@online |
| 52 | connecting part | 6360.3.001800 | Hyu-6360.3.001800@online |
| 53 | connecting part | 6360.3.001900 | Hyu-6360.3.001900@online |
| 54 | cross recess sink head screw | 7.03.00001200 | Hyu-7.03.00001200@online |
| 55 | Hexagon flange bolt | 7.01.00001700 | Hyu-7.01.00001700@online |
| 56 | starting controller bracket | 6353.5.000700 | Hyu-6353.5.000700@online |
| 57 | inverter module | 630H.2.000400 | Hyu-630H.2.000400@online |
| 58 | Hexagon flange bolt | 7.01.00002900 | Hyu-7.01.00002900@online |
| 59 | starting controller | 6331.6.002600 | Hyu-6331.6.002600@online |
| 60 | bushing | 6701.5.002200 | Hyu-6701.5.002200@online |
| 61 | right housing | 6367.3.000200 | Hyu-6367.3.000200@online |
| 62 | recoil handle mounting plate | 6201.5.000600 | Hyu-6201.5.000600@online |
| 63 | washer | 7.06.00001300 | Hyu-7.06.00001300@online |
| 64 | rivet | 7.08.00000100 | Hyu-7.08.00000100@online |
| 65 | recoil handle decorative cover | 6205.5.000200 | Hyu-6205.5.000200@online |
| 66 | rubber bushing | 6201.4.001300 | Hyu-6201.4.001300@online |
| 67 | wire protective sleeve | 6720.4.000100 | Hyu-6720.4.000100@online |
| 68 | recoil handle | 6201.3.001400 | Hyu-6201.3.001400@online |
| 69 | recoil handle cover | 6232.3.000400 | Hyu-6232.3.000400@online |
| 70 | cross recess pan head screw | 7.03.00000100 | Hyu-7.03.00000100@online |
| 71 | engine oil service panel | 6367.3.001000 | Hyu-6367.3.001000@online |
| 72 | sponge | 6360.7.002100 | Hyu-6360.7.002100@online |
| 73 | lock bolt | 6360.3.002100 | Hyu-6360.3.002100@online |
| 74 | left housing | 6367.3.000400 | Hyu-6367.3.000400@online |
| 75 | sponge | 6360.7.003100 | Hyu-6360.7.003100@online |
| 76 | sponge | 6201.7.000100 | Hyu-6201.7.000100@online |
| 77 | air cleaner service panel | 6367.3.000800 | Hyu-6367.3.000800@online |
| 78 | sponge | 6360.7.002000 | Hyu-6360.7.002000@online |
| 79 | cross recess pan head screw | 7.03.00000800 | Hyu-7.03.00000800@online |
| 80 | top housing | 6367.3.000600 | Hyu-6367.3.000600@online |
| 81 | sponge | 6360.7.003200 | Hyu-6360.7.003200@online |
| 82 | sponge | 6360.7.003300 | Hyu-6360.7.003300@online |
| 83 | sponge | 6360.7.003400 | Hyu-6360.7.003400@online |
| 84 | fuel split rubber | 6360.4.000400 | Hyu-6360.4.000400@online |
| 85 | front housing | 6360.3.000500 | Hyu-6360.3.000500@online |
| 86 | sponge | 6360.7.002400 | Hyu-6360.7.002400@online |
| 87 | sponge | 6360.7.002500 | Hyu-6360.7.002500@online |
| 88 | sponge | 6360.7.002600 | Hyu-6360.7.002600@online |
| 89 | battery service cover | 6361.3.000600 | Hyu-6361.3.000600@online |
| 90 | sponge | 6361.7.001000 | Hyu-6361.7.001000@online |
| 91 | decorative cover | 6361.5.000700 | Hyu-6361.5.000700@online |
| 92 | muffler cover | 6360.3.001400 | Hyu-6360.3.001400@online |
| 93 | sponge | 6360.7.003500 | Hyu-6360.7.003500@online |
| 94 | sponge | 6360.7.003600 | Hyu-6360.7.003600@online |
| 95 | muffler cover rubber | 6301.4.001000 | Hyu-6301.4.001000@online |
| 96 | control panel assembly | 636V.5.000100 | Hyu-636V.5.000100@online |
| 97 | cross recess pan head screw | 7.03.00002200 | Hyu-7.03.00002200@online |
| 98 | tab washer | 7.06.00000600 | Hyu-7.06.00000600@online |
| 99 | washer | 7.06.00000500 | Hyu-7.06.00000500@online |
| 100 | spring washer | 7.06.00000800 | Hyu-7.06.00000800@online |
| 101 | Hexagon nut | 7.02.00000200 | Hyu-7.02.00000200@online |
| 102 | ECO switch | 6101.6.000900 | Hyu-6101.6.000900@online |
| 103 | weather proof cover | 6101.3.003400 | Hyu-6101.3.003400@online |
| 104 | Display panel group | 6301.6.002400 | Hyu-6301.6.002400@online |
| 105 | spring nut | 7.02.00003200 | Hyu-7.02.00003200@online |
| 106 | reset button | 6101.6.001100 | Hyu-6101.6.001100@online |
| 107 | DC socket washer | 6116.5.000100 | Hyu-6116.5.000100@online |
| 108 | DC socket | 6116.6.000500 | Hyu-6116.6.000500@online |
| 109 | DC breaker | 6318.6.000200 | Hyu-6318.6.000200@online |
| 110 | AC socket | 6101.6.000800 | Hyu-6101.6.000800@online |
| 111 | cross recess pan head screw | 7.03.00001200 | Hyu-7.03.00001200@online |
| 112 | overload protector | 6331.6.000500 | Hyu-6331.6.000500@online |
| 113 | ignitor | 60JD.6.000101 | Hyu-60JD.6.000101@online |

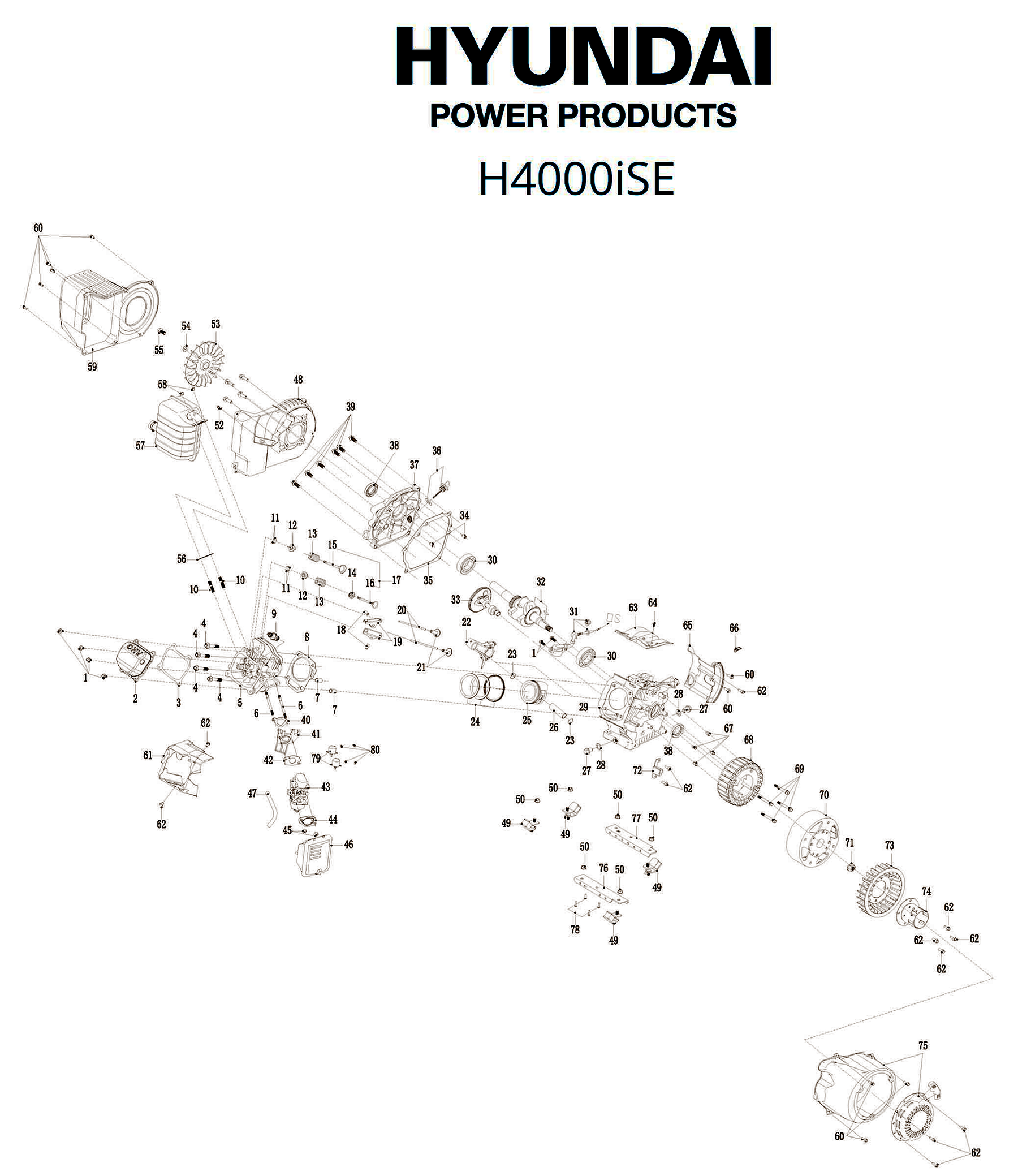

Engine Assembly
Engine Assembly
Click image to enlarge
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| 1 | BOLT , FLANGE , M6X14 | G5787-06012-00 | Hyu-G5787-06012-00@online |
| 2 | COVER ASSY., HEAD | 12310-210V101-00 | Hyu-12310-210V101-00@online |
| 3 | PKG , HEAD COVER | 12391-210V101-00 | Hyu-12391-210V101-00@online |
| 4 | BOLT , FLANGE , M6X80 | G5789-08060-00 | Hyu-G5789-08060-00@online |
| 5 | HEAD COMP. , CYLINDER | 12210-210V201-00 | Hyu-12210-210V201-00@online |
| 6 | BOLT , STUD | 90043-06095-00 | Hyu-90043-06095-00@online |
| 7 | PIN , DOWEL | 94301-10016-00 | Hyu-94301-10016-00@online |
| 8 | GASKET , CYLINDER HEAD | 12251-170101-00 | Hyu-12251-170101-00@online |
| 9 | SPARK PLUG F7RTC | 98097-188201-00 | Hyu-98097-188201-00@online |
| 10 | BOLT , STUD | 90047-08038-00 | Hyu-90047-08038-00@online |
| 11 | LOCKER , VALVE | 14781-168201-00 | Hyu-14781-168201-00@online |
| 12 | RETAINER , VALVE SPRING | 14771-168201-00 | Hyu-14771-168201-00@online |
| 13 | SPRING , VALVE | 14751-168101-00 | Hyu-14751-168101-00@online |
| 14 | SEAL , VALVE STEM | 12209-168201-00 | Hyu-12209-168201-00@online |
| 15 | VALVE , EX. | 14721-210V201-00 | Hyu-14721-210V201-00@online |
| 16 | VALVE, INLET | 14711-210V201-00 | Hyu-14711-210V201-00@online |
| 17 | VALVE KIT | 14700-210V101-00 | Hyu-14700-210V101-00@online |
| 18 | SHAFT , VALVE ROCKER | 1443A-210V101-00 | Hyu-1443A-210V101-00@online |
| 19 | ARM , VALVE ROCKER | 14431-210V101-00 | Hyu-14431-210V101-00@online |
| 20 | ROD , PUSH | 14441-210V101-00 | Hyu-14441-210V101-00@online |
| 21 | LIFTER , VALVE | 14441-210V101-00 | Hyu-14441-210V101-00@online |
| 22 | ROD ASSY., CONNECTING | 13200-225101-00 | Hyu-13200-225101-00@online |
| 23 | CLIP , PISTON PIN | 90551-168201-00 | Hyu-90551-168201-00@online |
| 24 | RING SET , PISTON | 13010-170201-00 | Hyu-13010-170201-00@online |
| 25 | PISTON | 13101-170B101-00 | Hyu-13101-170B101-00@online |
| 26 | PIN , PISTON | 13111-168201-00 | Hyu-13111-168201-00@online |
| 27 | BOLT , DRAIN PLUG | 90131-10015-00 | Hyu-90131-10015-00@online |
| 28 | WASHER , DRAIN PLUG | 90601-10200-00 | Hyu-90601-10200-00@online |
| 29 | CRANKCASE | 12000-170B101-00 | Hyu-12000-170B101-00@online |
| 30 | BEARING | 96100-6205201-00 | Hyu-96100-6205201-00@online |
| 31 | SWITCH ASSY., OIL LEVEL | 15510-168101-00 | Hyu-15510-168101-00@online |
| 32 | CRANK SHAFT COMP | 13310-225101-00-B1 | Hyu-13310-225101-00-B1@online |
| 33 | CAMSHAFT ASSY. | 14100-168101-00 | Hyu-14100-168101-00@online |
| 34 | PIN , DOWEL | 94301-08014-00 | Hyu-94301-08014-00@online |
| 35 | PACKING , CASE COVER | 11381-170B101-00 | Hyu-11381-170B101-00@online |
| 36 | OIL FILLER CAP ASSY | 15600-168101-00 | Hyu-15600-168101-00@online |
| 37 | CASE COVER | 11300-170B203-00 | Hyu-11300-170B203-00@online |
| 38 | OIL SEAL | 91202-254106101-00 | Hyu-91202-254106101-00@online |
| 39 | BOLT , FLANGE , M8X32 | G5789-08032-00 | Hyu-G5789-08032-00@online |
| 40 | PACKING , CARBURETOR | 16212-210V101-00 | Hyu-16212-210V101-00@online |
| 41 | INSULATOR , CARBURETOR | 16570-210V101-00 | Hyu-16570-210V101-00@online |
| 42 | PACKING , CARBURETOR | 16221-168101-00 | Hyu-16221-168101-00@online |
| 43 | CARBURETOR | 16100-60Q201-00 | Hyu-16100-60Q201-00@online |
| 44 | PACKING , CARBURETOR | 16269-168205-00 | Hyu-16269-168205-00@online |
| 45 | NUT , FLANGE , M6 | G6177-06000-00 | Hyu-G6177-06000-00@online |
| 46 | AIR CLEANER | 17250-G10102-00-EPA | Hyu-17250-G10102-00-EPA@online |
| 47 | Tube, Breather | 15721-168102-00 | Hyu-15721-168102-00@online |
| 48 | muffler shield | 63015001600 | Hyu-63015001600@online |
| 49 | shock absorber | 63014000400 | Hyu-63014000400@online |
| 50 | nut, M8 | 70200001900 | Hyu-70200001900@online |
| 51 | Hexagon flange bolt | 70100000800 | Hyu-70100000800@online |
| 52 | Hexagon flange bolt | 70100001100 | Hyu-70100001100@online |
| 53 | centrifugal fan | 93035003500 | Hyu-93035003500@online |
| 54 | washer, 8*28*3 | 70600004701 | Hyu-70600004701@online |
| 55 | Hexagon bolt, M8X1X25 | 70100008200 | Hyu-70100008200@online |
| 56 | GASKET , CYLINDER | 18381-168101-00 | Hyu-18381-168101-00@online |
| 57 | muffler complete | 93005002900 | Hyu-93005002900@online |
| 58 | NUT , FLANGE , M8 | G6170-08000-00 | Hyu-G6170-08000-00@online |
| 59 | muffler housing | 63013000400 | Hyu-63013000400@online |
| 60 | Hexagon flange bolt, M6X16 | 70100005400 | Hyu-70100005400@online |
| 61 | cylinder head air flow shield | 93703000200 | Hyu-93703000200@online |
| 62 | BOLT , FLANGE , M6X12 | G5787-06012-00 | Hyu-G5787-06012-00@online |
| 63 | upper shield | 93703000100 | Hyu-93703000100@online |
| 64 | Hexagon flange bolt, M8X16 | 70100001000 | Hyu-70100001000@online |
| 65 | back shield | 93033000900 | Hyu-93033000900@online |
| 66 | oil draining rubber guide | 63013003200 | Hyu-63013003200@online |
| 67 | stator liner | 93705000600 | Hyu-93705000600@online |
| 68 | stator | 63611000100 | Hyu-63611000100@online |
| 69 | bolt, M6X60 | 70100009600 | Hyu-70100009600@online |
| 70 | rotor | 64201000200 | Hyu-64201000200@online |
| 71 | NUT , FLANGE M16 | 2630101572 | Hyu-2630101572@online |
| 72 | trigger | 93036000300 | Hyu-93036000300@online |
| 73 | impeller | 25204000300-1 | Hyu-25204000300-1@online |
| 74 | PULLEY , STARTER | 28451-208120-00 | Hyu-28451-208120-00@online |
| 75 | Blower Housing | 19610-170103-00-F | Hyu-19610-170103-00-F@online |
| 76 | engine mounting — left | 63015001700 | Hyu-63015001700@online |
| 77 | engine mounting — right | 63015001800 | Hyu-63015001800@online |
| 78 | Hexagon flange bolt, M8X30 | 70100011000 | Hyu-70100011000@online |
| 79 | step motor | 67046001500 | Hyu-67046001500@online |
| 80 | cross recess pan head screw | 70300008700 | Hyu-70300008700@online |
