Hyundai HY2200IS Generator IPL / Parts List
Illustrated parts list for the Hyundai HY2200IS generator. Click any Cutsmart SKU to open the matching product by SKU. Click any diagram to enlarge it in a lightbox.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

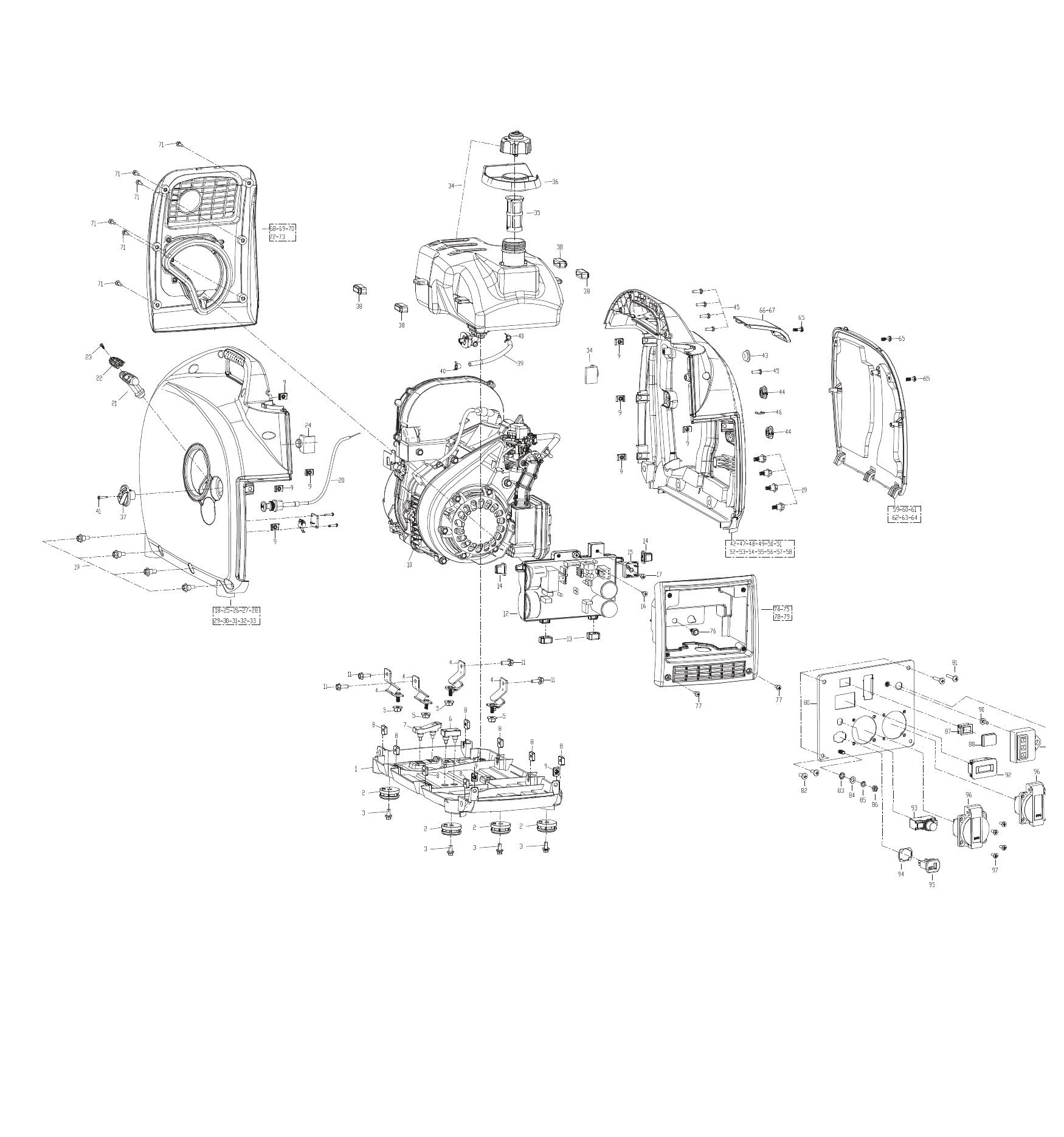

Hyundai HY2200IS Body, Covers, Fuel Tank and Electrical Panel IPL diagram
Body, Covers, Fuel Tank and Electrical Panel
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | base, mounting | 6205.3.000200 | 1 | Hyu-6205.3.000200@online |
| 2 | rubber feet, whole machine | 6101.4.001300 | 4 | Hyu-6101.4.001300@online |
| 3 | bolts, flange GB/T5789 M6x12 | 7.01.00000200 | 8 | Hyu-7.01.00000200@online |
| 4 | damper | 6201.4.000100 | 4 | Hyu-6201.4.000100@online |
| 5 | nut, flange M6 | 7.02.00000300 | 4 | Hyu-7.02.00000300@online |
| 6 | bearing rubber pads, engine | 6201.4.000200 | 1 | Hyu-6201.4.000200@online |
| 7 | bearing rubber pads, motor | 6201.4.000300 | 1 | Hyu-6201.4.000300@online |
| 8 | nut, square | 7.02.00000501 | 8 | Hyu-7.02.00000501@online |
| 9 | nut, spring | 7.02.00000101 | 10 | Hyu-7.02.00000101@online |
| 10 | engine assembly | 62D10065.9.000200 | 1 | Hyu-62D10065.9.000200@online |
| 11 | nut, flange M6x12 | 7.01.00000200 | 4 | Hyu-7.01.00000200@online |
| 12 | Inverter assembly | 6205.2.000500 | 1 | Hyu-6205.2.000500@online |
| 13 | rubber feet, inverter | 6101.4.001600 | 2 | Hyu-6101.4.001600@online |
| 14 | left rubber feet, inverter | 6101.4.001700 | 2 | Hyu-6101.4.001700@online |
| 15 | rectifier assy | 6101.6.001700 | 1 | Hyu-6101.6.001700@online |
| 16 | screw, cross pan head M4x12 | 7.03.00001400 | 1 | Hyu-7.03.00001400@online |
| 17 | screw, cross pan head M5x20 | 7.03.00002000 | 1 | Hyu-7.03.00002000@online |
| 18 | left cover(D1A), GFPP-15 | 6248.3.000200 | 1 | Hyu-6248.3.000200@online |
| 19 | bolts, flange | 7.01.00000601 | 8 | Hyu-7.01.00000601@online |
| 20 | inhaul cable, choke valve | 6201.3.000800 | 1 | Hyu-6201.3.000800@online |
| 21 | recoil | 6201.3.001400 | 1 | Hyu-6201.3.001400@online |
| 22 | cap, recoil | 6232.3.000400 | 1 | Hyu-6232.3.000400@online |
| 23 | screw, cross pan head ST2.9x9.5-F | 7.03.00000100 | 1 | Hyu-7.03.00000100@online |
| 24 | rubber buffer, engine | 6201.4.000900 | 2 | Hyu-6201.4.000900@online |
| 25 | locating board, recoil | 6201.5.000600 | 1 | Hyu-6201.5.000600@online |
| 26 | washer 3, Q235 | 7.06.00001300 | 2 | Hyu-7.06.00001300@online |
| 27 | rivet | 7.08.00000100 | 2 | Hyu-7.08.00000100@online |
| 28 | trim cover, recoil | 6205.5.000200 | 1 | Hyu-6205.5.000200@online |
| 29 | soundproof cotton, 1, left cover | 6205.7.001900 | 1 | Hyu-6205.7.001900@online |
| 30 | soundproof cotton, 2, left cover | 6205.7.002000 | 1 | Hyu-6205.7.002000@online |
| 31 | soundproof cotton, 3, left cover | 6205.7.002100 | 1 | Hyu-6205.7.002100@online |
| 32 | soundproof cotton, 4, left cover | 6205.7.004500 | 1 | Hyu-6205.7.004500@online |
| 33 | soundproof cotton, 5, left cover | 6205.7.005100 | 1 | Hyu-6205.7.005100@online |
| 34 | fuel tank assembly | 6205.3.002100 | 1 | Hyu-6205.3.002100@online |
| 35 | filter, fuel PA | 6101.3.001700 | 1 | Hyu-6101.3.001700@online |
| 36 | duct, fuel tank | 6205.4.000100 | 1 | Hyu-6205.4.000100@online |
| 37 | lever, fuel switch | 6205.3.000800 | 1 | Hyu-6205.3.000800@online |
| 38 | fixed rubber cover, fuel tank | 6201.4.001100 | 4 | Hyu-6201.4.001100@online |
| 38 | fixed rubber cover, fuel tank | 6201.4.001100 | 4 | Hyu-6201.4.001100@online |
| 39 | pipe, fuel | 6206.4.000100 | 1 | Hyu-6206.4.000100@online |
| 40 | clip, spring | 6201.5.001000 | 2 | Hyu-6201.5.001000@online |
| 41 | screw, cross pan head M4x16 | 7.03.00000400 | 1 | Hyu-7.03.00000400@online |
| 42 | cover, right (D1A) | 6248.3.000600 | 1 | Hyu-6248.3.000600@online |
| 43 | bearing rubber, fuel tank | 6201.4.000500 | 1 | Hyu-6201.4.000500@online |
| 44 | air cleaner maintenance cover installation rubber sleeve | 6201.4.001300 | 2 | Hyu-6201.4.001300@online |
| 45 | screw, cross pan head | 7.03.00001100 | 5 | Hyu-7.03.00001100@online |
| 46 | cotter, valve | 7.06.00000400 | 1 | Hyu-7.06.00000400@online |
| 47 | soundproof cotton, 1, right cover | 6205.7.002600 | 1 | Hyu-6205.7.002600@online |
| 48 | soundproof cotton, 2, right cover | 6205.7.002700 | 1 | Hyu-6205.7.002700@online |
| 49 | soundproof cotton, 3, right cover | 6205.7.002800 | 1 | Hyu-6205.7.002800@online |
| 50 | soundproof cotton, 4, right cover | 6205.7.002900 | 1 | Hyu-6205.7.002900@online |
| 51 | soundproof cotton, 5, right cover | 6205.7.003000 | 1 | Hyu-6205.7.003000@online |
| 52 | soundproof cotton, 6, right cover | 6205.7.003100 | 1 | Hyu-6205.7.003100@online |
| 53 | soundproof cotton, 7, right cover | 6205.7.003900 | 1 | Hyu-6205.7.003900@online |
| 54 | soundproof cotton, 8, right cover | 6205.7.004000 | 1 | Hyu-6205.7.004000@online |
| 55 | soundproof cotton, 9, right cover | 6205.7.004100 | 1 | Hyu-6205.7.004100@online |
| 56 | soundproof cotton, 10, right cover | 6205.7.004200 | 1 | Hyu-6205.7.004200@online |
| 57 | soundproof cotton, 11, right cover | 6205.7.004300 | 1 | Hyu-6205.7.004300@online |
| 58 | soundproof cotton, 12, right cover | 6205.7.004400 | 1 | Hyu-6205.7.004400@online |
| 59 | air cleaner maintenance cover (D1A), GFPP-15 | 6248.3.000800 | 1 | Hyu-6248.3.000800@online |
| 60 | sponge | 6101.7.000300 | 1 | Hyu-6101.7.000300@online |
| 61 | soundproof air cleaner maintenance cover 1 | 6205.7.003300 | 1 | Hyu-6205.7.003300@online |
| 62 | soundproof air cleaner maintenance cover 2 | 6205.7.003400 | 1 | Hyu-6205.7.003400@online |
| 63 | soundproof air cleaner maintenance cover 3 | 6205.7.003500 | 1 | Hyu-6205.7.003500@online |
| 64 | soundproof air cleaner maintenance cover 4 | 6205.7.003800 | 1 | Hyu-6205.7.003800@online |
| 65 | screw, unloosening | 7.03.00000800 | 3 | Hyu-7.03.00000800@online |
| 66 | spark plug maintenance cover (D1A) | 6248.3.001000 | 1 | Hyu-6248.3.001000@online |
| 67 | soundproof spark plug maintenance cover | 6205.7.003700 | 1 | Hyu-6205.7.003700@online |
| 68 | muffler cover (D1A), PA6 | 6205.3.001600 | 1 | Hyu-6205.3.001600@online |
| 69 | rubber, air-director, motor | 6205.4.000200 | 1 | Hyu-6205.4.000200@online |
| 70 | soundproof rubber, air-director, motor | 6201.7.005400 | 1 | Hyu-6201.7.005400@online |
| 71 | screw, cross pan head M5x16 | 7.03.00001100 | 6 | Hyu-7.03.00001100@online |
| 72 | lock washer | 7.06.00001100 | 4 | Hyu-7.06.00001100@online |
| 73 | Insulation cotton, muffler cover | 6205.7.004800 | 1 | Hyu-6205.7.004800@online |
| 74 | electrical installation box (D1A) | 6205.3.001800 | 1 | Hyu-6205.3.001800@online |
| 75 | O type rubber ring | 6201.4.001500 | 1 | Hyu-6201.4.001500@online |
| 76 | bolts, flange M6x12 | 7.01.00000200 | 1 | Hyu-7.01.00000200@online |
| 77 | screw, cross pan head M5x16 | 7.03.00001100 | 2 | Hyu-7.03.00001100@online |
| 78 | soundproof electrical installation box 1 | 6205.7.000600 | 1 | Hyu-6205.7.000600@online |
| 79 | soundproof electrical installation box 2 | 6205.7.000700 | 1 | Hyu-6205.7.000700@online |
| 80 | electrical plate assembly (D1A/USB & pallet) | 620H.5.000100 | 1 | Hyu-620H.5.000100@online |
| 81 | screw, cross pan head M5x12 | 7.03.00002200 | 2 | Hyu-7.03.00002200@online |
| 82 | screw, cross pan head M5x25 | 7.03.00001700 | 2 | Hyu-7.03.00001700@online |
| 83 | washer, serrated | 7.06.00000600 | 1 | Hyu-7.06.00000600@online |
| 84 | washer | 7.06.00000500 | 1 | Hyu-7.06.00000500@online |
| 85 | washer, spring | 7.06.00000800 | 1 | Hyu-7.06.00000800@online |
| 86 | nut, hexagon | 7.02.00000200 | 1 | Hyu-7.02.00000200@online |
| 87 | ECON switch | 6101.6.000900 | 2 | Hyu-6101.6.000900@online |
| 88 | water proof cap PVC | 6101.3.003400 | 2 | Hyu-6101.3.003400@online |
| 89 | pilot light assy | 6201.6.000100 | 1 | Hyu-6201.6.000100@online |
| 90 | screw, cross pan head M5x16 | 7.03.00002300 | 1 | Hyu-7.03.00002300@online |
| 91 | Protection cut-off switch assembly | 6101.6.001900 | 1 | Hyu-6101.6.001900@online |
| 92 | timer, LA0106 | 6167.6.000200 | 1 | Hyu-6167.6.000200@online |
| 93 | DC protector | 6318.6.002300 | 1 | Hyu-6318.6.002300@online |
| 94 | DC outlet washer | 6116.5.000100 | 1 | Hyu-6116.5.000100@online |
| 95 | DC outlet | 6116.6.000500 | 1 | Hyu-6116.6.000500@online |
| 96 | AC outlet | 6101.6.000800 | 2 | Hyu-6101.6.000800@online |
| 97 | screw, Cross recessed pan head | 7.03.00007400 | 8 | Hyu-7.03.00007400@online |

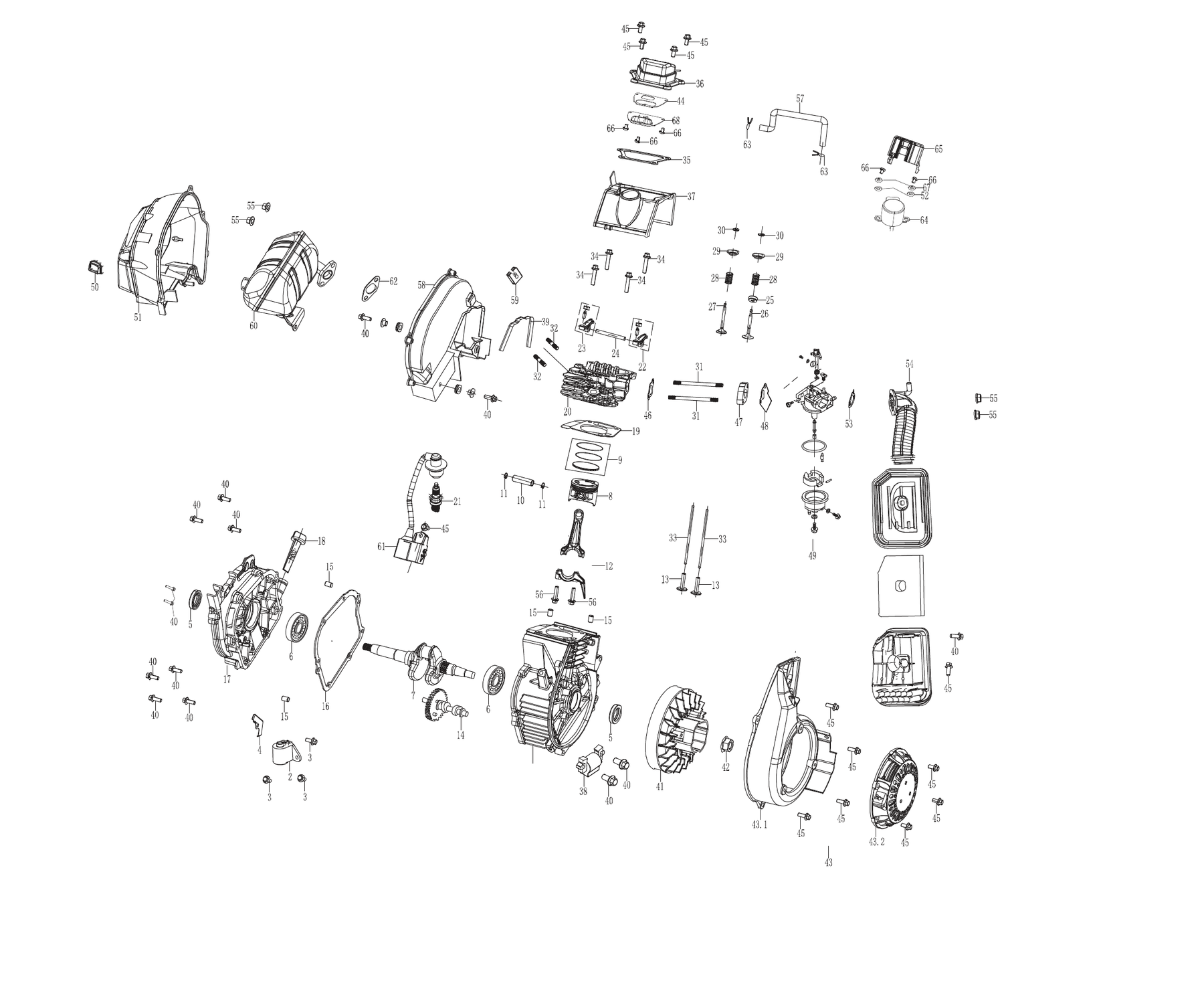

Hyundai HY2200IS Engine Assembly IPL diagram
Engine Assembly
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CRANKCASE | 200201 | 1 | Hyu-200201@online |
| 2 | SWITCH ASSEMBLY, OIL LEVEL | 205101 | 1 | Hyu-205101@online |
| 3 | BOLT M6*12 | 91325 | 3 | Hyu-91325@online |
| 4 | LINE PRESSING BLOCK | 209903 | 1 | Hyu-209903@online |
| 5 | OIL SEAL | 93501 | 2 | Hyu-93501@online |
| 6 | BALL BEARING | 93008 | 2 | Hyu-93008@online |
| 7 | CRANKSHAFT | 200302 | 1 | Hyu-200302@online |
| 8 | PISTON | 201201 | 1 | Hyu-201201@online |
| 9 | SCRAPER RING SET, PISTON | 201601 | 1 | Hyu-201601@online |
| 10 | PIN, PISTON | 205501 | 1 | Hyu-205501@online |
| 11 | CLIP, PISTON | 201301 | 2 | Hyu-201301@online |
| 12 | ROD ASSEMBLY, CONNECTING | 201503 | 1 | Hyu-201503@online |
| 13 | LIFTER, VALVE | 206101 | 2 | Hyu-206101@online |
| 14 | CAMSHAFT ASSEMBLY | 202001 | 1 | Hyu-202001@online |
| 15 | CRANKCASE, PIN, DOWEL | 240904 | 4 | Hyu-240904@online |
| 16 | GASKET, MOULD ASSEMBLING | 96004 | 1 | Hyu-96004@online |
| 17 | COVER ASSEMBLY, CRANKCASE | 200101 | 1 | Hyu-200101@online |
| 18 | DIPSTICK | 205601-160 | 1 | Hyu-205601-160@online |
| 19 | GASKET, CYLINDER HEAD | 96005 | 1 | Hyu-96005@online |
| 20 | CYLINDER HEAD | 201001 | 1 | Hyu-201001@online |
| 21 | SPARK PLUG | 97101 | 1 | Hyu-97101@online |
| 22 | INLET VALVE ROCKER ASSY | 202101 | 1 | Hyu-202101@online |
| 23 | EXHAUST VALVE ROCKER ASSY | 202102 | 1 | Hyu-202102@online |
| 24 | ROCKSHAFT | 202103 | 1 | Hyu-202103@online |
| 25 | INLET VALVE SPRING SEAT | 201802 | 1 | Hyu-201802@online |
| 26 | VALVE, IN | 201701 | 1 | Hyu-201701@online |
| 27 | VALVE EXHAUST | 205901 | 1 | Hyu-205901@online |
| 28 | SPRING, VALVE | 206001 | 2 | Hyu-206001@online |
| 29 | SEAT, VALVE SPRING, IN | 201801 | 2 | Hyu-201801@online |
| 30 | VALVE LOCK CLAMP | 200801 | 2 | Hyu-200801@online |
| 31 | BOLT, STUD | 91023 | 2 | Hyu-91023@online |
| 32 | BOLT, STUD | 91002 | 2 | Hyu-91002@online |
| 33 | ROD, PUSH | 201901 | 2 | Hyu-201901@online |
| 34 | BOLT M6*50 | 91339 | 4 | Hyu-91339@online |
| 35 | PACKING, HEADCOVER | 96006 | 1 | Hyu-96006@online |
| 36 | COVER COMP, CYLINDER HEAD | 201101 | 1 | Hyu-201101@online |
| 37 | SHROUD | 200501 | 1 | Hyu-200501@online |
| 38 | MAGNETO IGNITION | 97502 | 1 | Hyu-97502@online |
| 39 | STRIPPER RUBBER | 209901 | 1 | Hyu-209901@online |
| 40 | BOLT M6*20 | 91330 | 14 | Hyu-91330@online |
| 41 | FLYWHEEL | 200401 | 1 | Hyu-200401@online |
| 42 | NUT, FLYWHEEL | 90014 | 1 | Hyu-90014@online |
| 43 | RECOIL STARTER ASSEMBLY | 204701 | 1 | Hyu-204701@online |
| 43.1 | RECOIL STARTER COVER | 204901 | 1 | Hyu-204901@online |
| 43.2 | RECOIL STARTER | 204801 | 1 | Hyu-204801@online |
| 44 | BREATH BOARD SEALING GASKET | 201104 | 1 | Hyu-201104@online |
| 45 | BOLT M6*16 | 91329 | 13 | Hyu-91329@online |
| 46 | GASKET, CONNECTION BLOCK | 96007 | 1 | Hyu-96007@online |
| 47 | THERMAL INSULATION, CARBURATOR | 202301 | 1 | Hyu-202301@online |
| 48 | PAPER WASHER, CARBURATOR | 96121 | 1 | Hyu-96121@online |
| 49 | CARBURETOR ASSEMBLY | 202801 | 1 | Hyu-202801@online |
| 50 | SEALING RUBBER COVER OF MUFFLER COVER | 202601 | 1 | Hyu-202601@online |
| 51 | MUFFLER COVER2 | 202502 | 1 | Hyu-202502@online |
| 52 | FLAT WASHER | 94217 | 2 | Hyu-94217@online |
| 53 | GASKET, AIR CLEANER | 96009 | 1 | Hyu-96009@online |
| 54 | AIR CLEANER ASSEMBLY | 202901 | 1 | Hyu-202901@online |
| 55 | NUT | 90016 | 4 | Hyu-90016@online |
| 56 | BOLT M6*25 | 91331 | 2 | Hyu-91331@online |
| 57 | TUBE, BREATHER | 95614 | 1 | Hyu-95614@online |
| 58 | MUFFLER COVER1 | 202501 | 1 | Hyu-202501@online |
| 59 | CLIP, MUFFLER COVER | 209902 | 1 | Hyu-209902@online |
| 60 | MUFFLER ASSEMBLY | 203703 | 1 | Hyu-203703@online |
| 61 | IGNITION COIL | 97501 | 1 | Hyu-97501@online |
| 62 | GASKET, EXHAUST | 96008 | 1 | Hyu-96008@online |
| 63 | CLIP, BREATHER TUBE | 94407 | 2 | Hyu-94407@online |
| 64 | STEPPER MOTOR | 269908 | 1 | Hyu-269908@online |
| 65 | STEPPER MOTOR PROTECTION | 209906 | 1 | Hyu-209906@online |
| 66 | CROSS RECESSED PAN HEAD BOLTS | 91805 | 5 | Hyu-91805@online |
| 67 | SPLIT LOCK WASHER | 94203 | 2 | Hyu-94203@online |
| 68 | CYLINDER COVER BREATH BOARD | 201103 | 1 | Hyu-201103@online |
