Hyundai HG6000E Generator IPL / Parts List
Illustrated parts list for the Hyundai HG6000E generator. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. All Cutsmart SKUs are linked using the Cutsmart SKU resolver for quick part lookup.

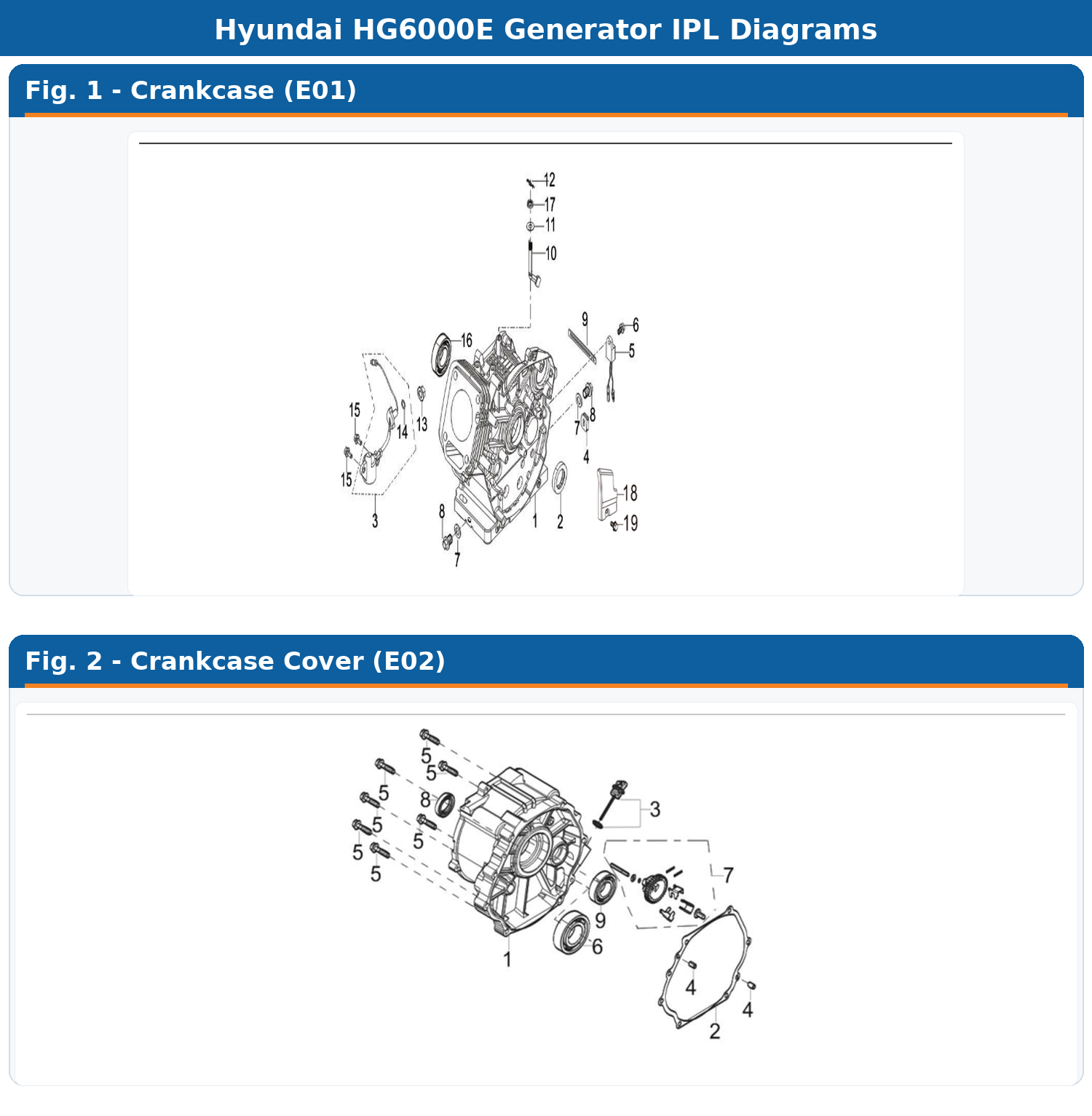

Crankcase / Crankcase Cover
Tap or click the image to enlarge it.

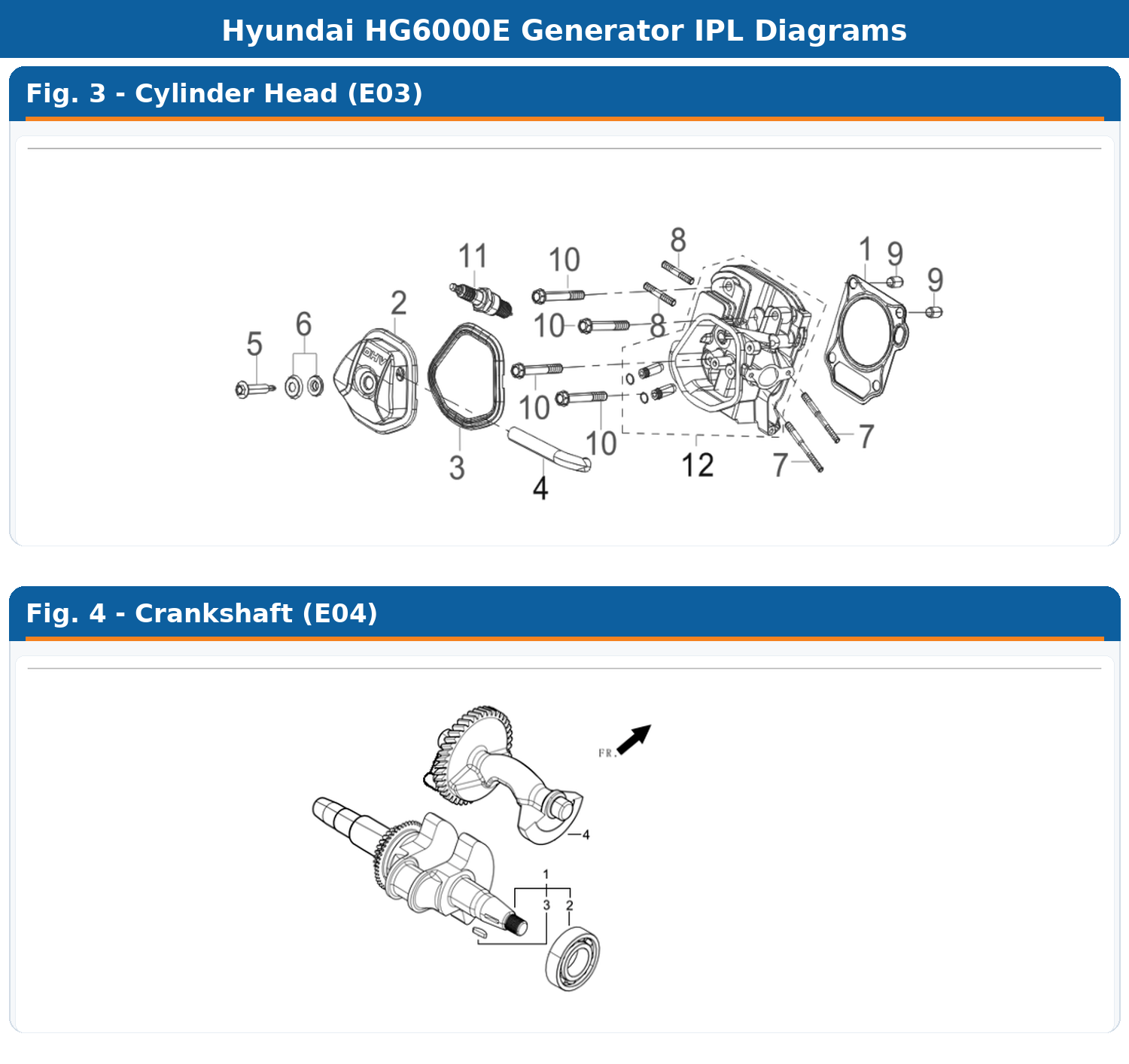

Cylinder Head / Crankshaft
Tap or click the image to enlarge it.

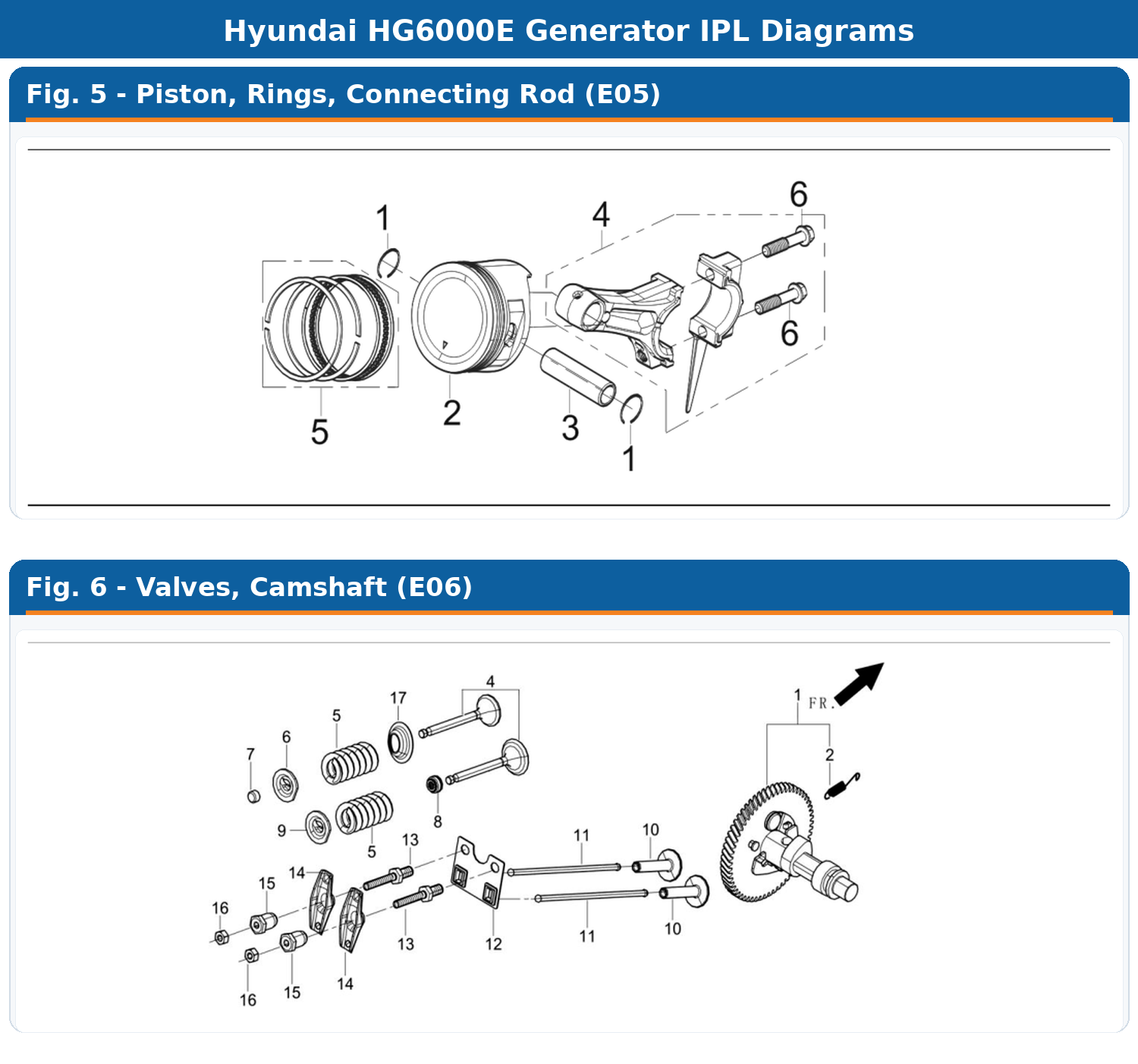

Piston, Rings, Connecting Rod / Valves, Camshaft
Tap or click the image to enlarge it.

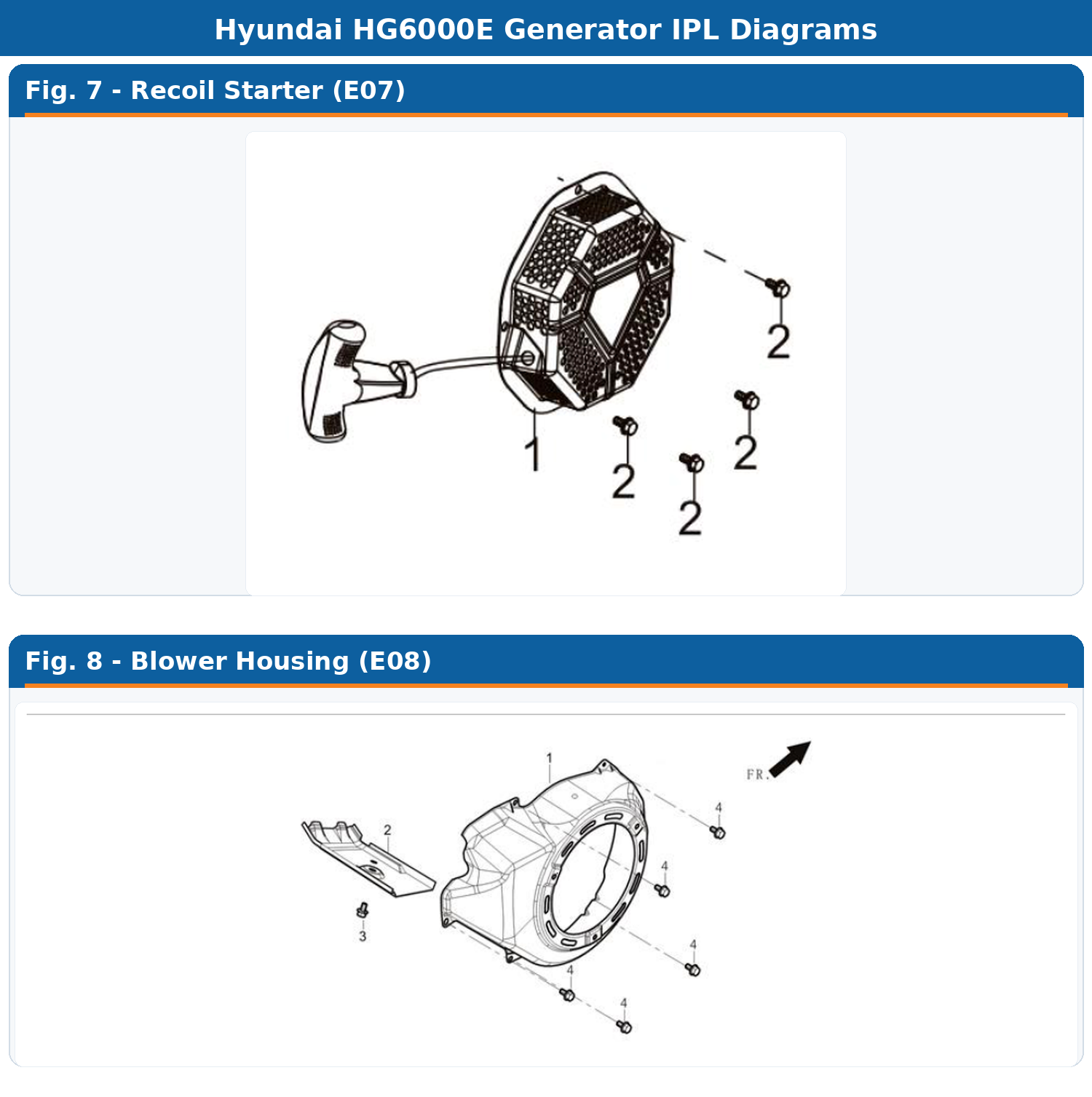

Recoil Starter / Blower Housing
Tap or click the image to enlarge it.

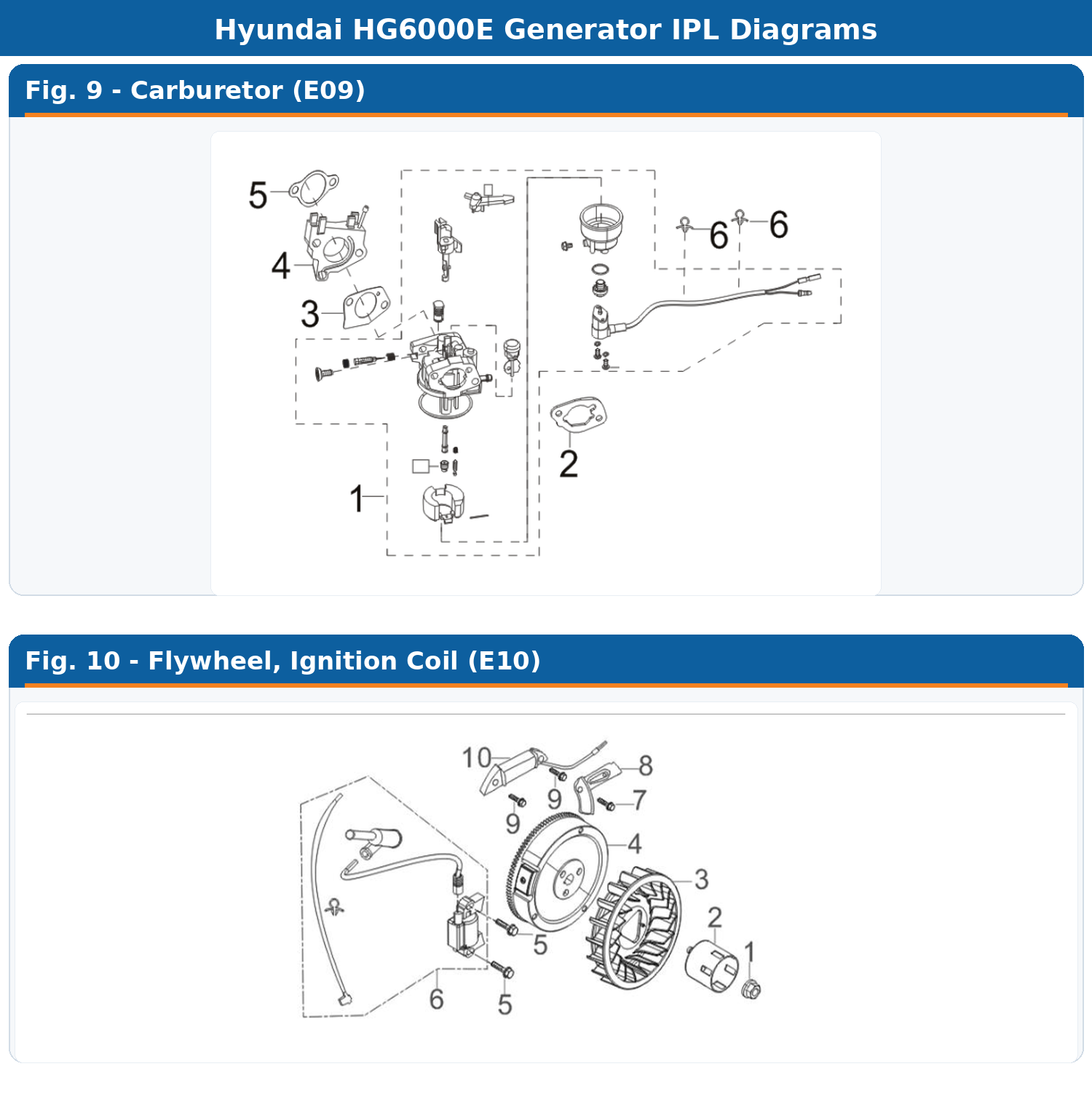

Carburetor / Flywheel, Ignition Coil
Tap or click the image to enlarge it.

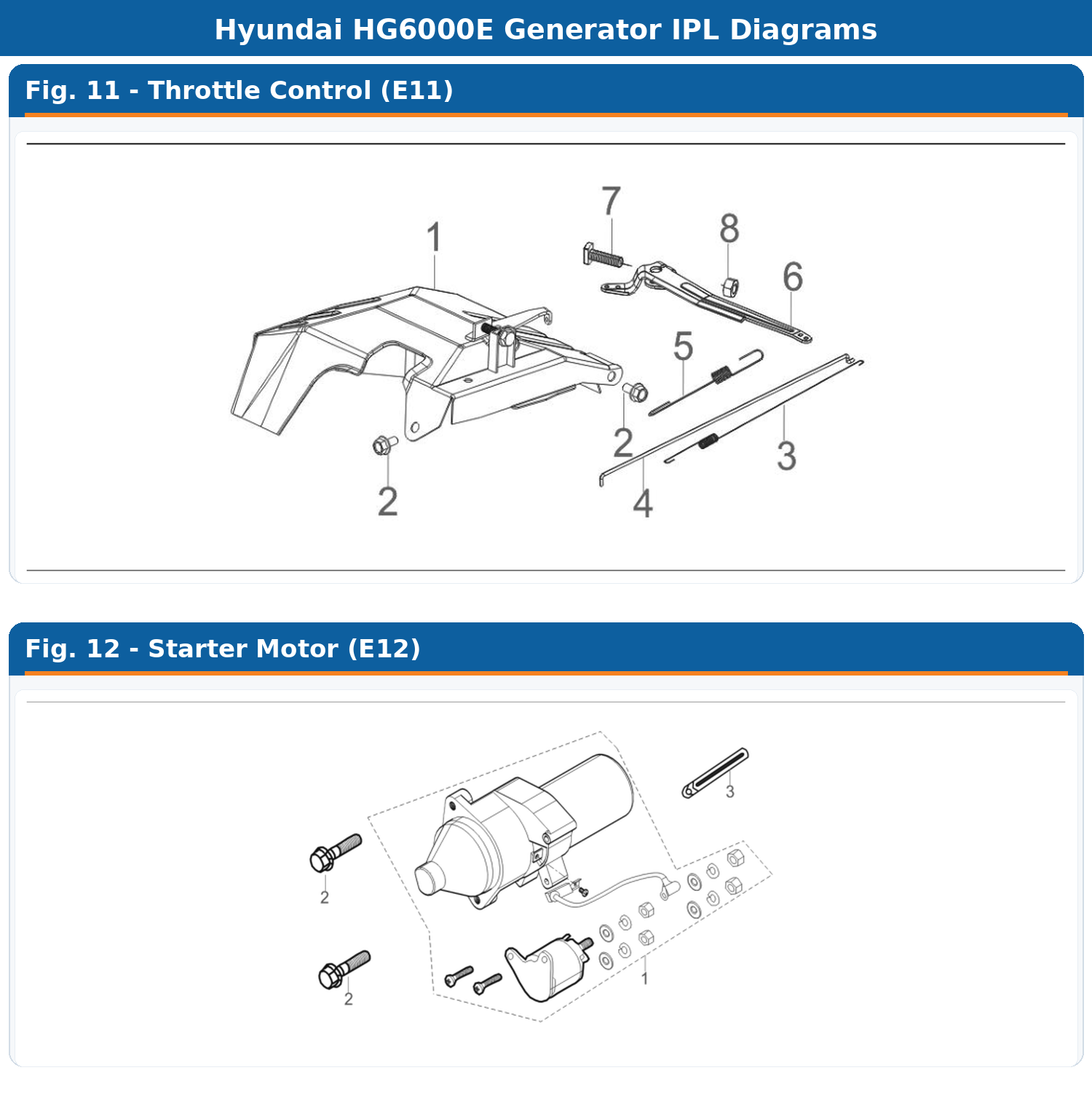

Throttle Control / Starter Motor
Tap or click the image to enlarge it.

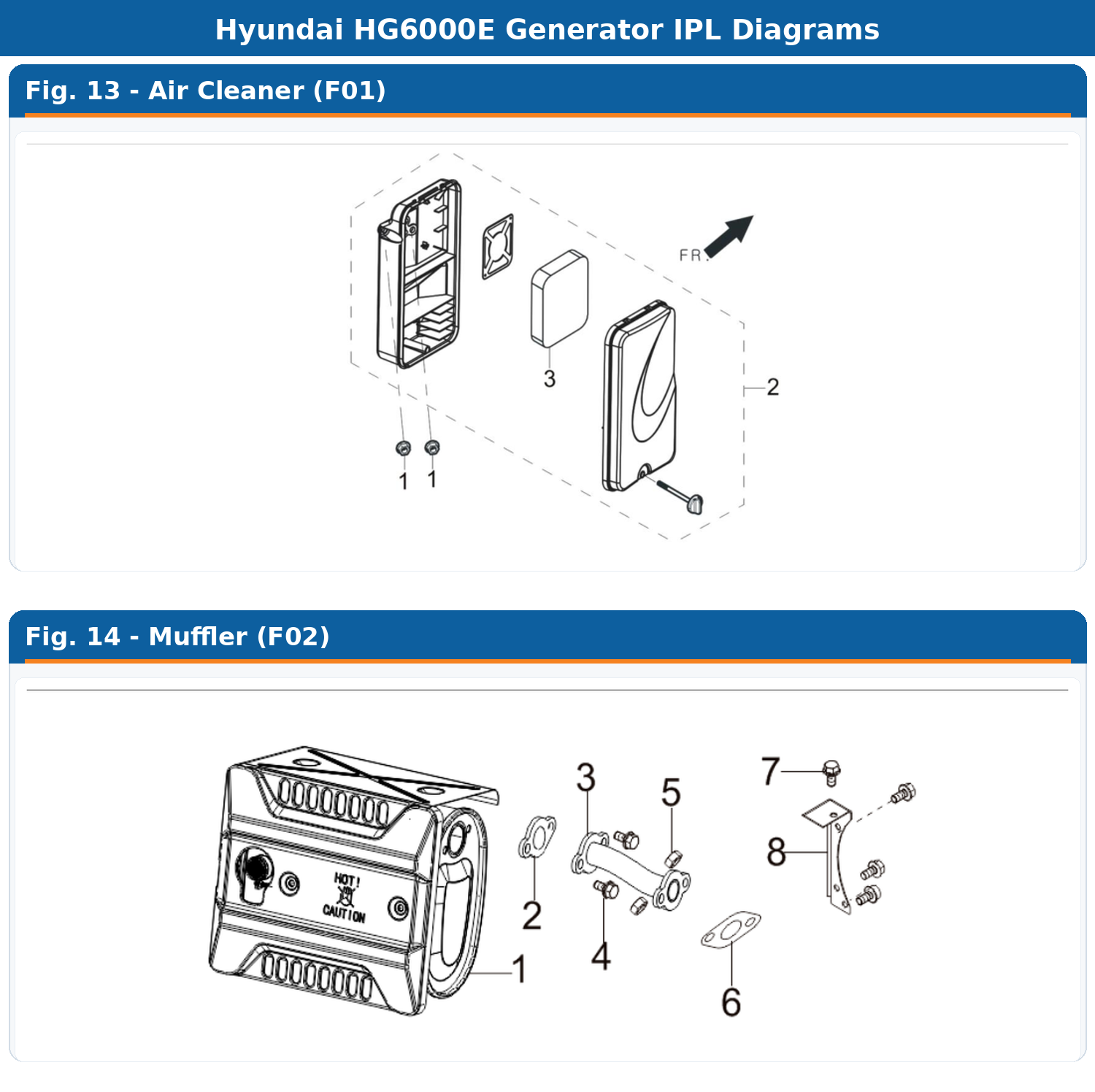

Air Cleaner / Muffler
Tap or click the image to enlarge it.

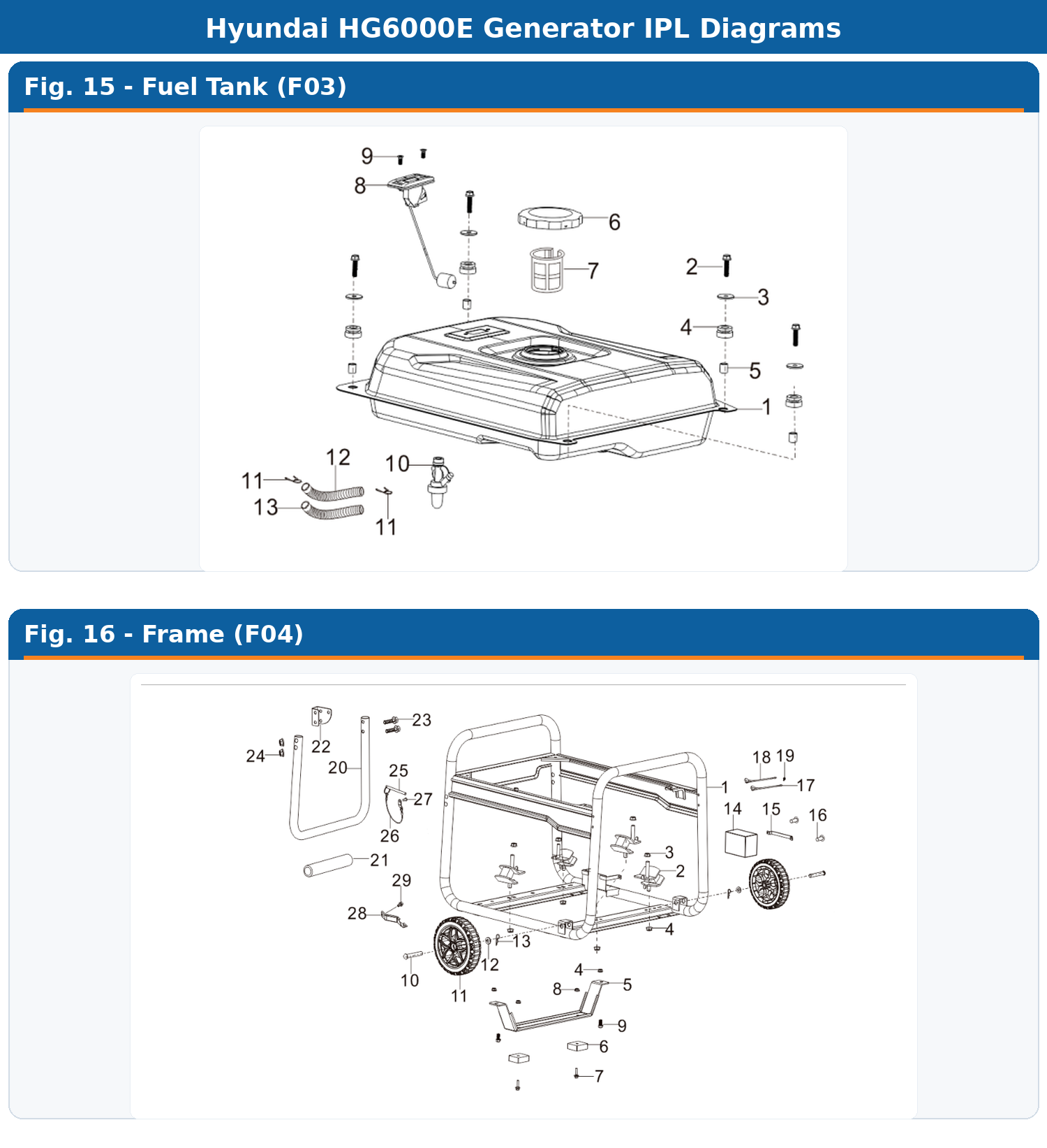

Fuel Tank / Frame
Tap or click the image to enlarge it.

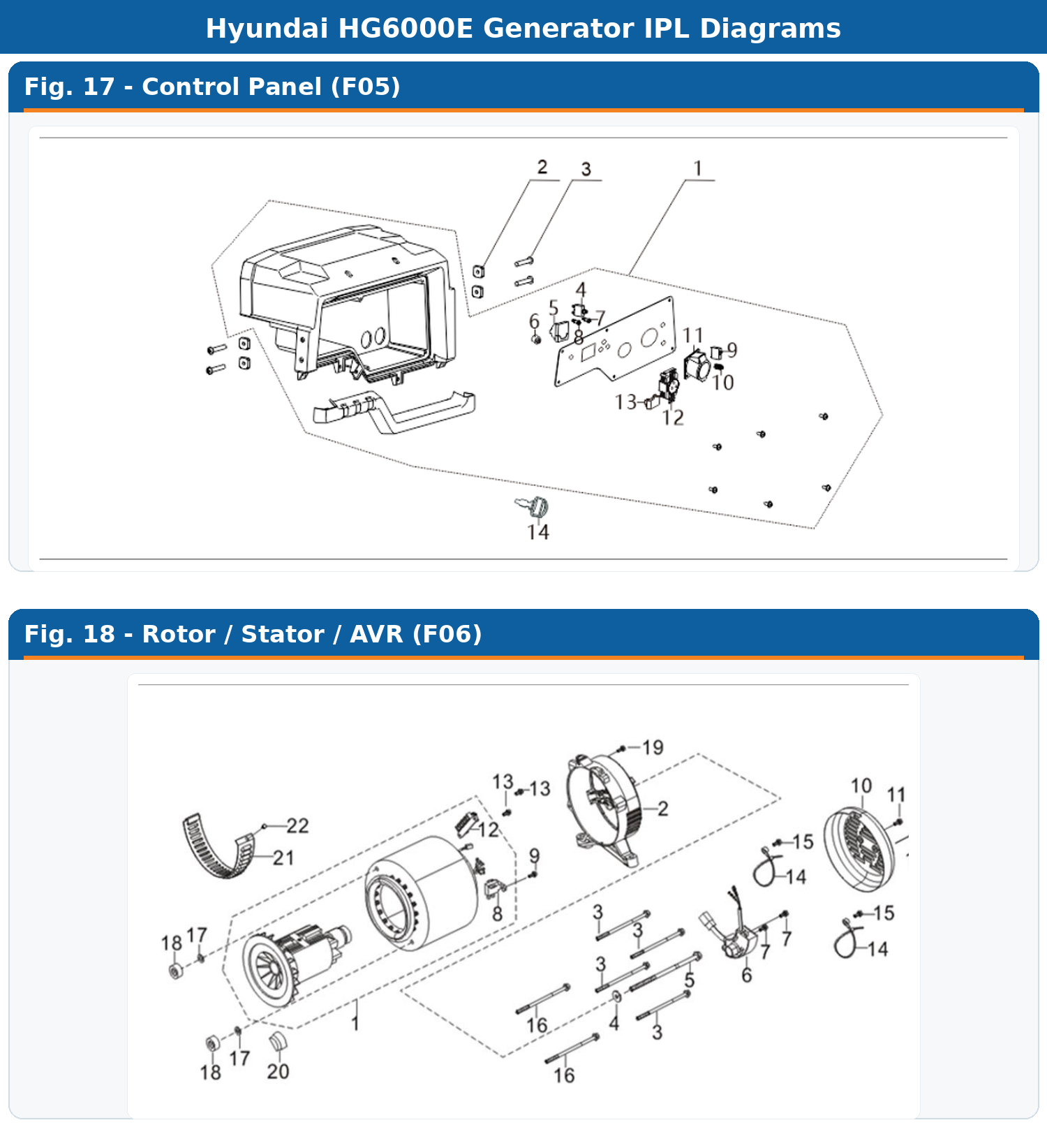

Control Panel / Rotor, Stator, AVR
Tap or click the image to enlarge it.
HG6000E Engine Parts
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E01-1 | Cylinder Assembly | 11310-Z190710-0BA0 | Hyu-11310-Z190710-0BA0@online |
| E01-2 | Magneto Oil Seal | 90682-Z310110-00A0 | Hyu-90682-Z310110-00A0@online |
| E01-3 | Oil Sensor | 37060-Z080120-0000 | Hyu-37060-Z080120-0000@online |
| E01-4 | Rubber | 28101-Z080110-0000 | Hyu-28101-Z080110-0000@online |
| E01-5 | Oil Relay | 37050-Z010210-0000 | Hyu-37050-Z010210-0000@online |
| E01-6 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| E01-7 | Washer | 90412-Z080110-00A0 | Hyu-90412-Z080110-00A0@online |
| E01-8 | Drain Plug | 11007-Z080110-00A0 | Hyu-11007-Z080110-00A0@online |
| E01-9 | Clip | 90684-Z030120-00A0 | Hyu-90684-Z030120-00A0@online |
| E01-10 | Governor Arm | 16061-Z100110-00A0 | Hyu-16061-Z100110-00A0@online |
| E01-11 | Washer | 90412-Z080210-00A0 | Hyu-90412-Z080210-00A0@online |
| E01-12 | Cottter Pin | 90501-Z010110-00A0 | Hyu-90501-Z010110-00A0@online |
| E01-13 | Nut | 90305-Z010210-01A0 | Hyu-90305-Z010210-01A0@online |
| E01-15 | Bolt | 90001-0616-01A0 | Hyu-90001-0616-01A0@online |
| E01-16 | Pto Bearing | 90548-0202-CLA0 | Hyu-90548-0202-CLA0@online |
| E01-17 | Governor Shaft Seal | 90682-Z100210-00A0 | Hyu-90682-Z100210-00A0@online |
| E01-18 | Cover | 37056-Y500110-00A0 | Hyu-37056-Y500110-00A0@online |
| E01-19 | Bolt | 90001-0625-03 | Hyu-90001-0625-03@online |
| E02-1 | Crankcase Cover | 11411-Z6L0110-0BA0 | Hyu-11411-Z6L0110-0BA0@online |
| E02-2 | Crankcase Cover Gasket | 11001-Z100120-00A0 | Hyu-11001-Z100120-00A0@online |
| E02-3 | Dipstick | 15010-Z080330-Q5A0 | Hyu-15010-Z080330-Q5A0@online |
| E02-4 | Locating Pin | 90502-0812-00A0 | Hyu-90502-0812-00A0@online |
| E02-5 | Bolt | 90001-0840-01A0 | Hyu-90001-0840-01A0@online |
| E02-6 | Pto Bearing | 90548-0207-CLA0 | Hyu-90548-0207-CLA0@online |
| E02-7 | Governor Gear | 16400-Z100110-00A0 | Hyu-16400-Z100110-00A0@online |
| E02-8 | Pto Oil Seal | 90682-Z310110-00A0 | Hyu-90682-Z310110-00A0@online |
| E02-9 | Camshaft Bearing | 90548-0202-CLA0 | Hyu-90548-0202-CLA0@online |
| E03-1 | Cylinder Head Gasket | 12131-Z190410-00A0 | Hyu-12131-Z190410-00A0@online |
| E03-2 | Tappet Cover | 12410-Z310110-00A0 | Hyu-12410-Z310110-00A0@online |
| E03-3 | Tappet Cover Gasket | 12004-Z080110-0001 | Hyu-12004-Z080110-0001@online |
| E03-4 | Breather Tube | 17004-Z080320-00A0 | Hyu-17004-Z080320-00A0@online |
| E03-5 | Tapper Cover Bolt | 12032-Z080110-01A0 | Hyu-12032-Z080110-01A0@online |
| E03-6 | Seal | 12034-Z080110-00A9 | Hyu-12034-Z080110-00A9@online |
| E03-7 | Inlet Stud | 90204-Z100410-00A0 | Hyu-90204-Z100410-00A0@online |
| E03-8 | Exhuast Stud | 90203-Z010110-01A0 | Hyu-90203-Z010110-01A0@online |
| E03-9 | Locating Pin | 90502-1220-00A0 | Hyu-90502-1220-00A0@online |
| E03-10 | Cylinder Head Bolt | 12003-Z080110-00A0 | Hyu-12003-Z080110-00A0@online |
| E03-11 | Spark Plug | 30010-Z010110-00A0 | Hyu-30010-Z010110-00A0@online |
| E03-12 | Cylinder Head | 12140-Z190150-0BA9 | Hyu-12140-Z190150-0BA9@online |
| E04-1 | Crankshaft | 13300-Z192910-00A0 | Hyu-13300-Z192910-00A0@online |
| E04-4 | Blancing Shaft | 13400-Z190320-00A1 | Hyu-13400-Z190320-00A1@online |
| E05-1 | Piston Pin | 13122-Z100110-00A0 | Hyu-13122-Z100110-00A0@online |
| E05-2 | Piston | 13111-Z190110-00A0 | Hyu-13111-Z190110-00A0@online |
| E05-3 | Piston Rings | 13121-Z100110-00A0 | Hyu-13121-Z100110-00A0@online |
| E05-4 | Connecting Rod | 13010-Z190121-00A0 | Hyu-13010-Z190121-00A0@online |
| E05-5 | Piston Rings | 13200-Z6L0110-00A0 | Hyu-13200-Z6L0110-00A0@online |
| E06-1 | Camshaft | 14200-Z190620-00A9 | Hyu-14200-Z190620-00A9@online |
| E06-4 | Valve Set (Intake & Exhaust) | 12110-Z190110-00A9 | Hyu-12110-Z190110-00A9@online |
| E06-5 | Valve Spring | 12103-Z080110-00A0 | Hyu-12103-Z080110-00A0@online |
| E06-6 | Exhaust Valve Retainer | 12107-Z080110-00A0 | Hyu-12107-Z080110-00A0@online |
| E06-7 | Valve Rotator | 12104-Z080110-00A0 | Hyu-12104-Z080110-00A0@online |
| E06-8 | Valve Seal | 12101-Z080110-00A0 | Hyu-12101-Z080110-00A0@online |
| E06-9 | Inlet Valve Retainer | 12112-Z080110-00A0 | Hyu-12112-Z080110-00A0@online |
| E06-10 | Tappet | 14081-Z080110-00A0 | Hyu-14081-Z080110-00A0@online |
| E06-11 | Pushrod | 14070-Z100110-00A0 | Hyu-14070-Z100110-00A0@online |
| E06-12 | Pushrod Guide | 14090-Z080110-00A0 | Hyu-14090-Z080110-00A0@online |
| E06-13 | Rocker Arm Stud | 14313-Z010110-00A0 | Hyu-14313-Z010110-00A0@online |
| E06-14 | Rocker Arm | 14311-Z080110-00A0 | Hyu-14311-Z080110-00A0@online |
| E06-15 | Valve Adjuster Nut | 14314-Z010110-00A0 | Hyu-14314-Z010110-00A0@online |
| E06-16 | Valve Adjuster Lock | 14312-Z010110-00A0 | Hyu-14312-Z010110-00A0@online |
| E06-17 | Exhaust Valve Spring Seat | 12105-Z080110-00A0 | Hyu-12105-Z080110-00A0@online |
| E07-1 | Recoil Starter | 28200-Z190610-H701 | Hyu-28200-Z190610-H701@online |
| E07-2 | Bolt | 90251-0608-01A0 | Hyu-90251-0608-01A0@online |
| E08-1 | Blower Housing | 28110-Z190510-H700 | Hyu-28110-Z190510-H700@online |
| E08-2 | Shroud | 19304-Z100210-00A0 | Hyu-19304-Z100210-00A0@online |
| E08-3 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| E08-4 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| E09-1 | Carburetor | 16100-Z194310-0000 | Hyu-16100-Z194310-0000@online |
| E09-2 | Air Cleaner Gasket | 17001-Z080110-00A0 | Hyu-17001-Z080110-00A0@online |
| E09-3 | Carburetor Gasket | 16001-Z100110-00A0 | Hyu-16001-Z100110-00A0@online |
| E09-4 | Insulator | 16003-Z100110-00A0 | Hyu-16003-Z100110-00A0@online |
| E09-5 | Inlet Gasket | 17002-Z100110-00A0 | Hyu-17002-Z100110-00A0@online |
| E09-6 | Clip | 90684-Z030210-00A0 | Hyu-90684-Z030210-00A0@online |
| E10-1 | Flywheel Nut | 13501-Z080110-00A0 | Hyu-13501-Z080110-00A0@online |
| E10-2 | Starter Cup | 28002-Z100210-0000 | Hyu-28002-Z100210-0000@online |
| E10-3 | Fan | 19352-Z100210-00A0 | Hyu-19352-Z100210-00A0@online |
| E10-4 | Flywheel | 13510-Z710110-0000 | Hyu-13510-Z710110-0000@online |
| E10-5 | Bolt | 90001-0628-01A0 | Hyu-90001-0628-01A0@online |
| E10-6 | Ignition Coil | 30400-Z310311-0000 | Hyu-30400-Z310311-0000@online |
| E11-1 | Throttle Assembly | 16520-Z6L0110-00A0 | Hyu-16520-Z6L0110-00A0@online |
| E11-2 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| E11-3 | Governor Link Spring | 16012-Z080110-00A0 | Hyu-16012-Z080110-00A0@online |
| E11-4 | Governor Link | 16062-Z100110-00A0 | Hyu-16062-Z100110-00A0@online |
| E11-5 | Governor Spring | 16063-Z100310-00A0 | Hyu-16063-Z100310-00A0@online |
| E11-6 | Governor Arm | 16070-Z100120-00A0 | Hyu-16070-Z100120-00A0@online |
| E11-7 | Bolt | 16072-Z010410-01A0 | Hyu-16072-Z010410-01A0@online |
| E11-8 | Nut | 90305-0600-01A1 | Hyu-90305-0600-01A1@online |
| E12-1 | Starter Motor | 09100-Z170410-0000 | Hyu-09100-Z170410-0000@online |
| E12-2 | Bolt | 90001-0835-01A0 | Hyu-90001-0835-01A0@online |
| E12-3 | Clip | 90684-Z030120-00A0 | Hyu-90684-Z030120-00A0@online |
HG6000E Frame, Fuel Tank, Control Panel & Alternator Parts
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F01-1 | Nut | 90305-0600-31A0 | Hyu-90305-0600-31A0@online |
| F01-2 | Air Cleaner Assembly | 17100-Z310710-00A0 | Hyu-17100-Z310710-00A0@online |
| F01-3 | Air Filter | 17151-Z310210-0000 | Hyu-17151-Z310210-0000@online |
| F02-1 | Muffler | 18100-YF30110-WFA0 | Hyu-18100-YF30110-WFA0@online |
| F02-2 | Muffler Gasket | 18001-Z190110-00A0 | Hyu-18001-Z190110-00A0@online |
| F02-3 | Exhaust Pipe | 18150-Z710110-00A0 | Hyu-18150-Z710110-00A0@online |
| F02-4 | Bolt | 90001-0830-03 | Hyu-90001-0830-03@online |
| F02-5 | Nut | 90303-0800-31A0 | Hyu-90303-0800-31A0@online |
| F02-6 | Exhaust Gasket | 18001-Z190110-00A0 | Hyu-18001-Z190110-00A0@online |
| F02-7 | Bolt | 90001-0816-03 | Hyu-90001-0816-03@online |
| F02-8 | Bracket | 18030-Y730110-00A0 | Hyu-18030-Y730110-00A0@online |
| F03-1 | Fuel Tank | 16620-YF30210-BTA0 | Hyu-16620-YF30210-BTA0@online |
| F03-2 | Bolt | 90007-0625-A3 | Hyu-90007-0625-A3@online |
| F03-3 | Washer | 90408-Y020110-0000 | Hyu-90408-Y020110-0000@online |
| F03-4 | Rubber Mount | 16601-Y020120-0000 | Hyu-16601-Y020120-0000@online |
| F03-5 | Bush | 90683-Y020110-00A0 | Hyu-90683-Y020110-00A0@online |
| F03-6 | Fuel Cap | 16730-Y020130-H7A0 | Hyu-16730-Y020130-H7A0@online |
| F03-7 | Fuel Strainer | 16652-Y020120-00A0 | Hyu-16652-Y020120-00A0@online |
| F03-8 | Fuel Gauge | 37200-Y1J0110-H7A0 | Hyu-37200-Y1J0110-H7A0@online |
| F03-9 | Bolt | 90104-0512-53 | Hyu-90104-0512-53@online |
| F03-10 | Fuel Valve | 16750-Y020211-0000 | Hyu-16750-Y020211-0000@online |
| F03-11 | Clamp | 90740-Z010210-00A0 | Hyu-90740-Z010210-00A0@online |
| F03-12 | Fuel Hose | 90686-Z0D0210-00A0 | Hyu-90686-Z0D0210-00A0@online |
| F04-1 | Frame | 51100-YF30111-H7A0 | Hyu-51100-YF30111-H7A0@online |
| F04-2 | Mounting | 51012HY030120-0000 | Hyu-51012HY030120-0000@online |
| F04-3 | Nut | 90306-1000-31A0 | Hyu-90306-1000-31A0@online |
| F04-4 | Nut | 90305-0800-33 | Hyu-90305-0800-33@online |
| F04-5 | Foot | 51016-Y0K0110-H7A0 | Hyu-51016-Y0K0110-H7A0@online |
| F04-6 | Rubber Pads | 51014HY940110-0000 | Hyu-51014HY940110-0000@online |
| F04-7 | Bolt | 90001-0620-03 | Hyu-90001-0620-03@online |
| F04-8 | Nut | 90305-0600-33 | Hyu-90305-0600-33@online |
| F04-9 | Bolt | 90001-0816-03 | Hyu-90001-0816-03@online |
| F04-10 | Axle | 44020-Y470110-0100 | Hyu-44020-Y470110-0100@online |
| F04-11 | Wheel | 44110-Y030120-00A0 | Hyu-44110-Y030120-00A0@online |
| F04-12 | Easher | 90408-Y090210-00A0 | Hyu-90408-Y090210-00A0@online |
| F04-13 | Cotter Pin | 90501-Y2C0110-01A0 | Hyu-90501-Y2C0110-01A0@online |
| F04-14 | Battery | 31110-Y230110-00A0 | Hyu-31110-Y230110-00A0@online |
| F04-15 | Battery Clamp | 31142-Y130110-H7A0 | Hyu-31142-Y130110-H7A0@online |
| F04-16 | Bolt | 90007-0616-A3 | Hyu-90007-0616-A3@online |
| F04-17 | Positive Battery Cable | 31114HY130310-0000 | Hyu-31114HY130310-0000@online |
| F04-18 | Negative Battery Cable | 31112HY130310-0000 | Hyu-31112HY130310-0000@online |
| F04-19 | Bolt | 90007-0612-A1A0 | Hyu-90007-0612-A1A0@online |
| F04-20 | Handle | 54110-YF30111-H7A0 | Hyu-54110-YF30111-H7A0@online |
| F04-21 | Rubber | 54101-Y2C0110-Q200 | Hyu-54101-Y2C0110-Q200@online |
| F04-22 | Bracker | 54113-YF30110-H7A0 | Hyu-54113-YF30110-H7A0@online |
| F04-23 | Bolt | 90001-0895-03 | Hyu-90001-0895-03@online |
| F04-24 | Nut | 90310-0800-33 | Hyu-90310-0800-33@online |
| F04-25 | Pin | 90504-Y910110-00A0 | Hyu-90504-Y910110-00A0@online |
| F04-26 | Sling | 90793-Y910110-00A0 | Hyu-90793-Y910110-00A0@online |
| F04-27 | Bolt | 90005-0616-03 | Hyu-90005-0616-03@online |
| F04-28 | Support | 17003-Y290110-00A0 | Hyu-17003-Y290110-00A0@online |
| F04-29 | Bolt | 90001-0612-03 | Hyu-90001-0612-03@online |
| F05-1 | Control Panel | 35610-YF32510-H700 | Hyu-35610-YF32510-H700@online |
| F05-2 | Bolt | 90007-0645-A3 | Hyu-90007-0645-A3@online |
| F05-3 | Bolt | 90326-Y2V0110-00A0 | Hyu-90326-Y2V0110-00A0@online |
| F05-4 | Ptr Circuit Breaker | 31234-Y9H0110-0000 | Hyu-31234-Y9H0110-0000@online |
| F05-5 | Volt Meter | 37114-Y280110-0000 | Hyu-37114-Y280110-0000@online |
| F05-6 | Switch | 35160-Y030710-0000 | Hyu-35160-Y030710-0000@online |
| F05-7 | Negative Dc Post | 35634-Y020110-0000 | Hyu-35634-Y020110-0000@online |
| F05-8 | Positive Dc Post | 35633-Y020110-0000 | Hyu-35633-Y020110-0000@online |
| F05-9 | Circuit Breaker | 35645-Y240310-0000 | Hyu-35645-Y240310-0000@online |
| F05-10 | Earth Post | 35629-Y280110-0000 | Hyu-35629-Y280110-0000@online |
| F05-11 | 32A Socket Outlet | 35614-YCK0110-0000 | Hyu-35614-YCK0110-0000@online |
| F05-12 | 16A Socket Outlet | 35614-Y020810-0000 | Hyu-35614-Y020810-0000@online |
| F05-13 | Bridge Rectifier | 30007-YCK0110-0000 | Hyu-30007-YCK0110-0000@online |
| F05-14 | Ignition Key | 35552-Y030110-00A0 | Hyu-35552-Y030110-00A0@online |
| F06-1 | Alternator | 31300-Y1P0210-0000 | Hyu-31300-Y1P0210-0000@online |
| F06-2 | Rear Housing | 30021-Y030310-00A0 | Hyu-30021-Y030310-00A0@online |
| F06-3 | Stator Bolt | 30048-Y240120-00A0 | Hyu-30048-Y240120-00A0@online |
| F06-4 | Washer | 90408-Y030110-00A0 | Hyu-90408-Y030110-00A0@online |
| F06-5 | Rotor | 30049-Y240120-00A0 | Hyu-30049-Y240120-00A0@online |
| F06-6 | Automatic Voltage Regulator | 30060-Y030120-0000 | Hyu-30060-Y030120-0000@online |
| F06-7 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-8 | Brush Assembly | 31320-Y030120-0000 | Hyu-31320-Y030120-0000@online |
| F06-9 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-10 | Rear Cover | 30022-Y030110-H7A0 | Hyu-30022-Y030110-H7A0@online |
| F06-11 | Bolt | 90001-0512-03 | Hyu-90001-0512-03@online |
| F06-12 | Termnal Block | 31303HY090110-0000 | Hyu-31303HY090110-0000@online |
| F06-13 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-14 | Cable Tie | 90727-Y020110-00A0 | Hyu-90727-Y020110-00A0@online |
| F06-15 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-16 | Stator Bolt | 31316-Y240120-00A0 | Hyu-31316-Y240120-00A0@online |
| F06-17 | Spring Washer | 90403-0500-03 | Hyu-90403-0500-03@online |
| F06-18 | Nut | 31317-Y030110-0000 | Hyu-31317-Y030110-0000@online |
| F06-19 | Bolt | 90001-0512-01A0 | Hyu-90001-0512-01A0@online |
| F06-20 | Rubber Stopper | 30023-Y030120-0000 | Hyu-30023-Y030120-0000@online |
| F06-21 | Shroud | 30024-Y730110-00A0 | Hyu-30024-Y730110-00A0@online |
| F06-22 | Bolt | 90001-0510-01A0 | Hyu-90001-0510-01A0@online |
SKU convention used in this article: Hyundai part number with Hyu- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
