Crankcase / Crankcase Cover

Tap or click the image to enlarge it.

Cylinder Head / Crankshaft

Tap or click the image to enlarge it.

Piston Rings / Connecting Rod / Valves / Camshaft

Tap or click the image to enlarge it.

Recoil Starter / Carburetor

Tap or click the image to enlarge it.

Flywheel / Ignition Coil / Throttle Control

Tap or click the image to enlarge it.

Air Cleaner / Muffler

Tap or click the image to enlarge it.

Fuel Tank / Frame

Tap or click the image to enlarge it.

Control Panel / Rotor-Stator AVR

Tap or click the image to enlarge it.

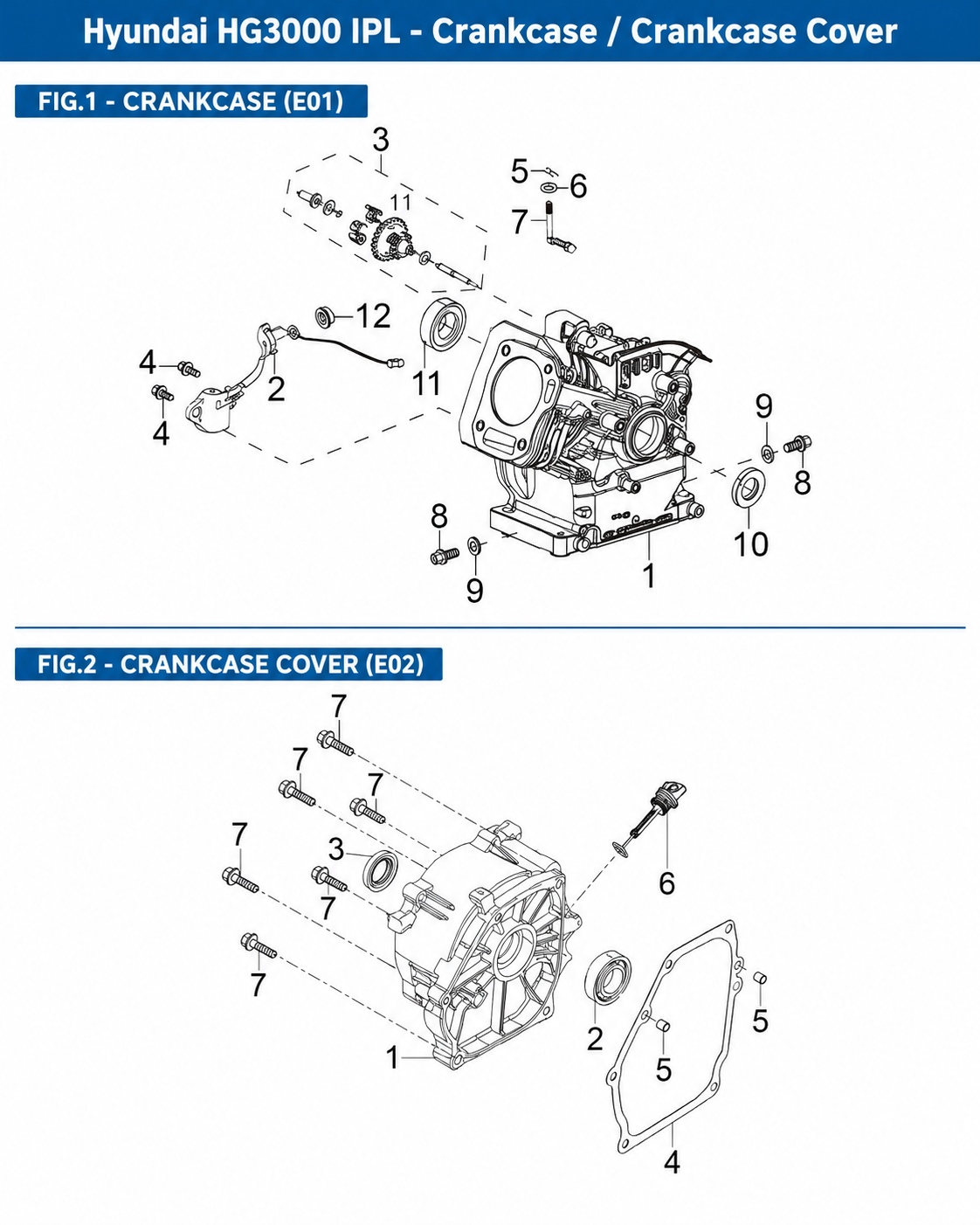

FIG.1 - Crankcase

FIG.2 - Crankcase Cover

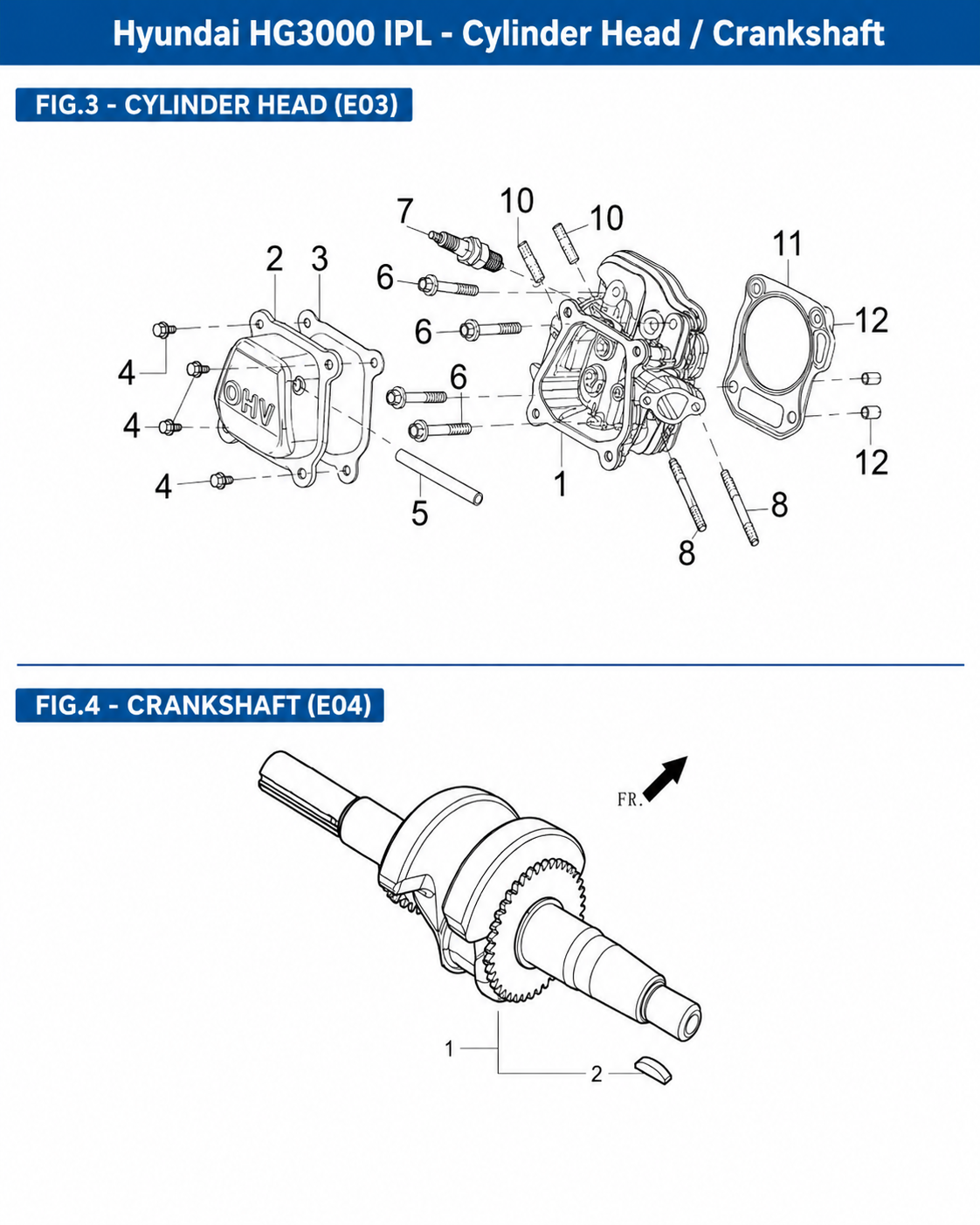

FIG.3 - Cylinder Head

FIG.4 - Crankshaft / Piston & Connecting Rod

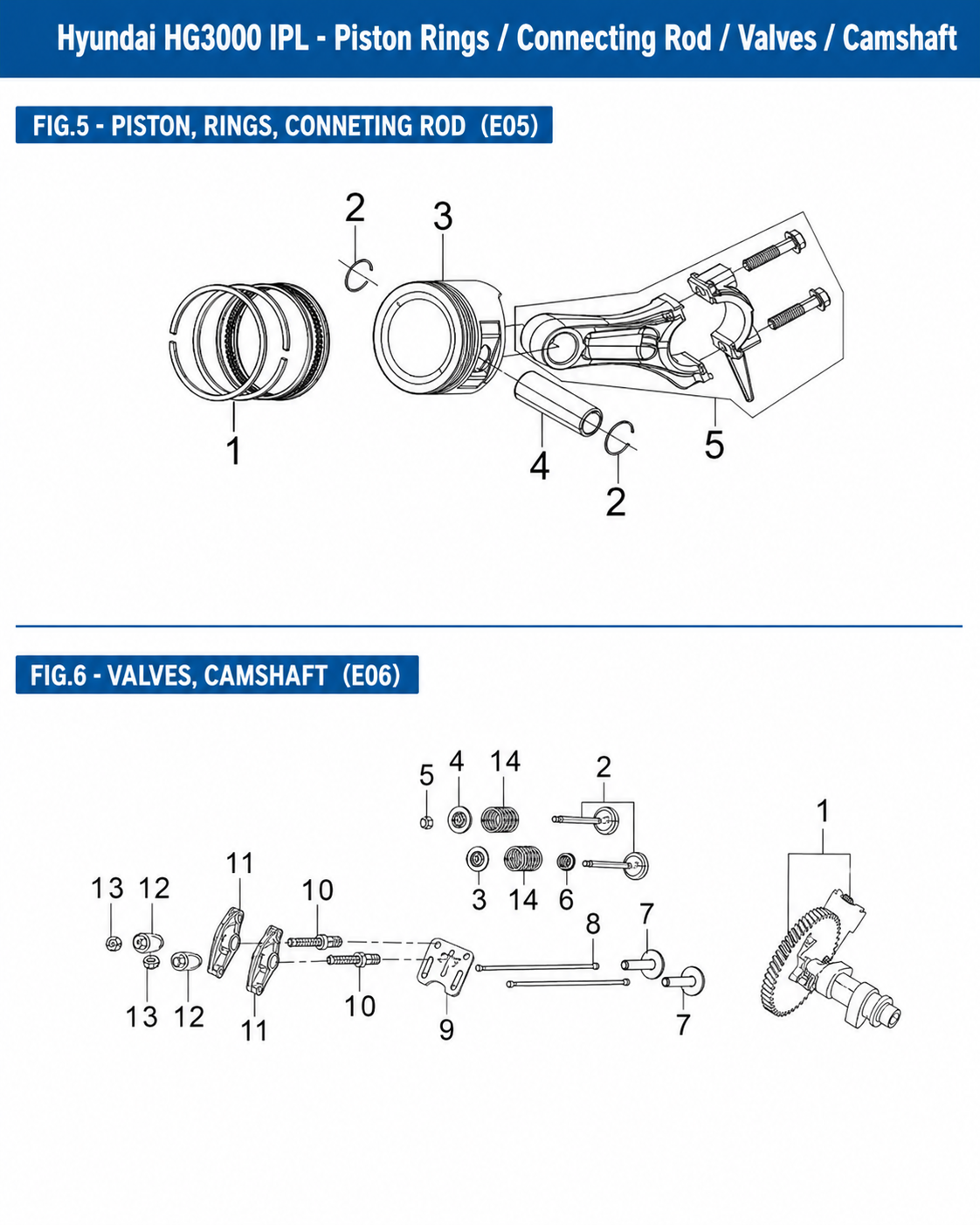

FIG.5 - Air Intake & Exhaust Valves

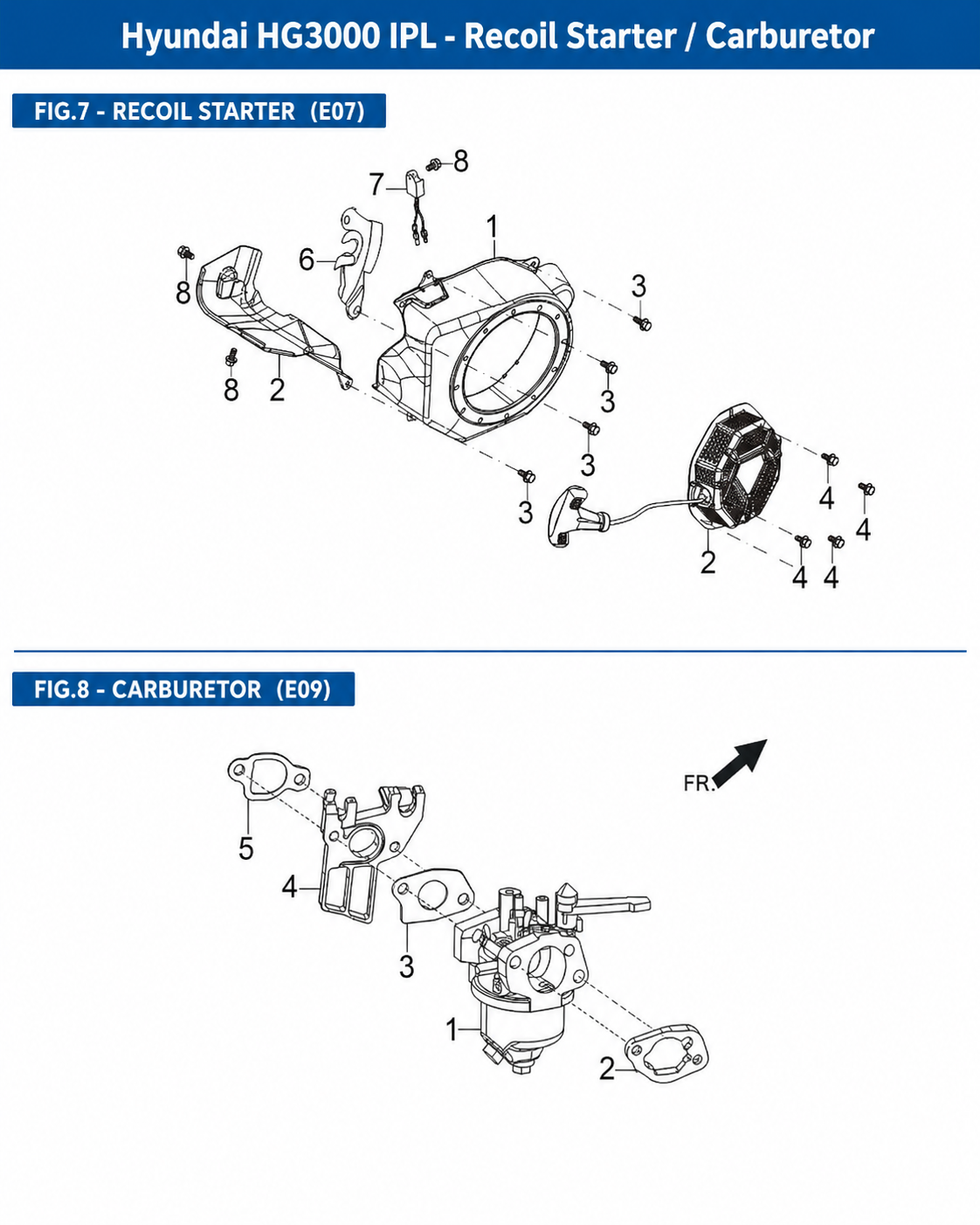

FIG.6 - Recoil Starter

FIG.7 - Carburetor

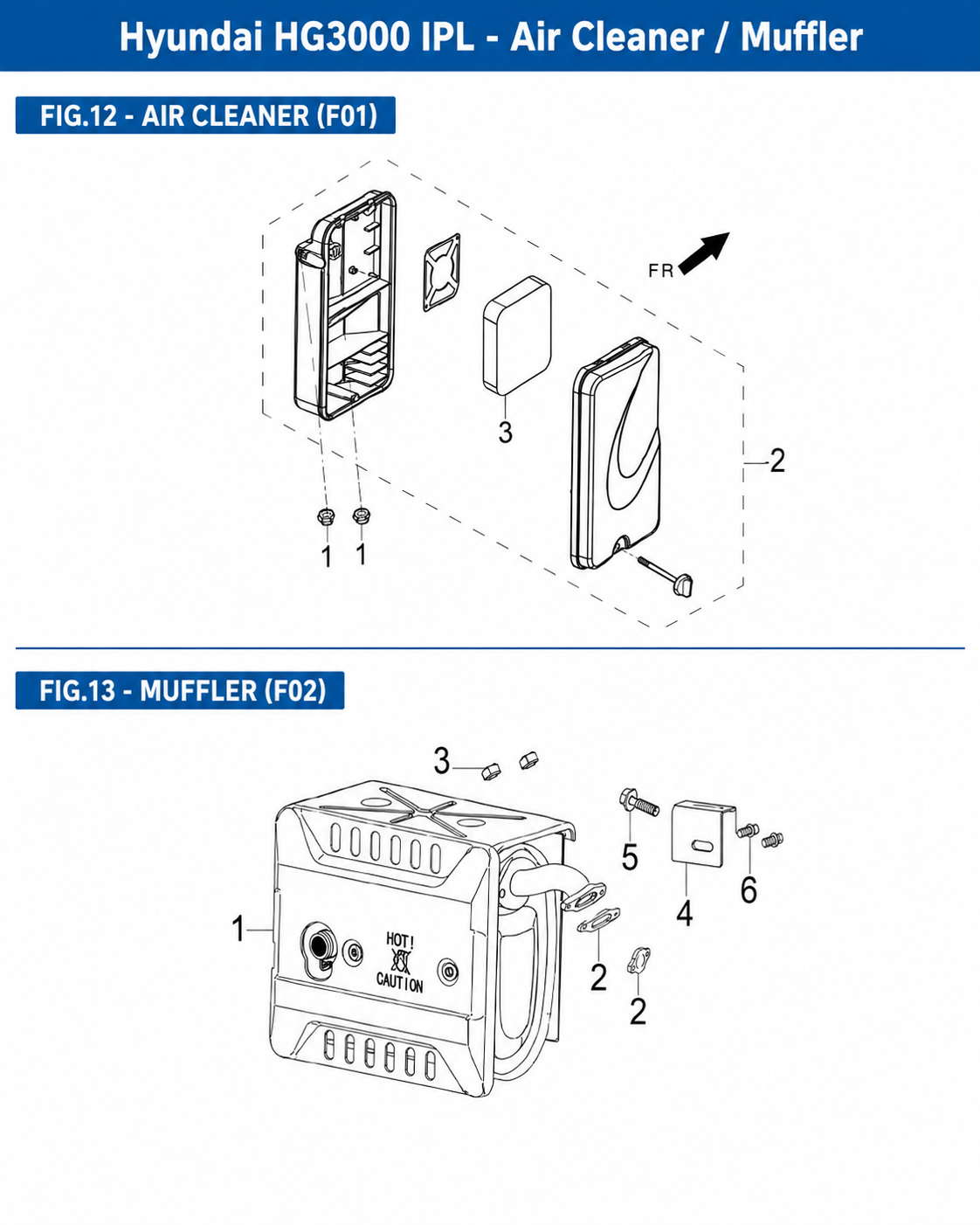

FIG.8 - Air Cleaner

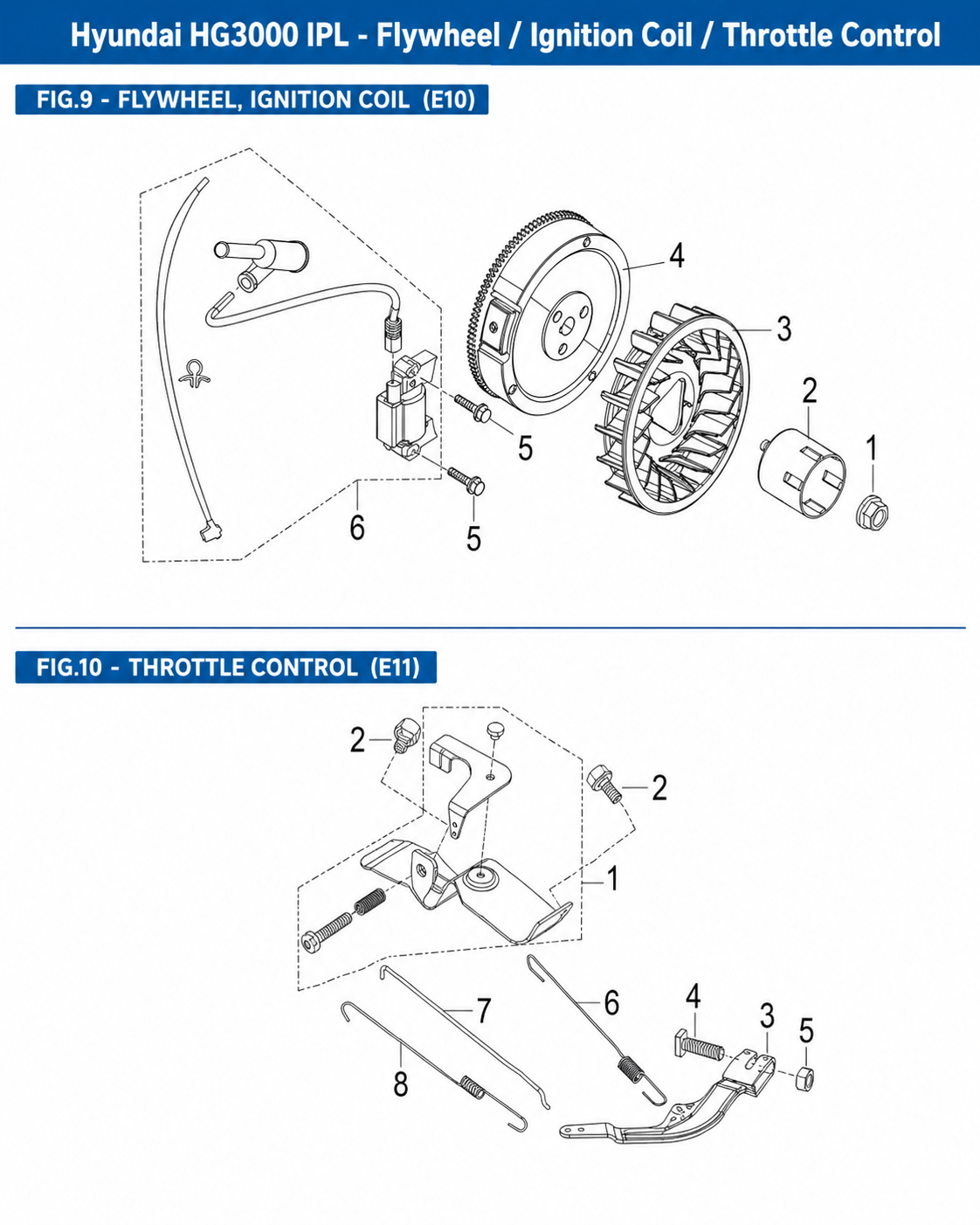

FIG.9 - Flywheel

FIG.10 - Throttle Control

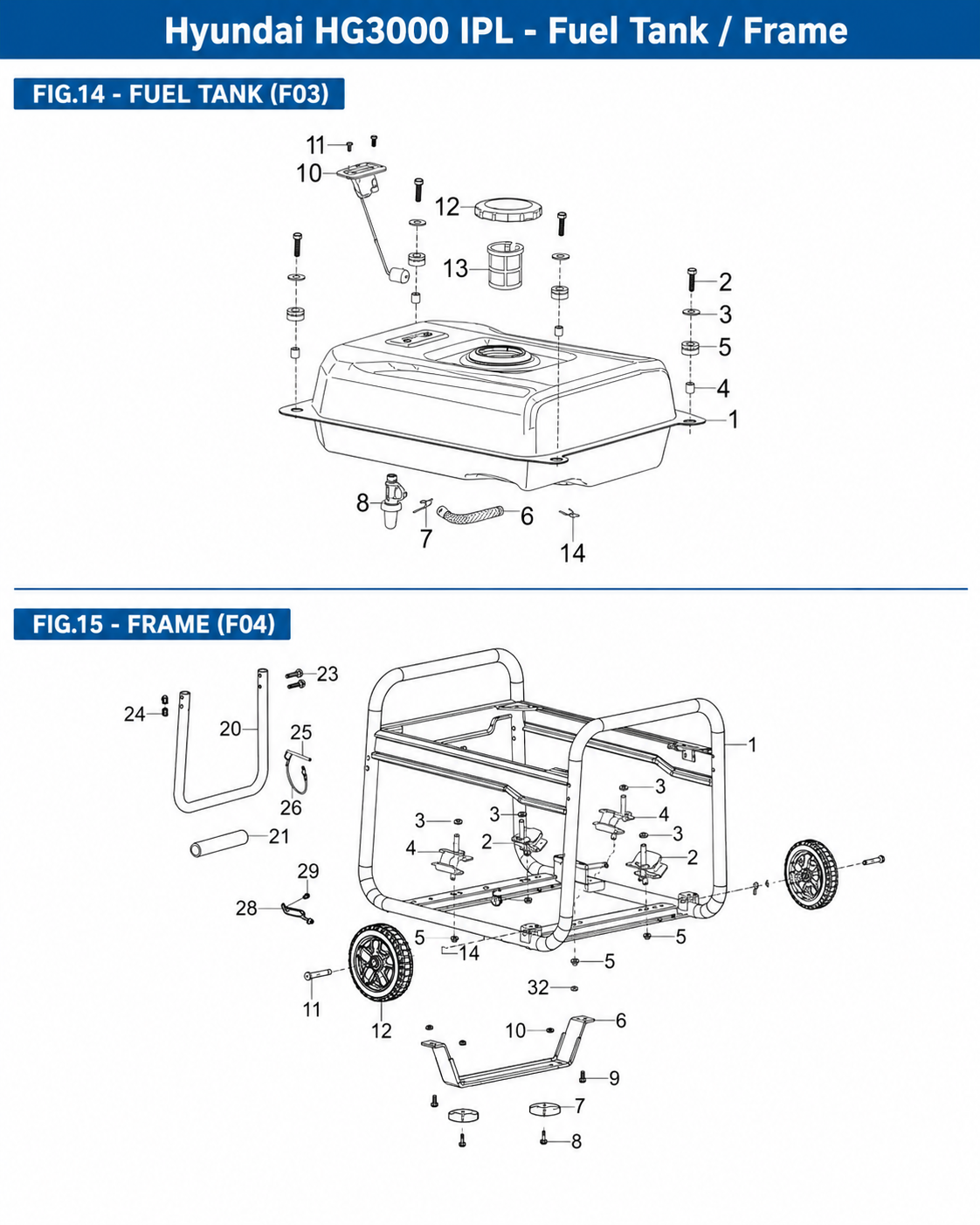

FIG.12 - Fuel Tank

FIG.13 - Rotor / Stator & AVR

FIG.14 - Frame

FIG.15 - Frame

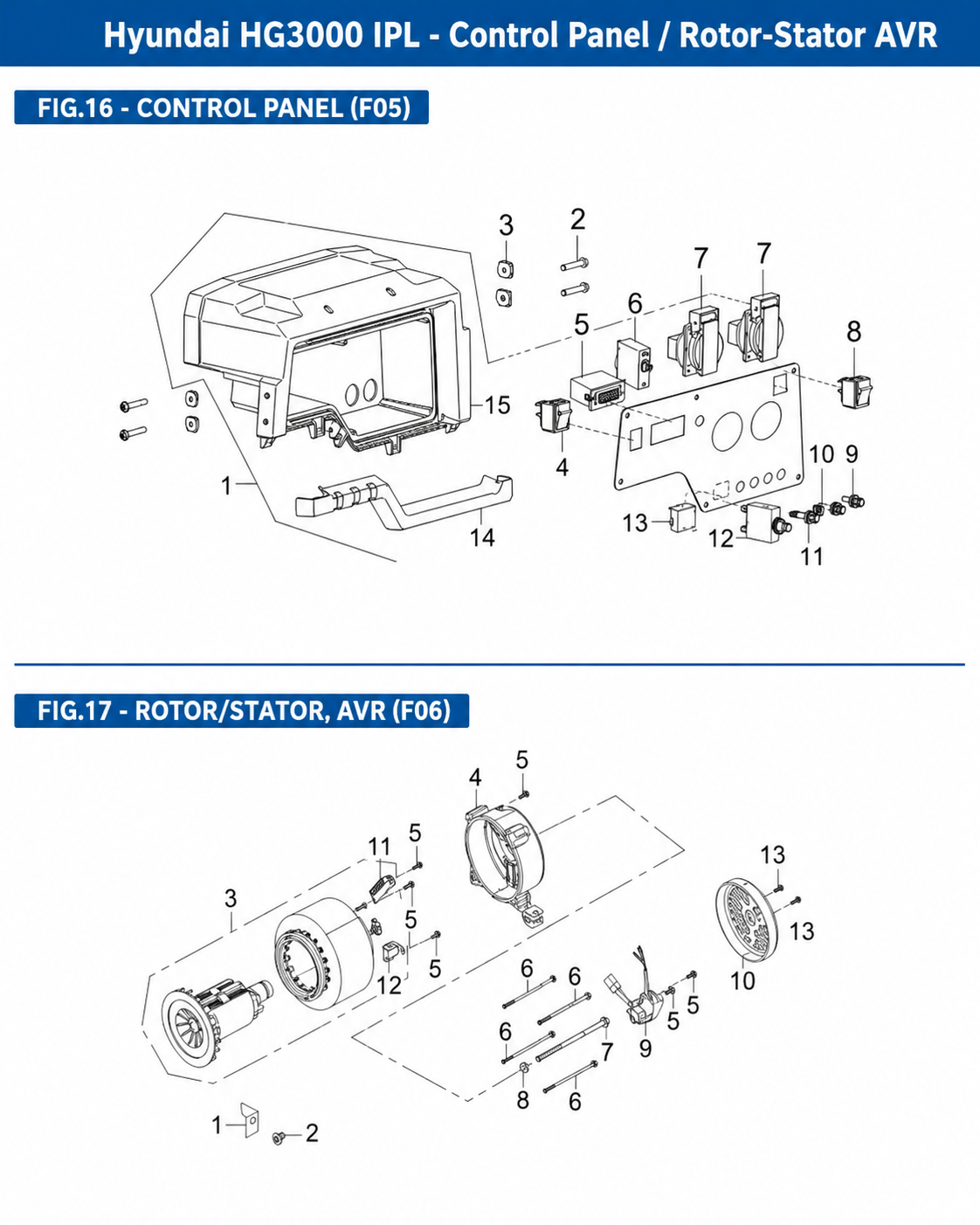

FIG.16 - Control Panel

FIG.17 - Rotor/Stator, Avr
