Hyundai HG12000E Generator IPL / Parts List
Illustrated parts list for the Hyundai HG12000E generator. Click any Cutsmart SKU to open the matching product by SKU. Click any diagram to enlarge it in a lightbox.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

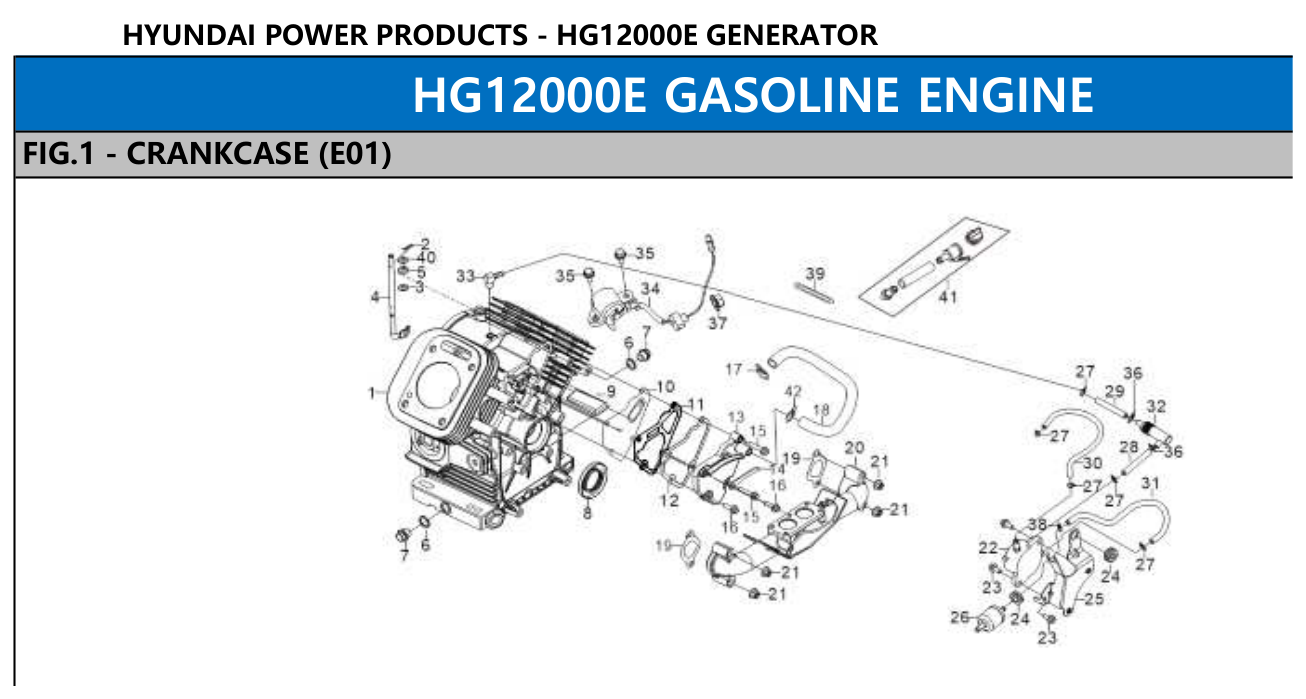

Hyundai HG12000E Crankcase IPL diagram
Crankcase
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E01-1 | CRANKCASE SUBASSEMBLY | 11310-Z3P0312-00A0 | Hyu-11310-Z3P0312-00A0@online |
| E01-2 | COTTER PIN | 90501-Z010110-00A0 | Hyu-90501-Z010110-00A0@online |
| E01-3 | FLAT WASHER | 90408-V010110-00A0 | Hyu-90408-V010110-00A0@online |
| E01-4 | ARM, GOVERNOR | 16061-Z120110-00A0 | Hyu-16061-Z120110-00A0@online |
| E01-5 | SEAL, OIL | 90682-Z130220-00A0 | Hyu-90682-Z130220-00A0@online |
| E01-6 | FLAT WASHER | 90412-Z080110-00A0 | Hyu-90412-Z080110-00A0@online |
| E01-7 | BOLT, DRAIN PLUG | 11007-Z080110-00A0 | Hyu-11007-Z080110-00A0@online |
| E01-8 | SEAL, OIL | 90682-Z130120-00A0 | Hyu-90682-Z130120-00A0@online |
| E01-9 | STRAINER, BREATH GROOVE | 11331-Z1X0110-0000 | Hyu-11331-Z1X0110-0000@online |
| E01-10 | STOP ENGINE PIECE SUBASSEMBLY | 11320-Z120120-00A0 | Hyu-11320-Z120120-00A0@online |
| E01-11 | GASKET, BREATH GROOVE | 11332-Z130130-00A0 | Hyu-11332-Z130130-00A0@online |
| E01-12 | GASKET, BREATH GROOVE | 11332-Z120120-00A0 | Hyu-11332-Z120120-00A0@online |
| E01-13 | PLATE, BREATH GROOVE COVER | 11333-Z120121-00A0 | Hyu-11333-Z120121-00A0@online |
| E01-14 | TENSION DISC | 54066-Z130110-00A0 | Hyu-54066-Z130110-00A0@online |
| E01-15 | BOLT | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E01-16 | BOLT | 90007-0620-A1A0 | Hyu-90007-0620-A1A0@online |
| E01-17 | PIPE CLAMP | 90685-Z130210-00A0 | Hyu-90685-Z130210-00A0@online |
| E01-18 | TUBE, BREATHER | 17004-Z120110-00A0 | Hyu-17004-Z120110-00A0@online |
| E01-19 | GASKET, INLET | 17002-Z130120-00A0 | Hyu-17002-Z130120-00A0@online |
| E01-20 | TUBE, INTAKE | 12510-Z130120-00A0 | Hyu-12510-Z130120-00A0@online |
| E01-21 | HEXAGON NUT WITH FLANGE | 90305-0800-31A0 | Hyu-90305-0800-31A0@online |
| E01-22 | PUMP ASSY, GASOLINE | 16300-Z120110-00A0 | Hyu-16300-Z120110-00A0@online |
| E01-23 | BOLT | 90007-0616-A1A0 | Hyu-90007-0616-A1A0@online |
| E01-24 | SLEEVE, GASOLINE PUMP RUBBER | 16302-Z130120-00A0 | Hyu-16302-Z130120-00A0@online |
| E01-25 | SUPPORT, GASOLINE PUMP | 16301-Z130130-00A0 | Hyu-16301-Z130130-00A0@online |
| E01-26 | STRAINER, FUEL | 16510-Z120111-00M0 | Hyu-16510-Z120111-00M0@online |
| E01-27 | PIPE CLAMP | 90685-1000-Z4A0 | Hyu-90685-1000-Z4A0@online |
| E01-28 | NEGATIVE PRESSURE PIPE | 11017-Z120410-00A0 | Hyu-11017-Z120410-00A0@online |
| E01-29 | NEGATIVE PRESSURE PIPE | 11017-Z120510-00A0 | Hyu-11017-Z120510-00A0@online |
| E01-30 | TUBE, FUEL | 90686-Z120210-00M1 | Hyu-90686-Z120210-00M1@online |
| E01-31 | TUBE, FUEL | 90686-Z120410-00M1 | Hyu-90686-Z120410-00M1@online |
| E01-32 | SEPARATOR, GAS AND OIL | 16030-Z120210-00A0 | Hyu-16030-Z120210-00A0@online |
| E01-33 | MOUTH, NEGATIVE PRESSURE | 12502-Z130130-00A0 | Hyu-12502-Z130130-00A0@online |
| E01-34 | SENSOR, ENGINE OIL | 37060-Z010310-00A0 | Hyu-37060-Z010310-00A0@online |
| E01-35 | BOLT | 90007-0620-A1A0 | Hyu-90007-0620-A1A0@online |
| E01-36 | PIPE CLAMP | 90685-Z120110-00A0 | Hyu-90685-Z120110-00A0@online |
| E01-37 | HEXAGON NUT WITH FLANGE | 90305-Z010210-01A0 | Hyu-90305-Z010210-01A0@online |
| E01-38 | PIPE CLAMP | 90685-D095-0EA0 | Hyu-90685-D095-0EA0@online |
| E01-39 | WIRE CLIP | 90684-Z030120-00B0 | Hyu-90684-Z030120-00B0@online |
| E01-40 | WASHER, FLAT | 90406-0800-E1A0 | Hyu-90406-0800-E1A0@online |
| E01-41 | HOSE, FUEL STEAM RUBBER | 11011HZ1D0210-L4A0 | Hyu-11011HZ1D0210-L4A0@online |
| E01-42 | PIPE CLAMP | 90685-D105-0EA0 | Hyu-90685-D105-0EA0@online |

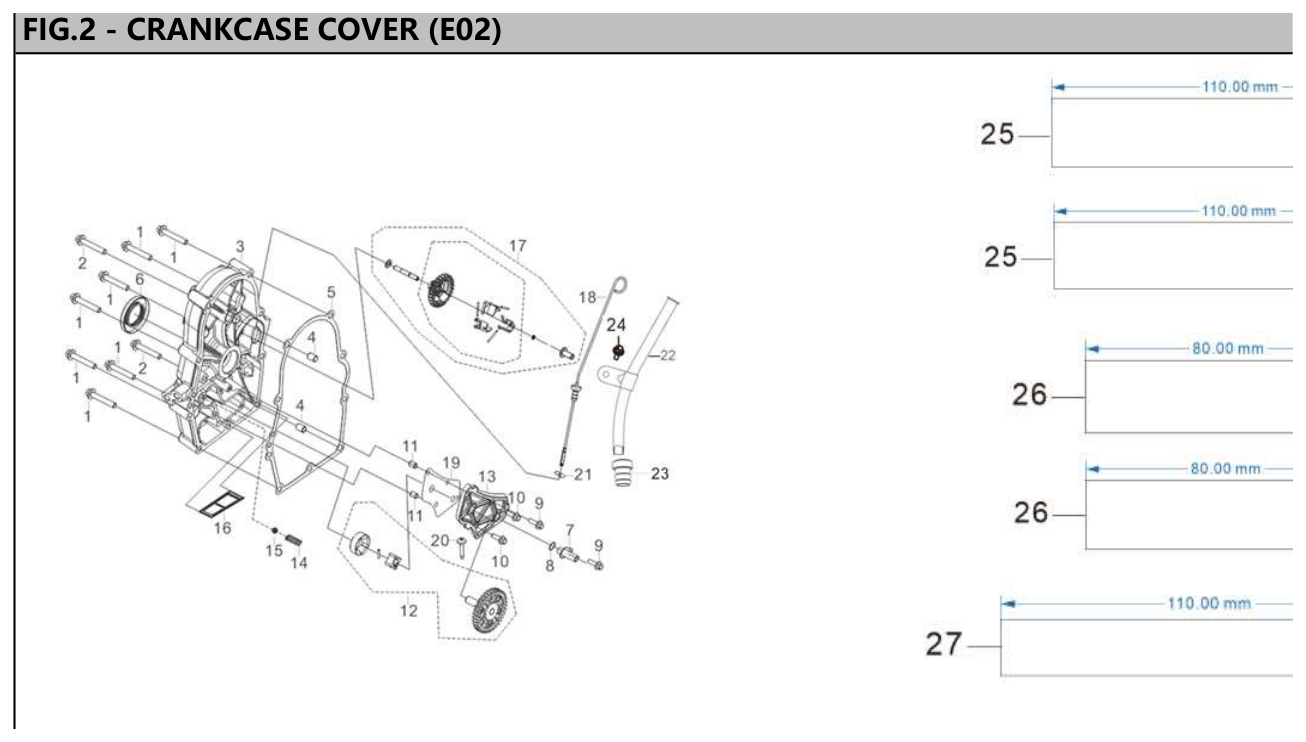

Hyundai HG12000E Crankcase Cover IPL diagram
Crankcase Cover
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E02-1 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-0850-11A0 | Hyu-90001-0850-11A0@online |
| E02-2 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-0855-11A0 | Hyu-90001-0855-11A0@online |
| E02-3 | COVER SUBASSEMBLY, CRANKCASE | 11410-Z120512-0000 | Hyu-11410-Z120512-0000@online |
| E02-4 | POSITION PIN - TYPE A | 90502-1014-00A0 | Hyu-90502-1014-00A0@online |
| E02-5 | GASKET, CRANKCASE | 11001-Z130120-00A0 | Hyu-11001-Z130120-00A0@online |
| E02-6 | SEAL, OIL | 90682-Z130120-00A0 | Hyu-90682-Z130120-00A0@online |
| E02-7 | TUBE, SUCTION OIL | 15111HZ120110-00A0 | Hyu-15111HZ120110-00A0@online |
| E02-8 | O-TYPE RUBBER SEAL RING | 90692-Z120210-00A0 | Hyu-90692-Z120210-00A0@online |
| E02-9 | BOLT | 90007-0625-A1A0 | Hyu-90007-0625-A1A0@online |
| E02-10 | BOLT | 90007-0628-A1A0 | Hyu-90007-0628-A1A0@online |
| E02-11 | POSITION PIN - TYPE A | 90502-0810-00A0 | Hyu-90502-0810-00A0@online |
| E02-12 | PUMP ASSY, OIL | 15100-Z130110-00A0 | Hyu-15100-Z130110-00A0@online |
| E02-13 | COVER, OIL PUMP | 15141-Z120210-00A0 | Hyu-15141-Z120210-00A0@online |
| E02-14 | SPRING, PRESSURE RELIEF VALVE | 15161-Z130310-00A0 | Hyu-15161-Z130310-00A0@online |
| E02-15 | BALL, STEEL | 90543-9500-00A0 | Hyu-90543-9500-00A0@online |
| E02-16 | STRAINER, OIL | 15211-Z120120-00A0 | Hyu-15211-Z120120-00A0@online |
| E02-17 | GEAR ASSY, GOVERNOR | 16400-Z130210-00A0 | Hyu-16400-Z130210-00A0@online |
| E02-18 | DIPSTICK SUBASSEMBLY, OIL | 15010HZ120320-Q9A0 | Hyu-15010HZ120320-Q9A0@online |
| E02-19 | OIL PUMP SEAL GASKET | 15142-Z120310-00A0 | Hyu-15142-Z120310-00A0@online |
| E02-20 | BOLT | 90104-0520-51A0 | Hyu-90104-0520-51A0@online |
| E02-21 | RING, SEAL | 90681-Z090110-00A0 | Hyu-90681-Z090110-00A0@online |
| E02-22 | TUBE, FUELING | 15020-Z120110-01A0 | Hyu-15020-Z120110-01A0@online |
| E02-23 | OIL DIPSTICK SEAL PLUG | 15014-Z120111-00A0 | Hyu-15014-Z120111-00A0@online |
| E02-24 | BOLT | 90001-0616-01A0 | Hyu-90001-0616-01A0@online |
| E02-25 | SCALD RESISTANT FILM | 82153-Z120210-00A0 | Hyu-82153-Z120210-00A0@online |
| E02-26 | SCALD RESISTANT FILM | 82153-Z120310-00A0 | Hyu-82153-Z120310-00A0@online |
| E02-27 | SCALD RESISTANT FILM | 82153-Z120410-00A0 | Hyu-82153-Z120410-00A0@online |

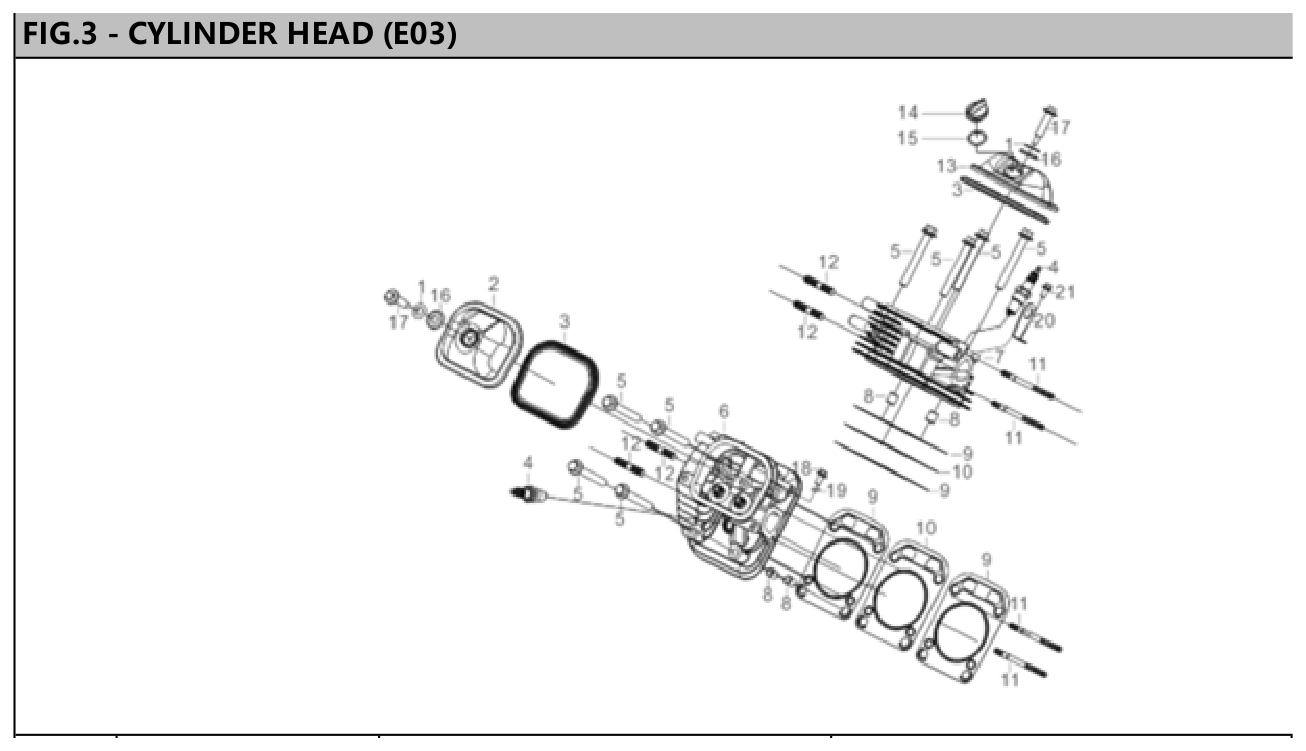

Hyundai HG12000E Cylinder Head IPL diagram
Cylinder Head
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E03-2 | COVER, CYLINDER HEAD | 12411-Z130110-00A0 | Hyu-12411-Z130110-00A0@online |
| E03-3 | CYLINDER HEAD COVER GASKET | 12004-Z130110-00A0 | Hyu-12004-Z130110-00A0@online |
| E03-4 | PLUG, SPARK | 30010-Z120110-00A0 | Hyu-30010-Z120110-00A0@online |
| E03-5 | CYLINDER HEAD BOLT | 12003-Z080110-00A0 | Hyu-12003-Z080110-00A0@online |
| E03-6 | HEAD SUBASSEMBLY, CYLINDER | 12140-Z130510-00A0 | Hyu-12140-Z130510-00A0@online |
| E03-7 | HEAD SUBASSEMBLY, RIGHT CYLINDER | 12210-Z130510-00A0 | Hyu-12210-Z130510-00A0@online |
| E03-8 | POSITION PIN | 90502-1220-00A0 | Hyu-90502-1220-00A0@online |
| E03-9 | GASKET, CYLINDER HEAD | 12131-Z3P0110-00A0 | Hyu-12131-Z3P0110-00A0@online |
| E03-10 | CORE VENEER | 12134-Z3P0110-00A0 | Hyu-12134-Z3P0110-00A0@online |
| E03-11 | STUD BOLT | 90204-0845-A1A0 | Hyu-90204-0845-A1A0@online |
| E03-12 | STUD BOLT | 90203-Z010110-00A0 | Hyu-90203-Z010110-00A0@online |
| E03-13 | COVER, CYLINDER HEAD | 12411-Z130210-00A0 | Hyu-12411-Z130210-00A0@online |
| E03-14 | PLUG, ENGINE OIL | 15031-Z120110-Q5A0 | Hyu-15031-Z120110-Q5A0@online |
| E03-15 | RING, SEAL | 90681-Z080210-00A0 | Hyu-90681-Z080210-00A0@online |
| E03-1 / E03-16 | CYLINDER HEAD COVER BOLT GASKET + WASHER SUBASSEMBLY | 12034-Z120110-00A0 | Hyu-12034-Z120110-00A0@online |
| E03-17 | CYLINDER HEAD COVER BOLT | 12032-Z130210-00A0 | Hyu-12032-Z130210-00A0@online |
| E03-18 | BOLT | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| E03-19 | FLAT WASHER | 90408-Z010110-00A0 | Hyu-90408-Z010110-00A0@online |
| E03-20 | LUG | 12008-Z130110-00A0 | Hyu-12008-Z130110-00A0@online |
| E03-21 | BOLT, HEXAGONAL FLANGE SHOULDER | 90013-Z130210-00A0 | Hyu-90013-Z130210-00A0@online |

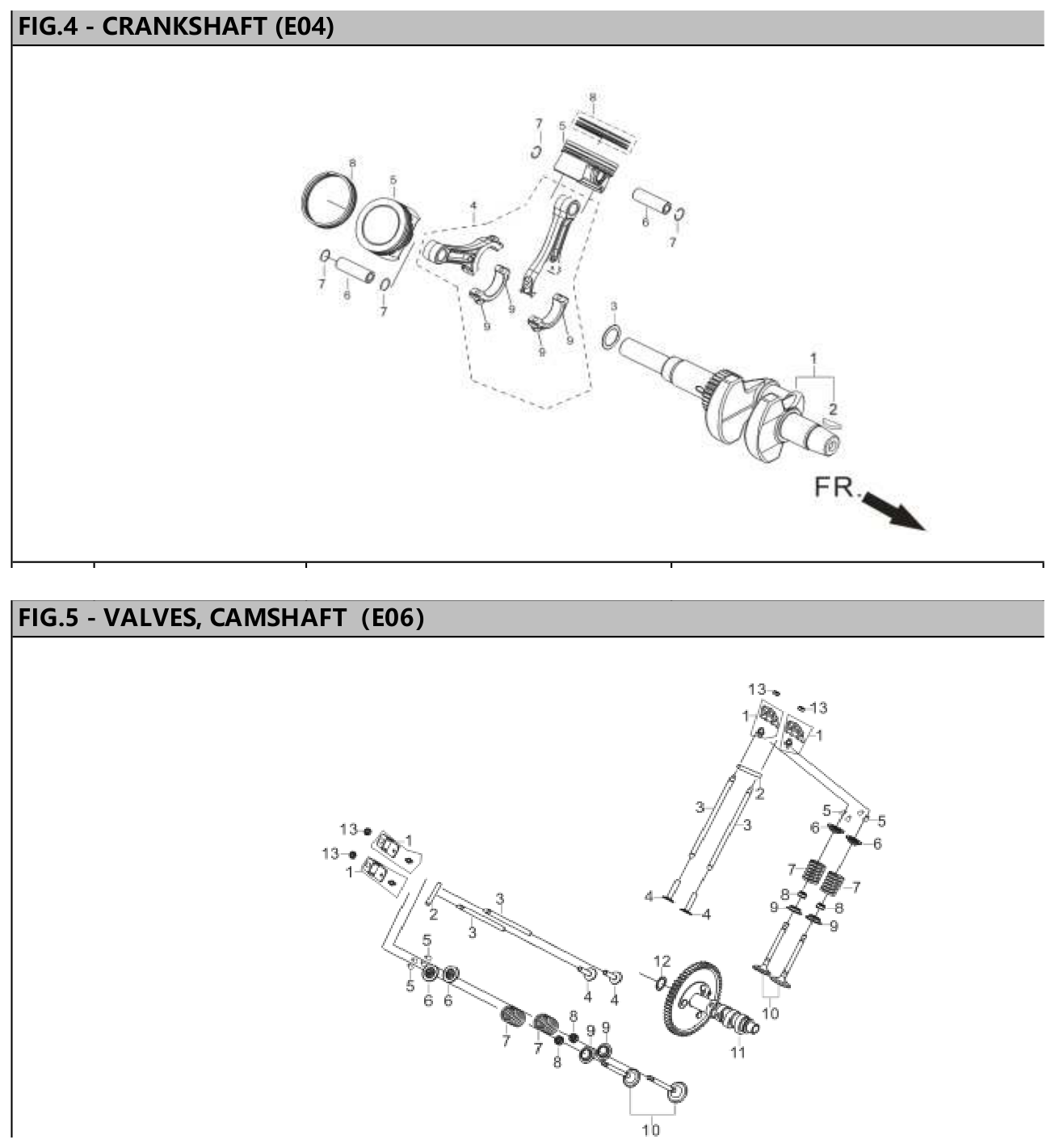

Hyundai HG12000E Crankshaft / Valves, Camshaft IPL diagram
Crankshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E04-1 | CRANKSHAFT ASSY | 13300-Z120122-00A0 | Hyu-13300-Z120122-00A0@online |
| E04-3 | WASHER, THRUST | 13306-Z130110-00A0 | Hyu-13306-Z130110-00A0@online |
| E04-4 | ROD, CONNECTING | 13010-ZCB0110-00A0 | Hyu-13010-ZCB0110-00A0@online |
| E04-5 | PISTON | 13111-Z3P0110-00A0 | Hyu-13111-Z3P0110-00A0@online |
| E04-6 | PIN, PISTON | 13121-Z130110-00A0 | Hyu-13121-Z130110-00A0@online |
| E04-7 | CLIP, PISTON PIN | 13122-Z130110-00A0 | Hyu-13122-Z130110-00A0@online |
| E04-8 | RING ASSY, PISTON | 13200-Z520210-0000 | Hyu-13200-Z520210-0000@online |
Valves, Camshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E06-1 | ROCKER SUBASSEMBLY, VALVE | 14310-Z130210-00A0 | Hyu-14310-Z130210-00A0@online |
| E06-2 | SHAFT, VALVE ROCKER | 14330-Z130310-00A0 | Hyu-14330-Z130310-00A0@online |
| E06-3 | LIFTER SUBASSEMBLY, VALVE | 14070-Z130210-00A0 | Hyu-14070-Z130210-00A0@online |
| E06-4 | TAPPET, VALVE | 14081-Z130110-00A0 | Hyu-14081-Z130110-00A0@online |
| E06-5 | CLAMP, VALVE LOCK | 12109-Z400110-00A0 | Hyu-12109-Z400110-00A0@online |
| E06-6 | SEAT, VALVE SPRING | 12112-Z400110-00A0 | Hyu-12112-Z400110-00A0@online |
| E06-7 | SPRING, VALVE | 12103-Z130110-00A0 | Hyu-12103-Z130110-00A0@online |
| E06-8 | GUIDE, SEAL | 12101-Z080110-00A0 | Hyu-12101-Z080110-00A0@online |
| E06-9 | RETAINER, VALVE SPRING | 12105-Z130110-00A0 | Hyu-12105-Z130110-00A0@online |
| E06-10 | VALVES SET | 12110-Z130311-00A9 | Hyu-12110-Z130311-00A9@online |
| E06-11 | CAMSHAFT ASSY | 14200-Z130210-00A0 | Hyu-14200-Z130210-00A0@online |
| E06-12 | WASHER, CAMSHAFT | 14215-Z130110-00A0 | Hyu-14215-Z130110-00A0@online |
| E06-13 | NUT, VALVE LOCK | 14312-Z240110-00A0 | Hyu-14312-Z240110-00A0@online |

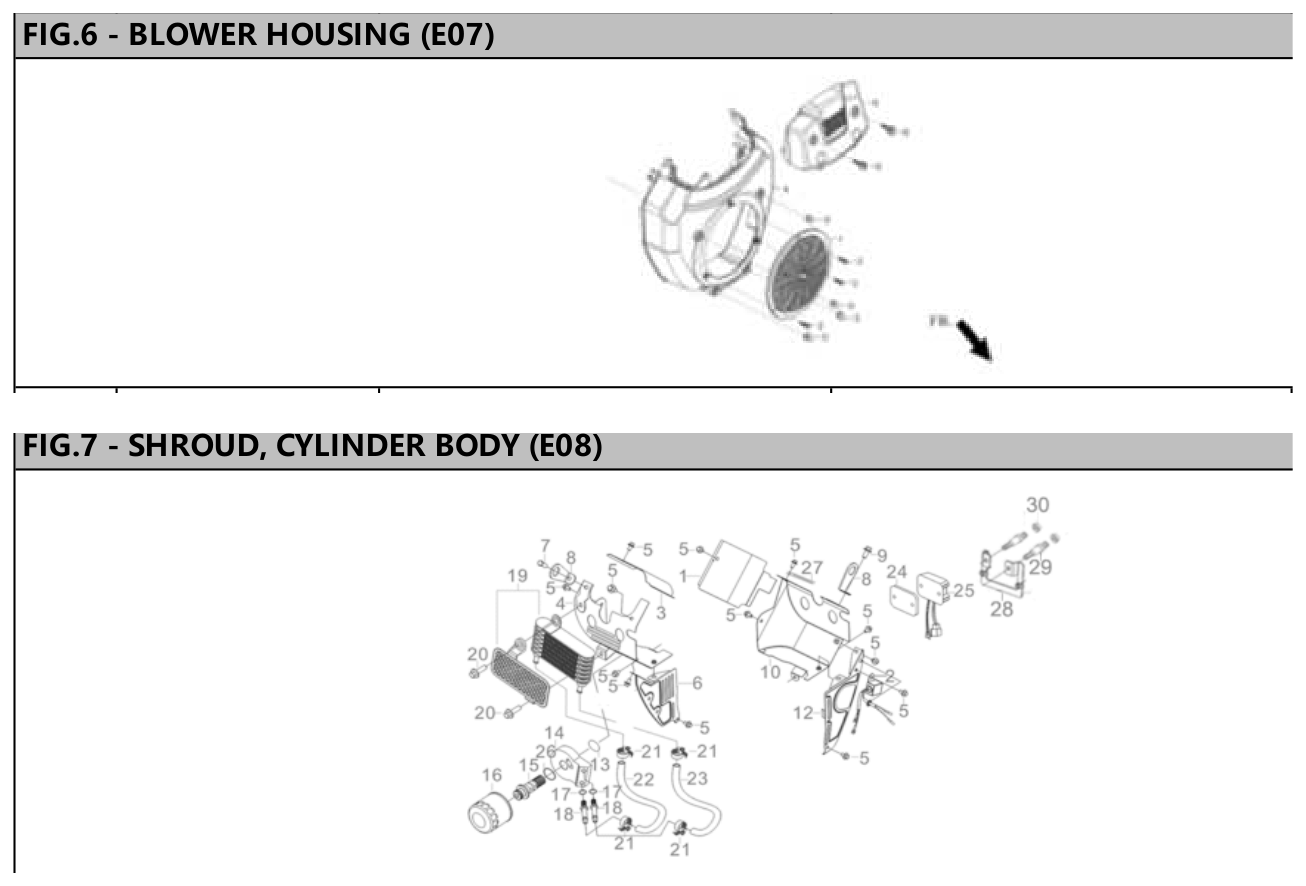

Hyundai HG12000E Blower Housing / Shroud, Cylinder Body IPL diagram
Blower Housing
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E07-1 | SHIELD, SHROUD | 30028-Z130110-Q2A0 | Hyu-30028-Z130110-Q2A0@online |
| E07-2 | CROSS-RECESSED PAN HEAD SCREW | 90103-0508-A1A0 | Hyu-90103-0508-A1A0@online |
| E07-3 | ACORN HEXAGON NUTS | 90314-Z130210-00A0 | Hyu-90314-Z130210-00A0@online |
| E07-4 | SHROUD ASSY | 19330-Z130110-Q2A0 | Hyu-19330-Z130110-Q2A0@online |
| E07-5 | PLATE, FAN SHIELD DECORATED | 19303HZ130111-Q2A0 | Hyu-19303HZ130111-Q2A0@online |
| E07-6 | HANDLE SUBASSEMBLY, LOCK | 24540-Z130110-00A0 | Hyu-24540-Z130110-00A0@online |
Shroud, Cylinder Body
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E08-1 | SHROUD 2, CYLINDER BODY | 19305-Z130110-00A0 | Hyu-19305-Z130110-00A0@online |
| E08-2 | CONDUCTOR, UNILATERALISM | 30003-Z130110-00A0 | Hyu-30003-Z130110-00A0@online |
| E08-3 | SHROUD, CYLINDER BODY | 19304-Z130110-00A0 | Hyu-19304-Z130110-00A0@online |
| E08-4 | SHIELD,LOWER | 19340HZ120110-01A0 | Hyu-19340HZ120110-01A0@online |
| E08-5 | BOLT | 90001-0610-01A0 | Hyu-90001-0610-01A0@online |
| E08-6 | BODY LEFT SHIELD | 19308-Z130120-00A0 | Hyu-19308-Z130120-00A0@online |
| E08-7 | BOLT, HEXAGONAL FLANGE SHOULDER | 90013-Z130210-00A0 | Hyu-90013-Z130210-00A0@online |
| E08-8 | LUG | 12008-Z130110-00A0 | Hyu-12008-Z130110-00A0@online |
| E08-9 | BOLT, HEXAGONAL FLANGE SHOULDER | 90013-Z130210-00A0 | Hyu-90013-Z130210-00A0@online |
| E08-10 | LOWER RIGHT SHIELD | 19307HZ120110-01A0 | Hyu-19307HZ120110-01A0@online |
| E08-12 | BODY RIGHT SHIELD | 19309-Z130130-00A0 | Hyu-19309-Z130130-00A0@online |
| E08-13 | O-TYPE RUBBER SEAL RING | 90692-Z120410-00A0 | Hyu-90692-Z120410-00A0@online |
| E08-14 | OIL FILTER HOLDER | 15229-Z120150-00A0 | Hyu-15229-Z120150-00A0@online |
| E08-15 | TUBE, OIL FILTER INSTALLATION | 15208-Z120130-00A0 | Hyu-15208-Z120130-00A0@online |
| E08-16 | FILTER SUBASSEMBLY, OIL | 15220-Z120210-00A0 | Hyu-15220-Z120210-00A0@online |
| E08-17 | FLAT WASHER | 90408-Z010110-00A0 | Hyu-90408-Z010110-00A0@online |
| E08-18 | ADAPTER, COOLING PIPE | 19112-Z120120-00A0 | Hyu-19112-Z120120-00A0@online |
| E08-19 | RADIATOR ASSY | 19100-Z120110-00B0 | Hyu-19100-Z120110-00B0@online |
| E08-20 | BOLT | 90007-0620-A1A0 | Hyu-90007-0620-A1A0@online |
| E08-21 | PIPE CLAMP | 90685-D180-0EA0 | Hyu-90685-D180-0EA0@online |
| E08-22 | PIPE, COOLING | 19111-Z120131-00B0 | Hyu-19111-Z120131-00B0@online |
| E08-23 | PIPE, COOLING | 19111-Z120231-00B0 | Hyu-19111-Z120231-00B0@online |
| E08-24 | #N/A | 30052-Z120110-00A0 | Hyu-30052-Z120110-00A0@online |
| E08-25 | REGULATOR, VOLTAGE | 30060-Z120610-00A0 | Hyu-30060-Z120610-00A0@online |
| E08-26 | RING, SEAL | 90681-Z090110-00A0 | Hyu-90681-Z090110-00A0@online |
| E08-27 | WIRE CLIP | 90684-Z030120-00B0 | Hyu-90684-Z030120-00B0@online |
| E08-28 | HOUSING BRACKET | 80171-Y4D0110-01A0 | Hyu-80171-Y4D0110-01A0@online |
| E08-29 | OIL PROTECTOR FASTENING BOLT | 37057-Z440120-00A0 | Hyu-37057-Z440120-00A0@online |
| E08-30 | HEXAGON LOCK NUT WITH FLANGE | 90327-0600-31A0 | Hyu-90327-0600-31A0@online |

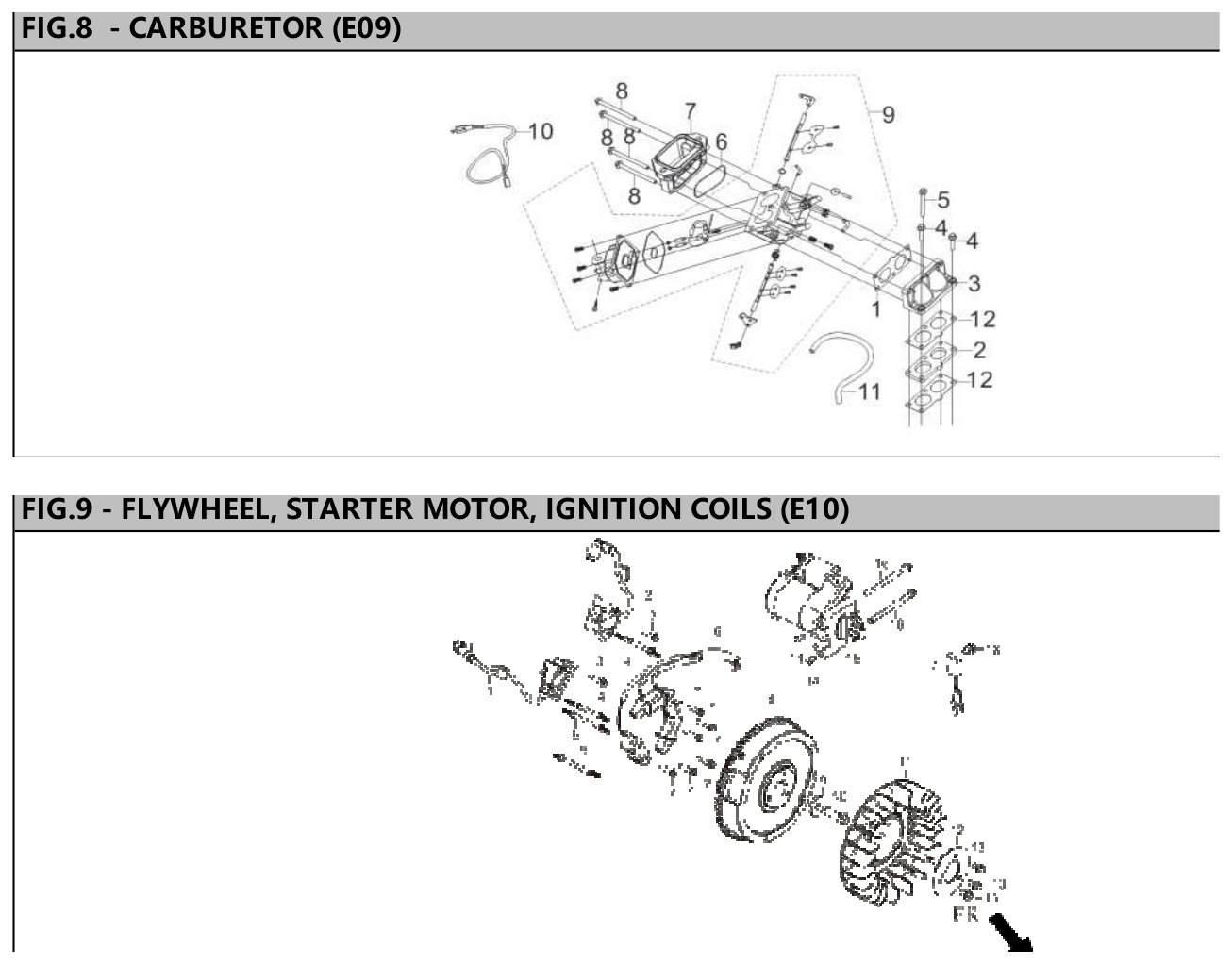

Hyundai HG12000E Carburetor / Flywheel, Starter Motor, Ignition Coils IPL diagram
Carburetor
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E09-1 | CARBURETOR SEAL GASKET | 16001-Z130110-00A0 | Hyu-16001-Z130110-00A0@online |
| E09-2 | GASKET, CARBURETOR INSULATOR | 16002-Z130120-00A0 | Hyu-16002-Z130120-00A0@online |
| E09-3 | JOINT, INTAKE TUBE | 12501-Z120120-00A0 | Hyu-12501-Z120120-00A0@online |
| E09-4 | BOLT | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E09-5 | BOLT | 90007-0665-A1A0 | Hyu-90007-0665-A1A0@online |
| E09-6 | O-TYPE RUBBER SEAL RING | 90692-Z120310-00A0 | Hyu-90692-Z120310-00A0@online |
| E09-7 | TUBE, AIR CLEANER CONNECTING | 17112HZ120130-00A1 | Hyu-17112HZ120130-00A1@online |
| E09-8 | BOLT | 90001-0695-01A0 | Hyu-90001-0695-01A0@online |
| E09-9 | CARBURETOR ASSY | 16100-Z3P0211-00A0 | Hyu-16100-Z3P0211-00A0@online |
| E09-10 | LINE, SOLENOID VALVE AC | 35665-Z130120-00A0 | Hyu-35665-Z130120-00A0@online |
| E09-11 | TUBE, FUEL | 90686-Z030310-00N0 | Hyu-90686-Z030310-00N0@online |
| E09-12 | CARBURETOR SEAL GASKET | 16001-Z130210-00A0 | Hyu-16001-Z130210-00A0@online |
Flywheel, Starter Motor, Ignition Coils
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E10-1 | COIL, IGNITION | 30400-Z130310-00A0 | Hyu-30400-Z130310-00A0@online |
| E10-2 | COIL, IGNITION | 30400-Z130410-00A0 | Hyu-30400-Z130410-00A0@online |
| E10-3 | BOLT | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E10-4 | DOUBLE HEAD SUPPORT BOLT | 28001-Z130110-00A0 | Hyu-28001-Z130110-00A0@online |
| E10-5 | DOUBLE HEAD SUPPORT BOLT | 28001-Z130210-00A0 | Hyu-28001-Z130210-00A0@online |
| E10-6 | COIL SUBASSEMBLY, CHARGE | 30140-Z120111-00B0 | Hyu-30140-Z120111-00B0@online |
| E10-7 | BOLT | 90007-0635-A1A0 | Hyu-90007-0635-A1A0@online |
| E10-8 | FLYWHEEL ASSY | 13500-Z120121-00A0 | Hyu-13500-Z120121-00A0@online |
| E10-9 | WASHER, FLAT | 90407-Z130120-00A0 | Hyu-90407-Z130120-00A0@online |
| E10-10 | BOLT, FLYWHEEL | 13502-Z130110-00A0 | Hyu-13502-Z130110-00A0@online |
| E10-11 | IMPELLER | 19352-Z130110-00A0 | Hyu-19352-Z130110-00A0@online |
| E10-12 | TRAY, IMPELLER SETTING | 13515-Z130110-00A0 | Hyu-13515-Z130110-00A0@online |
| E10-13 | BOLT | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| E10-14 | POSITION PIN | 90502-1014-00A0 | Hyu-90502-1014-00A0@online |
| E10-15 | STARTING MOTOR ASSEMBLY | 30300-Z130121-00A0 | Hyu-30300-Z130121-00A0@online |
| E10-16 | BOLT | 90001-08B0-01A0 | Hyu-90001-08B0-01A0@online |
| E10-17 | PROTECTOR, OIL | 37050-Z120110-0000 | Hyu-37050-Z120110-0000@online |
| E10-18 | BOLT | 90001-0610-01A0 | Hyu-90001-0610-01A0@online |

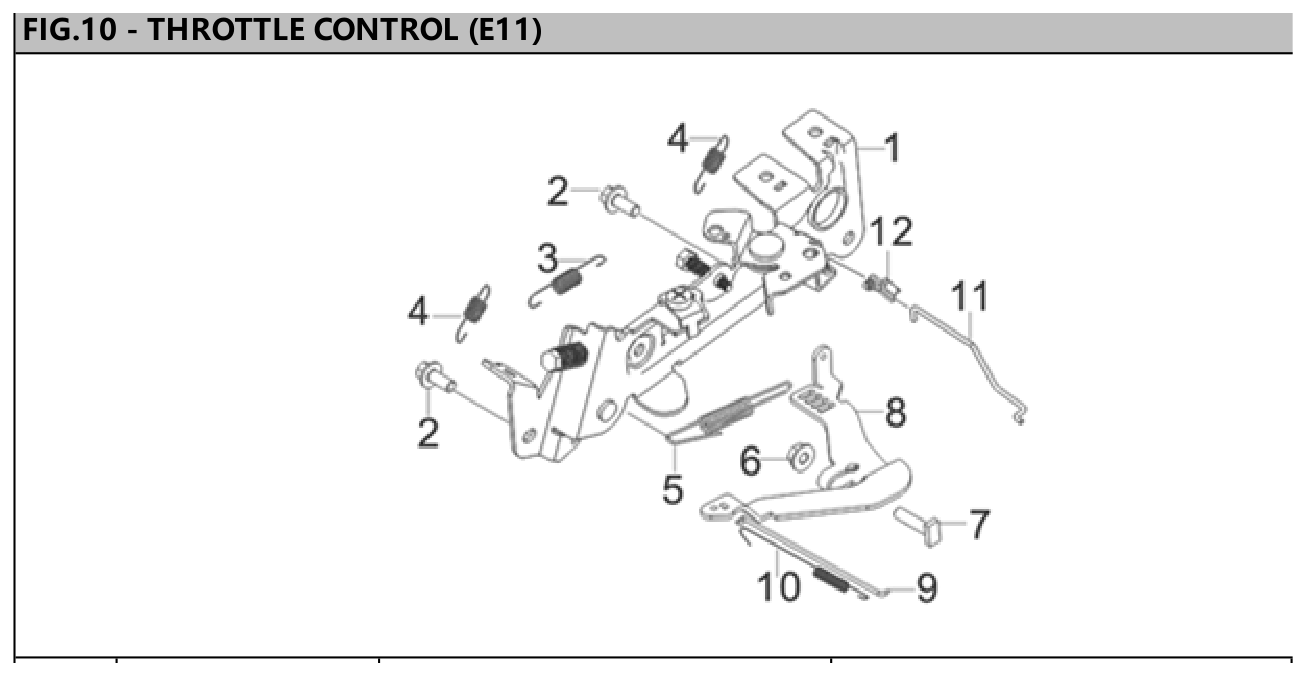

Hyundai HG12000E Throttle Control IPL diagram
Throttle Control
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E11-1 | CONTROL ASSY, THROTTLE | 16520-Z120410-00A0 | Hyu-16520-Z120410-00A0@online |
| E11-2 | BOLT | 90007-0616-A1A0 | Hyu-90007-0616-A1A0@online |
| E11-3 | SPRING, GOVERNOR | 16063-Z130210-00A0 | Hyu-16063-Z130210-00A0@online |
| E11-4 | SPRING, CHOKE RETURN | 16236-Z130210-00A0 | Hyu-16236-Z130210-00A0@online |
| E11-5 | SPRING, GOVERNOR | 16063-Z120110-00A0 | Hyu-16063-Z120110-00A0@online |
| E11-6 | HEXAGON NUT WITH FLANGE | 90305-0600-31A0 | Hyu-90305-0600-31A0@online |
| E11-7 | BOLT, GOVERNOR SUPPORT | 16072-Z010110-00A0 | Hyu-16072-Z010110-00A0@online |
| E11-8 | GOVERNOR BRACKET | 16071-Z130110-00A0 | Hyu-16071-Z130110-00A0@online |
| E11-9 | ROD, GOVERNEOR | 16062-Z120110-00A0 | Hyu-16062-Z120110-00A0@online |
| E11-10 | SPRING, THROTTLE VALVE RETURNING | 16012-Z120210-00A0 | Hyu-16012-Z120210-00A0@online |
| E11-11 | CHOKE PULL ROD | 16123-Z120120-00A0 | Hyu-16123-Z120120-00A0@online |
| E11-12 | CLIP, CHOKE ROD | 16011-Z130120-00A0 | Hyu-16011-Z130120-00A0@online |

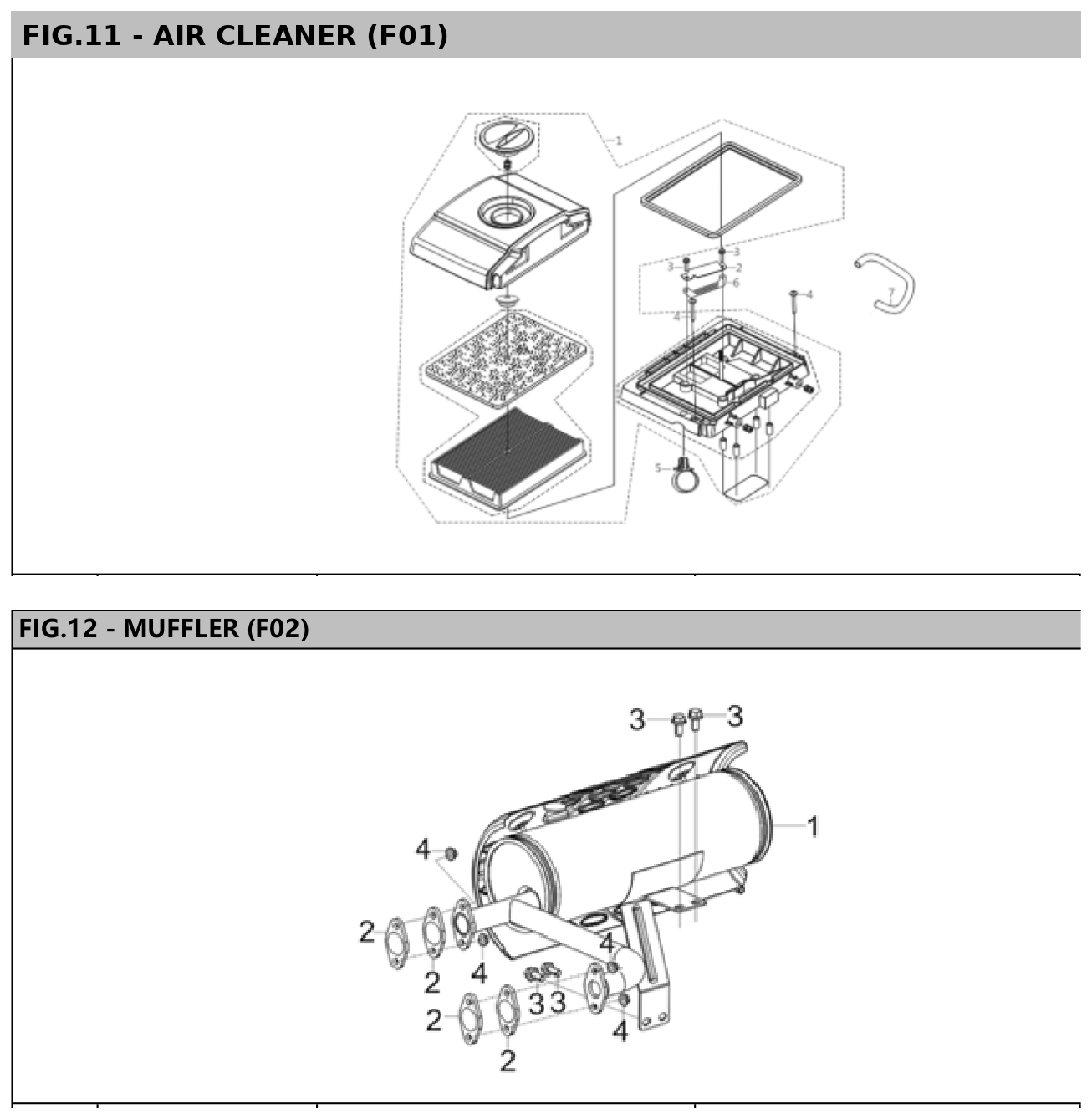

Hyundai HG12000E Air Cleaner / Muffler IPL diagram
Air Cleaner
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F01-1 | AIR CLEANER | 17100-Z120110-00A0 | Hyu-17100-Z120110-00A0@online |
| F01-2 | COVER, INTAKE TUBE | 12503-Z120110-00A0 | Hyu-12503-Z120110-00A0@online |
| F01-3 | BOLT | 90007-0635-A1A0 | Hyu-90007-0635-A1A0@online |
| F01-4 | CROSS-RECESSED PAN HEAD SELF-TAPPING SCREW | 90107-4225-51A0 | Hyu-90107-4225-51A0@online |
| F01-5 | AIR FILTER | 17150-Z320110-00A0 | Hyu-17150-Z320110-00A0@online |
| F01-6 | COVER, INTAKE TUBE | 12503-Z120210-00A0 | Hyu-12503-Z120210-00A0@online |
Muffler
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F02-1 | MUFFLER ASSY | 18100-Y9V0110-0000 | Hyu-18100-Y9V0110-0000@online |
| F02-2 | GASKET, EXHAUST OUTLET | 18001-Z190110-00A0 | Hyu-18001-Z190110-00A0@online |
| F02-3 | BOLT | 90001-0816-A3 | Hyu-90001-0816-A3@online |
| F02-4 | NUT | 90314-Z130120-00A0 | Hyu-90314-Z130120-00A0@online |
Hyundai HG12000E Fuel Tank IPL diagram
Fuel Tank
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F03-1 | HEXAGON SOCKET FLANGE FACE BOLT - BIG SERIES - GRADE B | 90007-0625-A3 | Hyu-90007-0625-A3@online |
| F03-2 | FLAT WASHER - GRADE A | 90408-Y020310-00A0 | Hyu-90408-Y020310-00A0@online |
| F03-3 | SLEEVE, FUEL TANK RUBBER | 16601-Y020120-00A0 | Hyu-16601-Y020120-00A0@online |
| F03-4 | BUSH | 90683-Y020110-00A0 | Hyu-90683-Y020110-00A0@online |
| F03-5 | FUEL TANK | 16620-YSY0110-RDA0 | Hyu-16620-YSY0110-RDA0@online |
| F03-6 | PIPE CLAMP | 90685-D085-0EA0 | Hyu-90685-D085-0EA0@online |
| F03-7 | TUBE, FUEL | 90686-YPB0210-00M0 | Hyu-90686-YPB0210-00M0@online |
| F03-8 | PIPE CLAMP | 90685-D095-0EA0 | Hyu-90685-D095-0EA0@online |
| F03-9 | COCK ASSY, FUEL | 16750-YJC0110-00A0 | Hyu-16750-YJC0110-00A0@online |
| F03-10 | TUBE, FUEL | 90686-Z012010-00M1 | Hyu-90686-Z012010-00M1@online |
| F03-11 | COVER, FUEL TANK | 16730-Y3J0110-H7A0 | Hyu-16730-Y3J0110-H7A0@online |
| F03-12 | STRAINER,FUEL | 16652-Y020120-00A0 | Hyu-16652-Y020120-00A0@online |
| F03-13 | LEVELER ASSY, OIL | 37200-Y4D0110-00A0 | Hyu-37200-Y4D0110-00A0@online |
| F03-14 | HEXAGON SOCKET FLANGE FACE BOLT - BIG SERIES - GRADE B | 90007-0612-A3 | Hyu-90007-0612-A3@online |
| F03-15 | THERMAL BAFFLE | 93097-YPB0110-00A0 | Hyu-93097-YPB0110-00A0@online |

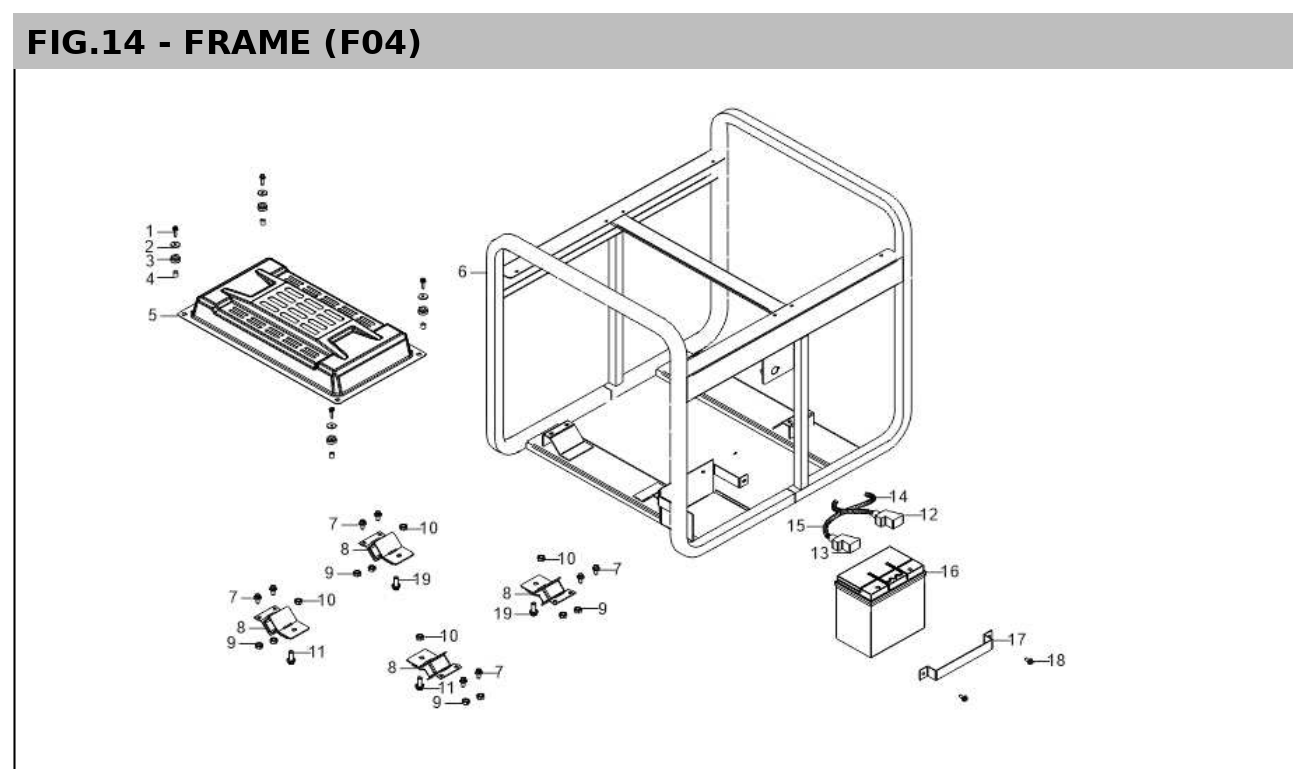

Hyundai HG12000E Frame IPL diagram
Frame
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F04-1 | HEXAGON SOCKET FLANGE FACE BOLT - BIG SERIES - GRADE B | 90007-0625-A3 | Hyu-90007-0625-A3@online |
| F04-2 | FLAT WASHER - GRADE A | 90408-Y020310-00A0 | Hyu-90408-Y020310-00A0@online |
| F04-3 | SLEEVE, FUEL TANK RUBBER | 16601-Y020120-00A0 | Hyu-16601-Y020120-00A0@online |
| F04-4 | BUSH | 90683-Y020110-00A0 | Hyu-90683-Y020110-00A0@online |
| F04-5 | UNIT SHIELD | 51028-YSY0110-H7A0 | Hyu-51028-YSY0110-H7A0@online |
| F04-6 | FRAME ASSY, ENGINE | 51100-YSY0110-GQA0 | Hyu-51100-YSY0110-GQA0@online |
| F04-7 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| F04-8 | CUSHION, ENGINE FRAME | 51005HY4D0110-00A0 | Hyu-51005HY4D0110-00A0@online |
| F04-9 | HEXAGON LOCK NUT WITH FLANGE | 90327-0800-31A0 | Hyu-90327-0800-31A0@online |
| F04-10 | TYPE 1 HEXAGON NUT | 90303-1000-31A0 | Hyu-90303-1000-31A0@online |
| F04-11 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-1045-01A0 | Hyu-90001-1045-01A0@online |
| F04-12 | CATHODE WIRE SHEATH | 31122-YEV0110-0000 | Hyu-31122-YEV0110-0000@online |
| F04-13 | SLEEVE, ANODE LINE | 31113-YEV0110-0000 | Hyu-31113-YEV0110-0000@online |
| F04-14 | WIRE, CATHODE | 31114HYEV0110-0000 | Hyu-31114HYEV0110-0000@online |
| F04-15 | WIRE, ANODE | 31112HYEV0110-0000 | Hyu-31112HYEV0110-0000@online |
| F04-16 | BATTERY | 31110-YSY0110-00A0 | Hyu-31110-YSY0110-00A0@online |
| F04-17 | CLAMP, BATTERY | 31142-YEV0110-GQA0 | Hyu-31142-YEV0110-GQA0@online |
| F04-18 | HEXAGON SOCKET FLANGE FACE BOLT - BIG SERIES - GRADE B | 90007-0616-A3 | Hyu-90007-0616-A3@online |
| F04-19 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-1025-01A0 | Hyu-90001-1025-01A0@online |

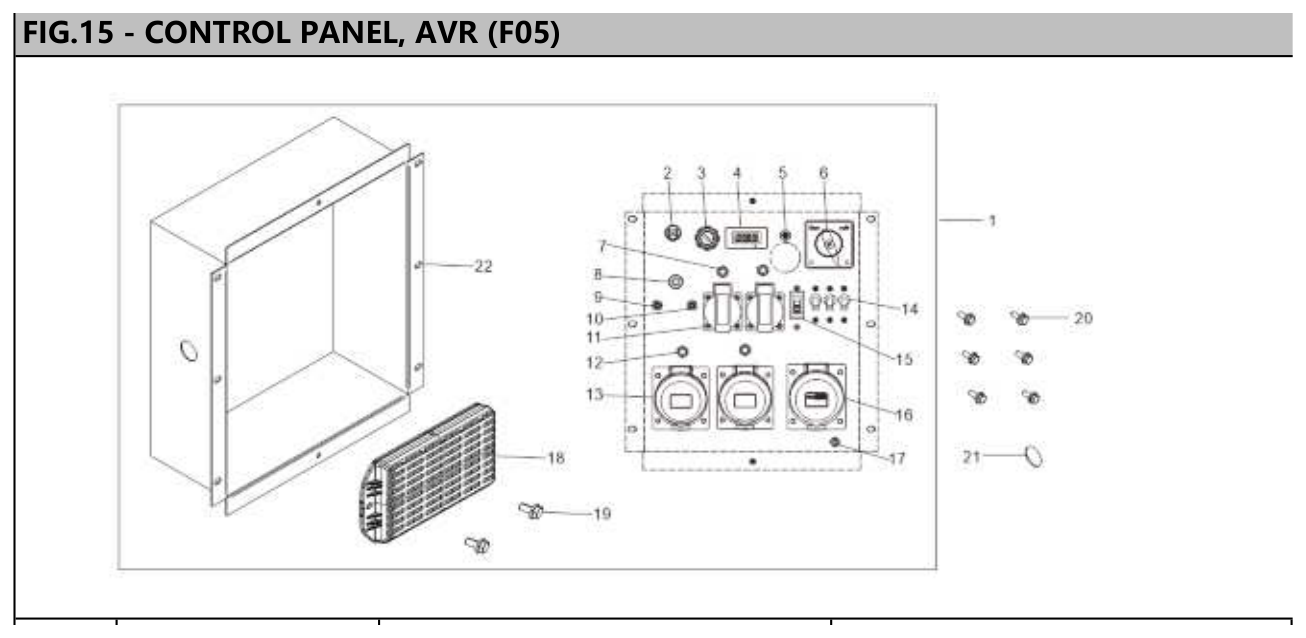

Hyundai HG12000E Control Panel, AVR IPL diagram
Control Panel, AVR
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F05-1 | PANEL SUBASSEMBLY, CONTROL | 35610-YT80110-H700 | Hyu-35610-YT80110-H700@online |
| F05-2 | CHOKE CABLE SUBASSEMBLY | 16080-YSY0110-0000 | Hyu-16080-YSY0110-0000@online |
| F05-3 | SWITCH SUBASSEMBLY | 35160-Y2T0110-0000 | Hyu-35160-Y2T0110-0000@online |
| F05-4 | DIGITAL METER | 35632-Y6X0110-0000 | Hyu-35632-Y6X0110-0000@online |
| F05-5 | POWER INDICATOR | 35612-Y030110-0000 | Hyu-35612-Y030110-0000@online |
| F05-6 | SWITCH, VOLTAGE SWITCHOVER | 35623-YEV0210-0000 | Hyu-35623-YEV0210-0000@online |
| F02-7 | STARTING CONTROL BOX | 30350-Z120320-00A0 | Hyu-30350-Z120320-00A0@online |
| F05-7 | PROTECTOR, OVERCURRENT | 31234-YCK0110-0000 | Hyu-31234-YCK0110-0000@online |
| F05-8 | PROTECTOR, OVERCURRENT | 31234-Y020110-0000 | Hyu-31234-Y020110-0000@online |
| F05-9 | TERMINAL, NEGATIVE ELECTRODE | 35634-Y020110-0000 | Hyu-35634-Y020110-0000@online |
| F05-10 | TERMINAL, POSITIVE ELECTRODE | 35633-Y020110-0000 | Hyu-35633-Y020110-0000@online |
| F05-11 | SOCKET SUBASSEMBLY, POWER SUPPLY | 35614-Y020610-0000 | Hyu-35614-Y020610-0000@online |
| F05-12 | PROTECTOR, OVERCURRENT | 31234-YCK0210-0000 | Hyu-31234-YCK0210-0000@online |
| F05-13 | SOCKET SUBASSEMBLY, POWER SUPPLY | 35614-Y240310-0000 | Hyu-35614-Y240310-0000@online |
| F05-14 | THREE-POLES BREAKERS | 35698-YA20310-0000 | Hyu-35698-YA20310-0000@online |
| F05-15 | BREAKER, SINGLE-POLE CIRCUIT | 35645-Y560410-0000 | Hyu-35645-Y560410-0000@online |
| F05-16 | SOCKET SUBASSEMBLY, POWER SUPPLY | 35614-YA20210-0000 | Hyu-35614-YA20210-0000@online |
| F05-17 | TERMINAL SUBASSEMBLY, GROUNDING | 35629-Y280110-0000 | Hyu-35629-Y280110-0000@online |
| F05-18 | AVR | 30060-YEV0210-0000 | Hyu-30060-YEV0210-0000@online |
| F05-19 | BOLT | 90001-0616-01 | Hyu-90001-0616-01@online |
| F05-20 | HEXAGON SOCKET FLANGE FACE BOLT - SMALL SERIES | 90001-0612-A3 | Hyu-90001-0612-A3@online |
| F05-21 | PLUG, END | 90722-Y5V0210-00A0 | Hyu-90722-Y5V0210-00A0@online |
| F05-22 | CONTROL PANEL REAR COVER | 35601-YT80110-0000 | Hyu-35601-YT80110-0000@online |

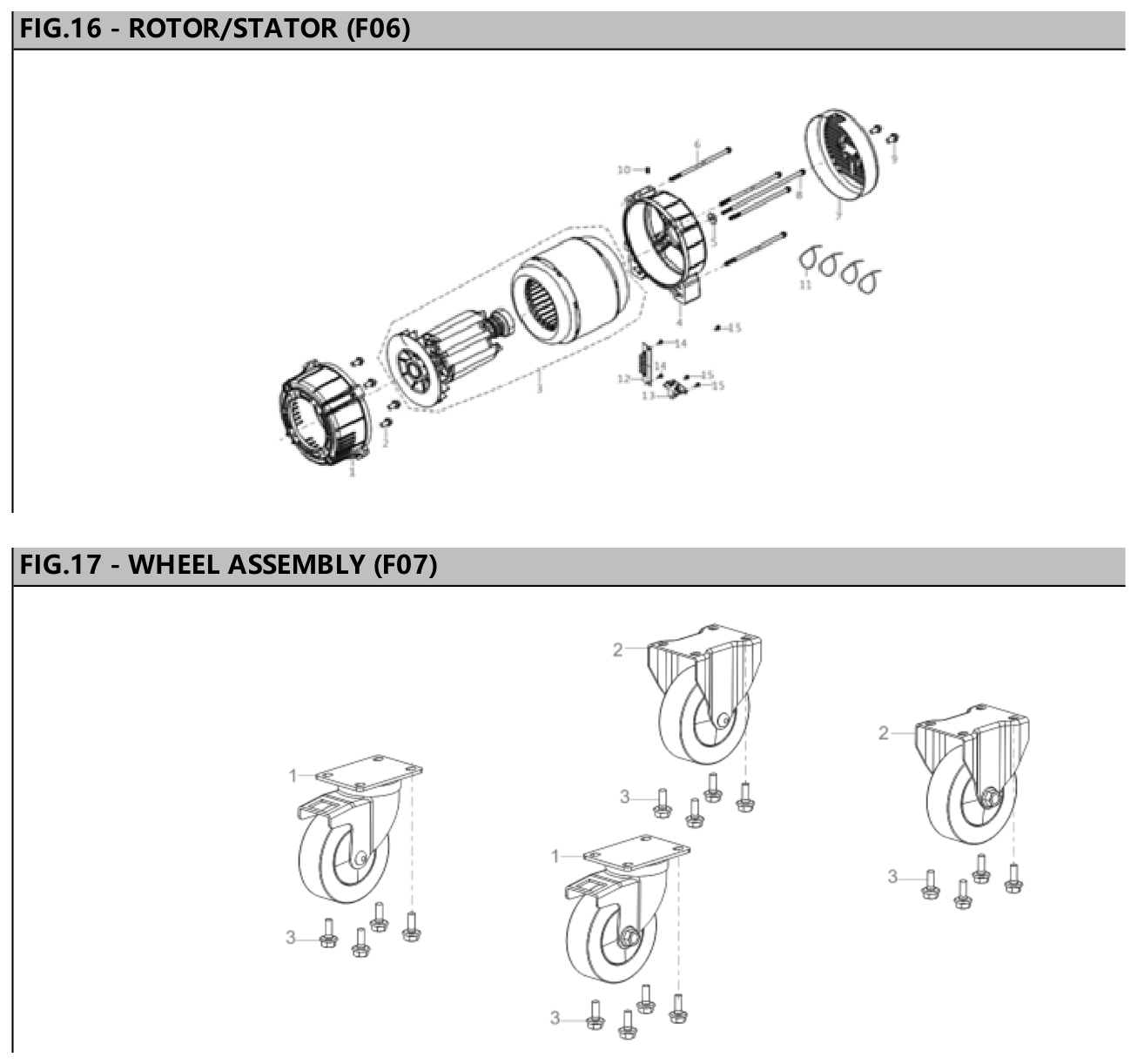

Hyundai HG12000E Rotor/Stator / Wheel Assembly IPL diagram
Rotor/Stator
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F06-1 | COVER, MOTOR FRONT END | 30031-Y4D0210-00A0 | Hyu-30031-Y4D0210-00A0@online |
| F06-2 | BOLT | 90001-Y4D0110-00A0 | Hyu-90001-Y4D0110-00A0@online |
| F06-3 | MOTOR ASSY | 31300-YMB0210-0000 | Hyu-31300-YMB0210-0000@online |
| F06-4 | MOTOR SUPPORT | 30021-Y4D0110-00A0 | Hyu-30021-Y4D0110-00A0@online |
| F06-5 | FLAT WASHER | 90408-Y030110-00A0 | Hyu-90408-Y030110-00A0@online |
| F06-6 | BOLT, ROTOR | 30049-Y450210-0000 | Hyu-30049-Y450210-0000@online |
| F06-7 | MOTOR TAIL COVER | 30022-Y4D0110-H7A0 | Hyu-30022-Y4D0110-H7A0@online |
| F06-8 | BOLT, ROTOR | 30049-Y950110-0100 | Hyu-30049-Y950110-0100@online |
| F06-9 | BOLT | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-10 | SLOTTED SET SCREWS WITH CONE POINT | 90128-0612-A6A0 | Hyu-90128-0612-A6A0@online |
| F06-11 | BAND | 90727-Y040110-00A1 | Hyu-90727-Y040110-00A1@online |
| F06-12 | BLOCK, TERMINAL | 31303-Y4D0110-00A0 | Hyu-31303-Y4D0110-00A0@online |
| F06-13 | BRUSH SUBASSEMBLY, CARBON | 31320-Y4D0110-00A0 | Hyu-31320-Y4D0110-00A0@online |
| F06-14 | BOLT | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-15 | BOLT | 90001-0512-01A0 | Hyu-90001-0512-01A0@online |
Wheel Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F07-1 | UNIVERSAL WHEEL ASSEMBLY | 40060-Y9V0110-00A0 | Hyu-40060-Y9V0110-00A0@online |
| F07-2 | DIRECTIONAL WHEEL ASSEMBLY | 40091HY9V0110-00A0 | Hyu-40091HY9V0110-00A0@online |
| F07-3 | BOLT | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
