Hyundai HG10000E Generator IPL / Parts List
Illustrated parts list for the Hyundai HG10000E generator. Click any diagram image to enlarge it, or click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the diagram to find the correct part in the table below. Each Cutsmart SKU is linked through the Cutsmart SKU resolver, so the link can work once the product has been imported or confirmed on the website.

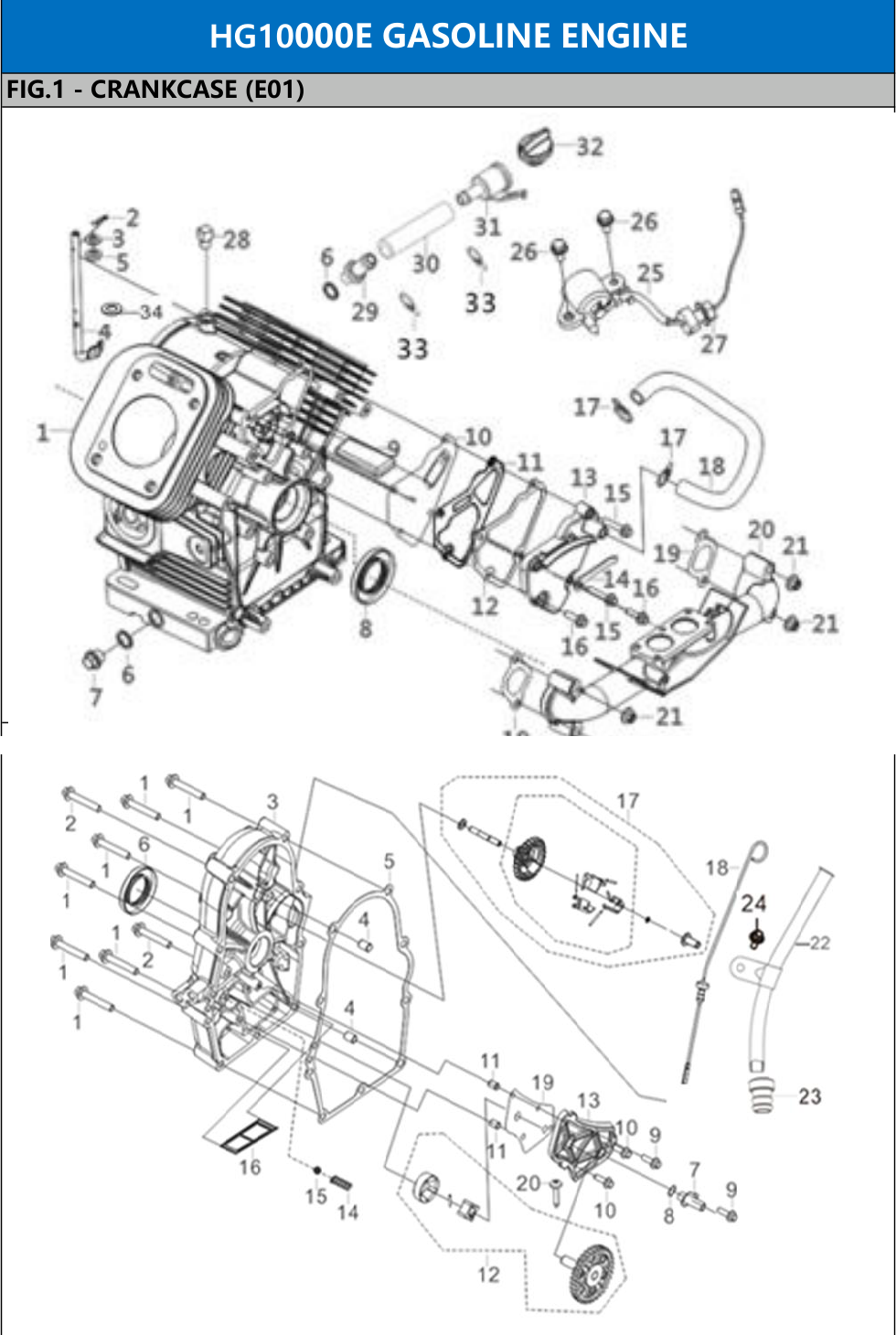

Crankcase
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E01-1 | Cylinder Assembly | 11310-Z120312-00A0 | Hyu-11310-Z120312-00A0@online |
| E01-2 | Cotter Pin | 90501-Z010110-00A0 | Hyu-90501-Z010110-00A0@online |
| E01-3 | Washer | 90406-0800-E1A0 | Hyu-90406-0800-E1A0@online |
| E01-4 | Governor Arm | 16061-Z120110-00A0 | Hyu-16061-Z120110-00A0@online |
| E01-5 | Governor Shaft Seal | 90682-Z130220-00A0 | Hyu-90682-Z130220-00A0@online |
| E01-6 | Washer | 90412-Z080110-00A0 | Hyu-90412-Z080110-00A0@online |
| E01-7 | Drain Plug | 11007-Z080110-00A0 | Hyu-11007-Z080110-00A0@online |
| E01-8 | Magneto Oil Seal | 90682-Z130120-00A0 | Hyu-90682-Z130120-00A0@online |
| E01-9 | Breather Strainer | 11331-Z250110-00A0 | Hyu-11331-Z250110-00A0@online |
| E01-10 | Breather Plate | 11320-Z120120-00A0 | Hyu-11320-Z120120-00A0@online |
| E01-11 | Breather Gasket | 11332-Z130130-00A0 | Hyu-11332-Z130130-00A0@online |
| E01-12 | Breather Gasket | 11332-Z120120-00A0 | Hyu-11332-Z120120-00A0@online |
| E01-13 | Breather Cover | 11333-Z120120-00A0 | Hyu-11333-Z120120-00A0@online |
| E01-14 | Tension Disc | 54066-Z130110-00A0 | Hyu-54066-Z130110-00A0@online |
| E01-15 | Bolt | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E01-16 | Bolt | 90007-0620-A1A0 | Hyu-90007-0620-A1A0@online |
| E01-17 | Clamp | 90685-Z130210-00A0 | Hyu-90685-Z130210-00A0@online |
| E01-18 | Breather Tube | 17004-Z120110-00A0 | Hyu-17004-Z120110-00A0@online |
| E01-19 | Inlet Gasket | 17002-Z130120-00A0 | Hyu-17002-Z130120-00A0@online |
| E01-20 | Inlet Manifold | 12510-Z130120-00A0 | Hyu-12510-Z130120-00A0@online |
| E01-21 | Nut | 90305-0800-31A0 | Hyu-90305-0800-31A0@online |
| E01-22 | Fuel Filter | 16510-Z130130-0000 | Hyu-16510-Z130130-0000@online |
| E01-23 | Clamp | 90685-1000-Z4A0 | Hyu-90685-1000-Z4A0@online |
| E01-24 | Fuel Hose | 90686-Z120310-00A0 | Hyu-90686-Z120310-00A0@online |
| E01-25 | Oil Sensor | 37060-Z010310-0000 | Hyu-37060-Z010310-0000@online |
| E01-26 | Bolt | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E01-27 | Nut | 90305-Z010210-01A0 | Hyu-90305-Z010210-01A0@online |
| E01-28 | Plug | 90722-Z120110-00A0 | Hyu-90722-Z120110-00A0@online |
| E01-29 | Oil Drain Fitting | 90689-Z120110-00A0 | Hyu-90689-Z120110-00A0@online |
| E01-30 | Oil Drain Tube | 11011-Z120110-0000 | Hyu-11011-Z120110-0000@online |
| E01-31 | Oil Drain Outlet | 90689-Z190230-02A0 | Hyu-90689-Z190230-02A0@online |
| E01-32 | Oil Drain Plug | 15030-Z010130-Q5A0 | Hyu-15030-Z010130-Q5A0@online |
| E01-33 | Clamp | 90685-D180-0EA0 | Hyu-90685-D180-0EA0@online |
| E01-34 | Washer | 90408-V010110-0000 | Hyu-90408-V010110-0000@online |
Crankcase Cover
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E02-1 | Bolt | 90001-0850-11A0 | Hyu-90001-0850-11A0@online |
| E02-2 | Bolt | 90001-0855-11A0 | Hyu-90001-0855-11A0@online |
| E02-3 | Crankcase Cover | 11410-Z120511-0000 | Hyu-11410-Z120511-0000@online |
| E02-4 | Pin | 90502-1014-00A0 | Hyu-90502-1014-00A0@online |
| E02-5 | Crankcase Gasket | 11001-Z130120-00A0 | Hyu-11001-Z130120-00A0@online |
| E02-6 | PTO Oil Seal | 90682-Z130120-00A0 | Hyu-90682-Z130120-00A0@online |
| E02-7 | Suction Tube | 15111HZ120110-0000 | Hyu-15111HZ120110-0000@online |
| E02-8 | O-Ring | 90692-Z120210-0000 | Hyu-90692-Z120210-0000@online |
| E02-9 | Bolt | 90007-0620-A1A0 | Hyu-90007-0620-A1A0@online |
| E02-10 | Bolt | 90007-0628-A1A0 | Hyu-90007-0628-A1A0@online |
| E02-11 | Pin | 90502-0810-00A0 | Hyu-90502-0810-00A0@online |
| E02-12 | Oil Pump | 15100-Z130110-00A0 | Hyu-15100-Z130110-00A0@online |
| E02-13 | Oil Pump Cover | 15141-Z120210-00A0 | Hyu-15141-Z120210-00A0@online |
| E02-14 | Pressure Relief Valve Spring | 15161-Z130310-00A0 | Hyu-15161-Z130310-00A0@online |
| E02-15 | Pressure Relief Valve Ball | 90543-9500-00A0 | Hyu-90543-9500-00A0@online |
| E02-16 | Oil Strainer | 15211-Z120120-0000 | Hyu-15211-Z120120-0000@online |
| E02-17 | Governor Gear | 16400-Z130210-00A0 | Hyu-16400-Z130210-00A0@online |
| E02-18 | Dipstick | 15010HZ120320-Q9A0 | Hyu-15010HZ120320-Q9A0@online |
| E02-19 | Oil Pump Gasket | 15142-Z120310-00A0 | Hyu-15142-Z120310-00A0@online |
| E02-20 | Bolt | 90104-0520-51A0 | Hyu-90104-0520-51A0@online |
| E02-22 | Dipstick Tube | 15020-Z120110-0000 | Hyu-15020-Z120110-0000@online |
| E02-23 | Dipstick Tube Seal | 15014-Z120111-0000 | Hyu-15014-Z120111-0000@online |
| E02-24 | Bolt | 90001-0616-01A0 | Hyu-90001-0616-01A0@online |

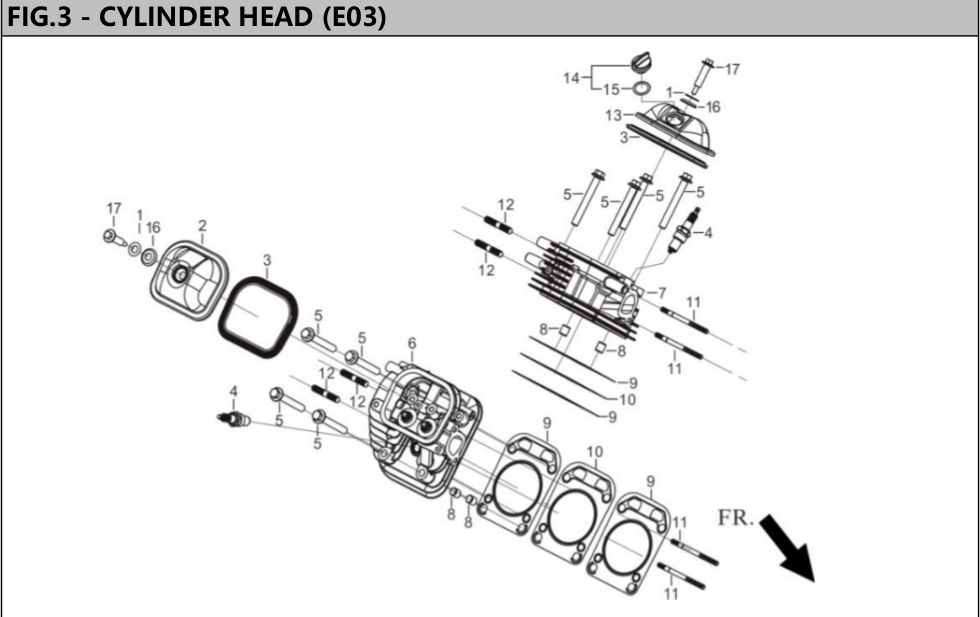

Cylinder Head
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E03-1 | Washer | 12034-Z120110-0000 | Hyu-12034-Z120110-0000@online |
| E03-2 | Tappet Cover LH | 12411-Z130110-0000 | Hyu-12411-Z130110-0000@online |
| E03-3 | Tappet Gasket | 12004-Z130110-0000 | Hyu-12004-Z130110-0000@online |
| E03-4 | Spark Plug | 30010-Z120110-00A0 | Hyu-30010-Z120110-00A0@online |
| E03-5 | Cylinder Head Bolt | 12003-Z080110-00A0 | Hyu-12003-Z080110-00A0@online |
| E03-6 | Cylinder Head LH | 12140-Z130510-00A0 | Hyu-12140-Z130510-00A0@online |
| E03-7 | Cylinder Head RH | 12210-Z130510-00A0 | Hyu-12210-Z130510-00A0@online |
| E03-8 | Pin | 90502-1220-00A0 | Hyu-90502-1220-00A0@online |
| E03-9 | Cylinder Head Gasket | 12131-Z130120-0000 | Hyu-12131-Z130120-0000@online |
| E03-10 | Cylinder Head Gasket Core | 12134-Z130110-0000 | Hyu-12134-Z130110-0000@online |
| E03-11 | Inlet Stud | 90204-0845-A1A0 | Hyu-90204-0845-A1A0@online |
| E03-12 | Exhaust Stud | 90203-Z010110-0000 | Hyu-90203-Z010110-0000@online |
| E03-13 | Tappet Cover RH | 12411-Z130210-0000 | Hyu-12411-Z130210-0000@online |
| E03-14 | Oil Filler Cap | 15031-Z120110-Q5A0 | Hyu-15031-Z120110-Q5A0@online |
| E03-15 | O-Ring | 90681-Z080210-0000 | Hyu-90681-Z080210-0000@online |
| E03-16 | Washer | 12034-Z120110-0000 | Hyu-12034-Z120110-0000@online |
| E03-17 | Tappet Cover Bolt | 12032-Z130210-00A0 | Hyu-12032-Z130210-00A0@online |

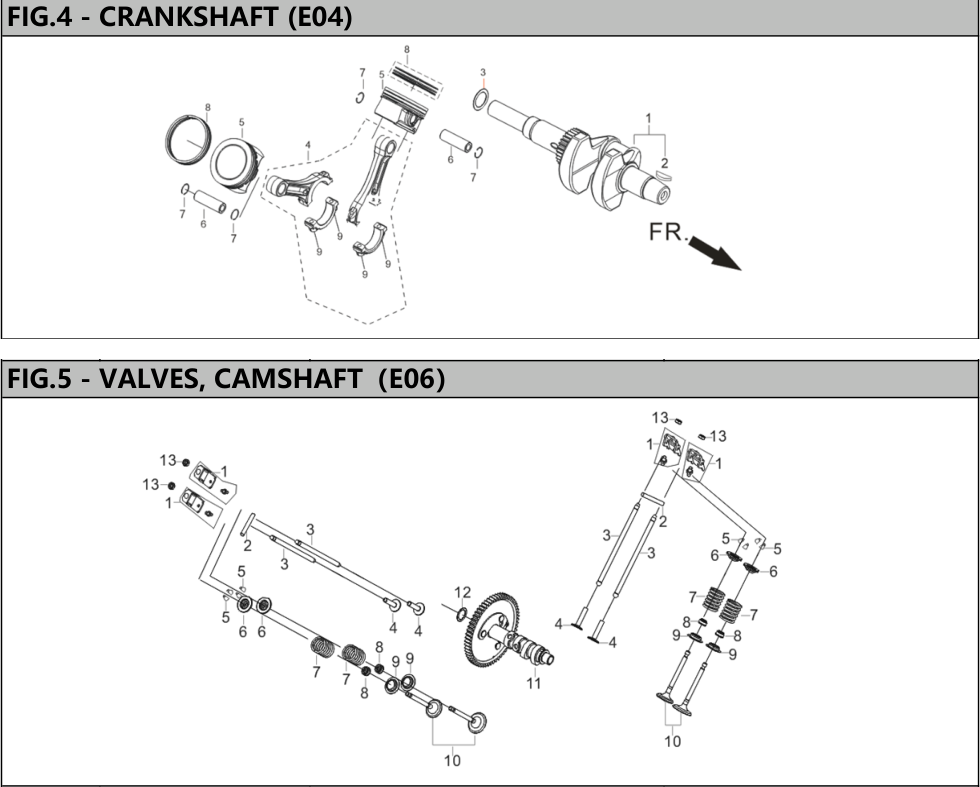

Crankshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E04-1 | Crankshaft | 13300-Z120121-00A0 | Hyu-13300-Z120121-00A0@online |
| E04-3 | Thrust Washer | 13306-Z130110-00A0 | Hyu-13306-Z130110-00A0@online |
| E04-4 | Connecting Rod | 13010-Z130210-00A0 | Hyu-13010-Z130210-00A0@online |
| E04-5 | Piston | 13111-Z120110-00A0 | Hyu-13111-Z120110-00A0@online |
| E04-6 | Piston Pin | 13121-Z130110-00A0 | Hyu-13121-Z130110-00A0@online |
| E04-7 | Piston Clip | 13122-Z130110-00A0 | Hyu-13122-Z130110-00A0@online |
| E04-8 | Piston Rings | 13200-Z120110-00A0 | Hyu-13200-Z120110-00A0@online |
Valves and Camshaft
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E06-1 | Rocker Arm | 14310-Z130210-00A0 | Hyu-14310-Z130210-00A0@online |
| E06-2 | Rocker Shaft | 14330-Z130310-00A0 | Hyu-14330-Z130310-00A0@online |
| E06-3 | Pushrod | 14070-Z130210-00A0 | Hyu-14070-Z130210-00A0@online |
| E06-4 | Tappet | 14081-Z130110-00A0 | Hyu-14081-Z130110-00A0@online |
| E06-5 | Cotters | 12109-Z400110-00A0 | Hyu-12109-Z400110-00A0@online |
| E06-6 | Valve Retainer | 12112-Z400110-00A0 | Hyu-12112-Z400110-00A0@online |
| E06-7 | Valve Spring | 12103-Z130110-00A0 | Hyu-12103-Z130110-00A0@online |
| E06-8 | Valve Seal | 12101-Z080110-00A0 | Hyu-12101-Z080110-00A0@online |
| E06-9 | Valve Spring Seat | 12105-Z130110-00A0 | Hyu-12105-Z130110-00A0@online |
| E06-10 | Valve Set (Inlet & Exhaust) | 12110-Z130311-00A9 | Hyu-12110-Z130311-00A9@online |
| E06-11 | Camshaft | 14200-Z130210-00A0 | Hyu-14200-Z130210-00A0@online |
| E06-12 | Thrust Washer | 14215-Z130110-00A0 | Hyu-14215-Z130110-00A0@online |
| E06-13 | Nut | 14312-Z240110-00A0 | Hyu-14312-Z240110-00A0@online |

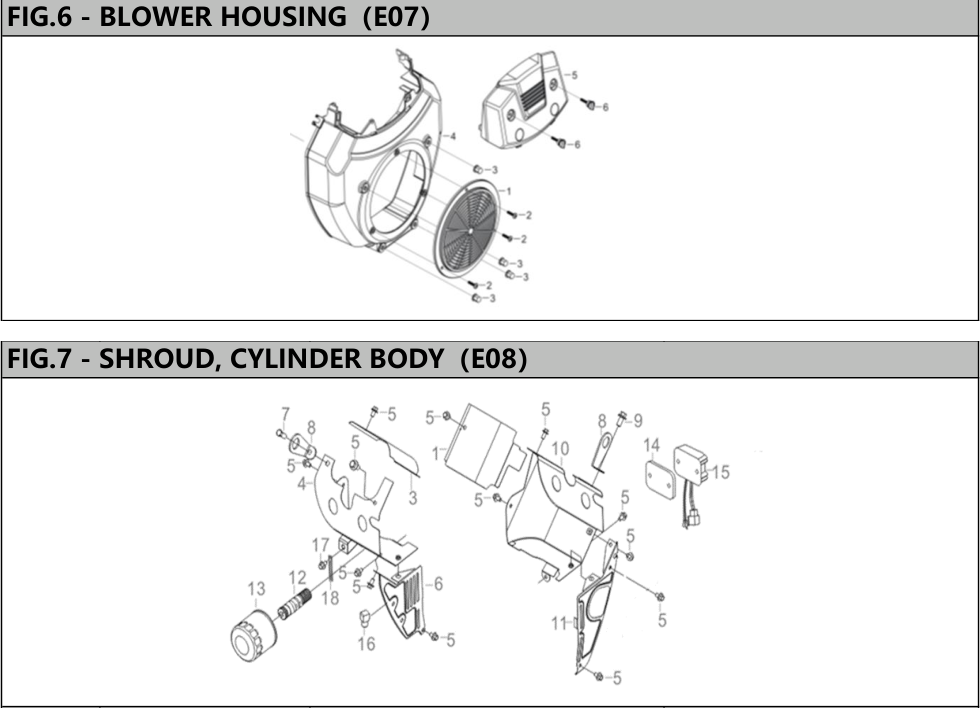

Blower Housing
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E07-1 | Screen | 30028-Z130110-Q2A0 | Hyu-30028-Z130110-Q2A0@online |
| E07-2 | Screw | 90103-0508-A1A0 | Hyu-90103-0508-A1A0@online |
| E07-3 | Acorn Nut | 90314-Z130210-00A0 | Hyu-90314-Z130210-00A0@online |
| E07-4 | Blower Housing | 19330-Z130110-Q2A0 | Hyu-19330-Z130110-Q2A0@online |
| E07-5 | Cover | 19303HZ130110-Q2A0 | Hyu-19303HZ130110-Q2A0@online |
| E07-6 | Wing Bolt | 24540-Z130110-00A0 | Hyu-24540-Z130110-00A0@online |
Shroud and Cylinder Body
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E08-1 | Shroud | 19305-Z130110-00A0 | Hyu-19305-Z130110-00A0@online |
| E08-3 | Shroud | 19304-Z130110-00A0 | Hyu-19304-Z130110-00A0@online |
| E08-4 | Cylinder Shroud LH | 19340-Z130110-00A0 | Hyu-19340-Z130110-00A0@online |
| E08-5 | Bolt | 90001-0610-01A0 | Hyu-90001-0610-01A0@online |
| E08-6 | Cylinder Shroud RH | 19308-Z130120-00A0 | Hyu-19308-Z130120-00A0@online |
| E08-7 | Bolt | 90013-Z130210-00A0 | Hyu-90013-Z130210-00A0@online |
| E08-8 | Lug | 12008-Z130110-0000 | Hyu-12008-Z130110-0000@online |
| E08-9 | Bolt | 90013-Z130210-00A0 | Hyu-90013-Z130210-00A0@online |
| E08-10 | Lower Right Shield | 19307HZ120110-0000 | Hyu-19307HZ120110-0000@online |
| E08-11 | Body Right Shield | 19309-Z130130-00A0 | Hyu-19309-Z130130-00A0@online |
| E08-12 | Oil Filter Tube | 15208-Z130120-00A0 | Hyu-15208-Z130120-00A0@online |
| E08-13 | Oil Filter | 15220-Z120210-00A0 | Hyu-15220-Z120210-00A0@online |
| E08-15 | Regulator, Voltage | 30060-Z120310-0000 | Hyu-30060-Z120310-0000@online |
| E08-16 | Plug, End | 90722-Z120110-00A0 | Hyu-90722-Z120110-00A0@online |
| E08-17 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| E08-18 | Wire Clip | 90684-Z030120-00A0 | Hyu-90684-Z030120-00A0@online |

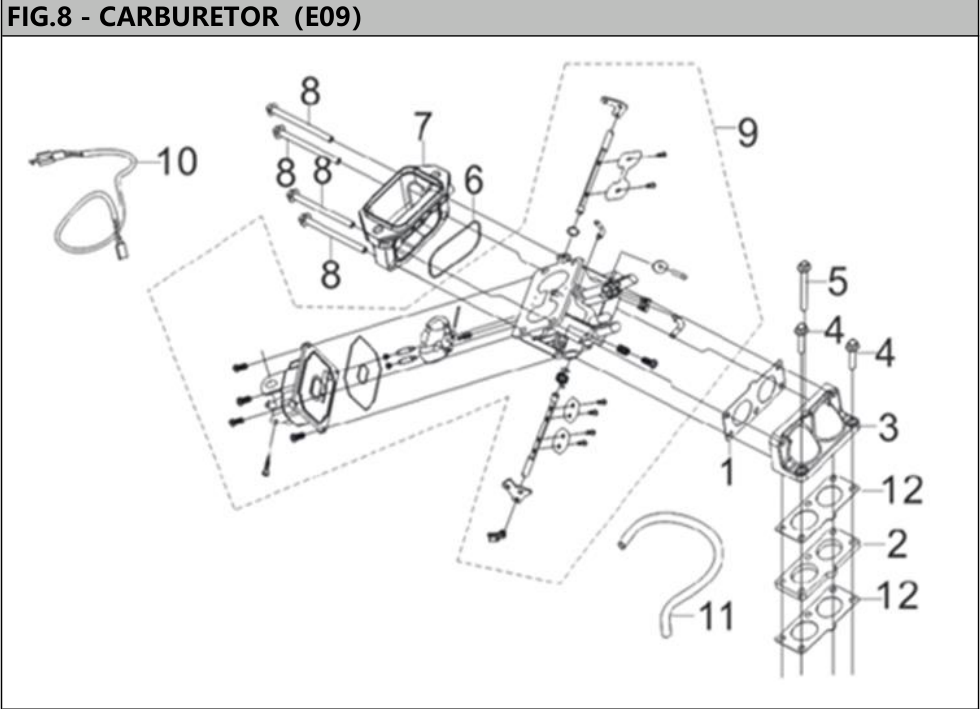

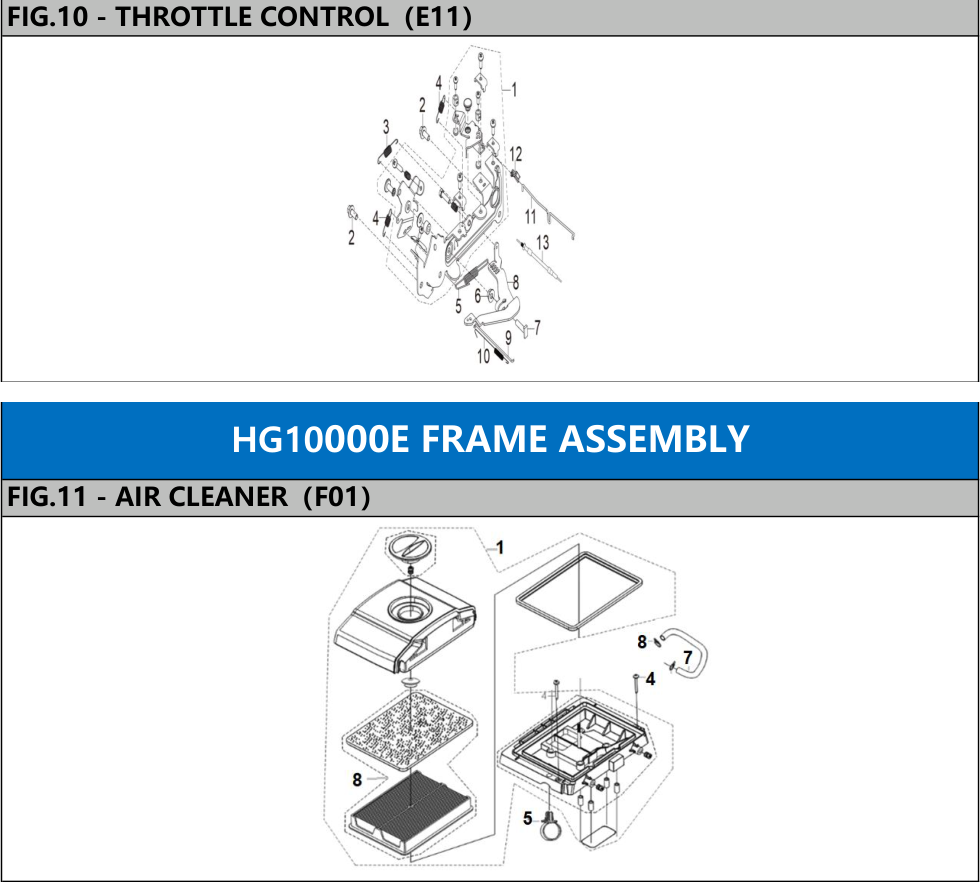

Carburetor
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E09-1 | Carburetor Gasket | 16001-Z130110-00A0 | Hyu-16001-Z130110-00A0@online |
| E09-2 | Insulator Gasket | 16002-Z130120-00A0 | Hyu-16002-Z130120-00A0@online |
| E09-3 | Intake Elbow | 12501-Z120120-00A0 | Hyu-12501-Z120120-00A0@online |
| E09-4 | Bolt | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E09-5 | Bolt | 90007-0665-A1A0 | Hyu-90007-0665-A1A0@online |
| E09-6 | O-Ring Seal | 90692-Z120310-0000 | Hyu-90692-Z120310-0000@online |
| E09-7 | Air Filter Elbow | 17112HZ120130-00A1 | Hyu-17112HZ120130-00A1@online |
| E09-8 | Bolt | 90001-0695-01A0 | Hyu-90001-0695-01A0@online |
| E09-9 | Carburetor | 16100-Z120210-00AA | Hyu-16100-Z120210-00AA@online |
| E09-10 | Fuel Solenoid Wire Harness | 35665-Z130120-0000 | Hyu-35665-Z130120-0000@online |
| E09-11 | Fuel Hose | 90686-Z030310-00M0 | Hyu-90686-Z030310-00M0@online |
| E09-12 | Intake Gasket | 16001-Z130210-00A0 | Hyu-16001-Z130210-00A0@online |
Flywheel, Starter Motor and Ignition Coils
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E10-1 | Ignition Coil LH (Grey) | 30400-Z130510-0000 | Hyu-30400-Z130510-0000@online |
| E10-2 | Ignition Coil RH (Black) | 30400-Z130610-0000 | Hyu-30400-Z130610-0000@online |
| E10-3 | Bolt | 90007-0630-A1A0 | Hyu-90007-0630-A1A0@online |
| E10-4 | Stud | 28001-Z130110-00A0 | Hyu-28001-Z130110-00A0@online |
| E10-5 | Stud | 28001-Z130210-00A0 | Hyu-28001-Z130210-00A0@online |
| E10-6 | Charge Stator | 30140-Z130210-0000 | Hyu-30140-Z130210-0000@online |
| E10-7 | Bolt | 90007-0635-A1A0 | Hyu-90007-0635-A1A0@online |
| E10-8 | Flywheel | 13500-Z120121-00A0 | Hyu-13500-Z120121-00A0@online |
| E10-9 | Washer | 90407-Z130120-0000 | Hyu-90407-Z130120-0000@online |
| E10-10 | Flywheel Bolt | 13502-Z130110-00A0 | Hyu-13502-Z130110-00A0@online |
| E10-11 | Fan | 19352-Z130110-00A0 | Hyu-19352-Z130110-00A0@online |
| E10-12 | Fan Setting | 13515-Z130110-0000 | Hyu-13515-Z130110-0000@online |
| E10-13 | Bolt | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| E10-14 | Pin | 90502-1014-00A0 | Hyu-90502-1014-00A0@online |
| E10-15 | Starter Motor | 30300-Z130121-0000 | Hyu-30300-Z130121-0000@online |
| E10-16 | Bolt | 90001-08B0-01A0 | Hyu-90001-08B0-01A0@online |
| E10-17 | Oil Relay | 37050-Z130110-0000 | Hyu-37050-Z130110-0000@online |
| E10-18 | Bolt | 90001-0610-01A0 | Hyu-90001-0610-01A0@online |
| E10-19 | Diode Line | 30423-Z130110-0000 | Hyu-30423-Z130110-0000@online |
Throttle Control
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| E11-1 | Throttle Control | 16520-Z120410-00A0 | Hyu-16520-Z120410-00A0@online |
| E11-2 | Bolt | 90007-0616-A1A0 | Hyu-90007-0616-A1A0@online |
| E11-3 | Governor Spring | 16063-Z130210-00A0 | Hyu-16063-Z130210-00A0@online |
| E11-4 | Choke Return Spring | 16236-Z130210-00A0 | Hyu-16236-Z130210-00A0@online |
| E11-5 | Governor Spring | 16063-Z120110-00A0 | Hyu-16063-Z120110-00A0@online |
| E11-6 | Nut | 90305-0600-31A0 | Hyu-90305-0600-31A0@online |
| E11-7 | Bolt | 16072-Z010110-00A0 | Hyu-16072-Z010110-00A0@online |
| E11-8 | Governor Arm | 16071-Z130110-00A0 | Hyu-16071-Z130110-00A0@online |
| E11-9 | Governor Link | 16062-Z120110-00A0 | Hyu-16062-Z120110-00A0@online |
| E11-10 | Governor Link Spring | 16012-Z120210-00A0 | Hyu-16012-Z120210-00A0@online |
| E11-11 | Choke Link | 16123-Z120120-00A0 | Hyu-16123-Z120120-00A0@online |
| E11-12 | Choke Link Clip | 16011-Z130120-00A0 | Hyu-16011-Z130120-00A0@online |
Air Cleaner
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F01-1 | Air Cleaner Assembly | 17100-Z120110-00A0 | Hyu-17100-Z120110-00A0@online |
| F01-4 | Screw | 90107-4225-51A0 | Hyu-90107-4225-51A0@online |
| F01-5 | Collar | 90740-Z130120-00A0 | Hyu-90740-Z130120-00A0@online |
| F01-7 | Breather Pipe | 16804-Z120110-00A0 | Hyu-16804-Z120110-00A0@online |
| F01-8 | Air Filter | 17150-Z130110-00A0 | Hyu-17150-Z130110-00A0@online |

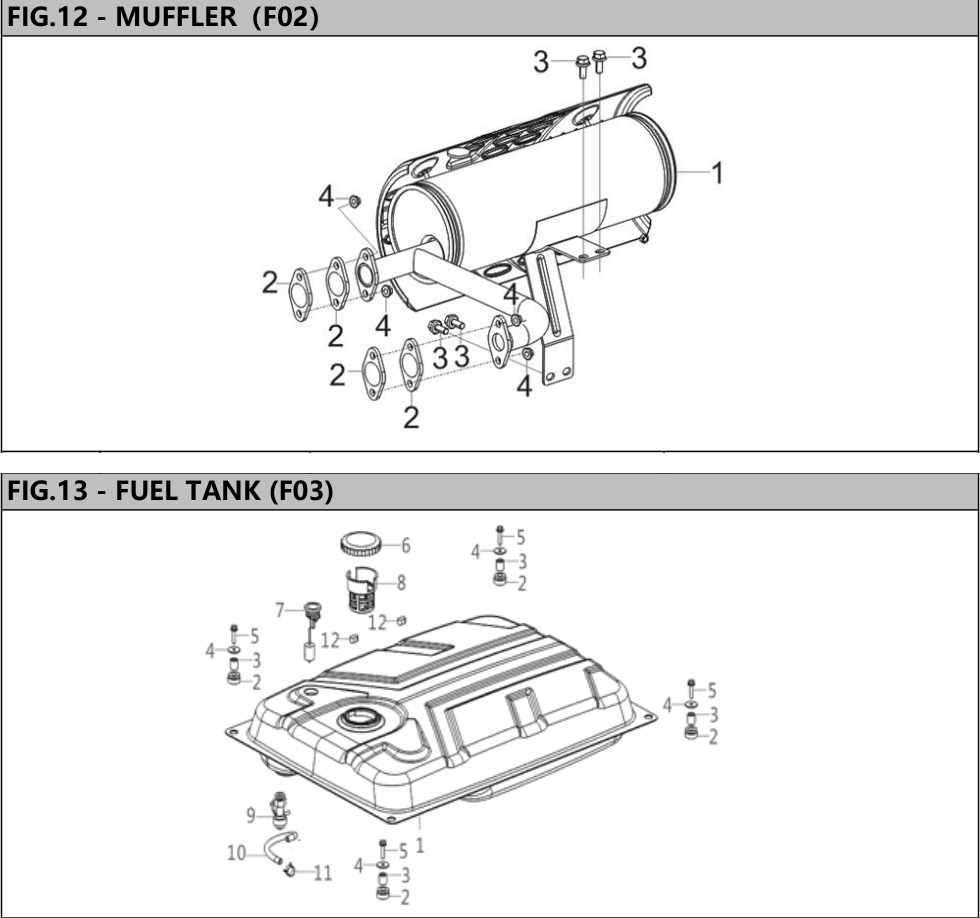

Muffler
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F02-1 | Muffler | 18100-Y4D0120-00A0 | Hyu-18100-Y4D0120-00A0@online |
| F02-2 | Exhaust Gasket | 18001-Z190110-00A0 | Hyu-18001-Z190110-00A0@online |
| F02-3 | Bolt | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| F02-4 | Nut | 90314-Z130120-00A0 | Hyu-90314-Z130120-00A0@online |
Fuel Tank
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F03-1 | Fuel Tank | 16620-Y4D0211-BTA0 | Hyu-16620-Y4D0211-BTA0@online |
| F03-2 | Rubber Mount | 16601-Y020120-0000 | Hyu-16601-Y020120-0000@online |
| F03-3 | Bush | 90683-Y020110-00A0 | Hyu-90683-Y020110-00A0@online |
| F03-4 | Washer | 90408-Y020310-00A0 | Hyu-90408-Y020310-00A0@online |
| F03-5 | Bolt | 90007-0625-A1A0 | Hyu-90007-0625-A1A0@online |
| F03-6 | Fuel Cap | 16730-Y020910-H7A0 | Hyu-16730-Y020910-H7A0@online |
| F03-7 | Fuel Gauge | 37200-Y1Y0110-00A0 | Hyu-37200-Y1Y0110-00A0@online |
| F03-8 | Fuel Strainer | 16652-Y5P0110-00A0 | Hyu-16652-Y5P0110-00A0@online |
| F03-9 | Fuel Valve | 16750-Y400210-0000 | Hyu-16750-Y400210-0000@online |
| F03-10 | Fuel Hose | 90686-Y4D0110-00M0 | Hyu-90686-Y4D0110-00M0@online |
| F03-11 | Clamp | 90685-D095-0EA0 | Hyu-90685-D095-0EA0@online |
| F03-12 | Rubber Gasket | 16602-Y020130-0000 | Hyu-16602-Y020130-0000@online |

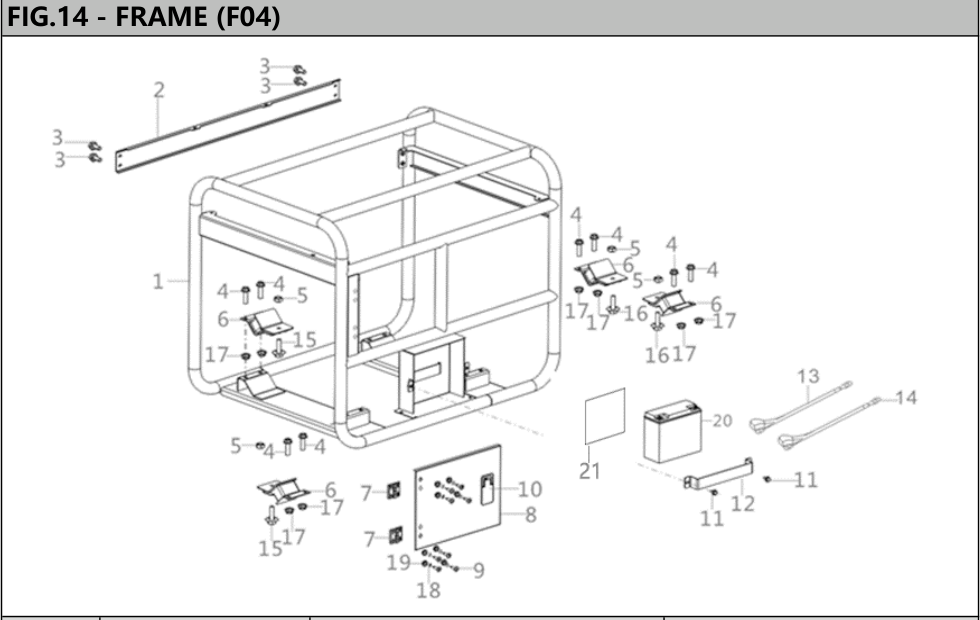

Frame
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F04-1 | Frame | 51100-Y4D0110-H6A0 | Hyu-51100-Y4D0110-H6A0@online |
| F04-2 | Plate | 51170-Y4D0110-H6A0 | Hyu-51170-Y4D0110-H6A0@online |
| F04-3 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| F04-4 | Bolt | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
| F04-5 | Nut | 90303-1000-31A0 | Hyu-90303-1000-31A0@online |
| F04-6 | Mounting | 51005HY4D0110-0000 | Hyu-51005HY4D0110-0000@online |
| F04-7 | Hinge | 51041-Y400110-0000 | Hyu-51041-Y400110-0000@online |
| F04-8 | Cover | 51025-Y4D0110-H6A0 | Hyu-51025-Y4D0110-H6A0@online |
| F04-9 | Bolt | 90104-0516-53 | Hyu-90104-0516-53@online |
| F04-10 | Lock | 93113-Y4D0110-0000 | Hyu-93113-Y4D0110-0000@online |
| F04-11 | Bolt | 90007-0612-A1A0 | Hyu-90007-0612-A1A0@online |
| F04-12 | Battery Clamp | 31142-Y4D0110-H6A0 | Hyu-31142-Y4D0110-H6A0@online |
| F04-13 | Battery Negative Cable | 31112HY4D0110-0000 | Hyu-31112HY4D0110-0000@online |
| F04-14 | Battery Positive Cable | 31114HY4D0110-0000 | Hyu-31114HY4D0110-0000@online |
| F04-15 | Bolt | 90001-1045-01A0 | Hyu-90001-1045-01A0@online |
| F04-16 | Bolt | 90001-1025-01A0 | Hyu-90001-1025-01A0@online |
| F04-17 | Nut | 90327-0800-31A0 | Hyu-90327-0800-31A0@online |
| F04-18 | Washer | 90403-0500-03 | Hyu-90403-0500-03@online |
| F04-19 | Nut | 90303-0500-33 | Hyu-90303-0500-33@online |
| F04-20 | Battery | 31110-Y120110-00A0 | Hyu-31110-Y120110-00A0@online |
| F04-21 | Insulator | 93097-Y400310-00A0 | Hyu-93097-Y400310-00A0@online |
Control Panel and AVR
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F05-1 | Plug | 90722-Y5V0210-00A0 | Hyu-90722-Y5V0210-00A0@online |
| F05-2 | Bolt | 90001-0612-01A0 | Hyu-90001-0612-01A0@online |
| F05-3 | Choke | 16080-Y400110-0000 | Hyu-16080-Y400110-0000@online |
| F05-4 | Control Panel | 35610-Y9U4710-H700 | Hyu-35610-Y9U4710-H700@online |
| F05-5 | Automatic Voltage Regulator | 30060-Y400110-0000 | Hyu-30060-Y400110-0000@online |
| F05-6 | Rear Housing | 35601-Y4D0110-0000 | Hyu-35601-Y4D0110-0000@online |
| F05-7 | Bolt | 90001-0616-01A0 | Hyu-90001-0616-01A0@online |
| F05-8 | 40A Circuit Breaker | 35645-Y560110-0000 | Hyu-35645-Y560110-0000@online |
| F05-9 | Ignition Key Switch | 35160-Y2T0110-0000 | Hyu-35160-Y2T0110-0000@online |
| F05-10 | Positive DC Terminal | 35633-Y020110-0000 | Hyu-35633-Y020110-0000@online |
| F05-11 | DC Circuit Breaker | 31234-Y020110-0000 | Hyu-31234-Y020110-0000@online |
| F05-12 | Negative DC Terminal | 35634-Y020110-0000 | Hyu-35634-Y020110-0000@online |
| F05-13 | Volt Meter | 37114-Y020110-0000 | Hyu-37114-Y020110-0000@online |
| F05-14 | Bridge Rectifier | 35621-Y020110-0000 | Hyu-35621-Y020110-0000@online |
| F05-15 | PTR Circuit Breaker | 31234-YA60310-0000 | Hyu-31234-YA60310-0000@online |
| F05-16 | Earth Terminal | 35629-Y280110-0000 | Hyu-35629-Y280110-0000@online |
| F05-17 | 16A Socket Outlet | 35614-Y020810-0000 | Hyu-35614-Y020810-0000@online |
| F05-18 | PTR Circuit Breaker | 31234-YCK0210-0000 | Hyu-31234-YCK0210-0000@online |
| F05-19 | 32A Socket Outlet | 35614-YCK0110-0000 | Hyu-35614-YCK0110-0000@online |
| F05-20 | Ignition Key | 35552-Y2T0110-00A0 | Hyu-35552-Y2T0110-00A0@online |

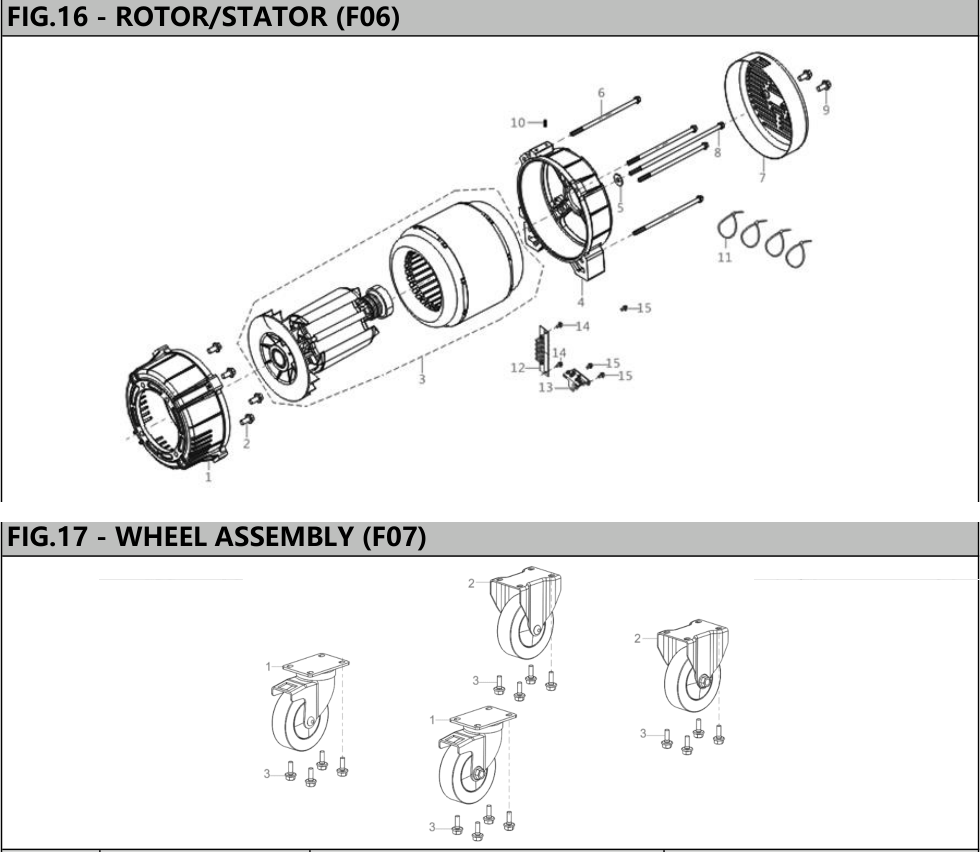

Rotor/Stator
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F06-1 | Flange | 30031-Y4D0110-00A0 | Hyu-30031-Y4D0110-00A0@online |
| F06-2 | Bolt | 90001-Y4D0110-00A0 | Hyu-90001-Y4D0110-00A0@online |
| F06-3 | Alternator | 31300-Y9U0110-0000 | Hyu-31300-Y9U0110-0000@online |
| F06-4 | Rear Housing | 30021-Y4D0110-00A0 | Hyu-30021-Y4D0110-00A0@online |
| F06-5 | Washer | 90408-Y030110-00A0 | Hyu-90408-Y030110-00A0@online |
| F06-6 | Stator Bolt | 30049-Y490110-00A0 | Hyu-30049-Y490110-00A0@online |
| F06-7 | Rear Cover | 30022-Y4D0110-H7A0 | Hyu-30022-Y4D0110-H7A0@online |
| F06-8 | Rotor Bolt | 30049-Y030120-00A0 | Hyu-30049-Y030120-00A0@online |
| F06-9 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-10 | Screw | 90128-0612-A6 | Hyu-90128-0612-A6@online |
| F06-11 | Cable Ties | 90727-Y040110-00A1 | Hyu-90727-Y040110-00A1@online |
| F06-12 | Terminal Block | 31303-Y4D0110-0000 | Hyu-31303-Y4D0110-0000@online |
| F06-13 | Brush Assembly | 31320-Y4D0110-00A0 | Hyu-31320-Y4D0110-00A0@online |
| F06-14 | Bolt | 90001-0516-01A0 | Hyu-90001-0516-01A0@online |
| F06-15 | Bolt | 90001-0512-01A0 | Hyu-90001-0512-01A0@online |
Wheel Assembly
| Ref | Description | Part Number | Cutsmart SKU |
|---|---|---|---|
| F07-1 | Castor Wheel | 40060-Y9V0110-0000 | Hyu-40060-Y9V0110-0000@online |
| F07-2 | Fixed Wheel | 40091HY9V0110-0000 | Hyu-40091HY9V0110-0000@online |
| F07-3 | Bolt | 90001-0816-01A0 | Hyu-90001-0816-01A0@online |
