Lawn Star LS 2640 CS Trimmer Petrol Trimmer IPL

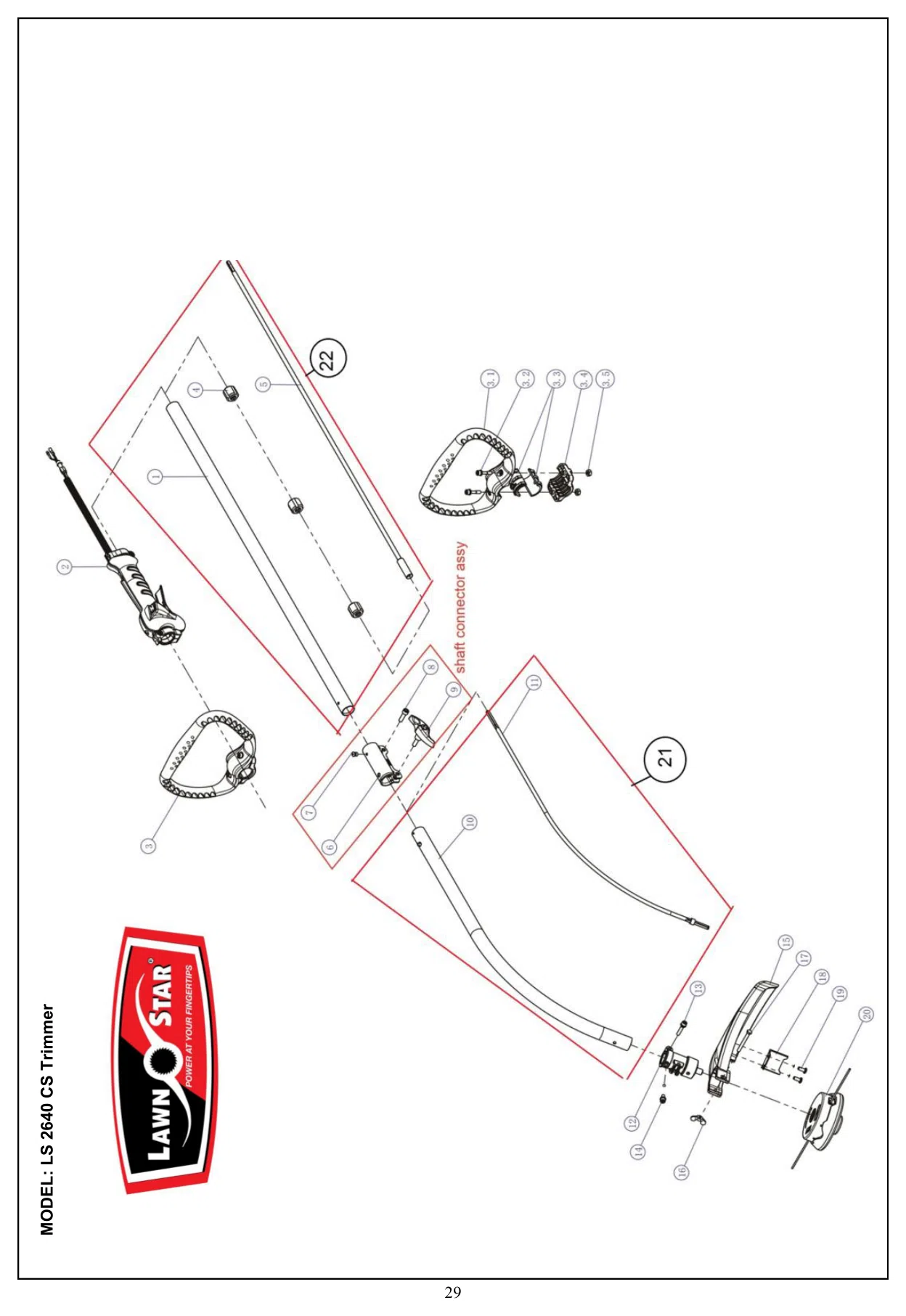

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | aluminium working shaft φ24x760 | Refer to 22 Resolves to: PA-264-60 | PA-264-60-Online | 1 |
| 2 | rear handle S | P-264-61 | P-264-61-Online | 1 |
| 3 | front handle assy | P-264-62 | P-264-62-Online | 1 |
| 3.1 | front handle | P-264-63 | P-264-63-Online | 1 |
| 3.2 | M5x25 screw | P-264-64 | P-264-64-Online | 2 |
| 3.3 | rubber | P-264-65 | P-264-65-Online | 2 |
| 3.4 | cover | P-264-66 | P-264-66-Online | 1 |
| 3.5 | M5 nut | P-264-67 | P-264-67-Online | 2 |
| 4 | oil bearing assy | Refer to 22 Resolves to: PA-264-60 | PA-264-60-Online | 3 |
| 5 | hardness axes7x806 | Refer to 22 Resolves to: PA-264-60 | PA-264-60-Online | 1 |
| 6 | shaft connector | P-264-70 | P-264-70-Online | 1 |
| 7 | bland rivets | P-264-71 | P-264-71-Online | 1 |
| 8 | M6x20 screw | P-264-72 | P-264-72-Online | 1 |
| 9 | knob | P-264-73 | P-264-73-Online | 1 |
| 10 | curved shaft assyφ24x610 | Refer to 21 Resolves to: PA-264-74 | PA-264-74-Online | 1 |
| 11 | flexible shaft | Refer to 21 Resolves to: PA-264-74 | PA-264-74-Online | 1 |
| 12 | nylon cutter connector | P-264-76 | P-264-76-Online | 1 |
| 14 | M5x12 screw | P-264-77 | P-264-77-Online | 1 |
| 15 | curved shaft safty guard | P-264-78 | P-264-78-Online | 1 |
| 16 | M5 butterfly nut | P-264-79 | P-264-79-Online | 1 |
| 17 | M5x45 nut | P-264-80 | P-264-80-Online | 1 |
| 18 | nylon line knife | P-264-81 | P-264-81-Online | 1 |
| 19 | ST4.8x12-H-F screw | P-264-82 | P-264-82-Online | 2 |
| 20 | nylon head | P-264-83 | P-264-83-Online | 1 |
| 21 | Curved tube assemble(10,11) | PA-264-74 | PA-264-74-Online | |
| 22 | Upper tube assembly (1, 4, 5) | PA-264-60 | PA-264-60-Online |
